Cf intro for spring devs
This document provides an introduction to Cloud Foundry, an open platform as a service (PaaS) that allows developers to deploy and scale applications in seconds without locking themselves into a single cloud. The presentation covers what PaaS is, the benefits of Cloud Foundry including portability and avoiding vendor lock-in, and demos of deploying applications to Cloud Foundry. It also discusses how Cloud Foundry works under the hood and how Spring makes development on Cloud Foundry easy.
Cf intro for spring devs
- 1. Introduction to CloudFoundry for Spring & Java Developers Eric BOTTARD Developer Advocate @ebottard / ebottard@vmware.com
- 2. The Open Platform as a Service Deploy and scale applications in seconds, without locking yourself into a single cloud CONFIDENTIAL
- 3. Eric BOTTARD § DeveloperAdvocate at VMware § @ebottard § ebottard@vmware.com CONFIDENTIAL

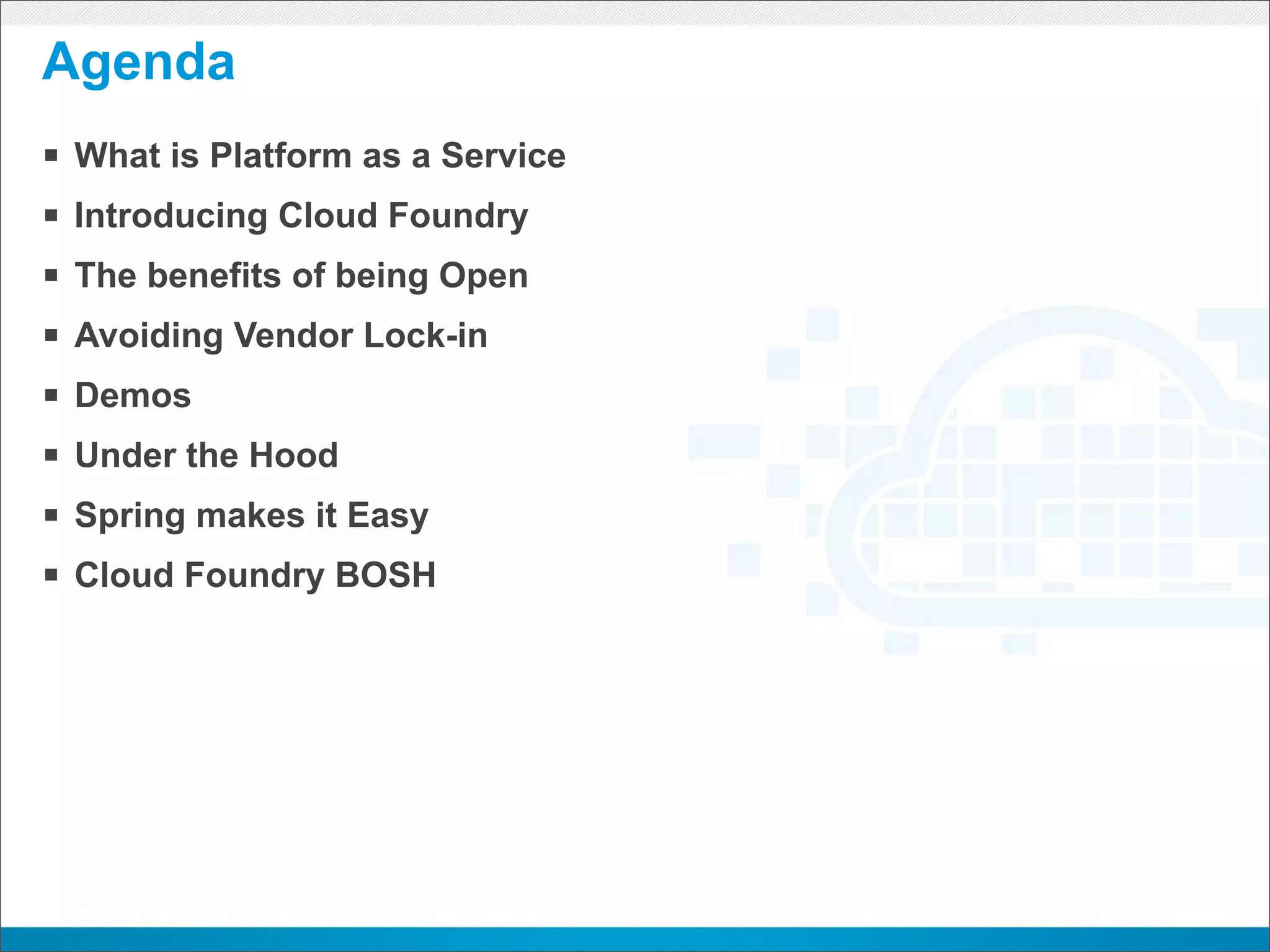

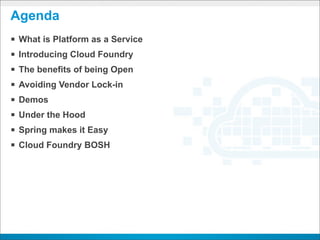

- 4. Agenda § What is Platform as a Service § Introducing Cloud Foundry § The benefits of being Open § Avoiding Vendor Lock-in § Demos § Under the Hood § Spring makes it Easy § Cloud Foundry BOSH CONFIDENTIAL
- 5. Platform as aService

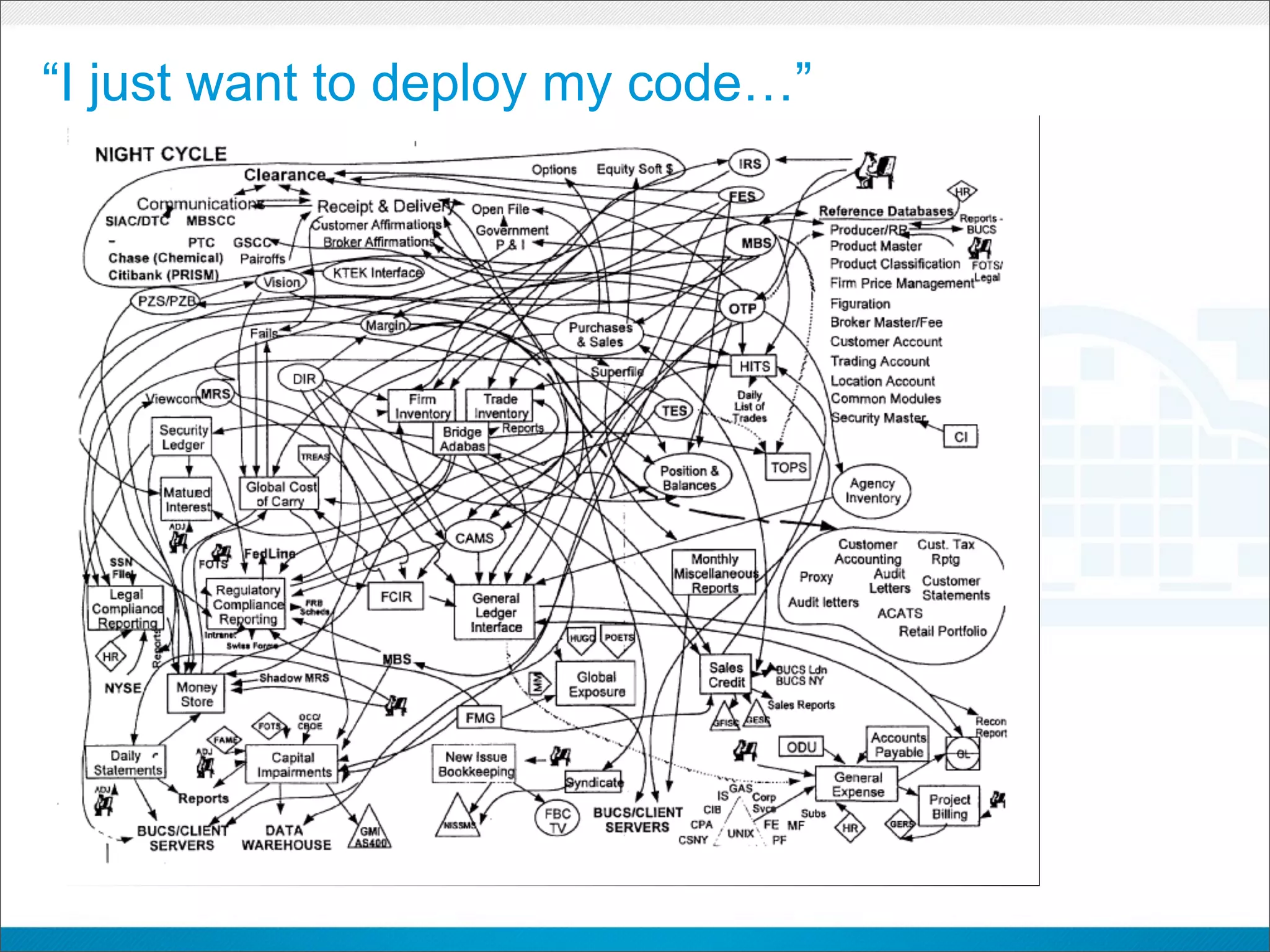

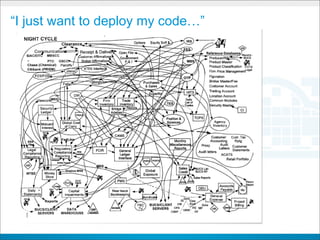

- 6. “I just wantto deploy my code…”

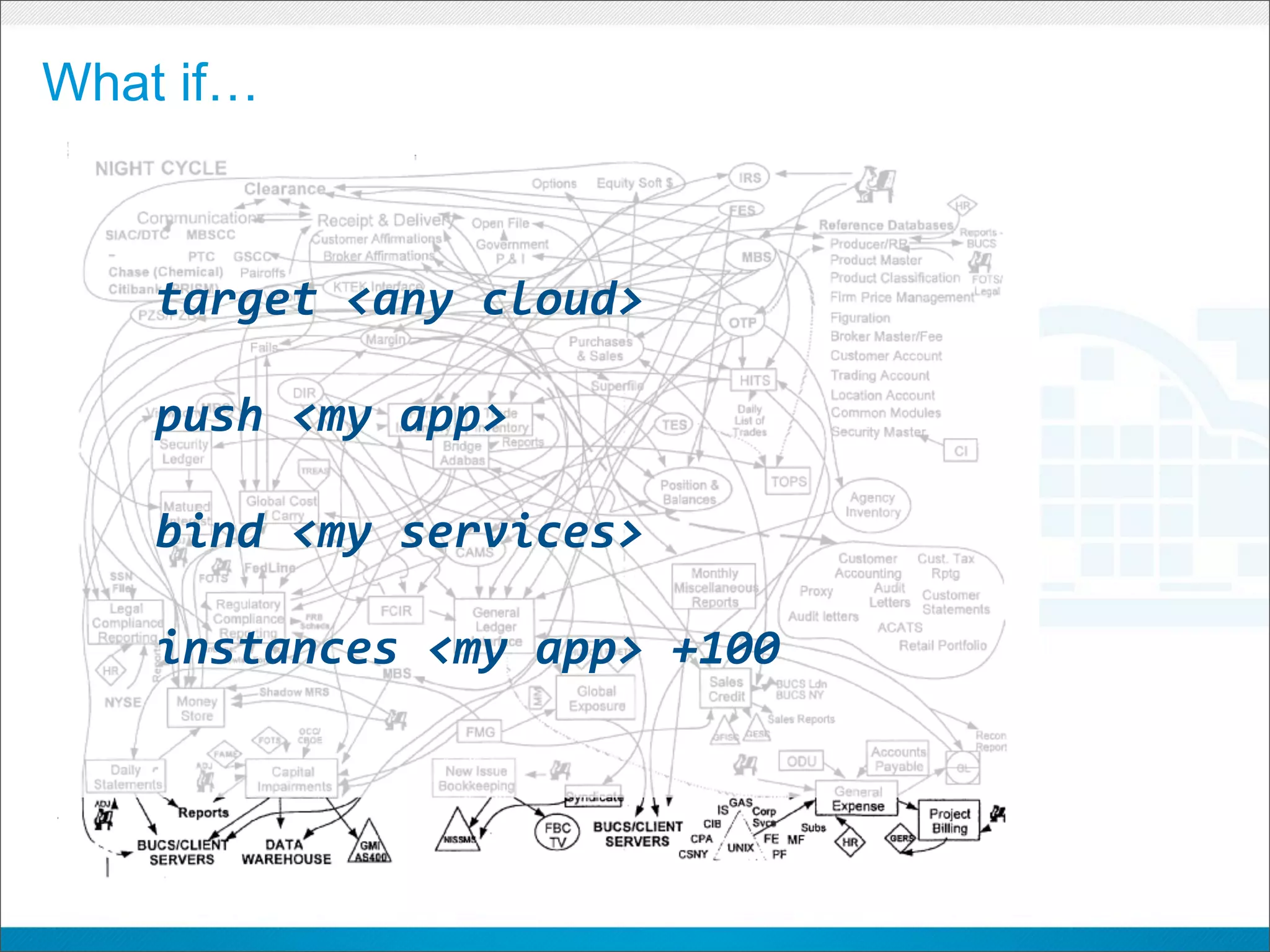

- 7. What if… target <any cloud> push <my app> bind <my services> instances <my app> +100

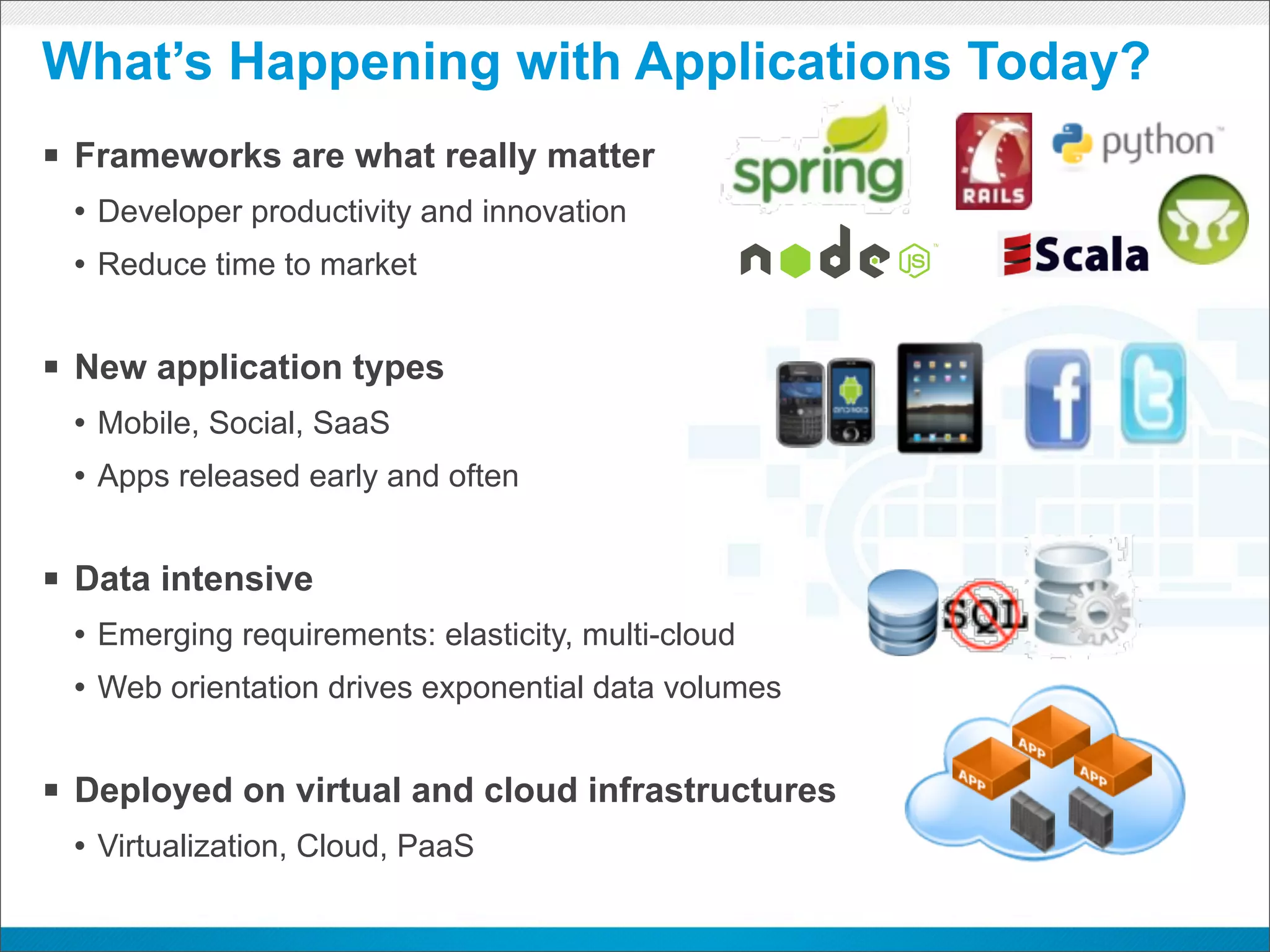

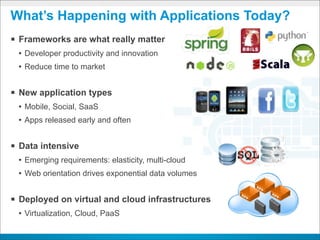

- 8. What’s Happening withApplications Today? § Frameworks are what really matter • Developer productivity and innovation • Reduce time to market § New application types • Mobile, Social, SaaS • Apps released early and often § Data intensive • Emerging requirements: elasticity, multi-cloud • Web orientation drives exponential data volumes § Deployed on virtual and cloud infrastructures • Virtualization, Cloud, PaaS CONFIDENTIAL

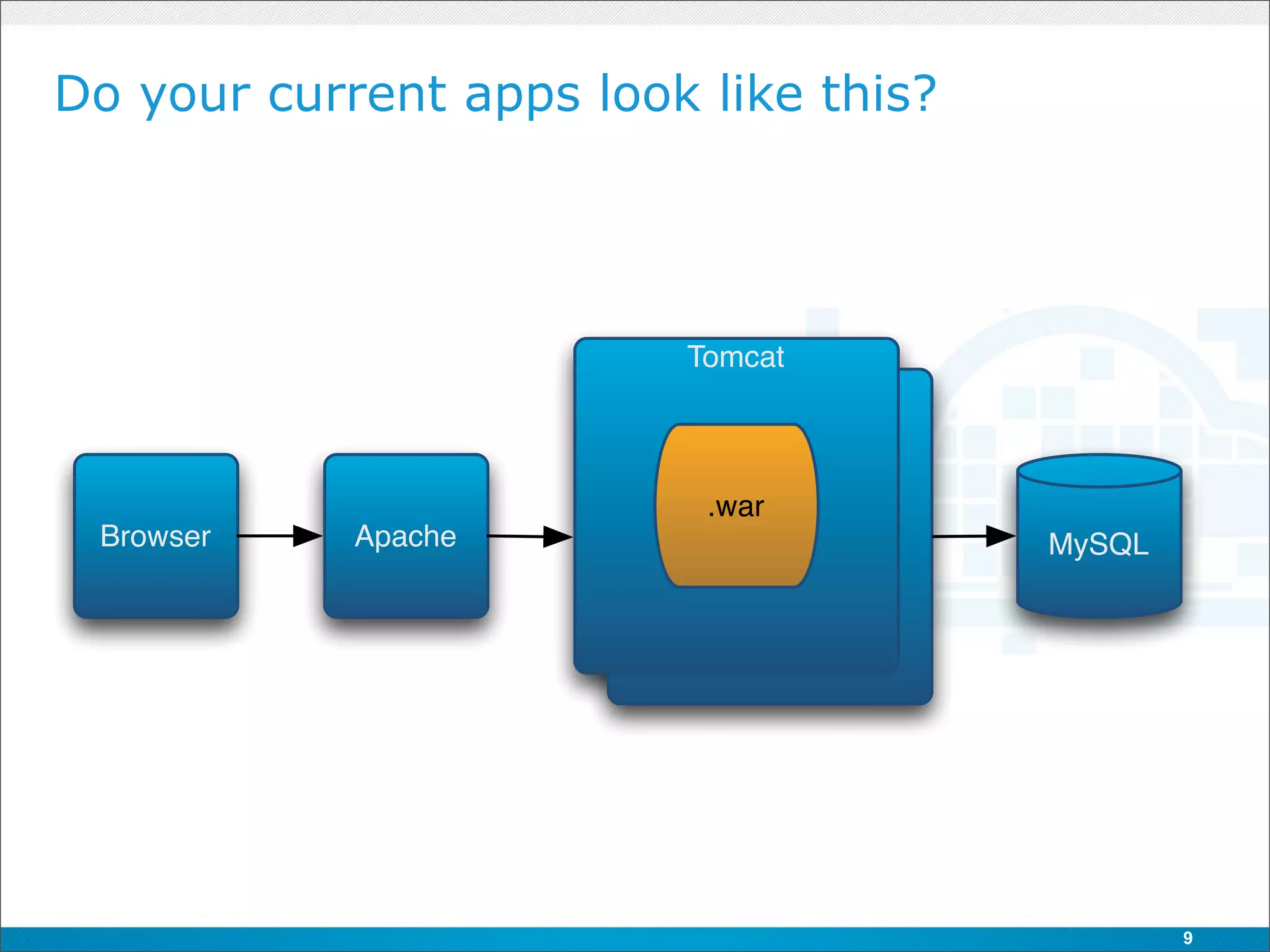

- 9. Do your currentapps look like this? Tomcat .war Browser Apache MySQL 9

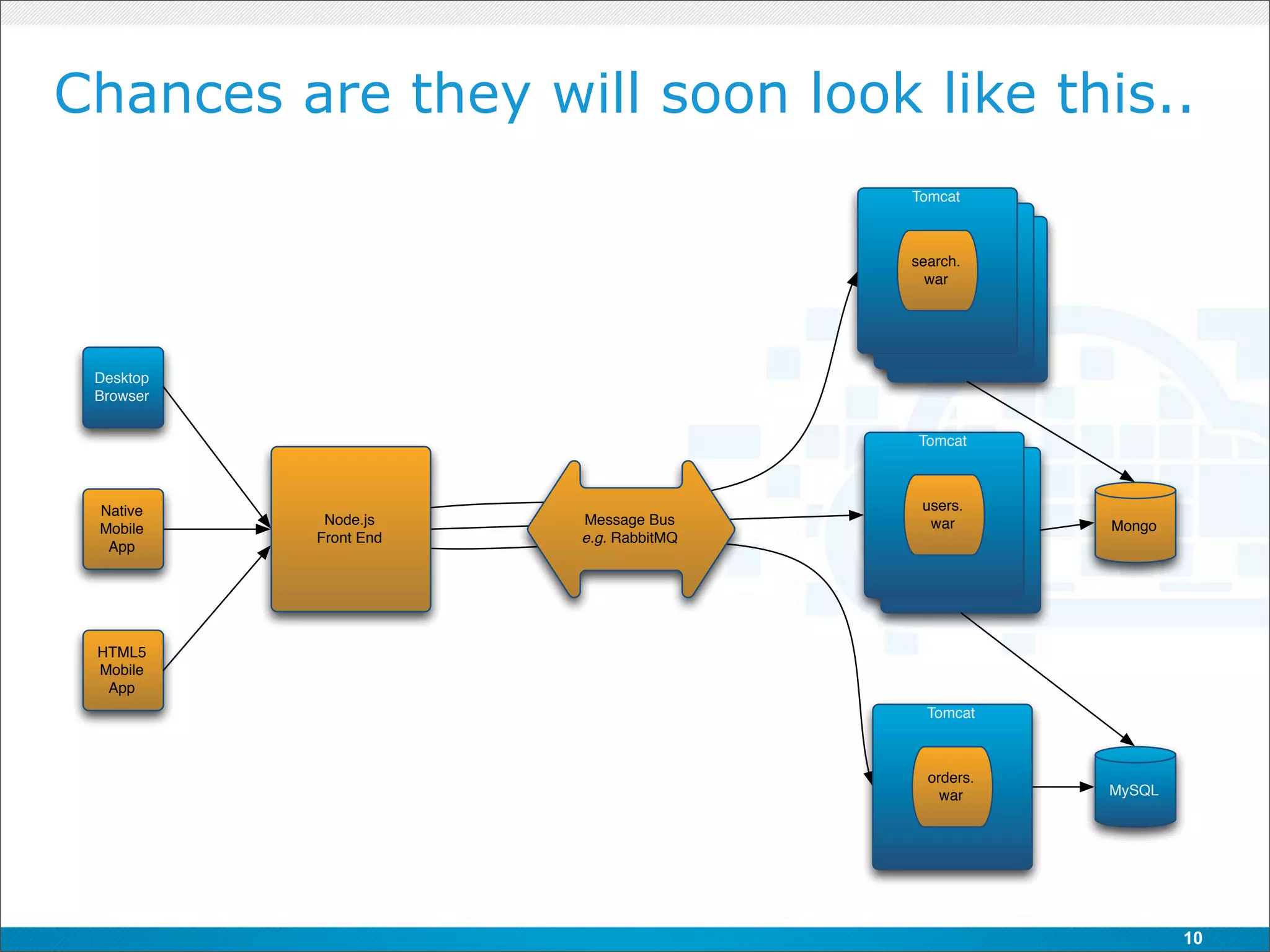

- 10. Chances are theywill soon look like this.. Tomcat search. war Desktop Browser Tomcat Native users. Node.js Message Bus war Mongo Mobile Front End e.g. RabbitMQ App HTML5 Mobile App Tomcat orders. war MySQL 10

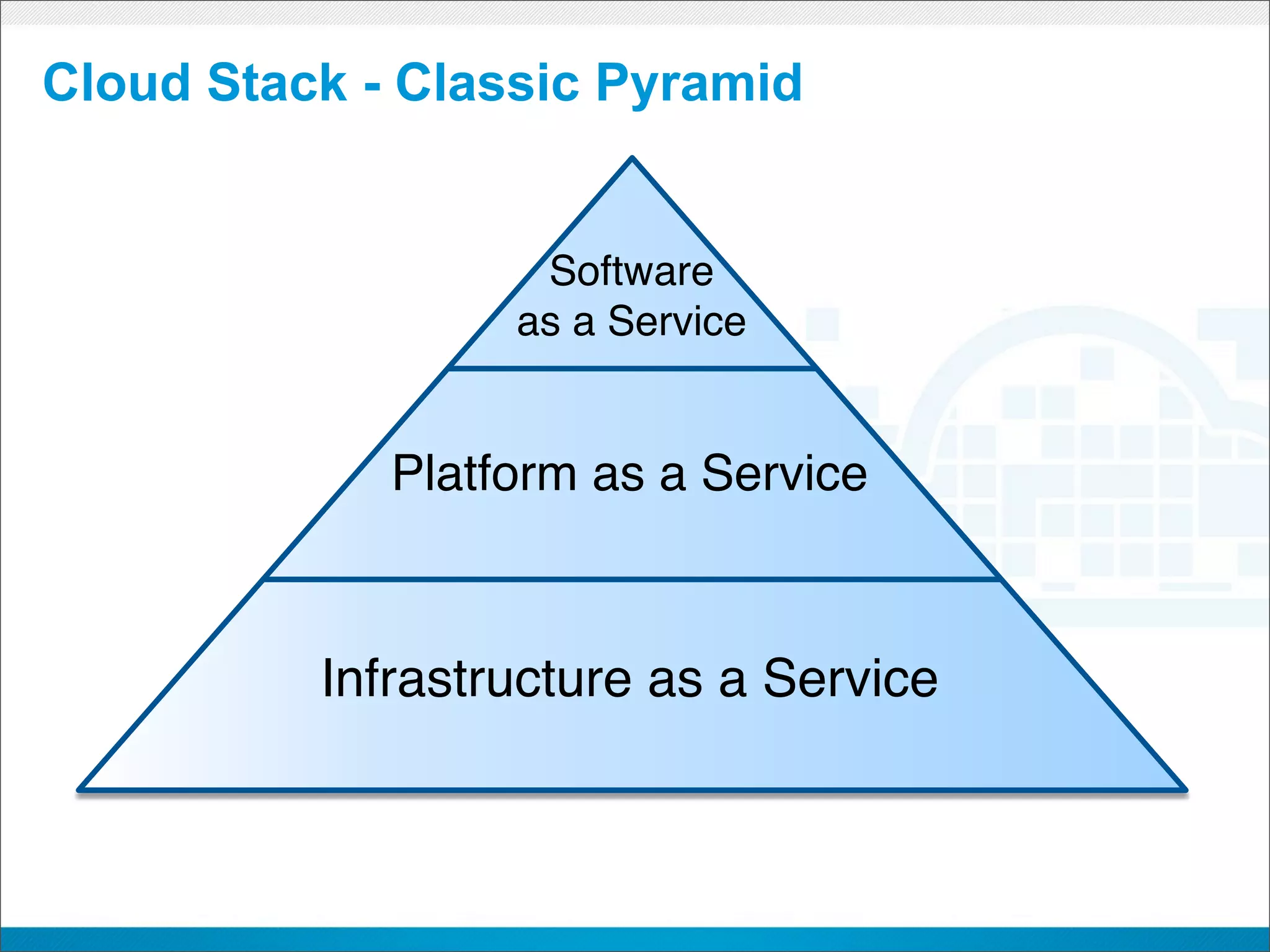

- 11. Cloud Stack -Classic Pyramid Software as a Service Platform as a Service Infrastructure as a Service

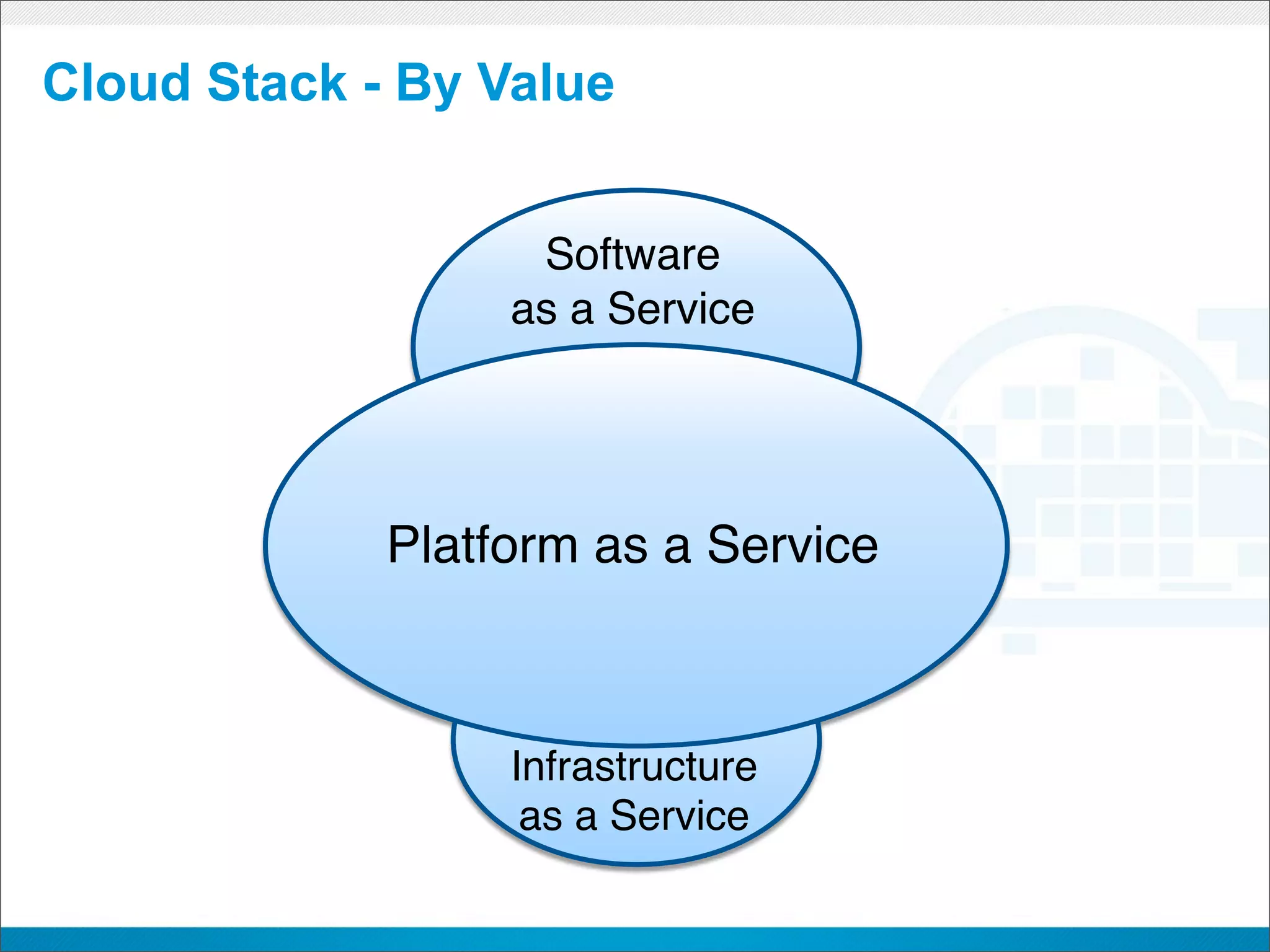

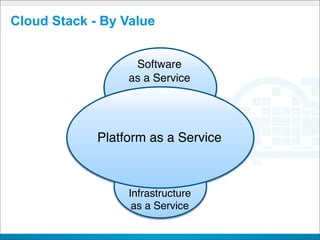

- 12. Cloud Stack -By Value Software as a Service Platform as a Service Infrastructure as a Service
- 13.

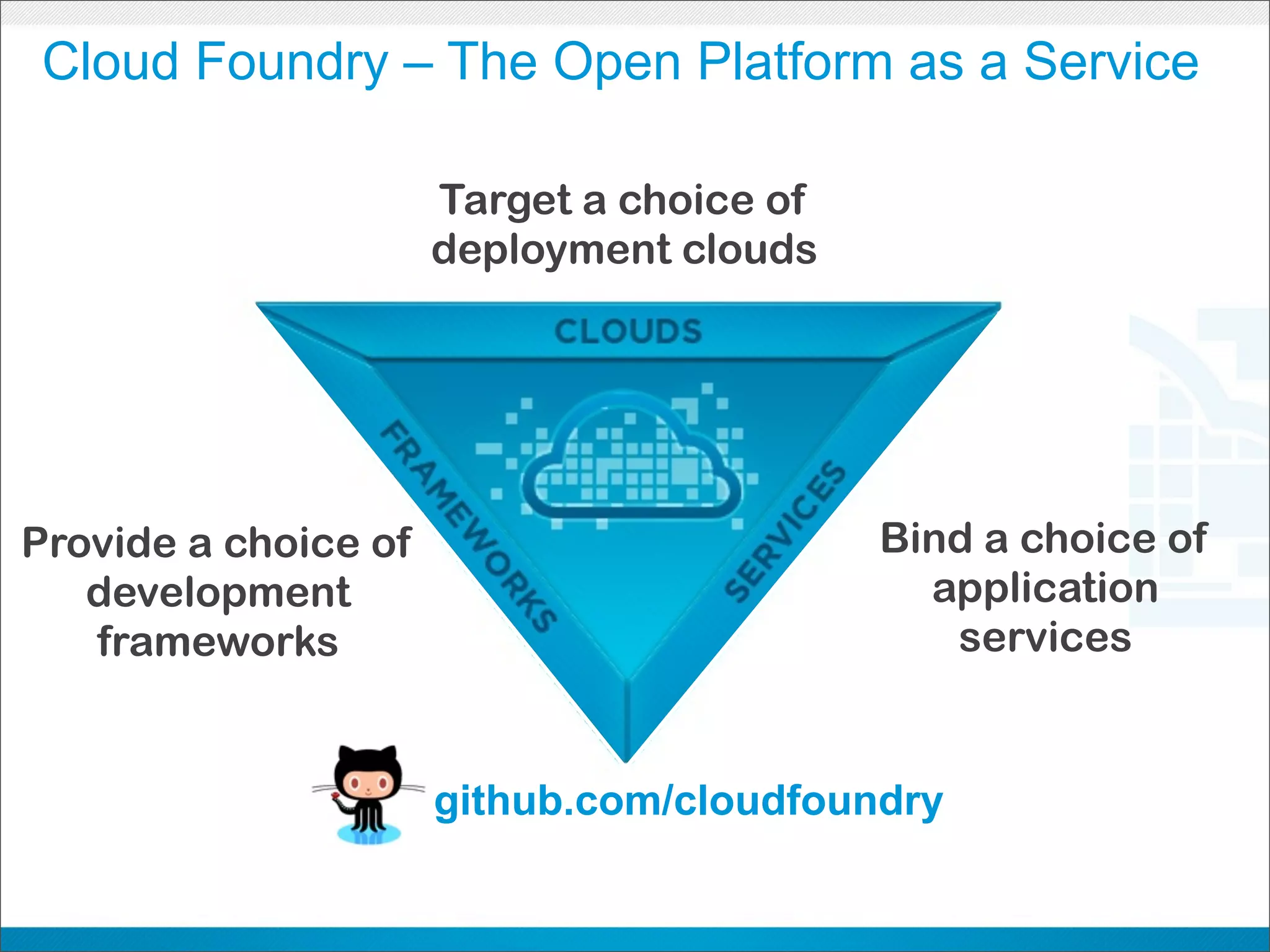

- 14. Cloud Foundry –The Open Platform as a Service Target a choice of deployment clouds Provide a choice of Bind a choice of development application frameworks services github.com/cloudfoundry CONFIDENTIAL

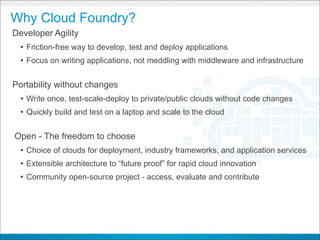

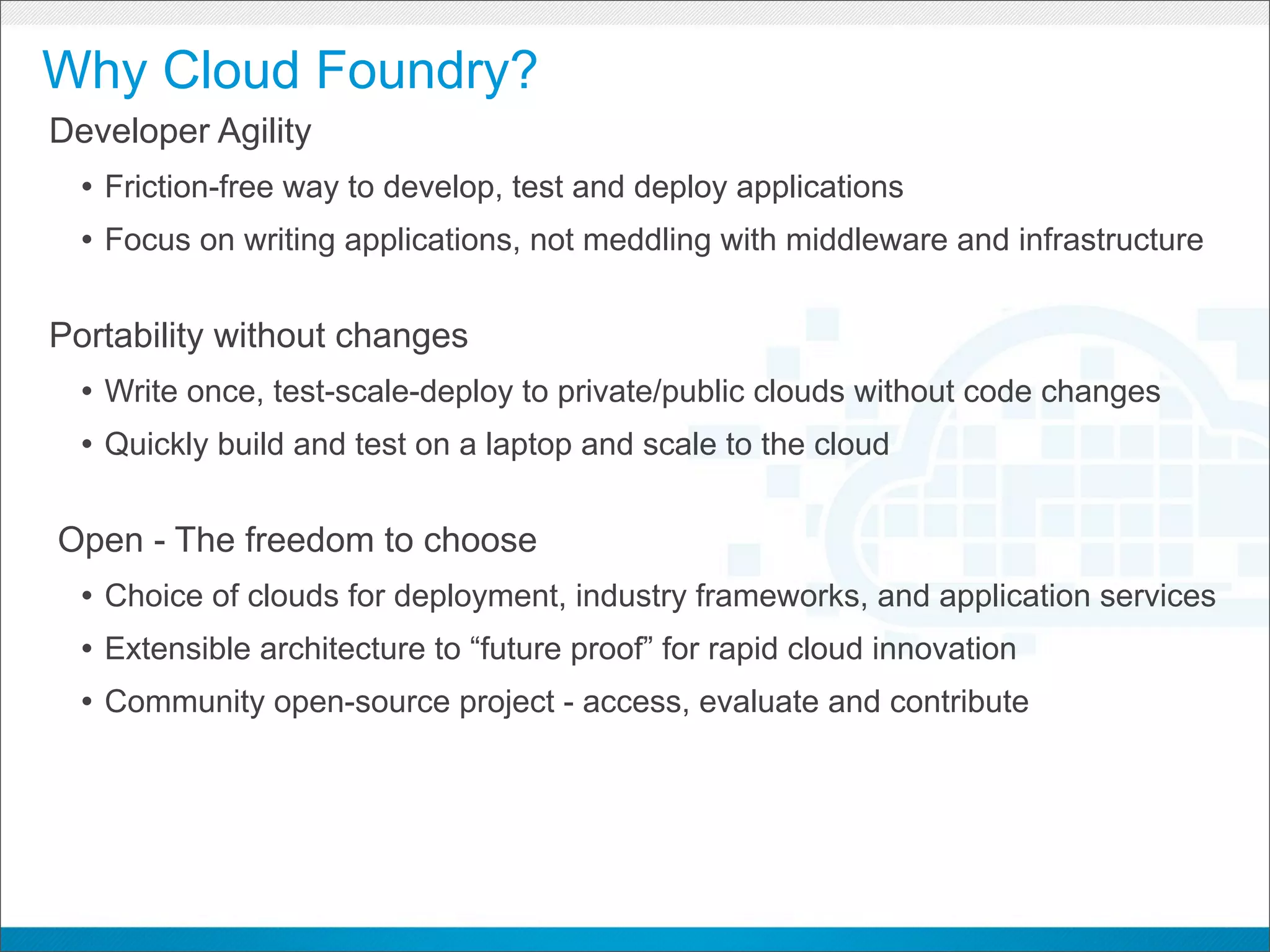

- 15. Why Cloud Foundry? DeveloperAgility • Friction-free way to develop, test and deploy applications • Focus on writing applications, not meddling with middleware and infrastructure Portability without changes • Write once, test-scale-deploy to private/public clouds without code changes • Quickly build and test on a laptop and scale to the cloud Open - The freedom to choose • Choice of clouds for deployment, industry frameworks, and application services • Extensible architecture to “future proof” for rapid cloud innovation • Community open-source project - access, evaluate and contribute CONFIDENTIAL

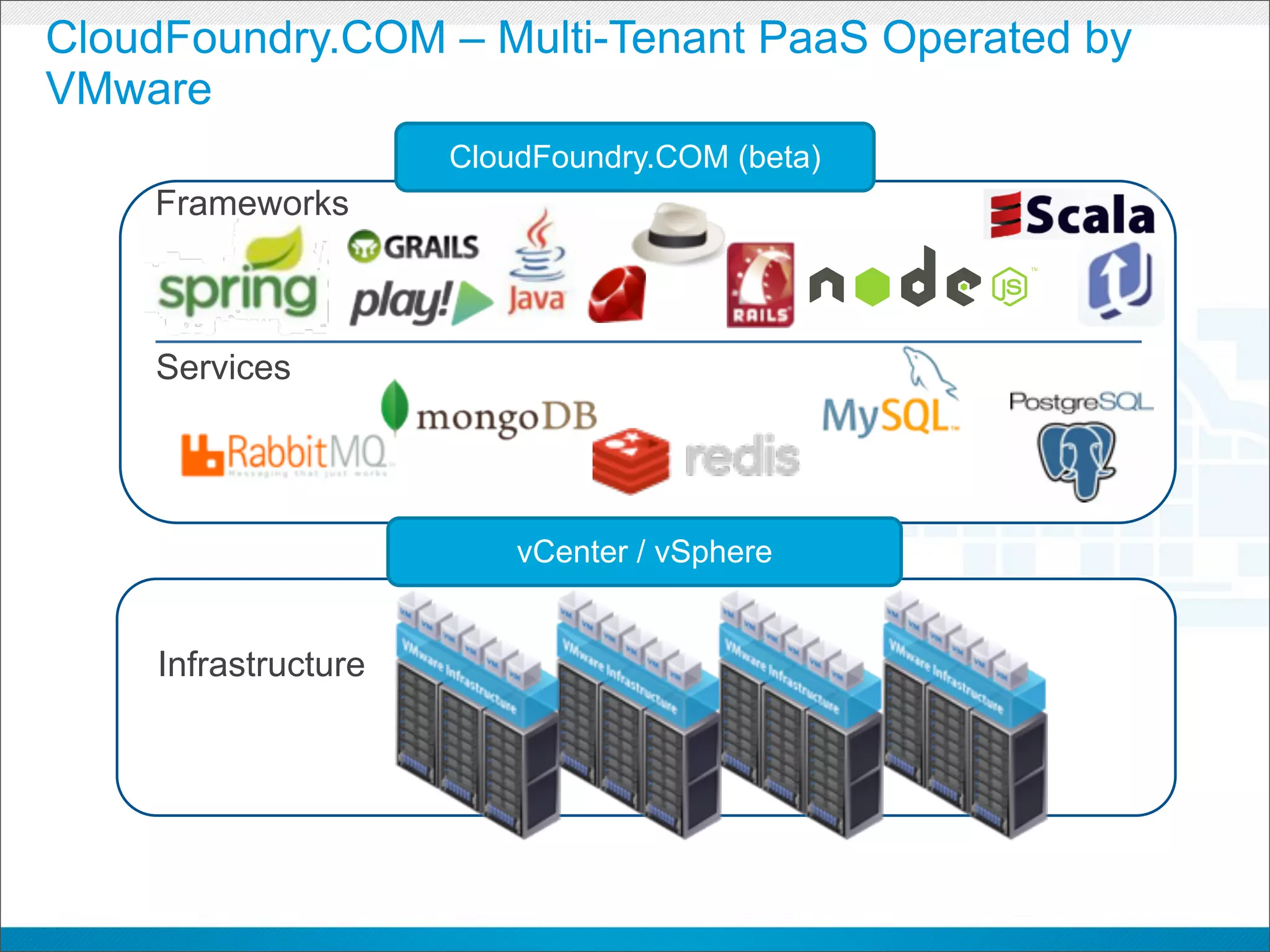

- 16. CloudFoundry.COM – Multi-TenantPaaS Operated by VMware CloudFoundry.COM (beta) Frameworks Services vCenter / vSphere Infrastructure

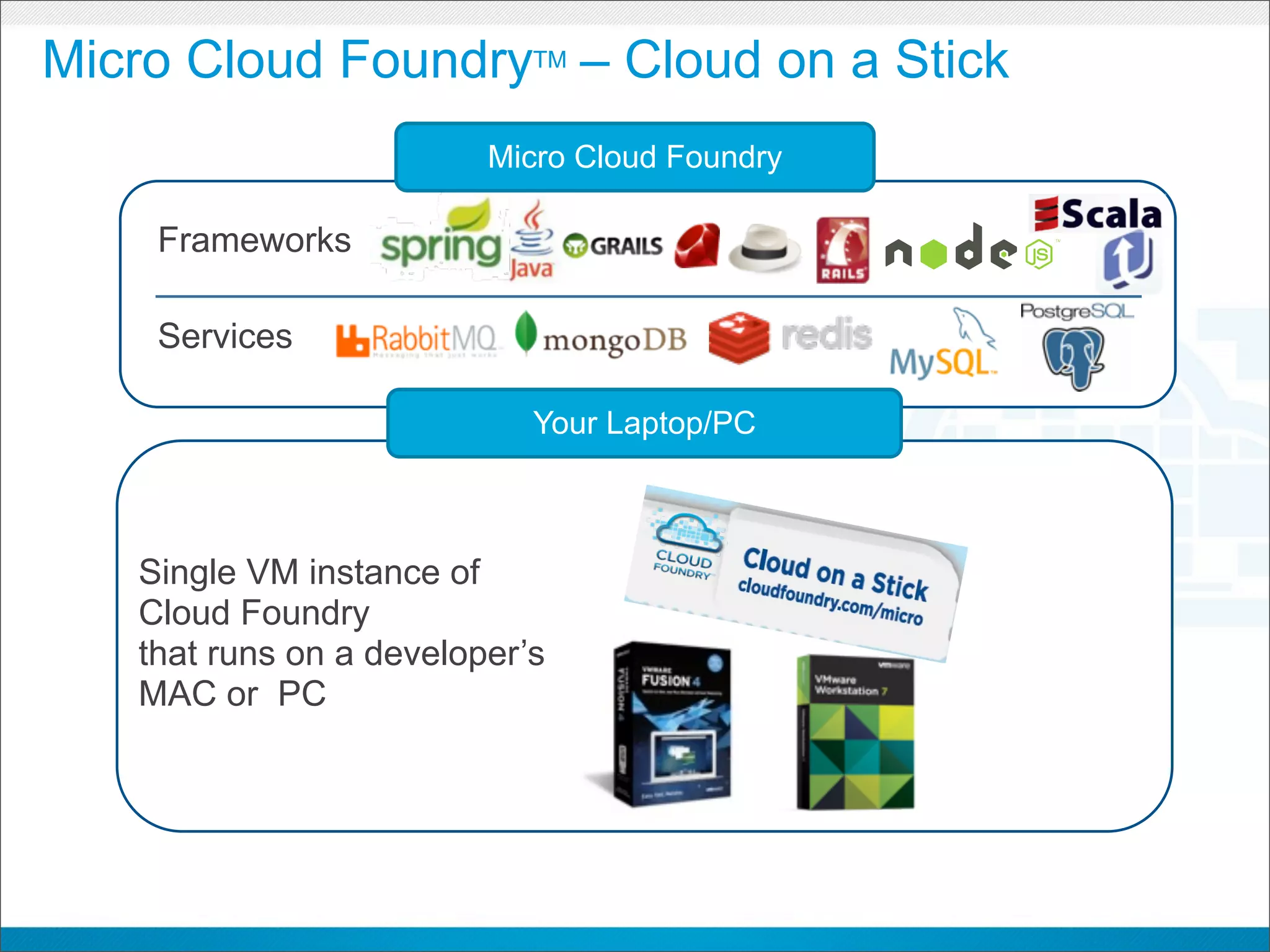

- 17. Micro Cloud FoundryTM– Cloud on a Stick Micro Cloud Foundry Frameworks Services Your Laptop/PC Single VM instance of Cloud Foundry that runs on a developer’s MAC or PC CONFIDENTIAL
- 18. The Benefits ofBeing

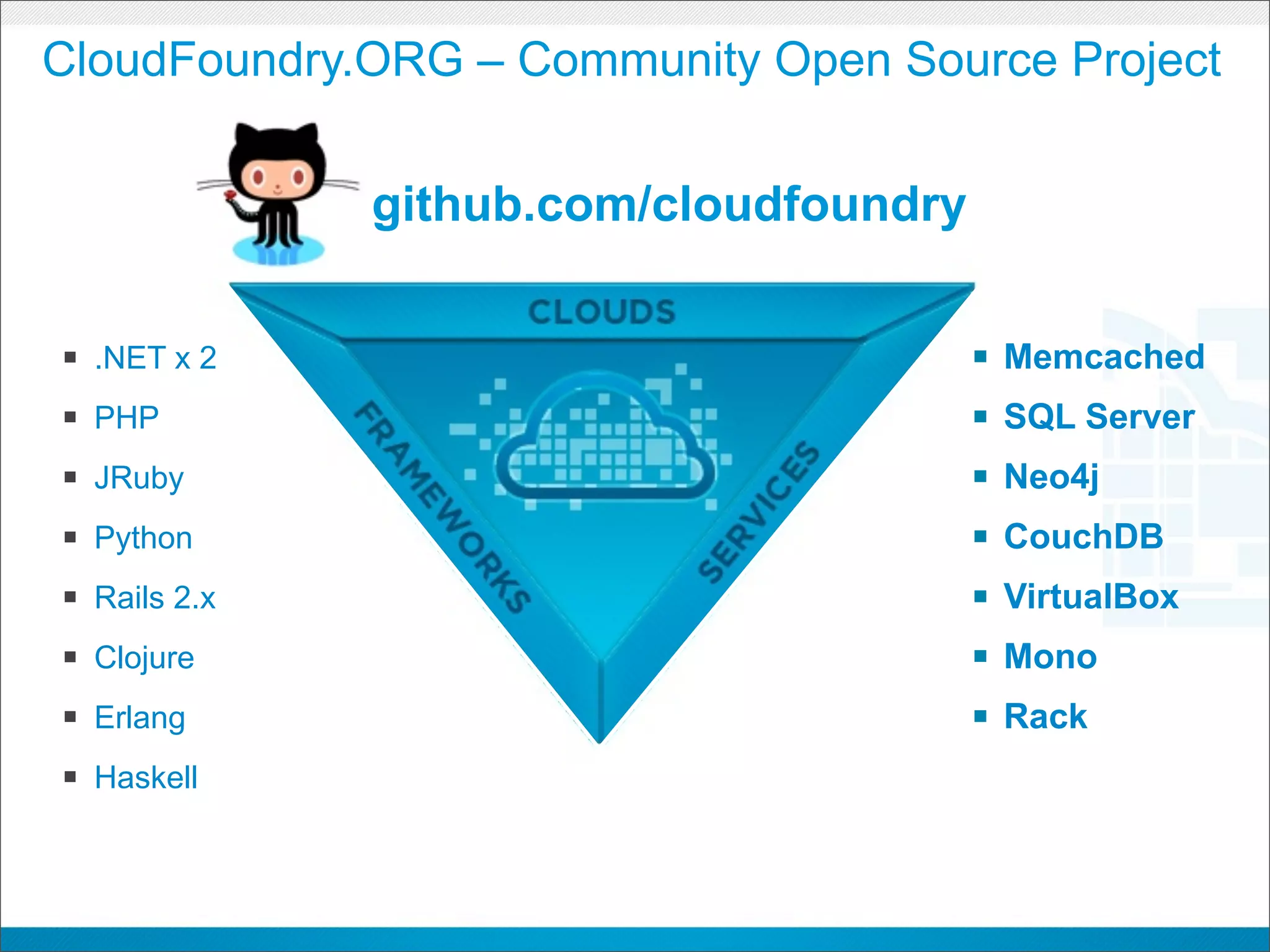

- 19. CloudFoundry.ORG – CommunityOpen Source Project github.com/cloudfoundry § .NET x 2 § Memcached § PHP § SQL Server § JRuby § Neo4j § Python § CouchDB § Rails 2.x § VirtualBox § Clojure § Mono § Erlang § Rack § Haskell CONFIDENTIAL

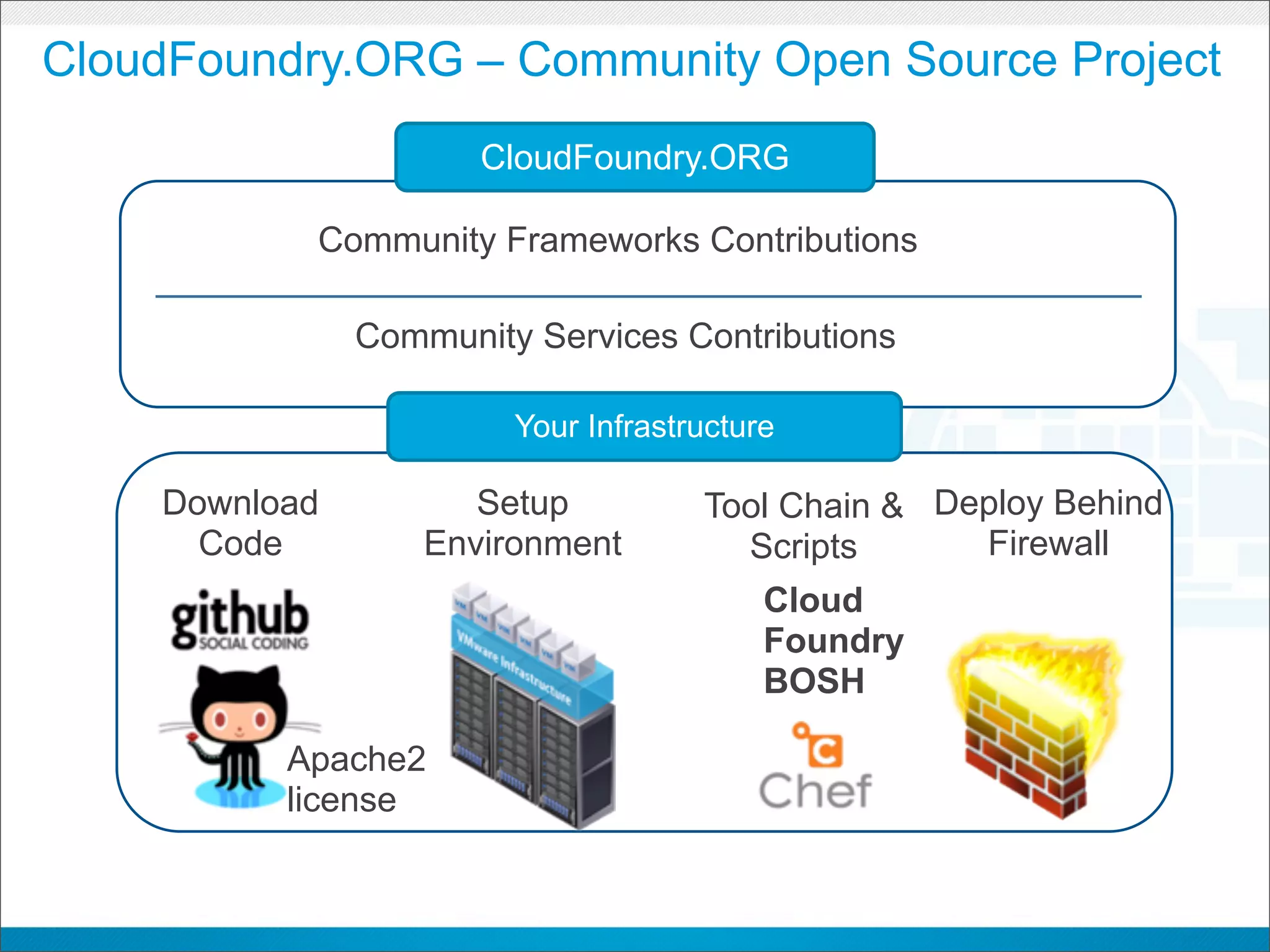

- 20. CloudFoundry.ORG – CommunityOpen Source Project CloudFoundry.ORG Community Frameworks Contributions Community Services Contributions Your Infrastructure Download Setup Tool Chain & Deploy Behind Code Environment Scripts Firewall Cloud Foundry BOSH Apache2 license CONFIDENTIAL

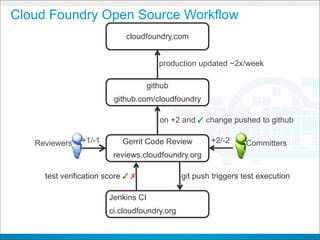

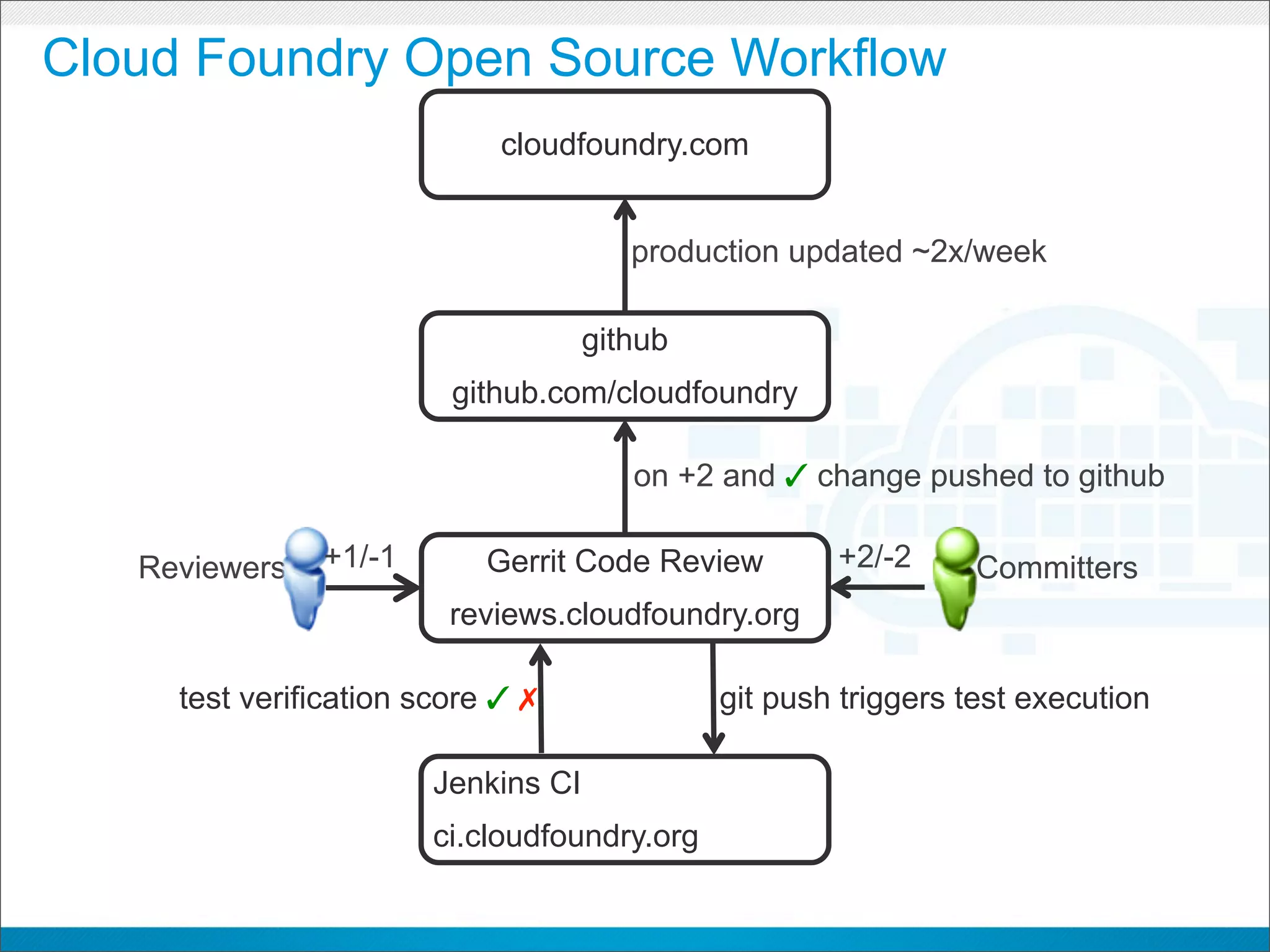

- 21. Cloud Foundry OpenSource Workflow cloudfoundry.com production updated ~2x/week github github.com/cloudfoundry on +2 and ✓ change pushed to github Reviewers +1/-1 Gerrit Code Review +2/-2 Committers reviews.cloudfoundry.org test verification score ✓ ✗ git push triggers test execution Jenkins CI ci.cloudfoundry.org 21 CONFIDENTIAL

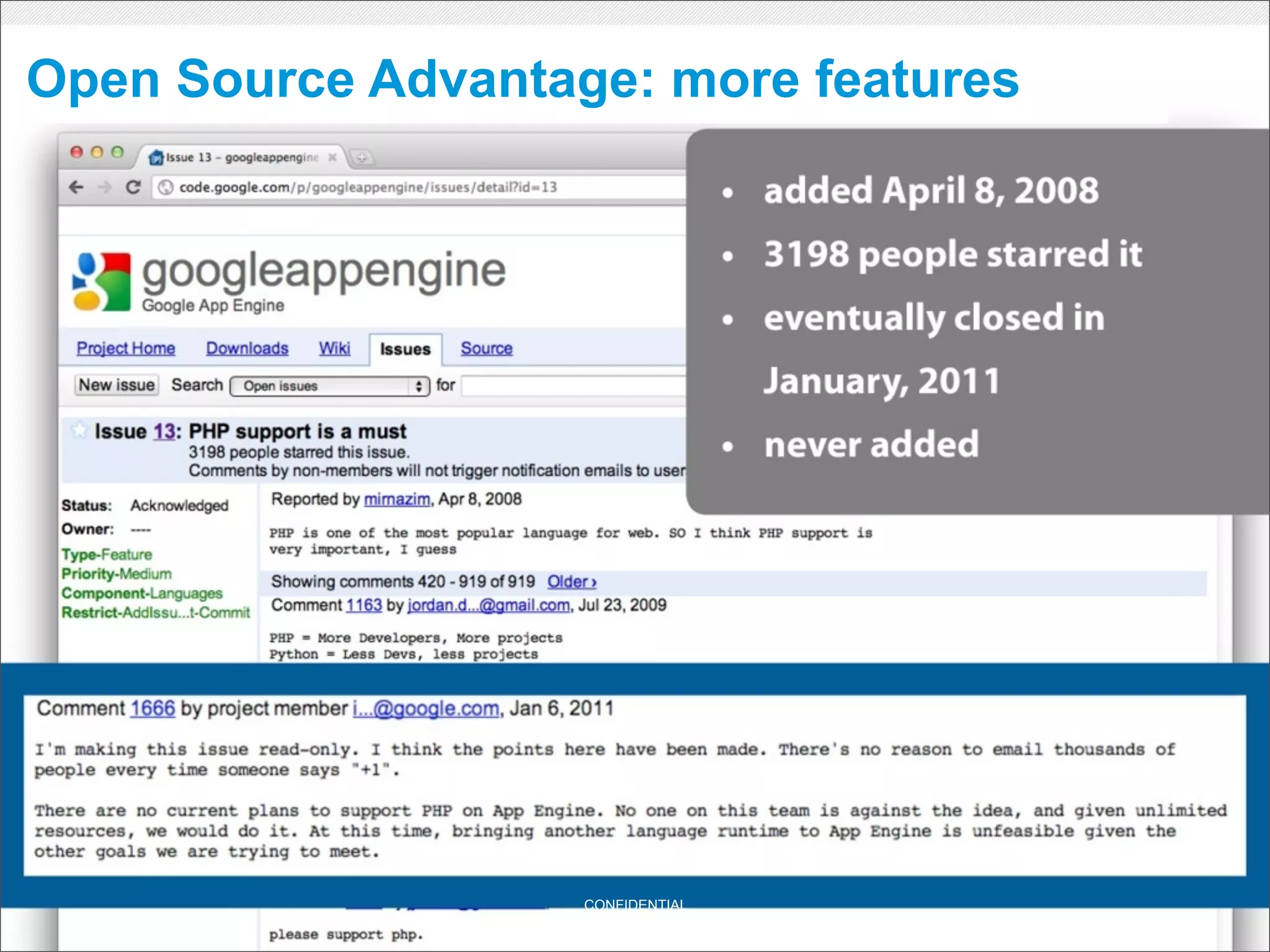

- 22. Open Source Advantage:more features CONFIDENTIAL

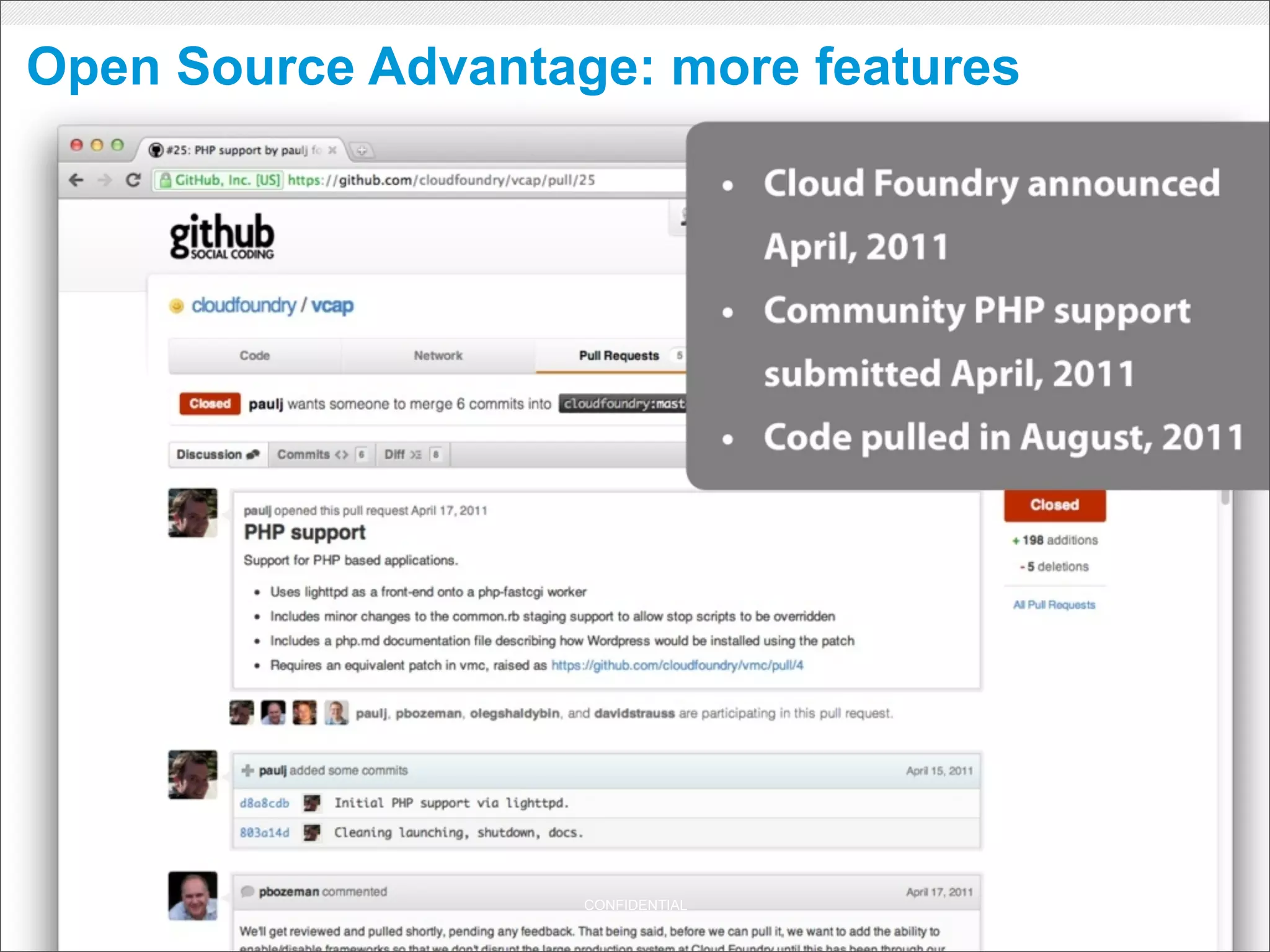

- 23. Open Source Advantage:more features CONFIDENTIAL

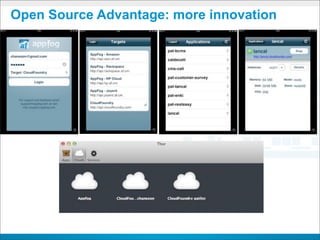

- 24. Open Source Advantage:more innovation CONFIDENTIAL

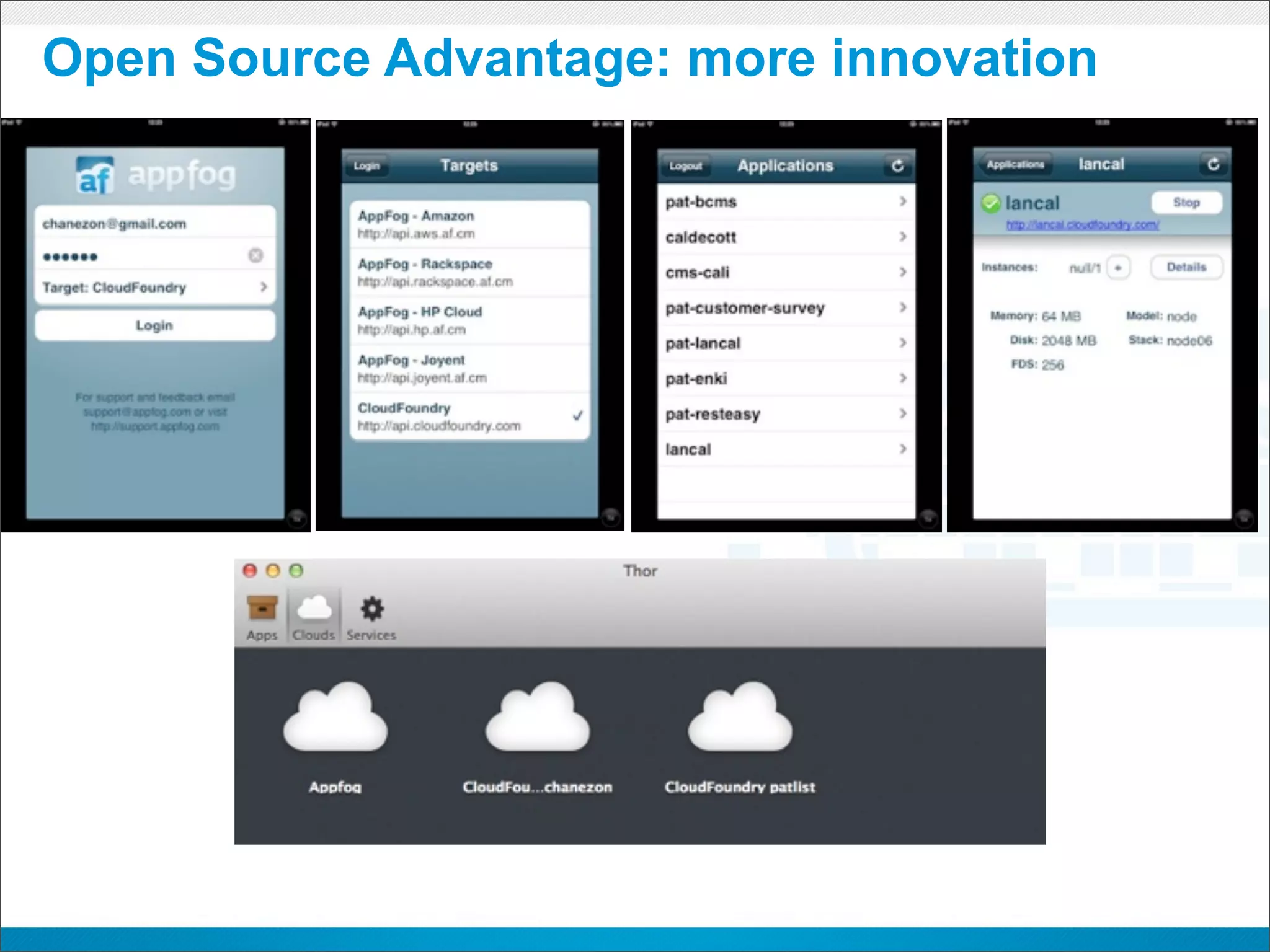

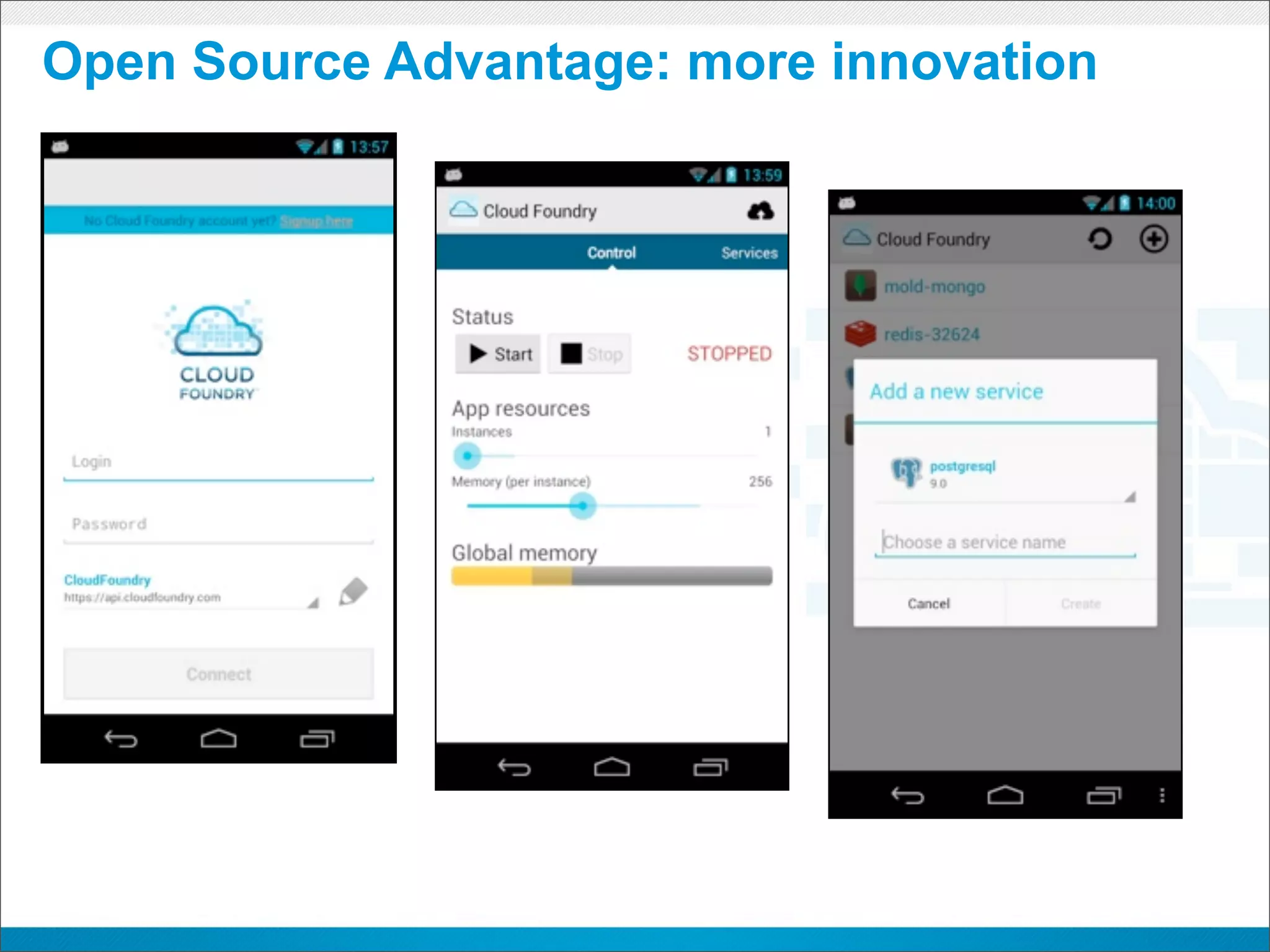

- 25. Open Source Advantage:more innovation CONFIDENTIAL
- 26.

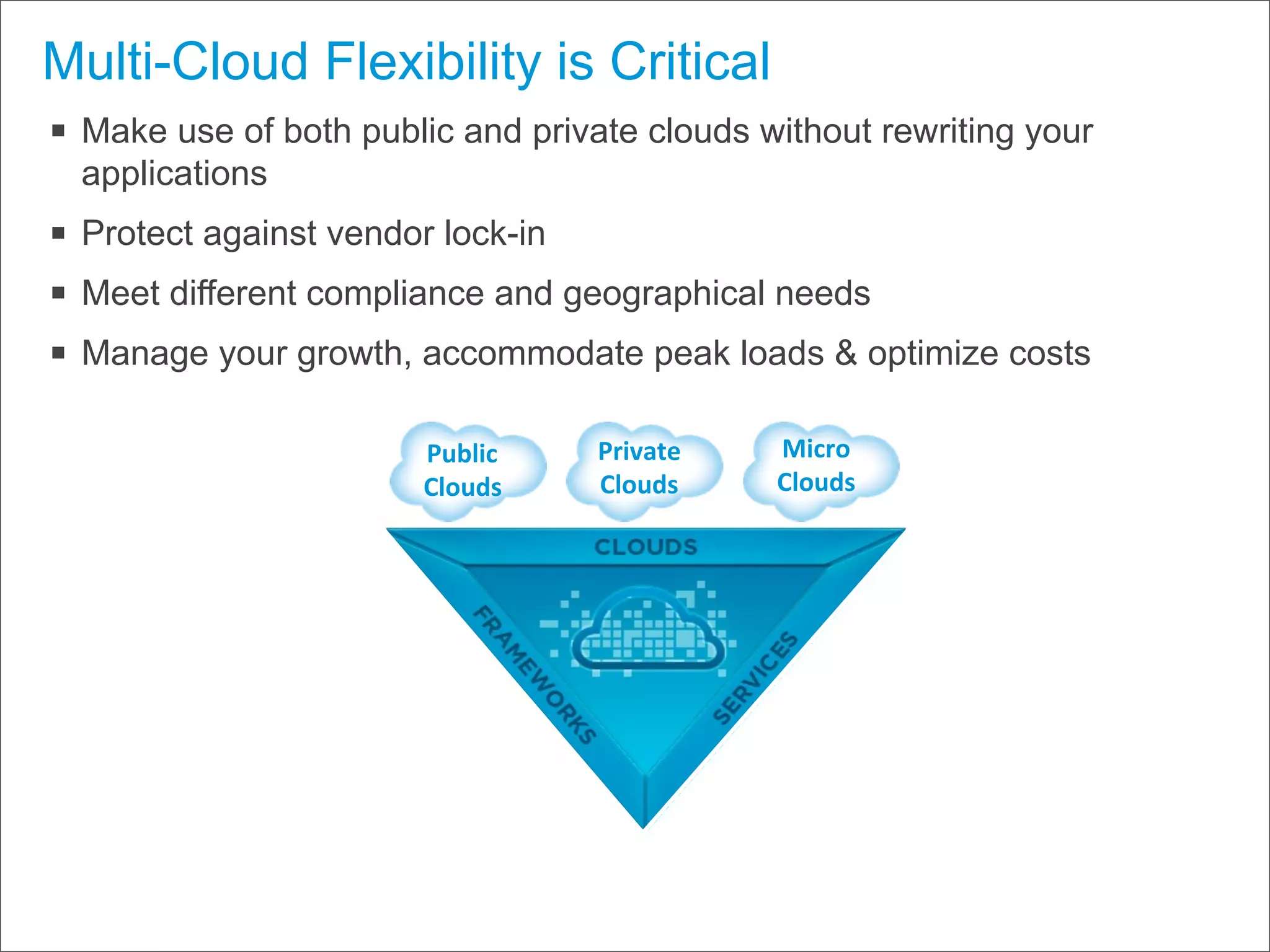

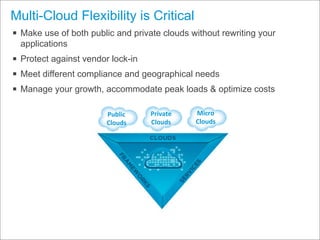

- 27. Multi-Cloud Flexibility isCritical § Make use of both public and private clouds without rewriting your applications § Protect against vendor lock-in § Meet different compliance and geographical needs § Manage your growth, accommodate peak loads & optimize costs Public Private Micro Clouds Clouds Clouds CONFIDENTIAL
- 28. Main Risk: LockIn Welcome to the hotel california Such a lovely place Such a lovely face Plenty of room at the hotel california Any time of year, you can find it here Last thing I remember, I was Running for the door I had to find the passage back To the place I was before ’relax,’ said the night man, We are programmed to receive. You can checkout any time you like, But you can never leave! -the Eagles CONFIDENTIAL
- 29. Broad Industry Investment CONFIDENTIAL

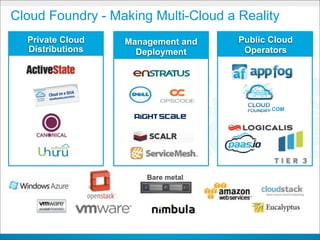

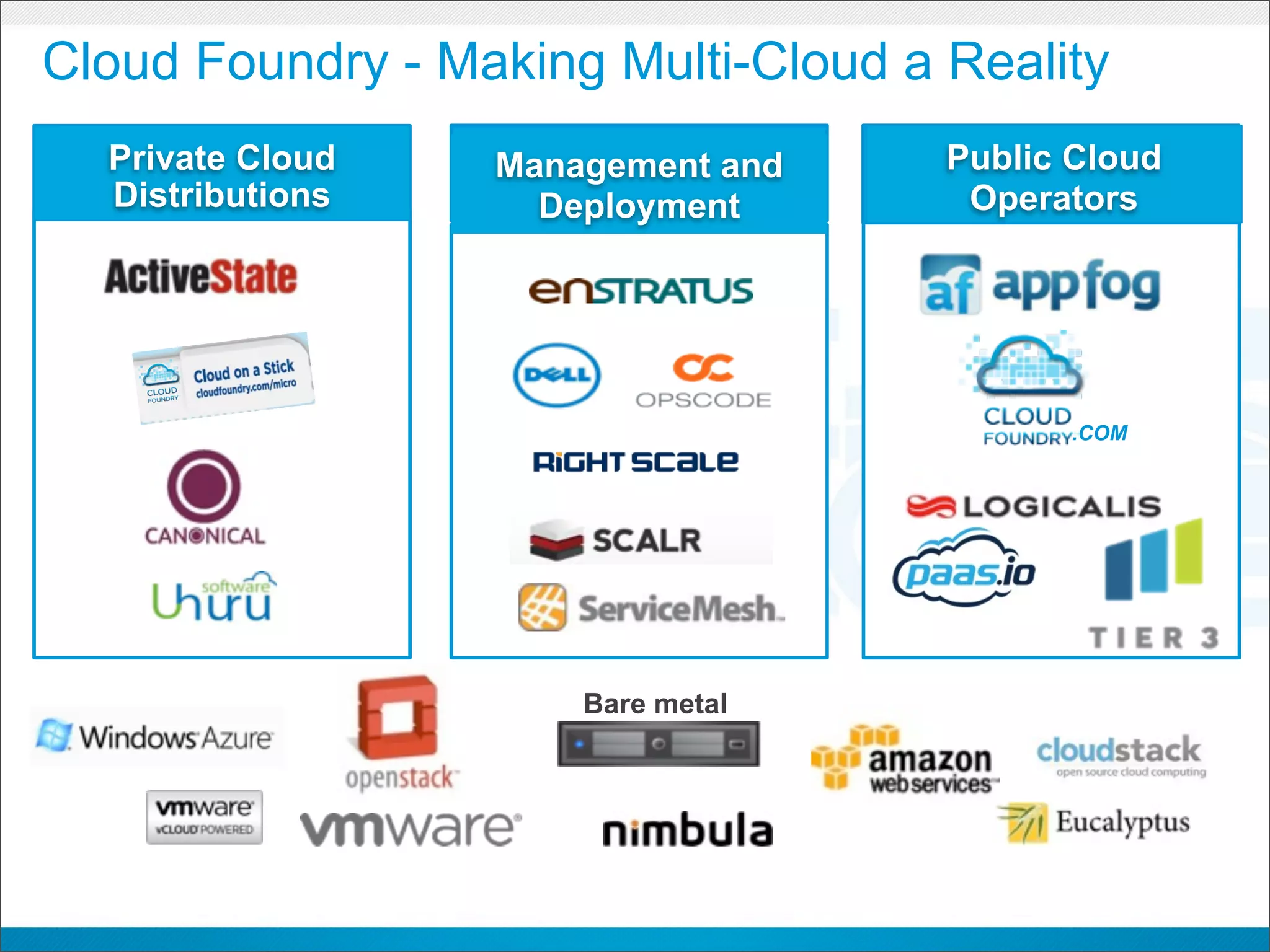

- 30. Cloud Foundry -Making Multi-Cloud a Reality Private Cloud Management and Public Cloud Distributions Deployment Operators .COM Bare metal CONFIDENTIAL

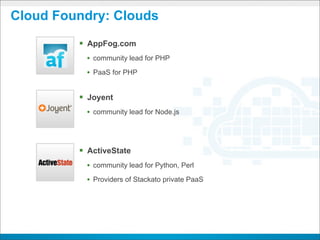

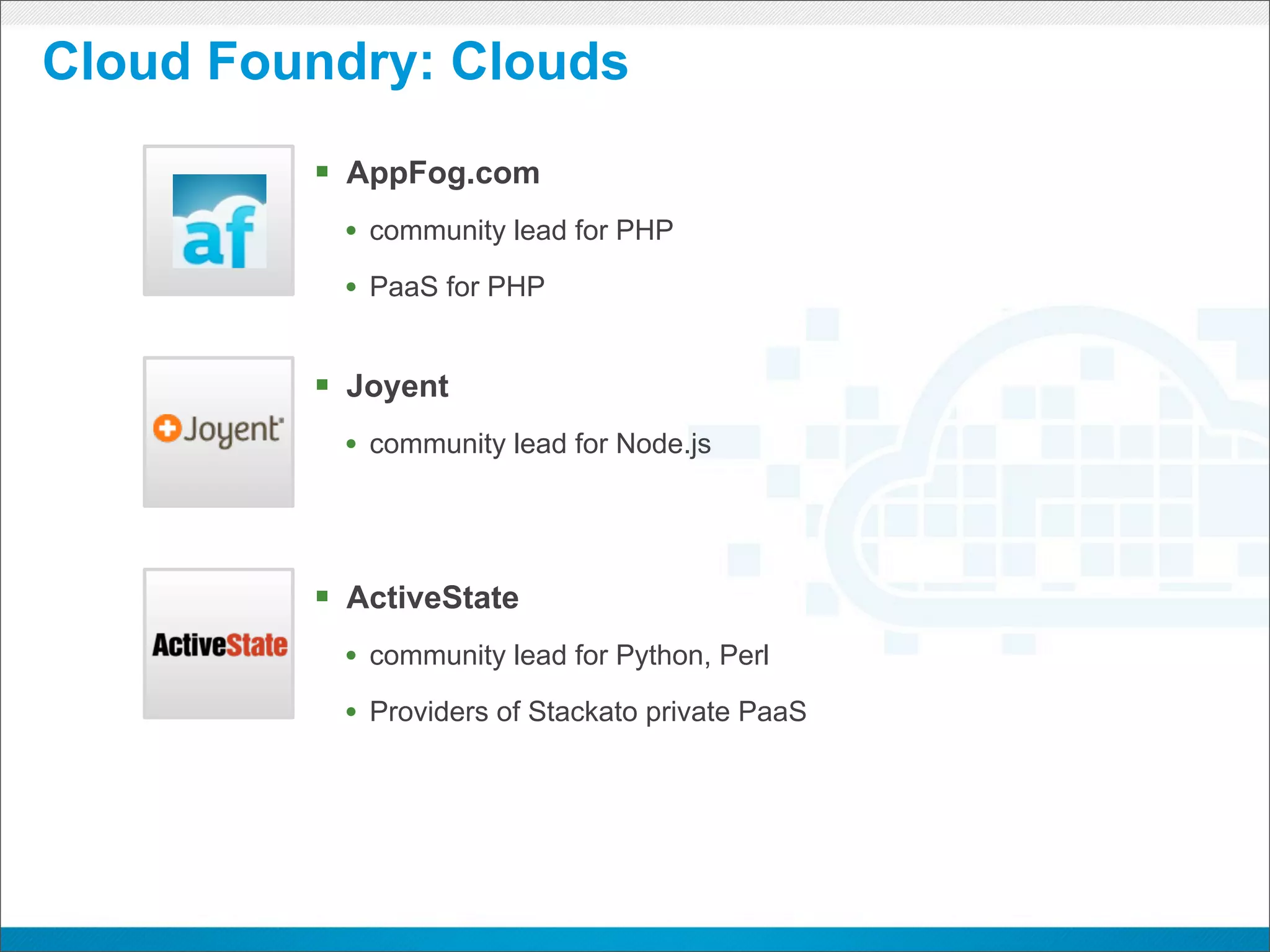

- 31. Cloud Foundry: Clouds § AppFog.com • community lead for PHP • PaaS for PHP § Joyent • community lead for Node.js § ActiveState • community lead for Python, Perl • Providers of Stackato private PaaS CONFIDENTIAL
- 32.
- 33.

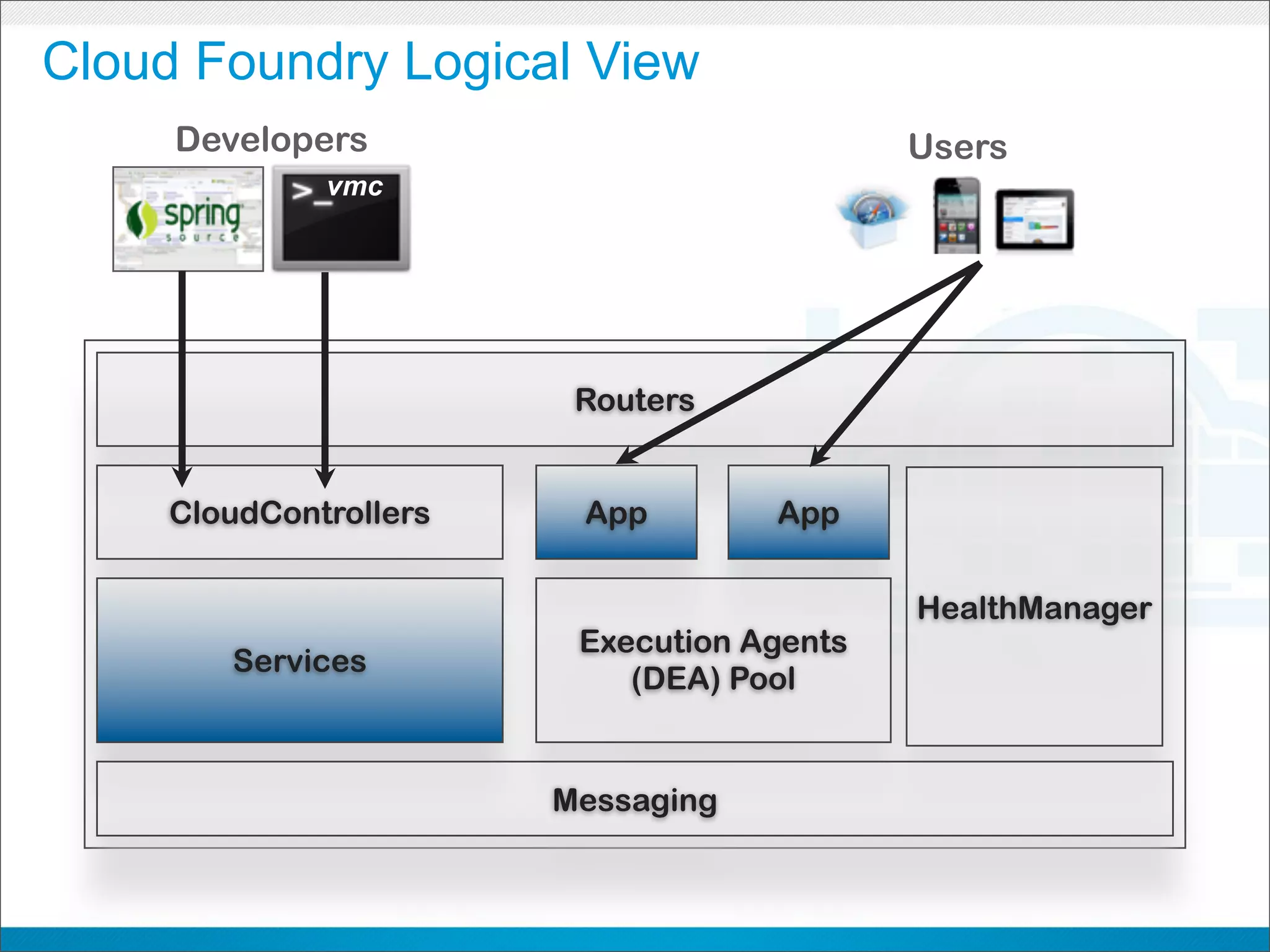

- 34. Cloud Foundry LogicalView Developers Users vmc Routers CloudControllers App App HealthManager Execution Agents Services (DEA) Pool Messaging CONFIDENTIAL

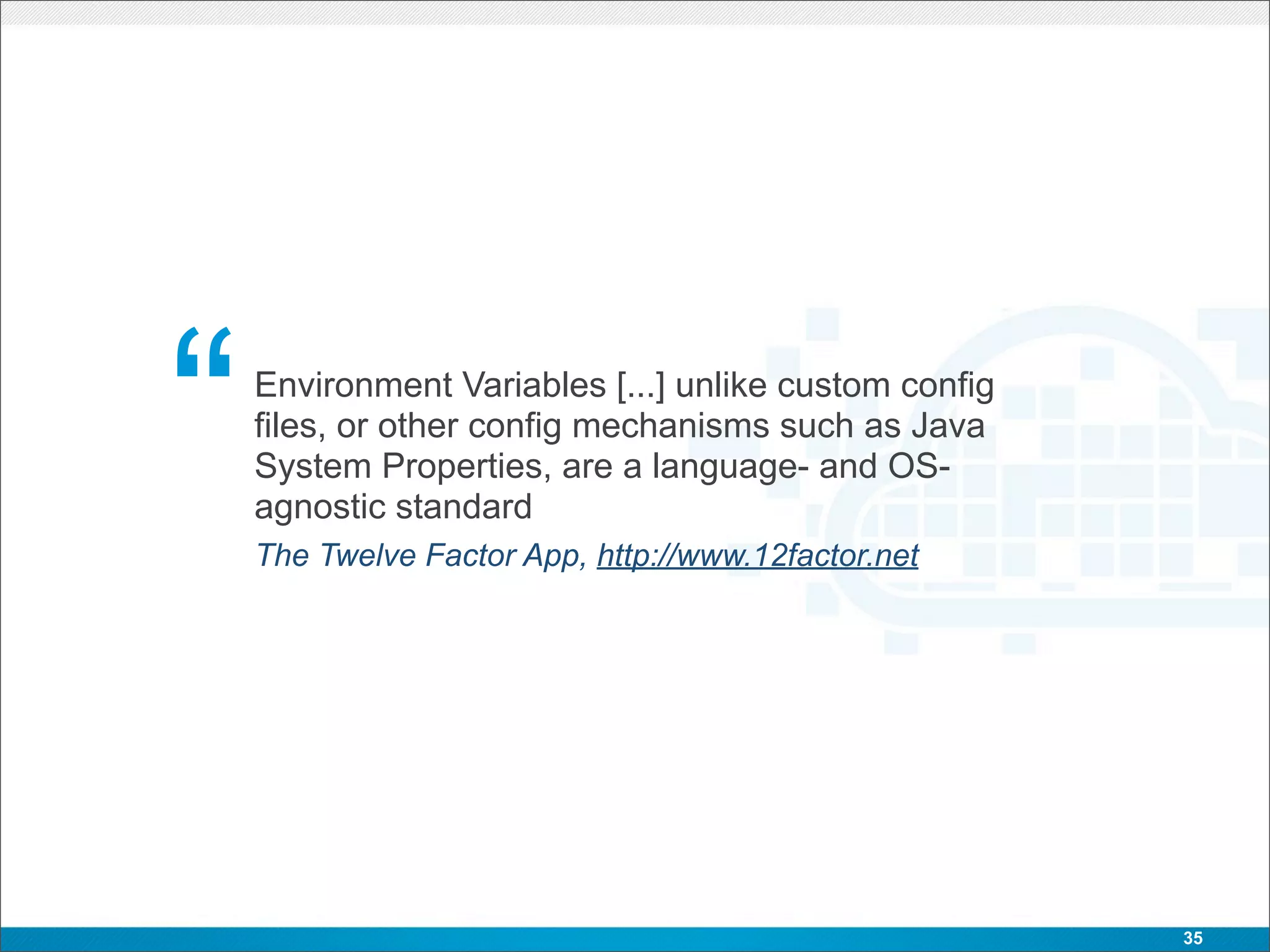

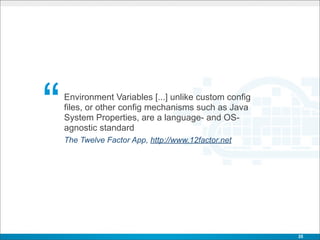

- 35. “ Environment Variables [...] unlike custom config files, or other config mechanisms such as Java System Properties, are a language- and OS- agnostic standard The Twelve Factor App, http://www.12factor.net 35

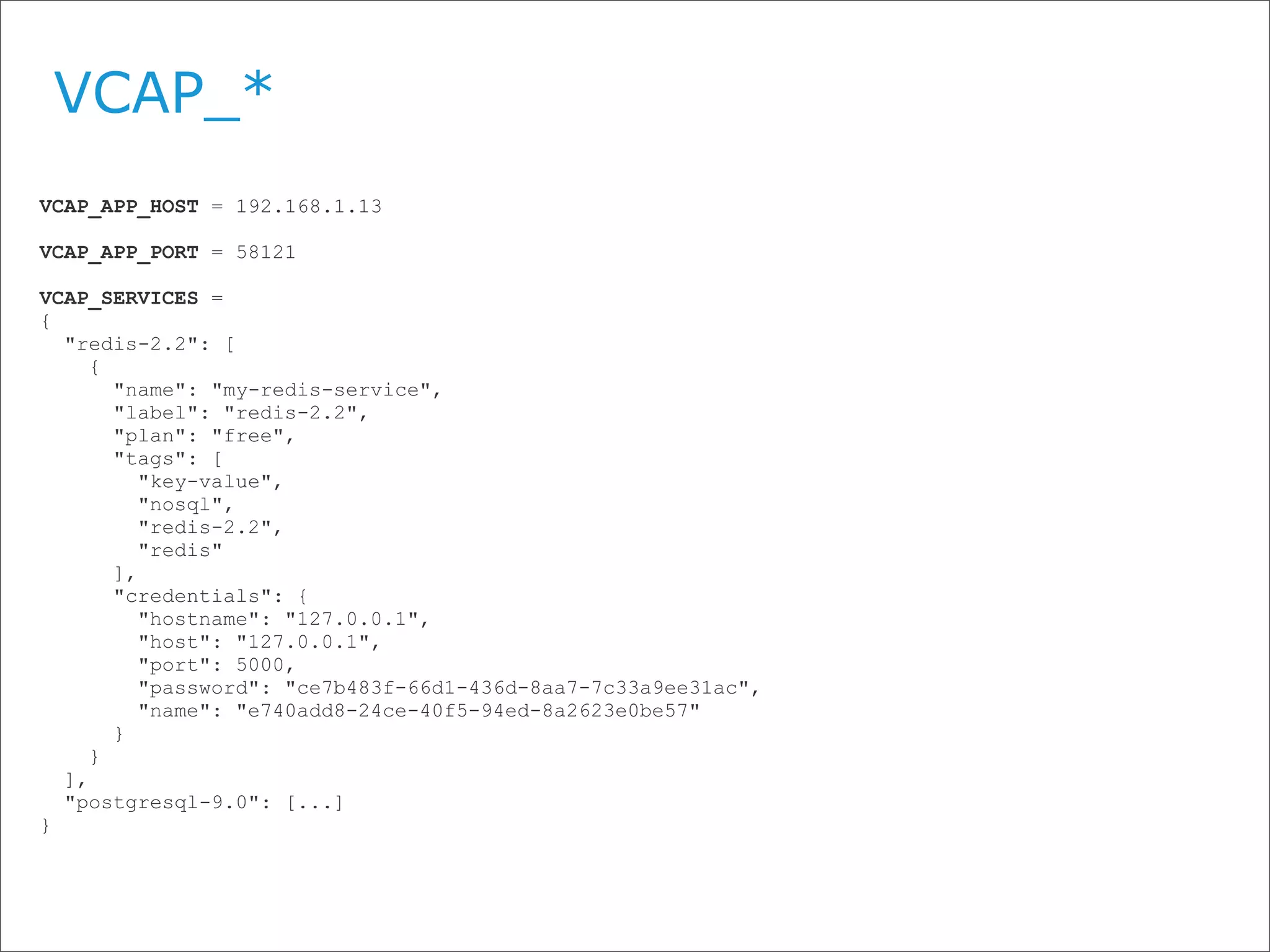

- 36. VCAP_* VCAP_APP_HOST = 192.168.1.13 VCAP_APP_PORT= 58121 VCAP_SERVICES = { "redis-2.2": [ { "name": "my-redis-service", "label": "redis-2.2", "plan": "free", "tags": [ "key-value", "nosql", "redis-2.2", "redis" ], "credentials": { "hostname": "127.0.0.1", "host": "127.0.0.1", "port": 5000, "password": "ce7b483f-66d1-436d-8aa7-7c33a9ee31ac", "name": "e740add8-24ce-40f5-94ed-8a2623e0be57" } } ], "postgresql-9.0": [...] } 36

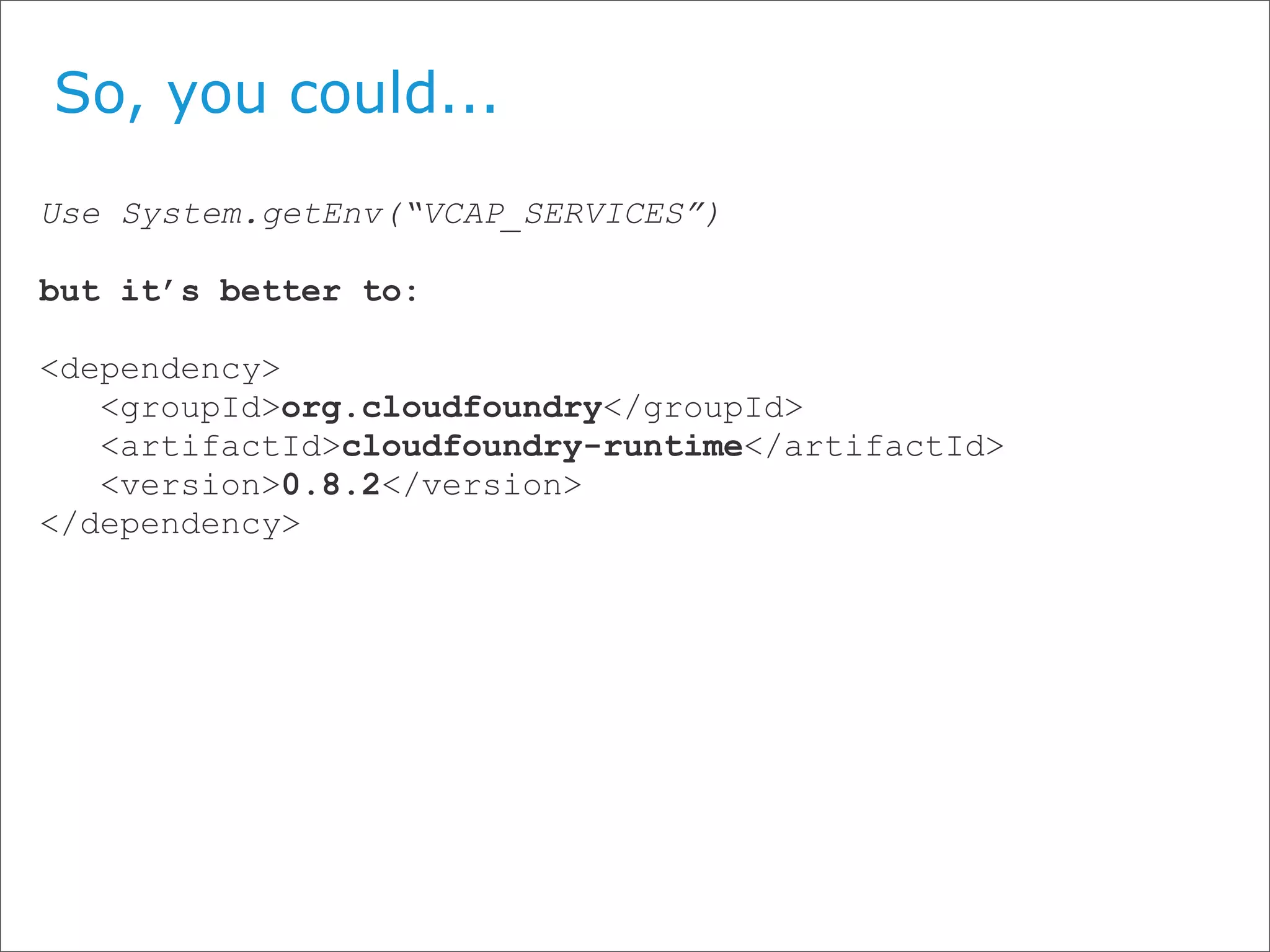

- 37. So, you could... UseSystem.getEnv(“VCAP_SERVICES”) but it’s better to: <dependency> <groupId>org.cloudfoundry</groupId> <artifactId>cloudfoundry-runtime</artifactId> <version>0.8.2</version> </dependency> 37

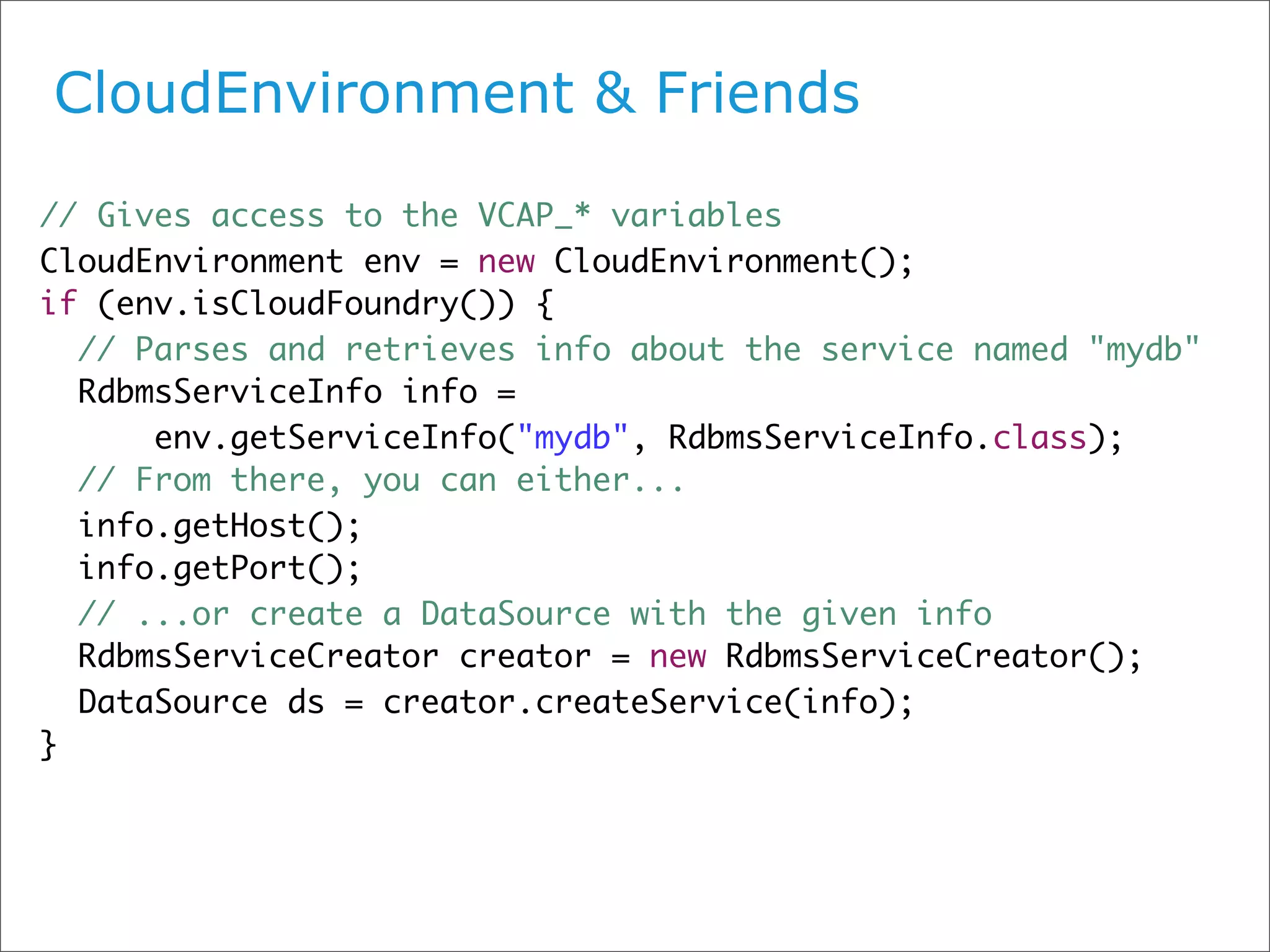

- 38. CloudEnvironment & Friends //Gives access to the VCAP_* variables CloudEnvironment env = new CloudEnvironment(); if (env.isCloudFoundry()) { // Parses and retrieves info about the service named "mydb" RdbmsServiceInfo info = env.getServiceInfo("mydb", RdbmsServiceInfo.class); // From there, you can either... info.getHost(); info.getPort(); // ...or create a DataSource with the given info RdbmsServiceCreator creator = new RdbmsServiceCreator(); DataSource ds = creator.createService(info); } 38
- 39. Spring Makes itEasy

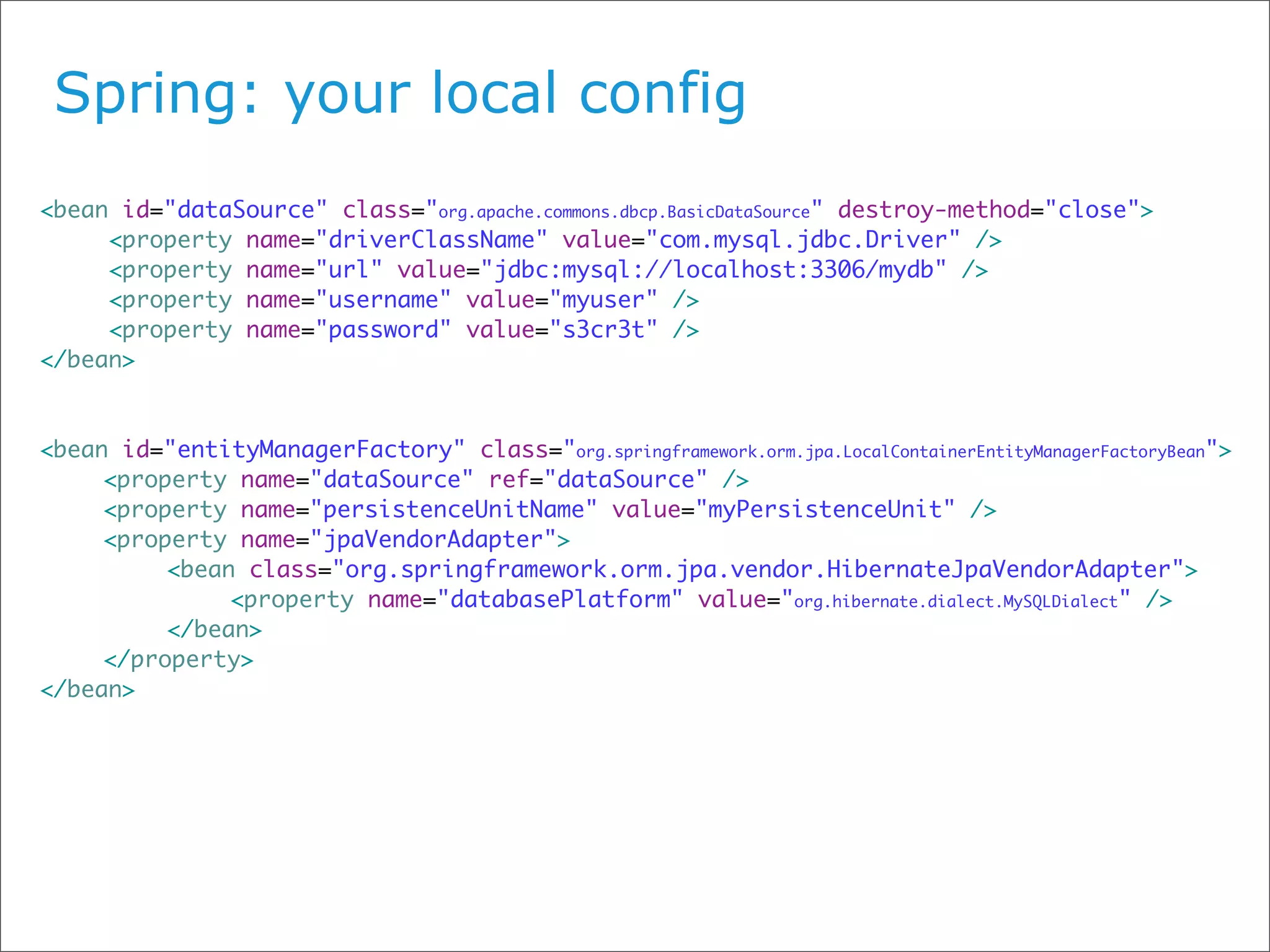

- 40. Spring: your localconfig <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close"> <property name="driverClassName" value="com.mysql.jdbc.Driver" /> <property name="url" value="jdbc:mysql://localhost:3306/mydb" /> <property name="username" value="myuser" /> <property name="password" value="s3cr3t" /> </bean> <bean id="entityManagerFactory" class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean"> <property name="dataSource" ref="dataSource" /> <property name="persistenceUnitName" value="myPersistenceUnit" /> <property name="jpaVendorAdapter"> <bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter"> <property name="databasePlatform" value="org.hibernate.dialect.MySQLDialect" /> </bean> </property> </bean> 40
- 41. Spring: Cloud Foundryconfig 41

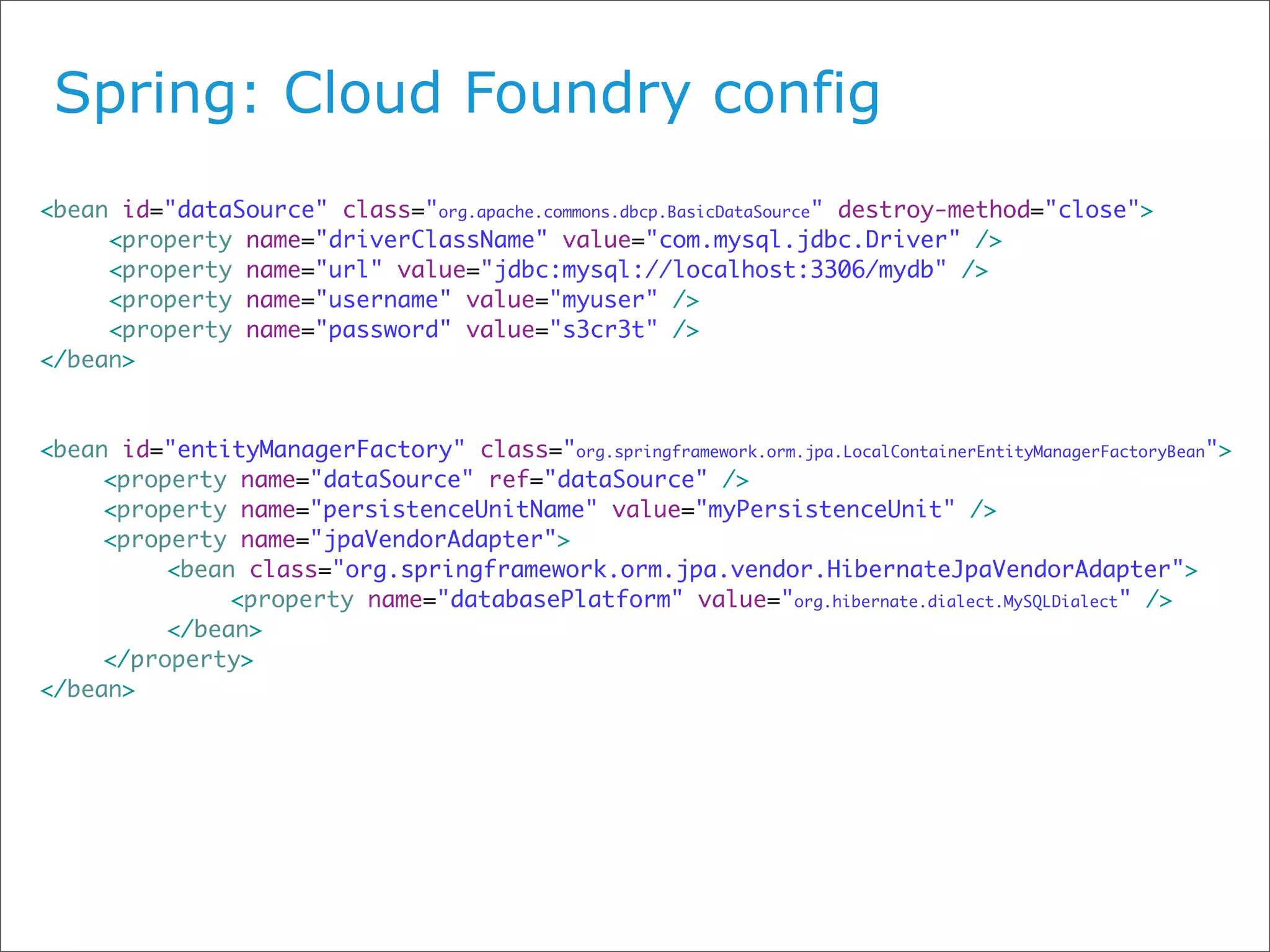

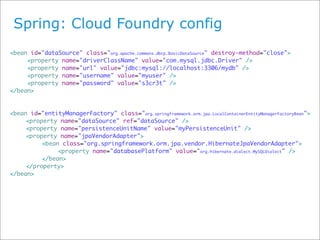

- 42. Spring: Cloud Foundryconfig <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close"> <property name="driverClassName" value="com.mysql.jdbc.Driver" /> <property name="url" value="jdbc:mysql://localhost:3306/mydb" /> <property name="username" value="myuser" /> <property name="password" value="s3cr3t" /> </bean> <bean id="entityManagerFactory" class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean"> <property name="dataSource" ref="dataSource" /> <property name="persistenceUnitName" value="myPersistenceUnit" /> <property name="jpaVendorAdapter"> <bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter"> <property name="databasePlatform" value="org.hibernate.dialect.MySQLDialect" /> </bean> </property> </bean> 41

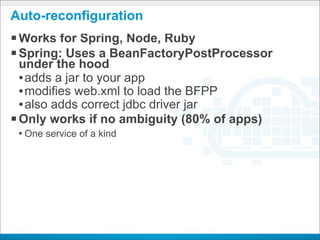

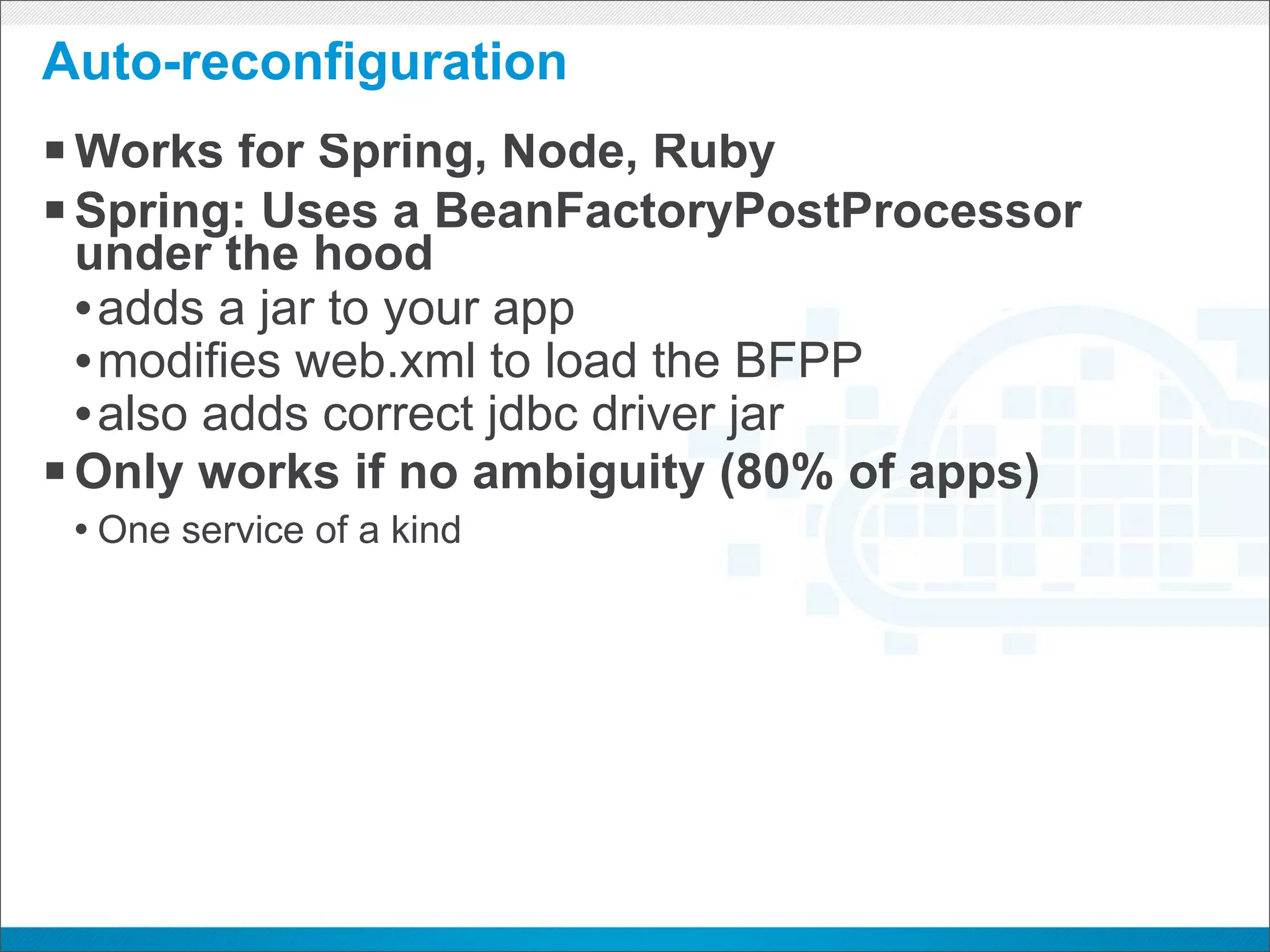

- 43. Auto-reconfiguration § Works forSpring, Node, Ruby § Spring: Uses a BeanFactoryPostProcessor under the hood • adds a jar to your app • modifies web.xml to load the BFPP • also adds correct jdbc driver jar § Only works if no ambiguity (80% of apps) • One service of a kind CONFIDENTIAL

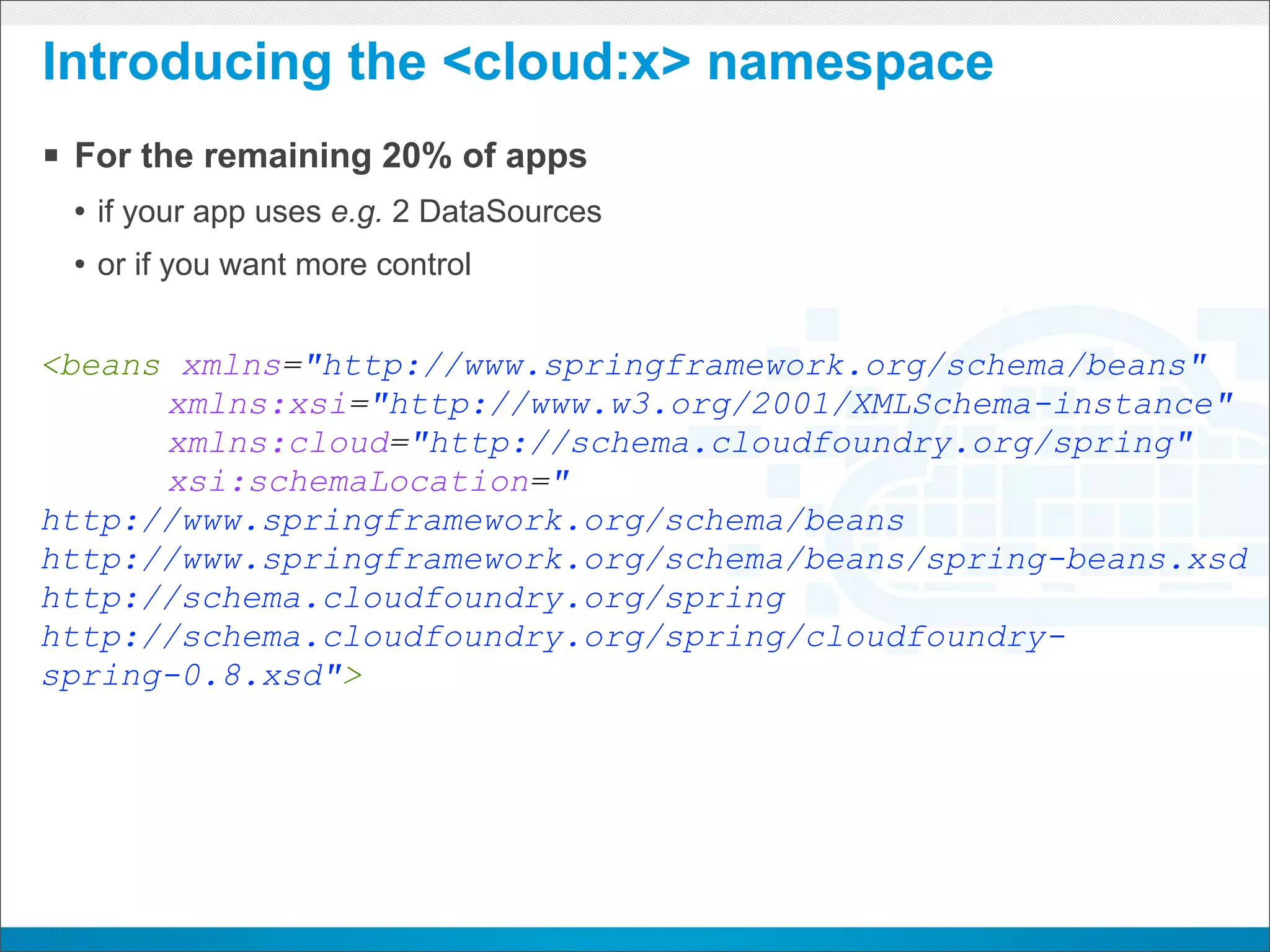

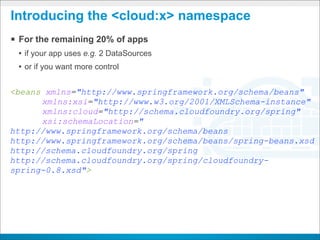

- 44. Introducing the <cloud:x>namespace § For the remaining 20% of apps • if your app uses e.g. 2 DataSources • or if you want more control <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:cloud="http://schema.cloudfoundry.org/spring" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://schema.cloudfoundry.org/spring http://schema.cloudfoundry.org/spring/cloudfoundry- spring-0.8.xsd"> CONFIDENTIAL

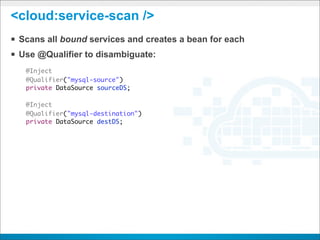

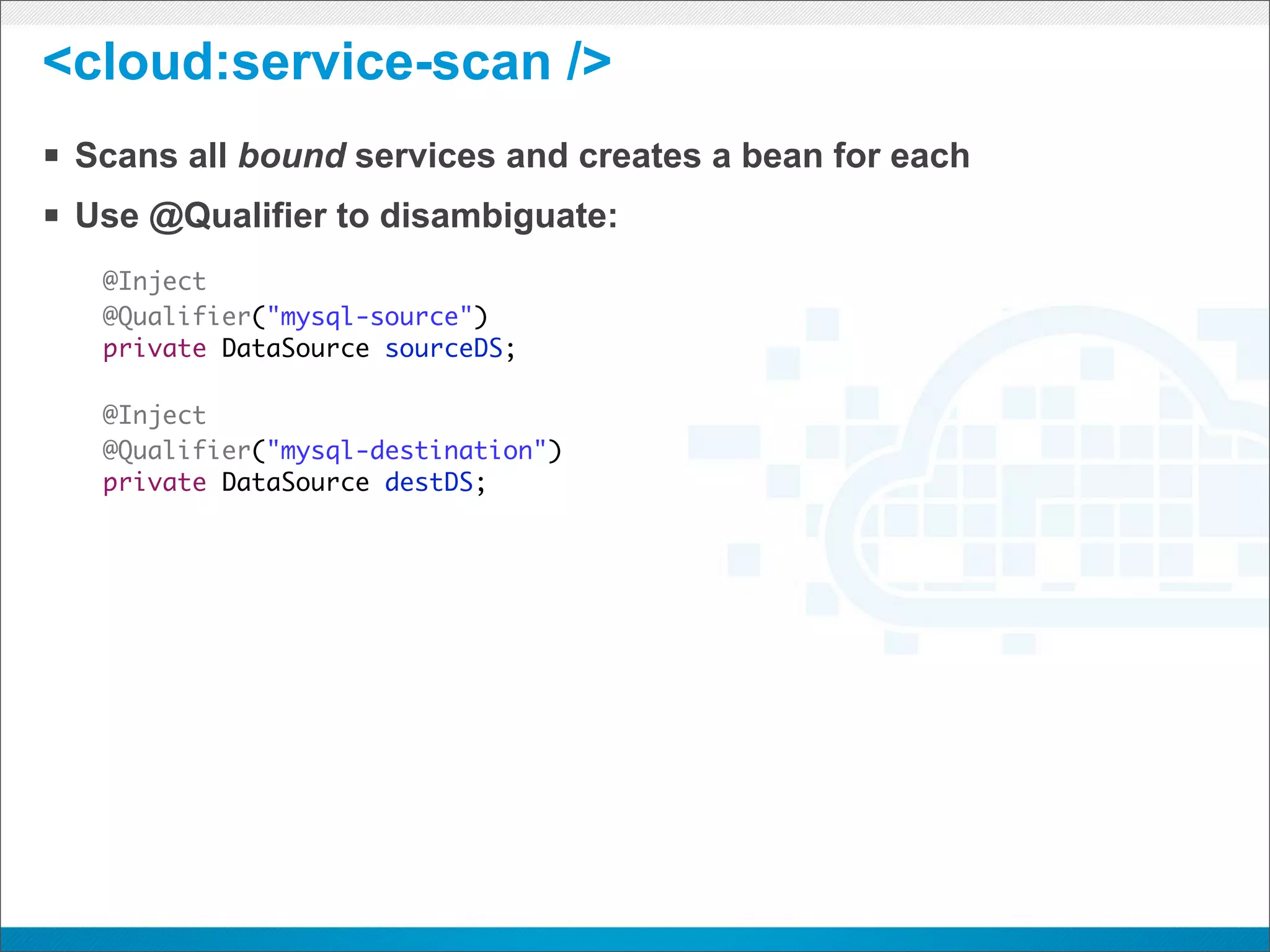

- 45. <cloud:service-scan /> § Scansall bound services and creates a bean for each § Use @Qualifier to disambiguate: @Inject @Qualifier("mysql-source") private DataSource sourceDS; @Inject @Qualifier("mysql-destination") private DataSource destDS; CONFIDENTIAL

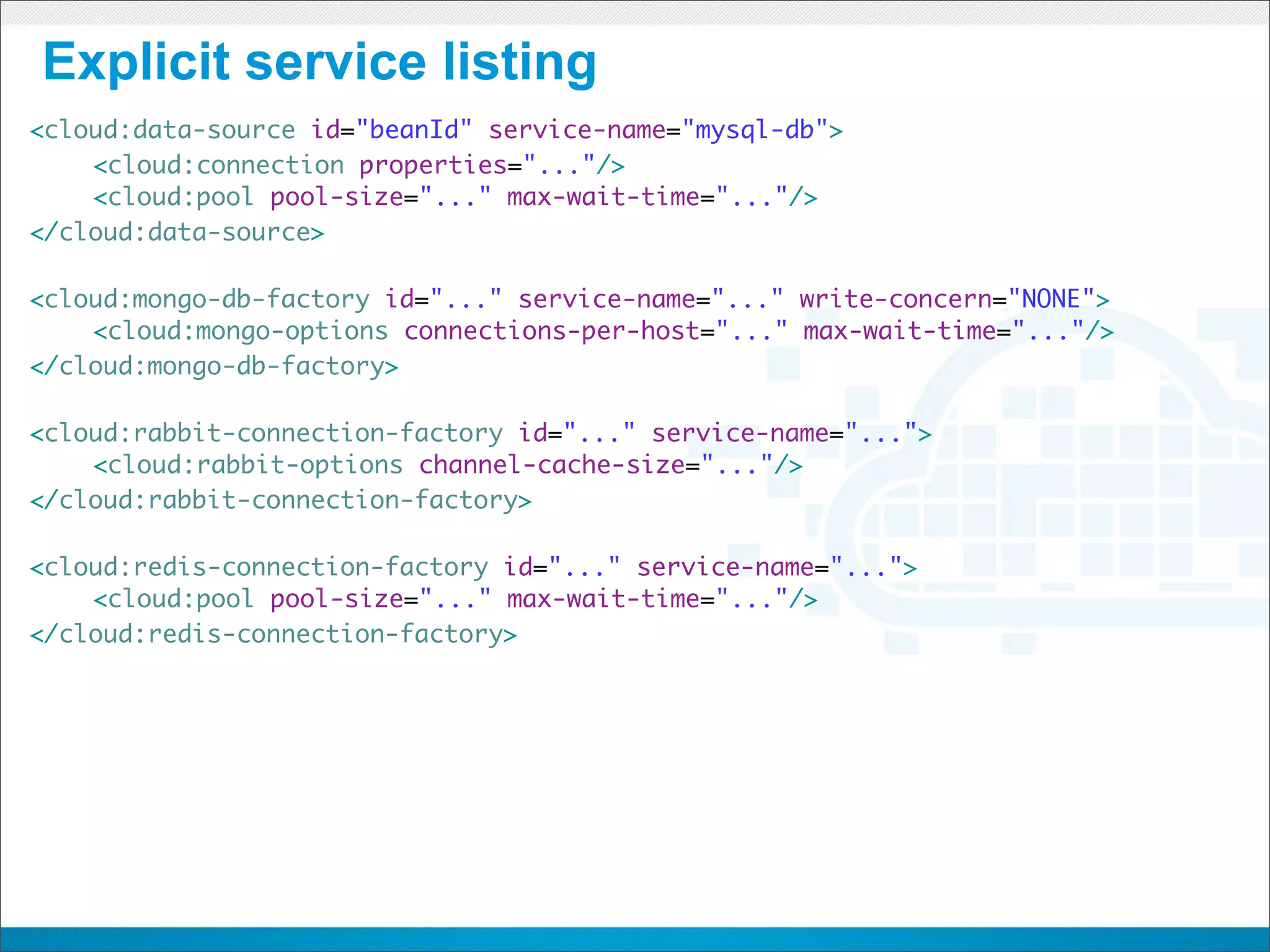

- 46. Explicit service listing <cloud:data-sourceid="beanId" service-name="mysql-db"> <cloud:connection properties="..."/> <cloud:pool pool-size="..." max-wait-time="..."/> </cloud:data-source> <cloud:mongo-db-factory id="..." service-name="..." write-concern="NONE"> <cloud:mongo-options connections-per-host="..." max-wait-time="..."/> </cloud:mongo-db-factory> <cloud:rabbit-connection-factory id="..." service-name="..."> <cloud:rabbit-options channel-cache-size="..."/> </cloud:rabbit-connection-factory> <cloud:redis-connection-factory id="..." service-name="..."> <cloud:pool pool-size="..." max-wait-time="..."/> </cloud:redis-connection-factory> CONFIDENTIAL

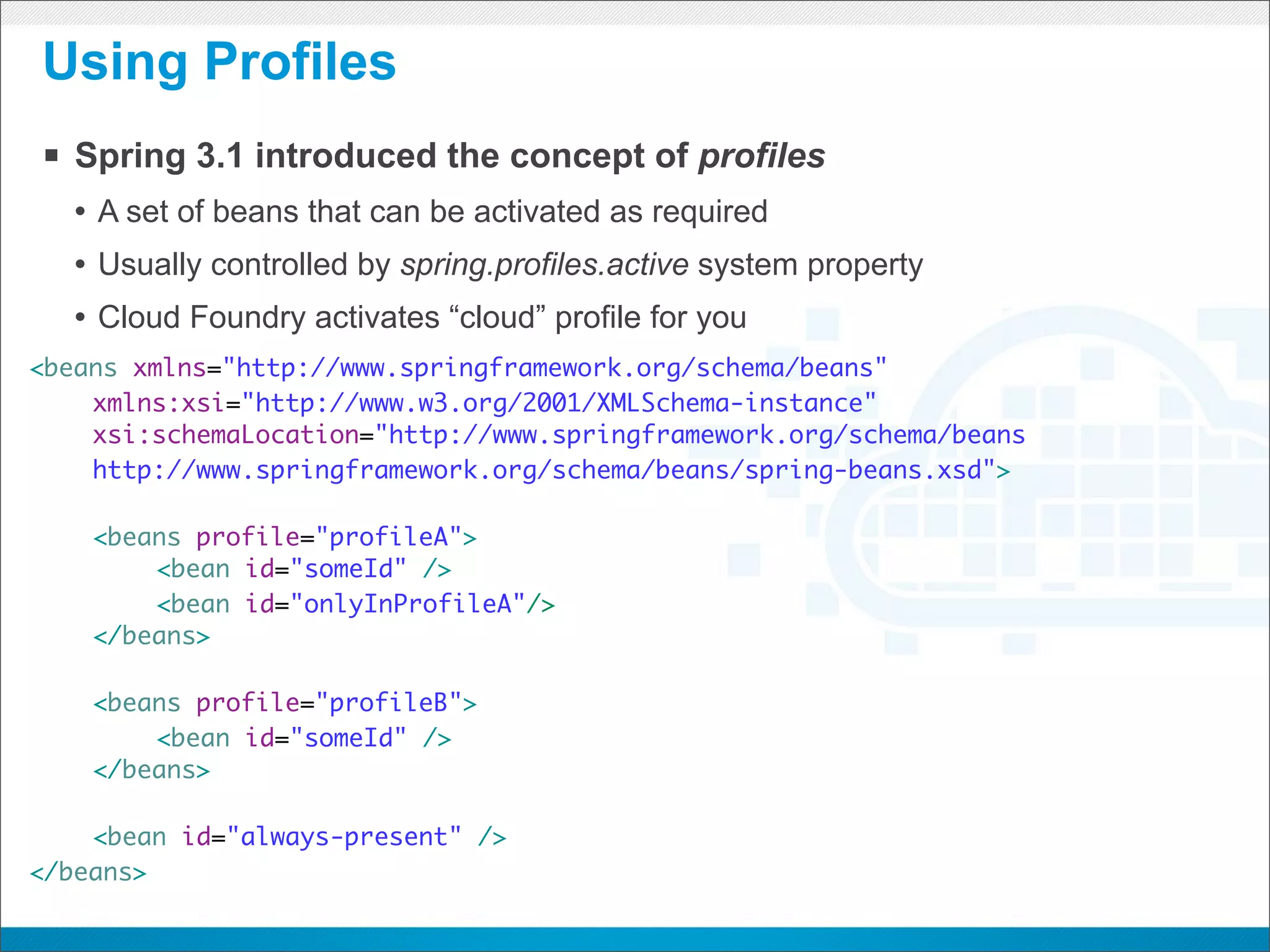

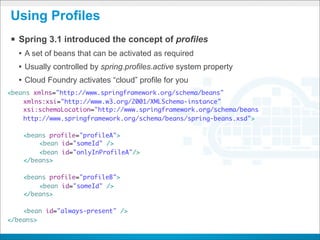

- 47. Using Profiles § Spring3.1 introduced the concept of profiles • A set of beans that can be activated as required • Usually controlled by spring.profiles.active system property • Cloud Foundry activates “cloud” profile for you <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <beans profile="profileA"> <bean id="someId" /> <bean id="onlyInProfileA"/> </beans> <beans profile="profileB"> <bean id="someId" /> </beans> <bean id="always-present" /> </beans> CONFIDENTIAL

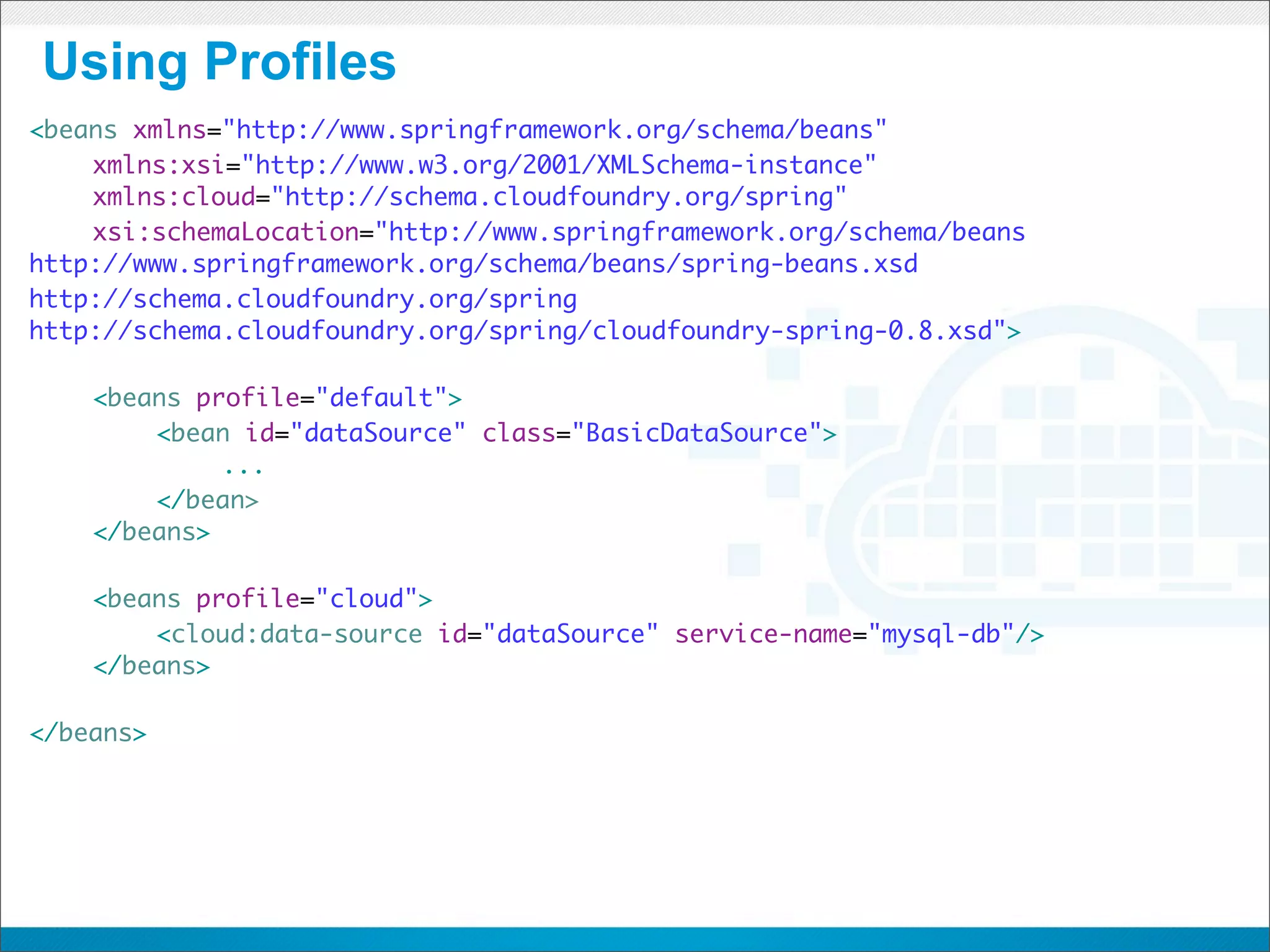

- 48. Using Profiles <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:cloud="http://schema.cloudfoundry.org/spring" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://schema.cloudfoundry.org/spring http://schema.cloudfoundry.org/spring/cloudfoundry-spring-0.8.xsd"> <beans profile="default"> <bean id="dataSource" class="BasicDataSource"> ... </bean> </beans> <beans profile="cloud"> <cloud:data-source id="dataSource" service-name="mysql-db"/> </beans> </beans> CONFIDENTIAL
- 49.

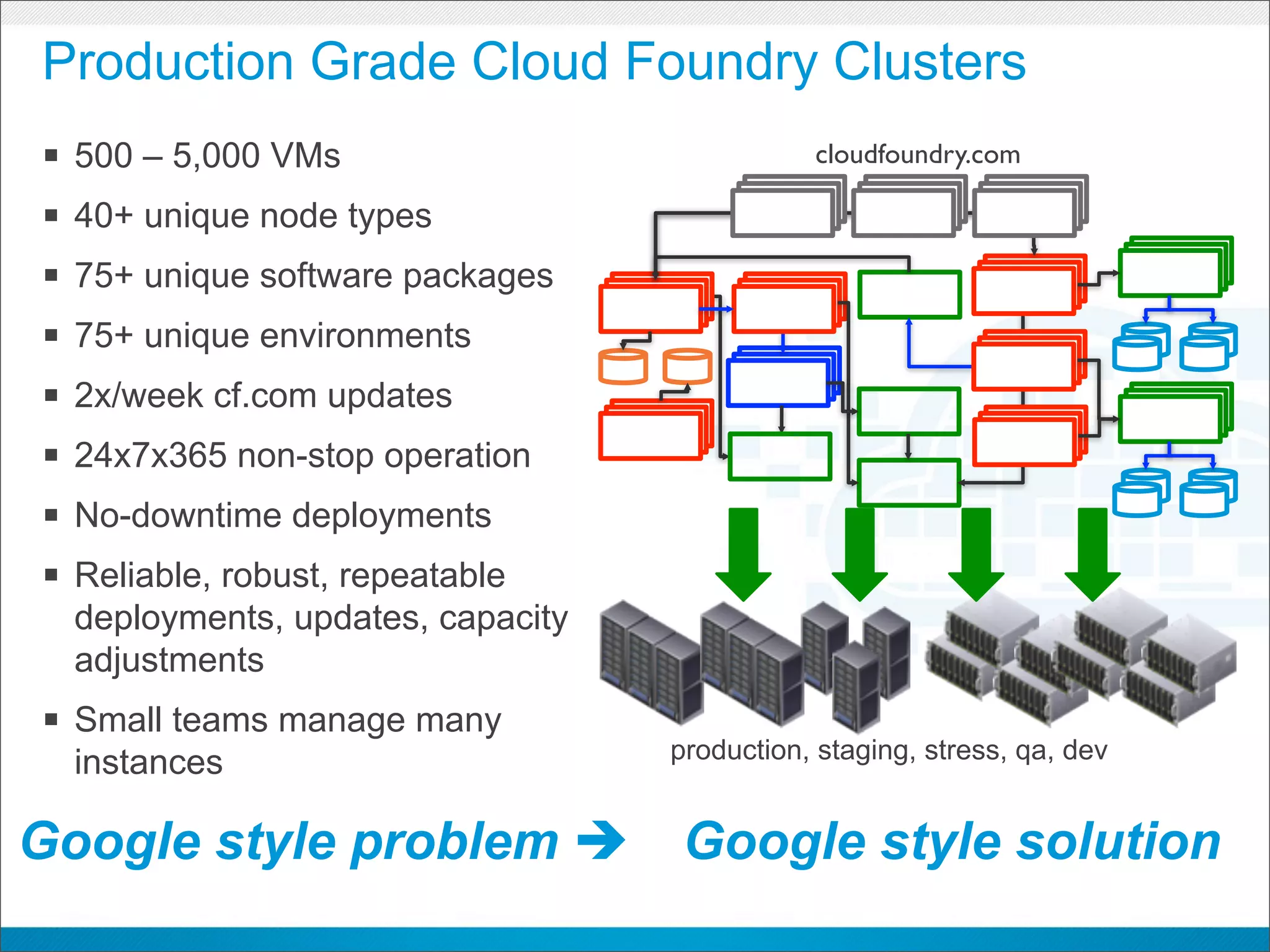

- 50. Production Grade CloudFoundry Clusters § 500 – 5,000 VMs cloudfoundry.com § 40+ unique node types § 75+ unique software packages § 75+ unique environments § 2x/week cf.com updates § 24x7x365 non-stop operation § No-downtime deployments § Reliable, robust, repeatable deployments, updates, capacity adjustments § Small teams manage many production, staging, stress, qa, dev instances Google style problem è Google style solution CONFIDENTIAL

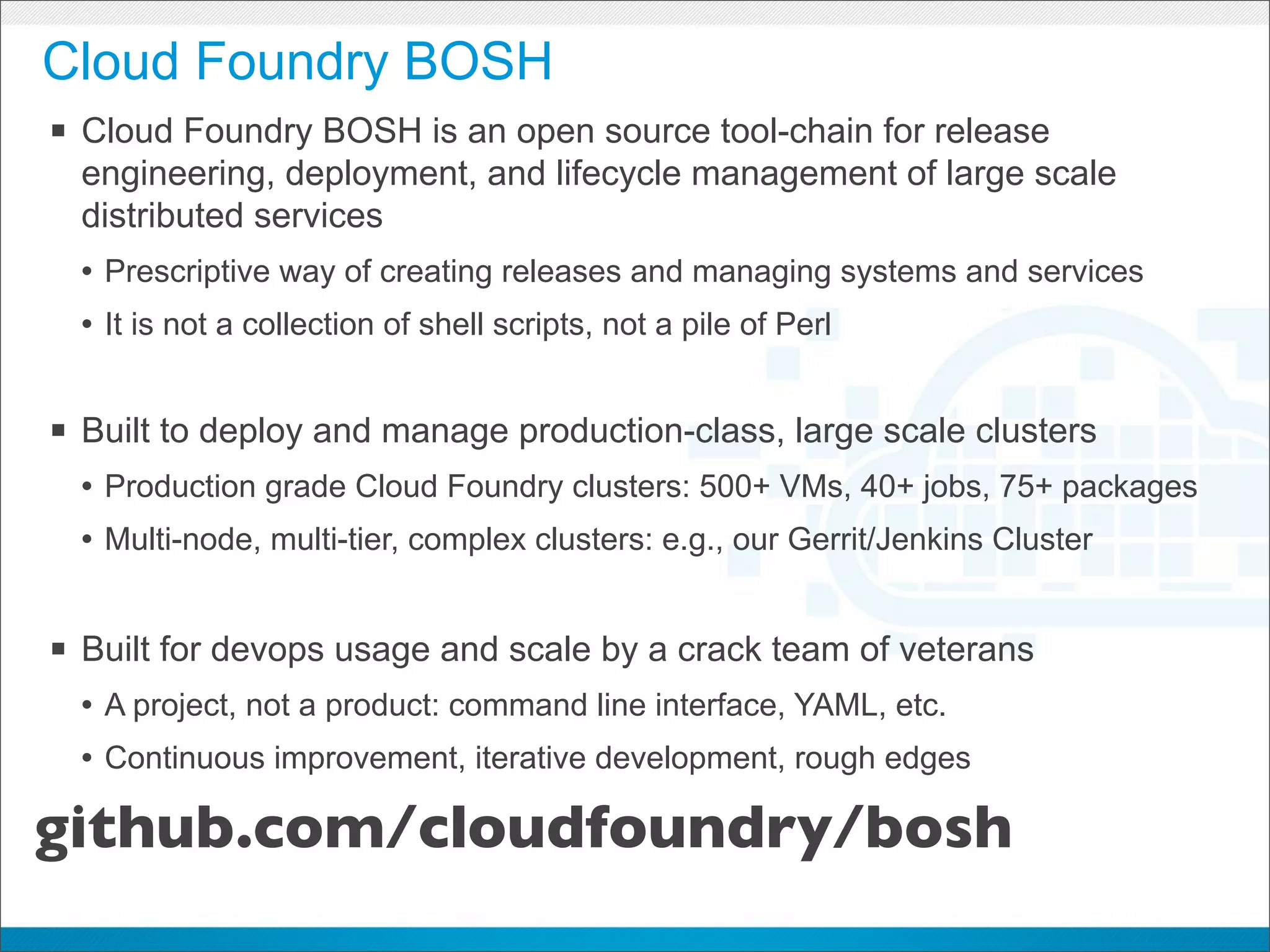

- 51. Cloud Foundry BOSH §Cloud Foundry BOSH is an open source tool-chain for release engineering, deployment, and lifecycle management of large scale distributed services • Prescriptive way of creating releases and managing systems and services • It is not a collection of shell scripts, not a pile of Perl § Built to deploy and manage production-class, large scale clusters • Production grade Cloud Foundry clusters: 500+ VMs, 40+ jobs, 75+ packages • Multi-node, multi-tier, complex clusters: e.g., our Gerrit/Jenkins Cluster § Built for devops usage and scale by a crack team of veterans • A project, not a product: command line interface, YAML, etc. • Continuous improvement, iterative development, rough edges github.com/cloudfoundry/bosh CONFIDENTIAL

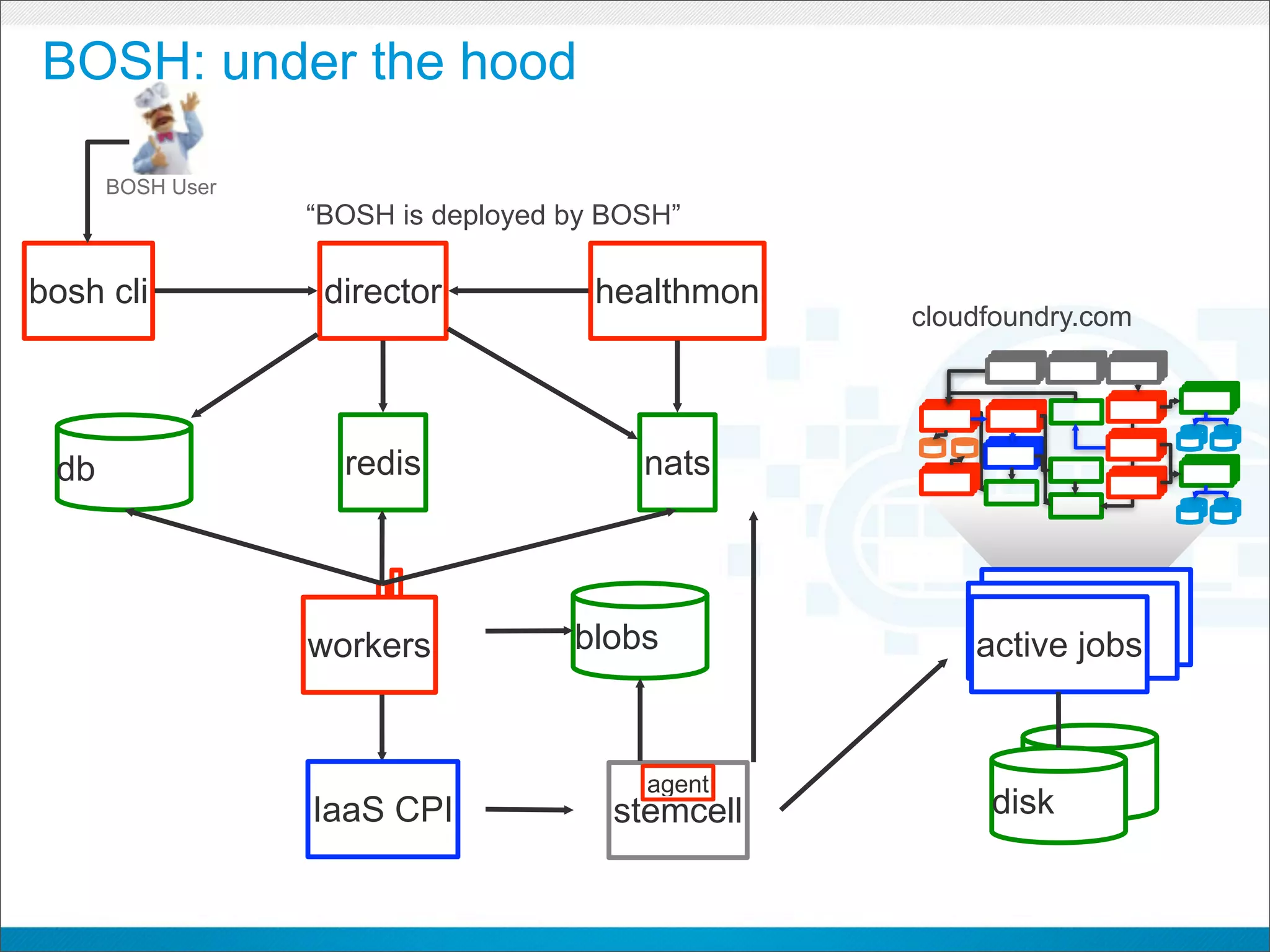

- 52. BOSH: under thehood BOSH User “BOSH is deployed by BOSH” bosh cli director healthmon cloudfoundry.com db redis nats workers blobs active jobs agent IaaS CPI stemcell disk 51 CONFIDENTIAL

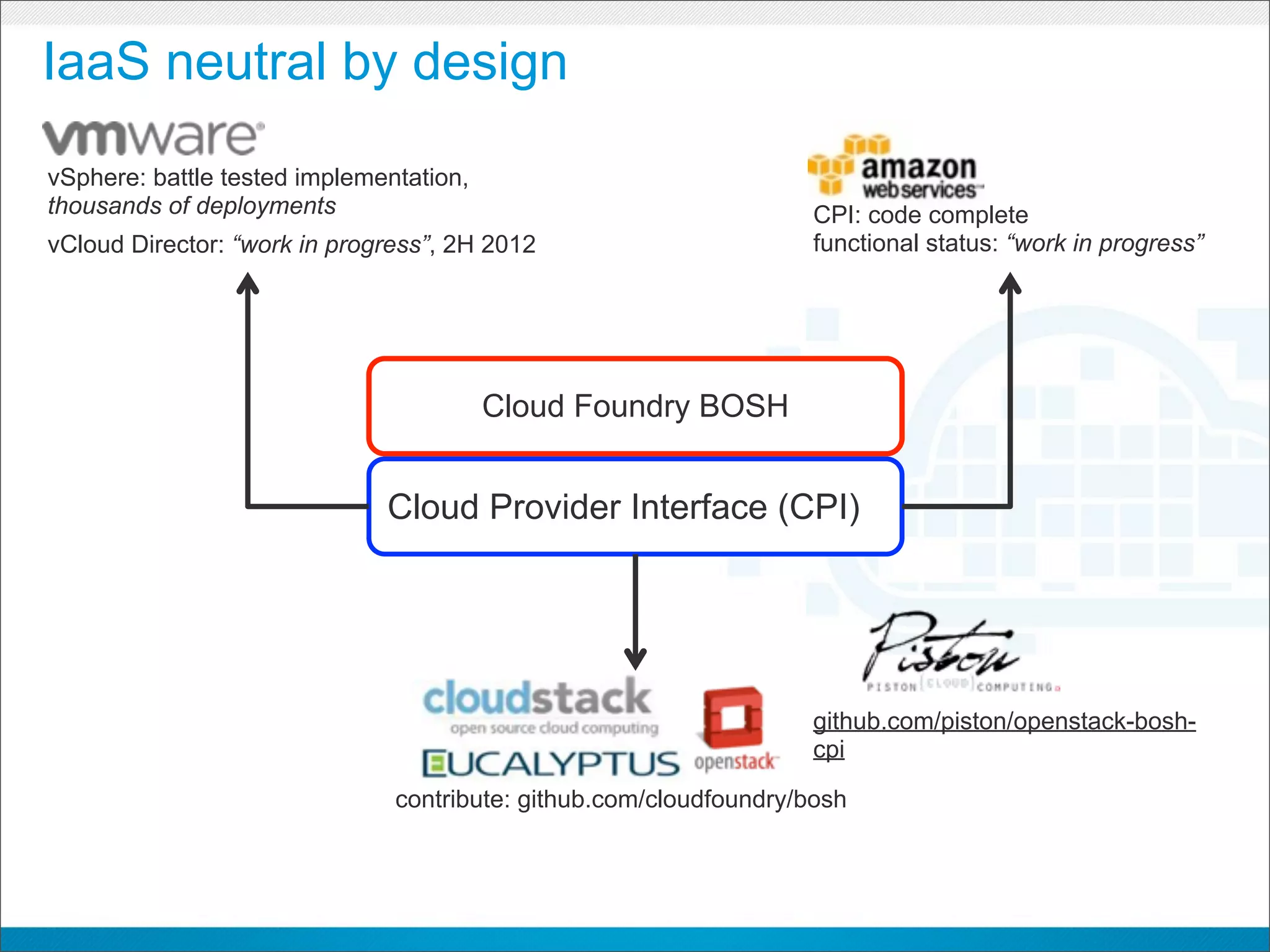

- 53. IaaS neutral bydesign vSphere: battle tested implementation, thousands of deployments CPI: code complete vCloud Director: “work in progress”, 2H 2012 functional status: “work in progress” Cloud Foundry BOSH Cloud Provider Interface (CPI) github.com/piston/openstack-bosh- cpi contribute: github.com/cloudfoundry/bosh 52 CONFIDENTIAL
- 54. BOSH Resources @DrNic http://drnicwilliams.com/2012/04/16/creating-a-bosh-from-scratch-on-aws/ @BrianMMcClain http://www.brianmmcclain.com/2012/05/08/using-bosh-with-vsphere-part-2/ @VadimSpivak http://www.youtube.com/watch?v=pASQT5mGc_g https://github.com/cloudfoundry/bosh https://groups.google.com/a/cloudfoundry.org/group/bosh-users/topics https://github.com/piston/openstack-bosh-cpi CONFIDENTIAL

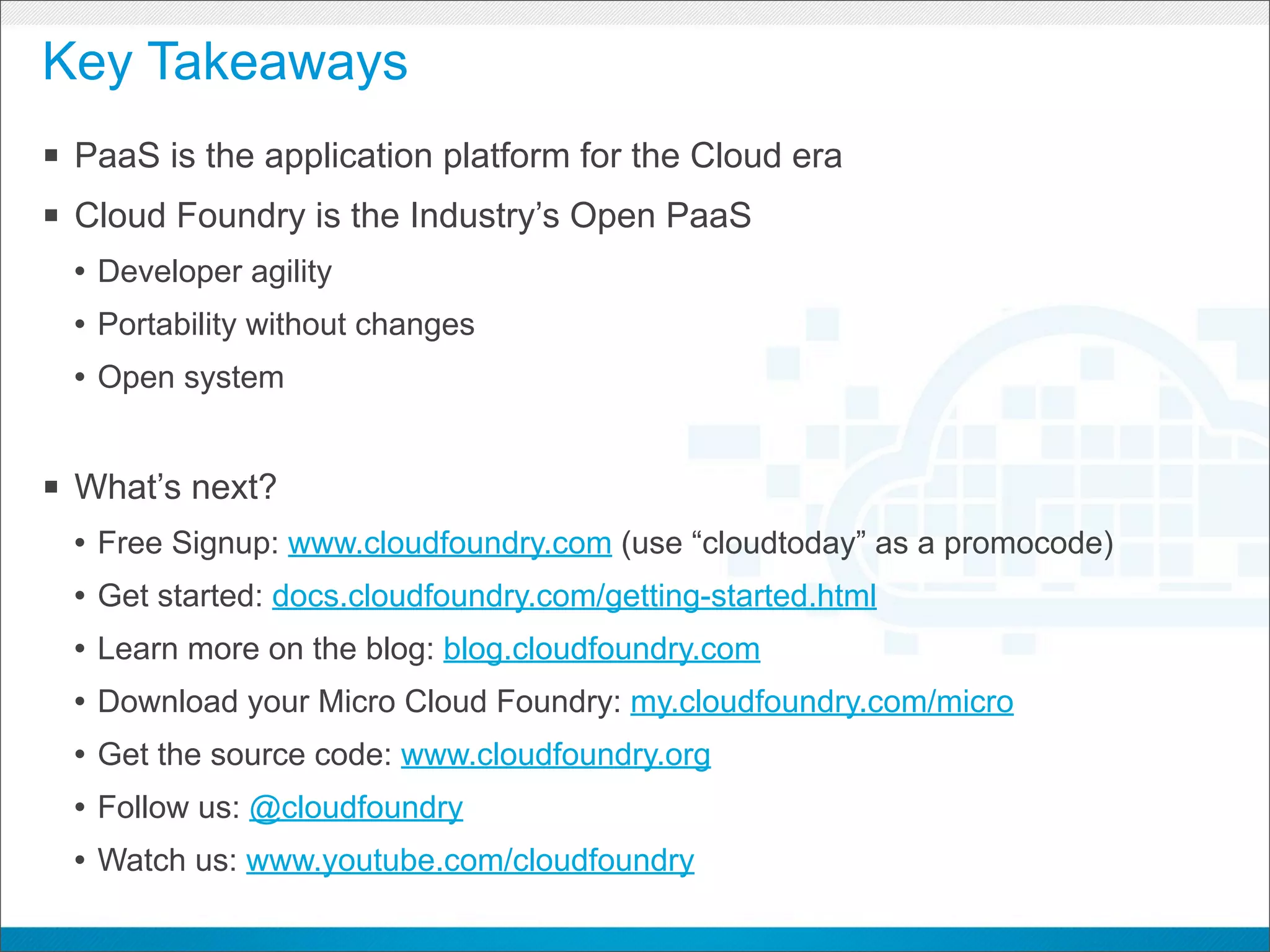

- 55. Key Takeaways § PaaSis the application platform for the Cloud era § Cloud Foundry is the Industry’s Open PaaS • Developer agility • Portability without changes • Open system § What’s next? • Free Signup: www.cloudfoundry.com (use “cloudtoday” as a promocode) • Get started: docs.cloudfoundry.com/getting-started.html • Learn more on the blog: blog.cloudfoundry.com • Download your Micro Cloud Foundry: my.cloudfoundry.com/micro • Get the source code: www.cloudfoundry.org • Follow us: @cloudfoundry • Watch us: www.youtube.com/cloudfoundry CONFIDENTIAL
- 56. Thank You! Eric BOTTARD DeveloperAdvocate @ebottard / ebottard@vmware.com CONFIDENTIAL

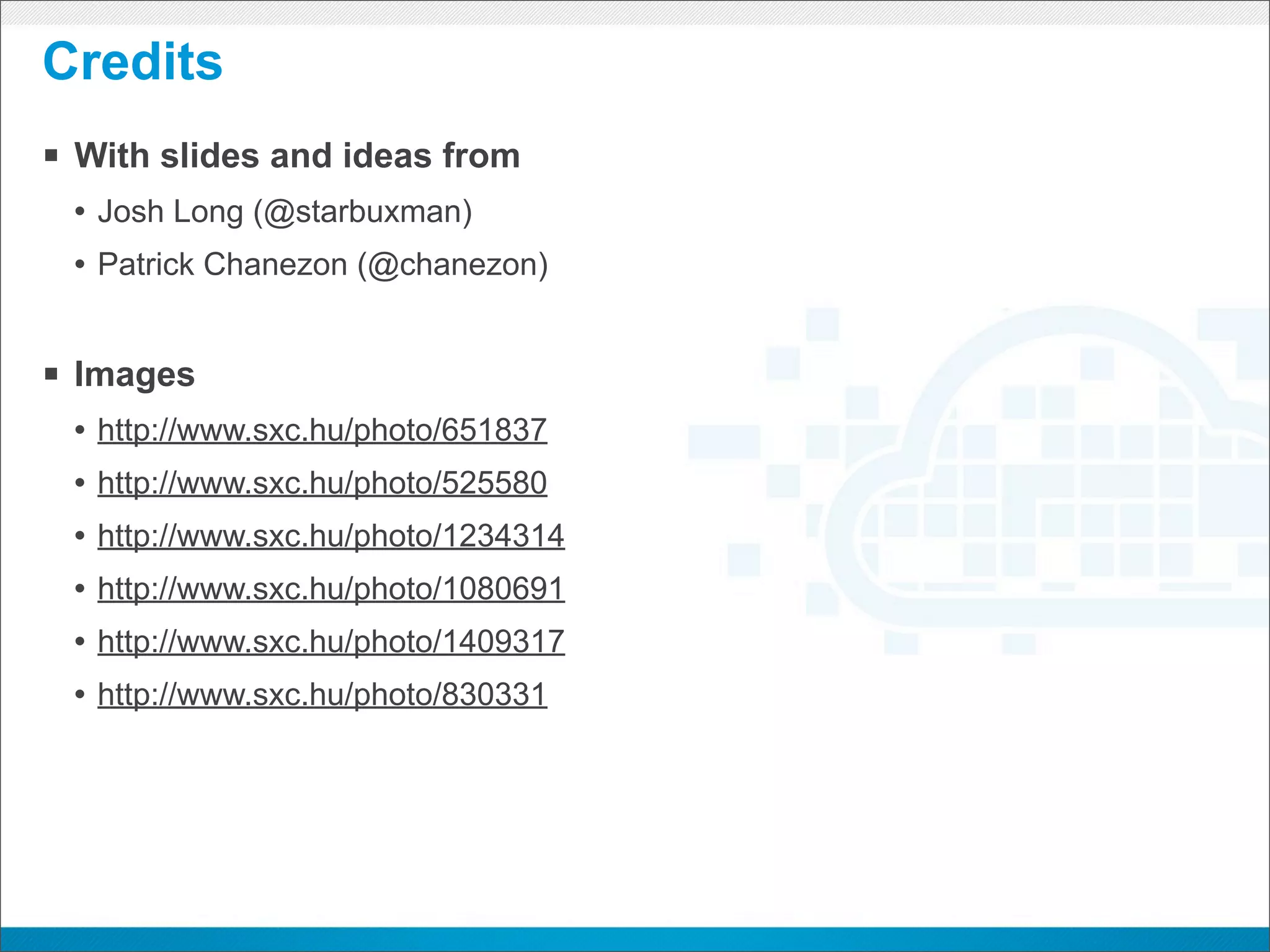

- 57. Credits § With slidesand ideas from • Josh Long (@starbuxman) • Patrick Chanezon (@chanezon) § Images • http://www.sxc.hu/photo/651837 • http://www.sxc.hu/photo/525580 • http://www.sxc.hu/photo/1234314 • http://www.sxc.hu/photo/1080691 • http://www.sxc.hu/photo/1409317 • http://www.sxc.hu/photo/830331 CONFIDENTIAL
