Chicago Erlang Users Group presentation given June 2, 2010 at Orbitz WorldWide in Chicago by John Patton and Tristan Sloughter. The presentation covers a high-level overview of the OTP gen_server behaviour by gradually building up to it using non-OTP concepts.

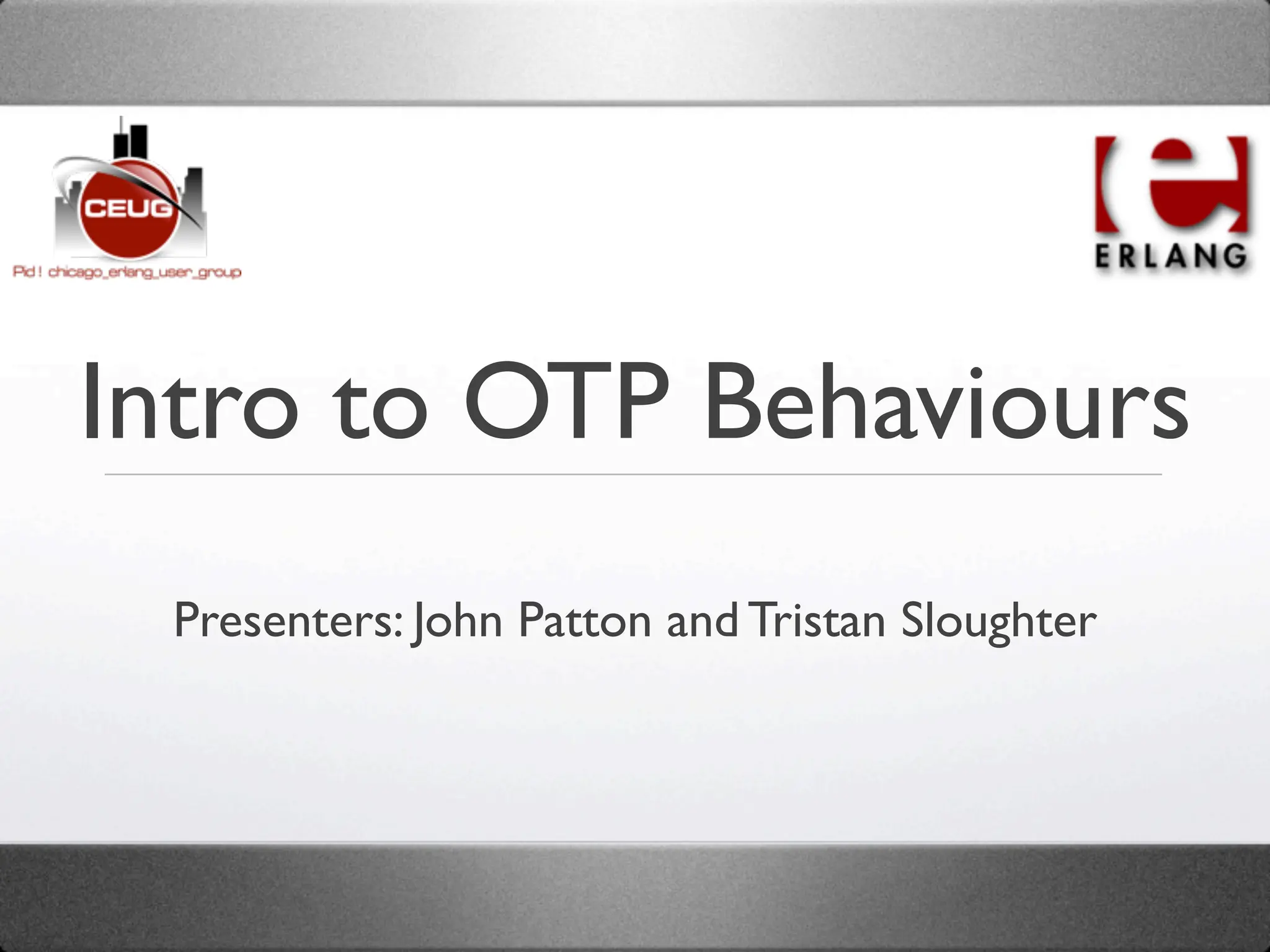

1. Intro to OTP Behaviours
Presenters: John Patton and Tristan Sloughter

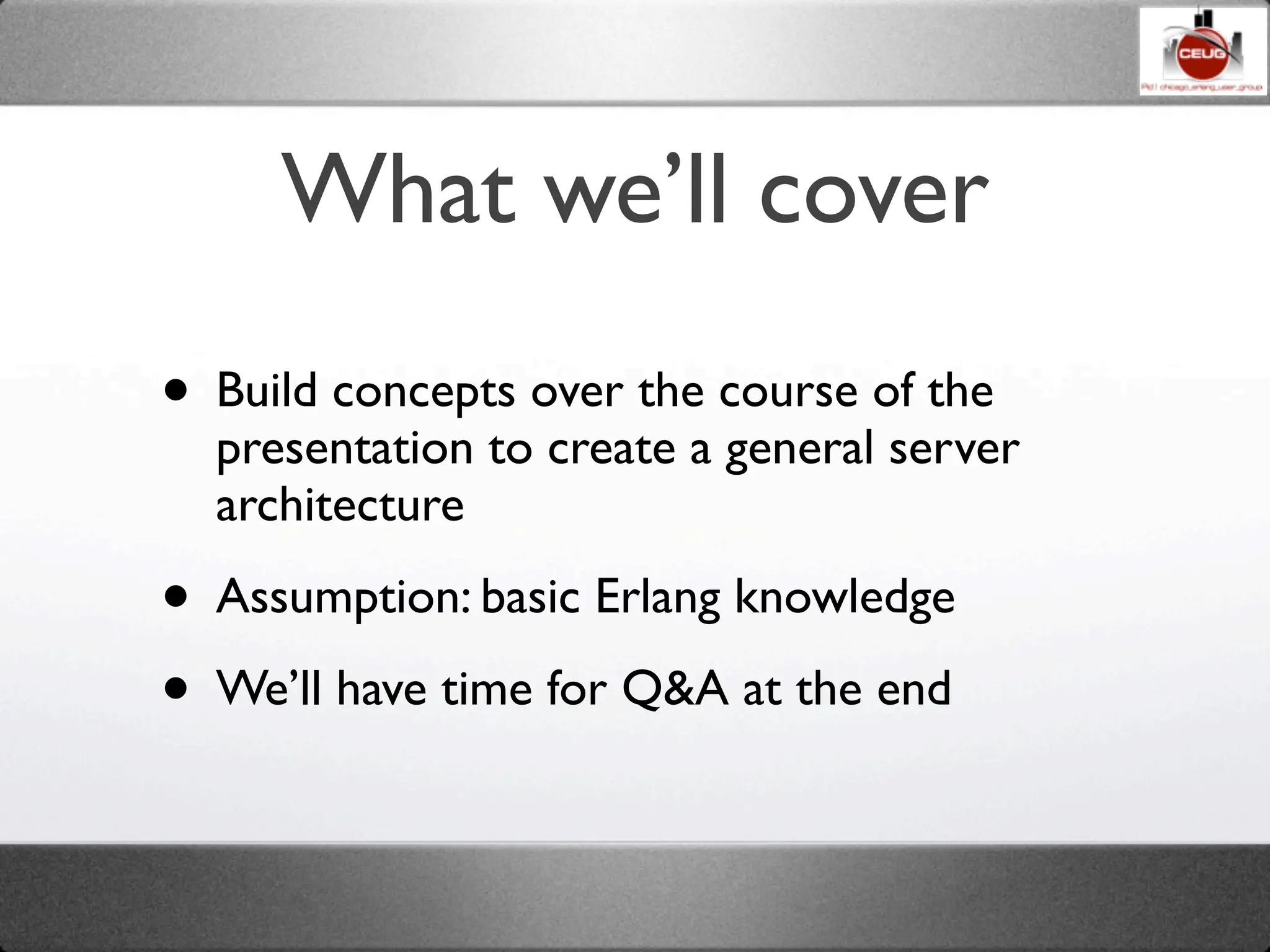

2. What we’ll cover
• Build concepts over the course of the
presentation to create a general server
architecture
• Assumption: basic Erlang knowledge
• We’ll have time for Q&A at the end

3. What are we going to do?
• Look at high-level concepts used in making a
simple chat server
• Start off using basic Erlang!!!
• Let’s understand the concepts first
• Build on top of concepts until we
understand how a general server framework
works under the hood

4. Simple Chat Server
What kind of things does a simple chat server need?

5. Simple Chat Server
What kind of things does a simple chat server need?
• Startup routine
• Server needs to be aware of the clients that are
connected
• Clients need to register and unregister with the server
• The server needs to facilitate sending chat messages from
one client to another
• Shutdown routine

6. What does our design look like?
start stop
register_client('john',Pid) register_client('tristan',Pid)
Chat
Chat Server Chat
Client Client
send_message('tristan',Msg) send_message('john',Msg)
Client Lookup (dict)
Client = atom() pid = pid()
'john' <0.35.0>
'tristan' <0.39.0>

7. Basic Design
client defined elsewhere
chat_server chat_server
chat_server ! {register_client, Name, Pid}.
chat_server ! {send_message, To, Msg}.
receive loop
chat_server ! {unregister_client, Name}.
{register_client,...}
... loop {unregister_client,...}
{send_message,...}
{stop,...}
loop()

8. Chat Server Receive loop
• Our chat server’s loop function
is spawned and registered
chat_server
• The chat server loop function
will maintain the dictionary of
clients (client name -> pid) receive loop
{register_client,...}
loop {unregister_client,...}
• Traditional tail recursion, will run {send_message,...}
{stop,...}
until a stop message is received
loop()
• Messages sent from a client are
handled within the receive loop

9. Let’s organize startup start_link
and initialization spawn
• Create an initialization function
to handle registering self()
init
‘chat_server’
• Wrap the spawn inside a
start_link function
•
receive loop
Instead of spawning loop, let’s {register_client,...}
spawn the init function and call loop {unregister_client,...}
{send_message,...}
loop {stop,...}
loop()

10. Where should we keep start_link
track of our clients? spawn
• Let’s make use of an internal
state, a key-value dictionary
init
‘chat_server’
• Init will be responsible for dict:new()
creating the server’s State:
{ClientName, ClientPID} State
receive loop
•
{register_client,...}
State will be passed into and loop {unregister_client,...}
{send_message,...}
maintained within the receive {stop,...}
loop
loop(State)

11. Let’s look back at
where we started
client defined elsewhere
chat_server chat_server
chat_server ! {register_client, Name, Pid}.
chat_server ! {send_message, To, Msg}.
receive loop
chat_server ! {unregister_client, Name}.
{register_client,...}
... loop {unregister_client,...}
{send_message,...}
{stop,...}
loop()

12. Take a look at
where we are. start_link
spawn
client defined elsewhere
chat_server
chat_server ! {register_client, Name, Pid}.
chat_server ! {send_message, To, Msg}. init
‘chat_server’
chat_server ! {unregister_client, Name}. ! dict:new()
... State
receive loop
{register_client,...}
loop {unregister_client,...}
{send_message,...}
{stop,...}
loop(State)

13. Let’s make it easier for the
client to bang messages
start_link
spawn
• “API” Functions in the
chat_server module
that a client can call init
‘chat_server’
register_client dict:new()
State
•
unregister_client
API functions facilitate ! loop
receive loop
{register_client,...}
banging messages to the send_message {unregister_client,...}
{send_message,...}
{stop,...}
server pid for the client stop
loop(State)
• Cleans up the code

14. Let’s make a handler for
banged messages start_link
spawn
• “Callback” functions in
a module that will
implement the init
‘chat_server’
register_client dict:new()
message functionality State
unregister_client
• Turns message loop send_message
! loop
receive loop
{register_client,...}
{unregister_client,...}
into an interface {send_message,...}
{stop,...}
stop
• Separates the loop(State)
implementation from
handle_receive
the interface {Message, State}
•
terminate
Callbacks update state

15. Why use OTP?
• Large collection of libraries
• Unified Application packaging and release structure
• Standardized coding practices
• Components: HTTP and FTP server, CORBA
ORB, SNMP Agent, IDL, Error Handling
• Formalized design patterns into
“behaviors”

16. What is an OTP
behavior? OTP Behavior
• gen_*:functionA/3
• Simply: a formalization of a • gen_*:functionB/2
common pattern into two
parts. ...
• Behavior Module that defines
the pattern interface.
Callback Module
• Callback Module that • module:callbackA/2
implements the pattern
interface. • module:callbackB/3
...

17. Why use OTP for our server?
• Much of the code needed to create the server in
our example is already written in the OTP
behavior: gen_server
• Since the interface is only used to call a callback
function, the callbacks can be in any module
• The gen_server has a generic set of behavior
functions available for use by ANY implementation
(can use more than one callback implementation)

18. Behavior: gen_server
chat server gen_server ! callback
chat_server:start_link gen_server:start_link callback:init/1
chat_server:send_message gen_server:call callback:handle_call/3
chat_server:register_client gen_server:multi_call
chat_server:unregister_client
chat_server:stop gen_server:cast callback:handle_cast/2
sends stop message returns: {stop, normal, State}
callback:terminate/2
State is maintained here State is passed in and returned back here

19. More Information
• Client-server design principles:
http://www.erlang.org/doc/design_principles/
gen_server_concepts.html
• gen_server “behaviour”:
http://www.erlang.org/doc/man/gen_server.html
• Chicago Erlang Users Group: start a discussion!
• Me: John Patton <jpatton@gmail.com>

20. What happens if it
crashes?
