1. MODULE 1
OOPS CONCEPTS
(Object Oriented Programming)

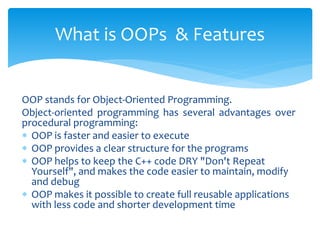

2. OOP stands for Object-Oriented Programming.
Object-oriented programming has several advantages over
procedural programming:
 OOP is faster and easier to execute
 OOP provides a clear structure for the programs
 OOP helps to keep the C++ code DRY "Don't Repeat
Yourself", and makes the code easier to maintain, modify
and debug
 OOP makes it possible to create full reusable applications
with less code and shorter development time
What is OOPs & Features

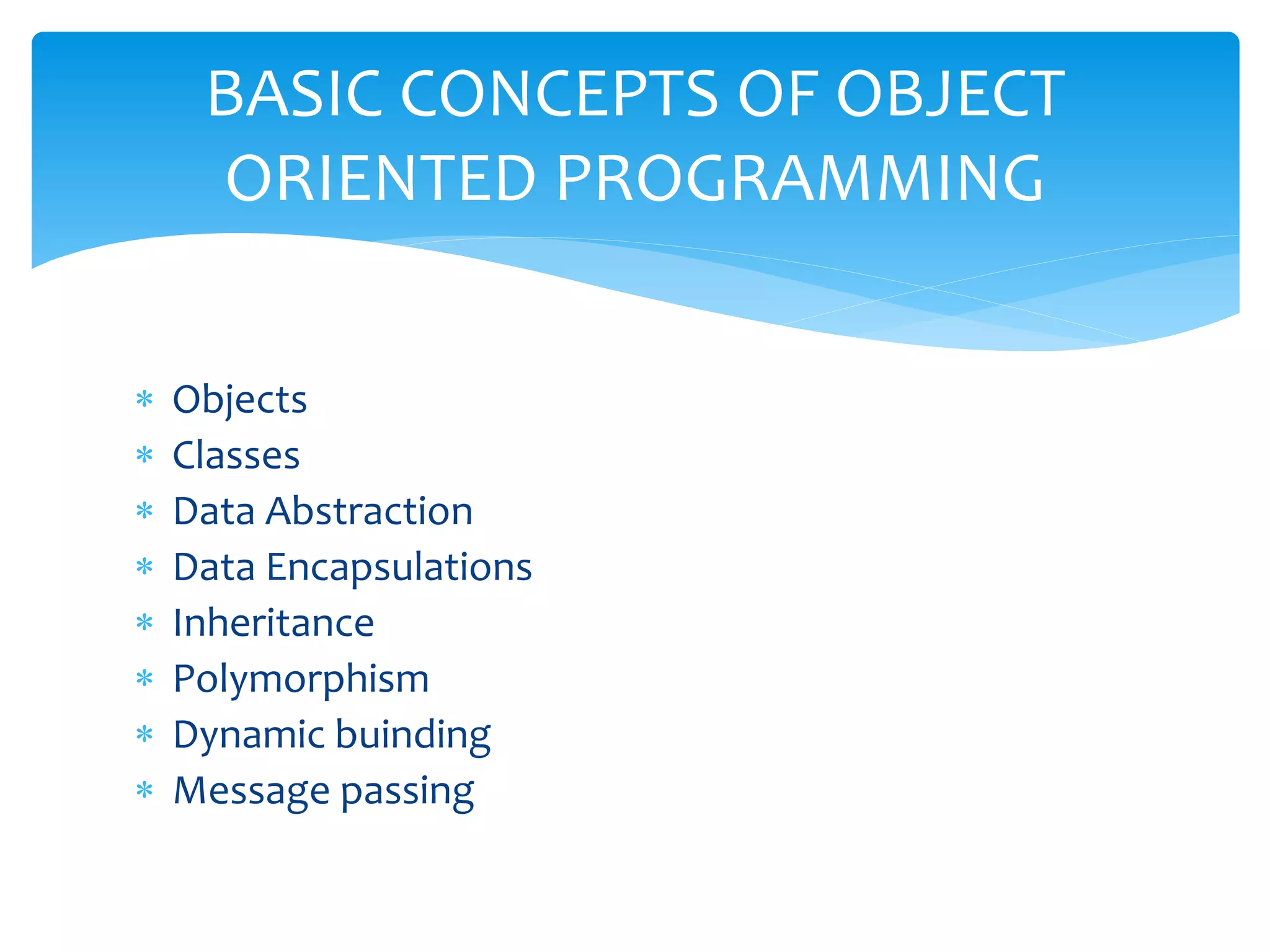

3.  Objects
 Classes
 Data Abstraction
 Data Encapsulations
 Inheritance
 Polymorphism
 Dynamic buinding
 Message passing
BASIC CONCEPTS OF OBJECT
ORIENTED PROGRAMMING

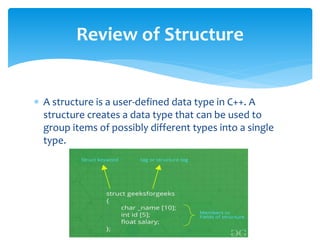

4. Review of Structure
 A structure is a user-defined data type in C++. A
structure creates a data type that can be used to
group items of possibly different types into a single
type.

5. The ‘struct’ keyword is used to create a structure. The
general syntax to create a structure is as shown below:
struct structureName{
member1;
member2;
member3;
. . .
memberN;
};
How to create a structure?

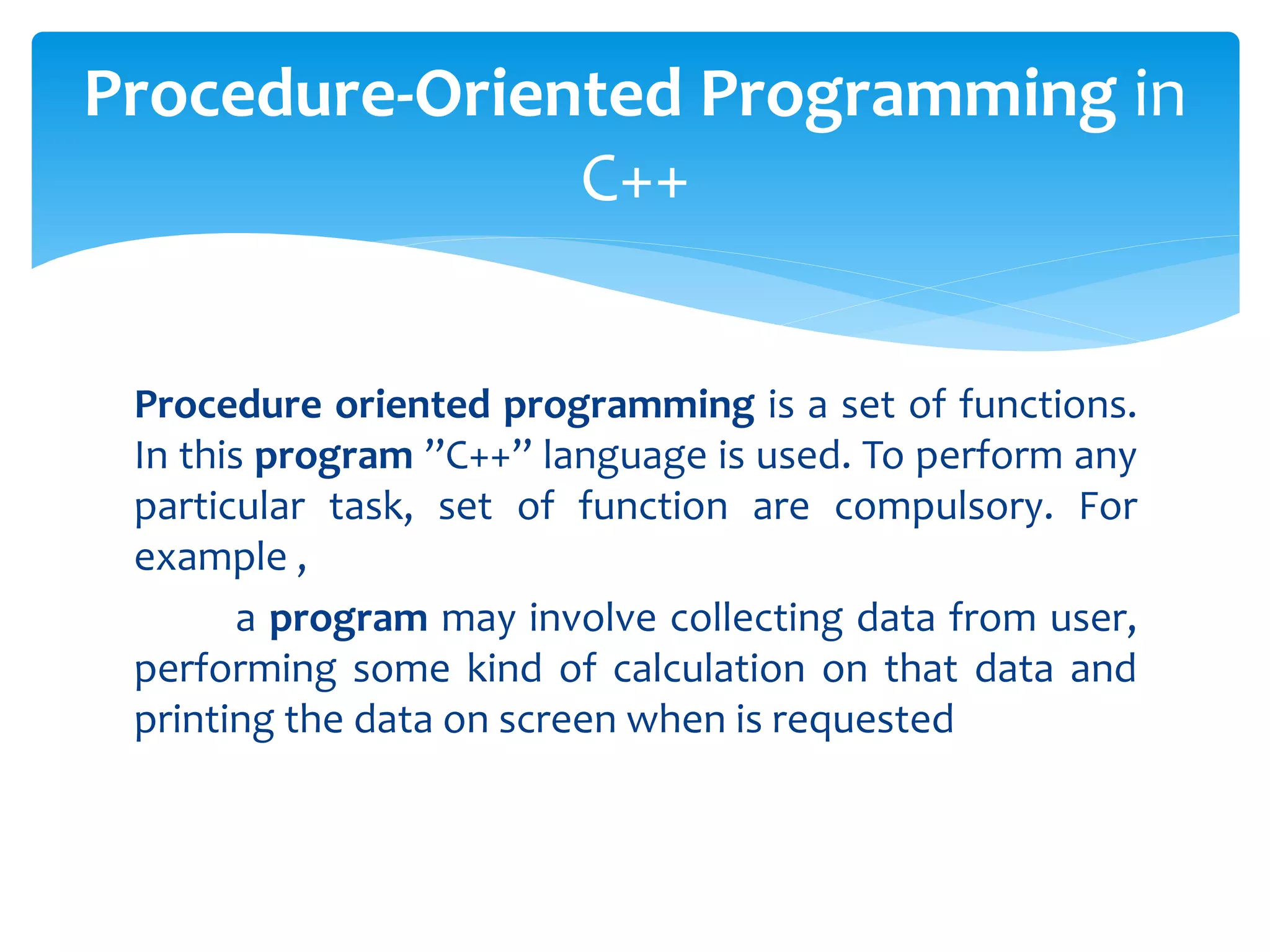

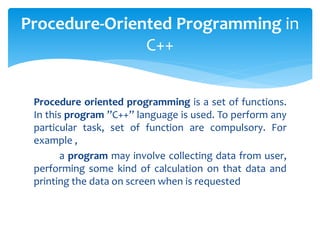

6. Procedure oriented programming is a set of functions.
In this program ”C++” language is used. To perform any
particular task, set of function are compulsory. For
example ,
a program may involve collecting data from user,
performing some kind of calculation on that data and
printing the data on screen when is requested

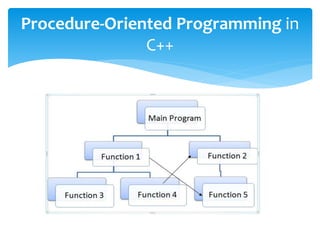

Procedure-Oriented Programming in
C++

7. Procedure-Oriented Programming in
C++

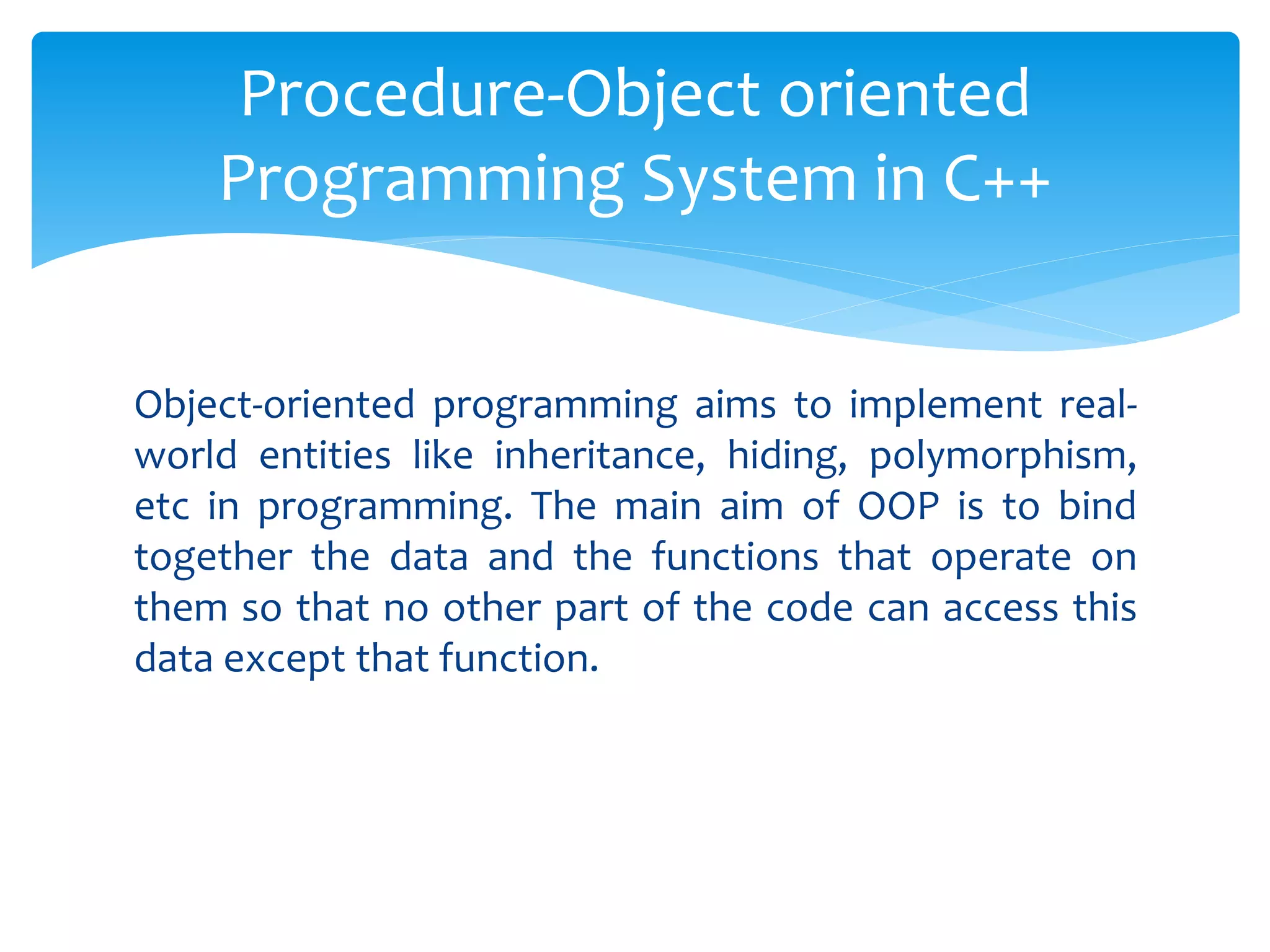

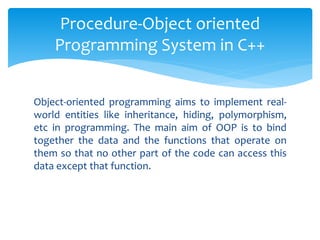

8. Object-oriented programming aims to implement real-
world entities like inheritance, hiding, polymorphism,
etc in programming. The main aim of OOP is to bind
together the data and the functions that operate on
them so that no other part of the code can access this
data except that function.
Procedure-Object oriented
Programming System in C++

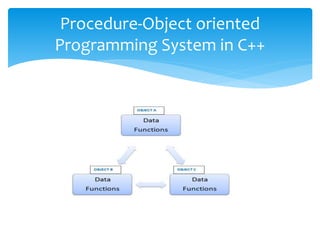

9. Procedure-Object oriented
Programming System in C++

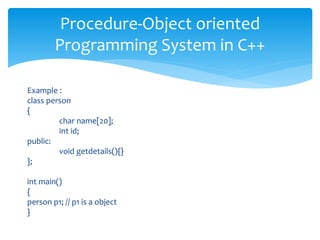

10. Example :
class person
{
char name[20];
int id;
public:
void getdetails(){}
};
int main()
{
person p1; // p1 is a object
}
Procedure-Object oriented
Programming System in C++

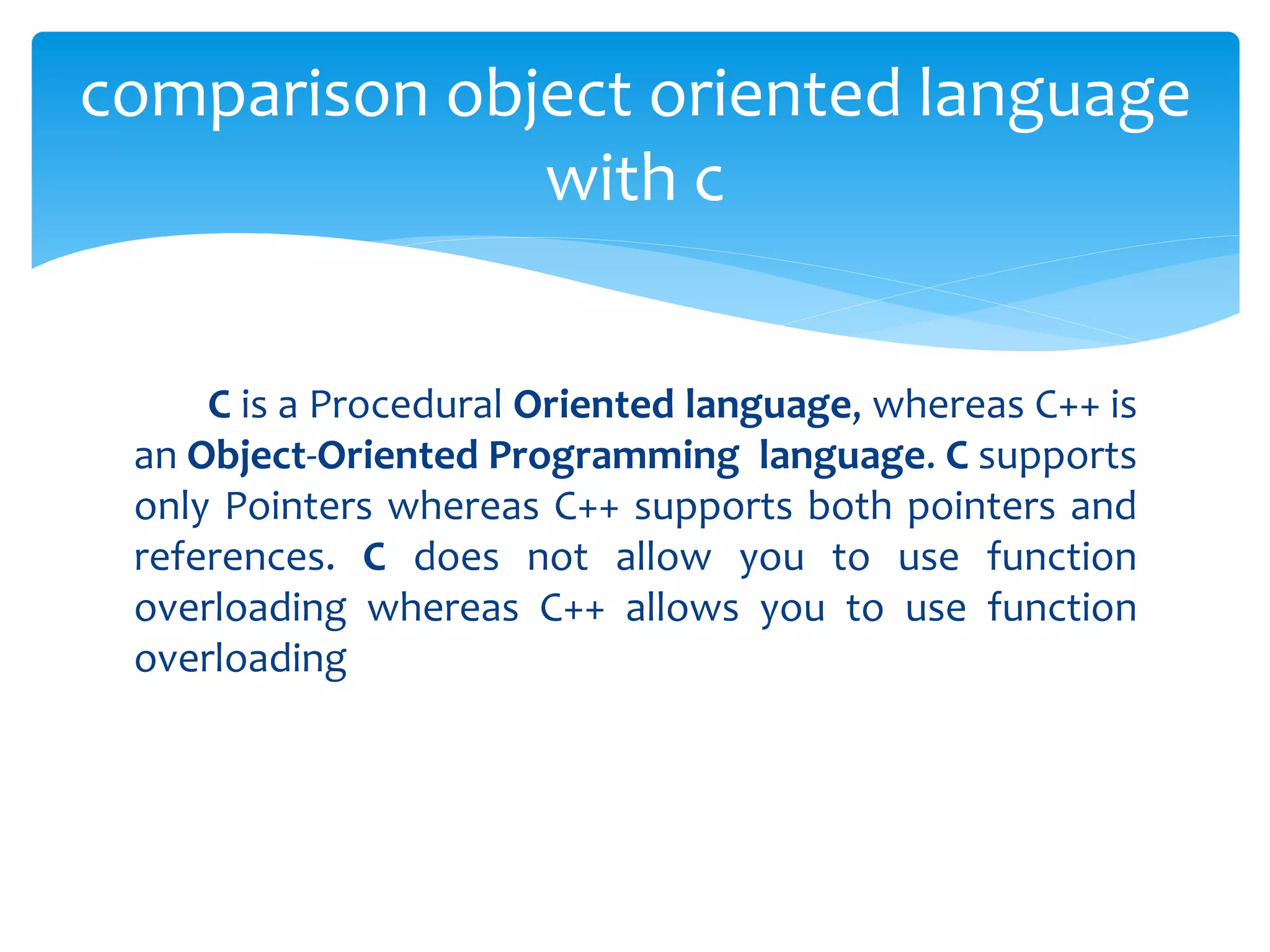

11. C is a Procedural Oriented language, whereas C++ is
an Object-Oriented Programming language. C supports
only Pointers whereas C++ supports both pointers and
references. C does not allow you to use function
overloading whereas C++ allows you to use function
overloading
comparison object oriented language
with c

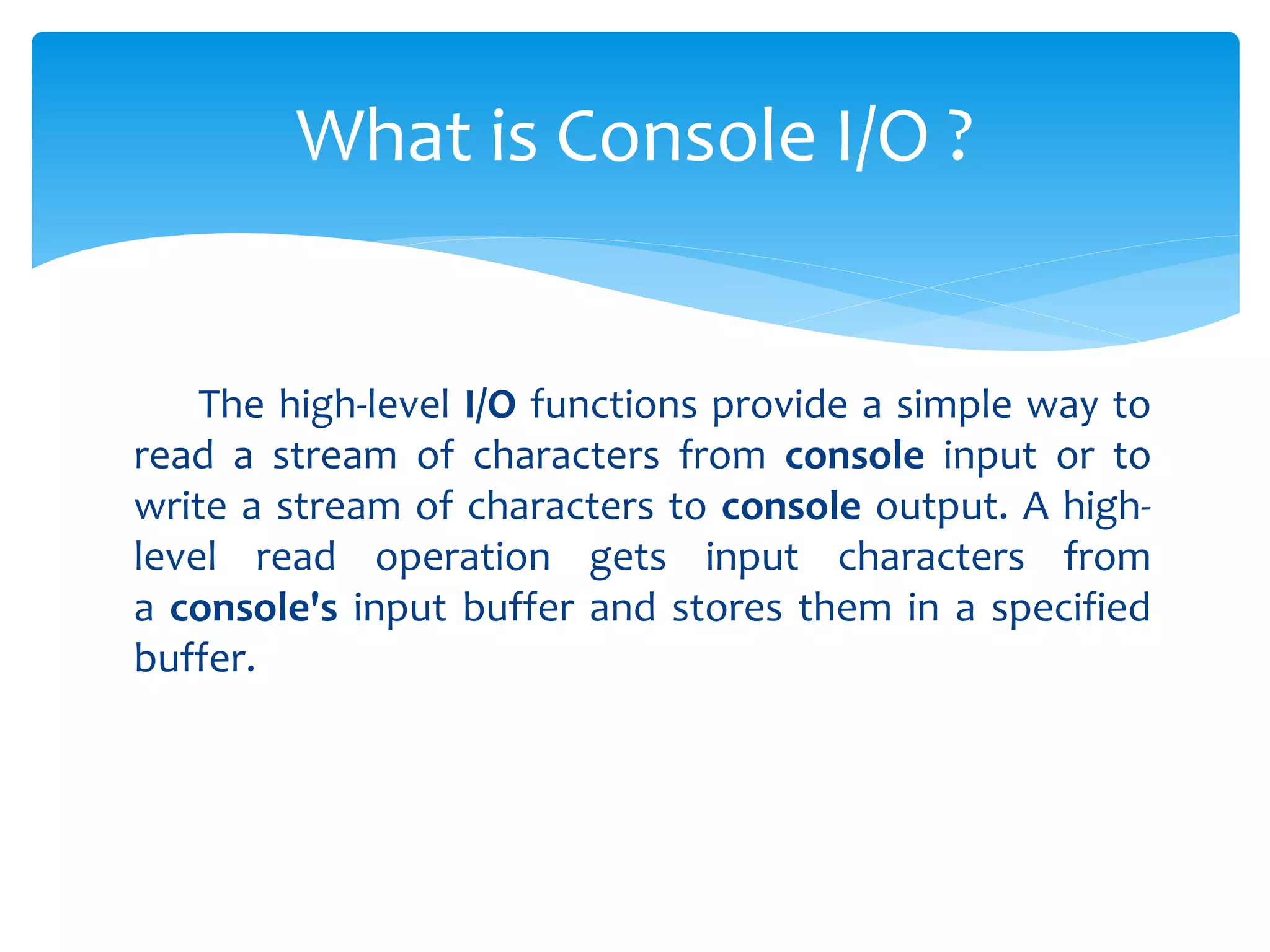

12. The high-level I/O functions provide a simple way to
read a stream of characters from console input or to
write a stream of characters to console output. A high-
level read operation gets input characters from
a console's input buffer and stores them in a specified
buffer.
What is Console I/O ?

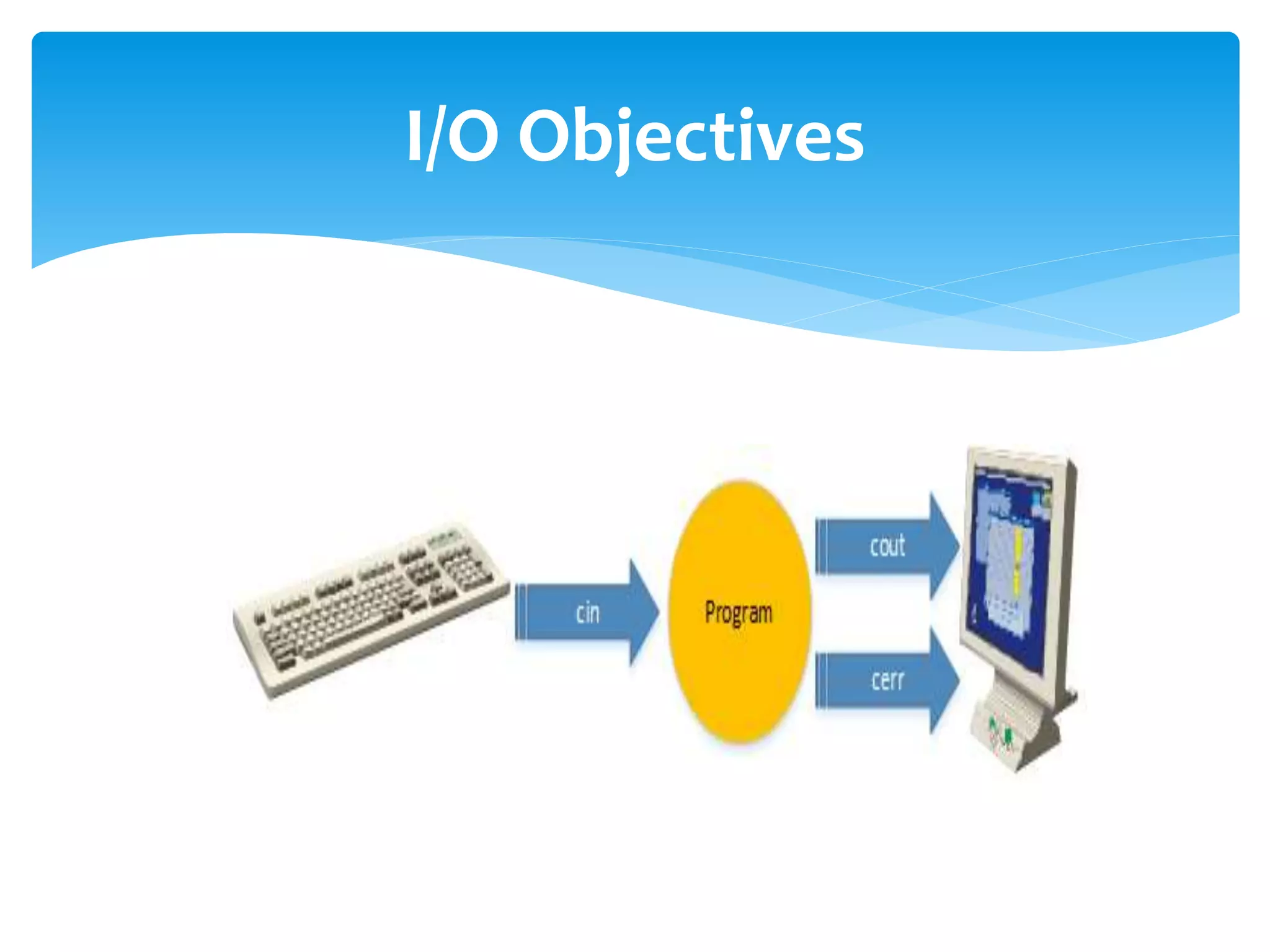

13. I/O Objectives

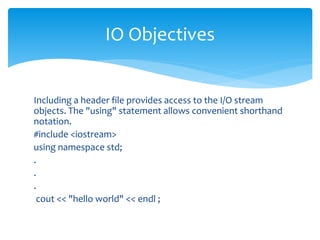

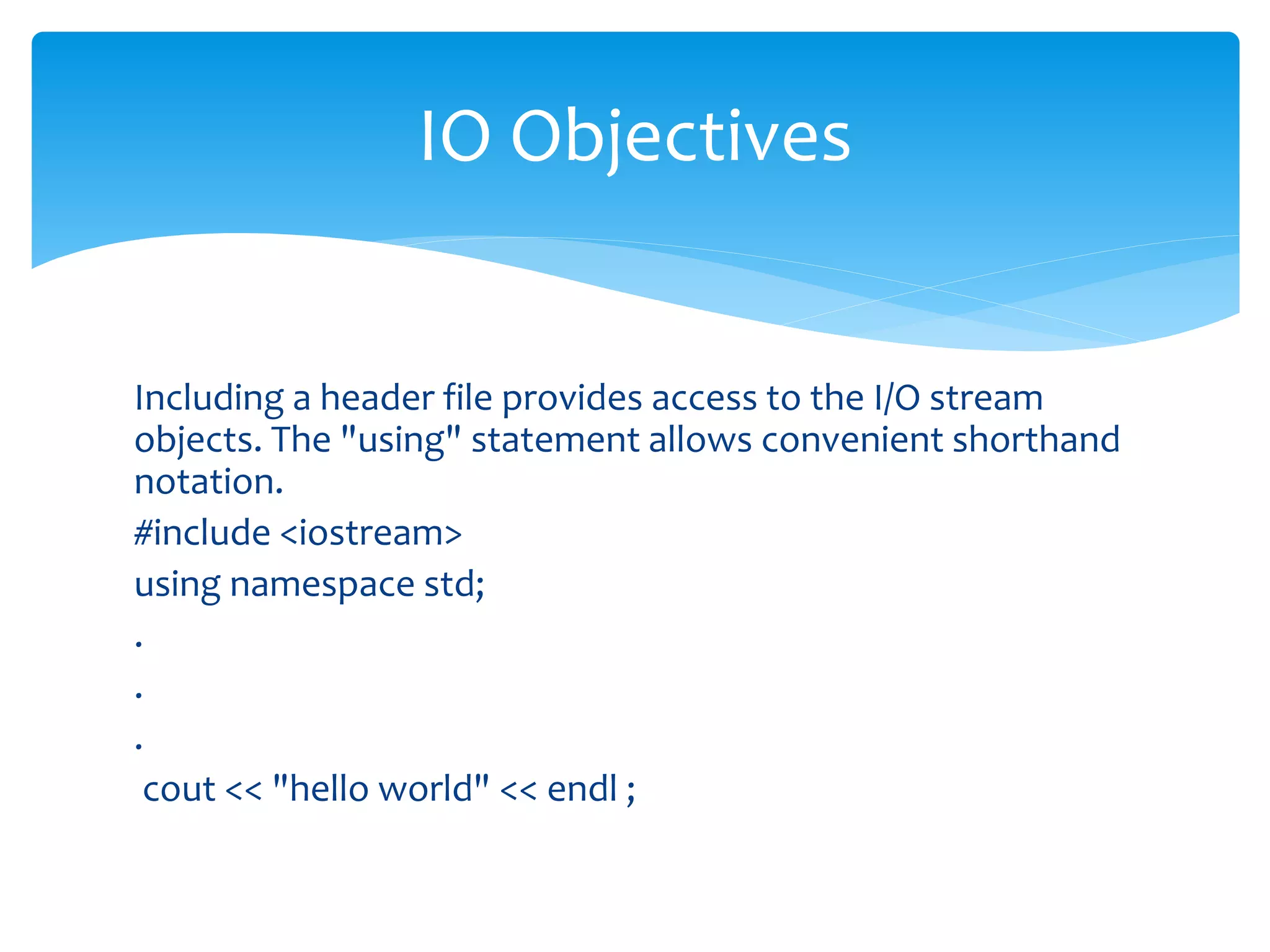

14. Including a header file provides access to the I/O stream
objects. The "using" statement allows convenient shorthand
notation.
#include <iostream>
using namespace std;
.
.
.
cout << "hello world" << endl ;
IO Objectives

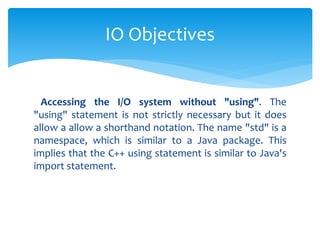

15. Accessing the I/O system without "using". The
"using" statement is not strictly necessary but it does
allow a allow a shorthand notation. The name "std" is a
namespace, which is similar to a Java package. This
implies that the C++ using statement is similar to Java's
import statement.
IO Objectives

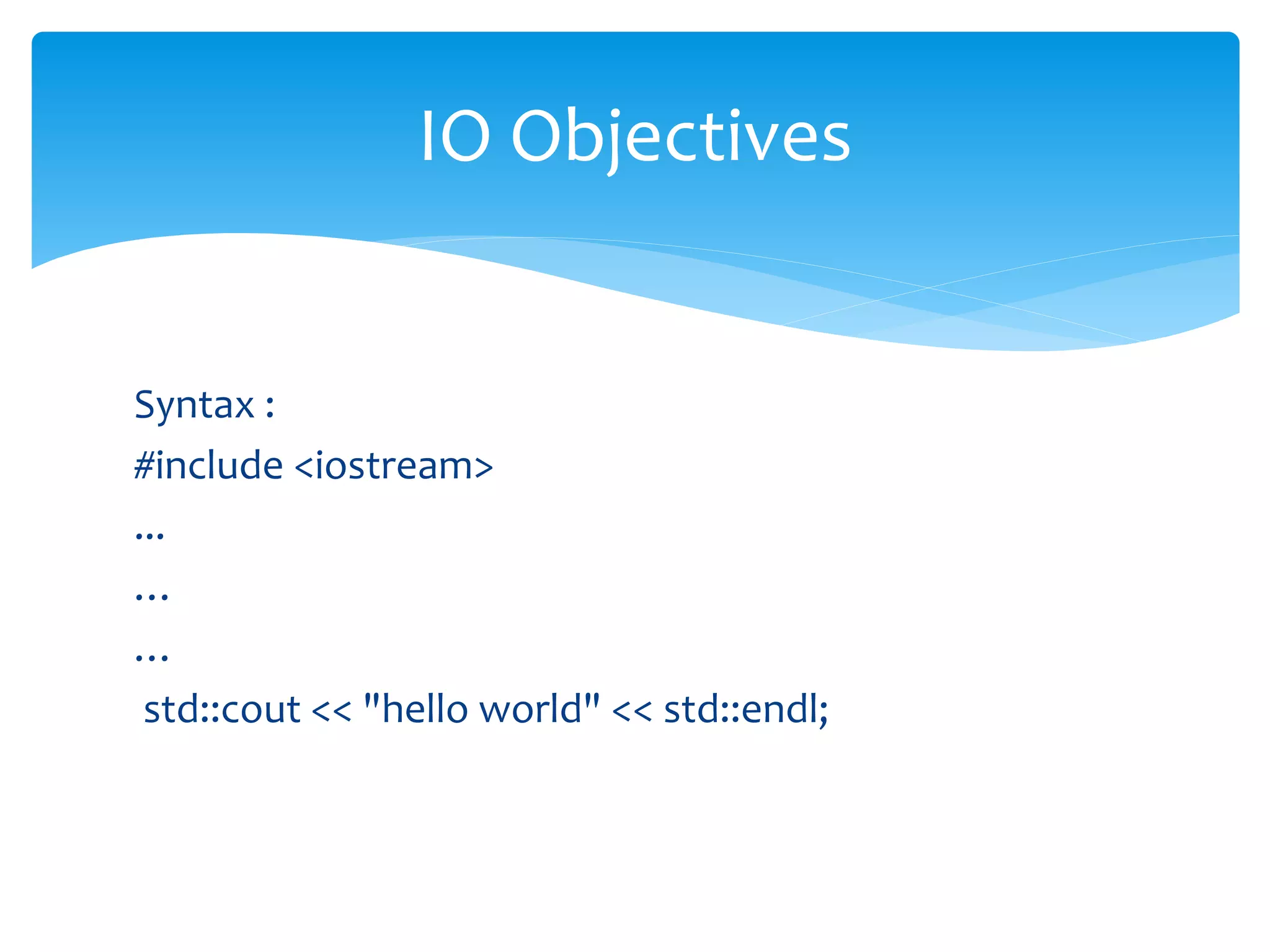

16. Syntax :
#include <iostream>
...
…
…
std::cout << "hello world" << std::endl;
IO Objectives

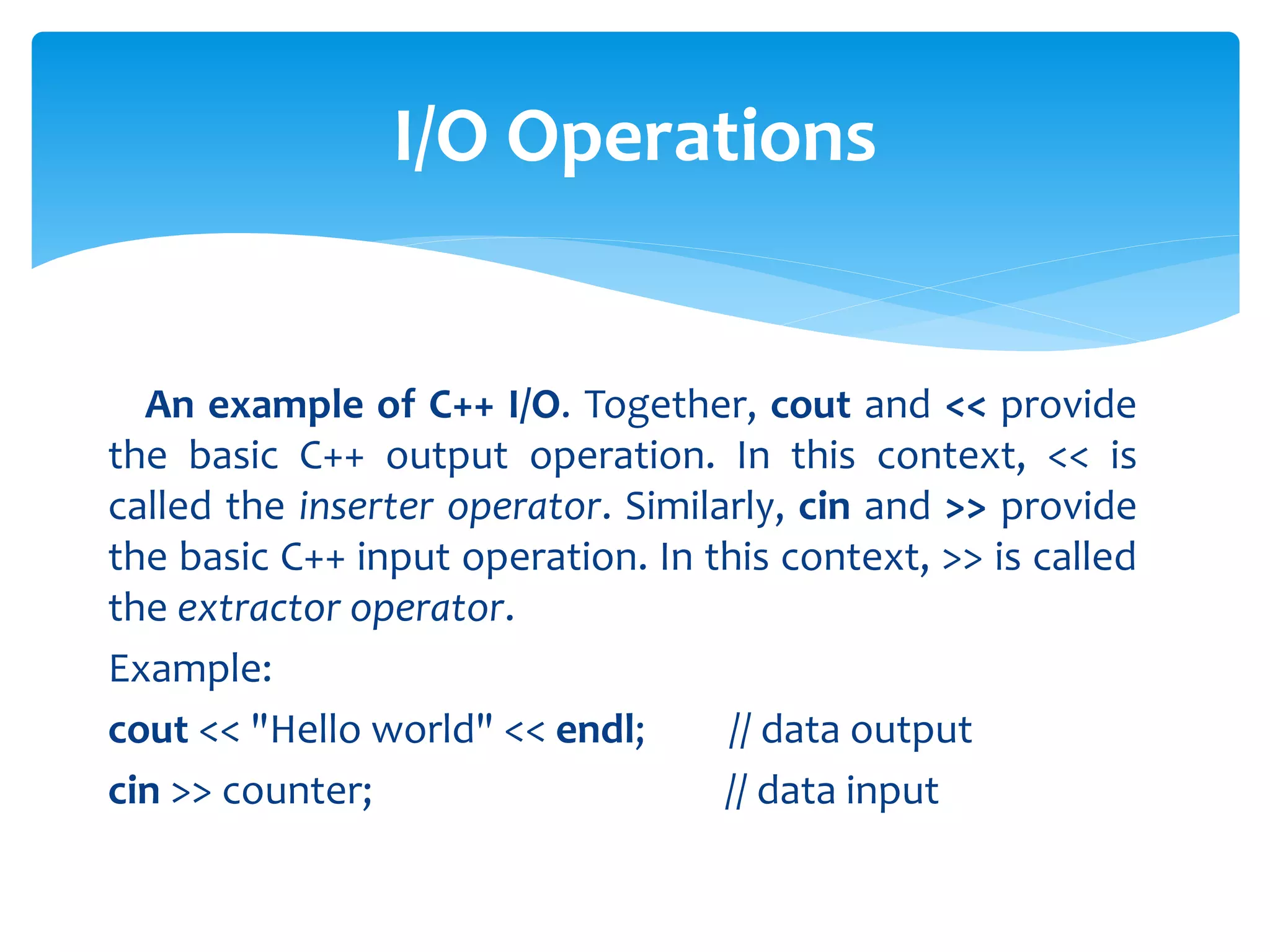

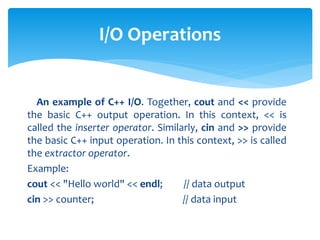

17. An example of C++ I/O. Together, cout and << provide
the basic C++ output operation. In this context, << is
called the inserter operator. Similarly, cin and >> provide
the basic C++ input operation. In this context, >> is called
the extractor operator.
Example:
cout << "Hello world" << endl; // data output
cin >> counter; // data input
I/O Operations

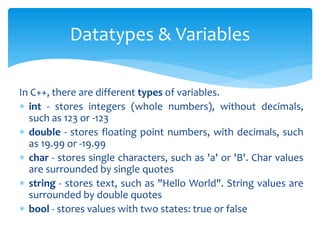

18. In C++, there are different types of variables.
 int - stores integers (whole numbers), without decimals,
such as 123 or -123
 double - stores floating point numbers, with decimals, such
as 19.99 or -19.99
 char - stores single characters, such as 'a' or 'B'. Char values
are surrounded by single quotes
 string - stores text, such as "Hello World". String values are
surrounded by double quotes
 bool - stores values with two states: true or false
Datatypes & Variables

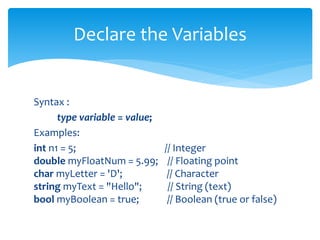

19. Syntax :
type variable = value;
Examples:
int n1 = 5; // Integer
double myFloatNum = 5.99; // Floating point
char myLetter = 'D'; // Character
string myText = "Hello"; // String (text)
bool myBoolean = true; // Boolean (true or false)
Declare the Variables

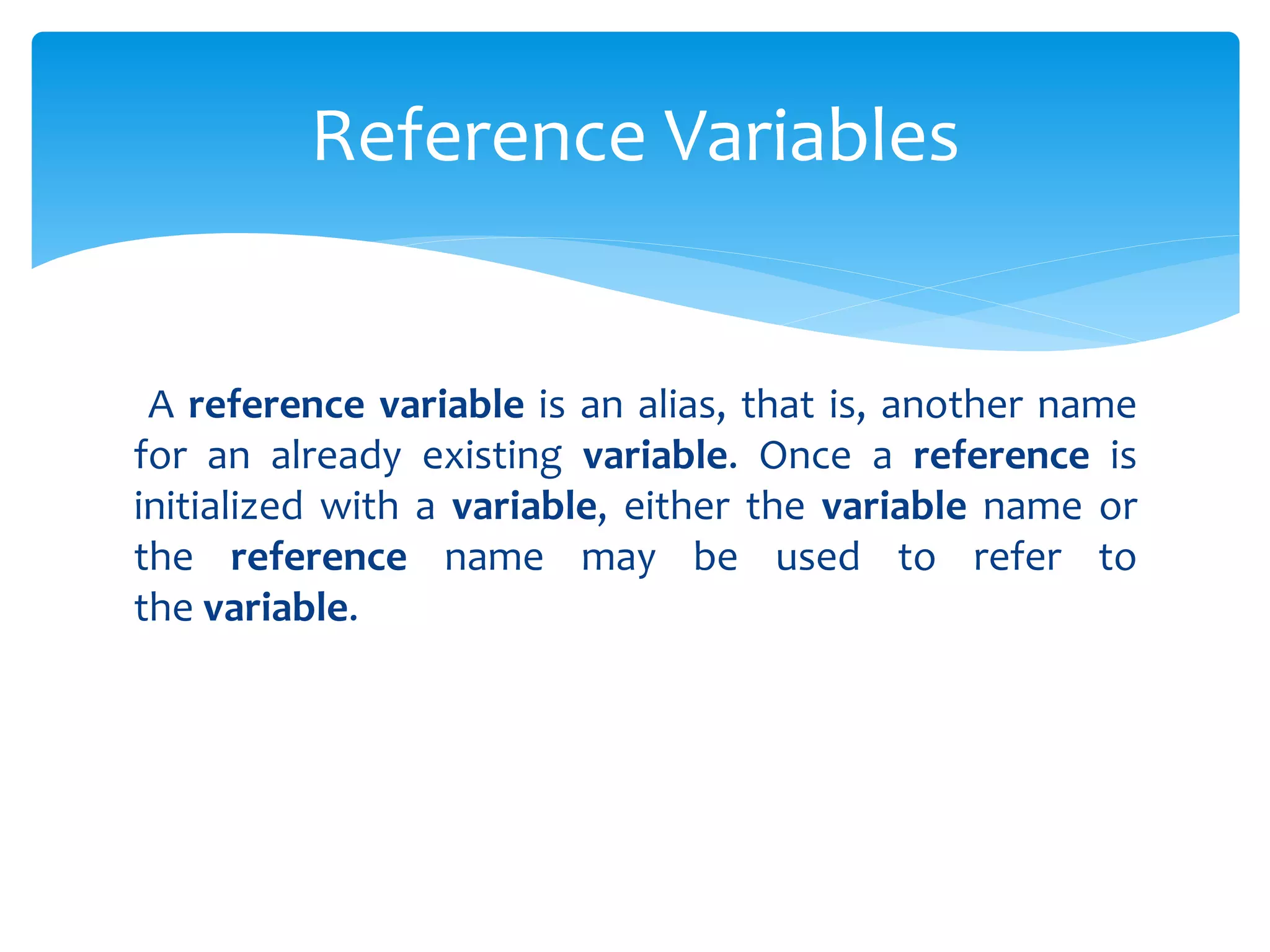

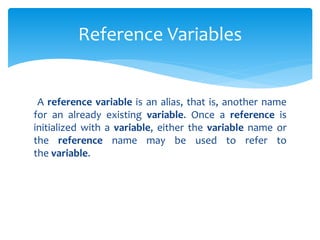

20. A reference variable is an alias, that is, another name
for an already existing variable. Once a reference is
initialized with a variable, either the variable name or
the reference name may be used to refer to
the variable.
Reference Variables

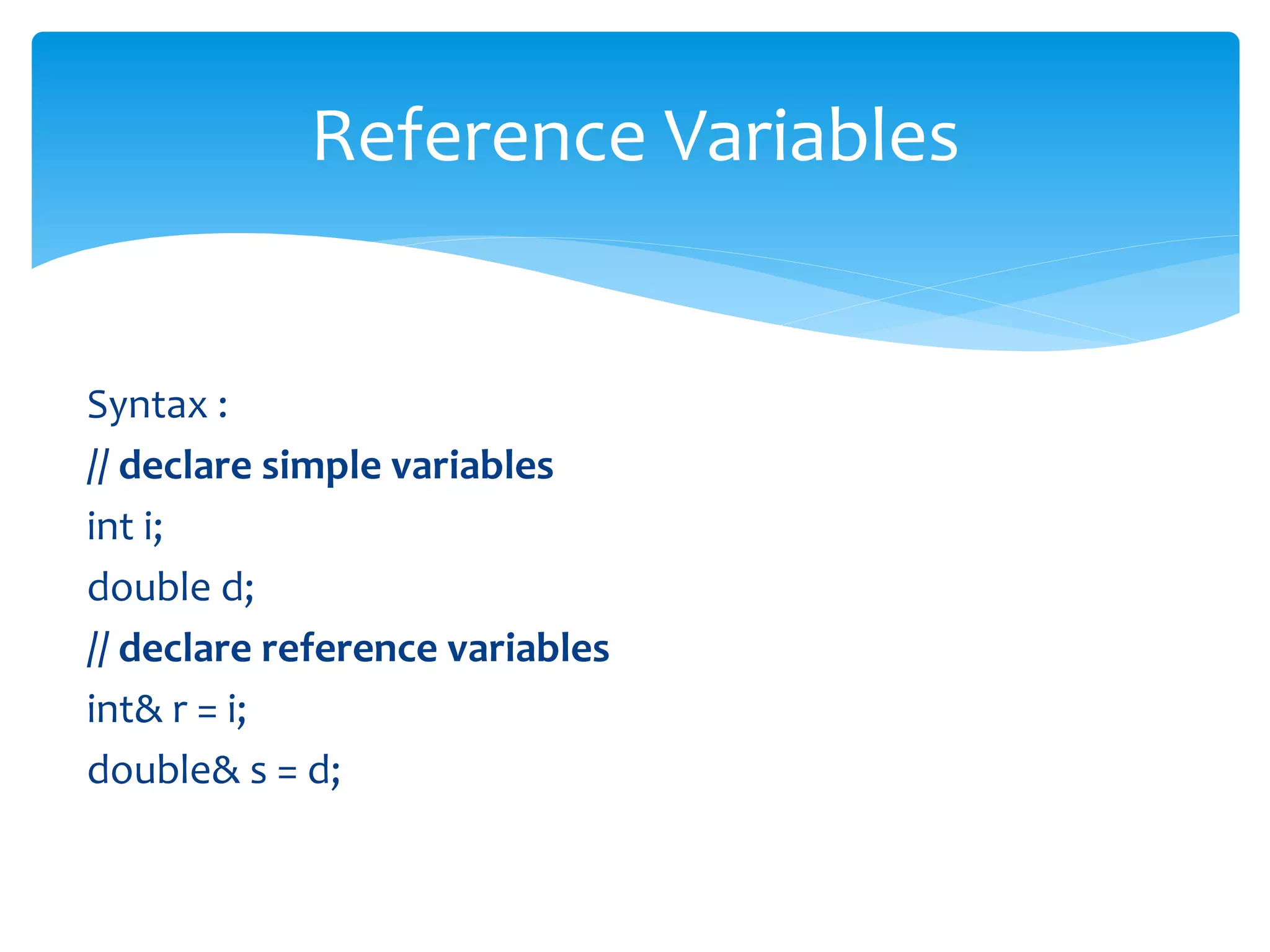

21. Syntax :
// declare simple variables
int i;
double d;
// declare reference variables
int& r = i;
double& s = d;
Reference Variables

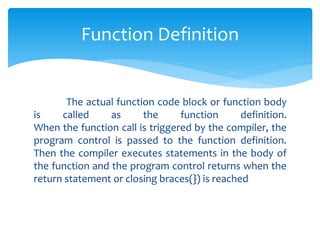

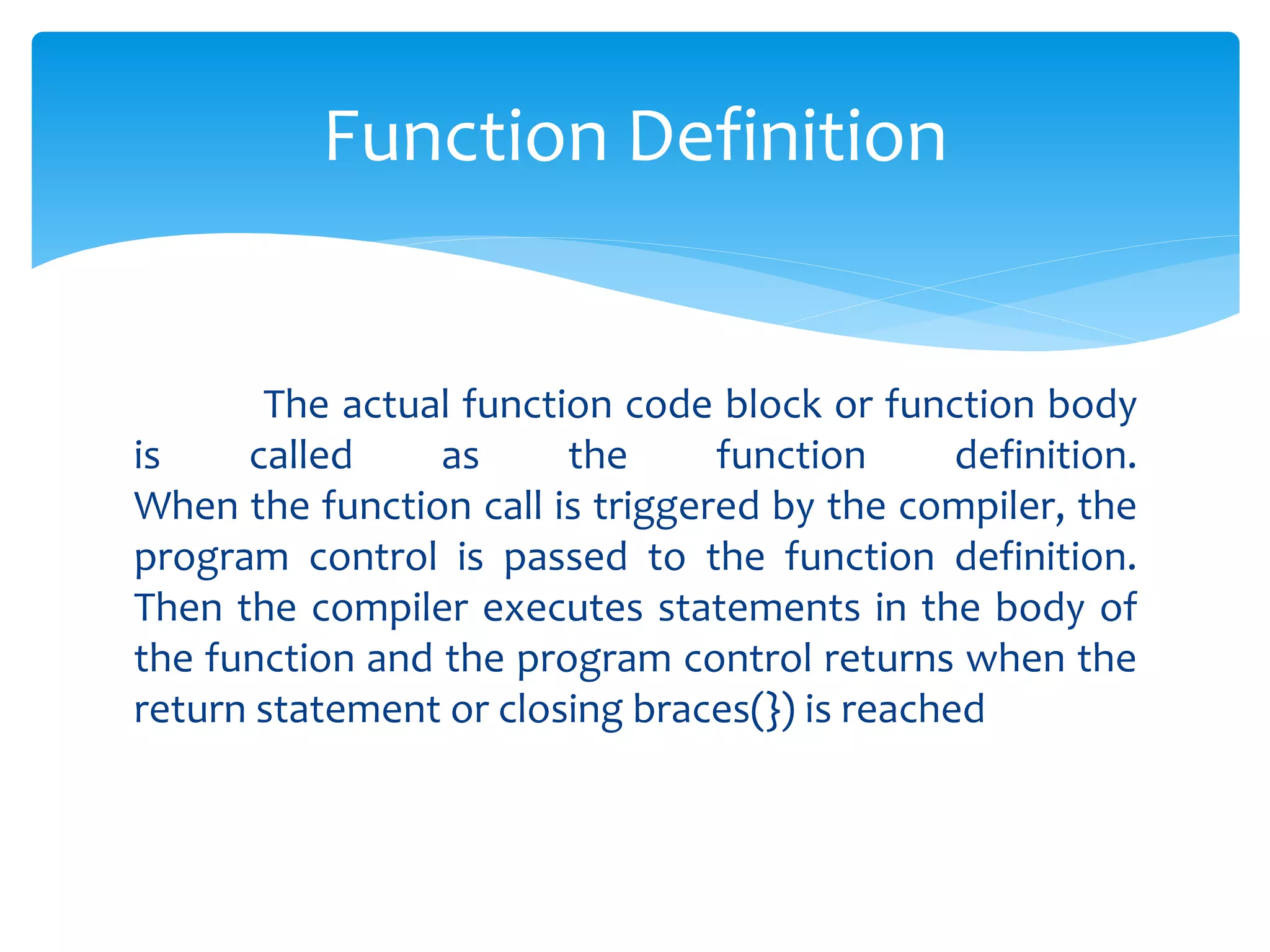

22. The actual function code block or function body
is called as the function definition.
When the function call is triggered by the compiler, the
program control is passed to the function definition.
Then the compiler executes statements in the body of
the function and the program control returns when the
return statement or closing braces(}) is reached
Function Definition

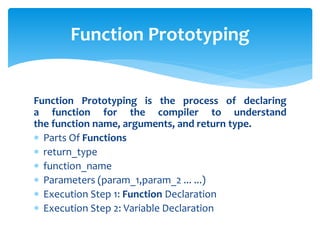

23. Function Prototyping is the process of declaring
a function for the compiler to understand
the function name, arguments, and return type.
 Parts Of Functions
 return_type
 function_name
 Parameters (param_1,param_2 ... ...)
 Execution Step 1: Function Declaration
 Execution Step 2: Variable Declaration
Function Prototyping

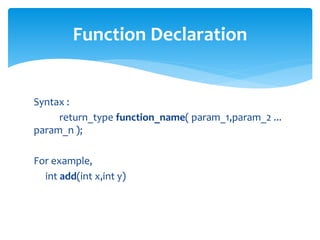

24. Syntax :
return_type function_name( param_1,param_2 ...
param_n );
For example,
int add(int x,int y)
Function Declaration

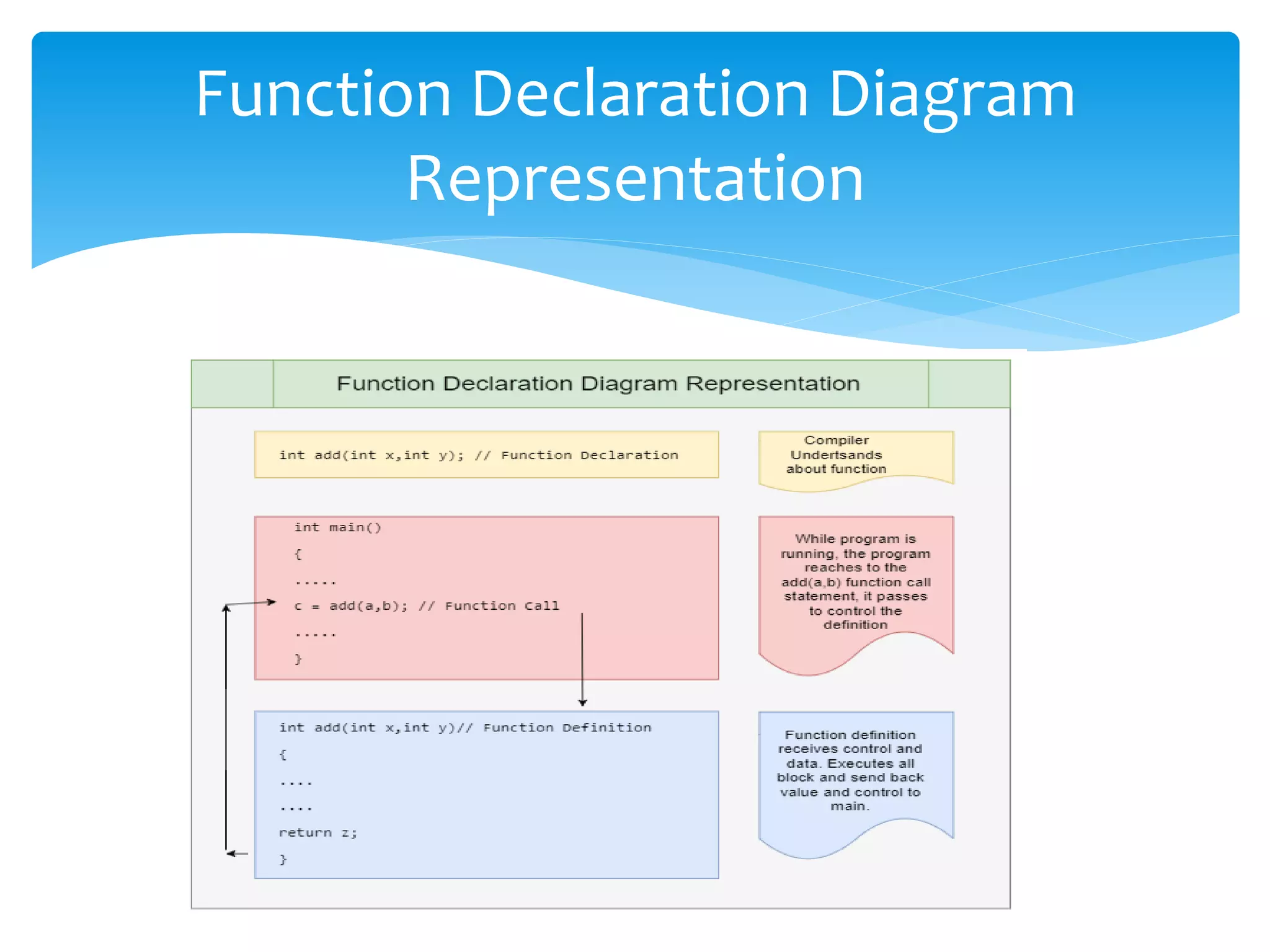

25. Function Declaration Diagram
Representation

26. #include<iostream>
using namespace std;
int add(int x, int y); // Function Declaration
int main() {
.....
c = add(a, b); // Function Call .....
}
int add(int x, int y) // Function Definition {
.....
}
Function-Call

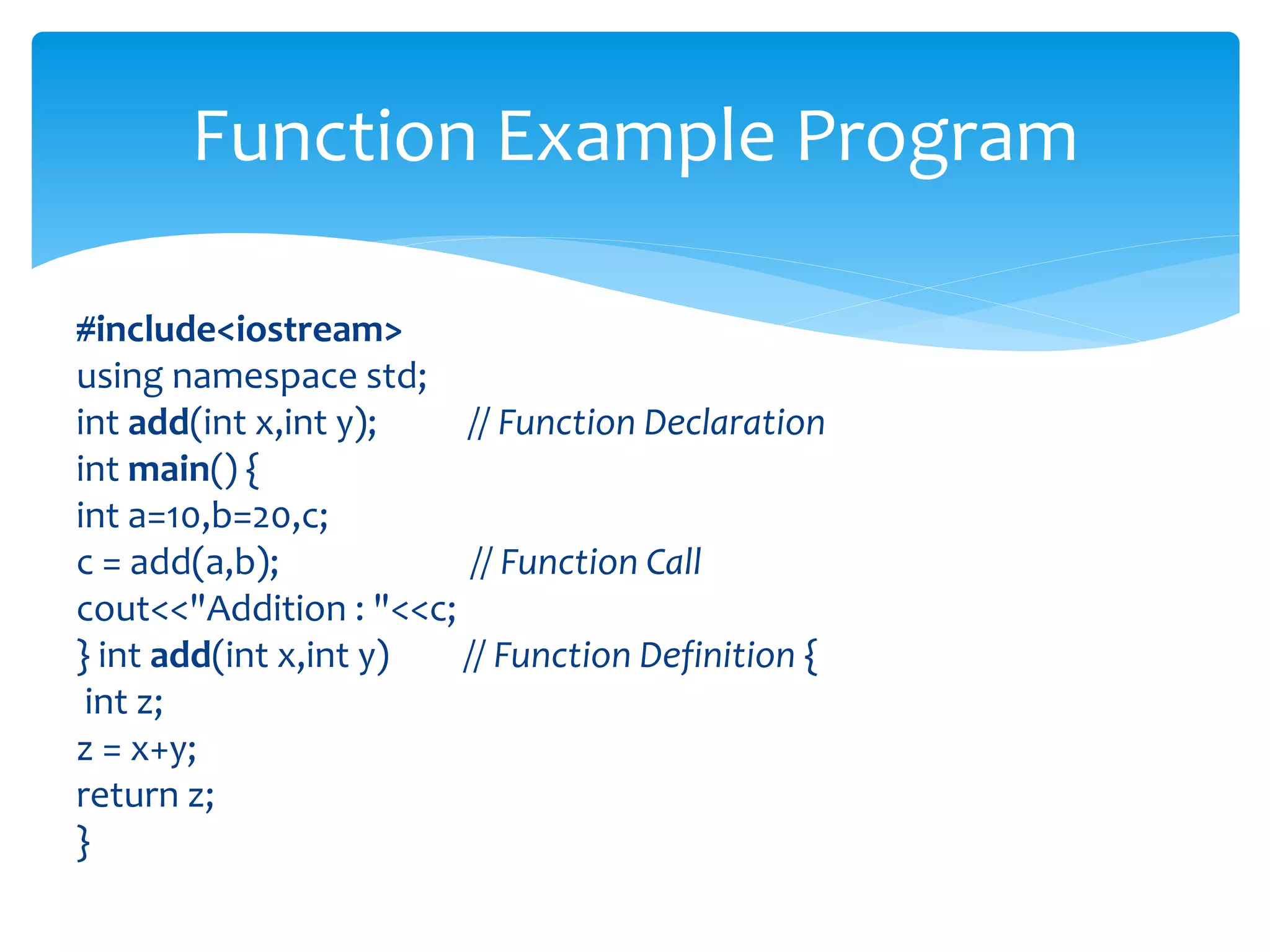

27. #include<iostream>
using namespace std;
int add(int x,int y); // Function Declaration
int main() {
int a=10,b=20,c;
c = add(a,b); // Function Call
cout<<"Addition : "<<c;
} int add(int x,int y) // Function Definition {
int z;
z = x+y;
return z;
}
Function Example Program

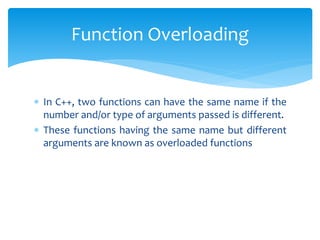

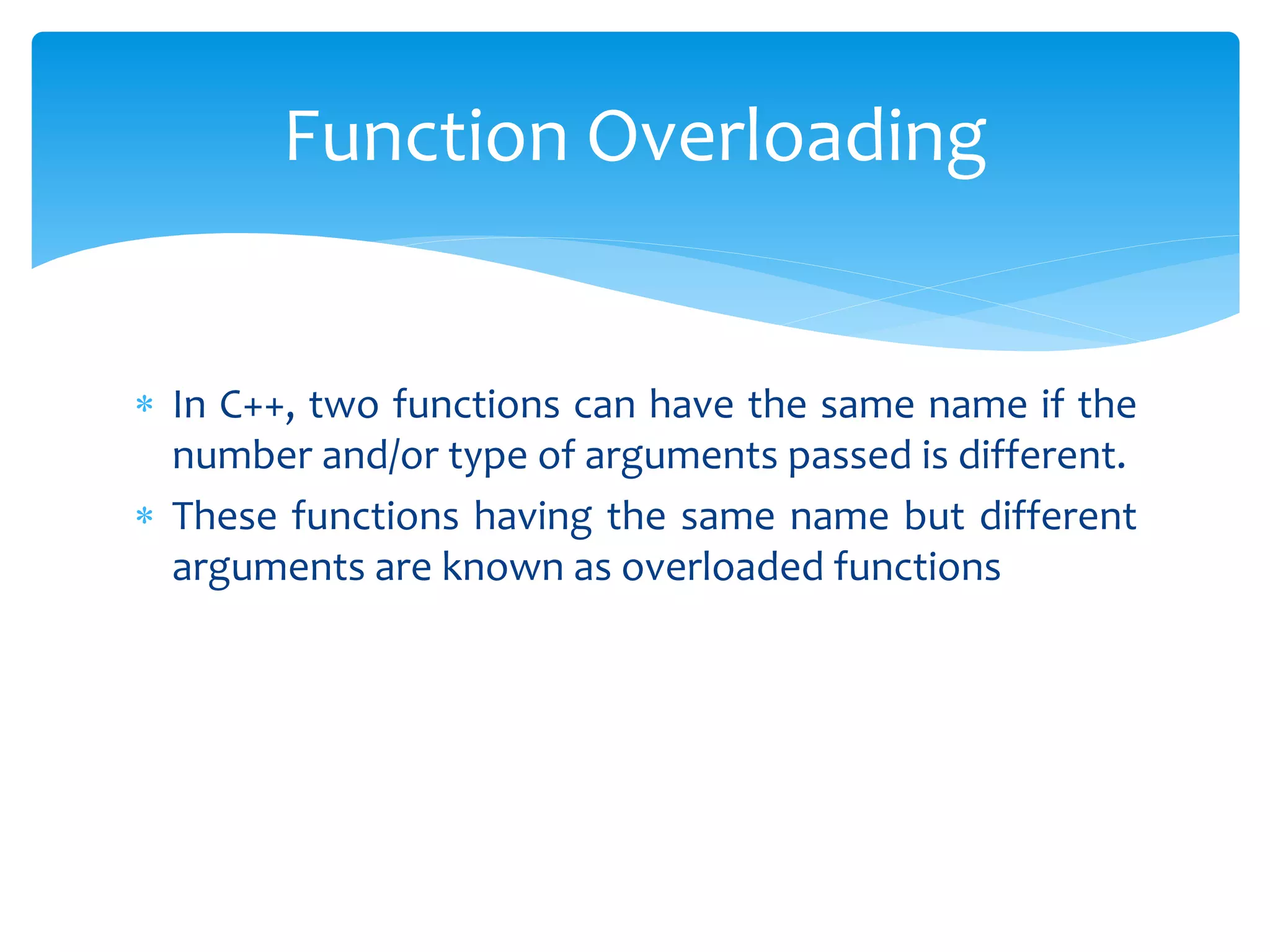

28.  In C++, two functions can have the same name if the
number and/or type of arguments passed is different.
 These functions having the same name but different
arguments are known as overloaded functions
Function Overloading

29. int plusFuncInt(int x, int y) {
return x + y;
}
double plusFuncDouble(double x, double y) {
return x + y;
}
int main() {
int myNum1 = plusFuncInt(8, 5);
double myNum2 = plusFuncDouble(4.3, 6.26);
cout << "Int: " << myNum1 << "n";
cout << "Double: " << myNum2;
return 0;
}
Function Overloading

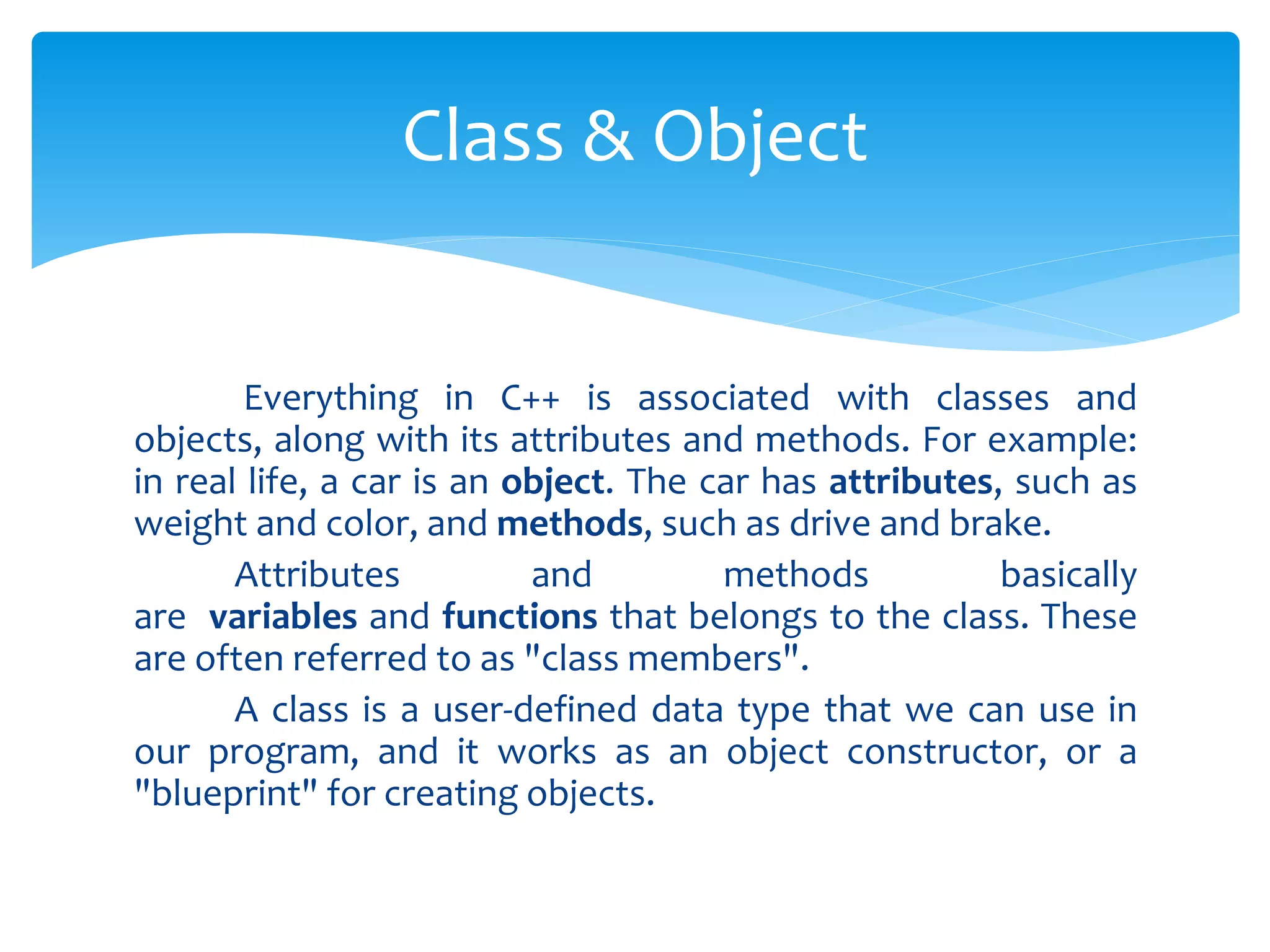

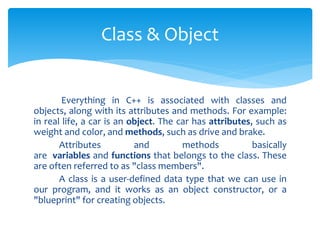

30. Everything in C++ is associated with classes and
objects, along with its attributes and methods. For example:
in real life, a car is an object. The car has attributes, such as
weight and color, and methods, such as drive and brake.
Attributes and methods basically
are variables and functions that belongs to the class. These
are often referred to as "class members".
A class is a user-defined data type that we can use in
our program, and it works as an object constructor, or a
"blueprint" for creating objects.
Class & Object

31. To create a class, use the class keyword:
Syntax :
class MyClass { // The class
public: // Access specifier
int myNum; // Attribute (int variable)
string myString; // Attribute (string variable)
};
Create a Class

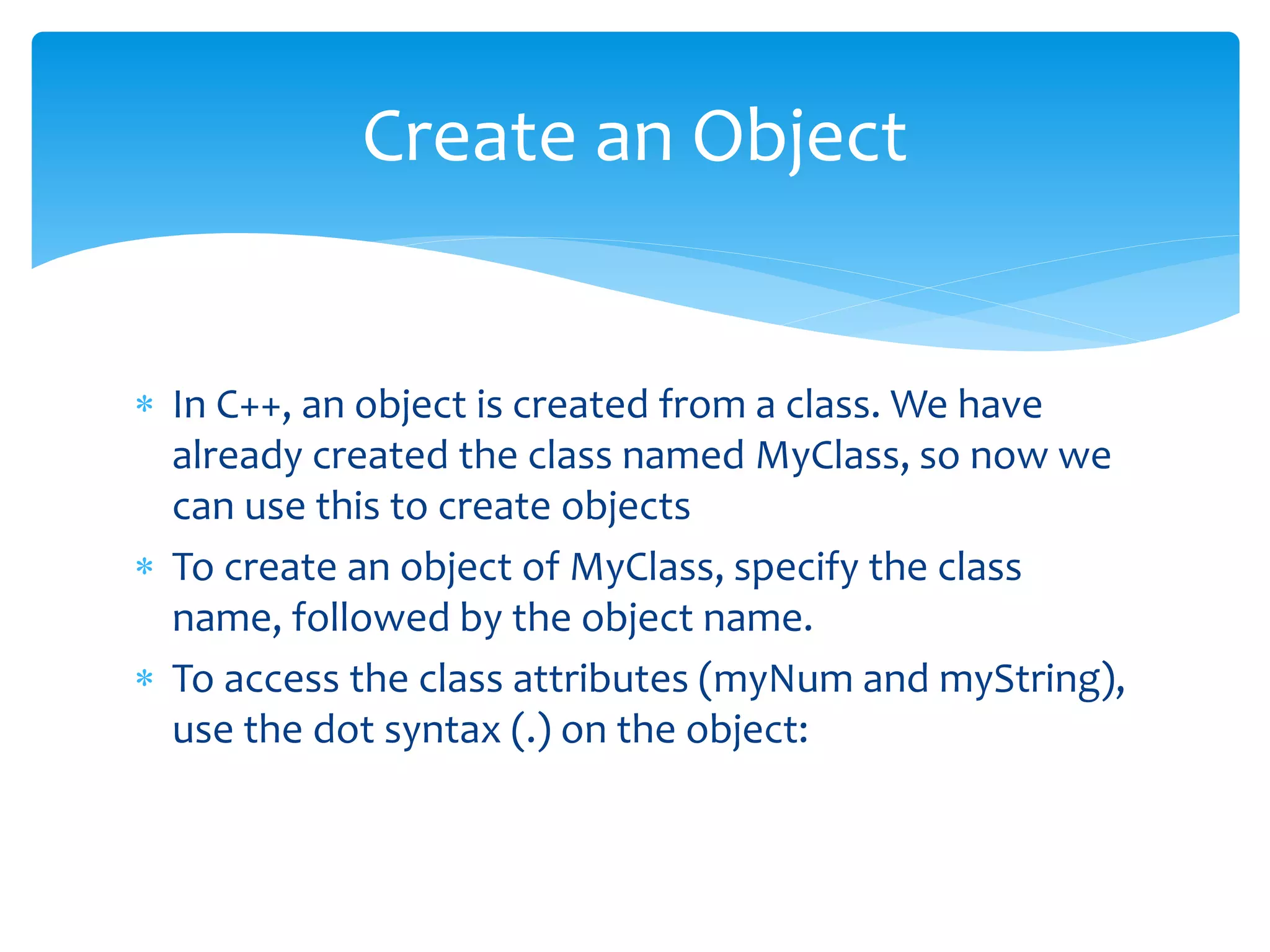

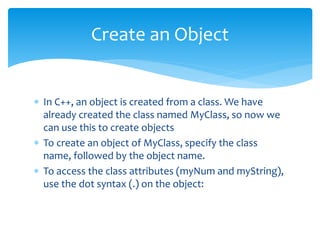

32.  In C++, an object is created from a class. We have
already created the class named MyClass, so now we
can use this to create objects
 To create an object of MyClass, specify the class
name, followed by the object name.
 To access the class attributes (myNum and myString),
use the dot syntax (.) on the object:
Create an Object

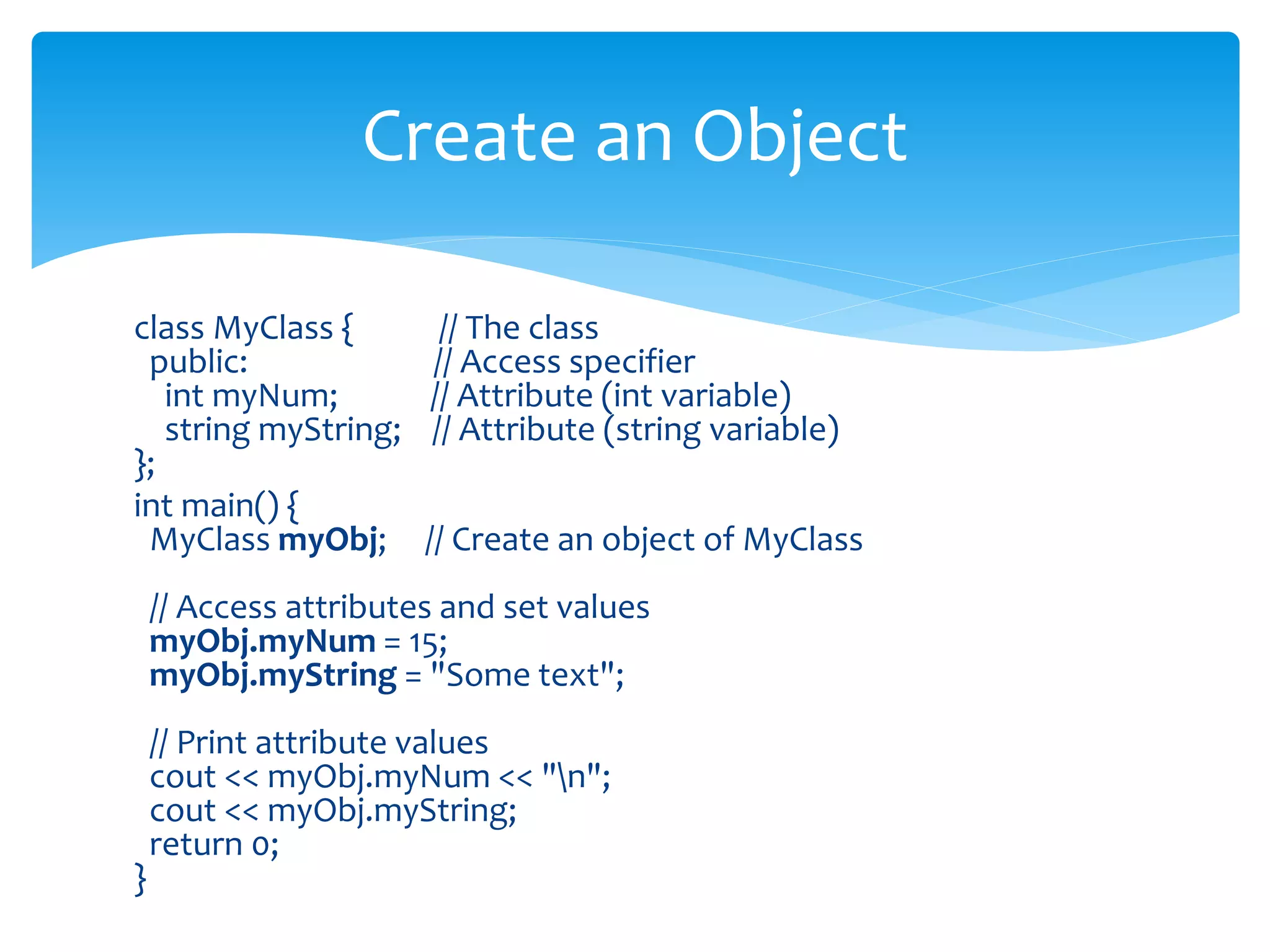

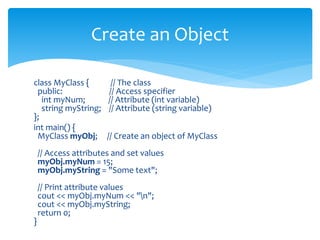

33. class MyClass { // The class
public: // Access specifier
int myNum; // Attribute (int variable)
string myString; // Attribute (string variable)
};
int main() {
MyClass myObj; // Create an object of MyClass
// Access attributes and set values
myObj.myNum = 15;
myObj.myString = "Some text";
// Print attribute values
cout << myObj.myNum << "n";
cout << myObj.myString;
return 0;
}
Create an Object

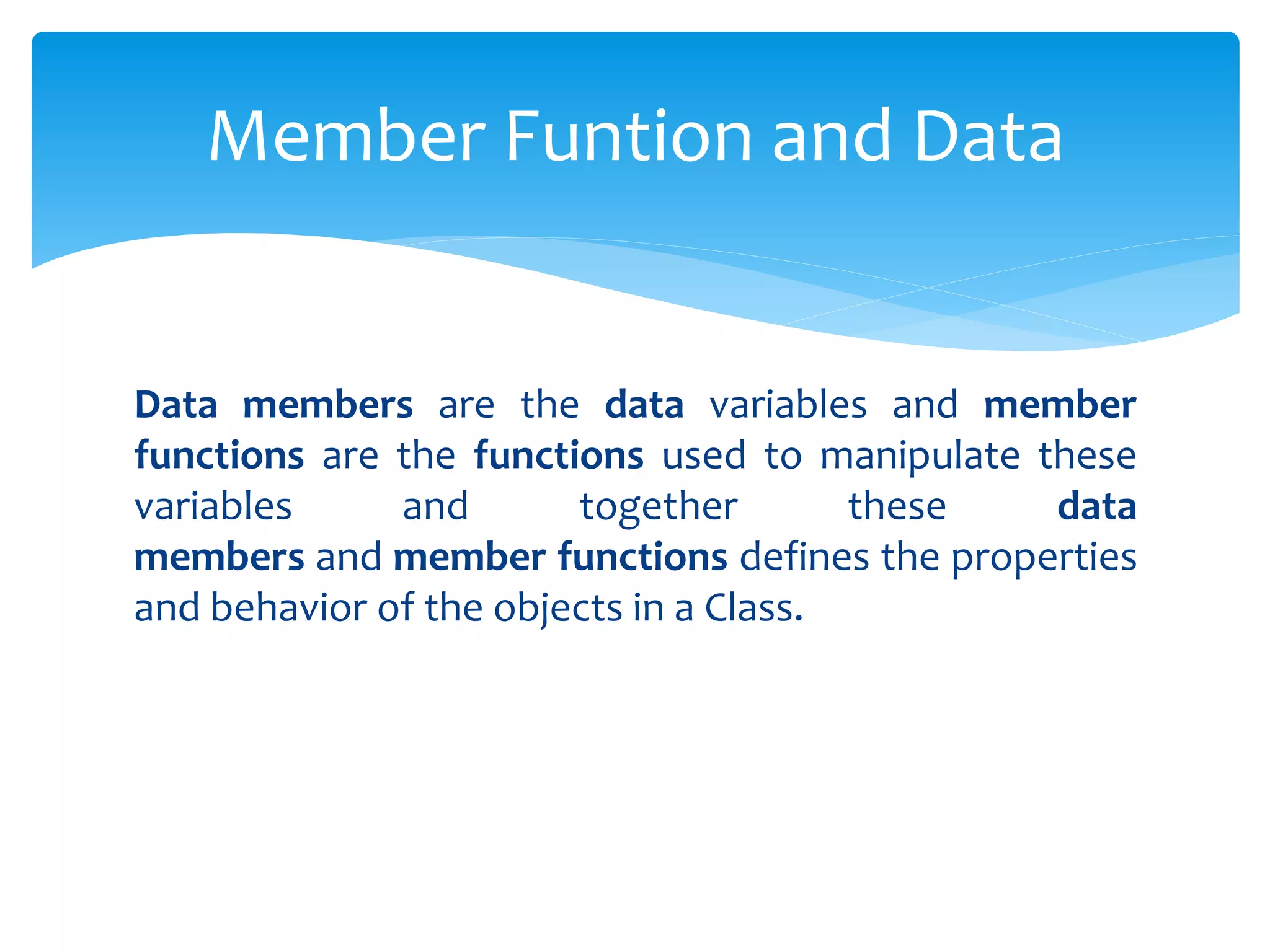

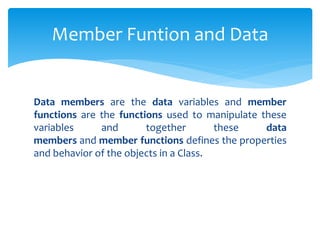

34. Data members are the data variables and member
functions are the functions used to manipulate these
variables and together these data
members and member functions defines the properties
and behavior of the objects in a Class.
Member Funtion and Data

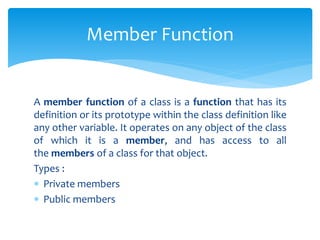

35. A member function of a class is a function that has its
definition or its prototype within the class definition like
any other variable. It operates on any object of the class
of which it is a member, and has access to all
the members of a class for that object.
Types :
 Private members
 Public members
Member Function

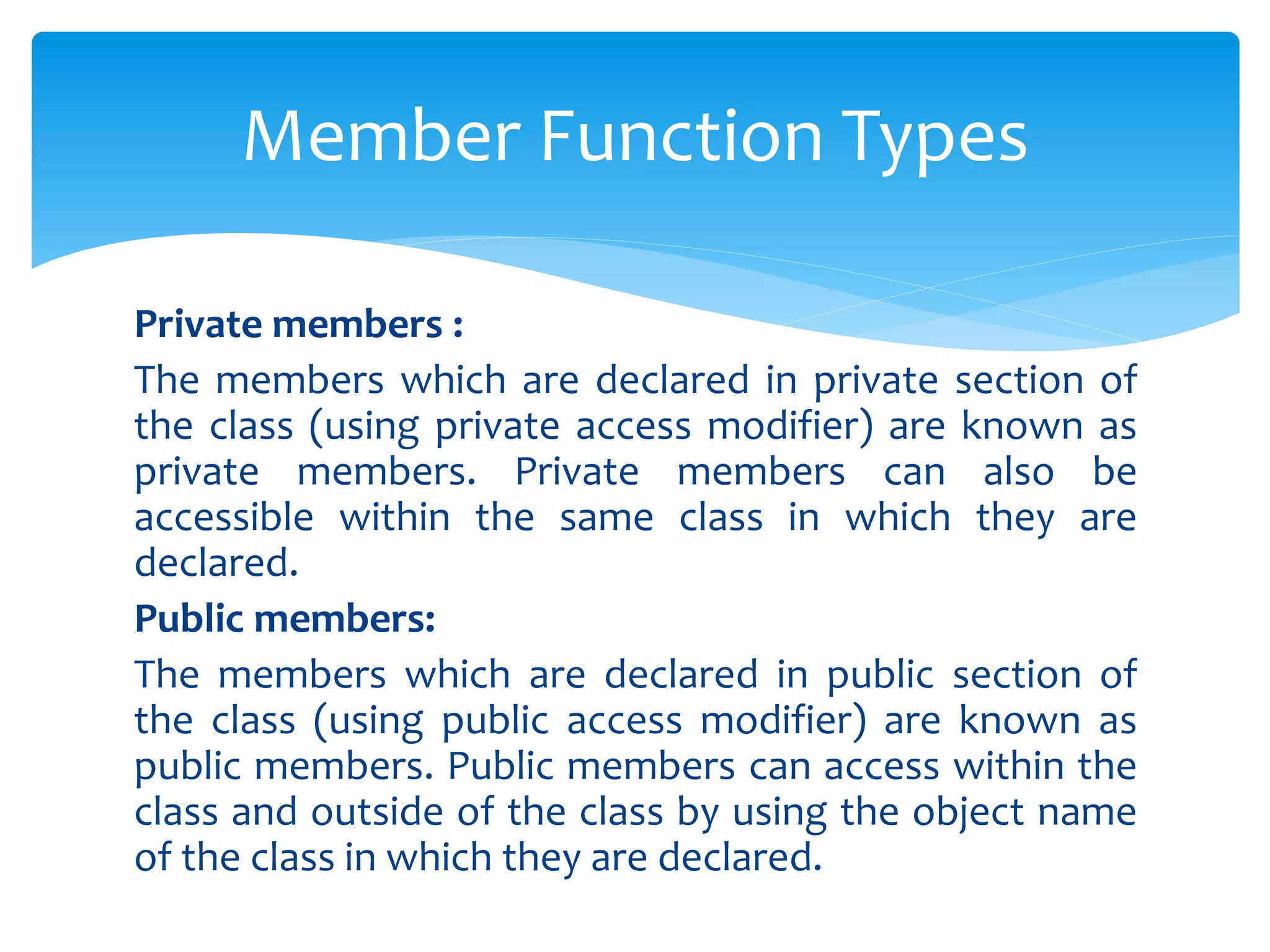

36. Private members :
The members which are declared in private section of
the class (using private access modifier) are known as
private members. Private members can also be
accessible within the same class in which they are
declared.
Public members:
The members which are declared in public section of
the class (using public access modifier) are known as
public members. Public members can access within the
class and outside of the class by using the object name
of the class in which they are declared.
Member Function Types

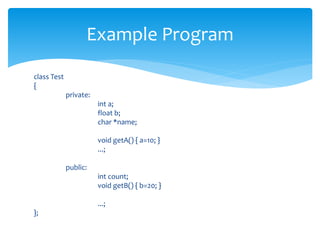

37. class Test
{
private:
int a;
float b;
char *name;
void getA() { a=10; }
...;
public:
int count;
void getB() { b=20; }
...;
};
Example Program

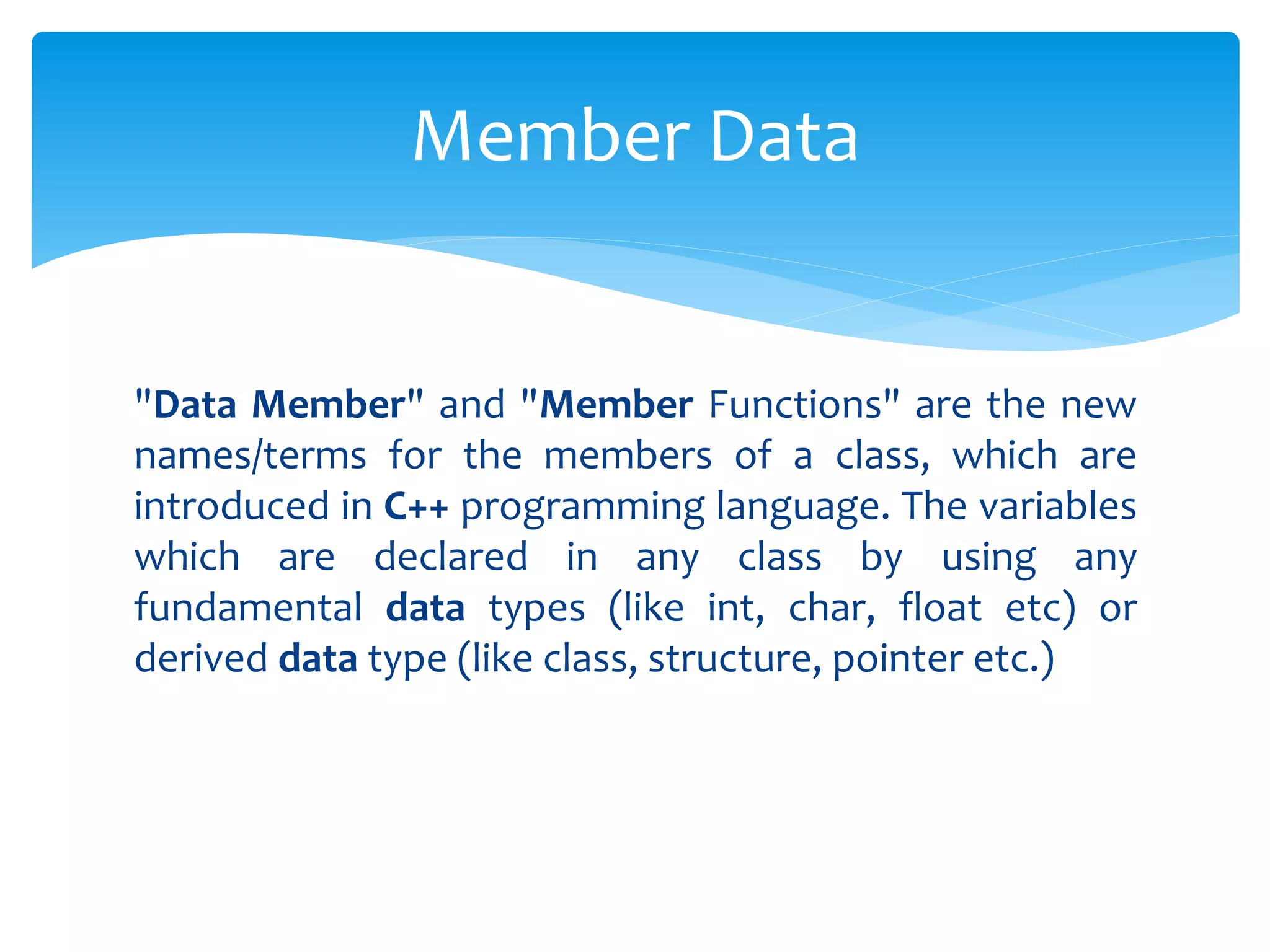

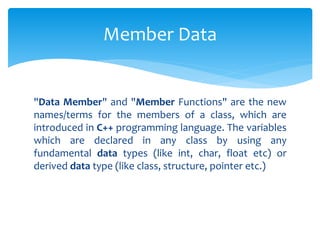

38. "Data Member" and "Member Functions" are the new
names/terms for the members of a class, which are
introduced in C++ programming language. The variables
which are declared in any class by using any
fundamental data types (like int, char, float etc) or
derived data type (like class, structure, pointer etc.)
Member Data

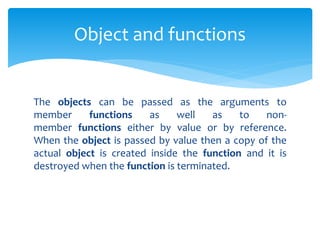

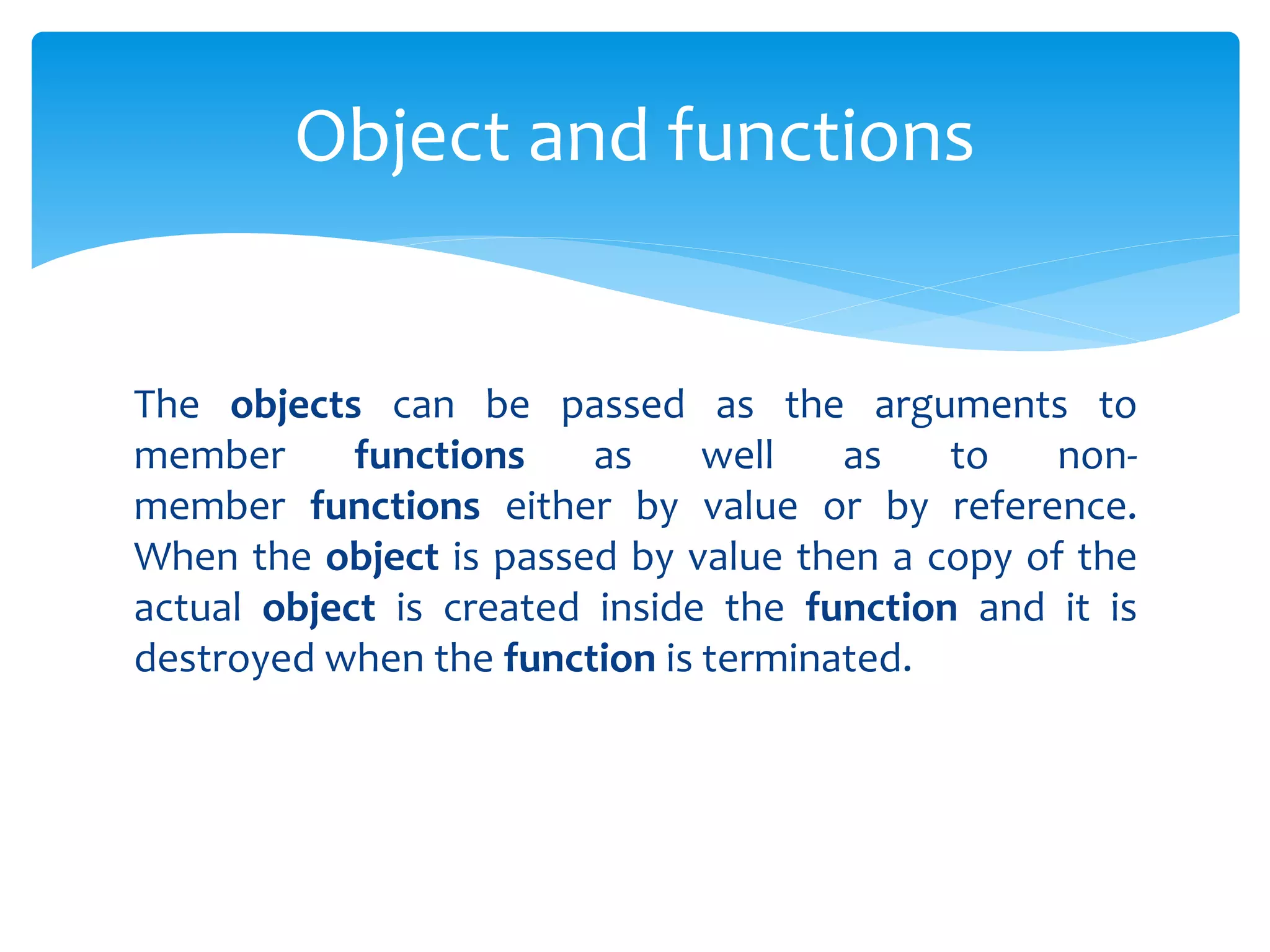

39. The objects can be passed as the arguments to
member functions as well as to non-
member functions either by value or by reference.
When the object is passed by value then a copy of the
actual object is created inside the function and it is
destroyed when the function is terminated.
Object and functions

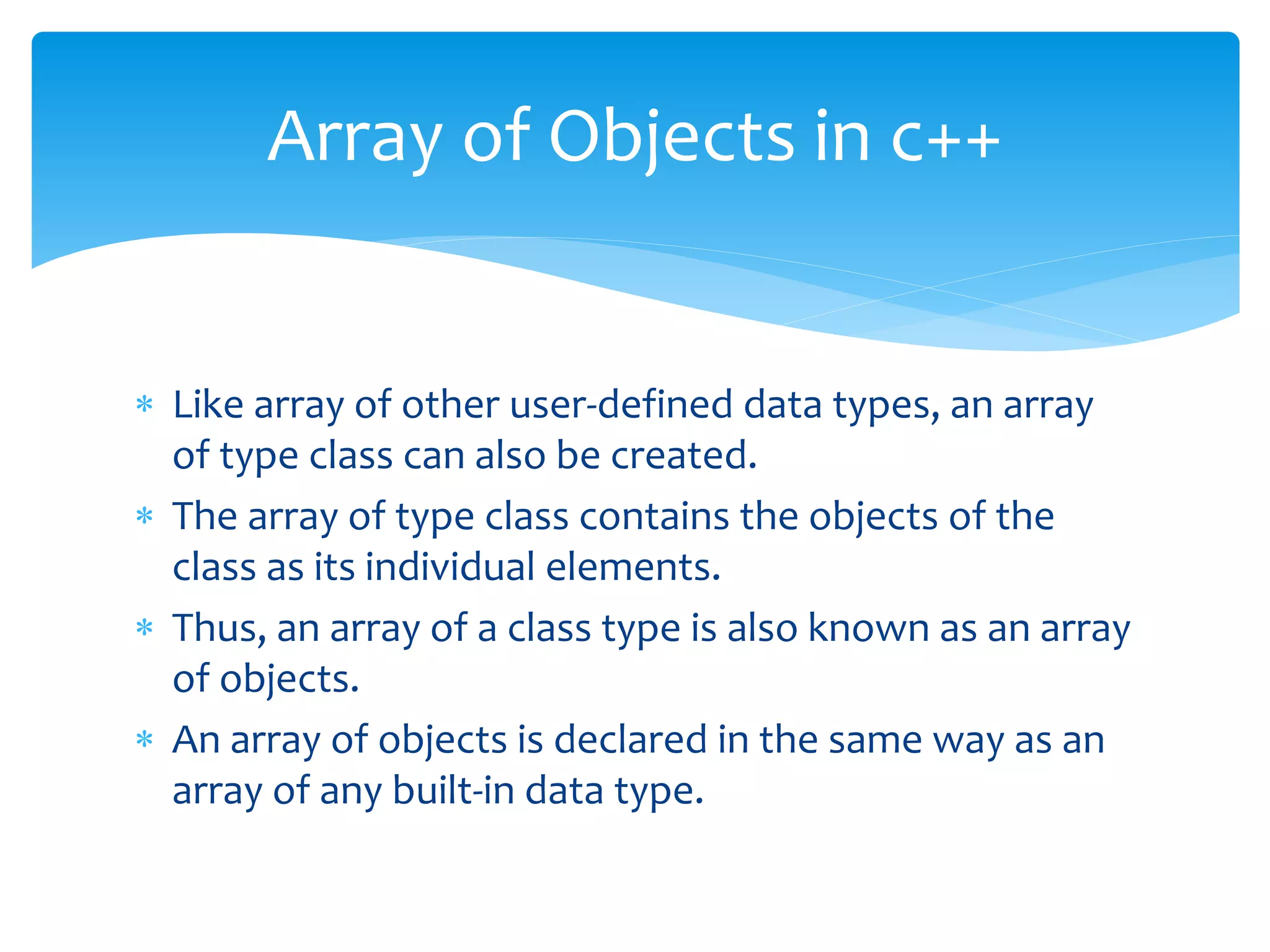

40.  Like array of other user-defined data types, an array
of type class can also be created.
 The array of type class contains the objects of the
class as its individual elements.
 Thus, an array of a class type is also known as an array
of objects.
 An array of objects is declared in the same way as an
array of any built-in data type.
Array of Objects in c++

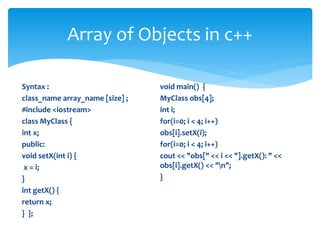

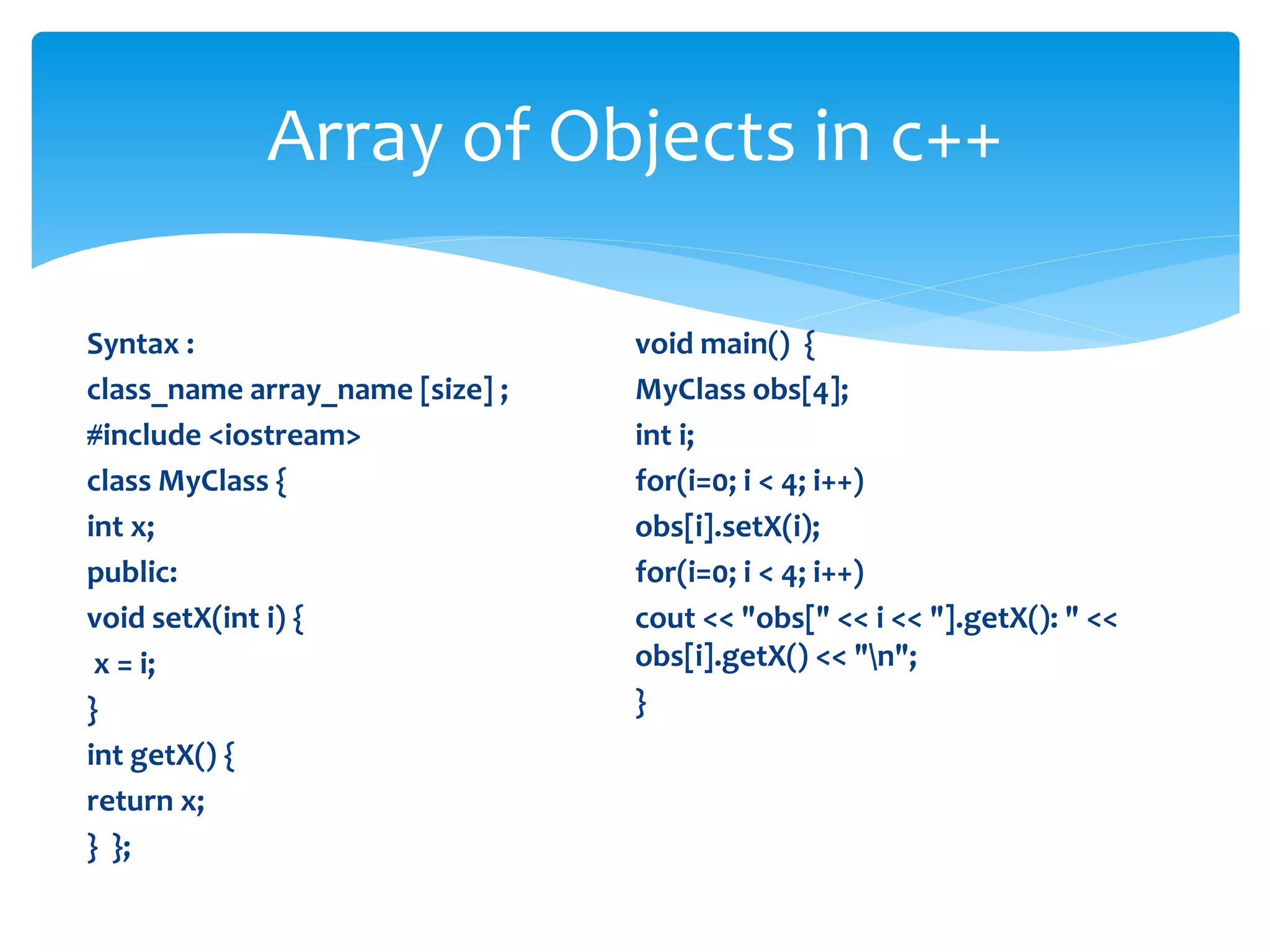

41. Syntax :
class_name array_name [size] ;
#include <iostream>
class MyClass {
int x;
public:
void setX(int i) {
x = i;
}
int getX() {
return x;
} };
void main() {
MyClass obs[4];
int i;
for(i=0; i < 4; i++)
obs[i].setX(i);
for(i=0; i < 4; i++)
cout << "obs[" << i << "].getX(): " <<
obs[i].getX() << "n";
}
Array of Objects in c++

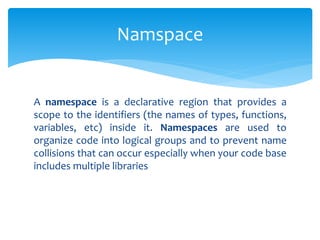

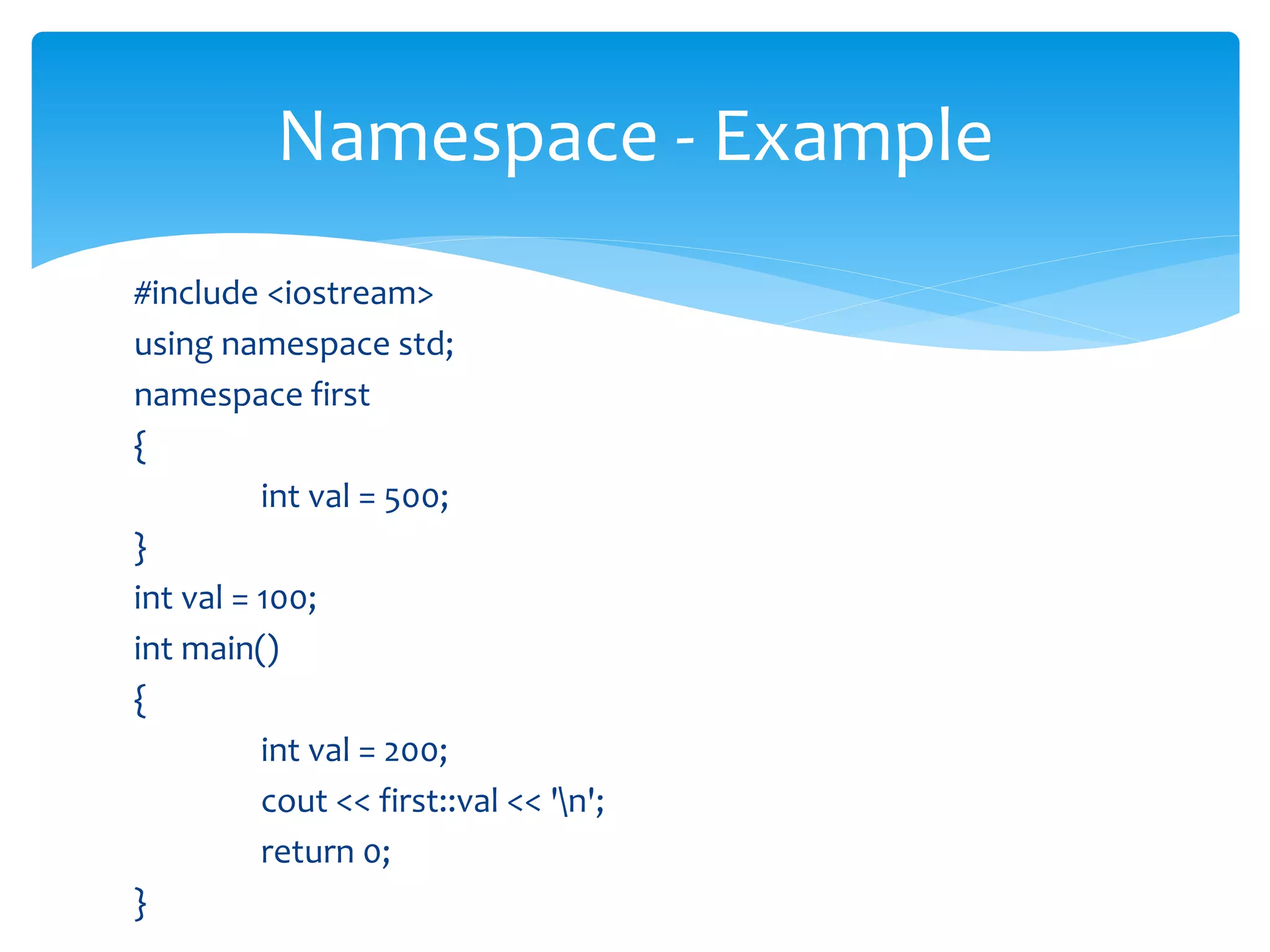

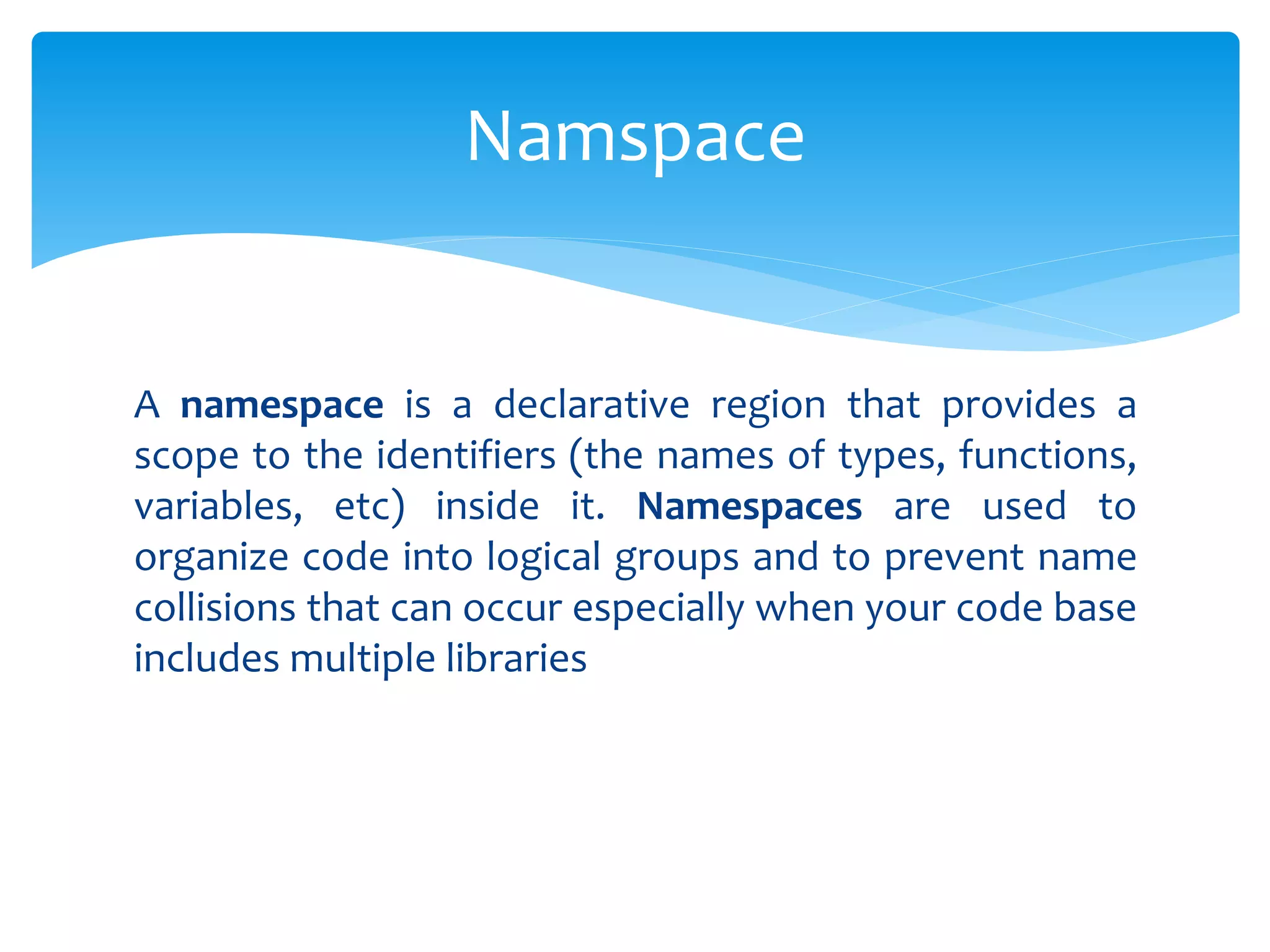

42. A namespace is a declarative region that provides a
scope to the identifiers (the names of types, functions,
variables, etc) inside it. Namespaces are used to
organize code into logical groups and to prevent name
collisions that can occur especially when your code base
includes multiple libraries
Namspace

43. #include <iostream>
using namespace std;
namespace first
{
int val = 500;
}
int val = 100;
int main()
{
int val = 200;
cout << first::val << 'n';
return 0;
}
Namespace - Example

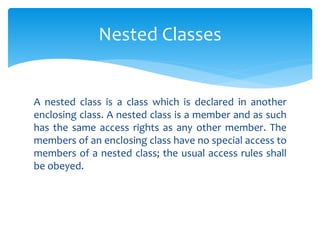

44. A nested class is a class which is declared in another
enclosing class. A nested class is a member and as such
has the same access rights as any other member. The
members of an enclosing class have no special access to
members of a nested class; the usual access rules shall
be obeyed.
Nested Classes

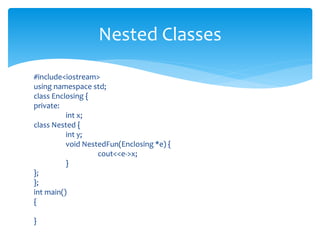

45. #include<iostream>
using namespace std;
class Enclosing {
private:
int x;
class Nested {
int y;
void NestedFun(Enclosing *e) {
cout<<e->x;
}
};
};
int main()
{
}
Nested Classes

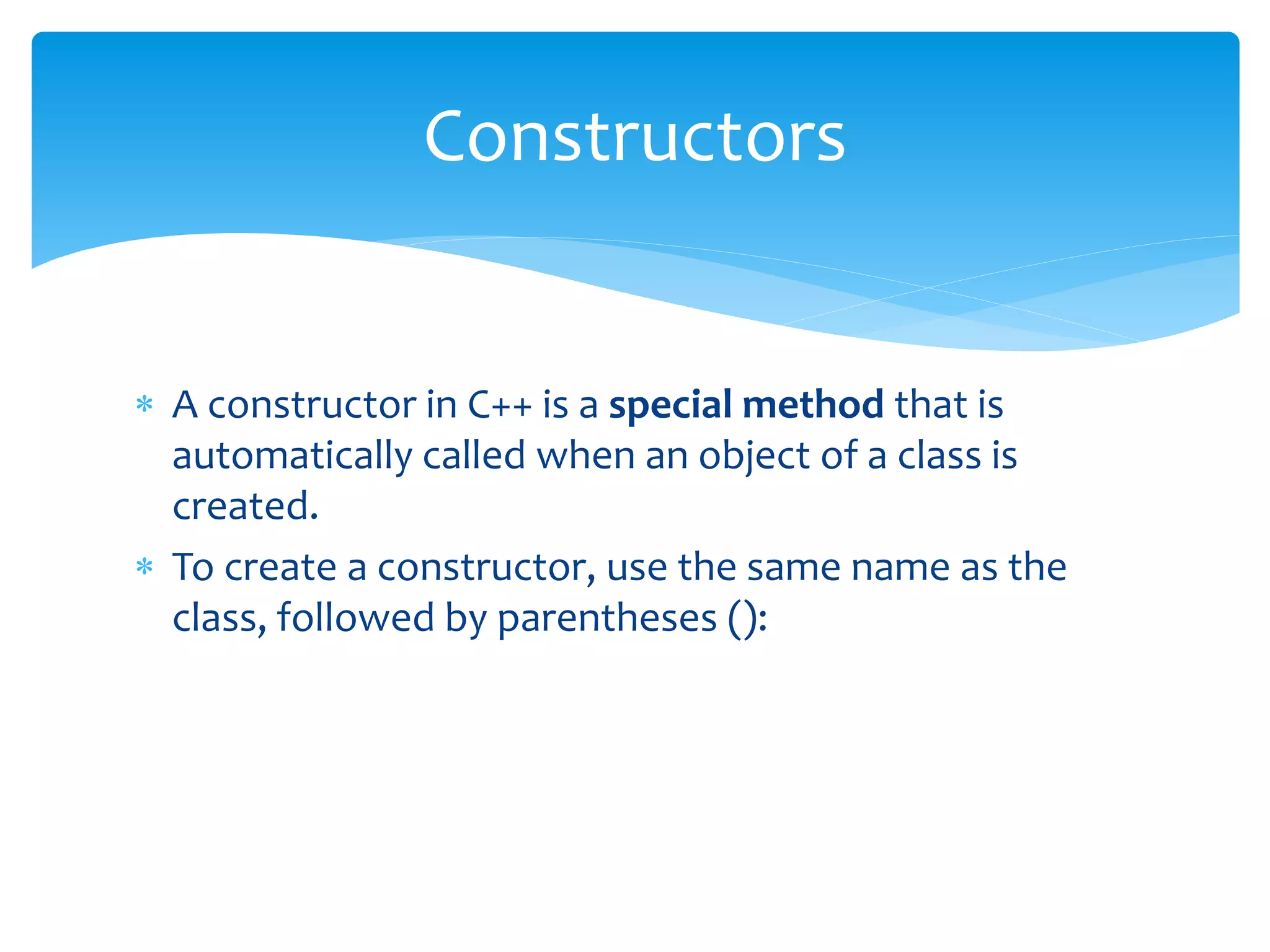

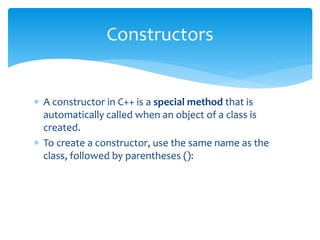

46.  A constructor in C++ is a special method that is
automatically called when an object of a class is
created.
 To create a constructor, use the same name as the
class, followed by parentheses ():
Constructors

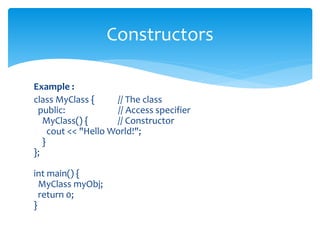

47. Example :
class MyClass { // The class
public: // Access specifier
MyClass() { // Constructor
cout << "Hello World!";
}
};
int main() {
MyClass myObj;
return 0;
}
Constructors

48. Destructor is a member function which destructs or
deletes an object.
Syntax :
~constructor-name();
Destructors in C++

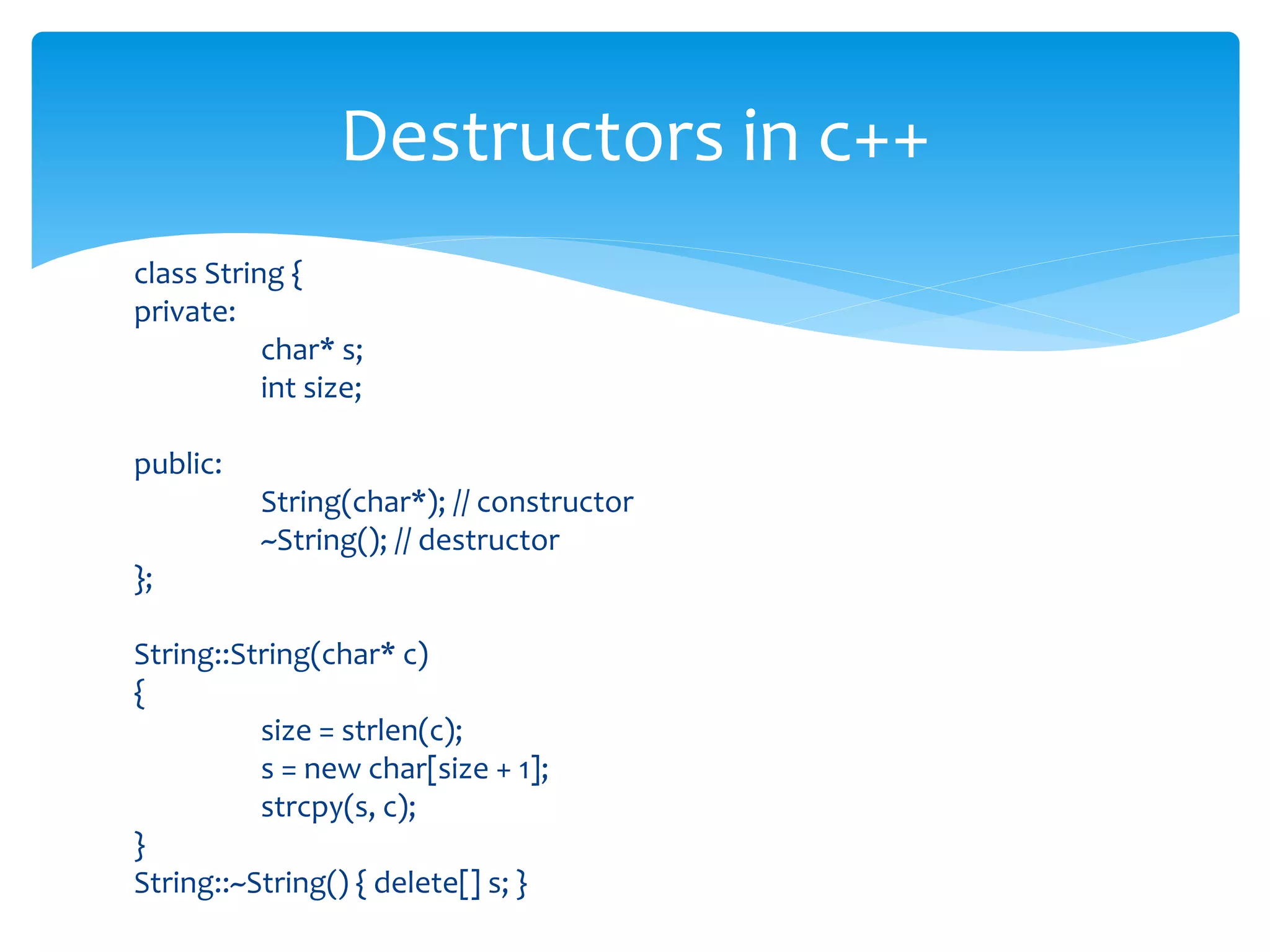

49. class String {
private:
char* s;
int size;
public:
String(char*); // constructor
~String(); // destructor
};
String::String(char* c)
{
size = strlen(c);
s = new char[size + 1];
strcpy(s, c);
}
String::~String() { delete[] s; }
Destructors in c++

50.  END OF MODULE 1
THANK YOU
