![734 | CANCER DISCOVERY JUNE 2014 www.aacrjournals.org
Horwitz et al.RESEARCH ARTICLE
activated macrophages, including TNFα, inducible nitric
oxide synthase (iNOS), CXCL10, and IL12p40, were similar
in both tumor groups (Fig. 2C and Supplementary Fig. S3A).
Along with these, immunofluorescent staining for the protu-
morigenic macrophage marker MRC1 revealed a higher pres-
ence of MRC1-expressing cells in Amppos
tumors (Fig. 2D and
E). Of note, VEGF-A was shown to act as a chemoattractant
for naïve myeloid cells, which facilitate the generation of new
blood vessels (37). Together, these data signify Amppos
tumors
as a distinct subgroup of HCCs characterized by enhanced
presence of specific microenvironmental components and
increased proliferation rate.
Histologic analysis of human HCCs revealed several char-
acteristic traits of HCCs harboring VEGFA gains. A higher
incidence of vascular invasion was found in the Amppos
group (9 of 20 Amppos
tumors vs. 1 of 20 Ampneg
tumors;
P < 0.01; Supplementary Table S4). A lower incidence of fibrosis
within tumor tissue was found in the Amppos
group as well. Few
additional traits nearly reaching statistical significance were
identified (Supplementary Table S4). We found no differences
in several clinical characteristics of HCC including underlying
disease, gender, or tumor size (Supplementary Fig. S4A–S4C).
Altogether, these results indicate that in both murine Mdr2−/−
and human HCCs, tumors that harbor genomic gains in the
VEGFA locus are distinct from those that do not.
Macrophage–Tumor Cell Cross-talk
in Amppos
Tumors
Previous studies have delineated hepatocyte–endothelial
cross-talk taking place in non-neoplastic liver, wherein VEGF-A
stimulates endothelial cells to secrete several mitogens includ-
ing hepatocyte growth factor (HGF; refs. 24, 25). We hypothe-
sized that Amppos
HCCs exploit this interaction for promoting
tumor cell proliferation. Following this notion, we detected a
3-fold elevation of Hgf mRNA levels in Amppos
versus Ampneg
mouse tumors (Fig. 3A). We did not find significant changes
in other angiocrine-produced molecules (24, 25)—Wnt2, IL6,
and heparin binding EGF-like growth factor (HB-EGF; data
not shown). Immunostaining detected HGF expression only
in Amppos
tumors, exclusively in the non-neoplastic stromal
cells (Fig. 3B). Immunofluorescent staining for von Willebrand
Factor (vWF), F4/80, and HGF suggested that macrophages are
the major cell type expressing HGF (Fig. 3C).
To understand the VEGF-A–HGF relationship, we isolated
hepatocytes and macrophages from Mdr2−/−
livers at the age
of 8 months (Fig. 3D and Supplementary Fig. S3B), a time
point signified by marked dysplasia, yet no overt HCC for-
mation (27). mRNA profiling of these fractions showed that
the genes encoding VEGFRs (FLT1 and KDR) and corecep-
tors [Neuropilin (Nrp)1 and 2] were higher in macrophages
whereas the HGF receptor (c-MET) was more abundant in
hepatocytes (Fig. 3E). This aligns with previous work showing
that hepatocytes are inert to direct activation with VEGF-A
(24). Immunostaining for KDR in Amppos
tumors demon-
strated that its expression in these tumors was restricted to
non-neoplastic cells (Fig. 3F). This correlated with a modest
increase in mRNA levels of both Kdr and Flt1 in total tumor
lysates, which was comparable with the increase in mRNA
levels of recruited macrophage and endothelial markers Msr1
and Cd105, respectively (Fig. 3G). Recapitulating this interac-
tion in vitro, we treated peritoneal macrophages with recom-
binant VEGF-A and detected an increase in Hgf mRNA levels
(Fig. 3H). This raises the possibility that VEGF-A in Amppos
tumors does not provide autocrine signals to hepatocytes,
but rather acts through manipulation of the microenviron-
ment to induce HGF secretion.
VEGF-A Increases Cellular Proliferation in HCC
To prove the functional role of VEGFA in this genomic ampli-
fication, we set out to inhibit VEGF-A in Mdr2−/−
tumors. To
this end, we injected intravenously adenoviral vectors encoding
GFP alone or GFP and the soluble VEGFR1 (sFLT), a potent
inhibitor of VEGF-A (38), into 56 tumor-harboring Mdr2−/−
mice of ages 14 to 18 months and sacrificed them 10 days fol-
lowing injection (Supplementary Fig. S5A). Vegfa amplification
status was determined after sacrifice by both DNA qPCR and
Vegfa mRNA expression (Fig. 4C and data not shown). Liver
damage, measured through plasma aspartate aminotransferase
(AST) activity, was similar in all groups (Supplementary Fig.
S5B). Immunostaining for BrdUrd, Ki67, and phosphorylated
histone H3 (pHH3) revealed that blocking VEGF-A markedly
inhibited tumor cell proliferation in Amppos
tumors, but not
in Ampneg
ones (Fig. 4A and B and Supplementary Fig. S5C
and S5D). This decrease in proliferation was accompanied by
reduced Hgf mRNA levels (Fig. 4C). Treatment with adenovi-
rus encoding GFP alone did not induce any change in either
group. Macrophage infiltration and protumorigenic macro-
phage expression profile did not decrease following the sFLT
treatment (Supplementary Fig. S5C and S5D and data not
shown). Macroscopic and histologic analyses revealed multiple
foci of coagulative necrosis only in sFLT-treated Amppos
tumors
(3 of 6 vs. 0 of 10 in Ampneg
; P < 0.05; Fig. 4D). In these specific
tumors, we also found an elevation of the hypoxia-inducible
factor-1α (HIF1α) target genes Glut1 and Pgk1 (Fig. 4C), indica-
tive of tissue hypoxia. Immunostaining for vWF revealed a
trend of decrease in vasculature only in VEGF-A–blocked
Amppos
tumors, particularly in the hypoxic tumors (Supple-
mentary Fig. S5C and S5D). These data denote Amppos
tumors
as hypersensitive to direct inhibition of VEGF-A.
Overexpression of VEGF-A in HCC Cells Increases
Proliferation Only In Vivo
To further substantiate the tumor–stroma relationship with
respect to VEGF amplification, in particular hepatocyte VEGF-
A eliciting a macrophage HGF–heterotypic circuit in tumor
growth, we injected human Hep3B HCC cells transduced with
a lentivector overexpressing human VEGF-A into immuno-
deficient mice (Supplementary Fig. S6A). The in vivo growth
rate of VEGF-A–overexpressing cells was higher than control
vector–transduced cells (Fig. 5A and Supplementary Fig. S6B).
This correlated with higher proliferation rate and increased
HGF expression (Fig. 5B–D and Supplementary Fig. S6C and
S6D), phenocopying the Amppos
Mdr2−/−
HCCs. Supporting
the non–cell-autonomous role, VEGF-A overexpression did
not affect the in vitro growth rate of Hep3B cells (Fig. 5E). We
also found no difference in expression of the hypoxia markers
prolyl hydroxylase domain 3 (PHD3) and lactate dehydroge-
nase A (LDHA) in these xenografts, lending further support to
a nonangiogenic role for VEGF-A in HCC (Supplementary Fig.
S6E). Immunofluorescence confirmed VEGF-A expression in
on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from
Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782](https://image.slidesharecdn.com/df86578c-8dd3-439a-acf7-d6cfc1252837-160327105946/85/Cancer-Discovery-2014-Horwitz-730-43-5-320.jpg)
![740 | CANCER DISCOVERY JUNE 2014 www.aacrjournals.org
Horwitz et al.RESEARCH ARTICLE
sorafenib in HCC, thus enabling the tailoring of treatment
to only those patients who may benefit from this side effect–
prone therapy. Notably, the same amplification was also
found in lung, colorectal, bone, and breast cancers (44–48);
thus, it is plausible that similar considerations could be
applied to other tumors harboring VEGFA gains.
METHODS
Human Tissue Samples and Tissue Microarray
Human HCC tissues were obtained from resected patients from
the institutes of Basel University Hospital (Basel, Switzerland), Han-
nover Medical School Hospital (Hannover, Germany), and Heidel-
berg University Hospital (Heidelberg, Germany). Clinical information
included age at diagnosis, tumor diameter, gender, and survival time
information. Examination of tumor hematoxylin and eosin (H&E)
sections was performed by an expert liver pathologist (O. Pappo).
Samples from Heidelberg were also reviewed by Heidelberg patholo-
gists (C. Mogler and P. Schirmacher). The study was approved by
each of the institutions’ ethics committees—numbered 206/05
(Heidelberg), 660-2010 (Hannover), and EKBB20 (Basel). Required
cohort size was computed by power analysis to yield a power of at
least 90% with an α value of 0.05. Construction of the tissue micro-
array (TMA) was performed as follows: tissue samples were fixed
in buffered 10% formaldehyde and embedded in paraffin. H&E-
stained sections were made from each selected primary block (named
donor blocks) to define representative tissue regions. Tissue cylinders
(0.6 mm in diameter) were then punched from the region of the
donor block with the use of a custom-made precision instrument
(Beecher Instruments). Afterward, tissue cylinders were transferred to
a 25 mm × 35 mm paraffin block to produce the TMAs. The resulting
TMA block was cut into 3-μm sections that were transferred to glass
slides by use of the Paraffin Sectioning Aid System (Instrumedics).
Sections from the TMA blocks were used for FISH analysis.
Mice
Male and female Mdr2−/−
mice on FVB background were held in
specific pathogen-free conditions. Experiments on Mdr2−/−
mice were
performed in cohorts of 10 to 20 mice each time; results show the
combined data from at least four different experiments. Wild-type
(WT) controls were age-matched FVB mice. Mouse body weights dur-
ing the experiments were 30 to 45 g. Sorafenib (Xingcheng Chemp-
harm Co., Ltd.) was administered daily (50 mg/kg) by oral gavage.
Cremophor EL (Sigma)/ethanol/water (1:1:6) was used as a vehicle.
Two hours before sacrifice, mice were injected with 10 μL BrdUrd
(Cell Proliferation labeling reagent; Amersham) per 1 g body weight.
Mice were anesthetized with ketamine and xylazine and the liver was
perfused via the heart with PBS–Heparin solution followed by 4%
formaldehyde. Following perfusion, livers were removed and sub-
jected to standard histologic procedures. Xenograft experiments were
performed by subcutaneous injection of transduced Hep3B cells (2.5
× 106
) suspended in 100 μL PBS and 100 μL Matrigel (Becton Dickin-
son) into NOD/SCID mice. Tumor volumes were assessed by external
measurement with calipers. All animal experiments were performed
in accordance with the guidelines of the institutional committee for
the use of animals for research. In all mouse experiments, the different
groups were housed together in the same cages.
Viral Vectors and Cultured Cells
Adenoviral vectors encoding GFP or GFP and sFLT—a kind gift
from David Curiel (Washington University, St. Louis, MO) and Yosef
Haviv (Hadassah Hospital, Jerusalem, Israel)—were prepared in GH354
cells using standard procedures. A titer of 109
transducing units was
injected into mice tail veins. Mice whose livers did not yield minimal
60% adenovector transduction efficiency (by tissue staining) were
excluded. Lentiviral-based vectors were prepared by subcloning the
PCR products of the human VEGFA165 gene [from cDNA of decidual
natural killer (NK) cells; a kind gift from Ofer Mandelboim, Hebrew
University, Jerusalem, Israel] into the pSC-B plasmid using the Strata-
Clone Kit (Stratagene), subsequently digested with BamHI and NotI
and subcloned into the self-inactivating lentiviral vector pHAGE (gift
of Gustavo Mostoslavsky, Boston University School of Medicine, Bos-
ton, MA) digested with BamHI and NotI. Lentivectors were produced
by cotransfection of the backbone vector plasmid with the gag-pol
and pMD.G plasmids and using standard procedures. Hep3B cells
(obtained from the ATCC) were grown in Dulbecco’s Modified Eagle
Medium (DMEM; 10% FBS). Cells were tested free of Mycoplasma
before transduction and injection. Lentivector transduction efficiency
was assessed by fluorescent microscopy and was estimated as 80%.
In vitro proliferation was determined through XTT assay (Biological
Industries) using the manufacturer’s protocol. Murine recombinant
VEGF-A (R&D Systems) was used at the concentration of 100 ng/mL.
IHC, Immunofluorescence, and ELISA
Antibodies used for tissue immunostaining throughout the
work were—vWF (dilution at 1:300; Dako), pHH3 (1:800; Upstate),
cleaved caspase-3 (1:200; Cell Signaling Technology), F4/80 (1:300;
Seroteq), HGF (1:100; R&D Systems), BrdUrd (1:200; NeoMarkers),
KDR (1:400; Cell Signaling Technology), Ki67 (1:100; NeoMarkers),
E-cadherin (1:100; Cell Signaling Technology), and VEGF (1× as
supplied; Spring). IHC was performed on 5-μm paraffin sections.
Antigen retrieval was performed in a decloaking chamber (Biocare
Medical) in citrate buffer for all antibodies except vWF and F4/80,
for which retrieval was performed with pronase (Sigma). Horserad-
ish peroxidase (HRP)–conjugated secondary antibodies for all IHC
antibodies used were Histofine (Nichirei Biosciences), except for anti-
mouse–derived antibodies that were detected with Envison (Dako).
3,3′-Diaminobenzidine (DAB; Lab Vision) was used as a chromogen.
Immunohistochemical stainings were quantitated when indicated
using an Ariol SL-50 system (Applied Imaging). For quantification
of nuclear immunostaining, the ki-sight module of the Ariol-SL50
robotic image analysis system was applied. This system designates
classifiers for positive (red-brown) and negative (azure) nuclei defined
by color intensity, size, and shape. Each tumor cell nucleus (distin-
guished by morphology) was designated as either positive or negative
by these parameters. The fraction of positive cells was calculated
from counting at least five randomly selected fields in each tumor.
Immunofluoresence was performed on snap-frozen tissue embed-
ded in OCT gel (Sakura Finetek) and sectioned to 8-μm slices.
Slides were incubated at 37°C and fixed with both acetone and 4%
paraformaldehyde sequentially. Fluorophore-conjugated secondary
antibodies used were donkey anti-goat Alexa Fluor 647 (Invitro-
gen), donkey anti-rabbit Cy2/Cy5, donkey anti-mouse Cy3, and goat
anti-rat Cy3 (The Jackson Laboratory). Hoechst 33342 was used as
a nuclear marker (Invitrogen). Antibodies used for flow FACS sort-
ing were CD45-pacific blue, F4/80-PE (both 1:50; BioLegend), and
Meca32-biotin (1:50; BioLegend) used with streptavidin APC-Cy7
(BD Biosciences). Flow cytometry–based cell sorting was performed
in a FACSAria III cell sorter (BD Biosciences). VEGF-A ELISA was
performed using Quantikine mouse ELISA kit (R&D Systems).
DNA In Situ Hybridizations
Probes for CISH analysis of mouse tumors were prepared from the
BAC clones RP24-215A3 for the murine Chromosome 17 (BACPAC
resources center). BAC clones were labeled with DIG using Nick-
Translation mix (Roche). Mouse Cot-1 DNA (Invitrogen) and soni-
cated murine genomic DNA were added to the probe for background
block. Tissues were prepared by boiling in pretreatment buffer and
digestion with pepsin (Zymed). Hybridization was performed at 37°C
on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from
Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782](https://image.slidesharecdn.com/df86578c-8dd3-439a-acf7-d6cfc1252837-160327105946/85/Cancer-Discovery-2014-Horwitz-730-43-11-320.jpg)
![JUNE 2014 CANCER DISCOVERY | 741
VEGFA Amplification in HCC RESEARCH ARTICLE
overnight after denaturation at 95°C for 5 minutes. The SPoT-Light
Detection Kit (Invitrogen) was used for anti-DIG antibody and HRP-
conjugated secondary antibody.
FISH analysis for human HCCs was performed as follows. The
genomic BAC clone RPCIB753M0921Q (imaGENES), which covers the
human VEGFA gene region, was used for preparation of the FISH probe.
BAC-DNA was isolated using the Large-Construct Kit (Qiagen) accord-
ing to the instructions of the manufacturer. Isolated BAC-DNA (1 μg)
was digested with AluI restriction enzyme (Invitrogen) and labeled with
Cy3-dUTP (GE Healthcare) using the BioPrime Array CGH Kit (Invit-
rogen). The labeling reaction was assessed by NanoDrop. Labeled DNA
was purified with the FISH Tag DNA Kit (Invitrogen). TMAs and whole-
tissue sections were deparaffinized in xylene for 20 minutes and subse-
quently washed with 100%, 96%, and 70% ethanol followed by a wash
with tap water (2 minutes each step). Slides were air dried at 75°C for 3
minutes.Slideswerethenboiledinpretreatmentbuffer[70%formamide,
2× saline-sodium citrate buffer (SSC)] at 100°C for 15 minutes followed
by a wash with tap water. Tissue was then subjected to Proteinase K
(Sigma) treatment at 37°C for 70 minutes followed by a wash in tap
water (2 minutes). Dehydration of slides was performed by serial immer-
sion of slides in 70%, 96%, and 100% ethanol (2 minutes each step). Slides
were then air dried at 75°C for 3 minutes. The FISH probe was applied
and slides were sealed with rubber cement. Following a denaturation
step (10 minutes at 75°C), slides were incubated overnight at 37°C.
Slides were washed in Wash Buffer (2× SSC, 0.3% NP40, pH 7–7.5) and
counterstained with 4′,6-diamidino-2-phenylindole (DAPI) I solution
(1,000 ng/mL; Vysis Abbott Molecular). As reference, a Spectrum Green-
labeled chromosome 6 centromeric probe (Vysis Abbott Molecular) was
used. Images were obtained with a Zeiss fluorescence microscope using
a 63× objective (Zeiss) and the Axiovision software (Zeiss).
FISH results were evaluated according to (i) absolute VEGFA gene
copy number and chromosome 6 copy number and (ii) VEGFA gene/
chromosome 6 copy number ratio. The following classification was
used: not amplified—VEGFA/Chr6 ratio of less than 1.8; equivocal/
borderline—VEGFA/Chr6 ratio between 1.8 and 2.2; and amplified—
VEGFA/Chr6 ratio higher than 2.2, as proposed by the ASCO/CAP
(American Society of Clinical Oncology/College of American Pathol-
ogists) guidelines for HER2 amplification in breast cancer. High poly-
somy was defined as >3.75 copies of the CEP6 probe, low polysomy
was defined as cases displaying between 2.26 and 3.75 copies of the
CEP6 probe (52, 53). All cases displaying either amplification or poly-
somy were collectively defined as VEGFA gain. FISH quantification
and classification were done by an expert molecular pathologist who
had no access to the clinical data (L. Tornillo).
aCGH and qPCR
Genomic DNA was isolated using the QIAGEN DNAeasy Tissue
Kit. Samples were hybridized to mouse CGH 60-mer oligonucle-
otides microarrays (Agilent Technologies), washed, and scanned
according to the Agilent Technologies’ instructions. Data were ana-
lyzed using Feature Extraction software V8.1 (Agilent), GeneSpring
GX V7.3.1, and CGH Analytics V3.4.27 (Agilent) software. RNA
was extracted from tissues by mechanical grinding in TriReagent
(Sigma) with a Polytron tissue homogenizer (Kinematica) at maxi-
mum speed. cDNA was prepared with Moloney murine leukemia
virus (MMLV) reverse transcriptase (Invitrogen). qPCR analyses were
carried out with SYBR green (Invitrogen) in 7900HT Fast Real-Time
PCR System (Applied Biosystems). Results were analyzed using the
qBase v1.3.5 software. Primer sequences are available in Supplemen-
tary Table S5. In the xenografts experiment, murine Hgf mRNA levels
were assessed with TaqMan probe (Life Sciences). Human hypox-
anthine phosphoribosyltransferase (HPRT) and ubiquitin C (UBC)
were used as reference genes in the xenograft experiment. Hprt and
peptidylprolyl isomerase A (Ppia) combined were used as reference
genes in all murine analyses except for the hepatocyte versus mac-
rophage comparison in which Ubc, B2m, and Tbp were additionally
applied. Primers detecting the murine chromosome 17 pericentro-
meric region were used as references in DNA qPCR analyses.
Cell Separation
Hepatocytes and macrophages were isolated from Mdr2−/−
mice
livers essentially as described by Kamimura and Tsukamoto (54).
Briefly, livers were digested enzymatically with pronase and colla-
genase (Sigma) by in situ perfusion. Hepatocytes were isolated by cen-
trifugation at 50 × g for 2 minutes, and after three washes were frozen
immediately in liquid nitrogen for RNA preparation. Nonparenchy-
mal cells were pelleted by centrifugation at 150 × g for 8 minutes, laid
on top of a four-density gradient of Larcoll (Sigma) and centrifuged
at 20,000 rpm at 25°C for 30 minutes using a SW41Ti rotor (Beck-
man). Liver macrophages were recovered from the interface between
8% and 12% Larcoll, washed three times and immediately frozen in
liquid nitrogen. Purity of hepatocytes and macrophage fractions was
determined by H&E staining of cytospin preparations and always
exceeded 90%. Dissociation of cells from tumor xenografts was per-
formed using the gentleMACS dissociator (Miltenyi Biotec) accord-
ing to the manufacturer’s protocol.
Statistical Analysis
Data were analyzed using a paired two-tailed Student t test at P <
0.05. Histologic differences were analyzed using the Pearson χ2
test
at P < 0.05. Data were processed using Microsoft Excel 2007. Graphs
were generated using either GraphPad Prism 5.0 or Excel software.
Kaplan–Meier calculations and graphs were performed in GraphPad
Prism 5.0. Log-rank (Mantel–Cox) was used to determine survival P
value. Throughout the work, error bars represent 1 SEM.
Disclosure of Potential Conflicts of Interest
R. Koschny has received travel grants from Bayer Company.
E. Pikarsky has filed for a provisional patent application based on
this article. No potential conflicts of interest were disclosed by the
other authors.
Authors’ Contributions
Conception and design: E. Horwitz, I. Stein, J. Hess, P. Angel,
Y. Ben-Neriah, E. Pikarsky
Development of methodology: E. Horwitz, I. Stein, M. Andreozzi,
R.M. Porat, M. Grunewald
Acquisition of data (provided animals, acquired and managed
patients, provided facilities, etc.): E. Horwitz, I. Stein, J. Nemeth,
A.Shoham,O.Pappo,N.Schweitzer,L.Tornillo,N.Kanarek,L.Quagliata,
F. Zreik, R.M. Porat, R. Finkelstein, R. Koschny, T. Ganten, C. Mogler,
O. Shibolet, K. Breuhahn, M. Grunewald, P. Schirmacher, A. Vogel,
L. Terracciano
Analysis and interpretation of data (e.g., statistical analysis,
biostatistics, computational analysis): E. Horwitz, A. Shoham,
O. Pappo, N. Schweitzer, L. Quagliata, H. Reuter, C. Mogler, O. Shibolet,
J. Hess, A. Vogel, L. Terracciano, P. Angel, Y. Ben-Neriah, E. Pikarsky
Writing, review, and/or revision of the manuscript: E. Horwitz,
I. Stein, N. Schweitzer, R. Koschny, T. Ganten, C. Mogler, O. Shibolet,
J. Hess, P. Schirmacher, P. Angel, Y. Ben-Neriah, E. Pikarsky
Administrative, technical, or material support (i.e., reporting or
organizing data, constructing databases): E. Horwitz, A. Shoham,
N. Kanarek, L. Quagliata, T. Ganten, J. Hess, P. Schirmacher, A. Vogel,
L. Terracciano
Study supervision: Y. Ben-Neriah, E. Pikarsky
Acknowledgments
The authors thank Rivka Ben-Sasson, Reba Condioti, Shaffika El-
Kawasmi, Etti Avraham, Mohamad Juma’, and Drs. Hila Giladi, Gus-
tavo Mostoslavsky, David Curiel, Yosef Haviv, Shemuel Ben-Sasson,
on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from
Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782](https://image.slidesharecdn.com/df86578c-8dd3-439a-acf7-d6cfc1252837-160327105946/85/Cancer-Discovery-2014-Horwitz-730-43-12-320.jpg)
![JUNE 2014 CANCER DISCOVERY | 743
VEGFA Amplification in HCC RESEARCH ARTICLE
and histological grade—results of an explorative CGH meta-analysis.
Br J Cancer 2005;92:935–41.
34. Ouchi K, Sugawara T, Ono H, Fujiya T, Kamiyama Y, Kakugawa Y, et al.
Mitotic index is the best predictive factor for survival of patients with
resected hepatocellular carcinoma. Dig Surg 2000;17:42–8.
35. Qian BZ, Pollard JW. Macrophage diversity enhances tumor progres-
sion and metastasis. Cell 2010;141:39–51.
36. Sica A, Larghi P, Mancino A, Rubino L, Porta C, Totaro MG, et al.
Macrophage polarization in tumour progression. Semin Cancer Biol
2008;18:349–55.
37. Grunewald M, Avraham I, Dor Y, Bachar-Lustig E, Itin A, Jung S, et al.
VEGF-induced adult neovascularization: recruitment, retention, and
role of accessory cells. Cell 2006;124:175–89.
38. Mahasreshti PJ, Navarro JG, Kataram M, Wang MH, Carey D, Siegal
GP, et al. Adenovirus-mediated soluble FLT-1 gene therapy for ovar-
ian carcinoma. Clin Cancer Res 2001;7:2057–66.
39. Crawford Y, Kasman I, Yu L, Zhong C, Wu X, Modrusan Z, et al.
PDGF-C mediates the angiogenic and tumorigenic properties of
fibroblasts associated with tumors refractory to anti-VEGF treat-
ment. Cancer Cell 2009;15:21–34.
40. Trusolino L, Bertotti A, Comoglio PM. MET signalling: principles
and functions in development, organ regeneration and cancer. Nat
Rev Mol Cell Biol 2010;11:834–48.
41. Whittaker S, Marais R, Zhu AX. The role of signaling pathways in the
development and treatment of hepatocellular carcinoma. Oncogene
2010;29:4989–5005.
42. Wyckoff JB, Wang Y, Lin EY, Li JF, Goswami S, Stanley ER, et al.
Direct visualization of macrophage-assisted tumor cell intravasation
in mammary tumors. Cancer Res 2007;67:2649–56.
43. Albertson DG. Gene amplification in cancer. Trends Genet 2006;22:
447–55.
44. Weir BA, Woo MS, Getz G, Perner S, Ding L, Beroukhim R, et al.
Characterizing the cancer genome in lung adenocarcinoma. Nature
2007;450:893–8.
45. Tsafrir D, Bacolod M, Selvanayagam Z, Tsafrir I, Shia J, Zeng Z, et al.
Relationship of gene expression and chromosomal abnormalities in
colorectal cancer. Cancer Res 2006;66:2129–37.
46. Vlajnic T, Andreozzi MC, Schneider S, Tornillo L, Karamitopoulou
E, Lugli A, et al. VEGFA gene locus (6p12) amplification identifies
a small but highly aggressive subgroup of colorectal patients. Mod
Pathol 2011;24:1404–12.
47. Horlings HM, Lai C, Nuyten DS, Halfwerk H, Kristel P, van Beers E,
et al. Integration of DNA copy number alterations and prognostic
gene expression signatures in breast cancer patients. Clin Cancer Res
2010;16:651–63.
48. Lau CC, Harris CP, Lu XY, Perlaky L, Gogineni S, Chintagumpala
M, et al. Frequent amplification and rearrangement of chromosomal
bands 6p12-p21 and 17p11.2 in osteosarcoma. Genes Chromosomes
Cancer 2004;39:11–21.
49. Andreozzi M, Quagliata L, Gsponer JR, Ruiz C, Vuaroqueaux V,
Eppenberger-Castori S, et al. VEGFA gene locus analysis across 80
human tumour types reveals gene amplification in several neoplastic
entities. Angiogenesis. 2013 Oct 11. [Epub ahead of print].
50. Yang J, Yang D, Sun Y, Sun B, Wang G, Trent JC, et al. Genetic ampli-
fication of the vascular endothelial growth factor (VEGF) pathway
genes, including VEGFA, in human osteosarcoma. Cancer 2011;117:
4925–38.
51. Schneider BP, Gray RJ, Radovich M, Shen F, Vance G, Li L, et al.
Prognostic and predictive value of tumor vascular endothelial growth
factor gene amplification in metastatic breast cancer treated with
paclitaxel with and without bevacizumab; results from ECOG 2100
trial. Clin Cancer Res 2013;19:1281–9.
52. Salido M, Tusquets I, Corominas JM, Suarez M, Espinet B, Corzo C,
et al. Polysomy of chromosome 17 in breast cancer tumors showing
an overexpression of ERBB2: a study of 175 cases using fluorescence
in situ hybridization and immunohistochemistry. Breast Cancer Res
2005;7:R267–73.
53. Wolff AC, Hammond ME, Schwartz JN, Hagerty KL, Allred DC,
Cote RJ, et al. American Society of Clinical Oncology/College of
American Pathologists guideline recommendations for human epi-
dermal growth factor receptor 2 testing in breast cancer. J Clin Oncol
2007;25:118–45.
54. Kamimura S, Tsukamoto H. Cytokine gene expression by Kupffer cells
in experimental alcoholic liver disease. Hepatology 1995;22:1304–9.
on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from
Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782](https://image.slidesharecdn.com/df86578c-8dd3-439a-acf7-d6cfc1252837-160327105946/85/Cancer-Discovery-2014-Horwitz-730-43-14-320.jpg)
Cancer Discovery-2014-Horwitz-730-43

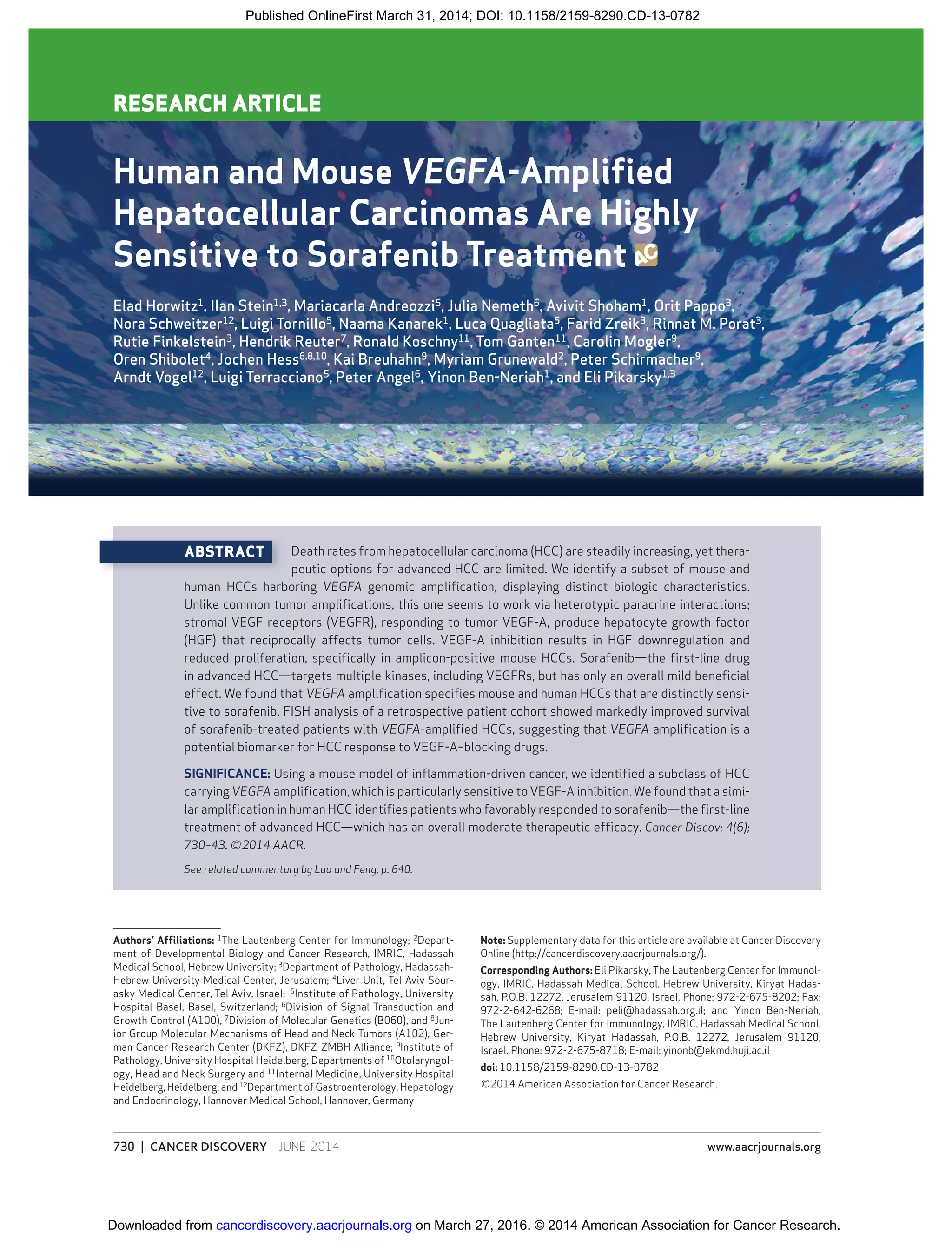

- 1. 730 | CANCER DISCOVERY JUNE2014 www.aacrjournals.org RESEARCH ARTICLE Human and Mouse VEGFA-Amplified Hepatocellular Carcinomas Are Highly Sensitive to Sorafenib Treatment Elad Horwitz1 , Ilan Stein1,3 , Mariacarla Andreozzi5 , Julia Nemeth6 , Avivit Shoham1 , Orit Pappo3 , Nora Schweitzer12 , Luigi Tornillo5 , Naama Kanarek1 , Luca Quagliata5 , Farid Zreik3 , Rinnat M. Porat3 , Rutie Finkelstein3 , Hendrik Reuter7 , Ronald Koschny11 , Tom Ganten11 , Carolin Mogler9 , Oren Shibolet4 , Jochen Hess6,8,10 , Kai Breuhahn9 , Myriam Grunewald2 , Peter Schirmacher9 , Arndt Vogel12 , Luigi Terracciano5 , Peter Angel6 , Yinon Ben-Neriah1 , and Eli Pikarsky1,3 ABSTRACT Death rates from hepatocellular carcinoma (HCC) are steadily increasing, yet thera- peutic options for advanced HCC are limited. We identify a subset of mouse and human HCCs harboring VEGFA genomic amplification, displaying distinct biologic characteristics. Unlike common tumor amplifications, this one seems to work via heterotypic paracrine interactions; stromal VEGF receptors (VEGFR), responding to tumor VEGF-A, produce hepatocyte growth factor (HGF) that reciprocally affects tumor cells. VEGF-A inhibition results in HGF downregulation and reduced proliferation, specifically in amplicon-positive mouse HCCs. Sorafenib—the first-line drug in advanced HCC—targets multiple kinases, including VEGFRs, but has only an overall mild beneficial effect. We found that VEGFA amplification specifies mouse and human HCCs that are distinctly sensi- tive to sorafenib. FISH analysis of a retrospective patient cohort showed markedly improved survival of sorafenib-treated patients with VEGFA-amplified HCCs, suggesting that VEGFA amplification is a potential biomarker for HCC response to VEGF-A–blocking drugs. SIGNIFICANCE: Using a mouse model of inflammation-driven cancer, we identified a subclass of HCC carrying VEGFA amplification, which is particularly sensitive toVEGF-A inhibition.We found that a simi- lar amplification in human HCC identifies patients who favorably responded to sorafenib—the first-line treatment of advanced HCC—which has an overall moderate therapeutic efficacy. Cancer Discov; 4(6); 730–43. ©2014 AACR. See related commentary by Luo and Feng, p. 640. Authors’ Affiliations: 1 The Lautenberg Center for Immunology; 2 Depart- ment of Developmental Biology and Cancer Research, IMRIC, Hadassah Medical School, Hebrew University; 3 Department of Pathology, Hadassah- Hebrew University Medical Center, Jerusalem; 4 Liver Unit, Tel Aviv Sour- asky Medical Center, Tel Aviv, Israel; 5 Institute of Pathology, University Hospital Basel, Basel, Switzerland; 6 Division of Signal Transduction and Growth Control (A100), 7 Division of Molecular Genetics (B060), and 8 Jun- ior Group Molecular Mechanisms of Head and Neck Tumors (A102), Ger- man Cancer Research Center (DKFZ), DKFZ-ZMBH Alliance; 9 Institute of Pathology, University Hospital Heidelberg; Departments of 10 Otolaryngol- ogy, Head and Neck Surgery and 11 Internal Medicine, University Hospital Heidelberg, Heidelberg; and 12 Department of Gastroenterology, Hepatology and Endocrinology, Hannover Medical School, Hannover, Germany Note: Supplementary data for this article are available at Cancer Discovery Online (http://cancerdiscovery.aacrjournals.org/). Corresponding Authors: Eli Pikarsky, The Lautenberg Center for Immunol- ogy, IMRIC, Hadassah Medical School, Hebrew University, Kiryat Hadas- sah, P.O.B. 12272, Jerusalem 91120, Israel. Phone: 972-2-675-8202; Fax: 972-2-642-6268; E-mail: peli@hadassah.org.il; and Yinon Ben-Neriah, The Lautenberg Center for Immunology, IMRIC, Hadassah Medical School, Hebrew University, Kiryat Hadassah, P.O.B. 12272, Jerusalem 91120, Israel. Phone: 972-2-675-8718; E-mail: yinonb@ekmd.huji.ac.il doi: 10.1158/2159-8290.CD-13-0782 ©2014 American Association for Cancer Research. on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

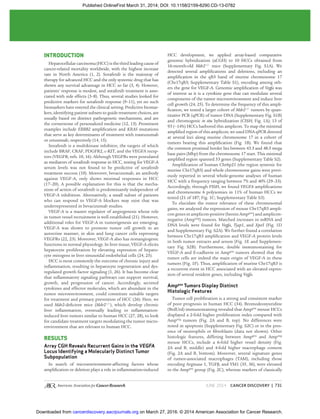

- 2. JUNE 2014 CANCERDISCOVERY | 731 INTRODUCTION Hepatocellular carcinoma (HCC) is the third leading cause of cancer-related mortality worldwide, with the highest increase rate in North America (1, 2). Sorafenib is the mainstay of therapy for advanced HCC and the only systemic drug that has shown any survival advantage in HCC so far (3, 4). However, patients’ response is modest, and sorafenib treatment is asso- ciated with side effects (3–8). Thus, several studies looked for predictive markers for sorafenib response (9–11), yet no such biomarkers have entered the clinical setting. Predictive biomar- kers, identifying patient subsets to guide treatment choices, are usually based on distinct pathogenetic mechanisms, and are the cornerstone of personalized medicine (12, 13). Prominent examples include ERBB2 amplification and KRAS mutations that serve as key determinants of treatment with trastuzumab or cetuximab, respectively (14, 15). Sorafenib is a multikinase inhibitor, the targets of which include BRAF, CRAF, PDGFR2, c-KIT, and the VEGFA recep- tors (VEGFR; refs. 10, 16). Although VEGFRs were postulated as mediators of sorafenib response in HCC, testing for VEGF-A serum levels was not found to be predictive of sorafenib treatment success (10). Moreover, bevacizumab, an antibody against VEGF-A, only shows minimal responses in HCC (17–20). A possible explanation for this is that the mecha- nism of action of sorafenib is predominantly independent of VEGF-A inhibition. Alternatively, a small subset of patients who can respond to VEGF-A blockers may exist that was underrepresented in bevacizumab studies. VEGF-A is a master regulator of angiogenesis whose role in tumor vessel recruitment is well established (21). However, additional roles for VEGF-A in tumorigenesis are emerging. VEGF-A was shown to promote tumor cell growth in an autocrine manner, in skin and lung cancer cells expressing VEGFRs (22, 23). Moreover, VEGF-A also has nonangiogenic functions in normal physiology. In liver tissue, VEGF-A elicits hepatocyte proliferation by elevating expression of hepato- cyte mitogens in liver sinusoidal endothelial cells (24, 25). HCC is most commonly the outcome of chronic injury and inflammation, resulting in hepatocyte regeneration and dys- regulated growth factor signaling (1, 26). It has become clear that inflammatory signaling pathways can support survival, growth, and progression of cancer. Accordingly, secreted cytokines and effector molecules, which are abundant in the tumor microenvironment, could constitute suitable targets for treatment and primary prevention of HCC (26). Here, we used Mdr2-deficient mice (Mdr2−/− ), which develop chronic liver inflammation, eventually leading to inflammation- induced liver tumors similar to human HCC (27, 28), to look for candidate treatment targets modulating the tumor micro- environment that are relevant to human HCC. RESULTS Array CGH Reveals Recurrent Gains in the VEGFA Locus Identifying a Molecularly Distinct Tumor Subpopulation In search of microenvironment-affecting factors whose amplification or deletion plays a role in inflammation-induced HCC development, we applied array-based comparative genomic hybridization (aCGH) to 10 HCCs obtained from 16-month-old Mdr2−/− mice (Supplementary Fig. S1A). We detected several amplifications and deletions, including an amplification in the qB3 band of murine chromosome 17 (Chr17qB3; Supplementary Table S1), encoding among oth- ers the gene for VEGF-A. Genomic amplification of Vegfa was of interest as it is a cytokine gene that can modulate several components of the tumor microenvironment and induce liver cell growth (24, 25). To determine the frequency of this ampli- fication, we tested a larger cohort of Mdr2−/− tumors by quan- titative PCR (qPCR) of tumor DNA (Supplementary Fig. S1B) and chromogenic in situ hybridization (CISH; Fig. 1A); 13 of 93 (∼14%) HCCs harbored this amplicon. To map the minimal amplified region of this amplicon, we used DNA qPCR directed at several loci along murine chromosome 17 in a cohort of tumors bearing this amplification (Fig. 1B). We found that the common proximal border lies between 43.3 and 48.5 mega base pairs (Mbp) from the chromosome 17 start. This minimal amplified region spanned 53 genes (Supplementary Table S2). Amplification of human Chr6p21 (the region syntenic for murine Chr17qB3) and whole chromosome gains were previ- ously reported in several whole-genome analyses of human HCC with a frequency ranging between 7% and 40% (29–33). Accordingly, through FISH, we found VEGFA amplifications and chromosome 6 polysomies in 11% of human HCCs we tested (21 of 187; Fig. 1C; Supplementary Table S3). To elucidate the tumor relevance of these chromosomal gains, we analyzed the expression of mouse Chr17qB3 ampli- con genes in amplicon-positive (herein Amppos ) and amplicon- negative (Ampneg ) tumors. Matched increases in mRNA and DNA levels were found for Vegfa, Tjap1, and Xpo5 (Fig. 1D and Supplementary Fig. S2A). We further found a correlation between Chr17qB3 amplification and VEGF-A protein levels in both tumor extracts and serum (Fig. 1E and Supplemen- tary Fig. S2B). Furthermore, double immunostaining for VEGF-A and E-cadherin in Amppos tumors showed that the tumor cells are indeed the main origin of VEGF-A in these tumors (Fig. 1F). Thus, amplification of murine Chr17qB3 is a recurrent event in HCC associated with an elevated expres- sion of several resident genes, including Vegfa. Amppos Tumors Display Distinct Histologic Features Tumor cell proliferation is a strong and consistent marker of poor prognosis in human HCC (34). Bromodeoxyuridine (BrdUrd) immunostaining revealed that Amppos mouse HCCs displayed a 2-fold higher proliferation index compared with Ampneg tumors (Fig. 2A and B, top). No differences were noted in apoptosis (Supplementary Fig. S2C) or in the pres- ence of neutrophils or fibroblasts (data not shown). Other histologic features, differing between Amppos and Ampneg mouse HCCs, include a 6-fold higher vessel density (Fig. 2A and B, middle) and 4-fold higher macrophage content (Fig. 2A and B, bottom). Moreover, several signature genes of tumor-associated macrophages (TAM), including those encoding Arginase 1, TGFβ, and YM1 (35, 36), were elevated in the Amppos group (Fig. 2C), whereas markers of classically on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

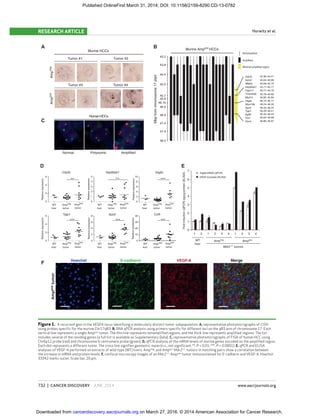

- 3. 732 | CANCER DISCOVERY JUNE2014 www.aacrjournals.org Horwitz et al.RESEARCH ARTICLE A B n.s. WT liver Amp neg tumor Amppos tumor *** ** *** *** *** Cul9 D E 0 1 2 3 4 5 6 7 1 2 1 2 3 4 1 2 3 4 Vegfa mRNA (qPCR) VEGF-A protein (ELISA) Foldinduction(qPCR)pg/µgprotein(ELISA) Mdr2–/– tumors C Normal Polysomic Amplified Murine HCCs Tumor #1 Tumor #2 Tumor #3 HumanHCCs Tumor #4 Ampneg Amppos Mbpfromchromosome17start Murine Amppos HCCs 43.3 43.8 44.4 45.0 45.7 45.9 46.16 46.4 46.9 48.5 46.15–46.17Vegfa 45.82–45.84Mrpl14 45.78–45.82Tmem63b 45.77–45.79Capn11 46.39–46.41Tjap1 46.33–46.37Xpo5 45.71–45.71Hsp90ab1 46.24–46.26Mrps18a 45.69–45.70Nfkbie 46.43–46.44Egfl9 45.64–45.66Aars2 44.36–44.41Cdc5L 46.63–46.68Parc 46.86–46.87Gnmt 47.4 47.9 Amplified Nonamplified Minimal amplified region F Hoechst E-cadherin VEGF-A Merge Amppostumor 10 8 6 4 2 0 5 4 3 2 1 0 Cdc5L Tjap1 Xpo5 Hsp90ab1 Vegfa 6 4 2 0 Relativeexpression 40 30 20 10 0 8 6 4 2 0 6 4 2 0 Relativeexpression Relativeexpression Relativeexpression Relativeexpression Relativeexpression WT liver Amp neg tumor Amppos tumor WT liver Amp neg tumor Amppos tumor WT liver Amp neg tumor Amp pos tumor WT liver Amp neg tumor Amp pos tumor WT liver Amp neg tumor Amp pos tumor WT liver Ampneg Amppos Figure 1. A recurrent gain in the VEGFA locus identifying a molecularly distinct tumor subpopulation. A, representative photomicrographs of CISH using probes specific for the murine Chr17qB3. B, DNA qPCR analysis using primers specific for different loci on the qB3 arm of chromosome 17. Each vertical line represents a single Amppos tumor. The thin line represents nonamplified regions, and the thick line represents amplified regions. The list includes several of the residing genes (a full list is available as Supplementary Data). C, representative photomicrographs of FISH of human HCC using Chr6p12 probe (red) and chromosome 6 centromere probe (green). D, qPCR analysis of the mRNA levels of murine genes encoded on the amplified region. Each dot represents a different tumor. The cross line signifies geometric mean (n.s., not significant; **, P < 0.01; ***, P < 0.0001). E, qPCR and ELISA analyses of VEGF-A performed on extracts of wild-type (WT) livers, Ampneg , and Amppos Mdr2−/− tumors in matching pairs show a correlation between the increase in mRNA and protein levels. F, confocal microscopy images of an Mdr2−/− Amppos tumor immunostained for E-cadherin and VEGF-A. Hoechst 33342 marks nuclei. Scale bar, 20 μm. on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

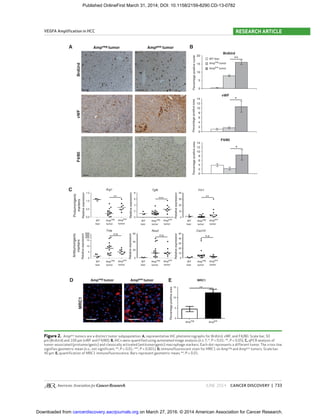

- 4. JUNE 2014 CANCERDISCOVERY | 733 VEGFA Amplification in HCC RESEARCH ARTICLE Figure 2. Amppos tumors are a distinct tumor subpopulation. A, representative IHC photomicrographs for BrdUrd, vWF, and F4/80. Scale bar, 50 μm (BrdUrd) and 100 μm (vWF and F4/80). B, IHCs were quantified using automated image analysis (n ≥ 7; *, P < 0.01; **, P < 0.05). C, qPCR analysis of tumor-associated (protumorigenic) and classically activated (antitumorigenic) macrophage markers. Each dot represents a different tumor. The cross line signifies geometric mean (n.s., not significant; **, P < 0.01; ***, P < 0.001). D, immunofluorescent stain for MRC1 on Ampneg and Amppos tumors. Scale bar, 40 μm. E, quantification of MRC1 immunofluorescence. Bars represent geometric mean; **, P < 0.01. B C n.s.n.s. n.s. Antitumorigenic markers ***** ** Protumorigenic markers Ampneg tumor Amppos tumor Amppos tumor Ampneg tumor WT liver Ampneg tumor Amppos tumor BrdUrd 0 5 10 15 20 vWF Percentagepositivenuclei ** BrdUrd vWF 0 2 4 6 8 10 12 14 Percentagepositivearea vWF * F4/80 0 2 4 6 8 10 12 14 Percentagepositivearea * F4/80 A D MRC1 E MRC1 ** 1.5 Arg1 Nos2 Cxcl10 Tgfb Ym1 Tnfa 8 40 30 20 10 0 6 4 2 0 1.0 0.5 RelativeexpressionRelativeexpression Relativeexpression Relativeexpression Percentagepositivearea Relativeexpression Relativeexpression 0.0 600 50 40 30 20 10 0 15 10 5 0 60 40 20 0 400 200 15 10 5 0 WT liver Amp neg tumor Amp pos tumor WT liver Amp neg tumor Amppos tumor WT liver Ampneg tumor Amppos tumor WT liver Amp neg tumor Amp pos tumor WT liver Amp neg tumor Amp pos tumor Amp neg Amp pos WT liver Amp neg tumor Amp pos tumor on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782
- 5. 734 | CANCER DISCOVERY JUNE2014 www.aacrjournals.org Horwitz et al.RESEARCH ARTICLE activated macrophages, including TNFα, inducible nitric oxide synthase (iNOS), CXCL10, and IL12p40, were similar in both tumor groups (Fig. 2C and Supplementary Fig. S3A). Along with these, immunofluorescent staining for the protu- morigenic macrophage marker MRC1 revealed a higher pres- ence of MRC1-expressing cells in Amppos tumors (Fig. 2D and E). Of note, VEGF-A was shown to act as a chemoattractant for naïve myeloid cells, which facilitate the generation of new blood vessels (37). Together, these data signify Amppos tumors as a distinct subgroup of HCCs characterized by enhanced presence of specific microenvironmental components and increased proliferation rate. Histologic analysis of human HCCs revealed several char- acteristic traits of HCCs harboring VEGFA gains. A higher incidence of vascular invasion was found in the Amppos group (9 of 20 Amppos tumors vs. 1 of 20 Ampneg tumors; P < 0.01; Supplementary Table S4). A lower incidence of fibrosis within tumor tissue was found in the Amppos group as well. Few additional traits nearly reaching statistical significance were identified (Supplementary Table S4). We found no differences in several clinical characteristics of HCC including underlying disease, gender, or tumor size (Supplementary Fig. S4A–S4C). Altogether, these results indicate that in both murine Mdr2−/− and human HCCs, tumors that harbor genomic gains in the VEGFA locus are distinct from those that do not. Macrophage–Tumor Cell Cross-talk in Amppos Tumors Previous studies have delineated hepatocyte–endothelial cross-talk taking place in non-neoplastic liver, wherein VEGF-A stimulates endothelial cells to secrete several mitogens includ- ing hepatocyte growth factor (HGF; refs. 24, 25). We hypothe- sized that Amppos HCCs exploit this interaction for promoting tumor cell proliferation. Following this notion, we detected a 3-fold elevation of Hgf mRNA levels in Amppos versus Ampneg mouse tumors (Fig. 3A). We did not find significant changes in other angiocrine-produced molecules (24, 25)—Wnt2, IL6, and heparin binding EGF-like growth factor (HB-EGF; data not shown). Immunostaining detected HGF expression only in Amppos tumors, exclusively in the non-neoplastic stromal cells (Fig. 3B). Immunofluorescent staining for von Willebrand Factor (vWF), F4/80, and HGF suggested that macrophages are the major cell type expressing HGF (Fig. 3C). To understand the VEGF-A–HGF relationship, we isolated hepatocytes and macrophages from Mdr2−/− livers at the age of 8 months (Fig. 3D and Supplementary Fig. S3B), a time point signified by marked dysplasia, yet no overt HCC for- mation (27). mRNA profiling of these fractions showed that the genes encoding VEGFRs (FLT1 and KDR) and corecep- tors [Neuropilin (Nrp)1 and 2] were higher in macrophages whereas the HGF receptor (c-MET) was more abundant in hepatocytes (Fig. 3E). This aligns with previous work showing that hepatocytes are inert to direct activation with VEGF-A (24). Immunostaining for KDR in Amppos tumors demon- strated that its expression in these tumors was restricted to non-neoplastic cells (Fig. 3F). This correlated with a modest increase in mRNA levels of both Kdr and Flt1 in total tumor lysates, which was comparable with the increase in mRNA levels of recruited macrophage and endothelial markers Msr1 and Cd105, respectively (Fig. 3G). Recapitulating this interac- tion in vitro, we treated peritoneal macrophages with recom- binant VEGF-A and detected an increase in Hgf mRNA levels (Fig. 3H). This raises the possibility that VEGF-A in Amppos tumors does not provide autocrine signals to hepatocytes, but rather acts through manipulation of the microenviron- ment to induce HGF secretion. VEGF-A Increases Cellular Proliferation in HCC To prove the functional role of VEGFA in this genomic ampli- fication, we set out to inhibit VEGF-A in Mdr2−/− tumors. To this end, we injected intravenously adenoviral vectors encoding GFP alone or GFP and the soluble VEGFR1 (sFLT), a potent inhibitor of VEGF-A (38), into 56 tumor-harboring Mdr2−/− mice of ages 14 to 18 months and sacrificed them 10 days fol- lowing injection (Supplementary Fig. S5A). Vegfa amplification status was determined after sacrifice by both DNA qPCR and Vegfa mRNA expression (Fig. 4C and data not shown). Liver damage, measured through plasma aspartate aminotransferase (AST) activity, was similar in all groups (Supplementary Fig. S5B). Immunostaining for BrdUrd, Ki67, and phosphorylated histone H3 (pHH3) revealed that blocking VEGF-A markedly inhibited tumor cell proliferation in Amppos tumors, but not in Ampneg ones (Fig. 4A and B and Supplementary Fig. S5C and S5D). This decrease in proliferation was accompanied by reduced Hgf mRNA levels (Fig. 4C). Treatment with adenovi- rus encoding GFP alone did not induce any change in either group. Macrophage infiltration and protumorigenic macro- phage expression profile did not decrease following the sFLT treatment (Supplementary Fig. S5C and S5D and data not shown). Macroscopic and histologic analyses revealed multiple foci of coagulative necrosis only in sFLT-treated Amppos tumors (3 of 6 vs. 0 of 10 in Ampneg ; P < 0.05; Fig. 4D). In these specific tumors, we also found an elevation of the hypoxia-inducible factor-1α (HIF1α) target genes Glut1 and Pgk1 (Fig. 4C), indica- tive of tissue hypoxia. Immunostaining for vWF revealed a trend of decrease in vasculature only in VEGF-A–blocked Amppos tumors, particularly in the hypoxic tumors (Supple- mentary Fig. S5C and S5D). These data denote Amppos tumors as hypersensitive to direct inhibition of VEGF-A. Overexpression of VEGF-A in HCC Cells Increases Proliferation Only In Vivo To further substantiate the tumor–stroma relationship with respect to VEGF amplification, in particular hepatocyte VEGF- A eliciting a macrophage HGF–heterotypic circuit in tumor growth, we injected human Hep3B HCC cells transduced with a lentivector overexpressing human VEGF-A into immuno- deficient mice (Supplementary Fig. S6A). The in vivo growth rate of VEGF-A–overexpressing cells was higher than control vector–transduced cells (Fig. 5A and Supplementary Fig. S6B). This correlated with higher proliferation rate and increased HGF expression (Fig. 5B–D and Supplementary Fig. S6C and S6D), phenocopying the Amppos Mdr2−/− HCCs. Supporting the non–cell-autonomous role, VEGF-A overexpression did not affect the in vitro growth rate of Hep3B cells (Fig. 5E). We also found no difference in expression of the hypoxia markers prolyl hydroxylase domain 3 (PHD3) and lactate dehydroge- nase A (LDHA) in these xenografts, lending further support to a nonangiogenic role for VEGF-A in HCC (Supplementary Fig. S6E). Immunofluorescence confirmed VEGF-A expression in on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782
- 6. JUNE 2014 CANCERDISCOVERY | 735 VEGFA Amplification in HCC RESEARCH ARTICLE Figure 3. A macrophage- tumor cell cross-talk within Amppos tumors. A, qPCR analysis of Hgf mRNA in WT livers, Ampneg , and Amppos tumors. The cross line signi- fies geometric mean (**, P < 0.001). B, representative photomicrographs of IHC for HGF on Ampneg and Amppos tumors. Scale bar, 100 μm. C, representative confocal microscopy images of Amppos tumor immunostained for vWF, F4/80, and HGF. Hoechst 33342 marks nuclei. Scale bar, 40 μm. D, representative cytospin preparations of macrophage and hepatocyte fractions from Mdr2−/− liv- ers. E, qPCR analysis of hepatocyte and macrophage fractions (n = 11 different mice), isolated from livers of Mdr2−/− mice. Bars represent geometric mean (**, P < 0.001; ***, P < 0.0001). F, representa- tive photomicrograph of IHC for the VEGFR KDR in Ampneg and Amppos tumors. Note that the expression of KDR is confined to endothelial and stromal cells. Scale bar, 100 μm. G, mRNA qPCR analysis for the VEGFRs Kdr and Flt1 and the macrophage and endothelium markers Msr1 and Cd105 on tissue lysates from the indicated groups. Each dot represents a different tumor. The cross line represents geo- metric mean (***, P < 0.0001). H, peritoneal macrophages were cultured under serum-free conditions followed by 8 hours of exposure to recombinant murine VEGF-A (100 ng/mL). Hgf expression was measured by qPCR. Bars represent geometric mean; n ≥ 3; *, P < 0.05. C B HGF ** D FE KDR ** *** 0 2 4 6 8 10 12 14 16 18 Flt1 Kdr Nrp1 Nrp2 Met Relativeexpression Hepatocytes Macrophages ** ** ** *** Kdr *** Flt1 *** Msr1 *** Cd105 A G H&E H * Hgf Peritoneal macrophages vWF F4/80 HGF Macrophages Hepatocytes Merge Ampneg tumor Ampneg Amppos tumor Amppos Amppostumor WT Hgf 6 4 2 Relativeexpression 0 liver Amp neg tumor Amppos tumor 3 5 2.5 2.0 1.5 1.0 0.5 0.0 NT 8h rVEGF-A 4 3 2 1 0 2 1 RelativeexpressionRelativeexpression RelativeexpressionRelativeexpression Relativeexpression 0 10 3 2 1 0 8 6 4 2 0 WT liver Amp neg tumor Amp pos tumor WT liver Amp neg tumor Amp pos tumor WT liver Ampneg tumor Amp pos tumor WT liver Amp neg tumor Amp pos tumor transduced tumor cells and revealed HGF expression in mac- rophages (Supplementary Fig. S7A). Next, we generated single-cell suspensions from VEGF-A– overexpressingorcontrolHep3BZsGreen-labeledxenografts andisolatedmacrophages(ZsGreen− CD45+ F4/80+ )andendo- thelial cells (ZsGreen− CD45− Meca32+ ) using FACS sorting. qPCR analysis of the macrophage-specific and endothelium- specific genes, Msr1 and Cd105, respectively, confirmed successful separation of cell populations (Supplementary Fig. S7B). Although VEGF-A and control tumor groups did not show significant differences in the TAM genes Tgfb, Ym1, Tnfa, and Nos2 (Supplementary Fig. S7C), we found a 2-fold increase in Hgf expression in macrophages, but not endothelial cells, isolated from VEGF-A–overexpress- ing tumors (Fig. 5F). Thus, VEGF-A overexpression by HCC cells is sufficient to induce upregulation of HGF, mostly in on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782
- 7. 736 | CANCER DISCOVERY JUNE2014 www.aacrjournals.org Horwitz et al.RESEARCH ARTICLE Figure 4. VEGF-A inhibition impedes proliferation in Amppos tumors. Mdr2−/− mice were treated with adenovectors expressing either GFP alone or GFP and sFLT for 10 days. A, representative photomicrographs of IHC for BrdUrd. Tumor-infiltrating cells remain proliferative. Scale bar, 100 μm. B, BrdUrd immunostaining was quantified using automated image analysis (n ≥ 6; *, P < 0.05). C, mRNA qPCR analysis of the indicated genes in Ampneg and Amppos tumors treated with the indicated adenovectors. Each dot represents a different tumor. The cross line signifies geometric mean (***, P < 0.0001). D, left, histologic section stained with H&E depicting necrosis, representing three out of the six sFLT-treated Amppos tumors. Scale bar, 500 μm. Right, a macro- scopic picture of a tumor with hemorrhagic necrosis. Scale bar, 0.5 cm. C D B *** 0 1 2 3 4 5 BrdUrd Ampneg GFP Ampneg sFLT Amppos GFP Amp pos sFLT BrdUrd Percentagepositivenuclei * A 8 30 20 10 0 5 4 3 2 1 0 6 4 2 0 Relativeexpression 8 6 4 2 0 Relativeexpression Relativeexpression Relativeexpression Amp neg sFLT Amp neg GFP Amppos GFP Amppos sFLT Ampneg sFLT Amp neg GFP Amp pos GFP Amp pos sFLT Amp neg sFLT Ampneg GFP Amppos GFP Amppos sFLT Amp neg sFLT Ampneg GFP Amppos GFP Amppos sFLT Vegfa Glut1 Pgk1 Hgf Ampneg GFP Ampneg sFLT Amppos GFP Amppos sFLT H&E Amppos sFLT Figure 5. VEGF-A overexpression enhances tumor cell proliferation. Immunodeficient mice were subcutaneously injected with Hep3B cells transduced with control vector or with a human VEGF-A vector. A, growth curve of xenografts transduced with control vector (black line) or with VEGF-A lentivec- tor (gray line). Tumor volumes were measured topically with a caliper (*, P < 0.05; **, P < 0.01). B, representative photomicrographs of IHC for BrdUrd in control or VEGF-A lentivector-transduced xenografts. Scale bar, 100 μm. C, BrdUrd immunostaining was quantified using automated image analysis (n ≥ 3; *, P < 0.05; a representative experiment of two performed is shown). D, mRNA qPCR analysis in control or VEGF-A lentivector-transduced xenografts. Bars represent geometric mean (n ≥ 4; *, P < 0.05; **, P < 0.01). E, XTT in vitro proliferation assay of the indicated lentivector-transduced cultured cells. F, expression of Hgf in macrophage and endothelial fractions from tumors overexpressing VEGF-A and controls determined by qPCR. Bars represent geometric mean; n ≥ 3; *, P < 0.05; ND, not detected—amplification did not occur in any of the sample’s wells. D B E A C F * ND ND Mac. End. Mac. End. Control tumor VEGF-A tumor Control VEGF-A BrdUrd * Control VEGF-A Control VEGF-A 2,000 1,800 1,600 1,400 1,200 1,000 800 600 400 200 0 6 1.9 Control VEGF-A BrdUrd 35 30 25 20 15 10 5 0 Percentagepositivenuclei Hgf 2.5 2.0 1.5 1.0 0.5 0.0 1.7 1.5 1.3 1.1 0.9 0.7 0.5 0 1 2 3 Days in culture 4 Control VEGF-A 5 6 Tumorvolume(mm3 ) Relativeexpression Absorbance(450nm) Relativeexpression 5 4 3 2 1 0 0 10 ** * ** * * ** Days hVEGFA mHgf 20 30 on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

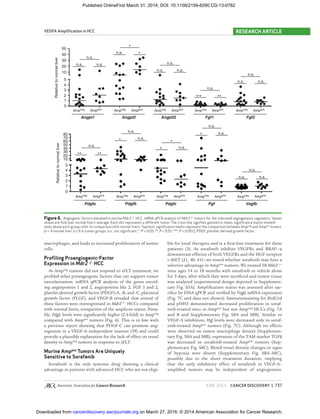

- 8. JUNE 2014 CANCERDISCOVERY | 737 VEGFA Amplification in HCC RESEARCH ARTICLE macrophages, and leads to increased proliferation of tumor cells. Profiling Proangiogenic-Factor Expression in Mdr2−/− HCC As Ampneg tumors did not respond to sFLT treatment, we profiled other proangiogenic factors that can support tumor vascularization. mRNA qPCR analysis of the genes encod- ing angiopoietin 1 and 2, angiopoietin like 2, FGF 1 and 2, platelet-derived growth factor (PDGF)-A, -B, and -C, placental growth factor (PLGF), and VEGF-B revealed that several of these factors were overexpressed in Mdr2−/− HCCs compared with normal livers, irrespective of the amplicon status. Nota- bly, Pdgfc levels were significantly higher (2.4-fold) in Ampneg compared with Amppos tumors (Fig. 6). This is in line with a previous report showing that PDGF-C can promote ang- iogenesis in a VEGF-A–independent manner (39) and could provide a plausible explanation for the lack of effect on vessel density in Ampneg tumors in response to sFLT. Murine Amppos Tumors Are Uniquely Sensitive to Sorafenib Sorafenib is the only systemic drug showing a clinical advantage in patients with advanced HCC who are not eligi- ble for local therapies and is a first-line treatment for these patients (3). As sorafenib inhibits VEGFRs and BRAF—a downstream effector of both VEGFRs and the HGF receptor c-MET (21, 40, 41)—we tested whether sorafenib may have a selective advantage in Amppos tumors. We treated 58 Mdr2−/− mice ages 14 to 18 months with sorafenib or vehicle alone for 3 days, after which they were sacrificed and tumor tissue was analyzed (experimental design depicted in Supplemen- tary Fig. S5A). Amplification status was assessed after sac- rifice by DNA qPCR and verified by Vegfa mRNA expression (Fig. 7C and data not shown). Immunostaining for BrdUrd and pHH3 demonstrated decreased proliferation in soraf- enib-treated mice in Amppos but not Ampneg HCCs (Fig. 7A and B and Supplementary Fig. S8A and S8B). Similar to VEGF-A inhibition, Hgf levels were decreased only in soraf- enib-treated Amppos tumors (Fig. 7C). Although no effects were observed on tumor macrophage density (Supplemen- tary Fig. S8A and S8B), expression of the TAM marker TGFβ was decreased in sorafenib-treated Amppos tumors (Sup- plementary Fig. S8C). Blood vessel density changes or signs of hypoxia were absent (Supplementary Fig. S8A–S8C), possibly due to the short treatment duration, implying that the early inhibitory effect of sorafenib in VEGF-A– amplified tumors may be independent of angiogenesis. Figure 6. Angiogenic factors elevated in murine Mdr2−/− HCC. mRNA qPCR analysis of Mdr2−/− tumors for the indicated angiogenesis regulators. Values shown are fold over normal livers’ average. Each dot represents a different tumor. The cross line signifies geometric mean, significance marks immedi- ately above each group refer to comparison with normal livers. Topmost significance marks represent the comparison between Ampneg and Amppos tumors (n = 4 normal liver; n ≥ 6 in tumor groups; n.s., not significant; *, P < 0.05; **, P < 0.01; ***, P < 0.001). PDGF, platelet-derived growth factor. Angpt1 Angpt2 Angptl2 Fgf1 Fgf2 n.s. 50 40 30 20 10 5 RelativetonormalliverRelativetonormalliver 4 3 2 1 0 n.s.n.s. * *n.s. n.s. n.s.n.s. n.s. n.s.n.s. n.s. ***** Pdgfa Pdgfb Pdgfc Pgf Vegfb n.s. **** n.s. n.s.* * n.s. * n.s. n.s.n.s. n.s. n.s.* Ampneg Amppos Ampneg Amppos Ampneg Amppos Ampneg Amppos Ampneg Amppos Ampneg Amppos Ampneg Amppos Ampneg Amppos Ampneg Amppos Ampneg Amppos 80 70 60 50 40 30 20 10 5 4 3 2 1 0 on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

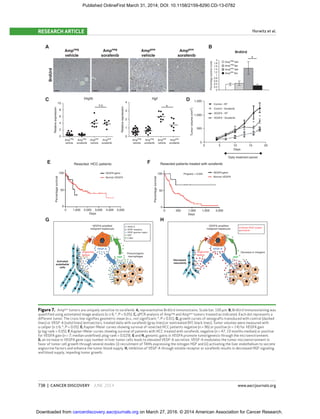

- 9. 738 | CANCER DISCOVERY JUNE2014 www.aacrjournals.org Horwitz et al.RESEARCH ARTICLE Figure 7. Amppos tumors are uniquely sensitive to sorafenib. A, representative BrdUrd immunostains. Scale bar, 100 μm. B, BrdUrd immunostaining was quantified using automated image analysis (n ≥ 6; *, P < 0.05). C, qPCR analysis of Ampneg and Amppos tumors treated as indicated. Each dot represents a different tumor. The cross line signifies geometric mean (n.s., not significant; *, P < 0.01). D, growth curves of xenografts transduced with control (dashed lines) or VEGF-A (solid lines) lentivectors, treated daily with sorafenib (gray lines) or nontreated (NT, black lines). Tumor volumes were measured with a caliper (n ≥ 6; *, P < 0.05). E, Kaplan–Meier curves showing survival of resected HCC patients negative (n = 96) or positive (n = 14) for VEGFA gain (p log-rank > 0.05). F, Kaplan–Meier curves showing survival of patients with HCC treated with sorafenib, negative (n = 47, 10 months median) or positive for VEGFA gain (n = 7; median undefined; plog-rank = 0.029). G and H, genomic gains in VEGFA promote tumorigenesis through the microenvironment. G, an increase in VEGFA gene copy number in liver tumor cells leads to elevated VEGF-A secretion. VEGF-A modulates the tumor microenvironment in favor of tumor cell growth through several modes: (i) recruitment of TAMs expressing the mitogen HGF and (ii) activating the liver endothelium to secrete angiocrine factors and enhance the tumor blood supply. H, inhibition of VEGF-A through soluble receptor or sorafenib results in decreased HGF signaling and blood supply, impeding tumor growth. Resected patients treated with sorafenib B 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 * BrdUrd Ampneg vehicle Ampneg sorafenib Amppos vehicle Amppos sorafenib Percentagepositivenuclei BrdUrd Amp neg Veh Amp neg Sor Amp pos Veh Amp pos Sor C * Hgf 0 1 2 3 4 Relativeexpression Vegfa 0 2 4 6 8 10 Relativeexpression n.s. A Resected HCC patients Percentagesurvival VEGFA gains Normal VEGFA VEGFA gains Normal VEGFA FE HG Daily treatment period Tumorvolume(mm2 ) D 1,500 Control - NT Control - Sorafenib VEGFA - NT VEGFA - Sorafenib 1,000 500 0 0 100 50 0 0 1,000 2,000 Days 3,000 4,000 5,000 0 0 Percentagesurvival 100 50 Plogrank = 0.029 500 1,000 Days 1,500 2,000 5 10 Days 15 20 * * Amp neg vehicle Amp neg sorafenib Amp pos vehicle Amp pos sorafenib Amp neg vehicle Amp neg sorafenib Amp pos vehicle Amp pos sorafenib VEGFA–amplified malignant hepatocyte Protumorigenic macrophages Angiocrine factors HGF VEGF-A Activated endothelial cells VEGF-A VEGF receptors VEGF genomic region HGF C-Met VEGFA–amplified malignant hepatocyte Decrease in mitogensAngiocrine factors HGF VEGF-A Decreased vascularity Soluble VEGF receptor Sorafenib on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

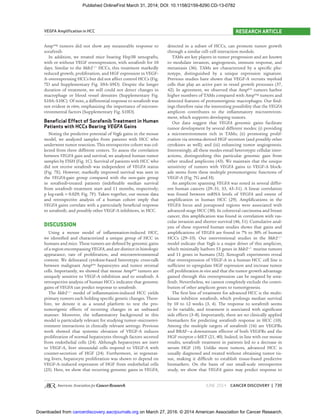

- 10. JUNE 2014 CANCERDISCOVERY | 739 VEGFA Amplification in HCC RESEARCH ARTICLE Ampneg tumors did not show any measurable response to sorafenib. In addition, we treated mice bearing Hep3B xenografts, with or without VEGF overexpression, with sorafenib for 10 days. Similar to the Mdr2−/− HCCs, this treatment markedly reduced growth, proliferation, and HGF expression in VEGF- A–overexpressing HCCs but did not affect control HCCs (Fig. 7D and Supplementary Fig. S9A–S9D). Despite the longer duration of treatment, we still could not detect changes in macrophage or blood vessel densities (Supplementary Fig. S10A–S10C). Of note, a differential response to sorafenib was not evident in vitro, emphasizing the importance of microen- vironmental factors (Supplementary Fig. S10D). Beneficial Effect of Sorafenib Treatment in Human Patients with HCCs Bearing VEGFA Gains Noting the predictive potential of Vegfa gains in the mouse model, we analyzed samples from patients with HCC who underwent tumor resection. This retrospective cohort was col- lected from three different centers. To assess the correlation between VEGFA gain and survival, we analyzed human tumor samples by FISH (Fig. 1C). Survival of patients with HCC who did not receive sorafenib was independent of VEGFA status (Fig. 7E). However, markedly improved survival was seen in the VEGFA-gain group compared with the non-gain group in sorafenib-treated patients (indefinable median survival from sorafenib treatment start and 11 months, respectively; p log-rank = 0.029; Fig. 7F). Taken together, our mouse data and retrospective analysis of a human cohort imply that VEGFA gains correlate with a particularly beneficial response to sorafenib, and possibly other VEGF-A inhibitors, in HCC. DISCUSSION Using a mouse model of inflammation-induced HCC, we identified and characterized a unique group of HCC in humans and mice. These tumors are defined by genomic gains of a region encompassing VEGFA, and are distinct in histologic appearance, rate of proliferation, and microenvironmental content. We delineated cytokine-based heterotypic cross-talk between malignant Amppos hepatocytes and tumor stromal cells. Importantly, we showed that mouse Amppos tumors are uniquely sensitive to VEGF-A inhibition and to sorafenib. A retrospective analysis of human HCCs indicates that genomic gains of VEGFA can predict response to sorafenib. The Mdr2−/− model of inflammation-induced HCC yields primary tumors each holding specific genetic changes. There- fore, we denote it as a sound platform to test the pro- tumorigenic effects of recurring changes in an unbiased manner. Moreover, the inflammatory background in this model is particularly relevant for studying tumor–microenvi- ronment interactions in clinically relevant settings. Previous work showed that systemic elevation of VEGF-A induces proliferation of normal hepatocytes through factors secreted from endothelial cells (24). Although hepatocytes are inert to VEGF-A, liver sinusoidal cells respond to VEGF-A with counter-secretion of HGF (24). Furthermore, in regenerat- ing livers, hepatocyte proliferation was shown to depend on VEGF-A–induced expression of HGF from endothelial cells (25). Here, we show that recurring genomic gains in VEGFA, detected in a subset of HCCs, can promote tumor growth through a similar cell–cell interaction module. TAMs are key players in tumor progression and are known to modulate invasion, angiogenesis, immune response, and metastasis (36). TAMs are characterized by a specific phe- notype, distinguished by a unique expression signature. Previous studies have shown that VEGF-A recruits myeloid cells that play an active part in vessel growth processes (37, 42). In agreement, we observed that Amppos tumors harbor higher numbers of TAMs compared with Ampneg tumors and detected features of protumorigenic macrophages. Our find- ings therefore raise the interesting possibility that the VEGFA amplicon contributes to the inflammatory microenviron- ment, which supports developing tumors. Our data suggest that VEGFA genomic gains facilitate tumor development by several different modes: (i) providing a microenvironment rich in TAMs; (ii) promoting prolif- eration via stroma-derived HGF secretion (and possibly other cytokines as well); and (iii) enhancing tumor angiogenesis. Interestingly, all these modes entail heterotypic cellular inter- actions, distinguishing this particular genomic gain from other studied amplicons (43). We maintain that the unique sensitivity of tumors with VEGFA gains to VEGF-A block- ade stems from these multiple protumorigenic functions of VEGF-A (Fig. 7G and H). An amplicon spanning VEGFA was noted in several differ- ent human cancers (29–31, 33, 43–51). A linear correlation was found between mRNA levels of VEGFA and extent of amplification in human HCC (29). Amplifications in the VEGFA locus and juxtaposed regions were associated with advanced-stage HCC (30). In colorectal carcinoma and breast cancer, this amplification was found in correlation with vas- cular invasion and shorter survival (46, 51). Cumulative anal- ysis of these reported human studies shows that gains and amplifications of VEGFA are found in 7% to 30% of human HCCs (29–33). Our interventional studies in the Mdr2−/− model indicate that Vegfa is a major driver of this amplicon, which minimally harbors 53 genes in Mdr2−/− murine tumors and 11 genes in humans (32). Xenograft experiments reveal that overexpression of VEGF-A in a human HCC cell line is sufficient to upregulate HGF expression and increase tumor cell proliferation in vivo and that the tumor growth advantage gained through this overexpression can be negated by sora- fenib. Nevertheless, we cannot completely exclude the contri- bution of other amplicon genes to tumorigenesis. The first line of treatment for advanced HCC is the multi- kinase inhibitor sorafenib, which prolongs median survival by 10 to 12 weeks (3, 4). The response to sorafenib seems to be variable, and treatment is associated with significant side effects (3–8). Importantly, there are no clinically applied biomarkers for predicting sorafenib response in HCC (10). Among the multiple targets of sorafenib (16) are VEGFRs and BRAF—a downstream effector of both VEGFRs and the HGF receptor c-MET (21, 40). Indeed, in line with our mouse results, sorafenib treatment in patients led to a decrease in serum HGF (10). Unlike most tumors, advanced HCC is usually diagnosed and treated without obtaining tumor tis- sue, making it difficult to establish tissue-based predictive biomarkers. On the basis of our small-scale retrospective study, we show that VEGFA gains may predict response to on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782
- 11. 740 | CANCER DISCOVERY JUNE2014 www.aacrjournals.org Horwitz et al.RESEARCH ARTICLE sorafenib in HCC, thus enabling the tailoring of treatment to only those patients who may benefit from this side effect– prone therapy. Notably, the same amplification was also found in lung, colorectal, bone, and breast cancers (44–48); thus, it is plausible that similar considerations could be applied to other tumors harboring VEGFA gains. METHODS Human Tissue Samples and Tissue Microarray Human HCC tissues were obtained from resected patients from the institutes of Basel University Hospital (Basel, Switzerland), Han- nover Medical School Hospital (Hannover, Germany), and Heidel- berg University Hospital (Heidelberg, Germany). Clinical information included age at diagnosis, tumor diameter, gender, and survival time information. Examination of tumor hematoxylin and eosin (H&E) sections was performed by an expert liver pathologist (O. Pappo). Samples from Heidelberg were also reviewed by Heidelberg patholo- gists (C. Mogler and P. Schirmacher). The study was approved by each of the institutions’ ethics committees—numbered 206/05 (Heidelberg), 660-2010 (Hannover), and EKBB20 (Basel). Required cohort size was computed by power analysis to yield a power of at least 90% with an α value of 0.05. Construction of the tissue micro- array (TMA) was performed as follows: tissue samples were fixed in buffered 10% formaldehyde and embedded in paraffin. H&E- stained sections were made from each selected primary block (named donor blocks) to define representative tissue regions. Tissue cylinders (0.6 mm in diameter) were then punched from the region of the donor block with the use of a custom-made precision instrument (Beecher Instruments). Afterward, tissue cylinders were transferred to a 25 mm × 35 mm paraffin block to produce the TMAs. The resulting TMA block was cut into 3-μm sections that were transferred to glass slides by use of the Paraffin Sectioning Aid System (Instrumedics). Sections from the TMA blocks were used for FISH analysis. Mice Male and female Mdr2−/− mice on FVB background were held in specific pathogen-free conditions. Experiments on Mdr2−/− mice were performed in cohorts of 10 to 20 mice each time; results show the combined data from at least four different experiments. Wild-type (WT) controls were age-matched FVB mice. Mouse body weights dur- ing the experiments were 30 to 45 g. Sorafenib (Xingcheng Chemp- harm Co., Ltd.) was administered daily (50 mg/kg) by oral gavage. Cremophor EL (Sigma)/ethanol/water (1:1:6) was used as a vehicle. Two hours before sacrifice, mice were injected with 10 μL BrdUrd (Cell Proliferation labeling reagent; Amersham) per 1 g body weight. Mice were anesthetized with ketamine and xylazine and the liver was perfused via the heart with PBS–Heparin solution followed by 4% formaldehyde. Following perfusion, livers were removed and sub- jected to standard histologic procedures. Xenograft experiments were performed by subcutaneous injection of transduced Hep3B cells (2.5 × 106 ) suspended in 100 μL PBS and 100 μL Matrigel (Becton Dickin- son) into NOD/SCID mice. Tumor volumes were assessed by external measurement with calipers. All animal experiments were performed in accordance with the guidelines of the institutional committee for the use of animals for research. In all mouse experiments, the different groups were housed together in the same cages. Viral Vectors and Cultured Cells Adenoviral vectors encoding GFP or GFP and sFLT—a kind gift from David Curiel (Washington University, St. Louis, MO) and Yosef Haviv (Hadassah Hospital, Jerusalem, Israel)—were prepared in GH354 cells using standard procedures. A titer of 109 transducing units was injected into mice tail veins. Mice whose livers did not yield minimal 60% adenovector transduction efficiency (by tissue staining) were excluded. Lentiviral-based vectors were prepared by subcloning the PCR products of the human VEGFA165 gene [from cDNA of decidual natural killer (NK) cells; a kind gift from Ofer Mandelboim, Hebrew University, Jerusalem, Israel] into the pSC-B plasmid using the Strata- Clone Kit (Stratagene), subsequently digested with BamHI and NotI and subcloned into the self-inactivating lentiviral vector pHAGE (gift of Gustavo Mostoslavsky, Boston University School of Medicine, Bos- ton, MA) digested with BamHI and NotI. Lentivectors were produced by cotransfection of the backbone vector plasmid with the gag-pol and pMD.G plasmids and using standard procedures. Hep3B cells (obtained from the ATCC) were grown in Dulbecco’s Modified Eagle Medium (DMEM; 10% FBS). Cells were tested free of Mycoplasma before transduction and injection. Lentivector transduction efficiency was assessed by fluorescent microscopy and was estimated as 80%. In vitro proliferation was determined through XTT assay (Biological Industries) using the manufacturer’s protocol. Murine recombinant VEGF-A (R&D Systems) was used at the concentration of 100 ng/mL. IHC, Immunofluorescence, and ELISA Antibodies used for tissue immunostaining throughout the work were—vWF (dilution at 1:300; Dako), pHH3 (1:800; Upstate), cleaved caspase-3 (1:200; Cell Signaling Technology), F4/80 (1:300; Seroteq), HGF (1:100; R&D Systems), BrdUrd (1:200; NeoMarkers), KDR (1:400; Cell Signaling Technology), Ki67 (1:100; NeoMarkers), E-cadherin (1:100; Cell Signaling Technology), and VEGF (1× as supplied; Spring). IHC was performed on 5-μm paraffin sections. Antigen retrieval was performed in a decloaking chamber (Biocare Medical) in citrate buffer for all antibodies except vWF and F4/80, for which retrieval was performed with pronase (Sigma). Horserad- ish peroxidase (HRP)–conjugated secondary antibodies for all IHC antibodies used were Histofine (Nichirei Biosciences), except for anti- mouse–derived antibodies that were detected with Envison (Dako). 3,3′-Diaminobenzidine (DAB; Lab Vision) was used as a chromogen. Immunohistochemical stainings were quantitated when indicated using an Ariol SL-50 system (Applied Imaging). For quantification of nuclear immunostaining, the ki-sight module of the Ariol-SL50 robotic image analysis system was applied. This system designates classifiers for positive (red-brown) and negative (azure) nuclei defined by color intensity, size, and shape. Each tumor cell nucleus (distin- guished by morphology) was designated as either positive or negative by these parameters. The fraction of positive cells was calculated from counting at least five randomly selected fields in each tumor. Immunofluoresence was performed on snap-frozen tissue embed- ded in OCT gel (Sakura Finetek) and sectioned to 8-μm slices. Slides were incubated at 37°C and fixed with both acetone and 4% paraformaldehyde sequentially. Fluorophore-conjugated secondary antibodies used were donkey anti-goat Alexa Fluor 647 (Invitro- gen), donkey anti-rabbit Cy2/Cy5, donkey anti-mouse Cy3, and goat anti-rat Cy3 (The Jackson Laboratory). Hoechst 33342 was used as a nuclear marker (Invitrogen). Antibodies used for flow FACS sort- ing were CD45-pacific blue, F4/80-PE (both 1:50; BioLegend), and Meca32-biotin (1:50; BioLegend) used with streptavidin APC-Cy7 (BD Biosciences). Flow cytometry–based cell sorting was performed in a FACSAria III cell sorter (BD Biosciences). VEGF-A ELISA was performed using Quantikine mouse ELISA kit (R&D Systems). DNA In Situ Hybridizations Probes for CISH analysis of mouse tumors were prepared from the BAC clones RP24-215A3 for the murine Chromosome 17 (BACPAC resources center). BAC clones were labeled with DIG using Nick- Translation mix (Roche). Mouse Cot-1 DNA (Invitrogen) and soni- cated murine genomic DNA were added to the probe for background block. Tissues were prepared by boiling in pretreatment buffer and digestion with pepsin (Zymed). Hybridization was performed at 37°C on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

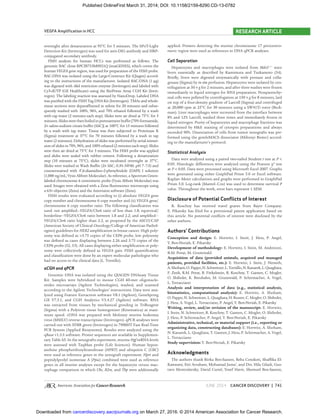

- 12. JUNE 2014 CANCERDISCOVERY | 741 VEGFA Amplification in HCC RESEARCH ARTICLE overnight after denaturation at 95°C for 5 minutes. The SPoT-Light Detection Kit (Invitrogen) was used for anti-DIG antibody and HRP- conjugated secondary antibody. FISH analysis for human HCCs was performed as follows. The genomic BAC clone RPCIB753M0921Q (imaGENES), which covers the human VEGFA gene region, was used for preparation of the FISH probe. BAC-DNA was isolated using the Large-Construct Kit (Qiagen) accord- ing to the instructions of the manufacturer. Isolated BAC-DNA (1 μg) was digested with AluI restriction enzyme (Invitrogen) and labeled with Cy3-dUTP (GE Healthcare) using the BioPrime Array CGH Kit (Invit- rogen). The labeling reaction was assessed by NanoDrop. Labeled DNA was purified with the FISH Tag DNA Kit (Invitrogen). TMAs and whole- tissue sections were deparaffinized in xylene for 20 minutes and subse- quently washed with 100%, 96%, and 70% ethanol followed by a wash with tap water (2 minutes each step). Slides were air dried at 75°C for 3 minutes.Slideswerethenboiledinpretreatmentbuffer[70%formamide, 2× saline-sodium citrate buffer (SSC)] at 100°C for 15 minutes followed by a wash with tap water. Tissue was then subjected to Proteinase K (Sigma) treatment at 37°C for 70 minutes followed by a wash in tap water (2 minutes). Dehydration of slides was performed by serial immer- sion of slides in 70%, 96%, and 100% ethanol (2 minutes each step). Slides were then air dried at 75°C for 3 minutes. The FISH probe was applied and slides were sealed with rubber cement. Following a denaturation step (10 minutes at 75°C), slides were incubated overnight at 37°C. Slides were washed in Wash Buffer (2× SSC, 0.3% NP40, pH 7–7.5) and counterstained with 4′,6-diamidino-2-phenylindole (DAPI) I solution (1,000 ng/mL; Vysis Abbott Molecular). As reference, a Spectrum Green- labeled chromosome 6 centromeric probe (Vysis Abbott Molecular) was used. Images were obtained with a Zeiss fluorescence microscope using a 63× objective (Zeiss) and the Axiovision software (Zeiss). FISH results were evaluated according to (i) absolute VEGFA gene copy number and chromosome 6 copy number and (ii) VEGFA gene/ chromosome 6 copy number ratio. The following classification was used: not amplified—VEGFA/Chr6 ratio of less than 1.8; equivocal/ borderline—VEGFA/Chr6 ratio between 1.8 and 2.2; and amplified— VEGFA/Chr6 ratio higher than 2.2, as proposed by the ASCO/CAP (American Society of Clinical Oncology/College of American Pathol- ogists) guidelines for HER2 amplification in breast cancer. High poly- somy was defined as >3.75 copies of the CEP6 probe, low polysomy was defined as cases displaying between 2.26 and 3.75 copies of the CEP6 probe (52, 53). All cases displaying either amplification or poly- somy were collectively defined as VEGFA gain. FISH quantification and classification were done by an expert molecular pathologist who had no access to the clinical data (L. Tornillo). aCGH and qPCR Genomic DNA was isolated using the QIAGEN DNAeasy Tissue Kit. Samples were hybridized to mouse CGH 60-mer oligonucle- otides microarrays (Agilent Technologies), washed, and scanned according to the Agilent Technologies’ instructions. Data were ana- lyzed using Feature Extraction software V8.1 (Agilent), GeneSpring GX V7.3.1, and CGH Analytics V3.4.27 (Agilent) software. RNA was extracted from tissues by mechanical grinding in TriReagent (Sigma) with a Polytron tissue homogenizer (Kinematica) at maxi- mum speed. cDNA was prepared with Moloney murine leukemia virus (MMLV) reverse transcriptase (Invitrogen). qPCR analyses were carried out with SYBR green (Invitrogen) in 7900HT Fast Real-Time PCR System (Applied Biosystems). Results were analyzed using the qBase v1.3.5 software. Primer sequences are available in Supplemen- tary Table S5. In the xenografts experiment, murine Hgf mRNA levels were assessed with TaqMan probe (Life Sciences). Human hypox- anthine phosphoribosyltransferase (HPRT) and ubiquitin C (UBC) were used as reference genes in the xenograft experiment. Hprt and peptidylprolyl isomerase A (Ppia) combined were used as reference genes in all murine analyses except for the hepatocyte versus mac- rophage comparison in which Ubc, B2m, and Tbp were additionally applied. Primers detecting the murine chromosome 17 pericentro- meric region were used as references in DNA qPCR analyses. Cell Separation Hepatocytes and macrophages were isolated from Mdr2−/− mice livers essentially as described by Kamimura and Tsukamoto (54). Briefly, livers were digested enzymatically with pronase and colla- genase (Sigma) by in situ perfusion. Hepatocytes were isolated by cen- trifugation at 50 × g for 2 minutes, and after three washes were frozen immediately in liquid nitrogen for RNA preparation. Nonparenchy- mal cells were pelleted by centrifugation at 150 × g for 8 minutes, laid on top of a four-density gradient of Larcoll (Sigma) and centrifuged at 20,000 rpm at 25°C for 30 minutes using a SW41Ti rotor (Beck- man). Liver macrophages were recovered from the interface between 8% and 12% Larcoll, washed three times and immediately frozen in liquid nitrogen. Purity of hepatocytes and macrophage fractions was determined by H&E staining of cytospin preparations and always exceeded 90%. Dissociation of cells from tumor xenografts was per- formed using the gentleMACS dissociator (Miltenyi Biotec) accord- ing to the manufacturer’s protocol. Statistical Analysis Data were analyzed using a paired two-tailed Student t test at P < 0.05. Histologic differences were analyzed using the Pearson χ2 test at P < 0.05. Data were processed using Microsoft Excel 2007. Graphs were generated using either GraphPad Prism 5.0 or Excel software. Kaplan–Meier calculations and graphs were performed in GraphPad Prism 5.0. Log-rank (Mantel–Cox) was used to determine survival P value. Throughout the work, error bars represent 1 SEM. Disclosure of Potential Conflicts of Interest R. Koschny has received travel grants from Bayer Company. E. Pikarsky has filed for a provisional patent application based on this article. No potential conflicts of interest were disclosed by the other authors. Authors’ Contributions Conception and design: E. Horwitz, I. Stein, J. Hess, P. Angel, Y. Ben-Neriah, E. Pikarsky Development of methodology: E. Horwitz, I. Stein, M. Andreozzi, R.M. Porat, M. Grunewald Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): E. Horwitz, I. Stein, J. Nemeth, A.Shoham,O.Pappo,N.Schweitzer,L.Tornillo,N.Kanarek,L.Quagliata, F. Zreik, R.M. Porat, R. Finkelstein, R. Koschny, T. Ganten, C. Mogler, O. Shibolet, K. Breuhahn, M. Grunewald, P. Schirmacher, A. Vogel, L. Terracciano Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): E. Horwitz, A. Shoham, O. Pappo, N. Schweitzer, L. Quagliata, H. Reuter, C. Mogler, O. Shibolet, J. Hess, A. Vogel, L. Terracciano, P. Angel, Y. Ben-Neriah, E. Pikarsky Writing, review, and/or revision of the manuscript: E. Horwitz, I. Stein, N. Schweitzer, R. Koschny, T. Ganten, C. Mogler, O. Shibolet, J. Hess, P. Schirmacher, P. Angel, Y. Ben-Neriah, E. Pikarsky Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): E. Horwitz, A. Shoham, N. Kanarek, L. Quagliata, T. Ganten, J. Hess, P. Schirmacher, A. Vogel, L. Terracciano Study supervision: Y. Ben-Neriah, E. Pikarsky Acknowledgments The authors thank Rivka Ben-Sasson, Reba Condioti, Shaffika El- Kawasmi, Etti Avraham, Mohamad Juma’, and Drs. Hila Giladi, Gus- tavo Mostoslavsky, David Curiel, Yosef Haviv, Shemuel Ben-Sasson, on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

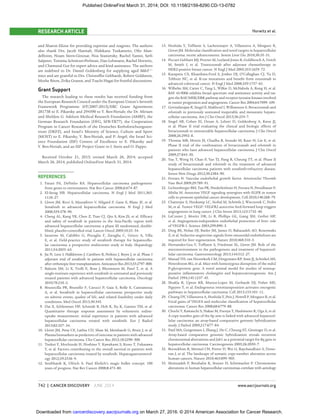

- 13. 742 | CANCER DISCOVERY JUNE2014 www.aacrjournals.org Horwitz et al.RESEARCH ARTICLE and Sharon Elizur for providing expertise and reagents. The authors also thank Drs. Jacob Hannah, Hidekazu Tsukamoto, Ofer Man- delboim, Noam Stern-Ginosar, Noa Stanietsky, Rachel Yamin, Seth Salpeter, Temima Schnitzer-Perlman, Dan Lehmann, Rachel Horwitz, and Chamutal Gur for expert advice and kind assistance. The authors are indebted to Dr. Daniel Goldenberg for supplying aged Mdr2−/− mice and are grateful to Drs. Christoffer Gebhardt, Robert Goldstein, Moshe Biton, Zvika Granot, and Tzachi Hagai for fruitful discussions. Grant Support The research leading to these results has received funding from the European Research Council under the European Union’s Seventh Framework Programme (FP/2007-2013)/ERC Grant Agreements 281738 to E. Pikarsky and 294390 to Y. Ben-Neriah; the Dr. Miriam and Sheldon G. Adelson Medical Research Foundation (AMRF), the German Research Foundation (DFG, SFB-TR77), the Cooperation Program in Cancer Research of the Deutsches Krebsforschungszen- trum (DKFZ), and Israel’s Ministry of Science, Culture and Sport (MOST) to E. Pikarsky, Y. Ben-Neriah, and P. Angel; the Israel Sci- ence Foundation (ISF) Centers of Excellence to E. Pikarsky and Y. Ben-Neriah; and an ISF Project Grant to I. Stein and O. Pappo. Received October 21, 2013; revised March 26, 2014; accepted March 26, 2014; published OnlineFirst March 31, 2014. REFERENCES 1. Farazi PA, DePinho RA. Hepatocellular carcinoma pathogenesis: from genes to environment. Nat Rev Cancer 2006;6:674–87. 2. El-Serag HB. Hepatocellular carcinoma. N Engl J Med 2011;365: 1118–27. 3. Llovet JM, Ricci S, Mazzaferro V, Hilgard P, Gane E, Blanc JF, et al. Sorafenib in advanced hepatocellular carcinoma. N Engl J Med 2008;359:378–90. 4. Cheng AL, Kang YK, Chen Z, Tsao CJ, Qin S, Kim JS, et al. Efficacy and safety of sorafenib in patients in the Asia-Pacific region with advanced hepatocellular carcinoma: a phase III randomised, double- blind, placebo-controlled trial. Lancet Oncol 2009;10:25–34. 5. Iavarone M, Cabibbo G, Piscaglia F, Zavaglia C, Grieco A, Villa E, et al. Field-practice study of sorafenib therapy for hepatocellu- lar carcinoma: a prospective multicenter study in Italy. Hepatology 2011;54:2055–63. 6. Jia N, Liou I, Halldorson J, Carithers R, Perkins J, Reyes J, et al. Phase I adjuvant trial of sorafenib in patients with hepatocellular carcinoma after orthotopic liver transplantation. Anticancer Res 2013;33:2797–800. 7. Balsom SM, Li X, Trolli E, Rose J, Bloomston M, Patel T, et al. A single-institute experience with sorafenib in untreated and previously treated patients with advanced hepatocellular carcinoma. Oncology 2010;78:210–2. 8. Brunocilla PR, Brunello F, Carucci P, Gaia S, Rolle E, Cantamessa A, et al. Sorafenib in hepatocellular carcinoma: prospective study on adverse events, quality of life, and related feasibility under daily conditions. Med Oncol 2013;30:345. 9. Dai X, Schlemmer HP, Schmidt B, Hoh K, Xu K, Ganten TM, et al. Quantitative therapy response assessment by volumetric iodine- uptake measurement: initial experience in patients with advanced hepatocellular carcinoma treated with sorafenib. Eur J Radiol 2013;82:327–34. 10. Llovet JM, Pena CE, Lathia CD, Shan M, Meinhardt G, Bruix J, et al. Plasma biomarkers as predictors of outcome in patients with advanced hepatocellular carcinoma. Clin Cancer Res 2012;18:2290–300. 11. Tsukui Y, Mochizuki H, Hoshino Y, Kawakami S, Kuno T, Fukasawa Y, et al. Factors contributing to the overall survival in patients with hepatocellular carcinoma treated by sorafenib. Hepatogastroenterol- ogy 2012;59:2536–9. 12. Strebhardt K, Ullrich A. Paul Ehrlich’s magic bullet concept: 100 years of progress. Nat Rev Cancer 2008;8:473–80. 13. Hoshida Y, Toffanin S, Lachenmayer A, Villanueva A, Minguez B, Llovet JM. Molecular classification and novel targets in hepatocellular carcinoma: recent advancements. Semin Liver Dis 2010;30:35–51. 14. Piccart-Gebhart MJ, Procter M, Leyland-Jones B, Goldhirsch A, Untch M, Smith I, et al. Trastuzumab after adjuvant chemotherapy in HER2-positive breast cancer. N Engl J Med 2005;353:1659–72. 15. Karapetis CS, Khambata-Ford S, Jonker DJ, O’Callaghan CJ, Tu D, Tebbutt NC, et al. K-ras mutations and benefit from cetuximab in advanced colorectal cancer. N Engl J Med 2008;359:1757–65. 16. Wilhelm SM, Carter C, Tang L, Wilkie D, McNabola A, Rong H, et al. BAY 43-9006 exhibits broad spectrum oral antitumor activity and tar- gets the RAF/MEK/ERK pathway and receptor tyrosine kinases involved in tumor progression and angiogenesis. Cancer Res 2004;64:7099–109. 17. Govindarajan R, Siegel E, Makhoul I, Williamson S. Bevacizumab and erlotinib in previously untreated inoperable and metastatic hepato- cellular carcinoma. Am J Clin Oncol 2013;36:254–7. 18. Siegel AB, Cohen EI, Ocean A, Lehrer D, Goldenberg A, Knox JJ, et al. Phase II trial evaluating the clinical and biologic effects of bevacizumab in unresectable hepatocellular carcinoma. J Clin Oncol 2008;26:2992–8. 19. Thomas MB, Morris JS, Chadha R, Iwasaki M, Kaur H, Lin E, et al. Phase II trial of the combination of bevacizumab and erlotinib in patients who have advanced hepatocellular carcinoma. J Clin Oncol 2009;27:843–50. 20. Yau T, Wong H, Chan P, Yao TJ, Pang R, Cheung TT, et al. Phase II study of bevacizumab and erlotinib in the treatment of advanced hepatocellular carcinoma patients with sorafenib-refractory disease. Invest New Drugs 2012;30:2384–90. 21. Ferrara N. Vascular endothelial growth factor. Arterioscler Thromb Vasc Biol 2009;29:789–91. 22. Lichtenberger BM, Tan PK, Niederleithner H, Ferrara N, Petzelbauer P, Sibilia M. Autocrine VEGF signaling synergizes with EGFR in tumor cells to promote epithelial cancer development. Cell 2010;140:268–79. 23. Chatterjee S, Heukamp LC, Siobal M, Schöttle J, Wieczorek C, Peifer M, et al. Tumor VEGF: VEGFR2 autocrine feed-forward loop triggers angiogenesis in lung cancer. J Clin Invest 2013;123:1732–40. 24. LeCouter J, Moritz DR, Li B, Phillips GL, Liang XH, Gerber HP, et al. Angiogenesis-independent endothelial protection of liver: role of VEGFR-1. Science 2003;299:890–3. 25. Ding BS, Nolan DJ, Butler JM, James D, Babazadeh AO, Rosenwaks Z, et al. Inductive angiocrine signals from sinusoidal endothelium are required for liver regeneration. Nature 2010;468:310–5. 26. Hernandez-Gea V, Toffanin S, Friedman SL, Llovet JM. Role of the microenvironment in the pathogenesis and treatment of hepatocel- lular carcinoma. Gastroenterology 2013;144:512–27. 27. Mauad TH, van Nieuwkerk CM, Dingemans KP, Smit JJ, Schinkel AH, Notenboom RG, et al. Mice with homozygous disruption of the mdr2 P-glycoprotein gene. A novel animal model for studies of nonsup- purative inflammatory cholangitis and hepatocarcinogenesis. Am J Pathol 1994;145:1237–45. 28. Shukla R, Upton KR, Munoz-Lopez M, Gerhardt DJ, Fisher ME, Nguyen T, et al. Endogenous retrotransposition activates oncogenic pathways in hepatocellular carcinoma. Cell 2013;153:101–11. 29. Chiang DY, Villanueva A, Hoshida Y, Peix J, Newell P, Minguez B, et al. Focal gains of VEGFA and molecular classification of hepatocellular carcinoma. Cancer Res 2008;68:6779–88. 30. Chochi Y, Kawauchi S, Nakao M, Furuya T, Hashimoto K, Oga A, et al. A copy number gain of the 6p arm is linked with advanced hepatocel- lular carcinoma: an array-based comparative genomic hybridization study. J Pathol 2009;217:677–84. 31. Patil MA, Gutgemann I, Zhang J, Ho C, Cheung ST, Ginzinger D, et al. Array-based comparative genomic hybridization reveals recurrent chromosomal aberrations and Jab1 as a potential target for 8q gain in hepatocellular carcinoma. Carcinogenesis 2005;26:2050–7. 32. Beroukhim R, Mermel CH, Porter D, Wei G, Raychaudhuri S, Dono- van J, et al. The landscape of somatic copy-number alteration across human cancers. Nature 2010;463:899–905. 33. Moinzadeh P, Breuhahn K, Stutzer H, Schirmacher P. Chromosome alterations in human hepatocellular carcinomas correlate with aetiology on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782
- 14. JUNE 2014 CANCERDISCOVERY | 743 VEGFA Amplification in HCC RESEARCH ARTICLE and histological grade—results of an explorative CGH meta-analysis. Br J Cancer 2005;92:935–41. 34. Ouchi K, Sugawara T, Ono H, Fujiya T, Kamiyama Y, Kakugawa Y, et al. Mitotic index is the best predictive factor for survival of patients with resected hepatocellular carcinoma. Dig Surg 2000;17:42–8. 35. Qian BZ, Pollard JW. Macrophage diversity enhances tumor progres- sion and metastasis. Cell 2010;141:39–51. 36. Sica A, Larghi P, Mancino A, Rubino L, Porta C, Totaro MG, et al. Macrophage polarization in tumour progression. Semin Cancer Biol 2008;18:349–55. 37. Grunewald M, Avraham I, Dor Y, Bachar-Lustig E, Itin A, Jung S, et al. VEGF-induced adult neovascularization: recruitment, retention, and role of accessory cells. Cell 2006;124:175–89. 38. Mahasreshti PJ, Navarro JG, Kataram M, Wang MH, Carey D, Siegal GP, et al. Adenovirus-mediated soluble FLT-1 gene therapy for ovar- ian carcinoma. Clin Cancer Res 2001;7:2057–66. 39. Crawford Y, Kasman I, Yu L, Zhong C, Wu X, Modrusan Z, et al. PDGF-C mediates the angiogenic and tumorigenic properties of fibroblasts associated with tumors refractory to anti-VEGF treat- ment. Cancer Cell 2009;15:21–34. 40. Trusolino L, Bertotti A, Comoglio PM. MET signalling: principles and functions in development, organ regeneration and cancer. Nat Rev Mol Cell Biol 2010;11:834–48. 41. Whittaker S, Marais R, Zhu AX. The role of signaling pathways in the development and treatment of hepatocellular carcinoma. Oncogene 2010;29:4989–5005. 42. Wyckoff JB, Wang Y, Lin EY, Li JF, Goswami S, Stanley ER, et al. Direct visualization of macrophage-assisted tumor cell intravasation in mammary tumors. Cancer Res 2007;67:2649–56. 43. Albertson DG. Gene amplification in cancer. Trends Genet 2006;22: 447–55. 44. Weir BA, Woo MS, Getz G, Perner S, Ding L, Beroukhim R, et al. Characterizing the cancer genome in lung adenocarcinoma. Nature 2007;450:893–8. 45. Tsafrir D, Bacolod M, Selvanayagam Z, Tsafrir I, Shia J, Zeng Z, et al. Relationship of gene expression and chromosomal abnormalities in colorectal cancer. Cancer Res 2006;66:2129–37. 46. Vlajnic T, Andreozzi MC, Schneider S, Tornillo L, Karamitopoulou E, Lugli A, et al. VEGFA gene locus (6p12) amplification identifies a small but highly aggressive subgroup of colorectal patients. Mod Pathol 2011;24:1404–12. 47. Horlings HM, Lai C, Nuyten DS, Halfwerk H, Kristel P, van Beers E, et al. Integration of DNA copy number alterations and prognostic gene expression signatures in breast cancer patients. Clin Cancer Res 2010;16:651–63. 48. Lau CC, Harris CP, Lu XY, Perlaky L, Gogineni S, Chintagumpala M, et al. Frequent amplification and rearrangement of chromosomal bands 6p12-p21 and 17p11.2 in osteosarcoma. Genes Chromosomes Cancer 2004;39:11–21. 49. Andreozzi M, Quagliata L, Gsponer JR, Ruiz C, Vuaroqueaux V, Eppenberger-Castori S, et al. VEGFA gene locus analysis across 80 human tumour types reveals gene amplification in several neoplastic entities. Angiogenesis. 2013 Oct 11. [Epub ahead of print]. 50. Yang J, Yang D, Sun Y, Sun B, Wang G, Trent JC, et al. Genetic ampli- fication of the vascular endothelial growth factor (VEGF) pathway genes, including VEGFA, in human osteosarcoma. Cancer 2011;117: 4925–38. 51. Schneider BP, Gray RJ, Radovich M, Shen F, Vance G, Li L, et al. Prognostic and predictive value of tumor vascular endothelial growth factor gene amplification in metastatic breast cancer treated with paclitaxel with and without bevacizumab; results from ECOG 2100 trial. Clin Cancer Res 2013;19:1281–9. 52. Salido M, Tusquets I, Corominas JM, Suarez M, Espinet B, Corzo C, et al. Polysomy of chromosome 17 in breast cancer tumors showing an overexpression of ERBB2: a study of 175 cases using fluorescence in situ hybridization and immunohistochemistry. Breast Cancer Res 2005;7:R267–73. 53. Wolff AC, Hammond ME, Schwartz JN, Hagerty KL, Allred DC, Cote RJ, et al. American Society of Clinical Oncology/College of American Pathologists guideline recommendations for human epi- dermal growth factor receptor 2 testing in breast cancer. J Clin Oncol 2007;25:118–45. 54. Kamimura S, Tsukamoto H. Cytokine gene expression by Kupffer cells in experimental alcoholic liver disease. Hepatology 1995;22:1304–9. on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782

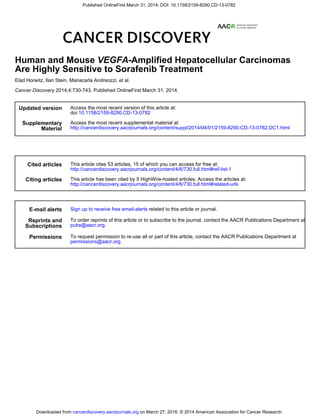

- 15. 2014;4:730-743. Published OnlineFirstMarch 31, 2014.Cancer Discovery Elad Horwitz, Ilan Stein, Mariacarla Andreozzi, et al. Are Highly Sensitive to Sorafenib Treatment -Amplified Hepatocellular CarcinomasVEGFAHuman and Mouse Updated version 10.1158/2159-8290.CD-13-0782doi: Access the most recent version of this article at: Material Supplementary http://cancerdiscovery.aacrjournals.org/content/suppl/2014/04/01/2159-8290.CD-13-0782.DC1.html Access the most recent supplemental material at: Cited articles http://cancerdiscovery.aacrjournals.org/content/4/6/730.full.html#ref-list-1 This article cites 53 articles, 15 of which you can access for free at: Citing articles http://cancerdiscovery.aacrjournals.org/content/4/6/730.full.html#related-urls This article has been cited by 5 HighWire-hosted articles. Access the articles at: E-mail alerts related to this article or journal.Sign up to receive free email-alerts Subscriptions Reprints and .pubs@aacr.org To order reprints of this article or to subscribe to the journal, contact the AACR Publications Department at Permissions .permissions@aacr.org To request permission to re-use all or part of this article, contact the AACR Publications Department at on March 27, 2016. © 2014 American Association for Cancer Research.cancerdiscovery.aacrjournals.orgDownloaded from Published OnlineFirst March 31, 2014; DOI: 10.1158/2159-8290.CD-13-0782
