Coaxial Connector & Adaptor
Century Associates, Inc. Controlled and Confidential under NDA

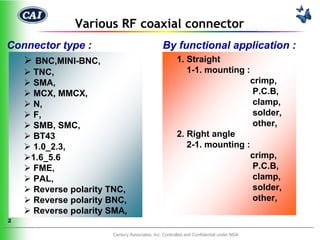

2. Various RF coaxial connector
Connector type : By functional application :
 BNC,MINI-BNC, 1. Straight
 TNC, 1-1. mounting :
 SMA, crimp,
 MCX, MMCX, P.C.B,
 N, clamp,
 F, solder,
 SMB, SMC, other,
 BT43 2. Right angle
 1.0_2.3, 2-1. mounting :
1.6_5.6 crimp,
 FME, P.C.B,
 PAL, clamp,
 Reverse polarity TNC, solder,
 Reverse polarity BNC, other,
 Reverse polarity SMA,
2
Century Associates, Inc. Controlled and Confidential under NDA

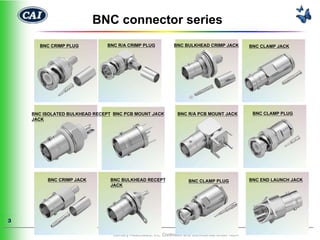

3. BNC connector series
BNC CRIMP PLUG BNC R/A CRIMP PLUG BNC BULKHEAD CRIMP JACK BNC CLAMP JACK
BNC ISOLATED BULKHEAD RECEPT BNC PCB MOUNT JACK BNC R/A PCB MOUNT JACK BNC CLAMP PLUG
JACK
BNC CRIMP JACK BNC BULKHEAD RECEPT BNC CLAMP PLUG BNC END LAUNCH JACK
JACK
3
Century Associates, Inc. Controlled and Confidential under NDA

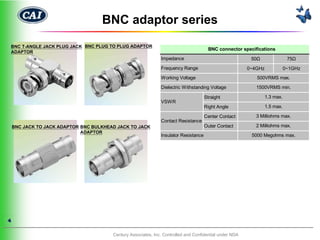

4. BNC adaptor series
BNC T-ANGLE JACK PLUG JACK BNC PLUG TO PLUG ADAPTOR
BNC connector specifications
ADAPTOR
Impedance 50Ω 75Ω
Frequency Range 0~4GHz 0~1GHz
Working Voltage 500VRMS max.
Dielectric Withstanding Voltage 1500VRMS min.
Straight 1.3 max.
VSWR
Right Angle 1.5 max.
Center Contact 3 Milliohms max.
Contact Resistance
BNC JACK TO JACK ADAPTOR BNC BULKHEAD JACK TO JACK Outer Contact 2 Milliohms max.
ADAPTOR
Insulator Resistance 5000 Megohms max.
4
Century Associates, Inc. Controlled and Confidential under NDA

5. TNC connector series
TNC R/A CRIMP PLUG TNC BULKHEAD CRIMP JACK TNC CRIMP JACK
TNC CRIMP PLUG
TNC PANEL RECEPT JACK TNC R/A P.C.B JACK TNC BULKHEAD RECEPT
JACK
5
Century Associates, Inc. Controlled and Confidential under NDA

6. TNC adaptor series
TNC PLUG TO PLUG ADAPTOR TNC JACK TO JACK ADAPTOR
TNC connector specifications
Impedance 50Ω 75Ω
Frequency Range 0~10GHz 0~1GHz
Working Voltage 500VRMS max.
Dielectric Withstanding Voltage 1500VRMS min.
Straight 1.3 max.
VSWR
Right Angle 1.5 max.
TNC BULKHEAD JACK TO JACK Center Contact 3 Milliohms max.
ADAPTOR Contact Resistance
Outer Contact 2 Milliohms max.
Insulator Resistance 5000 Megohms max.
6
Century Associates, Inc. Controlled and Confidential under NDA

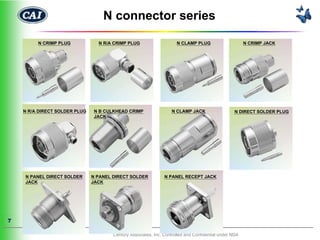

7. N connector series
N CRIMP PLUG N R/A CRIMP PLUG N CLAMP PLUG N CRIMP JACK
N R/A DIRECT SOLDER PLUG N B CULKHEAD CRIMP N CLAMP JACK N DIRECT SOLDER PLUG
JACK
N PANEL DIRECT SOLDER N PANEL DIRECT SOLDER N PANEL RECEPT JACK
JACK JACK
7
Century Associates, Inc. Controlled and Confidential under NDA

8. N adaptor series
N PLUG TO PLUG ADAPTOR N JACK TO JACK ADAPTOR N connector specifications
Impedance 50Ω
Frequency Range 0~11GHz
Working Voltage 1000VRMS max.
Dielectric Withstanding Voltage 2500VRMS min.
Straight 1.3 max.
VSWR
Right Angle 1.5 max.
N R/A PLUG TO JACK ADAPTOR N JACK TO BULKHEAD JACK
ADAPTOR Center Contact 3 Milliohms max.
Contact Resistance
Outer Contact 2 Milliohms max.
Insulator Resistance 5000 Megohms max.
8
Century Associates, Inc. Controlled and Confidential under NDA

9. SMA connector series
SMA R/A SOLDER PLUG SMA R/A CRIMP PLUG SMA CRIMP PLUG SMA SOLDER PLUG
SMA CRIMP JACK SMA BULKHEAD CRIMP JACK SMA R/A P.C.B MOUNT JACK SMA P.C.B MOUNT JACK
SMA PANEL RECEPT JACK SMA PANEL RECEPT JACK
SMA PANEL RECEPT JACK SMA END LAUNCH JACK
EXPOSED TEFLON SOLDER CUP
SOLDER CUP
9
Century Associates, Inc. Controlled and Confidential under NDA

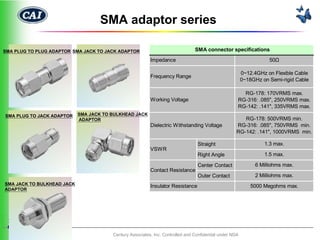

10. SMA adaptor series
SMA PLUG TO PLUG ADAPTOR SMA JACK TO JACK ADAPTOR SMA connector specifications
Impedance 50Ω
0~12.4GHz on Flexible Cable
Frequency Range
0~18GHz on Semi-rigid Cable
RG-178: 170VRMS max.
Working Voltage RG-316: .085", 250VRMS max.
RG-142: .141", 335VRMS max.
SMA PLUG TO JACK ADAPTOR SMA JACK TO BULKHEAD JACK
ADAPTOR RG-178: 500VRMS min.
Dielectric Withstanding Voltage RG-316: .085", 750VRMS min.
RG-142: .141", 1000VRMS min.
Straight 1.3 max.
VSWR
Right Angle 1.5 max.
Center Contact 6 Milliohms max.
Contact Resistance
Outer Contact 2 Milliohms max.
SMA JACK TO BULKHEAD JACK
Insulator Resistance 5000 Megohms max.
ADAPTOR
1
0
Century Associates, Inc. Controlled and Confidential under NDA

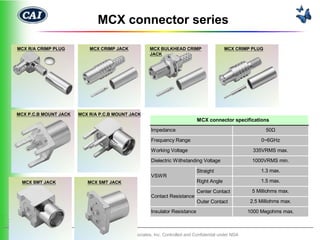

11. MCX connector series
MCX R/A CRIMP PLUG MCX CRIMP JACK MCX BULKHEAD CRIMP MCX CRIMP PLUG
JACK
MCX P.C.B MOUNT JACK MCX R/A P.C.B MOUNT JACK
MCX connector specifications
Impedance 50Ω
Frequency Range 0~6GHz
Working Voltage 335VRMS max.
Dielectric Withstanding Voltage 1000VRMS min.
Straight 1.3 max.
VSWR
MCX SMT JACK MCX SMT JACK Right Angle 1.5 max.
Center Contact 5 Milliohms max.
Contact Resistance
Outer Contact 2.5 Milliohms max.
Insulator Resistance 1000 Megohms max.
1
1
Century Associates, Inc. Controlled and Confidential under NDA

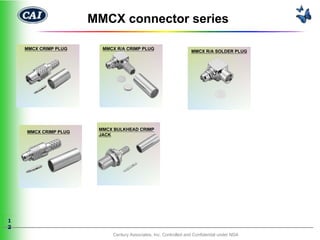

12. MMCX connector series
MMCX CRIMP PLUG MMCX R/A CRIMP PLUG
MMCX R/A SOLDER PLUG
MMCX BULKHEAD CRIMP
MMCX CRIMP PLUG
JACK
1
2
Century Associates, Inc. Controlled and Confidential under NDA

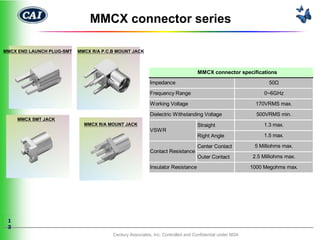

13. MMCX connector series
MMCX END LAUNCH PLUG-SMT MMCX R/A P.C.B MOUNT JACK
MMCX connector specifications
Impedance 50Ω
Frequency Range 0~6GHz
Working Voltage 170VRMS max.
Dielectric Withstanding Voltage 500VRMS min.
MMCX SMT JACK
MMCX R/A MOUNT JACK Straight 1.3 max.
VSWR
Right Angle 1.5 max.
Center Contact 5 Milliohms max.
Contact Resistance
Outer Contact 2.5 Milliohms max.
Insulator Resistance 1000 Megohms max.
1
3
Century Associates, Inc. Controlled and Confidential under NDA

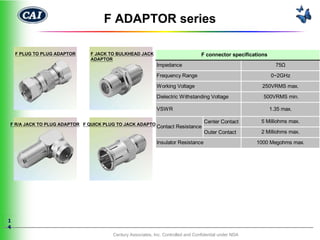

14. F ADAPTOR series
F PLUG TO PLUG ADAPTOR F JACK TO BULKHEAD JACK F connector specifications
ADAPTOR
Impedance 75Ω
Frequency Range 0~2GHz
Working Voltage 250VRMS max.
Dielectric Withstanding Voltage 500VRMS min.
VSWR 1.35 max.
Center Contact 5 Milliohms max.
F R/A JACK TO PLUG ADAPTOR F QUICK PLUG TO JACK ADAPTOR
Contact Resistance
Outer Contact 2 Milliohms max.
Insulator Resistance 1000 Megohms max.
1
4
Century Associates, Inc. Controlled and Confidential under NDA

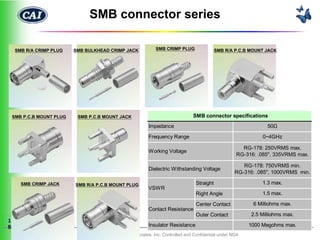

15. SMB connector series
SMB R/A CRIMP PLUG SMB BULKHEAD CRIMP JACK SMB CRIMP PLUG SMB R/A P.C.B MOUNT JACK
SMB P.C.B MOUNT PLUG SMB P.C.B MOUNT JACK SMB connector specifications
Impedance 50Ω
Frequency Range 0~4GHz
RG-178: 250VRMS max.
Working Voltage
RG-316: .085", 335VRMS max.
RG-178: 750VRMS min.
Dielectric Withstanding Voltage
RG-316: .085", 1000VRMS min.
SMB CRIMP JACK SMB R/A P.C.B MOUNT PLUG Straight 1.3 max.
VSWR
Right Angle 1.5 max.
Center Contact 6 Milliohms max.
Contact Resistance
Outer Contact 2.5 Milliohms max.
1
5 Insulator Resistance 1000 Megohms max.
Century Associates, Inc. Controlled and Confidential under NDA

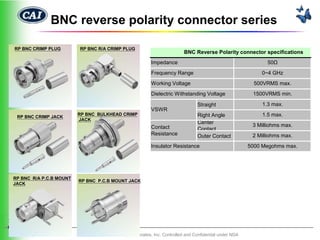

16. BNC reverse polarity connector series
RP BNC CRIMP PLUG RP BNC R/A CRIMP PLUG
BNC Reverse Polarity connector specifications
Impedance 50Ω
Frequency Range 0~4 GHz
Working Voltage 500VRMS max.
Dielectric Withstanding Voltage 1500VRMS min.
Straight 1.3 max.
VSWR
RP BNC CRIMP JACK
RP BNC BULKHEAD CRIMP Right Angle 1.5 max.
JACK
Center
Contact 3 Milliohms max.
Contact
Resistance Outer Contact 2 Milliohms max.
Insulator Resistance 5000 Megohms max.
RP BNC R/A P.C.B MOUNT
RP BNC P.C.B MOUNT JACK
JACK
1
6
Century Associates, Inc. Controlled and Confidential under NDA

17. TNC reverse polarity connector series
RP TNC CRIMP PLUG RP BNC R/A CRIMP PLUG TNC Reverse Polarity connector specifications
Impedance 50Ω
Frequency Range 0~10 GHz
Working Voltage 500VRMS max.
Dielectric Withstanding Voltage 1500VRMS min.
Straight 1.3 max.
VSWR
RP BNC BULKHEAD CRIMP RP BNC CRIMP JACK Right Angle 1.5 max.
JACK
Center
Contact 3 Milliohms max.
Contact
Resistance Outer Contact 2 Milliohms max.
Insulator Resistance 5000 Megohms max.
RP BNC R/A P.C.B MOUNT
RP BNC P.C.B MOUNT JACK
JACK
1
7
Century Associates, Inc. Controlled and Confidential under NDA

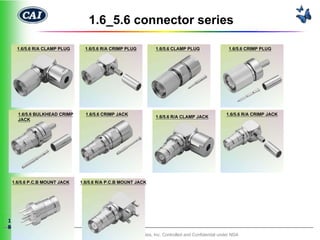

18. 1.6_5.6 connector series
1.6/5.6 R/A CLAMP PLUG 1.6/5.6 R/A CRIMP PLUG 1.6/5.6 CLAMP PLUG 1.6/5.6 CRIMP PLUG
1.6/5.6 BULKHEAD CRIMP 1.6/5.6 CRIMP JACK 1.6/5.6 R/A CRIMP JACK
1.6/5.6 R/A CLAMP JACK
JACK
1.6/5.6 P.C.B MOUNT JACK 1.6/5.6 R/A P.C.B MOUNT JACK
1
8
Century Associates, Inc. Controlled and Confidential under NDA

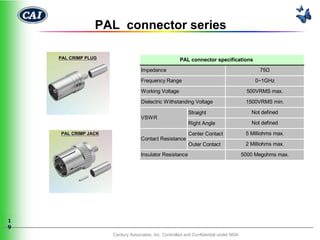

19. PAL connector series
PAL CRIMP PLUG PAL connector specifications
Impedance 75Ω
Frequency Range 0~1GHz
Working Voltage 500VRMS max.
Dielectric Withstanding Voltage 1500VRMS min.
Straight Not defined
VSWR
Right Angle Not defined
PAL CRIMP JACK Center Contact 5 Milliohms max.
Contact Resistance
Outer Contact 2 Milliohms max.
Insulator Resistance 5000 Megohms max.
1
9
Century Associates, Inc. Controlled and Confidential under NDA

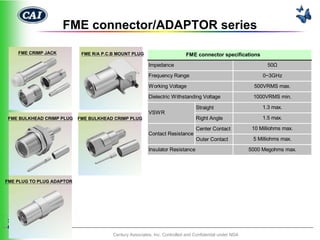

20. FME connector/ADAPTOR series
FME CRIMP JACK FME R/A P.C.B MOUNT PLUG FME connector specifications
Impedance 50Ω
Frequency Range 0~3GHz
Working Voltage 500VRMS max.
Dielectric Withstanding Voltage 1000VRMS min.
Straight 1.3 max.
VSWR
FME BULKHEAD CRIMP PLUG FME BULKHEAD CRIMP PLUG Right Angle 1.5 max.
Center Contact 10 Milliohms max.
Contact Resistance
Outer Contact 5 Milliohms max.
Insulator Resistance 5000 Megohms max.
FME PLUG TO PLUG ADAPTOR
2
0
Century Associates, Inc. Controlled and Confidential under NDA

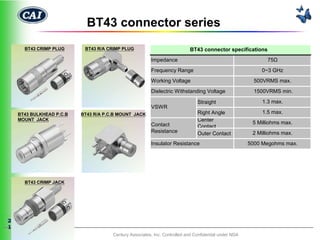

21. BT43 connector series
BT43 CRIMP PLUG BT43 R/A CRIMP PLUG BT43 connector specifications
Impedance 75Ω
Frequency Range 0~3 GHz
Working Voltage 500VRMS max.
Dielectric Withstanding Voltage 1500VRMS min.
Straight 1.3 max.
VSWR
BT43 BULKHEAD P.C.B BT43 R/A P.C.B MOUNT JACK Right Angle 1.5 max.
MOUNT JACK Center
Contact 5 Milliohms max.
Contact
Resistance Outer Contact 2 Milliohms max.
Insulator Resistance 5000 Megohms max.
BT43 CRIMP JACK
2
1
Century Associates, Inc. Controlled and Confidential under NDA

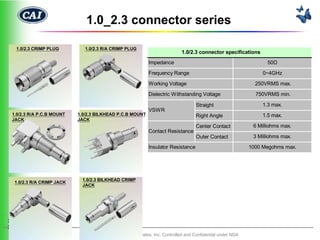

22. 1.0_2.3 connector series
1.0/2.3 CRIMP PLUG 1.0/2.3 R/A CRIMP PLUG
1.0/2.3 connector specifications
Impedance 50Ω
Frequency Range 0~4GHz
Working Voltage 250VRMS max.
Dielectric Withstanding Voltage 750VRMS min.
Straight 1.3 max.
VSWR
1.0/2.3 R/A P.C.B MOUNT 1.0/2.3 BILKHEAD P.C.B MOUNT Right Angle 1.5 max.
JACK JACK
Center Contact 6 Milliohms max.
Contact Resistance
Outer Contact 3 Milliohms max.
Insulator Resistance 1000 Megohms max.
1.0/2.3 BILKHEAD CRIMP
1.0/2.3 R/A CRIMP JACK
JACK
2
2
Century Associates, Inc. Controlled and Confidential under NDA

23. Various RF coaxial cable assembly for
2 flexible or semi-rigid base
3
