This document provides specifications for A-M series copper tube crimping lugs for connecting copper conductors. It includes:
- Dimensions and mechanical properties of the copper tube used to manufacture the lugs to provide efficient conductivity and strength.
- Details of an annealing process used to guarantee optimum ductility and avoid cracking or breaks when the lugs are compressed or bent during installation or subjected to vibration.

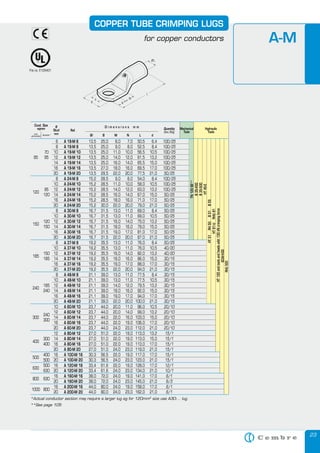

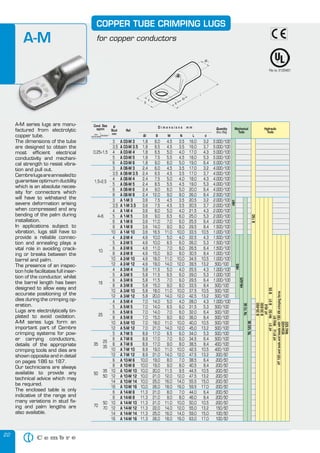

- A table listing over 60 individual lug models ranging from 0.25-240 mm2 in conductor size, with corresponding dimensions, recommended crimping tools, and packaging quantities.
Cable Lugs and Terminals are electrical connectors used for connecting or terminating electrical cables to electrical appliances, transformers, junction boxes, control panels, etc. Connectors are also used for joining two power cables together. A lug has two ends, a tubular end through which cable is inserted and a flattened end which is bolted to the appliance or surface. After cable insertion, the lug can be crimped with a crimping tool or soldered or welded. Lugs come in different sizes corresponding to cable size and sizes are marked on the palm area of the lug. Suitable tool and die set is used to crimp them to cable or wire. The terminal ends are usually made of copper or aluminium and comes in different sizes and current carrying capacities. Proper care has to be taken and selection done according to low voltage or medium voltage requirements.
Cembre A06-M Copper Cable Lugs 1.5-2.5sqmm - designed to be crimped onto the copper conductor to enable low voltage (LV) cable termination via the crimped lug.
Cembre A06-M - M3, M3.5, M4, M5, M6, M8 stud hole diameters (mm). Recommended crimping tools Cembre HN1.
Cembre 1.5-2.5sqmm LV Copper Cable Lugs - A06M
Cembre Copper Tube Crimping Lugs for Copper Conductors -Specification (CE Approved & UL Listed)
Cembre copper cable lugs are specified to crimp stranded copper conductors to BS6360 Class 2 and Class 5 flexible copper cables, suitable for 600/1000v, 3.3kV and 11kV dry indoor cable termination when installed using suitably calibrated Cembre crimping tool and die sets.
BS4579 Part 3 Standard - Specification for Compression Joints
Cembre cable lugs are short circuit tested and approved to BS4579-3 : 1976 Specification for performance of mechanical and compression joints in electric cable and wire connectors. BS4579 published in August 1976 was replaced by BS EN 61238 - 1 : 2003
Cembre A-M series cable lugs are manufactured from electrolytic copper tube - the dimensions of Cembre copper tube cable crimp lugs are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out. Cembre cable lugs are annealed to guarantee optimum ductility which is an absolute necessity for electrical cable connectors which will have to withstand the severe deformation arising when compressed by mechanical or hydraulic crimping tools. Annealing prevents cracking or breaking between the cable lug barrel and palm. Cembre lugs feature an inspection hole to facilitate the insertion of the cable conductor - whist the lug barrel length has been designed to allow easy and accurate positioning of the die sets during the cable crimping operation.
Cembre Copper & Aluminium Cable Crimps, Splices & Connectors - blade terminals, pin terminals, fork terminals, ring terminals, insulated terminals (LSF), narrow palm cable lugs, single hole and two hole cable lugs, transformer lugs, bi-metallic lugs, water-blocked lugs, high voltage lugs and cable splices 11-33kV. Cembre Stainless Steel Cable Glands
