Built-uppositioning
and communication system
Today, the RTL-Service is a successful international company with installations all over the
country and a development that is in high demand abroad.
The RTL Service Company Group today
Manufacturing in Russia
and Slovakia
7 Engineering
Science PhD-s
In-house development (from the basic
algorithms to complete hardware and
software solutions)
10
Years
Experience
Expertise on positioning technologies in restricted areas
or areas where any other source of communication is
not available.
2
Tasks solved by the system
3
Staff safety and security at
hazardous facilities
Automatically generated
signal in case of mandown or
altered conditions
Proximity detection and
collision avoidance
Emergency announcements,
notifications and warnings
Voice connection

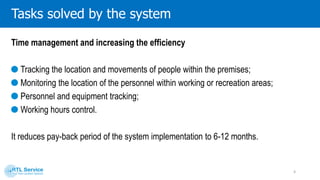

Time managementand increasing the efficiency
Tracking the location and movements
of people within the premises
Monitoring the location of the personnel
within working or recreation areas
Personnel and equipment tracking Working hours control
It reduces pay-back period of the system implementation to 6-12 months.
4
Working conditions in mines are tough and demanding:
Coal landslides and rockfalls Fires High level of occupational traumatism
and industrial accidents
Collisions of equipment People may be trapped
under the rubble
5
It is essential to provide:
Compliance with the Safety
Regulations and Standards for
the underground work
Quick voice communication Back up alarm system channel
Mine gas control Personnel
positioning
Proper work efficiency level
6
Reducing labor accidents
Reducing labor insurance costs
additional benefits
7

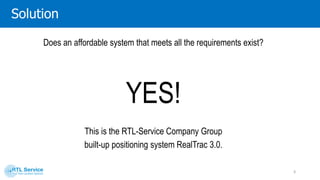

Does an affordable system that meets all the requirements exist?
Solution
This is the RTL-Service Company Group
built-up positioning system RealTrac 3.0.
YES!
8
Basic (low-cost) configuration of the system provides:
Area positioning of the personnel;
Area positioning of the equipment.
It provides personnel and equipment positioning limited by predefined area:
Mine floor or its parts.
Specific coalface.
RealTrac3.0 solution
Этого достаточно для выполнения текущих требований правил безопасности
(ПБ 03533-03, ПБ 05-618-03) и решения основных организационных вопросов.
9

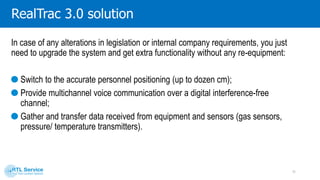

RealTrac3.0 solution
In case of any alterations in legislation or internal company requirements, you just need to upgrade the
system and get extra functionality without any re-equipment:
Switch to the accurate personnel positioning (up to dozen cm);
Provide multichannel voice communication over a digital interference-free channel;
Gather and transfer data received from equipment and sensors (gas sensors, pressure/ temperature
transmitters).
10

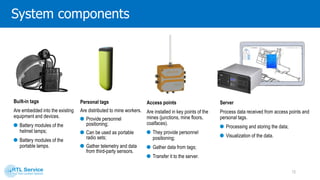

System components
Built-in tags
Are embedded into the
existing equipment and
devices.
Battery modules of the
helmet lamps;
Battery modules of the
portable lamps.
Personal tags
Are distributed to mine
workers.
Provide personnel positioning;
Can be used as portable radio
sets;
Gather telemetry and data
from third-party sensors.
Access points
Are installed in key points
of the mines (junctions,
mine floors, coalfaces).
They provide personnel
positioning;
Gather data from tags;
Transfer it to the server.
Server
Process data received from
access points and personal tags.
Processing and storing the data;
Visualization of the data.
11
An accurate positioning can be achieved by plugging in an extra RF module to the preinstalled slot in access
points.
Thus, the accuracy of personnel, vehicle and other monitored objects positioning can amount to several
dozen centimeters.
Modules: accurate and precise positioning
Functional state of a worker, register cases of mandown or loop of consciousness;
Data received from third-party sensors on environmental status (for example, gas
sensors).
The same RF module can gather and transfer data on:
12
Voice signal is transferred over a digital interference - and wiretapping free channel that
establishes high quality of communication as well as confidentiality and privacy. In
addition to that, an active channel may be connected to the company telephone network.
Modules: radio communication
13
A good voice communication can be arranged by plugging in an extra RF module to the preinstalled slot in
access points even in closed or isolated areas, wherever the standard radio communication is not available.
ROI
The RealTrac 3.0 system is:
Best possible solution in order to meet the requirements of the Labor Safety Regulation;
A rapid implementation at the facility;
A relatively small cost for implementation;
Labor efficiency increasing and optimization of equipment, machines and mechanisms.
It will result in achieving ROI in 6-12 months!
14
Benefitsof the system
The most cost-effective system on the market.
Reducing labor accidents and labor insurance costs.
Implementing and launching the area positioning system within 20 days.
Single infrastructure for the area and accurate positioning system.
Upgrading the system without re-equipment.
Flexible license policy for the customers.
Integrated management and software system.
15
Local positioning
Personnel Vehicles Equipment and other
objects
16
Real-time local positioning system (RTLS) is designed in order to provide object positioning within the
premises and to establish voice communication.
The system can provide positioning:
The accuracy of system can amount to several dozen centimeters.

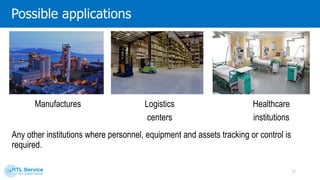

Possibleapplications
Any other institutions where personnel, equipment and assets tracking or control is required.
Manufactures Logistics
centers
Healthcare
institutions
17

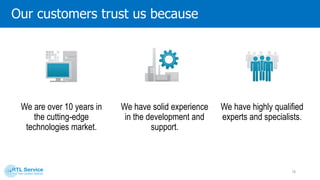

Our customers trust us because
We are over 10 years in the
cutting-edge technologies
market.
We have solid experience in
the development and
support.
We have highly qualified
experts and specialists.
10
years
18

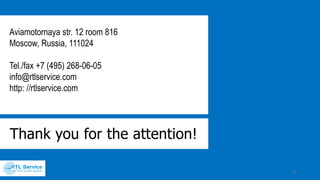

Contact us:
+7 495268 06 05
room 816, Aviamotornaya str. 12, Moscow, Russia, 111024
info@rtlservice.com
rtlservice.com
19
