1. Building a Raspberry Pi
Kubernetes Cluster
and Running .NET Core
with OpenFaaS
Alex Ellis @alexellisuk
Scott Hanselman @shanselman

2. Agenda
Why build an RPi cluster?
What counts as Cloud?
Top community clusters
Practicalities of ARM & .NET Core
Intro to Kubernetes & Serverless
Demos

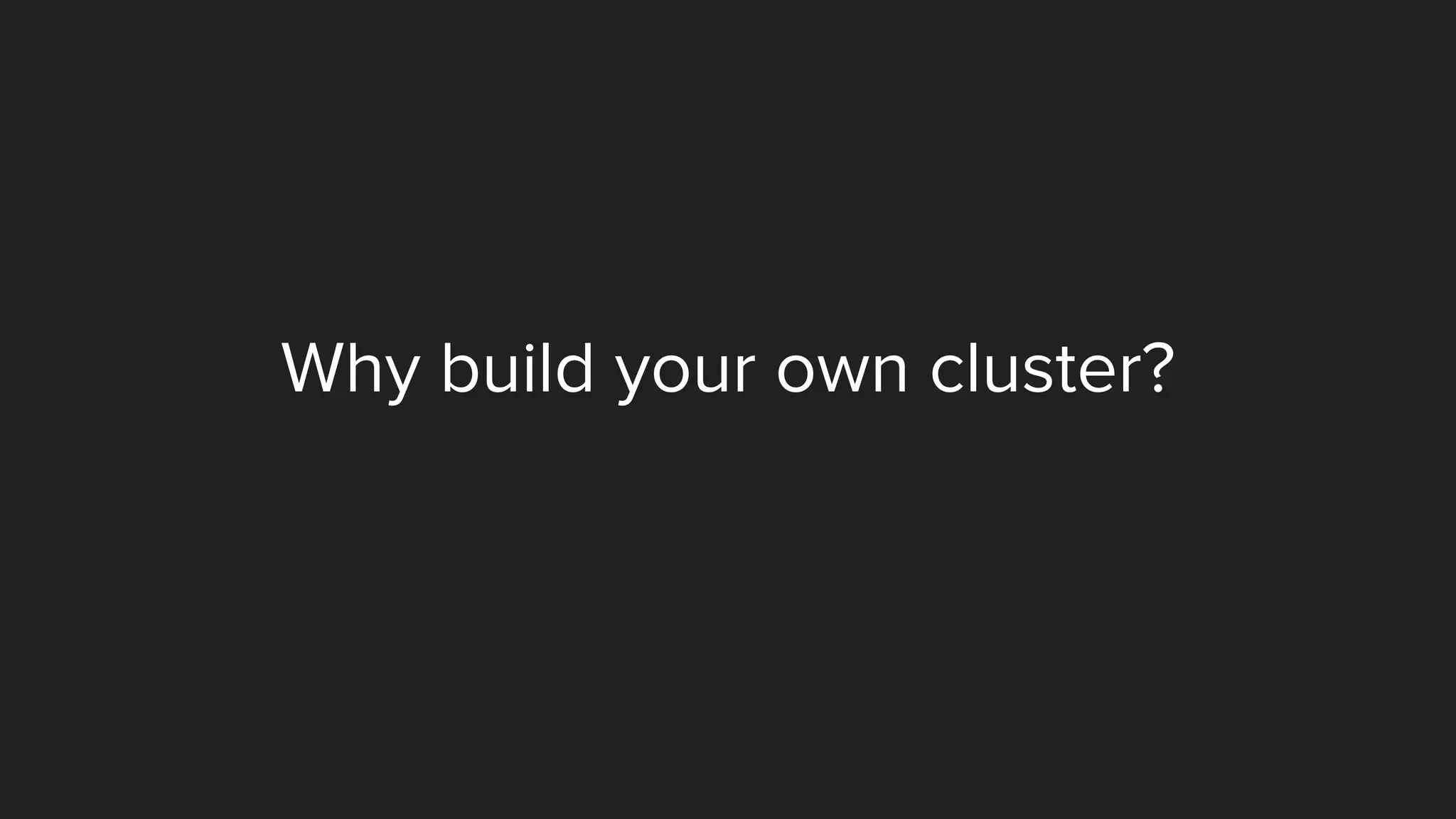

3. Why build your own cluster?

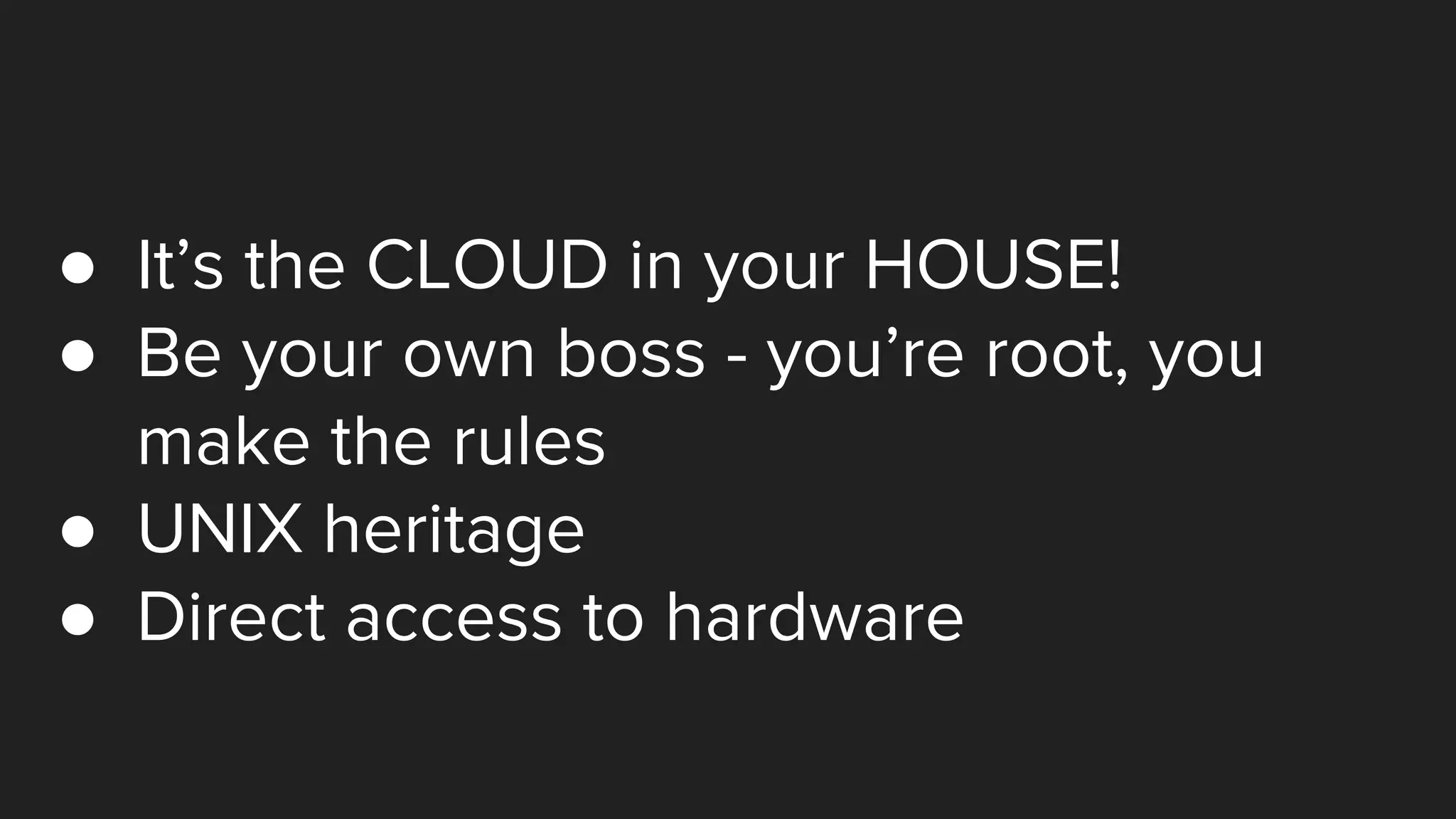

4. ● It’s the CLOUD in your HOUSE!
● Be your own boss - you’re root, you
make the rules
● UNIX heritage
● Direct access to hardware

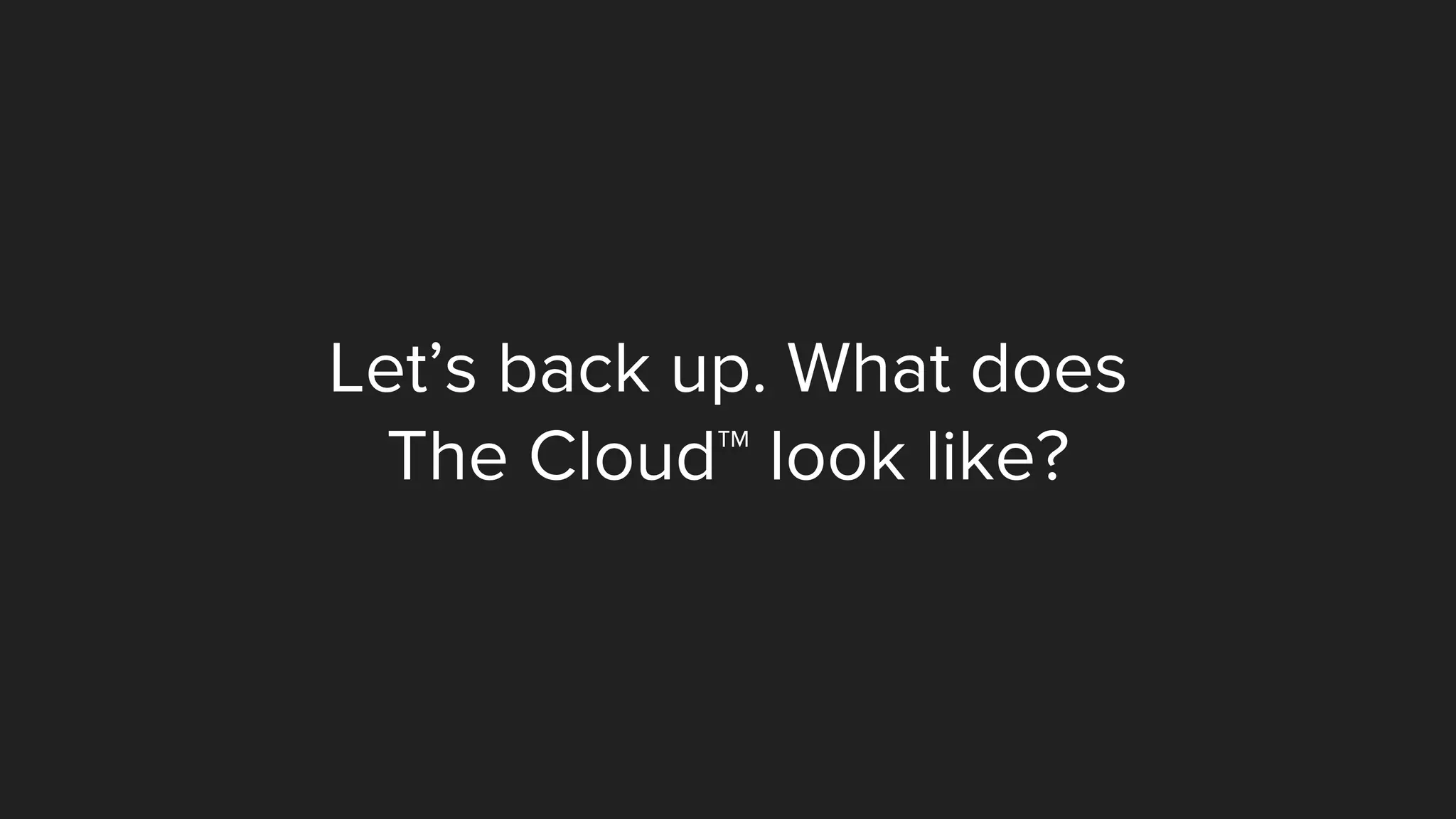

5. Let’s back up. What does
The Cloud™ look like?

6. $
See it? Can you
visualize
the cloud now?

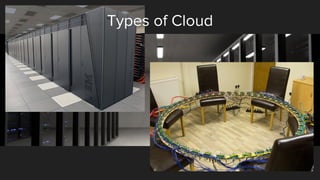

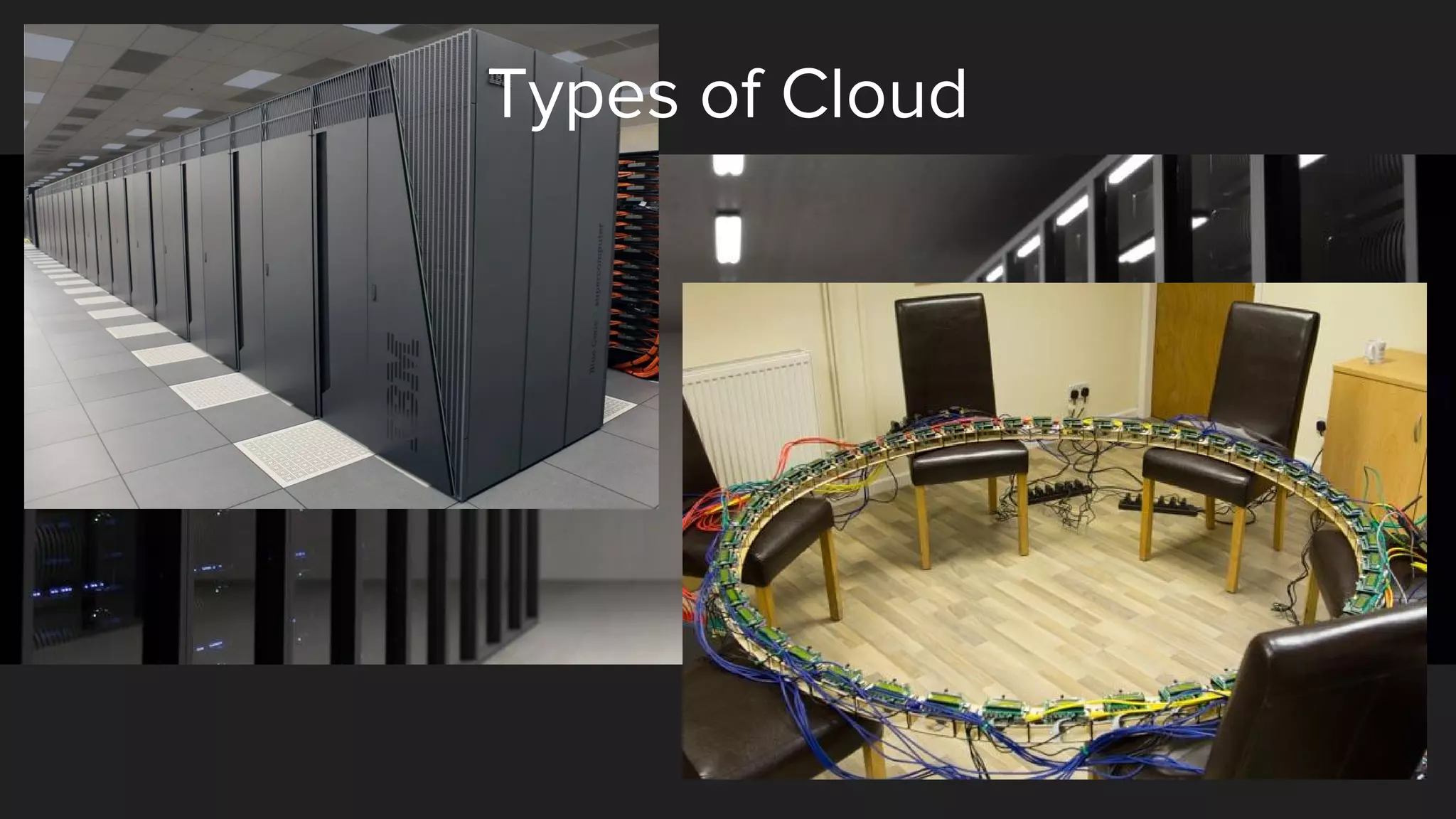

7. Types of Cloud

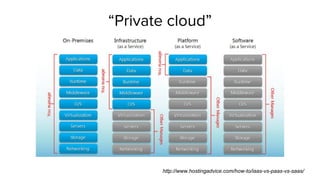

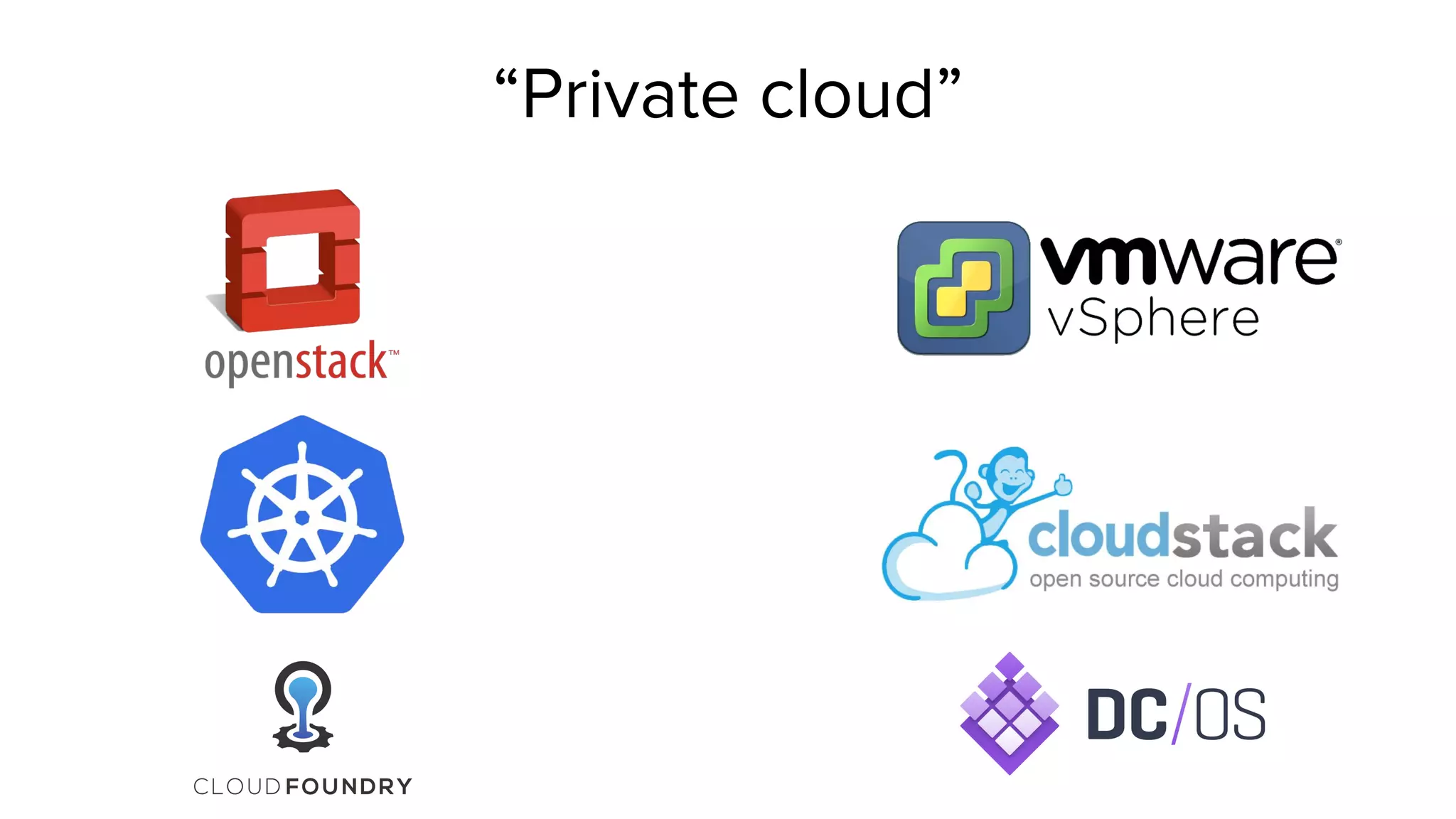

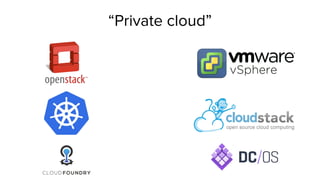

8. “Private cloud”

9. http://www.hostingadvice.com/how-to/iaas-vs-paas-vs-saas/
“Private cloud”

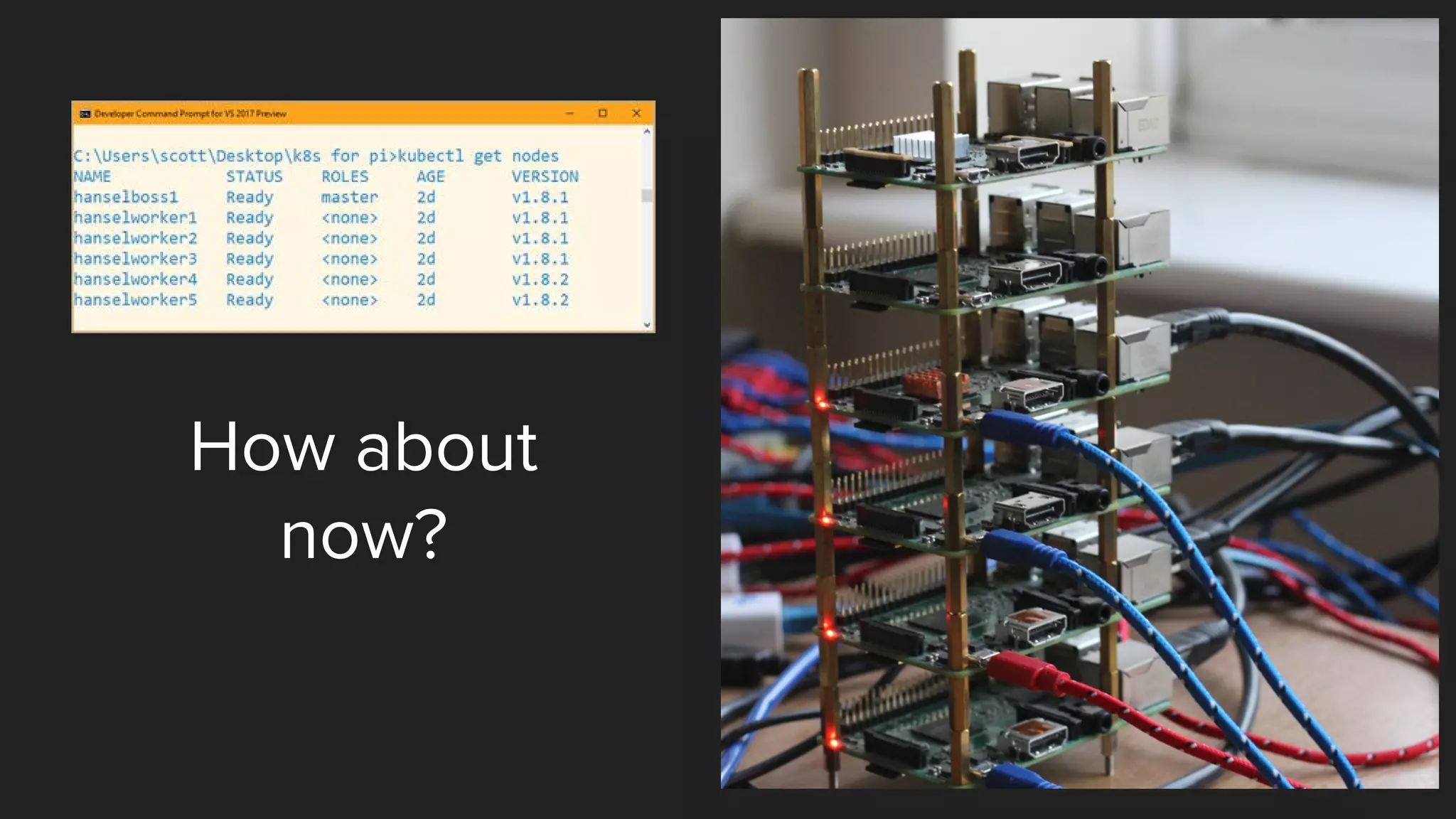

10. How about
now?

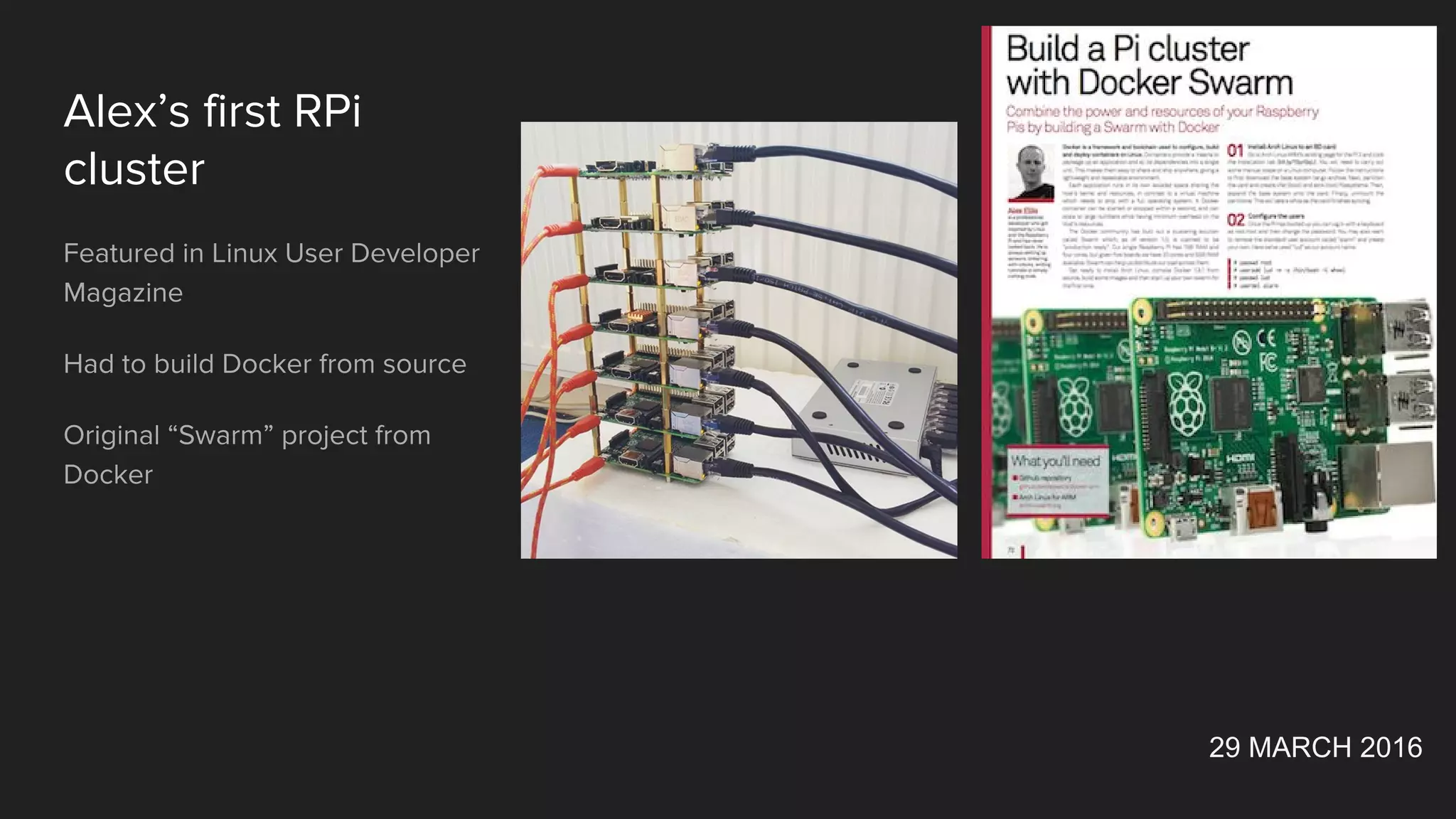

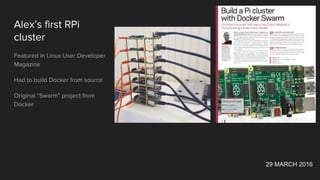

11. Alex’s first RPi
cluster
Featured in Linux User Developer
Magazine
Had to build Docker from source
Original “Swarm” project from
Docker
29 MARCH 2016

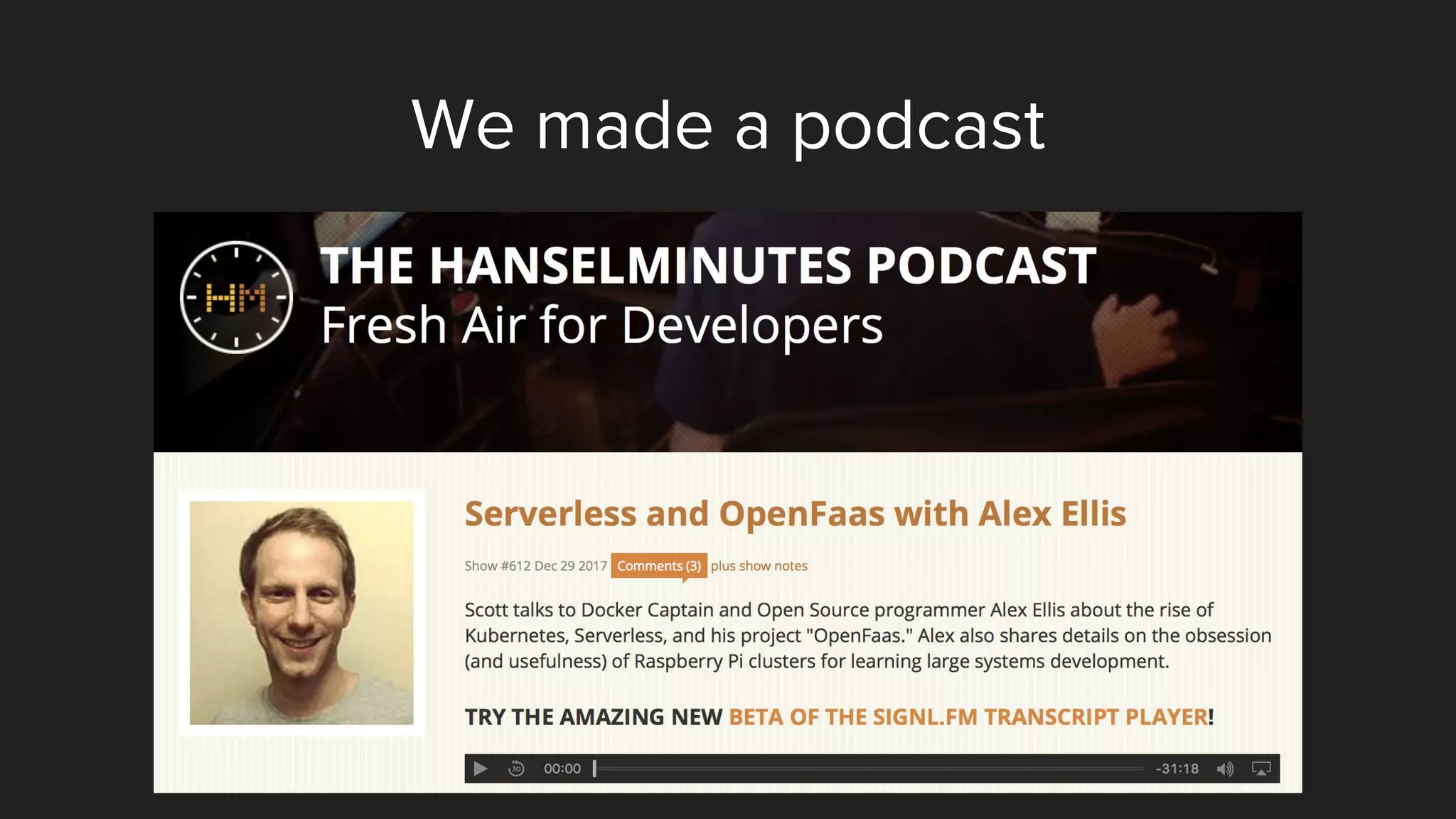

12. We made a podcast

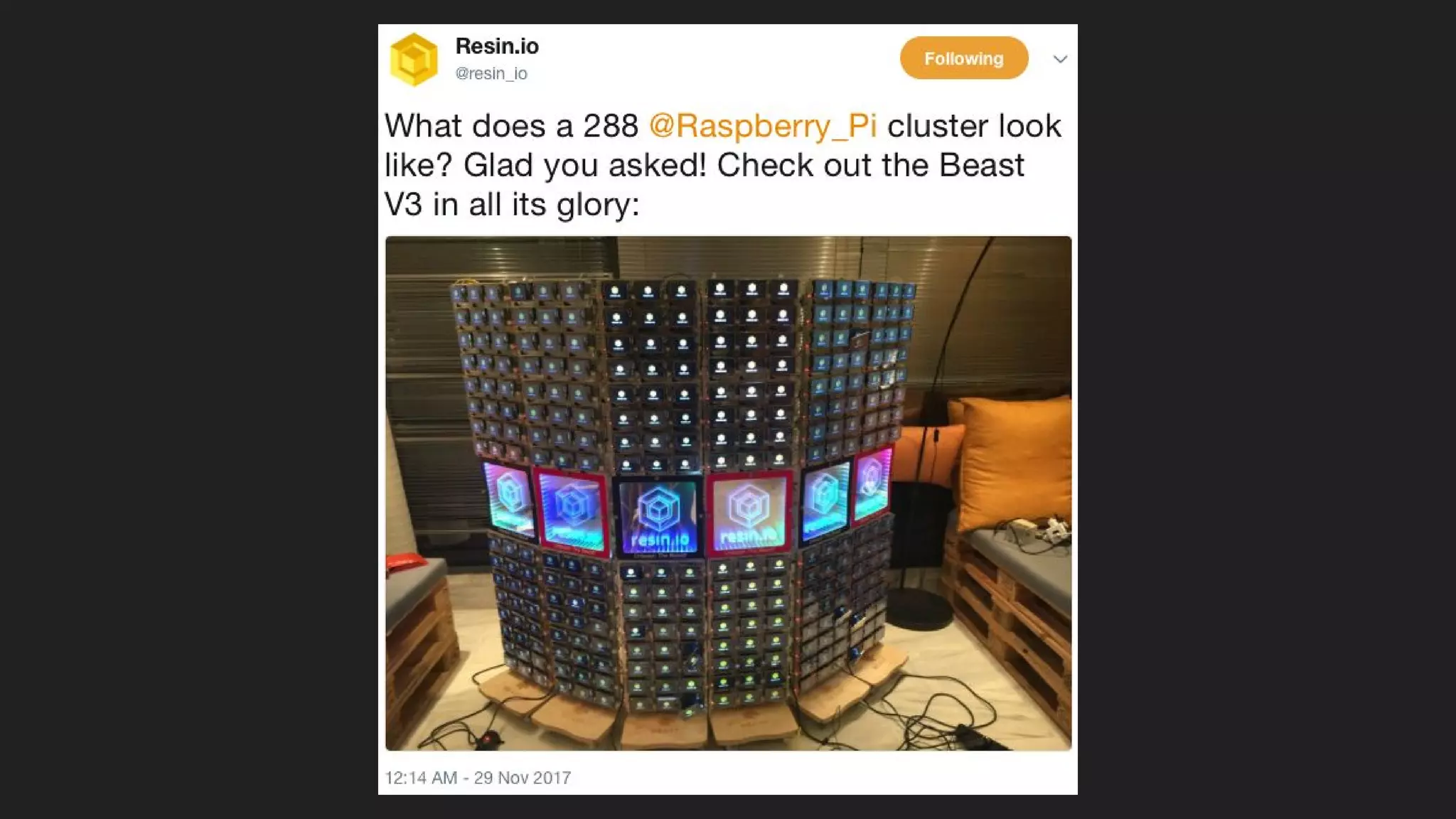

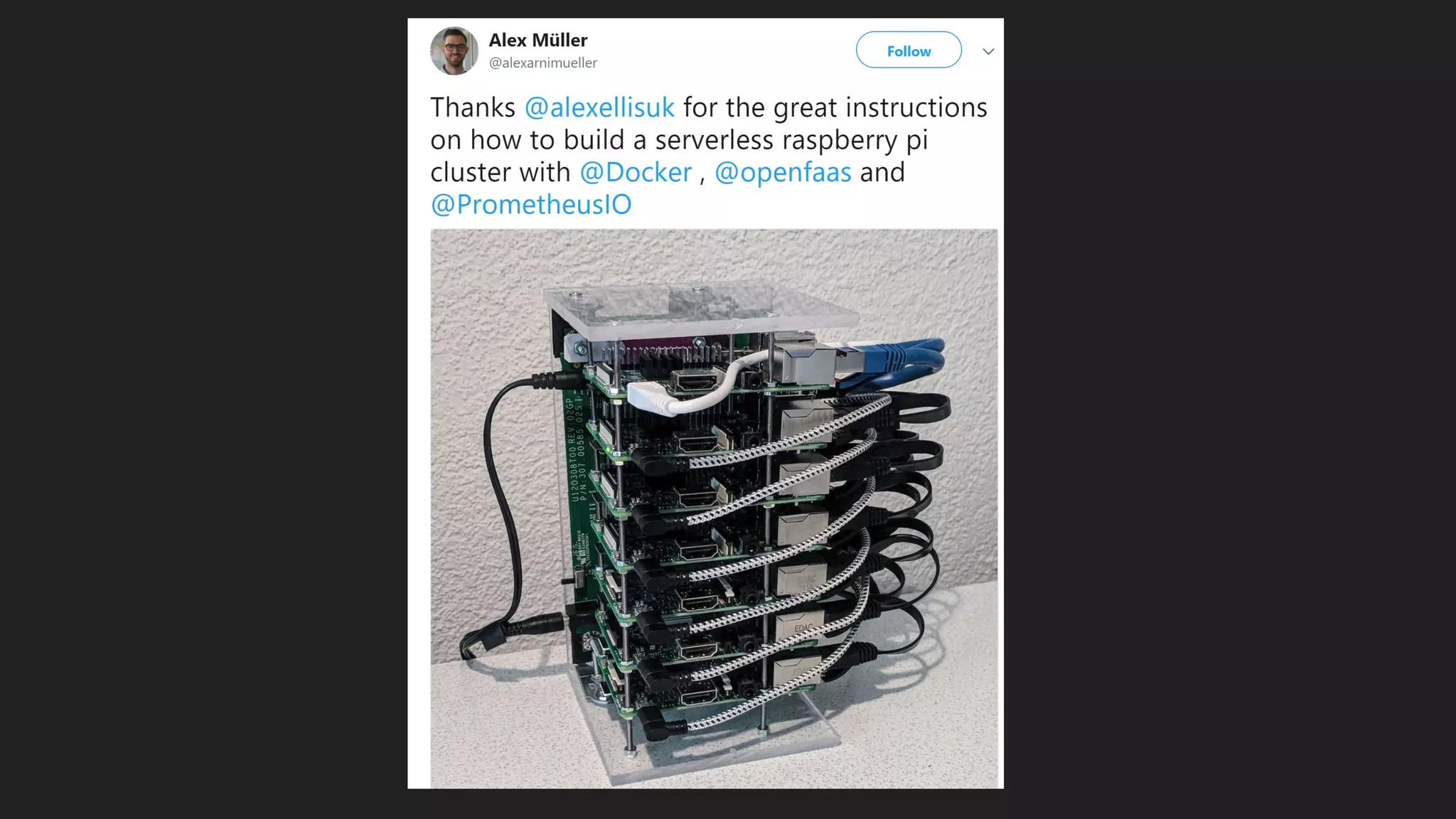

13. The community did something
awesome!

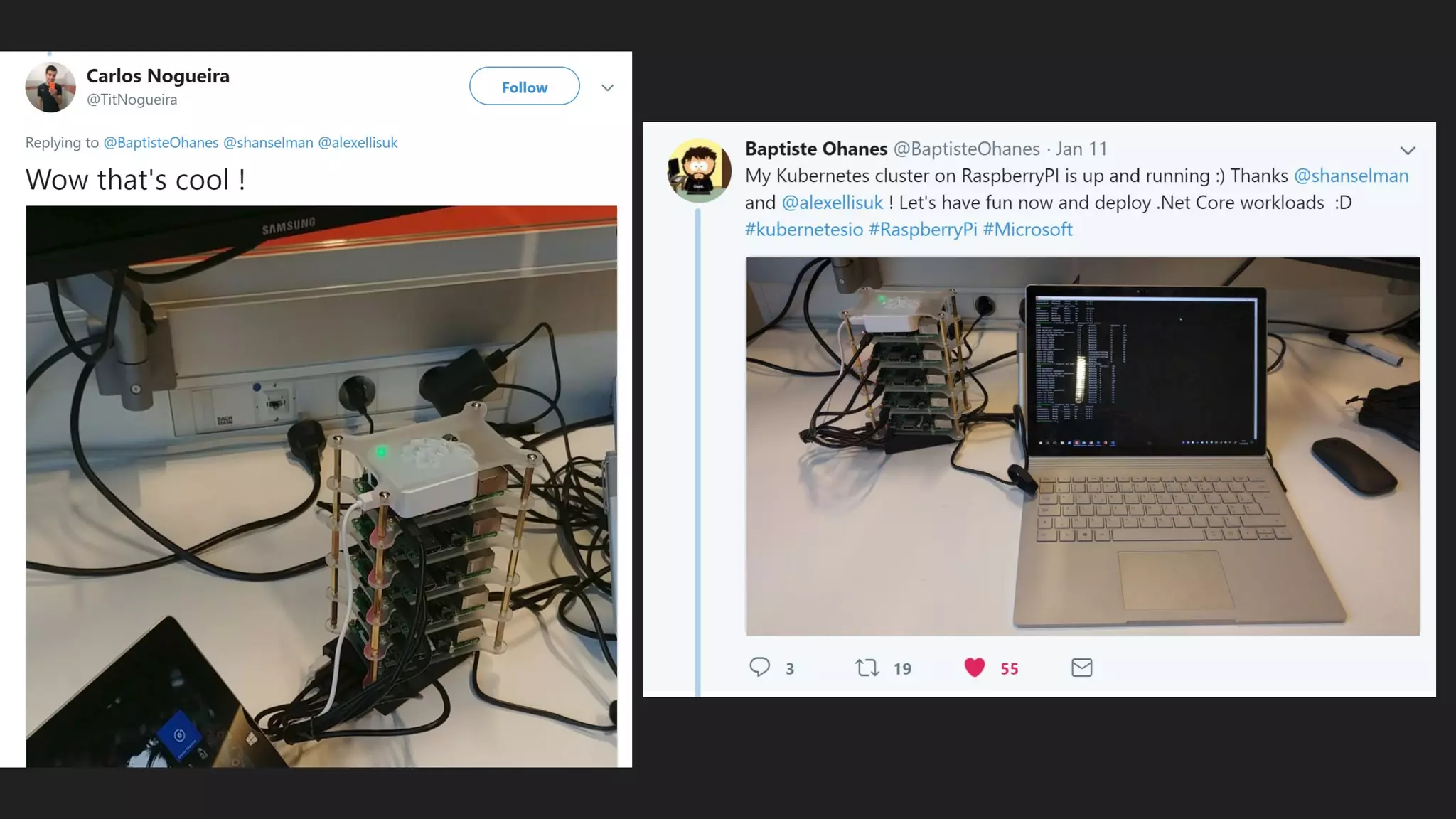

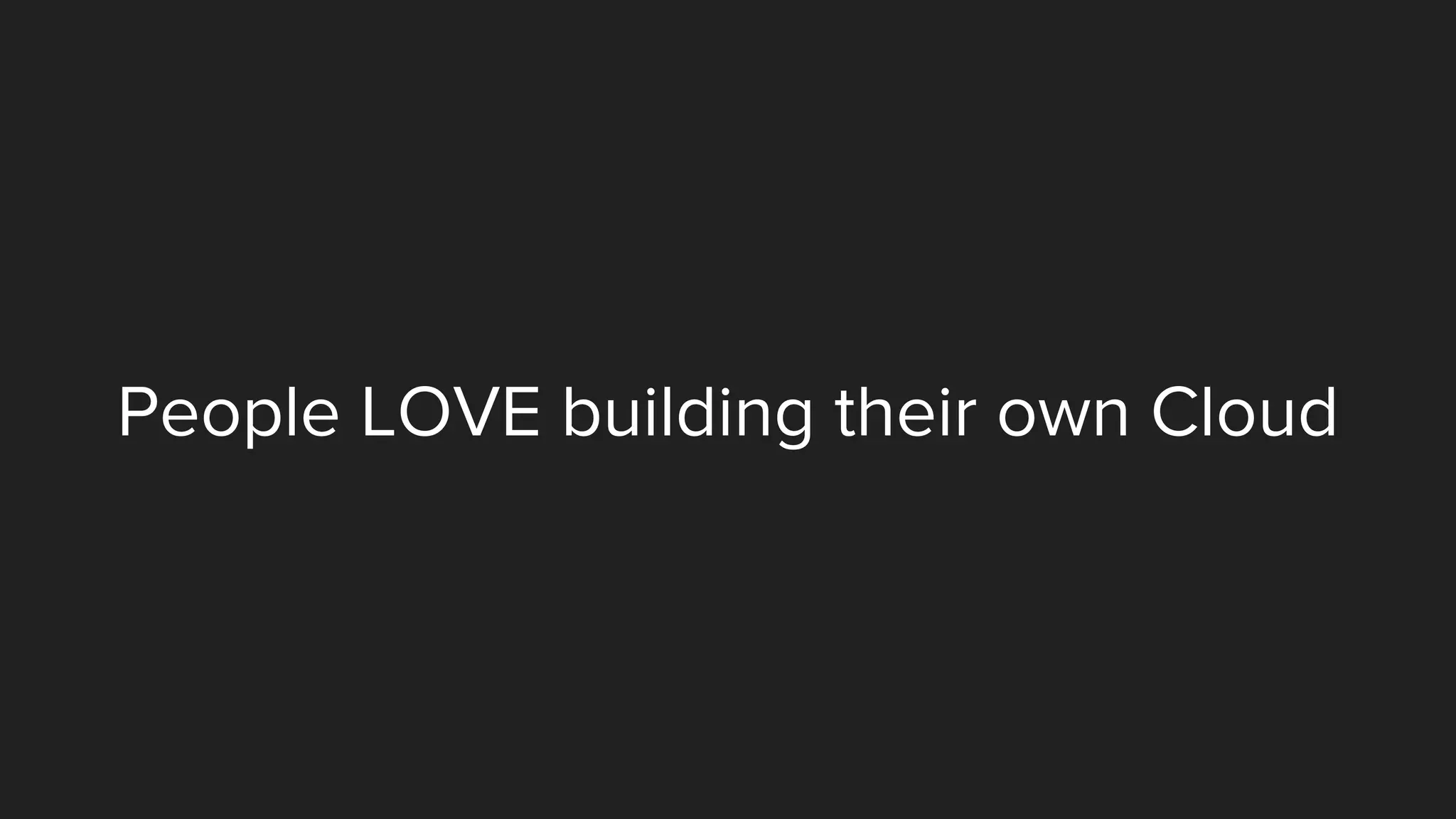

17. People LOVE building their own Cloud

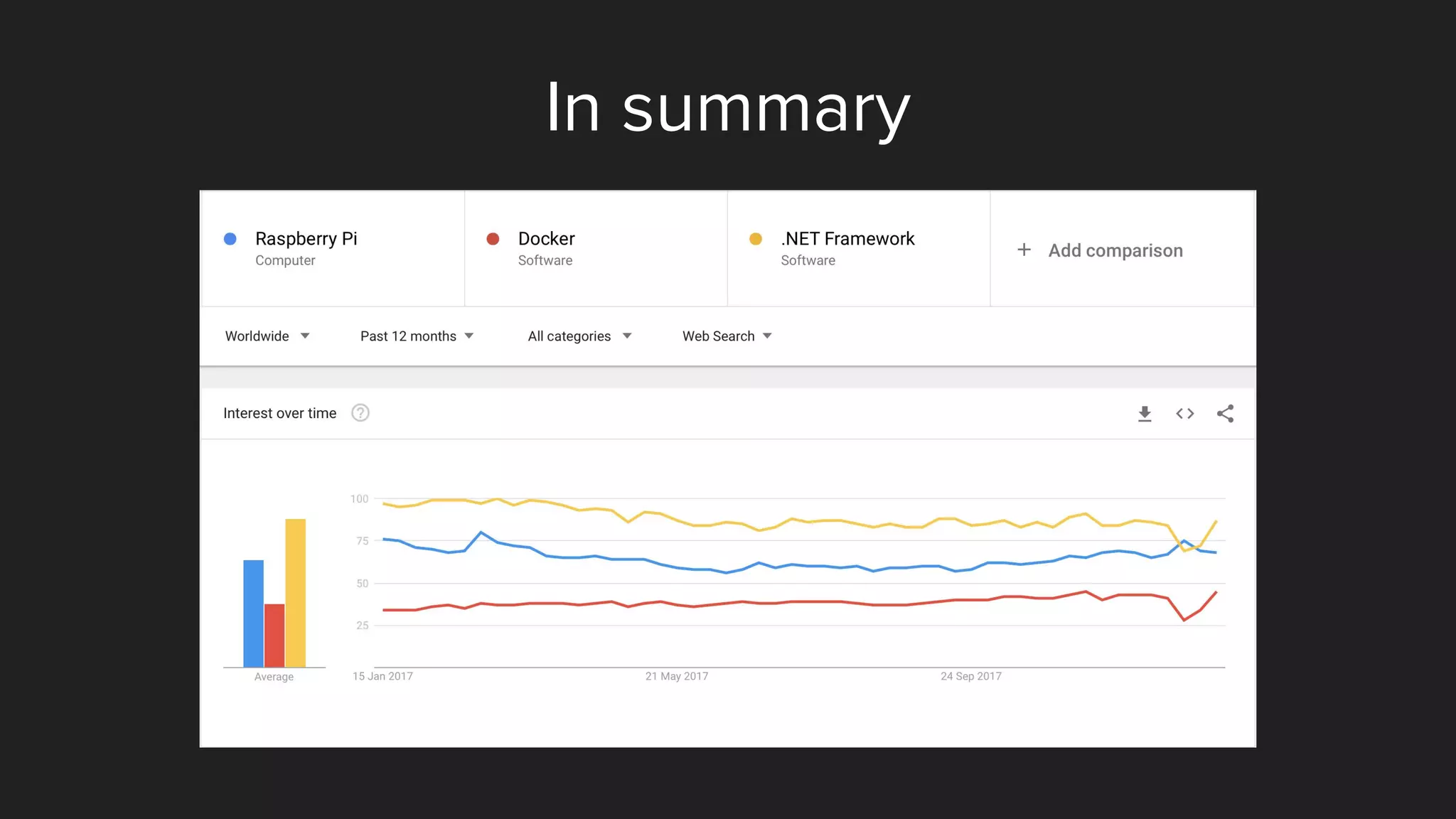

18. In summary

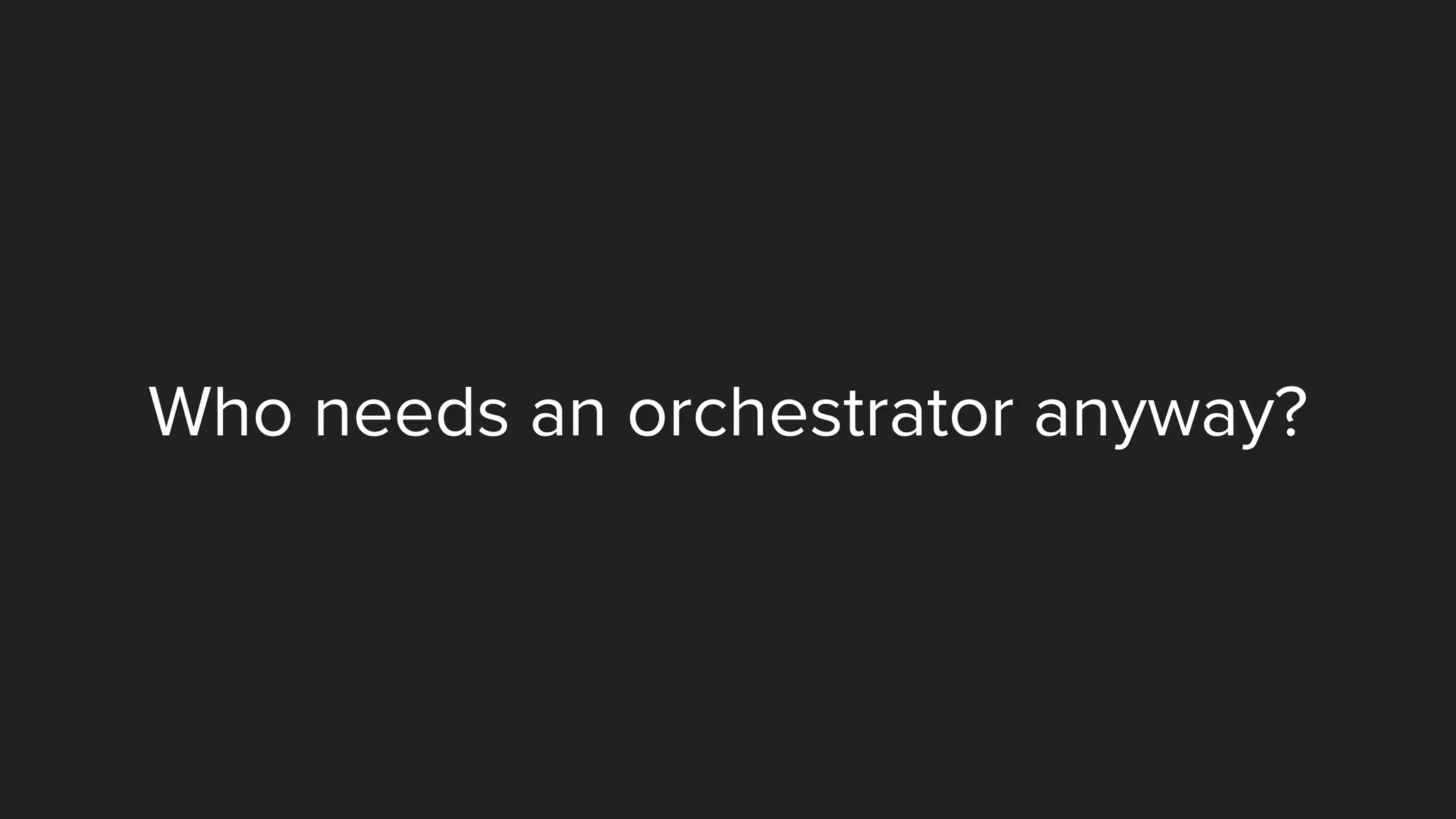

19. Who needs an orchestrator anyway?

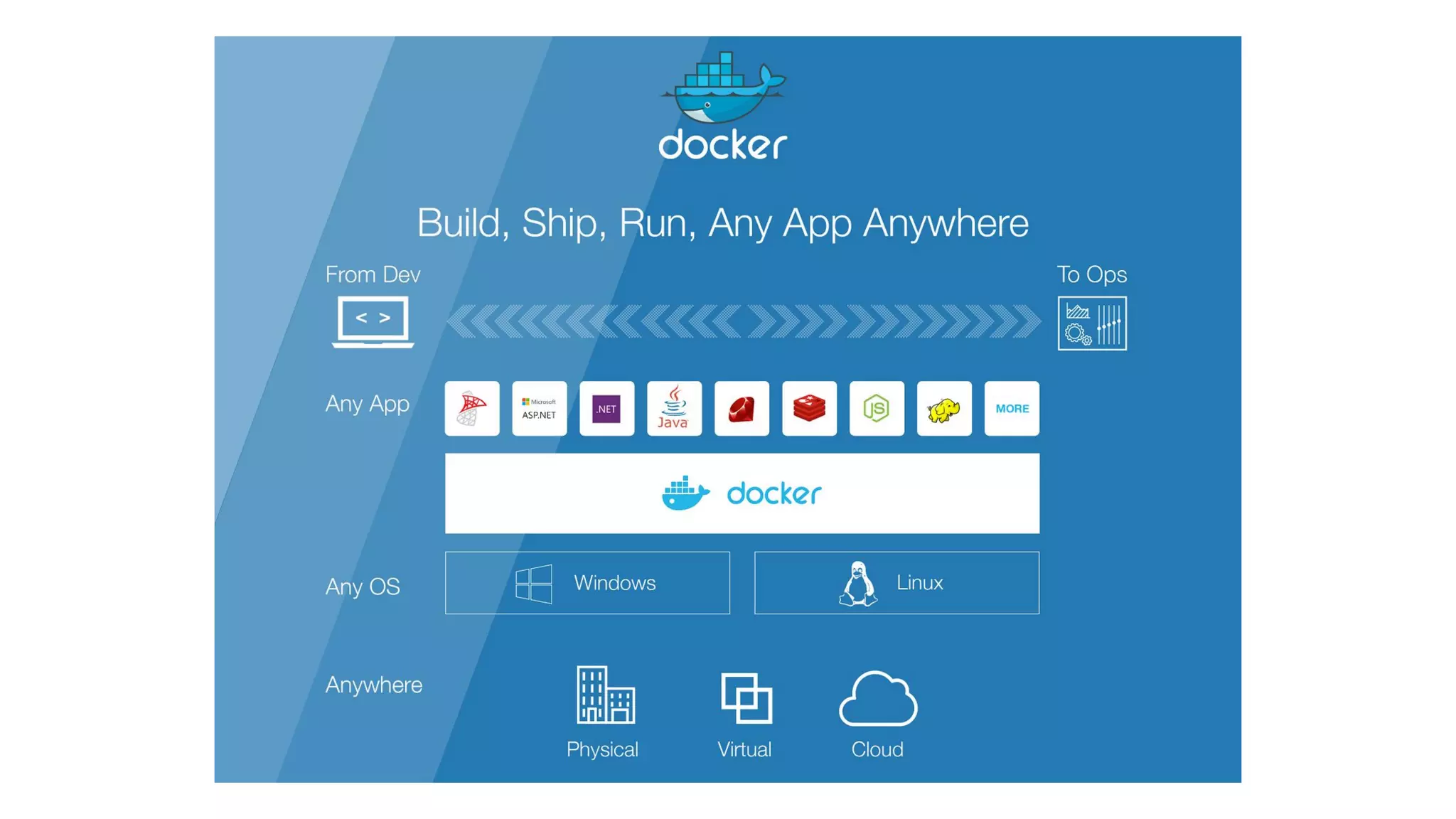

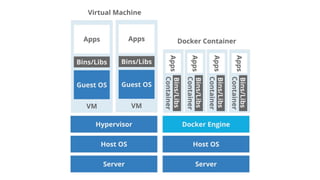

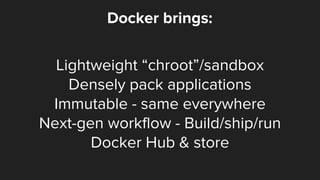

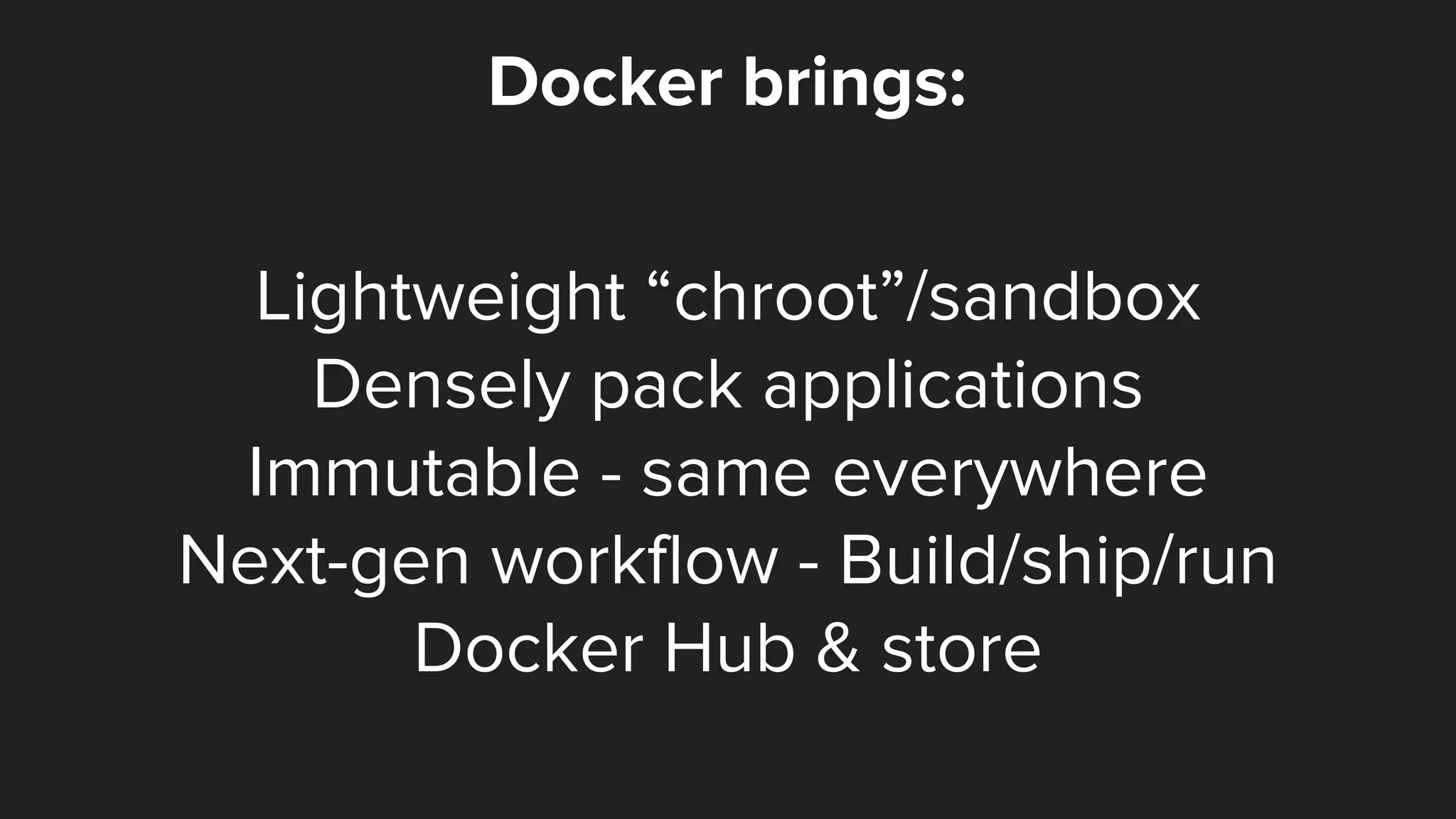

22. Lightweight “chroot”/sandbox
Densely pack applications
Immutable - same everywhere
Next-gen workflow - Build/ship/run
Docker Hub & store
Docker brings:

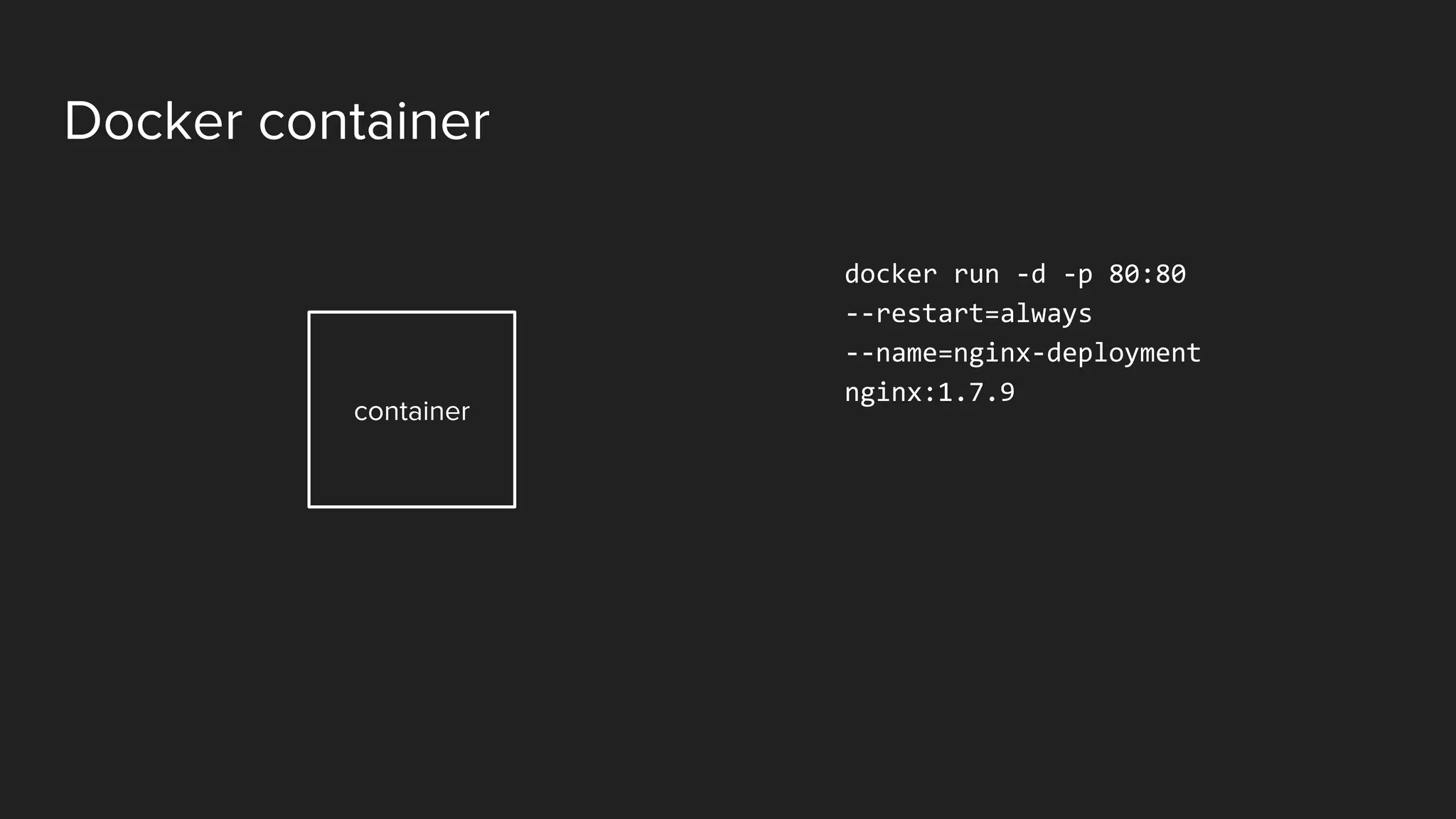

23. container
Docker container
docker run -d -p 80:80
--restart=always
--name=nginx-deployment
nginx:1.7.9

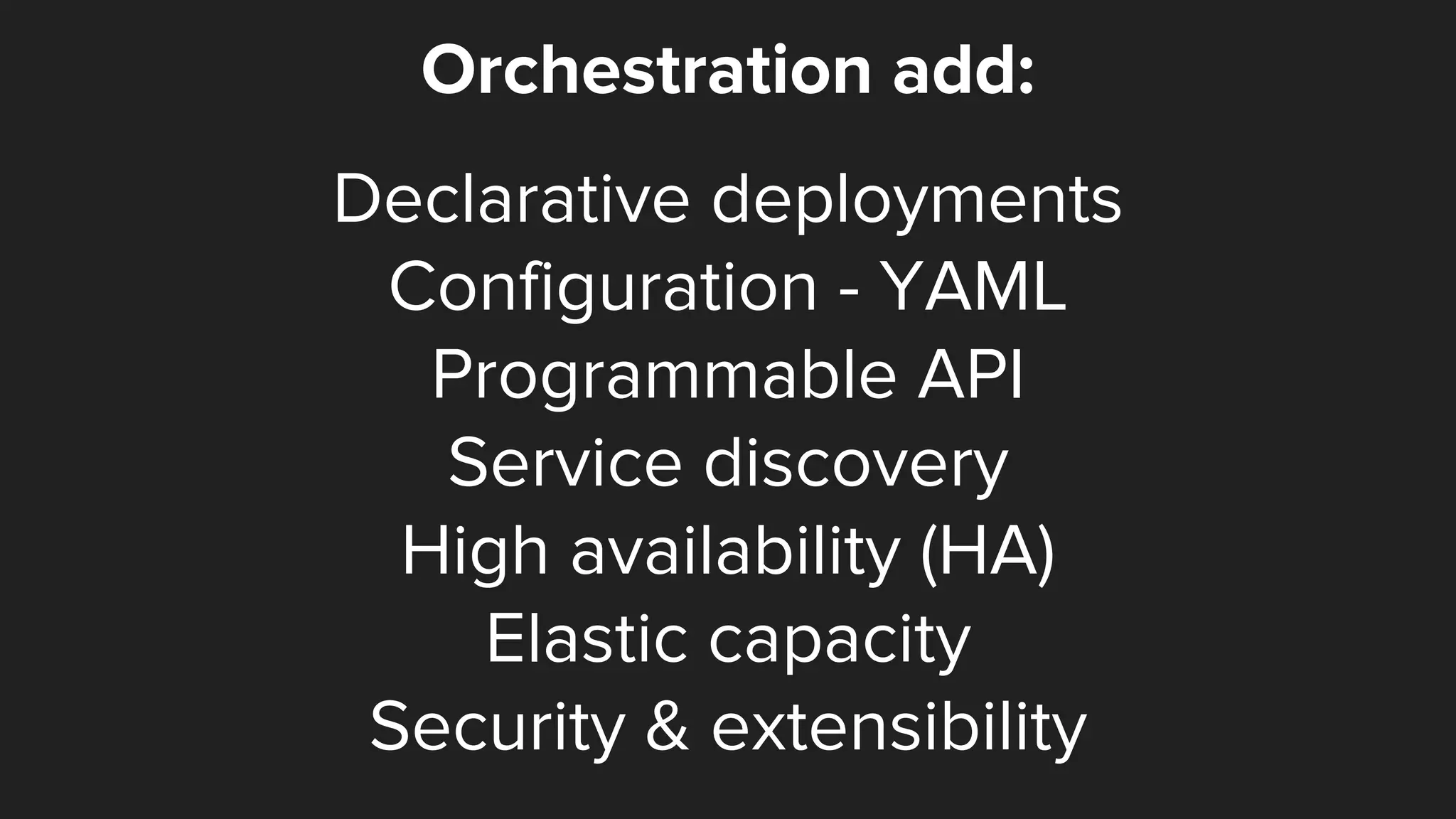

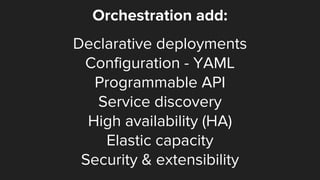

24. Declarative deployments
Configuration - YAML
Programmable API
Service discovery
High availability (HA)
Elastic capacity
Security & extensibility
Orchestration add:

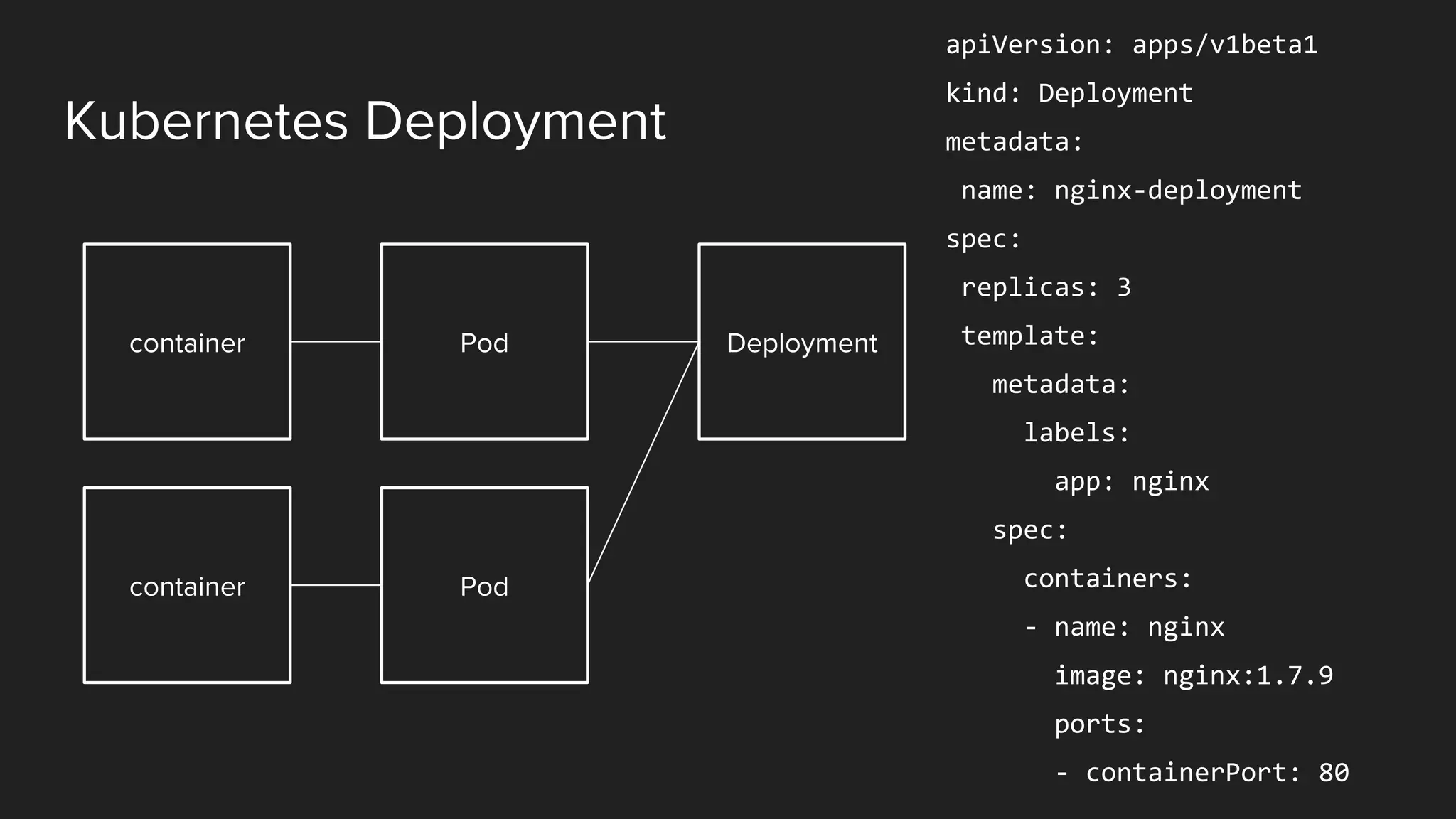

25. container Deployment
Kubernetes Deployment
container
Pod
Pod
apiVersion: apps/v1beta1
kind: Deployment
metadata:
name: nginx-deployment
spec:
replicas: 3
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:1.7.9
ports:
- containerPort: 80

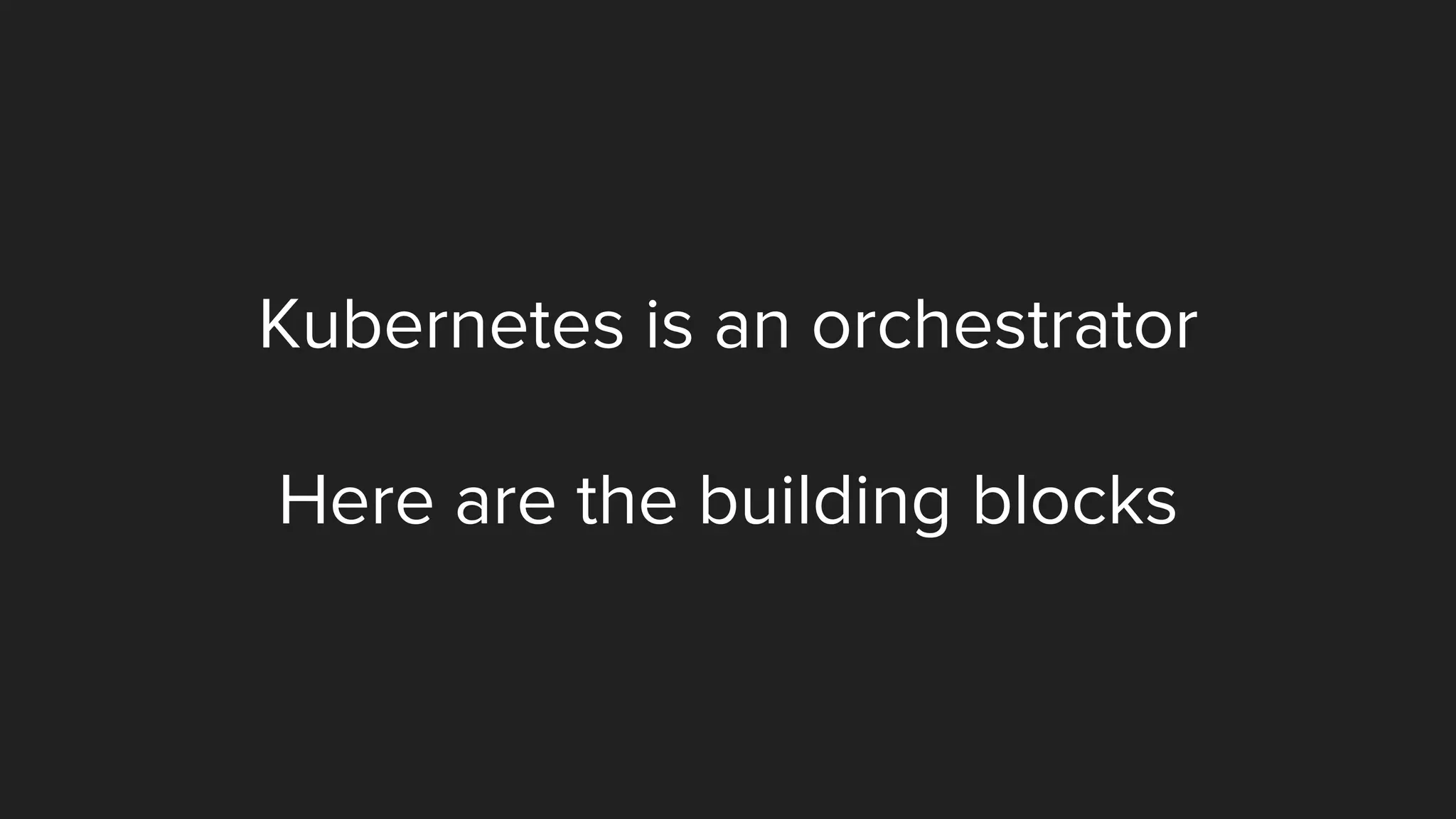

26. Kubernetes is an orchestrator
Here are the building blocks

27. Zine by Julia Evans

28. Zine by Julia Evans

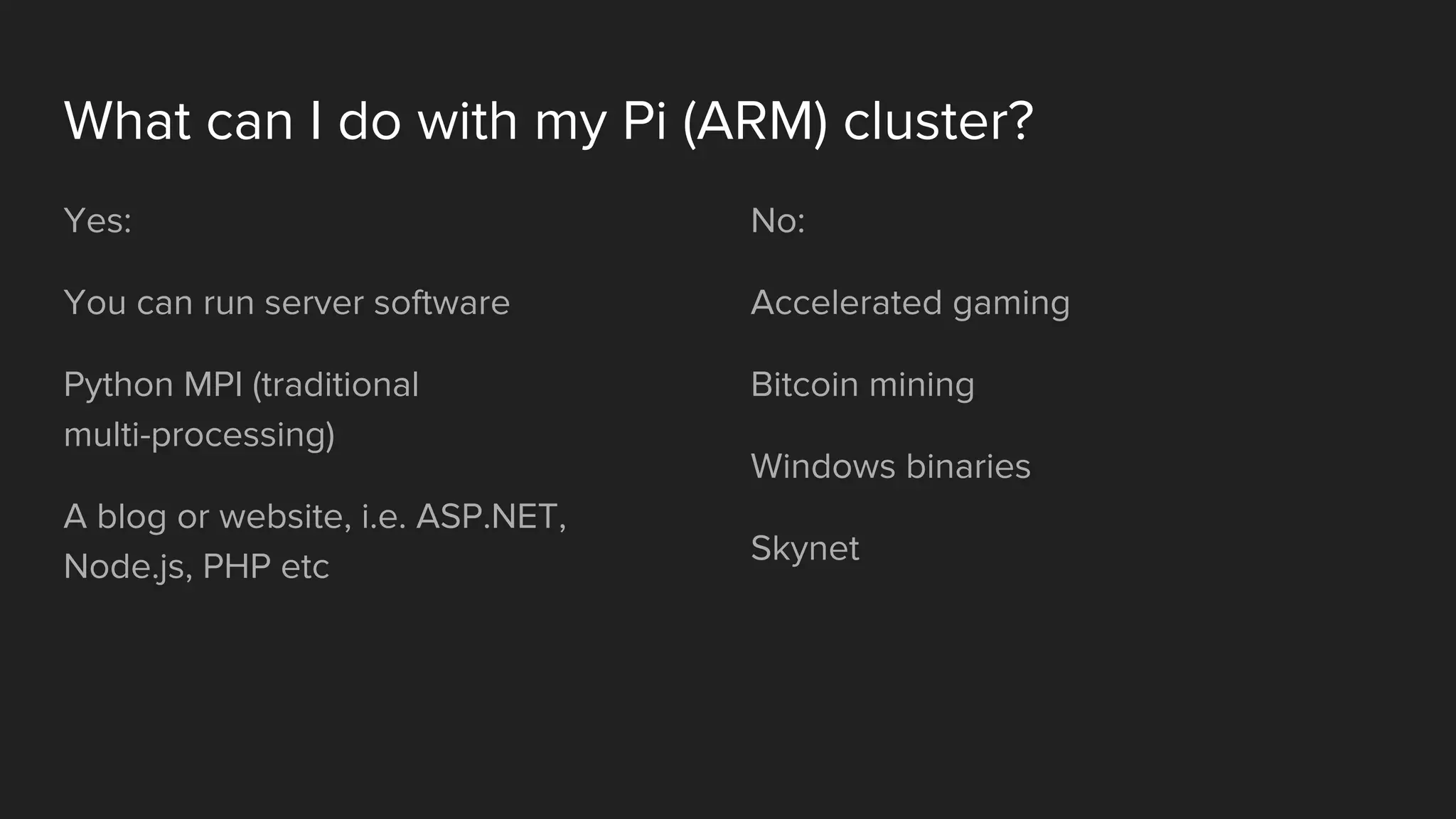

29. No:
Accelerated gaming
Bitcoin mining
Windows binaries
Skynet
What can I do with my Pi (ARM) cluster?
Yes:
You can run server software
Python MPI (traditional
multi-processing)
A blog or website, i.e. ASP.NET,
Node.js, PHP etc

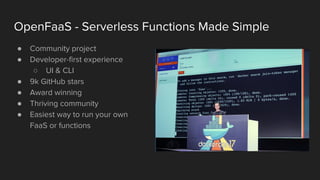

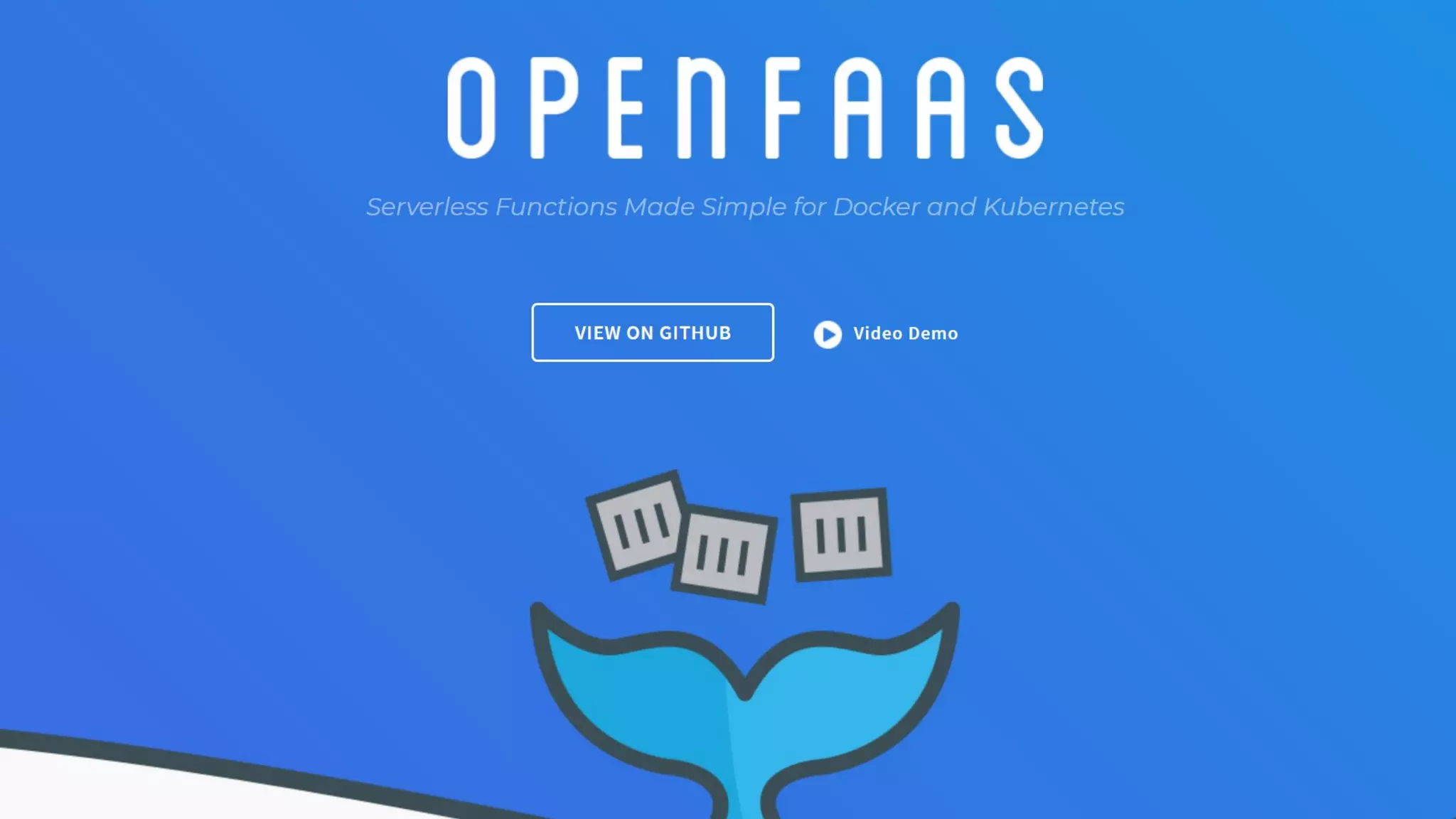

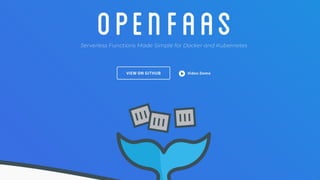

33. OpenFaaS - Serverless Functions Made Simple
● Community project
● Developer-first experience
○ UI & CLI
● 9k GitHub stars
● Award winning
● Thriving community
● Easiest way to run your own
FaaS or functions

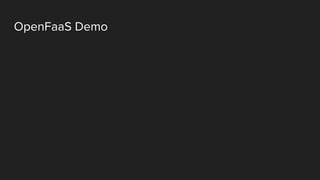

34. OpenFaaS Demo

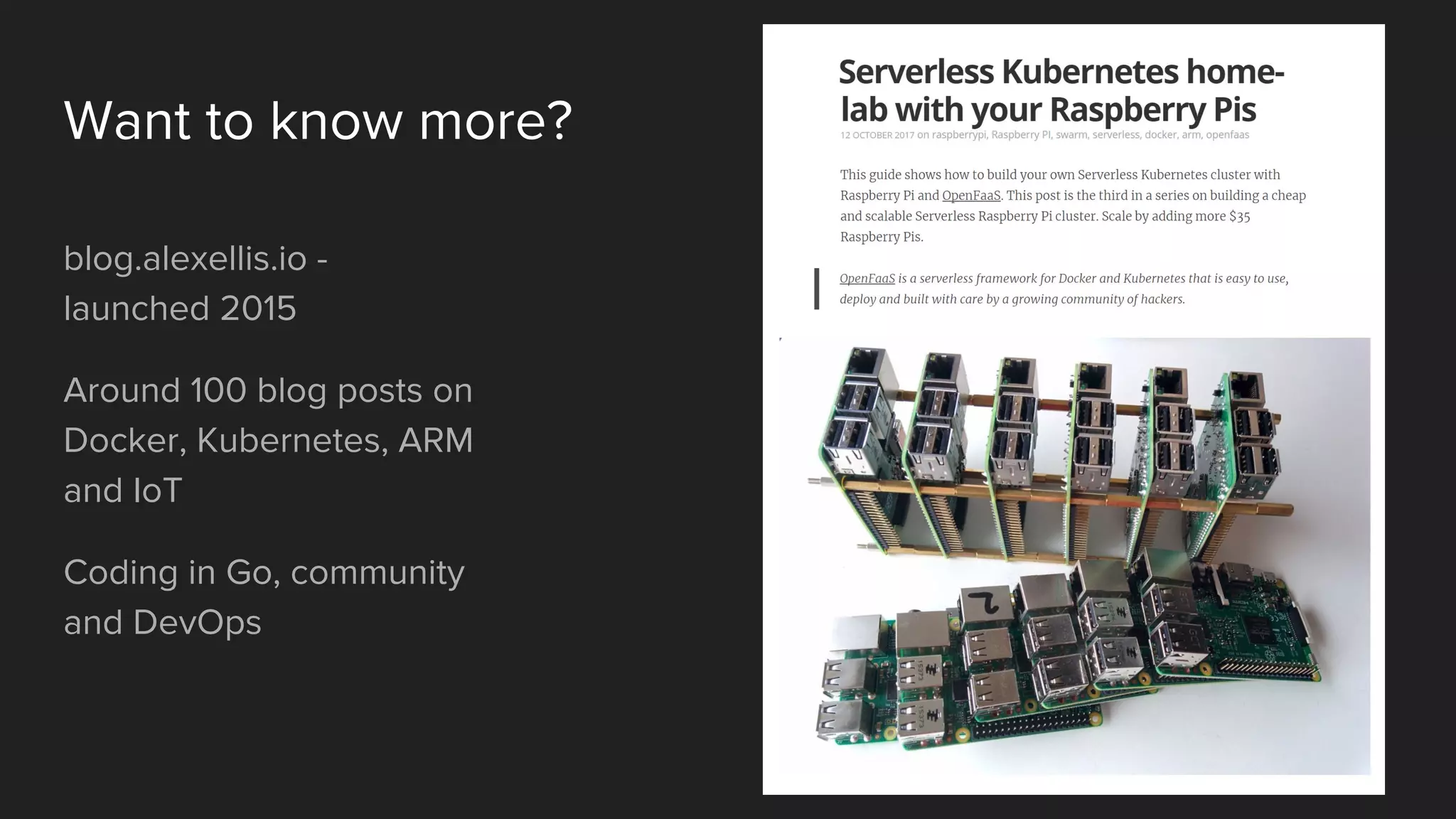

35. Want to know more?
blog.alexellis.io -
launched 2015
Around 100 blog posts on
Docker, Kubernetes, ARM
and IoT
Coding in Go, community
and DevOps

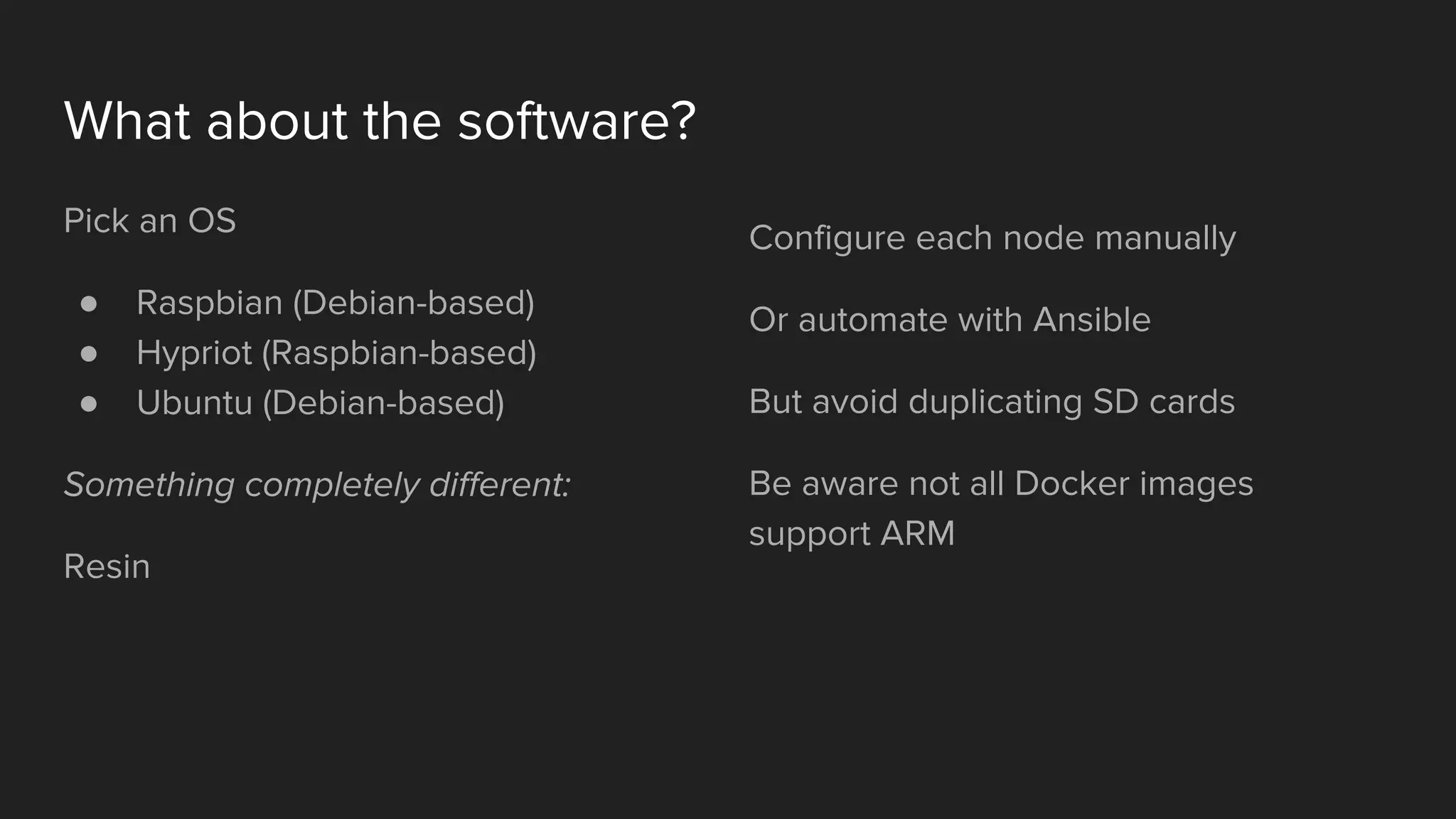

36. What about the software?
Pick an OS
● Raspbian (Debian-based)
● Hypriot (Raspbian-based)
● Ubuntu (Debian-based)
Something completely different:
Resin
Configure each node manually
Or automate with Ansible
But avoid duplicating SD cards
Be aware not all Docker images
support ARM

37. Let’s talk about CPU architecture

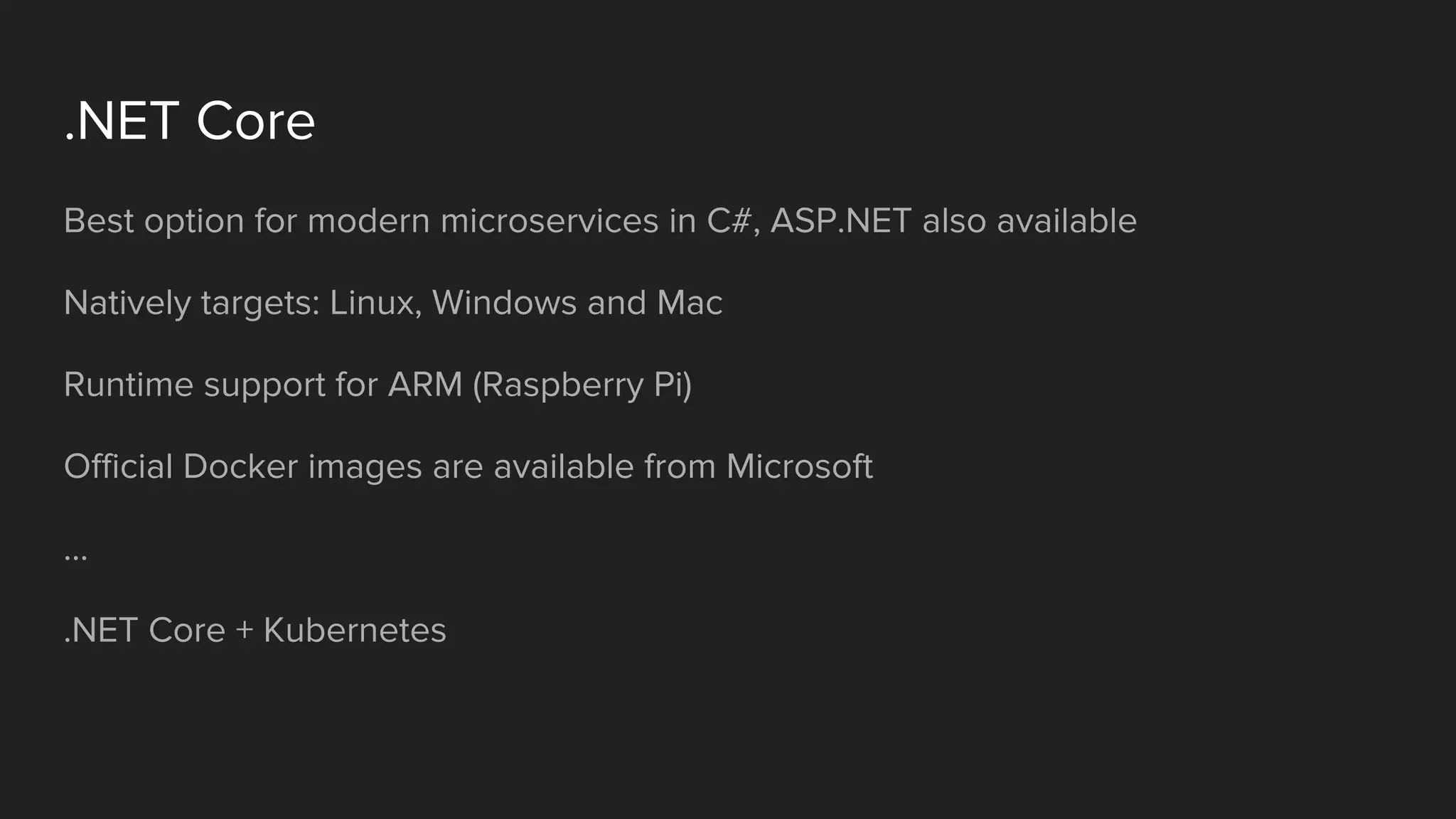

38. .NET Core
Best option for modern microservices in C#, ASP.NET also available
Natively targets: Linux, Windows and Mac
Runtime support for ARM (Raspberry Pi)
Official Docker images are available from Microsoft
...
.NET Core + Kubernetes

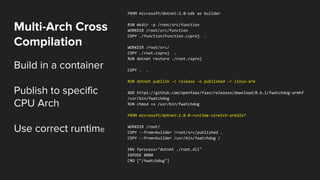

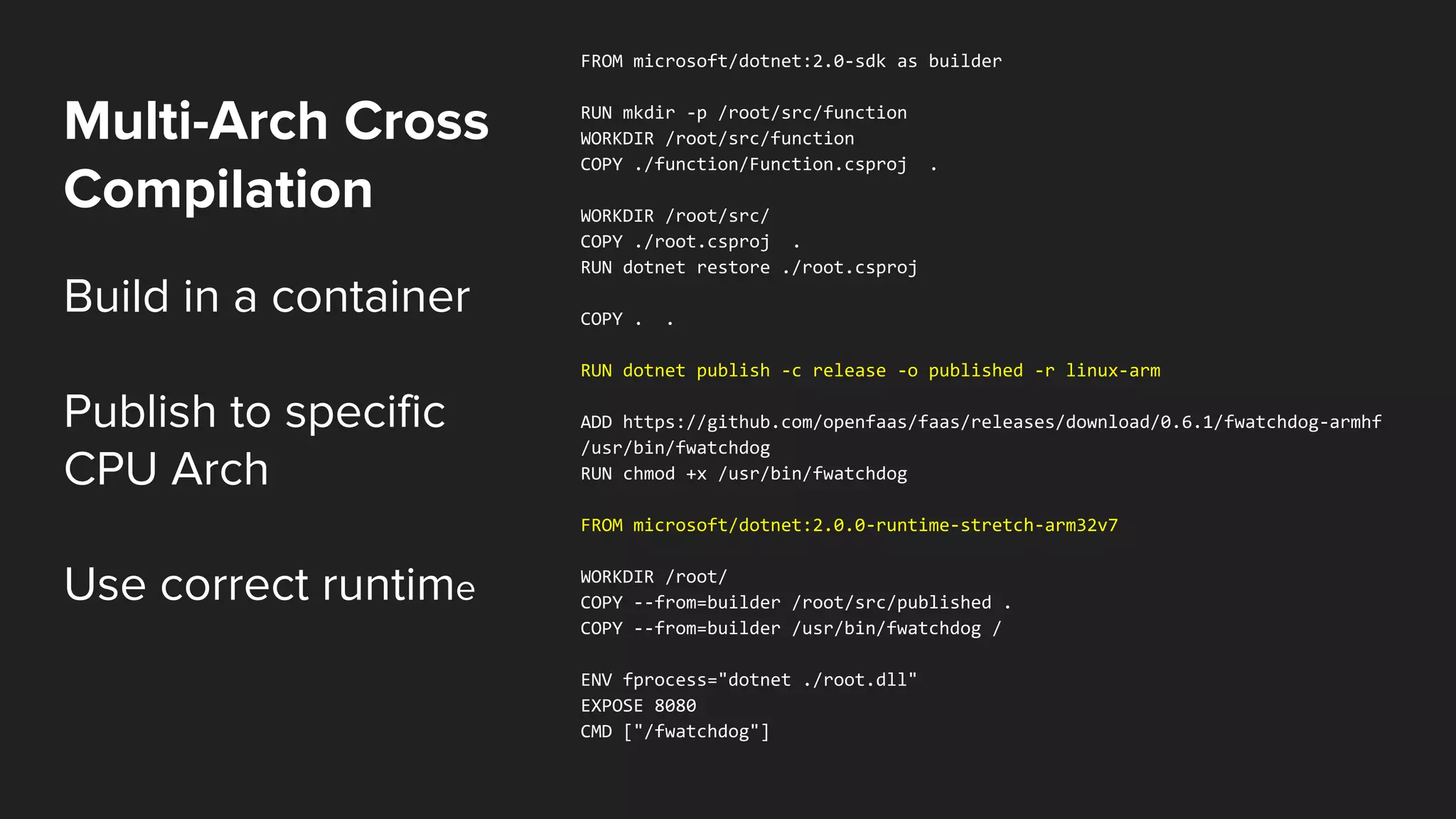

39. Multi-Arch Cross
Compilation
Build in a container
Publish to specific
CPU Arch
Use correct runtime
FROM microsoft/dotnet:2.0-sdk as builder
RUN mkdir -p /root/src/function
WORKDIR /root/src/function
COPY ./function/Function.csproj .
WORKDIR /root/src/
COPY ./root.csproj .
RUN dotnet restore ./root.csproj
COPY . .
RUN dotnet publish -c release -o published -r linux-arm
ADD https://github.com/openfaas/faas/releases/download/0.6.1/fwatchdog-armhf
/usr/bin/fwatchdog
RUN chmod +x /usr/bin/fwatchdog
FROM microsoft/dotnet:2.0.0-runtime-stretch-arm32v7
WORKDIR /root/
COPY --from=builder /root/src/published .
COPY --from=builder /usr/bin/fwatchdog /
ENV fprocess="dotnet ./root.dll"
EXPOSE 8080
CMD ["/fwatchdog"]

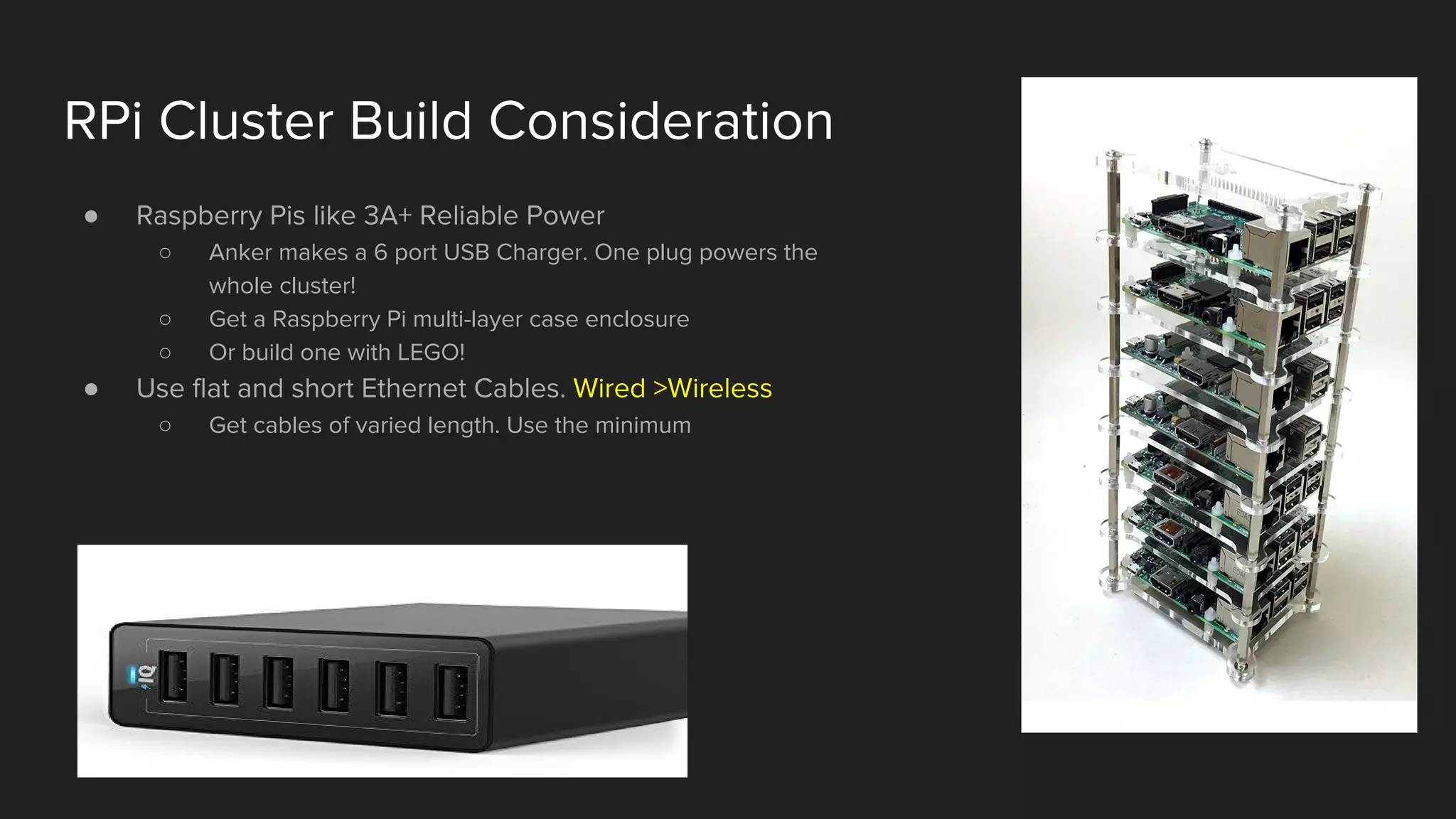

40. RPi Cluster Build Consideration
● Raspberry Pis like 3A+ Reliable Power
○ Anker makes a 6 port USB Charger. One plug powers the
whole cluster!
○ Get a Raspberry Pi multi-layer case enclosure
○ Or build one with LEGO!
● Use flat and short Ethernet Cables. Wired >Wireless
○ Get cables of varied length. Use the minimum

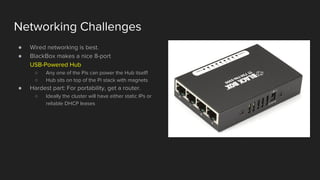

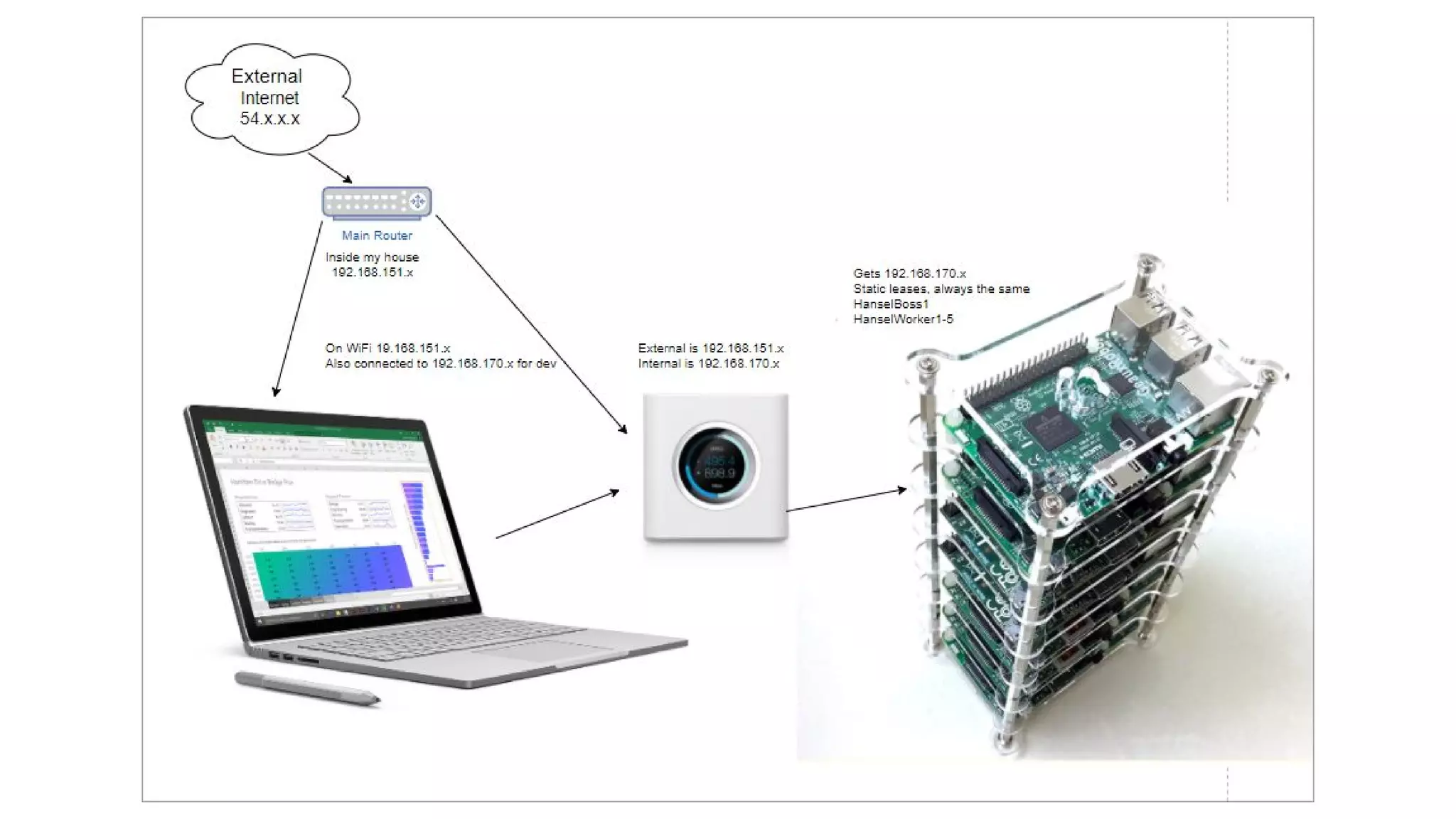

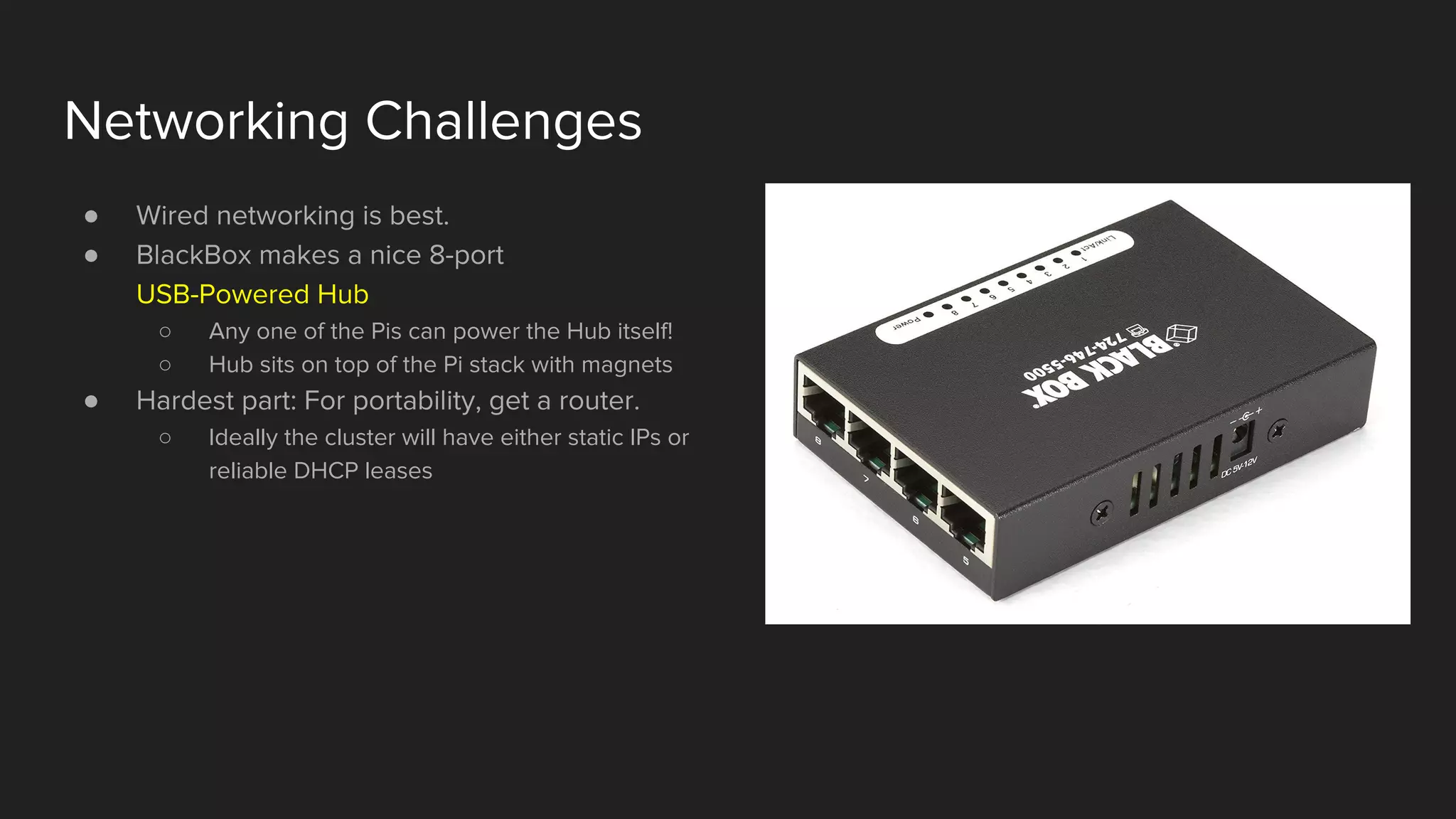

41. Networking Challenges
● Wired networking is best.
● BlackBox makes a nice 8-port
USB-Powered Hub
○ Any one of the Pis can power the Hub itself!
○ Hub sits on top of the Pi stack with magnets
● Hardest part: For portability, get a router.
○ Ideally the cluster will have either static IPs or
reliable DHCP leases

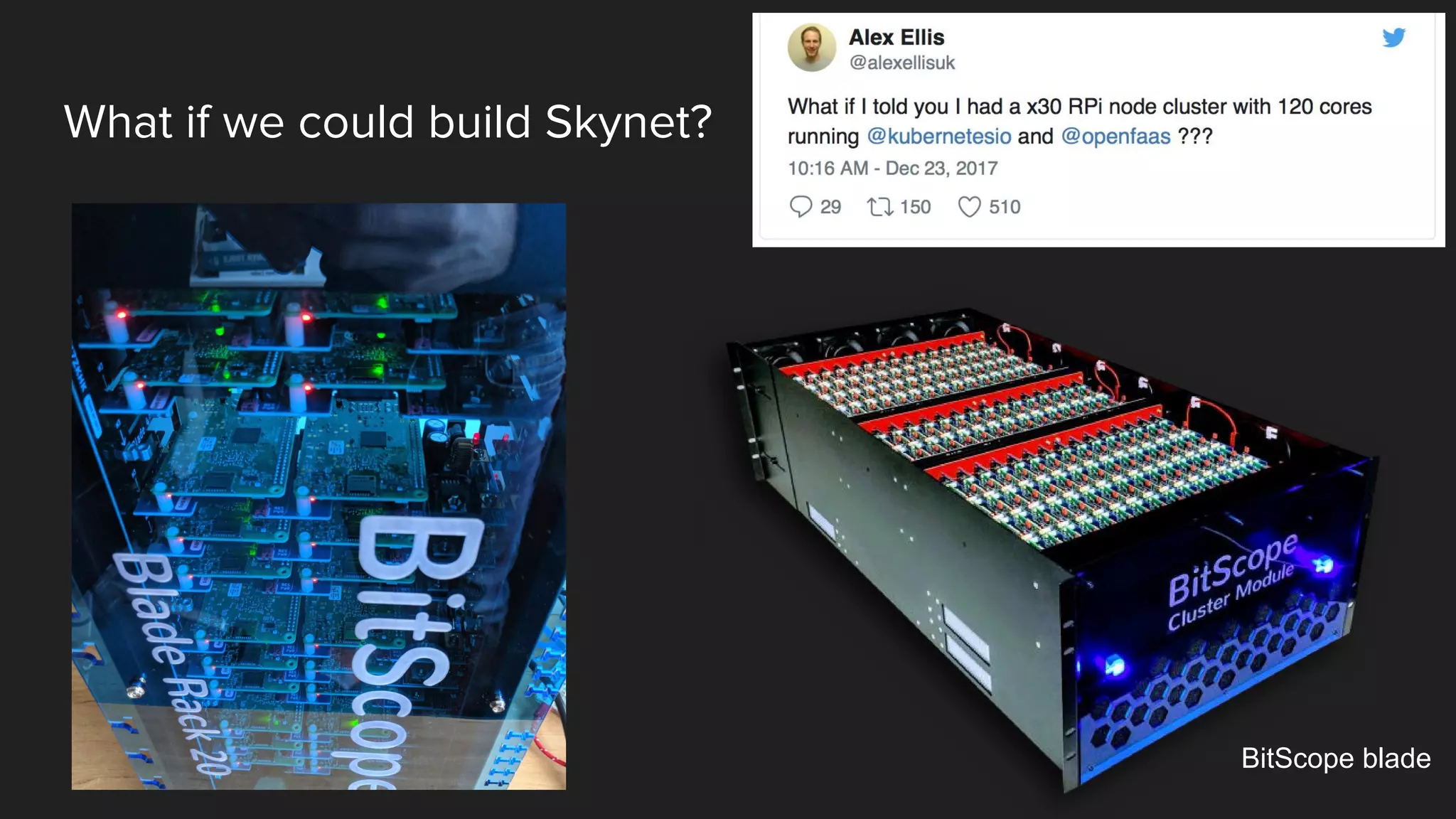

43. BitScope blade
What if we could build Skynet?

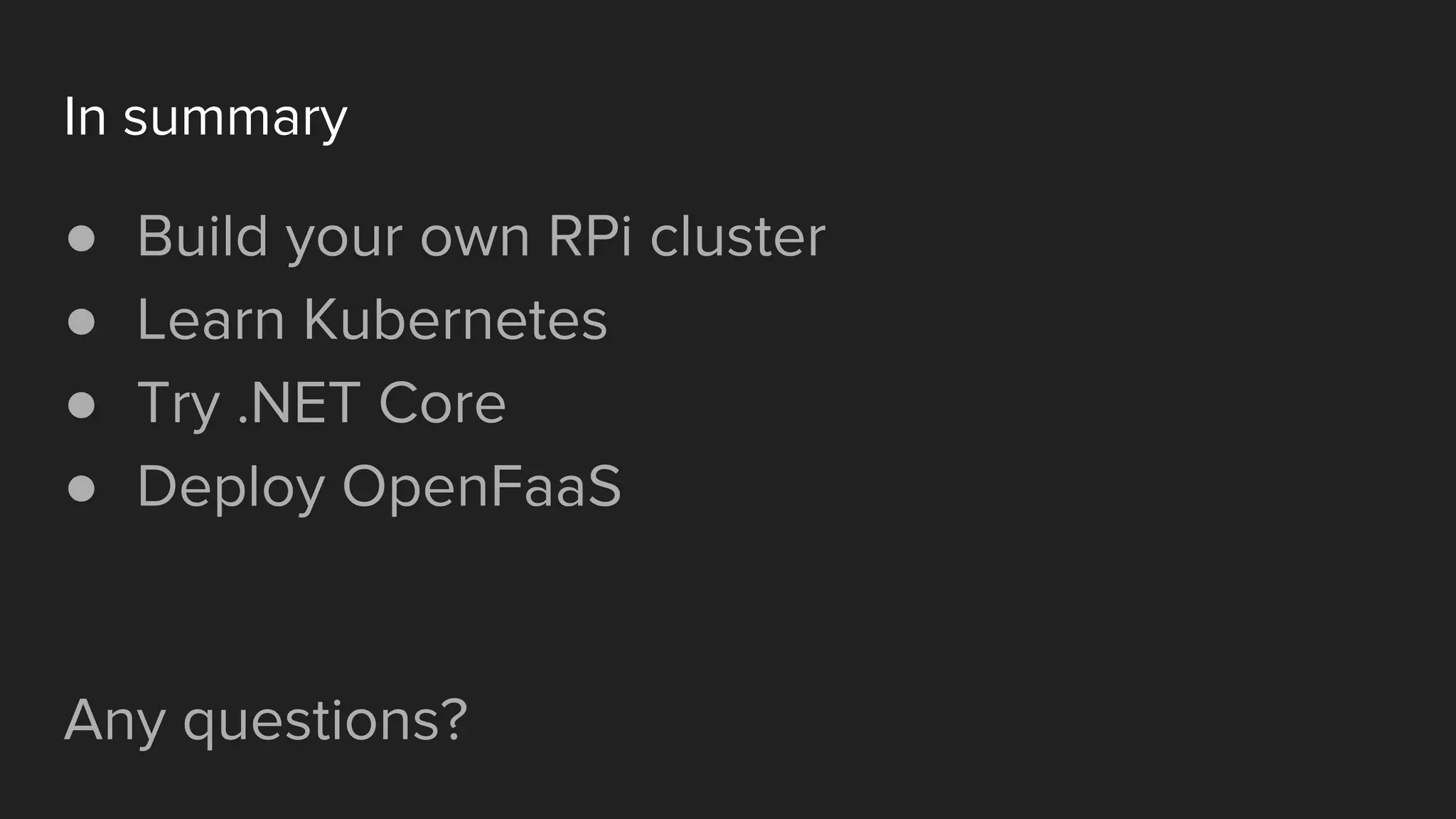

44. In summary
● Build your own RPi cluster
● Learn Kubernetes
● Try .NET Core
● Deploy OpenFaaS
Any questions?

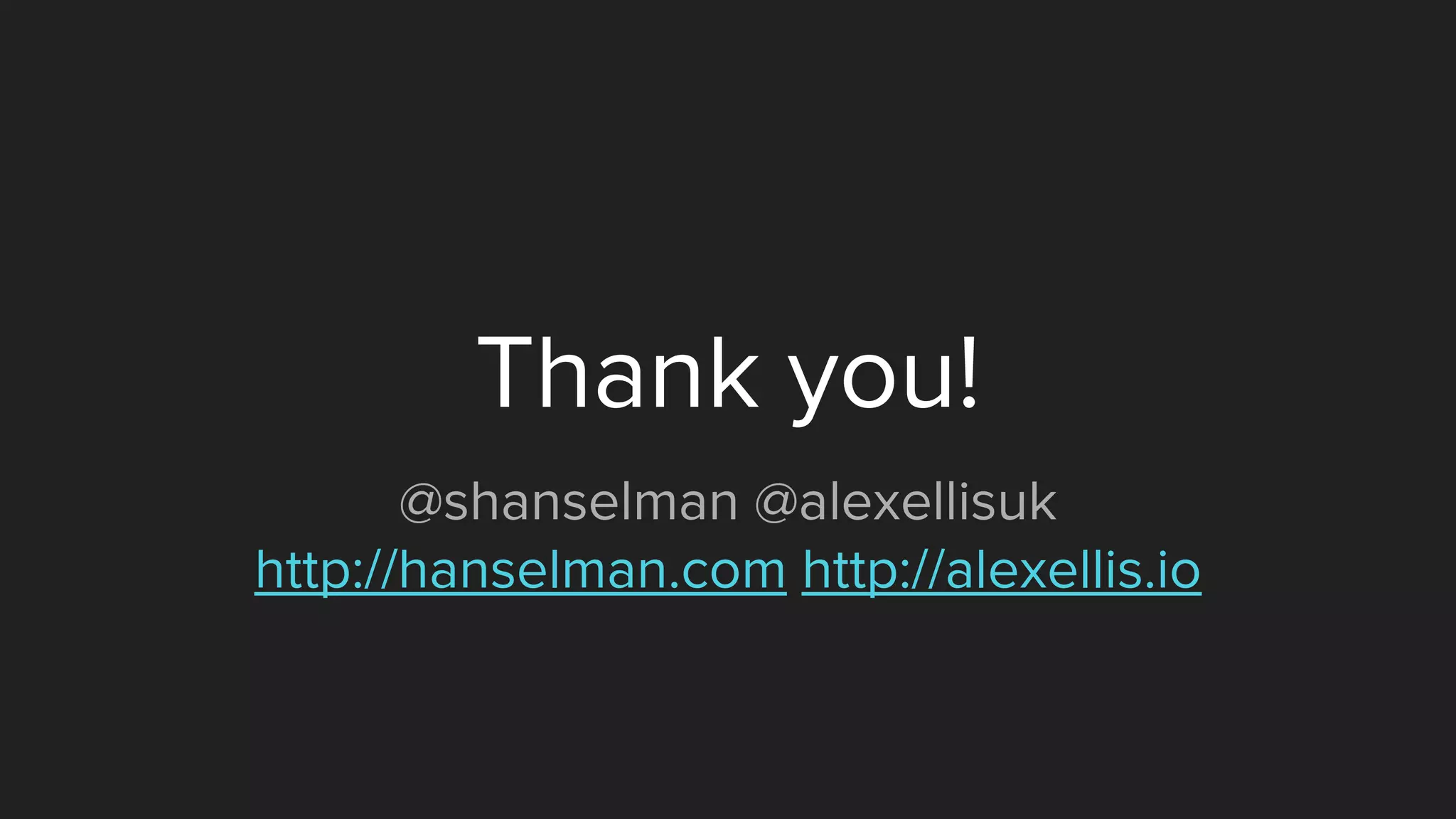

45. Thank you!
@shanselman @alexellisuk
http://hanselman.com http://alexellis.io
