1. GitOps meets Serverless
With Flux and OpenFaaS
Alex Ellis (@alexellisuk)
CNCF Ambassador & Founder @ OpenFaaS Ltd

2. Agenda ⚡
• Serverless 1.0 vs 2.0
• OpenFaaS
• Template store ⌨
• Vs. Kubernetes
• Continuous deployment 🤓
• OpenFaaS Cloud
• Flux
@openfaas / @alexellisuk

3. Serverless & FaaS
• Easy to manage:
• Stateless
• Isomorphic
• Event-driven or REST
• Smaller
• Focus on code

4. Serverless 1.0 (Cloud Functions/FaaS)

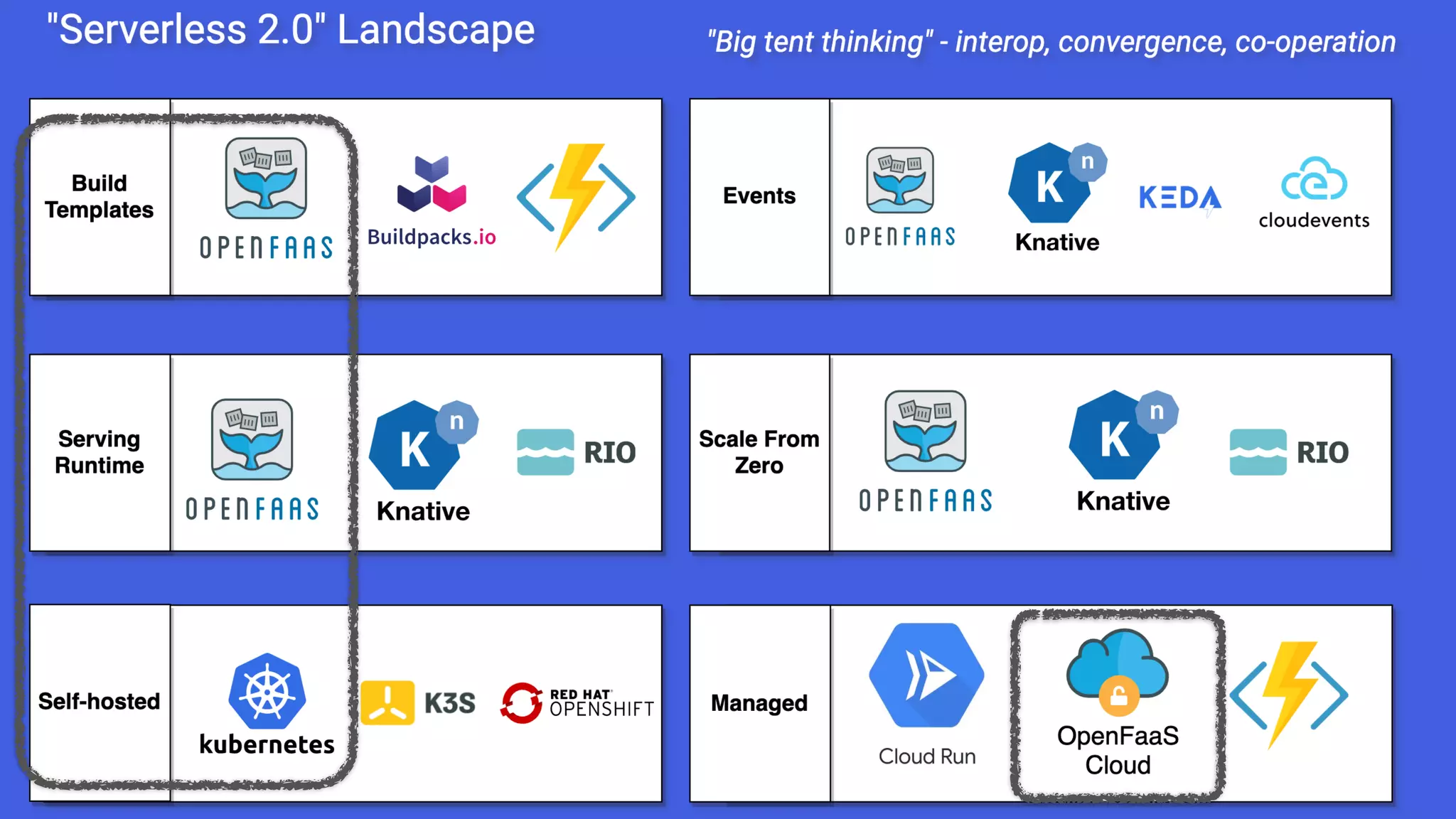

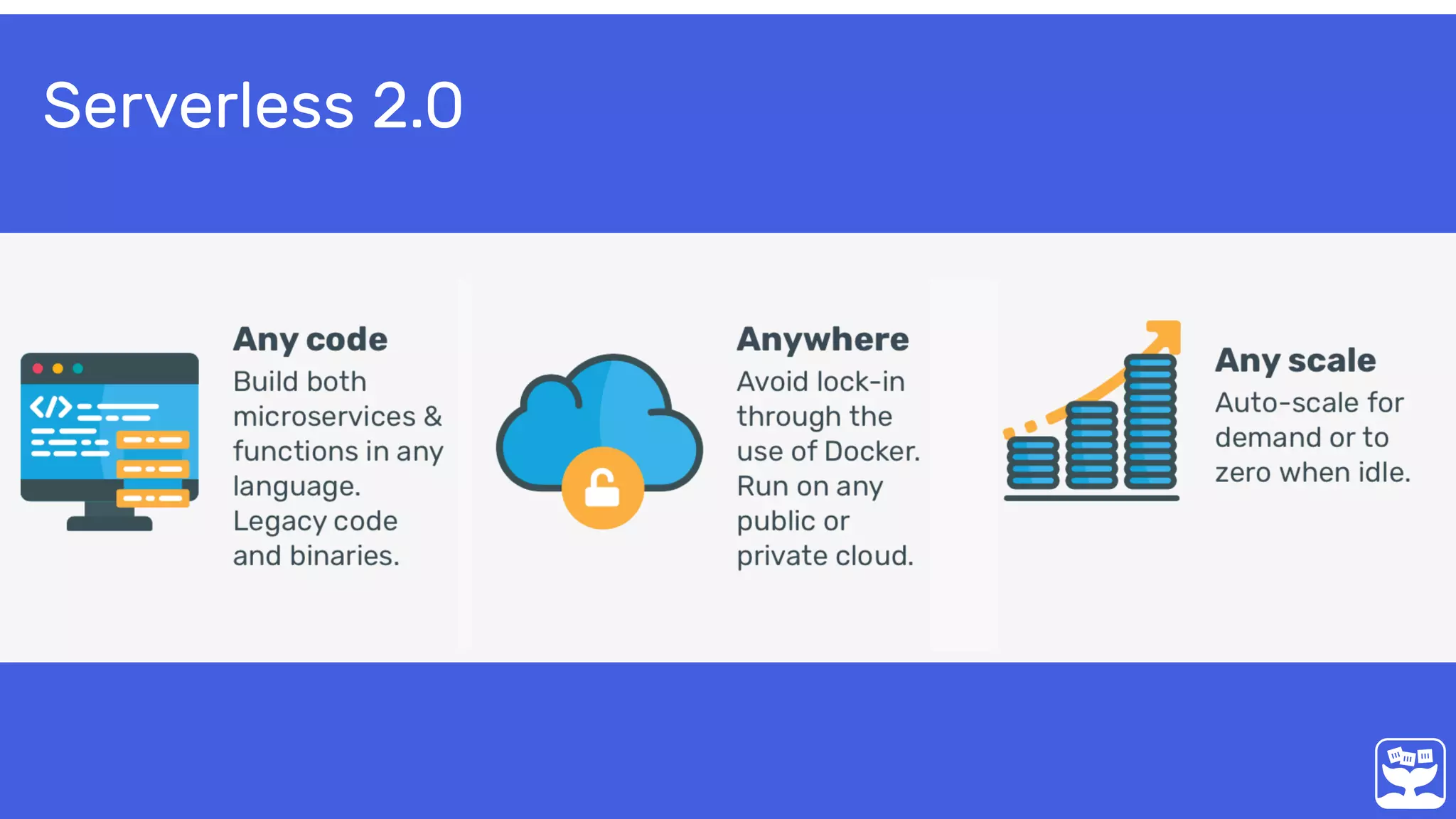

5. Serverless 2.0

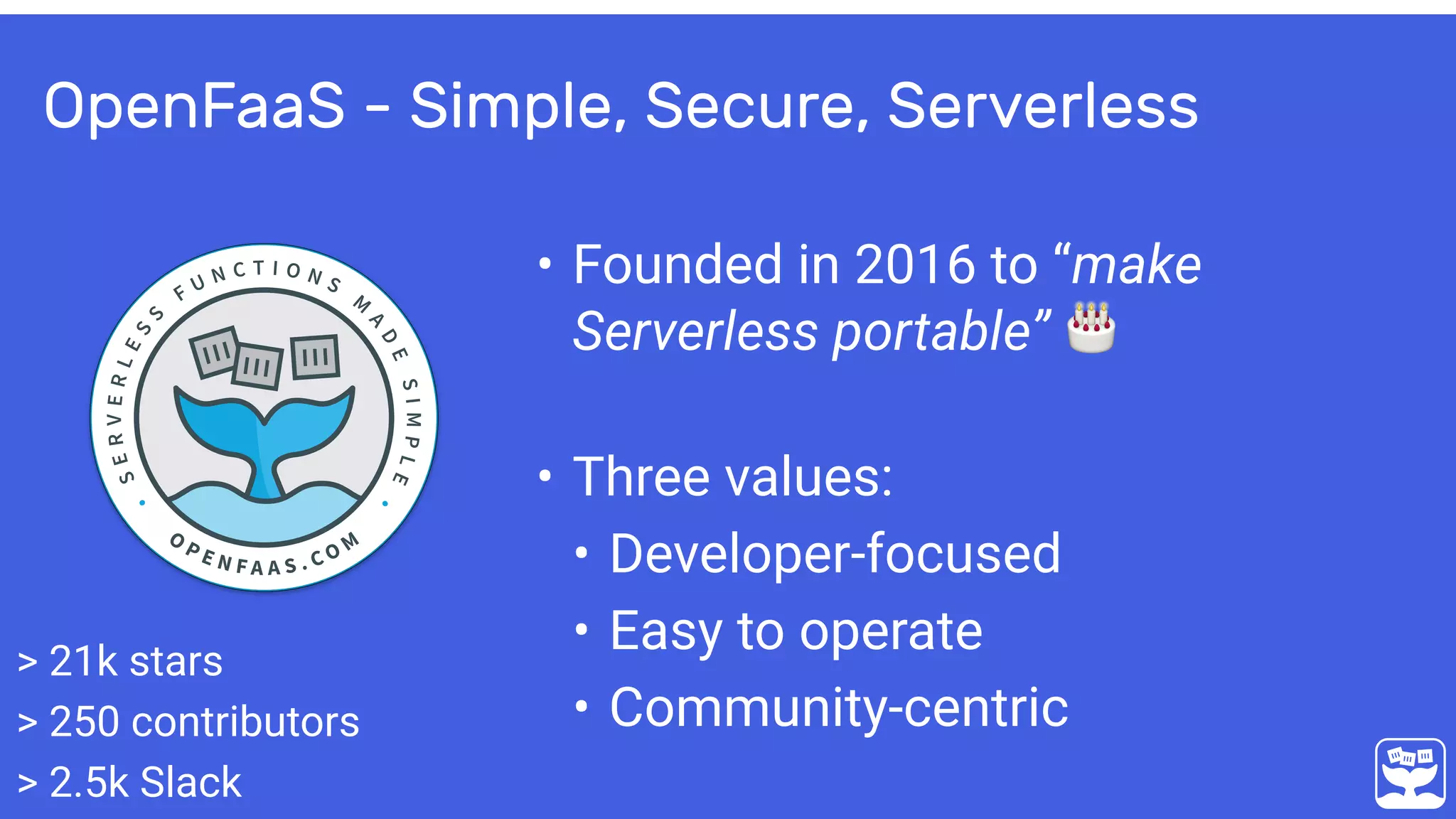

7. OpenFaaS - Simple, Secure, Serverless
• Founded in 2016 to “make
Serverless portable” 🎂
• Three values:
• Developer-focused
• Easy to operate
• Community-centric
> 21k stars
> 250 contributors
> 2.5k Slack

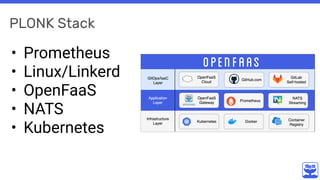

8. PLONK Stack
• Prometheus
• Linux/Linkerd
• OpenFaaS
• NATS
• Kubernetes

9. 🤓
“But, I have a CKA/D, so why should I care?”

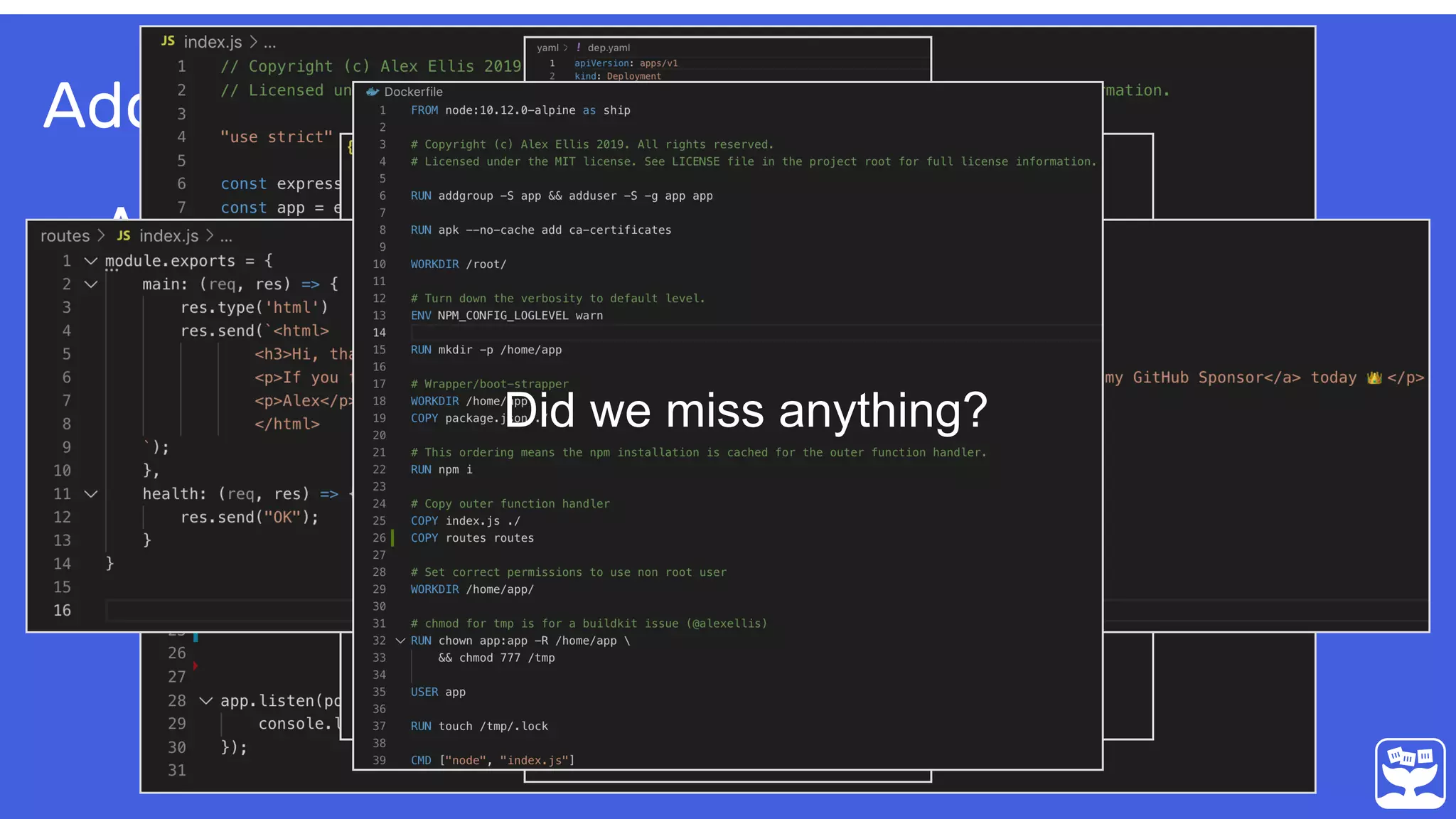

10. • A Node.js microservice for
Kubernetes
Adding a new service (the hard way)
Did we miss anything?

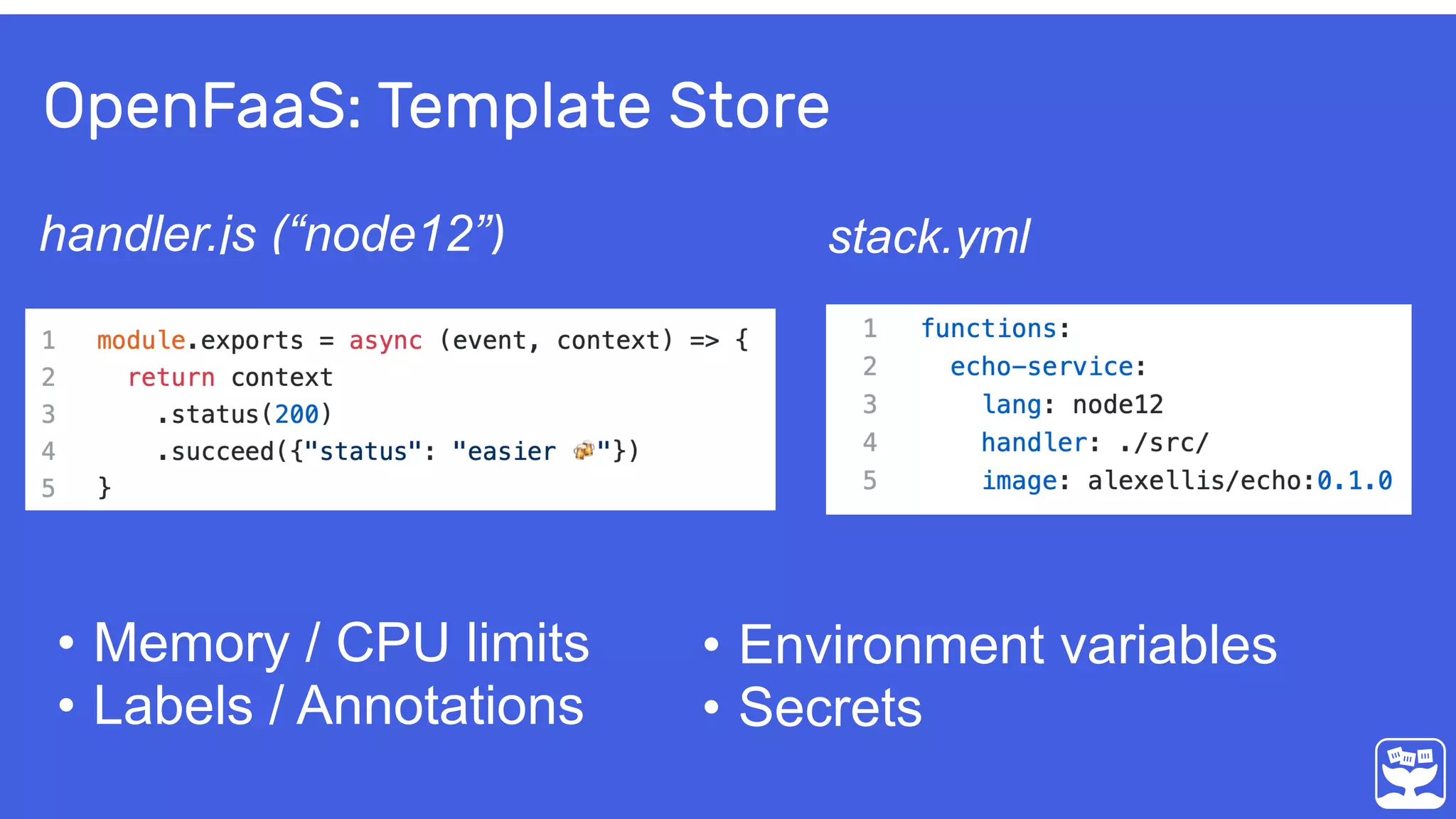

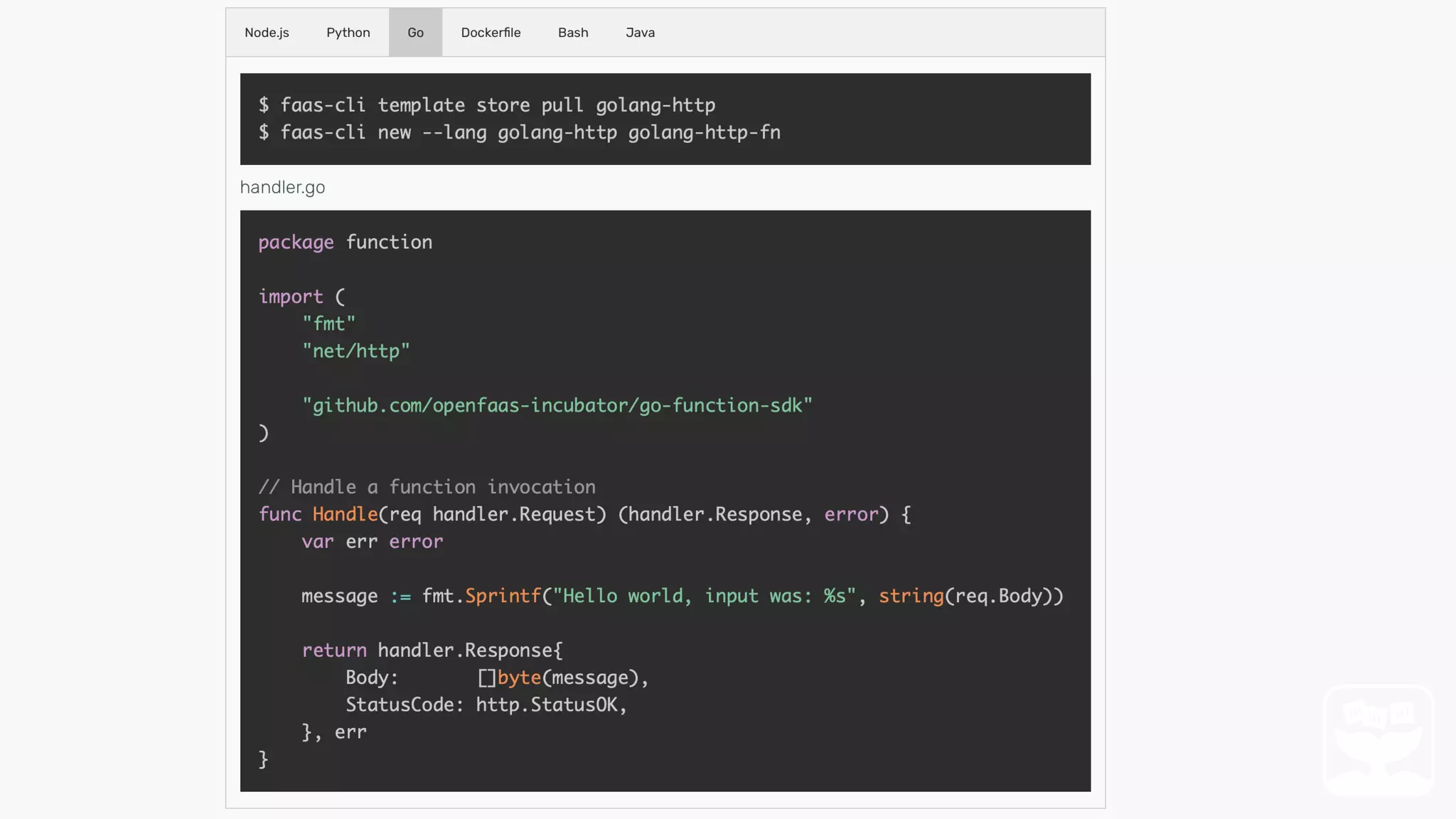

11. OpenFaaS: Template Store
handler.js (“node12”) stack.yml
• Memory / CPU limits
• Labels / Annotations
• Environment variables
• Secrets

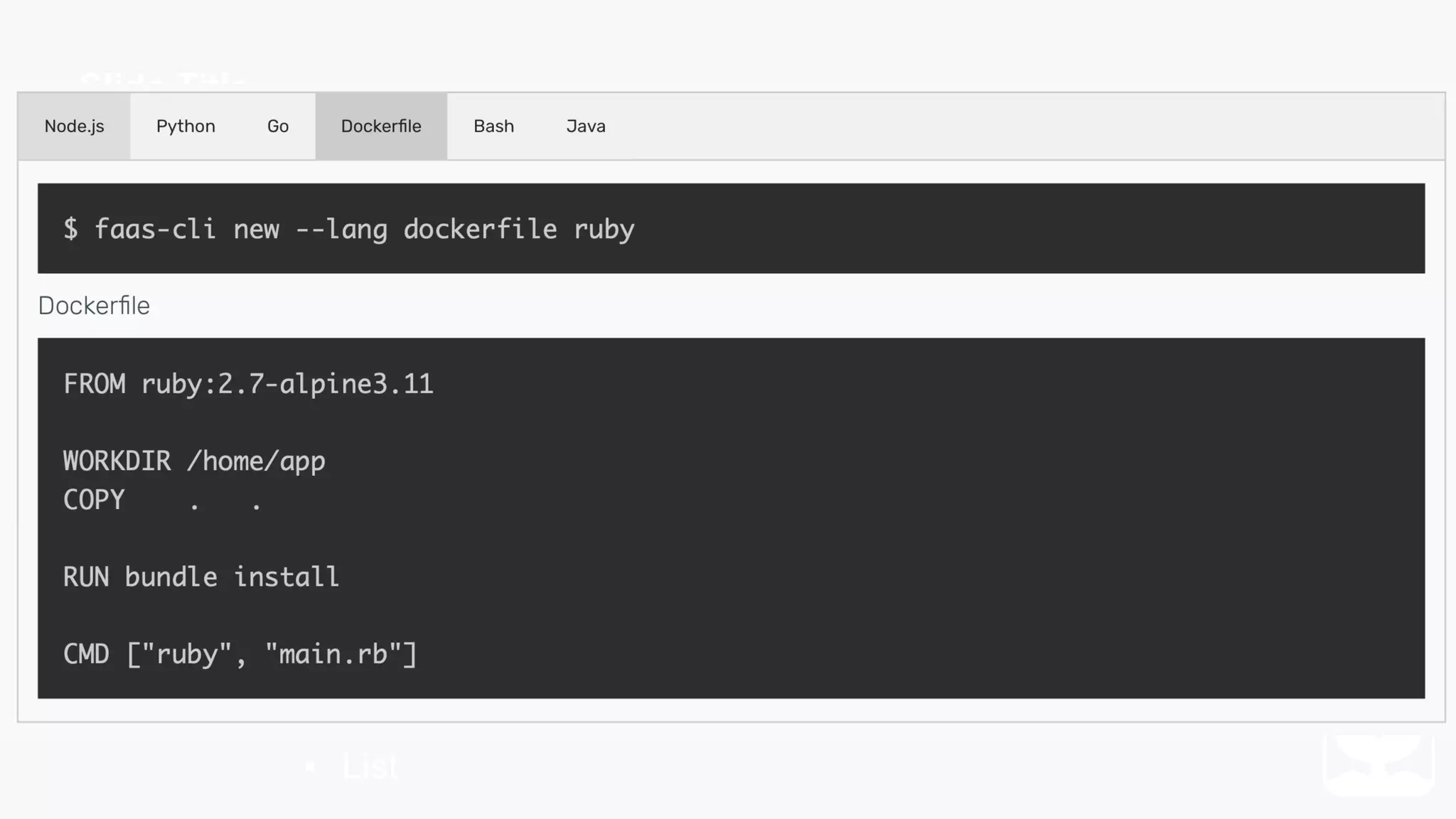

13. Slide Title
SUBTITLE
• List
• List
• List
• List
◦ List
◦ List
▪ List
▪ List
▪ List
▪ List

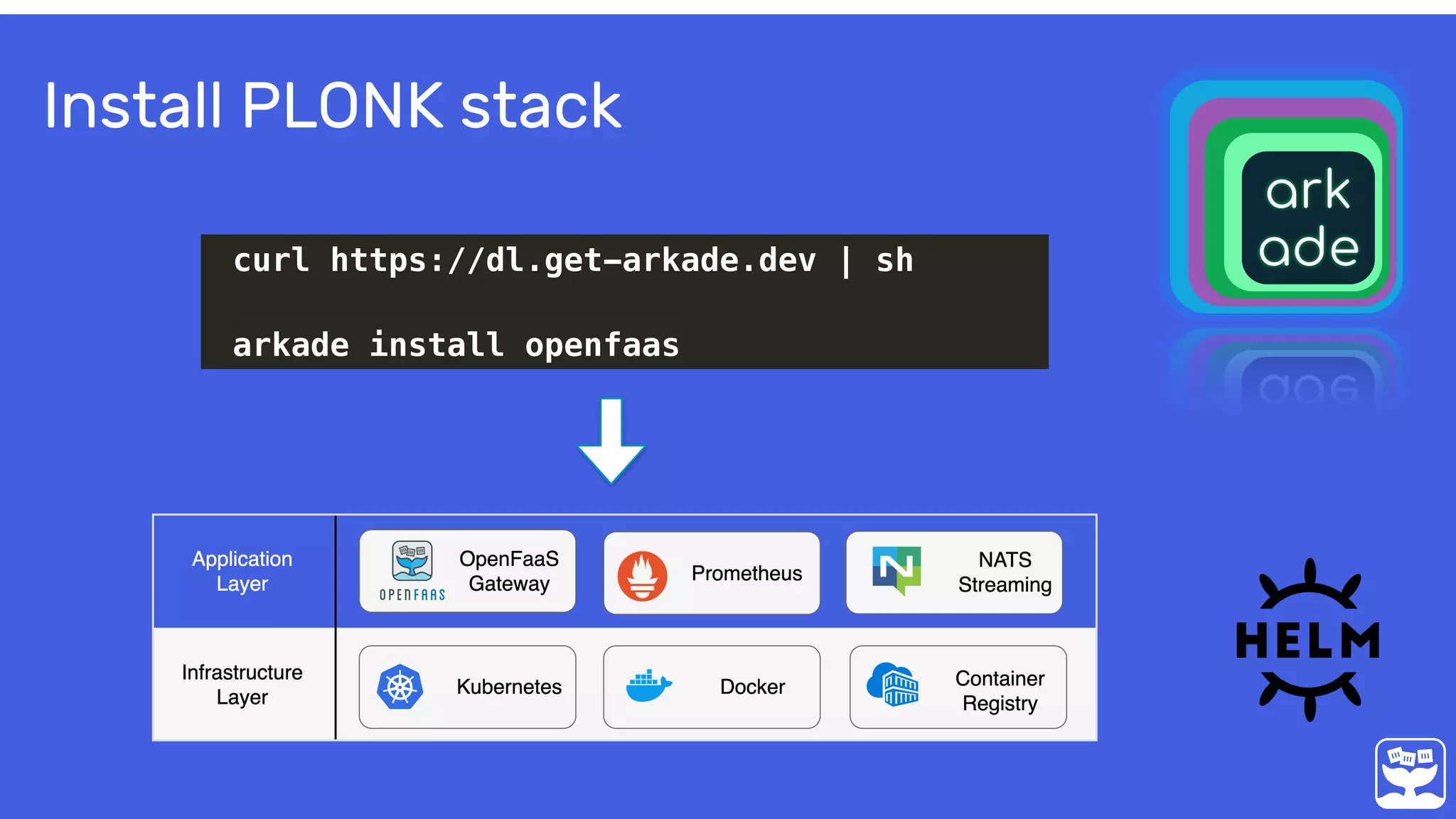

14. Install PLONK stack
curl https://dl.get-arkade.dev | sh
arkade install openfaas
ark
ade

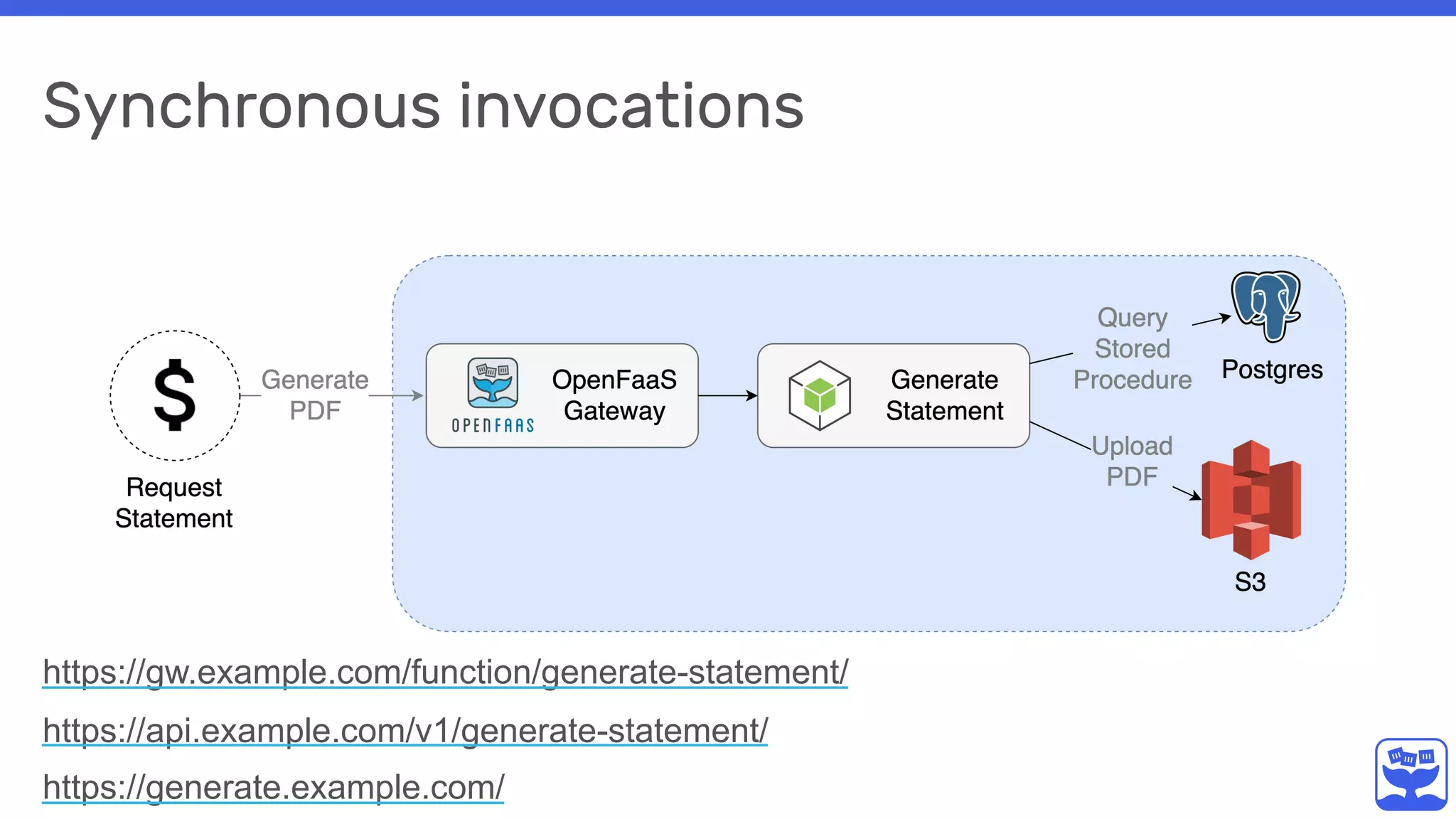

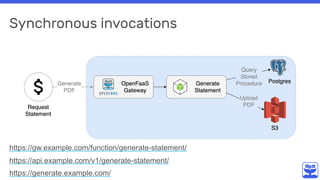

15. Synchronous invocations
https://gw.example.com/function/generate-statement/
https://api.example.com/v1/generate-statement/
https://generate.example.com/

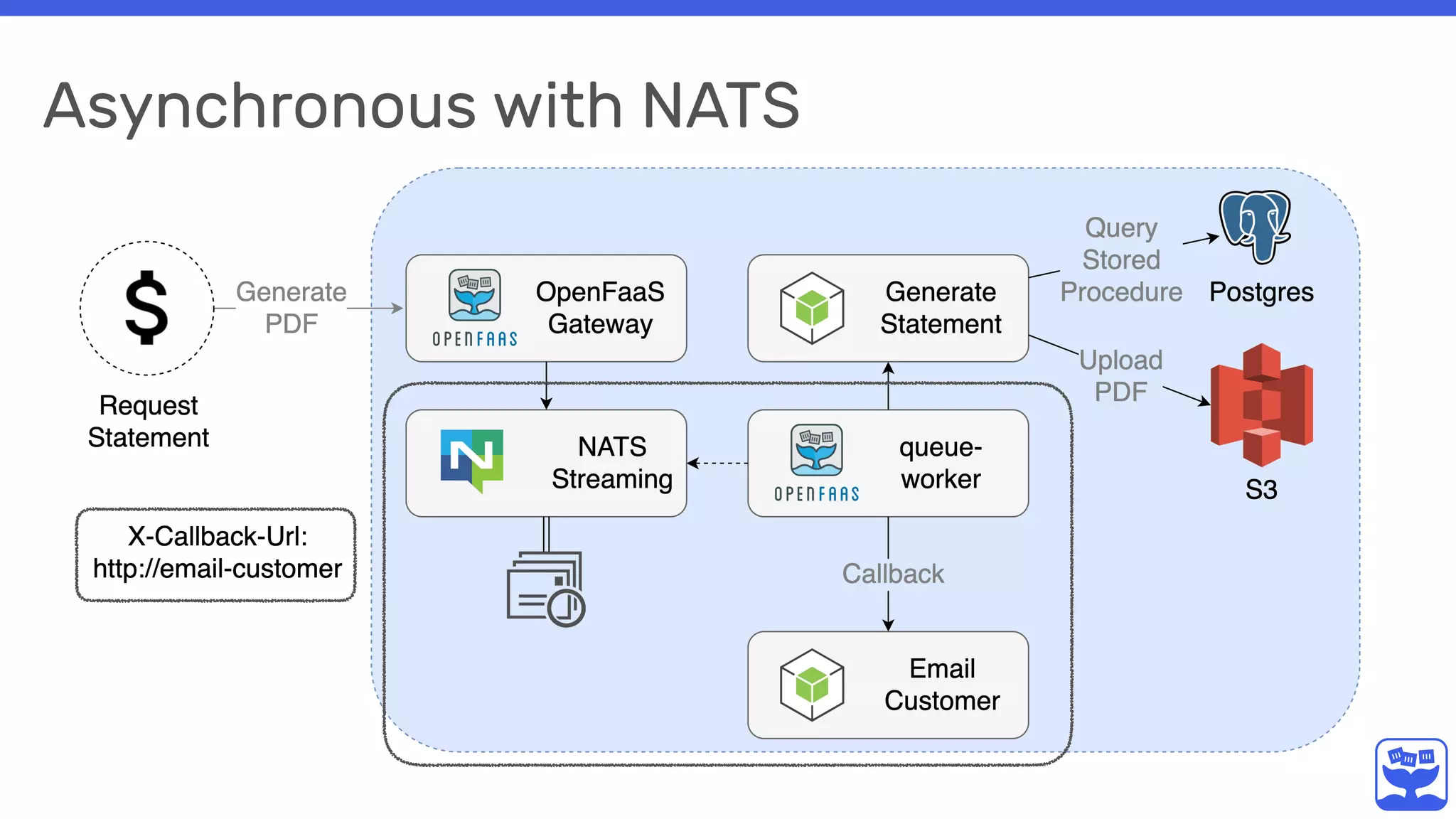

16. Asynchronous with NATS

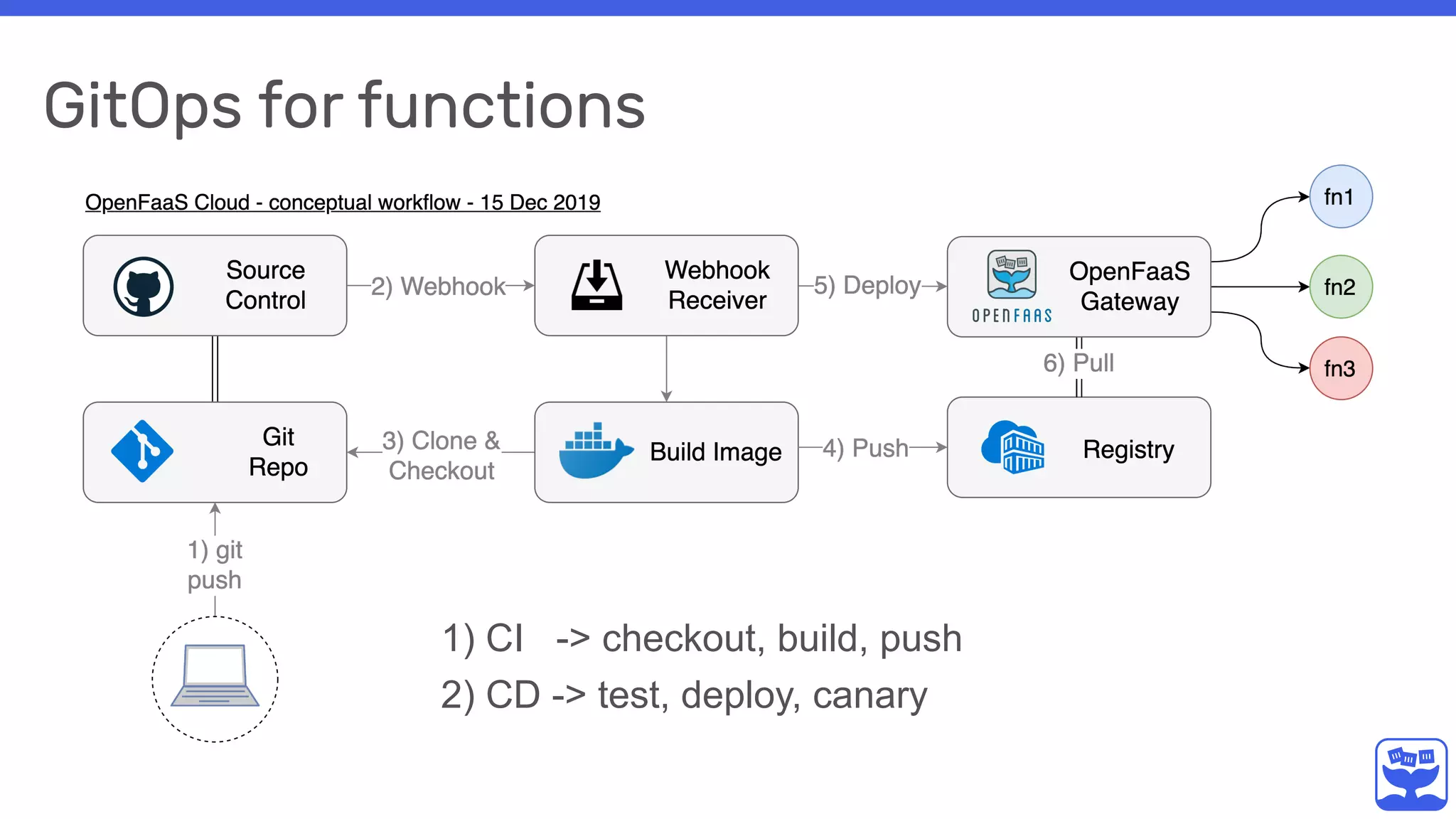

17. GitOps for functions
1) CI -> checkout, build, push
2) CD -> test, deploy, canary

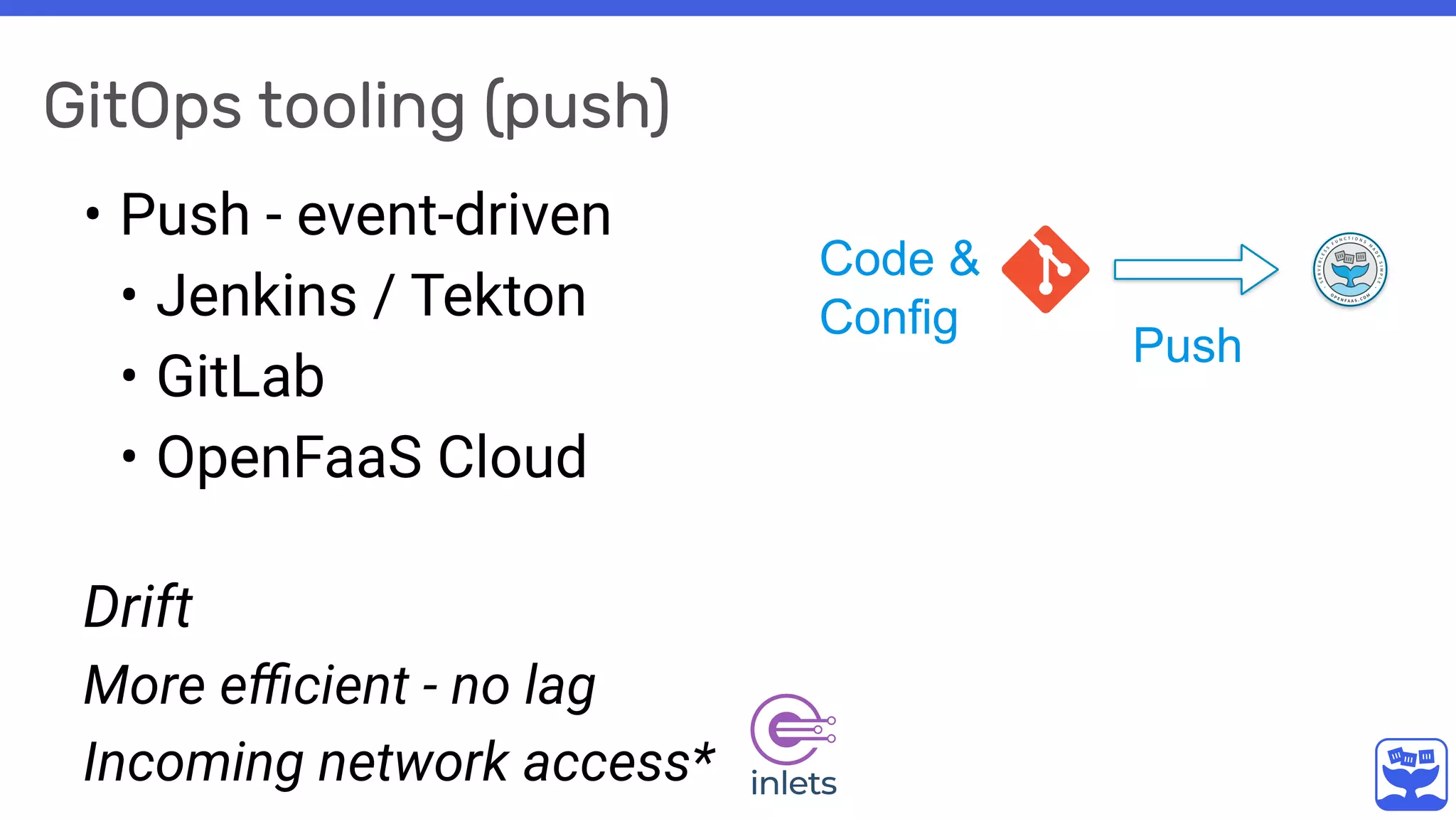

18. GitOps tooling (push)
• Push - event-driven
• Jenkins / Tekton
• GitLab
• OpenFaaS Cloud
Drift
More efficient - no lag
Incoming network access*
Push
Code &
Config

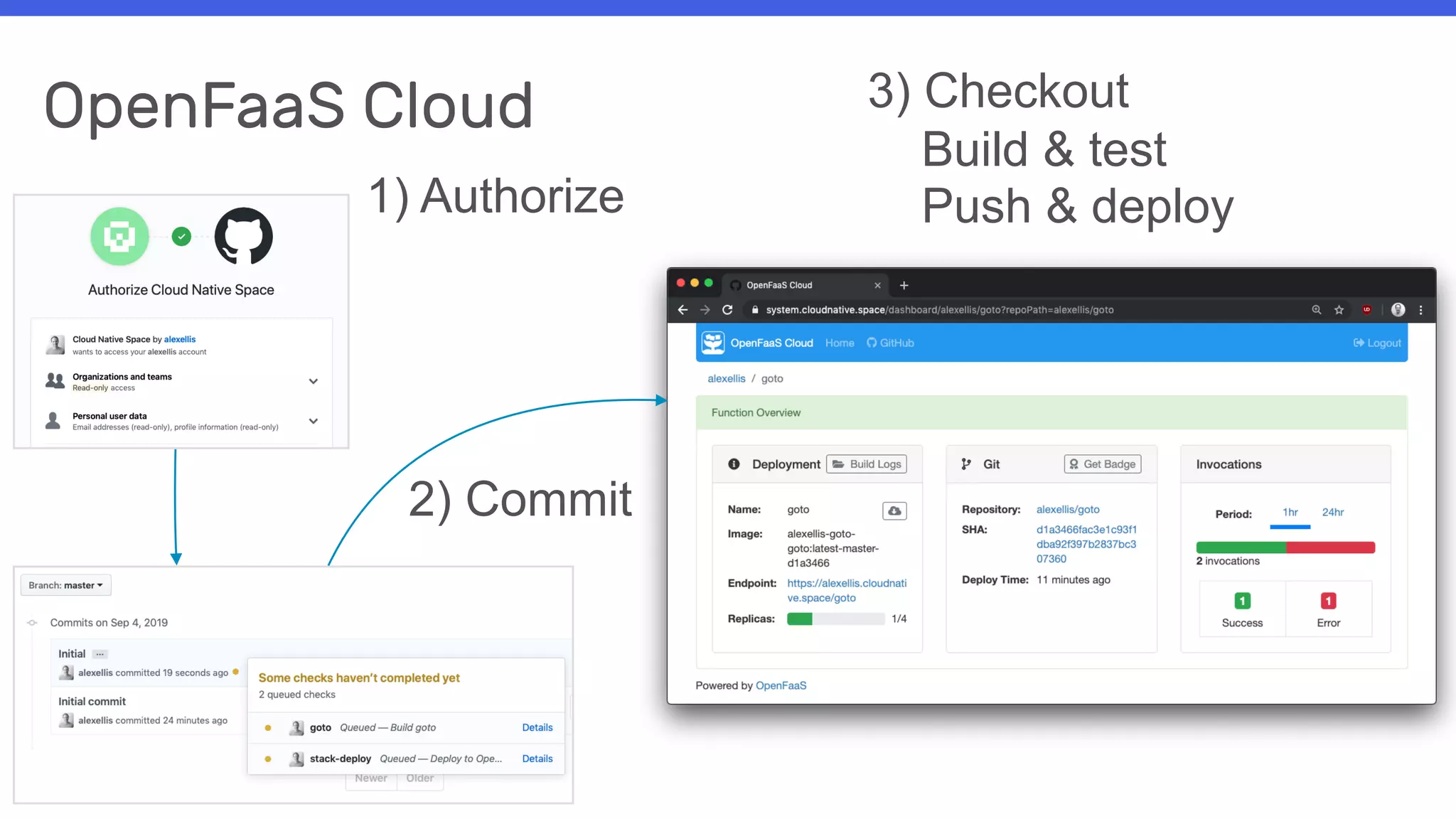

19. OpenFaaS Cloud 3) Checkout
Build & test
Push & deploy1) Authorize
2) Commit

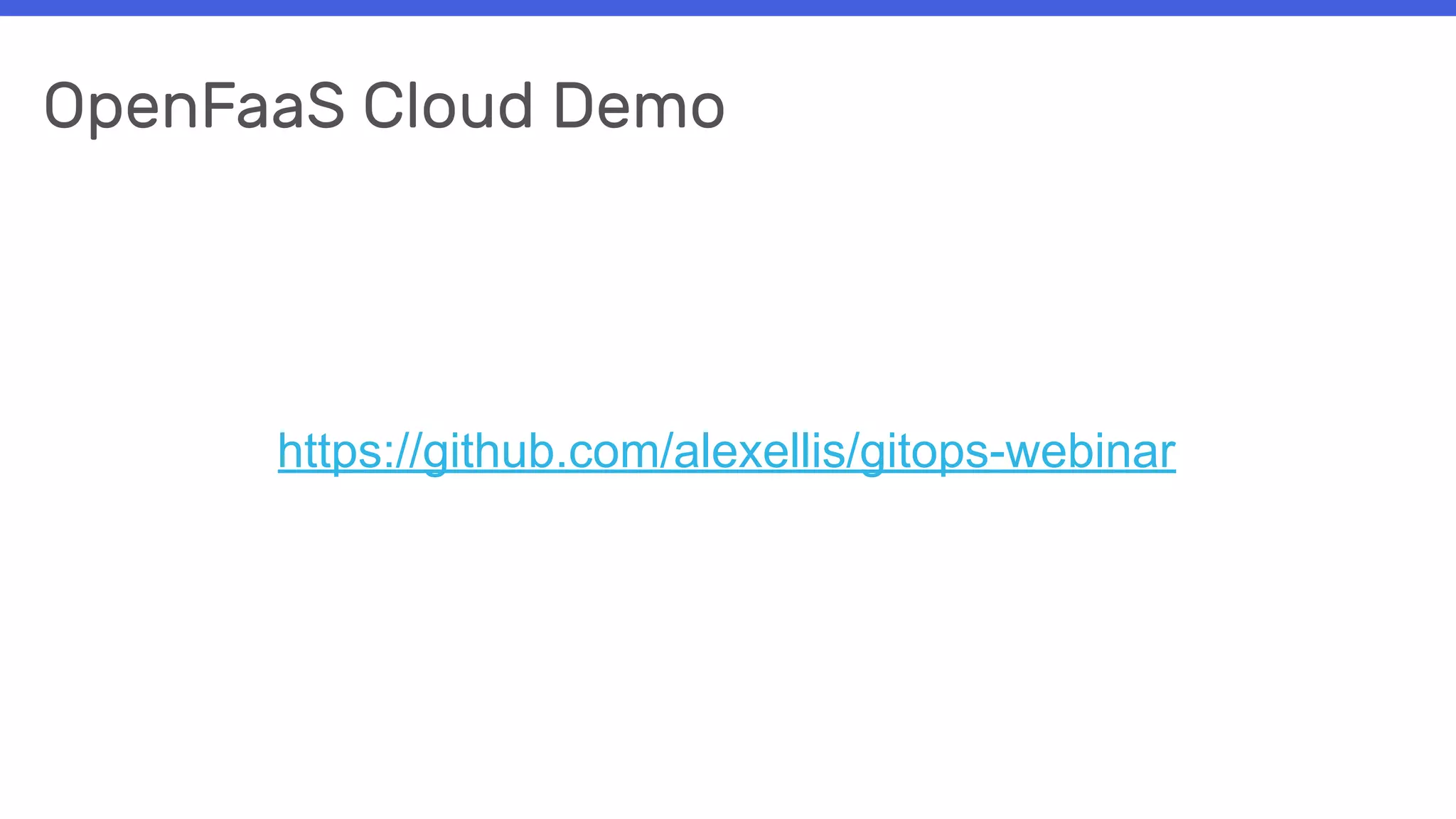

20. OpenFaaS Cloud Demo
https://github.com/alexellis/gitops-webinar

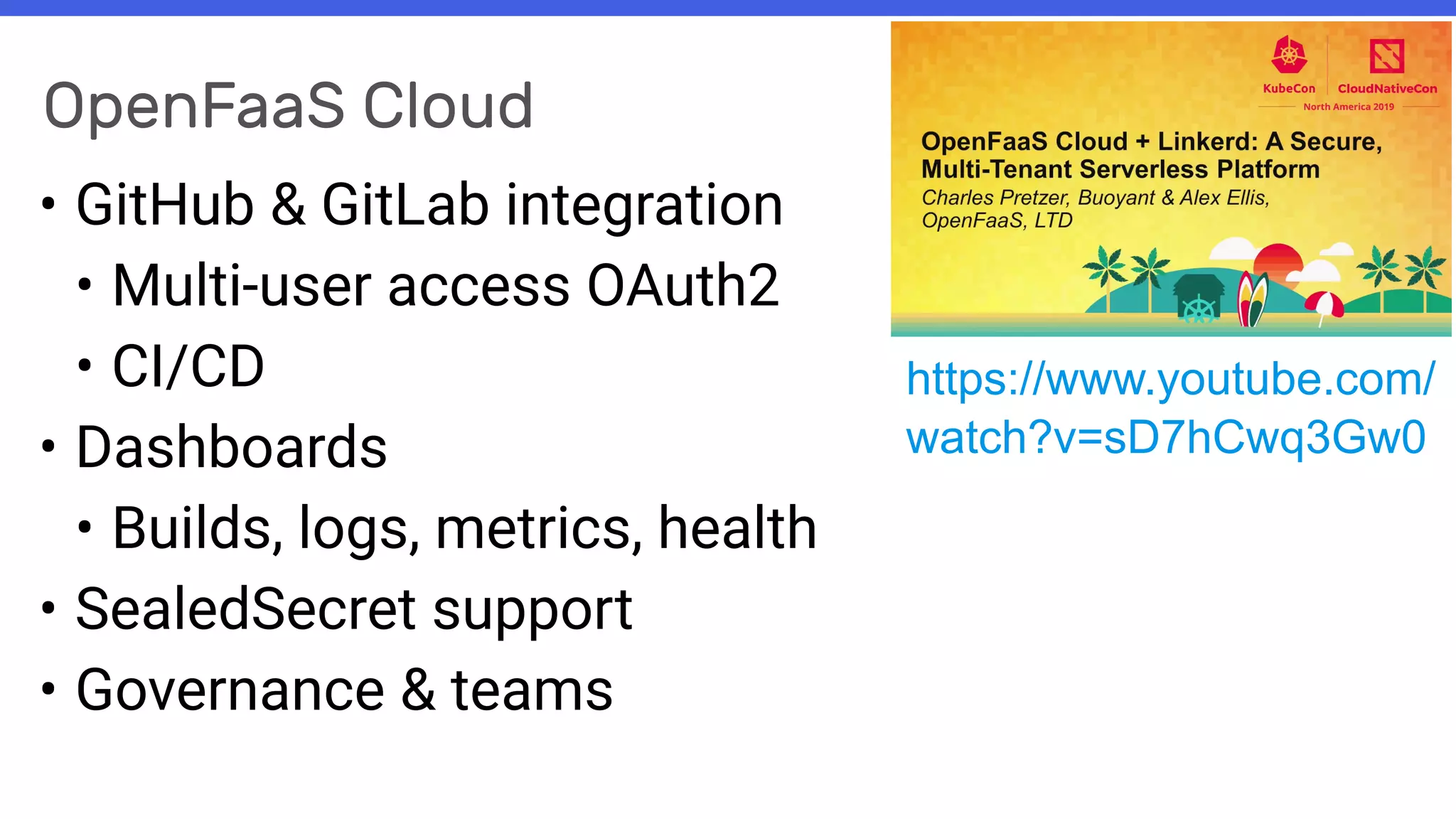

21. OpenFaaS Cloud
• GitHub & GitLab integration
• Multi-user access OAuth2
• CI/CD
• Dashboards
• Builds, logs, metrics, health
• SealedSecret support
• Governance & teams
https://www.youtube.com/
watch?v=sD7hCwq3Gw0

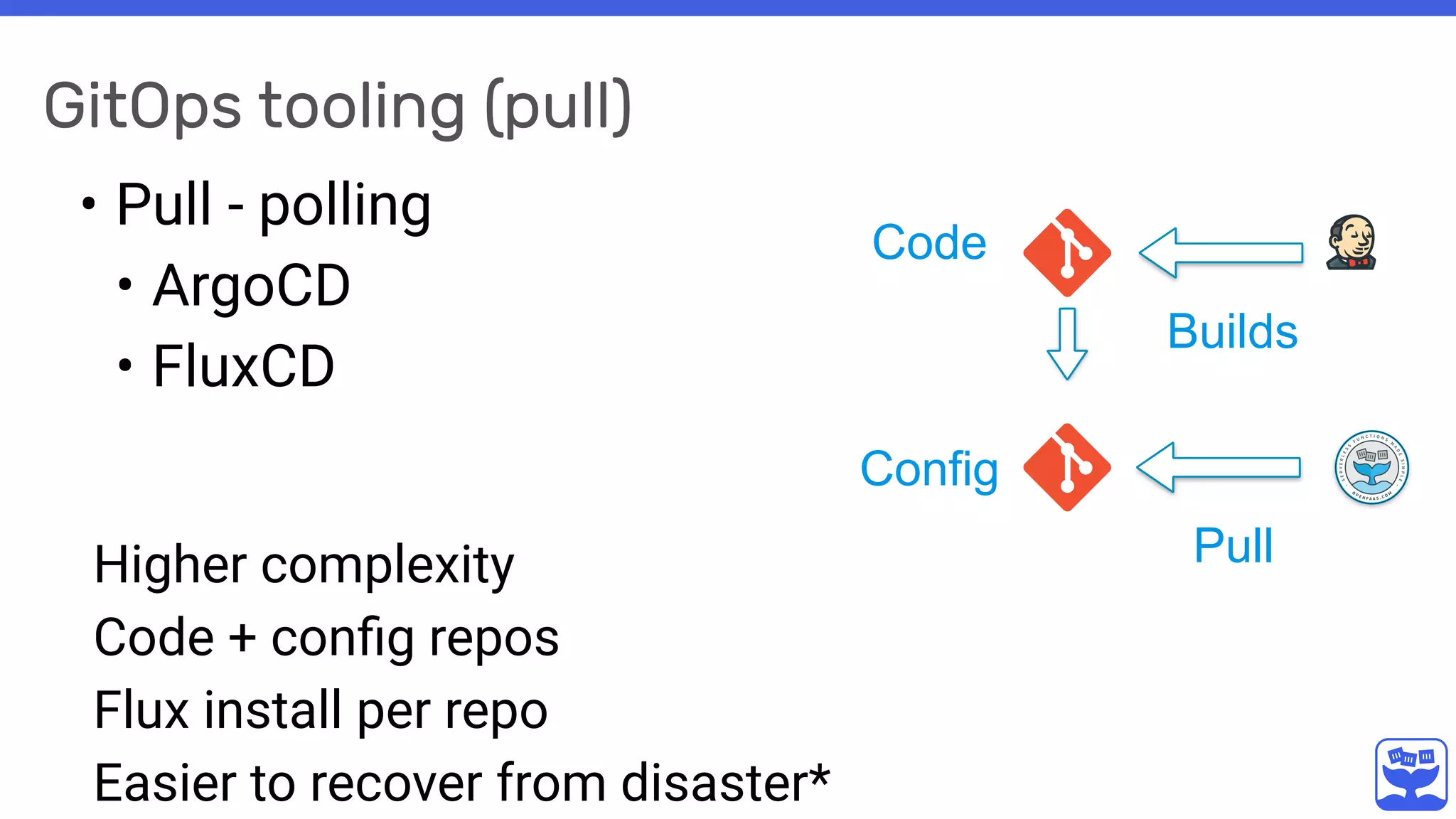

22. GitOps tooling (pull)
• Pull - polling
• ArgoCD
• FluxCD
Pull
Code
Config
Builds
Higher complexity
Code + config repos
Flux install per repo
Easier to recover from disaster*

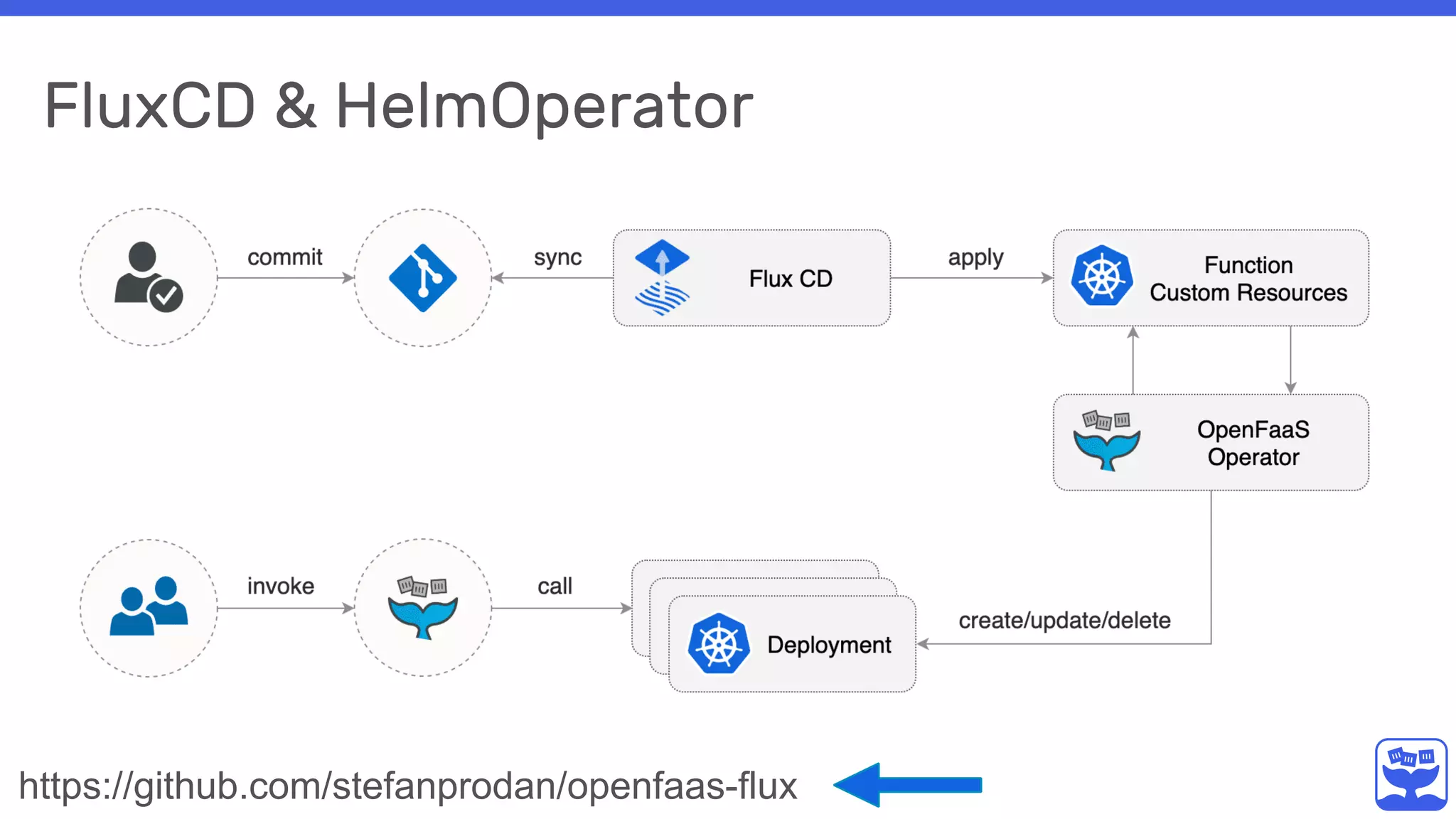

23. FluxCD & HelmOperator
https://github.com/stefanprodan/openfaas-flux

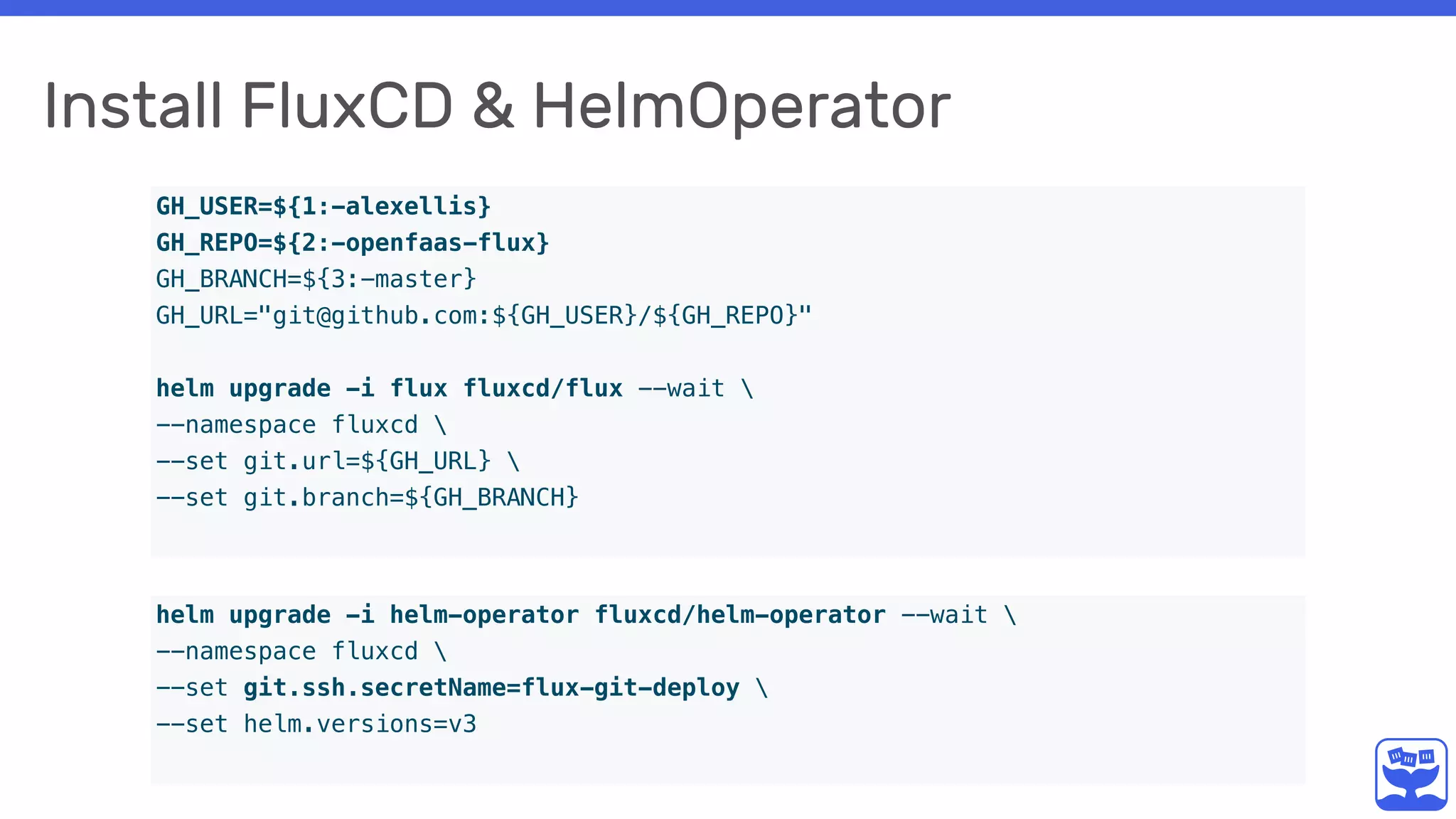

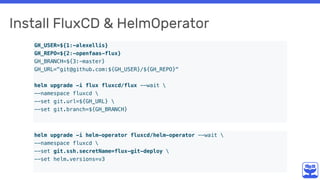

24. Install FluxCD & HelmOperator
GH_USER=${1:-alexellis}
GH_REPO=${2:-openfaas-flux}
GH_BRANCH=${3:-master}
GH_URL="git@github.com:${GH_USER}/${GH_REPO}"
helm upgrade -i flux fluxcd/flux --wait
--namespace fluxcd
--set git.url=${GH_URL}
--set git.branch=${GH_BRANCH}
helm upgrade -i helm-operator fluxcd/helm-operator --wait
--namespace fluxcd
--set git.ssh.secretName=flux-git-deploy
--set helm.versions=v3

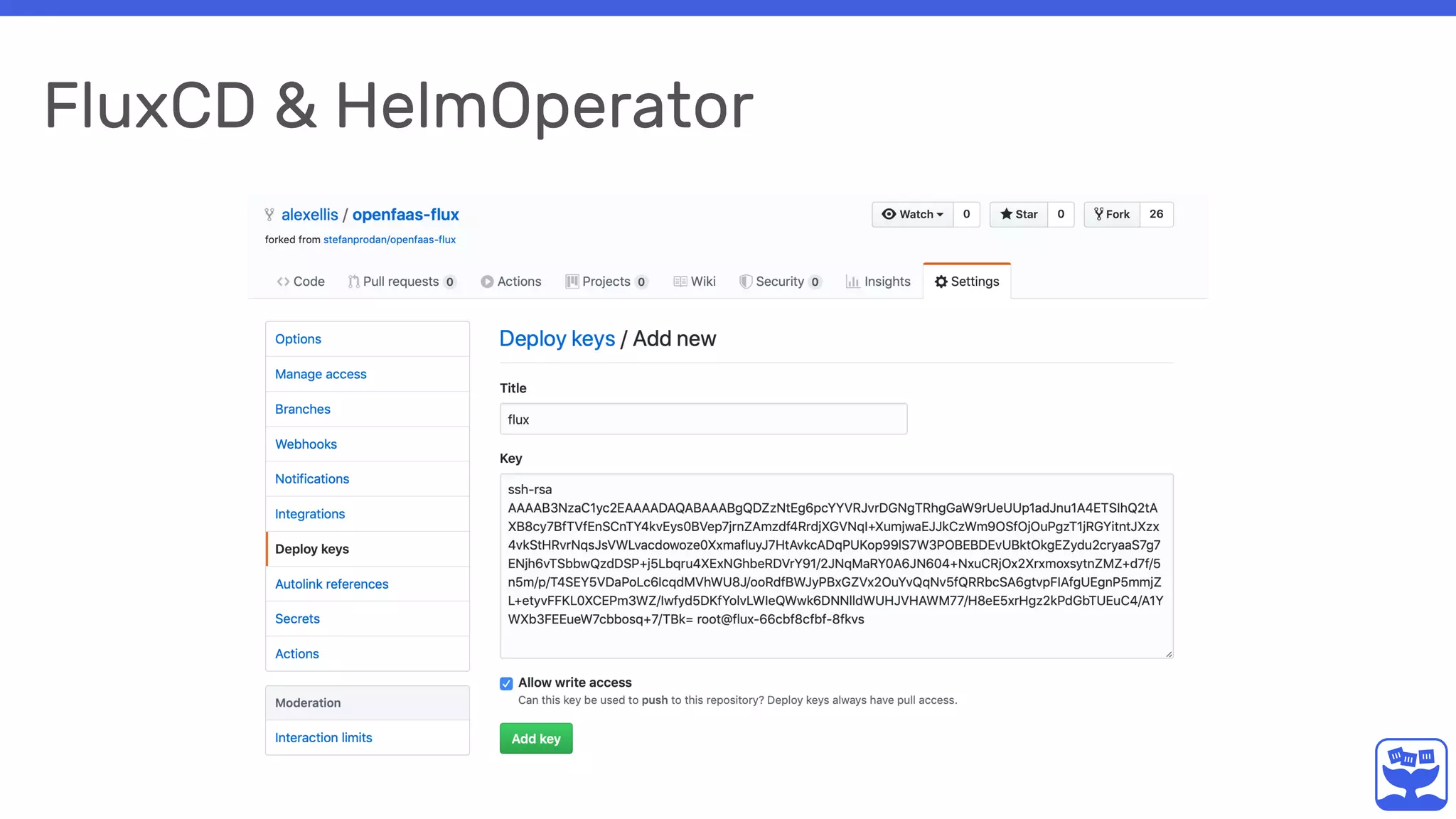

25. FluxCD & HelmOperator

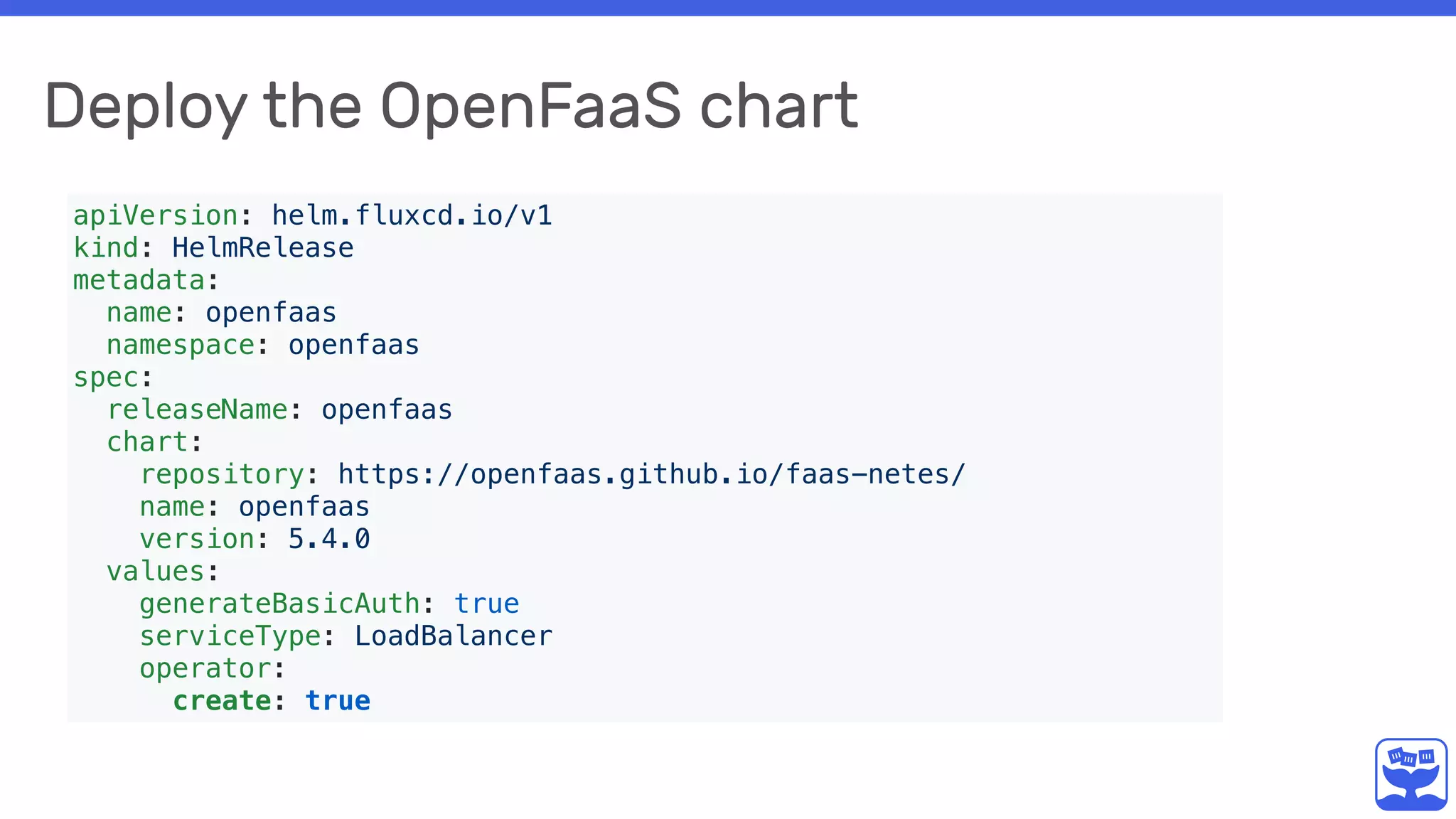

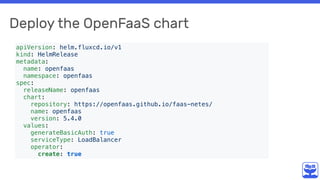

26. Deploy the OpenFaaS chart
apiVersion: helm.fluxcd.io/v1
kind: HelmRelease
metadata:
name: openfaas
namespace: openfaas
spec:
releaseName: openfaas
chart:
repository: https://openfaas.github.io/faas-netes/
name: openfaas
version: 5.4.0
values:
generateBasicAuth: true
serviceType: LoadBalancer
operator:
create: true

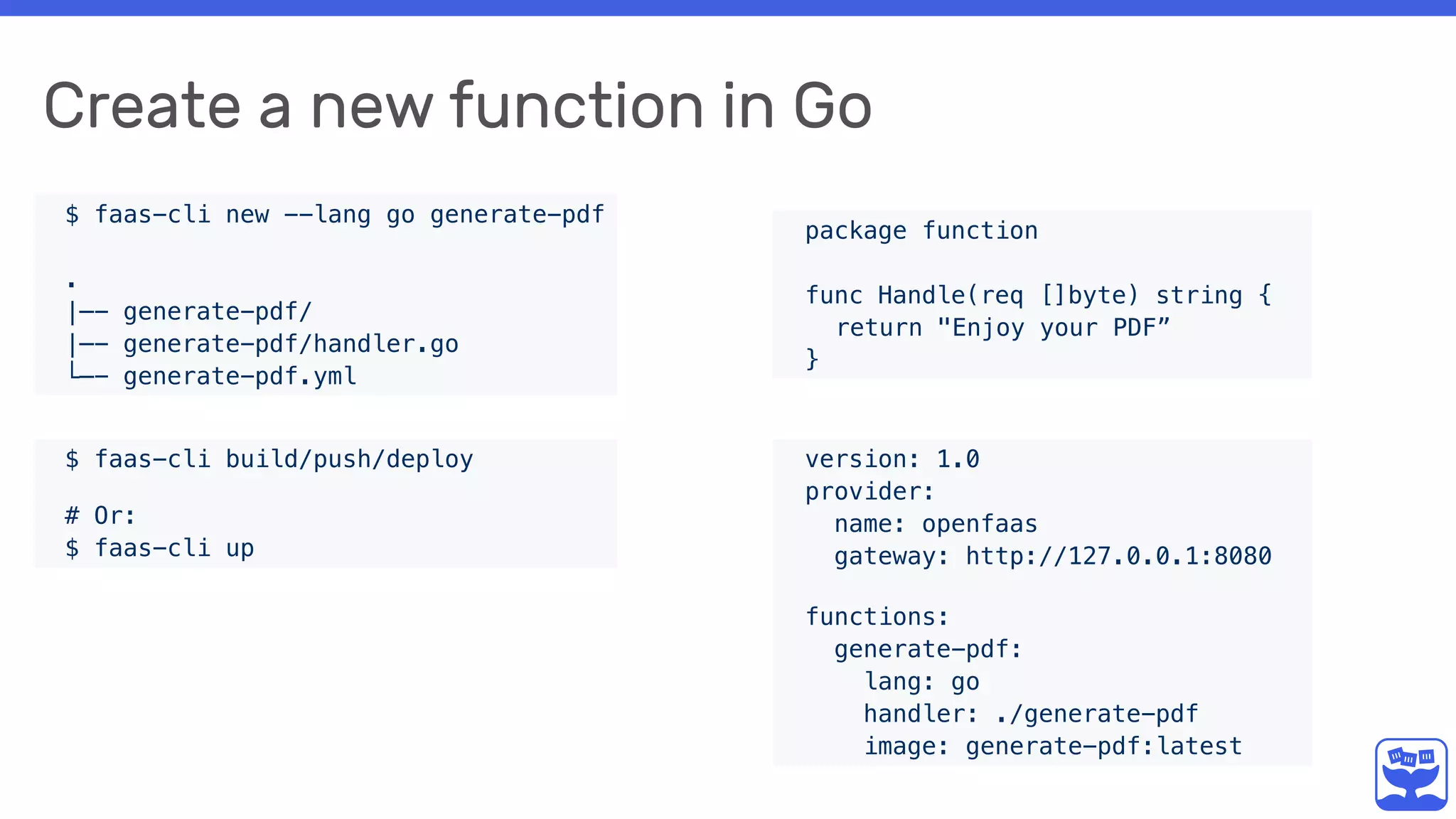

27. Create a new function in Go
$ faas-cli new --lang go generate-pdf
.
|—- generate-pdf/
|—- generate-pdf/handler.go
└—- generate-pdf.yml
package function
func Handle(req []byte) string {
return "Enjoy your PDF”
}
version: 1.0
provider:
name: openfaas
gateway: http://127.0.0.1:8080
functions:
generate-pdf:
lang: go
handler: ./generate-pdf
image: generate-pdf:latest
$ faas-cli build/push/deploy
# Or:
$ faas-cli up

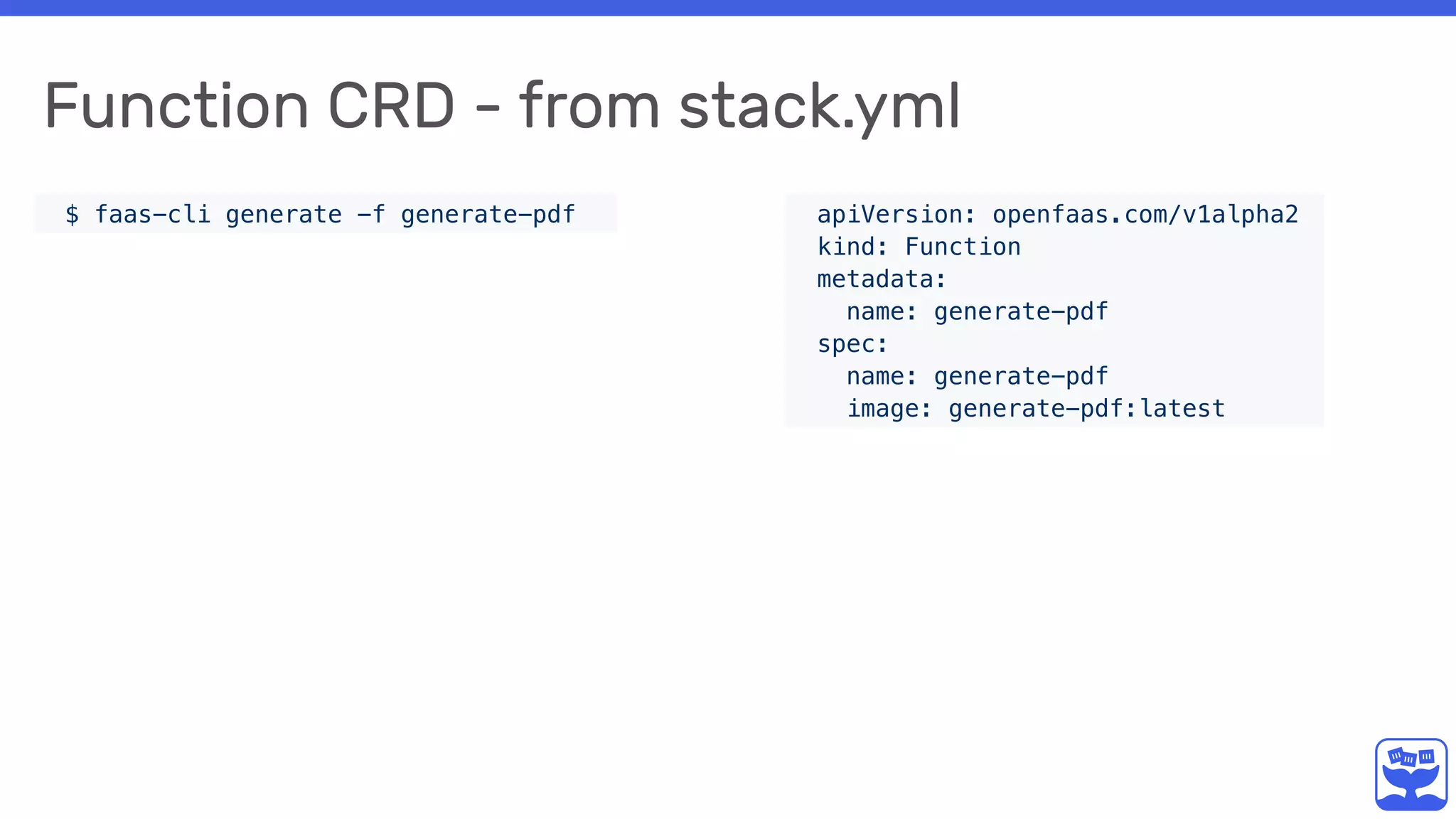

28. Function CRD - from stack.yml
$ faas-cli generate -f generate-pdf apiVersion: openfaas.com/v1alpha2
kind: Function
metadata:
name: generate-pdf
spec:
name: generate-pdf
image: generate-pdf:latest

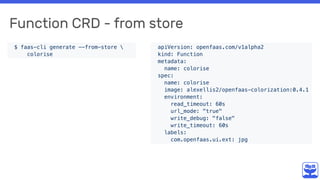

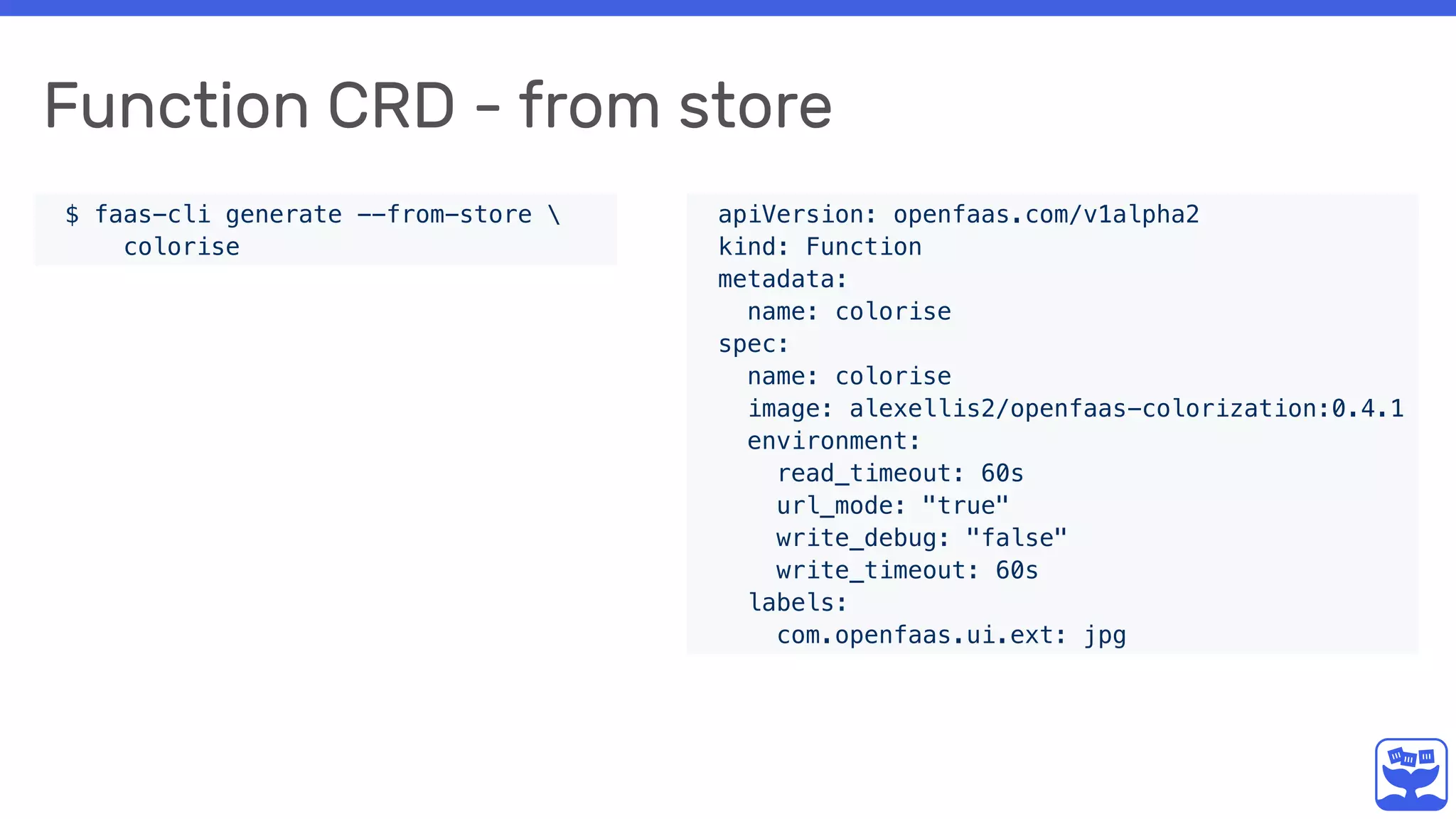

29. Function CRD - from store
$ faas-cli generate --from-store
colorise
apiVersion: openfaas.com/v1alpha2
kind: Function
metadata:
name: colorise
spec:
name: colorise
image: alexellis2/openfaas-colorization:0.4.1
environment:
read_timeout: 60s
url_mode: "true"
write_debug: "false"
write_timeout: 60s
labels:
com.openfaas.ui.ext: jpg

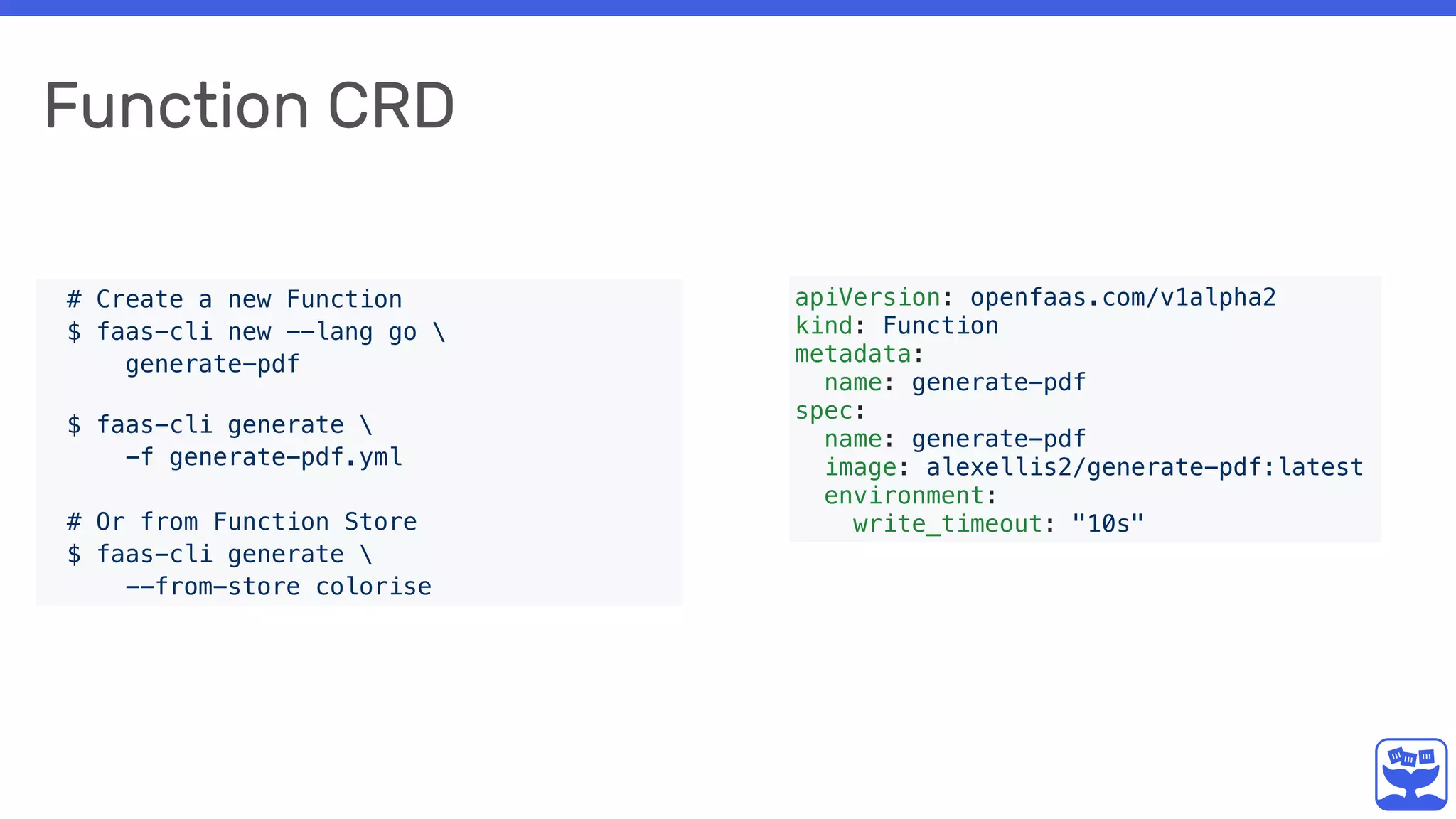

30. Function CRD
apiVersion: openfaas.com/v1alpha2
kind: Function
metadata:
name: generate-pdf
spec:
name: generate-pdf
image: alexellis2/generate-pdf:latest
environment:
write_timeout: "10s"
# Create a new Function
$ faas-cli new --lang go
generate-pdf
$ faas-cli generate
-f generate-pdf.yml
# Or from Function Store
$ faas-cli generate
--from-store colorise

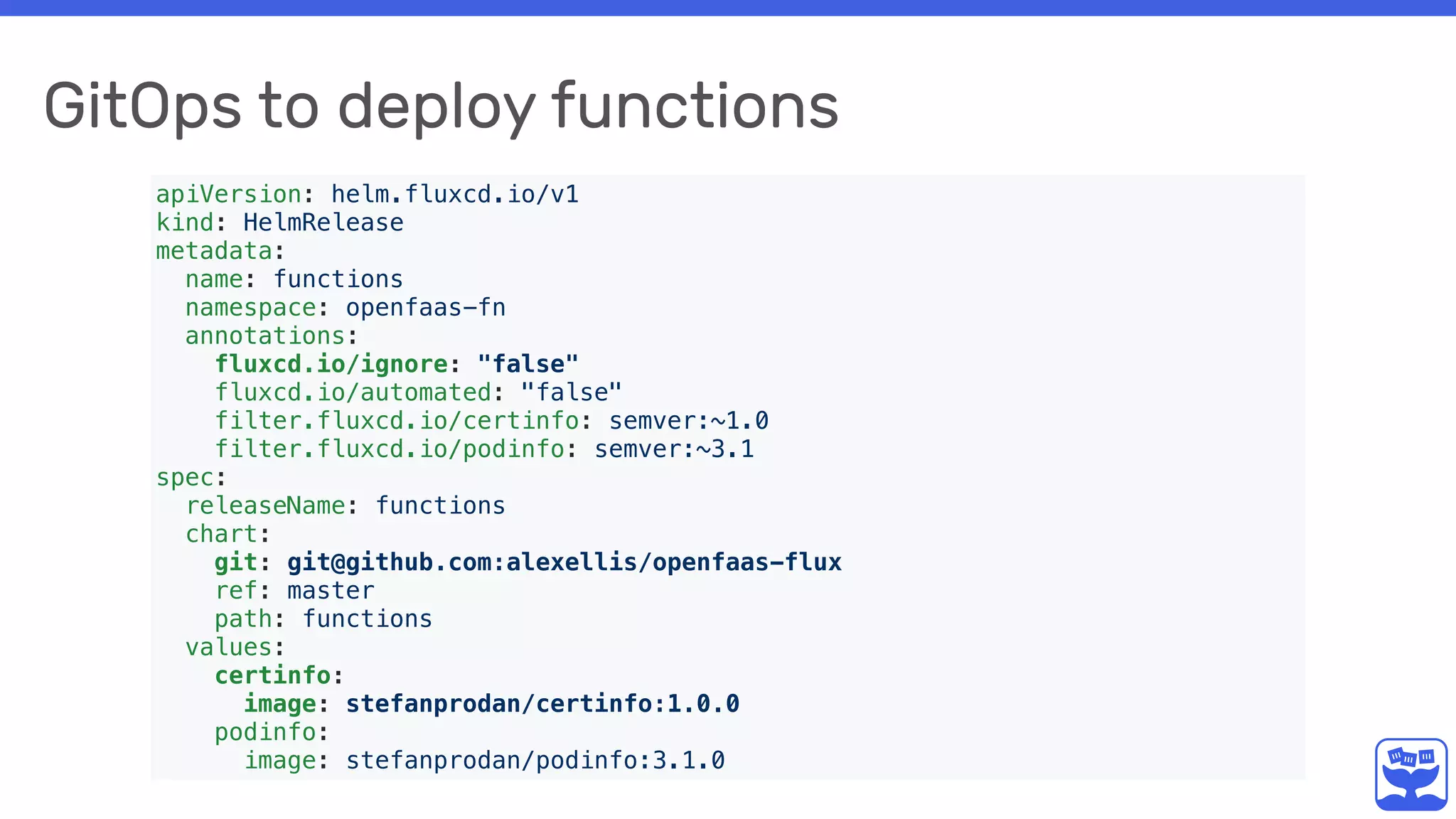

31. GitOps to deploy functions
apiVersion: helm.fluxcd.io/v1
kind: HelmRelease
metadata:
name: functions
namespace: openfaas-fn
annotations:
fluxcd.io/ignore: "false"
fluxcd.io/automated: "false"
filter.fluxcd.io/certinfo: semver:~1.0
filter.fluxcd.io/podinfo: semver:~3.1
spec:
releaseName: functions
chart:
git: git@github.com:alexellis/openfaas-flux
ref: master
path: functions
values:
certinfo:
image: stefanprodan/certinfo:1.0.0
podinfo:
image: stefanprodan/podinfo:3.1.0

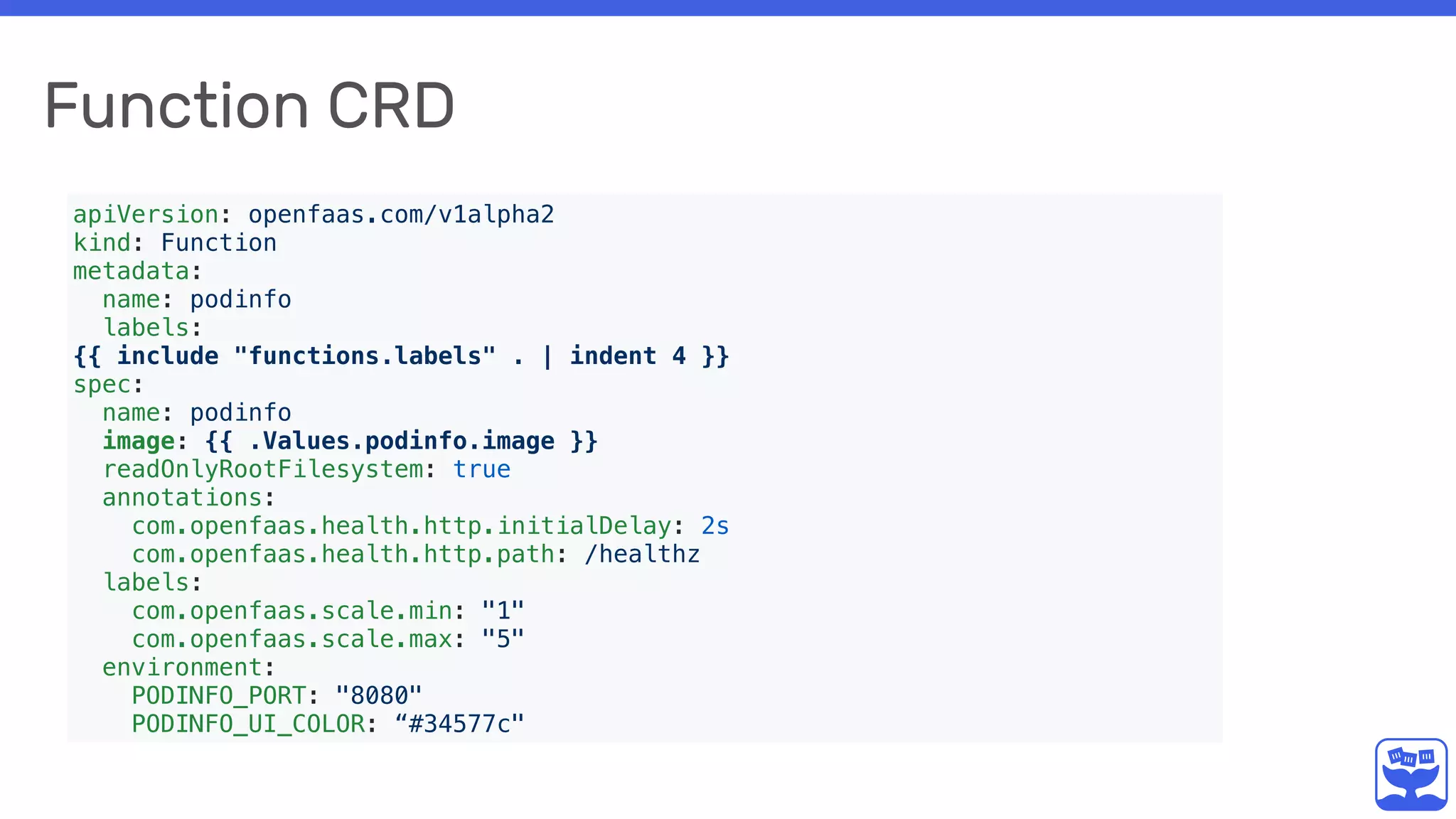

32. Function CRD
apiVersion: openfaas.com/v1alpha2
kind: Function
metadata:
name: podinfo
labels:
{{ include "functions.labels" . | indent 4 }}
spec:
name: podinfo
image: {{ .Values.podinfo.image }}
readOnlyRootFilesystem: true
annotations:
com.openfaas.health.http.initialDelay: 2s
com.openfaas.health.http.path: /healthz
labels:
com.openfaas.scale.min: "1"
com.openfaas.scale.max: "5"
environment:
PODINFO_PORT: "8080"
PODINFO_UI_COLOR: “#34577c"

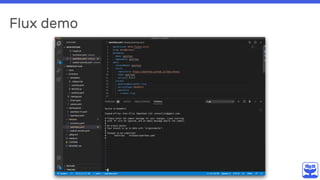

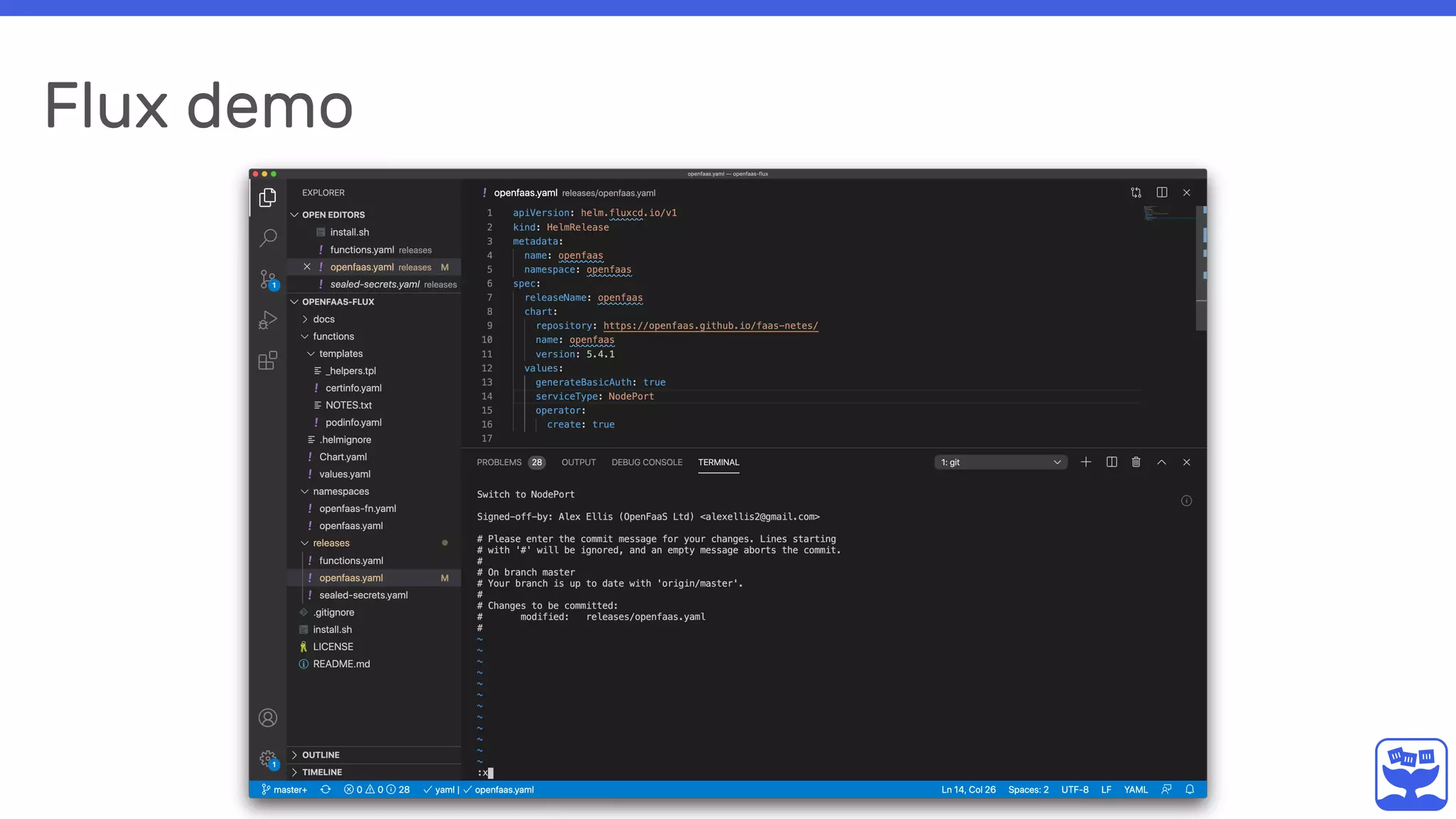

33. Flux demo

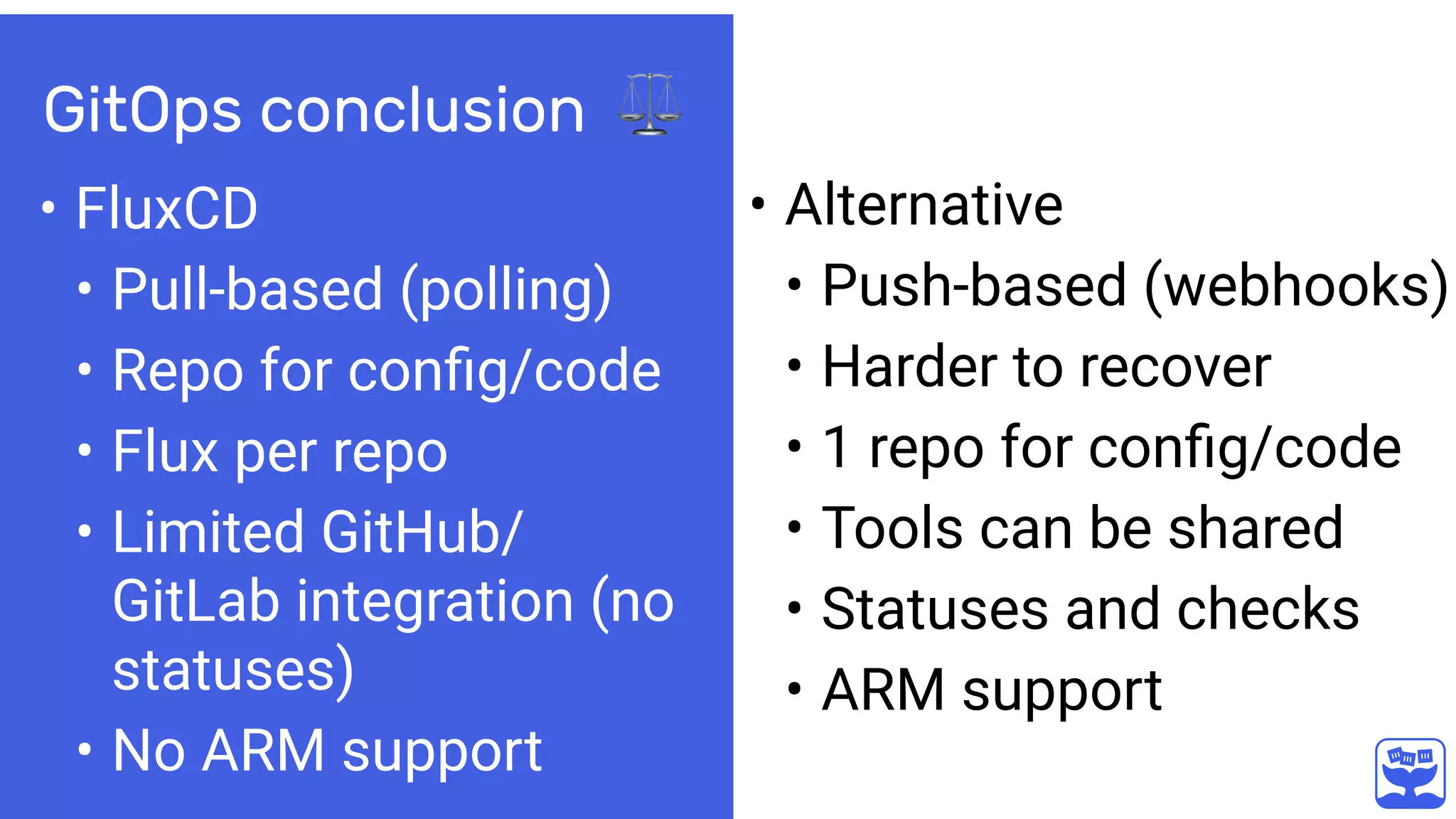

34. GitOps conclusion ⚖
• FluxCD
• Pull-based (polling)
• Repo for config/code
• Flux per repo
• Limited GitHub/
GitLab integration (no
statuses)
• No ARM support
• Alternative
• Push-based (webhooks)
• Harder to recover
• 1 repo for config/code
• Tools can be shared
• Statuses and checks
• ARM support

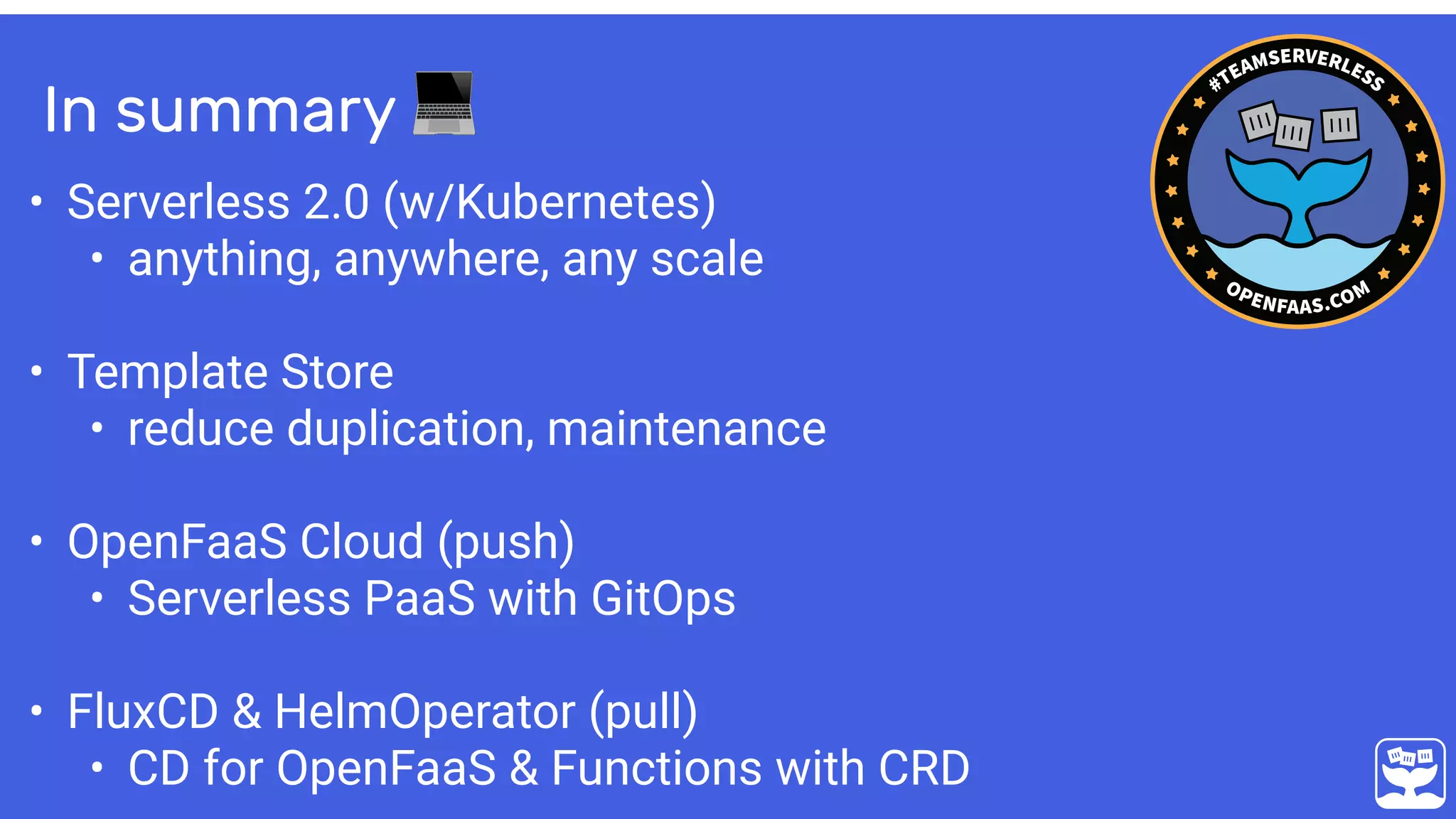

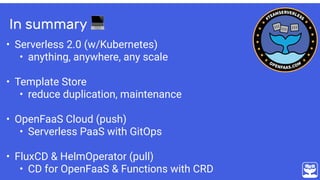

35. In summary 💻
• Serverless 2.0 (w/Kubernetes)
• anything, anywhere, any scale
• Template Store
• reduce duplication, maintenance
• OpenFaaS Cloud (push)
• Serverless PaaS with GitOps
• FluxCD & HelmOperator (pull)
• CD for OpenFaaS & Functions with CRD

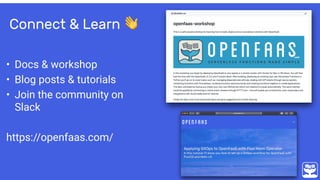

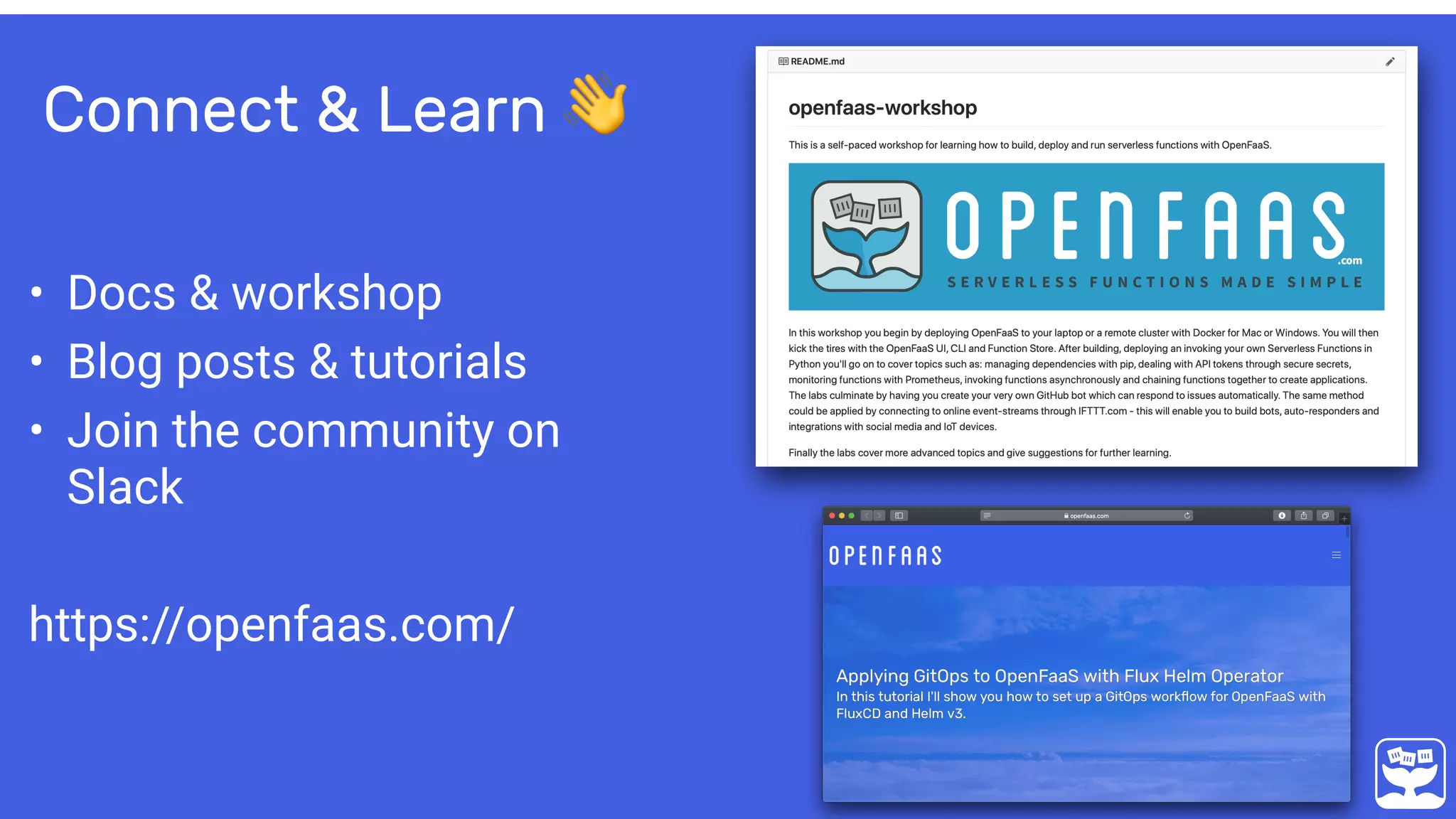

36. Connect & Learn 👋
• Docs & workshop
• Blog posts & tutorials
• Join the community on
Slack
https://openfaas.com/

37. Thank You!
@alexellisuk / @openfaas
