Space planning is the process of creating functional designs for occupants by synthesizing design concepts and programming needs. The bubble diagram aids in organizing ideas visually through labeled circles representing spaces and functions, with arrows indicating circulation. Sketching on layered tracing paper is emphasized as an effective technique in this design phase.

1. by A. Ch. Kaleia
BUBBLE DIAGRAM

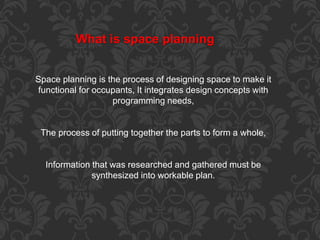

2. What is space planning
Space planning is the process of designing space to make it
functional for occupants, It integrates design concepts with
programming needs,
The process of putting together the parts to form a whole,
Information that was researched and gathered must be
synthesized into workable plan.

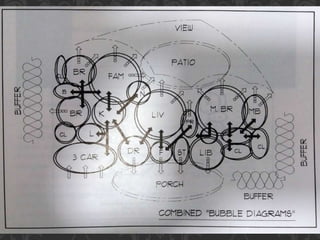

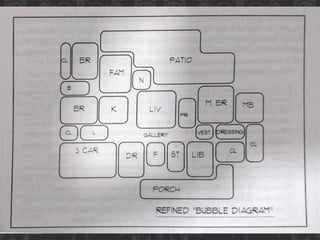

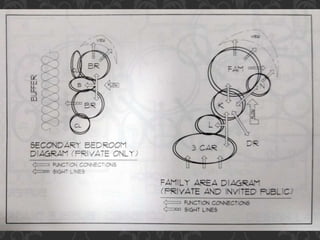

4. The Bubble Diagram
The bubble diagram is a visual mean of organizing thoughts and
developing a concept
It consist of labeled circles that present spaces and functions that occur
inside, arrows shows circulation.
Free hand sketching is the most effective technique to use at these
stage, therefore only supplies needed are pencil, colored marker and
tracing paper.
During the design progress, multiple pieces of tracing paper layered
over each other as the plan is developed.
