1. Operations of
BTS Key Management
1

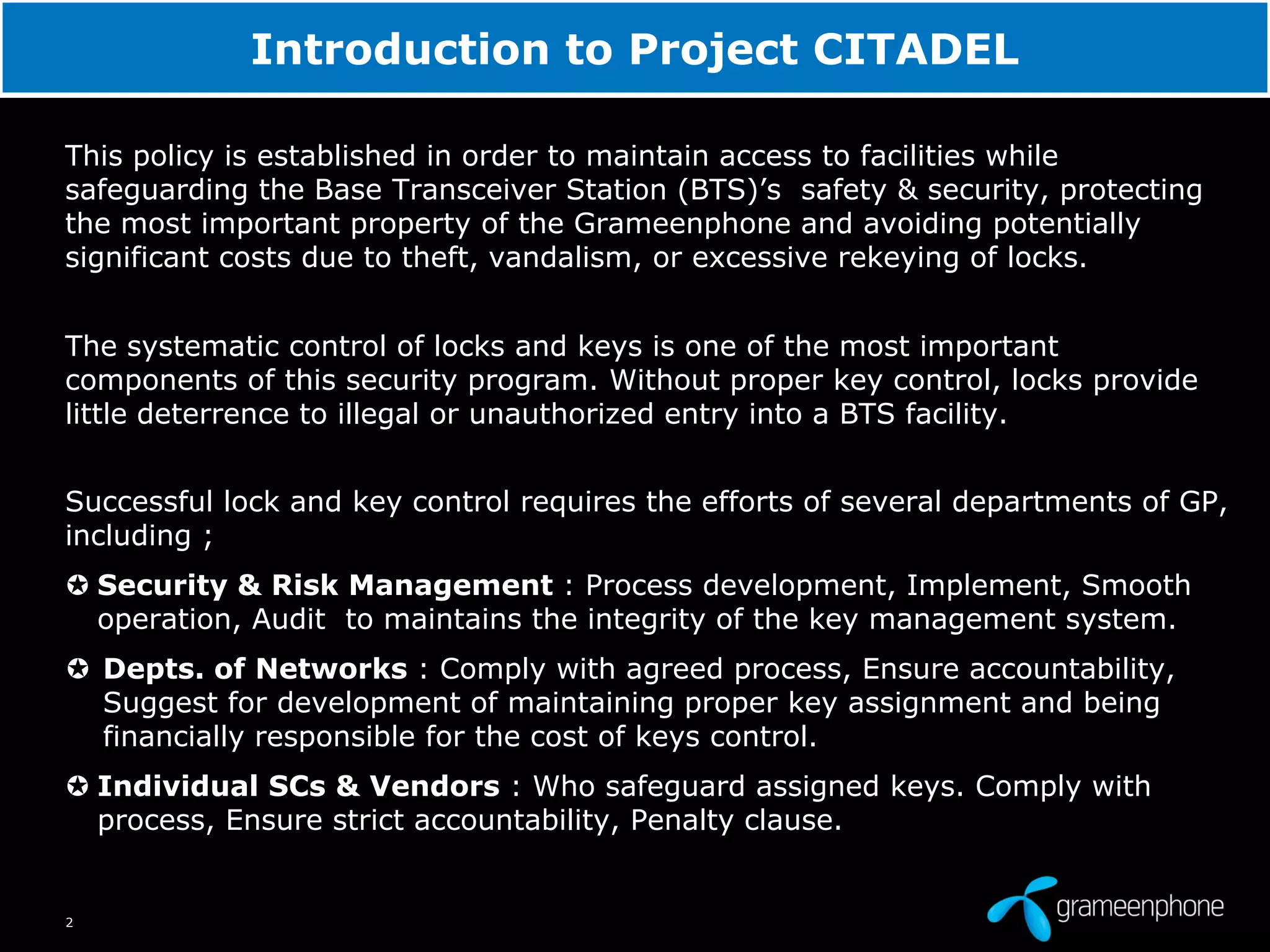

2. Introduction to Project CITADEL
This policy is established in order to maintain access to facilities while
safeguarding the Base Transceiver Station (BTS)’s safety & security, protecting
the most important property of the Grameenphone and avoiding potentially
significant costs due to theft, vandalism, or excessive rekeying of locks.
The systematic control of locks and keys is one of the most important
components of this security program. Without proper key control, locks provide
little deterrence to illegal or unauthorized entry into a BTS facility.
Successful lock and key control requires the efforts of several departments of GP,
including ;
 Security & Risk Management : Process development, Implement, Smooth
operation, Audit to maintains the integrity of the key management system.
 Depts. of Networks : Comply with agreed process, Ensure accountability,
Suggest for development of maintaining proper key assignment and being
financially responsible for the cost of keys control.
 Individual SCs & Vendors : Who safeguard assigned keys. Comply with
process, Ensure strict accountability, Penalty clause.
2

3. 3
Objectives of Project CITADEL
1. Increase the security access level of padlocks & keys.
2. Ensure proper security level of access into BTS sites.
3. Allow any person to use the lowest profile key for his
need.
4. Efficient control over key purchase & usage.
5. Use numeric code in lieu of alphabetic letter to secure the
accessibility & coding.
6. Develop a single point interface (SRM) for purchase &
handover of Locks and Keys.
7. Keep records of all the transactions of locks & keys
internally and externally.
8. Reduce the vulnerability of BTS sites due to key lost or
unauthorized access to the premises.

4. 4
Master Keying System
Regional Grand Master Key
(RGMK)
Sub Center Master Key
(SCMK)
D. Generator Room Key
(DGK)
BTS Room Key
(BTSK)
HO Key (HOK)

5. 5

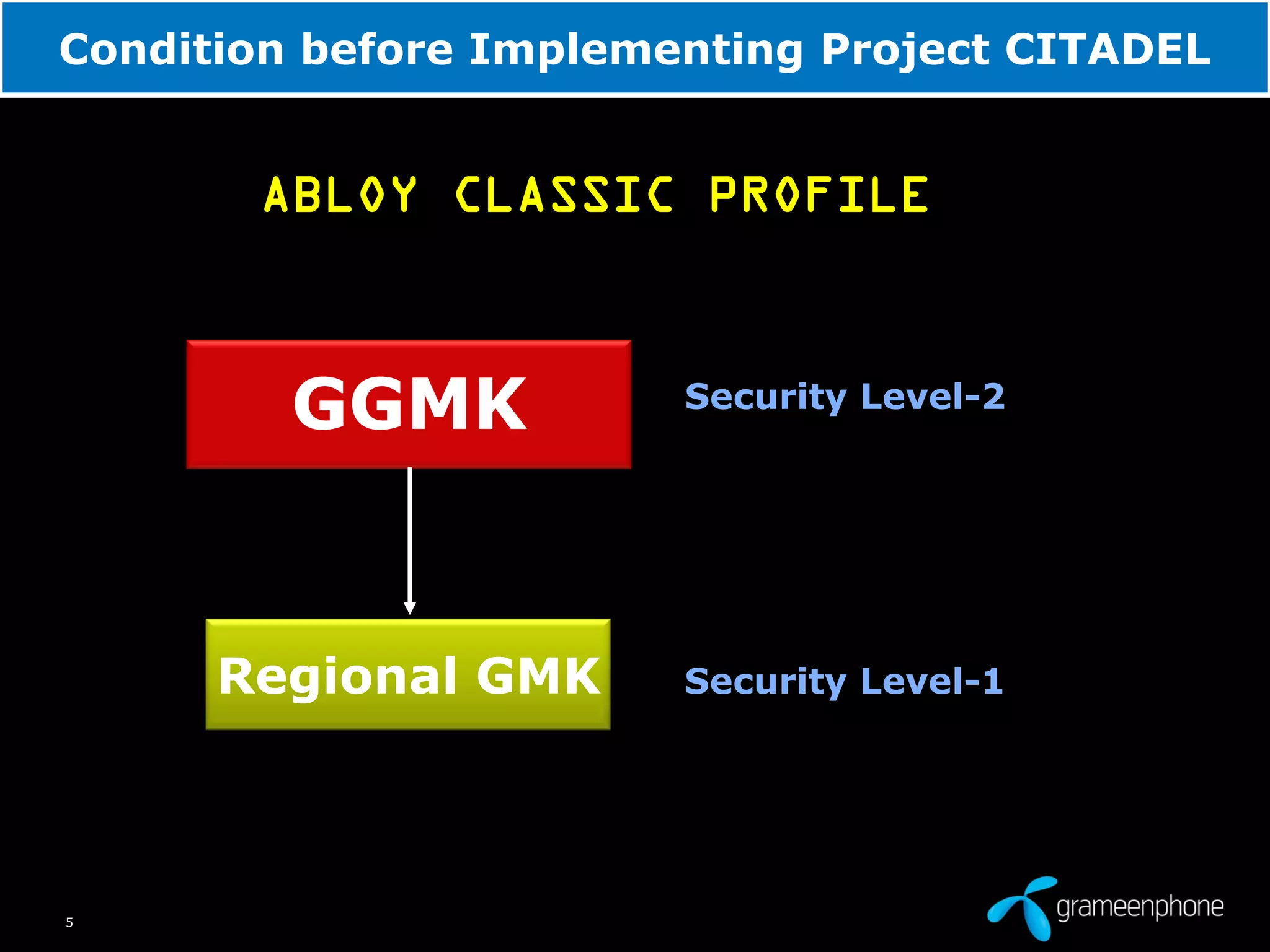

Condition before Implementing Project CITADEL
ABLOY CLASSIC PROFILE
GGMK
Regional GMK Security Level-1
Security Level-2

6. 6

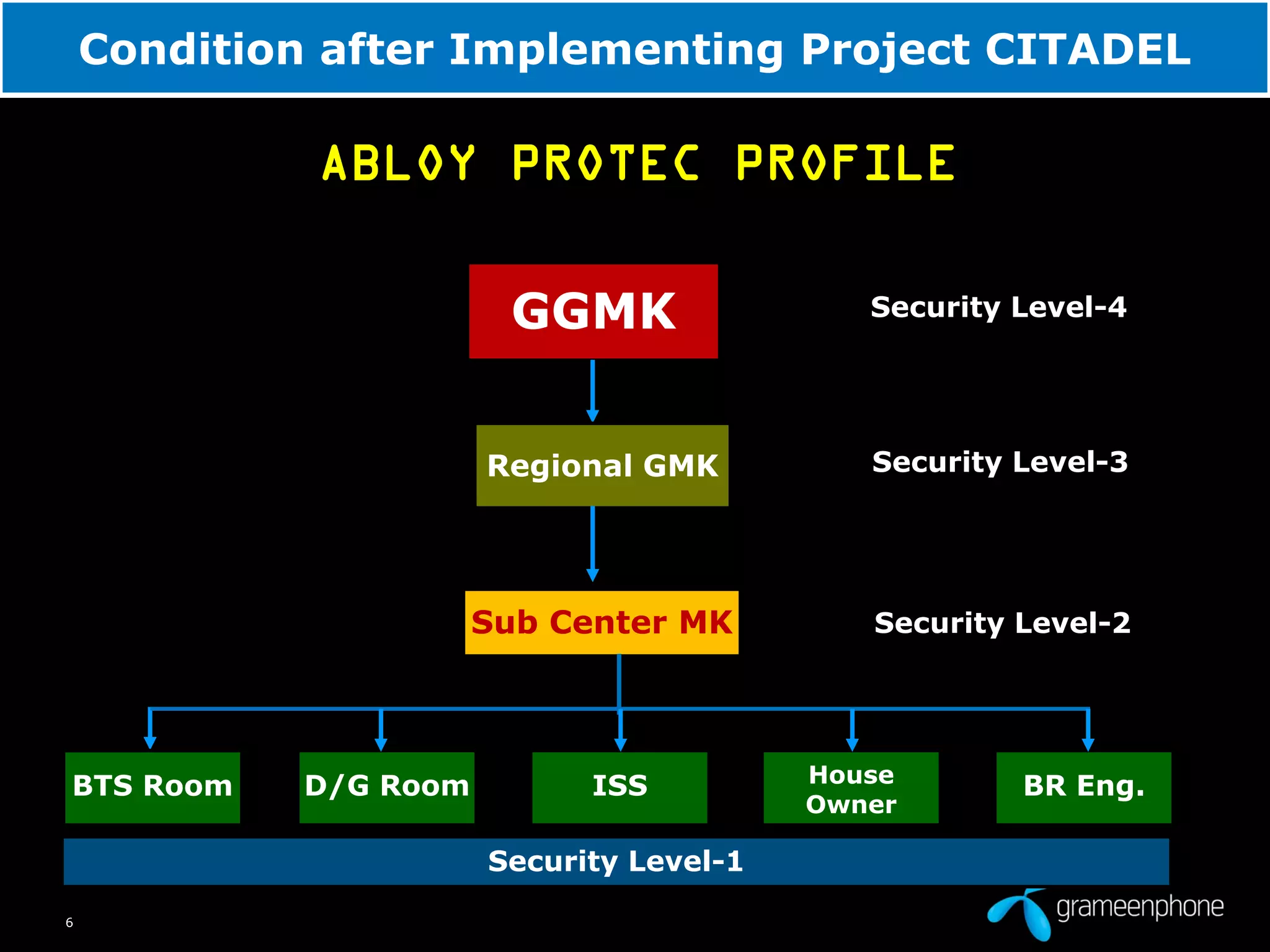

Condition after Implementing Project CITADEL
ABLOY PROTEC PROFILE
GGMK
Regional GMK
Sub Center MK
BTS Room
Security Level-4
Security Level-3
Security Level-2
Security Level-1
D/G Room ISS House
Owner
BR Eng.

7. 7
Proposed Profile Layers for Project CITADEL, P-3
ABLOY PROTEC PROFILE
GGMK
Regional GMK
Sub Center MK
Multiple Operator
Security Level-5
Security Level-4
Security Level-3
Security Level-1
House
Owner
BR Eng.
ROBI BL WARID WIMAX Others

8. 8

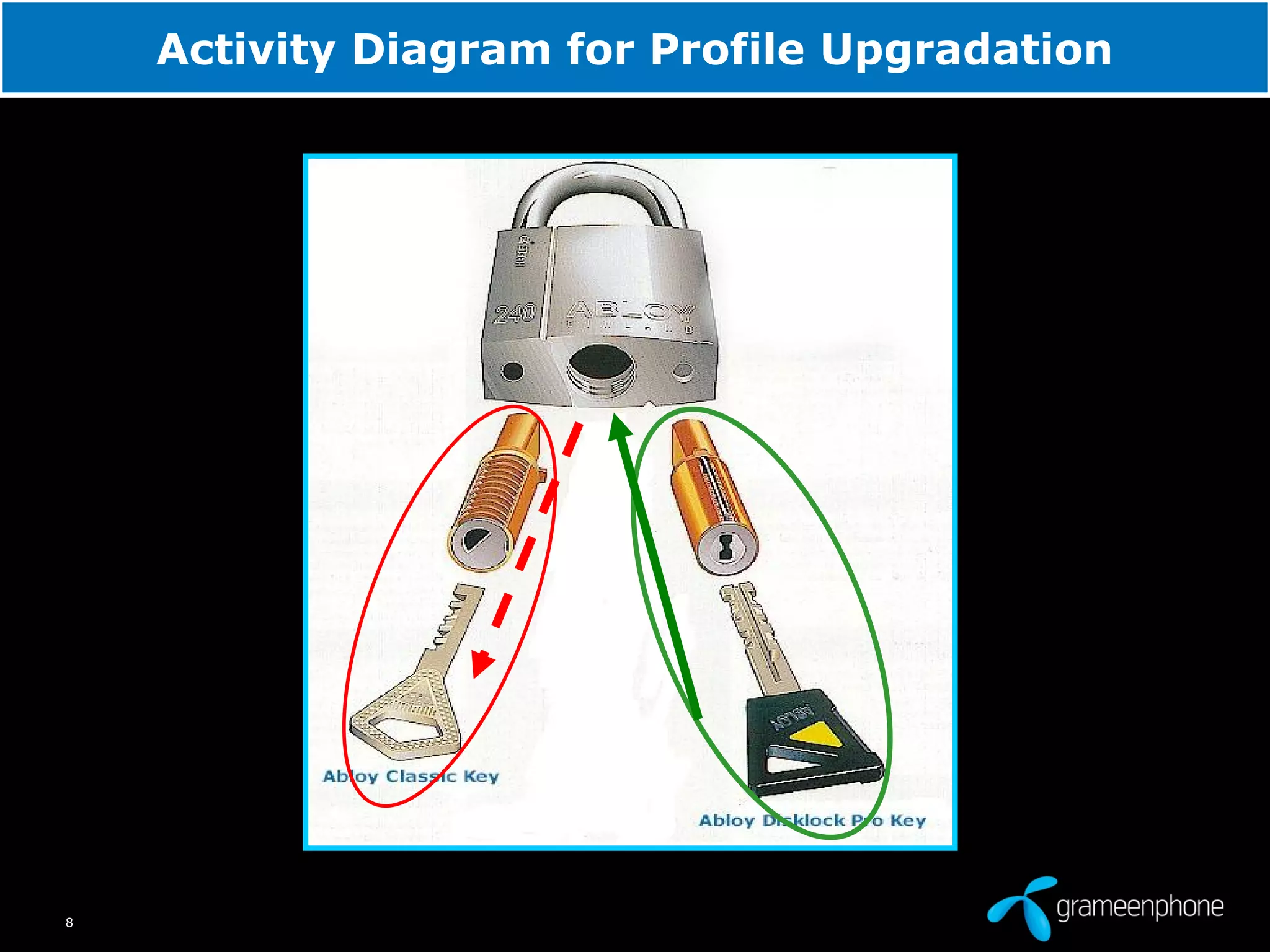

Activity Diagram for Profile Upgradation

9. 9

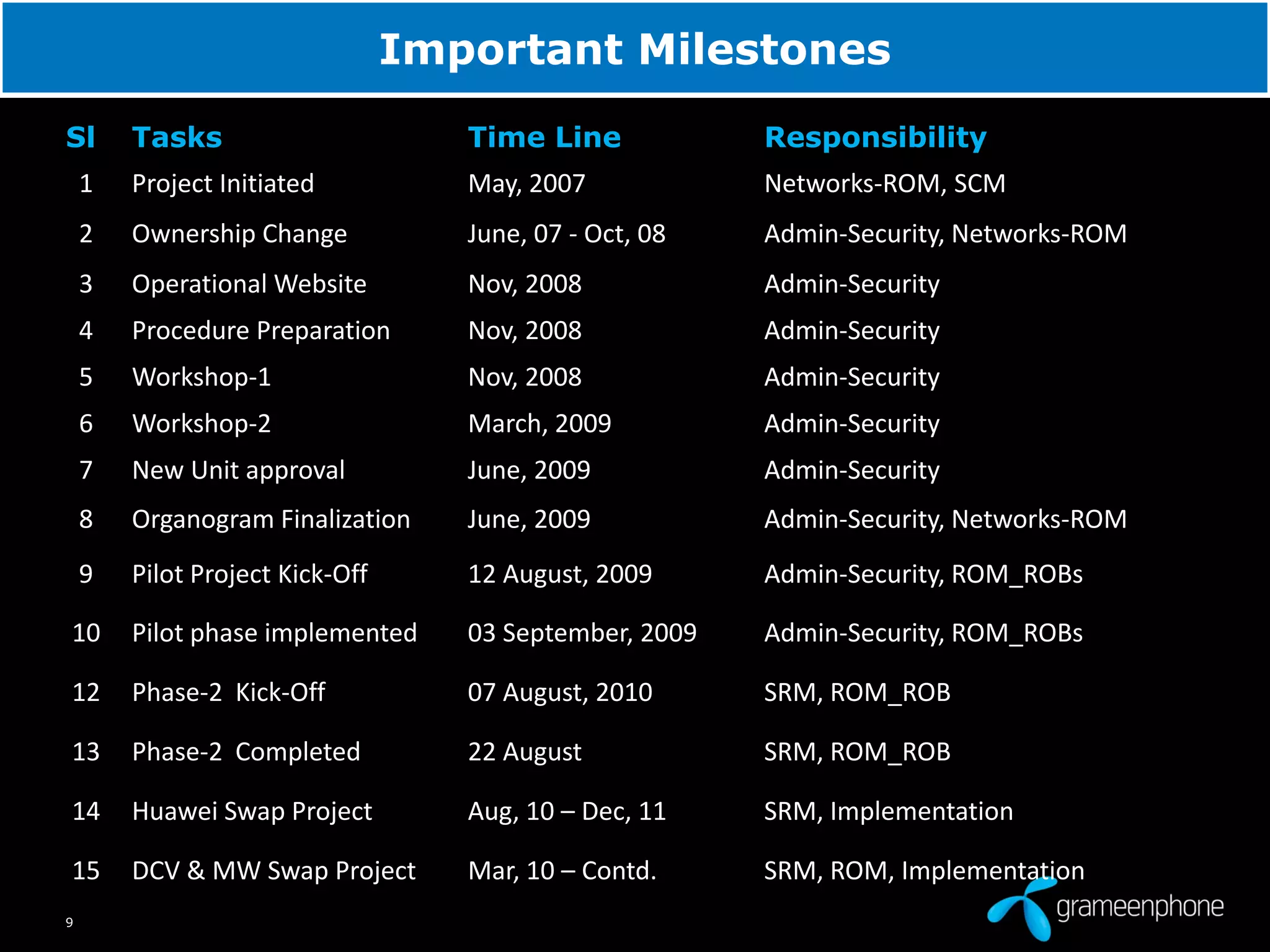

Sl Tasks Time Line Responsibility
1 Project Initiated May, 2007 Networks-ROM, SCM
2 Ownership Change June, 07 - Oct, 08 Admin-Security, Networks-ROM
3 Operational Website Nov, 2008 Admin-Security
4 Procedure Preparation Nov, 2008 Admin-Security
5 Workshop-1 Nov, 2008 Admin-Security
6 Workshop-2 March, 2009 Admin-Security
7 New Unit approval June, 2009 Admin-Security
8 Organogram Finalization June, 2009 Admin-Security, Networks-ROM
9 Pilot Project Kick-Off 12 August, 2009 Admin-Security, ROM_ROBs
10 Pilot phase implemented 03 September, 2009 Admin-Security, ROM_ROBs
12 Phase-2 Kick-Off 07 August, 2010 SRM, ROM_ROB
13 Phase-2 Completed 22 August SRM, ROM_ROB
14 Huawei Swap Project Aug, 10 – Dec, 11 SRM, Implementation
15 DCV & MW Swap Project Mar, 10 – Contd. SRM, ROM, Implementation
Important Milestones

10. 10

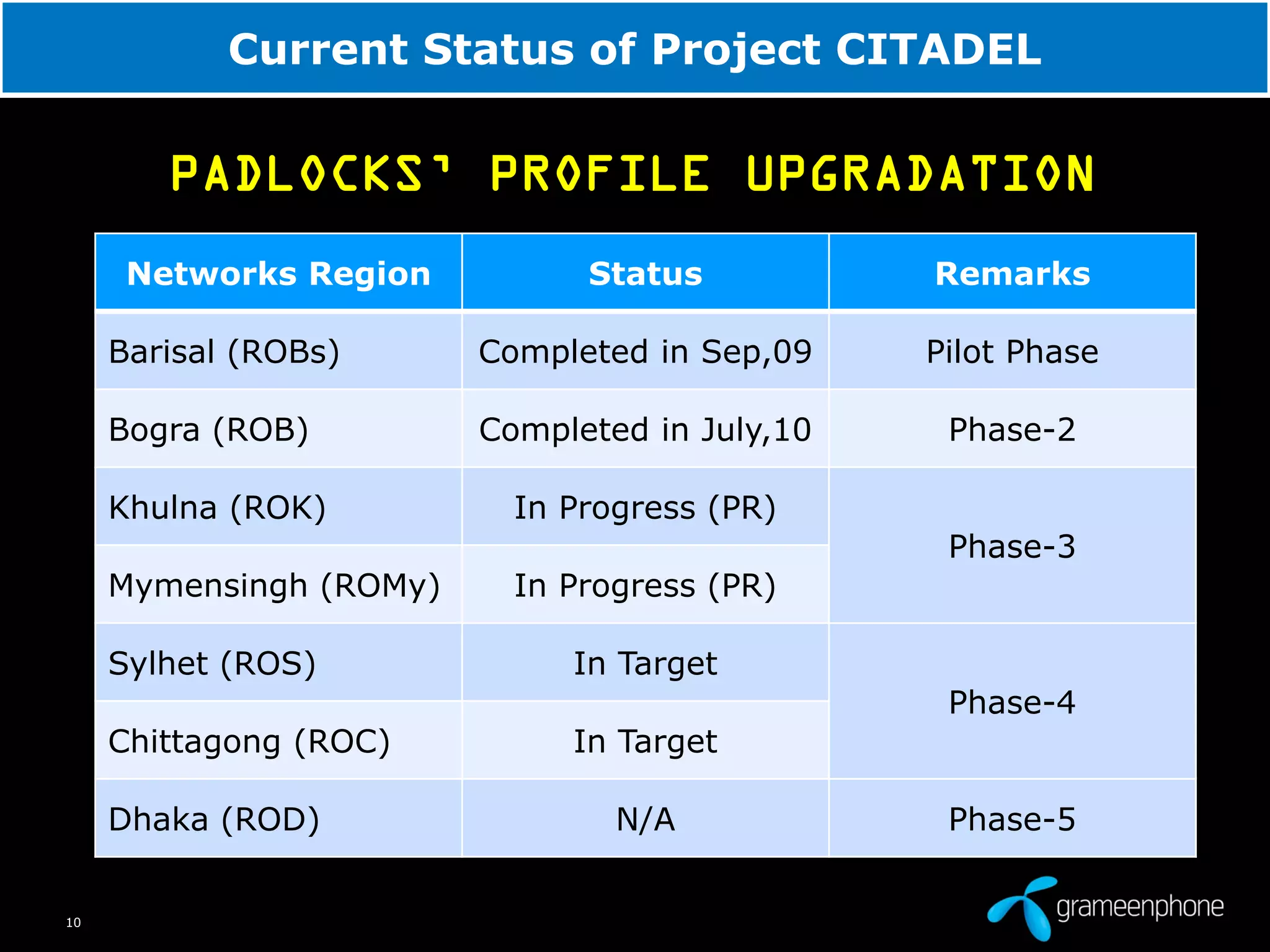

Current Status of Project CITADEL
PADLOCKS’ PROFILE UPGRADATION
Networks Region Status Remarks
Barisal (ROBs) Completed in Sep,09 Pilot Phase
Bogra (ROB) Completed in July,10 Phase-2
Khulna (ROK) In Progress (PR)
Phase-3
Mymensingh (ROMy) In Progress (PR)
Sylhet (ROS) In Target
Phase-4
Chittagong (ROC) In Target
Dhaka (ROD) N/A Phase-5

11. 11

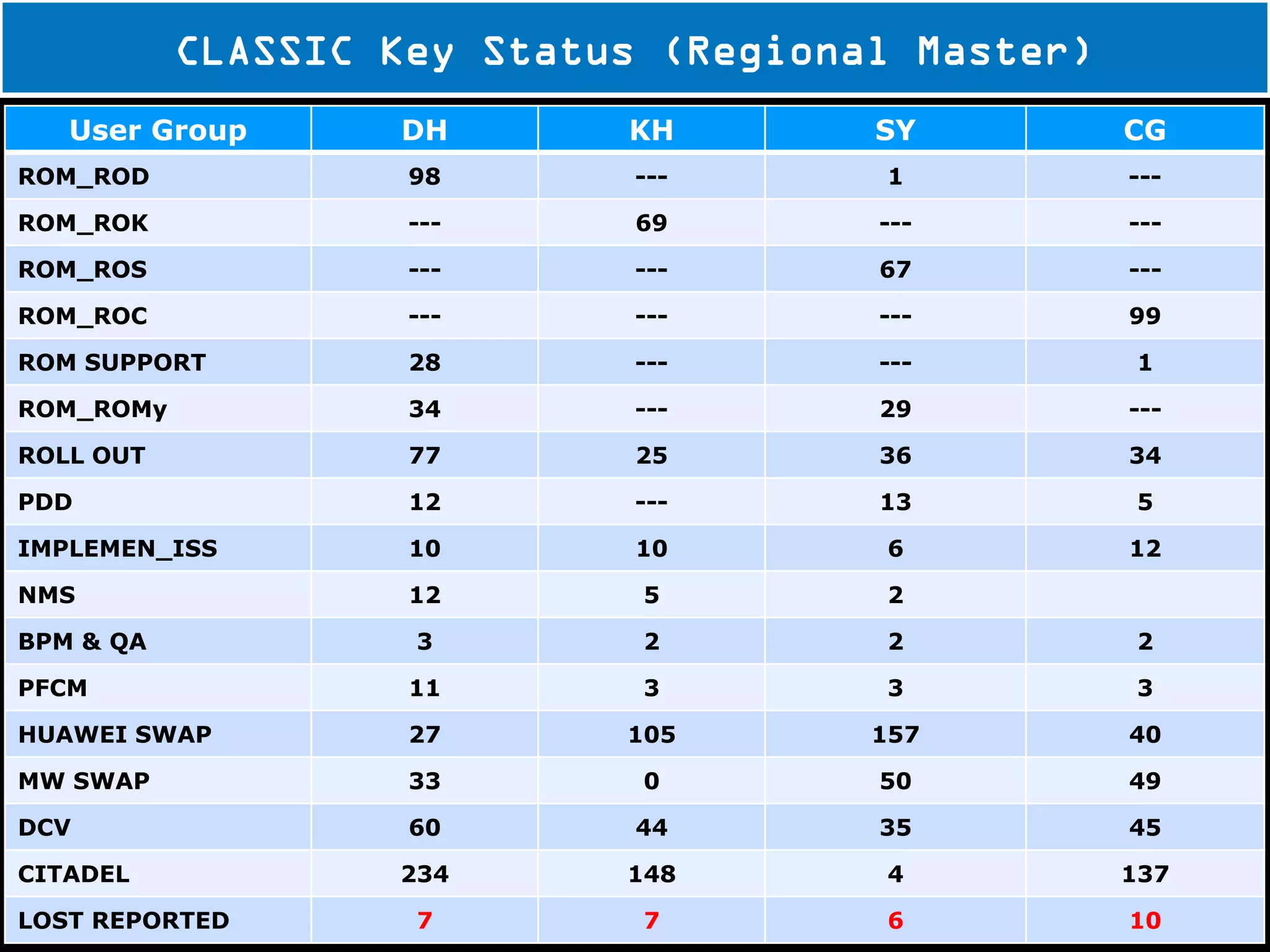

CLASSIC Key Status (Regional Master)
User Group DH KH SY CG
ROM_ROD 98 --- 1 ---
ROM_ROK --- 69 --- ---
ROM_ROS --- --- 67 ---
ROM_ROC --- --- --- 99
ROM SUPPORT 28 --- --- 1
ROM_ROMy 34 --- 29 ---
ROLL OUT 77 25 36 34
PDD 12 --- 13 5
IMPLEMEN_ISS 10 10 6 12
NMS 12 5 2
BPM & QA 3 2 2 2
PFCM 11 3 3 3
HUAWEI SWAP 27 105 157 40
MW SWAP 33 0 50 49
DCV 60 44 35 45
CITADEL 234 148 4 137
LOST REPORTED 7 7 6 10

12. 12

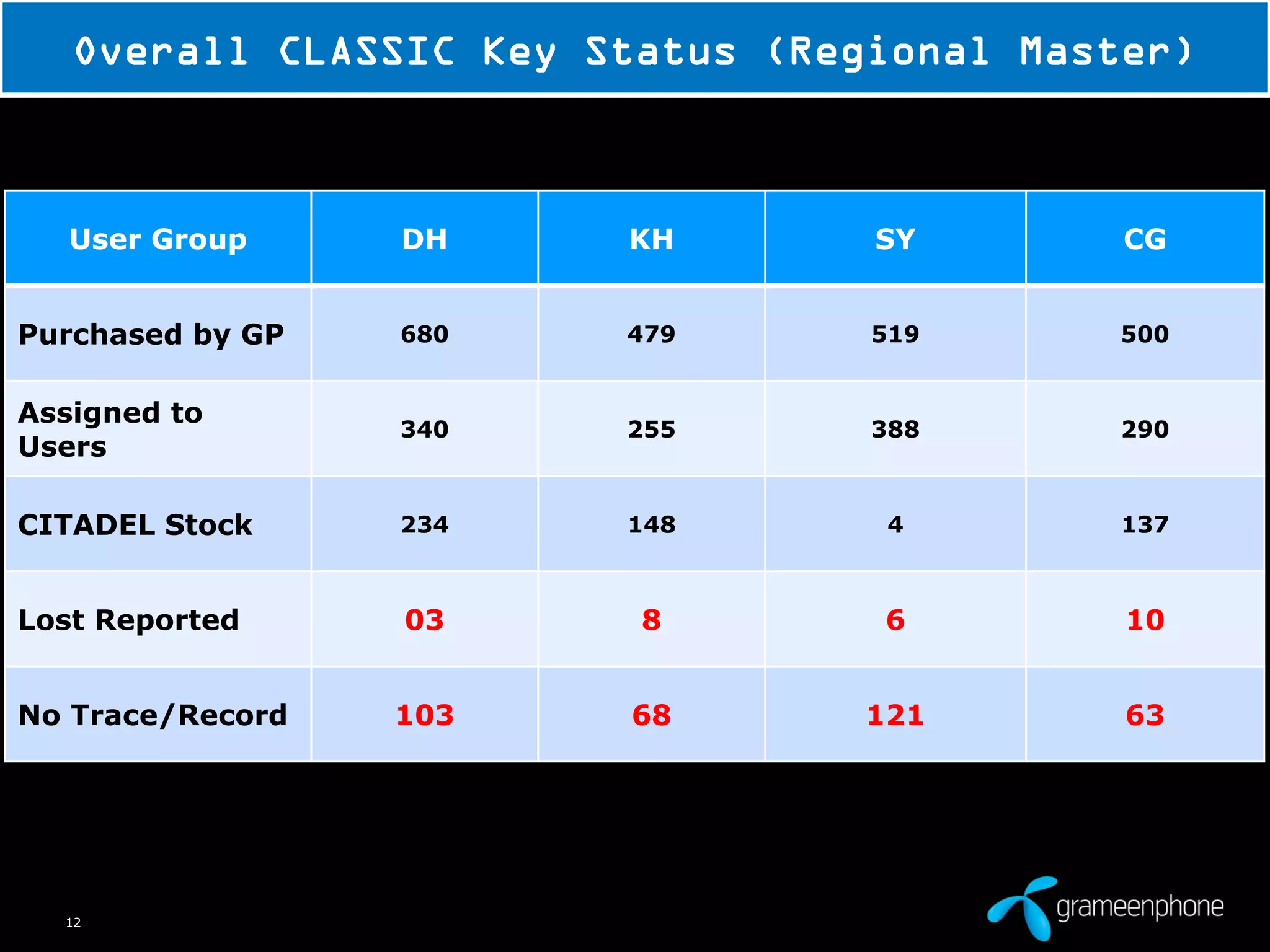

Overall CLASSIC Key Status (Regional Master)
User Group DH KH SY CG
Purchased by GP 680 479 519 500
Assigned to
Users
340 255 388 290
CITADEL Stock 234 148 4 137
Lost Reported 03 8 6 10
No Trace/Record 103 68 121 63

13. 13

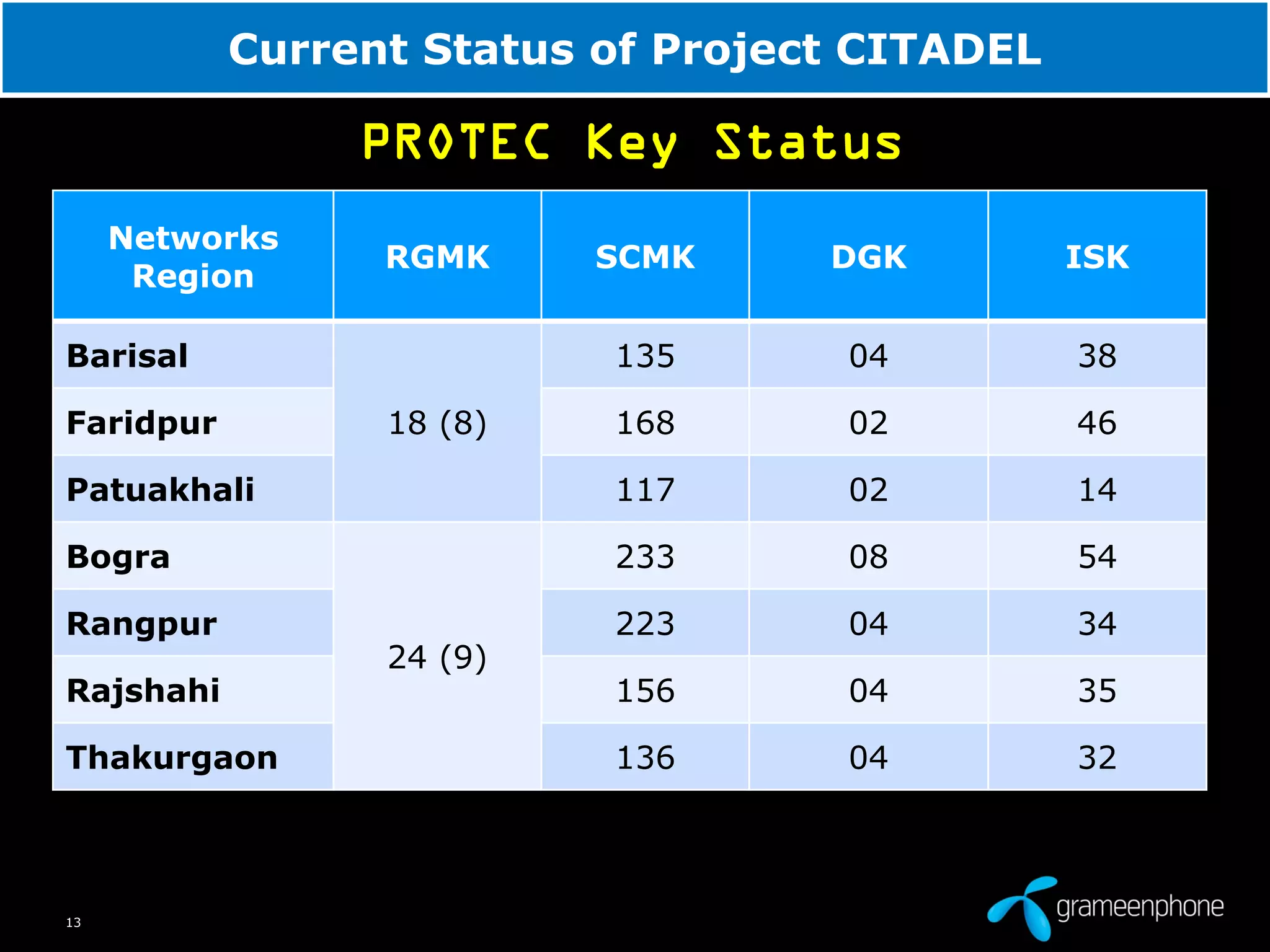

Current Status of Project CITADEL
PROTEC Key Status
Networks
Region
RGMK SCMK DGK ISK
Barisal
18 (8)
135 04 38
Faridpur 168 02 46
Patuakhali 117 02 14
Bogra
24 (9)
233 08 54
Rangpur 223 04 34
Rajshahi 156 04 35
Thakurgaon 136 04 32

14. 14

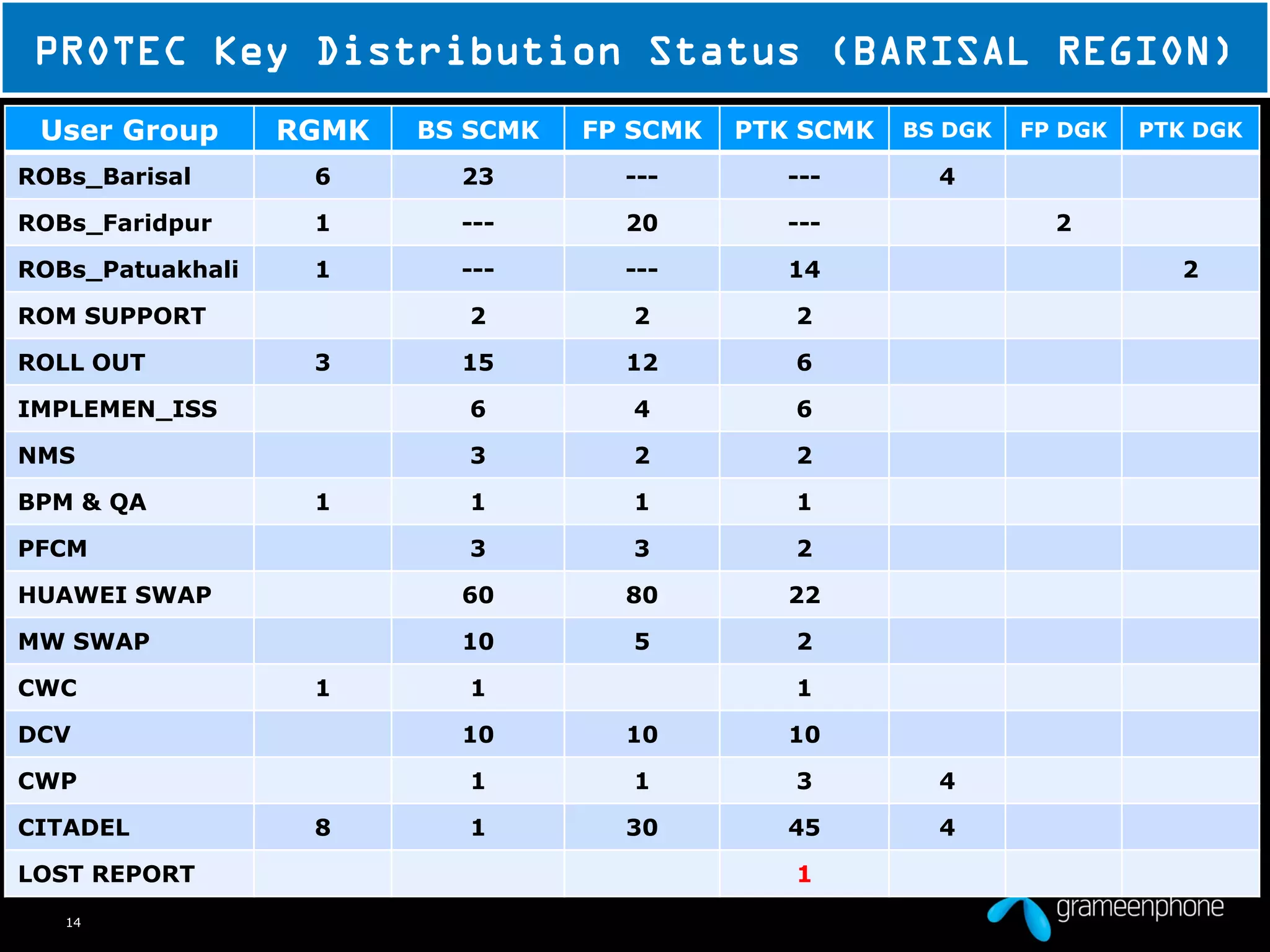

PROTEC Key Distribution Status (BARISAL REGION)
User Group RGMK BS SCMK FP SCMK PTK SCMK BS DGK FP DGK PTK DGK
ROBs_Barisal 6 23 --- --- 4
ROBs_Faridpur 1 --- 20 --- 2
ROBs_Patuakhali 1 --- --- 14 2
ROM SUPPORT 2 2 2
ROLL OUT 3 15 12 6
IMPLEMEN_ISS 6 4 6
NMS 3 2 2
BPM & QA 1 1 1 1
PFCM 3 3 2
HUAWEI SWAP 60 80 22
MW SWAP 10 5 2
CWC 1 1 1
DCV 10 10 10
CWP 1 1 3 4
CITADEL 8 1 30 45 4
LOST REPORT 1

15. 15

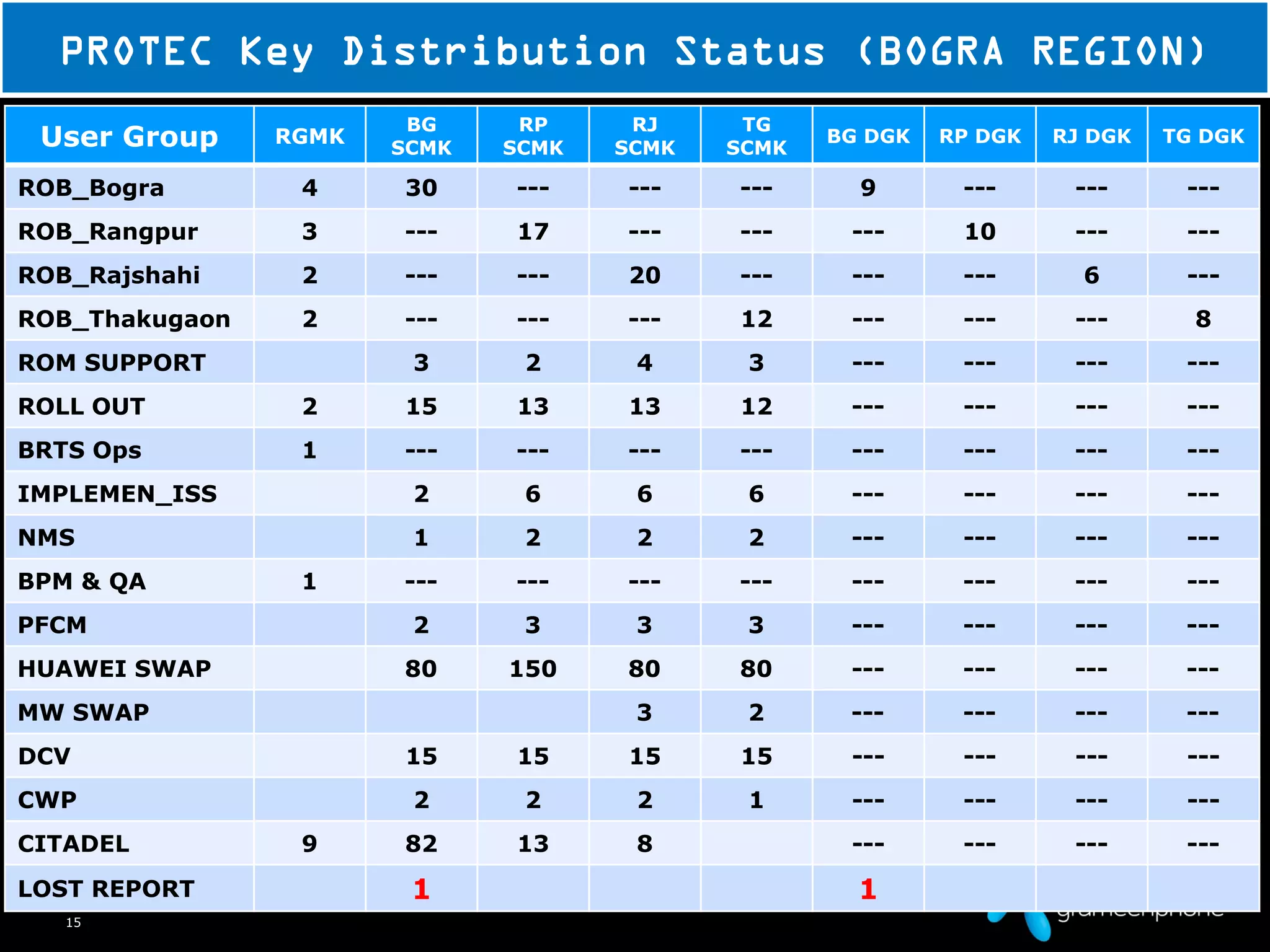

PROTEC Key Distribution Status (BOGRA REGION)
User Group RGMK
BG
SCMK
RP
SCMK
RJ
SCMK
TG
SCMK
BG DGK RP DGK RJ DGK TG DGK
ROB_Bogra 4 30 --- --- --- 9 --- --- ---
ROB_Rangpur 3 --- 17 --- --- --- 10 --- ---
ROB_Rajshahi 2 --- --- 20 --- --- --- 6 ---
ROB_Thakugaon 2 --- --- --- 12 --- --- --- 8
ROM SUPPORT 3 2 4 3 --- --- --- ---
ROLL OUT 2 15 13 13 12 --- --- --- ---
BRTS Ops 1 --- --- --- --- --- --- --- ---
IMPLEMEN_ISS 2 6 6 6 --- --- --- ---
NMS 1 2 2 2 --- --- --- ---
BPM & QA 1 --- --- --- --- --- --- --- ---
PFCM 2 3 3 3 --- --- --- ---
HUAWEI SWAP 80 150 80 80 --- --- --- ---
MW SWAP 3 2 --- --- --- ---
DCV 15 15 15 15 --- --- --- ---
CWP 2 2 2 1 --- --- --- ---
CITADEL 9 82 13 8 --- --- --- ---
LOST REPORT 1 1

16. 16
PROCUREMENT PROCESS
OF ABLOY PADLOCKS &
KEYS

17. 17

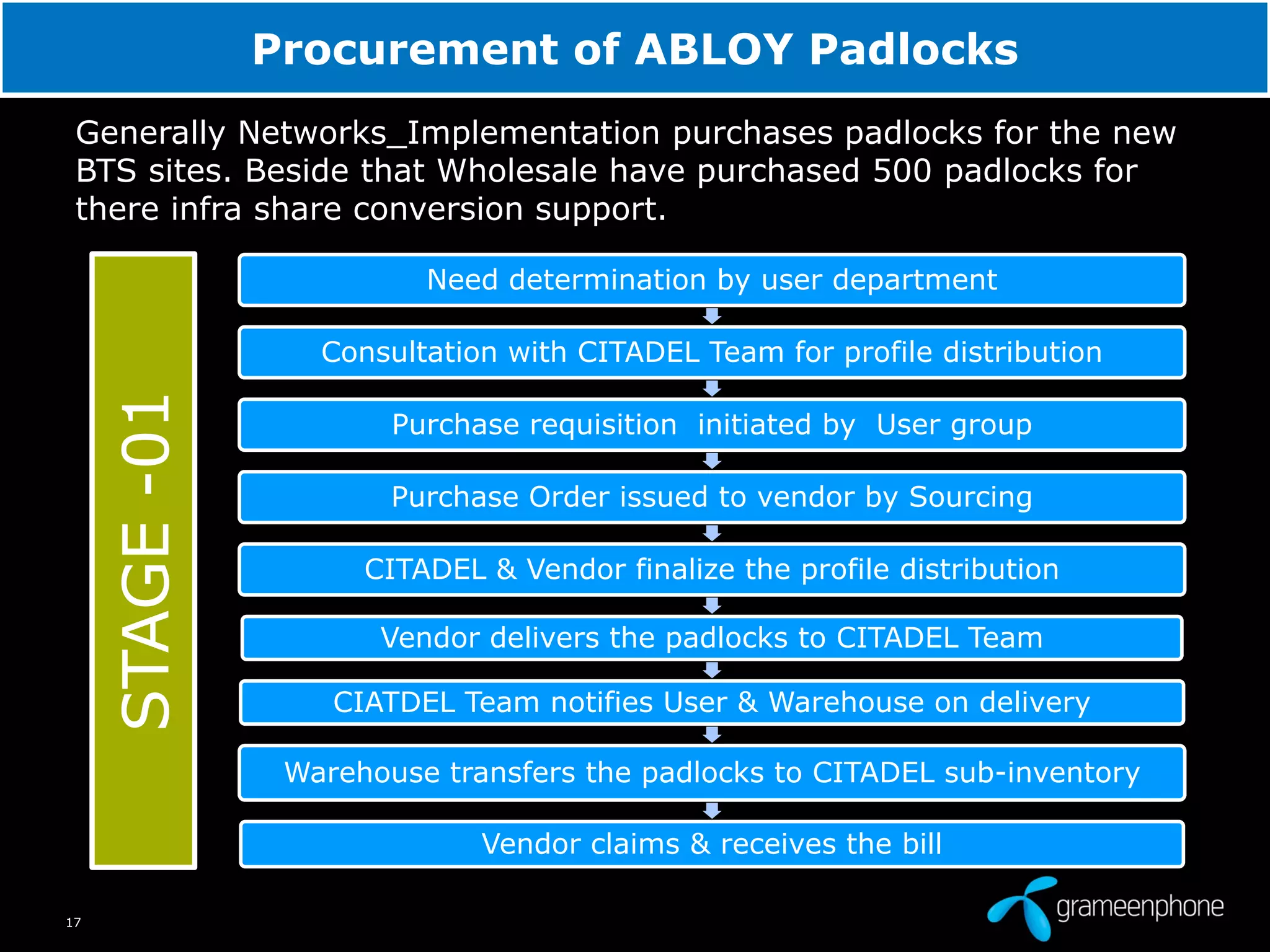

Procurement of ABLOY Padlocks
Generally Networks_Implementation purchases padlocks for the new
BTS sites. Beside that Wholesale have purchased 500 padlocks for
there infra share conversion support.
Need determination by user department
Consultation with CITADEL Team for profile distribution
Purchase requisition initiated by User group
Purchase Order issued to vendor by Sourcing
CITADEL & Vendor finalize the profile distribution
Vendor delivers the padlocks to CITADEL Team
CIATDEL Team notifies User & Warehouse on delivery
Warehouse transfers the padlocks to CITADEL sub-inventory
Vendor claims & receives the bill
STAGE-01

18. 18

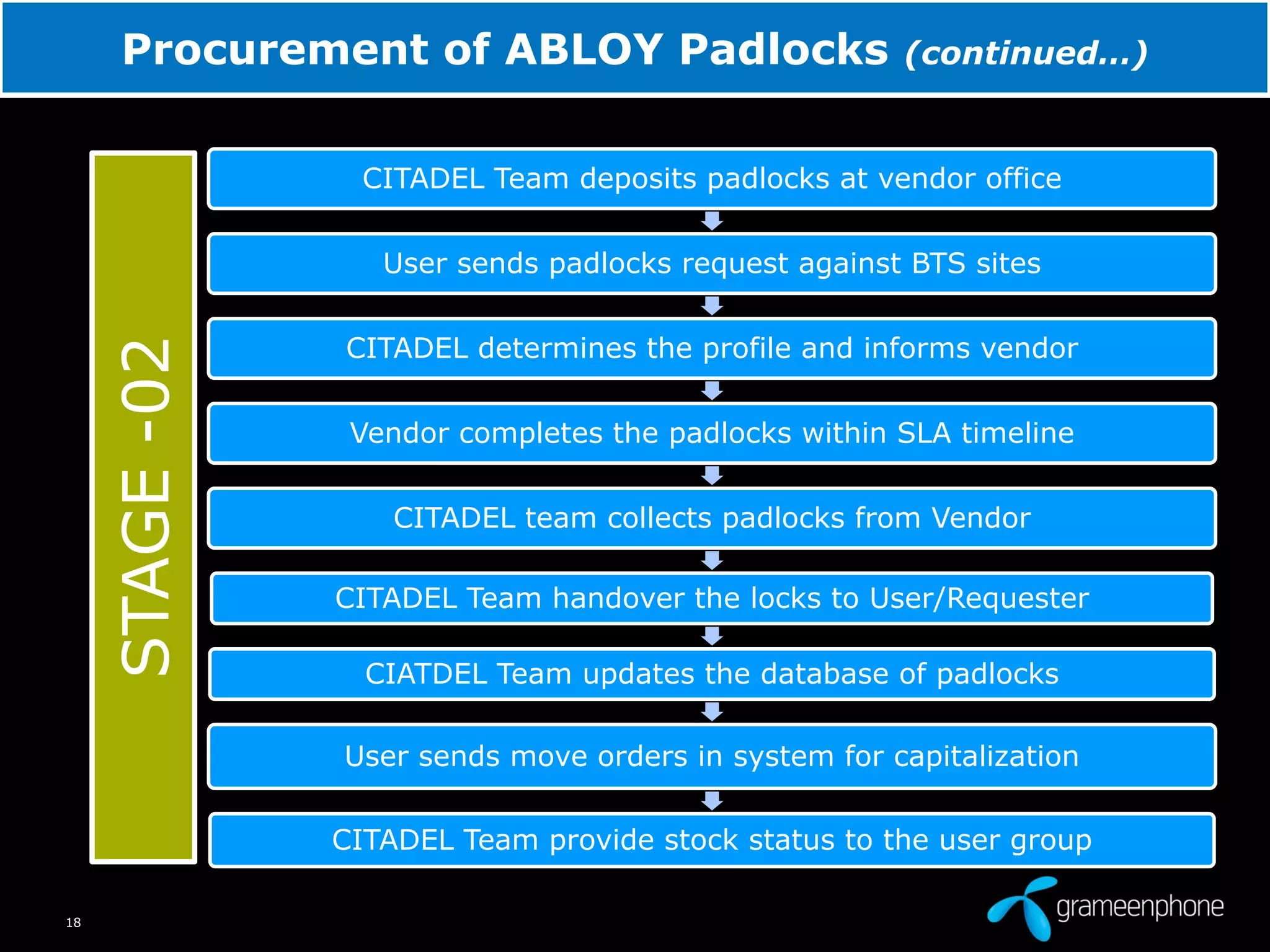

Procurement of ABLOY Padlocks (continued…)
CITADEL Team deposits padlocks at vendor office
User sends padlocks request against BTS sites
CITADEL determines the profile and informs vendor
Vendor completes the padlocks within SLA timeline
CITADEL team collects padlocks from Vendor
CITADEL Team handover the locks to User/Requester
CIATDEL Team updates the database of padlocks
User sends move orders in system for capitalization
CITADEL Team provide stock status to the user group
STAGE-02

19. 19

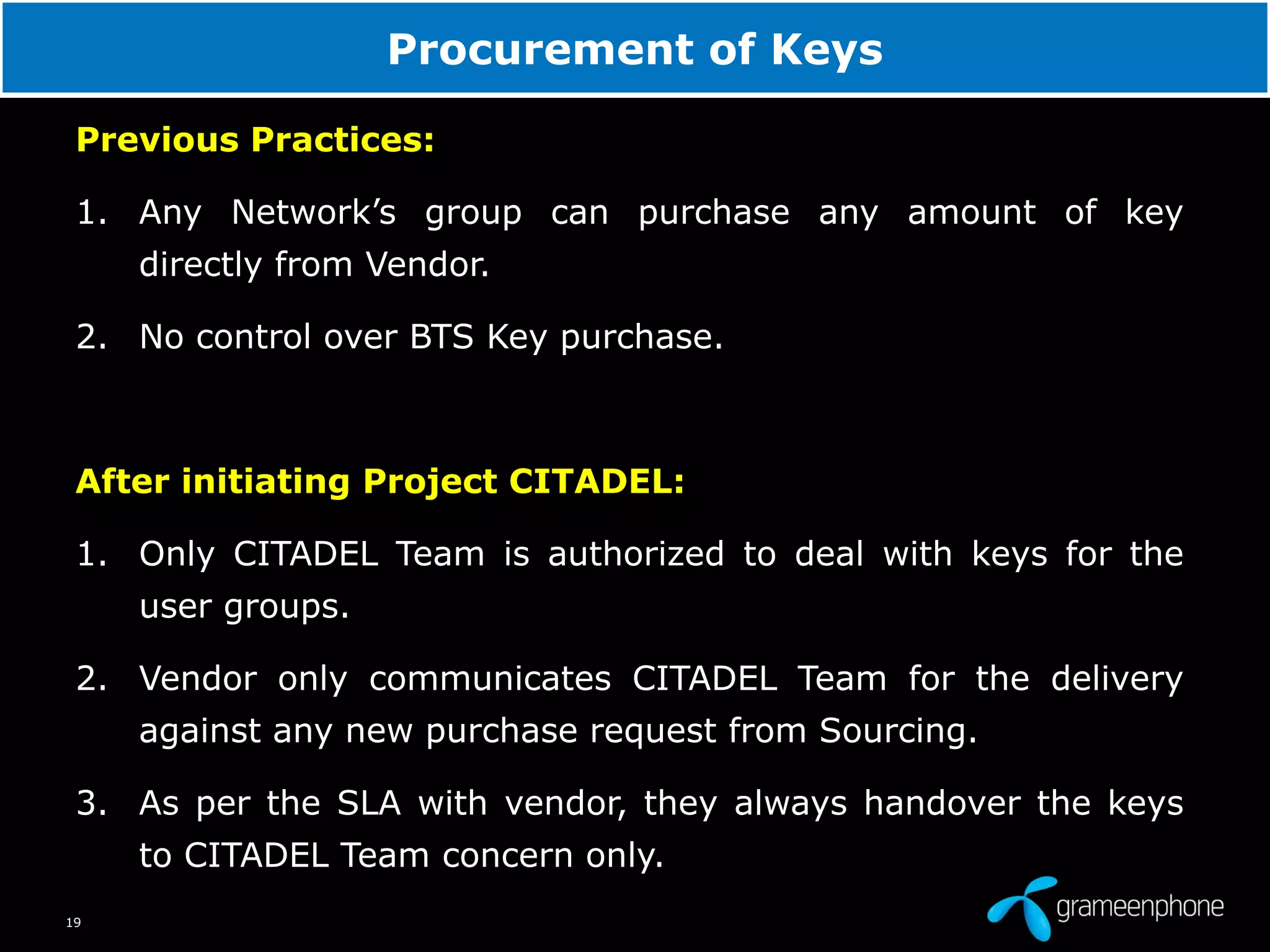

Procurement of Keys
Previous Practices:
1. Any Network’s group can purchase any amount of key
directly from Vendor.
2. No control over BTS Key purchase.
After initiating Project CITADEL:
1. Only CITADEL Team is authorized to deal with keys for the
user groups.
2. Vendor only communicates CITADEL Team for the delivery
against any new purchase request from Sourcing.
3. As per the SLA with vendor, they always handover the keys
to CITADEL Team concern only.

20. 20

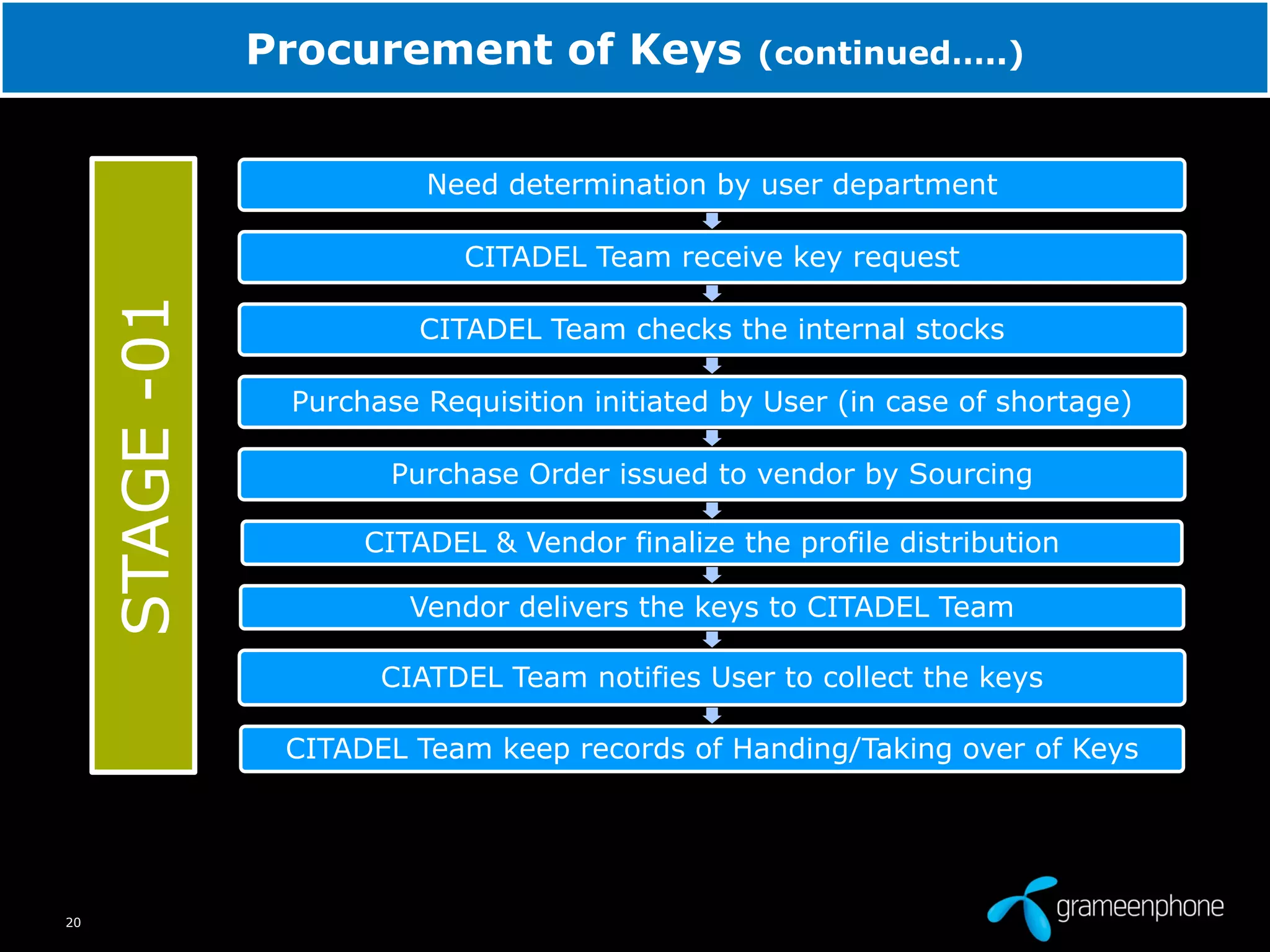

Procurement of Keys (continued…..)
Need determination by user department
CITADEL Team receive key request
CITADEL Team checks the internal stocks
Purchase Requisition initiated by User (in case of shortage)
Purchase Order issued to vendor by Sourcing
CITADEL & Vendor finalize the profile distribution
Vendor delivers the keys to CITADEL Team
CIATDEL Team notifies User to collect the keys
CITADEL Team keep records of Handing/Taking over of Keys
STAGE-01

21. 21
Project CITADEL – SWOT Analysis
Analysis Areas Key Components
Strength
Dedicated Team, Secured Storage, IT Support, O &
M Policy, Accountability Database, Set alignment
with Stakeholders.
Weakness
Incomplete Software, Budgetary approval issues,
Awareness of users, Huge CLASSIC keys are
untraceable.
Opportunity
Develop integrated software database, Root level
awareness on Operations of BKM, only ROM as Key
issuer, Implement CITADEL in all Regions.
Threat
High dependency in budgetary approval for BTS
Key Management, Rate of Theft increase in
leftover CLASSIC regions.

22. 22

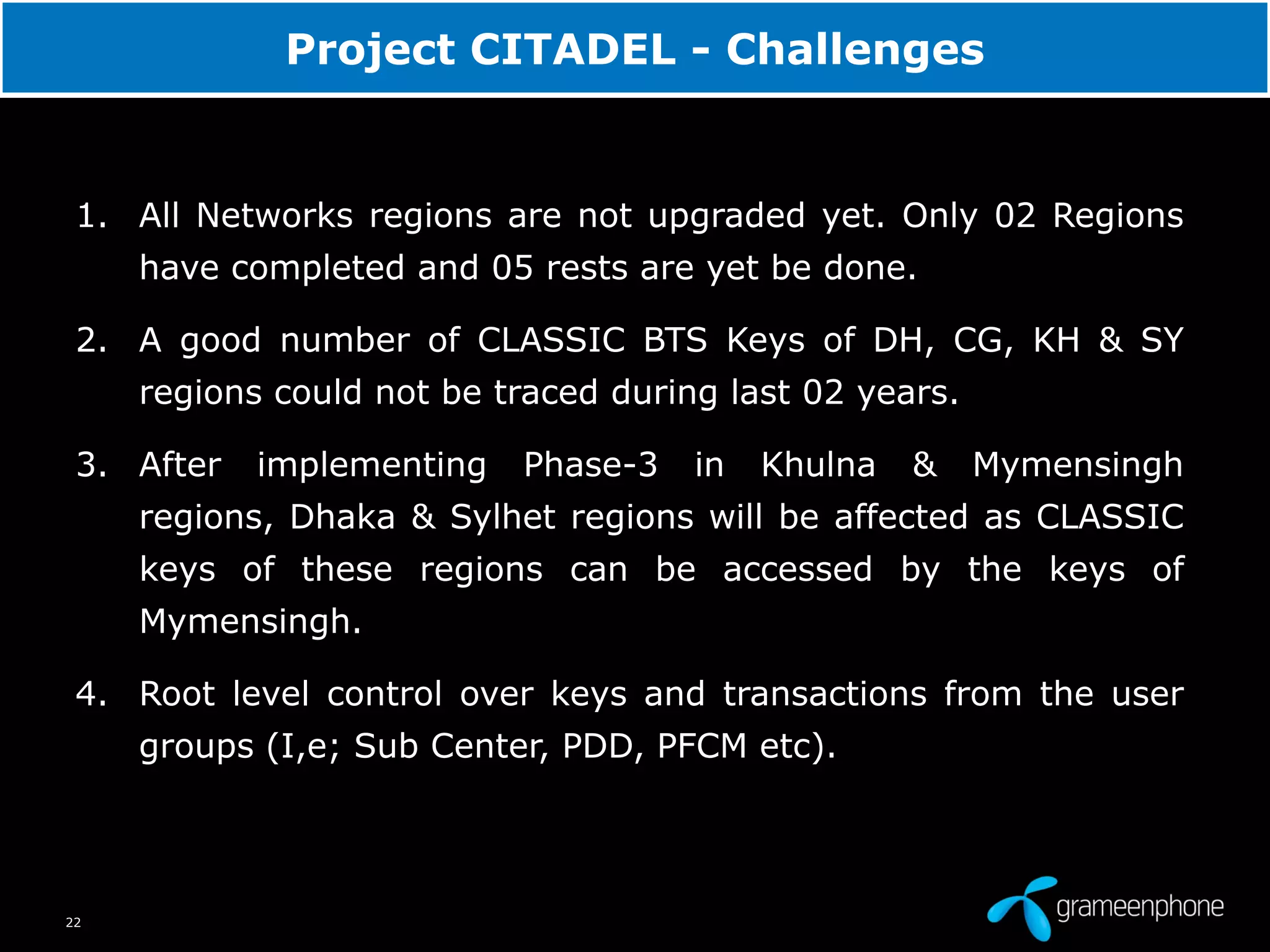

Project CITADEL - Challenges
1. All Networks regions are not upgraded yet. Only 02 Regions
have completed and 05 rests are yet be done.
2. A good number of CLASSIC BTS Keys of DH, CG, KH & SY
regions could not be traced during last 02 years.
3. After implementing Phase-3 in Khulna & Mymensingh
regions, Dhaka & Sylhet regions will be affected as CLASSIC
keys of these regions can be accessed by the keys of
Mymensingh.
4. Root level control over keys and transactions from the user
groups (I,e; Sub Center, PDD, PFCM etc).

23. Achievements
GP recovered 1.2 Mn from vendors for 1st time upon lost of BTS keys. SRM
initiated & communicated for the issue.
ROM, Technology could save huge (>20 Mn) amount BDT after implementing
Project CITADEL.
Successfully implemented Project CITADEL,
Phase-1 & 2 in Barisal & Bogra region
respectively, which have brought a dramatic
change in theft incident rate.
Extensive supports were provided to
Wholesale Business on site sharing issue
and almost 1700 BTS sites were configured
for the access privileges for Seekers.

24. Achievements Glimpse
24

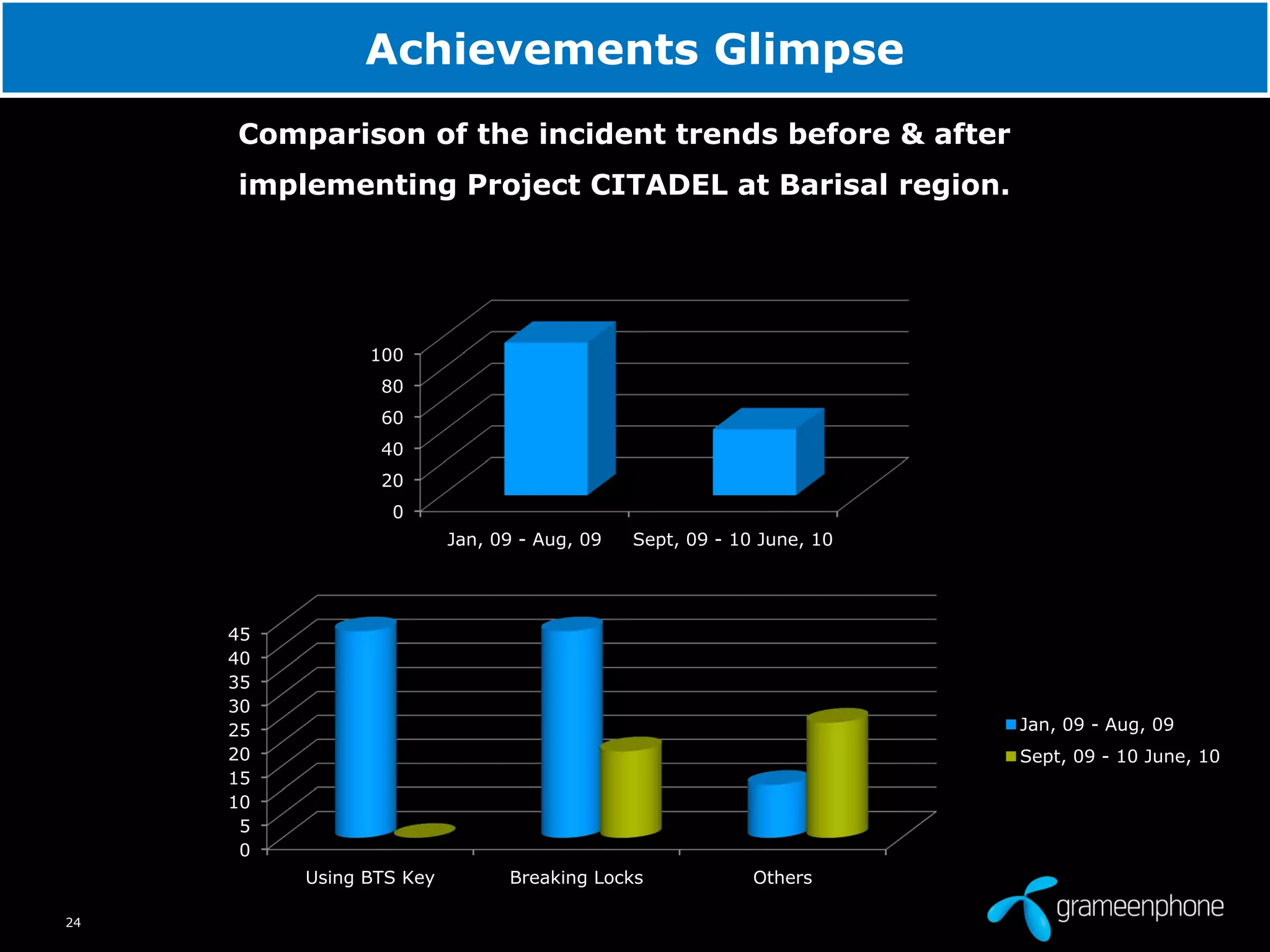

Comparison of the incident trends before & after
implementing Project CITADEL at Barisal region.
0
5
10
15
20
25
30
35
40
45
Using BTS Key Breaking Locks Others
Jan, 09 - Aug, 09
Sept, 09 - 10 June, 10
0
20
40
60
80
100
Jan, 09 - Aug, 09 Sept, 09 - 10 June, 10
Total Theft Incidents

25. 25
