Emergent Design: History, Concepts, and Principles

16 June 2015 © Agile Institute 2008-2014 1

Emergent
Design
History, Concepts, &
Principles
Rob Myers
Agile Development Practices
East
13 November 2014

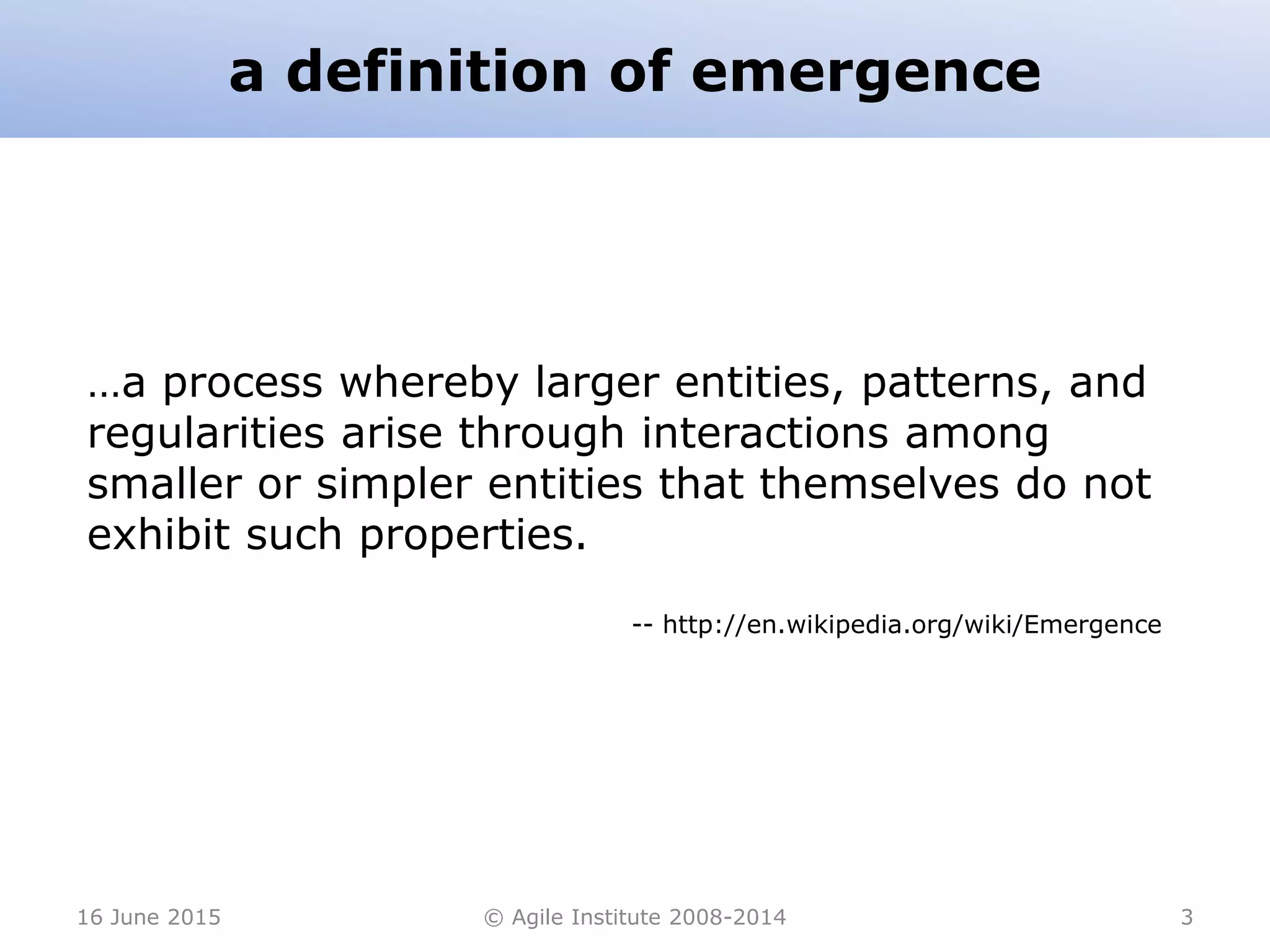

a definition of emergence
…a process whereby larger entities, patterns, and
regularities arise through interactions among
smaller or simpler entities that themselves do not
exhibit such properties.
-- http://en.wikipedia.org/wiki/Emergence

"Termite Cathedral DSC03570”
taken by w:User:Yewenyi - [1].
Licensed under
Creative Commons Attribution-Share Alike 3.0
via Wikimedia Commons
http://commons.wikimedia.org/wiki/

emergent properties
• Spontaneous order arises from chaos.
• From simple rules, complex behaviors manifest.
• Tiny steps, repeated many times, perhaps recursively.
• Same “rules” apply at macro/micro levels; same “paths”
exist to/from another level.
• Require a rich supply of “food”: time, energy, RAM…

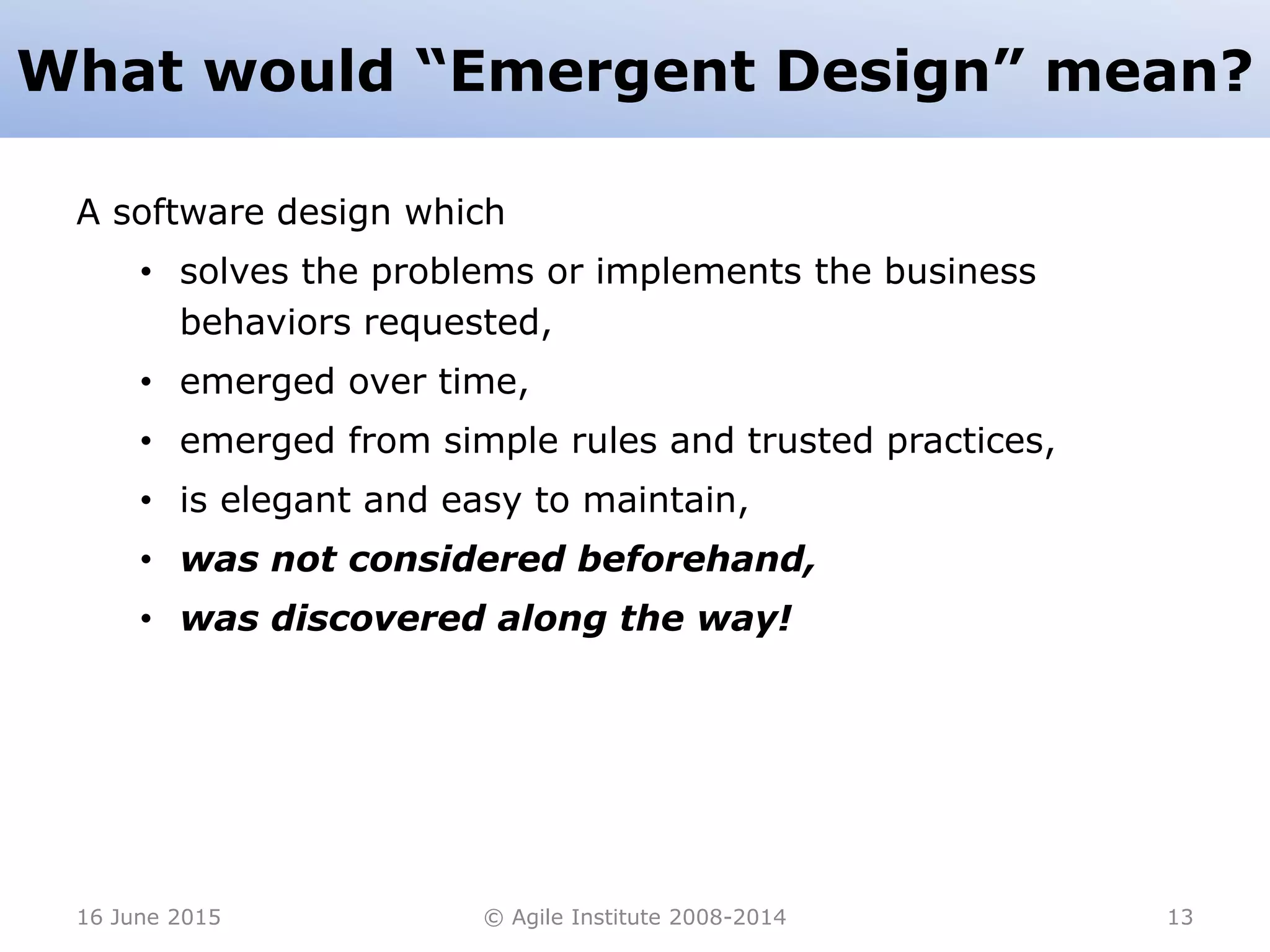

What would “Emergent Design” mean?
A software design which
• solves the problems or implements the business
behaviors requested,
• emerged over time,
• emerged from simple rules and trusted practices,
• is elegant and easy to maintain,
• was not considered beforehand,
• was discovered along the way!

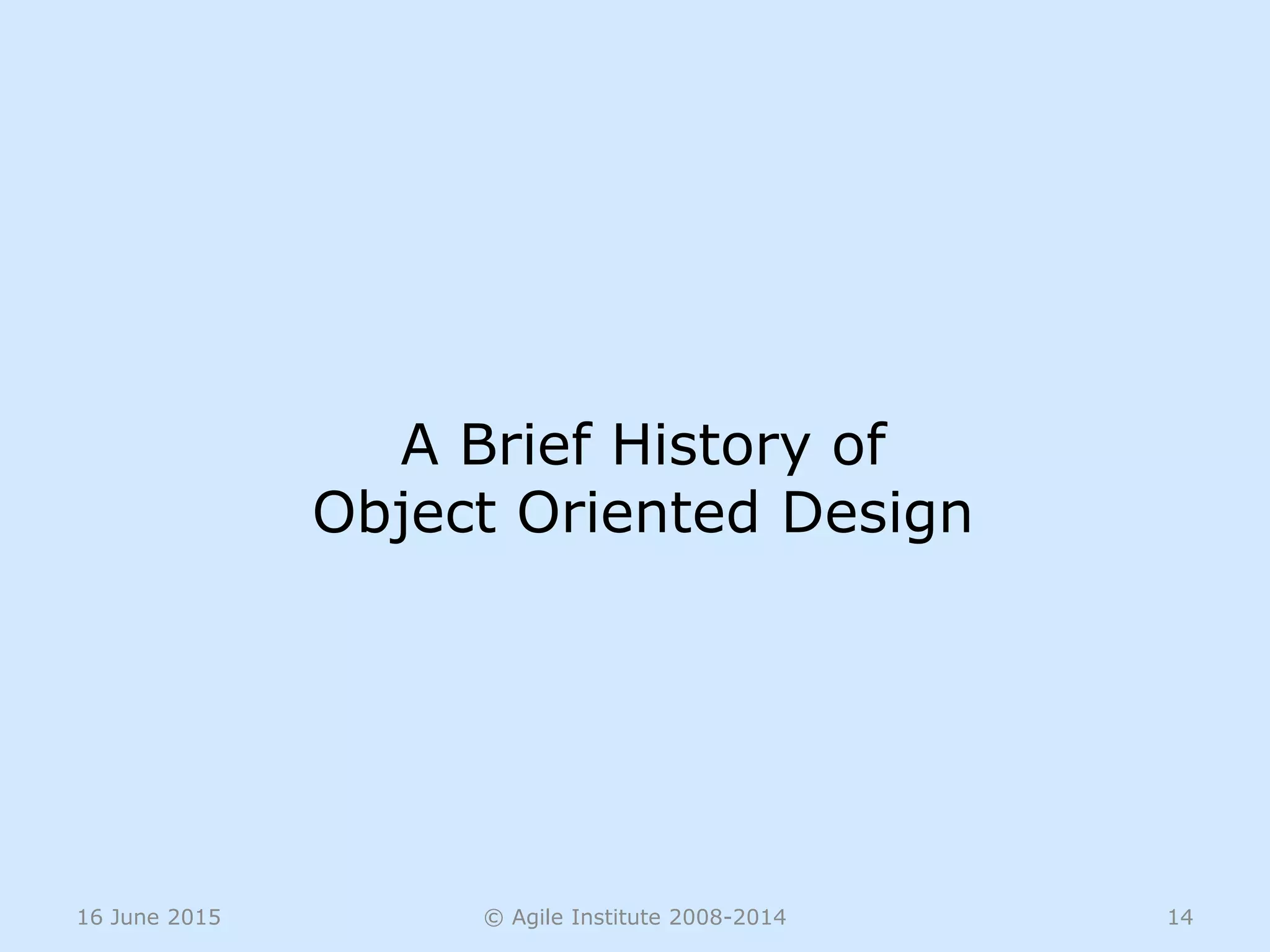

A Brief History of
Object Oriented Design

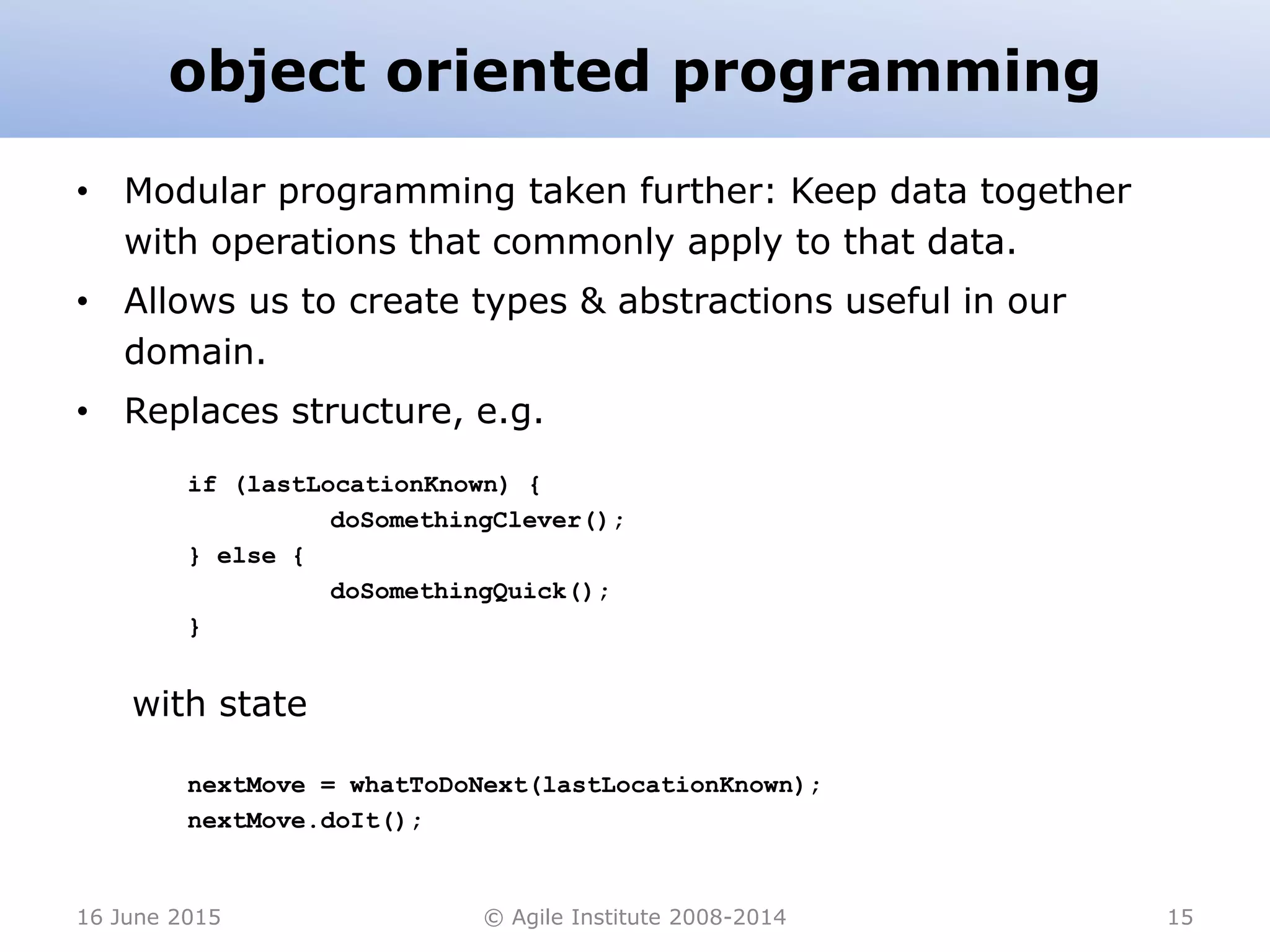

object oriented programming
• Modular programming taken further: Keep data together
with operations that commonly apply to that data.
• Allows us to create types & abstractions useful in our
domain.
• Replaces structure, e.g.
if (lastLocationKnown) {
doSomethingClever();
} else {
doSomethingQuick();
}
with state
nextMove = whatToDoNext(lastLocationKnown);
nextMove.doIt();

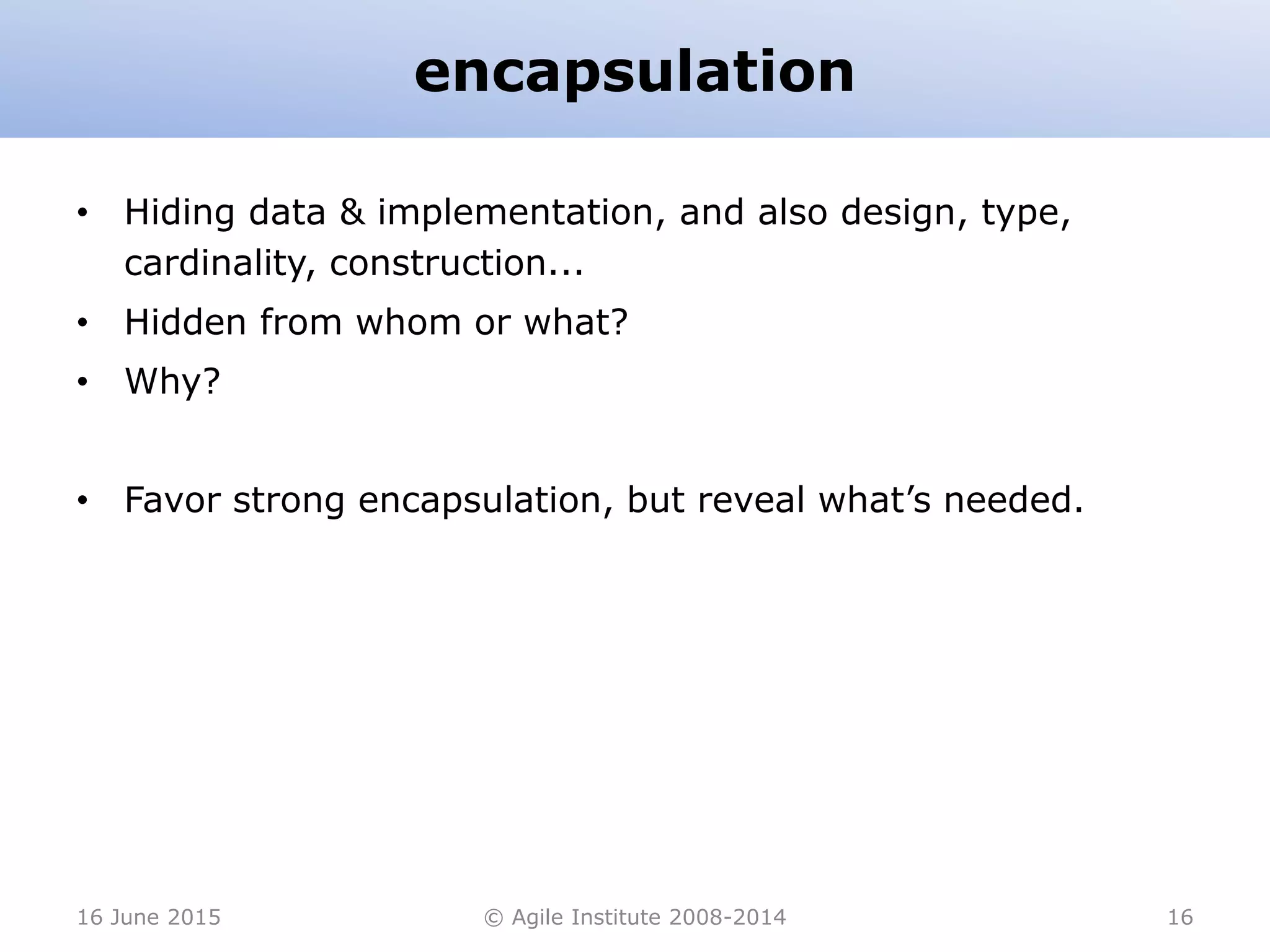

encapsulation
• Hiding data & implementation, and also design, type,
cardinality, construction...
• Hidden from whom or what?
• Why?
• Favor strong encapsulation, but reveal what’s needed.

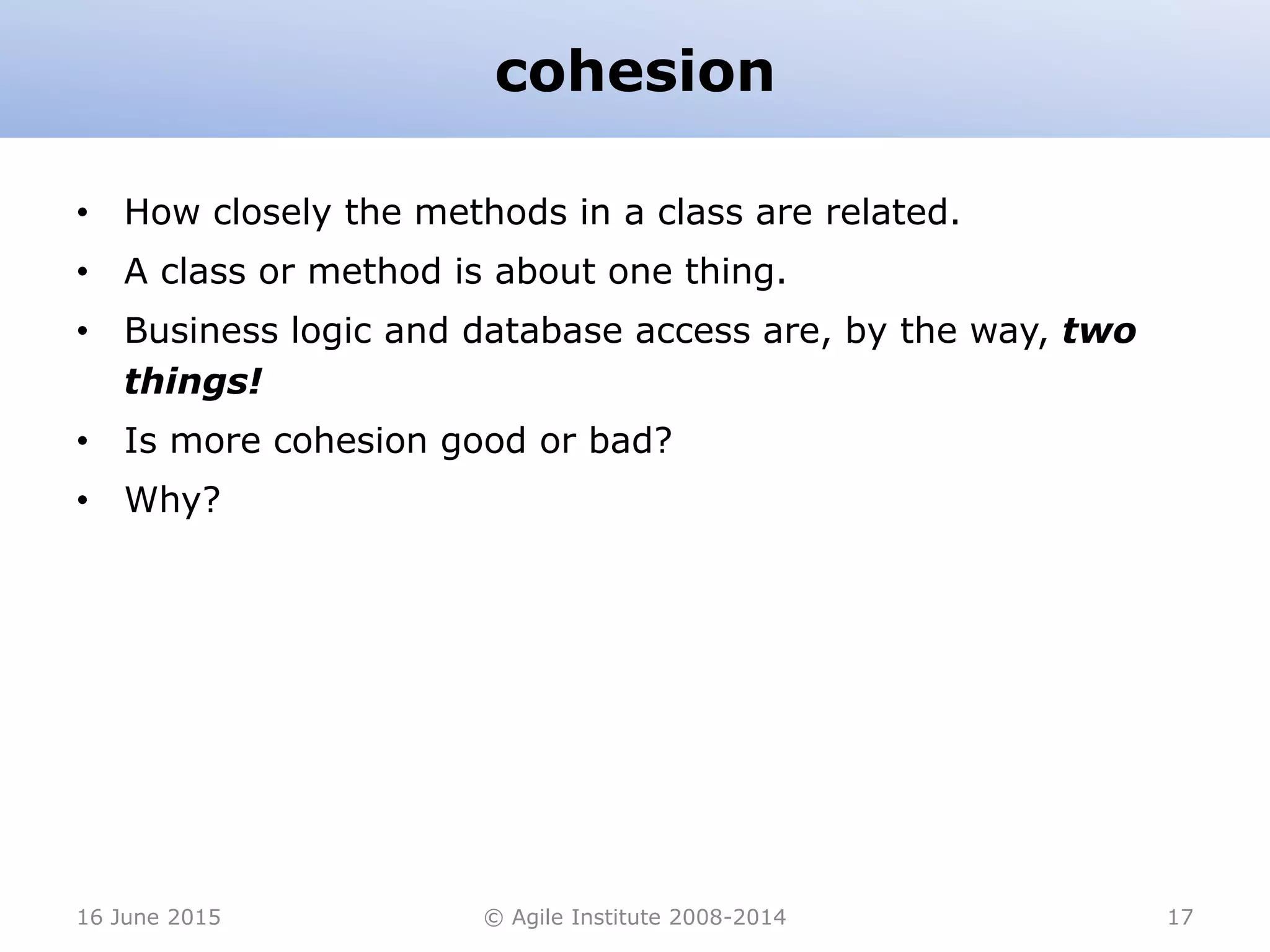

cohesion
• How closely the methods in a class are related.
• A class or method is about one thing.
• Business logic and database access are, by the way, two
things!
• Is more cohesion good or bad?
• Why?

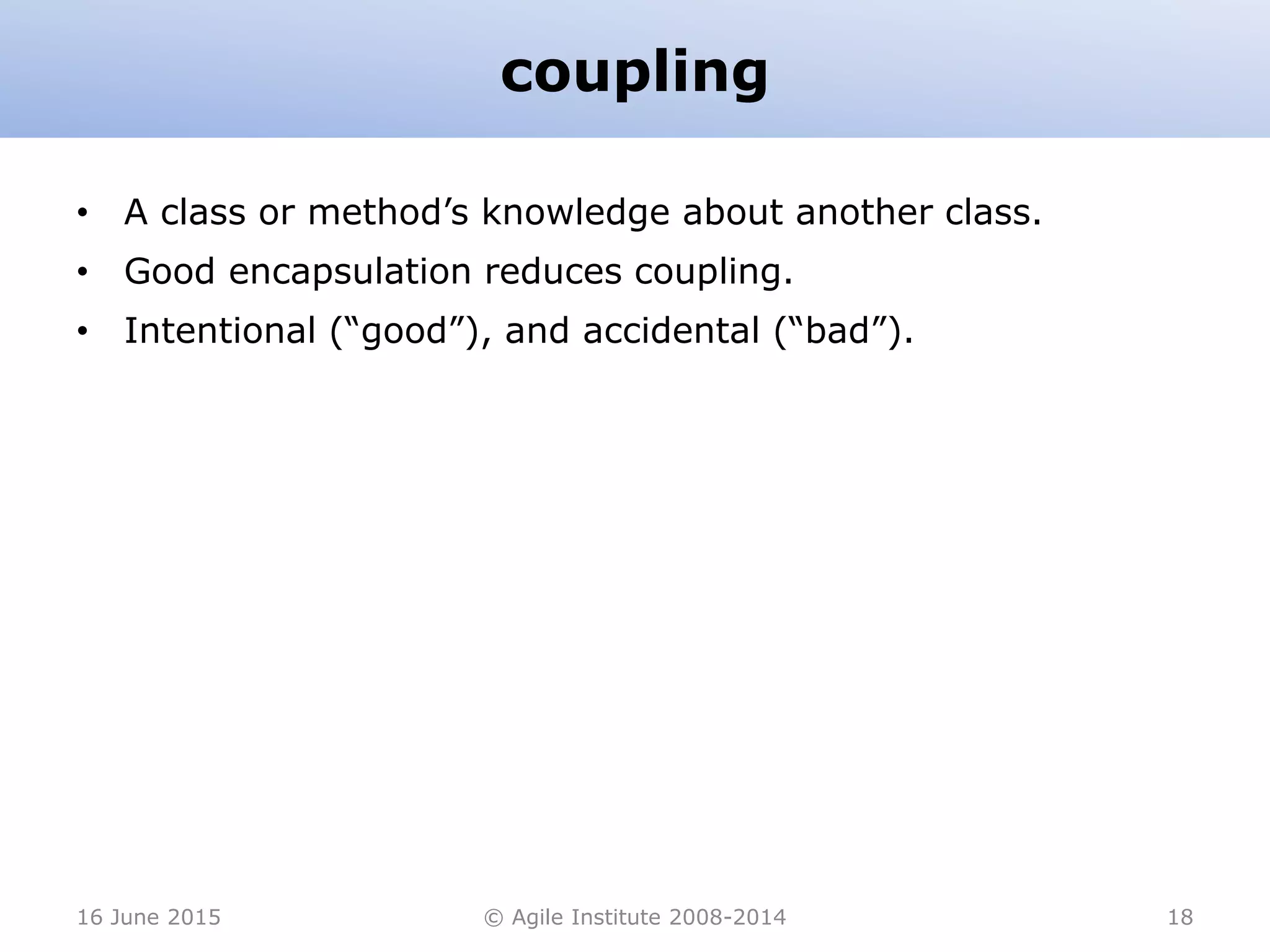

coupling
• A class or method’s knowledge about another class.
• Good encapsulation reduces coupling.
• Intentional (“good”), and accidental (“bad”).

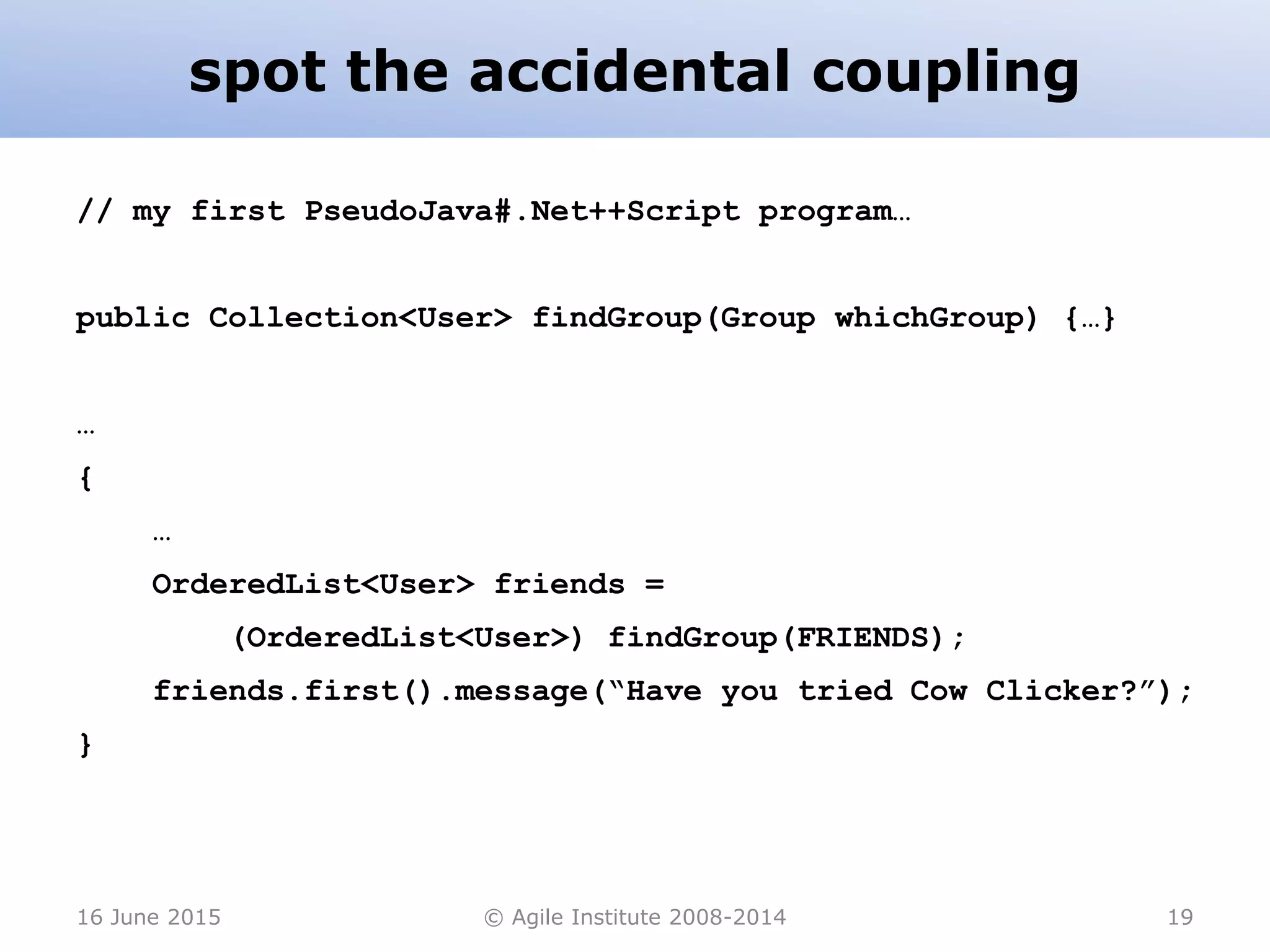

spot the accidental coupling
// my first PseudoJava#.Net++Script program…
public Collection<User> findGroup(Group whichGroup) {…}
…
{
…
OrderedList<User> friends =
(OrderedList<User>) findGroup(FRIENDS);
friends.first().message(“Have you tried Cow Clicker?”);
}

16 June 2015 © Agile institute 2008-2014 20

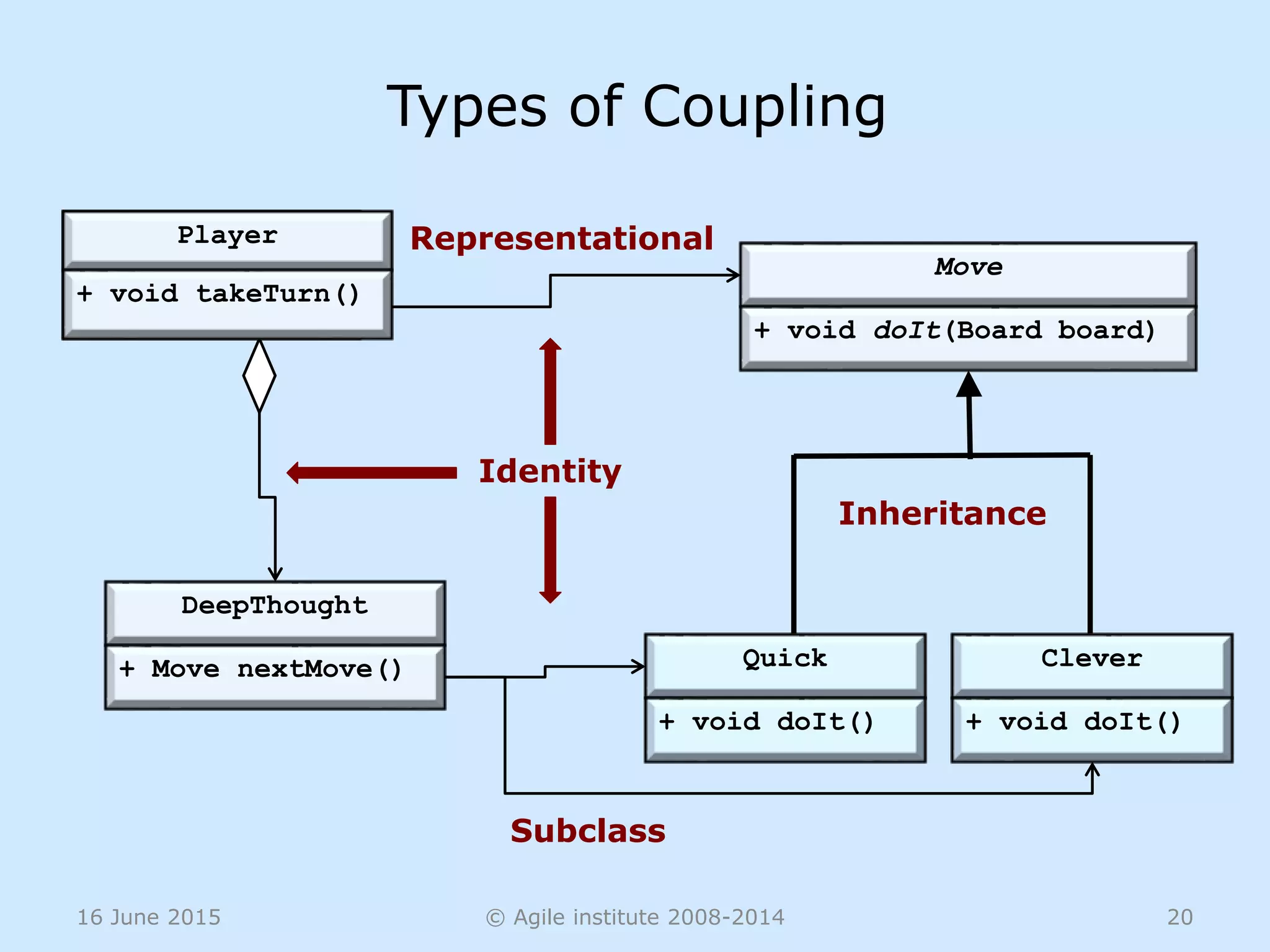

Move
+ void doIt(Board board)
Quick
+ void doIt()
Player
+ takeTurn()
Types of Coupling
DeepThought
+ Move nextMove() Clever
+ void doIt()
Identity
Representational
Inheritance
Subclass
Player
+ void takeTurn()

Player
+ void takeTurn()

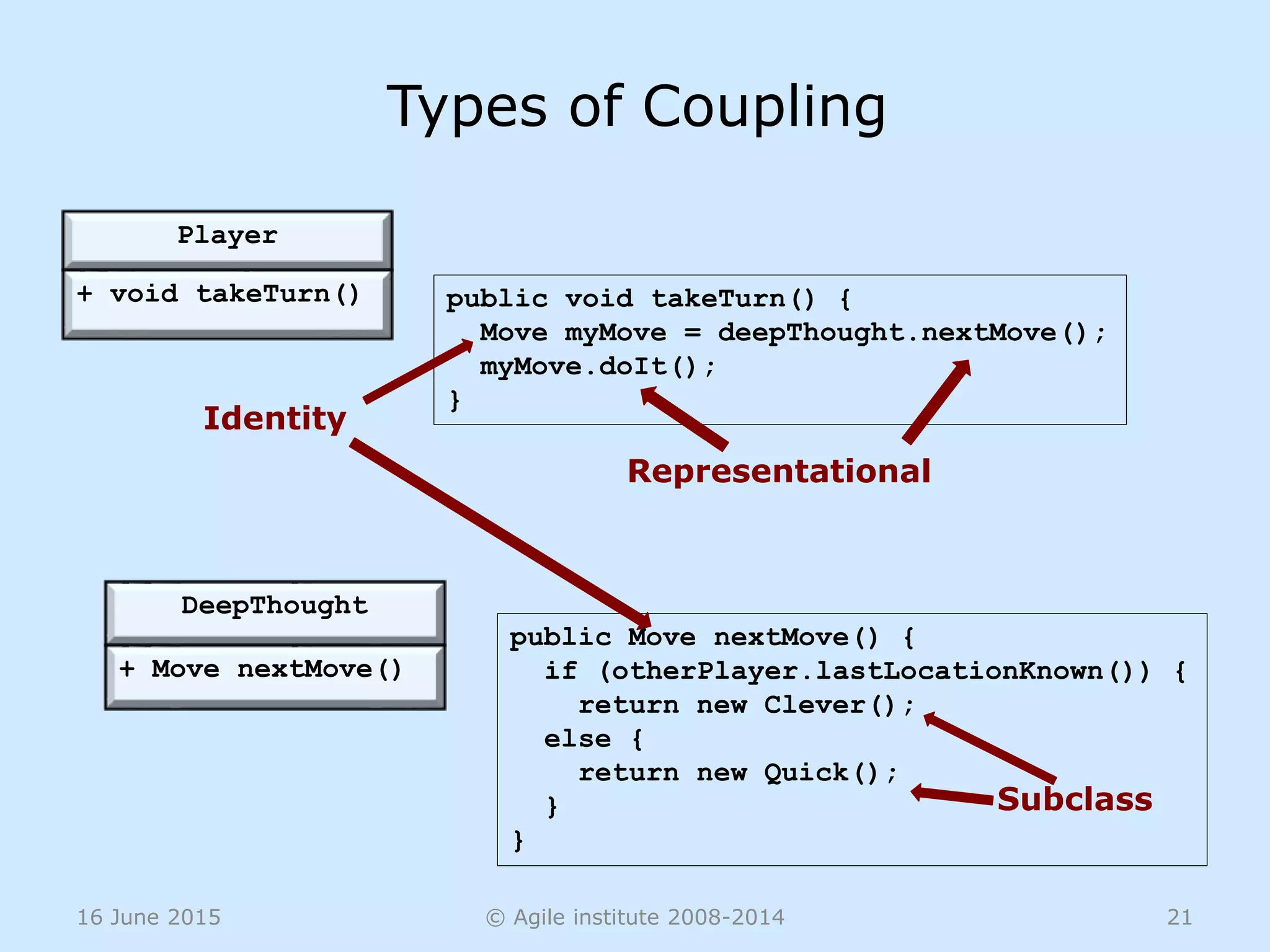

Types of Coupling
DeepThought
+ Move nextMove()
public void takeTurn() {
Move myMove = deepThought.nextMove();
myMove.doIt();
}
Identity
Representational
public Move nextMove() {
if (otherPlayer.lastLocationKnown()) {
return new Clever();
else {
return new Quick();
}
}
Subclass

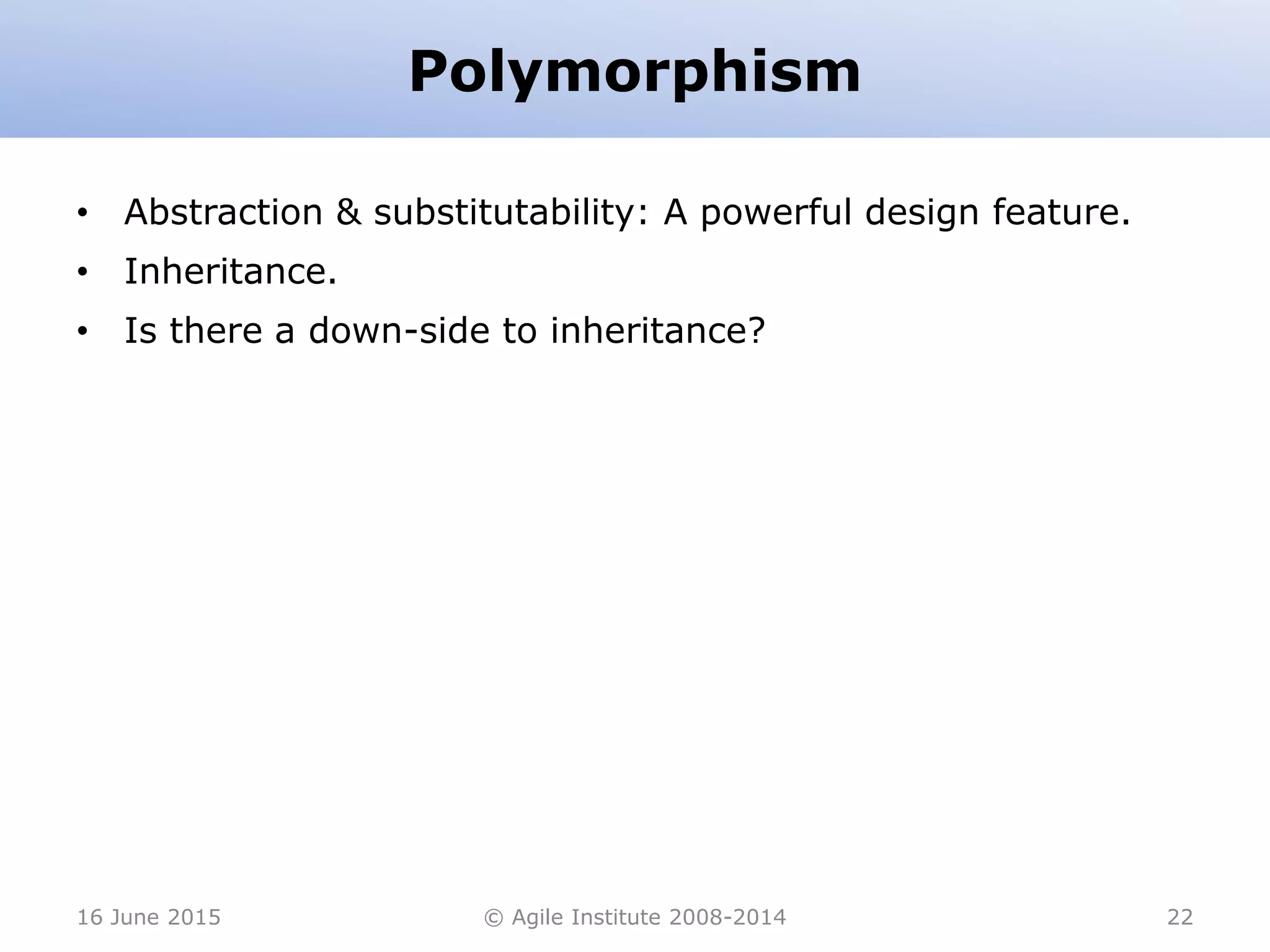

Polymorphism
• Abstraction & substitutability: A powerful design feature.
• Inheritance.
• Is there a down-side to inheritance?

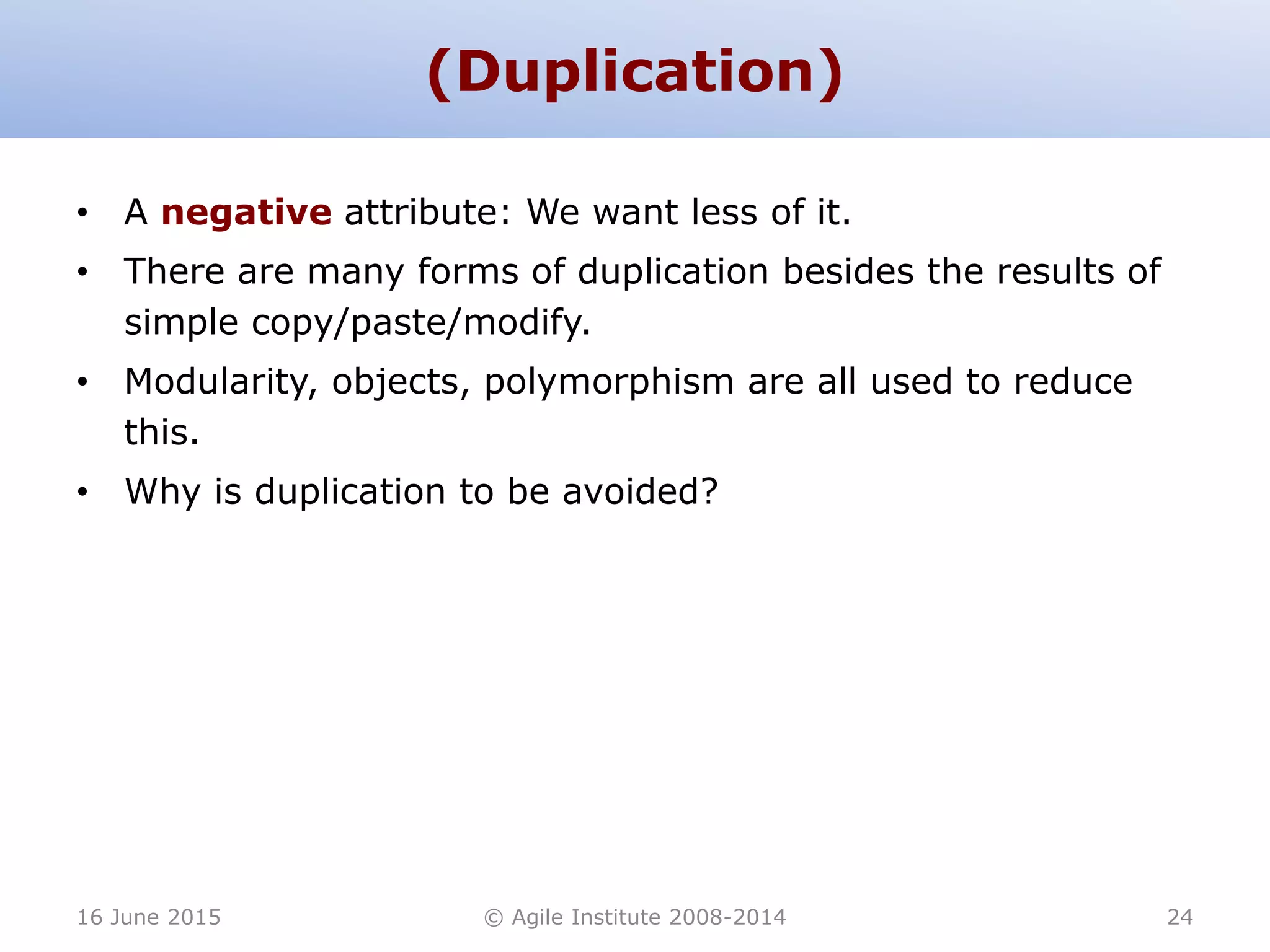

(Duplication)
• A negative attribute: We want less of it.
• There are many forms of duplication besides the results of
simple copy/paste/modify.
• Modularity, objects, polymorphism are all used to reduce
this.
• Why is duplication to be avoided?

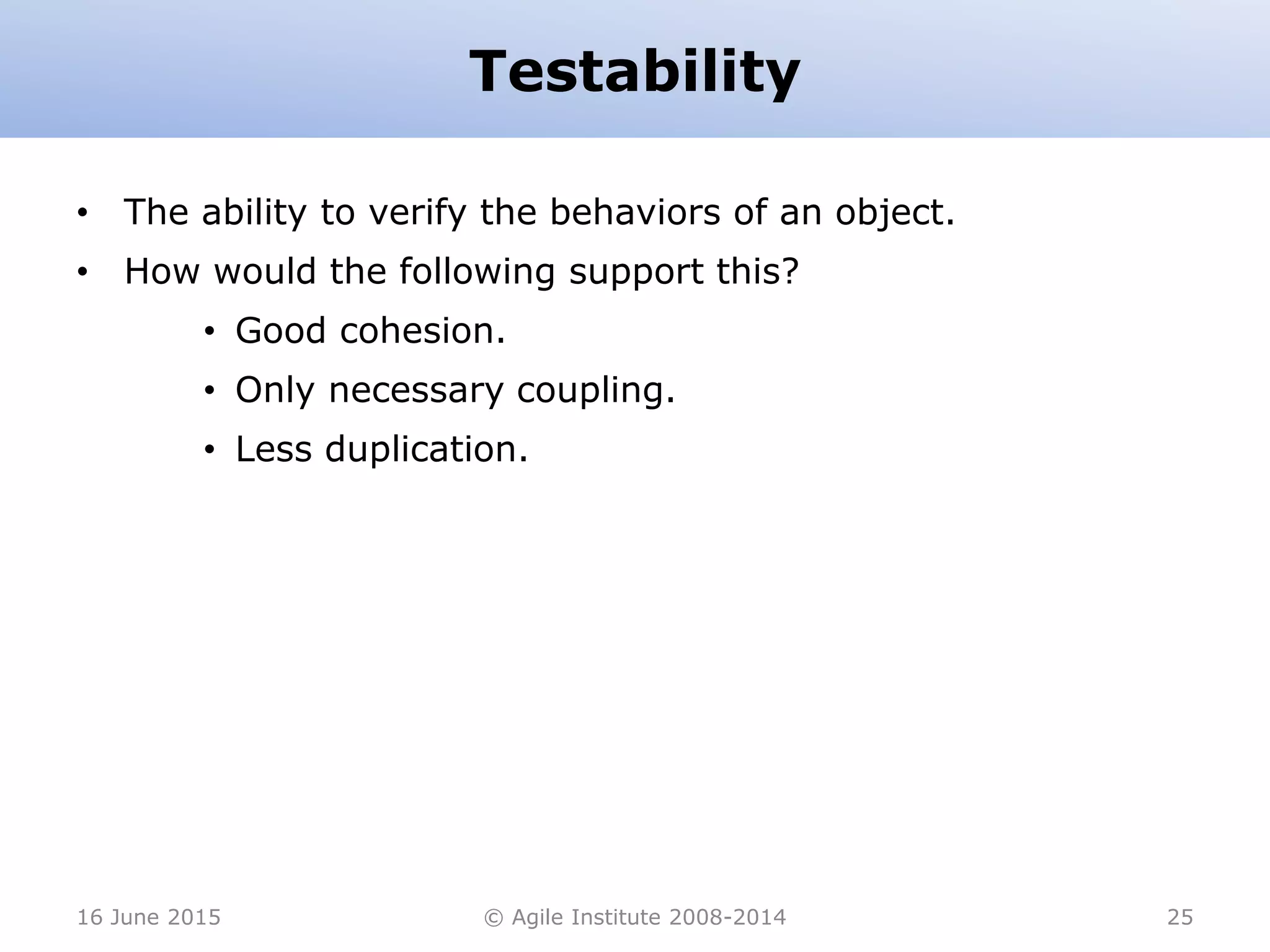

Testability
• The ability to verify the behaviors of an object.
• How would the following support this?
• Good cohesion.
• Only necessary coupling.
• Less duplication.

Wisdom of
Design Patterns

Stream
BinaryStream
(Subclassing for Specialization)
CharacterStream
EncryptedCharacterStream CompressedCharacterStream
EncryptedBinaryStreamStream
EncryptedNetworkCharacterStrea
m
EncryptedFilesystemCharacterStream

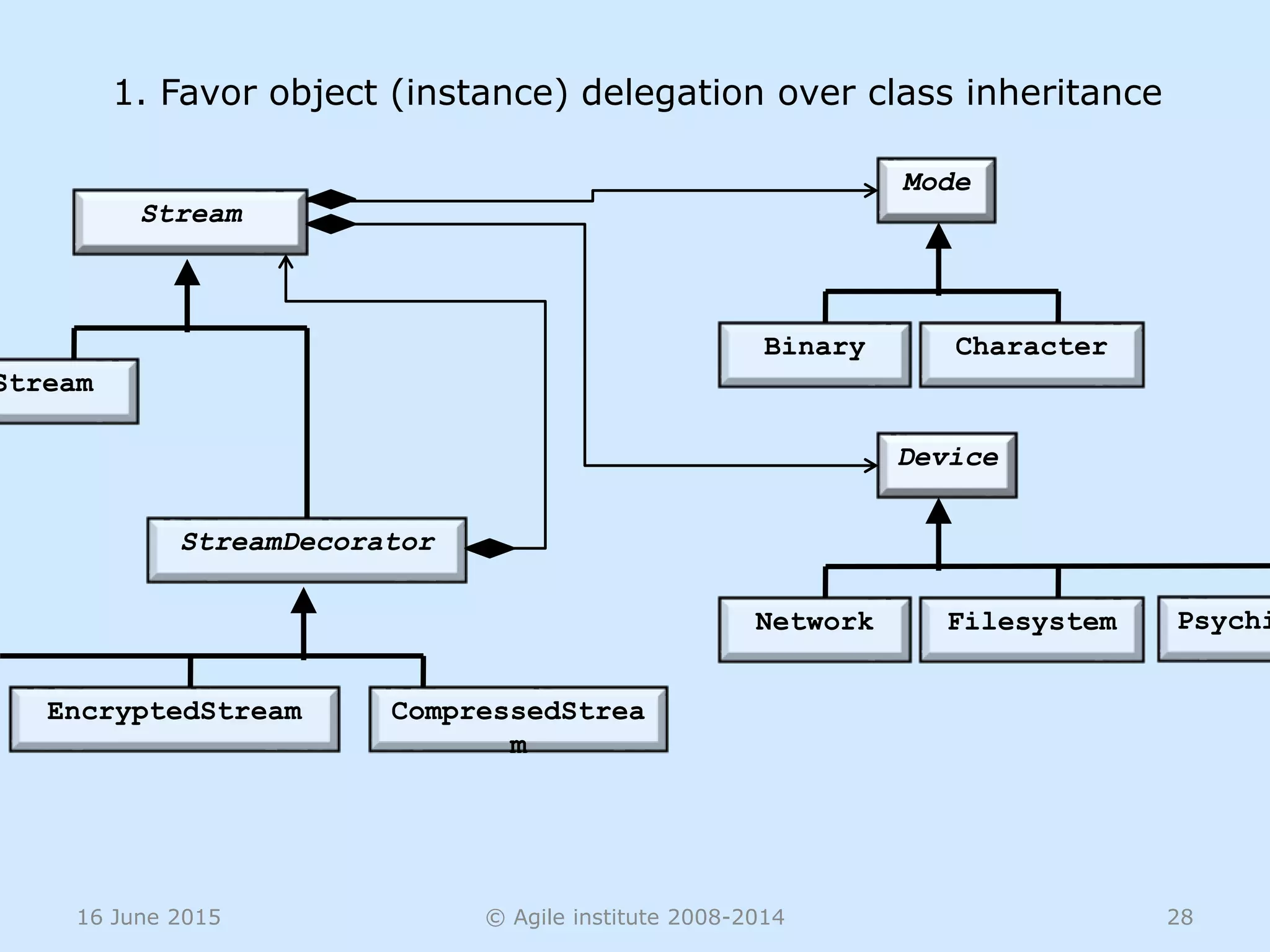

Stream
1. Favor object (instance) delegation over class inheritance
Mode
Binary Character
Device
Network Filesystem
Stream
StreamDecorator
EncryptedStream CompressedStrea
m
Psychi

Stream

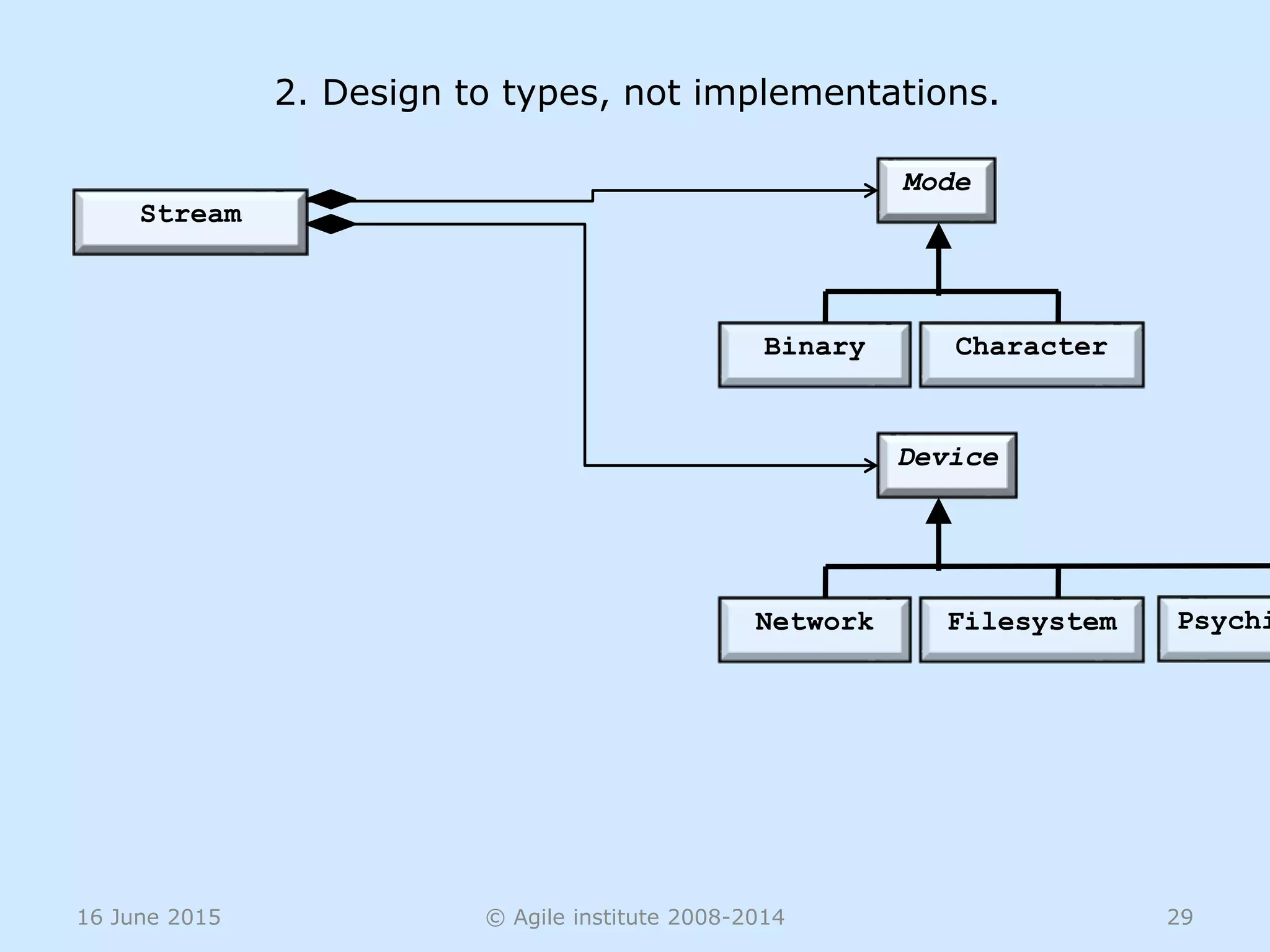

2. Design to types, not implementations.
Mode
Binary Character
Device
Network Filesystem Psychi

Stream

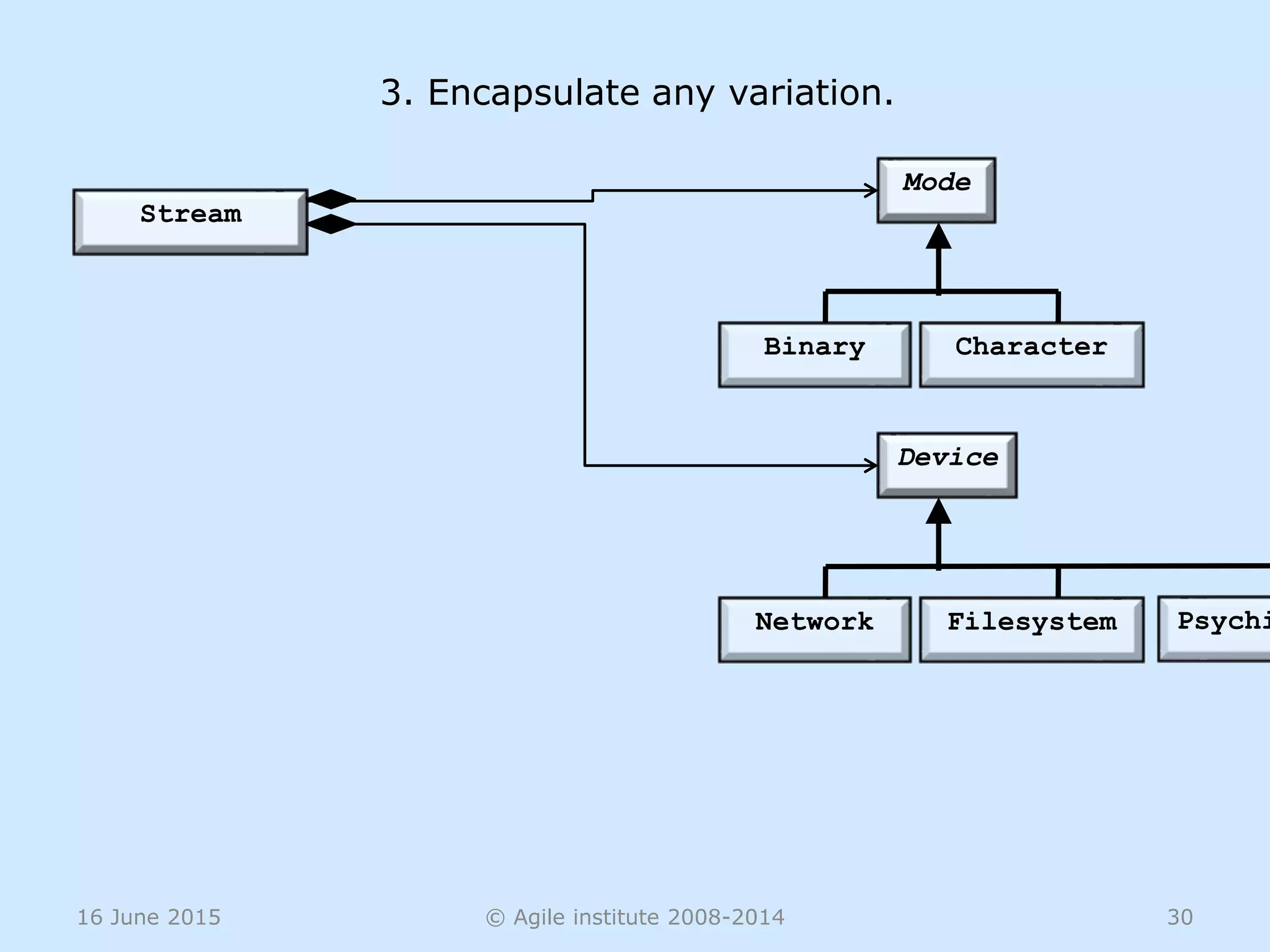

3. Encapsulate any variation.
Mode
Binary Character
Device
Network Filesystem Psychi

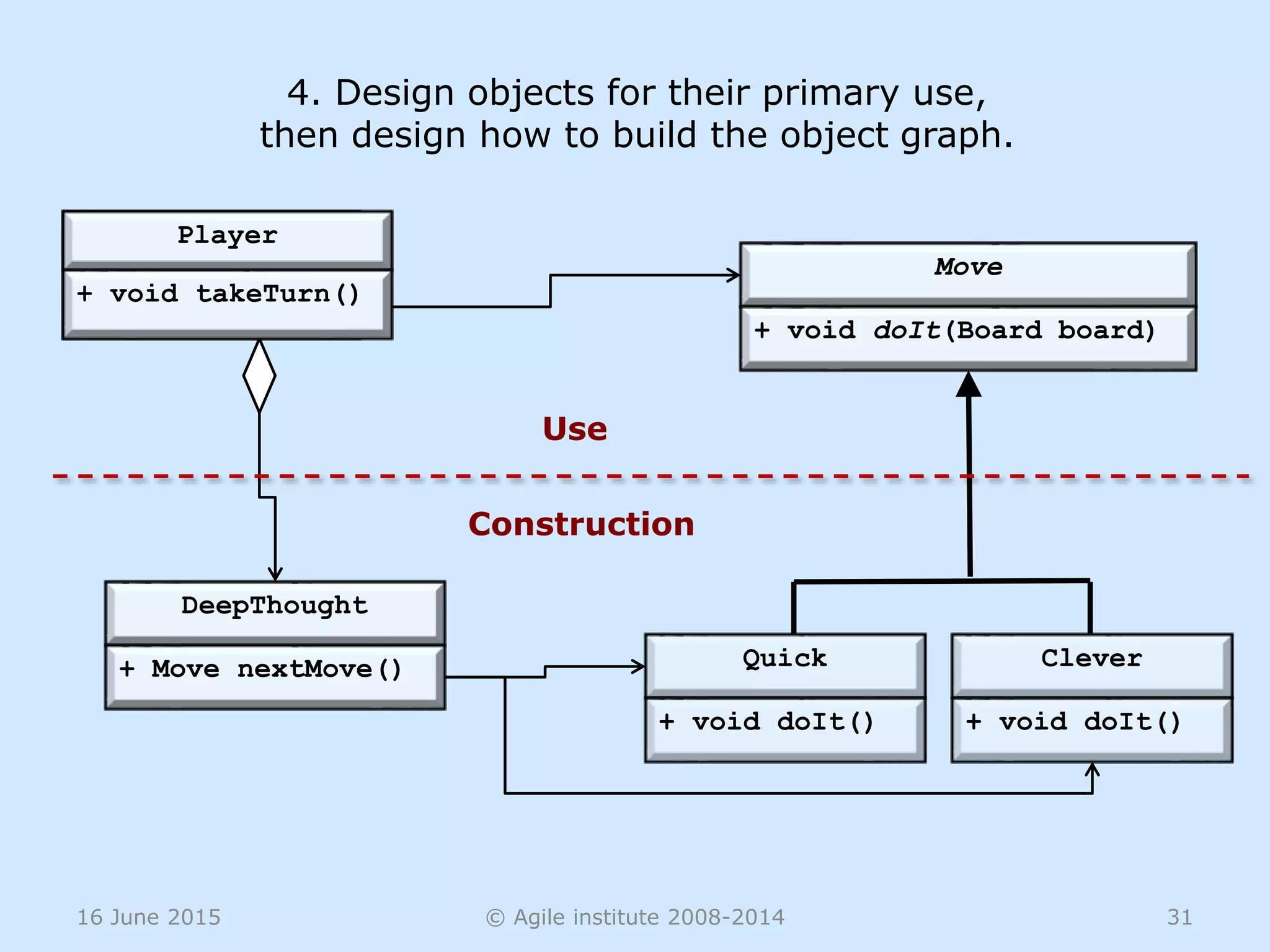

4. Design objects for their primary use,
then design how to build the object graph.
Move
+ void doIt(Board board)
Quick
+ void doIt()
Player
+ takeTurn()
DeepThought
+ Move nextMove() Clever
+ void doIt()
Player
+ void takeTurn()
Use
Construction

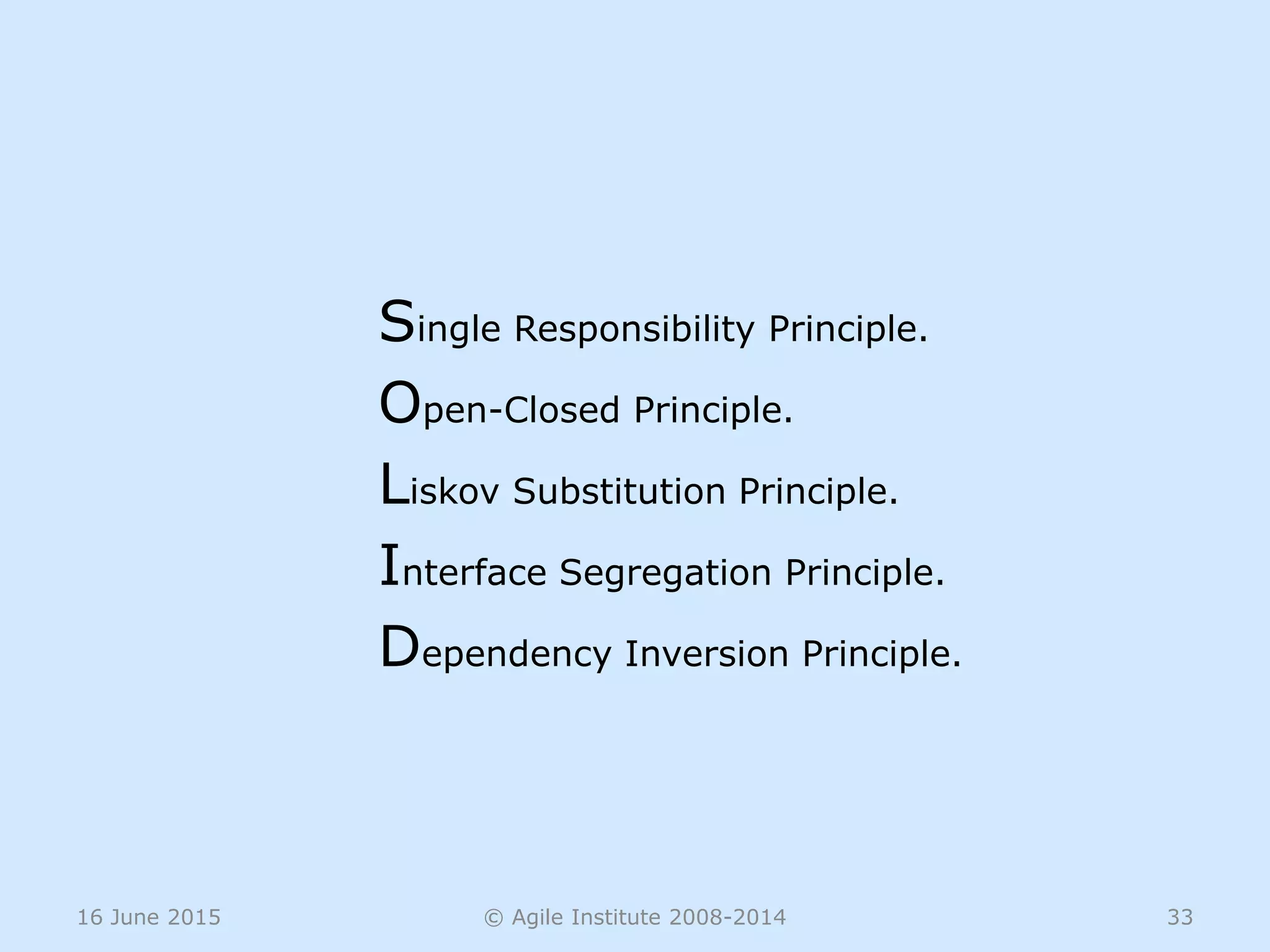

Single Responsibility Principle.
Open-Closed Principle.
Liskov Substitution Principle.
Interface Segregation Principle.
Dependency Inversion Principle.

emergence

Developer’s “Oath of Athens”
I vow to
leave the
code as
good as I
found it,
or better!

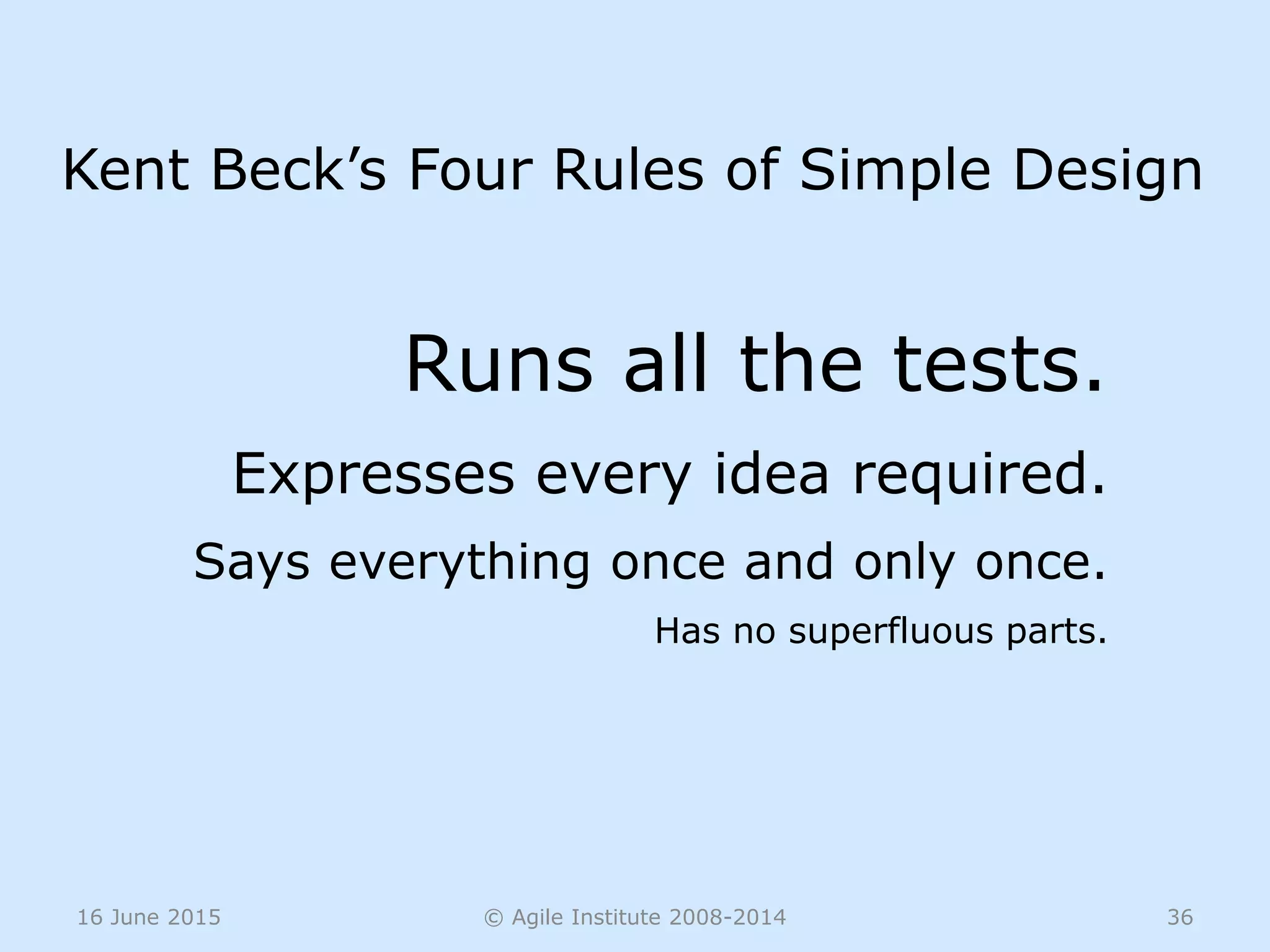

Runs all the tests.
Expresses every idea required.
Says everything once and only once.
Has no superfluous parts.
Kent Beck’s Four Rules of Simple Design

Relentless Refactoring

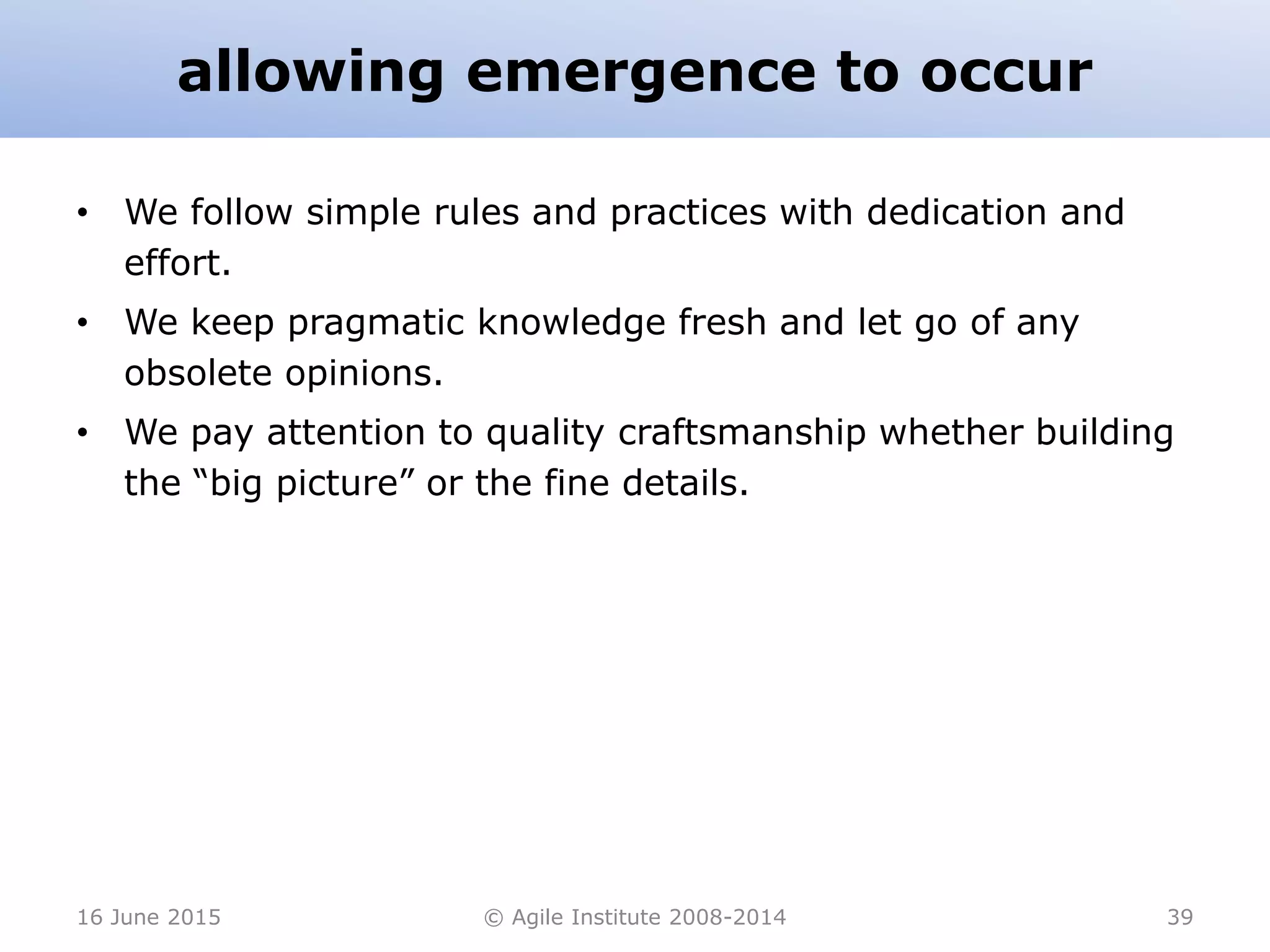

allowing emergence to occur
• We follow simple rules and practices with dedication and
effort.
• We keep pragmatic knowledge fresh and let go of any
obsolete opinions.
• We pay attention to quality craftsmanship whether building
the “big picture” or the fine details.

Rob.Myers@agileInstitute.com
http://PowersOfTwo.agileInstitute.com/
@agilecoach

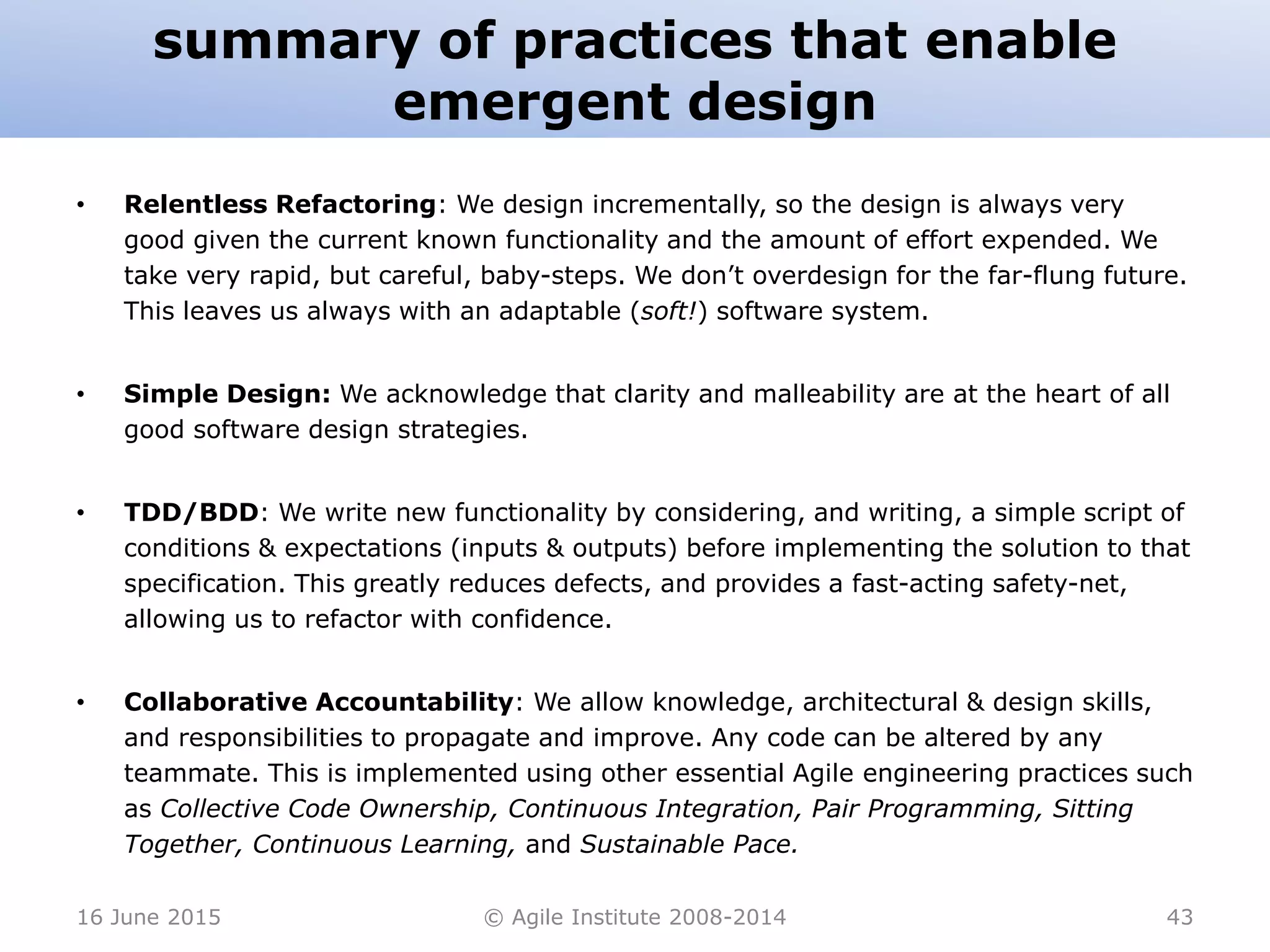

summary of practices that enable
emergent design
• Relentless Refactoring: We design incrementally, so the design is always very
good given the current known functionality and the amount of effort expended. We
take very rapid, but careful, baby-steps. We don’t overdesign for the far-flung future.
This leaves us always with an adaptable (soft!) software system.
• Simple Design: We acknowledge that clarity and malleability are at the heart of all
good software design strategies.
• TDD/BDD: We write new functionality by considering, and writing, a simple script of
conditions & expectations (inputs & outputs) before implementing the solution to that
specification. This greatly reduces defects, and provides a fast-acting safety-net,
allowing us to refactor with confidence.
• Collaborative Accountability: We allow knowledge, architectural & design skills,
and responsibilities to propagate and improve. Any code can be altered by any
teammate. This is implemented using other essential Agile engineering practices such
as Collective Code Ownership, Continuous Integration, Pair Programming, Sitting
Together, Continuous Learning, and Sustainable Pace.

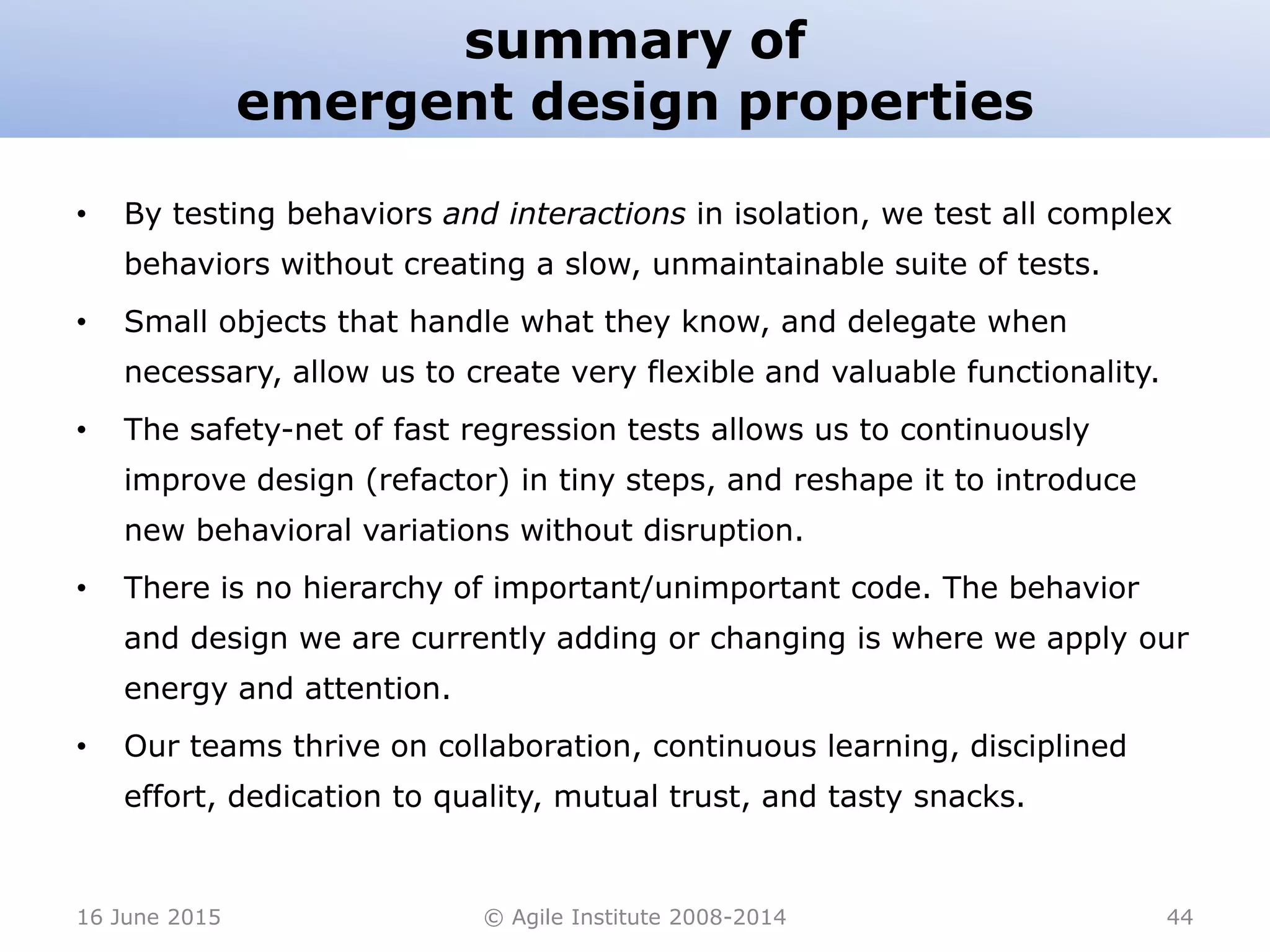

summary of
emergent design properties
• By testing behaviors and interactions in isolation, we test all complex
behaviors without creating a slow, unmaintainable suite of tests.
• Small objects that handle what they know, and delegate when
necessary, allow us to create very flexible and valuable functionality.
• The safety-net of fast regression tests allows us to continuously
improve design (refactor) in tiny steps, and reshape it to introduce
new behavioral variations without disruption.
• There is no hierarchy of important/unimportant code. The behavior
and design we are currently adding or changing is where we apply our
energy and attention.
• Our teams thrive on collaboration, continuous learning, disciplined
effort, dedication to quality, mutual trust, and tasty snacks.
