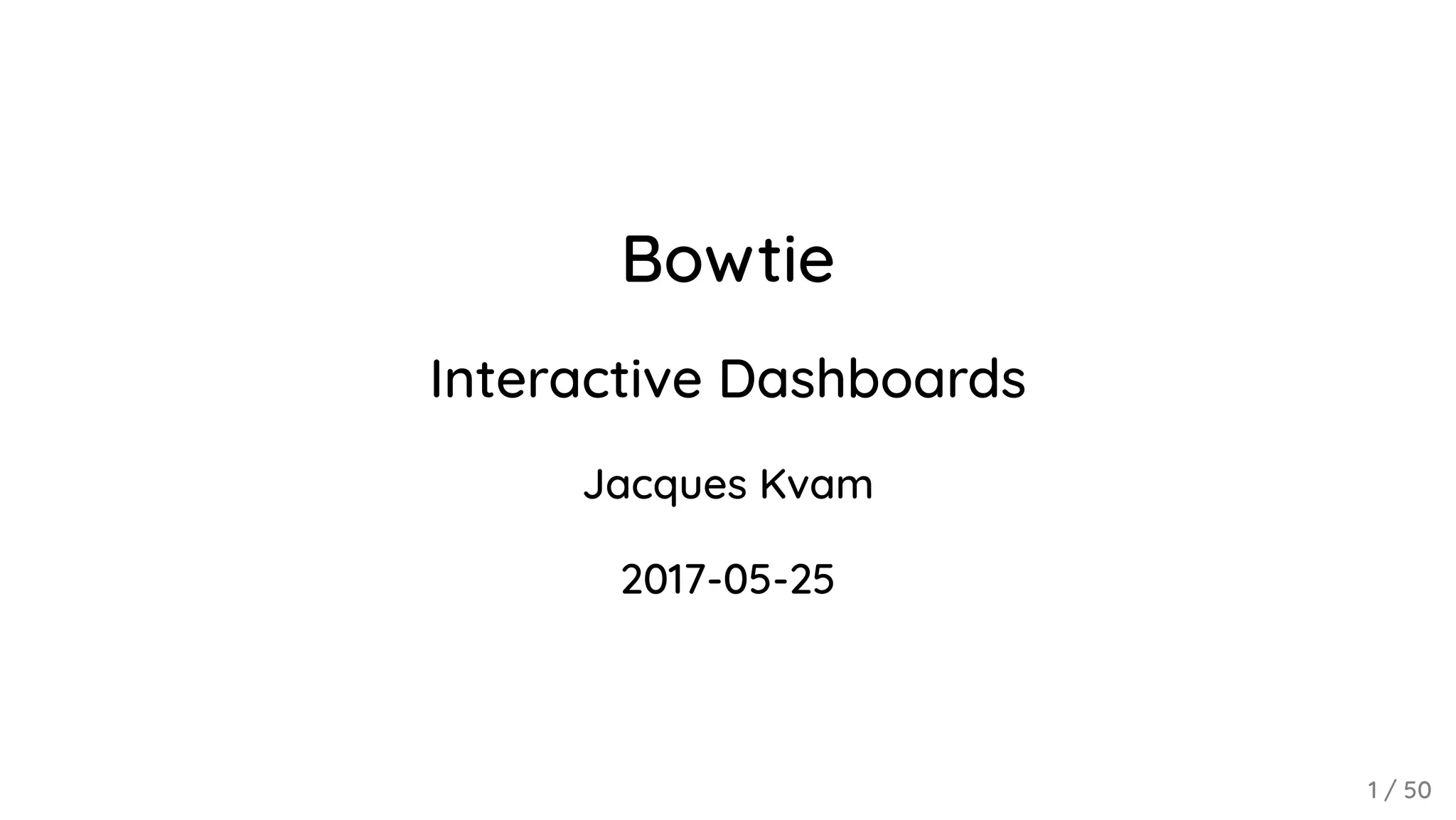

1. Bowtie
Interactive Dashboards
Jacques Kvam
2017-05-25
1 / 50

2. Anonymous Chat
https://bowtie-chat.herokuapp.com
2 / 50

3. Who am I?
3 / 50

4. Who am I?
Computer Engineer turned "Data Scientist".
3 / 50

5. Who am I?
Computer Engineer turned "Data Scientist".
Work at energy analytics startup, Verdigris Technologies.
3 / 50

6. Who am I?
Computer Engineer turned "Data Scientist".
Work at energy analytics startup, Verdigris Technologies.
Heavy Python user for 3-5 years.
3 / 50

7. Who am I?
Computer Engineer turned "Data Scientist".
Work at energy analytics startup, Verdigris Technologies.
Heavy Python user for 3-5 years.
I'm not a frontend developer.
3 / 50

8. Agenda
4 / 50

9. Agenda
Motivation
4 / 50

10. Agenda
Motivation
A quick start
4 / 50

11. Agenda
Motivation
A quick start
Rapid prototyping tips
4 / 50

12. Agenda
Motivation
A quick start
Rapid prototyping tips
Advanced features
4 / 50

13. Agenda
Motivation
A quick start
Rapid prototyping tips
Advanced features
How to deploy
4 / 50

14. Agenda
Motivation
A quick start
Rapid prototyping tips
Advanced features
How to deploy
Tech stack
4 / 50

15. Agenda
Motivation
A quick start
Rapid prototyping tips
Advanced features
How to deploy
Tech stack
Future work and goals
4 / 50

16. Agenda
Motivation
A quick start
Rapid prototyping tips
Advanced features
How to deploy
Tech stack
Future work and goals
Will not be discussing similar tools.
4 / 50

17. Motivation
5 / 50

18. Motivation
Want to click on a chart and generate another chart.
5 / 50

19. Motivation
Want to click on a chart and generate another chart.
5 / 50

20. Tool Survey
6 / 50

21. Tool Survey
Don't want to use R!
6 / 50

22. Tool Survey
Don't want to use R!
Looked for solutions in Python.
6 / 50

23. Tool Survey
Don't want to use R!
Looked for solutions in Python.
Thought this should be easier.
6 / 50

24. Tool Survey
Don't want to use R!
Looked for solutions in Python.
Thought this should be easier.
Thought it would be fun to write something.
6 / 50

25. 7 / 50

26. Initial Thoughts
8 / 50

27. Initial Thoughts
Plotly charts have lots of events: selection, click, and hover.
8 / 50

28. Initial Thoughts
Plotly charts have lots of events: selection, click, and hover.
Just need to communicate between Python and JS in browser.
8 / 50

29. Initial Thoughts
Plotly charts have lots of events: selection, click, and hover.
Just need to communicate between Python and JS in browser.
Socket.io seems like it could do the trick.
8 / 50

30. Initial Thoughts
Plotly charts have lots of events: selection, click, and hover.
Just need to communicate between Python and JS in browser.
Socket.io seems like it could do the trick.
That's good enough for a proof of concept.
8 / 50

31. Fast forward a few months
9 / 50

32. Your First Bowtie App
10 / 50

33. Your First Bowtie App
Each app has three parts
10 / 50

34. Your First Bowtie App
Each app has three parts
Choose the components in your app.
10 / 50

35. Your First Bowtie App
Each app has three parts
Choose the components in your app.
Write the callbacks (in response to events).
10 / 50

36. Your First Bowtie App
Each app has three parts
Choose the components in your app.
Write the callbacks (in response to events).
Layout the components and connect everything.
10 / 50

37. First we need some prereqs
11 / 50

38. First we need some prereqs
Need Node to get us yarn and webpack.
$ brew install node
$ npm install -g webpack
$ brew install yarn
Sorry for the MacOS bias.
11 / 50

39. First we need some prereqs
Need Node to get us yarn and webpack.
$ brew install node
$ npm install -g webpack
$ brew install yarn
Sorry for the MacOS bias.
Install Bowtie.
$ pip install bowtie
Works on Python 2 and 3
11 / 50

40. 12 / 50

41. Select the components
13 / 50

42. Select the components
These are the widgets that exist in your app.
13 / 50

43. Select the components
These are the widgets that exist in your app.
Full list of components on readthedocs.
13 / 50

44. Select the components
These are the widgets that exist in your app.
Full list of components on readthedocs.
Split into two categories: visual widgets and controller widgets.
13 / 50

45. Select the components
These are the widgets that exist in your app.
Full list of components on readthedocs.
Split into two categories: visual widgets and controller widgets.
Visual: Plotly, SVG (matplotlib), Tables
13 / 50

46. Select the components
These are the widgets that exist in your app.
Full list of components on readthedocs.
Split into two categories: visual widgets and controller widgets.
Visual: Plotly, SVG (matplotlib), Tables
Controllers: DatePickers, Dropdown, Text, Sliders, Toggle, and a Button.
13 / 50

47. Select the components
These are the widgets that exist in your app.
Full list of components on readthedocs.
Split into two categories: visual widgets and controller widgets.
Visual: Plotly, SVG (matplotlib), Tables
Controllers: DatePickers, Dropdown, Text, Sliders, Toggle, and a Button.
from bowtie.visual import Plotly
from bowtie.control import Dropdown
plot = Plotly()
ddown = Dropdown()
13 / 50

48. What do these components do?
14 / 50

49. What do these components do?
Instructions for displaying itself in a webpage.
14 / 50

50. What do these components do?
Instructions for displaying itself in a webpage.
Commands, pre xed with do_, to update the state of the widget.
14 / 50

51. What do these components do?
Instructions for displaying itself in a webpage.
Commands, pre xed with do_, to update the state of the widget.
Events, pre xed with on_, to run python in response to.
14 / 50

52. What do these components do?
Instructions for displaying itself in a webpage.
Commands, pre xed with do_, to update the state of the widget.
Events, pre xed with on_, to run python in response to.
Getters, pre xed with get, gets the current states of the widget.
14 / 50

53. What do these components do?
Instructions for displaying itself in a webpage.
Commands, pre xed with do_, to update the state of the widget.
Events, pre xed with on_, to run python in response to.
Getters, pre xed with get, gets the current states of the widget.
For example: Dropdown docs.
14 / 50

54. De ne the callbacks
15 / 50

55. De ne the callbacks
We'll de ne functions to get run when events happen.
15 / 50

56. De ne the callbacks
We'll de ne functions to get run when events happen.
import plotlywrapper as pw
def callback(item):
chart = pw.line(range(item['value']))
plot.do_all(chart.dict)
15 / 50

57. De ne the callbacks
We'll de ne functions to get run when events happen.
import plotlywrapper as pw
def callback(item):
chart = pw.line(range(item['value']))
plot.do_all(chart.dict)
We'll run this function in response to a dropdown event.
15 / 50

58. De ne the callbacks
We'll de ne functions to get run when events happen.
import plotlywrapper as pw
def callback(item):
chart = pw.line(range(item['value']))
plot.do_all(chart.dict)
We'll run this function in response to a dropdown event.
The passed object for this dropdown is a dictionary with two keys: "label" and "value".
15 / 50

59. De ne the callbacks
We'll de ne functions to get run when events happen.
import plotlywrapper as pw
def callback(item):
chart = pw.line(range(item['value']))
plot.do_all(chart.dict)
We'll run this function in response to a dropdown event.
The passed object for this dropdown is a dictionary with two keys: "label" and "value".
To update the plot we call the do_all method.
15 / 50

60. Layout the App
16 / 50

61. Layout the App
We've chosen the components and de ned the functionality. Now we just need to connect events to
functions and lay out the widgets.
16 / 50

62. Layout the App
We've chosen the components and de ned the functionality. Now we just need to connect events to
functions and lay out the widgets.
from bowtie import command
@command
def build():
from bowtie import Layout
layout = Layout()
layout.add(plot)
layout.add_sidebar(ddown)
layout.subscribe(callback, ddown.on_change)
layout.build()
16 / 50

63. Layout the App
from bowtie import command
The command decorator turns this function into a command line interface.
@command
def build():
from bowtie import Layout
layout = Layout()
layout.add(plot)
layout.add_sidebar(ddown)
layout.subscribe(callback, ddown.on_change)
layout.build()
17 / 50

64. Layout the App
from bowtie import command
@command
def build():
from bowtie import Layout
layout = Layout()
These add* calls place widgets into our app.
layout.add(plot)
layout.add_sidebar(ddown)
layout.subscribe(callback, ddown.on_change)
layout.build()
18 / 50

65. Layout the App
from bowtie import command
@command
def build():
from bowtie import Layout
layout = Layout()
layout.add(plot)
layout.add_sidebar(ddown)
subscribe makes sure the callback gets run in response to the given event.
layout.subscribe(callback, ddown.on_change)
layout.build()
19 / 50

66. Layout the App
from bowtie import command
@command
def build():
from bowtie import Layout
layout = Layout(debug=True)
layout.add(plot)
layout.add_sidebar(ddown)
layout.subscribe(callback, ddown.on_change)
Finally, build compiles the app for us.
layout.build()
20 / 50

67. Build and Serve
21 / 50

68. Build and Serve
We're done writing the app, time to build and run it.
21 / 50

69. Build and Serve
We're done writing the app, time to build and run it.
The CLI we have gives us these commands:
Commands:
build Write the app, downloads the packages, and...
dev Recompile the app for development.
prod Recompile the app for production.
serve Serve the Bowtie app.
21 / 50

70. Build and Serve
We're done writing the app, time to build and run it.
The CLI we have gives us these commands:
Commands:
build Write the app, downloads the packages, and...
dev Recompile the app for development.
prod Recompile the app for production.
serve Serve the Bowtie app.
$ ./app.py build
21 / 50

71. Build and Serve
We're done writing the app, time to build and run it.
The CLI we have gives us these commands:
Commands:
build Write the app, downloads the packages, and...
dev Recompile the app for development.
prod Recompile the app for production.
serve Serve the Bowtie app.
$ ./app.py build
$ ./app.py serve
21 / 50

72. 22 / 50

73. 23 / 50

74. Rapid prototyping
24 / 50

75. Rapid prototyping
Set Layout(debug=True)! Enables live code reloading on write.
25 / 50

76. Rapid prototyping
Set Layout(debug=True)! Enables live code reloading on write.
Minimize builds by architecting app at the beginning.
25 / 50

77. Rapid prototyping
Set Layout(debug=True)! Enables live code reloading on write.
Minimize builds by architecting app at the beginning.
Use debuggers or prints to learn the payload.
def select(points):
one of the following:
print(points)
import ipdb; ipdb.set_trace()
import IPython; IPython.embed()
import wdb; wdb.set_trace()
25 / 50

78. Advanced Features
26 / 50

79. Listening to Plotly Events
27 / 50

80. Listening to Plotly Events
Plotly is a featureful Javascript charting library.
27 / 50

81. Listening to Plotly Events
Plotly is a featureful Javascript charting library.
It has several events and Bowtie exposes three event types: selection, click, and hover.
27 / 50

82. Listening to Plotly Events
Plotly is a featureful Javascript charting library.
It has several events and Bowtie exposes three event types: selection, click, and hover.
The data it returns is not well documented, but it's not too hard to gure out.
27 / 50

83. Subscribe to Multiple Events
28 / 50

84. Subscribe to Multiple Events
A common use-case is for a function to use the output from several widgets.
28 / 50

85. Subscribe to Multiple Events
A common use-case is for a function to use the output from several widgets.
Cumbersome to write individual callbacks for each event and get the other widgets' states.
def foo(a,b):
pass
def cb1(a):
b = b.get()
foo(a,b)
def cb2(b):
a = a.get()
foo(a,b)
28 / 50

86. Subscribe to Multiple Events
A common use-case is for a function to use the output from several widgets.
Cumbersome to write individual callbacks for each event and get the other widgets' states.
def foo(a,b):
pass
def cb1(a):
b = b.get()
foo(a,b)
def cb2(b):
a = a.get()
foo(a,b)
A better way is to subscribe callbacks to multiple events.
28 / 50

87. Subscribe to Multiple Events
A common use-case is for a function to use the output from several widgets.
Cumbersome to write individual callbacks for each event and get the other widgets' states.
def foo(a,b):
pass
def cb1(a):
b = b.get()
foo(a,b)
def cb2(b):
a = a.get()
foo(a,b)
A better way is to subscribe callbacks to multiple events.
def func(item1, item2, switch):
cool_stuff()
...
layout.subscribe(func, ddown1.on_select, ddown2.on_select, switch.on_switch)
28 / 50

88. Scheduling and Loading Events
29 / 50

89. Scheduling and Loading Events
Bowtie also de nes intrinsic event types.
29 / 50

90. Scheduling and Loading Events
Bowtie also de nes intrinsic event types.
Instruct a function to run when a user loads the page.
layout.load(func)
29 / 50

91. Scheduling and Loading Events
Bowtie also de nes intrinsic event types.
Instruct a function to run when a user loads the page.
layout.load(func)
Instruct a function to run periodically.
layout.schedule(5, func) # call func every 5 seconds
29 / 50

92. Storing data with the client
30 / 50

93. Storing data with the client
In some cases it's helpful to be able to store data with the client.
30 / 50

94. Storing data with the client
In some cases it's helpful to be able to store data with the client.
Could store it server-side, but that's more setup.
30 / 50

95. Storing data with the client
In some cases it's helpful to be able to store data with the client.
Could store it server-side, but that's more setup.
So we'll just send the data to the client and have them hold it.
30 / 50

96. Storing data with the client
In some cases it's helpful to be able to store data with the client.
Could store it server-side, but that's more setup.
So we'll just send the data to the client and have them hold it.
bowtie.cache gives a "key-value" store to save any python objects.
30 / 50

97. Storing data with the client
In some cases it's helpful to be able to store data with the client.
Could store it server-side, but that's more setup.
So we'll just send the data to the client and have them hold it.
bowtie.cache gives a "key-value" store to save any python objects.
Helpful to store results from expensive computations or client speci c data.
bowtie.cache.save(key, value)
value = bowtie.cache.load(key)
30 / 50

98. Progress Indicators
31 / 50

99. Progress Indicators
All visual widgets have an attached progress indicator.
31 / 50

100. Progress Indicators
All visual widgets have an attached progress indicator.
By default they are invisible so they don't get in your way.
31 / 50

101. Progress Indicators
All visual widgets have an attached progress indicator.
By default they are invisible so they don't get in your way.
Really helpful for long computations or slow I/O.
31 / 50

102. Progress Indicators
All visual widgets have an attached progress indicator.
By default they are invisible so they don't get in your way.
Really helpful for long computations or slow I/O.
Can also indicate error states.
31 / 50

103. Leverage CSS Grid
32 / 50

104. Leverage CSS Grid
New web standard to de ne grids on a page.
32 / 50

105. Leverage CSS Grid
New web standard to de ne grids on a page.
Bowtie uses this and makes a "pythonic" API.
32 / 50

106. Leverage CSS Grid
New web standard to de ne grids on a page.
Bowtie uses this and makes a "pythonic" API.
CSS Grid was just released onto major browsers.
32 / 50

107. Leverage CSS Grid
New web standard to de ne grids on a page.
Bowtie uses this and makes a "pythonic" API.
CSS Grid was just released onto major browsers.
Chrome >= 57, Firefox >= 52, Safari >= 10.1, Opera >= 44
32 / 50

108. Leverage CSS Grid
Layout class lets you specify how many rows and columns in the grid.
33 / 50

109. Leverage CSS Grid
Layout class lets you specify how many rows and columns in the grid.
call .add method and optionally specify which cells in the grid.
33 / 50

110. Leverage CSS Grid
Layout class lets you specify how many rows and columns in the grid.
call .add method and optionally specify which cells in the grid.
Widgets can span 1 or multiple cells.
33 / 50

111. Leverage CSS Grid
Layout class lets you specify how many rows and columns in the grid.
call .add method and optionally specify which cells in the grid.
Widgets can span 1 or multiple cells.
Rows and columns can be sized on pixels, percentage, and fraction of available space.
33 / 50

112. Authentication
34 / 50

113. Authentication
Flask makes it easy to support basic authentication.
34 / 50

114. Authentication
Flask makes it easy to support basic authentication.
Want to have a generic authentication solution.
34 / 50

115. Authentication
Flask makes it easy to support basic authentication.
Want to have a generic authentication solution.
I'm not a security expert so don't trust me.
34 / 50

116. 35 / 50

117. Deploying
36 / 50

118. Deploying
37 / 50

119. Deploying
Heroku is an easy option.
37 / 50

120. Deploying
Heroku is an easy option.
Set Layout(debug=False)
37 / 50

121. Deploying
Heroku is an easy option.
Set Layout(debug=False)
Compile with production.
$ python app.py prod
Reduces JS bundle size by a factor of ~30 (from 30MB to 1MB).
37 / 50

122. Deploying
Heroku is an easy option.
Set Layout(debug=False)
Compile with production.
$ python app.py prod
Reduces JS bundle size by a factor of ~30 (from 30MB to 1MB).
Commit the following les
build/src/server.py
build/src/templates/index.html
build/src/static/bundle.js.gz
37 / 50

123. Tech Stack
38 / 50

124. Flask-SocketIO
39 / 50

125. Flask-SocketIO
Bowtie is built on Flask and Flask-SocketIO.
39 / 50

126. Flask-SocketIO
Bowtie is built on Flask and Flask-SocketIO.
Bowtie abstracts away most of Flask.
39 / 50

127. Flask-SocketIO
Bowtie is built on Flask and Flask-SocketIO.
Bowtie abstracts away most of Flask.
You can still bene t from the Flask ecosystem.
39 / 50

128. Flask-SocketIO
Bowtie is built on Flask and Flask-SocketIO.
Bowtie abstracts away most of Flask.
You can still bene t from the Flask ecosystem.
Kind of wish the user still touched Flask because it's a great API.
39 / 50

129. React
40 / 50

130. React
Nick Kridler (author of Pyxley) wrote about using React with Python.
40 / 50

131. React
Nick Kridler (author of Pyxley) wrote about using React with Python.
Frontend is written entirely in React.
40 / 50

132. React
Nick Kridler (author of Pyxley) wrote about using React with Python.
Frontend is written entirely in React.
Making a new widget means making a new React class that communicates via socket.io.
40 / 50

133. Talking through SocketIO
41 / 50

134. Talking through SocketIO
All communication between Python and Javascript is through SocketIO
41 / 50

135. Talking through SocketIO
All communication between Python and Javascript is through SocketIO
Unique events are created by combining the component id with the type of message.
41 / 50

136. Talking through SocketIO
All communication between Python and Javascript is through SocketIO
Unique events are created by combining the component id with the type of message.
For example: the event for updating Plotly is "{id}#all"
41 / 50

137. Talking through SocketIO
All communication between Python and Javascript is through SocketIO
Unique events are created by combining the component id with the type of message.
For example: the event for updating Plotly is "{id}#all"
Message payloads are encoded with msgpack to reduce payload size.
41 / 50

138. Javascript Tools
42 / 50

139. Javascript Tools
Yarn: for installing npm packages.
42 / 50

140. Javascript Tools
Yarn: for installing npm packages.
Webpack: for bundling the npm packages.
42 / 50

141. Javascript Tools
Yarn: for installing npm packages.
Webpack: for bundling the npm packages.
Leaky abstraction, but I don't want to turn bowtie into a node delivery device.
42 / 50

142. Future Work and Goals
43 / 50

143. Some things I don't like
44 / 50

144. Some things I don't like
You need to recompile your app to run it (when you make architectural changes) which takes a minute.
44 / 50

145. Some things I don't like
You need to recompile your app to run it (when you make architectural changes) which takes a minute.
Compared to some other tools, Bowtie is not as snappy.
44 / 50

146. Some things I don't like
You need to recompile your app to run it (when you make architectural changes) which takes a minute.
Compared to some other tools, Bowtie is not as snappy.
Perhaps too much magic happening behind the scenes, harder for users to change things and x issues.
44 / 50

147. User Experience Goals
45 / 50

148. User Experience Goals
The power to create as much interactivity as you want.
45 / 50

149. User Experience Goals
The power to create as much interactivity as you want.
Painless rapid prototyping
45 / 50

150. User Experience Goals
The power to create as much interactivity as you want.
Painless rapid prototyping
Be able to share with others
45 / 50

151. Non Goals
46 / 50

152. Non Goals
GUI for laying out widgets.
46 / 50

153. Non Goals
GUI for laying out widgets.
Generic web app builder (my focus is on data science applications).
46 / 50

154. Goals and Future Work
47 / 50

155. Goals and Future Work
Become Shiny!
47 / 50

156. Goals and Future Work
Become Shiny!
Okay, but seriously.
47 / 50

157. Goals and Future Work
Become Shiny!
Okay, but seriously.
Needs to be more robust, have better testing.
47 / 50

158. Goals and Future Work
Become Shiny!
Okay, but seriously.
Needs to be more robust, have better testing.
Make it easier to scale and deploy.
47 / 50

159. Goals and Future Work
Become Shiny!
Okay, but seriously.
Needs to be more robust, have better testing.
Make it easier to scale and deploy.
More charting libraries.
47 / 50

160. Goals and Future Work
Become Shiny!
Okay, but seriously.
Needs to be more robust, have better testing.
Make it easier to scale and deploy.
More charting libraries.
More widgets.
47 / 50

161. Goals and Future Work
Become Shiny!
Okay, but seriously.
Needs to be more robust, have better testing.
Make it easier to scale and deploy.
More charting libraries.
More widgets.
Make it look nicer?
47 / 50

162. Goals and Future Work
Become Shiny!
Okay, but seriously.
Needs to be more robust, have better testing.
Make it easier to scale and deploy.
More charting libraries.
More widgets.
Make it look nicer?
Jupyter integration (possible?)
47 / 50

163. My Real Goal
Whether Bowtie becomes the Shiny of Python or not, I simply
want to move the bar forward.
48 / 50

164. Thanks
To my Verdigris colleagues for feedback.
Danny Servén
Jared Kruzek
Martin Chang
Michael Roberts
To Je for letting me present.
49 / 50

165. Thanks
Github: github.com/jwkvam/bowtie
Slides: github.com/jwkvam/bowtie-talk
Docs: bowtie-py.rtfd.io
50 / 50
