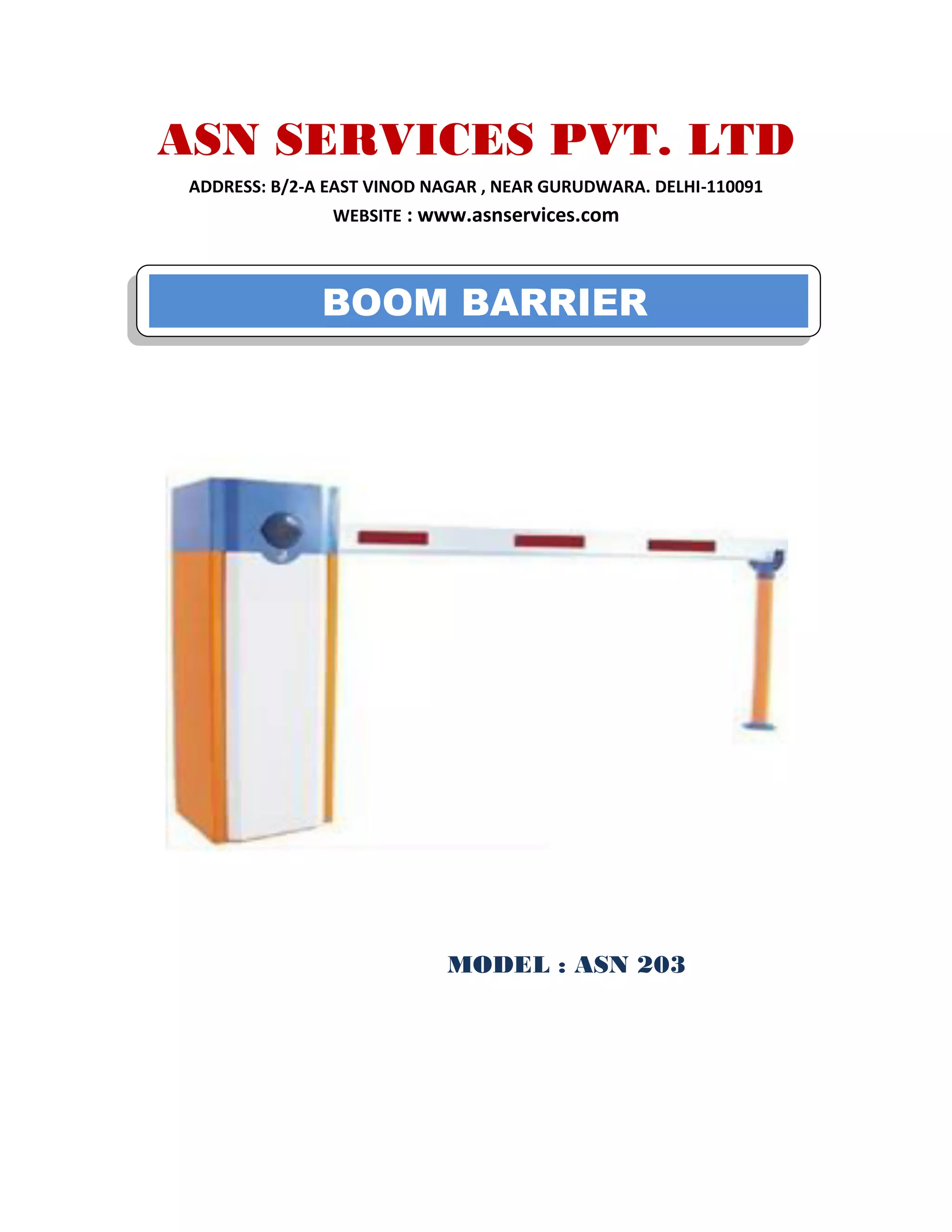

1. ASN SERVICES PVT. LTD
ADDRESS: B/2-A EAST VINOD NAGAR , NEAR GURUDWARA. DELHI-110091
WEBSITE : www.asnservices.com
MODEL : ASN 203
BOOM BARRIER

2. Functions/features:
 Manual release
 Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
 Die-casting aluminum alloy motor, precision and good at
thermal radiating
 Motor cooling fan, solving the problem of heat-protection
 Double safety limit switches (photo electricity limit
switch/motor memory sensor)
 Reversing on obstacle
 Auto-closing
 Supports the infrared photo cell for anti-bumping function
(optional)
 Supports the external and internal vehicle loop detector
(optional)
 Traffic light interface
 Wire control (switch signal)/remote control (418MHz)
 RS485 communication module (optional)
Technical data:
 Running time: 1, 3, and 6s
 Boom type: straight
 Maximum boom length: 3, 4.5, and 6m
 Boom dimension: 45 x 80mm
 Boom weight: 3, 4.5, and 6kg
 Voltage: 220V ±10%, 110V ±10%
 Frequency: 50/60Hz
 Motor voltage: 220V
 Power: 120W
 Working temperature: -20 to 75 degree Celsius
 Protection grade: IP44
