The document summarizes the products and services offered by BLUG, a manufacturer of clamshell grabs, orange peel grabs, and tongs located in Azpeitia, Spain. BLUG exports over 50% of its production to over 27 countries across 5 continents. The company's product range includes electro-hydraulic, hydraulic, mechanical, and electro-mechanical clamshell and orange peel grabs of varying capacities for handling materials like scrap, waste, and minerals in industries like metallurgy, recycling, and ports.

1. COMPANY DISPLAY

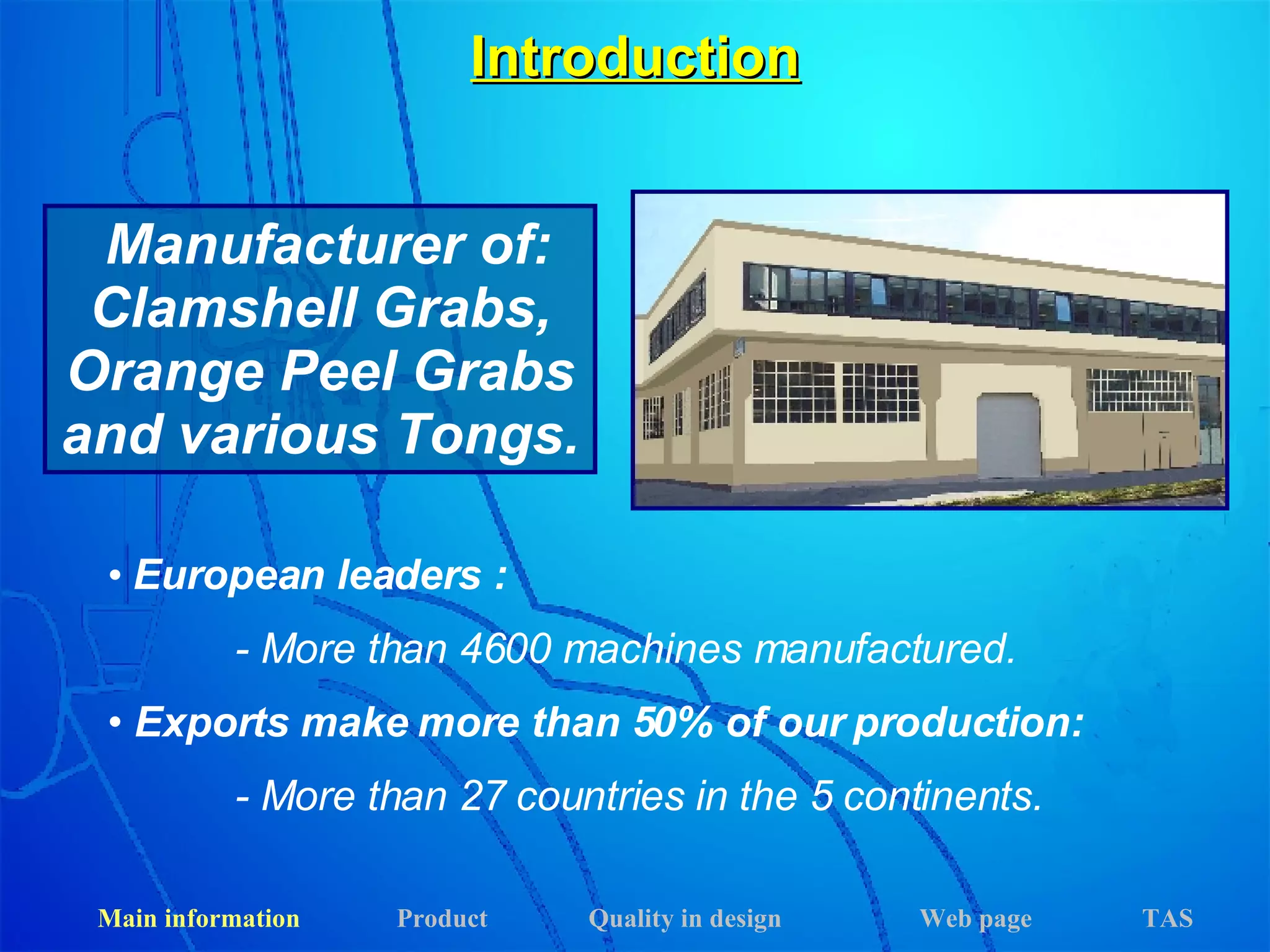

2. Introduction Manufacturer of: Clamshell Grabs, Orange Peel Grabs and various Tongs. European leaders : - More than 4600 machines manufactured. Exports make more than 50% of our production: - More than 27 countries in the 5 continents. Main information Product Web page Quality in design TAS

3. Company Site location: Azpeitia is located in the center of Guipuzcoa. Only 30 minutes from San Sebastian, 50 from Bilbao and 60 from Vitoria. Main information Product Web page Qulity in design TAS

4. Company Company founded in 1965 . We are specialists in projects from the preliminary draft until the implementation at customer's site going through the design, manufacturing of components, coordination and final assembly. Main information: BLUG machines are always adapted to specific customers needs. A wide experience in the manufacturing of ORANGE PEEL GRABS, CLAMSHELL GRABS AND TONGS guarantee the quality of our products. Main information Product Web page Quality in design TAS Jesus Letona Founder of BLUG

5. Product Range overview: Our range of production covers HANDLING of every type of product. Type of running technologies: - Electro hydraulic : includes its own motor group (electrical motor, hydraulic pump, electrovalves) - Electro mechanical : includes an electrical motor and mechanical components. - Hydraulic : requires an external motor group to operate. - Mechanical : service and suspension carried through the metallic ropes of the crane. Main information Product Web page Quality in design TAS Electro Hydraulic Hydraulic Mechanical Electro mechanical

6. Product Main Applications: For the metallurgical sector: scrap, slabs, coils.… Recycling of waste : u.s.w., biomass,.… Water treatment plants: mud, slimes,.... Ports: Bulk loading and unloading. Main information Product Web page Quality in design TAS

7. ORANGE PEEL GRABS Drive: HYDRAULIC Main information Product Web page Quality in design TAS

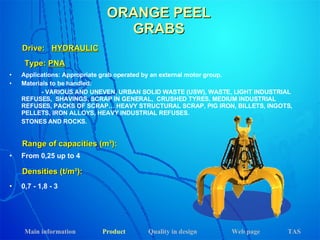

8. ORANGE PEEL GRABS Applications: Appropriate grab operated by an external motor group. Materials to be handled: - VARIOUS AND UNEVEN, URBAN SOLID WASTE (USW), WASTE, LIGHT INDUSTRIAL REFUSES, SHAVINGS, SCRAP IN GENERAL, CRUSHED TYRES, MEDIUM INDUSTRIAL REFUSES, PACKS OF SCRAP… HEAVY STRUCTURAL SCRAP, PIG IRON, BILLETS, INGOTS, PELLETS, IRON ALLOYS, HEAVY INDUSTRIAL REFUSES. STONES AND ROCKS. Drive: HYDRAULIC Range of capacities (m³): Densities (t/m³): From 0,25 up to 4 0,7 - 1,8 - 3 Type: PNA Main information Product Web page Quality in design TAS

9. ORANGE PEEL GRABS Drive: ELECTRO HYDRAULIC Main information Product Web page Quality in design TAS

10. ORANGE PEEL GRABS Main information Product Web page Quality in design Applications: Appropriate grab operated by own motor group Materials to be handled: - VARIOUS AND UNEVEN, URBAN SOLID WASTE (USW), WASTE, LIGHT INDUSTRIAL REFUSES, SHAVINGS, SCRAP IN GENERAL, CRUSHED TYRES, MEDIUM INDUSTRIAL REFUSES, PACKS OF SCRAP… HEAVY STRUCTURAL SCRAP, PIG IRON, BILLETS, INGOTS, PELLETS, IRON ALLOYS, HEAVY INDUSTRIAL REFUSES. STONES AND ROCKS. Drive: ELECTRO HYDRAULIC Range of capacities (m³): Densities (t/m³): From 0,5 up to 15 0,7 - 1,8 - 3N - 3,5 Type: P TAS

11. ORANGE PEEL GRABS Main information Product Web page Quality in design Applications: Appropriate grab to be entirely submerged . Operated by an external motor group. Materials to be handled: - WOOD, BUSHES , STONES, MUD, PLASTICS, FLOATING RESIDUES,….. Drive: ELECTRO HYDRAULIC Range of capacities (m³): Density (t/m³): From 0,15 up to 5 1 Type: PEA ANFIBIOUS TAS

12. ORANGE PEEL GRABS Main information Product Web page Quality in design Applications: Ideal for loading-unloading of rail wagons, trucks and containers. Materials to be handled : - HANDLING OF MEDIUM SCRAP, MIXED, SCRAPS 1-2, FRAGMENTED AND MEDIUM INDUSTRIAL REFUSES ... Drive: ELECTRO HYDRAULIC Range of capacities (m³): Density (t/m³): From 1,5 up to 4 1,8 Type: PR8 RECTANGULAR TAS

13. ORANGE PEEL GRABS Drive: FOUR ROPE MECHANICAL Main information Product Web page Quality in design TAS

14. ORANGE PEEL GRABS Applications: Appropriate grab operated by a four rope crane, 2 for hanging, 2 for drive (opening and closing) Materials to be handled : - VARIOUS AND UNEVEN, URBAN SOLID WASTE (USW), WASTE, LIGHT INDUSTRIAL REFUSES, SHAVINGS, SCRAP IN GENERAL, CRUSHED TYRES, MEDIUM INDUSTRIAL REFUSES, PACKED SCRAP… HEAVY STRUCTURAL SCRAP, PIG IRON, BILLETS, INGOTS, PELLETS, IRON ALLOYS, HEAVY INDUSTRIAL REFUSES. STONES AND ROCKS,….. Drive: FOUR ROPE MECHANICAL Range of capacities (m³): Densities (t/m³): From 1,5 up to 16 0,7 - 1,8 - 3 Type: PM4 Main information Product Web page Quality in design TAS

15. CLAMSHELL GRABS Drive: Hydraulic Main information Product Web page Quality in design TAS

16. CLAMSHELL GRABS Applications: Appropriate grab operated by an external motor group. Materials to be handled : - STONES, GRAVEL, SAND, MUD, SLIME, SUBMARINE SEDIMENTS, FOR WATER DRAINAGE OPERATIONS… Drive: HYDRAULIC Range of capacities (m³): Density (t/m³): From 1 up to 1,5 2,8 Type: CNAH Main information Product Web page Quality in design TAS

17. CLAMSHELL GRABS Drive: ELECTRO HYDRAULIC Main information Product Web page Quality in design TAS

18. Applications: Appropriate grab operated by own motor group. Materials to be handled : - PILED AND BULK MATERIALS… Drive: ELECTRO HYDRAULIC Range of capacities (m³): Densities (t/m³): From 3 up to 18 1,1- 1,8 - 2,8 Type: CV2 CLAMSHELL GRABS Main information Product Web page Quality in design TAS

19. CLAMSHELL GRABS Applications: Appropriate grab operated by own motor group. Materials to be handled : - LIQUIDS, MUD, SLIME, SAND, SUBMERGE SEDIMENTS,… Drive: ELECTRO HYDRAULIC Range of capacities (m³): Density (t/m³): From 0,125 up to 1 1,1 Type: C2A-P ANFIBIOUS Main information Product Web page Quality in design TAS

20. CLAMSHELL GRABS Applications: Appropriate grab operated by own motor group. Materials to be handled : - PILED AND BULK MATERIALS… Drive: ELECTRO HYDRAULIC Range of capacities (m³): Densities (t/m³): From 0,5 up to 4 1,1- 1,8 - 2,8 Type: C2 Main information Product Web page Quality in design TAS

21. Applications: Appropriate grab operated by own motor group. Materials to be handled : - CEMENT, WARM CLINKER (300 °), PILED AND BULK MATERIALS ... Drive: ELECTRO HYDRAULIC Range of capacities (m³): Density (t/m³): From 4 up to 10 1,8 Type: C4 CLAMSHELL GRABS Main information Product Web page Quality in design TAS

22. Applications: Appropriate grab operated by own motor group. Appropriate when there is a height limitation. Materials to be handled : - PILED AND BULK MATERIALS… Drive: ELECTRO HYDRAULIC Range of capacities (m³): Densities (t/m³): From 0,8 up to 7 1,1- 1,8 - 2,8 Type: C2H CLAMSHELL GRABS Main information Product Web page Quality in design TAS

23. CLAMSHELL GRABS Drive: ELECTRO HYDRAULIC Type: Anfibious Main information Product Web page Quality in design TAS

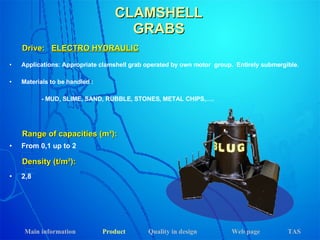

24. CLAMSHELL GRABS Applications: Appropriate clamshell grab operated by own motor group. Entirely submergible. Materials to be handled : - MUD, SLIME, SAND, RUBBLE, STONES, METAL CHIPS,…. Drive: ELECTRO HYDRAULIC Range of capacities (m³): Density (t/m³): From 0,1 up to 2 2,8 Main information Product Web page Quality in design TAS

25. Drive: MECHANICAL CLAMSHELL GRABS Main information Product Web page Quality in design TAS

26. Applications: Appropriate grab operated by a single rope crane , 1 hanging rope, opening drive manual or automatic by contact, and closing by automatic drive. Materials to be handled : - FERTILIZERS, CEREALS, COAL, CEMENT , CLINKER, PILED AND BULK MATERIALS… Drive: MECHANICAL Range of capacities (m³): Density (t/m³): From 0,5 up to 6 1,8 Type: CM1 CLAMSHELL GRABS Main information Product Web page Quality in design TAS

27. Applications: Appropriate grab operated by a single rope crane , 1 hanging rope, opening drive by radio control system and closing by automatic seamer. Materials to be handled : - CLINKER, BAUXITE, CEMENT, FELDSPAR, PILED AND BULK MATERIALS,… Drive: MECHANICAL Range of capacities (m³): Density (t/m³): From 3,4 up to 11,5 1,8 Type: CM1R SINGLE ROPE WITH RADIO CONTROL SYSTEM CLAMSHELL GRABS Main information Product Web page Quality in design TAS

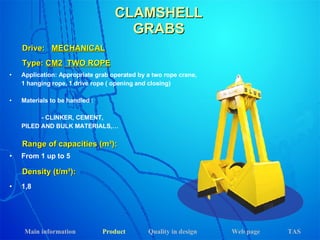

28. Application: Appropriate grab operated by a two rope crane, 1 hanging rope, 1 drive rope ( opening and closing) Materials to be handled : - CLINKER, CEMENT, PILED AND BULK MATERIALS,… Drive: MECHANICAL Range of capacities (m³): Density (t/m³): From 1 up to 5 1,8 Type: CM2 TWO ROPE CLAMSHELL GRABS Main information Product Web page Quality in design TAS

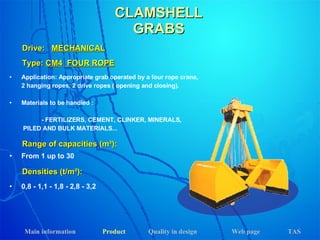

29. Application: Appropriate grab operated by a four rope crane, 2 hanging ropes, 2 drive ropes ( opening and closing). Materials to be handled : - FERTILIZERS, CEMENT, CLINKER, MINERALS, PILED AND BULK MATERIALS... Drive: MECHANICAL Range of capacities (m³): Densities (t/m³): From 1 up to 30 0,8 - 1,1 - 1,8 - 2,8 - 3,2 Type: CM4 FOUR ROPE CLAMSHELL GRABS Main information Product Web page Quality in design TAS

30. Drive: ELECTRO HYDRAULIC TONGS Main information Product Web page Quality in design TAS

31. TONGS Applications: Appropriate tong operated by own motor group. Materials to be handled : - MARC, SUGAR CANE, SEAWEED, DUNG, FORESTRY AND FARMING RESIDUES, WASTE, LIGHT INDUSTRIAL REFUSES, COMPOSITE,... Drive: ELECTRO HYDRAULIC Range of capacities (m³): From 1 up to 3 Type: PEH-100 FOR MARC Main information Product Web page Quality in design TAS

32. TONGS Applications: Appropriate tong operated by motor group. Materials to be handled : - SINGLE TRUNKS, GRAPHITE ELECTRODES AND EVERY TYPE OF CYLINDRICAL PIECE. Drive: ELECTRO HYDRAULIC Range of capacities (t): From 5 up to 25 Type: PEH-101 CYLINDRICAL LOADS Main information Product Web page Quality in design TAS

33. TONGS Applications: Appropriate tong operated by own motor group. Materials to be handled : - TRANSLOADING OF WOOD, TIMBER BUNDLES, BULK WOOD, RANGED SMALL AND MEDIUM SIZE TIMBER. Drive: ELECTRO HYDRAULIC Range of capacities (t): From 5 up to 25 Type: PEH-102 TRUNKS Main information Product Web page Quality in design TAS

34. TONGS Drive: ELECTRO HYDRAULIC Type: GG-103 ROTATING HOOK Applications: Appropriate tong operated by own motor group. Materials to be handled : -HANDLING AND POSITIONING FOR EVERY TYPE OF HUNGING LOADS. Range of capacities (t): From 10 up to 40 Main information Product Web page Quality in design TAS

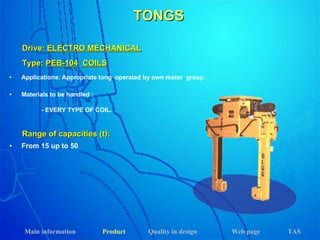

35. TONGS Applications: Appropriate tong operated by own motor group. Materials to be handled : - EVERY TYPE OF COIL. Drive: ELECTRO MECHANICAL Range of capacities (t): From 15 up to 50 Type: PEB-104 COILS Main information Product Web page Quality in design TAS

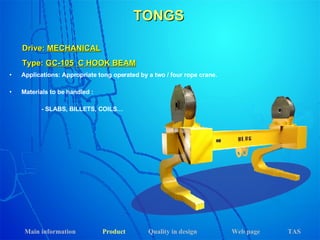

36. TONGS Drive: MECHANICAL Type: GC-105 C HOOK BEAM Applications: Appropriate tong operated by a two / four rope crane. Materials to be handled : - SLABS, BILLETS, COILS… Main information Product Web page Quality in design TAS

37. TONGS Drive: MECHANICAL Type: GC-105 AUTOMATIC TONG FOR SLABS Applications: Appropriate tong operated by crane and hook. Opening and closing by automatic latching and releasing. Materials to be handled : - EVERY TYPE OF SLABS AND UNIFORM HEAVY LOADS. Range of capacities (t): From 10 up to 50 Main information Product Web page Quality in design TAS

38. TONGS Applications: Appropriate tong operated by own motor group. Materials to be handled : - SINGLE EXOTIC TRUNKS FROM CARGO VESSEL TO DOCKS… Drive: ELECTRO HYDRAULIC Range of capacities (t): From 10 up to 25 Type: PEH-109 SINGLE TRUNKS IN VESSELS Main information Product Web page Quality in design TAS

39. TONGS Application: Appropriate grab operated by a two rope crane, 1 hanging rope, 1 drive rope ( opening and closing) Materials to be handled : - ROCKS AND IRREGULAR UNITARY STONES FOR BREACKWATER CONSTRUCTION . Drive: MECHANICAL Range of capacities (t): From 3 up to 14 Type: PMB-300 ROCKS Main information Product Web page Quality in design TAS

40. Experience PROVEN EXPERIENCE: development and manufacture of Special Equipments for the manipulation, handling and elevation ... of all kinds of bulk cargoes and commodities. Variable flow pumps included into the hydraulic systems to improve machine’s overall performances and reduce oil’s heating. Innovation 2D and 3D design tools. New applications development. Main information Product Web page Quality in design TAS

41. FEA case study for structure and components optimization. Innovation Main information Product Web page Quality in design TAS

42. Innovation CERTIFIED COMPANY : FEM UNE-EN ISO 9.001:2.000 Main information Product Web page Quality in design TAS

43. FRONT PAGE : Access to products Access to main contents 3 Languages to choose: Spanish English French Main information Product Web page Quality in design www.blug.es TAS Web page

44. Company Information: www.blug.es Includes BLUG ® ‘s product range and main services information Web page Main information Product Web page Quality in design TAS

45. Product Information: www.blug.es Product index classified by running technology and material density. Available technical sheets in PDF format. Web page Main information Product Web page Quality in design TAS

46. Quality Procedures: www.blug.es Applied normative Testing procedure Drawings for approval Final documents and certificates Web page Main information Product Web page Quality in design TAS

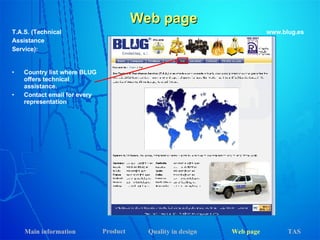

47. T.A.S. (Technical Assistance Service): www.blug.es Country list where BLUG offers technical assistance. Contact email for every representation Web page Main information Product Web page Quality in design TAS

48. Company Location: www.blug.es Post code, address and location map. PDF format files with travel instructions to arrive from Bilbao (East) and San Sebastian (West). Web page Main information Product Web page Quality in design TAS

49. Contact Form: www.blug.es Contact form for offer request, spares and all other requests. Web page Main information Product Web page Quality in design TAS

50. Customer Private Area: www.blug.es Private access for company's customers with specific services . Web page Main information Product Web page Quality in design TAS

51. www.blug.es Customer data. Projects: technical data sharing area between customer and BLUG. On-line standard spare parts sale. Performed spares orders and request data. Web page Main information Product Web page TAS Quality in design Customer Private Area:

52. T.A.S. Our Technical Assistance Net assures our machines maintenance worldwide in our workshop or in customer’s site and Spares supply for every machine manufactured. Spares in 24 h: every standard spare part will be supplied by courier - express service worldwide. T.A.S. (Technical Assistance Service): Main information Product Web page TAS Quality in design Venezuela : sat-venezuela@blug.es Turkey : ass-turkey@blug.es South Africa : [email_address] Mexico : sat-mexico@blug.es Morocco : sav-marocco@blug.es England : ass-england@blug.es India : ass-india@blug.es France : sav-france@blug.es Spain : sat-spain@blug.es USA. : ass-usa@blug.es Canada : [email_address] Brazil : ass-brazil@blug.es Australia : [email_address] Germany : ass-germany@blug.es
