1. Bruno Gonçalves
www.data4sci.com
Blockchain Technologies for Data Scientists
www.data4sci.com
https://github.com/DataForScience/blockchain-data

2. www.data4sci.com@bgoncalves

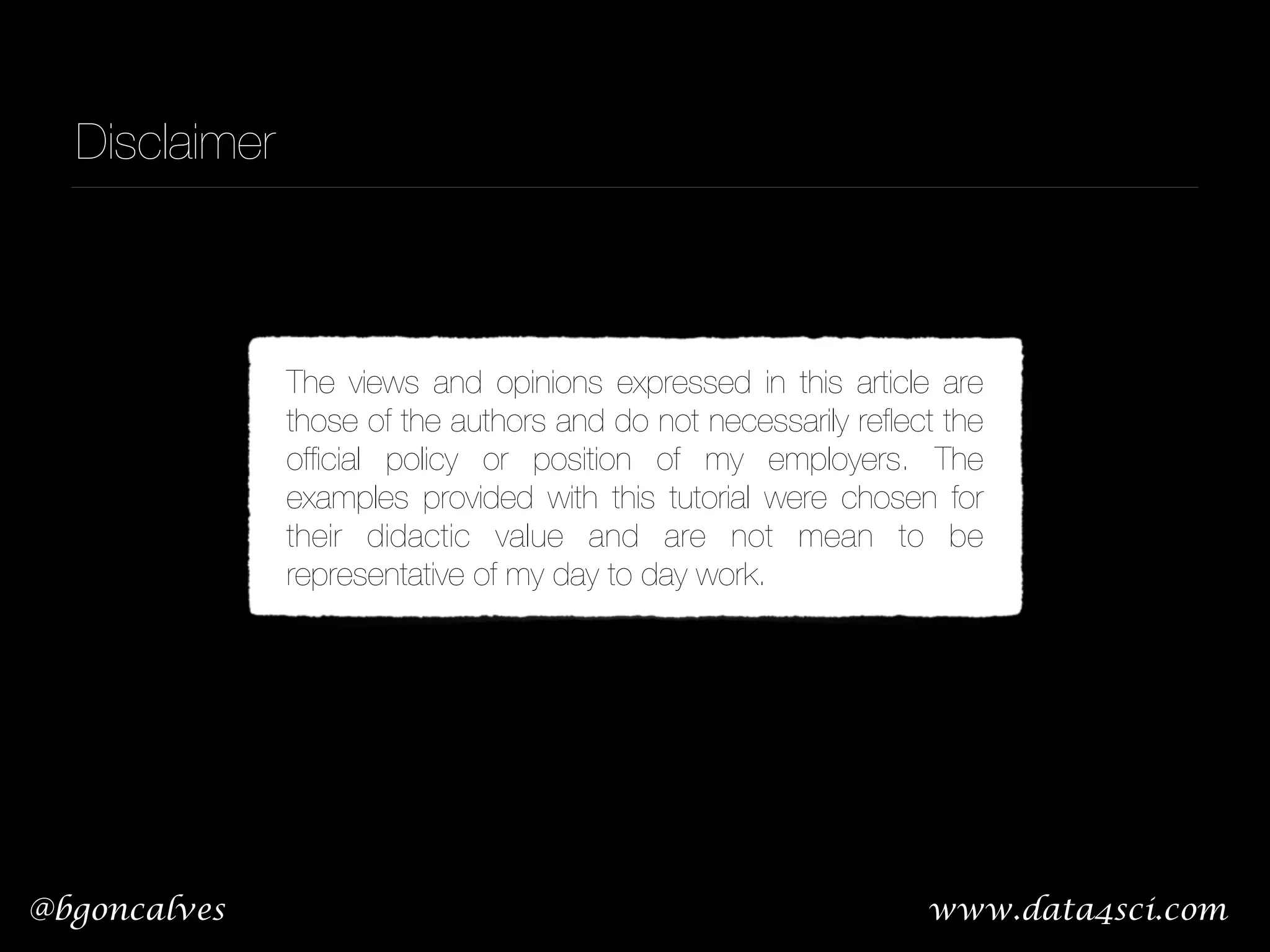

The views and opinions expressed in this article are
those of the authors and do not necessarily reflect the
official policy or position of my employers. The
examples provided with this tutorial were chosen for
their didactic value and are not mean to be
representative of my day to day work.
Disclaimer

3. www.bgoncalves.com@bgoncalves
References

4. www.data4sci.com@bgoncalves
How Money Works
• Many different types of currency have been used throughout the years
• Gold
• Cattle
• Salt
• Rocks
• Sea Shells
• etc…
• Fundamental functions (and properties) of money:
• Medium of Exchange (Fungibility, Portability)
• Unit of Account (Cognizability)
• Store of Value (Durability, Stability of Value /
Scarcity)
https://www.continentalcurrency.ca/wp-content/uploads/2015/06/continental-currency-exchange.jpg
https://upload.wikimedia.org/wikipedia/commons/2/2b/Olaus_Magnus_-_On_Trade_Without_Using_Money.jpg

5. www.data4sci.com@bgoncalves
Money Flower
https://www.bis.org/publ/qtrpdf/r_qt1709.pdf
https://upload.wikimedia.org/wikipedia/commons/2/23/US_one_dollar_bill%2C_obverse%2C_series_2009.jpg
https://upload.wikimedia.org/wikipedia/commons/thumb/d/d3/49024-SOS-ATM.JPG/1600px-49024-SOS-ATM.JPG
https://pixabay.com/p-3125488/?no_redirect

6. www.data4sci.com@bgoncalves
The Ingredients of a Crypto-Currency
• Fundamental functions (and properties) of money:
• Medium of Exchange (Fungibility, Portability)
• Unit of Account (Cognizability)
• Store of Value (Durability, Stability of Value / Scarcity)
• Digital currencies have obvious advantages:
• Fungibility - A bit is a bit
• Portability - We can easily cary terabytes in our pockets or digitally transfer them across
the world
• Cognizability - It’s just a number
• Durability - Information can easily be stored for decades or even centuries
• And obvious problems:
• Stability of Value / Scarcity
• There is no limit to how many you can create
• They can be easily duplicated (no trust)
• etc…
https://pixabay.com/photos/bank-money-finance-shares-save-2907728/

7. www.data4sci.com@bgoncalves
The Ingredients of a Crypto-Currency
• How to avoid the need for a centralized authority?
• Distributed Ledger
• How to avoid double spending?
• Consensus algorithm
• How to prevent cheaters?
• Reward miners for being honest
https://pixabay.com/photos/bank-money-finance-shares-save-2907728/
https://news.bitcoin.com/10-years-ago-bitcoins-genesis-block-changed-the-course-of-history/

8. www.data4sci.com@bgoncalves
The road to Bitcoin https://queue.acm.org/detail.cfm?id=3136559

9. www.data4sci.com@bgoncalves
How does it work?
• According to “Satoshi Nakamoto”:
• Essentially:
• Transactions are processed in blocks
• Miners verify the transactions in each block [ Mining Reward ]
• Blocks are cryptographically signed to prevent tampering [ Proof of Work ]
• Each block points to the previous block to form a chain
• The longest chain is defined as the correct one [ Consensus ]
https://bitcoin.org/bitcoin.pdf

10. www.data4sci.com@bgoncalves
Linked List
Header 0:
Null Pointer
DATA
Header 1:
Pointer to 0
DATA
Header 2:
Pointer to 1
DATA
Header N:
Pointer to N-1
DATA⋯

11. www.data4sci.com@bgoncalves
Blockchain
Header 0:
Null Hash
Header 1:
Hash of 0
Header 2:
Hash of 1
Header N:
Hash of N-1
DATA DATA DATA DATA⋯
• The hashing function ensures that any changes to a validated previous block invalidates it.

12. www.data4sci.com@bgoncalves
Blockchain
Header 0:
Null Hash
Header 1:
Hash of Header 0
Header 2:
Hash of Header 1
Header N:
Hash of Header N-1
⋯
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
• The hashing function ensures that any changes to a validated previous block invalidates it.
• Keep hash only the previous header for efficiency

13. www.data4sci.com@bgoncalves
Blockchain
Header 0:
Null Hash
Txs Hash
Header 1:
Hash of Header 0
Txs Hash
Header 2:
Hash of Header 1
Txs Hash
Header N:
Hash of Header N-1
Txs Hash
⋯
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
• The hashing function ensures that any changes to a validated previous block invalidates it.
• Keep hash only the previous header for efficiency
• Header must include hash of data

14. www.data4sci.com@bgoncalves
Proof Of Work
• Each block is identified by a hash value
• To control the rate at which blocks can be verified, and avoid malicious attacks the hash
value of the block must obey certain conditions
• Miners add values to the data in the header (a nonce) until the hash fulfills these conditions
• The cryptographic properties of the hashing function guarantee that each value of the nonce
is a roll of the dice (fairness)
• The “difficulty” level of the chain establishes how hard it is to obtain a valid hash
• Any change to the block data invalidates the hash
• The difficulty is adjusted every two weeks to account
for the hashing capability of the network

15. www.data4sci.com@bgoncalves
Blockchain Security
www.data4sci.com
https://spectrum.ieee.org/computing/
networks/the-future-of-the-web-looks-a-
lot-like-bitcoin

16. www.data4sci.com@bgoncalves
Blockchain
Header 0:
Null Hash
Difficulty 0
Nonce 0
Txs Hash
Header 1:
Hash of Header 0
Difficulty 1
Nonce 1
Txs Hash
Header 2:
Hash of Header 1
Difficulty 2
Nonce 2
Txs Hash
Header N:
Hash of Header N-1
Difficulty 3
Nonce N
Txs Hash
⋯
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
• The hashing function ensures that any changes to a validated previous block invalidates it.
• Keep hash only the previous header for efficiency
• Header must include hash of data

17. www.data4sci.com@bgoncalves
Blockchain
Header 0:
Null Hash
Difficulty 0
Nonce 0
Merkle Root
Header 1:
Hash of Header 0
Difficulty 1
Nonce 1
Merkle Root
Header 2:
Hash of Header 1
Difficulty 2
Nonce 2
Merkle Root
Header N:
Hash of Header N-1
Difficulty N
Nonce N
Merkle Root
⋯
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
Tx 0
Tx 1
Tx 2
Tx 3
Tx N
⋮
• The hashing function ensures that any changes to a validated previous block invalidates it.
• Keep hash only the previous header for efficiency
• Header must include hash of data

18. www.data4sci.com@bgoncalves
Hash 44
T4 + T4
Hash 4
Tx 4
Merkle Tree
Hash 0
Tx 0
Hash 1
Tx 1
Hash 3
Tx 3
Hash 2
Tx 2
Hash 4
Tx 4
Hash 01
T0 + T1
Hash 23
T2 + T3
Hash 0123
Hash 01 + Hash 23
Hash 4444
Hash 44 + Hash 44
Hash 44
T4 + T4
Merkle Root
Hash 01234444
Hash 0123 + Hash 4444

19. @bgoncalves
Merkle Tree
def get_root(transactions):
missing = len(transactions)
next_transactions = []
while missing > 1:
print(missing)
next_transactions = []
# If it's odd, repeat the last transaction
if missing % 2 == 1:
transactions.append(transactions[-1])
missing += 1
for i in range(0, missing, 2):
input = transactions[i] + transactions[i+1]
output = doubleSha256_new(input)
next_transactions.append(output)
print(i, i+1, next_transactions[-1])
missing = len(next_transactions)
transactions = next_transactions[::]
return invert_byteorder(next_transactions[0])
merkle_proof.py

20. www.data4sci.com@bgoncalves
Merkle Proof - Tx 2
Hash 0
Tx 0
Hash 1
Tx 1
Hash 3
Tx 3
Hash 2
Tx 2
Hash 4
Tx 4
Hash 4
Tx 4
Hash 01
T0 + T1
Hash 23
T2 + T3
Hash 0123
Hash 01 + Hash 23
Hash 4444
Hash 44 + Hash 44
Hash 44
T4 + T4
Hash 44
T4 + T4
Merkle Root
Hash 01234444
Hash 0123 + Hash 4444

21. www.data4sci.com@bgoncalves
Merkle Proof - Tx 2
Hash 3
Tx 3
Hash 2
Tx 2
Hash 01
T0 + T1
Hash 23
T2 + T3
Hash 0123
Hash 01 + Hash 23
Hash 4444
Hash 44 + Hash 44
Merkle Root
Hash 01234444
Hash 0123 + Hash 4444
• In general, with N transactions you
need only hashes to verify if
a transaction is part of the tree.
• Building the tree, requires
computing….. total hashes
log2 (N)

22. @bgoncalves
Merkle Proof
def get_root(transactions):
missing = len(transactions)
next_transactions = []
while missing > 1:
print(missing)
next_transactions = []
# If it's odd, repeat the last transaction
if missing % 2 == 1:
transactions.append(transactions[-1])
missing += 1
for i in range(0, missing, 2):
input = transactions[i] + transactions[i+1]
output = doubleSha256_new(input)
next_transactions.append(output)
print(i, i+1, next_transactions[-1])
missing = len(next_transactions)
transactions = next_transactions[::]
return invert_byteorder(next_transactions[0])
merkle_proof.py

23. www.data4sci.com@bgoncalves
Transactions https://en.bitcoin.it/wiki/Transaction
Transaction
inputs
outputs
Transaction
inputs
outputs
Transaction
inputs
outputs

24. www.data4sci.com@bgoncalves
Transactions
Transaction HUF
inputs
outputs
Transaction TYU
inputs
Tx AFD 3
Tx HUF 1
outputs
Addr asd: 2.76
Addr otu: 5.50
Transaction AFD
inputs
outputs
1 03 2 1 0
01
5.15 B 3.14 B
• All input values must be
spent
• Each input is a complete
output
• 0 or more inputs
• 1 or more outputs
• Inputs point to previous
transaction outputs
• Outputs are addresses
Fee =
∑
in
Vin −
∑
o u t
Vo u t ≥ 0
• Difference between
inputs and outputs is
paid as a fee to the
block validator
Block Reward

25. www.data4sci.com@bgoncalves
Transactions https://en.bitcoin.it/wiki/Transaction
• All input values must be spent
• Each input is a complete output
• 0 or more inputs
• 1 or more outputs
• Inputs point to previous transaction outputs
• Outputs are addresses
Transaction
inputs
outputs
• First transaction in a block is the block reward and goes to the miners (coinbase transaction)
• coinbase transactions include all fees for the transactions included in the block
• Base block reward is how new Bitcoins are produced

26. www.data4sci.com@bgoncalves
Transactions https://en.bitcoin.it/wiki/Transaction

27. www.data4sci.com@bgoncalves
Bitcoin transactions around the world http://www.vo.elte.hu/papers/2017/bitcoin/

28. www.data4sci.com@bgoncalves

29. www.data4sci.com@bgoncalves

30. www.data4sci.com@bgoncalves

31. www.data4sci.com@bgoncalves www.data4sci.com@bgoncalves

32. www.data4sci.com@bgoncalves
How much is it worth?

33. www.data4sci.com@bgoncalves
Bitcoin interest over time
0
25
50
75
100
2009-022009-072009-122010-052010-102011-032011-082012-012012-062012-112013-042013-092014-022014-072014-122015-052015-102016-032016-082017-012017-062017-112018-042018-092019-02
blockchain
bitcoin

34. www.data4sci.com@bgoncalves
Bitcoin price

35. Questions?
