Hyperion 11.1.1.3 Installation
Guide

Provided By: BISP Created By: Rupam Majumdar
bispsolutions.wordpress.com Reviewed By : Amit Sharma
learnhyperion.wordpress.com
bisp.consulting@gmail.com

BISP | Hyperion 11.1.1.3 Installation guide | Presented By Rupam Majumdar 1

Installation of Hyperion 11.1.1.3 and Its Pre-requisites

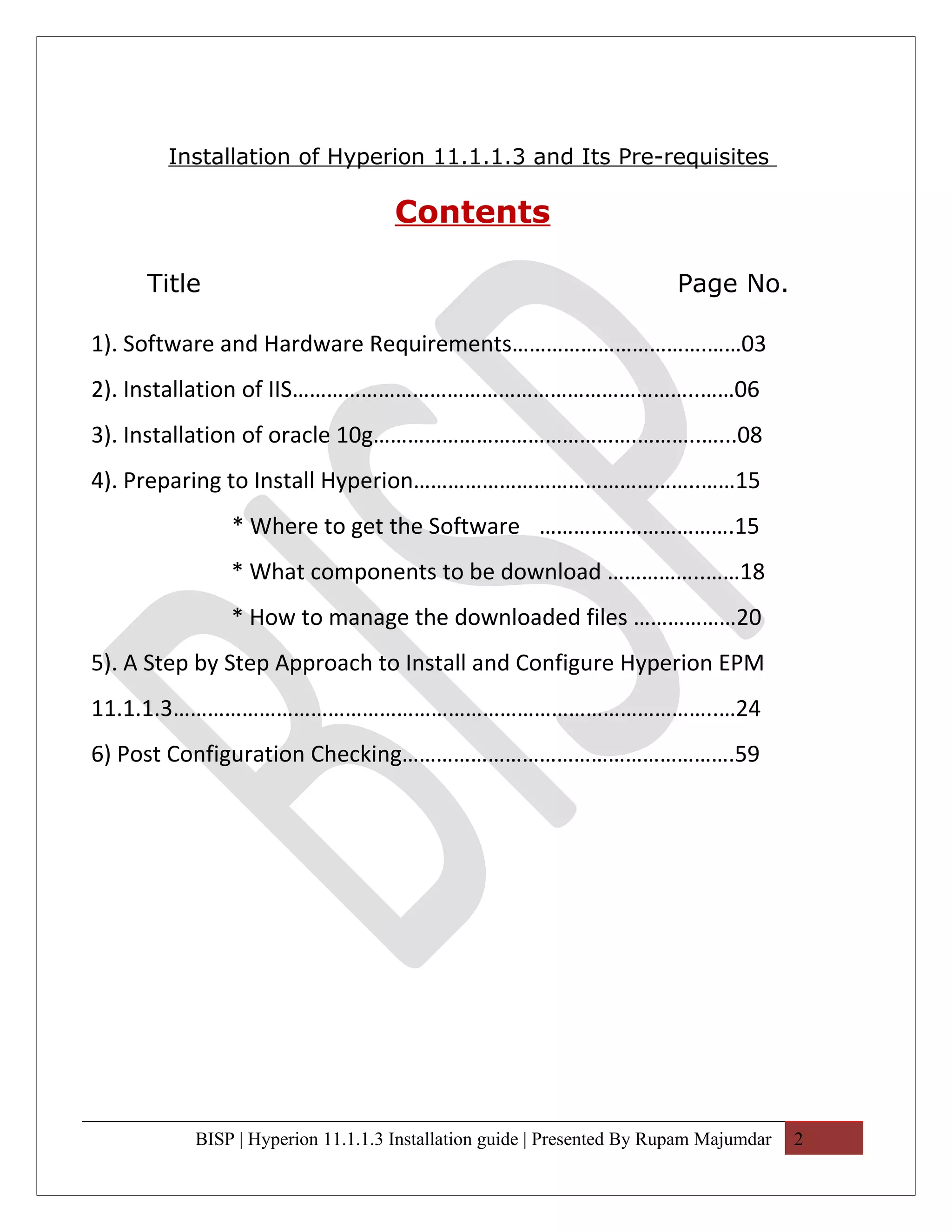

Contents

Title Page No.

1). Software and Hardware Requirements…………………………….……03
2). Installation of IIS……………………………………………………………..……06
3). Installation of oracle 10g……………………………………….………..…...08
4). Preparing to Install Hyperion…………………………………………..……15
* Where to get the Software …………………………….15
* What components to be download ……………..……18
* How to manage the downloaded files ………………20
5). A Step by Step Approach to Install and Configure Hyperion EPM
11.1.1.3…………………………………………………………………………………..…24
6) Post Configuration Checking………………………………………………….59

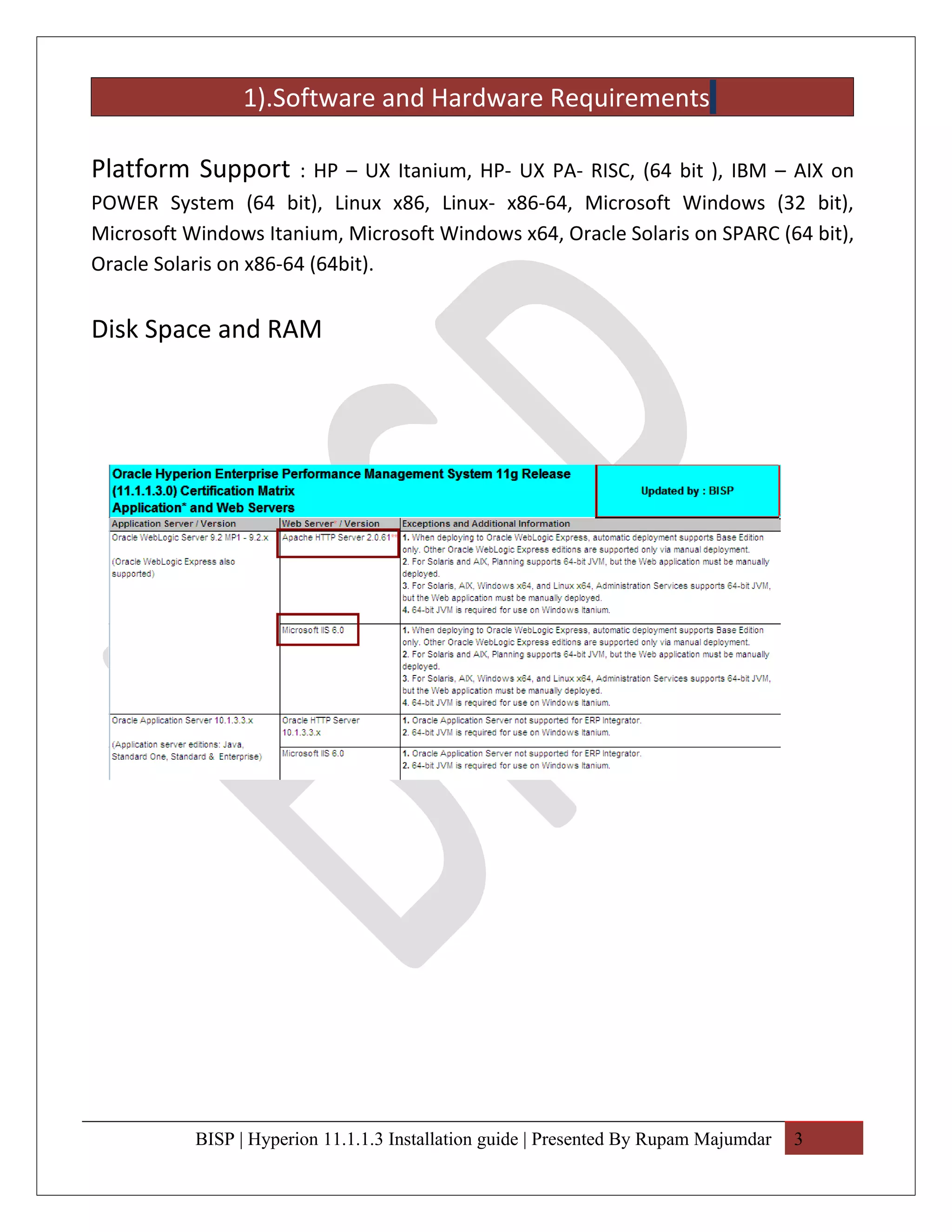

1).Software and Hardware Requirements

Platform Support : HP – UX Itanium, HP- UX PA- RISC, (64 bit ), IBM – AIX on
POWER System (64 bit), Linux x86, Linux- x86-64, Microsoft Windows (32 bit),
Microsoft Windows Itanium, Microsoft Windows x64, Oracle Solaris on SPARC (64 bit),
Oracle Solaris on x86-64 (64bit).

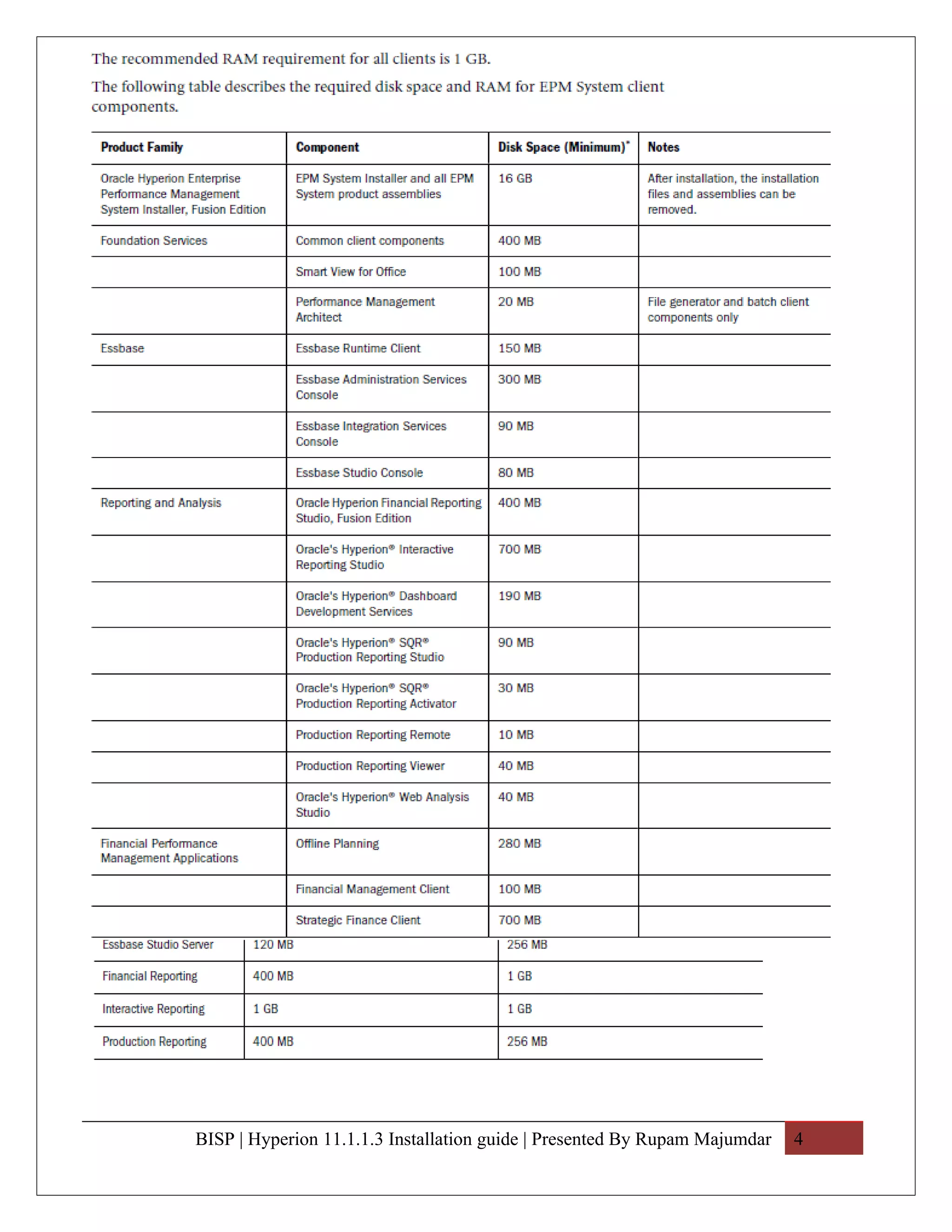

Disk Space and RAM


2).Installing IIS 5.1

Step:1) Put windows XP professional CD in CD-ROM now

Step:2) Go to start -> control panel ->add and remove programs ->select add remove -
> windows components.

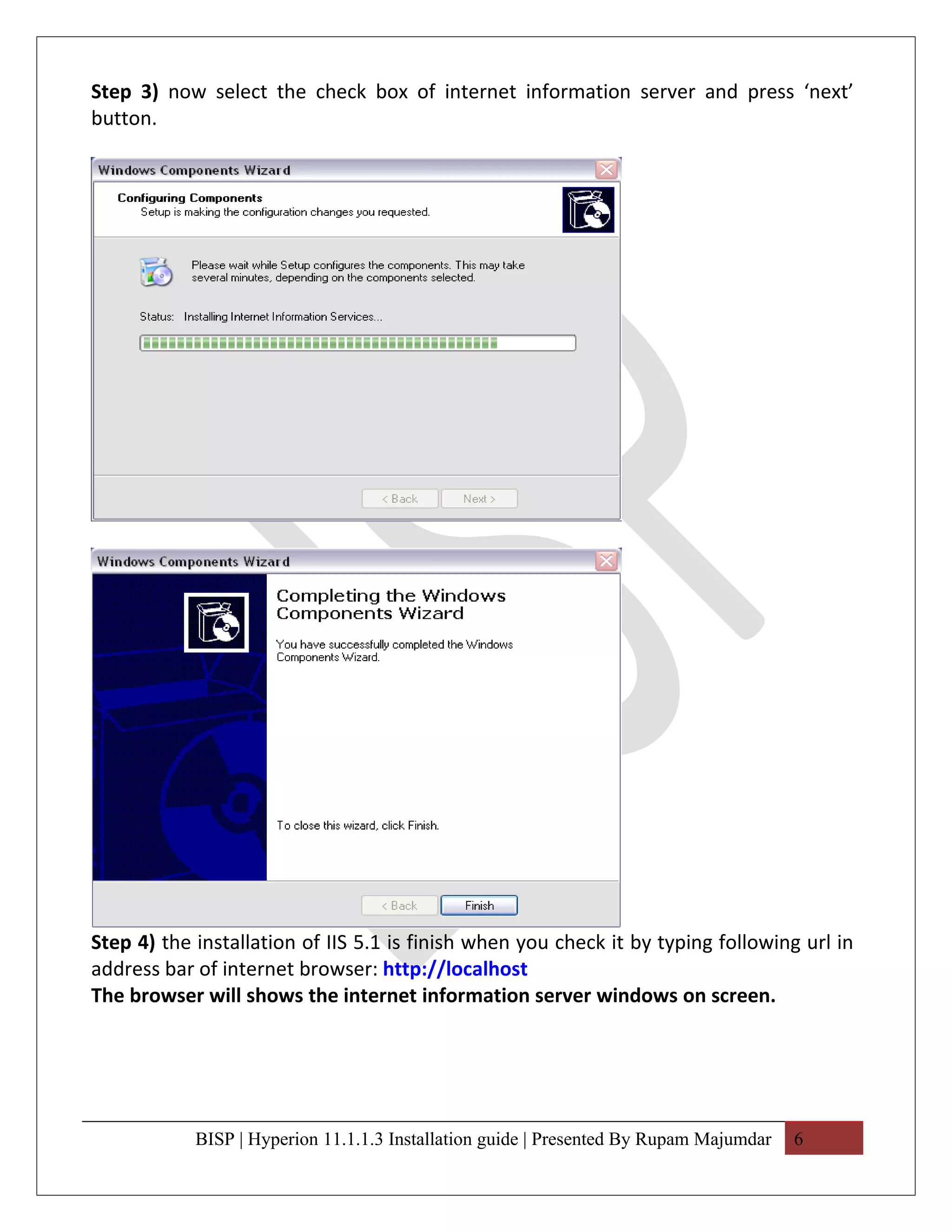

Step 3) now select the check box of internet information server and press ‘next’
button.

Step 4) the installation of IIS 5.1 is finish when you check it by typing following url in
address bar of internet browser: http://localhost
The browser will shows the internet information server windows on screen.

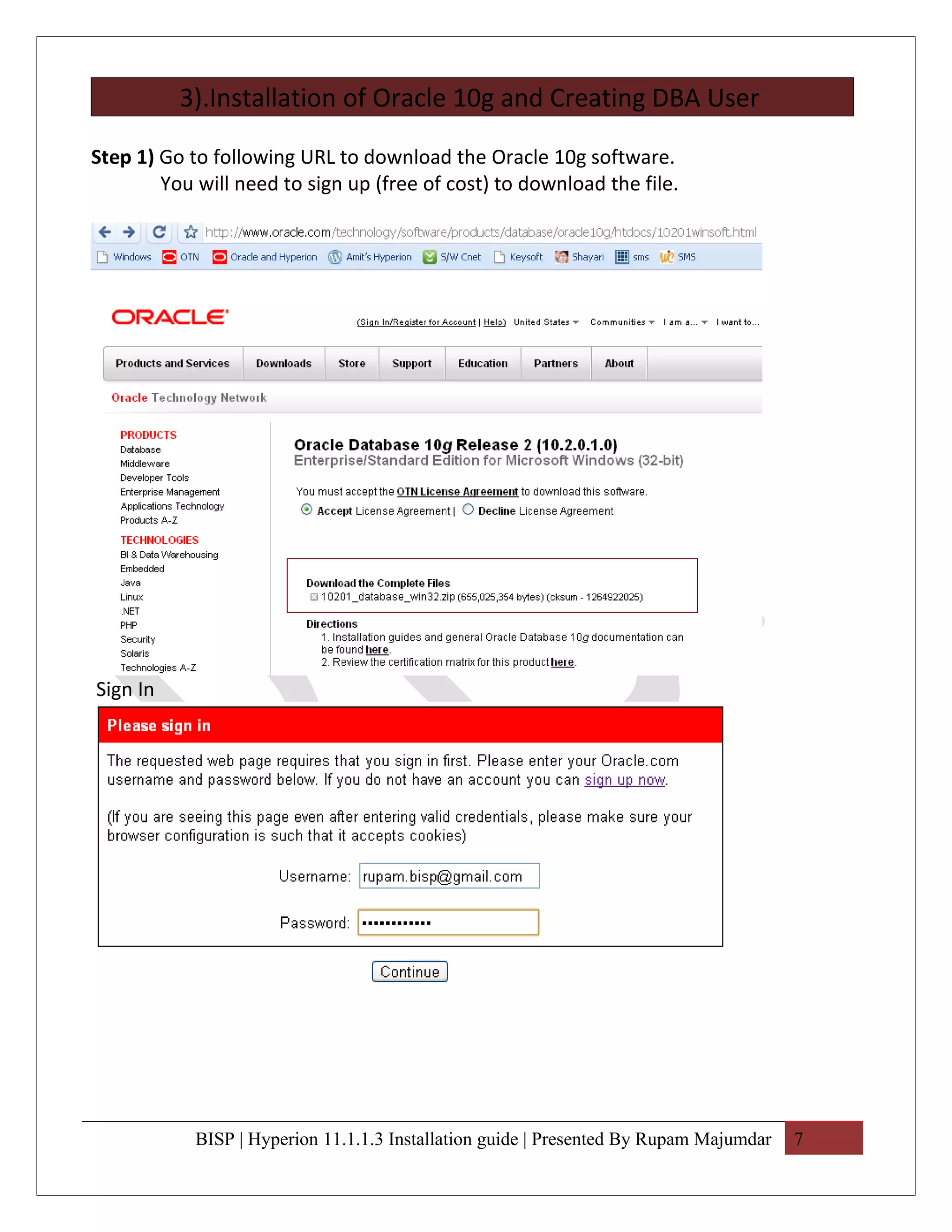

3).Installation of Oracle 10g and Creating DBA User

Step 1) Go to following URL to download the Oracle 10g software.
You will need to sign up (free of cost) to download the file.

Sign In

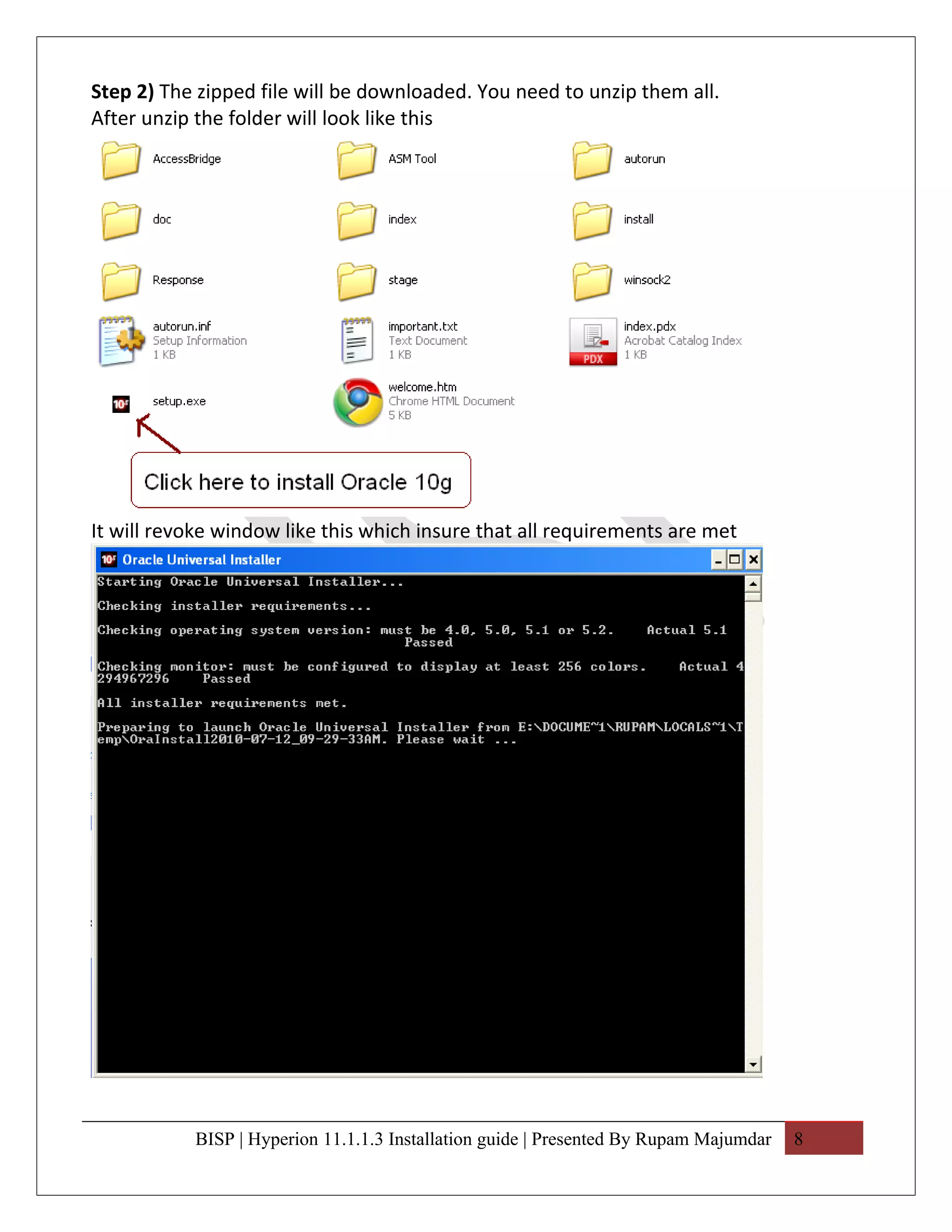

Step 2) The zipped file will be downloaded. You need to unzip them all.
After unzip the folder will look like this

It will revoke window like this which insure that all requirements are met

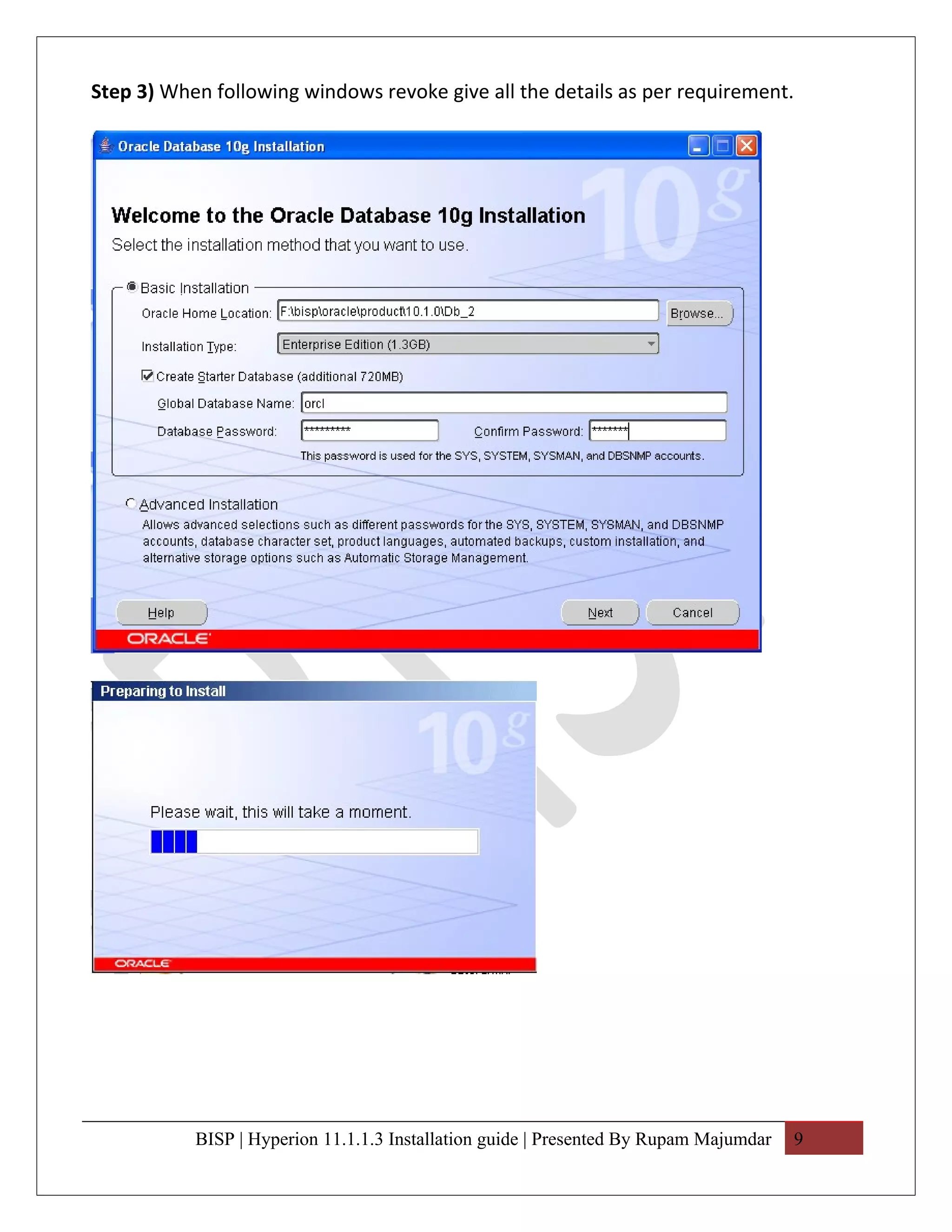

Step 3) When following windows revoke give all the details as per requirement.

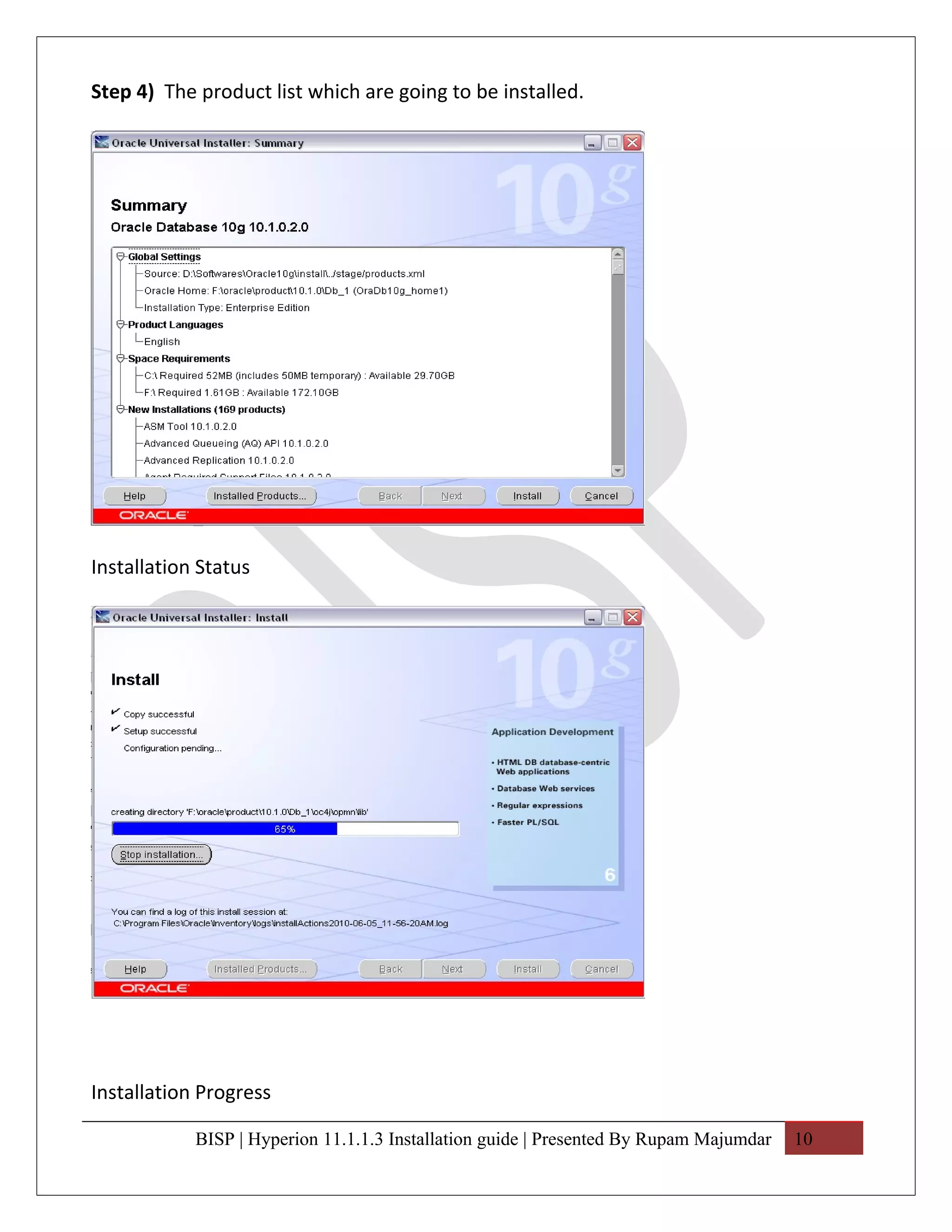

Step 4) The product list which are going to be installed.

Installation Status

Installation Progress

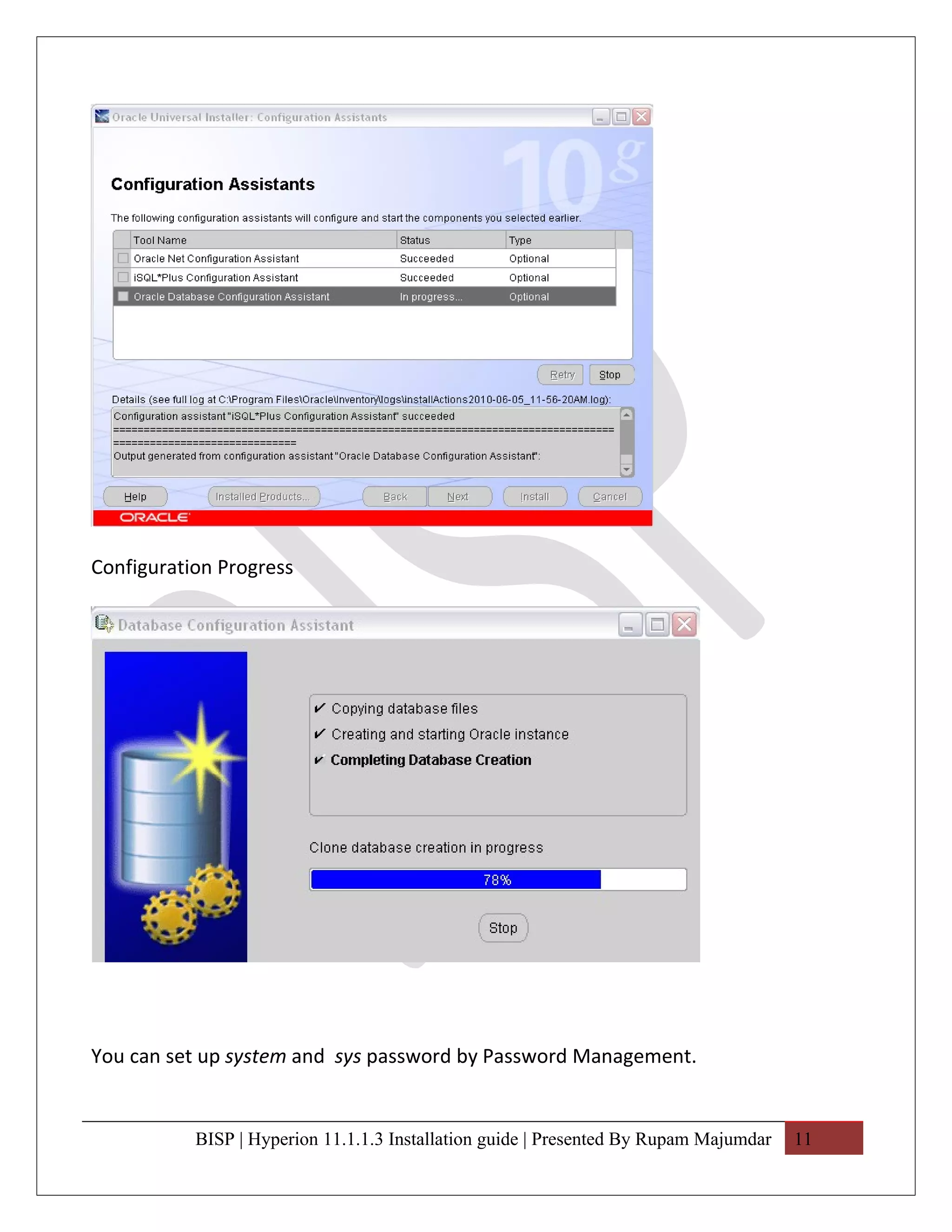

Configuration Progress

You can set up system and sys password by Password Management.

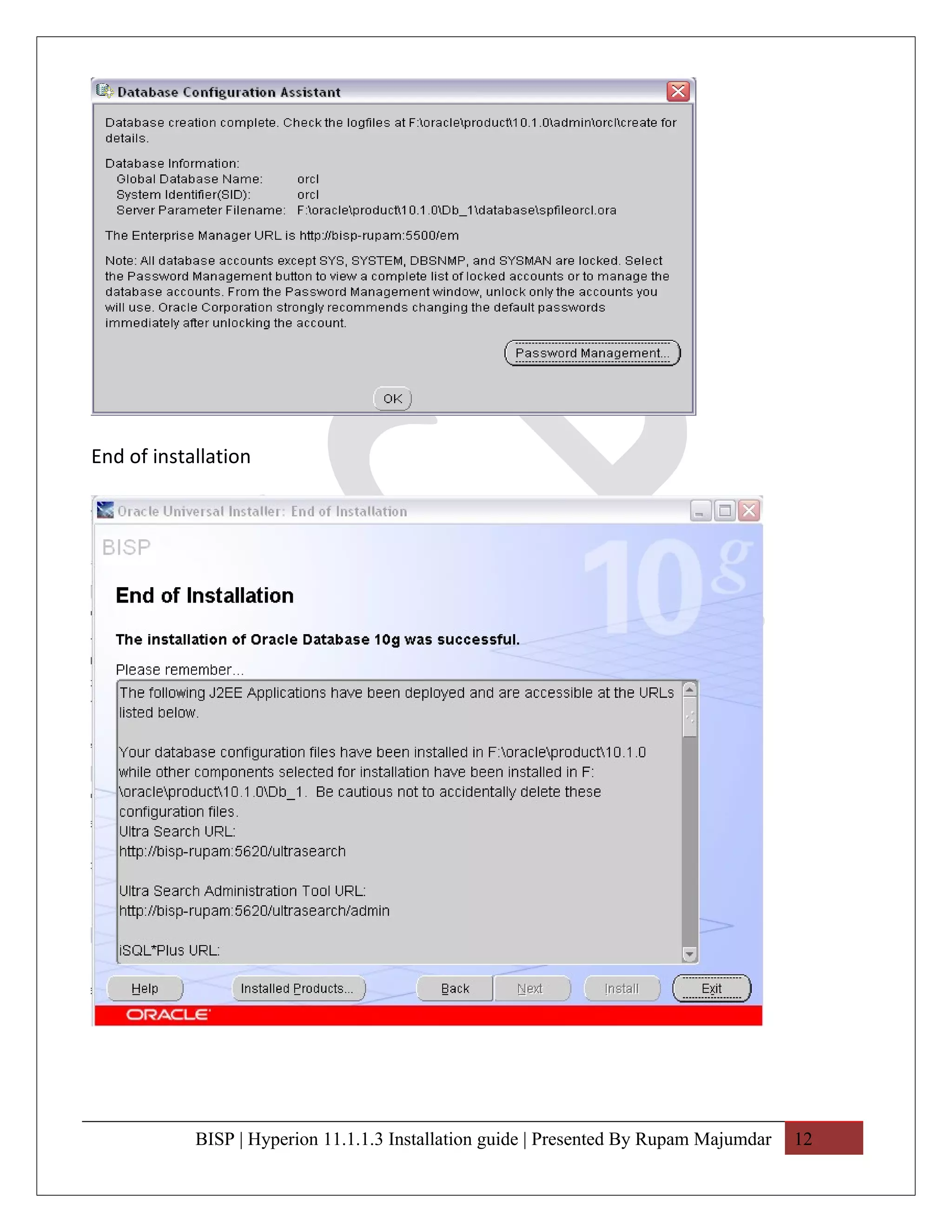

End of installation

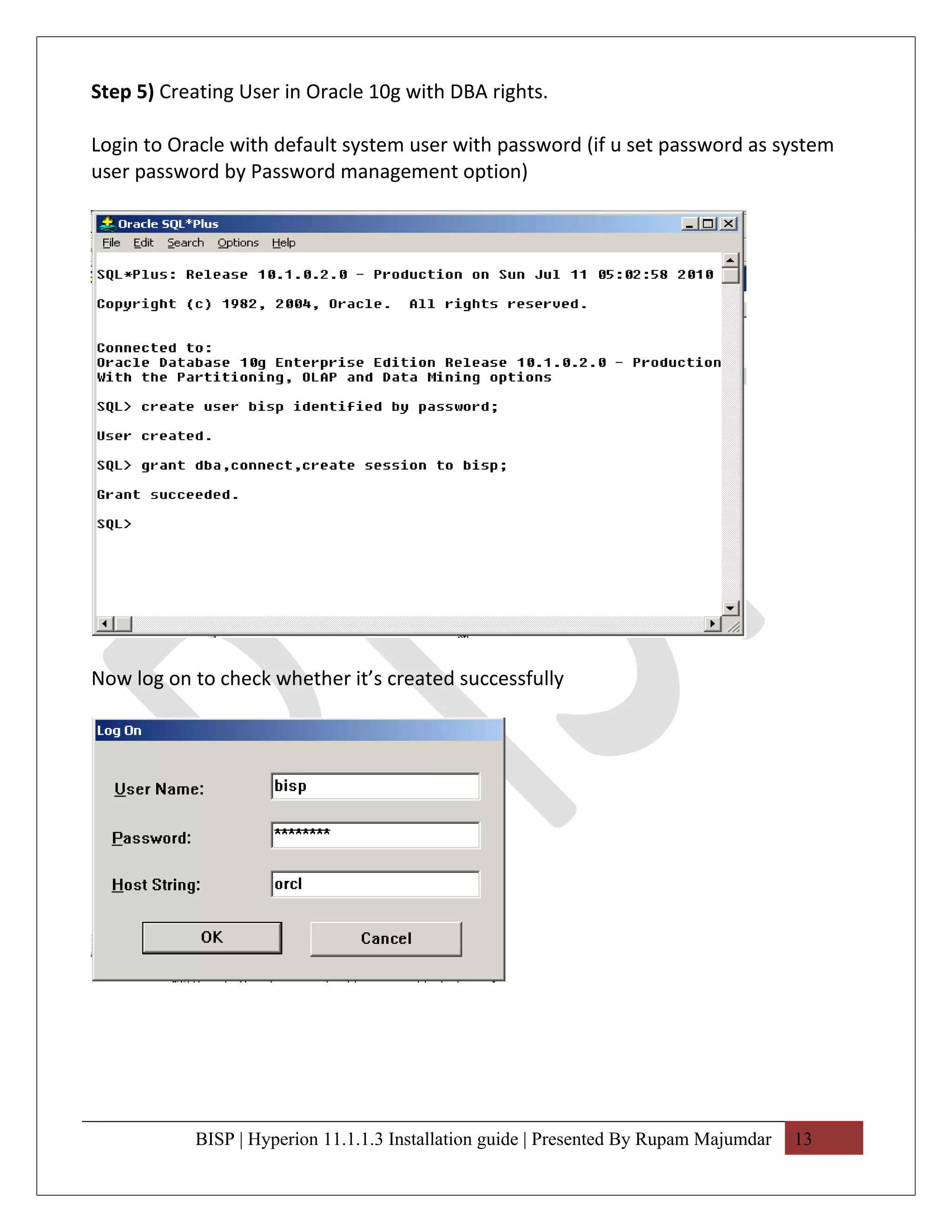

Step 5) Creating User in Oracle 10g with DBA rights.

Login to Oracle with default system user with password (if u set password as system
user password by Password management option)

Now log on to check whether it’s created successfully

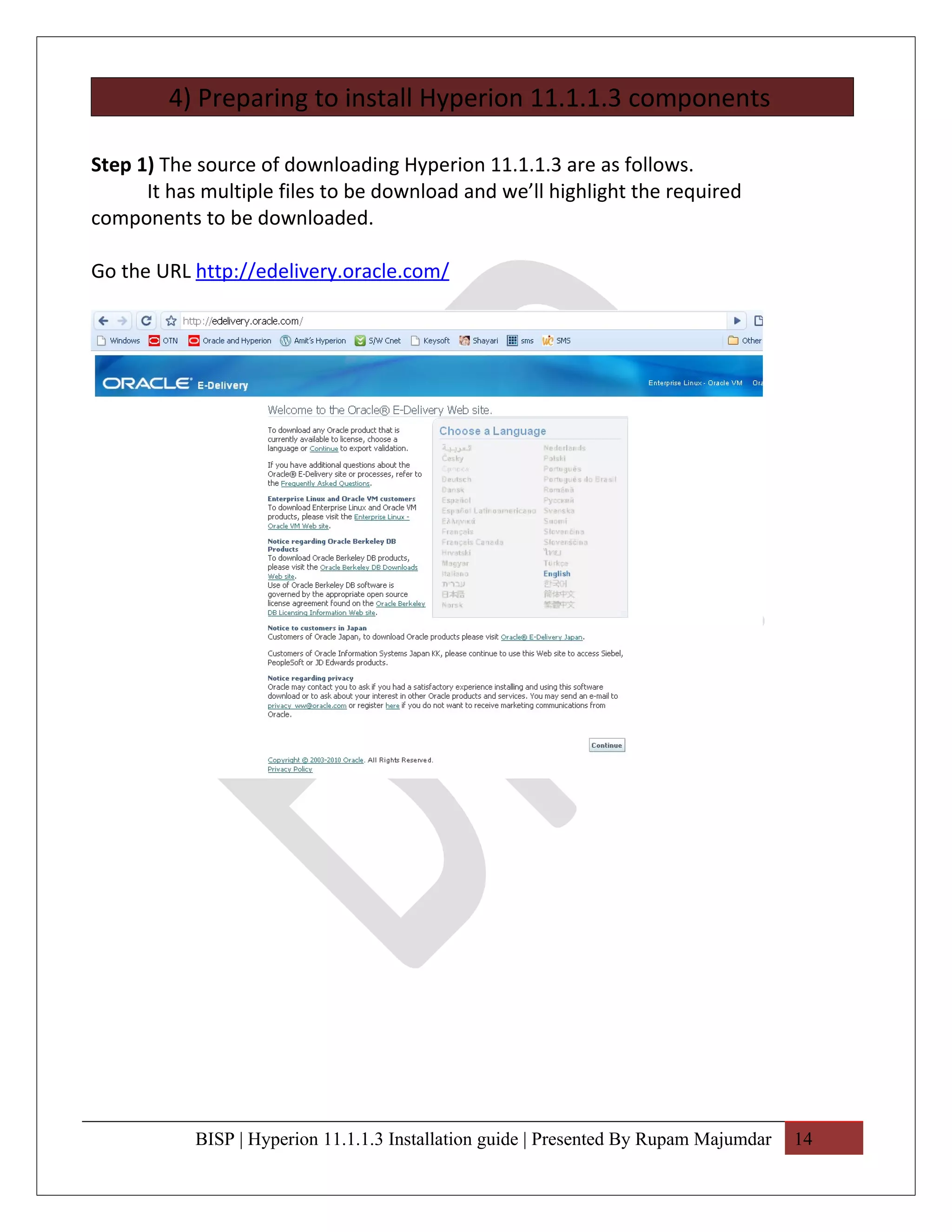

4) Preparing to install Hyperion 11.1.1.3 components

Step 1) The source of downloading Hyperion 11.1.1.3 are as follows.
It has multiple files to be download and we’ll highlight the required
components to be downloaded.

Go the URL http://edelivery.oracle.com/

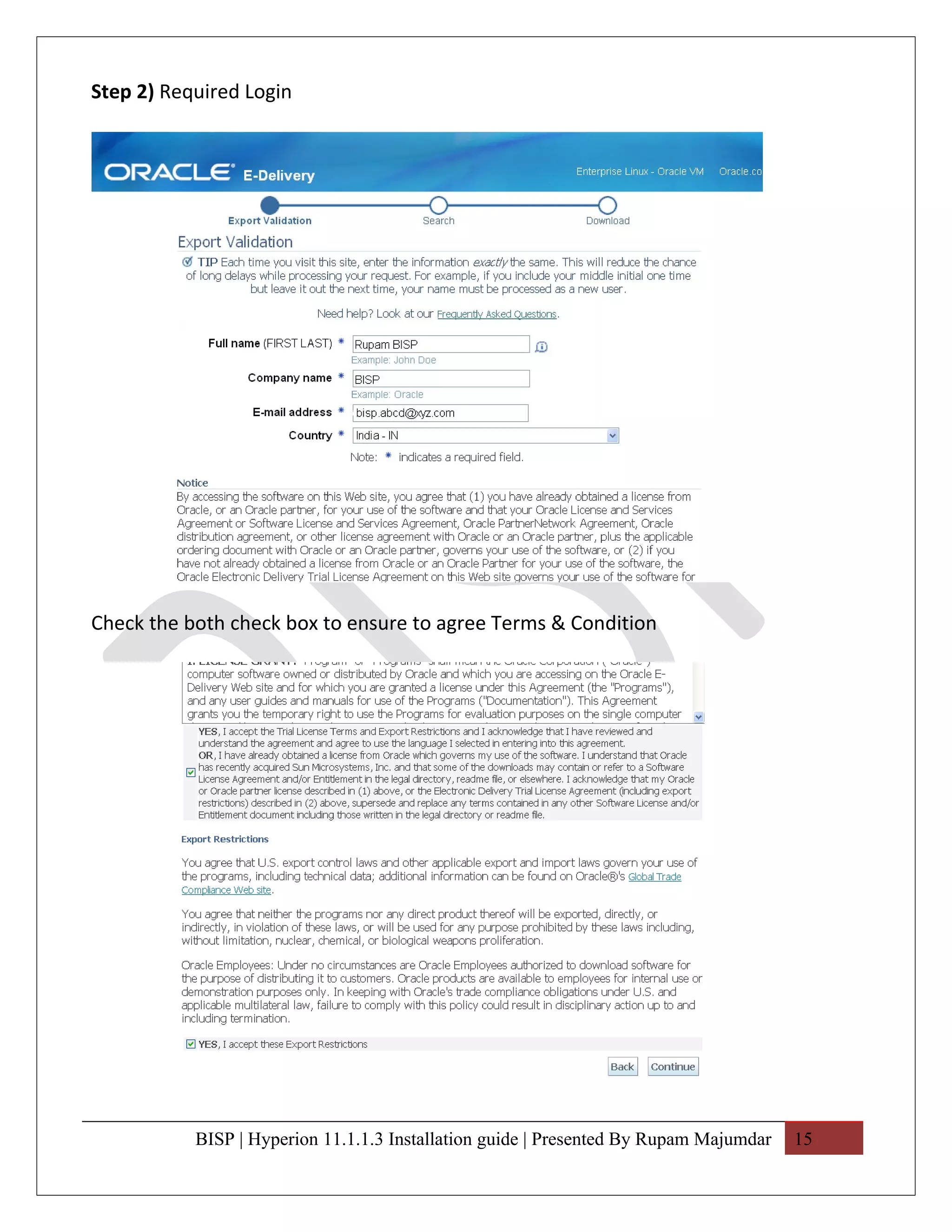

Step 2) Required Login

Check the both check box to ensure to agree Terms & Condition

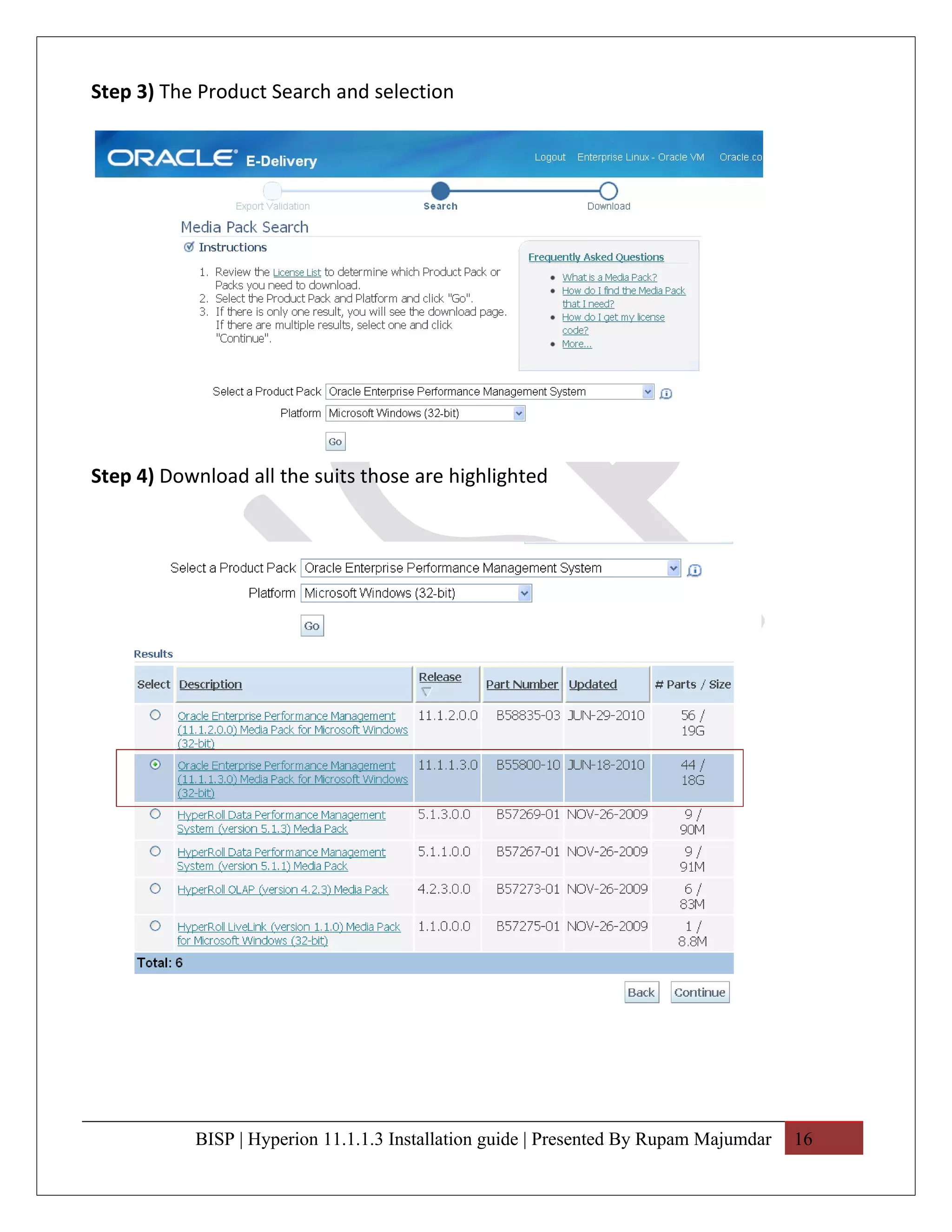

Step 3) The Product Search and selection

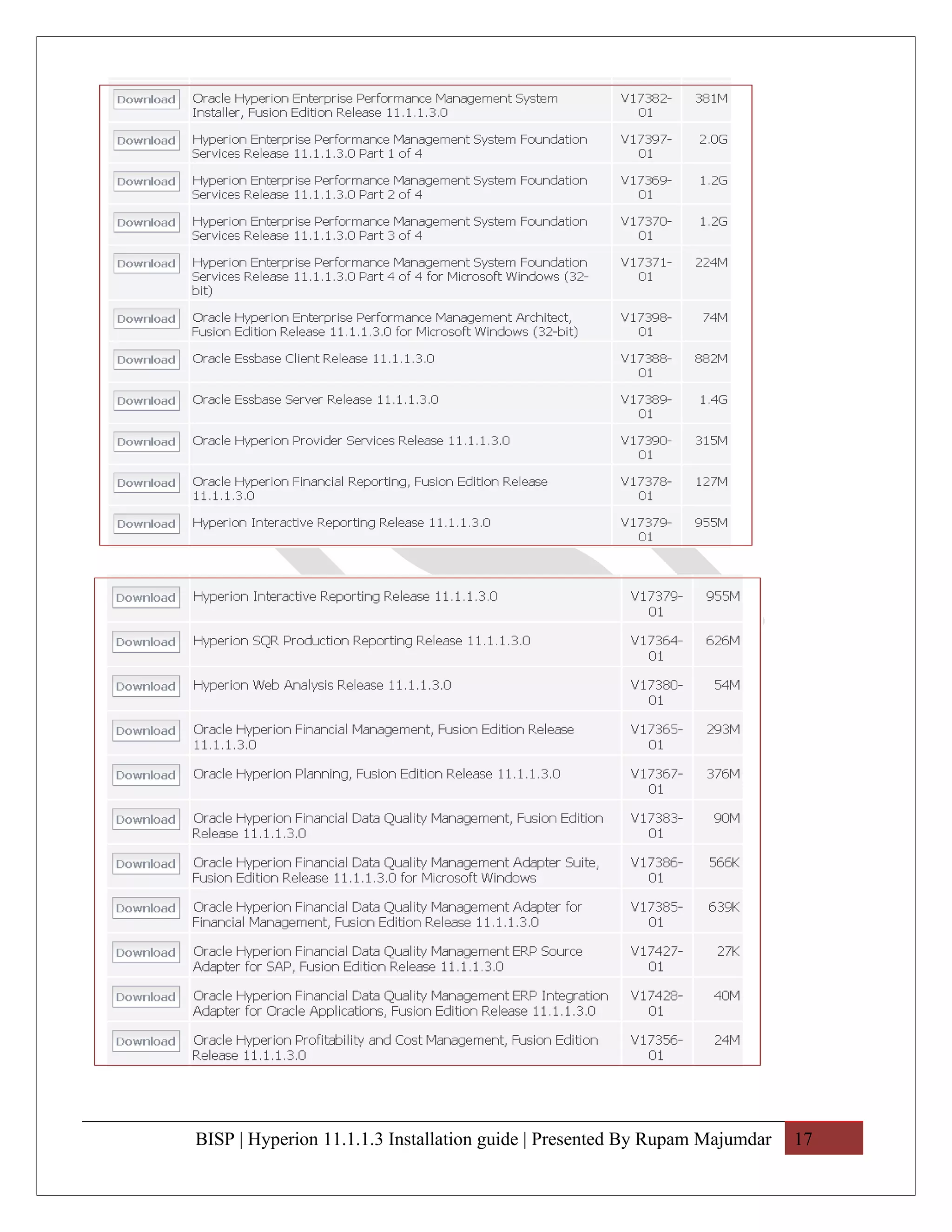

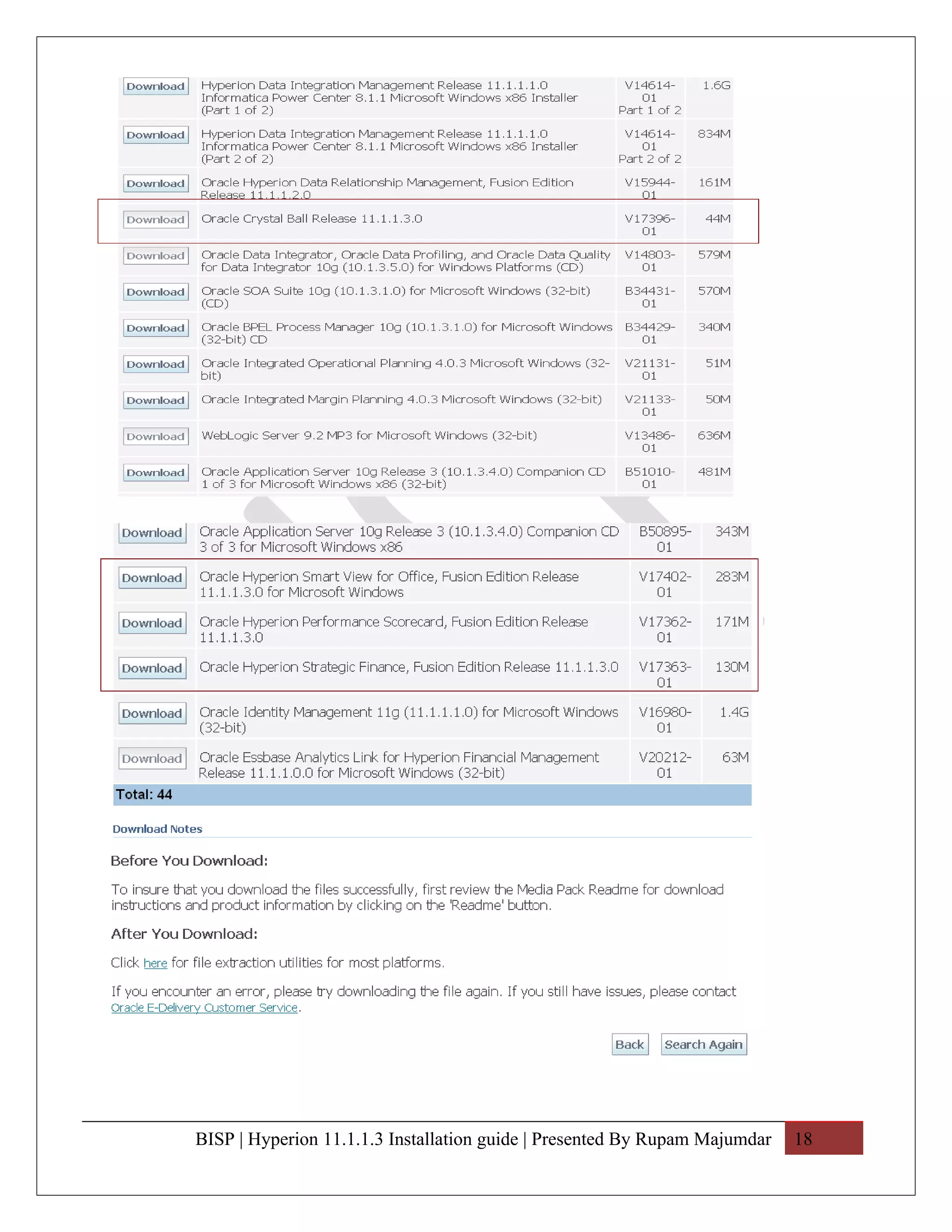

Step 4) Download all the suits those are highlighted

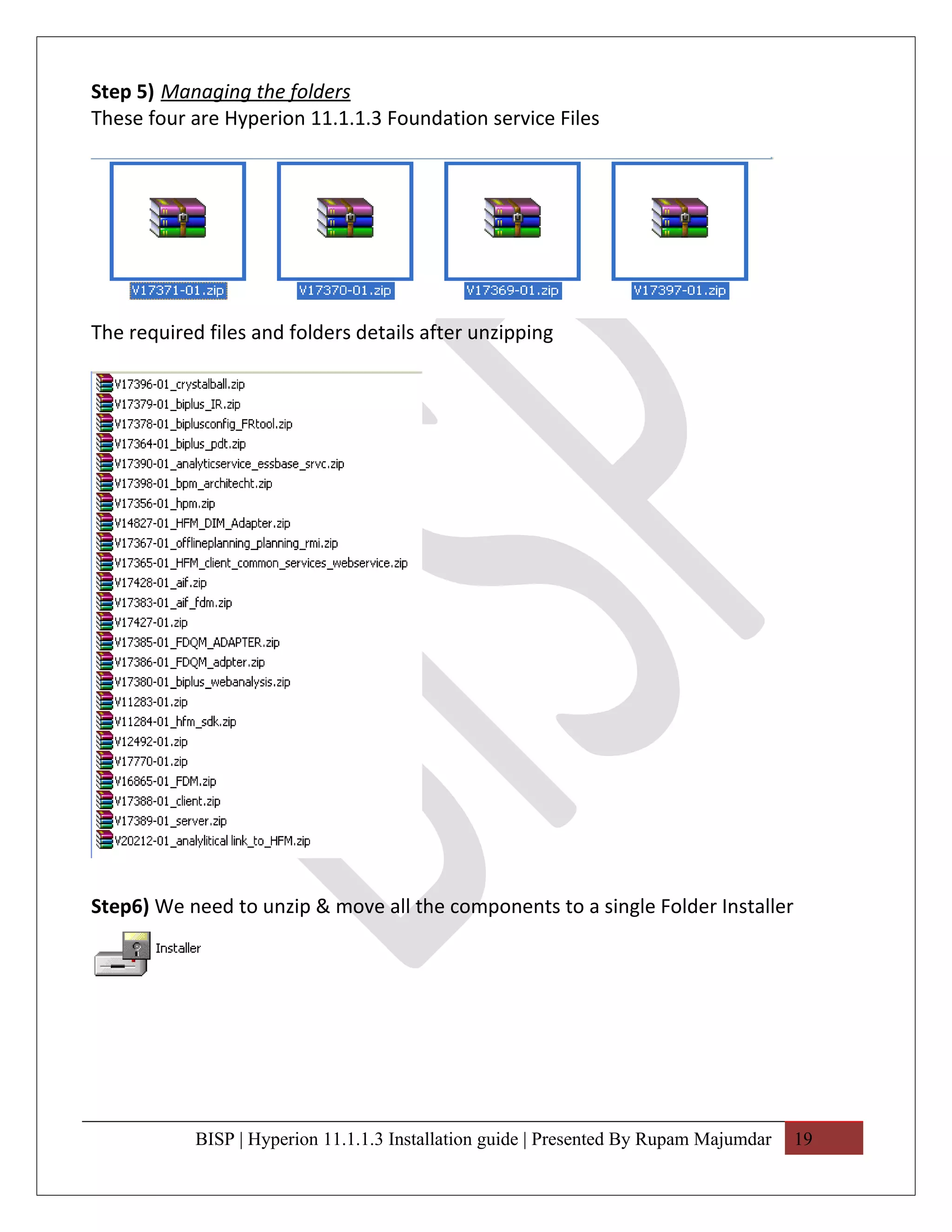

Step 5) Managing the folders
These four are Hyperion 11.1.1.3 Foundation service Files

The required files and folders details after unzipping

Step6) We need to unzip & move all the components to a single Folder Installer

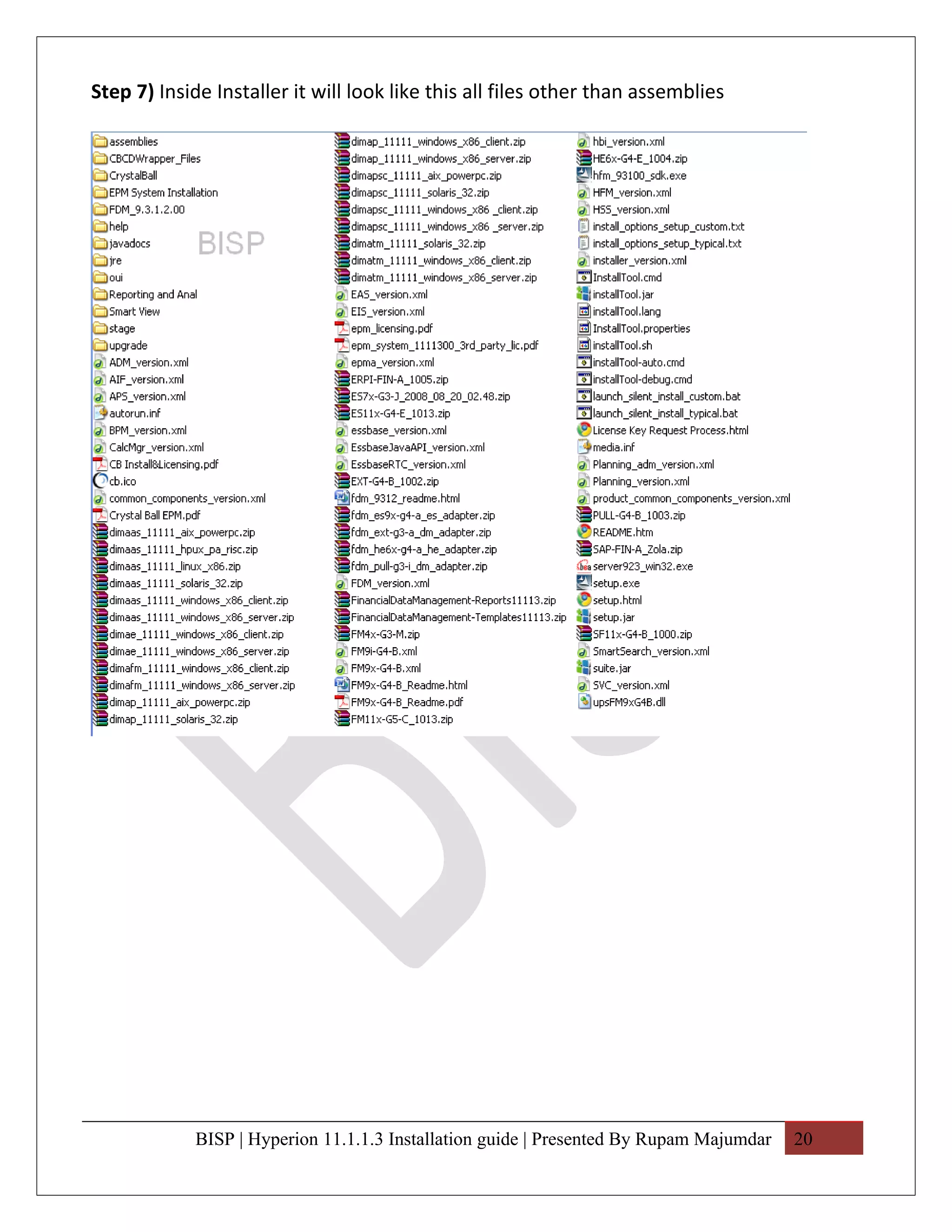

Step 7) Inside Installer it will look like this all files other than assemblies

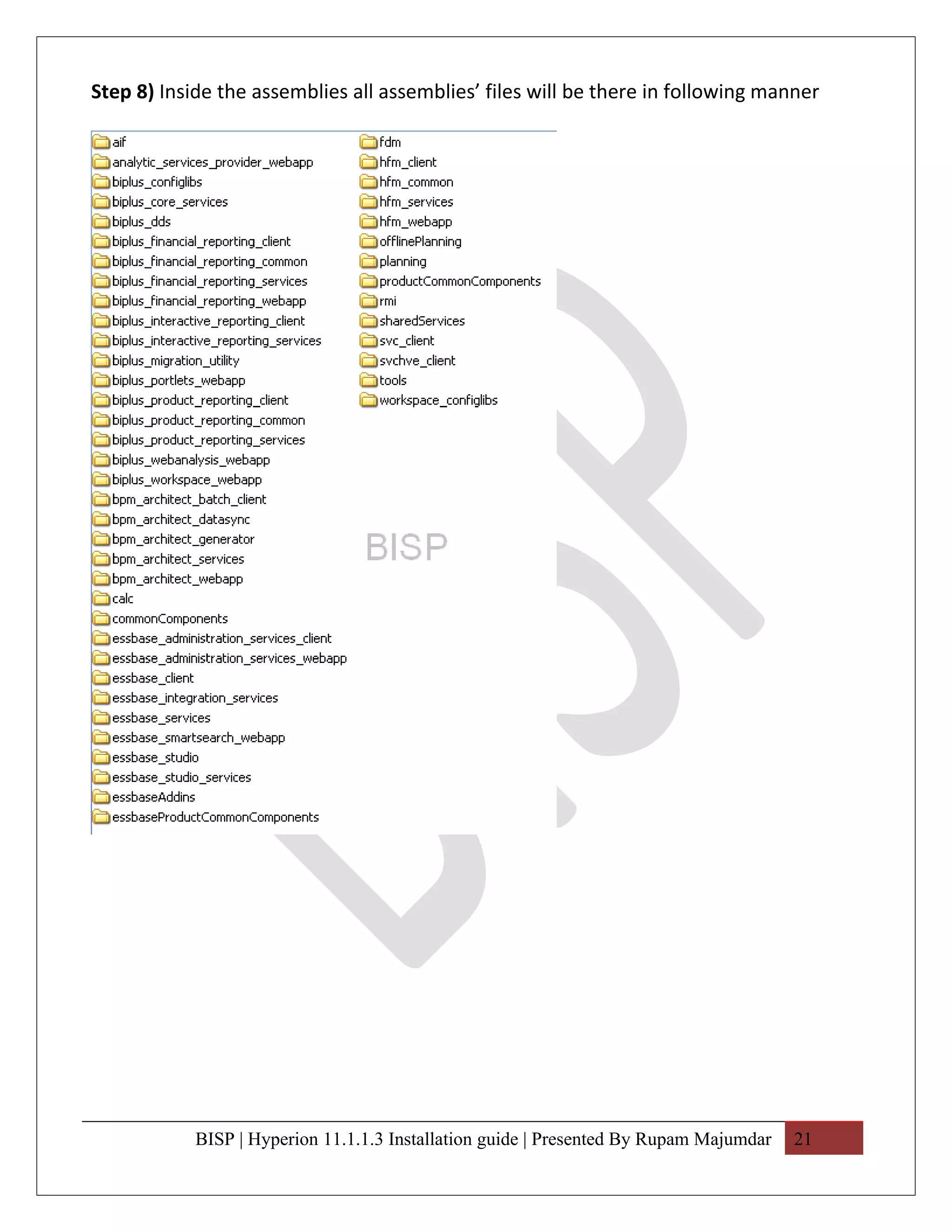

Step 8) Inside the assemblies all assemblies’ files will be there in following manner

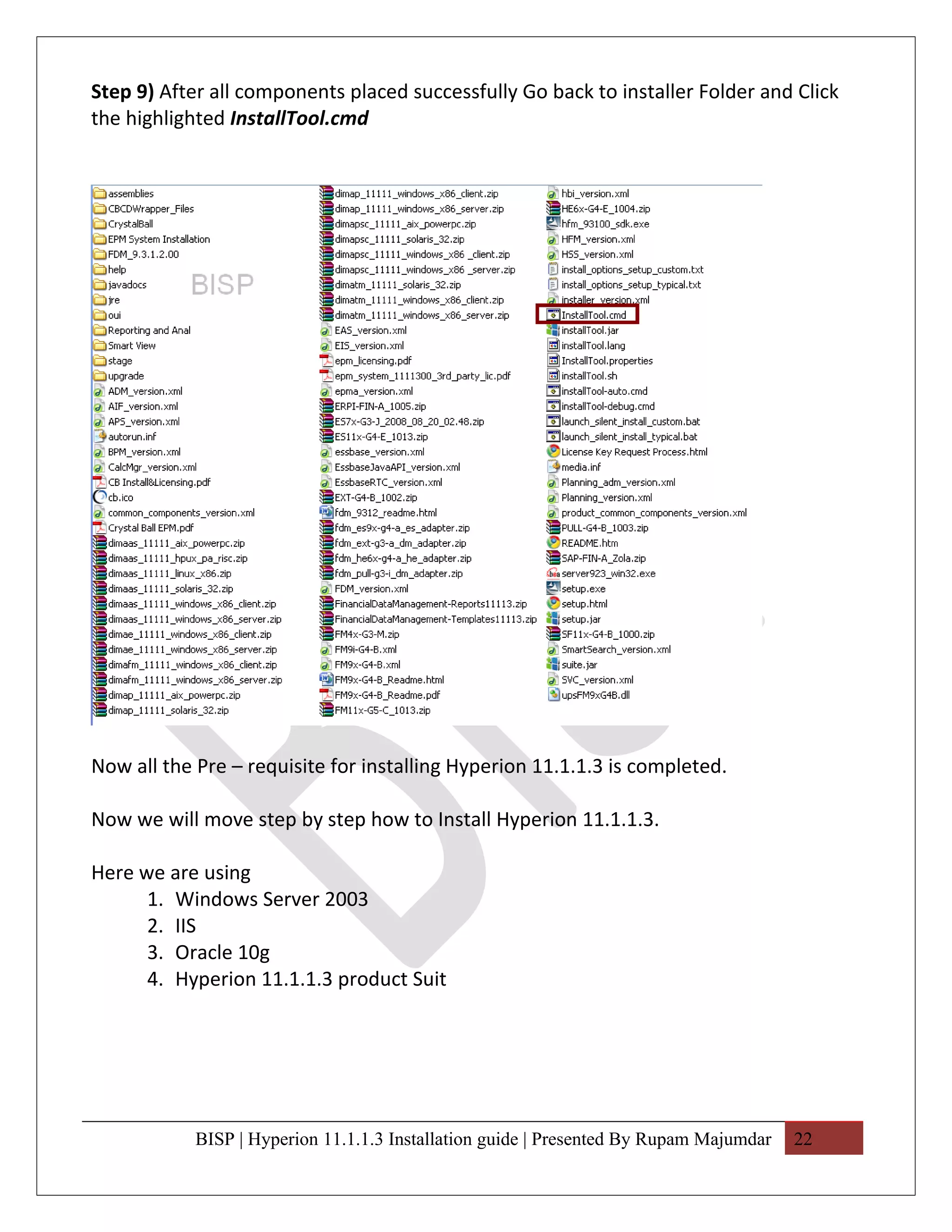

Step 9) After all components placed successfully Go back to installer Folder and Click
the highlighted InstallTool.cmd

Now all the Pre – requisite for installing Hyperion 11.1.1.3 is completed.

Now we will move step by step how to Install Hyperion 11.1.1.3.

Here we are using
1. Windows Server 2003
2. IIS
3. Oracle 10g
4. Hyperion 11.1.1.3 product Suit

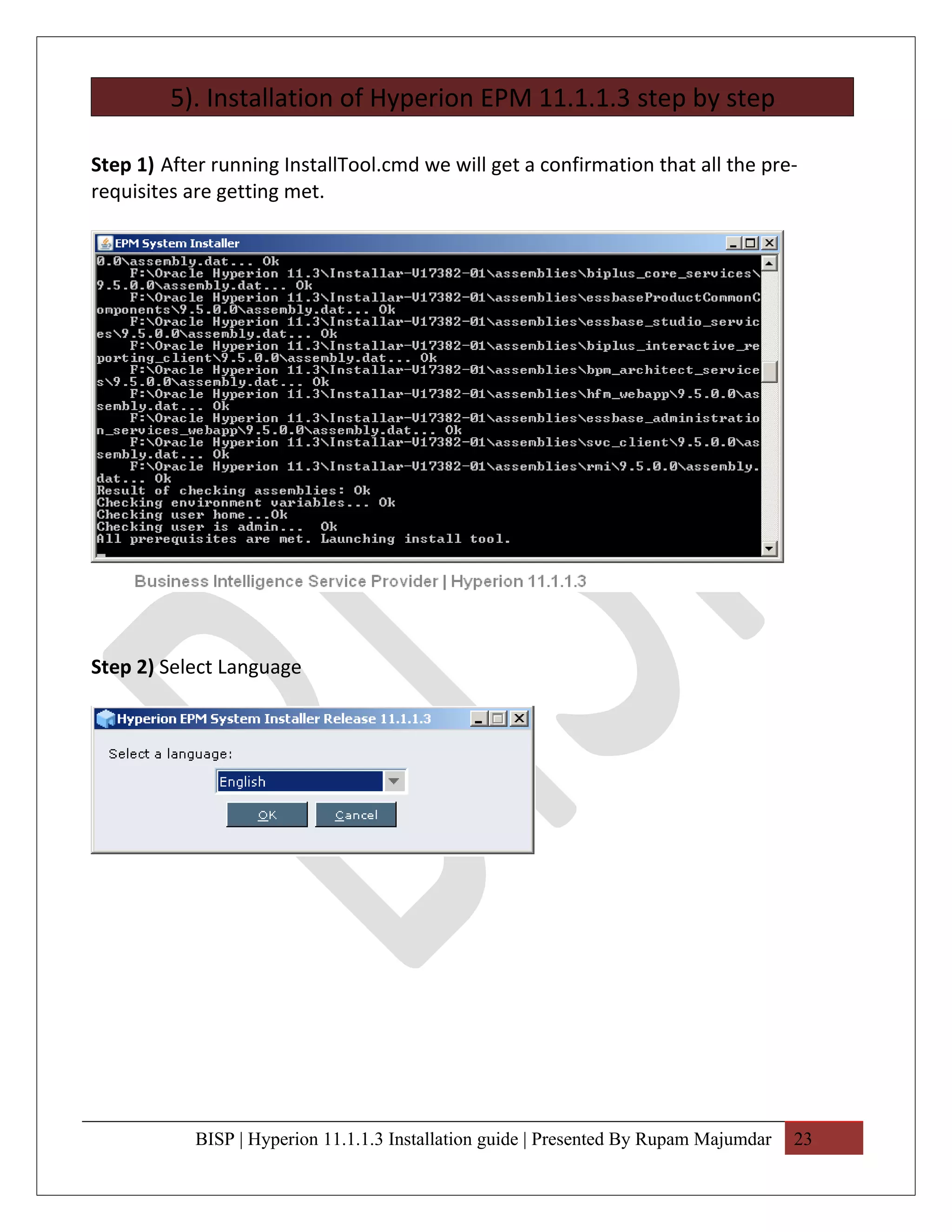

5). Installation of Hyperion EPM 11.1.1.3 step by step

Step 1) After running InstallTool.cmd we will get a confirmation that all the pre-
requisites are getting met.

Step 2) Select Language

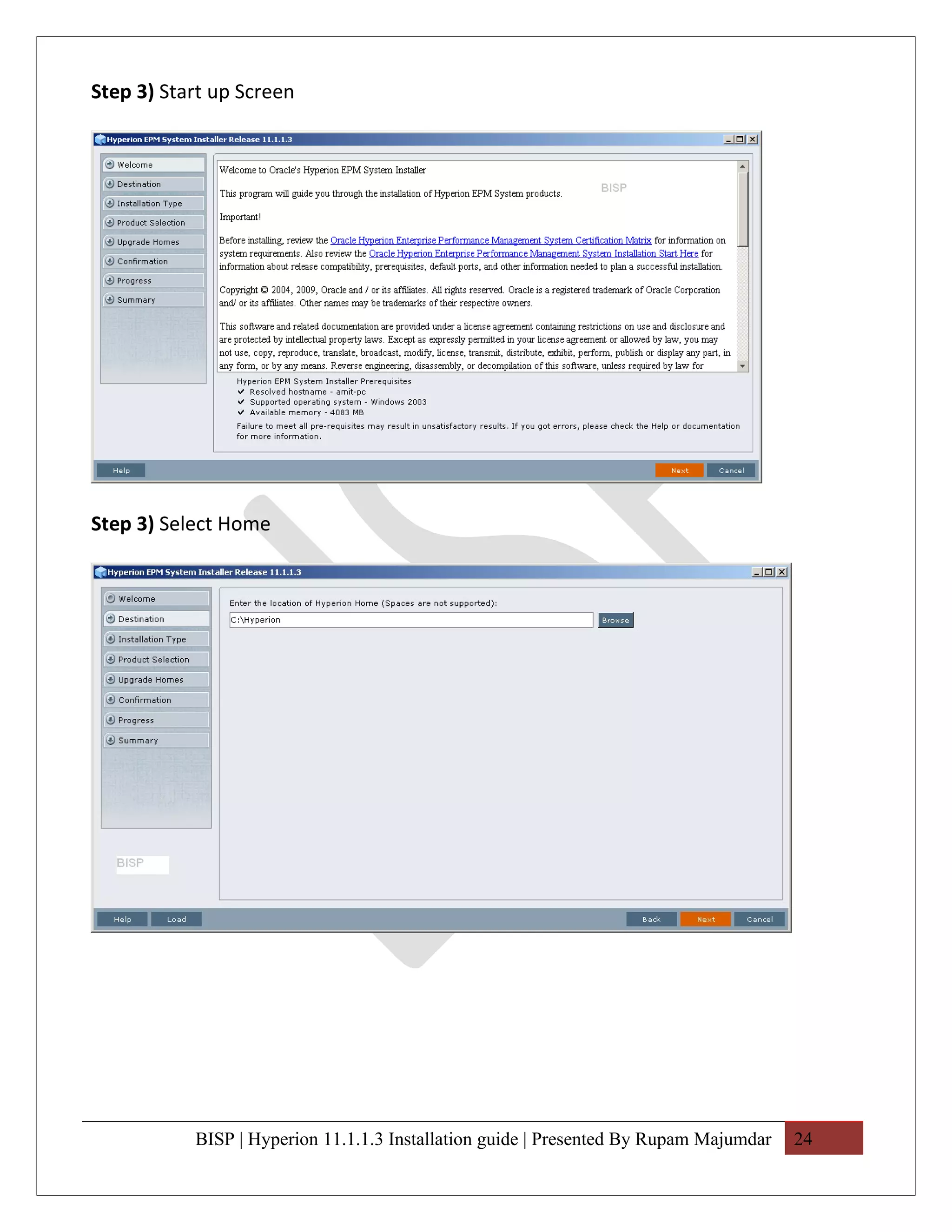

Step 3) Start up Screen

Step 3) Select Home

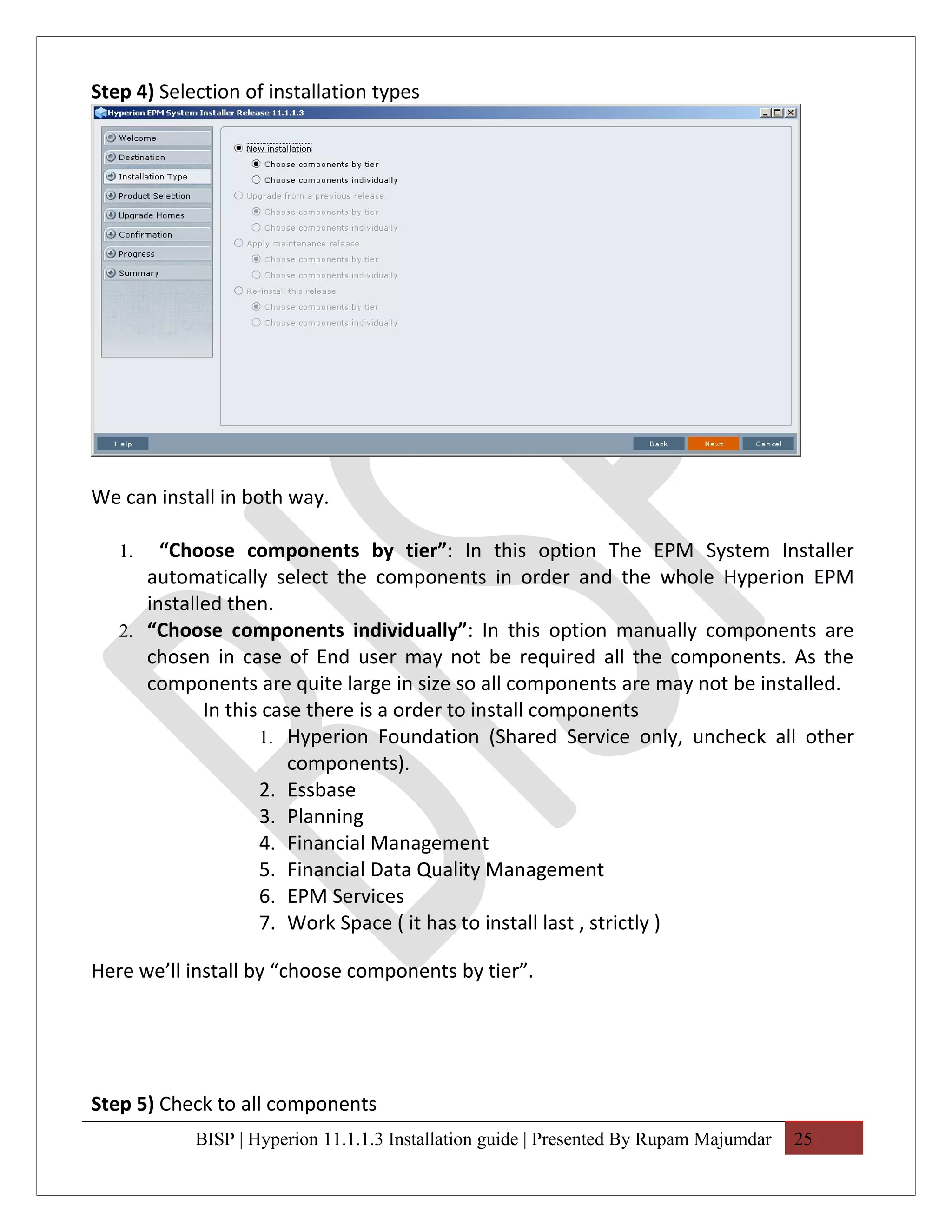

Step 4) Selection of installation types

We can install in both way.

1. “Choose components by tier”: In this option The EPM System Installer
automatically select the components in order and the whole Hyperion EPM
installed then.
2. “Choose components individually”: In this option manually components are
chosen in case of End user may not be required all the components. As the
components are quite large in size so all components are may not be installed.
In this case there is a order to install components
1. Hyperion Foundation (Shared Service only, uncheck all other
components).
2. Essbase
3. Planning
4. Financial Management
5. Financial Data Quality Management
6. EPM Services
7. Work Space ( it has to install last , strictly )

Here we’ll install by “choose components by tier”.

Step 5) Check to all components

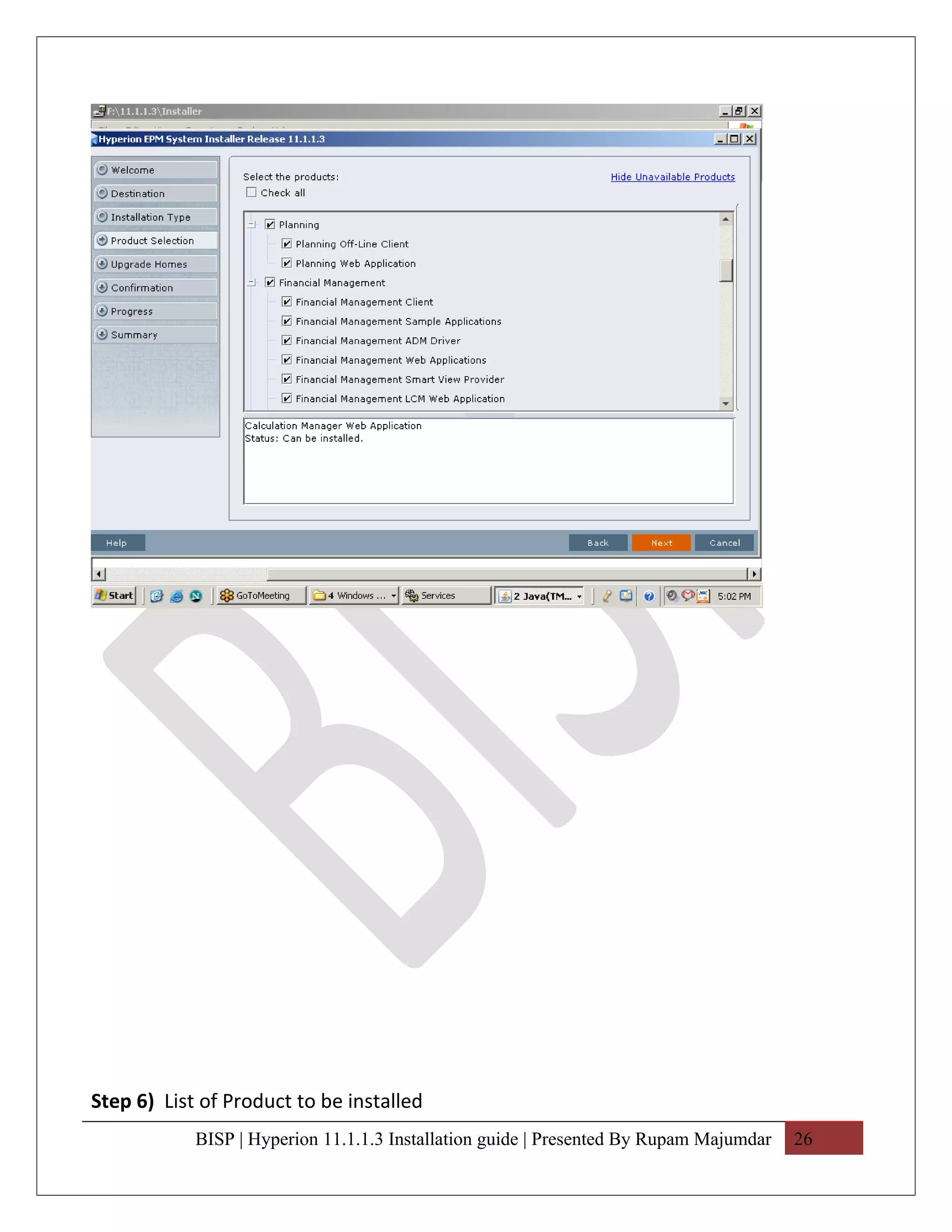

Step 6) List of Product to be installed

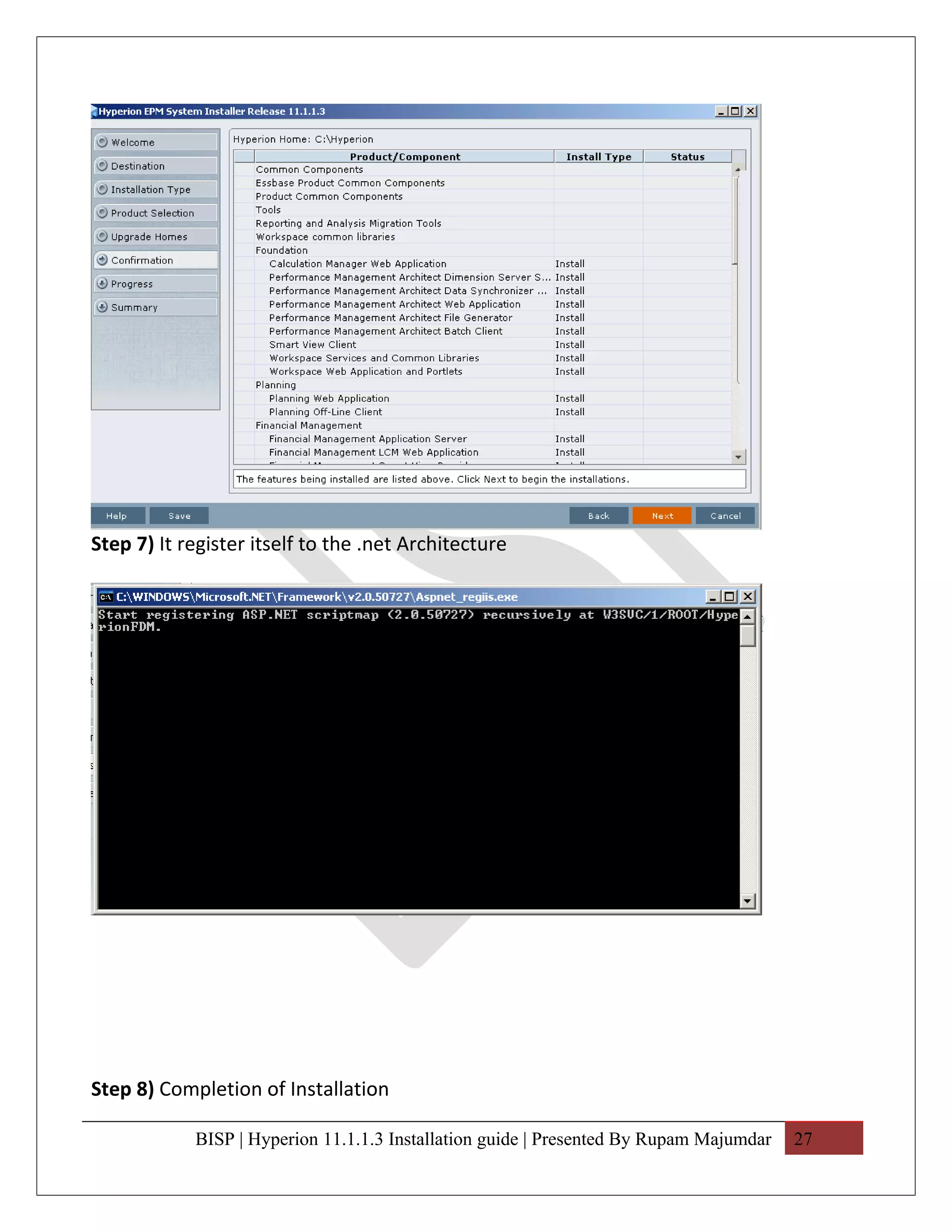

Step 7) It register itself to the .net Architecture

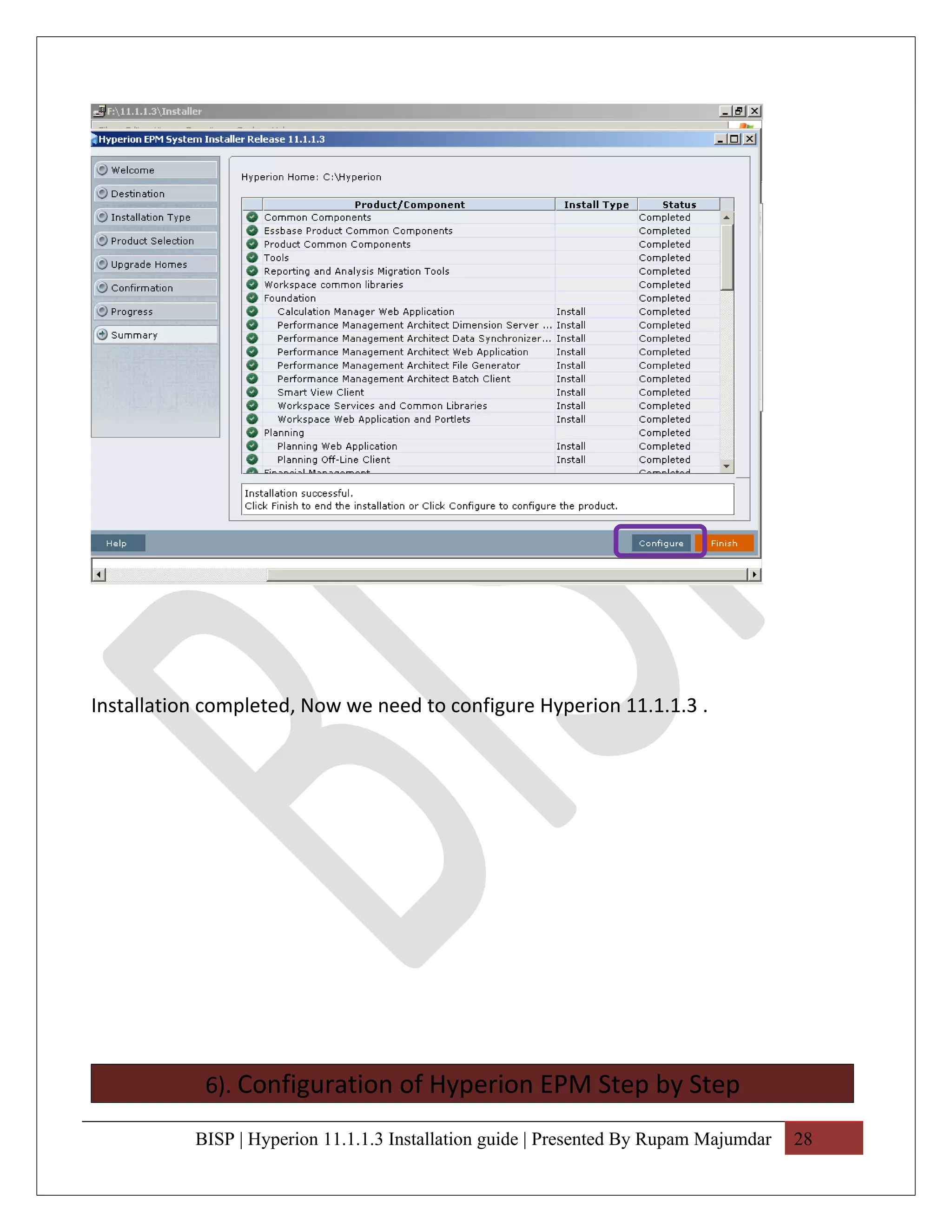

Step 8) Completion of Installation


Installation completed, Now we need to configure Hyperion 11.1.1.3 .

6). Configuration of Hyperion EPM Step by Step

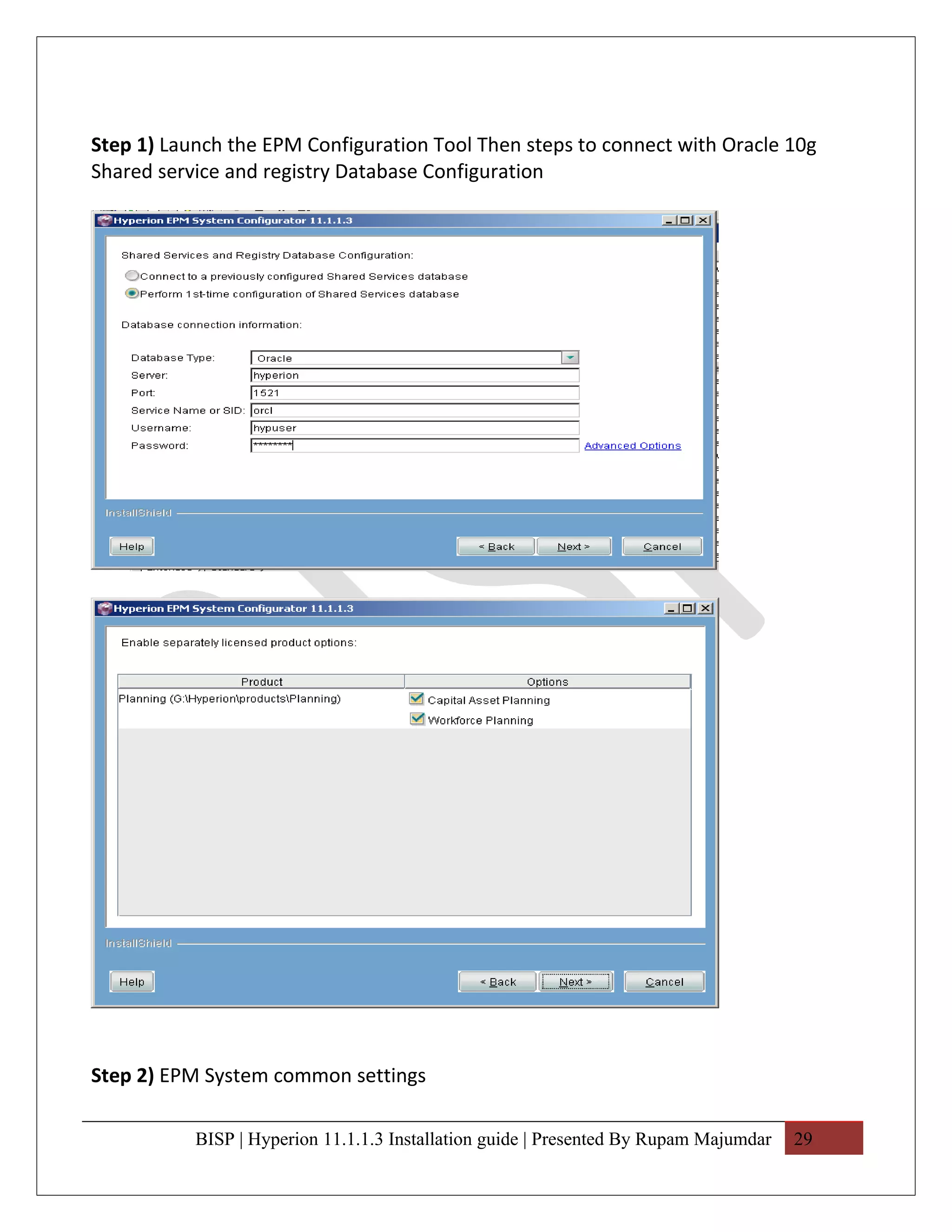

Step 1) Launch the EPM Configuration Tool Then steps to connect with Oracle 10g
Shared service and registry Database Configuration

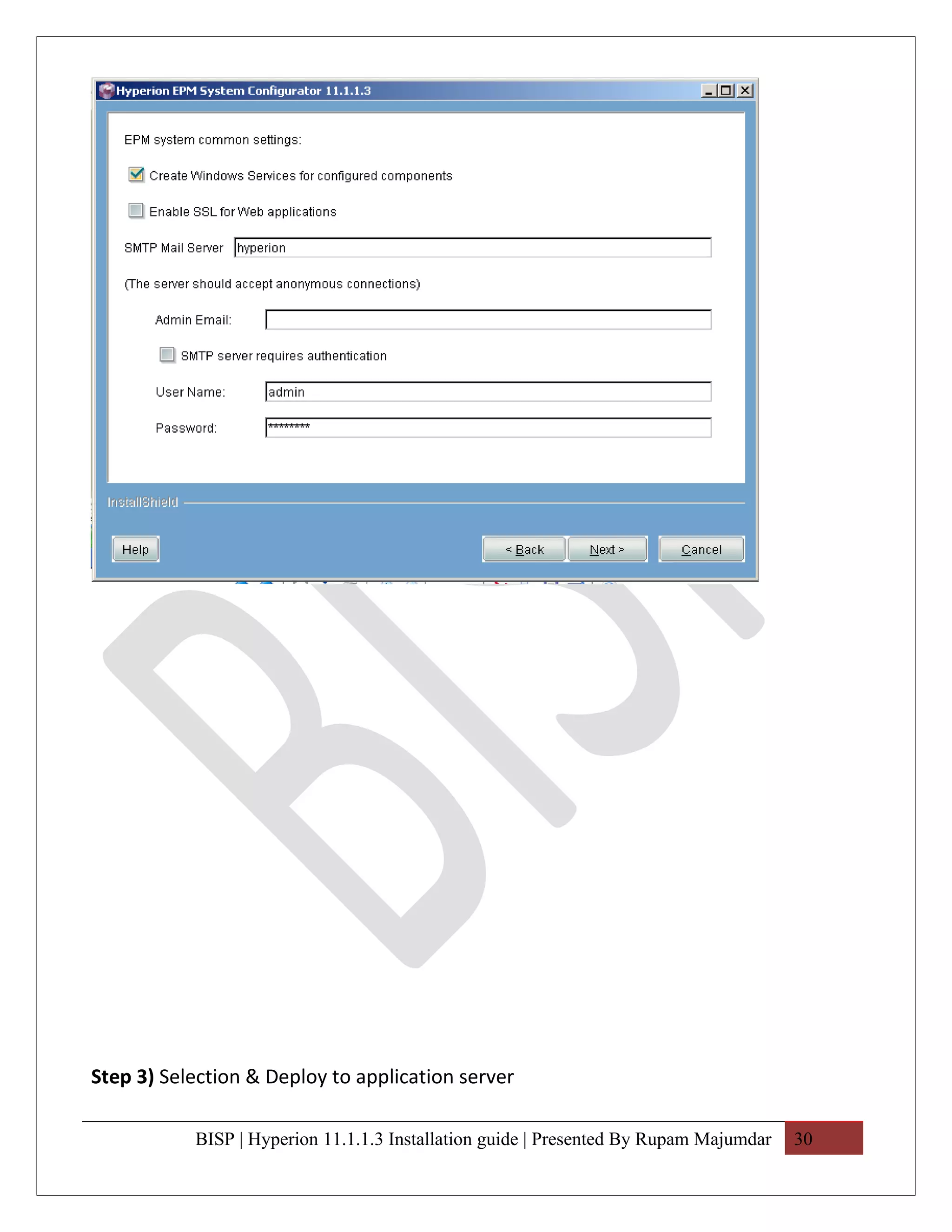

Step 2) EPM System common settings


Step 3) Selection & Deploy to application server

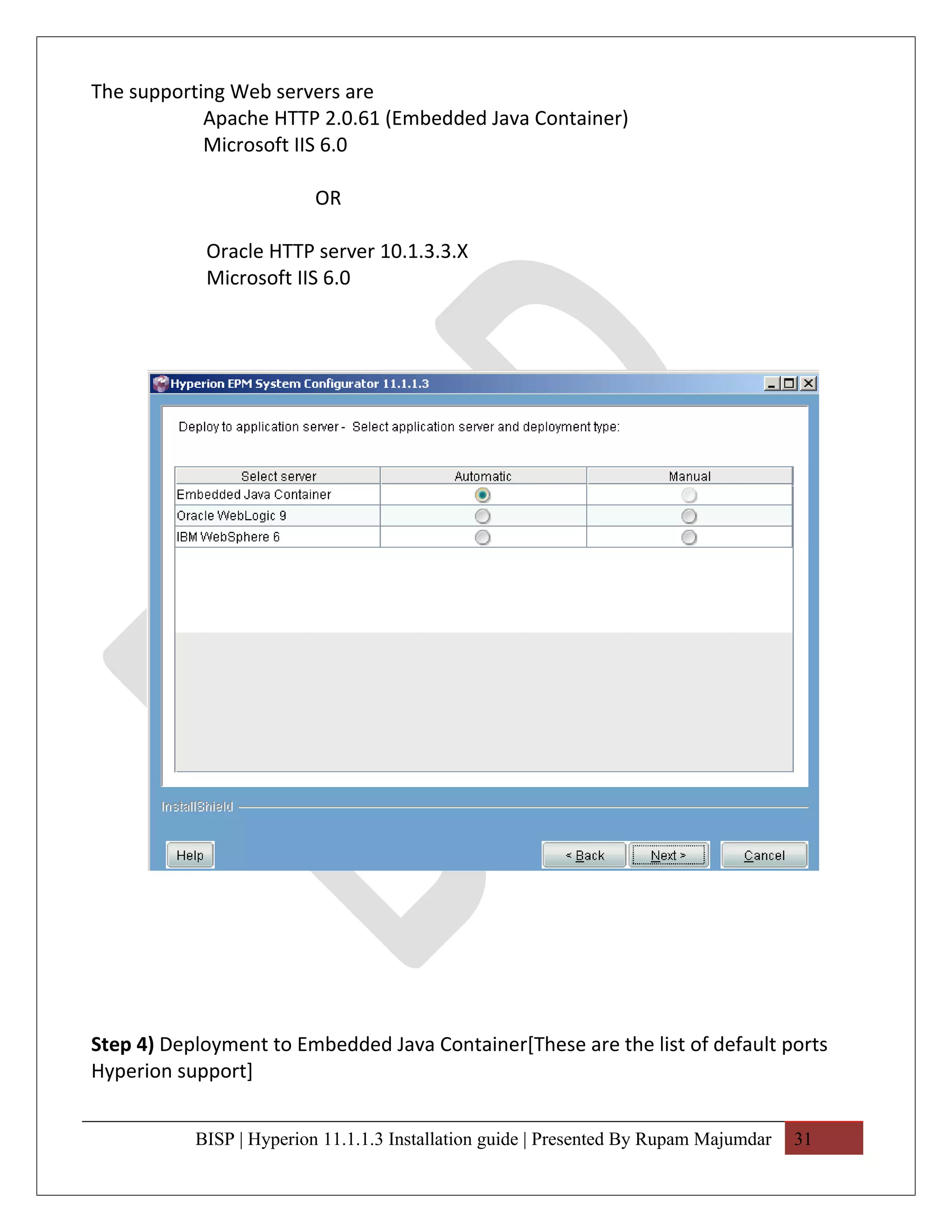

The supporting Web servers are
Apache HTTP 2.0.61 (Embedded Java Container)
Microsoft IIS 6.0

OR

Oracle HTTP server 10.1.3.3.X
Microsoft IIS 6.0

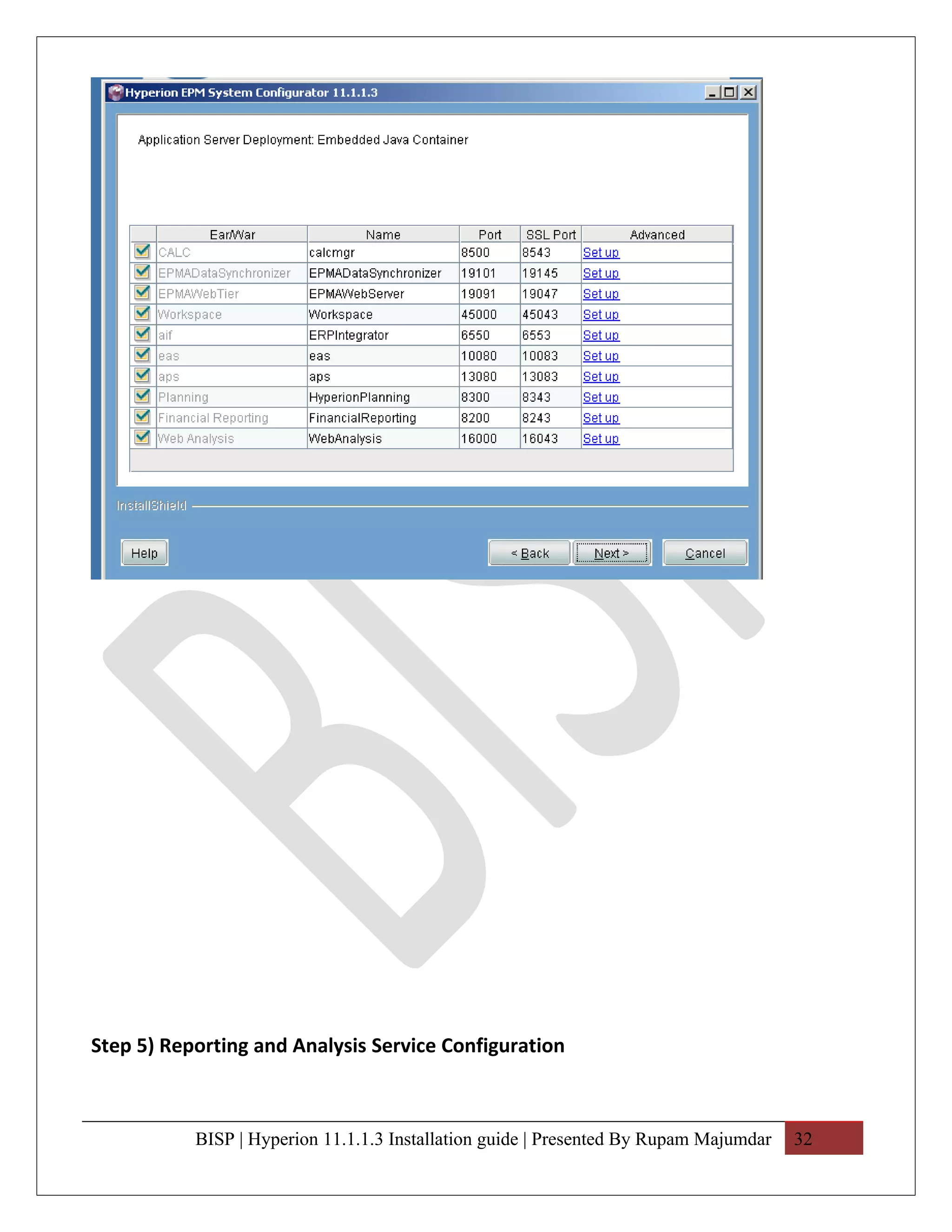

Step 4) Deployment to Embedded Java Container[These are the list of default ports
Hyperion support]

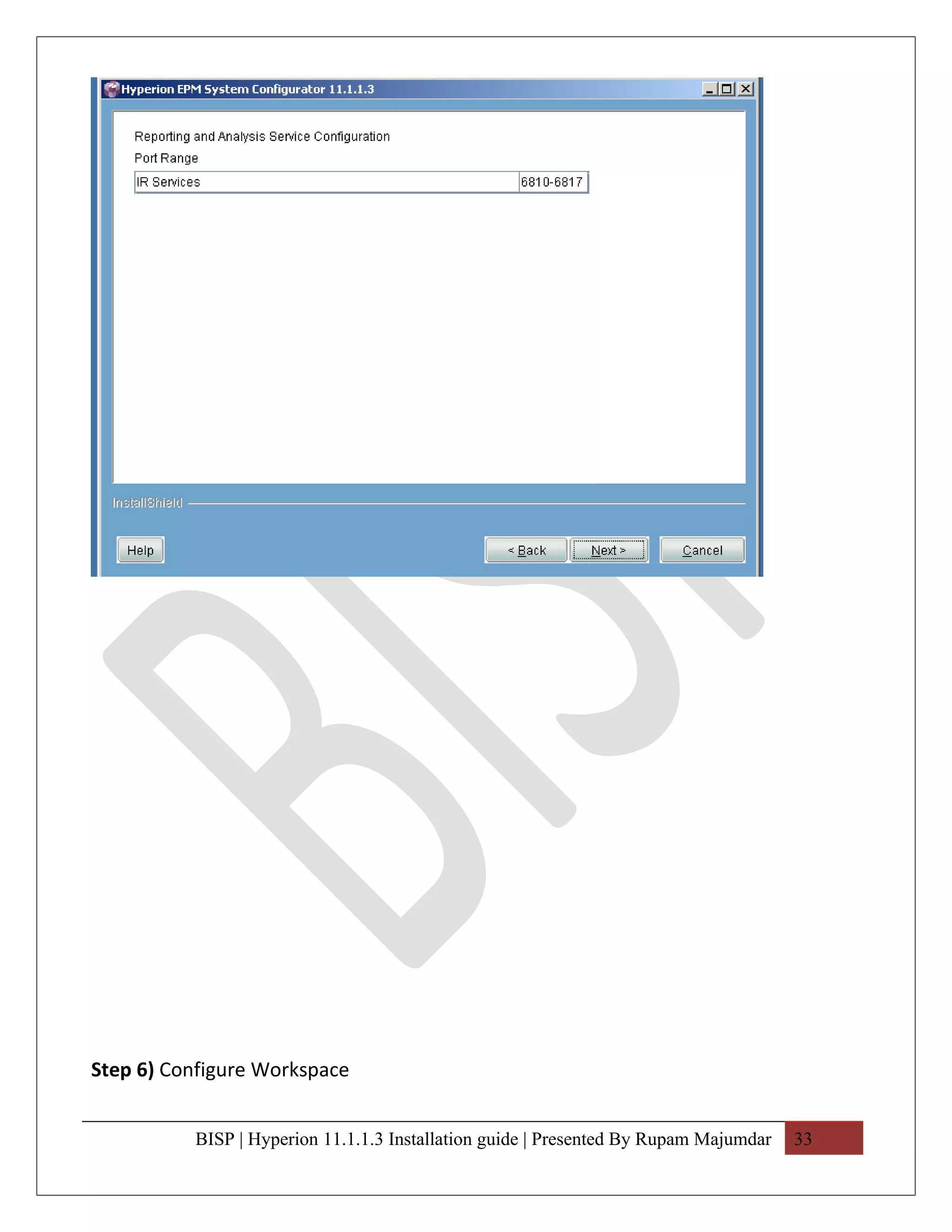

Step 5) Reporting and Analysis Service Configuration

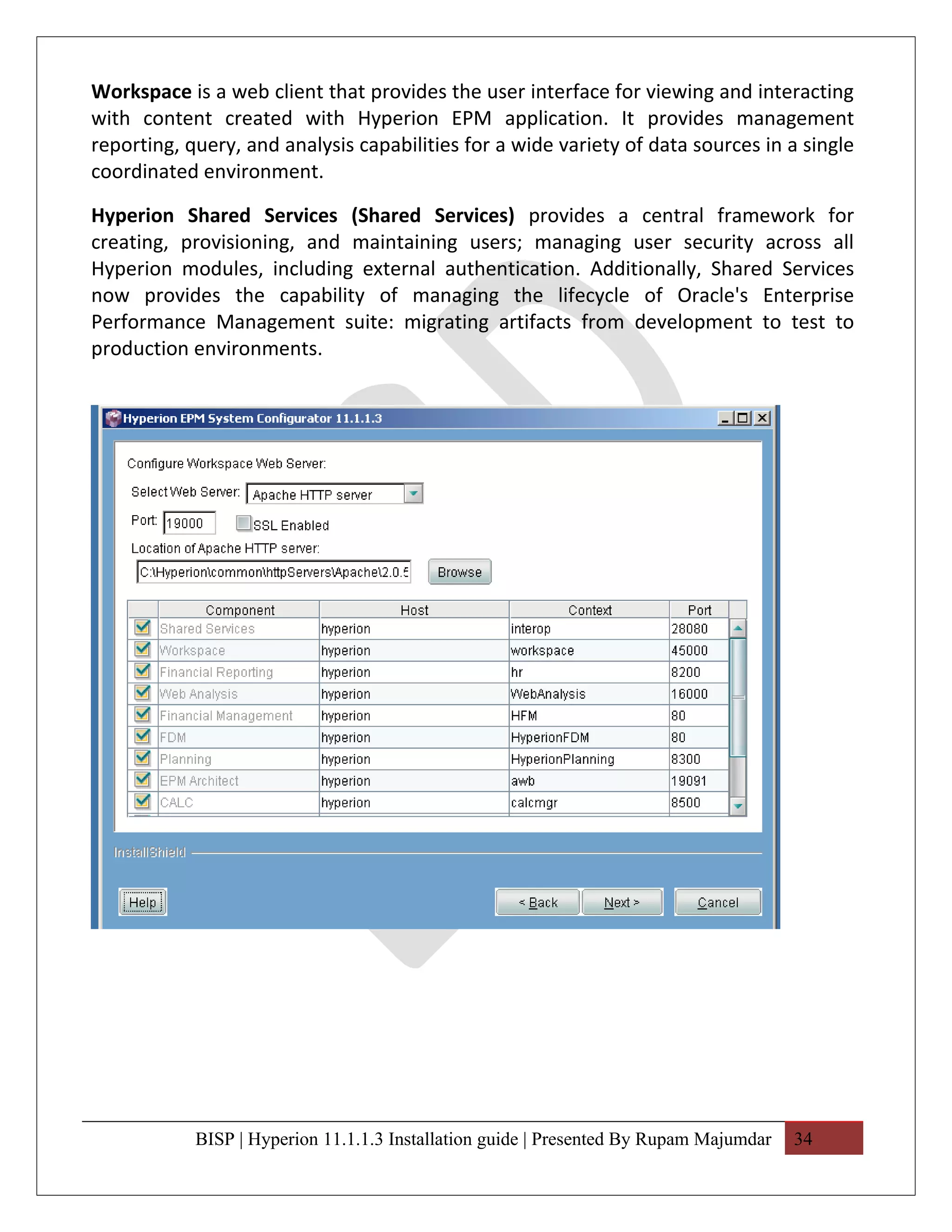

Step 6) Configure Workspace


Workspace is a web client that provides the user interface for viewing and interacting
with content created with Hyperion EPM application. It provides management
reporting, query, and analysis capabilities for a wide variety of data sources in a single
coordinated environment.

Hyperion Shared Services (Shared Services) provides a central framework for
creating, provisioning, and maintaining users; managing user security across all
Hyperion modules, including external authentication. Additionally, Shared Services
now provides the capability of managing the lifecycle of Oracle's Enterprise
Performance Management suite: migrating artifacts from development to test to
production environments.

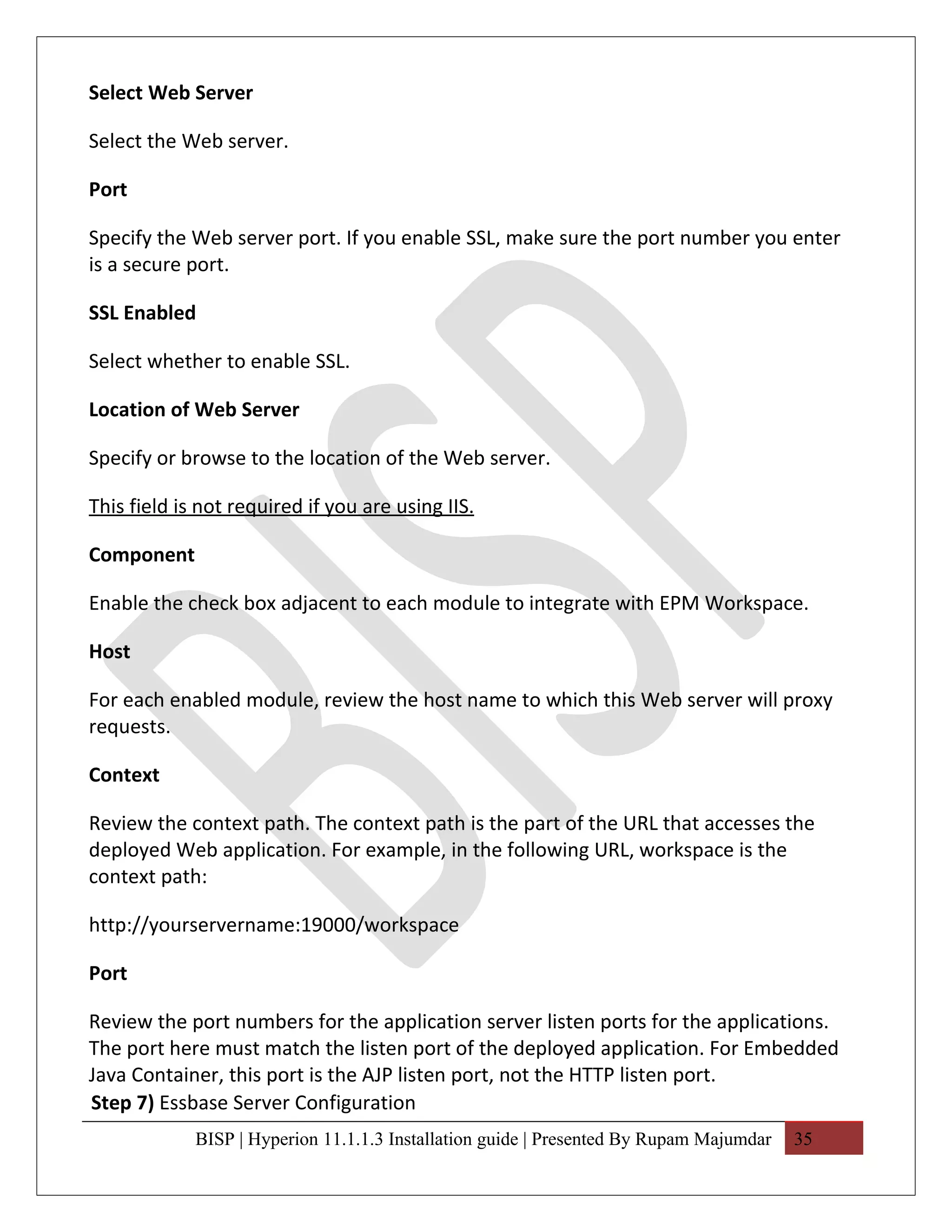

Select Web Server

Select the Web server.

Port

Specify the Web server port. If you enable SSL, make sure the port number you enter
is a secure port.

SSL Enabled

Select whether to enable SSL.

Location of Web Server

Specify or browse to the location of the Web server.

This field is not required if you are using IIS.

Component

Enable the check box adjacent to each module to integrate with EPM Workspace.

Host

For each enabled module, review the host name to which this Web server will proxy
requests.

Context

Review the context path. The context path is the part of the URL that accesses the
deployed Web application. For example, in the following URL, workspace is the
context path:

http://yourservername:19000/workspace

Port

Review the port numbers for the application server listen ports for the applications.
The port here must match the listen port of the deployed application. For Embedded
Java Container, this port is the AJP listen port, not the HTTP listen port.

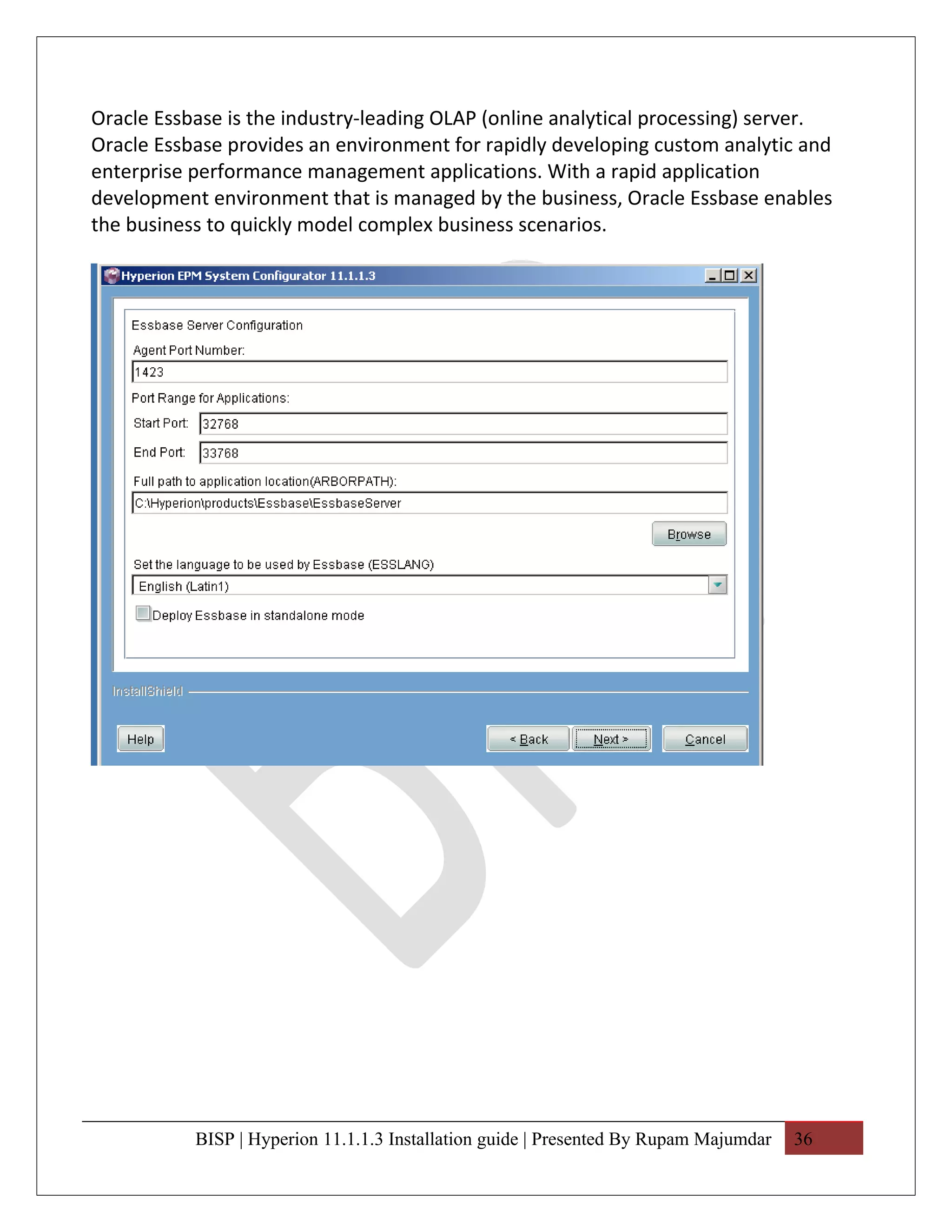

Step 7) Essbase Server Configuration

Oracle Essbase is the industry-leading OLAP (online analytical processing) server.
Oracle Essbase provides an environment for rapidly developing custom analytic and
enterprise performance management applications. With a rapid application
development environment that is managed by the business, Oracle Essbase enables
the business to quickly model complex business scenarios.

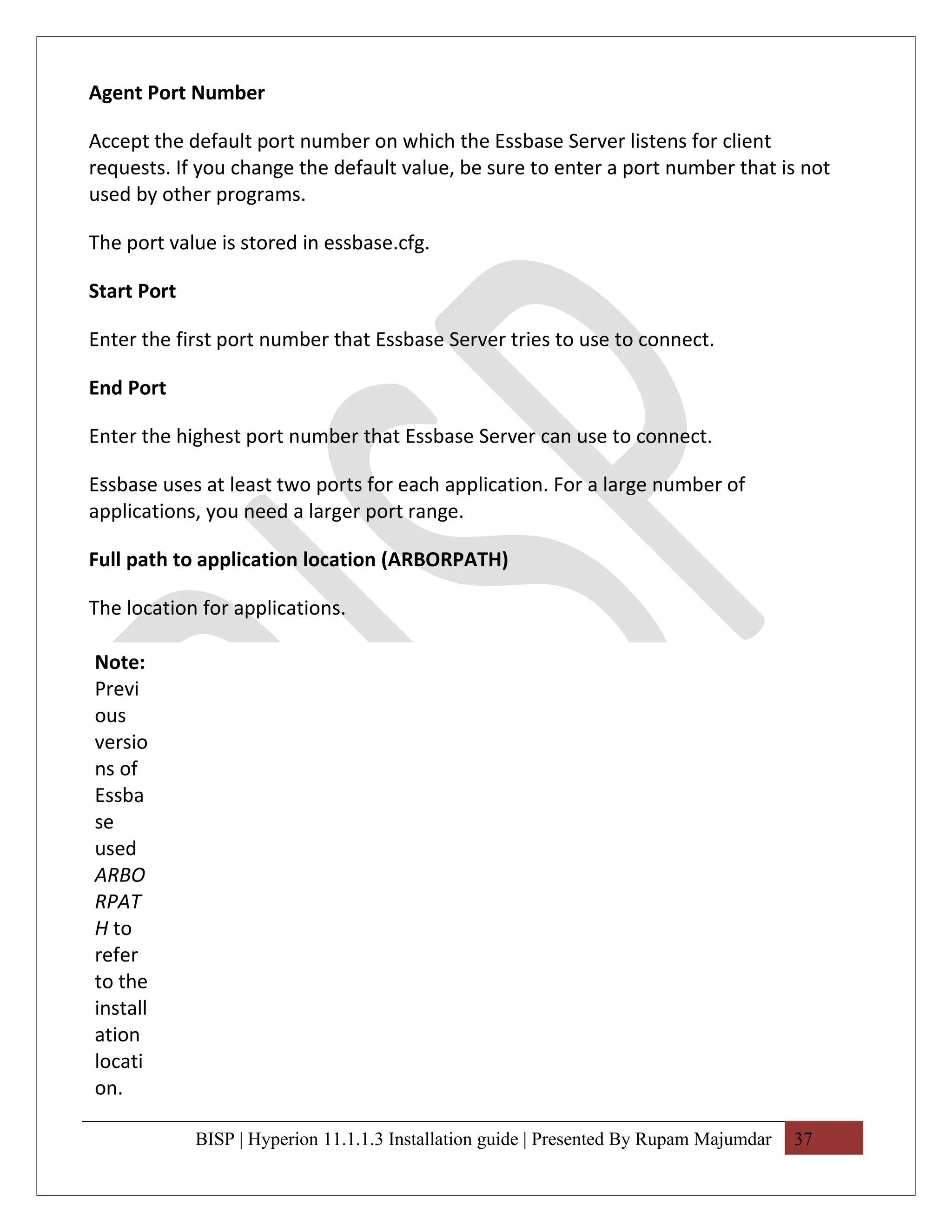

Agent Port Number

Accept the default port number on which the Essbase Server listens for client
requests. If you change the default value, be sure to enter a port number that is not
used by other programs.

The port value is stored in essbase.cfg.

Start Port

Enter the first port number that Essbase Server tries to use to connect.

End Port

Enter the highest port number that Essbase Server can use to connect.

Essbase uses at least two ports for each application. For a large number of
applications, you need a larger port range.

Full path to application location (ARBORPATH)

The location for applications.

Note:
Previ
ous
versio
ns of
Essba
se
used
ARBO
RPAT
H to
refer
to the
install
ation
locati
on.

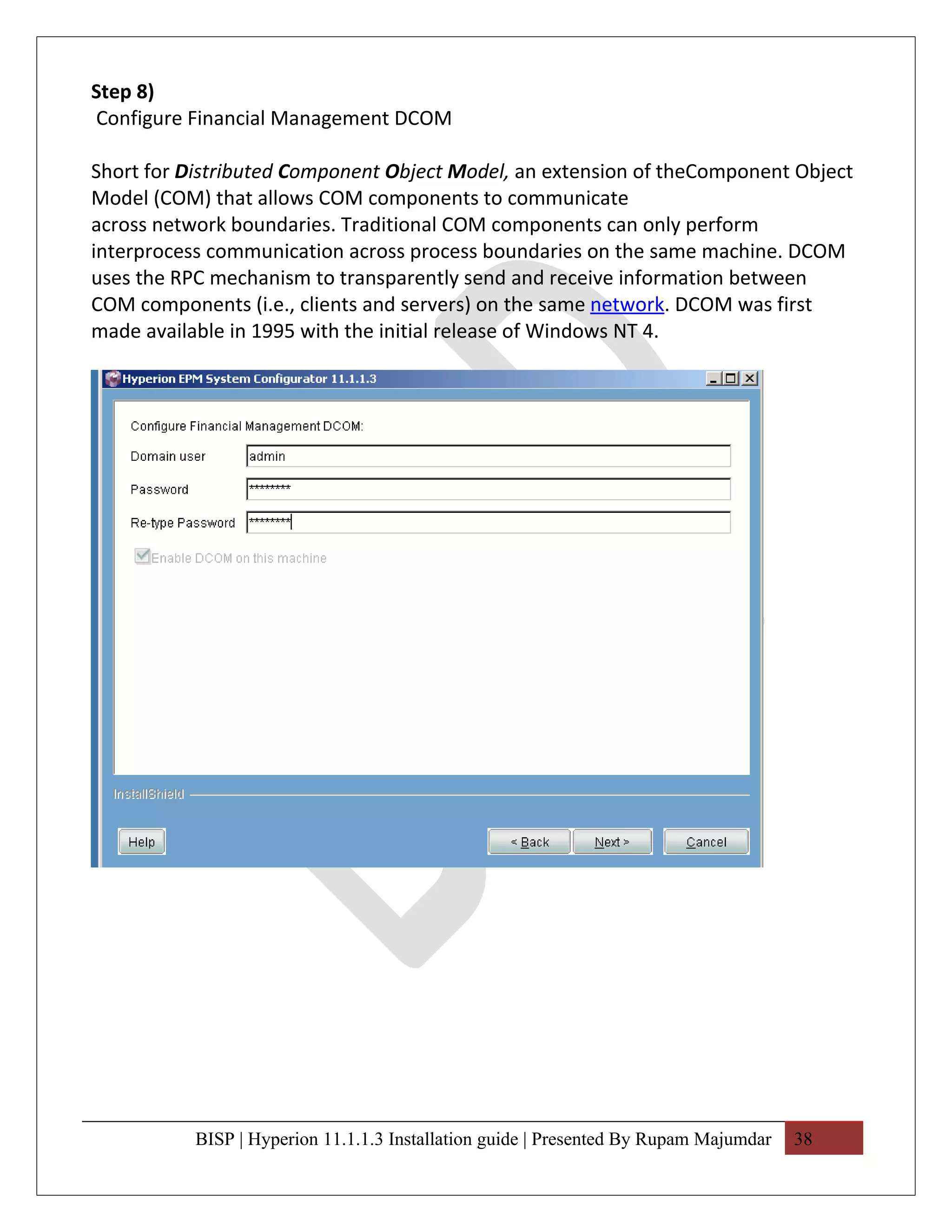

Step 8)
Configure Financial Management DCOM

Short for Distributed Component Object Model, an extension of theComponent Object
Model (COM) that allows COM components to communicate
across network boundaries. Traditional COM components can only perform
interprocess communication across process boundaries on the same machine. DCOM
uses the RPC mechanism to transparently send and receive information between
COM components (i.e., clients and servers) on the same network. DCOM was first
made available in 1995 with the initial release of Windows NT 4.

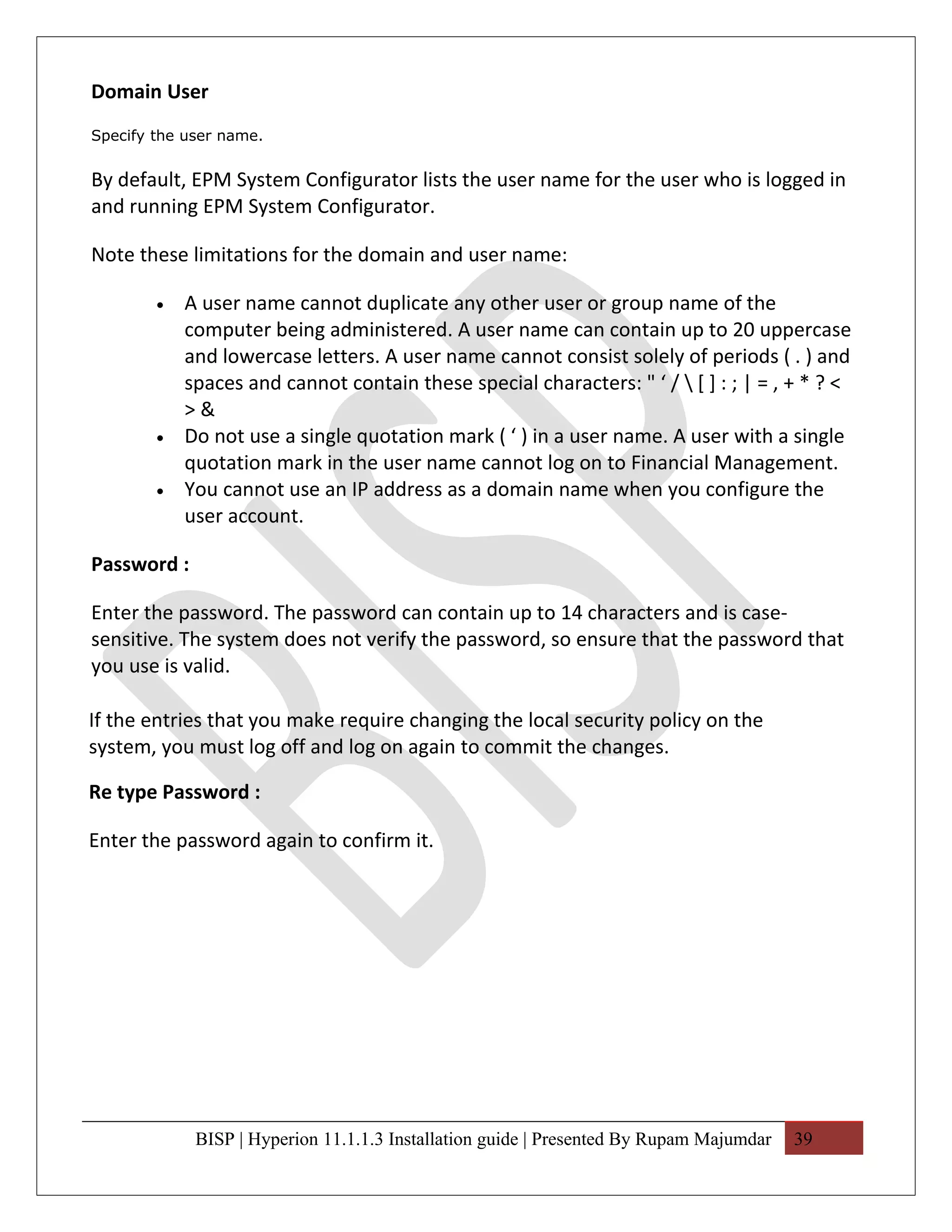

Domain User
Specify the user name.

By default, EPM System Configurator lists the user name for the user who is logged in
and running EPM System Configurator.

Note these limitations for the domain and user name:

• A user name cannot duplicate any other user or group name of the
computer being administered. A user name can contain up to 20 uppercase
and lowercase letters. A user name cannot consist solely of periods ( . ) and
spaces and cannot contain these special characters: " ‘ / [ ] : ; | = , + * ? <
>&
• Do not use a single quotation mark ( ‘ ) in a user name. A user with a single
quotation mark in the user name cannot log on to Financial Management.
• You cannot use an IP address as a domain name when you configure the
user account.

Password :

Enter the password. The password can contain up to 14 characters and is case-
sensitive. The system does not verify the password, so ensure that the password that
you use is valid.

If the entries that you make require changing the local security policy on the
system, you must log off and log on again to commit the changes.

Re type Password :

Enter the password again to confirm it.

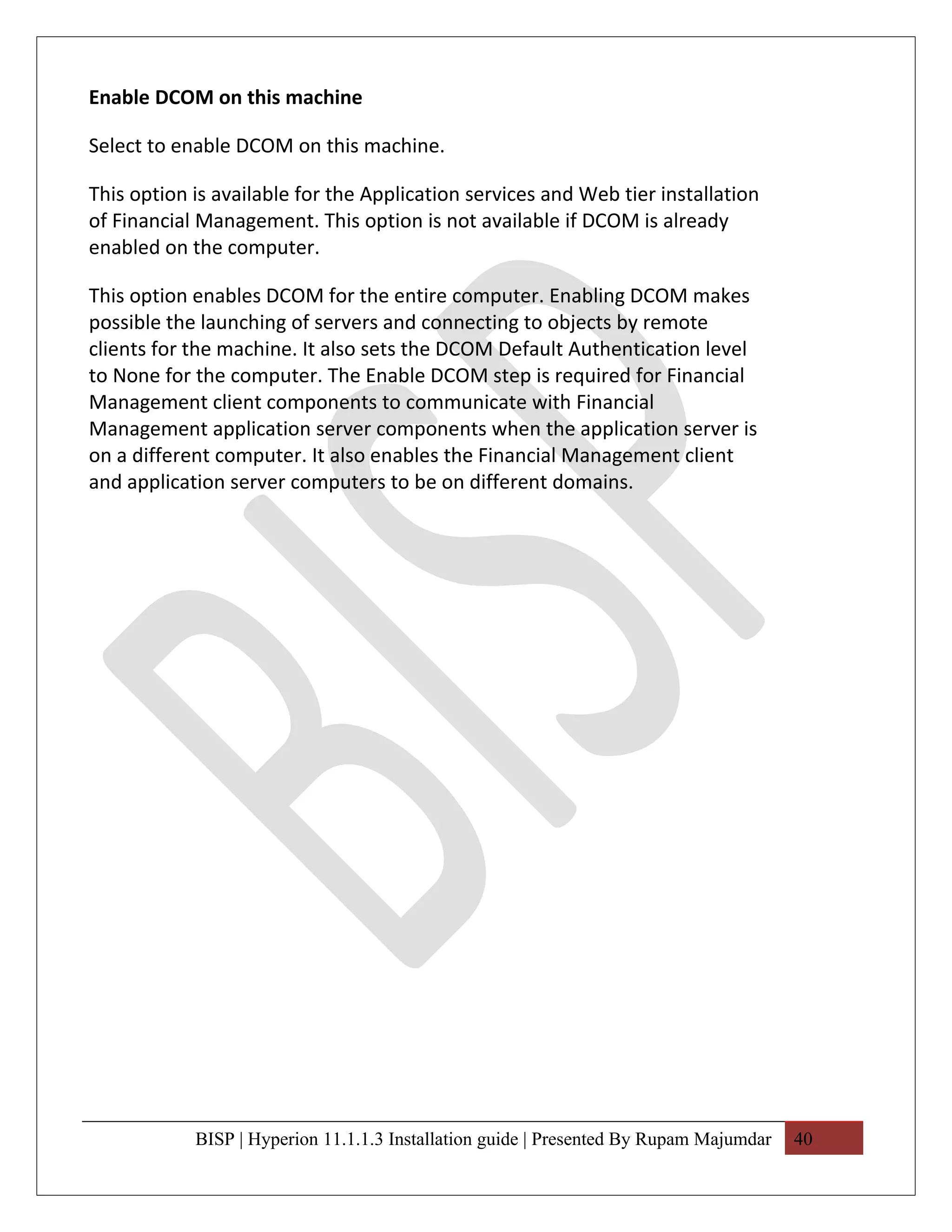

Enable DCOM on this machine

Select to enable DCOM on this machine.

This option is available for the Application services and Web tier installation
of Financial Management. This option is not available if DCOM is already
enabled on the computer.

This option enables DCOM for the entire computer. Enabling DCOM makes
possible the launching of servers and connecting to objects by remote
clients for the machine. It also sets the DCOM Default Authentication level
to None for the computer. The Enable DCOM step is required for Financial
Management client components to communicate with Financial
Management application server components when the application server is
on a different computer. It also enables the Financial Management client
and application server computers to be on different domains.

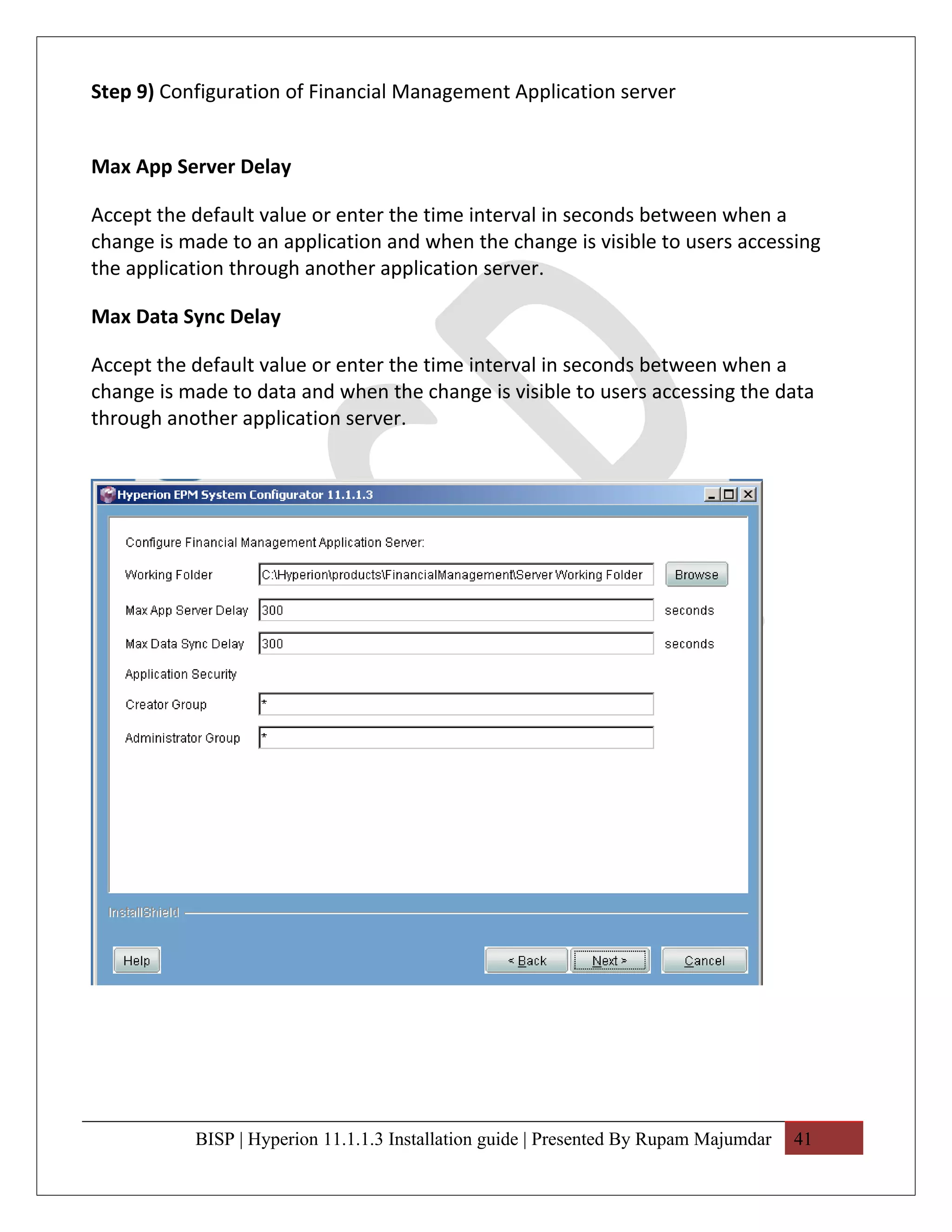

Step 9) Configuration of Financial Management Application server

Max App Server Delay

Accept the default value or enter the time interval in seconds between when a
change is made to an application and when the change is visible to users accessing
the application through another application server.

Max Data Sync Delay

Accept the default value or enter the time interval in seconds between when a
change is made to data and when the change is visible to users accessing the data
through another application server.

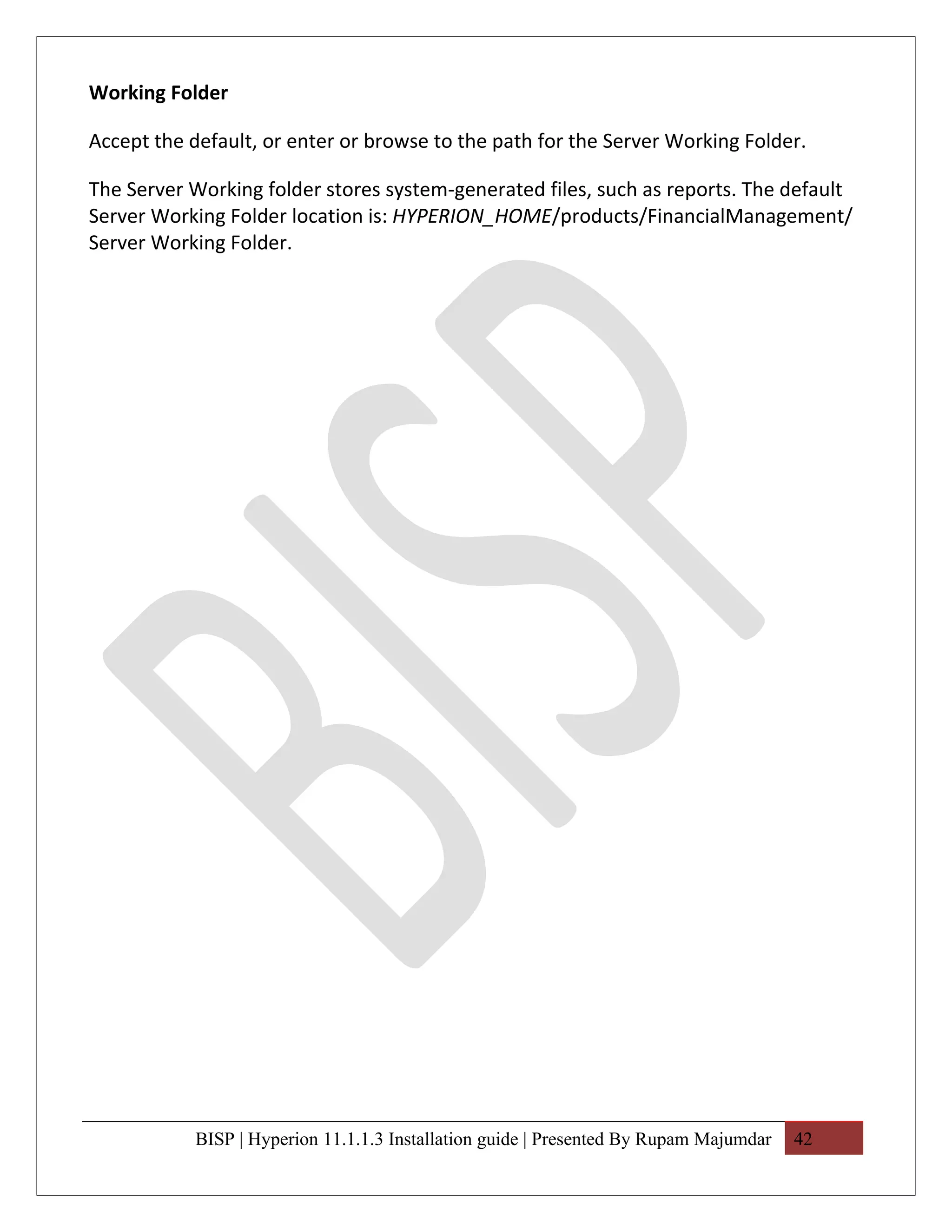

Working Folder

Accept the default, or enter or browse to the path for the Server Working Folder.

The Server Working folder stores system-generated files, such as reports. The default
Server Working Folder location is: HYPERION_HOME/products/FinancialManagement/
Server Working Folder.


Note:
When
you
use
multi
ple
applic
ation
serve
rs,
each
serve
r
shoul
d
have
its
own
worki
ng
folder
.
Appli
catio
n
serve
rs
shoul
d not
share
worki
ng
folder
s,
becau
se
temp
orary
files

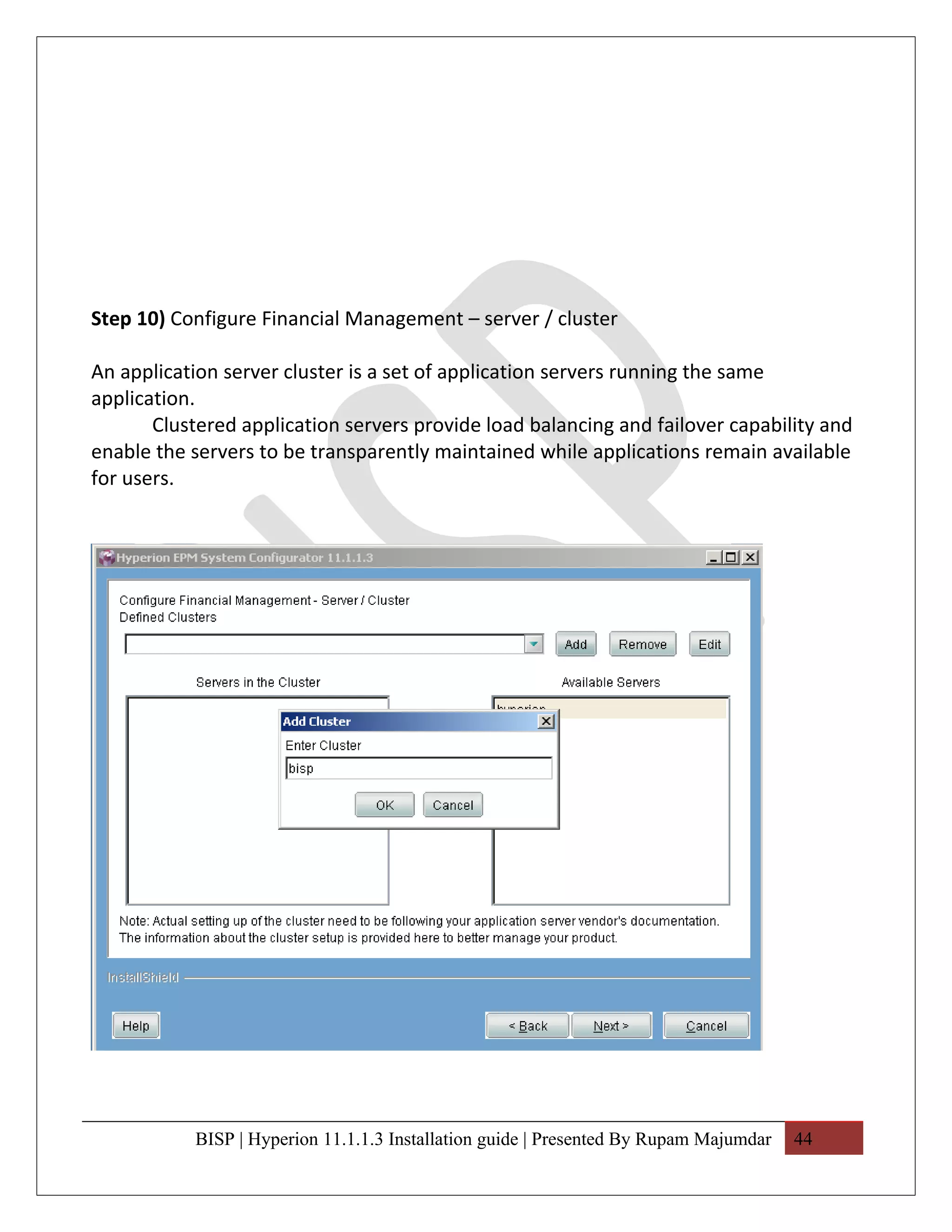

Step 10) Configure Financial Management – server / cluster

An application server cluster is a set of application servers running the same
application.
Clustered application servers provide load balancing and failover capability and
enable the servers to be transparently maintained while applications remain available
for users.

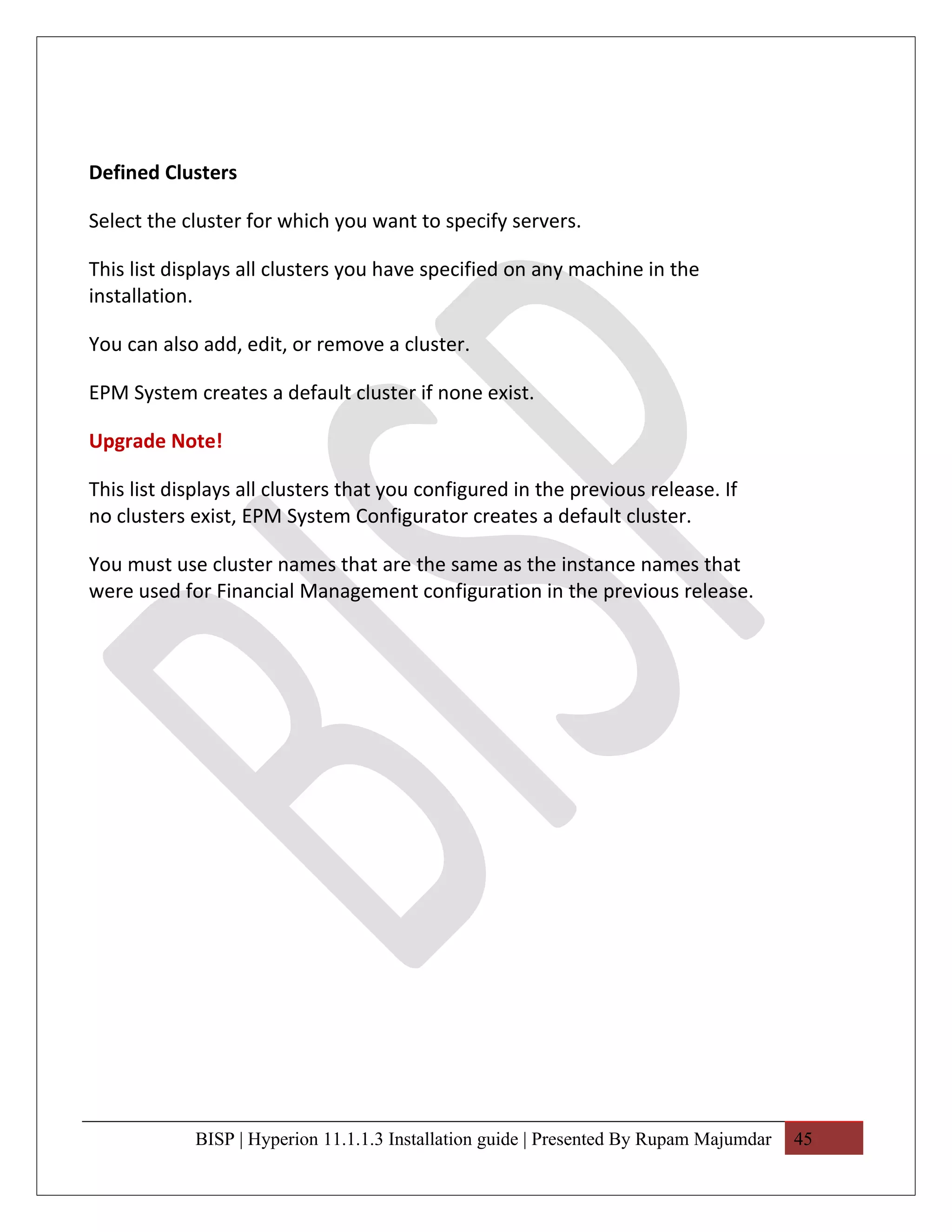

Defined Clusters

Select the cluster for which you want to specify servers.

This list displays all clusters you have specified on any machine in the
installation.

You can also add, edit, or remove a cluster.

EPM System creates a default cluster if none exist.

Upgrade Note!

This list displays all clusters that you configured in the previous release. If
no clusters exist, EPM System Configurator creates a default cluster.

You must use cluster names that are the same as the instance names that
were used for Financial Management configuration in the previous release.

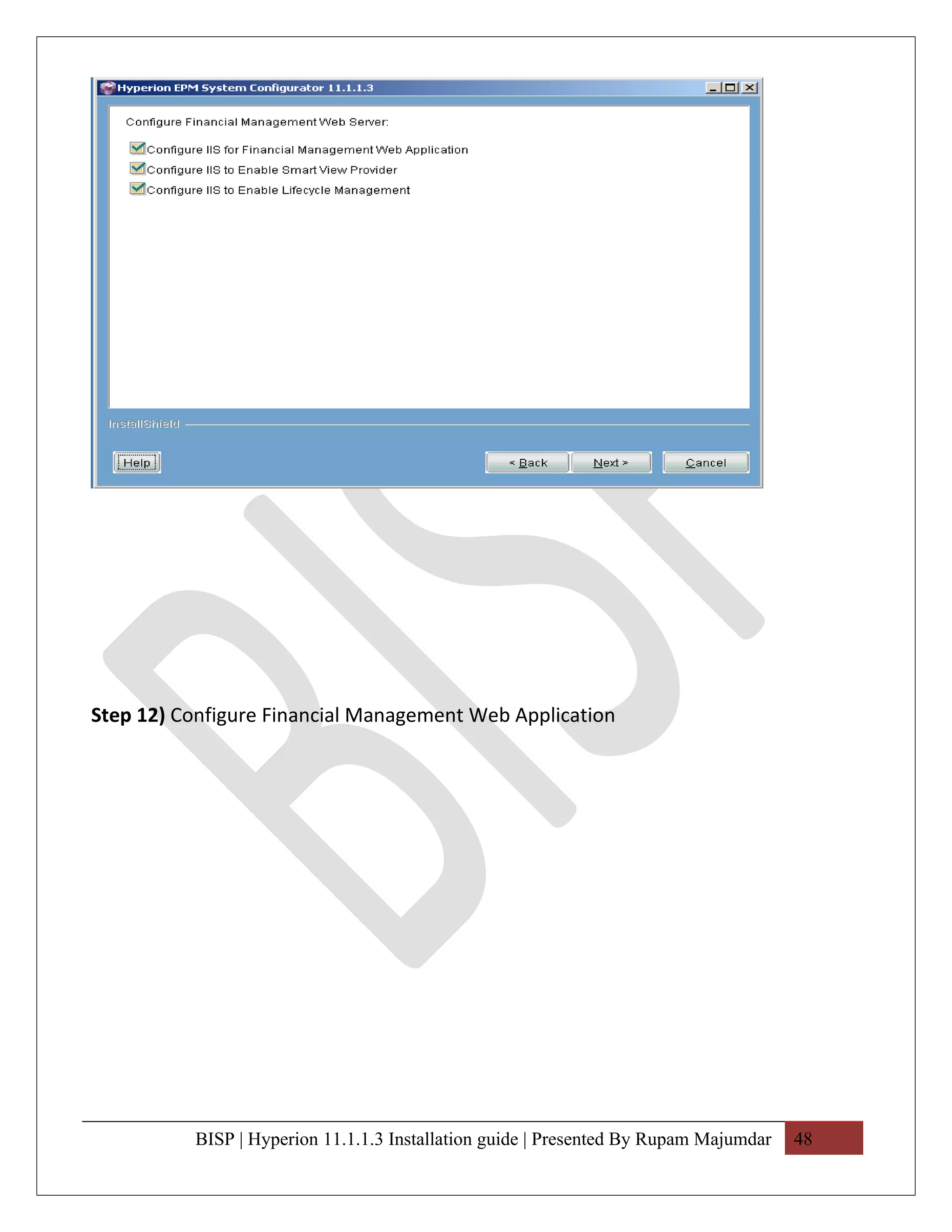

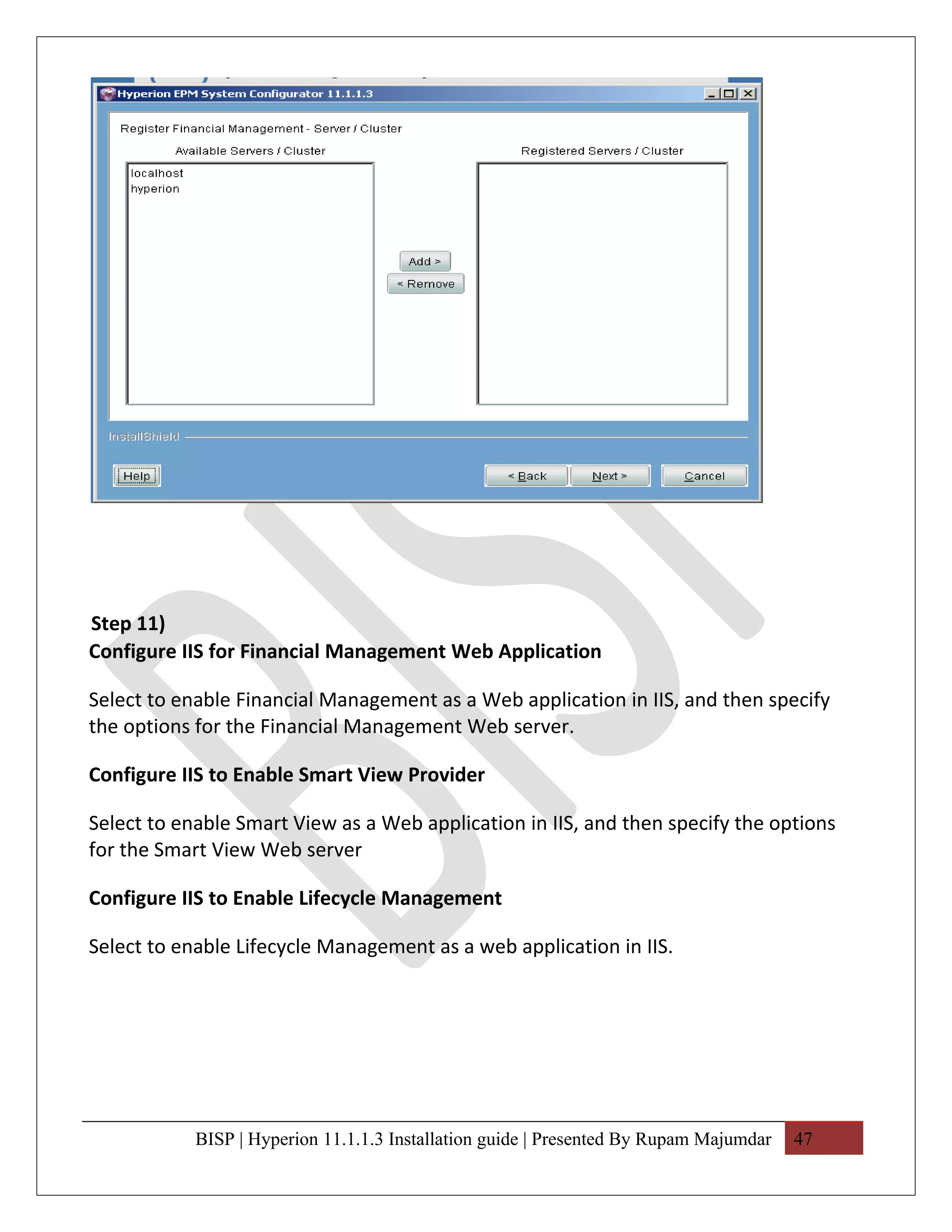

Step 11)
Configure IIS for Financial Management Web Application

Select to enable Financial Management as a Web application in IIS, and then specify
the options for the Financial Management Web server.

Configure IIS to Enable Smart View Provider

Select to enable Smart View as a Web application in IIS, and then specify the options
for the Smart View Web server

Configure IIS to Enable Lifecycle Management

Select to enable Lifecycle Management as a web application in IIS.

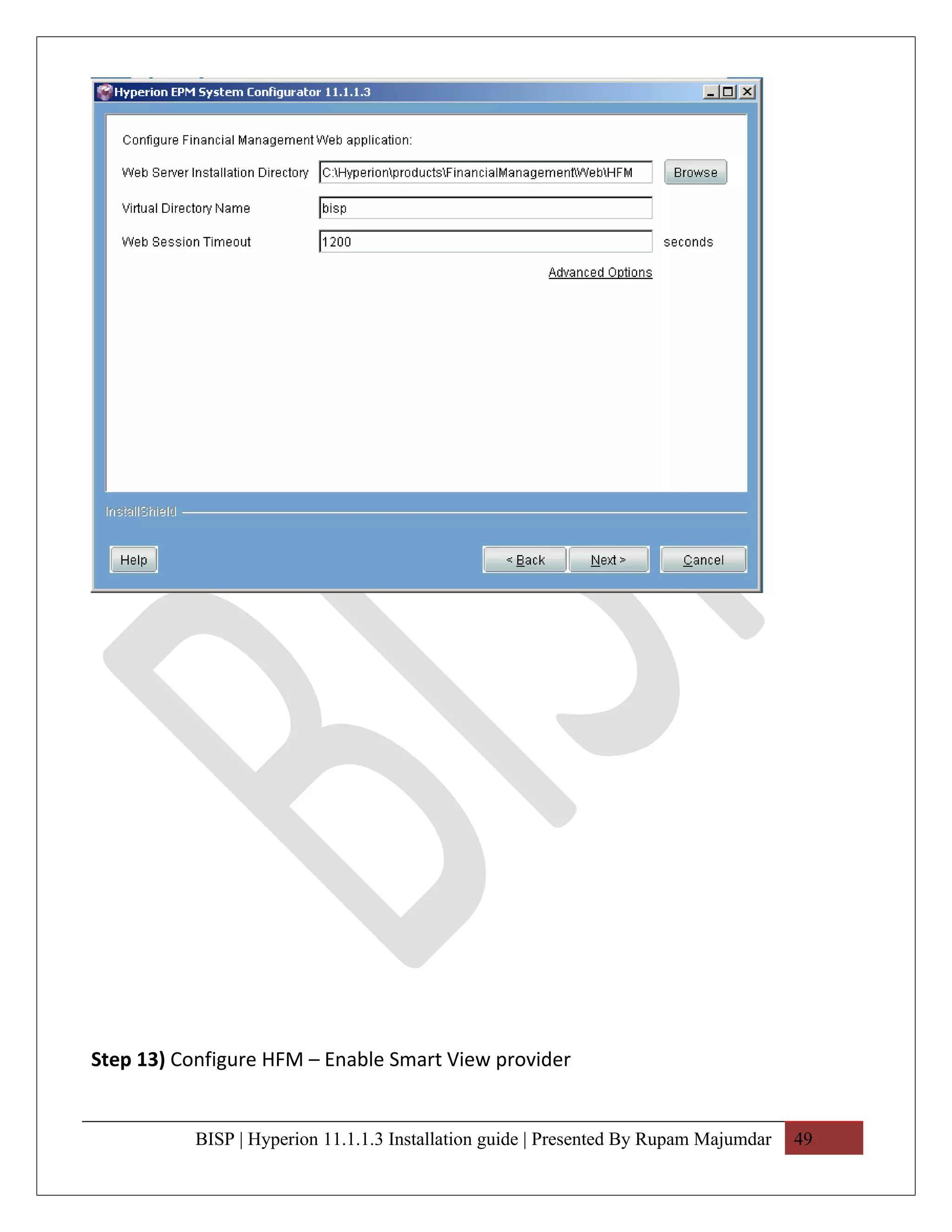

Step 12) Configure Financial Management Web Application

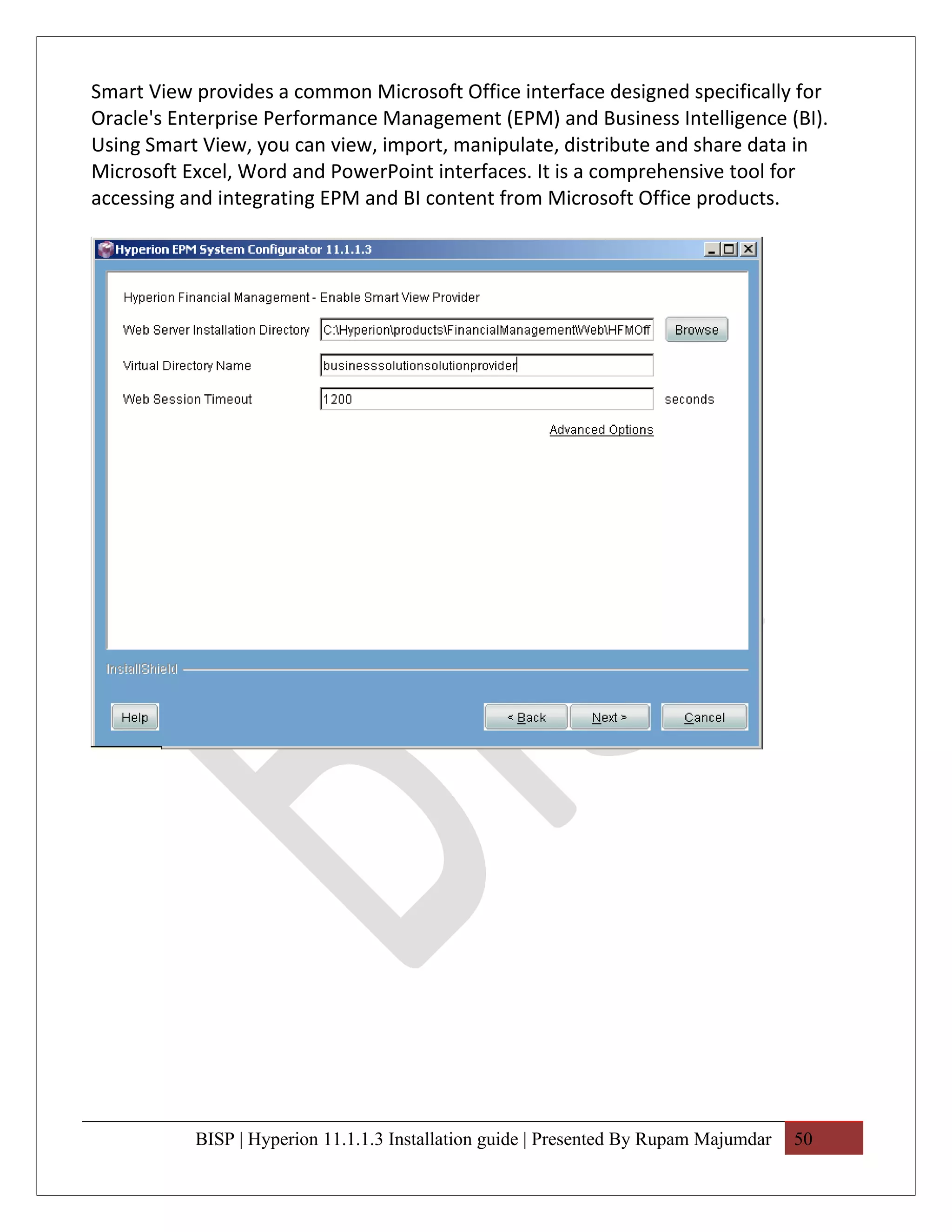

Step 13) Configure HFM – Enable Smart View provider


Smart View provides a common Microsoft Office interface designed specifically for
Oracle's Enterprise Performance Management (EPM) and Business Intelligence (BI).
Using Smart View, you can view, import, manipulate, distribute and share data in
Microsoft Excel, Word and PowerPoint interfaces. It is a comprehensive tool for
accessing and integrating EPM and BI content from Microsoft Office products.

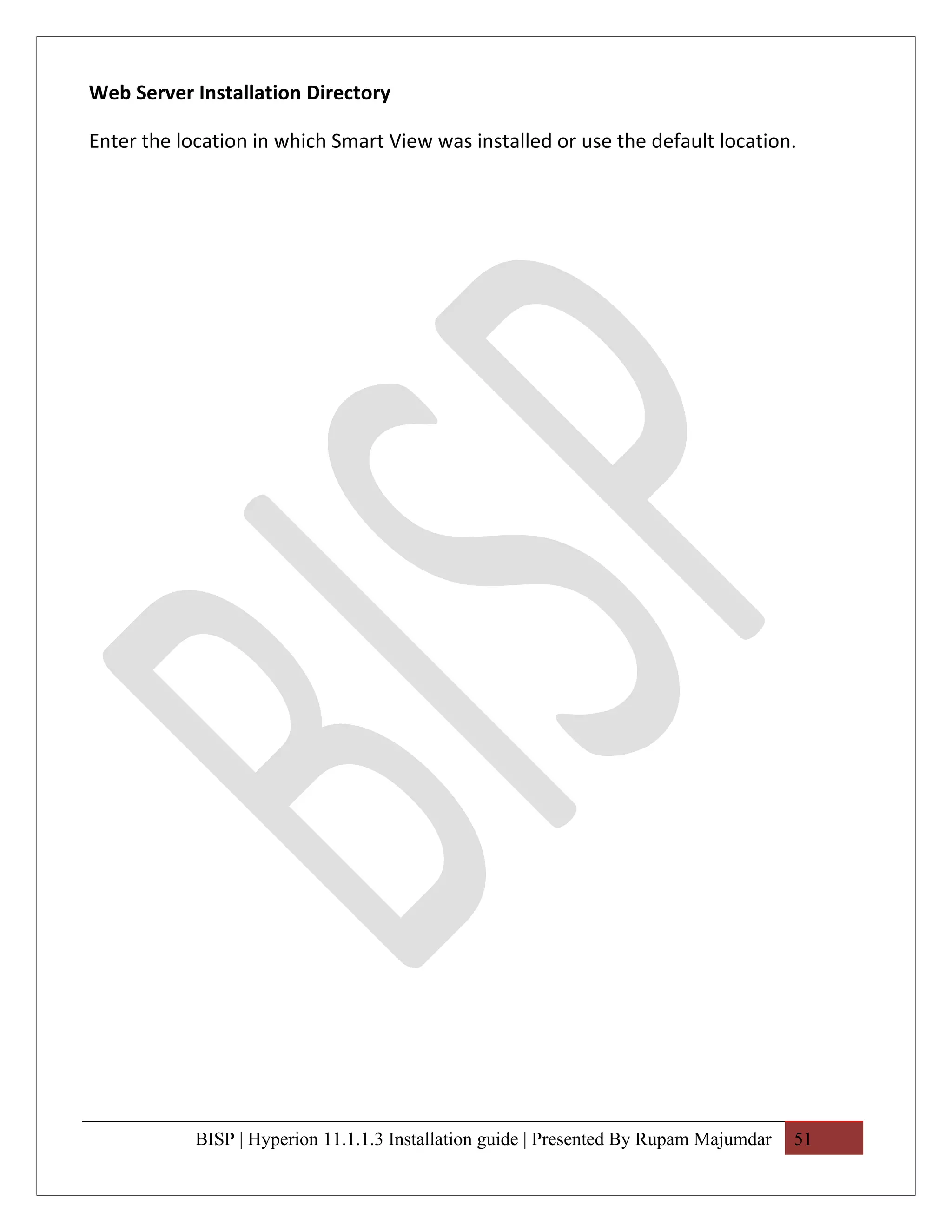

Web Server Installation Directory

Enter the location in which Smart View was installed or use the default location.


T
h
e

d
e
f
a
u
l
t

l
o
c
a
t
i
o
n

i
s

H
Y
P
E
R
I
O
N
_
H
O
M
E
/
p

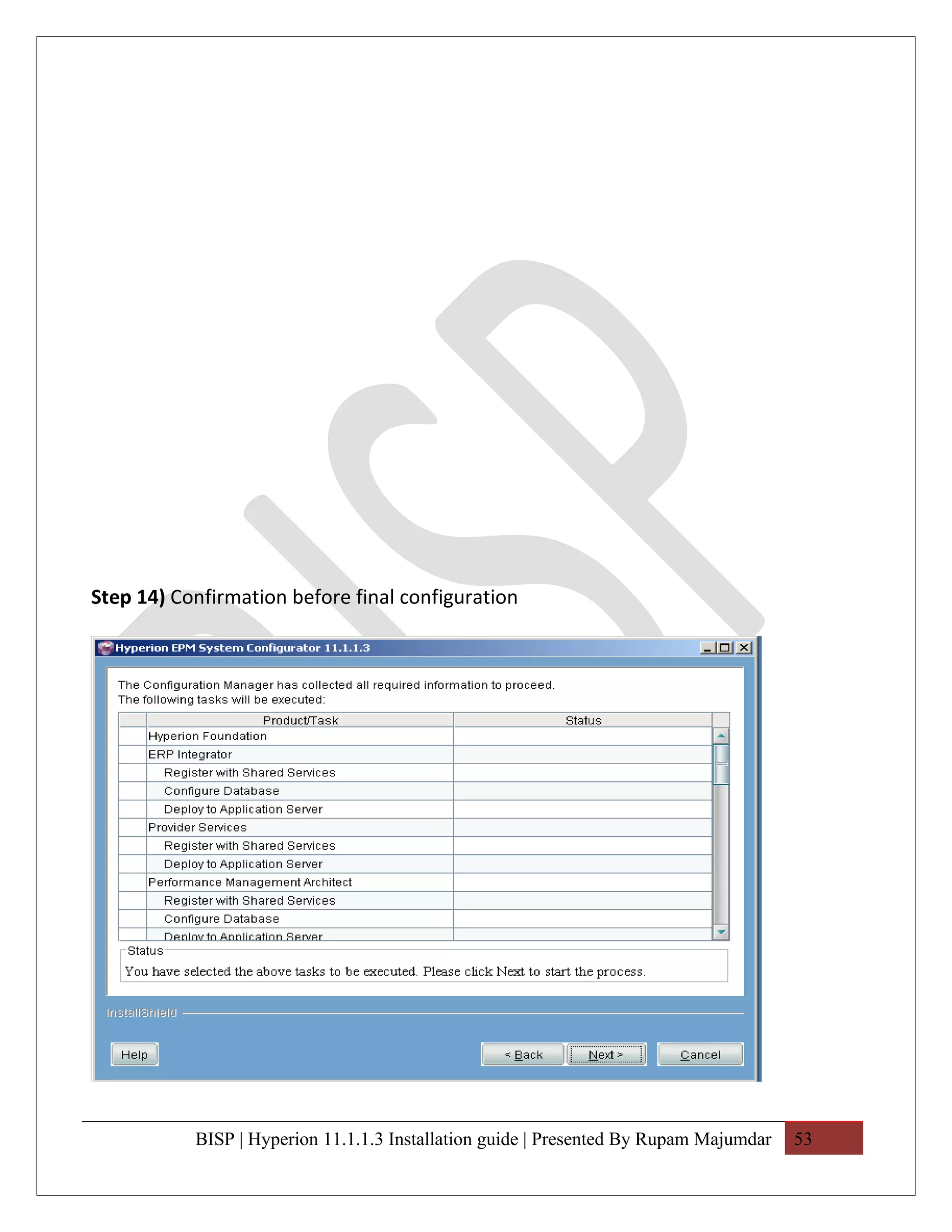

Step 14) Confirmation before final configuration

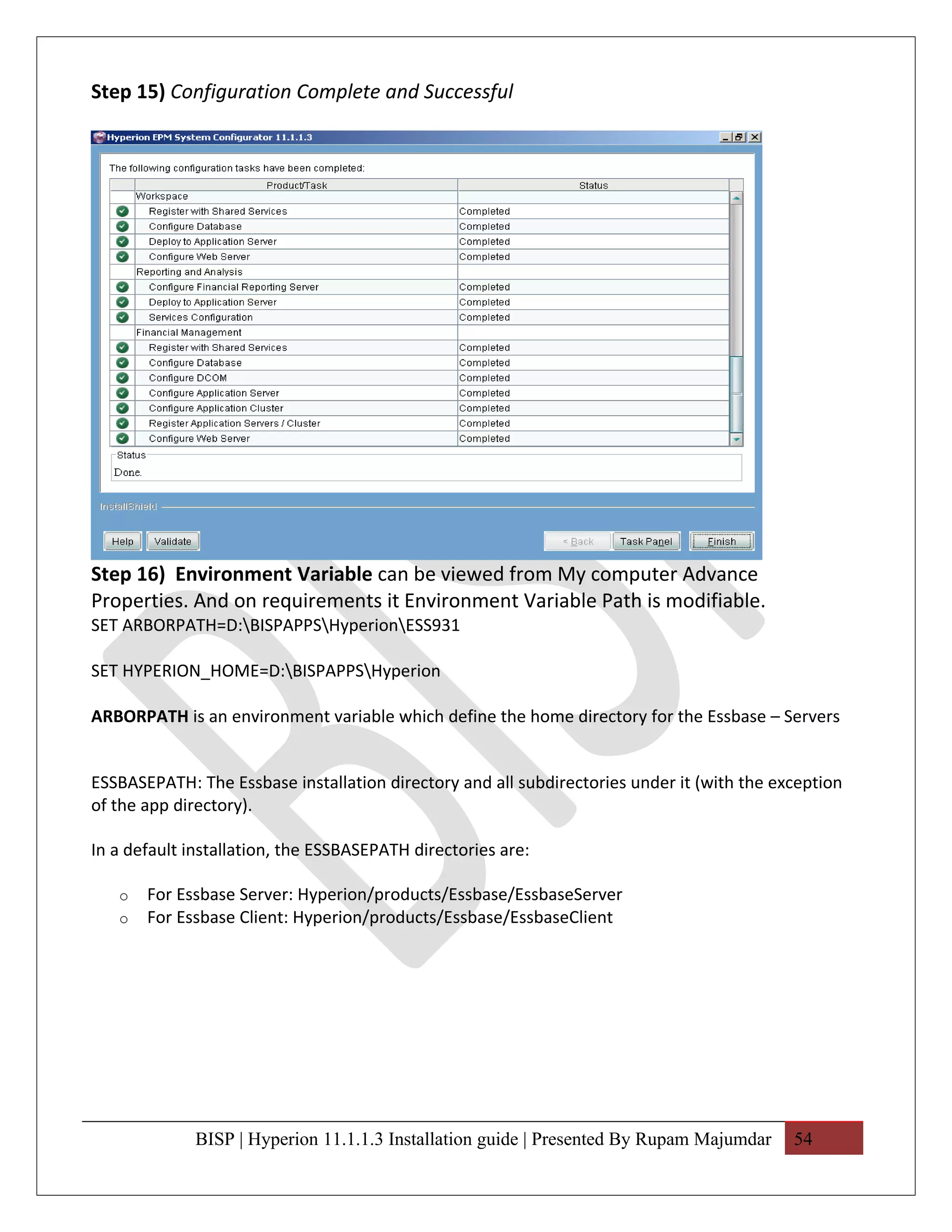

Step 15) Configuration Complete and Successful

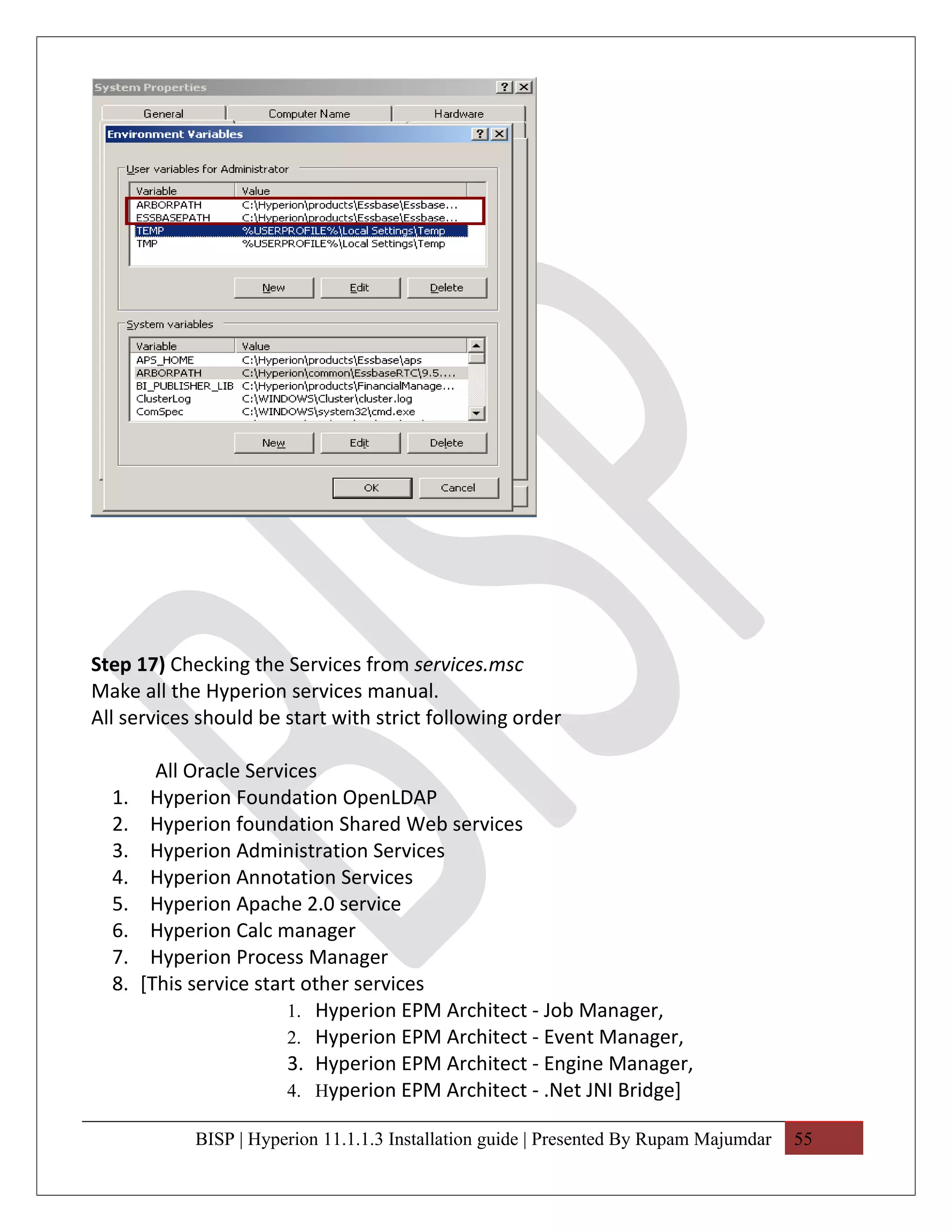

Step 16) Environment Variable can be viewed from My computer Advance
Properties. And on requirements it Environment Variable Path is modifiable.
SET ARBORPATH=D:BISPAPPSHyperionESS931

SET HYPERION_HOME=D:BISPAPPSHyperion

ARBORPATH is an environment variable which define the home directory for the Essbase – Servers

ESSBASEPATH: The Essbase installation directory and all subdirectories under it (with the exception
of the app directory).

In a default installation, the ESSBASEPATH directories are:

o For Essbase Server: Hyperion/products/Essbase/EssbaseServer
o For Essbase Client: Hyperion/products/Essbase/EssbaseClient


Step 17) Checking the Services from services.msc
Make all the Hyperion services manual.
All services should be start with strict following order

All Oracle Services
1. Hyperion Foundation OpenLDAP
2. Hyperion foundation Shared Web services
3. Hyperion Administration Services
4. Hyperion Annotation Services
5. Hyperion Apache 2.0 service
6. Hyperion Calc manager
7. Hyperion Process Manager
8. [This service start other services
1. Hyperion EPM Architect - Job Manager,
2. Hyperion EPM Architect - Event Manager,
3. Hyperion EPM Architect - Engine Manager,
4. Hyperion EPM Architect - .Net JNI Bridge]

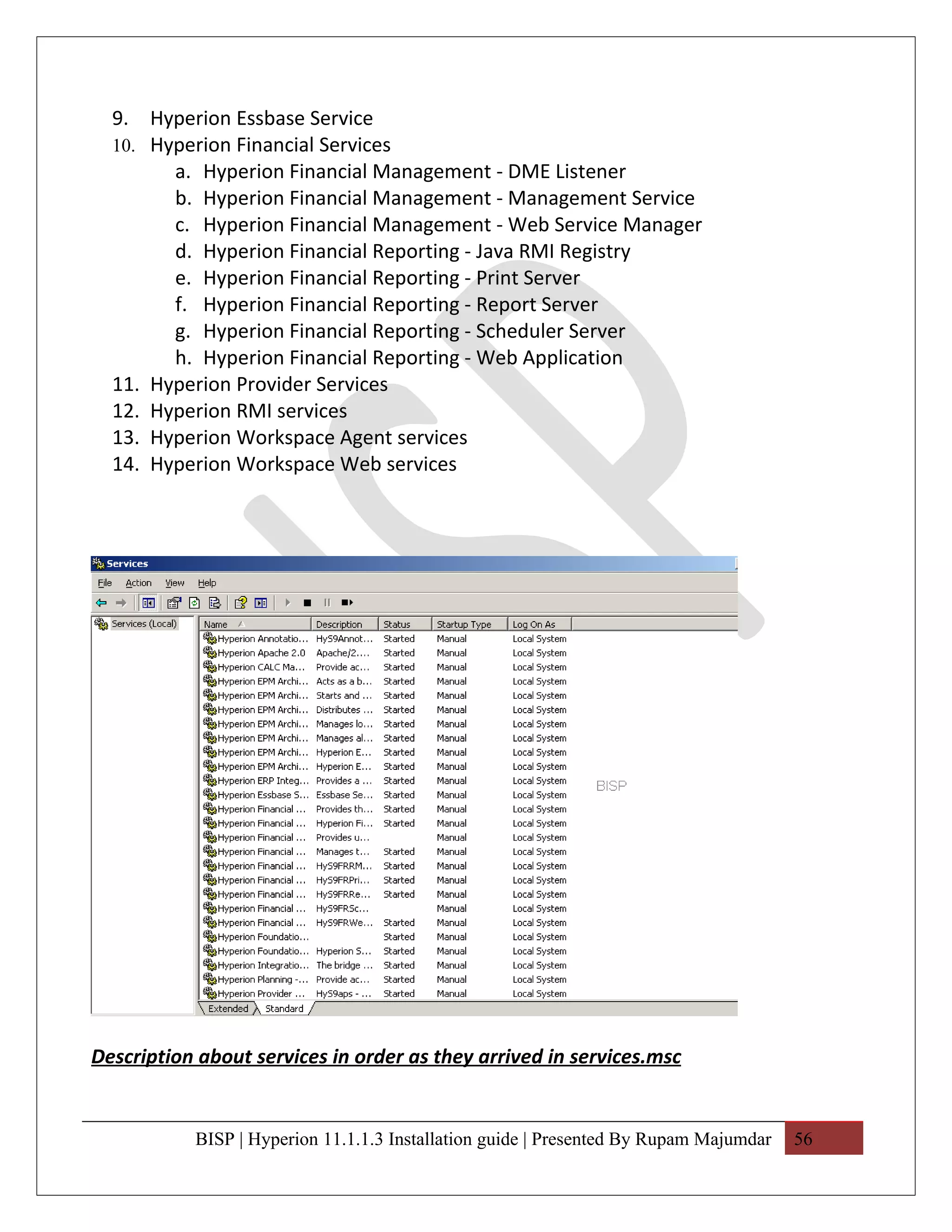

9. Hyperion Essbase Service
10. Hyperion Financial Services
a. Hyperion Financial Management - DME Listener
b. Hyperion Financial Management - Management Service
c. Hyperion Financial Management - Web Service Manager
d. Hyperion Financial Reporting - Java RMI Registry
e. Hyperion Financial Reporting - Print Server
f. Hyperion Financial Reporting - Report Server
g. Hyperion Financial Reporting - Scheduler Server
h. Hyperion Financial Reporting - Web Application
11. Hyperion Provider Services
12. Hyperion RMI services
13. Hyperion Workspace Agent services
14. Hyperion Workspace Web services

Description about services in order as they arrived in services.msc

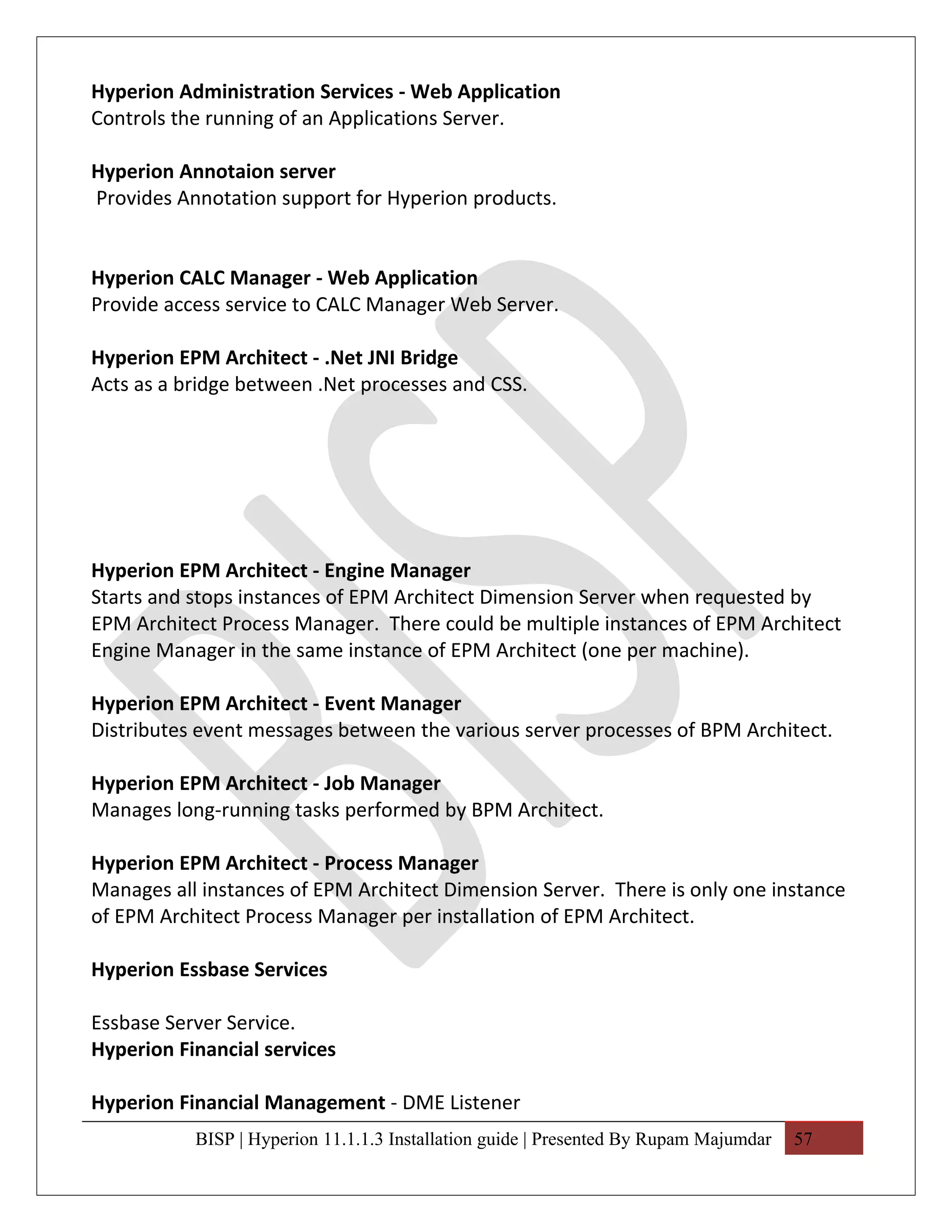

Hyperion Administration Services - Web Application
Controls the running of an Applications Server.

Hyperion Annotaion server
Provides Annotation support for Hyperion products.

Hyperion CALC Manager - Web Application
Provide access service to CALC Manager Web Server.

Hyperion EPM Architect - .Net JNI Bridge
Acts as a bridge between .Net processes and CSS.

Hyperion EPM Architect - Engine Manager
Starts and stops instances of EPM Architect Dimension Server when requested by
EPM Architect Process Manager. There could be multiple instances of EPM Architect
Engine Manager in the same instance of EPM Architect (one per machine).

Hyperion EPM Architect - Event Manager
Distributes event messages between the various server processes of BPM Architect.

Hyperion EPM Architect - Job Manager
Manages long-running tasks performed by BPM Architect.

Hyperion EPM Architect - Process Manager
Manages all instances of EPM Architect Dimension Server. There is only one instance
of EPM Architect Process Manager per installation of EPM Architect.

Hyperion Essbase Services

Essbase Server Service.
Hyperion Financial services

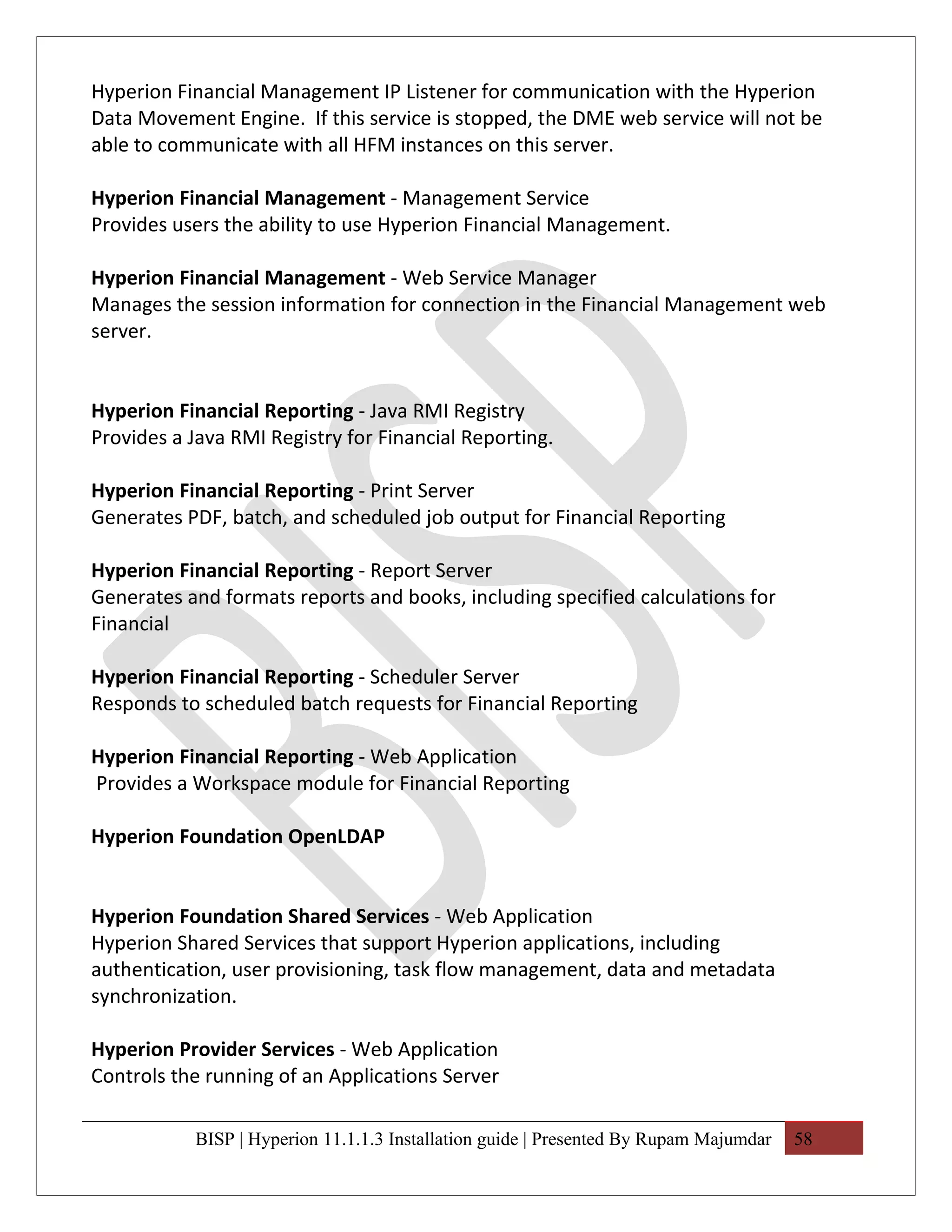

Hyperion Financial Management - DME Listener

Hyperion Financial Management IP Listener for communication with the Hyperion
Data Movement Engine. If this service is stopped, the DME web service will not be
able to communicate with all HFM instances on this server.

Hyperion Financial Management - Management Service
Provides users the ability to use Hyperion Financial Management.

Hyperion Financial Management - Web Service Manager
Manages the session information for connection in the Financial Management web
server.

Hyperion Financial Reporting - Java RMI Registry
Provides a Java RMI Registry for Financial Reporting.

Hyperion Financial Reporting - Print Server
Generates PDF, batch, and scheduled job output for Financial Reporting

Hyperion Financial Reporting - Report Server
Generates and formats reports and books, including specified calculations for
Financial

Hyperion Financial Reporting - Scheduler Server
Responds to scheduled batch requests for Financial Reporting

Hyperion Financial Reporting - Web Application
Provides a Workspace module for Financial Reporting

Hyperion Foundation OpenLDAP

Hyperion Foundation Shared Services - Web Application
Hyperion Shared Services that support Hyperion applications, including
authentication, user provisioning, task flow management, data and metadata
synchronization.

Hyperion Provider Services - Web Application
Controls the running of an Applications Server

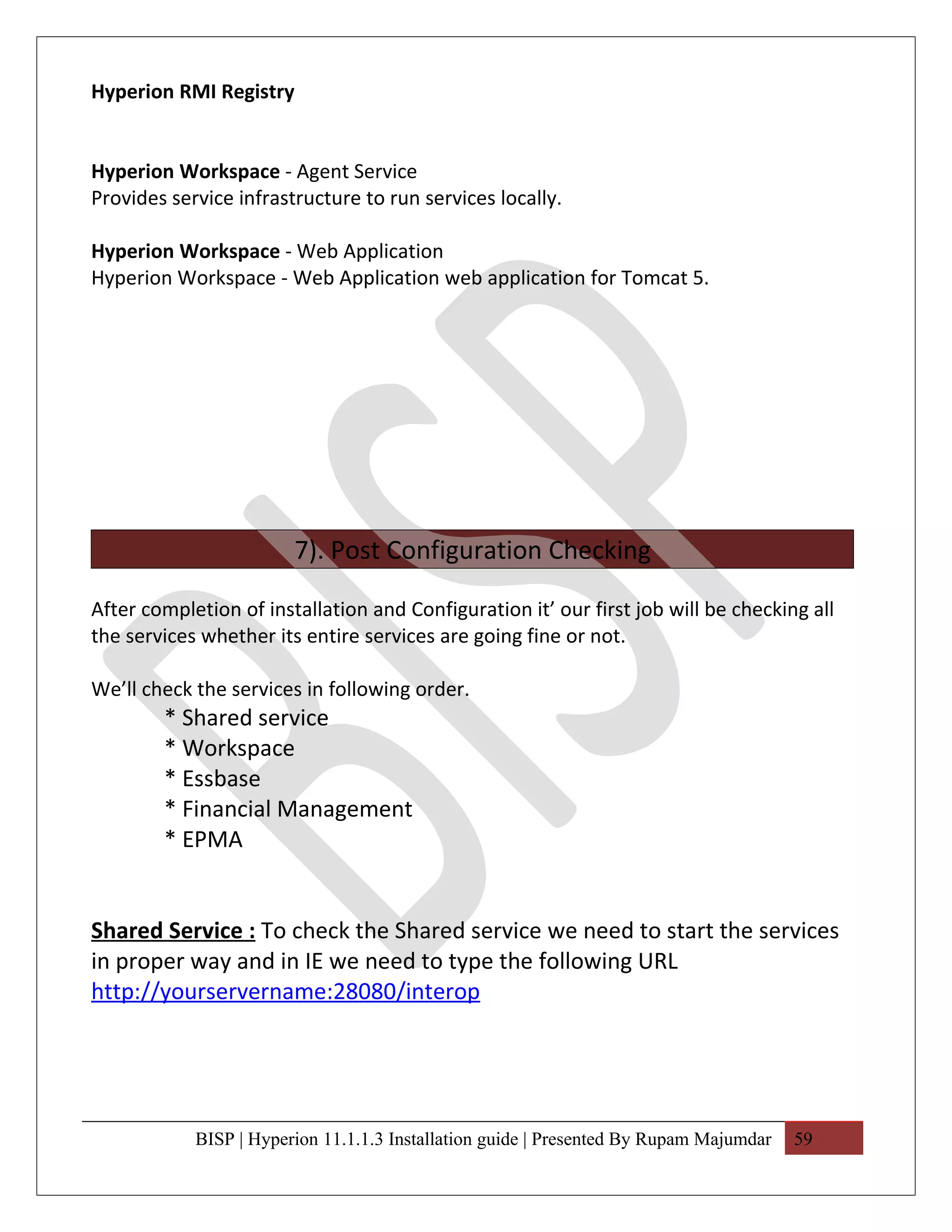

Hyperion RMI Registry

Hyperion Workspace - Agent Service
Provides service infrastructure to run services locally.

Hyperion Workspace - Web Application
Hyperion Workspace - Web Application web application for Tomcat 5.

7). Post Configuration Checking

After completion of installation and Configuration it’ our first job will be checking all
the services whether its entire services are going fine or not.

We’ll check the services in following order.
* Shared service
* Workspace
* Essbase
* Financial Management
* EPMA

Shared Service : To check the Shared service we need to start the services
in proper way and in IE we need to type the following URL
http://yourservername:28080/interop

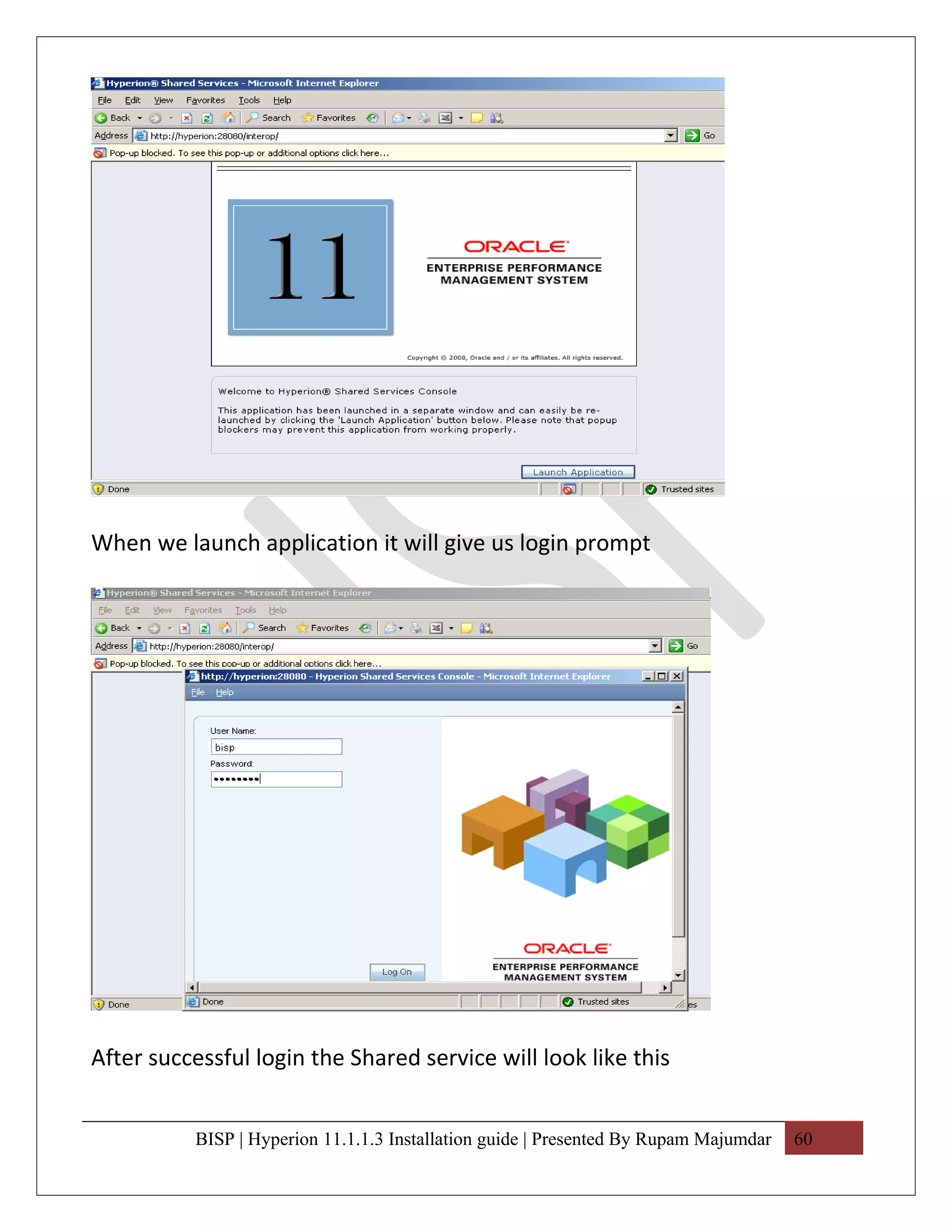

When we launch application it will give us login prompt

After successful login the Shared service will look like this

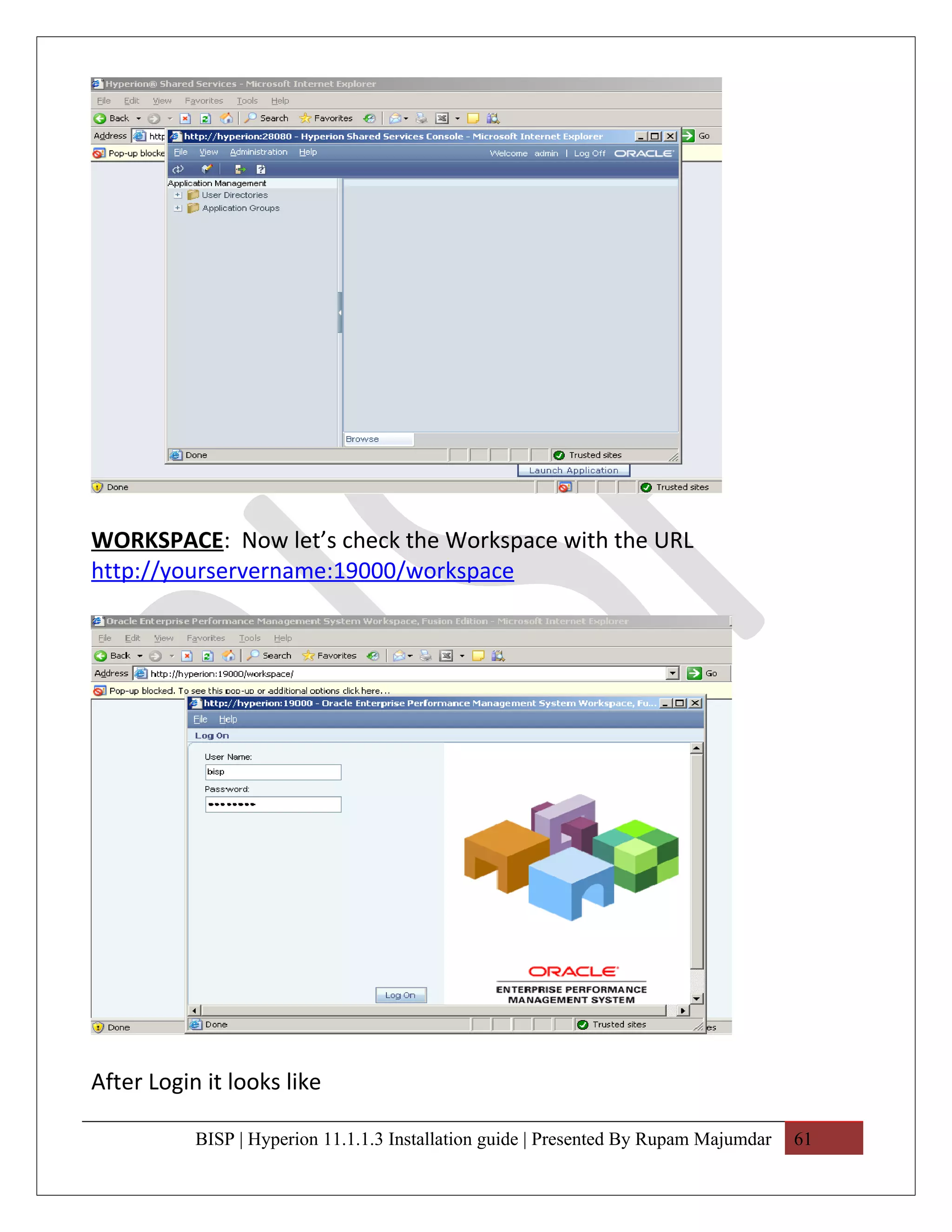

WORKSPACE: Now let’s check the Workspace with the URL
http://yourservername:19000/workspace

After Login it looks like

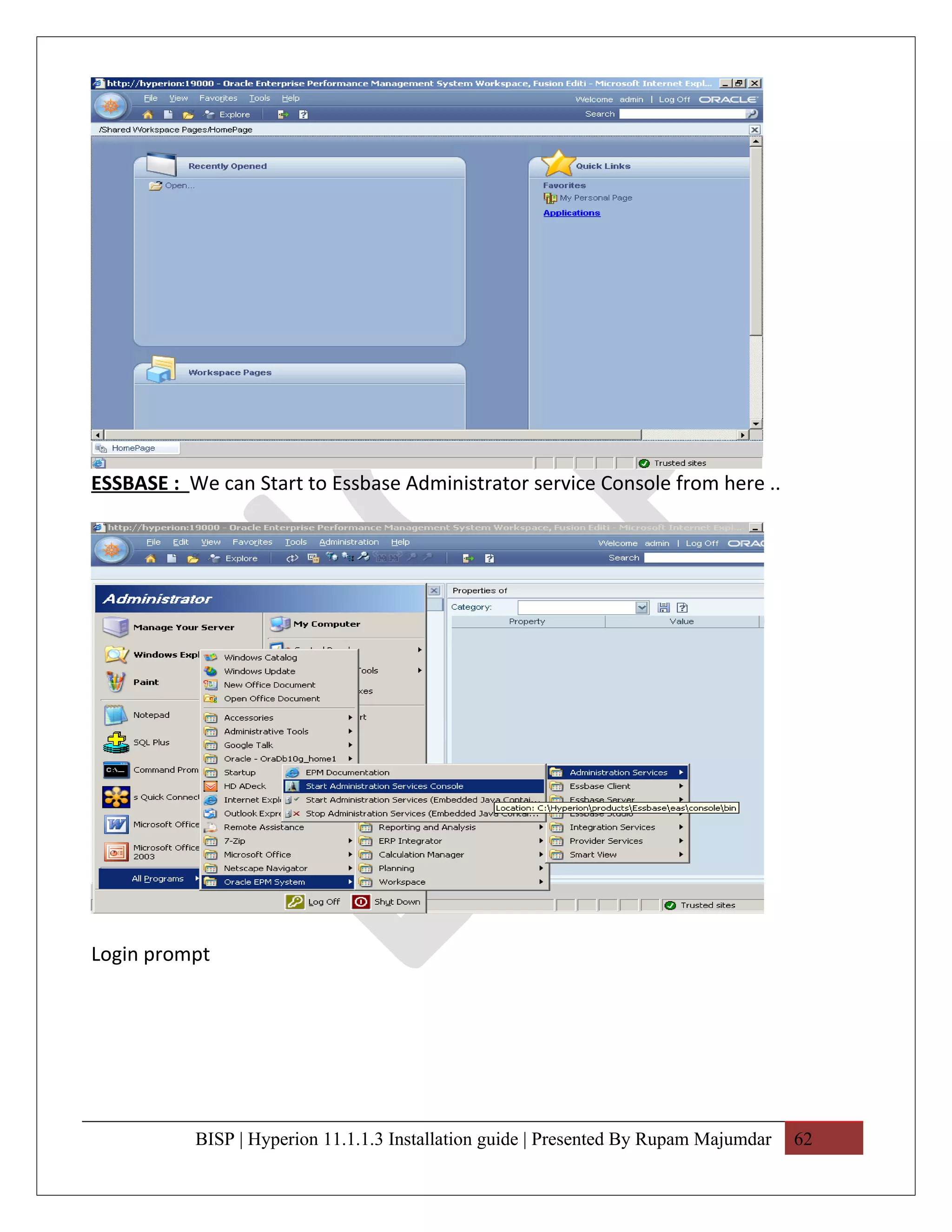

ESSBASE : We can Start to Essbase Administrator service Console from here ..

Login prompt

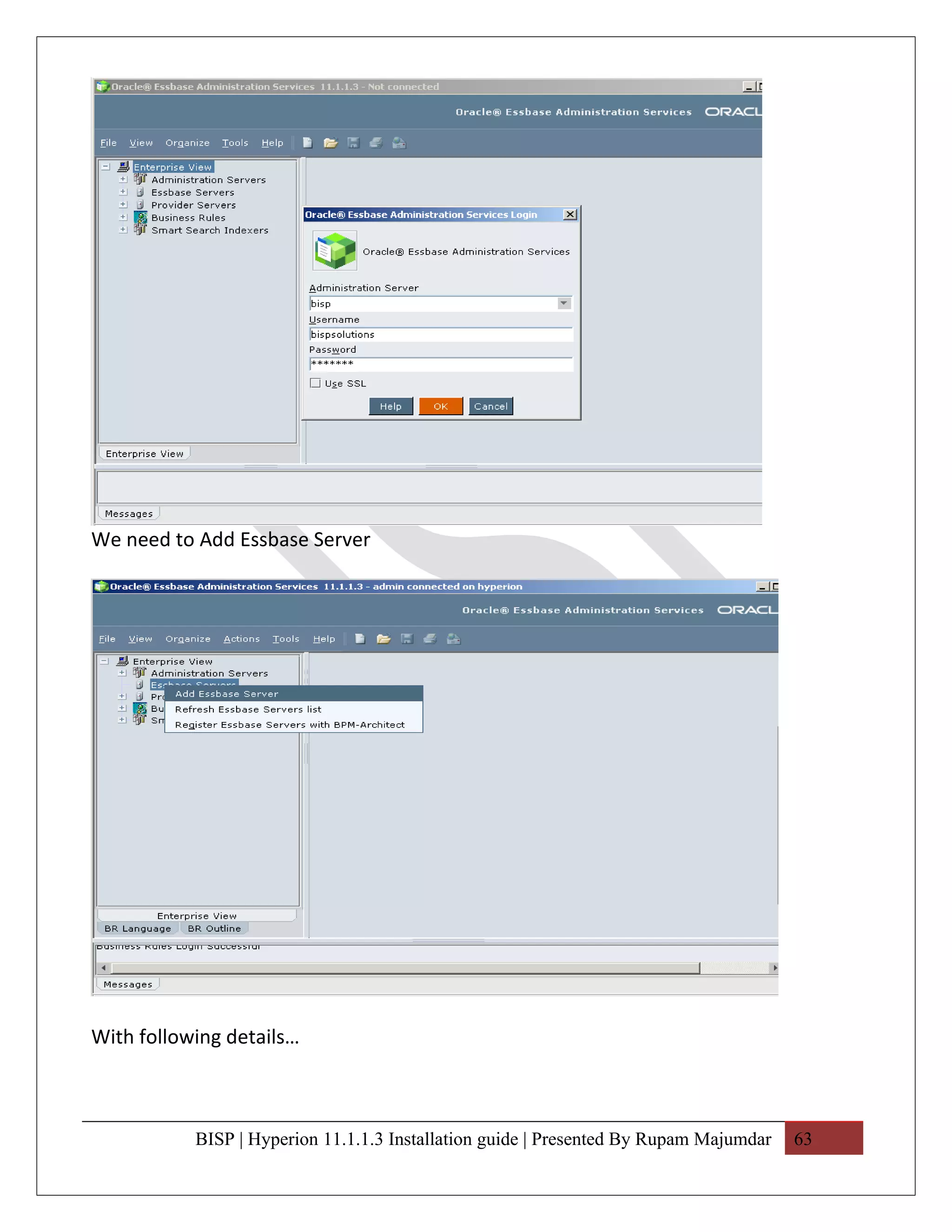

We need to Add Essbase Server

With following details…

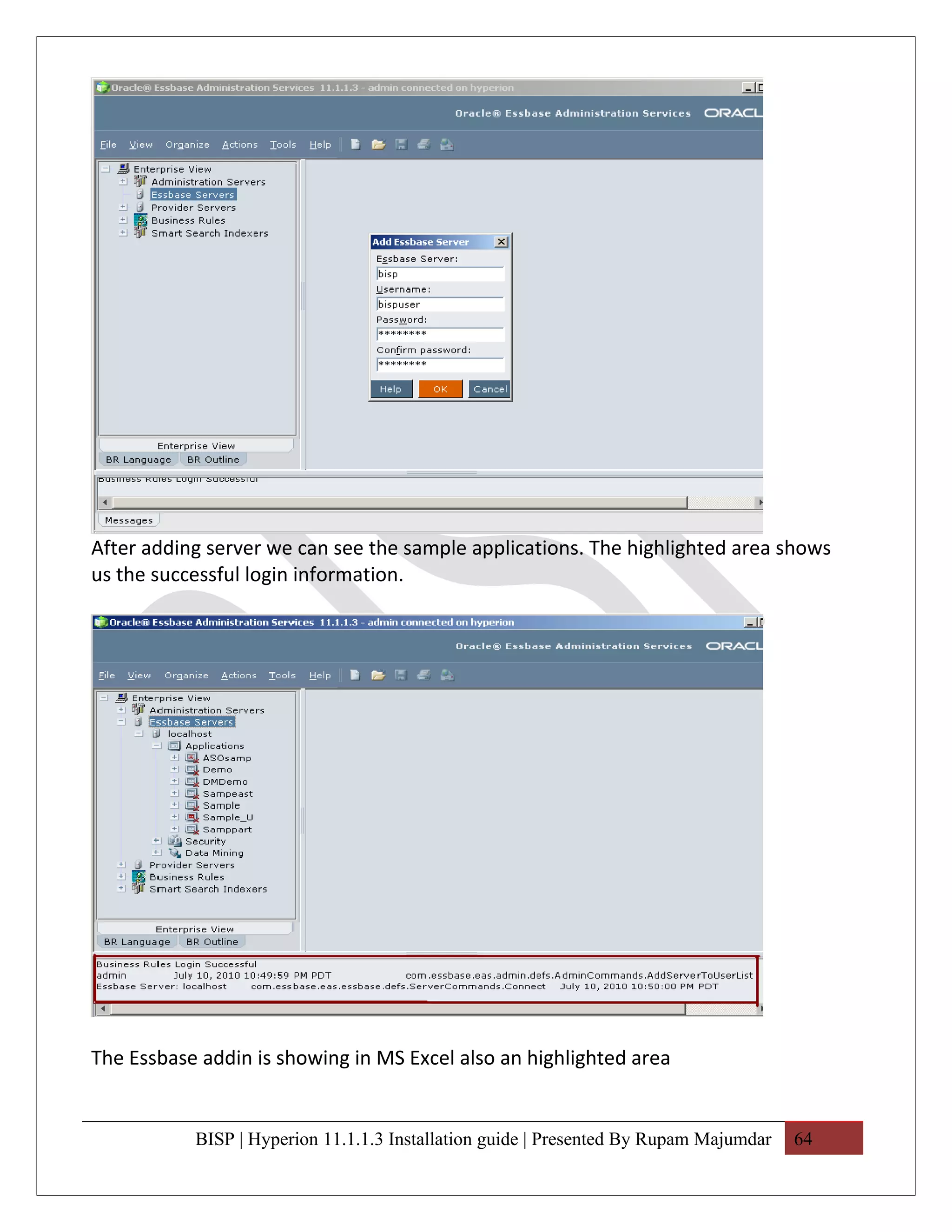

After adding server we can see the sample applications. The highlighted area shows
us the successful login information.

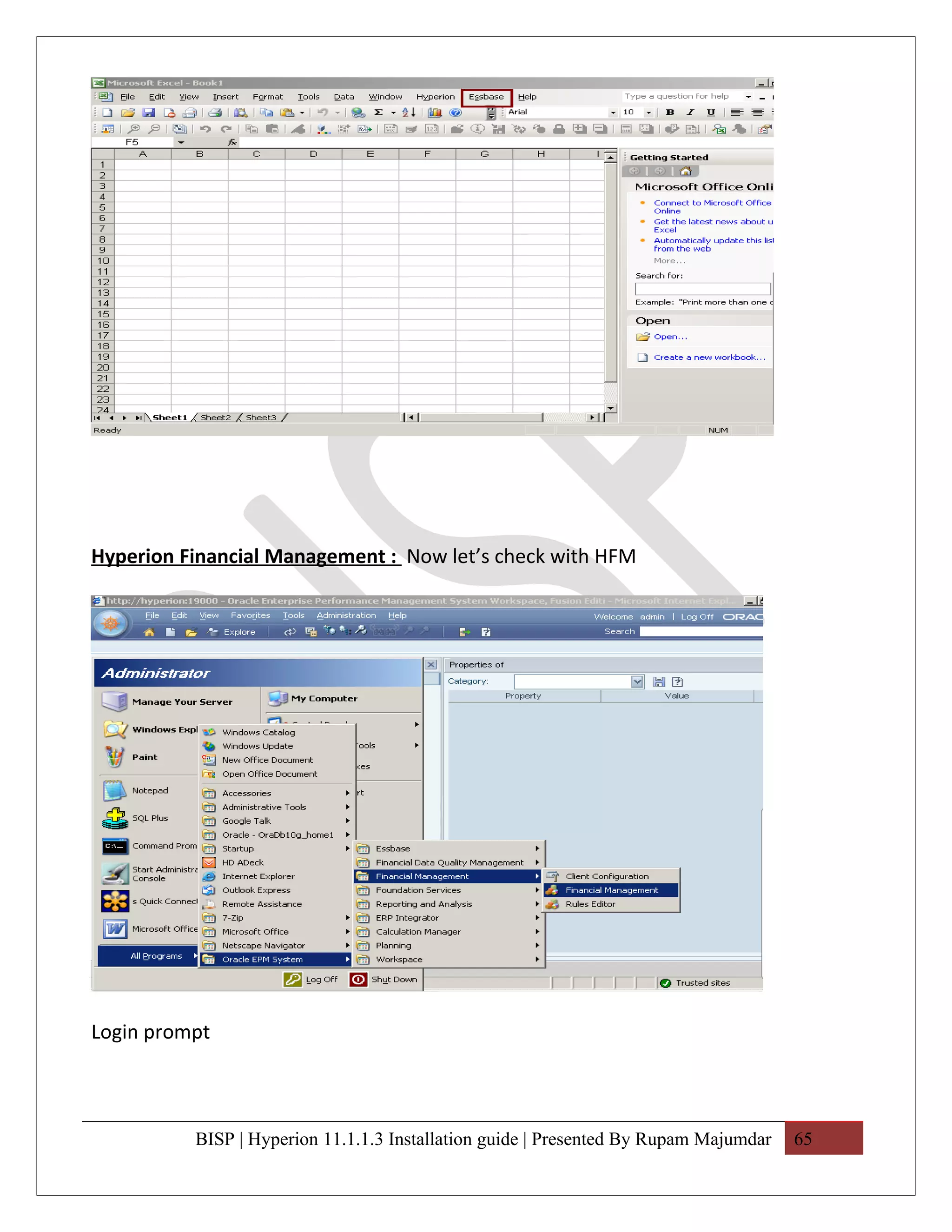

The Essbase addin is showing in MS Excel also an highlighted area


Hyperion Financial Management : Now let’s check with HFM

Login prompt

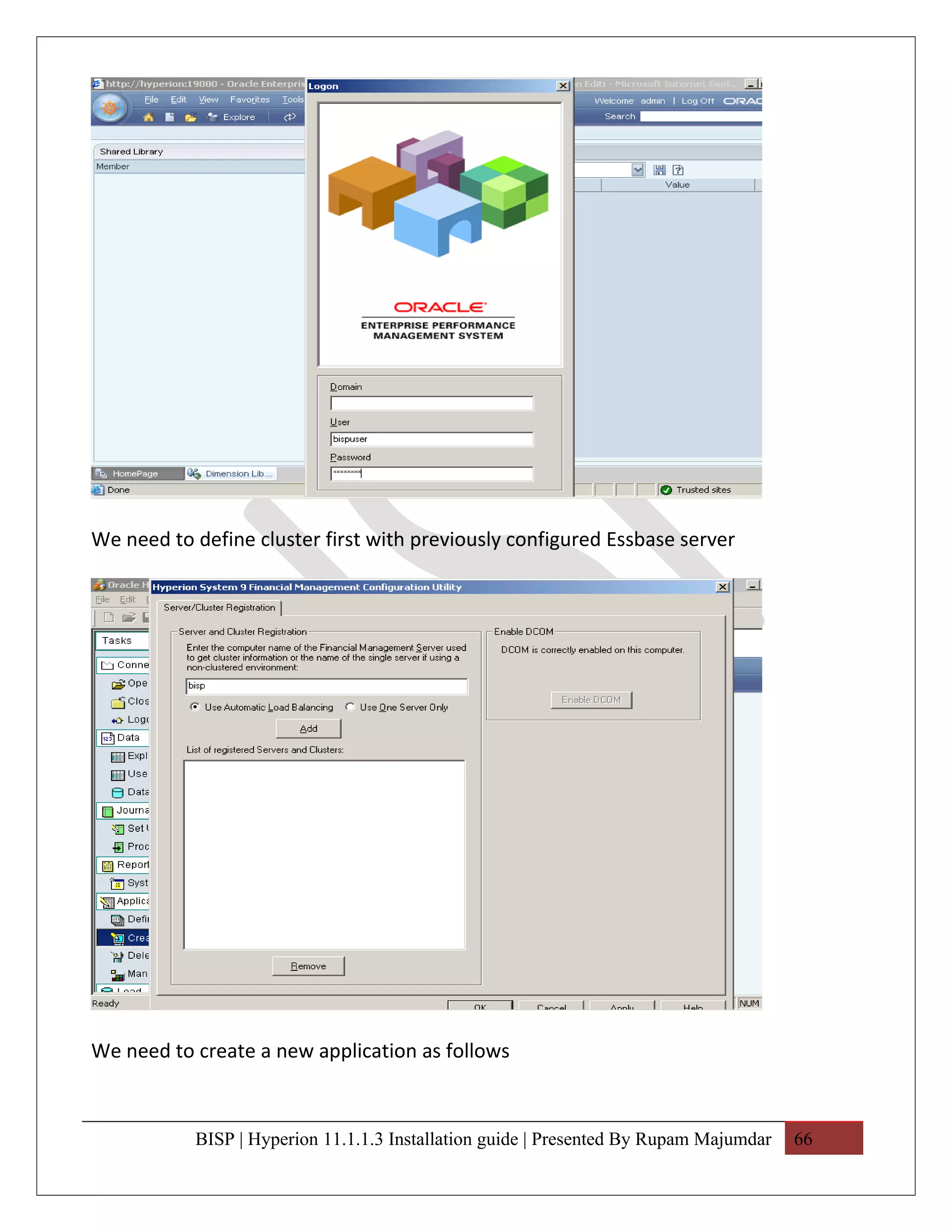

We need to define cluster first with previously configured Essbase server

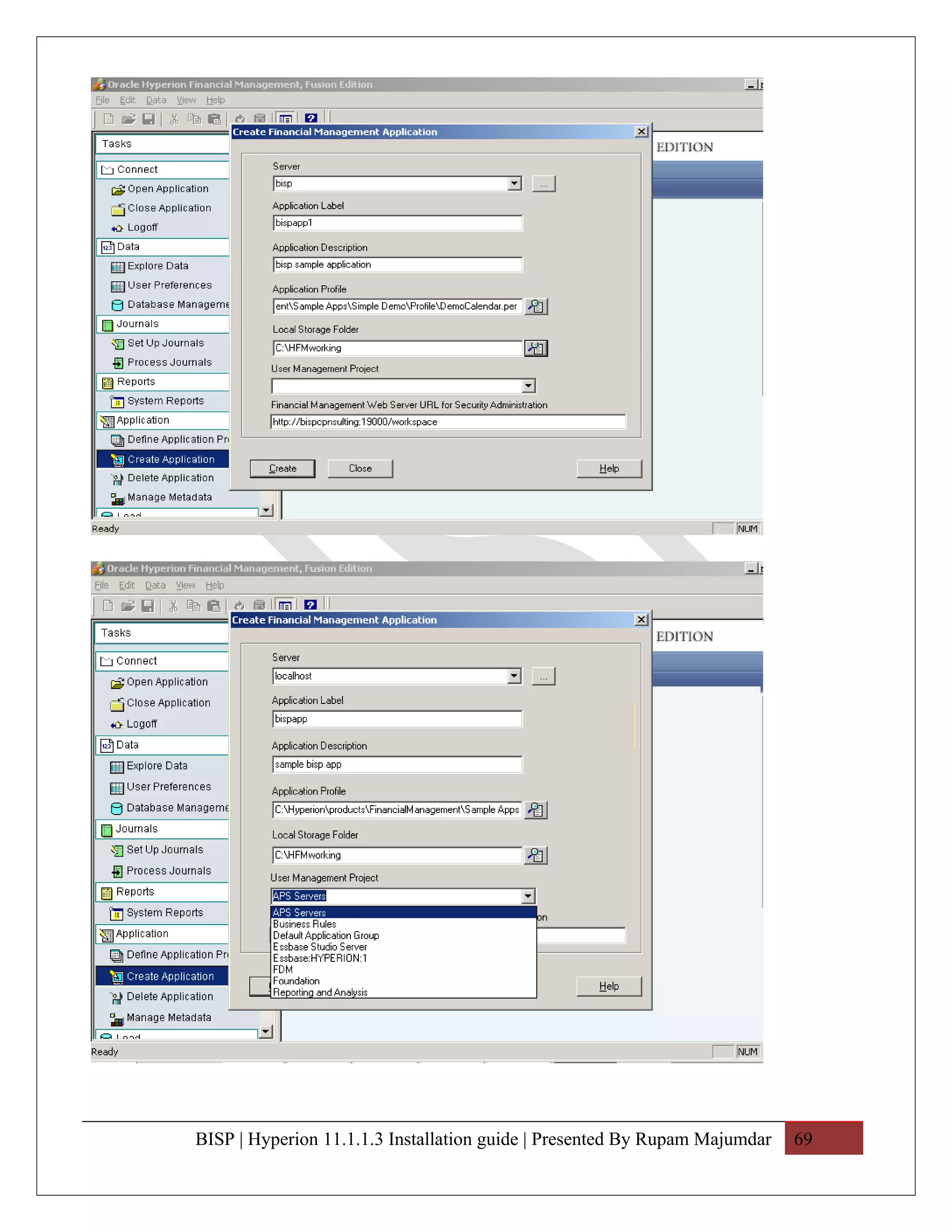

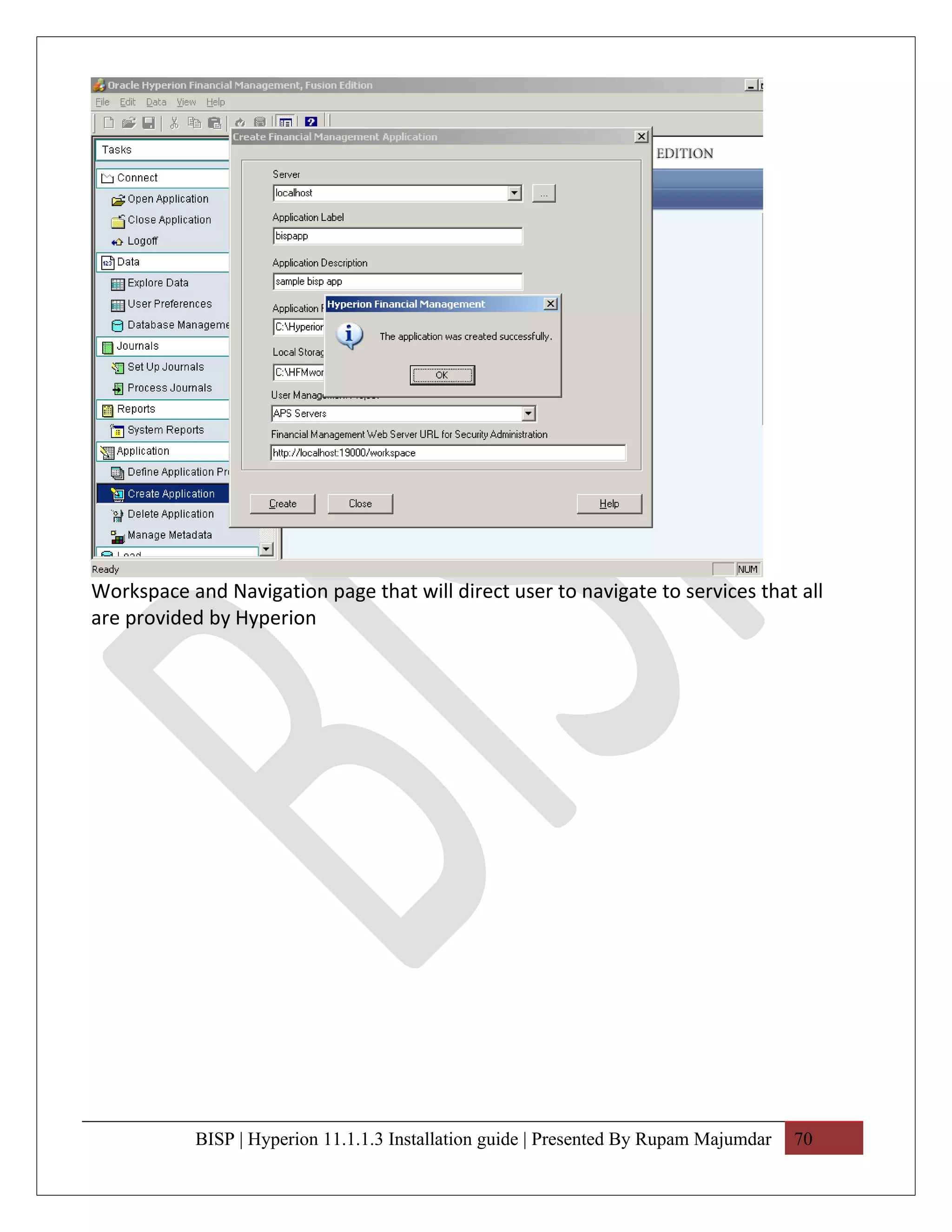

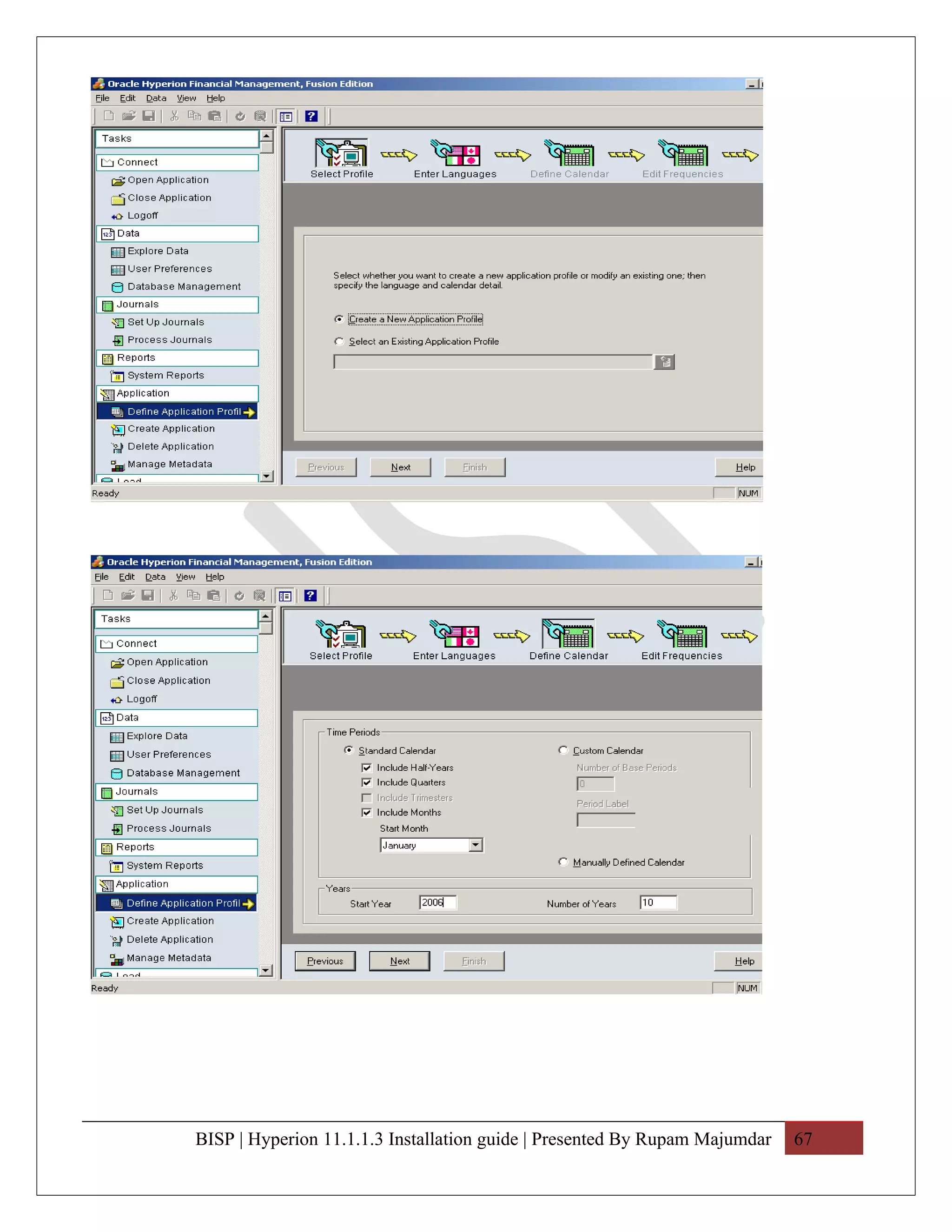

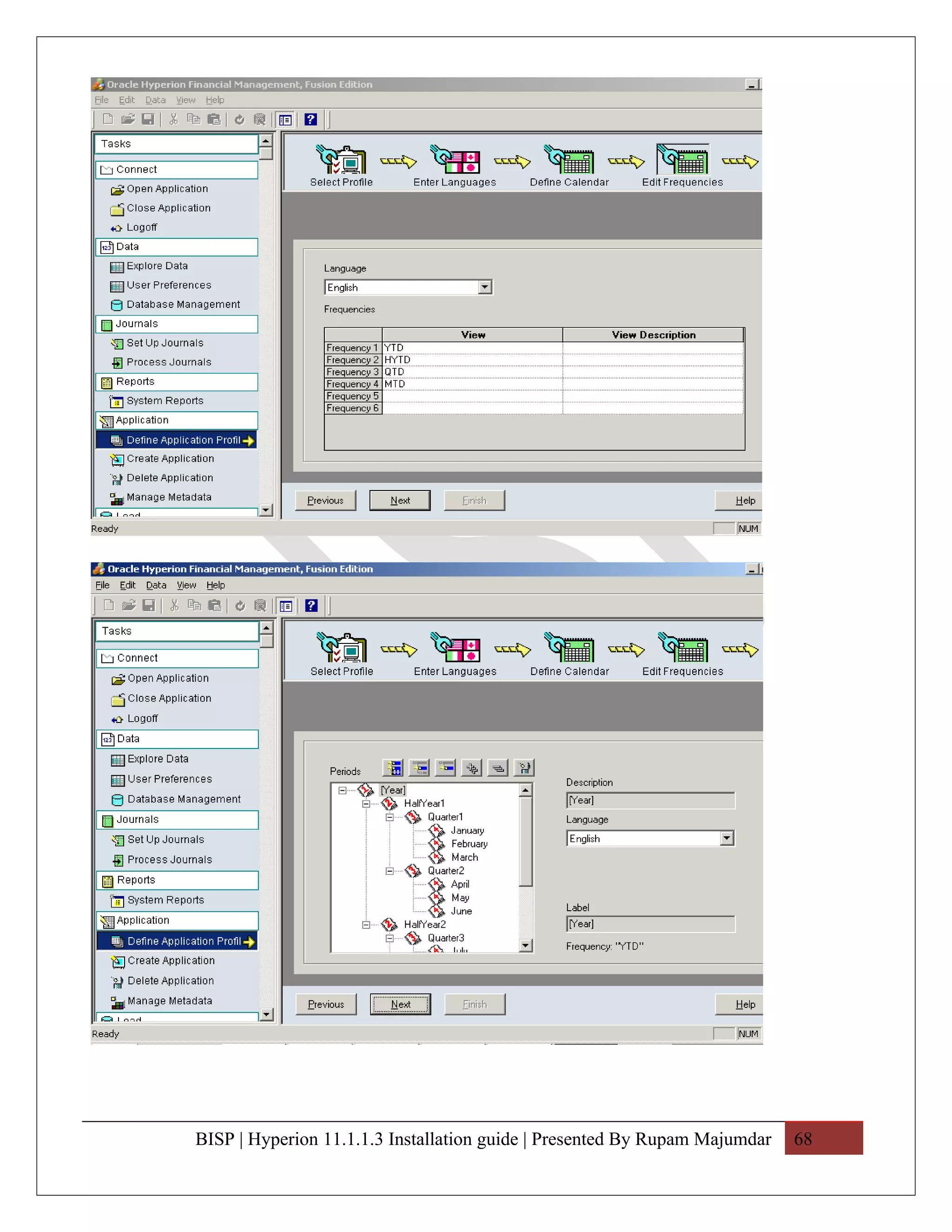

We need to create a new application as follows

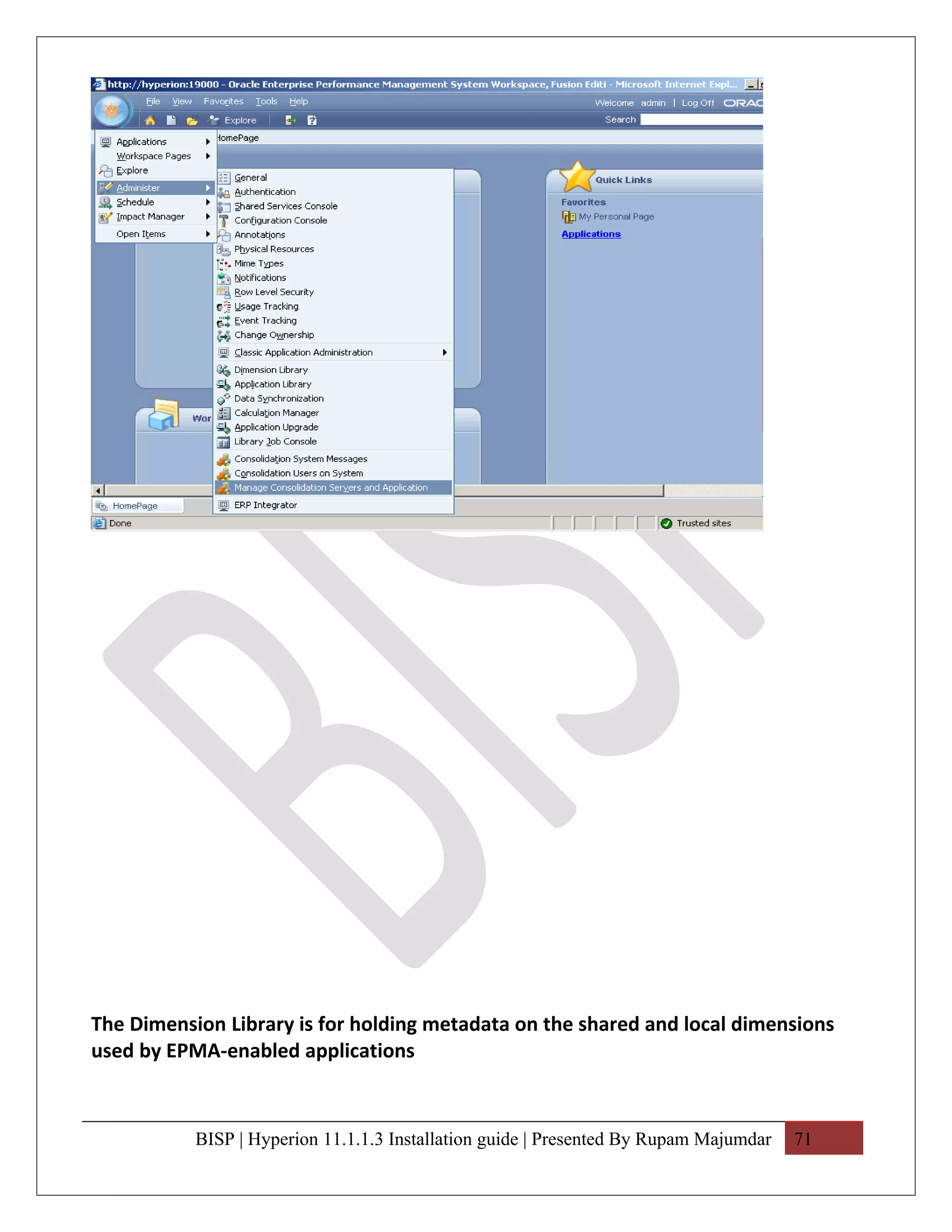

Workspace and Navigation page that will direct user to navigate to services that all
are provided by Hyperion


The Dimension Library is for holding metadata on the shared and local dimensions
used by EPMA-enabled applications

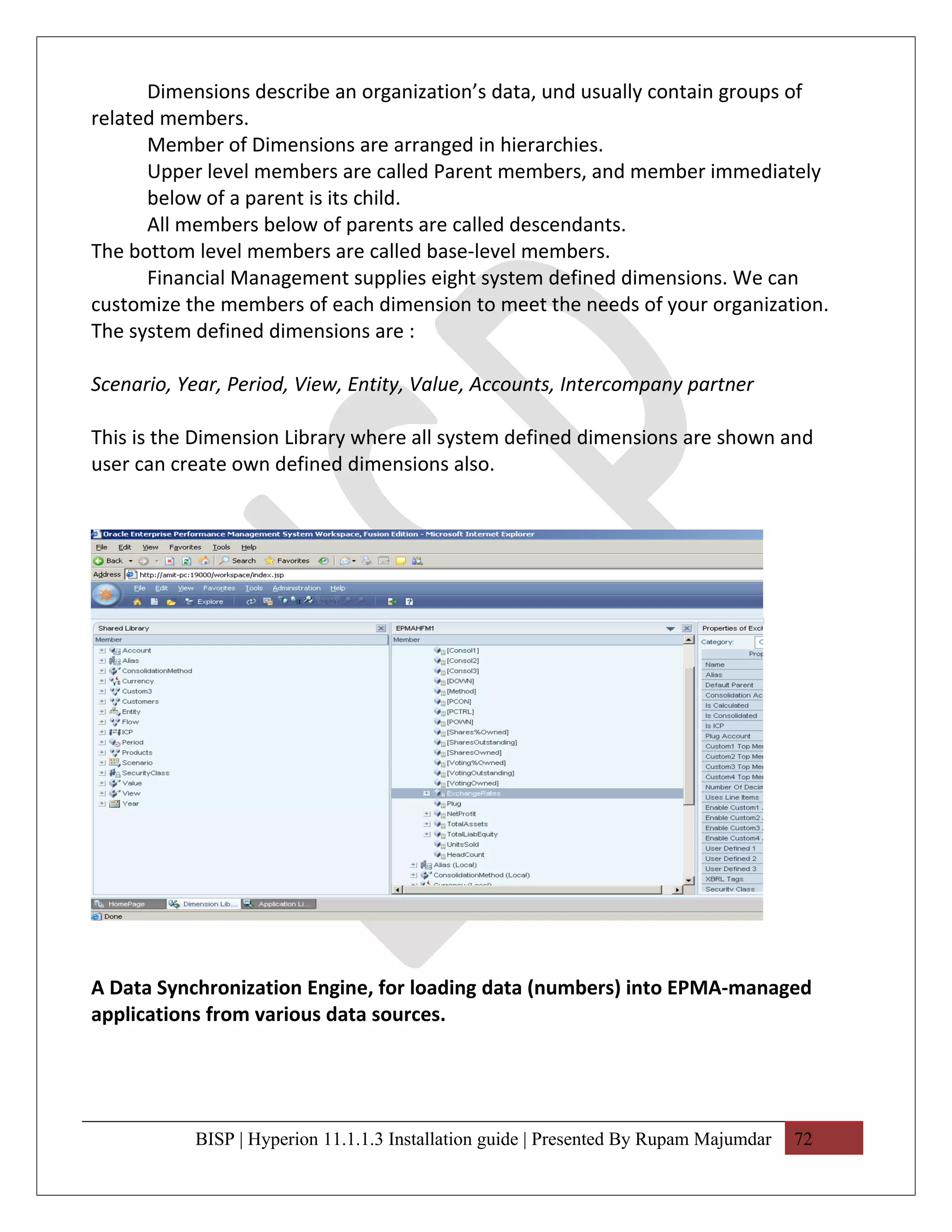

Dimensions describe an organization’s data, und usually contain groups of
related members.
Member of Dimensions are arranged in hierarchies.
Upper level members are called Parent members, and member immediately
below of a parent is its child.
All members below of parents are called descendants.
The bottom level members are called base-level members.
Financial Management supplies eight system defined dimensions. We can
customize the members of each dimension to meet the needs of your organization.
The system defined dimensions are :

Scenario, Year, Period, View, Entity, Value, Accounts, Intercompany partner

This is the Dimension Library where all system defined dimensions are shown and
user can create own defined dimensions also.

A Data Synchronization Engine, for loading data (numbers) into EPMA-managed
applications from various data sources.


An Application Library, for holding definitions of the various Essbase, Planning and
HFM applications EPMA manages

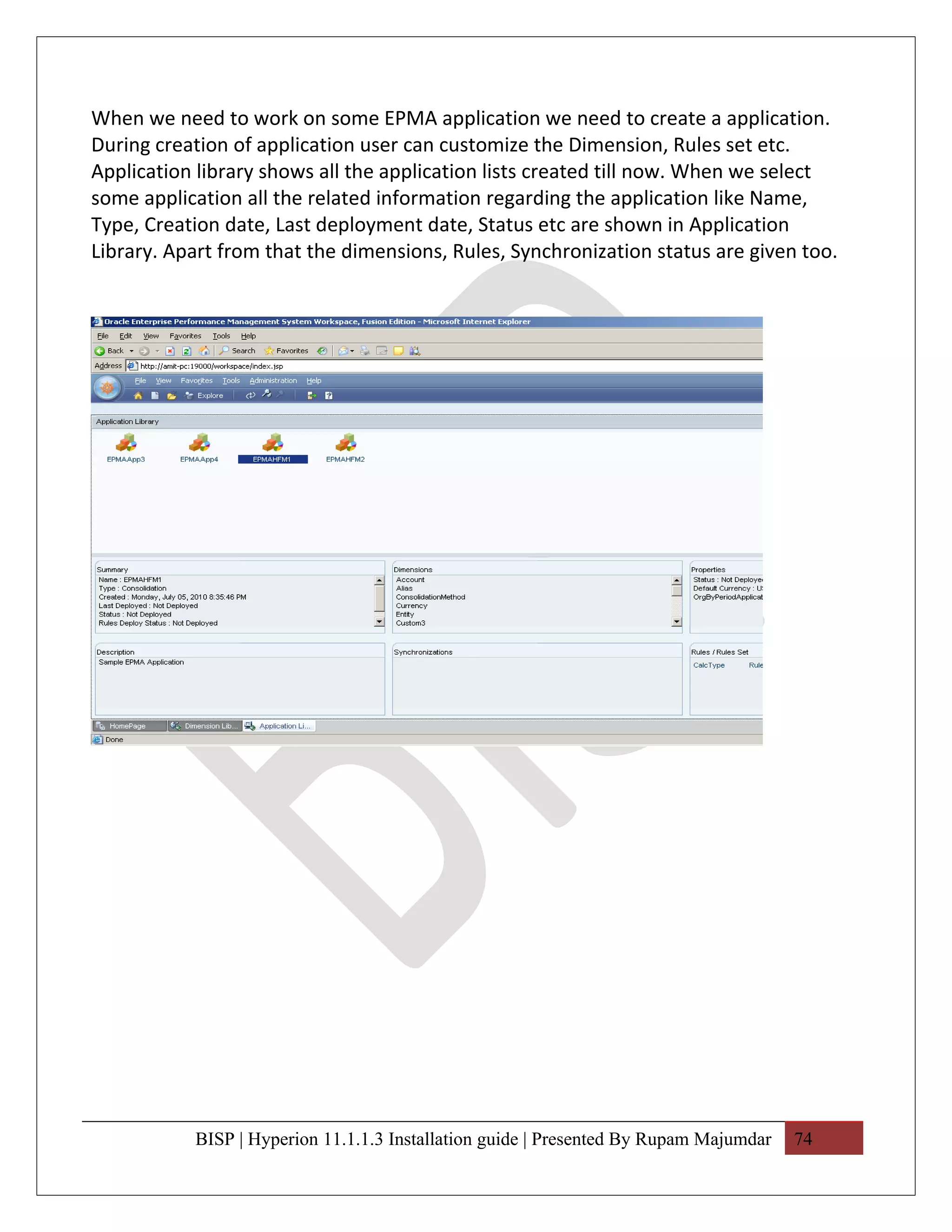

When we need to work on some EPMA application we need to create a application.
During creation of application user can customize the Dimension, Rules set etc.
Application library shows all the application lists created till now. When we select
some application all the related information regarding the application like Name,
Type, Creation date, Last deployment date, Status etc are shown in Application
Library. Apart from that the dimensions, Rules, Synchronization status are given too.


Bisp hyperion11 1 1 3 installation guide

More Related Content

What's hot

Similar to Bisp hyperion11 1 1 3 installation guide

More from Amit Sharma

Bisp hyperion11 1 1 3 installation guide
