4. 30. Reporting & Analysis UIServices Installation ................................................................................ 193
31. Reporting & Analysis Client Installation ........................................................................................ 203
32. Reporting & Analysis Configuration .............................................................................................. 214
33. Check Reporting and Analysis Services in Windows ..................................................................... 236
34. Creating Super User ...................................................................................................................... 239
35. Assigning Rights to Super User ..................................................................................................... 244
36. Launching Workspace with Super User ........................................................................................ 247
5. Hyperion Planning - System 9 [Installation Guide]
1. Assumptions for this guide
There are certain assumptions that this guide makes regarding the following:
• Intended Audience
• Installation Environment
Intended Audience
The intended audience for this document is people who are new to Hyperion Planning – System 9.
Having previous experience of Hyperion Planning system’s is going to help but is not deemed
essential. You’ll be able to skim through most of the sections.
Installation Environment
This guide refers to a particular installation environment and assumes certain products and
configurations to be done prior to starting the Hyperion Planning – System 9 installation.
OS: Windows 2003 Server Enterprise Edition
Pre-installed software:
• IIS (version 5 or above)
• DotNet Framework 2.0
• GhostScript or Adobe Distiller (though this guide explicitly refers to GhostScript during the
configuration process)
• RDBMS (this guide explicitly refers to the Oracle RDBMS. However, IBM DB2 and Microsoft SQL
Server are both supported)
This guide assumes that the intended language of the package is English.
2. Pre-Requisites
The installed products required for this particular installation have already been defined. Assuming
that an Oracle 9i RDBMS is installed and configured, we would now discuss what databases and
users need to be created for the Hyperion Planning – System 9 installation.
Although this is not a strict requirement but I feel that it is better to create separate DB instances for
each of the installed components rather than have separate schemas and tablespaces for them.
I generally create 6 databases, the details for each are present below
Component Database User (Password) Rights and Roles
Hyperion Shared
Services
HSS hssuser (hssuser) • DBA
Hyperion
• Resource
Administration
HAS hasuser (hasuser) • DBA
Services
• Resource
Shehzad Kazmi Page 5
6. Hyperion Planning - System 9 [Installation Guide]
Oracle Hyperion
Enterprise
HEPM hepmuser • DBA
Performance
(hepmuser) • Resource
Management
Architect
Hyperion Planning HPLN hplnuser (hplnuser) • DBA
Hyperion Planning
• Resource
(Data Source)
HDS hdsuser (hdsuser) • DBA
Hyperion
• Resource
Reporting &
HFR hfruser (hfruser) • DBA
Analysis
• Resource
3. Installation Sequence
The installation sequence requires the installation of the Hyperion Planning – System 9 components
in the following order:
• Shared Services
• Essbase
o Essbase Client
o Essbase Server
o Essbase Administration Services
o Hyperion Provider Services
• Hyperion Planning
• Hyperion Reporting & Analysis
o Hyperion Reporting & Analysis Services
o Hyperion Reporting & Analysis UIServices
o Hyperion Reporting & Analysis Client
Shehzad Kazmi Page 6
7. Hyperion Planning - System 9 [Installation Guide]
4. Shared Services Installation
1. Navigate to the installation files for Hyperion Shared Services.
2. Launch setup.exe
3. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 4.1: Select installation wizard language
Shehzad Kazmi Page 7
8. Hyperion Planning - System 9 [Installation Guide]
4. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 4.2: Hyperion Shared Services welcome screen
Shehzad Kazmi Page 8
9. Hyperion Planning - System 9 [Installation Guide]
5. The wizard will now prompt you to select a location. Continue with the default location ‘United States’ and click ‘Next’ to proceed.
Figure 4.3: Select location
Shehzad Kazmi Page 9
10. Hyperion Planning - System 9 [Installation Guide]
6. Read through the license agreement if you want to. Or you can select ‘I Agree’ and click on ‘Next’ to proceed.
Figure 4.4: License agreement
Shehzad Kazmi Page 10
11. Hyperion Planning - System 9 [Installation Guide]
7. Define the path for the Hyperion Home. All components will be installed to this path.
Figure 4.5: Select Hyperion Home directory
Shehzad Kazmi Page 11
12. Hyperion Planning - System 9 [Installation Guide]
8. Now select the directory for the Shared Services component. You can use the predefined path and just click on ‘Next’ to proceed.
Figure 4.6: Select Shared Services directory
Shehzad Kazmi Page 12
13. Hyperion Planning - System 9 [Installation Guide]
9. Choose the components to Install. For simplicity I’d suggest that you keep the default selection of ‘Typical’ install method and click
on ‘Next’ to proceed.
Figure 4.7: Select setup type
Shehzad Kazmi Page 13
14. Hyperion Planning - System 9 [Installation Guide]
10. You can verify the components being installed on the summary screen. Click ‘Next’ to proceed.
Figure 4.8: Summary
Shehzad Kazmi Page 14
15. Hyperion Planning - System 9 [Installation Guide]
11. It takes a few moments for the installation to complete.
Figure 4.9: Installation progress
Shehzad Kazmi Page 15
16. Hyperion Planning - System 9 [Installation Guide]
12. The wizard now confirms the completion of the installation. Click on ‘Next’ to proceed.
Figure 4.10: Installation completion summary
Shehzad Kazmi Page 16
17. Hyperion Planning - System 9 [Installation Guide]
13. The wizard suggests launching the ‘Configuration Utility’ to configure ‘Shared Services’ and the steps for the configuration before
you can start using the component. Select the ‘Launch Hyperion Configuration Utility’ check box and click on ‘Next’ to proceed.
Figure 4.11: Launch configuration utility
Shehzad Kazmi Page 17
18. Hyperion Planning - System 9 [Installation Guide]
5. Shared Services Configuration
Now that you’ve completed the installation of Shared Services, we must now configure Shared Services before we can continue with the
installation and configuration of the remaining components.
1. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 5.1: Select configuration wizard language
Shehzad Kazmi Page 18
19. Hyperion Planning - System 9 [Installation Guide]
2. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 5.2: Configuration Utility welcome screen
Shehzad Kazmi Page 19
20. Hyperion Planning - System 9 [Installation Guide]
3. The wizard will now prompt you to select the products to configure. The products that aren’t configured yet have the warning icon
next to them. Click and select ‘Hyperion Shared Services’ product. Select ‘Configure Database’ and ‘Deploy to Application Server’
items and click ‘Next’ to proceed.
Figure 5.3: Select products to configure
Shehzad Kazmi Page 20
21. Hyperion Planning - System 9 [Installation Guide]
4. Select the RDBMS. This guide assumes Oracle RDBMS. Select ‘Oracle’ and click ‘Next’ to proceed.
Figure 5.4: Select database
Shehzad Kazmi Page 21
22. Hyperion Planning - System 9 [Installation Guide]
5. Now fill in the database configuration details.
• SID: HSS
• User Name: hssuser
• Password: hssuser
• Data Tablespace: <default>
• Index Tablespace: <default>
Figure 5.5: Database configuration details
Shehzad Kazmi Page 22
23. Hyperion Planning - System 9 [Installation Guide]
6. Select the application server and deployment type.
• Application Server: Apache Tomcat 5
• Deployment Type: Automatic
Figure 5.6: Select application server and deployment type
Shehzad Kazmi Page 23
24. Hyperion Planning - System 9 [Installation Guide]
7. Now select if you wish to deploy the application server as a Windows service. This option should already be checked. Click ‘Next’ to
proceed.
Figure 5.7: Deploy as a service
Shehzad Kazmi Page 24
25. Hyperion Planning - System 9 [Installation Guide]
8. You can verify the configuration items on the summary screen. Click ‘Next’ to proceed.
Figure 5.8: Configuration summary
Shehzad Kazmi Page 25
27. Hyperion Planning - System 9 [Installation Guide]
10. Application server deployment progress.
Figure 5.10: Application server deployment progress
Shehzad Kazmi Page 27
28. Hyperion Planning - System 9 [Installation Guide]
11. Post configuration summary verifies if the configuration was successful. Click ‘Next’ to proceed.
Figure 5.11: Configuration completion summary
Shehzad Kazmi Page 28
29. Hyperion Planning - System 9 [Installation Guide]
12. Confirm if you wish to return to ‘Product Selection Panel’. Default selection is ‘No’. Click ‘Next’ to proceed.
Figure 5.12: Return to product selection panel
Shehzad Kazmi Page 29
30. Hyperion Planning - System 9 [Installation Guide]
13. The wizard confirms that all configuration tasks have completed. Click ‘Finish’ to exit.
Figure 5.13: Configuration complete
Shehzad Kazmi Page 30
31. Hyperion Planning - System 9 [Installation Guide]
6. Check Windows Services
Open the Windows Service console to verify that the following services are registered:
• Hyperion S9 OpenLDAP
• Hyperion S9 Shared Services
Figure 6.1: Windows Services
Shehzad Kazmi Page 31
32. Hyperion Planning - System 9 [Installation Guide]
7. Creating Configuration User
1. Launch ‘User Management Console’. In the browser window, navigate to ‘http://localhost:58080/interop’.
Figure 7.1: Launching Hyperion Shared Services
Shehzad Kazmi Page 32
33. Hyperion Planning - System 9 [Installation Guide]
2. Login using the default user ‘admin/password’ (username/password)
Figure 7.2: Login to Hyperion Shared Services
Shehzad Kazmi Page 33
34. Hyperion Planning - System 9 [Installation Guide]
3. After successful login, you will see the main console window.
Figure 7.3: Hyperion Shared Services Main Console
Shehzad Kazmi Page 34
35. Hyperion Planning - System 9 [Installation Guide]
4. Navigate to ‘User Directories’->’Native Directory’. Right-click on ‘Users’ and select ‘Create User’.
Figure 7.4: User Directory
Shehzad Kazmi Page 35
36. Hyperion Planning - System 9 [Installation Guide]
5. This will bring up the user creation window.
Figure 7.5: Create User window
Shehzad Kazmi Page 36
37. Hyperion Planning - System 9 [Installation Guide]
6. Fill in the user details.
• User Name: configuser
• First Name: configuration
• Last Name: user
• Description: *DO NOT DELETE* (so no one accidentally deletes this user)
• Email Address:
• Password: configuser
Click ‘Finish’ to create the user.
Figure 7.6: User details
Shehzad Kazmi Page 37
38. Hyperion Planning - System 9 [Installation Guide]
7. User creation is verified. Click on ‘OK’ to dismiss the user creation window.
Figure 7.7: User creation confirmation
Shehzad Kazmi Page 38
39. Hyperion Planning - System 9 [Installation Guide]
8. Click on the ‘Show All’ button to verify the user you just created.
Figure 7.8: Configured users
Shehzad Kazmi Page 39
40. Hyperion Planning - System 9 [Installation Guide]
8. Assigning Rights to Configuration User
1. Continue from where we left off. Right-click on the ‘configuser’ and click on ‘Provision’.
Figure 8.1: Provision rights for user
Shehzad Kazmi Page 40
41. Hyperion Planning - System 9 [Installation Guide]
2. In the ‘Provision’ dialog, click to expand ‘Global Roles’. Provision ‘Administrator’ privileges for user. Click on ‘Save’ to proceed.
Figure 8.2: Provision window
Shehzad Kazmi Page 41
42. Hyperion Planning - System 9 [Installation Guide]
3. Verify roles/rights assignment on Provision Summary screen. Click ‘OK’ to proceed.
Figure 8.3: Provision summary
Shehzad Kazmi Page 42
43. Hyperion Planning - System 9 [Installation Guide]
9. Essbase Installation
Essbase consists of 5 components:
• Essbase Server
• Essbase Client
• Essbase Administration Services
• Essbase Provider Services
• Essbase Integration Services
These components need to be installed and configured in a specific sequence. Of the 5 components, Essbase Integration Services is definitely
one that we can let go of and not compromise a Hyperion Planning installation. The 4 components are installed and configured in the
following sequence:
1. Install Essbase Client
2. Install Essbase Server
3. Configure Essbase
4. Install Essbase Administration Services
5. Configure Essbase Administration Services
6. Install Essbase Provider Services
7. Configure Essbase Provider Services
10. Essbase Client Installation
1. Navigate to the installation files for Essbase Client.
2. Launch setup.exe.
Shehzad Kazmi Page 43
44. Hyperion Planning - System 9 [Installation Guide]
3. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 10.1: Select installation wizard language
Shehzad Kazmi Page 44
45. Hyperion Planning - System 9 [Installation Guide]
4. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 10.2: Hyperion Essbase Client welcome screen
Shehzad Kazmi Page 45
46. Hyperion Planning - System 9 [Installation Guide]
5. The wizard will now prompt you to select a location. Continue with the default location ‘United States’ and click ‘Next’ to proceed.
Figure 10.3: Select location
Shehzad Kazmi Page 46
47. Hyperion Planning - System 9 [Installation Guide]
6. Read through the license agreement if you want to. Or you can select ‘I Agree’ and click on ‘Next’ to proceed.
Figure 10.4: License agreement
Shehzad Kazmi Page 47
48. Hyperion Planning - System 9 [Installation Guide]
7. The path will already be defined for Hyperion Home. All components will be installed to this path.
Figure 10.5: Hyperion Home directory
Shehzad Kazmi Page 48
49. Hyperion Planning - System 9 [Installation Guide]
8. Now select the directory for the Essbase Client component. You can use the predefined path and just click on ‘Next’ to proceed.
Figure 10.6: Select Essbase Client directory
Shehzad Kazmi Page 49
50. Hyperion Planning - System 9 [Installation Guide]
9. Choose the components to Install. For simplicity I’d suggest that you keep the default selection of ‘Typical’ install method and click
on ‘Next’ to proceed.
Figure 10.7: Select setup type
Shehzad Kazmi Page 50
51. Hyperion Planning - System 9 [Installation Guide]
10. Select ‘ESSLANG’. I’d suggest you continue with the default selection of ‘English (Latin1)’. Click ‘Next’ to proceed.
Figure 10.8: Select ESSLANG
Shehzad Kazmi Page 51
52. Hyperion Planning - System 9 [Installation Guide]

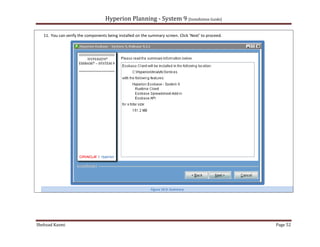

11. You can verify the components being installed on the summary screen. Click ‘Next’ to proceed.
Figure 10.9: Summary
Shehzad Kazmi Page 52
53. Hyperion Planning - System 9 [Installation Guide]
12. It takes a few moments for the installation to complete.
Figure 10.10: Installation progress
Shehzad Kazmi Page 53
54. Hyperion Planning - System 9 [Installation Guide]
13. The wizard now confirms the completion of the installation. Click on ‘Next’ to proceed.
Figure 10.11: Installation completion summary
Shehzad Kazmi Page 54
55. Hyperion Planning - System 9 [Installation Guide]
11. Essbase Server Installation
1. Navigate to the installation files for Essbase Server.
2. Launch setup.exe.
3. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 11.1: Select installation wizard language
Shehzad Kazmi Page 55
56. Hyperion Planning - System 9 [Installation Guide]
4. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 11.2: Hyperion Essbase Server welcome screen
Shehzad Kazmi Page 56
57. Hyperion Planning - System 9 [Installation Guide]
5. The wizard will now prompt you to select a location. Continue with the default location ‘United States’ and click ‘Next’ to proceed.
Figure 11.3: Select location
Shehzad Kazmi Page 57
58. Hyperion Planning - System 9 [Installation Guide]
6. Read through the license agreement if you want to. Or you can select ‘I Agree’ and click on ‘Next’ to proceed.
Figure 11.4: License agreement
Shehzad Kazmi Page 58
59. Hyperion Planning - System 9 [Installation Guide]
7. The path will already be defined for Hyperion Home. All components will be installed to this path.
Figure 11.5: Hyperion Home directory
Shehzad Kazmi Page 59
60. Hyperion Planning - System 9 [Installation Guide]
8. Now select the directory for the Essbase Server component. You can use the predefined path and just click on ‘Next’ to proceed.
Figure 11.6: Select Essbase Server directory
Shehzad Kazmi Page 60
61. Hyperion Planning - System 9 [Installation Guide]
9. Choose the components to Install. For simplicity I’d suggest that you keep the default selection of ‘Typical’ install method and click
on ‘Next’ to proceed.
Figure 11.7: Select setup type
Shehzad Kazmi Page 61
62. Hyperion Planning - System 9 [Installation Guide]
10. Select to update environment variables. I’d suggest you continue with the default checked option for ‘Environment Variables (PATH
and ARBORPATH)’. Click ‘Next’ to proceed.
Figure 11.8: Select to update Environment Variables
Shehzad Kazmi Page 62
63. Hyperion Planning - System 9 [Installation Guide]
11. Select ‘ESSLANG’. I’d suggest you continue with the default selection of ‘English (Latin1)’. Click ‘Next’ to proceed.
Figure 11.9: Select ESSLANG
Shehzad Kazmi Page 63
64. Hyperion Planning - System 9 [Installation Guide]
12. You can verify the components being installed on the summary screen. Click ‘Next’ to proceed.
Figure 11.10: Summary
Shehzad Kazmi Page 64
65. Hyperion Planning - System 9 [Installation Guide]
13. It takes a few moments for the installation to complete.
Figure 11.11: Installation progress
Shehzad Kazmi Page 65
66. Hyperion Planning - System 9 [Installation Guide]
14. The wizard now confirms the completion of the installation. Click on ‘Next’ to proceed.
Figure 11.12: Installation completion summary
Shehzad Kazmi Page 66
67. Hyperion Planning - System 9 [Installation Guide]
15. The wizard suggests launching the ‘Configuration Utility’. Check the ‘Launch Hyperion Configuration Utility’ check box and click on
‘Next’ to proceed.
Figure 11.13: Launch configuration utility
Shehzad Kazmi Page 67
68. Hyperion Planning - System 9 [Installation Guide]
12. Essbase Configuration
1. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 12.1: Select configuration wizard language
Shehzad Kazmi Page 68
69. Hyperion Planning - System 9 [Installation Guide]
2. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 12.2: Configuration Utility welcome screen
Shehzad Kazmi Page 69
70. Hyperion Planning - System 9 [Installation Guide]
3. The wizard will now prompt you to select the products to configure. The products that aren’t configured yet have the warning icon
next to them. Click and select ‘Essbase Server (C:HyperionAnalyticServices)’ product. Select 'Product Options', 'Register with
Shared Services' and ‘Register Analytic Services Server as Windows Server’ items and click ‘Next’ to proceed.
Figure 12.3: Select products to configure
Shehzad Kazmi Page 70
71. Hyperion Planning - System 9 [Installation Guide]
4. You can keep the default product selection and click ‘Next’ to proceed. However, I also prefer to select 'Visual Explorer'.
Figure 12.4: Select product options
Shehzad Kazmi Page 71
72. Hyperion Planning - System 9 [Installation Guide]
5. Now fill in the essbase server configuration details.
• Username: hypuser
• Password: hypuser
• Company Name: hyperion
• Service Name Identifier: Planning
Figure 12.5: Essbase Server configuration details
Shehzad Kazmi Page 72
73. Hyperion Planning - System 9 [Installation Guide]
6. Keep the default port numbers for Essbase Server.
• Agent Port Number: 1423
• Application Start Port: 32768
• Application End Port: 33768
Figure 12.6: Essbase Server ports
Shehzad Kazmi Page 73
75. Hyperion Planning - System 9 [Installation Guide]
8. You can verify the configuration items on the summary screen. Click ‘Next’ to proceed.
Figure 12.8: Configuration summary
Shehzad Kazmi Page 75
76. Hyperion Planning - System 9 [Installation Guide]
9. Post configuration summary verifies if the configuration was successful. Click ‘Next’ to proceed.
Figure 12.9: Configuration completion summary
Shehzad Kazmi Page 76
77. Hyperion Planning - System 9 [Installation Guide]
10. Confirm if you wish to return to ‘Product Selection Panel’. Default selection is ‘No’. Click ‘Next’ to proceed.
Figure 12.10: Return to product selection panel
Shehzad Kazmi Page 77
78. Hyperion Planning - System 9 [Installation Guide]
11. The wizard confirms that all configuration tasks have completed. Click ‘Finish’ to exit.
Figure 12.11: Configuration complete
Shehzad Kazmi Page 78
79. Hyperion Planning - System 9 [Installation Guide]
13. Essbase Administration Services Installation
1. Navigate to the installation files for Essbase Administration Services.
2. Launch setup.exe.
3. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 13.1: Select installation wizard language
Shehzad Kazmi Page 79
80. Hyperion Planning - System 9 [Installation Guide]
4. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 13.2: Essbase Administration Services welcome screen
Shehzad Kazmi Page 80
81. Hyperion Planning - System 9 [Installation Guide]
5. The wizard will now prompt you to select a location. Continue with the default location ‘United States’ and click ‘Next’ to proceed.
Figure 13.3: Select location
Shehzad Kazmi Page 81
82. Hyperion Planning - System 9 [Installation Guide]
6. Read through the license agreement if you want to. Or you can select ‘I Agree’ and click on ‘Next’ to proceed.
Figure 13.4: License agreement
Shehzad Kazmi Page 82
83. Hyperion Planning - System 9 [Installation Guide]
7. The path will already be defined for Hyperion Home. All components will be installed to this path.
Figure 13.5: Hyperion Home directory
Shehzad Kazmi Page 83
84. Hyperion Planning - System 9 [Installation Guide]
8. Now select the directory for the Essbase Administration Services component. You can use the predefined path and just click on
‘Next’ to proceed.
Figure 13.6: Select Essbase Administration Services directory
Shehzad Kazmi Page 84
85. Hyperion Planning - System 9 [Installation Guide]
9. Choose the components to Install. For simplicity I’d suggest that you keep the default selection of ‘Typical’ install method and click
on ‘Next’ to proceed.
Figure 13.7: Select setup type
Shehzad Kazmi Page 85
86. Hyperion Planning - System 9 [Installation Guide]
10. Select ‘ESSLANG’. I’d suggest you continue with the default selection of ‘English (Latin1)’. Click ‘Next’ to proceed.
Figure 13.8: Select ESSLANG
Shehzad Kazmi Page 86
87. Hyperion Planning - System 9 [Installation Guide]
11. You can verify the components being installed on the summary screen. Click ‘Next’ to proceed.
Figure 13.9: Summary
Shehzad Kazmi Page 87
88. Hyperion Planning - System 9 [Installation Guide]
12. It takes a few moments for the installation to complete.
Figure 13.10: Installation progress
Shehzad Kazmi Page 88
89. Hyperion Planning - System 9 [Installation Guide]
13. A popup will ask you to verify what to do if a file already exists. Just click ‘No’. This prompt will popup for the following files:
• MFC71.dll
• msvcp71.dll
• msvcr71.dll
Figure 13.11: Replace MFC71.dll
Figure 13.12: Replace MSVCP71.dll
Figure 13.13: Replace MSVCR71.dll
Shehzad Kazmi Page 89
90. Hyperion Planning - System 9 [Installation Guide]
14. The wizard suggests launching the ‘Configuration Utility’. Check the ‘Launch Hyperion Configuration Utility’ check box and click on
‘Next’ to proceed.
Figure 13.14: Launch configuration utility
Shehzad Kazmi Page 90
91. Hyperion Planning - System 9 [Installation Guide]
14. Essbase Administration Services Configuration
1. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 14.1: Select configuration wizard language
Shehzad Kazmi Page 91
92. Hyperion Planning - System 9 [Installation Guide]
2. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 14.2: Configuration Utility welcome screen
Shehzad Kazmi Page 92
93. Hyperion Planning - System 9 [Installation Guide]
3. The wizard will now prompt you to select the products to configure. The products that aren’t configured yet have the warning icon
next to them. Click and select ‘Essbase Administration Services (C:HyperionAnalyticAdministrationServices)’ product. Select
'Configure Database', 'Register with Shared Services' and ‘Deploy to Application Server’ items and click ‘Next’ to proceed.
Figure 14.3: Select products to configure
Shehzad Kazmi Page 93
95. Hyperion Planning - System 9 [Installation Guide]
5. Select the RDBMS. This guide assumes Oracle RDBMS. Select ‘Oracle’ and click ‘Next’ to proceed.
Figure 14.5: Select database
Shehzad Kazmi Page 95
96. Hyperion Planning - System 9 [Installation Guide]
6. Now fill in the database configuration details.
• SID: HAS
• User Name: hasuser
• Password: hasuser
• Data Tablespace: <default>
• Index Tablespace: <default>
Figure 14.6: Database configuration details
Shehzad Kazmi Page 96
97. Hyperion Planning - System 9 [Installation Guide]
7. Select the application server and deployment type.
• Application Server: Apache Tomcat 5
• Deployment Type: Automatic
Figure 14.7: Select application server and deployment type
Shehzad Kazmi Page 97
98. Hyperion Planning - System 9 [Installation Guide]
8. Now select if you wish to deploy the application server as a Windows service. This option should already be checked. Click ‘Next’ to
proceed.
Figure 14.8: Deploy as a service
Shehzad Kazmi Page 98
99. Hyperion Planning - System 9 [Installation Guide]
9. You can verify the configuration items on the summary screen. Click ‘Next’ to proceed.
Figure 14.9: Configuration summary
Shehzad Kazmi Page 99
100. Hyperion Planning - System 9 [Installation Guide]
10. Post configuration summary verifies if the configuration was successful. Click ‘Next’ to proceed.
Figure 14.10: Configuration completion summary
Shehzad Kazmi Page 100
101. Hyperion Planning - System 9 [Installation Guide]
11. Confirm if you wish to return to ‘Product Selection Panel’. Default selection is ‘No’. Click ‘Next’ to proceed.
Figure 14.11: Return to product selection panel
Shehzad Kazmi Page 101
102. Hyperion Planning - System 9 [Installation Guide]
12. The wizard confirms that all configuration tasks have completed. Click ‘Finish’ to exit.
Figure 14.12: Configuration complete
Shehzad Kazmi Page 102
103. Hyperion Planning - System 9 [Installation Guide]
15. Check Essbase Administration Services in Windows
Open the Windows Service console to verify that the following services are registered:
• Hyperion S9 Administration Services ATS5
Figure 15.1: Windows Services
16. Check Essbase Administration Services
17. Essbase Provider Services Installation
1. Navigate to the installation files for Hyperion Provider Services.
Shehzad Kazmi Page 103
104. Hyperion Planning - System 9 [Installation Guide]
2. Launch setup.exe.
3. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 17.1: Select installation wizard language
Shehzad Kazmi Page 104
105. Hyperion Planning - System 9 [Installation Guide]
4. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 17.2: Provider Services welcome screen
Shehzad Kazmi Page 105
106. Hyperion Planning - System 9 [Installation Guide]
5. The wizard will now prompt you to select a location. Continue with the default location ‘United States’ and click ‘Next’ to proceed.
Figure 17.3: Select location
Shehzad Kazmi Page 106
107. Hyperion Planning - System 9 [Installation Guide]
6. Read through the license agreement if you want to. Or you can select ‘I Agree’ and click on ‘Next’ to proceed.
Figure 17.4: License agreement
Shehzad Kazmi Page 107
108. Hyperion Planning - System 9 [Installation Guide]
7. The path will already be defined for Hyperion Home. All components will be installed to this path.
Figure 17.5: Hyperion Home directory
Shehzad Kazmi Page 108
109. Hyperion Planning - System 9 [Installation Guide]
8. Now select the directory for the Hyperion Provider Services component. You can use the predefined path and just click on ‘Next’ to
proceed.
Figure 17.6: Select Provider Services directory
Shehzad Kazmi Page 109
110. Hyperion Planning - System 9 [Installation Guide]
9. Choose the components to Install. For simplicity I’d suggest that you keep the default selection of ‘Typical’ install method and click
on ‘Next’ to proceed.
Figure 17.7: Select setup type
Shehzad Kazmi Page 110
111. Hyperion Planning - System 9 [Installation Guide]
10. Select ‘ESSLANG’. I’d suggest you continue with the default selection of ‘English (Latin1)’. Click ‘Next’ to proceed.
Figure 17.8: Select ESSLANG
Shehzad Kazmi Page 111
112. Hyperion Planning - System 9 [Installation Guide]
11. You can verify the components being installed on the summary screen. Click ‘Next’ to proceed.
Figure 17.9: Summary
Shehzad Kazmi Page 112
113. Hyperion Planning - System 9 [Installation Guide]
12. It takes a few moments for the installation to complete.
Figure 17.10: Installation progress
Shehzad Kazmi Page 113
114. Hyperion Planning - System 9 [Installation Guide]
13. The wizard suggests launching the ‘Configuration Utility’. Check the ‘Launch Hyperion Configuration Utility’ check box and click on
‘Next’ to proceed.
Figure 17.11: Launch configuration utility
Shehzad Kazmi Page 114
115. Hyperion Planning - System 9 [Installation Guide]
18. Essbase Provider Services Configuration
1. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 18.1: Select configuration wizard language
Shehzad Kazmi Page 115
116. Hyperion Planning - System 9 [Installation Guide]
2. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 18.2: Configuration Utility welcome screen
Shehzad Kazmi Page 116
117. Hyperion Planning - System 9 [Installation Guide]
3. The wizard will now prompt you to select the products to configure. The products that aren’t configured yet have the warning icon
next to them. Click and select ‘Essbase Provider Services (C:HyperionAnalyticProviderServices)’ product. Select 'Register with
Shared Services' and ‘Deploy to Application Server’ items and click ‘Next’ to proceed.
Figure 18.3: Select products to configure
Shehzad Kazmi Page 117
119. Hyperion Planning - System 9 [Installation Guide]
5. Select the application server and deployment type.
• Application Server: Apache Tomcat 5
• Deployment Type: Automatic
Figure 18.5: Select application server and deployment type
Shehzad Kazmi Page 119
120. Hyperion Planning - System 9 [Installation Guide]
6. Now select if you wish to deploy the application server as a Windows service. This option should already be checked. Click ‘Next’ to
proceed.
Figure 18.6: Deploy as a service
Shehzad Kazmi Page 120
121. Hyperion Planning - System 9 [Installation Guide]
7. You can verify the configuration items on the summary screen. Click ‘Next’ to proceed.
Figure 18.7: Configuration summary
Shehzad Kazmi Page 121
122. Hyperion Planning - System 9 [Installation Guide]
8. Post configuration summary verifies if the configuration was successful. Click ‘Next’ to proceed.
Figure 18.8: Configuration completion summary
Shehzad Kazmi Page 122
123. Hyperion Planning - System 9 [Installation Guide]
9. Confirm if you wish to return to ‘Product Selection Panel’. Default selection is ‘No’. Click ‘Next’ to proceed.
Figure 18.9: Return to product selection panel
Shehzad Kazmi Page 123
124. Hyperion Planning - System 9 [Installation Guide]
10. The wizard confirms that all configuration tasks have completed. Click ‘Finish’ to exit.
Figure 18.10: Configuration complete
Shehzad Kazmi Page 124
125. Hyperion Planning - System 9 [Installation Guide]
19. Check Hyperion Provider Services in Windows
Open the Windows Service console to verify that the following services are registered:
• Hyperion S9 Provider Services ATS5
Figure 19.1: Windows Services
20. Hyperion Planning Installation
1. Navigate to the installation files for Planning 9.3.1.
2. Launch planning.exe.
Shehzad Kazmi Page 125
126. Hyperion Planning - System 9 [Installation Guide]
3. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 20.1: Select installation wizard language
Shehzad Kazmi Page 126
127. Hyperion Planning - System 9 [Installation Guide]
4. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 20.2: Planning 9.3.1 welcome screen
Shehzad Kazmi Page 127
128. Hyperion Planning - System 9 [Installation Guide]

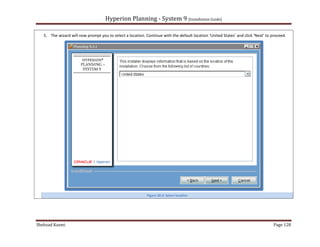

5. The wizard will now prompt you to select a location. Continue with the default location ‘United States’ and click ‘Next’ to proceed.
Figure 20.3: Select location
Shehzad Kazmi Page 128
129. Hyperion Planning - System 9 [Installation Guide]
6. Read through the license agreement if you want to. Or you can select ‘I Agree’ and click on ‘Next’ to proceed.
Figure 20.4: License agreement
Shehzad Kazmi Page 129
130. Hyperion Planning - System 9 [Installation Guide]
7. The path will already be defined for Hyperion Home. All components will be installed to this path.
Figure 20.5: Hyperion Home directory
Shehzad Kazmi Page 130
131. Hyperion Planning - System 9 [Installation Guide]
8. Now select the directory for the Planning 9.3.1 component. You can use the predefined path and just click on ‘Next’ to proceed.
Figure 20.6: Select Planning 9.3.1 directory
Shehzad Kazmi Page 131
132. Hyperion Planning - System 9 [Installation Guide]
9. Choose the components to Install. For simplicity I’d suggest that you keep the default selection of ‘Typical’ install method and click
on ‘Next’ to proceed.
Figure 20.7: Select setup type
Shehzad Kazmi Page 132
133. Hyperion Planning - System 9 [Installation Guide]
10. The wizard will install VC redistributable.
Figure 20.8: Installing VC Redistributable
Shehzad Kazmi Page 133
134. Hyperion Planning - System 9 [Installation Guide]
11. You can verify the components being installed on the summary screen. Click ‘Next’ to proceed.
Figure 20.9: Summary
Shehzad Kazmi Page 134
135. Hyperion Planning - System 9 [Installation Guide]
12. It takes a few moments for the installation to complete.
Figure 20.10: Installation progress
Shehzad Kazmi Page 135
136. Hyperion Planning - System 9 [Installation Guide]
13. The wizard will prompt that a restart is required. It is recommended to keep the default selection of ‘Yes, restart my computer’.
However, you may select ‘No, I will restart my computer at a later time’. Click ‘Finish’ to proceed.
Figure 20.11: Restart computer
Shehzad Kazmi Page 136
137. Hyperion Planning - System 9 [Installation Guide]
21. Check Enterprise Performance Management Architect Services in Windows
Open the Windows Service console to verify that the following services are registered:
• Hyperion S9 EPM Architect Engine Manager
• Hyperion S9 EPM Architect Event Manager
• Hyperion S9 EPM Architect Job Manager
• Hyperion S9 EPM Architect Process Manager
Figure 21.1: Windows Services
Shehzad Kazmi Page 137
138. Hyperion Planning - System 9 [Installation Guide]
22. Oracle Hyperion Enterprise Performance Management Architect Configuration
1. Launch the Configuration wizard. It will prompt to select a language to be used for the wizard. The default selection is ‘English’. Click
on ‘OK’ to proceed.
Figure 22.1: Select configuration wizard language
Shehzad Kazmi Page 138
139. Hyperion Planning - System 9 [Installation Guide]
2. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 22.2: Configuration Utility welcome screen
Shehzad Kazmi Page 139
140. Hyperion Planning - System 9 [Installation Guide]
3. The wizard will now prompt you to select the products to configure. The products that aren’t configured yet have the warning icon
next to them. Click and select ‘Oracle Hyperion Enterprise Performance Management Architect (C:HyperionBPMA)’ product.
Select 'Register with Shared Services', ‘Configure Database’ and ‘Deploy to Application Server’ items and click ‘Next’ to proceed.
Figure 22.3: Select products to configure
Shehzad Kazmi Page 140
142. Hyperion Planning - System 9 [Installation Guide]
5. Select the RDBMS. This guide assumes Oracle RDBMS. Select ‘Oracle’ and click ‘Next’ to proceed.
Figure 22.5: Select database
Shehzad Kazmi Page 142
143. Hyperion Planning - System 9 [Installation Guide]
6. Now fill in the database configuration details.
• SID: HEPMA
• User Name: hepmauser
• Password: hepmauser
• Data Tablespace: <default>
• Index Tablespace: <default>
Figure 22.6: Database configuration details
Shehzad Kazmi Page 143
144. Hyperion Planning - System 9 [Installation Guide]
7. Select the application server and deployment type.
• Application Server: Apache Tomcat 5
• Deployment Type: Automatic
Figure 22.7: Select application server and deployment type
Shehzad Kazmi Page 144
145. Hyperion Planning - System 9 [Installation Guide]
8. Now select if you wish to deploy the application server as a Windows service. This option should already be checked. Click ‘Next’ to
proceed.
Figure 22.8: Deploy as a service
Shehzad Kazmi Page 145
146. Hyperion Planning - System 9 [Installation Guide]
9. Continue with the default values for EPM Architect Dimension Server details
• Dimension Server Details
• Dimension Server Name: ubl
• Port: 80
• Dimension Server Connection Details
• Maximum connections: 20
• Maximum idle connections: 10
• Max Wait Time: 60000
Figure 22.9: Dimension Server details
Shehzad Kazmi Page 146
147. Hyperion Planning - System 9 [Installation Guide]
10. Continue with the default values for EPM Architect Data Synchronizer Server details
• Data Synchronizer Server Details
• Data Synchronizer Server Name: ubl
• Port: 19101
• Data Synchronizer Server Connection Details
• Maximum connections: 20
• Maximum idle connections: 10
• Max Wait Time: 60000
Figure 22.10: Data Synchronization Server details
Shehzad Kazmi Page 147
148. Hyperion Planning - System 9 [Installation Guide]
11. Continue with the default value for EPM Architect Web Server details
• Port: 19091
Figure 22.11: Web Server details
Shehzad Kazmi Page 148
149. Hyperion Planning - System 9 [Installation Guide]
12. You can verify the configuration items on the summary screen. Click ‘Next’ to proceed.
Figure 22.12: Configuration summary
Shehzad Kazmi Page 149
150. Hyperion Planning - System 9 [Installation Guide]
13. Post configuration summary verifies if the configuration was successful. Click ‘Next’ to proceed.
Figure 22.13: Configuration completion summary
Shehzad Kazmi Page 150
151. Hyperion Planning - System 9 [Installation Guide]
14. Confirm if you wish to return to ‘Product Selection Panel’. Default selection is ‘No’. Select 'Yes' and click ‘Next’ to proceed.
Figure 22.14: Return to product selection panel
Shehzad Kazmi Page 151
152. Hyperion Planning - System 9 [Installation Guide]
23. Check Oracle Hyperion Enterprise Performance Management Architect Services in
Windows
Open the Windows Service console to verify that the following services are registered:
• Hyperion S9 EPM Architect Data Synchronization Server ATS5
• Hyperion S9 EPM Architect Web ATS5
Figure 23.1: Windows Services
Shehzad Kazmi Page 152
154. Hyperion Planning - System 9 [Installation Guide]
1. The wizard will now prompt you to select the products to configure. The products that aren’t configured yet have the warning icon
next to them. Click and select ‘Planning (C:HyperionPlanning)’ product. Select ‘Product Options’, 'Register with Shared Services',
‘Configure Database’ and ‘Deploy to Application Server’ items and click ‘Next’ to proceed.
Figure 24.1: Select products to configure
Shehzad Kazmi Page 154
156. Hyperion Planning - System 9 [Installation Guide]
3. Select the RDBMS. This guide assumes Oracle RDBMS. Select ‘Oracle’ and click ‘Next’ to proceed.
Figure 24.3: Select database
Shehzad Kazmi Page 156
157. Hyperion Planning - System 9 [Installation Guide]
4. Now fill in the database configuration details.
• SID: HPLN
• User Name: hplnuser
• Password: hplnuser
• Data Tablespace: <default>
• Index Tablespace: <default>
Figure 24.4: Database configuration details
Shehzad Kazmi Page 157
158. Hyperion Planning - System 9 [Installation Guide]
5. Select the application server and deployment type.
• Application Server: Apache Tomcat 5
• Deployment Type: Automatic
Figure 24.5: Select application server and deployment type
Shehzad Kazmi Page 158
159. Hyperion Planning - System 9 [Installation Guide]
6. Now select if you wish to deploy the application server as a Windows service. This option should already be checked. Click ‘Next’ to
proceed.
Figure 24.6: Deploy as a service
Shehzad Kazmi Page 159
160. Hyperion Planning - System 9 [Installation Guide]
7. Post configuration summary verifies if the configuration was successful. Click ‘Next’ to proceed.
Figure 24.7: Configuration completion summary
Shehzad Kazmi Page 160
161. Hyperion Planning - System 9 [Installation Guide]
8. Confirm if you wish to return to ‘Product Selection Panel’. Default selection is ‘No’. Select 'Yes' and click ‘Next’ to proceed.
Figure 24.8: Return to product selection panel
Shehzad Kazmi Page 161
163. Hyperion Planning - System 9 [Installation Guide]
1. The wizard will now prompt you to select the products to configure. The products that aren’t configured yet have the warning icon
next to them. Click and select ‘Planning (C:HyperionPlanning)’ product. Select ‘Product Instance Registration’ item and click ‘Next’
to proceed.
Figure 25.1: Select products to configure
Shehzad Kazmi Page 163
164. Hyperion Planning - System 9 [Installation Guide]
2. Keep the default selection of ‘Create Instance’. Click ‘Next’ to proceed.
Figure 25.2: Create Instance
Shehzad Kazmi Page 164
165. Hyperion Planning - System 9 [Installation Guide]
3. Fill in the Hyperion Planning Product Instance Registration details
• Instance Name: UBLInstance
• Web Tier Host Name: UBL
• Server Port: 8300
• Keep ‘SSL’ unchecked
• Check ‘Activate Instance’
Figure 25.3: Planning Instance details
Shehzad Kazmi Page 165
166. Hyperion Planning - System 9 [Installation Guide]
4. You can verify the configuration items on the summary screen. Click ‘Next’ to proceed.
Figure 25.4: Configuration summary
Shehzad Kazmi Page 166
167. Hyperion Planning - System 9 [Installation Guide]
5. Post configuration summary verifies if the configuration was successful. Click ‘Next’ to proceed.
Figure 25.5: Configuration completion summary
Shehzad Kazmi Page 167
168. Hyperion Planning - System 9 [Installation Guide]
6. Confirm if you wish to return to ‘Product Selection Panel’. Default selection is ‘No’. Select 'Yes' and click ‘Next’ to proceed.
Figure 25.6: Return to product selection panel
Shehzad Kazmi Page 168
169. Hyperion Planning - System 9 [Installation Guide]
26. Creating Data Source
Shehzad Kazmi Page 169
170. Hyperion Planning - System 9 [Installation Guide]
1. The wizard will now prompt you to select the products to configure. The products that aren’t configured yet have the warning icon
next to them. Click and select ‘Planning (C:HyperionPlanning)’ product. Select ‘Data Source Configuration’ item and click ‘Next’ to
proceed.
Figure 26.1: Select products to configure
Shehzad Kazmi Page 170
171. Hyperion Planning - System 9 [Installation Guide]
2. Keep the default selection of ‘Create Datasource’. Click ‘Next’ to proceed.
Figure 26.2: Create Datasource
Shehzad Kazmi Page 171
172. Hyperion Planning - System 9 [Installation Guide]
3. Fill in the Datasource details
• Datasource Name: HDS
• Datasource Description: Hyperion Data Source
Figure 26.3: Datasource name
Shehzad Kazmi Page 172
174. Hyperion Planning - System 9 [Installation Guide]
5. Select the RDBMS. This guide assumes Oracle RDBMS. Select ‘Oracle’ and click ‘Next’ to proceed.
Figure 26.5: Select database
Shehzad Kazmi Page 174
175. Hyperion Planning - System 9 [Installation Guide]
6. Now fill in the database configuration details.
• Database Details
• Server: ubl
• Port: 1521
• Database Details
• Product: PLANNING
• Database: HDS
• User: hdsuser
• Password: hdsuser
Figure 26.6: Database configuration details
Shehzad Kazmi Page 175
176. Hyperion Planning - System 9 [Installation Guide]
7. Fill in the Essbase Server configuration details.
• Server: ubl
• User: hypuser
• Password: hypuser
n
Figure 26.7: Essbase Server details
Shehzad Kazmi Page 176
177. Hyperion Planning - System 9 [Installation Guide]
8. You can verify the configuration items on the summary screen. Click ‘Next’ to proceed.
Figure 26.8: Configuration summary
Shehzad Kazmi Page 177
178. Hyperion Planning - System 9 [Installation Guide]
9. Post configuration summary verifies if the configuration was successful. Click ‘Next’ to proceed.
Figure 26.9: Configuration completion summary
Shehzad Kazmi Page 178
179. Hyperion Planning - System 9 [Installation Guide]
10. Confirm if you wish to return to ‘Product Selection Panel’. Default selection is ‘No’. Click ‘Next’ to proceed.
Figure 26.10: Return to product selection panel
Shehzad Kazmi Page 179
180. Hyperion Planning - System 9 [Installation Guide]
11. The wizard confirms that all configuration tasks have completed. Click ‘Finish’ to exit.
Figure 26.11: Configuration complete
Shehzad Kazmi Page 180
181. Hyperion Planning - System 9 [Installation Guide]
27. Check Planning Services in Windows
Open the Windows Service console to verify that the following services are registered:
• Hyperion S9 Planning
Figure 27.1: Windows Services
Shehzad Kazmi Page 181
182. Hyperion Planning - System 9 [Installation Guide]
28. Reporting & Analysis Installation
Reporting and Analysis consists of several components:
• Reporting and Analysis Services
• Reporting and Analysis UIServices
• Reporting and Analysis Client
These components need to be installed and configured in a specific sequence. The components are installed and configured in the following
sequence:
1. Install Reporting and Analysis Services
2. Install Reporting and Analysis UIServices
3. Install Reporting and Analysis Client
4. Configure Reporting and Analysis
29. Reporting & Analysis Services Installation
1. Navigate to the installation files for Hyperion Reporting and Analysis Services.
2. Launch setup.exe.
Shehzad Kazmi Page 182
183. Hyperion Planning - System 9 [Installation Guide]
3. The wizard prompts to select a language to be used for the wizard. The default selection is ‘English’. Click on ‘OK’ to proceed.
Figure 29.1: Select installation wizard language
Shehzad Kazmi Page 183
184. Hyperion Planning - System 9 [Installation Guide]
4. This will now take you to the Welcome Screen. Click on ‘Next’ to proceed.
Figure 29.2: Hyperion Reporting and Analysis Services welcome screen
Shehzad Kazmi Page 184
185. Hyperion Planning - System 9 [Installation Guide]
5. The wizard will now prompt you to select a location. Continue with the default location ‘United States’ and click ‘Next’ to proceed.
Figure 29.3: Select location
Shehzad Kazmi Page 185
186. Hyperion Planning - System 9 [Installation Guide]
6. Read through the license agreement if you want to. Or you can select ‘I Agree’ and click on ‘Next’ to proceed.
Figure 29.4: License agreement
Shehzad Kazmi Page 186
187. Hyperion Planning - System 9 [Installation Guide]
7. The path will already be defined for Hyperion Home. All components will be installed to this path.
Figure 29.5: Hyperion Home directory
Shehzad Kazmi Page 187
188. Hyperion Planning - System 9 [Installation Guide]
8. Now select the directory for the Hyperion Reporting and Analysis Services component. You can use the predefined path and just
click on ‘Next’ to proceed.
Figure 29.6: Select Hyperion Reporting and Analysis Services directory
Shehzad Kazmi Page 188
189. Hyperion Planning - System 9 [Installation Guide]
9. Choose the components to Install. For simplicity I’d suggest that you keep the default selection of ‘Typical’ install method and click
on ‘Next’ to proceed.
Figure 29.7: Select setup type
Shehzad Kazmi Page 189
