The document outlines a presentation on Microsoft Business Intelligence offerings, emphasizing Power BI's capabilities and integrations with various data sources like SQL Server and Oracle. It discusses the advantages of Microsoft's BI tools, including robust functionality, low entry costs, and seamless vendor support. Additionally, it includes information on report creation, data visualization, and upcoming presentations on related topics.

1. INSIGHTS Presentation Series
Jeremy “BI” Frye – BI Product Team Manager
Chris Foot, VP Technologies and Strategies
Microsoft Business Intelligence Offerings
Power BI, SSIS/SSAS/SSRS
BI
POWER BI
Webinar
Video Inside

2. www. .com
Who We Are
The Largest Pure Play Provider of
Managed Data Infrastructure Services
20
YEARS OF
SERVICE DELIVERY
EXPERIENCE
Database Platforms
SQL Server
Oracle
PostgreSQL*
DB2
MongoDB*
MySQL*
Operating Systems
Unix/Linux*Windows
Edge Technologies
SQL Server BI
Oracle EBS
SharePoint
Exchange
Environment
450+ Customers
10,000 Servers
200+ DBAs
Fortune 100s
Startups
All Verticals
Cloud Systems
Amazon AWS/RDS
Oracle Cloud DB
DBPaaS
Msoft Azure
IaaS
Hybrid Cloud
* All distributions

3. www. .com
Microsoft Business Intelligence
Analysis Services
Reporting Services
Integration Services

4. www. .com

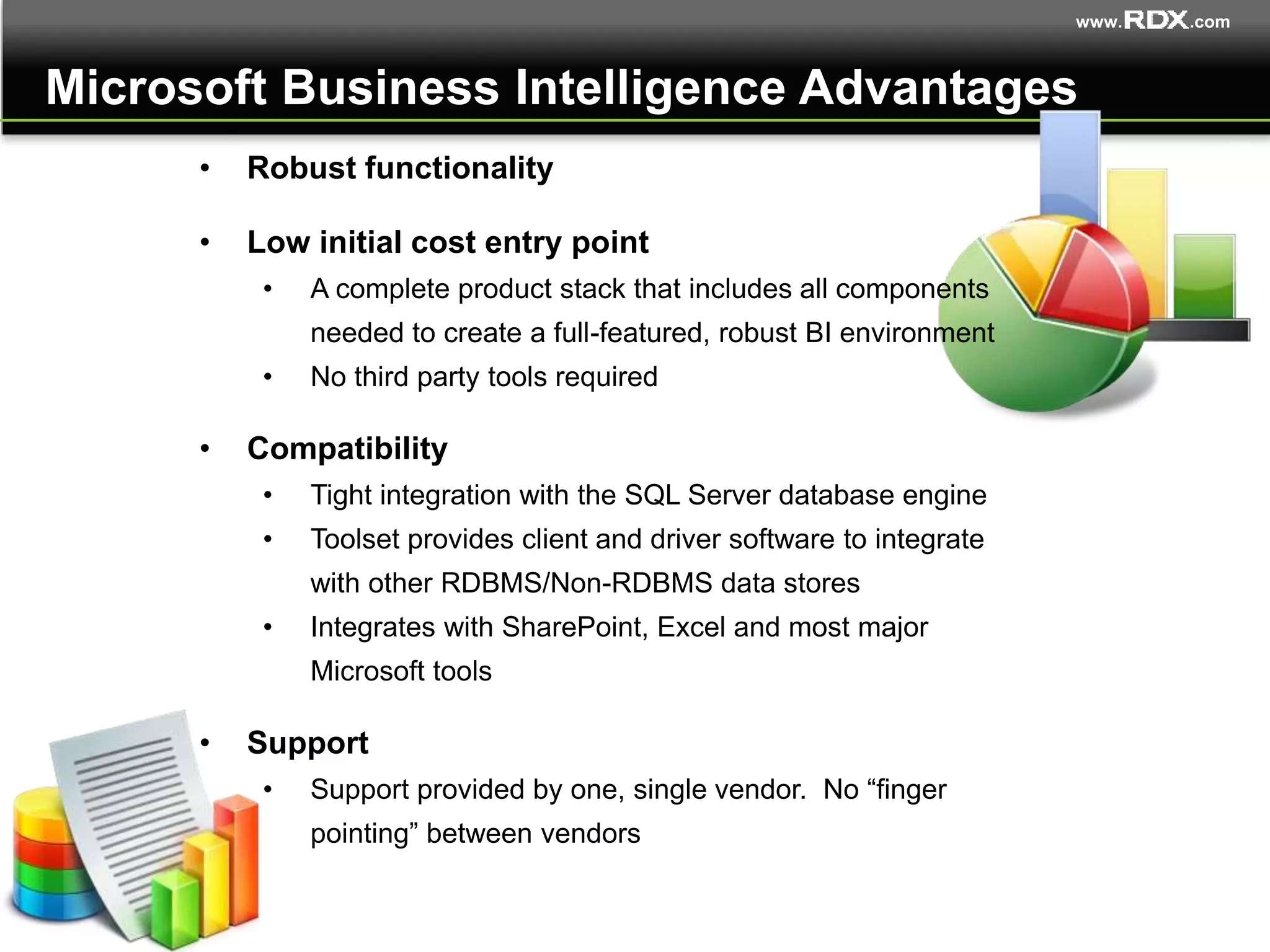

• Robust functionality
• Low initial cost entry point
• A complete product stack that includes all components
needed to create a full-featured, robust BI environment
• No third party tools required
• Compatibility
• Tight integration with the SQL Server database engine
• Toolset provides client and driver software to integrate
with other RDBMS/Non-RDBMS data stores
• Integrates with SharePoint, Excel and most major
Microsoft tools
• Support
• Support provided by one, single vendor. No “finger
pointing” between vendors
Microsoft Business Intelligence Advantages

5. www. .com
SSIS – SQL Server Integration Services
• Extraction - Captures data from disparate data sources
• Transformation - Translates different data formats into a common format
• Loading – Loads data into SQL Server for additional processing
INTEGRATION
SERVICES
OTHER
DATABASE
SOURCES
CUBE
ANALYSIS
SERVICES
• Integration Wizards captures data
from any heterogeneous data source
• Oracle, Teradata, DB2, ODBC, text
files
• Change Data Capture (high volume)
• Automated Workflows
• Schedule integration jobs
• Schedule transformation jobs
• Provides Auto-Transformations
• Data Conversions
• Union-All
• Sorts
• Aggregation
• Row Sampling
• Pivot
• Data Mining Model Training
• Derived Columns
• Lookups
• Merge joins
• ……. (and many more)
Operational
Data
Sources

6. www. .com

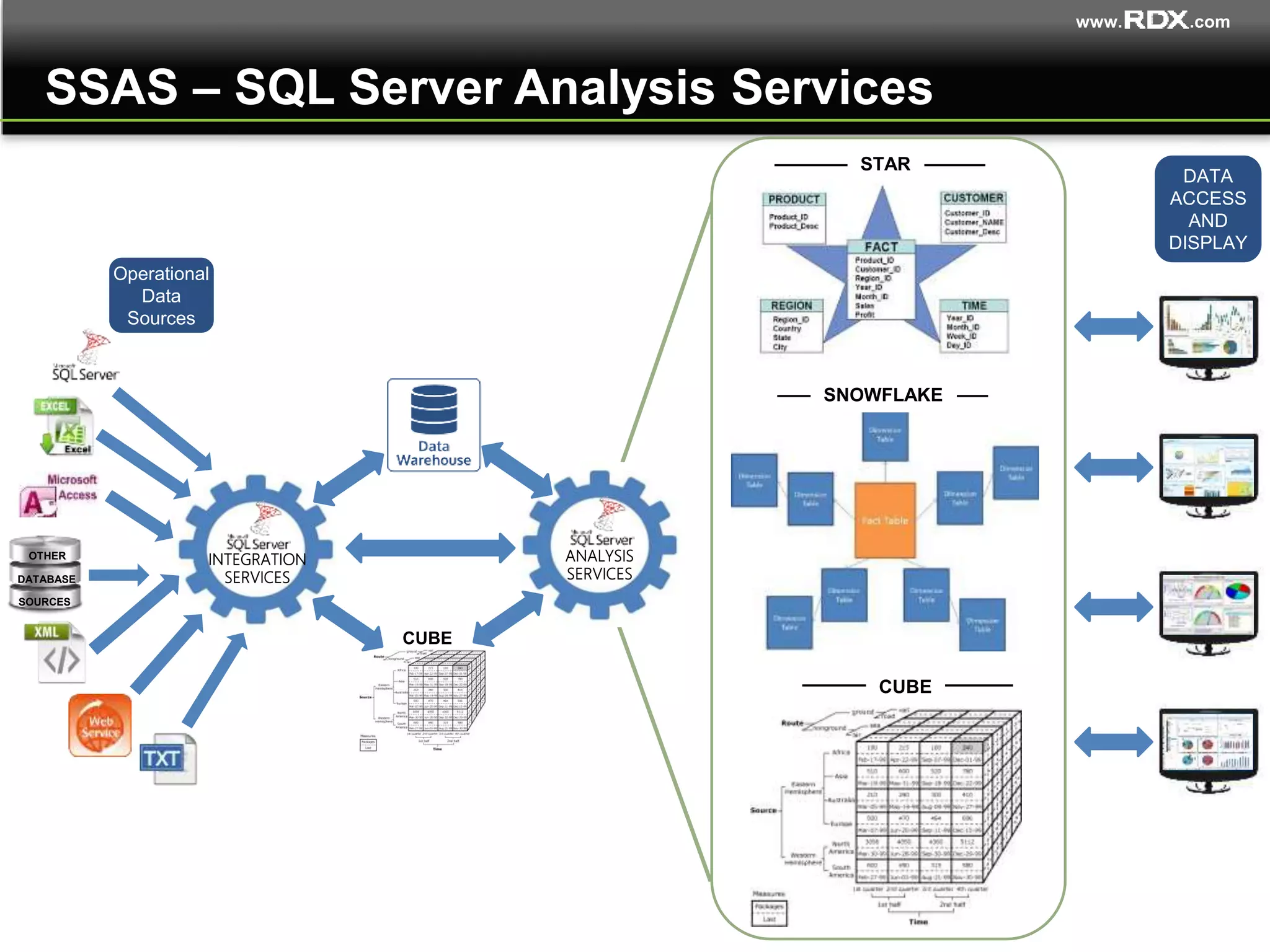

SSAS – SQL Server Analysis Services
INTEGRATION
SERVICES
OTHER
DATABASE
SOURCES
CUBE
ANALYSIS
SERVICES
Operational
Data
Sources
STAR
SNOWFLAKE
CUBE
DATA
ACCESS
AND
DISPLAY

7. www. .com
SSRS – SQL Server Reporting Services

8. www. .com
Design
Mobile Publisher
Visual Studio
Report Builder
Data Sources

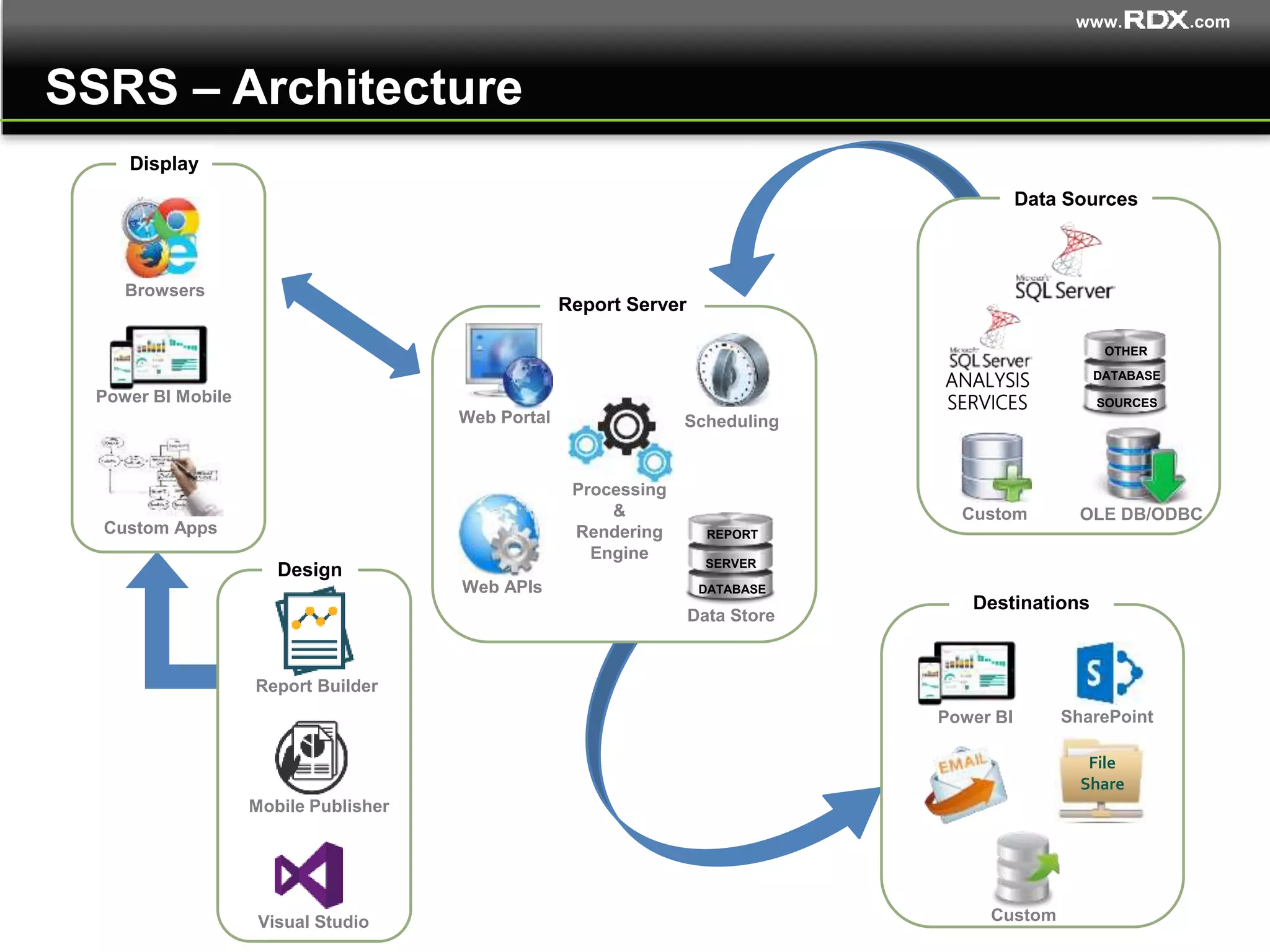

SSRS – Architecture
Display
Browsers
Power BI Mobile
Custom Apps
Report Server
Web Portal
Web APIs
Processing
&
Rendering
Engine
Scheduling
REPORT
SERVER
DATABASE
Data Store
OTHER
DATABASE
SOURCES
ANALYSIS
SERVICES
OLE DB/ODBCCustom
Destinations
Power BI SharePoint
File
Share
Custom

9. www. .com

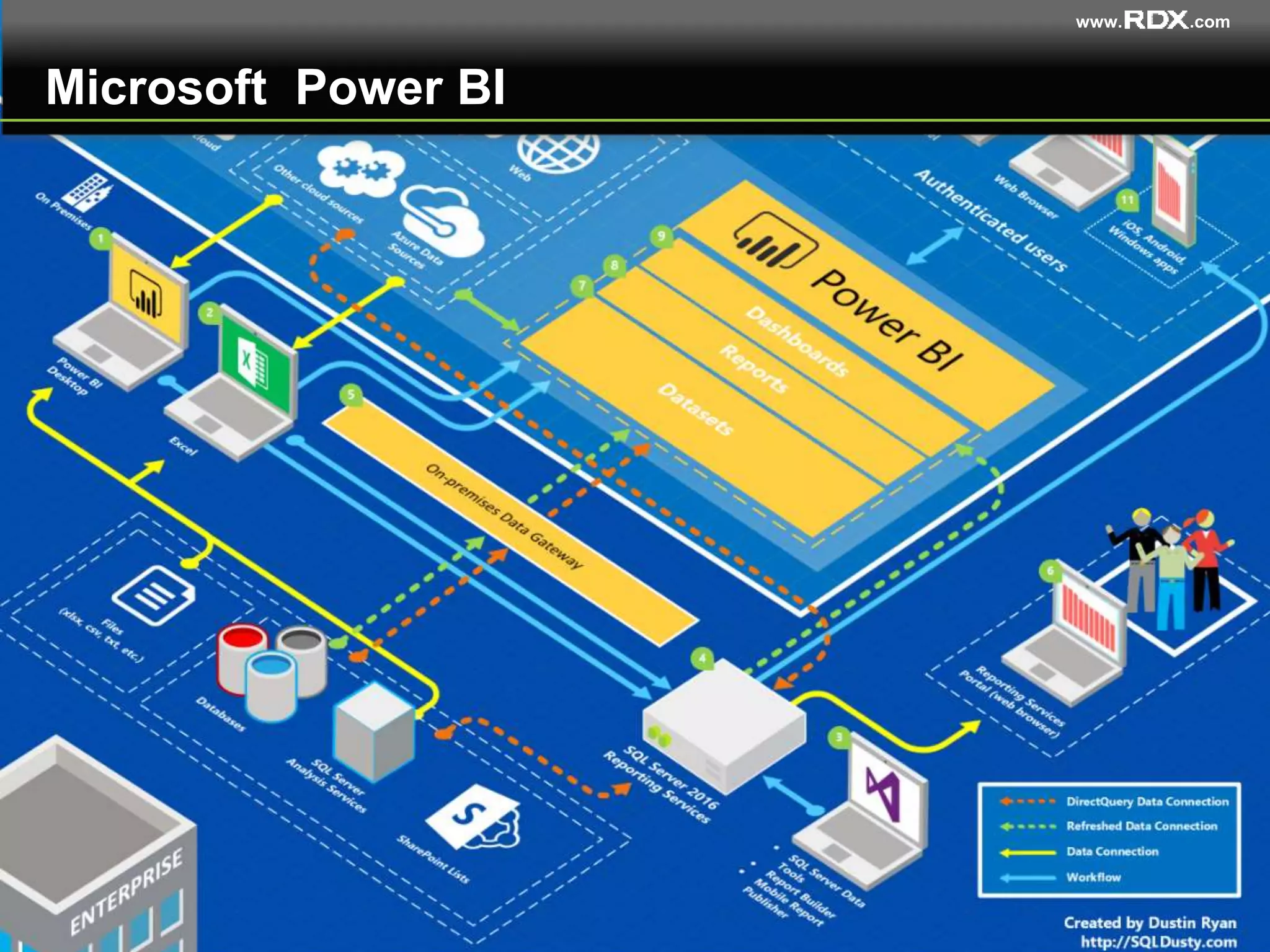

Microsoft Power BI

10. www. .com
Power BI
Service
Power BI Architecture
Other Cloud Systems
Dashboards
Reports
Datasets
OTHER
DATABASE
SOURCES
ANALYSIS
SERVICES
Files
Power BI
Gateway Provides access to
on-premises data
1 GIG LIMIT
Power BI
Content Packs
Jumpstart BI process
Publish visualizations
and data to Power BI
Cloud
Power BI
Desktop
Power BI
Mobile
Power BI
Desktop
Power BI
Web Dashboards
Power BI
IPAD

11. www. .com

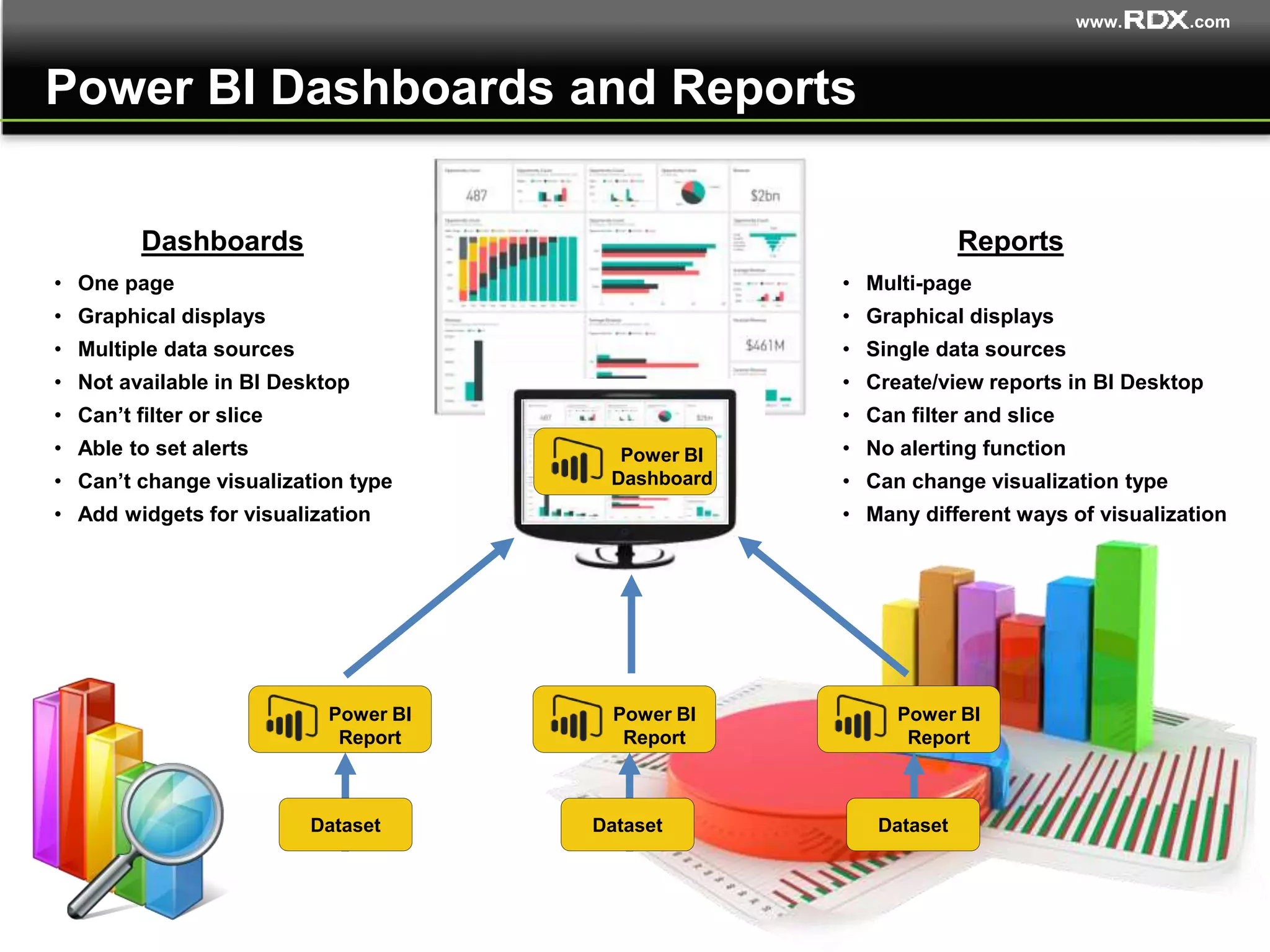

Power BI Dashboards and Reports
Power BI
Report
Dataset
Power BI
Report
Dataset
Power BI
Report
Dataset
• One page
• Graphical displays
• Multiple data sources
• Not available in BI Desktop
• Can’t filter or slice
• Able to set alerts
• Can’t change visualization type
• Add widgets for visualization
Dashboards
• Multi-page
• Graphical displays
• Single data sources
• Create/view reports in BI Desktop
• Can filter and slice
• No alerting function
• Can change visualization type
• Many different ways of visualization
Reports
Power BI
Dashboard

12. www. .com

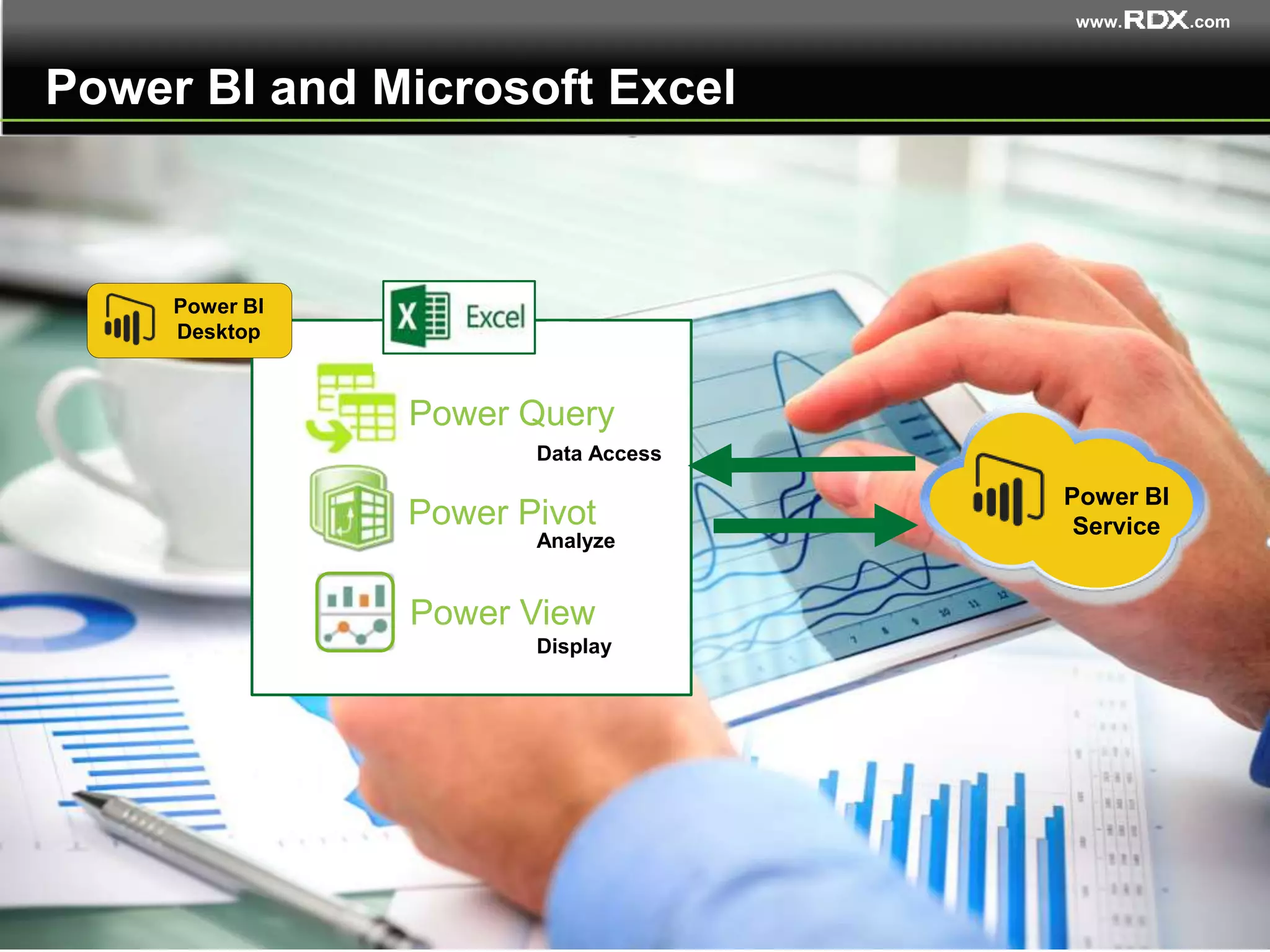

Power BI and Microsoft Excel
Power Pivot
Power Query
Power View
Data Access
Analyze
Display
Power BI
Desktop
Power BI
Service

13. www. .com

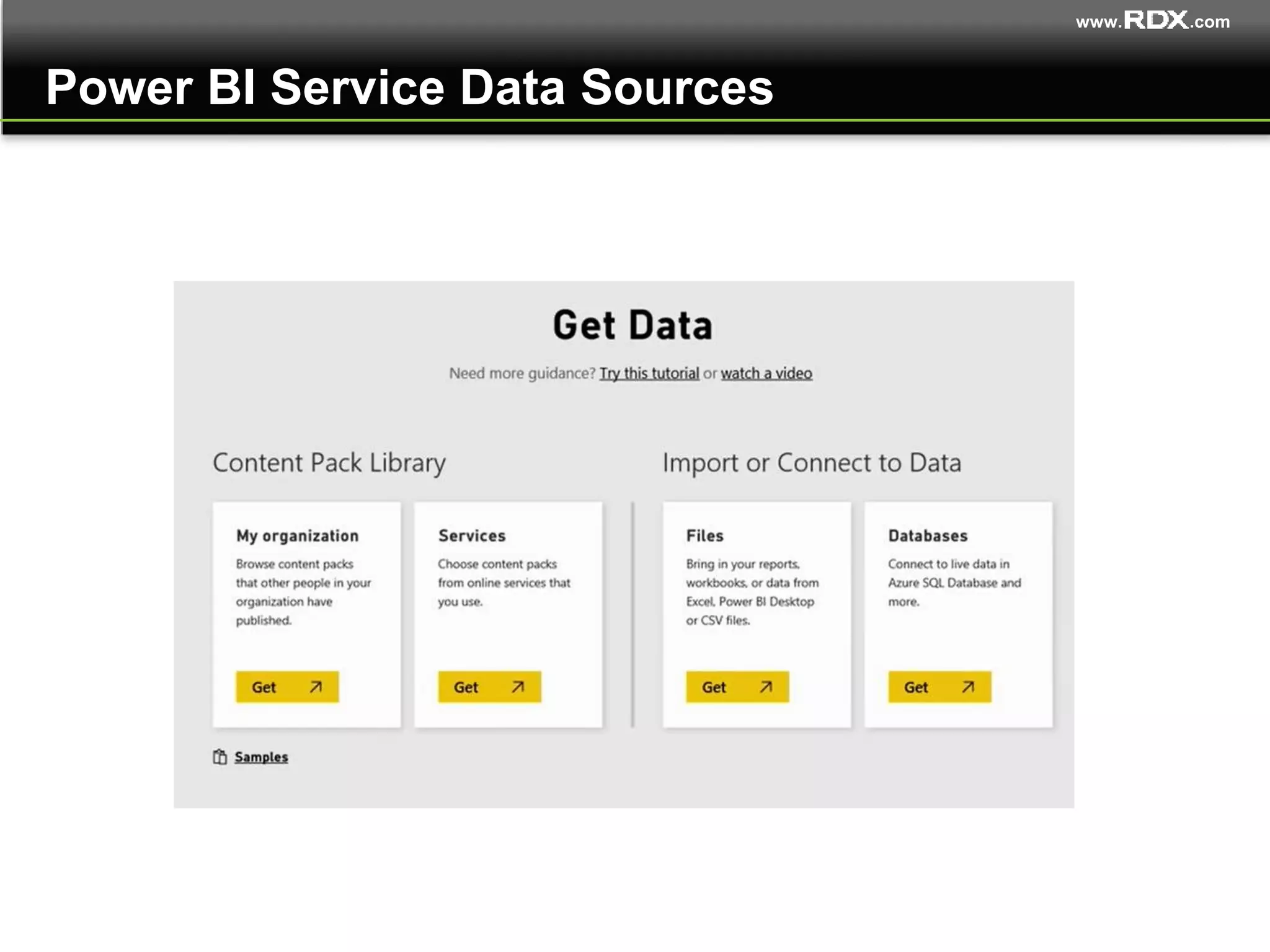

Power BI Service Data Sources

14. www. .com

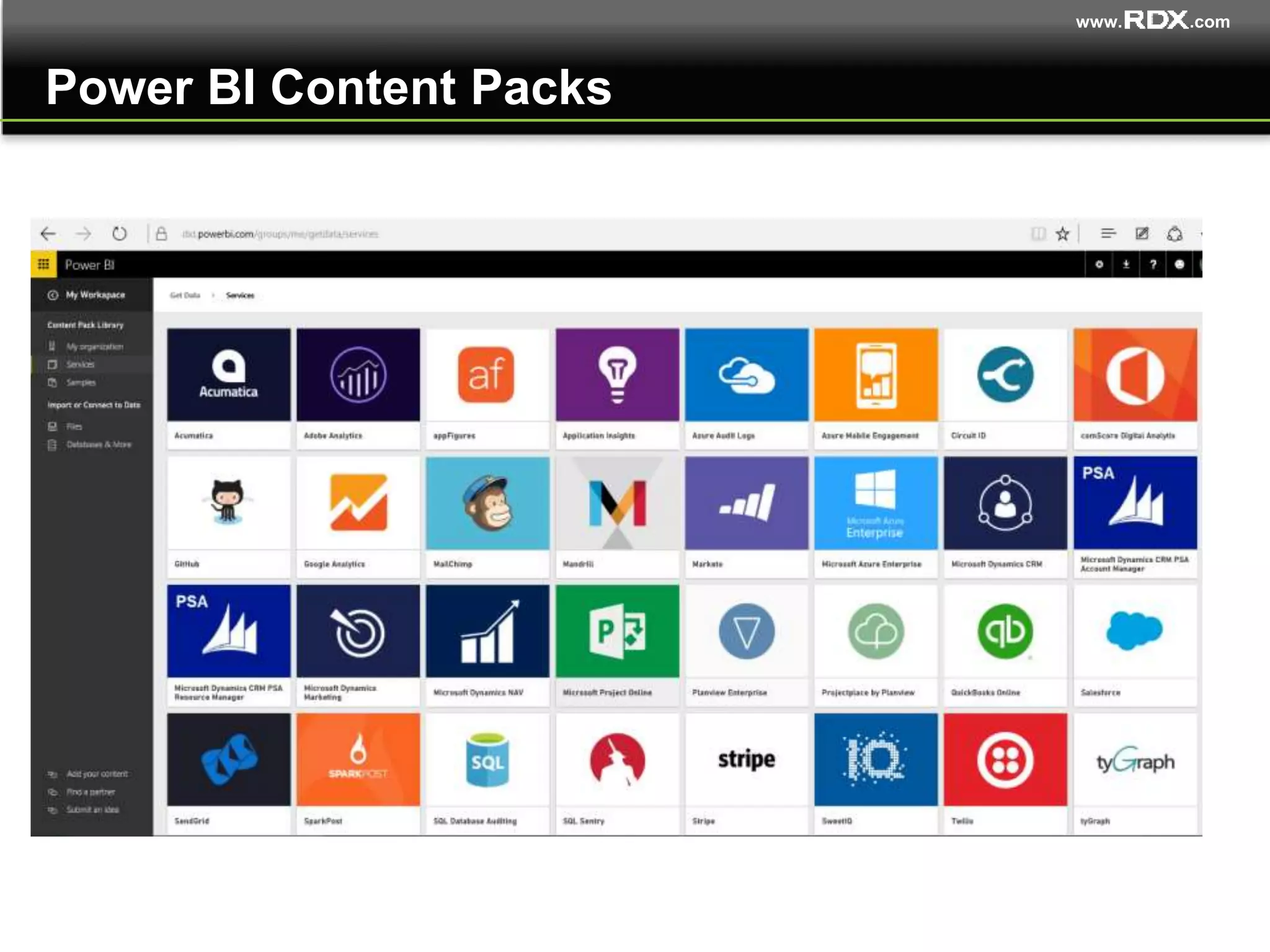

Power BI Content Packs

15. www. .com

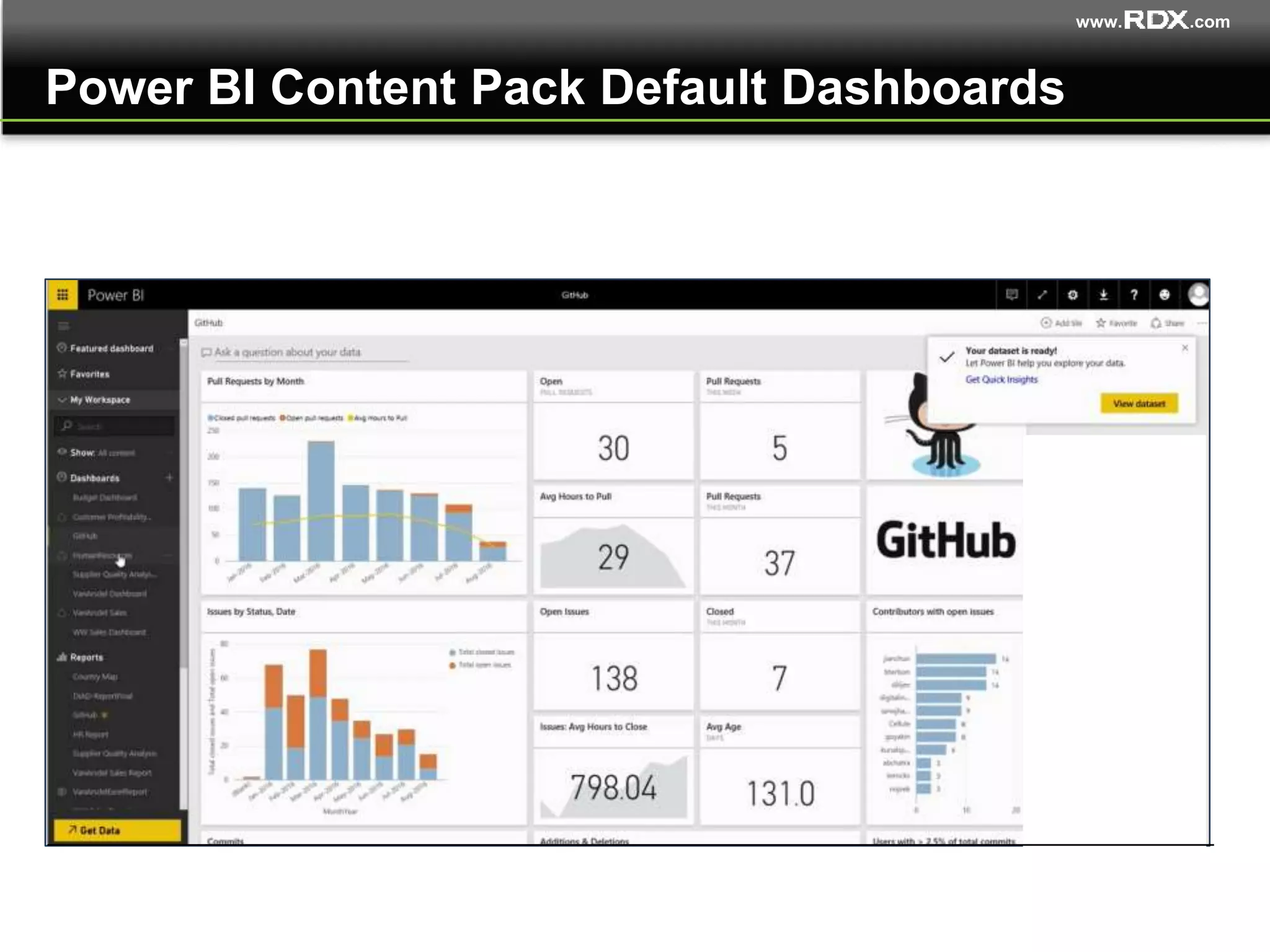

Power BI Content Pack Default Dashboards

16. www. .com

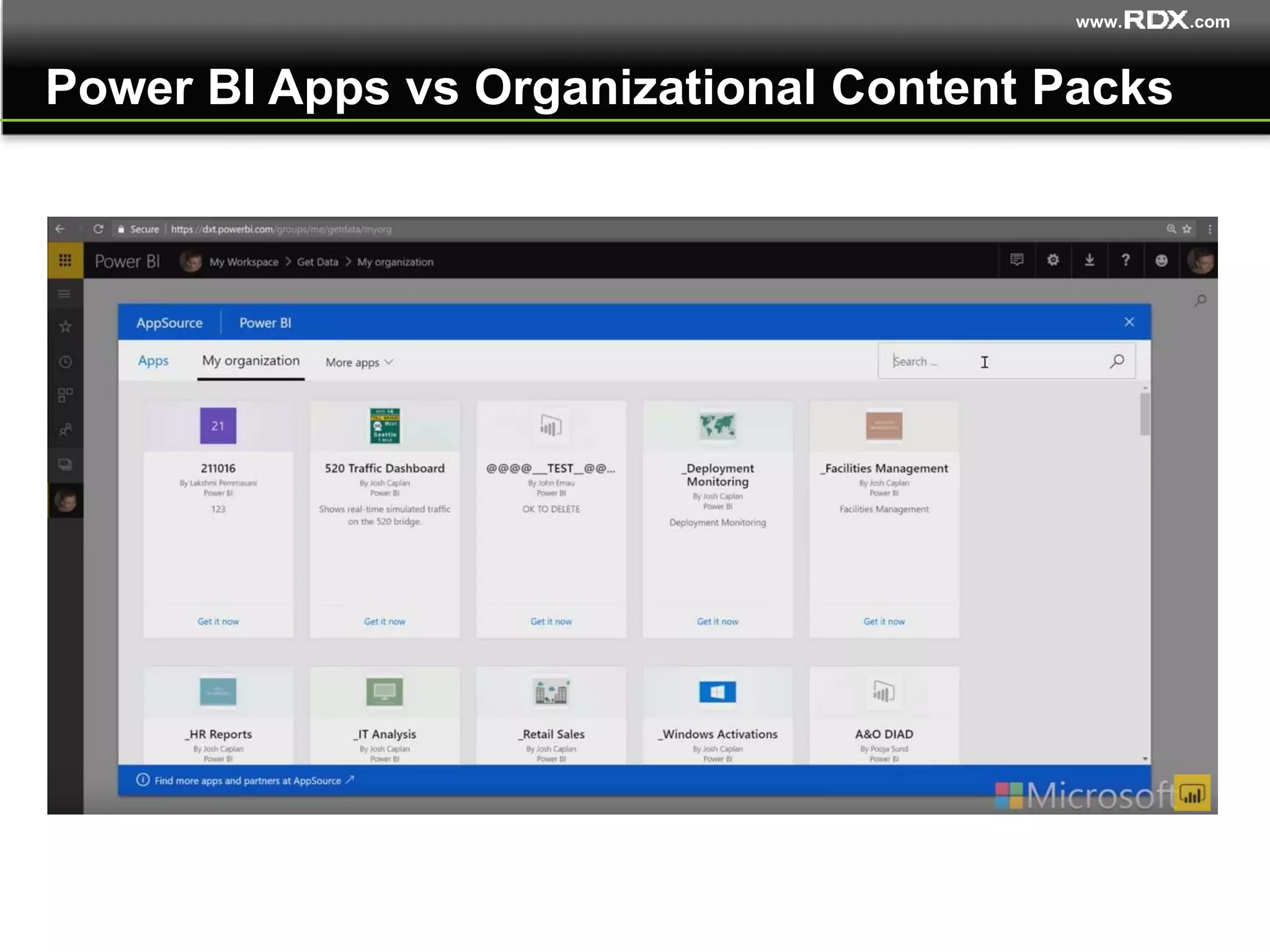

Power BI Apps vs Organizational Content Packs

17. www. .com
Power BI Desktop Data Sources

18. www. .com

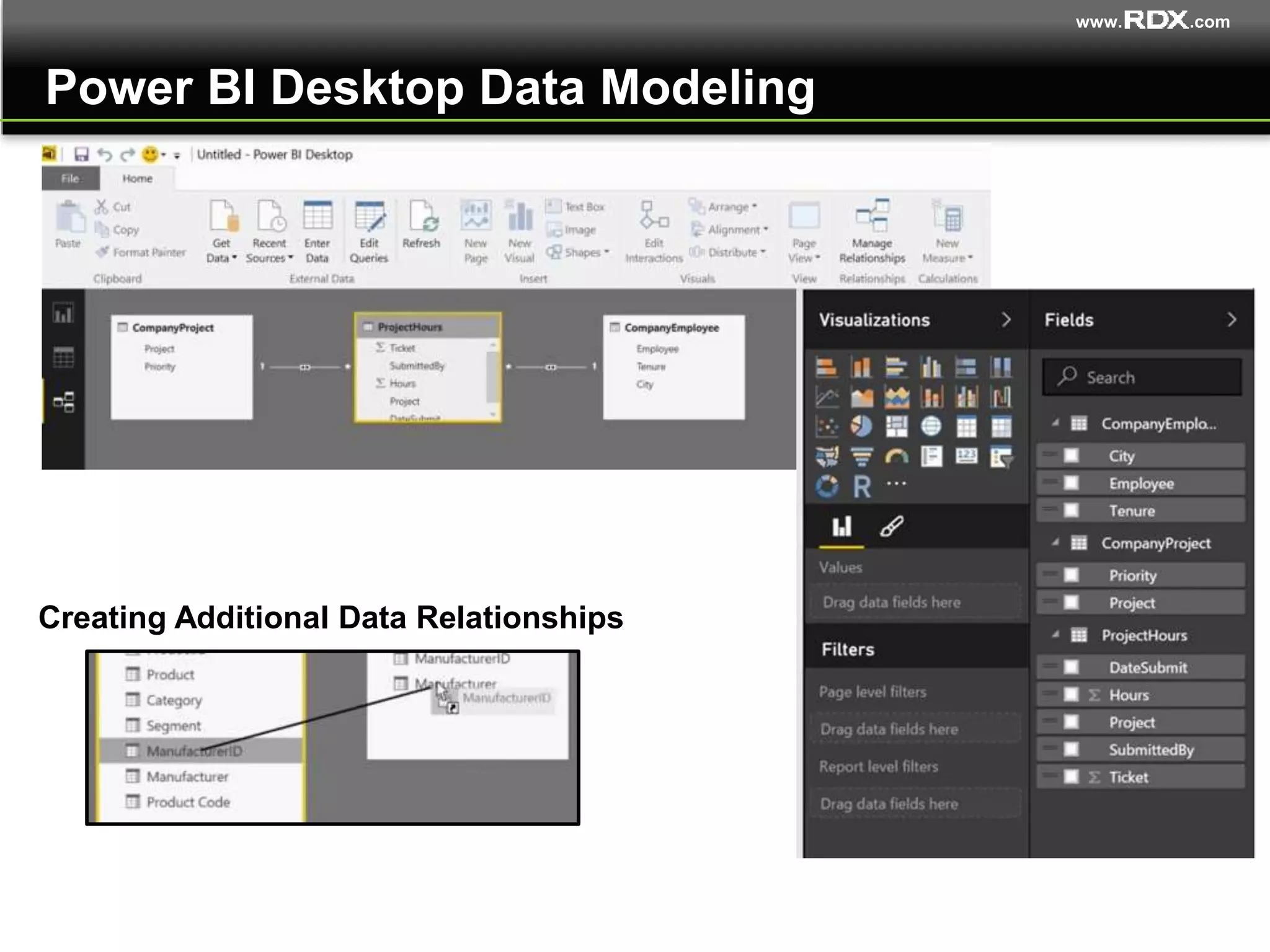

Power BI Desktop Data Modeling
Creating Additional Data Relationships

19. www. .com
Power BI Desktop Data Manipulation

20. www. .com

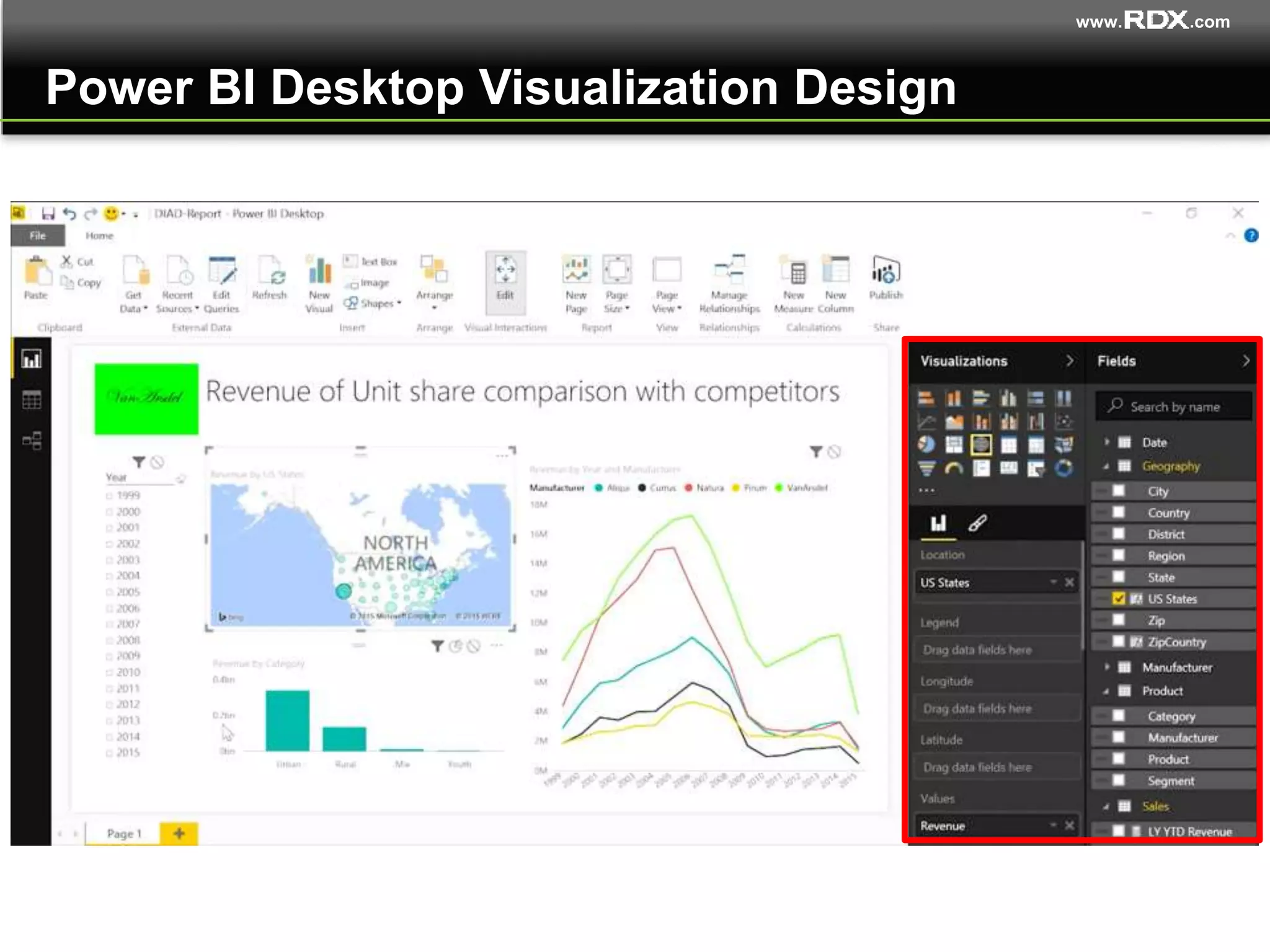

Power BI Desktop Visualization Design

21. www. .com

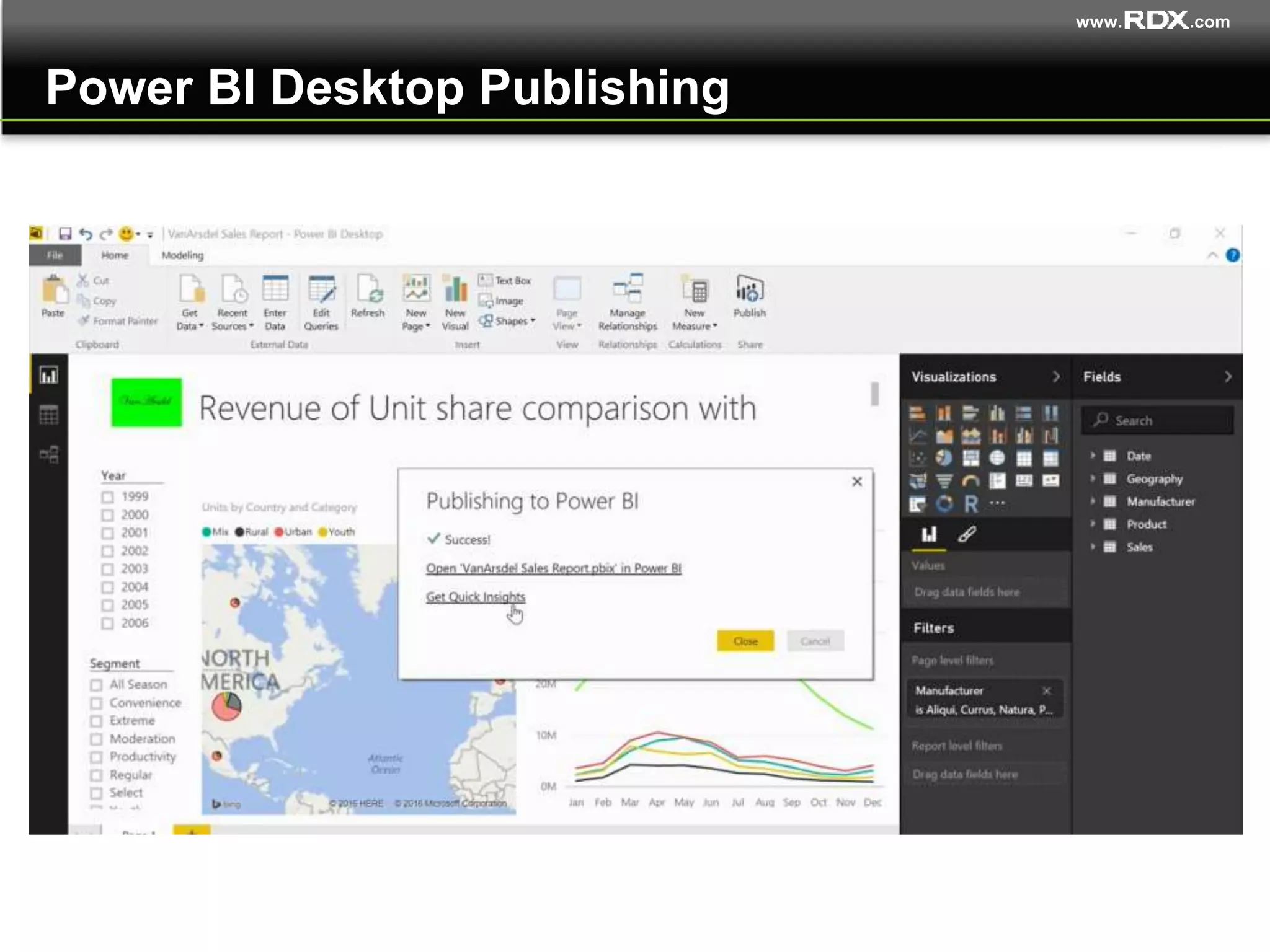

Power BI Desktop Publishing

22. www. .com

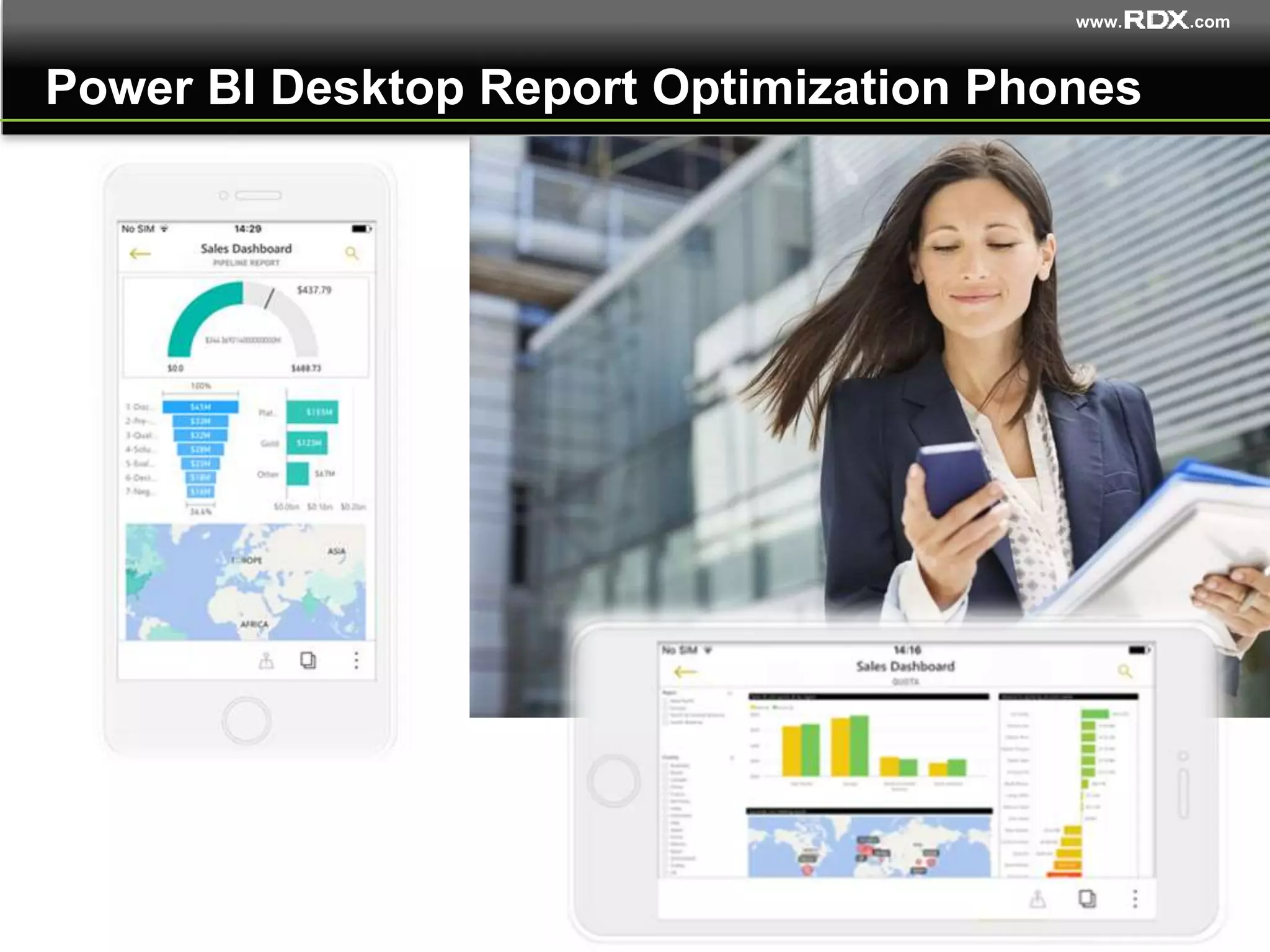

Power BI Desktop Report Optimization Phones

23. www. .com

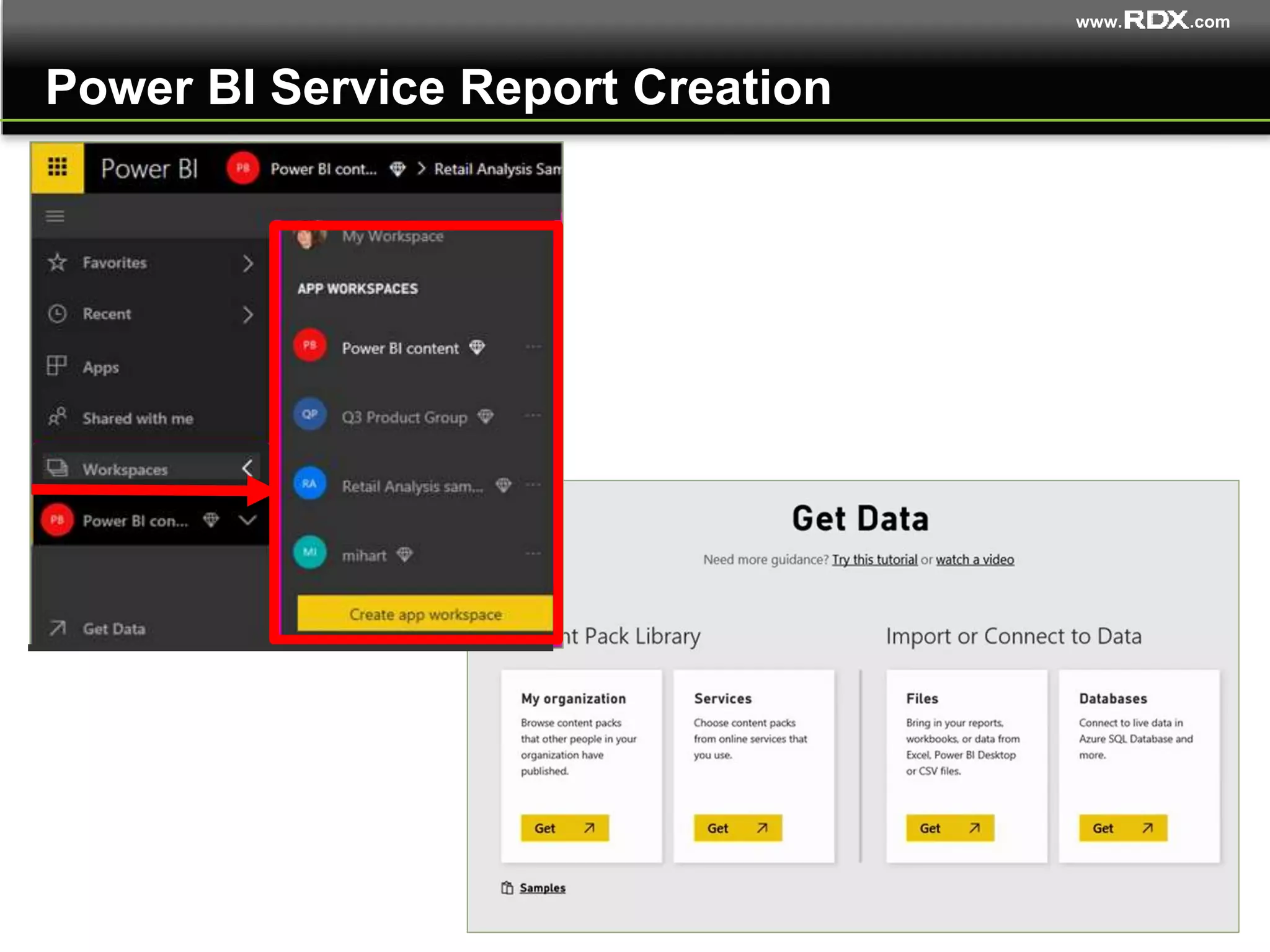

Power BI Service Report Creation

24. www. .com

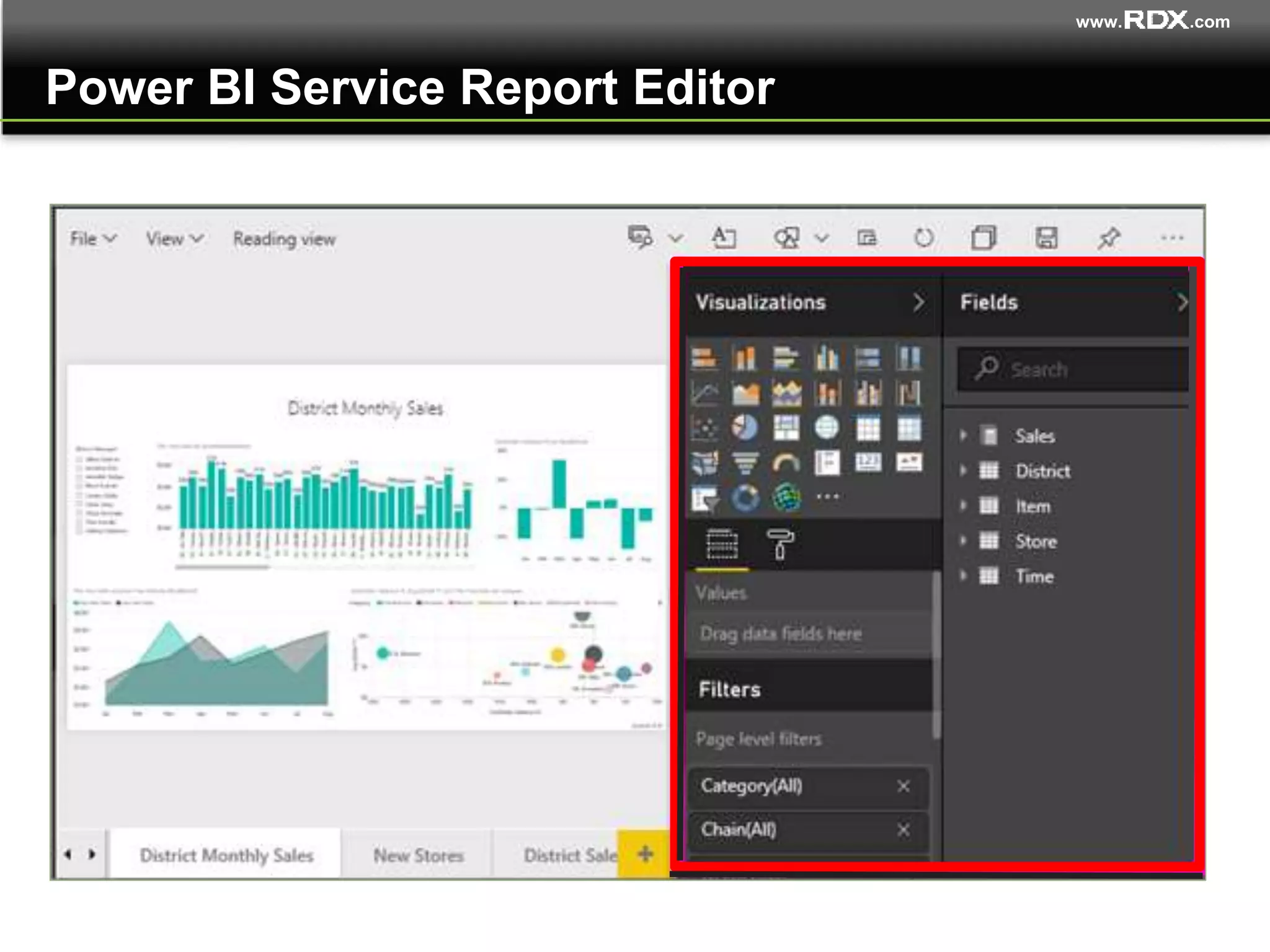

Power BI Service Report Editor

25. www. .com

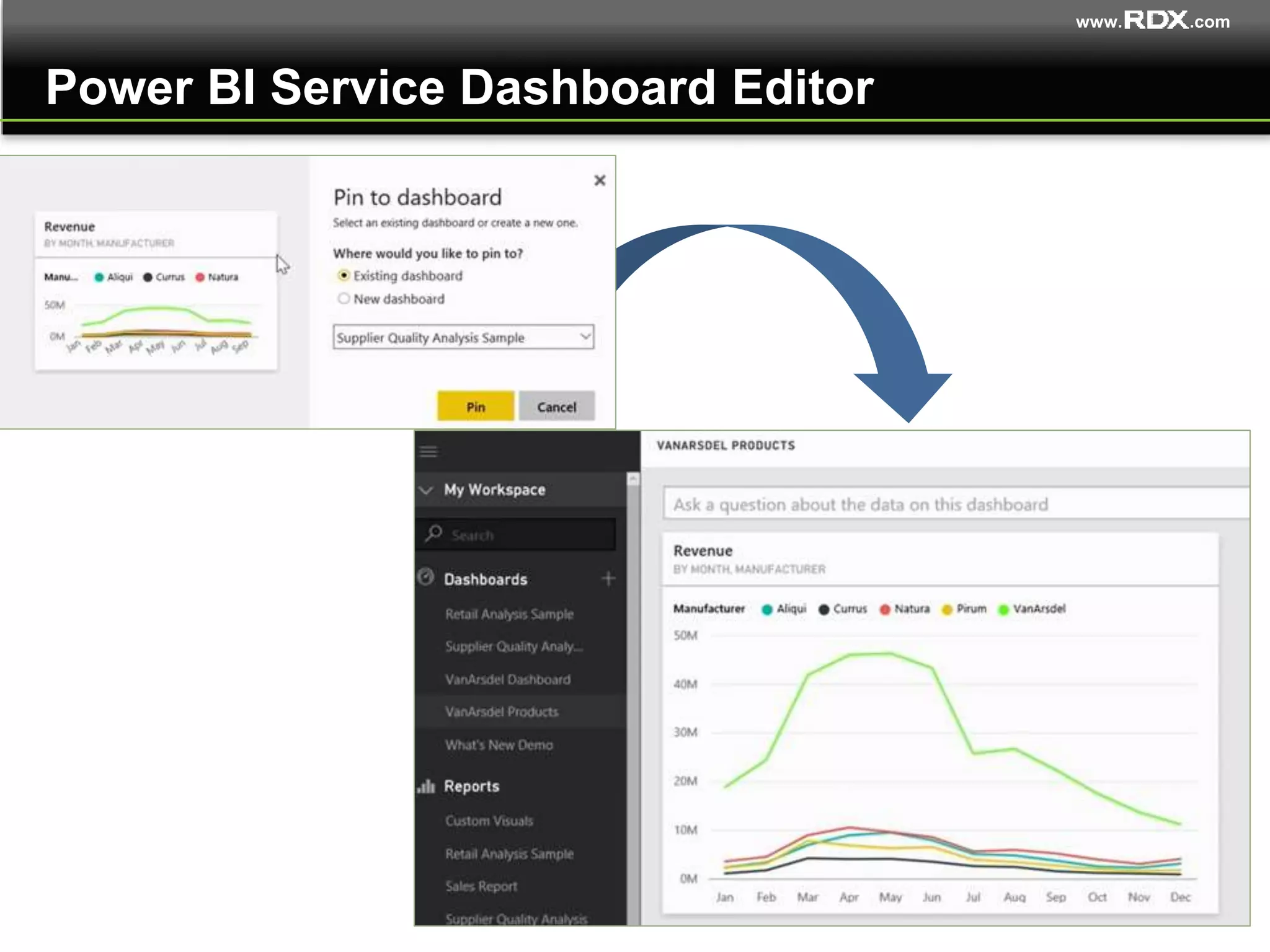

Power BI Service Dashboard Editor

26. www. .com

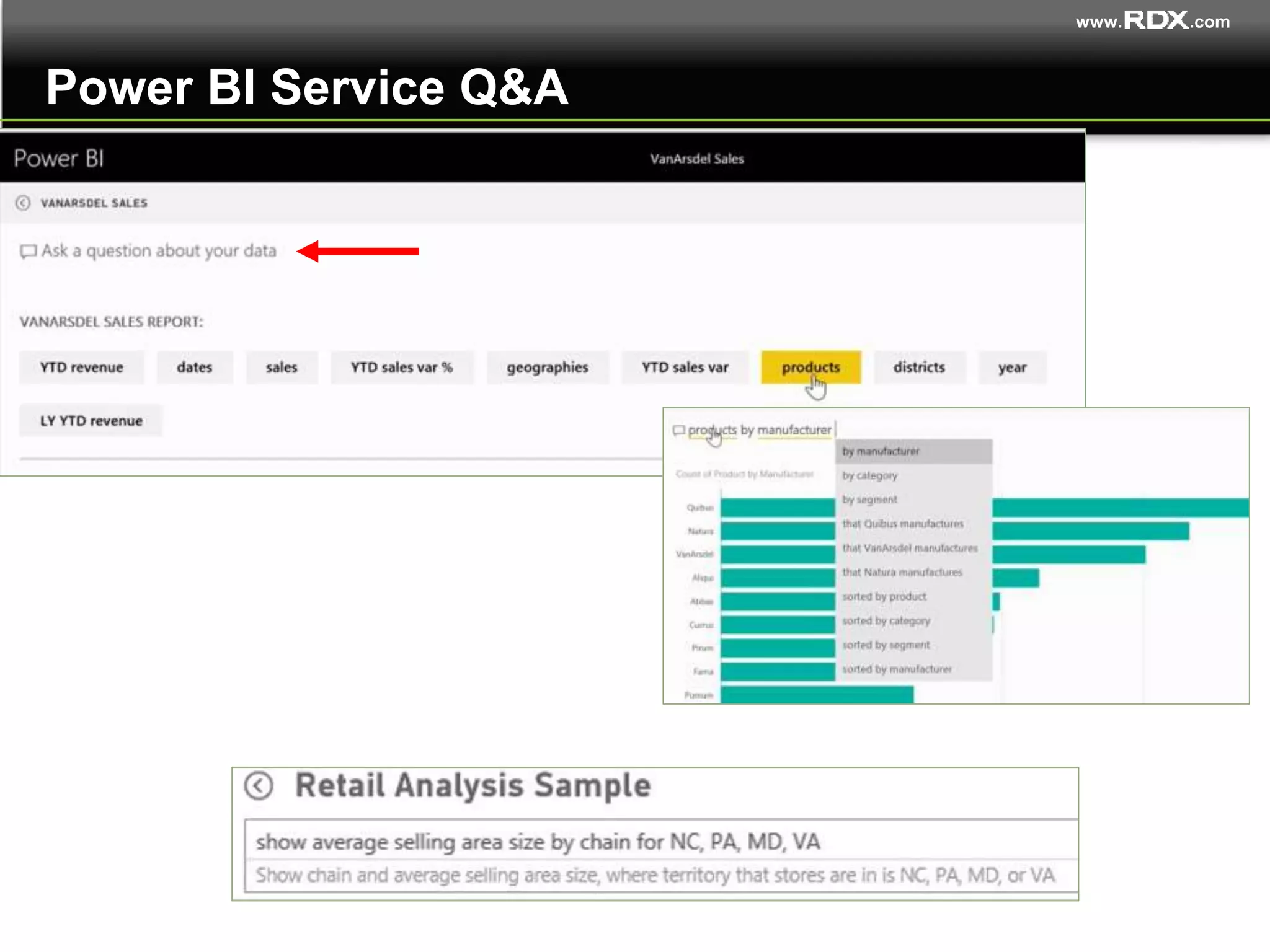

Power BI Service Q&A

27. www. .com

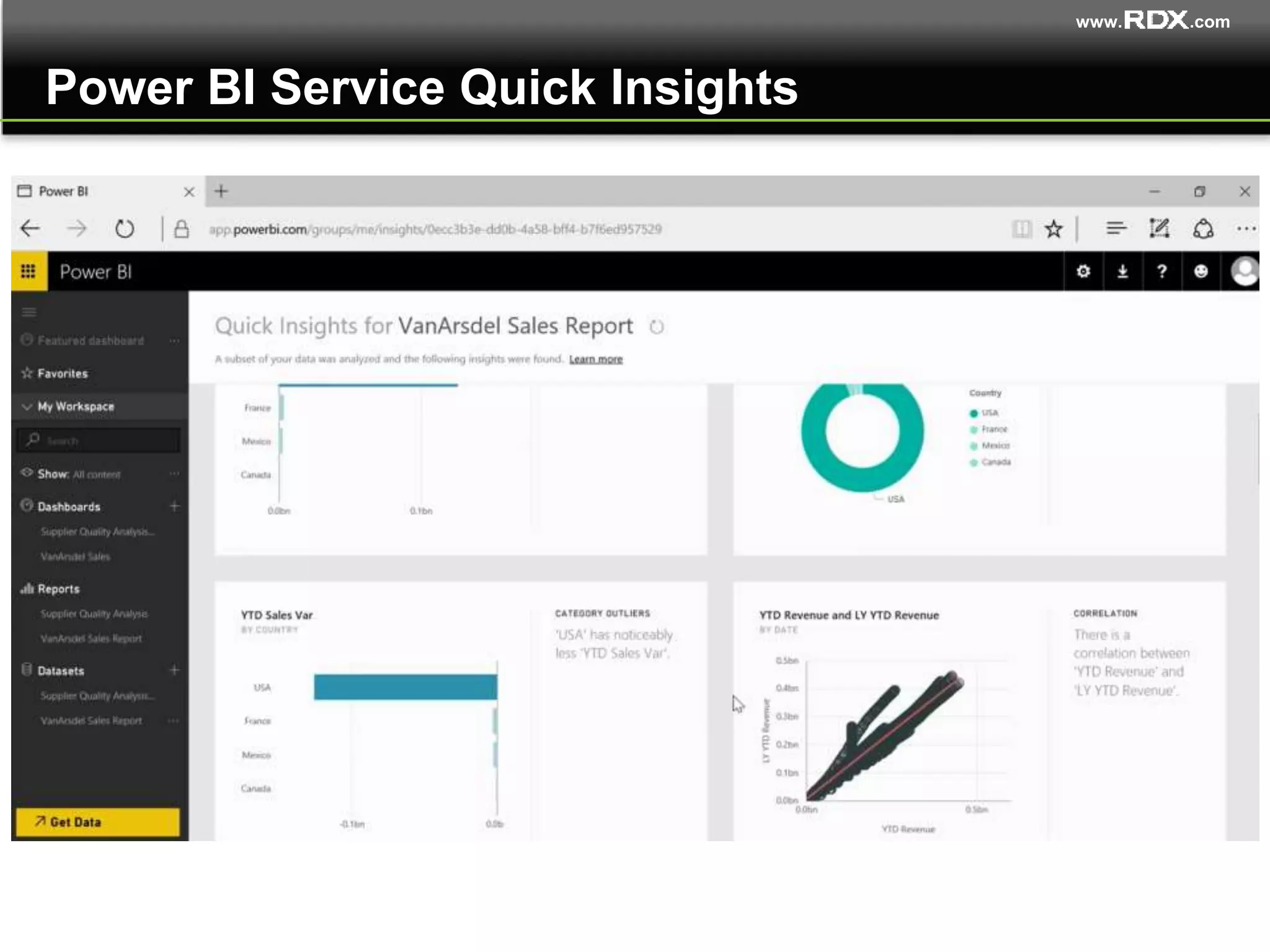

Power BI Service Quick Insights

28. www. .com

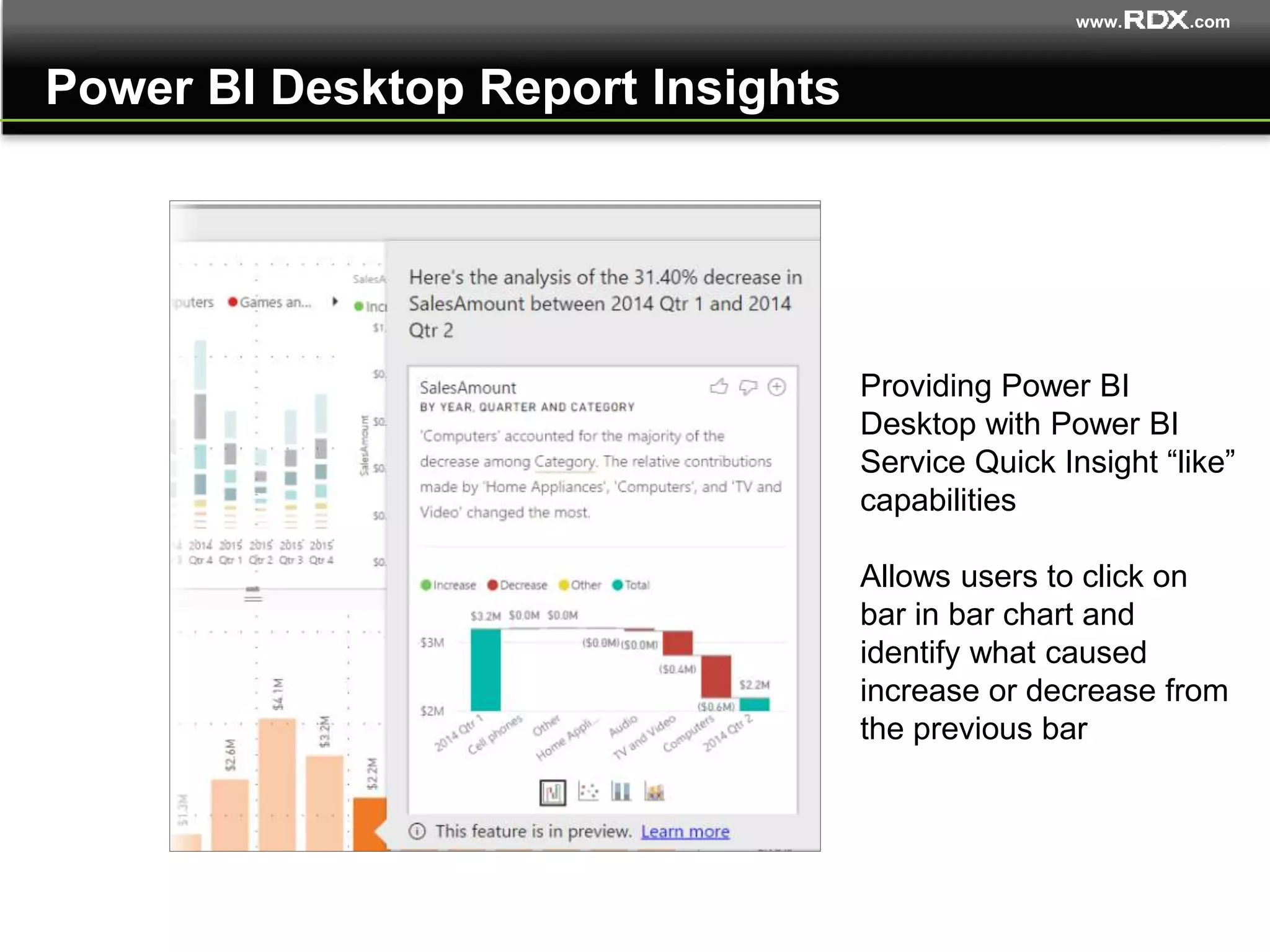

Power BI Desktop Report Insights
Providing Power BI
Desktop with Power BI
Service Quick Insight “like”
capabilities
Allows users to click on
bar in bar chart and
identify what caused
increase or decrease from
the previous bar

29. www. .com

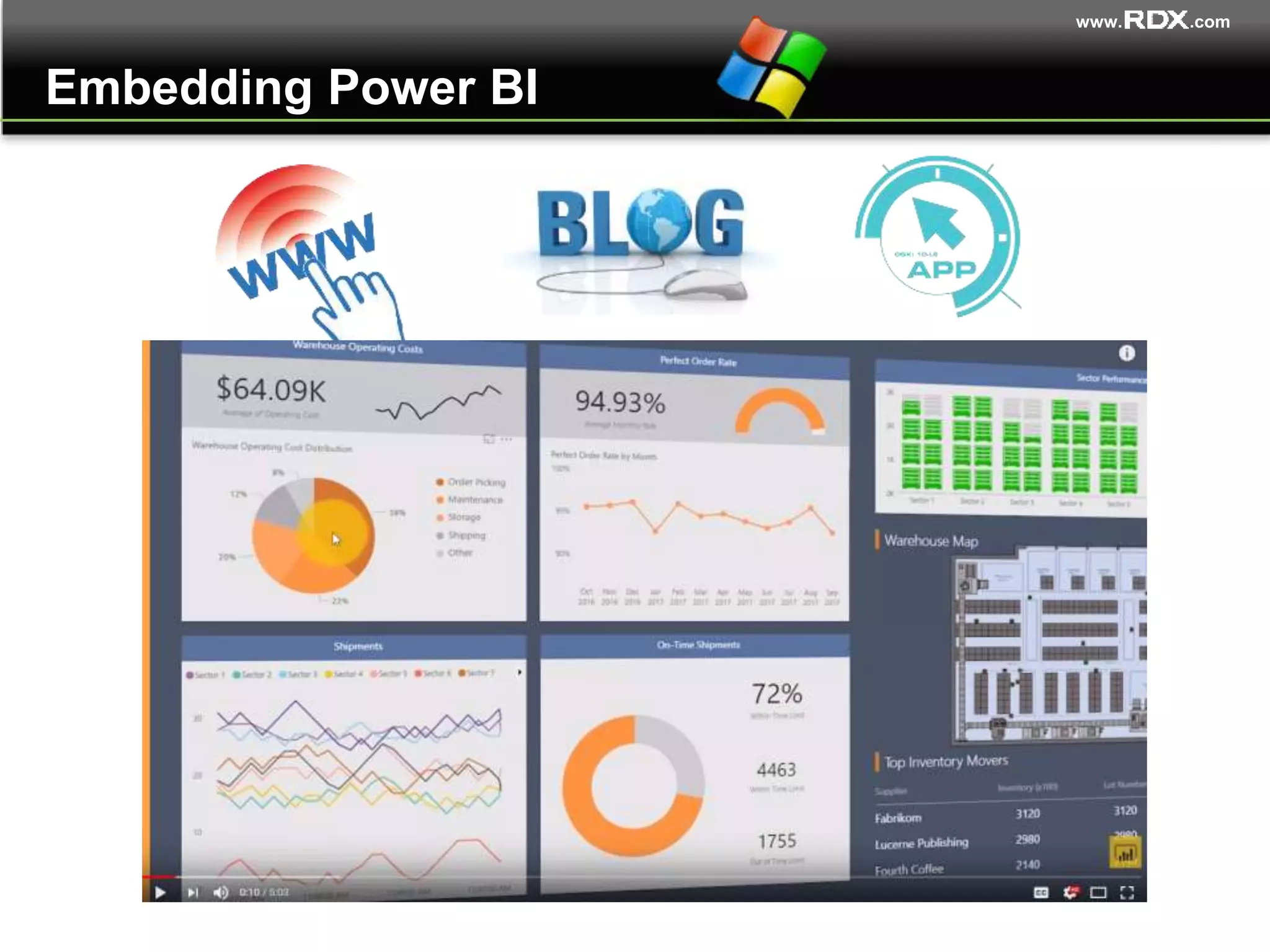

Embedding Power BI

30. www. .com

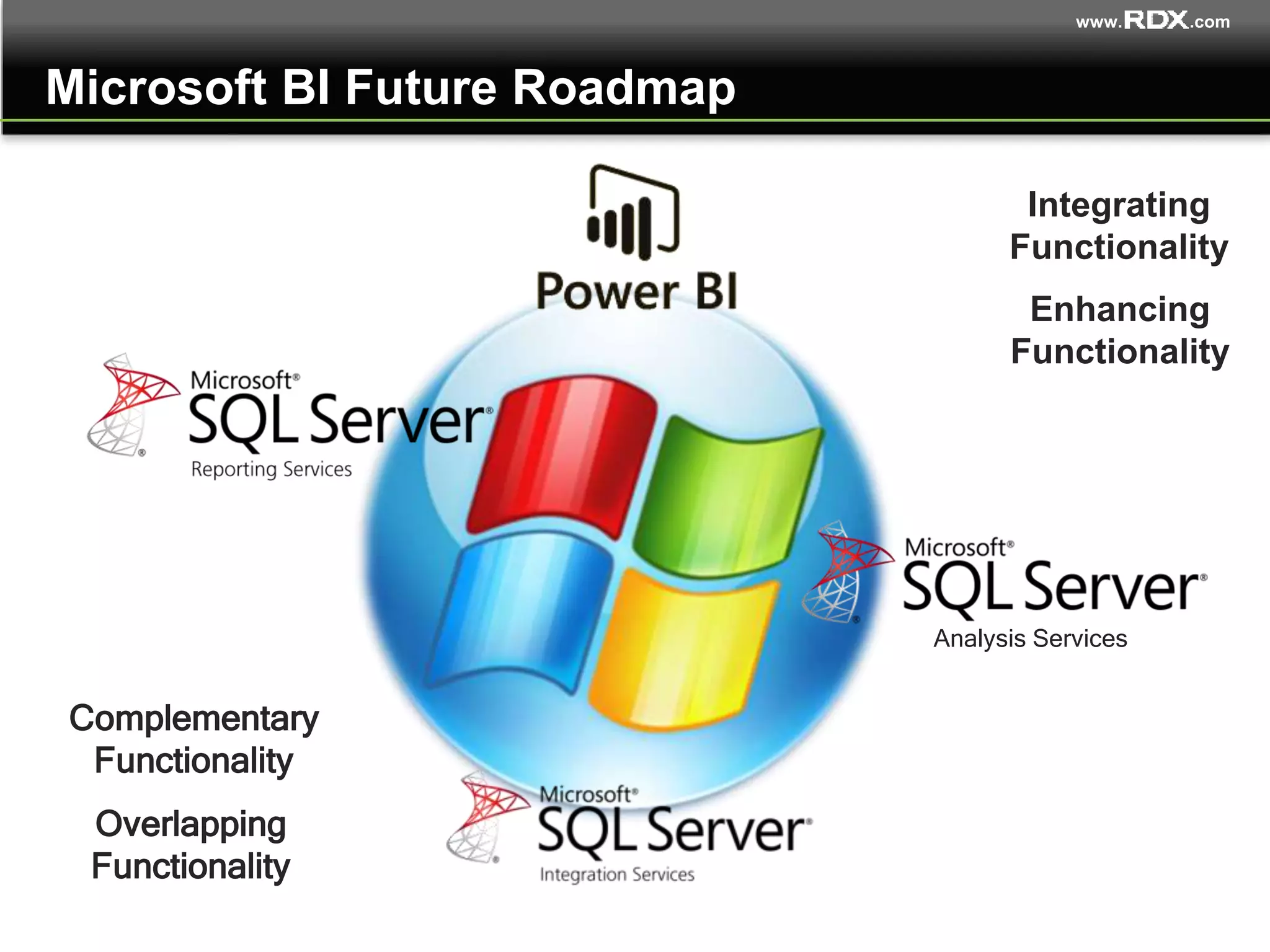

Microsoft BI Future Roadmap
Analysis Services
Complementary
Functionality
Overlapping
Functionality
Integrating
Functionality
Enhancing
Functionality

31. www. .com
Demo
View Power BI Demo on YouTube

32. www. .com
Questions and Additional Information
jfrye@rdx.com
Next Month’s Presentation – Microsoft SQL Azure Overview and Demo
The RDX Report
Secrets for Successful Regulatory Compliance Projects, Docker Containers, the Rise of
Multi-Cloud Architectures, Ransomware Recovery and Azure Optimization Utilities
LinkedIn
Selecting Cloud DBMS, NoSQL Architectures, Database Security Series, Improving
Customer Service
20YEARS OF
SERVICE DELIVERY
EXPERIENCE
cfoot@rdx.com
Video recording of this presentation can be found
on RDX’s YouTube Channel:
https://youtu.be/ATnk1AHzjbA
