This document summarizes the BBC's Linked Data Platform (LDP), which uses semantic technologies to make BBC content more connected and discoverable. It discusses how the LDP was developed for the 2010 World Cup and 2012 Olympics, and how it aggregates metadata and stores creative works. Key challenges addressed are data management, reference data, ontologies, availability, and emerging concepts. The LDP powers several BBC properties and its open data API.

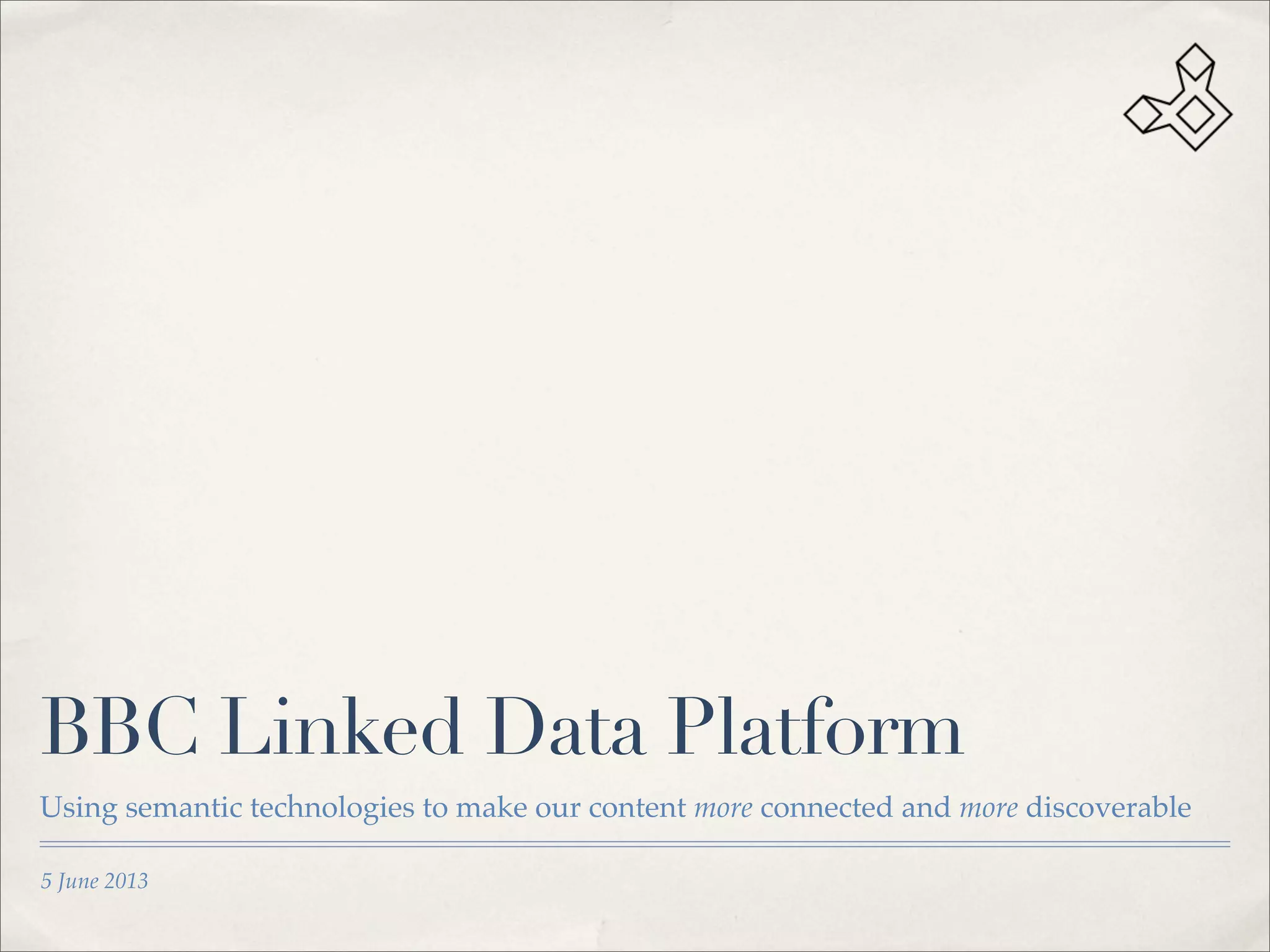

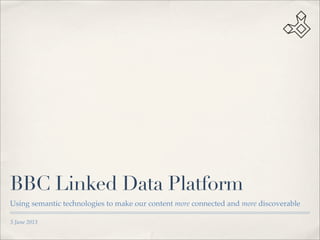

1. 5 June 2013
BBC Linked Data Platform
Using semantic technologies to make our content more connected and more discoverable

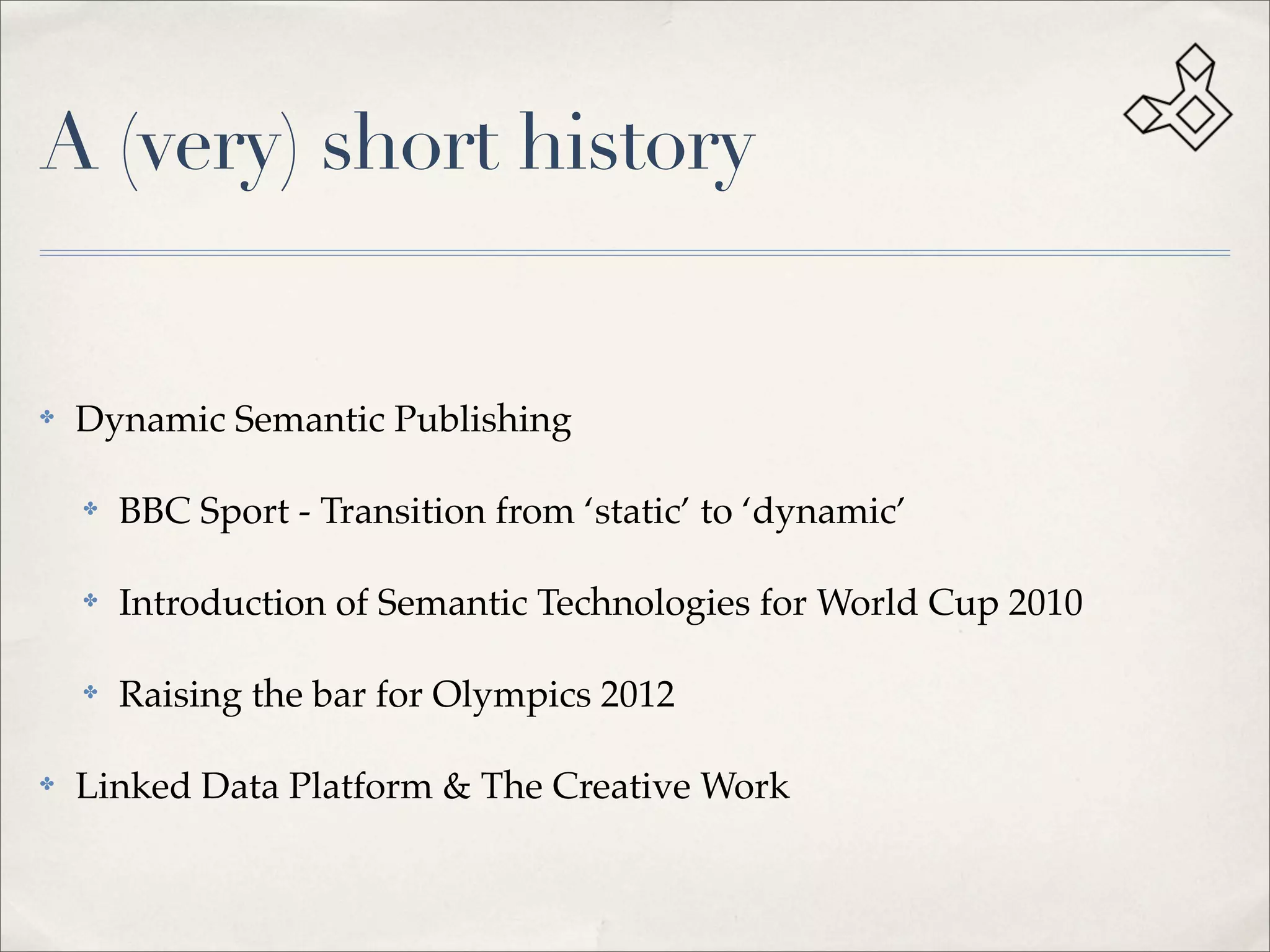

2. A (very) short history
✤ Dynamic Semantic Publishing
✤ BBC Sport - Transition from ‘static’ to ‘dynamic’
✤ Introduction of Semantic Technologies for World Cup 2010
✤ Raising the bar for Olympics 2012
✤ Linked Data Platform & The Creative Work

3. Olympics 2012
Athletes & Medals: from trackside to our audience

4. BBC Linked Data Platform
(our logo)

5. LDP:The CreativeWork
MinimalMetadata
Semantically
AggregatedMetadata
Triple Store
Website
Mobile
Apps
IPTV
Open API

6. CreativeWorks
✤ Minimal metadata
✤ Enough non-semantic metadata to support ‘rich links’ in a wide
range of applications
✤ Enough semantic metadata (tags) to support discovery through
semantic queries
✤ Full metadata requires a content-type-specific metadata API
✤ Access to content requires a content API

7. Some use-cases
✤ Automated index pages/feeds
✤ Semantic navigation
✤ Semantic search
✤ A typical query:
✤ Top 10, most recent, BBC News Items about Politicians who are
members of The Labour Party

8. Powered by LDP
BBC Sport
BBC Music
BBC Olympics 2012
BBC Knowledge & Learning Beta
BBC News Local Beta
BBC Sport Mobile App

9. CreativeWork Ontology

10. CreativeWorks in Code
case class CreativeWork(
locators: Set[Locator],
title: String,
modified: DateTime,
format: Option[FormatType.FormatType] = None,
created: Option[DateTime] = None,
uri: Option[String] = None,
primaryContentOf: List[PrimaryContentOf] = List(),
about: List[String] = List(),
mentions: List[String] = List(),
`type`: CreativeWorkType = CreativeWorkType.CreativeWork,
provenance: Option[CreativeWorkProvenance] = None,
thumbnails: List[Thumbnail] = List(),
audience: Option[AudienceType] = None,
category: Option[CreativeWorkCategory] = None
) {
private val oneLocatorPerType = locators.groupBy(_.`type`).forall(_._2.size == 1)
private val allLocatorsDistinct = locators.map(_.uri).size == locators.size
require(title.trim.isEmpty == false, "Creative Work has an empty title")
require(title.length <= CreativeWork.MaxTitleLength,
"Creative Work title exceeded the maximum length allowed of " + CreativeWork.MaxTitleLength)
require(oneLocatorPerType, "Creative Work contained multiple Locators of the same type")
require(allLocatorsDistinct, "Creative Work contained multiple identical Locator URNs")
def guid = uri.map(_.replace("http://www.bbc.co.uk/things/", "")).map(_.replace("#id", ""))
}
object CreativeWork {
val Locator = "http://www.bbc.co.uk/ontologies/cms/locator"
val MaxTitleLength = 300
}

11. Creative
Work Query*
CONSTRUCT {
?creativeWork a cwork:CreativeWork ;
a ?type ;
cwork:title ?title ;
cwork:about ?about ;
cwork:mentions ?mentions ;
cwork:dateModified ?modified ;
?about bbc:preferredLabel ?aboutPreferredLabel .
?mentions bbc:preferredLabel ?mentionsPrefLabel .
}
WHERE {{
SELECT DISTINCT ?creativeWork
! WHERE {
! {{#about}}
! ! FILTER (?about = <{{about}}>) .
! ! ?creativeWork cwork:about ?about .
! {{/about}}
! {{#mentions}}
! ! FILTER (?mentions = <{{mentions}}>) .
! ! ?creativeWork cwork:mentions ?mentions .
! {{/mentions}}
! ?creativeWork a cwork:CreativeWork ;
! ! a ?type ;
! ! cwork:title ?title ;
! ! cwork:dateModified ?modified .
! }
! ORDER BY DESC(?modified)
! LIMIT 10
! {{#offset}}OFFSET {{offset}}{{/offset}}
}
?creativeWork a cwork:CreativeWork .
{
?creativeWork a cwork:CreativeWork ;
a ?type ;
! ! cwork:title ?title ;
! ! cwork:dateModified ?modified .
{
?type rdfs:subClassOf cwork:CreativeWork .
} UNION {
OPTIONAL {
?creativeWork cwork:about ?about .
OPTIONAL { ?about rdfs:label ?aboutLabel . }
OPTIONAL { ?about bbc:preferredLabel ?aboutPreferredLabel . }
}
OPTIONAL {
?creativeWork cwork:mentions ?mentions .
OPTIONAL { ?mentions rdfs:label ?mentionsLabel . }
OPTIONAL { ?mentions bbc:preferredLabel ?mentionsPrefLabel . }
}
}
}
} *Simplified
SPARQL CONSTRUCT
Inner SELECT
Parametisation
Pagination
Mustache-templated

12. Our principal challenge:
Data Management

13. 4 Kinds of Data
✤ Creative Works
✤ Reference Data, managed in sets (Datasets)
✤ Reference Data, managed individually (Resources)
✤ Ontologies

14. 99.99% Availability

15. Our own URIs
✤ Everything has a ‘Thing URI’:
✤ http://www.bbc.co.uk/things/{GUID}#ID
✤ Opaque ID, dereferencable*
✤ BBC controls identity, therefore quality & consistency
✤ bbc:sameAs to DBPedia, Wikidata, Freebase etc
*coming soon

16. Our own ontologies
✤ Core set of ontologies that are BBC owned
✤ Creative Work, BBC, (Organsational) Provenance, etc
✤ Ability to change regularly and unilaterally
✤ Provide ‘mappings’ to more widely used ontologies
(e.g. Schema.org)
✤ Domain ontologies can be shared or reused
✤ Sport, Politics, GeoLocation, etc

17. Open data
✤ Provided through Mashery
✤ ‘Connected Studio’ events will validate
our API
✤ Public beta to follow
✤ JSON-LD & Turtle
✤ Future
✤ Self-provisioned, cloud-based
triple stores
✤ Data Dumps

18. The Hard Problems...

19. Managing concepts across BBC
✤ Which domain ‘owns’ Arnold Schwarzenegger?
✤ News? Entertainment? History? Politics?
✤ Can domains ‘own’ predicates?
✤ Layering information over shared concepts
✤ High quality sub-sets vs. lower quality ‘long-tail’
✤ Synchronisation with external datasets
✤ Tools for creating and managing concepts
✤ Emerging, splitting & combining concepts
✤ Linked Data gives us a language to solve these problems

20. Metadata
Often subjective, never complete
✤ What is this TV programme about?
✤ Manual tag curation
✤ Subjective
✤ Long-term expense
✤ Inconsistent
✤ Automated tag generation
✤ Short-term expense
✤ Value in data or algorithm?
✤ Complex
✤ Relies on assumptions
✤ Our approach? Invest in both. Validate learnings.

21. When to reason?
✤ Our options...
✤ Before writing to the triple store
✤ Materialised in the triple store (Forward-chaining inference)
✤ Inferred by the SPARQL engine (Backward-chaining inference)
✤ After SPARQL results have returned
✤ None/some/all of the above

22. Maturity of SemanticTech
✤ From a Software Industry perspective, Semantic (RDF) Technology is
not mainstream and is therefore hard to sell
✤ Library/application immaturity can be a hinderance to innovation
✤ I believe the Sem Tech industry needs to focus on
simplicity and abstraction
✤ Semantic Technology is complex, but using it, need not be

23. Find out more
✤ Video from QCon London 2013:
✤ http://www.infoq.com/presentations/bbc-­‐data-­‐platform-­‐api
✤ BBC Internet Blog:
✤ http://www.bbc.co.uk/blogs/internet/posts/Linked-­‐Data-­‐Connecting-­‐
together-­‐the-­‐BBCs-­‐Online-­‐Content
✤ david.rogers@bbc.co.uk
✤ @daverog
