Basic Immunology from the
Dermatologic point of view
DDrr SSaammiiaa EEssmmaatt
PPrrooffeessssoorr ooff DDeerrmmaattoollooggyy
CCaaiirroo UUnniivveerrssiittyy

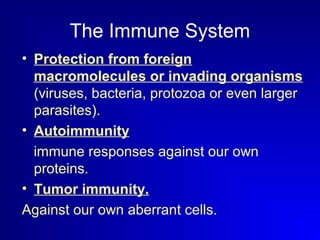

The Immune System
• Protection from foreign
macromolecules or invading organisms
(viruses, bacteria, protozoa or even larger
parasites).
• Autoimmunity
immune responses against our own
proteins.
• Tumor immunity.
Against our own aberrant cells.

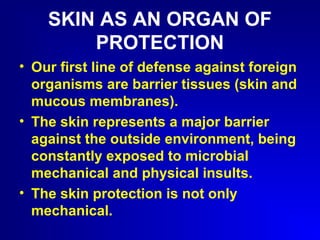

SKIN AS AN ORGAN OF
PROTECTION
• Our first line of defense against foreign
organisms are barrier tissues (skin and
mucous membranes).
• The skin represents a major barrier
against the outside environment, being
constantly exposed to microbial
mechanical and physical insults.
• The skin protection is not only
mechanical.

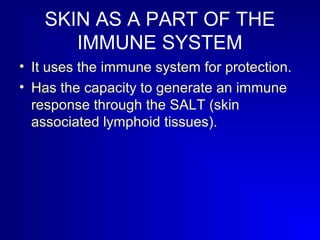

SKIN AS A PART OF THE
IMMUNE SYSTEM
• It uses the immune system for protection.
• Has the capacity to generate an immune
response through the SALT (skin
associated lymphoid tissues).

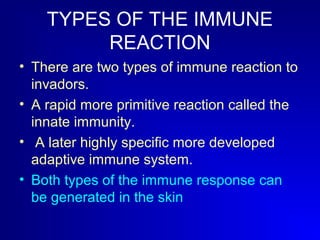

TYPES OF THE IMMUNE
REACTION
• There are two types of immune reaction to
invadors.
• A rapid more primitive reaction called the
innate immunity.
• A later highly specific more developed
adaptive immune system.
• Both types of the immune response can
be generated in the skin

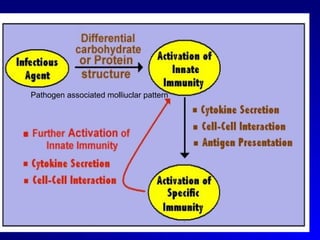

Pathogen associated molliuclar pattern
Immune system
• Innate immunity:
Composed of heriditary components that provide an
immediate "first-line" of defense to continuously
protect against pathogens.
• Adaptive (acquired) immunity:
DEFENCE MECHANISMS USED BY THE HOST
IMMEDIATELY AFTER ENCOUNTERING A FOREIGN LIGAND
The body can develop a specific immunity Humoral or
cellular to target particular pathogens.
This response takes days to develop, and so is not
effective at preventing an initial invasion, but it will
normally prevent any subsequent infection, and also aids
in clearing up longer-lasting infections.

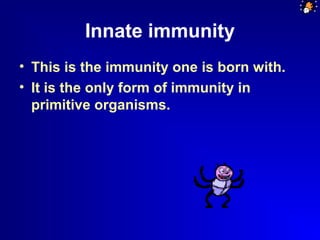

Innate immunity
• This is the immunity one is born with.
• It is the only form of immunity in
primitive organisms.

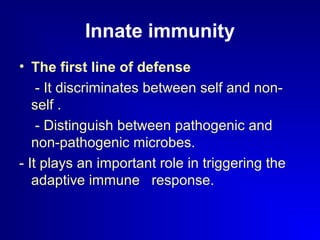

Innate immunity
• The first line of defense
- It discriminates between self and non-self
.
- Distinguish between pathogenic and
non-pathogenic microbes.
- It plays an important role in triggering the
adaptive immune response.
The major functions of innate
immune system include:
• The identification and removal of foreign
substances present in organs, tissues, the
blood and lymph, by specialized cells.
• Recruiting immune cells to sites of
infection, through the production of
chemical factors, including cytokines.
• Activation of the complement cascade
• Activation of the adaptive immune system
through antigen presentation.

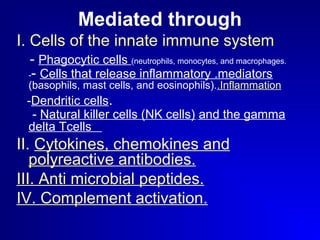

Mediated through
I. Cells of the innate immune system
- Phagocytic cells (neutrophils, monocytes, and macrophages.
-- Cells that release inflammatory .mediators
(basophils, mast cells, and eosinophils)..Inflammation
-Dendritic cells.
- Natural killer cells (NK cells) and the gamma
delta Tcells
II. Cytokines, chemokines and
polyreactive antibodies.
III. Anti microbial peptides.
IV. Complement activation.

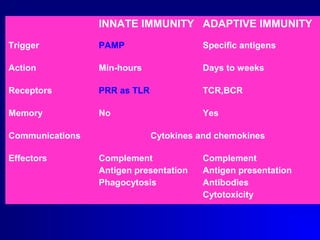

INNATE IMMUNITY ADAPTIVE IMMUNITY
Trigger PAMP Specific antigens
Action Min-hours Days to weeks
Receptors PRR as TLR TCR,BCR
Memory No Yes
Communications Cytokines and chemokines
Effectors Complement
Antigen presentation
Phagocytosis
Complement
Antigen presentation
Antibodies
Cytotoxicity
Components of innate immunity include:
-Anatomical and mechanical barriers.
-Pattern recognition receptorsPRR
that recognize PAMP.
-Antigen-nonspecific defense chemicals.
-The alternative complement pathways.
- Phagocytosis.
- Inflammation.
- fever.
The skin and epithelial linings prevent most pathogen sand environmental
toxins from harming the host.
Epidermis impedes microbial organisms, irritants, toxins,
Absorbs and blocks solar and ionizing radiation
inhibits water loss
St corneum FFA prevent colonization by bacteria as S aureus.
Antimicrobial peptides: defensin HBD-1,2&3
cathelicidins
Activated by microbial surface without antibody formation
Keratinocyte cytokines: IL-1,6,8,10&TNFalpha
Anti microbial peptides
• Secreted by the human epithelia including
the epidermis (Keratinocytes) to exhibit
the capacity of an innate chemical
defense.
• Antiliukoproteases.
• Dramcidin (SWEAT GLANDS)
• Human B defensin 1-4.
• Lysosyme, Psoriasin (Sebocytes),
RNase7,LL-37/hCAP18 (urogenital tract).

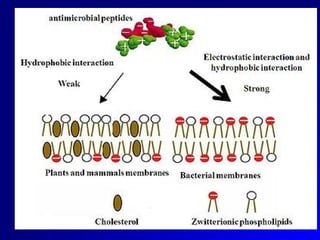

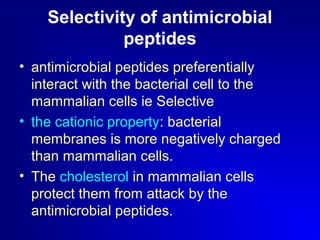

Selectivity of antimicrobial
peptides
• antimicrobial peptides preferentially
interact with the bacterial cell to the
mammalian cells ie Selective
• the cationic property: bacterial
membranes is more negatively charged
than mammalian cells.
• The cholesterol in mammalian cells
protect them from attack by the
antimicrobial peptides.

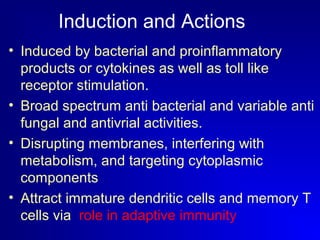

Induction and Actions
• Induced by bacterial and proinflammatory
products or cytokines as well as toll like
receptor stimulation.
• Broad spectrum anti bacterial and variable anti
fungal and antivrial activities.
• Disrupting membranes, interfering with
metabolism, and targeting cytoplasmic
components
• Attract immature dendritic cells and memory T
cells via role in adaptive immunity

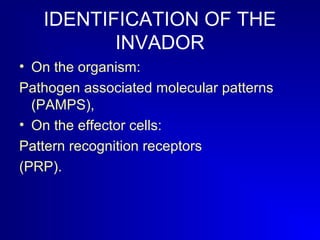

IDENTIFICATION OF THE
INVADOR
• On the organism:
Pathogen associated molecular patterns
(PAMPS),
• On the effector cells:
Pattern recognition receptors
(PRP).

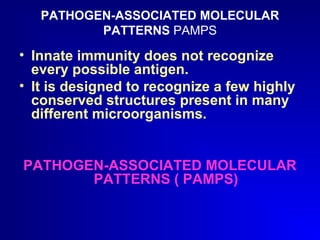

PATHOGEN-ASSOCIATED MOLECULAR
PATTERNS PAMPS
• Innate immunity does not recognize
every possible antigen.
• It is designed to recognize a few highly
conserved structures present in many
different microorganisms.
PATHOGEN-ASSOCIATED MOLECULAR
PATTERNS ( PAMPS)

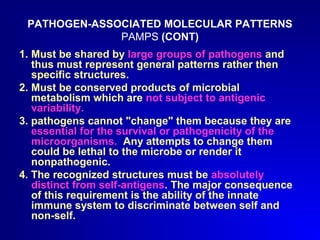

PATHOGEN-ASSOCIATED MOLECULAR PATTERNS
PAMPS (CONT)
1. Must be shared by large groups of pathogens and
thus must represent general patterns rather then
specific structures.
2. Must be conserved products of microbial
metabolism which are not subject to antigenic
variability.
3. pathogens cannot "change" them because they are
essential for the survival or pathogenicity of the
microorganisms. Any attempts to change them
could be lethal to the microbe or render it
nonpathogenic.
4. The recognized structures must be absolutely
distinct from self-antigens. The major consequence
of this requirement is the ability of the innate
immune system to discriminate between self and
non-self.

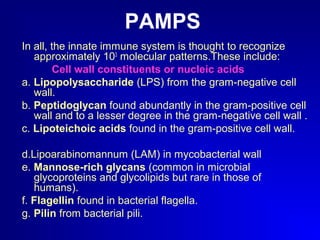

PAMPS
In all, the innate immune system is thought to recognize
approximately 103 molecular patterns.These include:
Cell wall constituents or nucleic acids
a. Lipopolysaccharide (LPS) from the gram-negative cell
wall.
b. Peptidoglycan found abundantly in the gram-positive cell
wall and to a lesser degree in the gram-negative cell wall .
c. Lipoteichoic acids found in the gram-positive cell wall.
d.Lipoarabinomannum (LAM) in mycobacterial wall
e. Mannose-rich glycans (common in microbial
glycoproteins and glycolipids but rare in those of
humans).
f. Flagellin found in bacterial flagella.
g. Pilin from bacterial pili.
PAMPS (CONT)
g. Bacterial and viral nucleic acid. Bacterial and viral
genomes contain a high frequency of unmethylated
cytosine-guanine dinucleotide sequences (a cytosine
lacking a methyl or CH3 group and located adjacent to a
guanine). Mammalian DNA has a low frequency of
cytosine-guanine dinucleotides and most are methylated.
h. N-formylmethionine, an amino acid common to
bacterial proteins.
i. Double-stranded RNA unique to most viruses.
j. Lipoteichoic acids, glycolipids, and zymosan from
yeast cell walls.
k. phosphorylcholine and other lipids common to
microbial membranes.
GRAM POSITIVE
GRAM NEGATIVE

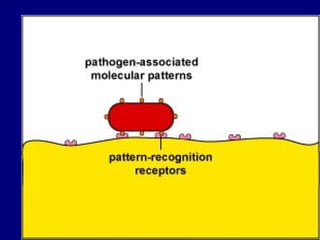

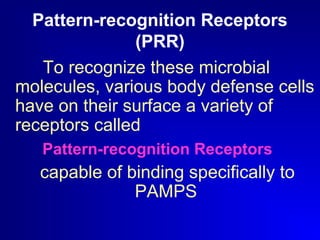

Pattern-recognition Receptors
(PRR)
To recognize these microbial
molecules, various body defense cells
have on their surface a variety of
receptors called
Pattern-recognition Receptors
capable of binding specifically to
PAMPS

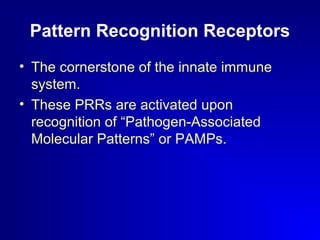

Pattern Recognition Receptors
• The cornerstone of the innate immune
system.
• These PRRs are activated upon
recognition of “Pathogen-Associated
Molecular Patterns” or PAMPs.
CLASSIFICATION
I. Cell surface PRR two functionally different
classes :
• 1. Endocytic pattern-recognition
receptors.
• 2. Signaling pattern-recognition
receptors
II. Secreted PRR

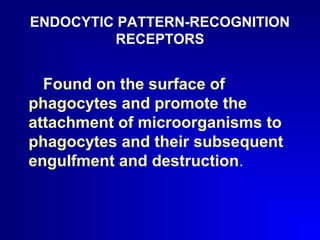

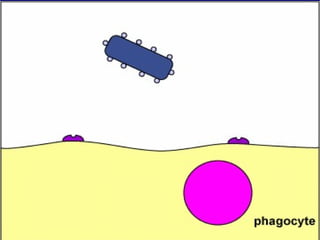

ENDOCYTIC PATTERN-RECOGNITION
RECEPTORS
Found on the surface of
phagocytes and promote the
attachment of microorganisms to
phagocytes and their subsequent
engulfment and destruction.

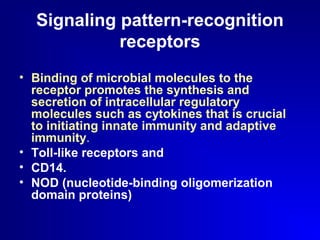

Signaling pattern-recognition
receptors
• Binding of microbial molecules to the
receptor promotes the synthesis and
secretion of intracellular regulatory
molecules such as cytokines that is crucial
to initiating innate immunity and adaptive
immunity.
• Toll-like receptors and
• CD14.
• NOD (nucleotide-binding oligomerization
domain proteins)
Toll-like receptors
• A series of Signaling pattern-recognition
receptors known as
toll-like receptors (TLRs) play a
major role in innate immunity and
the induction of adaptive immunity.
THE TOLL
• Mamalian TLRs owe their name to a
closely related receptor called Toll, first
identified in Drosophila in 1988.
• TOLL: german word of fantastical or
strange.
• They recognize and bind to PAMPS
(conserved molecular components
associated with microorganisms)

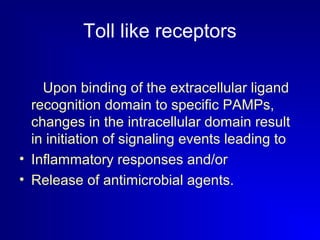

Toll like receptors
Upon binding of the extracellular ligand
recognition domain to specific PAMPs,
changes in the intracellular domain result
in initiation of signaling events leading to
• Inflammatory responses and/or
• Release of antimicrobial agents.

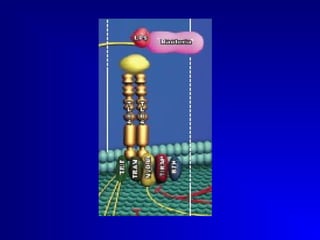

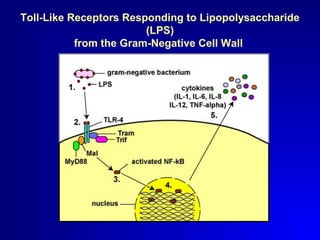

Toll-Like Receptors Responding to Lipopolysaccharide
(LPS)
from the Gram-Negative Cell Wall

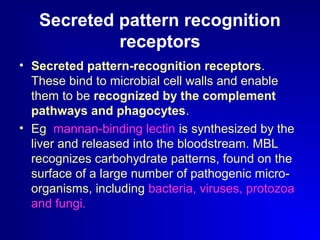

Secreted pattern recognition
receptors
• Secreted pattern-recognition receptors.
These bind to microbial cell walls and enable
them to be recognized by the complement
pathways and phagocytes.
• Eg mannan-binding lectin is synthesized by the
liver and released into the bloodstream. MBL
recognizes carbohydrate patterns, found on the
surface of a large number of pathogenic micro-organisms,
including bacteria, viruses, protozoa
and fungi.
INNATE IMMUNITY ADAPTIVE IMMUNITY
Trigger PAMP Specific antigens
Action Min-hours Days to weeks
Receptors PRR as TLR TCR,BCR
Memory No Yes
Communications Cytokines and chemokines
Effectors Complement
Antigen presentation
Phagocytosis
Complement
Antigen presentation
Antibodies
Cytotoxicity

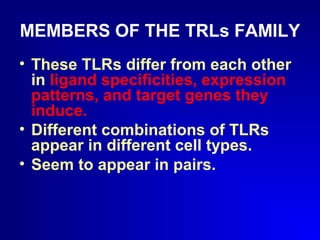

MEMBERS OF THE TRLs FAMILY
• These TLRs differ from each other
in ligand specificities, expression
patterns, and target genes they
induce.
• Different combinations of TLRs
appear in different cell types.
• Seem to appear in pairs.
Different TLRs
• 1. TLRs found on cell surfaces: MAINLY
bacteria and fungi
a. TLR-1/TLR-2
b. TLR-2/TLR-6;
c. TLR-2 plays a role in binding peptidoglycan fragments
(glycopeptides);
d. TLR-4/TLR-4 pairs bind lipopolysaccharide from gram-negative
cell walls;
e. TLR-5
• 2. TLRs found in the membranes of the
endosomes used to degrade pathogens
MAINLY VIRUSES
• a. TLR-3;
b. TLR-7c. TLR-8*
d. TLR-9*
• Attack different types of DNA or RNA
TLRs are found both on the surface and
within the phagolysosomes of phagocytes.

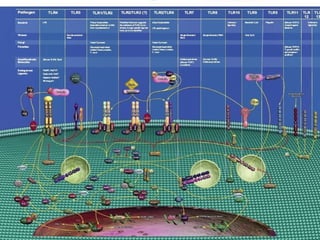

PAMPs Binding to TLRs on Macrophage
The TLRs found in the membranes of the phagosomes
Recognizing Viral Double-Stranded RNA after phagocytosis

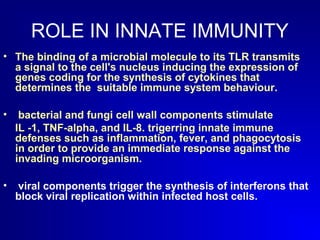

ROLE IN INNATE IMMUNITY
• The binding of a microbial molecule to its TLR transmits
a signal to the cell's nucleus inducing the expression of
genes coding for the synthesis of cytokines that
determines the suitable immune system behaviour.
• bacterial and fungi cell wall components stimulate
IL -1, TNF-alpha, and IL-8. trigerring innate immune
defenses such as inflammation, fever, and phagocytosis
in order to provide an immediate response against the
invading microorganism.
• viral components trigger the synthesis of interferons that
block viral replication within infected host cells.

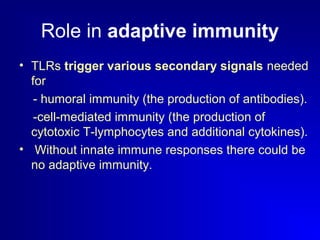

Role in adaptive immunity
• TLRs trigger various secondary signals needed
for
- humoral immunity (the production of antibodies).
-cell-mediated immunity (the production of
cytotoxic T-lymphocytes and additional cytokines).
• Without innate immune responses there could be
no adaptive immunity.

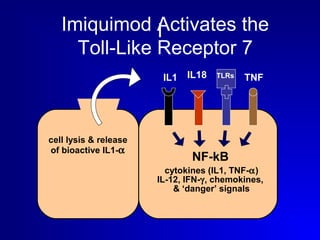

Imiquimod Activates I
the
Toll-Like Receptor 7
cell lysis & release
of bioactive IL1-a
IL1 IL18 TLRs TNF
NF-kB
cytokines (IL1, TNF-a)
IL-12, IFN-g, chemokines,
& ‘danger’ signals

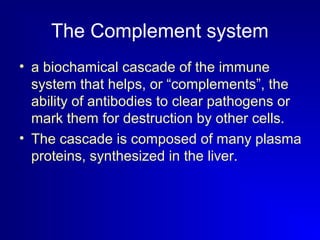

The Complement system
• a biochamical cascade of the immune
system that helps, or “complements”, the
ability of antibodies to clear pathogens or
mark them for destruction by other cells.
• The cascade is composed of many plasma
proteins, synthesized in the liver.

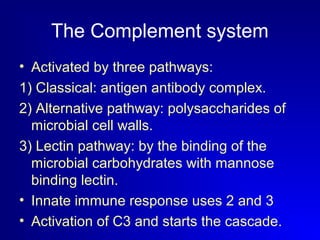

The Complement system
• Activated by three pathways:
1) Classical: antigen antibody complex.
2) Alternative pathway: polysaccharides of
microbial cell walls.
3) Lectin pathway: by the binding of the
microbial carbohydrates with mannose
binding lectin.
• Innate immune response uses 2 and 3
• Activation of C3 and starts the cascade.

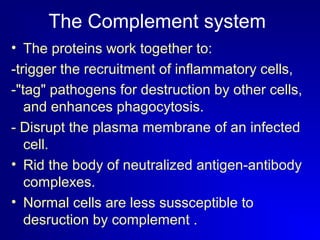

The Complement system
• The proteins work together to:
-trigger the recruitment of inflammatory cells,
-"tag" pathogens for destruction by other cells,
and enhances phagocytosis.
- Disrupt the plasma membrane of an infected
cell.
• Rid the body of neutralized antigen-antibody
complexes.
• Normal cells are less sussceptible to
desruction by complement .

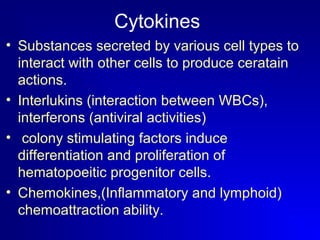

Cytokines
• Substances secreted by various cell types to
interact with other cells to produce ceratain
actions.
• Interlukins (interaction between WBCs),
interferons (antiviral activities)
• colony stimulating factors induce
differentiation and proliferation of
hematopoeitic progenitor cells.
• Chemokines,(Inflammatory and lymphoid)
chemoattraction ability.

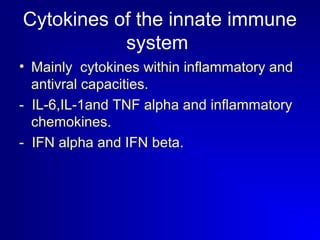

Cytokines of the innate immune
system
• Mainly cytokines within inflammatory and
antivral capacities.
- IL-6,IL-1and TNF alpha and inflammatory
chemokines.
- IFN alpha and IFN beta.
CELLS OF THE INNATE IMUNE SYSTEM
1. Macrophages
• Expresses PRR to identify organisms.
• Receptors for antibodies and complement that
enhances phagocytosis.
• Destroy the organisms by toxic intracellular molecules
as:superoxide anions, hydroxyl radicals,nitrous oxide,
etc.
• Antigen presenting capacity (much less than
Langerhan’s cells)
• Releases G-CSF, AND GM CSF that stimulate the
devision and release of neutrophils from the bone
marrow.

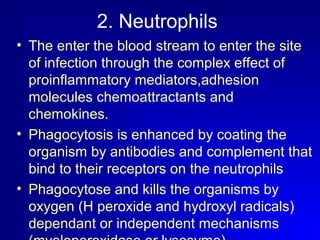

2. Neutrophils
• The enter the blood stream to enter the site
of infection through the complex effect of
proinflammatory mediators,adhesion
molecules chemoattractants and
chemokines.
• Phagocytosis is enhanced by coating the
organism by antibodies and complement that
bind to their receptors on the neutrophils
• Phagocytose and kills the organisms by
oxygen (H peroxide and hydroxyl radicals)
dependant or independent mechanisms
(myeloperoxidase or lysosyme).

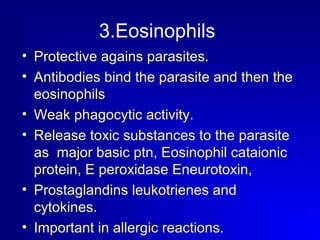

3.Eosinophils
• Protective agains parasites.
• Antibodies bind the parasite and then the
eosinophils
• Weak phagocytic activity.
• Release toxic substances to the parasite
as major basic ptn, Eosinophil cataionic
protein, E peroxidase Eneurotoxin,
• Prostaglandins leukotrienes and
cytokines.
• Important in allergic reactions.

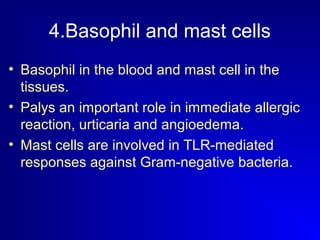

4.Basophil and mast cells
• Basophil in the blood and mast cell in the
tissues.
• Palys an important role in immediate allergic
reaction, urticaria and angioedema.
• Mast cells are involved in TLR-mediated
responses against Gram-negative bacteria.
Natural killer cells
• Pattern recognition receptors (TLR 3,9) it can
identify and eliminate infected or malignant cells.
• Activation of killer activating receptors that
recognize the abnormal cells and kills them by
secreting perforin and injecting granzyme that
kills the cells by inducing apoptosis.
• Adhere and kill targets coated with IgG as they
carry receptors for it (antibody dependant
cellular cytotoxicity ADCC).

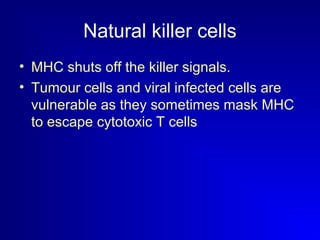

Natural killer cells
• MHC shuts off the killer signals.
• Tumour cells and viral infected cells are
vulnerable as they sometimes mask MHC
to escape cytotoxic T cells
inflammation
• One of the first responses of the immune
system to infection or irritation.
• Inflammation is stimulated by chemical
factors released by injured cells and cells
of the innate immune syste and serves to
establish a physical barrier against the
spread of infection, and to promote
healing of any damaged tissue following
the clearance of pathogens.[3]
Inflammation
• Chemical factors produced during
inflammation (histamine, bradykinin,
leukotrienes, serotonin and prostaglandin,
sensitize pain receptors, cause
vasodilatation at the scene, and attract
phagocytes, especially neutrophils.[
INNATE IMMUNITY ADAPTIVE IMMUNITY
Trigger PAMP Specific antigens
Action Min-hours Days to weeks
Receptors PRR as TLR TCR,BCR
Memory No Yes
Communications Cytokines and chemokines
Effectors Complement
Antigen presentation
Phagocytosis
Complement
Antigen presentation
Antibodies
Cytotoxicity

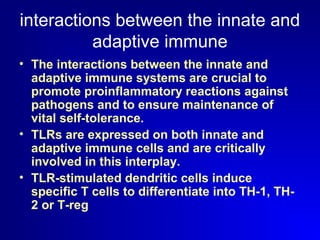

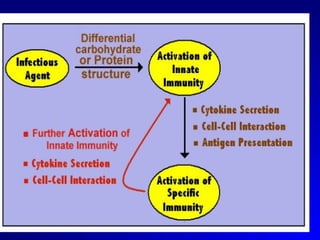

interactions between the innate and
adaptive immune
• The interactions between the innate and
adaptive immune systems are crucial to
promote proinflammatory reactions against
pathogens and to ensure maintenance of
vital self-tolerance.
• TLRs are expressed on both innate and
adaptive immune cells and are critically
involved in this interplay.
• TLR-stimulated dendritic cells induce
specific T cells to differentiate into TH-1, TH-
2 or T-reg
Adaptive immunity
• Cells of the innate immune system
effectively prevent free growth of bacteria
within the body.
• however, many pathogens have evolved
mechanisms allowing them to evade the
innate immune system and generates a
threshold level of antigen which triggers .
the adaptive immune system include:
Functions of the adaptive
immune system
• the recognition of specific “non-self” antigens in the
presence of “self”, during the process of antigen
presentation.
• the generation of tailored responses to eliminate
specific pathogens.
• the development of immunologic memory in which
each pathogen is “remembered” by a signature
antibody. These memory cells can be called upon
to quickly eliminate a pathogen on subsequent
infections .

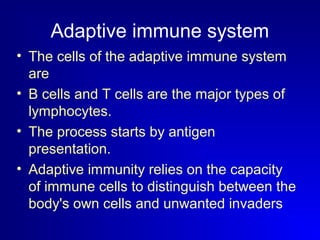

Adaptive immune system
• The cells of the adaptive immune system
are
• B cells and T cells are the major types of
lymphocytes.
• The process starts by antigen
presentation.
• Adaptive immunity relies on the capacity
of immune cells to distinguish between the
body's own cells and unwanted invaders
Two limbs of adaptive immunity
• Cell mediated immunity: APC and T cells.
• Humoral immunity: B cells and antibodies

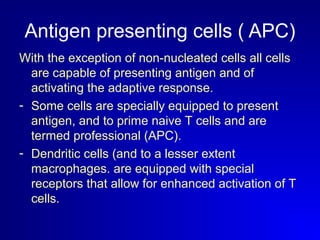

Antigen presenting cells ( APC)
With the exception of non-nucleated cells all cells
are capable of presenting antigen and of
activating the adaptive response.
- Some cells are specially equipped to present
antigen, and to prime naive T cells and are
termed professional (APC).
- Dendritic cells (and to a lesser extent
macrophages. are equipped with special
receptors that allow for enhanced activation of T
cells.

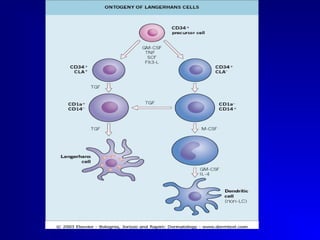

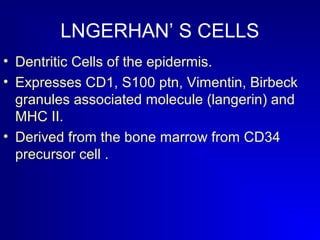

LNGERHAN’ S CELLS
• Dentritic Cells of the epidermis.
• Expresses CD1, S100 ptn, Vimentin, Birbeck
granules associated molecule (langerin) and
MHC II.
• Derived from the bone marrow from CD34
precursor cell .

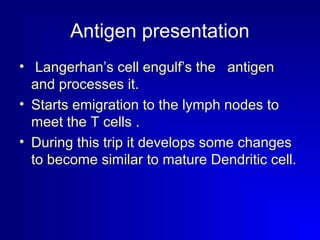

Antigen presentation
• Langerhan’s cell engulf’s the antigen
and processes it.
• Starts emigration to the lymph nodes to
meet the T cells .
• During this trip it develops some changes
to become similar to mature Dendritic cell.

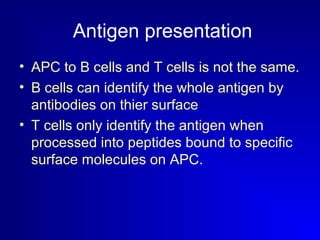

Antigen presentation
• APC to B cells and T cells is not the same.
• B cells can identify the whole antigen by
antibodies on thier surface
• T cells only identify the antigen when
processed into peptides bound to specific
surface molecules on APC.

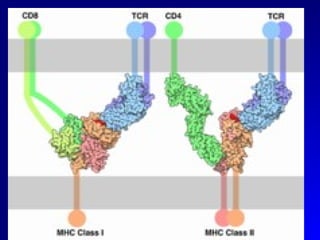

AP TO T CELLS
• Tcells identify the processed antigen
bound to MHC on the surface of Dendritic
cells.
• CD4 T cells identify antigens bound to
MHC II while Cytotoxic CD8 T cells
identify antigen T cells bound to MHC I
• Exogenous and endogenous antigen
presentation.

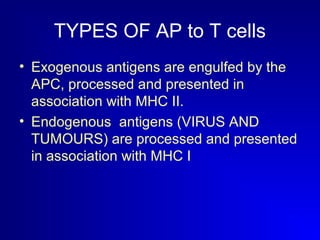

TYPES OF AP to T cells
• Exogenous antigens are engulfed by the
APC, processed and presented in
association with MHC II.
• Endogenous antigens (VIRUS AND
TUMOURS) are processed and presented
in association with MHC I

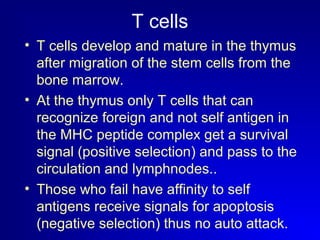

T cells
• T cells develop and mature in the thymus
after migration of the stem cells from the
bone marrow.
• At the thymus only T cells that can
recognize foreign and not self antigen in
the MHC peptide complex get a survival
signal (positive selection) and pass to the
circulation and lymphnodes..
• Those who fail have affinity to self
antigens receive signals for apoptosis
(negative selection) thus no auto attack.
•

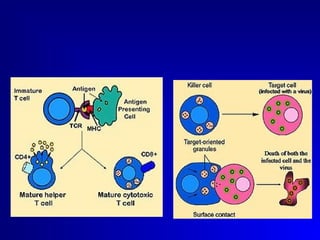

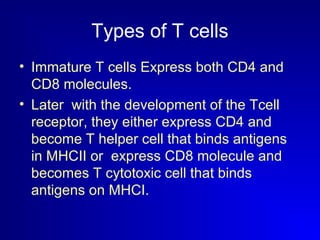

Types of T cells
• Immature T cells Express both CD4 and
CD8 molecules.
• Later with the development of the Tcell
receptor, they either express CD4 and
become T helper cell that binds antigens
in MHCII or express CD8 molecule and
becomes T cytotoxic cell that binds
antigens on MHCI.

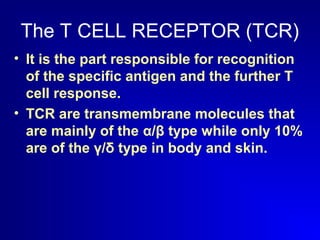

The T CELL RECEPTOR (TCR)
• It is the part responsible for recognition
of the specific antigen and the further T
cell response.
• TCR are transmembrane molecules that
are mainly of the α/β type while only 10%
are of the γ/δ type in body and skin.

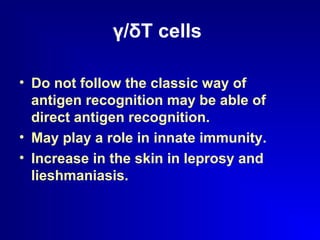

γ/δT cells
• Do not follow the classic way of
antigen recognition may be able of
direct antigen recognition.
• May play a role in innate immunity.
• Increase in the skin in leprosy and
lieshmaniasis.

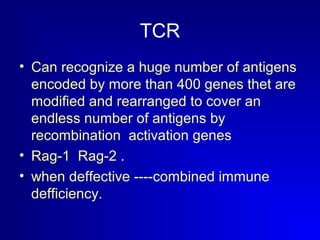

TCR
• Can recognize a huge number of antigens
encoded by more than 400 genes thet are
modified and rearranged to cover an
endless number of antigens by
recombination activation genes
• Rag-1 Rag-2 .
• when deffective ----combined immune
defficiency.

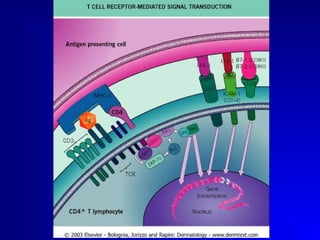

TCR SIGNALLING
• CD3 is an important part of TCR
responsible for transmission of the signal
to the cell that encodes for the cytokine
needed to stimulate the required response
for that particular antigen.

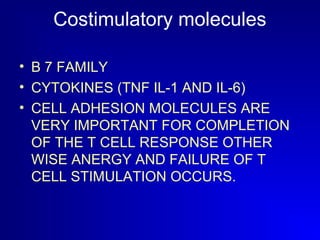

Costimulatory molecules
• B 7 FAMILY
• CYTOKINES (TNF IL-1 AND IL-6)
• CELL ADHESION MOLECULES ARE
VERY IMPORTANT FOR COMPLETION
OF THE T CELL RESPONSE OTHER
WISE ANERGY AND FAILURE OF T
CELL STIMULATION OCCURS.

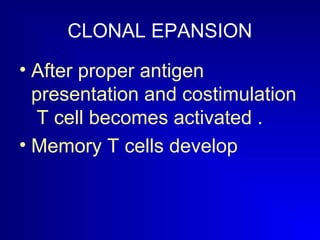

CLONAL EPANSION
• After proper antigen
presentation and costimulation
T cell becomes activated .
• Memory T cells develop

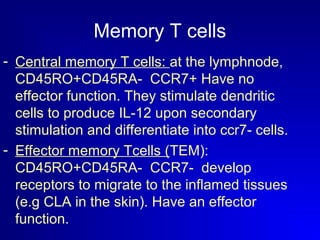

Memory T cells
- Central memory T cells: at the lymphnode,
CD45RO+CD45RA- CCR7+ Have no
effector function. They stimulate dendritic
cells to produce IL-12 upon secondary
stimulation and differentiate into ccr7- cells.
- Effector memory Tcells (TEM):
CD45RO+CD45RA- CCR7- develop
receptors to migrate to the inflamed tissues
(e.g CLA in the skin). Have an effector
function.

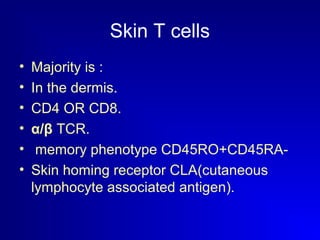

Skin T cells
• Majority is :
• In the dermis.
• CD4 OR CD8.
• α/β TCR.
• memory phenotype CD45RO+CD45RA-
• Skin homing receptor CLA(cutaneous
lymphocyte associated antigen).
Effector T cell function
• After recognition of the antigen
• CD4: T helper cells(Th):
-activate the immune system to combat the
antigen including both T and B cells.
CD8 T cytotoxic cells(Tc):
Antiviral and anti tumour responses

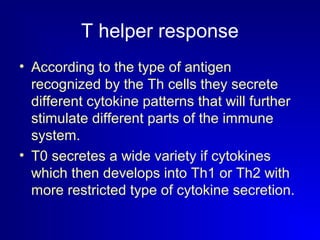

T helper response
• According to the type of antigen
recognized by the Th cells they secrete
different cytokine patterns that will further
stimulate different parts of the immune
system.
• T0 secretes a wide variety if cytokines
which then develops into Th1 or Th2 with
more restricted type of cytokine secretion.

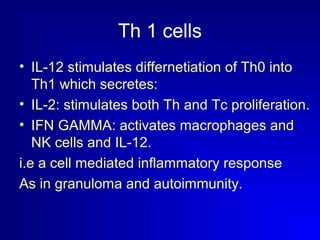

Th 1 cells
• IL-12 stimulates differnetiation of Th0 into
Th1 which secretes:
• IL-2: stimulates both Th and Tc proliferation.
• IFN GAMMA: activates macrophages and
NK cells and IL-12.
i.e a cell mediated inflammatory response
As in granuloma and autoimmunity.

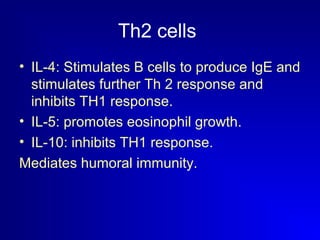

Th2 cells
• IL-4: Stimulates B cells to produce IgE and
stimulates further Th 2 response and
inhibits TH1 response.
• IL-5: promotes eosinophil growth.
• IL-10: inhibits TH1 response.
Mediates humoral immunity.

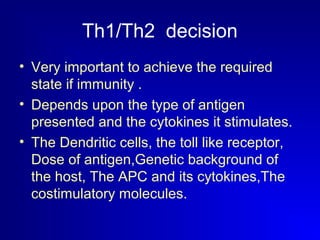

Th1/Th2 decision
• Very important to achieve the required
state if immunity .
• Depends upon the type of antigen
presented and the cytokines it stimulates.
• The Dendritic cells, the toll like receptor,
Dose of antigen,Genetic background of
the host, The APC and its cytokines,The
costimulatory molecules.

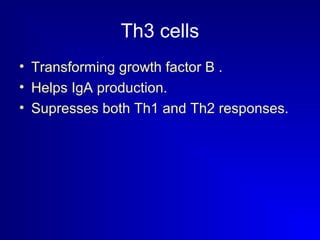

Th3 cells
• Transforming growth factor B .
• Helps IgA production.
• Supresses both Th1 and Th2 responses.

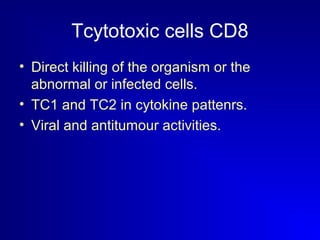

Tcytotoxic cells CD8
• Direct killing of the organism or the
abnormal or infected cells.
• TC1 and TC2 in cytokine pattenrs.
• Viral and antitumour activities.

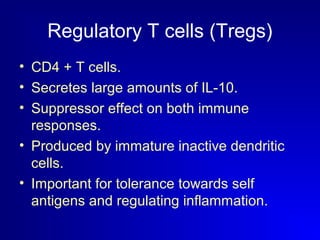

Regulatory T cells (Tregs)
• CD4 + T cells.
• Secretes large amounts of IL-10.
• Suppressor effect on both immune
responses.
• Produced by immature inactive dendritic
cells.
• Important for tolerance towards self
antigens and regulating inflammation.

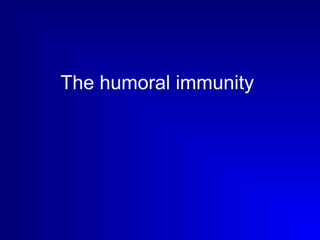

The humoral immunity

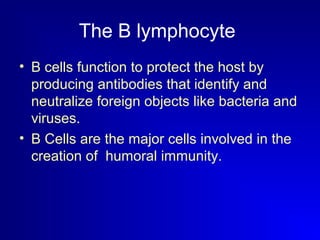

The B lymphocyte
• B cells function to protect the host by
producing antibodies that identify and
neutralize foreign objects like bacteria and
viruses.
• B Cells are the major cells involved in the
creation of humoral immunity.

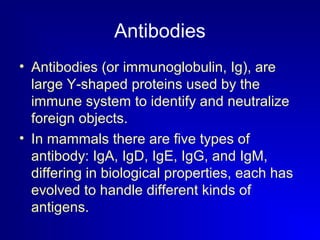

Antibodies
• Antibodies (or immunoglobulin, Ig), are
large Y-shaped proteins used by the
immune system to identify and neutralize
foreign objects.
• In mammals there are five types of
antibody: IgA, IgD, IgE, IgG, and IgM,
differing in biological properties, each has
evolved to handle different kinds of
antigens.

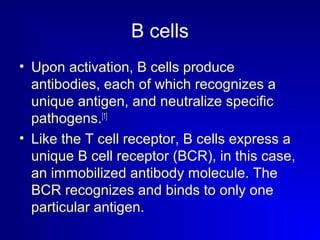

B cells
• Upon activation, B cells produce
antibodies, each of which recognizes a
unique antigen, and neutralize specific
pathogens.[1]
• Like the T cell receptor, B cells express a
unique B cell receptor (BCR), in this case,
an immobilized antibody molecule. The
BCR recognizes and binds to only one
particular antigen.
Bcell Vs T cell ACTIVATION
• T cells recognize their cognate antigen in
a processed form - as a peptide in the
context of an MHC molecule,
• while B cells recognize antigens in their
native form.[
• B- cells receives additional signals from a
helper T cell (predominately Th2 type)), to
further differentiates into an effector cell,
known as a plasma cell]

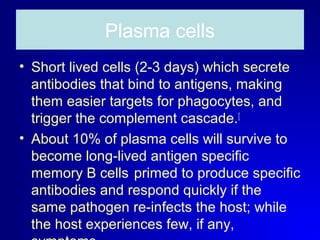

Plasma cells
• Short lived cells (2-3 days) which secrete
antibodies that bind to antigens, making
them easier targets for phagocytes, and
trigger the complement cascade.[
• About 10% of plasma cells will survive to
become long-lived antigen specific
memory B cells primed to produce specific
antibodies and respond quickly if the
same pathogen re-infects the host; while
the host experiences few, if any,
symptoms.
THANK YOU

More Related Content

What's hot

Innate Immunity06
Innate Immunity06Innate Immunity06
Innate Immunity06guest08e813

1. immunity 2017 (1).pptx
1. immunity 2017 (1).pptx1. immunity 2017 (1).pptx
1. immunity 2017 (1).pptxM Chaudhary

Exploring the First Line of Defense - Research Tools for Innate Immnity: Host...
Exploring the First Line of Defense - Research Tools for Innate Immnity: Host...Exploring the First Line of Defense - Research Tools for Innate Immnity: Host...
Exploring the First Line of Defense - Research Tools for Innate Immnity: Host...QIAGEN

Microb Immunity
Microb ImmunityMicrob Immunity
Microb Immunitydrmomusa

Innate immunity and adjuvants
Innate immunity and adjuvantsInnate immunity and adjuvants
Innate immunity and adjuvantsSukhbir Brar

Bio 151 lecture 2 innate immunity
Bio 151 lecture 2 innate immunityBio 151 lecture 2 innate immunity
Bio 151 lecture 2 innate immunityMarilen Parungao

Physiological mechanisms in regulating insect immunity
Physiological mechanisms in regulating insect immunityPhysiological mechanisms in regulating insect immunity
Physiological mechanisms in regulating insect immunityHemlata Thakur

Innate Immune System
Innate Immune SystemInnate Immune System
Innate Immune SystemZainabSaif

Innate immunity in periodontics
Innate immunity in periodonticsInnate immunity in periodontics
Innate immunity in periodonticsSheethalan Ravi

Immunity-Tcell-Bcell-Cytokines
Immunity-Tcell-Bcell-CytokinesImmunity-Tcell-Bcell-Cytokines
Immunity-Tcell-Bcell-CytokinesChintan Patel

Innate immunity lecture
Innate immunity lectureInnate immunity lecture
Innate immunity lectureBruno Mmassy

Signalling pathways for activating genes for antimicrobial peptides
Signalling pathways for activating genes for antimicrobial peptidesSignalling pathways for activating genes for antimicrobial peptides
Signalling pathways for activating genes for antimicrobial peptidesMogili Ramaiah

Fundamentals of immunity
Fundamentals of immunityFundamentals of immunity
Fundamentals of immunityPuneet Shukla


What's hot (20)

Innate Immunity06
Innate Immunity06Innate Immunity06
Innate Immunity06

Innate immunity
Innate immunityInnate immunity
Innate immunity

1. immunity 2017 (1).pptx
1. immunity 2017 (1).pptx1. immunity 2017 (1).pptx
1. immunity 2017 (1).pptx

Exploring the First Line of Defense - Research Tools for Innate Immnity: Host...
Exploring the First Line of Defense - Research Tools for Innate Immnity: Host...Exploring the First Line of Defense - Research Tools for Innate Immnity: Host...
Exploring the First Line of Defense - Research Tools for Innate Immnity: Host...

Microb Immunity
Microb ImmunityMicrob Immunity
Microb Immunity

Innate immunity and adjuvants
Innate immunity and adjuvantsInnate immunity and adjuvants
Innate immunity and adjuvants

Bio 151 lecture 2 innate immunity
Bio 151 lecture 2 innate immunityBio 151 lecture 2 innate immunity
Bio 151 lecture 2 innate immunity

Physiological mechanisms in regulating insect immunity
Physiological mechanisms in regulating insect immunityPhysiological mechanisms in regulating insect immunity
Physiological mechanisms in regulating insect immunity

Ocular immunology
Ocular immunologyOcular immunology
Ocular immunology

Innate Immune System
Innate Immune SystemInnate Immune System
Innate Immune System

Basics of Immunity
Basics of ImmunityBasics of Immunity
Basics of Immunity

Innate immunity in periodontics
Innate immunity in periodonticsInnate immunity in periodontics
Innate immunity in periodontics

Immunity-Tcell-Bcell-Cytokines
Immunity-Tcell-Bcell-CytokinesImmunity-Tcell-Bcell-Cytokines
Immunity-Tcell-Bcell-Cytokines

Bio 151 lec 3 2012 2013
Bio 151 lec 3 2012 2013Bio 151 lec 3 2012 2013
Bio 151 lec 3 2012 2013

Innate immunity lecture
Innate immunity lectureInnate immunity lecture
Innate immunity lecture

Signalling pathways for activating genes for antimicrobial peptides
Signalling pathways for activating genes for antimicrobial peptidesSignalling pathways for activating genes for antimicrobial peptides
Signalling pathways for activating genes for antimicrobial peptides

Innate immunity
Innate immunityInnate immunity
Innate immunity

Fundamentals of immunity
Fundamentals of immunityFundamentals of immunity
Fundamentals of immunity

Immune system
Immune systemImmune system
Immune system

Inate immunity
Inate immunityInate immunity
Inate immunity


Viewers also liked

Basic immunology from the dermatologic point of view (adaptive immunity)
Basic immunology from the dermatologic point of view (adaptive immunity)Basic immunology from the dermatologic point of view (adaptive immunity)
Basic immunology from the dermatologic point of view (adaptive immunity)Hima Farag

shock marker
shock markershock marker
shock markerEM OMSB

Disturbances of Circulation (Pathology)
Disturbances of Circulation (Pathology)Disturbances of Circulation (Pathology)
Disturbances of Circulation (Pathology)Osama Zahid

Using Hadoop
Using HadoopUsing Hadoop
Using Hadoopeaiti

Middleware 2002
Middleware 2002Middleware 2002
Middleware 2002eaiti

Stateof cto career_2002
Stateof cto career_2002Stateof cto career_2002
Stateof cto career_2002eaiti

1 pigmentation
1 pigmentation1 pigmentation
1 pigmentationAhmed Amer

Push to pull
Push to pullPush to pull
Push to pulleaiti

Cc1 cancer derma
Cc1 cancer dermaCc1 cancer derma
Cc1 cancer dermaAhmed Amer

Break Free with Managed Functional Programming: An Introduction to F#
Break Free with Managed Functional Programming: An Introduction to F#Break Free with Managed Functional Programming: An Introduction to F#
Break Free with Managed Functional Programming: An Introduction to F#IndyMobileNetDev

Washdc cto-0905-2003
Washdc cto-0905-2003Washdc cto-0905-2003
Washdc cto-0905-2003eaiti

Service Portfolio-Faculty Version
Service Portfolio-Faculty VersionService Portfolio-Faculty Version
Service Portfolio-Faculty VersionErika Hang

How To: Mobile "Hello World" With Xamarin and Visual Studio 2013
How To: Mobile "Hello World" With Xamarin and Visual Studio 2013How To: Mobile "Hello World" With Xamarin and Visual Studio 2013
How To: Mobile "Hello World" With Xamarin and Visual Studio 2013IndyMobileNetDev


Viewers also liked (20)

Basic immunology from the dermatologic point of view (adaptive immunity)
Basic immunology from the dermatologic point of view (adaptive immunity)Basic immunology from the dermatologic point of view (adaptive immunity)
Basic immunology from the dermatologic point of view (adaptive immunity)

Circulitary disturbance
Circulitary disturbanceCirculitary disturbance
Circulitary disturbance

shock marker
shock markershock marker
shock marker

Rift valley fever
Rift valley feverRift valley fever
Rift valley fever

T-Cell Mediated Immunity
T-Cell Mediated ImmunityT-Cell Mediated Immunity
T-Cell Mediated Immunity

Disturbances of Circulation (Pathology)
Disturbances of Circulation (Pathology)Disturbances of Circulation (Pathology)
Disturbances of Circulation (Pathology)

Using Hadoop
Using HadoopUsing Hadoop
Using Hadoop

Middleware 2002
Middleware 2002Middleware 2002
Middleware 2002

Stateof cto career_2002
Stateof cto career_2002Stateof cto career_2002
Stateof cto career_2002

Proekt shum2
Proekt shum2Proekt shum2
Proekt shum2

1 pigmentation
1 pigmentation1 pigmentation
1 pigmentation

Push to pull
Push to pullPush to pull
Push to pull

Ford
FordFord
Ford

Cc1 cancer derma
Cc1 cancer dermaCc1 cancer derma
Cc1 cancer derma

Break Free with Managed Functional Programming: An Introduction to F#
Break Free with Managed Functional Programming: An Introduction to F#Break Free with Managed Functional Programming: An Introduction to F#
Break Free with Managed Functional Programming: An Introduction to F#

Washdc cto-0905-2003
Washdc cto-0905-2003Washdc cto-0905-2003
Washdc cto-0905-2003

Service Portfolio-Faculty Version
Service Portfolio-Faculty VersionService Portfolio-Faculty Version
Service Portfolio-Faculty Version

Skyeluxuria
SkyeluxuriaSkyeluxuria
Skyeluxuria

Nagaraj
NagarajNagaraj
Nagaraj

How To: Mobile "Hello World" With Xamarin and Visual Studio 2013
How To: Mobile "Hello World" With Xamarin and Visual Studio 2013How To: Mobile "Hello World" With Xamarin and Visual Studio 2013
How To: Mobile "Hello World" With Xamarin and Visual Studio 2013


Similar to Basic immunology from the dermatologic point of view (2)

Basic immunology from the dermatologic point of view(innate)
Basic immunology from the dermatologic point of view(innate)Basic immunology from the dermatologic point of view(innate)
Basic immunology from the dermatologic point of view(innate)Hima Farag

Immunostimulants and suppresants.pptx
Immunostimulants and suppresants.pptxImmunostimulants and suppresants.pptx
Immunostimulants and suppresants.pptxDeepanjaliSharma11

Chapter 2 Innate Immunity.pdf
Chapter 2 Innate Immunity.pdfChapter 2 Innate Immunity.pdf
Chapter 2 Innate Immunity.pdfRanaAlmaaya2

SIGNALING Through Toll LIKE RECEPTORS.pptx
SIGNALING Through Toll LIKE RECEPTORS.pptxSIGNALING Through Toll LIKE RECEPTORS.pptx
SIGNALING Through Toll LIKE RECEPTORS.pptxSaleemAChhimMee

Introduction to Immunity & Innate immunity.pptx
Introduction to Immunity & Innate immunity.pptxIntroduction to Immunity & Innate immunity.pptx
Introduction to Immunity & Innate immunity.pptxSayantan Banerjee

Innate Immunity ppt..pptx
Innate Immunity ppt..pptxInnate Immunity ppt..pptx
Innate Immunity ppt..pptxSherzadMajeed1

Evaluation and importance of innate & adaptive immunity Dr. ihsan edan ab...
Evaluation and importance of innate & adaptive immunity Dr. ihsan edan ab...Evaluation and importance of innate & adaptive immunity Dr. ihsan edan ab...
Evaluation and importance of innate & adaptive immunity Dr. ihsan edan ab...dr.Ihsan alsaimary

Basic Immune12121212121212121212121212122
Basic Immune12121212121212121212121212122Basic Immune12121212121212121212121212122
Basic Immune12121212121212121212121212122ssusera32ec41

IMMUNOMODULATORS :- Mode and mechanism of their action
IMMUNOMODULATORS :- Mode and mechanism of their actionIMMUNOMODULATORS :- Mode and mechanism of their action
IMMUNOMODULATORS :- Mode and mechanism of their actionSUMIT KOLTE

8797287.ppt
8797287.ppt8797287.ppt
8797287.pptmofy7

The immune system
The immune systemThe immune system
The immune systemChy Yong

Medical Microbiology Study Guide by Shayne McKee (PharmD 2022)
Medical Microbiology Study Guide by Shayne McKee (PharmD 2022)Medical Microbiology Study Guide by Shayne McKee (PharmD 2022)
Medical Microbiology Study Guide by Shayne McKee (PharmD 2022)Shayne McKee

INNATE AND ADAPTIVE IMMUNITY.pptx
INNATE AND ADAPTIVE IMMUNITY.pptxINNATE AND ADAPTIVE IMMUNITY.pptx
INNATE AND ADAPTIVE IMMUNITY.pptxJamesHelserMoola


Similar to Basic immunology from the dermatologic point of view (2) (20)

Basic immunology from the dermatologic point of view(innate)
Basic immunology from the dermatologic point of view(innate)Basic immunology from the dermatologic point of view(innate)
Basic immunology from the dermatologic point of view(innate)

Innate immunity
Innate immunityInnate immunity
Innate immunity

Immunostimulants and suppresants.pptx
Immunostimulants and suppresants.pptxImmunostimulants and suppresants.pptx
Immunostimulants and suppresants.pptx

Chapter 2 Innate Immunity.pdf
Chapter 2 Innate Immunity.pdfChapter 2 Innate Immunity.pdf
Chapter 2 Innate Immunity.pdf

SIGNALING Through Toll LIKE RECEPTORS.pptx
SIGNALING Through Toll LIKE RECEPTORS.pptxSIGNALING Through Toll LIKE RECEPTORS.pptx
SIGNALING Through Toll LIKE RECEPTORS.pptx

Introduction to Immunity & Innate immunity.pptx
Introduction to Immunity & Innate immunity.pptxIntroduction to Immunity & Innate immunity.pptx
Introduction to Immunity & Innate immunity.pptx

Innate Immunity ppt..pptx
Innate Immunity ppt..pptxInnate Immunity ppt..pptx
Innate Immunity ppt..pptx

Evaluation and importance of innate & adaptive immunity Dr. ihsan edan ab...
Evaluation and importance of innate & adaptive immunity Dr. ihsan edan ab...Evaluation and importance of innate & adaptive immunity Dr. ihsan edan ab...
Evaluation and importance of innate & adaptive immunity Dr. ihsan edan ab...

IMMUNOLOGY
IMMUNOLOGY IMMUNOLOGY
IMMUNOLOGY

IMMUNOLOGY
IMMUNOLOGY IMMUNOLOGY
IMMUNOLOGY

Immunology microbiology by nilesh sharma
Immunology microbiology by nilesh sharmaImmunology microbiology by nilesh sharma
Immunology microbiology by nilesh sharma

SHS.301.Lect13.pptx
SHS.301.Lect13.pptxSHS.301.Lect13.pptx
SHS.301.Lect13.pptx

Basic Immune12121212121212121212121212122
Basic Immune12121212121212121212121212122Basic Immune12121212121212121212121212122
Basic Immune12121212121212121212121212122

IMMUNOMODULATORS :- Mode and mechanism of their action
IMMUNOMODULATORS :- Mode and mechanism of their actionIMMUNOMODULATORS :- Mode and mechanism of their action
IMMUNOMODULATORS :- Mode and mechanism of their action

8797287.ppt
8797287.ppt8797287.ppt
8797287.ppt

Immunity
ImmunityImmunity
Immunity

The immune system
The immune systemThe immune system
The immune system

Medical Microbiology Study Guide by Shayne McKee (PharmD 2022)
Medical Microbiology Study Guide by Shayne McKee (PharmD 2022)Medical Microbiology Study Guide by Shayne McKee (PharmD 2022)
Medical Microbiology Study Guide by Shayne McKee (PharmD 2022)

INNATE AND ADAPTIVE IMMUNITY.pptx
INNATE AND ADAPTIVE IMMUNITY.pptxINNATE AND ADAPTIVE IMMUNITY.pptx
INNATE AND ADAPTIVE IMMUNITY.pptx

innate immunity.pptx
innate immunity.pptxinnate immunity.pptx
innate immunity.pptx


More from Ahmed Amer

Dermatology board review
Dermatology board reviewDermatology board review
Dermatology board reviewAhmed Amer

Changes in newborn, pregnancy and old age
Changes in newborn, pregnancy and old ageChanges in newborn, pregnancy and old age
Changes in newborn, pregnancy and old ageAhmed Amer

Blood transfusion 2
Blood  transfusion 2Blood  transfusion 2
Blood transfusion 2Ahmed Amer

Barrier function & biomechanical properties of the skin
Barrier function & biomechanical properties of the skin Barrier function & biomechanical properties of the skin
Barrier function & biomechanical properties of the skin Ahmed Amer

Autoimmune disorders &
Autoimmune disorders &Autoimmune disorders &
Autoimmune disorders &Ahmed Amer

Autoimmune disorders & jj
Autoimmune disorders & jjAutoimmune disorders & jj
Autoimmune disorders & jjAhmed Amer

Apoptosis, dna damage and repair handout
Apoptosis, dna damage and repair handoutApoptosis, dna damage and repair handout
Apoptosis, dna damage and repair handoutAhmed Amer

Anatomy & physiology of sweat glands, sebaceous
Anatomy & physiology of sweat glands, sebaceousAnatomy & physiology of sweat glands, sebaceous
Anatomy & physiology of sweat glands, sebaceousAhmed Amer

All about genes oncogenes mutations-cloning-gene therapy
All about genes oncogenes mutations-cloning-gene therapyAll about genes oncogenes mutations-cloning-gene therapy
All about genes oncogenes mutations-cloning-gene therapyAhmed Amer

10 basics of human genetics
10 basics of human genetics10 basics of human genetics
10 basics of human geneticsAhmed Amer

Biologic therapy for psoriasis
Biologic therapy for psoriasisBiologic therapy for psoriasis
Biologic therapy for psoriasisAhmed Amer


More from Ahmed Amer (12)

Dermatology board review
Dermatology board reviewDermatology board review
Dermatology board review

Changes in newborn, pregnancy and old age
Changes in newborn, pregnancy and old ageChanges in newborn, pregnancy and old age
Changes in newborn, pregnancy and old age

Blood transfusion 2
Blood  transfusion 2Blood  transfusion 2
Blood transfusion 2

Barrier function & biomechanical properties of the skin
Barrier function & biomechanical properties of the skin Barrier function & biomechanical properties of the skin
Barrier function & biomechanical properties of the skin

Autoimmune disorders &
Autoimmune disorders &Autoimmune disorders &
Autoimmune disorders &

Autoimmune disorders & jj
Autoimmune disorders & jjAutoimmune disorders & jj
Autoimmune disorders & jj

Apoptosis, dna damage and repair handout
Apoptosis, dna damage and repair handoutApoptosis, dna damage and repair handout
Apoptosis, dna damage and repair handout

Antibiotics
AntibioticsAntibiotics
Antibiotics

Anatomy & physiology of sweat glands, sebaceous
Anatomy & physiology of sweat glands, sebaceousAnatomy & physiology of sweat glands, sebaceous
Anatomy & physiology of sweat glands, sebaceous

All about genes oncogenes mutations-cloning-gene therapy
All about genes oncogenes mutations-cloning-gene therapyAll about genes oncogenes mutations-cloning-gene therapy
All about genes oncogenes mutations-cloning-gene therapy

10 basics of human genetics
10 basics of human genetics10 basics of human genetics
10 basics of human genetics

Biologic therapy for psoriasis
Biologic therapy for psoriasisBiologic therapy for psoriasis
Biologic therapy for psoriasis


Basic immunology from the dermatologic point of view (2)

  • 1.
  • 2. Basic Immunology from the Dermatologic point of view DDrr SSaammiiaa EEssmmaatt PPrrooffeessssoorr ooff DDeerrmmaattoollooggyy CCaaiirroo UUnniivveerrssiittyy
  • 3. The Immune System • Protection from foreign macromolecules or invading organisms (viruses, bacteria, protozoa or even larger parasites). • Autoimmunity immune responses against our own proteins. • Tumor immunity. Against our own aberrant cells.
  • 4. SKIN AS AN ORGAN OF PROTECTION • Our first line of defense against foreign organisms are barrier tissues (skin and mucous membranes). • The skin represents a major barrier against the outside environment, being constantly exposed to microbial mechanical and physical insults. • The skin protection is not only mechanical.
  • 5. SKIN AS A PART OF THE IMMUNE SYSTEM • It uses the immune system for protection. • Has the capacity to generate an immune response through the SALT (skin associated lymphoid tissues).
  • 6. TYPES OF THE IMMUNE REACTION • There are two types of immune reaction to invadors. • A rapid more primitive reaction called the innate immunity. • A later highly specific more developed adaptive immune system. • Both types of the immune response can be generated in the skin
  • 8. Immune system • Innate immunity: Composed of heriditary components that provide an immediate "first-line" of defense to continuously protect against pathogens. • Adaptive (acquired) immunity: DEFENCE MECHANISMS USED BY THE HOST IMMEDIATELY AFTER ENCOUNTERING A FOREIGN LIGAND The body can develop a specific immunity Humoral or cellular to target particular pathogens. This response takes days to develop, and so is not effective at preventing an initial invasion, but it will normally prevent any subsequent infection, and also aids in clearing up longer-lasting infections.
  • 9. Innate immunity • This is the immunity one is born with. • It is the only form of immunity in primitive organisms.
  • 10. Innate immunity • The first line of defense - It discriminates between self and non-self . - Distinguish between pathogenic and non-pathogenic microbes. - It plays an important role in triggering the adaptive immune response.
  • 11. The major functions of innate immune system include: • The identification and removal of foreign substances present in organs, tissues, the blood and lymph, by specialized cells. • Recruiting immune cells to sites of infection, through the production of chemical factors, including cytokines. • Activation of the complement cascade • Activation of the adaptive immune system through antigen presentation.
  • 12. Mediated through I. Cells of the innate immune system - Phagocytic cells (neutrophils, monocytes, and macrophages. -- Cells that release inflammatory .mediators (basophils, mast cells, and eosinophils)..Inflammation -Dendritic cells. - Natural killer cells (NK cells) and the gamma delta Tcells II. Cytokines, chemokines and polyreactive antibodies. III. Anti microbial peptides. IV. Complement activation.
  • 13. INNATE IMMUNITY ADAPTIVE IMMUNITY Trigger PAMP Specific antigens Action Min-hours Days to weeks Receptors PRR as TLR TCR,BCR Memory No Yes Communications Cytokines and chemokines Effectors Complement Antigen presentation Phagocytosis Complement Antigen presentation Antibodies Cytotoxicity
  • 14. Components of innate immunity include: -Anatomical and mechanical barriers. -Pattern recognition receptorsPRR that recognize PAMP. -Antigen-nonspecific defense chemicals. -The alternative complement pathways. - Phagocytosis. - Inflammation. - fever. The skin and epithelial linings prevent most pathogen sand environmental toxins from harming the host. Epidermis impedes microbial organisms, irritants, toxins, Absorbs and blocks solar and ionizing radiation inhibits water loss St corneum FFA prevent colonization by bacteria as S aureus. Antimicrobial peptides: defensin HBD-1,2&3 cathelicidins Activated by microbial surface without antibody formation Keratinocyte cytokines: IL-1,6,8,10&TNFalpha
  • 15. Anti microbial peptides • Secreted by the human epithelia including the epidermis (Keratinocytes) to exhibit the capacity of an innate chemical defense. • Antiliukoproteases. • Dramcidin (SWEAT GLANDS) • Human B defensin 1-4. • Lysosyme, Psoriasin (Sebocytes), RNase7,LL-37/hCAP18 (urogenital tract).
  • 16. Selectivity of antimicrobial peptides • antimicrobial peptides preferentially interact with the bacterial cell to the mammalian cells ie Selective • the cationic property: bacterial membranes is more negatively charged than mammalian cells. • The cholesterol in mammalian cells protect them from attack by the antimicrobial peptides.
  • 17.
  • 18. Induction and Actions • Induced by bacterial and proinflammatory products or cytokines as well as toll like receptor stimulation. • Broad spectrum anti bacterial and variable anti fungal and antivrial activities. • Disrupting membranes, interfering with metabolism, and targeting cytoplasmic components • Attract immature dendritic cells and memory T cells via role in adaptive immunity
  • 19. IDENTIFICATION OF THE INVADOR • On the organism: Pathogen associated molecular patterns (PAMPS), • On the effector cells: Pattern recognition receptors (PRP).
  • 20. PATHOGEN-ASSOCIATED MOLECULAR PATTERNS PAMPS • Innate immunity does not recognize every possible antigen. • It is designed to recognize a few highly conserved structures present in many different microorganisms. PATHOGEN-ASSOCIATED MOLECULAR PATTERNS ( PAMPS)
  • 21. PATHOGEN-ASSOCIATED MOLECULAR PATTERNS PAMPS (CONT) 1. Must be shared by large groups of pathogens and thus must represent general patterns rather then specific structures. 2. Must be conserved products of microbial metabolism which are not subject to antigenic variability. 3. pathogens cannot "change" them because they are essential for the survival or pathogenicity of the microorganisms. Any attempts to change them could be lethal to the microbe or render it nonpathogenic. 4. The recognized structures must be absolutely distinct from self-antigens. The major consequence of this requirement is the ability of the innate immune system to discriminate between self and non-self.
  • 22. PAMPS In all, the innate immune system is thought to recognize approximately 103 molecular patterns.These include: Cell wall constituents or nucleic acids a. Lipopolysaccharide (LPS) from the gram-negative cell wall. b. Peptidoglycan found abundantly in the gram-positive cell wall and to a lesser degree in the gram-negative cell wall . c. Lipoteichoic acids found in the gram-positive cell wall. d.Lipoarabinomannum (LAM) in mycobacterial wall e. Mannose-rich glycans (common in microbial glycoproteins and glycolipids but rare in those of humans). f. Flagellin found in bacterial flagella. g. Pilin from bacterial pili.
  • 23. PAMPS (CONT) g. Bacterial and viral nucleic acid. Bacterial and viral genomes contain a high frequency of unmethylated cytosine-guanine dinucleotide sequences (a cytosine lacking a methyl or CH3 group and located adjacent to a guanine). Mammalian DNA has a low frequency of cytosine-guanine dinucleotides and most are methylated. h. N-formylmethionine, an amino acid common to bacterial proteins. i. Double-stranded RNA unique to most viruses. j. Lipoteichoic acids, glycolipids, and zymosan from yeast cell walls. k. phosphorylcholine and other lipids common to microbial membranes.
  • 24. GRAM POSITIVE GRAM NEGATIVE
  • 25. Pattern-recognition Receptors (PRR) To recognize these microbial molecules, various body defense cells have on their surface a variety of receptors called Pattern-recognition Receptors capable of binding specifically to PAMPS
  • 26. Pattern Recognition Receptors • The cornerstone of the innate immune system. • These PRRs are activated upon recognition of “Pathogen-Associated Molecular Patterns” or PAMPs.
  • 27.
  • 28. CLASSIFICATION I. Cell surface PRR two functionally different classes : • 1. Endocytic pattern-recognition receptors. • 2. Signaling pattern-recognition receptors II. Secreted PRR
  • 29. ENDOCYTIC PATTERN-RECOGNITION RECEPTORS Found on the surface of phagocytes and promote the attachment of microorganisms to phagocytes and their subsequent engulfment and destruction.
  • 30.
  • 31. Signaling pattern-recognition receptors • Binding of microbial molecules to the receptor promotes the synthesis and secretion of intracellular regulatory molecules such as cytokines that is crucial to initiating innate immunity and adaptive immunity. • Toll-like receptors and • CD14. • NOD (nucleotide-binding oligomerization domain proteins)
  • 32. Toll-like receptors • A series of Signaling pattern-recognition receptors known as toll-like receptors (TLRs) play a major role in innate immunity and the induction of adaptive immunity.
  • 33. THE TOLL • Mamalian TLRs owe their name to a closely related receptor called Toll, first identified in Drosophila in 1988. • TOLL: german word of fantastical or strange. • They recognize and bind to PAMPS (conserved molecular components associated with microorganisms)
  • 34. Toll like receptors Upon binding of the extracellular ligand recognition domain to specific PAMPs, changes in the intracellular domain result in initiation of signaling events leading to • Inflammatory responses and/or • Release of antimicrobial agents.
  • 35.

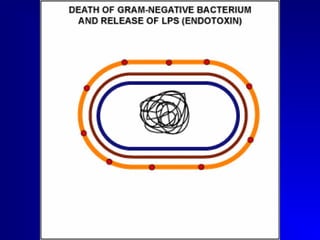

  • 36. Toll-Like Receptors Responding to Lipopolysaccharide (LPS) from the Gram-Negative Cell Wall
  • 37. Secreted pattern recognition receptors • Secreted pattern-recognition receptors. These bind to microbial cell walls and enable them to be recognized by the complement pathways and phagocytes. • Eg mannan-binding lectin is synthesized by the liver and released into the bloodstream. MBL recognizes carbohydrate patterns, found on the surface of a large number of pathogenic micro-organisms, including bacteria, viruses, protozoa and fungi.
  • 38. INNATE IMMUNITY ADAPTIVE IMMUNITY Trigger PAMP Specific antigens Action Min-hours Days to weeks Receptors PRR as TLR TCR,BCR Memory No Yes Communications Cytokines and chemokines Effectors Complement Antigen presentation Phagocytosis Complement Antigen presentation Antibodies Cytotoxicity
  • 39.
  • 40. MEMBERS OF THE TRLs FAMILY • These TLRs differ from each other in ligand specificities, expression patterns, and target genes they induce. • Different combinations of TLRs appear in different cell types. • Seem to appear in pairs.
  • 41. Different TLRs • 1. TLRs found on cell surfaces: MAINLY bacteria and fungi a. TLR-1/TLR-2 b. TLR-2/TLR-6; c. TLR-2 plays a role in binding peptidoglycan fragments (glycopeptides); d. TLR-4/TLR-4 pairs bind lipopolysaccharide from gram-negative cell walls; e. TLR-5 • 2. TLRs found in the membranes of the endosomes used to degrade pathogens MAINLY VIRUSES • a. TLR-3; b. TLR-7c. TLR-8* d. TLR-9* • Attack different types of DNA or RNA
  • 42. TLRs are found both on the surface and within the phagolysosomes of phagocytes.
  • 43. PAMPs Binding to TLRs on Macrophage
  • 44. The TLRs found in the membranes of the phagosomes Recognizing Viral Double-Stranded RNA after phagocytosis
  • 45.
  • 46. ROLE IN INNATE IMMUNITY • The binding of a microbial molecule to its TLR transmits a signal to the cell's nucleus inducing the expression of genes coding for the synthesis of cytokines that determines the suitable immune system behaviour. • bacterial and fungi cell wall components stimulate IL -1, TNF-alpha, and IL-8. trigerring innate immune defenses such as inflammation, fever, and phagocytosis in order to provide an immediate response against the invading microorganism. • viral components trigger the synthesis of interferons that block viral replication within infected host cells.
  • 47. Role in adaptive immunity • TLRs trigger various secondary signals needed for - humoral immunity (the production of antibodies). -cell-mediated immunity (the production of cytotoxic T-lymphocytes and additional cytokines). • Without innate immune responses there could be no adaptive immunity.
  • 48. Imiquimod Activates I the Toll-Like Receptor 7 cell lysis & release of bioactive IL1-a IL1 IL18 TLRs TNF NF-kB cytokines (IL1, TNF-a) IL-12, IFN-g, chemokines, & ‘danger’ signals
  • 49. The Complement system • a biochamical cascade of the immune system that helps, or “complements”, the ability of antibodies to clear pathogens or mark them for destruction by other cells. • The cascade is composed of many plasma proteins, synthesized in the liver.
  • 50. The Complement system • Activated by three pathways: 1) Classical: antigen antibody complex. 2) Alternative pathway: polysaccharides of microbial cell walls. 3) Lectin pathway: by the binding of the microbial carbohydrates with mannose binding lectin. • Innate immune response uses 2 and 3 • Activation of C3 and starts the cascade.
  • 51. The Complement system • The proteins work together to: -trigger the recruitment of inflammatory cells, -"tag" pathogens for destruction by other cells, and enhances phagocytosis. - Disrupt the plasma membrane of an infected cell. • Rid the body of neutralized antigen-antibody complexes. • Normal cells are less sussceptible to desruction by complement .
  • 52. Cytokines • Substances secreted by various cell types to interact with other cells to produce ceratain actions. • Interlukins (interaction between WBCs), interferons (antiviral activities) • colony stimulating factors induce differentiation and proliferation of hematopoeitic progenitor cells. • Chemokines,(Inflammatory and lymphoid) chemoattraction ability.
  • 53. Cytokines of the innate immune system • Mainly cytokines within inflammatory and antivral capacities. - IL-6,IL-1and TNF alpha and inflammatory chemokines. - IFN alpha and IFN beta.
  • 54. CELLS OF THE INNATE IMUNE SYSTEM 1. Macrophages • Expresses PRR to identify organisms. • Receptors for antibodies and complement that enhances phagocytosis. • Destroy the organisms by toxic intracellular molecules as:superoxide anions, hydroxyl radicals,nitrous oxide, etc. • Antigen presenting capacity (much less than Langerhan’s cells) • Releases G-CSF, AND GM CSF that stimulate the devision and release of neutrophils from the bone marrow.
  • 55. 2. Neutrophils • The enter the blood stream to enter the site of infection through the complex effect of proinflammatory mediators,adhesion molecules chemoattractants and chemokines. • Phagocytosis is enhanced by coating the organism by antibodies and complement that bind to their receptors on the neutrophils • Phagocytose and kills the organisms by oxygen (H peroxide and hydroxyl radicals) dependant or independent mechanisms (myeloperoxidase or lysosyme).
  • 56. 3.Eosinophils • Protective agains parasites. • Antibodies bind the parasite and then the eosinophils • Weak phagocytic activity. • Release toxic substances to the parasite as major basic ptn, Eosinophil cataionic protein, E peroxidase Eneurotoxin, • Prostaglandins leukotrienes and cytokines. • Important in allergic reactions.
  • 57. 4.Basophil and mast cells • Basophil in the blood and mast cell in the tissues. • Palys an important role in immediate allergic reaction, urticaria and angioedema. • Mast cells are involved in TLR-mediated responses against Gram-negative bacteria.
  • 58. Natural killer cells • Pattern recognition receptors (TLR 3,9) it can identify and eliminate infected or malignant cells. • Activation of killer activating receptors that recognize the abnormal cells and kills them by secreting perforin and injecting granzyme that kills the cells by inducing apoptosis. • Adhere and kill targets coated with IgG as they carry receptors for it (antibody dependant cellular cytotoxicity ADCC).
  • 59. Natural killer cells • MHC shuts off the killer signals. • Tumour cells and viral infected cells are vulnerable as they sometimes mask MHC to escape cytotoxic T cells
  • 60. inflammation • One of the first responses of the immune system to infection or irritation. • Inflammation is stimulated by chemical factors released by injured cells and cells of the innate immune syste and serves to establish a physical barrier against the spread of infection, and to promote healing of any damaged tissue following the clearance of pathogens.[3]
  • 61. Inflammation • Chemical factors produced during inflammation (histamine, bradykinin, leukotrienes, serotonin and prostaglandin, sensitize pain receptors, cause vasodilatation at the scene, and attract phagocytes, especially neutrophils.[
  • 62. INNATE IMMUNITY ADAPTIVE IMMUNITY Trigger PAMP Specific antigens Action Min-hours Days to weeks Receptors PRR as TLR TCR,BCR Memory No Yes Communications Cytokines and chemokines Effectors Complement Antigen presentation Phagocytosis Complement Antigen presentation Antibodies Cytotoxicity
  • 63. interactions between the innate and adaptive immune • The interactions between the innate and adaptive immune systems are crucial to promote proinflammatory reactions against pathogens and to ensure maintenance of vital self-tolerance. • TLRs are expressed on both innate and adaptive immune cells and are critically involved in this interplay. • TLR-stimulated dendritic cells induce specific T cells to differentiate into TH-1, TH- 2 or T-reg
  • 64.
  • 65. Adaptive immunity • Cells of the innate immune system effectively prevent free growth of bacteria within the body. • however, many pathogens have evolved mechanisms allowing them to evade the innate immune system and generates a threshold level of antigen which triggers . the adaptive immune system include:
  • 66. Functions of the adaptive immune system • the recognition of specific “non-self” antigens in the presence of “self”, during the process of antigen presentation. • the generation of tailored responses to eliminate specific pathogens. • the development of immunologic memory in which each pathogen is “remembered” by a signature antibody. These memory cells can be called upon to quickly eliminate a pathogen on subsequent infections .
  • 67. Adaptive immune system • The cells of the adaptive immune system are • B cells and T cells are the major types of lymphocytes. • The process starts by antigen presentation. • Adaptive immunity relies on the capacity of immune cells to distinguish between the body's own cells and unwanted invaders
  • 68. Two limbs of adaptive immunity • Cell mediated immunity: APC and T cells. • Humoral immunity: B cells and antibodies
  • 69. Antigen presenting cells ( APC) With the exception of non-nucleated cells all cells are capable of presenting antigen and of activating the adaptive response. - Some cells are specially equipped to present antigen, and to prime naive T cells and are termed professional (APC). - Dendritic cells (and to a lesser extent macrophages. are equipped with special receptors that allow for enhanced activation of T cells.
  • 70. LNGERHAN’ S CELLS • Dentritic Cells of the epidermis. • Expresses CD1, S100 ptn, Vimentin, Birbeck granules associated molecule (langerin) and MHC II. • Derived from the bone marrow from CD34 precursor cell .
  • 71.
  • 72.
  • 73. Antigen presentation • Langerhan’s cell engulf’s the antigen and processes it. • Starts emigration to the lymph nodes to meet the T cells . • During this trip it develops some changes to become similar to mature Dendritic cell.
  • 74. Antigen presentation • APC to B cells and T cells is not the same. • B cells can identify the whole antigen by antibodies on thier surface • T cells only identify the antigen when processed into peptides bound to specific surface molecules on APC.
  • 75. AP TO T CELLS • Tcells identify the processed antigen bound to MHC on the surface of Dendritic cells. • CD4 T cells identify antigens bound to MHC II while Cytotoxic CD8 T cells identify antigen T cells bound to MHC I • Exogenous and endogenous antigen presentation.
  • 76.
  • 77.
  • 78. TYPES OF AP to T cells • Exogenous antigens are engulfed by the APC, processed and presented in association with MHC II. • Endogenous antigens (VIRUS AND TUMOURS) are processed and presented in association with MHC I
  • 79.
  • 80. T cells • T cells develop and mature in the thymus after migration of the stem cells from the bone marrow. • At the thymus only T cells that can recognize foreign and not self antigen in the MHC peptide complex get a survival signal (positive selection) and pass to the circulation and lymphnodes.. • Those who fail have affinity to self antigens receive signals for apoptosis (negative selection) thus no auto attack. •
  • 81. Types of T cells • Immature T cells Express both CD4 and CD8 molecules. • Later with the development of the Tcell receptor, they either express CD4 and become T helper cell that binds antigens in MHCII or express CD8 molecule and becomes T cytotoxic cell that binds antigens on MHCI.
  • 82. The T CELL RECEPTOR (TCR) • It is the part responsible for recognition of the specific antigen and the further T cell response. • TCR are transmembrane molecules that are mainly of the α/β type while only 10% are of the γ/δ type in body and skin.
  • 83. γ/δT cells • Do not follow the classic way of antigen recognition may be able of direct antigen recognition. • May play a role in innate immunity. • Increase in the skin in leprosy and lieshmaniasis.
  • 84. TCR • Can recognize a huge number of antigens encoded by more than 400 genes thet are modified and rearranged to cover an endless number of antigens by recombination activation genes • Rag-1 Rag-2 . • when deffective ----combined immune defficiency.
  • 85. TCR SIGNALLING • CD3 is an important part of TCR responsible for transmission of the signal to the cell that encodes for the cytokine needed to stimulate the required response for that particular antigen.
  • 86.
  • 87. Costimulatory molecules • B 7 FAMILY • CYTOKINES (TNF IL-1 AND IL-6) • CELL ADHESION MOLECULES ARE VERY IMPORTANT FOR COMPLETION OF THE T CELL RESPONSE OTHER WISE ANERGY AND FAILURE OF T CELL STIMULATION OCCURS.
  • 88.
  • 89. CLONAL EPANSION • After proper antigen presentation and costimulation T cell becomes activated . • Memory T cells develop
  • 90. Memory T cells - Central memory T cells: at the lymphnode, CD45RO+CD45RA- CCR7+ Have no effector function. They stimulate dendritic cells to produce IL-12 upon secondary stimulation and differentiate into ccr7- cells. - Effector memory Tcells (TEM): CD45RO+CD45RA- CCR7- develop receptors to migrate to the inflamed tissues (e.g CLA in the skin). Have an effector function.
  • 91. Skin T cells • Majority is : • In the dermis. • CD4 OR CD8. • α/β TCR. • memory phenotype CD45RO+CD45RA- • Skin homing receptor CLA(cutaneous lymphocyte associated antigen).
  • 92. Effector T cell function • After recognition of the antigen • CD4: T helper cells(Th): -activate the immune system to combat the antigen including both T and B cells. CD8 T cytotoxic cells(Tc): Antiviral and anti tumour responses
  • 93. T helper response • According to the type of antigen recognized by the Th cells they secrete different cytokine patterns that will further stimulate different parts of the immune system. • T0 secretes a wide variety if cytokines which then develops into Th1 or Th2 with more restricted type of cytokine secretion.
  • 94. Th 1 cells • IL-12 stimulates differnetiation of Th0 into Th1 which secretes: • IL-2: stimulates both Th and Tc proliferation. • IFN GAMMA: activates macrophages and NK cells and IL-12. i.e a cell mediated inflammatory response As in granuloma and autoimmunity.
  • 95. Th2 cells • IL-4: Stimulates B cells to produce IgE and stimulates further Th 2 response and inhibits TH1 response. • IL-5: promotes eosinophil growth. • IL-10: inhibits TH1 response. Mediates humoral immunity.
  • 96. Th1/Th2 decision • Very important to achieve the required state if immunity . • Depends upon the type of antigen presented and the cytokines it stimulates. • The Dendritic cells, the toll like receptor, Dose of antigen,Genetic background of the host, The APC and its cytokines,The costimulatory molecules.
  • 97.
  • 98. Th3 cells • Transforming growth factor B . • Helps IgA production. • Supresses both Th1 and Th2 responses.
  • 99. Tcytotoxic cells CD8 • Direct killing of the organism or the abnormal or infected cells. • TC1 and TC2 in cytokine pattenrs. • Viral and antitumour activities.
  • 100. Regulatory T cells (Tregs) • CD4 + T cells. • Secretes large amounts of IL-10. • Suppressor effect on both immune responses. • Produced by immature inactive dendritic cells. • Important for tolerance towards self antigens and regulating inflammation.
  • 102. The B lymphocyte • B cells function to protect the host by producing antibodies that identify and neutralize foreign objects like bacteria and viruses. • B Cells are the major cells involved in the creation of humoral immunity.
  • 103. Antibodies • Antibodies (or immunoglobulin, Ig), are large Y-shaped proteins used by the immune system to identify and neutralize foreign objects. • In mammals there are five types of antibody: IgA, IgD, IgE, IgG, and IgM, differing in biological properties, each has evolved to handle different kinds of antigens.
  • 104. B cells • Upon activation, B cells produce antibodies, each of which recognizes a unique antigen, and neutralize specific pathogens.[1] • Like the T cell receptor, B cells express a unique B cell receptor (BCR), in this case, an immobilized antibody molecule. The BCR recognizes and binds to only one particular antigen.
  • 105. Bcell Vs T cell ACTIVATION • T cells recognize their cognate antigen in a processed form - as a peptide in the context of an MHC molecule, • while B cells recognize antigens in their native form.[ • B- cells receives additional signals from a helper T cell (predominately Th2 type)), to further differentiates into an effector cell, known as a plasma cell]
  • 106. Plasma cells • Short lived cells (2-3 days) which secrete antibodies that bind to antigens, making them easier targets for phagocytes, and trigger the complement cascade.[ • About 10% of plasma cells will survive to become long-lived antigen specific memory B cells primed to produce specific antibodies and respond quickly if the same pathogen re-infects the host; while the host experiences few, if any, symptoms.
  • 107.
  • 108.
