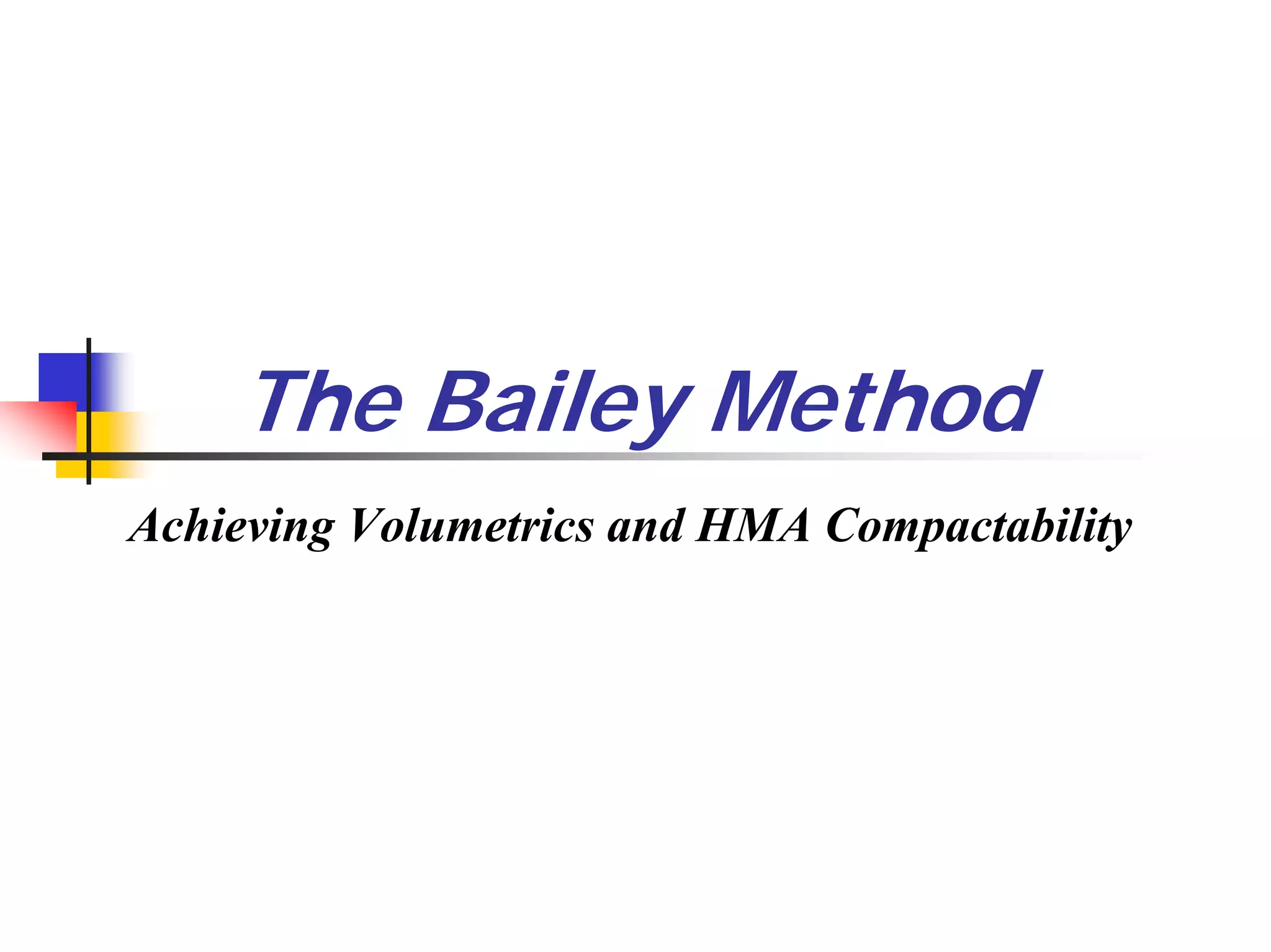

This document discusses the Bailey Method for aggregate blending to achieve desired volumetrics and compaction in HMA. The key points are:
1) The Bailey Method focuses on aggregate packing and blending aggregates by volume rather than just weight. It evaluates individual aggregates and combined blends.
2) Important factors that influence results are gradation, compactive effort, aggregate shape/texture, and strength.
3) Aggregates are classified as "coarse" or "fine" based on nominal maximum particle size and primary control sieve. Evaluating by loose and rodded unit weights helps understand aggregate packing.
Aggregates blending, blending aggregates by graphical method, concrete mix design, concrete technology, what is aggregates blending, what is blending, methods of blending, how to blend aggregates, civil engineering
Aggregates blending, blending aggregates by graphical method, concrete mix design, concrete technology, what is aggregates blending, what is blending, methods of blending, how to blend aggregates, civil engineering
Nutraceutical market, scope and growth: Herbal drug technologyLokesh Patil
As consumer awareness of health and wellness rises, the nutraceutical market—which includes goods like functional meals, drinks, and dietary supplements that provide health advantages beyond basic nutrition—is growing significantly. As healthcare expenses rise, the population ages, and people want natural and preventative health solutions more and more, this industry is increasing quickly. Further driving market expansion are product formulation innovations and the use of cutting-edge technology for customized nutrition. With its worldwide reach, the nutraceutical industry is expected to keep growing and provide significant chances for research and investment in a number of categories, including vitamins, minerals, probiotics, and herbal supplements.
Earliest Galaxies in the JADES Origins Field: Luminosity Function and Cosmic ...Sérgio Sacani
We characterize the earliest galaxy population in the JADES Origins Field (JOF), the deepest
imaging field observed with JWST. We make use of the ancillary Hubble optical images (5 filters
spanning 0.4−0.9µm) and novel JWST images with 14 filters spanning 0.8−5µm, including 7 mediumband filters, and reaching total exposure times of up to 46 hours per filter. We combine all our data
at > 2.3µm to construct an ultradeep image, reaching as deep as ≈ 31.4 AB mag in the stack and
30.3-31.0 AB mag (5σ, r = 0.1” circular aperture) in individual filters. We measure photometric
redshifts and use robust selection criteria to identify a sample of eight galaxy candidates at redshifts
z = 11.5 − 15. These objects show compact half-light radii of R1/2 ∼ 50 − 200pc, stellar masses of
M⋆ ∼ 107−108M⊙, and star-formation rates of SFR ∼ 0.1−1 M⊙ yr−1
. Our search finds no candidates
at 15 < z < 20, placing upper limits at these redshifts. We develop a forward modeling approach to
infer the properties of the evolving luminosity function without binning in redshift or luminosity that
marginalizes over the photometric redshift uncertainty of our candidate galaxies and incorporates the
impact of non-detections. We find a z = 12 luminosity function in good agreement with prior results,
and that the luminosity function normalization and UV luminosity density decline by a factor of ∼ 2.5
from z = 12 to z = 14. We discuss the possible implications of our results in the context of theoretical
models for evolution of the dark matter halo mass function.
DERIVATION OF MODIFIED BERNOULLI EQUATION WITH VISCOUS EFFECTS AND TERMINAL V...Wasswaderrick3
In this book, we use conservation of energy techniques on a fluid element to derive the Modified Bernoulli equation of flow with viscous or friction effects. We derive the general equation of flow/ velocity and then from this we derive the Pouiselle flow equation, the transition flow equation and the turbulent flow equation. In the situations where there are no viscous effects , the equation reduces to the Bernoulli equation. From experimental results, we are able to include other terms in the Bernoulli equation. We also look at cases where pressure gradients exist. We use the Modified Bernoulli equation to derive equations of flow rate for pipes of different cross sectional areas connected together. We also extend our techniques of energy conservation to a sphere falling in a viscous medium under the effect of gravity. We demonstrate Stokes equation of terminal velocity and turbulent flow equation. We look at a way of calculating the time taken for a body to fall in a viscous medium. We also look at the general equation of terminal velocity.
What is greenhouse gasses and how many gasses are there to affect the Earth.moosaasad1975
What are greenhouse gasses how they affect the earth and its environment what is the future of the environment and earth how the weather and the climate effects.
Salas, V. (2024) "John of St. Thomas (Poinsot) on the Science of Sacred Theol...Studia Poinsotiana
I Introduction
II Subalternation and Theology
III Theology and Dogmatic Declarations
IV The Mixed Principles of Theology
V Virtual Revelation: The Unity of Theology
VI Theology as a Natural Science
VII Theology’s Certitude
VIII Conclusion
Notes
Bibliography
All the contents are fully attributable to the author, Doctor Victor Salas. Should you wish to get this text republished, get in touch with the author or the editorial committee of the Studia Poinsotiana. Insofar as possible, we will be happy to broker your contact.
This presentation explores a brief idea about the structural and functional attributes of nucleotides, the structure and function of genetic materials along with the impact of UV rays and pH upon them.
Seminar of U.V. Spectroscopy by SAMIR PANDASAMIR PANDA
Spectroscopy is a branch of science dealing the study of interaction of electromagnetic radiation with matter.
Ultraviolet-visible spectroscopy refers to absorption spectroscopy or reflect spectroscopy in the UV-VIS spectral region.
Ultraviolet-visible spectroscopy is an analytical method that can measure the amount of light received by the analyte.
Toxic effects of heavy metals : Lead and Arsenicsanjana502982
Heavy metals are naturally occuring metallic chemical elements that have relatively high density, and are toxic at even low concentrations. All toxic metals are termed as heavy metals irrespective of their atomic mass and density, eg. arsenic, lead, mercury, cadmium, thallium, chromium, etc.
2024 State of Marketing Report – by HubspotMarius Sescu
https://www.hubspot.com/state-of-marketing
· Scaling relationships and proving ROI
· Social media is the place for search, sales, and service
· Authentic influencer partnerships fuel brand growth
· The strongest connections happen via call, click, chat, and camera.
· Time saved with AI leads to more creative work
· Seeking: A single source of truth
· TLDR; Get on social, try AI, and align your systems.
· More human marketing, powered by robots
ChatGPT is a revolutionary addition to the world since its introduction in 2022. A big shift in the sector of information gathering and processing happened because of this chatbot. What is the story of ChatGPT? How is the bot responding to prompts and generating contents? Swipe through these slides prepared by Expeed Software, a web development company regarding the development and technical intricacies of ChatGPT!
Nutraceutical market, scope and growth: Herbal drug technologyLokesh Patil
As consumer awareness of health and wellness rises, the nutraceutical market—which includes goods like functional meals, drinks, and dietary supplements that provide health advantages beyond basic nutrition—is growing significantly. As healthcare expenses rise, the population ages, and people want natural and preventative health solutions more and more, this industry is increasing quickly. Further driving market expansion are product formulation innovations and the use of cutting-edge technology for customized nutrition. With its worldwide reach, the nutraceutical industry is expected to keep growing and provide significant chances for research and investment in a number of categories, including vitamins, minerals, probiotics, and herbal supplements.
Earliest Galaxies in the JADES Origins Field: Luminosity Function and Cosmic ...Sérgio Sacani
We characterize the earliest galaxy population in the JADES Origins Field (JOF), the deepest
imaging field observed with JWST. We make use of the ancillary Hubble optical images (5 filters
spanning 0.4−0.9µm) and novel JWST images with 14 filters spanning 0.8−5µm, including 7 mediumband filters, and reaching total exposure times of up to 46 hours per filter. We combine all our data
at > 2.3µm to construct an ultradeep image, reaching as deep as ≈ 31.4 AB mag in the stack and
30.3-31.0 AB mag (5σ, r = 0.1” circular aperture) in individual filters. We measure photometric
redshifts and use robust selection criteria to identify a sample of eight galaxy candidates at redshifts
z = 11.5 − 15. These objects show compact half-light radii of R1/2 ∼ 50 − 200pc, stellar masses of
M⋆ ∼ 107−108M⊙, and star-formation rates of SFR ∼ 0.1−1 M⊙ yr−1
. Our search finds no candidates
at 15 < z < 20, placing upper limits at these redshifts. We develop a forward modeling approach to
infer the properties of the evolving luminosity function without binning in redshift or luminosity that
marginalizes over the photometric redshift uncertainty of our candidate galaxies and incorporates the
impact of non-detections. We find a z = 12 luminosity function in good agreement with prior results,
and that the luminosity function normalization and UV luminosity density decline by a factor of ∼ 2.5
from z = 12 to z = 14. We discuss the possible implications of our results in the context of theoretical
models for evolution of the dark matter halo mass function.
DERIVATION OF MODIFIED BERNOULLI EQUATION WITH VISCOUS EFFECTS AND TERMINAL V...Wasswaderrick3
In this book, we use conservation of energy techniques on a fluid element to derive the Modified Bernoulli equation of flow with viscous or friction effects. We derive the general equation of flow/ velocity and then from this we derive the Pouiselle flow equation, the transition flow equation and the turbulent flow equation. In the situations where there are no viscous effects , the equation reduces to the Bernoulli equation. From experimental results, we are able to include other terms in the Bernoulli equation. We also look at cases where pressure gradients exist. We use the Modified Bernoulli equation to derive equations of flow rate for pipes of different cross sectional areas connected together. We also extend our techniques of energy conservation to a sphere falling in a viscous medium under the effect of gravity. We demonstrate Stokes equation of terminal velocity and turbulent flow equation. We look at a way of calculating the time taken for a body to fall in a viscous medium. We also look at the general equation of terminal velocity.
What is greenhouse gasses and how many gasses are there to affect the Earth.moosaasad1975
What are greenhouse gasses how they affect the earth and its environment what is the future of the environment and earth how the weather and the climate effects.
Salas, V. (2024) "John of St. Thomas (Poinsot) on the Science of Sacred Theol...Studia Poinsotiana
I Introduction
II Subalternation and Theology
III Theology and Dogmatic Declarations
IV The Mixed Principles of Theology
V Virtual Revelation: The Unity of Theology
VI Theology as a Natural Science
VII Theology’s Certitude
VIII Conclusion
Notes
Bibliography
All the contents are fully attributable to the author, Doctor Victor Salas. Should you wish to get this text republished, get in touch with the author or the editorial committee of the Studia Poinsotiana. Insofar as possible, we will be happy to broker your contact.
This presentation explores a brief idea about the structural and functional attributes of nucleotides, the structure and function of genetic materials along with the impact of UV rays and pH upon them.
Seminar of U.V. Spectroscopy by SAMIR PANDASAMIR PANDA
Spectroscopy is a branch of science dealing the study of interaction of electromagnetic radiation with matter.
Ultraviolet-visible spectroscopy refers to absorption spectroscopy or reflect spectroscopy in the UV-VIS spectral region.
Ultraviolet-visible spectroscopy is an analytical method that can measure the amount of light received by the analyte.
Toxic effects of heavy metals : Lead and Arsenicsanjana502982
Heavy metals are naturally occuring metallic chemical elements that have relatively high density, and are toxic at even low concentrations. All toxic metals are termed as heavy metals irrespective of their atomic mass and density, eg. arsenic, lead, mercury, cadmium, thallium, chromium, etc.
2024 State of Marketing Report – by HubspotMarius Sescu
https://www.hubspot.com/state-of-marketing
· Scaling relationships and proving ROI
· Social media is the place for search, sales, and service
· Authentic influencer partnerships fuel brand growth
· The strongest connections happen via call, click, chat, and camera.
· Time saved with AI leads to more creative work
· Seeking: A single source of truth
· TLDR; Get on social, try AI, and align your systems.
· More human marketing, powered by robots
ChatGPT is a revolutionary addition to the world since its introduction in 2022. A big shift in the sector of information gathering and processing happened because of this chatbot. What is the story of ChatGPT? How is the bot responding to prompts and generating contents? Swipe through these slides prepared by Expeed Software, a web development company regarding the development and technical intricacies of ChatGPT!
Product Design Trends in 2024 | Teenage EngineeringsPixeldarts
The realm of product design is a constantly changing environment where technology and style intersect. Every year introduces fresh challenges and exciting trends that mold the future of this captivating art form. In this piece, we delve into the significant trends set to influence the look and functionality of product design in the year 2024.
How Race, Age and Gender Shape Attitudes Towards Mental HealthThinkNow
Mental health has been in the news quite a bit lately. Dozens of U.S. states are currently suing Meta for contributing to the youth mental health crisis by inserting addictive features into their products, while the U.S. Surgeon General is touring the nation to bring awareness to the growing epidemic of loneliness and isolation. The country has endured periods of low national morale, such as in the 1970s when high inflation and the energy crisis worsened public sentiment following the Vietnam War. The current mood, however, feels different. Gallup recently reported that national mental health is at an all-time low, with few bright spots to lift spirits.
To better understand how Americans are feeling and their attitudes towards mental health in general, ThinkNow conducted a nationally representative quantitative survey of 1,500 respondents and found some interesting differences among ethnic, age and gender groups.
Technology
For example, 52% agree that technology and social media have a negative impact on mental health, but when broken out by race, 61% of Whites felt technology had a negative effect, and only 48% of Hispanics thought it did.
While technology has helped us keep in touch with friends and family in faraway places, it appears to have degraded our ability to connect in person. Staying connected online is a double-edged sword since the same news feed that brings us pictures of the grandkids and fluffy kittens also feeds us news about the wars in Israel and Ukraine, the dysfunction in Washington, the latest mass shooting and the climate crisis.
Hispanics may have a built-in defense against the isolation technology breeds, owing to their large, multigenerational households, strong social support systems, and tendency to use social media to stay connected with relatives abroad.
Age and Gender
When asked how individuals rate their mental health, men rate it higher than women by 11 percentage points, and Baby Boomers rank it highest at 83%, saying it’s good or excellent vs. 57% of Gen Z saying the same.
Gen Z spends the most amount of time on social media, so the notion that social media negatively affects mental health appears to be correlated. Unfortunately, Gen Z is also the generation that’s least comfortable discussing mental health concerns with healthcare professionals. Only 40% of them state they’re comfortable discussing their issues with a professional compared to 60% of Millennials and 65% of Boomers.
Race Affects Attitudes
As seen in previous research conducted by ThinkNow, Asian Americans lag other groups when it comes to awareness of mental health issues. Twenty-four percent of Asian Americans believe that having a mental health issue is a sign of weakness compared to the 16% average for all groups. Asians are also considerably less likely to be aware of mental health services in their communities (42% vs. 55%) and most likely to seek out information on social media (51% vs. 35%).
AI Trends in Creative Operations 2024 by Artwork Flow.pdfmarketingartwork
This article is all about what AI trends will emerge in the field of creative operations in 2024. All the marketers and brand builders should be aware of these trends for their further use and save themselves some time!
A report by thenetworkone and Kurio.
The contributing experts and agencies are (in an alphabetical order): Sylwia Rytel, Social Media Supervisor, 180heartbeats + JUNG v MATT (PL), Sharlene Jenner, Vice President - Director of Engagement Strategy, Abelson Taylor (USA), Alex Casanovas, Digital Director, Atrevia (ES), Dora Beilin, Senior Social Strategist, Barrett Hoffher (USA), Min Seo, Campaign Director, Brand New Agency (KR), Deshé M. Gully, Associate Strategist, Day One Agency (USA), Francesca Trevisan, Strategist, Different (IT), Trevor Crossman, CX and Digital Transformation Director; Olivia Hussey, Strategic Planner; Simi Srinarula, Social Media Manager, The Hallway (AUS), James Hebbert, Managing Director, Hylink (CN / UK), Mundy Álvarez, Planning Director; Pedro Rojas, Social Media Manager; Pancho González, CCO, Inbrax (CH), Oana Oprea, Head of Digital Planning, Jam Session Agency (RO), Amy Bottrill, Social Account Director, Launch (UK), Gaby Arriaga, Founder, Leonardo1452 (MX), Shantesh S Row, Creative Director, Liwa (UAE), Rajesh Mehta, Chief Strategy Officer; Dhruv Gaur, Digital Planning Lead; Leonie Mergulhao, Account Supervisor - Social Media & PR, Medulla (IN), Aurelija Plioplytė, Head of Digital & Social, Not Perfect (LI), Daiana Khaidargaliyeva, Account Manager, Osaka Labs (UK / USA), Stefanie Söhnchen, Vice President Digital, PIABO Communications (DE), Elisabeth Winiartati, Managing Consultant, Head of Global Integrated Communications; Lydia Aprina, Account Manager, Integrated Marketing and Communications; Nita Prabowo, Account Manager, Integrated Marketing and Communications; Okhi, Web Developer, PNTR Group (ID), Kei Obusan, Insights Director; Daffi Ranandi, Insights Manager, Radarr (SG), Gautam Reghunath, Co-founder & CEO, Talented (IN), Donagh Humphreys, Head of Social and Digital Innovation, THINKHOUSE (IRE), Sarah Yim, Strategy Director, Zulu Alpha Kilo (CA).
Trends In Paid Search: Navigating The Digital Landscape In 2024Search Engine Journal
The search marketing landscape is evolving rapidly with new technologies, and professionals, like you, rely on innovative paid search strategies to meet changing demands.
It’s important that you’re ready to implement new strategies in 2024.
Check this out and learn the top trends in paid search advertising that are expected to gain traction, so you can drive higher ROI more efficiently in 2024.
You’ll learn:
- The latest trends in AI and automation, and what this means for an evolving paid search ecosystem.
- New developments in privacy and data regulation.
- Emerging ad formats that are expected to make an impact next year.
Watch Sreekant Lanka from iQuanti and Irina Klein from OneMain Financial as they dive into the future of paid search and explore the trends, strategies, and technologies that will shape the search marketing landscape.
If you’re looking to assess your paid search strategy and design an industry-aligned plan for 2024, then this webinar is for you.
5 Public speaking tips from TED - Visualized summarySpeakerHub
From their humble beginnings in 1984, TED has grown into the world’s most powerful amplifier for speakers and thought-leaders to share their ideas. They have over 2,400 filmed talks (not including the 30,000+ TEDx videos) freely available online, and have hosted over 17,500 events around the world.
With over one billion views in a year, it’s no wonder that so many speakers are looking to TED for ideas on how to share their message more effectively.
The article “5 Public-Speaking Tips TED Gives Its Speakers”, by Carmine Gallo for Forbes, gives speakers five practical ways to connect with their audience, and effectively share their ideas on stage.
Whether you are gearing up to get on a TED stage yourself, or just want to master the skills that so many of their speakers possess, these tips and quotes from Chris Anderson, the TED Talks Curator, will encourage you to make the most impactful impression on your audience.
See the full article and more summaries like this on SpeakerHub here: https://speakerhub.com/blog/5-presentation-tips-ted-gives-its-speakers
See the original article on Forbes here:
http://www.forbes.com/forbes/welcome/?toURL=http://www.forbes.com/sites/carminegallo/2016/05/06/5-public-speaking-tips-ted-gives-its-speakers/&refURL=&referrer=#5c07a8221d9b
ChatGPT and the Future of Work - Clark Boyd Clark Boyd
Everyone is in agreement that ChatGPT (and other generative AI tools) will shape the future of work. Yet there is little consensus on exactly how, when, and to what extent this technology will change our world.
Businesses that extract maximum value from ChatGPT will use it as a collaborative tool for everything from brainstorming to technical maintenance.
For individuals, now is the time to pinpoint the skills the future professional will need to thrive in the AI age.
Check out this presentation to understand what ChatGPT is, how it will shape the future of work, and how you can prepare to take advantage.
A brief introduction to DataScience with explaining of the concepts, algorithms, machine learning, supervised and unsupervised learning, clustering, statistics, data preprocessing, real-world applications etc.
It's part of a Data Science Corner Campaign where I will be discussing the fundamentals of DataScience, AIML, Statistics etc.
Time Management & Productivity - Best PracticesVit Horky
Here's my presentation on by proven best practices how to manage your work time effectively and how to improve your productivity. It includes practical tips and how to use tools such as Slack, Google Apps, Hubspot, Google Calendar, Gmail and others.
The six step guide to practical project managementMindGenius
The six step guide to practical project management
If you think managing projects is too difficult, think again.
We’ve stripped back project management processes to the
basics – to make it quicker and easier, without sacrificing
the vital ingredients for success.
“If you’re looking for some real-world guidance, then The Six Step Guide to Practical Project Management will help.”
Dr Andrew Makar, Tactical Project Management
2. 2

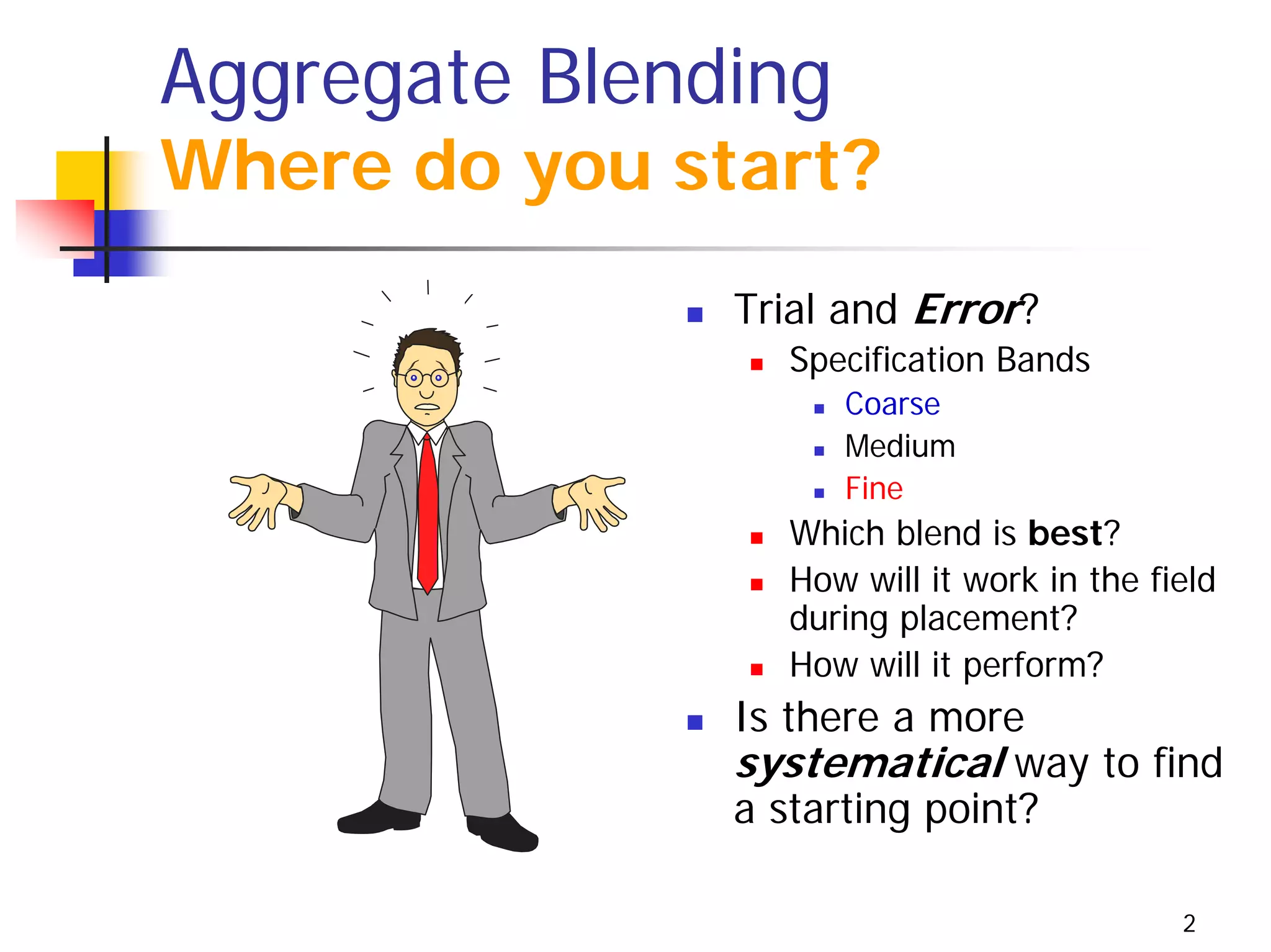

Aggregate Blending
Where do you start?
„ Trial and Error?
„ Specification Bands
„ Coarse
„ Medium
„ Fine
„ Which blend is best?
„ How will it work in the field
during placement?
„ How will it perform?
„ Is there a more
systematical way to find
a starting point?
3. 3
Aggregate Blending
The Bailey Method
„ Originally developed by Robert D. Bailey
(Illinois Department of Transportation)
„ Focus is Aggregate packing!
„ Determine “Coarse” and “Fine”
„ Evaluate individual agg’s and combined blend
by VOLUME as well as by weight
4. 4
Aggregate Packing
What Influences the Results?
„ Gradation
- continuously-graded, gap-graded, etc.
„ Type & Amount of Compactive Effort
- static pressure, impact or shearing
„ Shape
- flat & elongated, cubical, round
„ Surface Texture (micro-texture)
- smooth, rough
„ Strength
- degradation or lack thereof
5. 5
Defining “Coarse” and “Fine”
„ “Coarse” fraction
„ Larger particles that create voids
„ “Fine” fraction
„ Smaller particles that fill voids
„ Estimate void size using Nominal Maximum
Particle Size (NMPS)
„ Break between “Coarse” and “Fine”
„ Primary Control Sieve (PCS)
6. 6
Diameter (d)
= NMPS
Flat face of
aggregate
particle
Round face of
aggregate
particle
Average
Void size
= 0.22*d
for all
four
conditions
Primary Control Sieve = 0.22 x NMPS
7. Primary Control Sieve
Mixture NMPS NMPS x 0.22 Primary Control Sieve
37.5mm 8.250mm 9.5mm
25.0mm 5.500mm 4.75mm
19.0mm 4.180mm 4.75mm
12.5mm 2.750mm 2.36mm
9.5mm 2.090mm 2.36mm
4.75mm 1.045mm 1.18mm
PCS determines the break between Coarse and Fine in the
combined blend and if a given aggregate is a CA or FA
8. 8
Evaluating Aggregates by
Volume
„ Why?
„ Better understand
aggregate packing
„ Control VOLUME of Coarse
and Fine for Mix “Type”
„ How?
„ Test the individual Coarse
and Fine aggregates
9. 9
Loose Unit Weight - CA
„ NO compactive effort
applied
„ Start of particle-to-
particle contact
„ Use shoveling
procedure
„ Strike off ~ level
„ Careful not to compact
„ Determine LUW
„ Kg/m3 or lbs./ft3
„ Determine volume of
voids
10. 10
Rodded Unit Weight - CA
„ With compactive effort
applied
„ Increased particle-to-
particle contact
„ Three equal lifts using
shoveling procedure
„ Rod 25 times per lift
„ Strike off ~ level
„ Careful not to compact
„ Determine RUW
„ Kg/m3 or lbs./ft3
„ Determine volume of
voids
11. 11
Chosen Unit Weight - CA(s)
LUW RUW
Coarse-Graded SMA
Fine-Graded
< LUW
< 90% 95-105% 110-125%
12. 12
Chosen Unit Weight - FA(s)
100%
LUW
100%
RUW
Dense-graded
FA CUW
“SET”
According To
Mix Type
SMA
13. 13
Developing the Combined
Blend
1. Determine Mix Type & NMPS
2. Choose the VOLUME of CA
3. Blend the CA’s by VOLUME
4. Blend the FA’s by VOLUME
5. Choose the desired % Minus 0.075mm
Convert the Individual aggregate %’s
from VOLUME to weight
14. 14
Combined Blend Evaluation
„ Evaluation method
depends on which
fraction (Coarse or
Fine) is in control:
„ Coarse-graded, SMA
„ Fine-graded
15. K J I H G F E
K J I H G F E D C B A
D C B A
Sieve Size (mm) Raised to 0.45 Power
Sieve Size (mm) Raised to 0.45 Power
100
100
0
0
%
Pass
ing
%
Pass
ing
Combined Blend Gradation
Combined Blend Gradation
50
50
20
20
80
80
Sieve % Passing
A 100
B 97
C 76
D 63
E 39
F 25
G 17
H 11
I 7
J 5
K 4.2
10
10
30
30
40
40
60
60
70
70
90
90
Coarse
Fine
1
2
3
4
16. 16
Combined Blend Evaluation
Coarse-Graded Mixes
Half Sieve = 0.5 x NMPS
PCS = 0.22 x NMPS
Coarse
Fraction
Fine
Fraction
SCS = 0.22 x PCS
TCS = 0.22 x SCS
1 CA CUW (% PCS)
CA Ratio =
% Half Sieve - % PCS
100 - % Half Sieve
FAf Ratio =
% TCS
% SCS
2
3
4
FAc Ratio =
% SCS
% PCS
17. 17
Combined Blend Evaluation
Coarse-Graded Mixes
1. CA CUW increase = VMA increase
„ 4% change in PCS ≅ 1% change in VMA or
Voids
2. CA Ratio increase = VMA increase
„ 0.20 change ≅ 1% change in VMA or Voids
3. FAc Ratio increase = VMA decrease
„ 0.05 change ≅ 1% change in VMA or Voids
4. FAf Ratio increase = VMA decrease
„ 0.05 change ≅ 1% change in VMA or Voids
Has the
most
influence
on VMA
or Voids
18. K J I H G F E
K J I H G F E D C B A
D C B A
Sieve Size (mm) Raised to 0.45 Power
Sieve Size (mm) Raised to 0.45 Power
100
100
0
0
%
Pass
ing
%
Pass
ing
Combined Blend Gradation
Combined Blend Gradation
50
50
20
20
80
80
Sieve % Passing
A 100
B 92
C 60
D 32
E 25
F 19
G 17
H 15
I 13
J 11
K 9.5
10
10
30
30
40
40
60
60
70
70
90
90
Coarse
Fine
1
2
3
4
19. 19
Combined Blend Evaluation
SMA Mixes
1. CA CUW increase = VMA increase
„ 2% change in PCS ≅ 1% change in VMA or
Voids
2. CA Ratio increase = VMA increase
„ 0.20 change ≅ 1% change in VMA or Voids
3. FAc Ratio increase = VMA decrease
„ 0.10 change ≅ 1% change in VMA or Voids
4. FAf Ratio increase = VMA decrease
„ 0.10 change ≅ 1% change in VMA or Voids
Has the most
influence on
VMA or
Voids
Has the
2nd most
influence
on VMA
or Voids
20. K J I H G F E
K J I H G F E D C B A
D C B A
Sieve Size (mm) Raised to 0.45 Power
Sieve Size (mm) Raised to 0.45 Power
100
100
0
0
%
Pass
ing
%
Pass
ing
Combined Blend Gradation
Combined Blend Gradation
50
50
20
20
80
80
Sieve % Passing
A 100
B 98
C 85
D 72
E 58
F 40
G 32
H 21
I 12
J 7
K 4.4
10
10
30
30
40
40
60
60
70
70
90
90
1
2
3
4
Coarse
Fine
21. 21
Combined Blend Evaluation
Fine-Graded Mixes
Original Half Sieve
Original PCS
New PCS
New Half Sieve
New SCS
New TCS
New
Coarse
Fraction
New Fine
Fraction
Original
Coarse
Fraction
1
2
3
4
% CA LUW
New CA Ratio
New FAc Ratio
New FAf Ratio
22. 22
Combined Blend Evaluation
Fine-Graded Mixes
1. CA CUW decrease = VMA increase
„ 6% change original PCS ≅ 1% change in VMA or
Voids
2. New CA Ratio increase = VMA increase
„ 0.35 change ≅ 1% change in VMA or Voids
3. New FAc Ratio increase = VMA decrease
„ 0.05 change ≅ 1% change in VMA or Voids
4. New FAf Ratio increase = VMA decrease
„ 0.05 change ≅ 1% change in VMA or Voids
„ Old CA Ratio still relates to segregation
susceptibility
Has the
most
influence
on VMA
or Voids
26. 26
Predicting Performance
„ We can relate to
volumetric changes
well
„ We can relate blend
gradations and the
four main principles
to compactibility and
segregation
„ But…….performance
includes much more!
27. R2
= 0.0649
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
36 37 38 39 40 41 42 43 44 45 46 47
PCS
Rutting
(mm)
R2
= 0.0283
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
0.900 0.920 0.940 0.960 0.980 1.000
New CA Ratio
Rutting
(mm)
R2
= 0.0088
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
0.280 0.290 0.300 0.310 0.320 0.330 0.340
New FAc Ratio
Rutting
(mm)
Rutting
vs. PCS
Rutting vs.
New CA Ratio
Rutting vs.
New FAc Ratio
28. 28
So How Does the Method
Help?
„ In Developing New Blends:
„ Field Compactibility
„ Segregation Susceptibility
„ In Evaluating Existing Blends:
„ What’s worked and what hasn’t?
„ More clearly define principle ranges
„ In Estimating VMA/Void
changes between:
„ Design trials
„ QC samples
„ Saves Time and Reduces Risk!
