This document describes Bossmanfilter's B10, B20, B30, and B40 series bag filters. The bag filters come in four housing sizes and can accommodate flow rates up to 1200 GPM. They feature adjustable legs, multiple housing material options, and different inlet/outlet styles. The bag filters work by allowing contaminated liquid to enter the housing and pass through removable filter bags to remove solid particles before the filtered liquid exits.

1. R

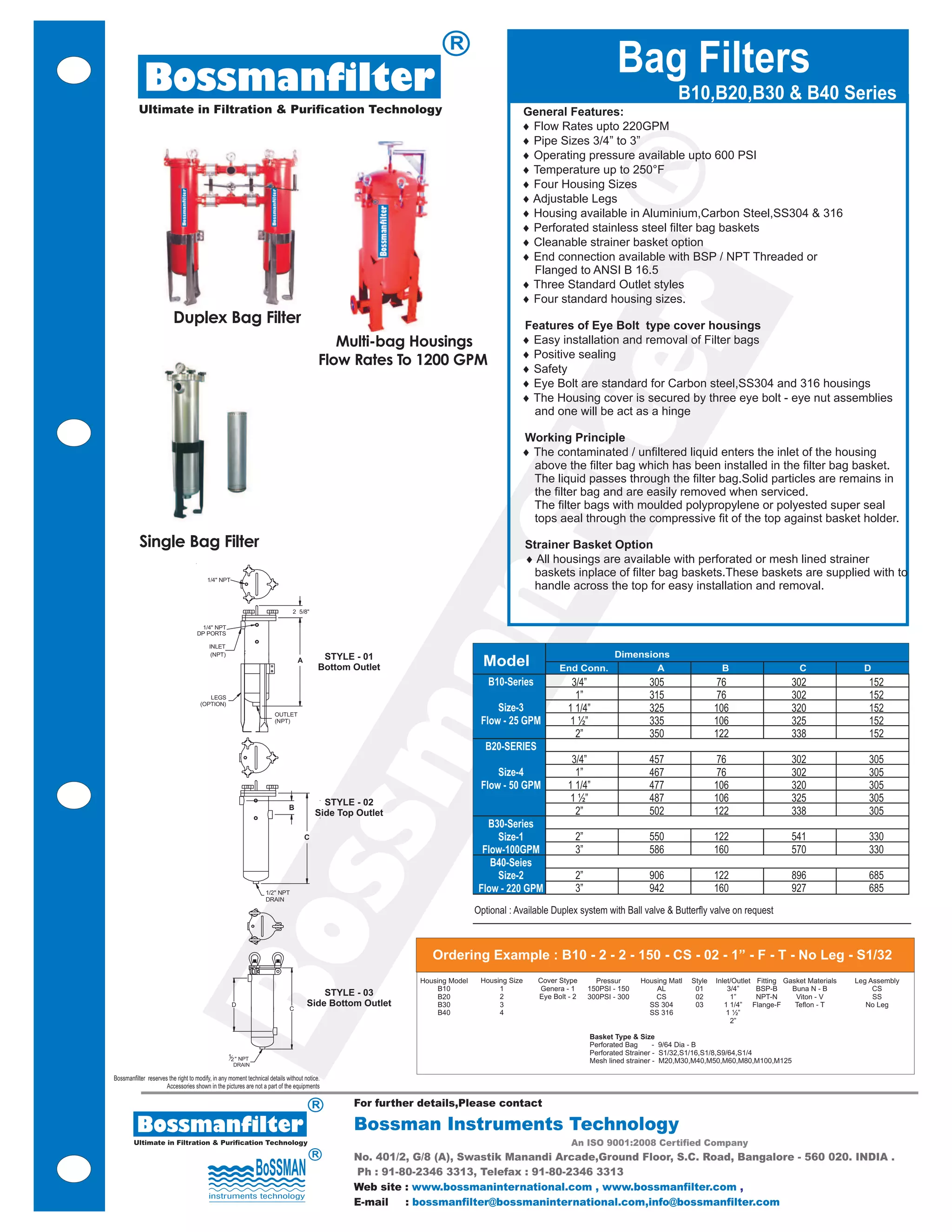

Bossmanfilter Bag Filters
B10,B20,B30 & B40 Series
Ultimate in Filtration & Purification Technology General Features:
¨ Flow Rates upto 220GPM
¨ Pipe Sizes 3/4” to 3”
¨ Operating pressure available upto 600 PSI
R
¨ Temperature up to 250°F
¨ Four Housing Sizes
¨ Adjustable Legs
¨ Housing available in Aluminium,Carbon Steel,SS304 & 316
¨ Perforated stainless steel filter bag baskets
¨ Cleanable strainer basket option
¨ End connection available with BSP / NPT Threaded or
Flanged to ANSI B 16.5
¨ Three Standard Outlet styles
¨ Four standard housing sizes.
r
Duplex Bag Filter Features of Eye Bolt type cover housings
Multi-bag Housings ¨ Easy installation and removal of Filter bags
¨ Positive sealing
Flow Rates To 1200 GPM
te
¨ Safety
¨ Eye Bolt are standard for Carbon steel,SS304 and 316 housings
¨ The Housing cover is secured by three eye bolt - eye nut assemblies
and one will be act as a hinge
Working Principle
¨ The contaminated / unfiltered liquid enters the inlet of the housing
above the filter bag which has been installed in the filter bag basket.
fil
The liquid passes through the filter bag.Solid particles are remains in
the filter bag and are easily removed when serviced.
The filter bags with moulded polypropylene or polyested super seal
tops aeal through the compressive fit of the top against basket holder.
Single Bag Filter Strainer Basket Option
¨ All housings are available with perforated or mesh lined strainer
baskets inplace of filter bag baskets.These baskets are supplied with to
handle across the top for easy installation and removal.
an
STYLE - 01 Dimensions
Bottom Outlet Model End Conn. A B C D
B10-Series 3/4” 305 76 302 152
1” 315 76 302 152
Size-3 1 1/4” 325 106 320 152
m
Flow - 25 GPM 1 ½” 335 106 325 152
2” 350 122 338 152
B20-SERIES
3/4” 457 76 302 305
Size-4 1” 467 76 302 305
Flow - 50 GPM 1 1/4” 477 106 320 305
STYLE - 02 1 ½” 487 106 325 305
Side Top Outlet 2” 502 122 338 305
ss
B30-Series
Size-1 2” 550 122 541 330
Flow-100GPM 3” 586 160 570 330
B40-Seies
Size-2 2” 906 122 896 685
Flow - 220 GPM 3” 942 160 927 685
Optional : Available Duplex system with Ball valve & Butterfly valve on request
Bo
Ordering Example : B10 - 2 - 2 - 150 - CS - 02 - 1” - F - T - No Leg - S1/32
Housing Model Housing Size Cover Stype Pressur Housing Matl Style Inlet/Outlet Fitting Gasket Materials Leg Assembly
B10 1 Genera - 1 150PSI - 150 AL 01 3/4” BSP-B Buna N - B CS
STYLE - 03 B20 2 Eye Bolt - 2 300PSI - 300 CS 02 1” NPT-N Viton - V SS
Side Bottom Outlet B30 3 SS 304 03 1 1/4” Flange-F Teflon - T No Leg
B40 4 SS 316 1 ½”
2”
Basket Type & Size
Perforated Bag - 9/64 Dia - B
Perforated Strainer - S1/32,S1/16,S1/8,S9/64,S1/4
Mesh lined strainer - M20,M30,M40,M50,M60,M80,M100,M125
Bossmanfilter reserves the right to modify, in any moment technical details without notice.
Accessories shown in the pictures are not a part of the equipments
R For further details,Please contact
Bossmanfilter Bossman Instruments Technology
Ultimate in Filtration & Purification Technology An ISO 9001:2008 Certified Company
R No. 401/2, G/8 (A), Swastik Manandi Arcade,Ground Floor, S.C. Road, Bangalore - 560 020. INDIA .
Ph : 91-80-2346 3313, Telefax : 91-80-2346 3313
Web site : www.bossmaninternational.com , www.bossmanfilter.com ,
E-mail : bossmanfilter@bossmaninternational.com,info@bossmanfilter.com
