Backbone.js is a JavaScript library that provides structure to applications by supplying models, collections, and views. It follows an MVC-like pattern, with models representing data, views handling display/interaction logic, and routers managing navigation. Backbone is lightweight and depends on Underscore.js for utility functions. Models manage data and can fetch/save to servers. Collections are ordered sets of models. Views display data and handle events. Routers map URLs to functions. Underscore provides over 100 helper functions for tasks like iteration, filtering, and more.

1. Backbone.js
(and underscore.js)

2. What is
Backbone.js ?
Backbone.js is a library
that gives structure to
your javascript app by
providing models,
collections and views.

3. Benefits
Gives some structure to
your JS
Lightweight (6.9kb - +/-
1300 LOC)
Low learning curve (in
comparison…)

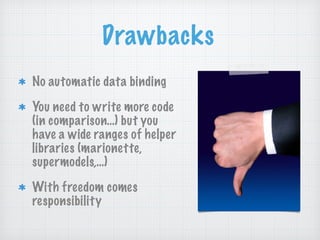

4. Drawbacks
No automatic data binding
You need to write more code
(in comparison…) but you
have a wide ranges of helper
libraries (marionette,
supermodels,…)
With freedom comes
responsibility

5. Dependencies
Underscore.JS or Lo-Dash
as utility belt
jQuery for DOM scripting
_.template, handlebars.js,
mustache.js, … for
templating

6. MV*
Backbone is more a Model - View - Presenter library
than MVC. Although a lot of internet sources will
(wrongfully imho) describe it as MVC
You can transform it in a MVC framework by using the
third party library Backbone.Controller
Potato - Potatoe

7. MVP (mpv)
Warning: Backbone.view = presenter, HTML = view !

8. Used by
http://backbonejs.org/#examples

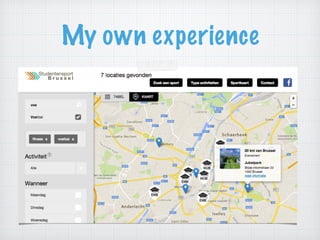

9. My own experience

10. Backbone.View
Backbone.Model
Backbone.Collection
Backbone.Router
The bits and pieces of
Backbone
You don’t need to use all parts !

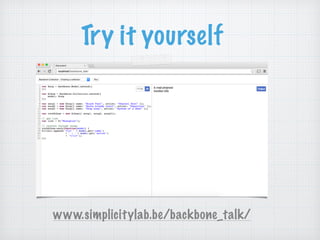

11. Try it yourself
www.simplicitylab.be/backbone_talk/

12. Backbone.View
Backbone.Model
Backbone.Collection
Backbone.Router
The parts of Backbone

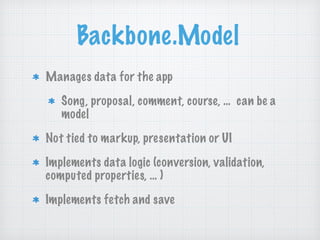

13. Backbone.Model
Manages data for the app
Song, proposal, comment, course, … can be a
model
Not tied to markup, presentation or UI
Implements data logic (conversion, validation,
computed properties, … )
Implements fetch and save

14. Example: creating a model
Person = Backbone.Model.extend({
initialize: function(){
console.log(“init”);
}
});
var person = new Person();

15. Example: setting and getting
properties
Person = Backbone.Model.extend({
});
// setting properties method 1
var person = new Person({ name: "Thomas", age: 67});
// setting properties method 2
var person2 = new Person();
person2.set({ name: "Thomas", age: 67});
// get properties
person.get("age"); // 67
person.get("name"); // Thomas
Try it yourself : Backbone Model - Getting and setting properties

16. Example: listening for events
Phone = Backbone.Model.extend({
defaults: {
name: 'Nokia Lumia'
},
initialize: function(){
this.on("change:name", function(model){
var name = model.get("name"); // 'Microsoft Lumia'
alert("Changed name to " + name );
});
}
});
var smartphone = new Phone();
smartphone.set({name: 'Microsoft Lumia'});
Try it yourself : Backbone Model - Listening for events

17. Interacting with a server
Models are used to represent data from
your server and actions you perform on
them will be translated to RESTful
operations.
The id attribute of a model identifies how
to find it on the database

18. Example: fetching a model
var PersonsModel = Backbone.Model.extend({
defaults: {
name: '',
},
urlRoot: '/person'
});
var person = new PersonsModel({id: 1});
// will execute a GET request /person/1
// the server should return the id and name
person.fetch({
success: function (person) {
console.log('person fetched’);
console.log(person.toJSON());
}
})
Try it yourself : Backbone Model - Fetch from server
{
"id":1,
"name":"Glenn De Backer"
}

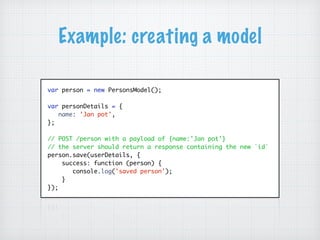

19. Example: creating a model
var person = new PersonsModel();
var personDetails = {
name: 'Jan pot',
};
// POST /person with a payload of {name:'Jan pot'}
// the server should return a response containing the new `id`
person.save(userDetails, {
success: function (person) {
console.log('saved person');
}
});

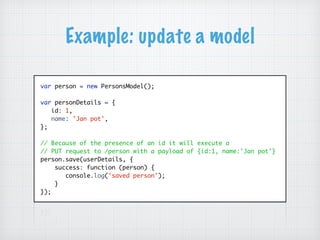

20. Example: update a model
var person = new PersonsModel();
var personDetails = {
id: 1,
name: 'Jan pot',
};
// Because of the presence of an id it will execute a
// PUT request to /person with a payload of {id:1, name:'Jan pot'}
person.save(userDetails, {
success: function (person) {
console.log('saved person');
}
});

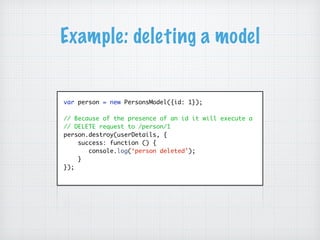

21. Example: deleting a model
var person = new PersonsModel({id: 1});
// Because of the presence of an id it will execute a
// DELETE request to /person/1
person.destroy(userDetails, {
success: function () {
console.log(‘person deleted');
}
});

22. Backbone.View
Backbone.Model
Backbone.Collection
Backbone.Router
The parts of Backbone

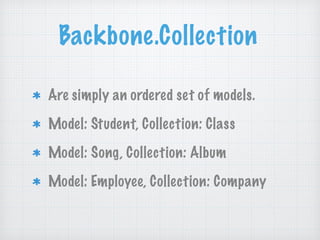

23. Backbone.Collection
Are simply an ordered set of models.
Model: Student, Collection: Class
Model: Song, Collection: Album
Model: Employee, Collection: Company

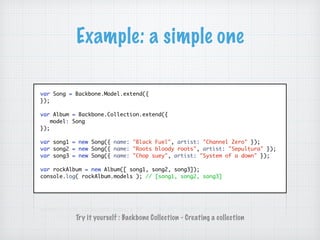

24. Example: a simple one
var Song = Backbone.Model.extend({
});
var Album = Backbone.Collection.extend({
model: Song
});
var song1 = new Song({ name: "Black Fuel", artist: "Channel Zero" });
var song2 = new Song({ name: "Roots bloody roots", artist: "Sepultura" });
var song3 = new Song({ name: "Chop suey", artist: "System of a down" });
var rockAlbum = new Album([ song1, song2, song3]);
console.log( rockAlbum.models ); // [song1, song2, song3]
Try it yourself : Backbone Collection - Creating a collection

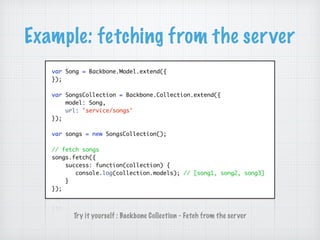

25. Example: fetching from the server
var Song = Backbone.Model.extend({
});
var SongsCollection = Backbone.Collection.extend({
model: Song,
url: 'service/songs'
});
var songs = new SongsCollection();
// fetch songs
songs.fetch({
success: function(collection) {
console.log(collection.models); // [song1, song2, song3]
}
});
Try it yourself : Backbone Collection - Fetch from the server

26. Backbone.View
Backbone.Model
Backbone.Collection
Backbone.Router
The parts of Backbone

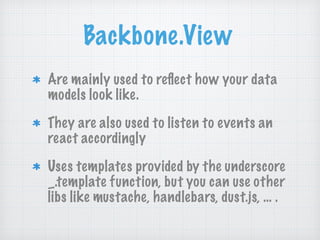

27. Backbone.View
Are mainly used to reflect how your data
models look like.
They are also used to listen to events an
react accordingly
Uses templates provided by the underscore
_.template function, but you can use other
libs like mustache, handlebars, dust.js, … .

28. Example: a classic hello world
<div id="hello_container"></div>
HelloView = Backbone.View.extend({
el: $('#hello_container'),
initialize: function(){
this.render();
},
render: function() {
this.$el.html('hello world');
}
});
var helloView = new HelloView();
Try it yourself : Backbone View - Hello World

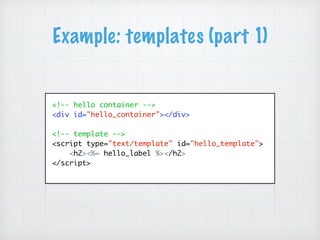

29. Example: templates (part 1)
<!-- hello container -->
<div id="hello_container"></div>
<!-- template -->
<script type="text/template" id="hello_template">
<h2><%= hello_label %></h2>
</script>

30. Example: templates (part 2)
HelloView = Backbone.View.extend({
el: $('#hello_container'),
initialize: function(){
this.render();
},
render: function() {
// variables
var variables = { hello_label: "hello template world" };
// get template
var template = _.template($('#hello_template').html());
// render compiled html to element
this.$el.html(template(variables));
}
});
Try it yourself : Backbone View - Basic templates

31. Example: events (part 1)
<!-- hello container -->
<div id="hello_container"></div>
<!-- template -->
<script type="text/template" id="hello_template">
<button>click me</button>
</script>

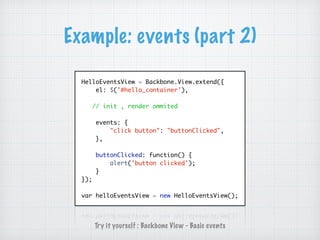

32. Example: events (part 2)
HelloEventsView = Backbone.View.extend({
el: $('#hello_container'),
// init , render ommited
events: {
"click button": "buttonClicked",
},
buttonClicked: function() {
alert('button clicked');
}
});
var helloEventsView = new HelloEventsView();
Try it yourself : Backbone View - Basic events

33. Example: using a collection (part 1)
<!-- songlist container -->
<div id="songlist_container"></div>
<!-- template -->
<script type="text/template" id="songlist_template">
<ul>
<% _.each(songs, function(song) { %>
<li><%= song.get('name') %> - <%= song.get('artist') %></li>
<% }); %>
</ul>
</script>

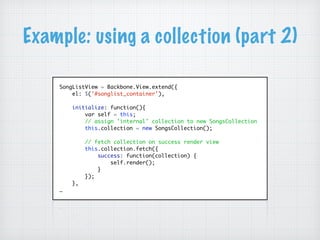

34. Example: using a collection (part 2)
SongListView = Backbone.View.extend({
el: $('#songlist_container'),
initialize: function(){
var self = this;
// assign 'internal' collection to new SongsCollection
this.collection = new SongsCollection();
// fetch collection on success render view
this.collection.fetch({
success: function(collection) {
self.render();
}
});
},
…

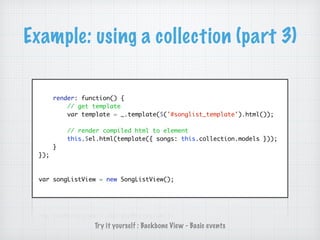

35. Example: using a collection (part 3)
render: function() {
// get template
var template = _.template($('#songlist_template').html());
// render compiled html to element
this.$el.html(template({ songs: this.collection.models }));
}
});
var songListView = new SongListView();
Try it yourself : Backbone View - Basic events

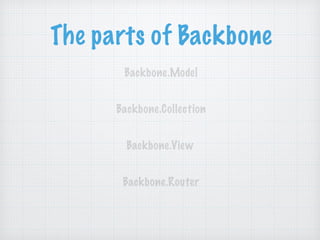

36. Backbone.View
Backbone.Model
Backbone.Collection
Backbone.Router
The parts of Backbone

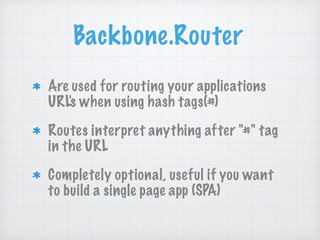

37. Backbone.Router
Are used for routing your applications
URL's when using hash tags(#)
Routes interpret anything after "#" tag
in the URL
Completely optional, useful if you want
to build a single page app (SPA)

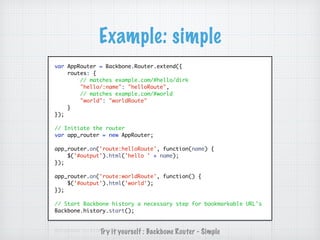

38. Example: simple
var AppRouter = Backbone.Router.extend({
routes: {
// matches example.com/#hello/dirk
"hello/:name": "helloRoute",
// matches example.com/#world
"world": "worldRoute"
}
});
// Initiate the router
var app_router = new AppRouter;
app_router.on('route:helloRoute', function(name) {
$('#output').html('hello ' + name);
});
app_router.on('route:worldRoute', function() {
$('#output').html('world');
});
// Start Backbone history a necessary step for bookmarkable URL's
Backbone.history.start();
Try it yourself : Backbone Router - Simple

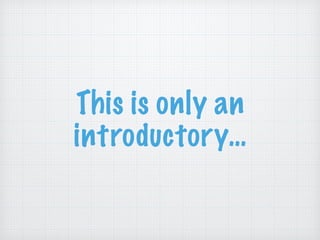

39. This is only an
introductory…

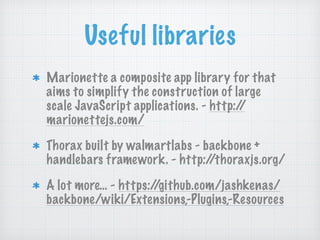

40. Useful libraries
Marionette a composite app library for that
aims to simplify the construction of large
scale JavaScript applications. - http://
marionettejs.com/
Thorax built by walmartlabs - backbone +
handlebars framework. - http://thoraxjs.org/
A lot more… - https://github.com/jashkenas/
backbone/wiki/Extensions,-Plugins,-Resources

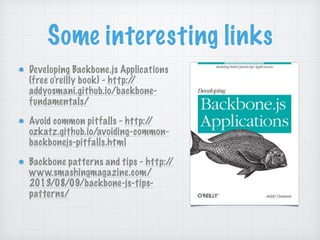

41. Some interesting links
Developing Backbone.js Applications
(free o’reilly book) - http://
addyosmani.github.io/backbone-
fundamentals/
Avoid common pitfalls - http://
ozkatz.github.io/avoiding-common-
backbonejs-pitfalls.html
Backbone patterns and tips - http://
www.smashingmagazine.com/
2013/08/09/backbone-js-tips-
patterns/

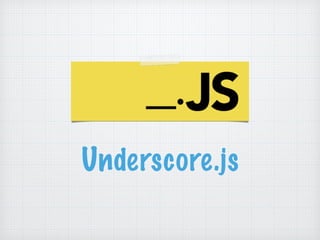

42. Underscore.js

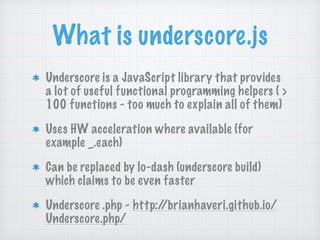

43. What is underscore.js
Underscore is a JavaScript library that provides
a lot of useful functional programming helpers ( >
100 functions - too much to explain all of them)
Uses HW acceleration where available (for
example _.each)
Can be replaced by lo-dash (underscore build)
which claims to be even faster
Underscore .php - http://brianhaveri.github.io/
Underscore.php/

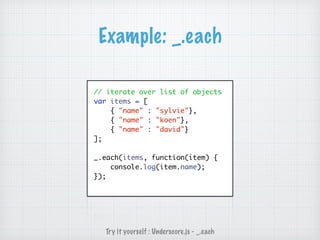

44. Example: _.each
// iterate over list of objects
var items = [
{ "name" : "sylvie"},
{ "name" : "koen"},
{ "name" : "david"}
];
_.each(items, function(item) {
console.log(item.name);
});
Try it yourself : Underscore.js - _.each

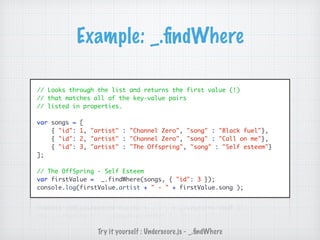

45. Example: _.findWhere
// Looks through the list and returns the first value (!)
// that matches all of the key-value pairs
// listed in properties.
var songs = [
{ "id": 1, "artist" : "Channel Zero", "song" : "Black fuel"},
{ "id": 2, "artist" : "Channel Zero", "song" : "Call on me"},
{ "id": 3, "artist" : "The Offspring", "song" : "Self esteem"}
];
// The OffSpring - Self Esteem
var firstValue = _.findWhere(songs, { "id": 3 });
console.log(firstValue.artist + " - " + firstValue.song );
Try it yourself : Underscore.js - _.findWhere

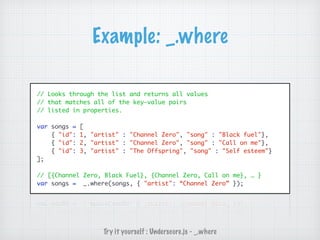

46. Example: _.where
// Looks through the list and returns all values
// that matches all of the key-value pairs
// listed in properties.
var songs = [
{ "id": 1, "artist" : "Channel Zero", "song" : "Black fuel"},
{ "id": 2, "artist" : "Channel Zero", "song" : "Call on me"},
{ "id": 3, "artist" : "The Offspring", "song" : "Self esteem"}
];
// [{Channel Zero, Black Fuel}, {Channel Zero, Call on me}, … }
var songs = _.where(songs, { "artist": “Channel Zero” });
Try it yourself : Underscore.js - _.where

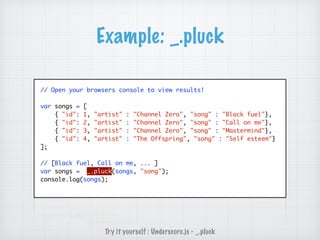

47. Example: _.pluck
// Open your browsers console to view results!
var songs = [
{ "id": 1, "artist" : "Channel Zero", "song" : "Black fuel"},
{ "id": 2, "artist" : "Channel Zero", "song" : "Call on me"},
{ "id": 3, "artist" : "Channel Zero", "song" : "Mastermind"},
{ "id": 4, "artist" : "The Offspring", "song" : "Self esteem"}
];
// [Black fuel, Call on me, ... ]
var songs = _.pluck(songs, "song");
console.log(songs);
Try it yourself : Underscore.js - _.pluck

48. Example: _.max
var stooges = [
{name: 'moe', age: 40},
{name: 'larry', age: 50},
{name: 'curly', age: 60}
];
var oldest = _.max(stooges, function(stooge){
return stooge.age;
});
// {name: 'curly', age: 60}
console.log(oldest);
Try it yourself : Underscore.js - _.max

49. Example: _.filter
// Looks through each value in the list,
// returning an array of all the values that pass a truth test
var evens = _.filter([1, 2, 3, 4, 5, 6], function(num){
return num % 2 == 0;
});
// [2,4,6]
console.log(evens);
Try it yourself : Underscore.js - _.filter

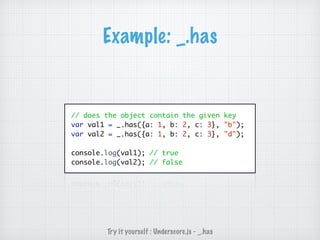

50. Example: _.has
// does the object contain the given key
var val1 = _.has({a: 1, b: 2, c: 3}, "b");
var val2 = _.has({a: 1, b: 2, c: 3}, "d");
console.log(val1); // true
console.log(val2); // false
Try it yourself : Underscore.js - _.has

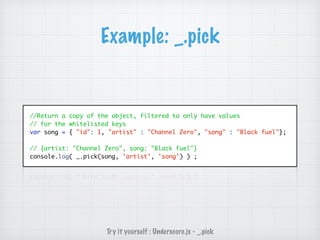

51. Example: _.pick
//Return a copy of the object, filtered to only have values
// for the whitelisted keys
var song = { "id": 1, "artist" : "Channel Zero", "song" : "Black fuel"};
// {artist: "Channel Zero", song: "Black fuel"}
console.log( _.pick(song, 'artist', 'song') ) ;
Try it yourself : Underscore.js - _.pick

52. Example: _.keys
// Open your browsers console to view results!
// Retrieve all the names of the object's properties.
var song = { "id": 1, "artist" : "Channel Zero", "song" : "Black fuel"};
// id, artist, song
console.log( _.keys(song, 'artist', 'song') );
Try it yourself : Underscore.js - _.keys

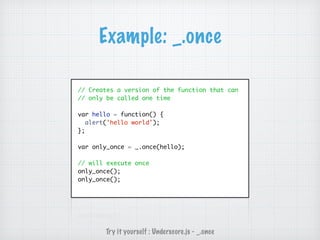

53. Example: _.once
// Creates a version of the function that can
// only be called one time
var hello = function() {
alert('hello world');
};
var only_once = _.once(hello);
// will execute once
only_once();
only_once();
Try it yourself : Underscore.js - _.once

54. And much, much
more…

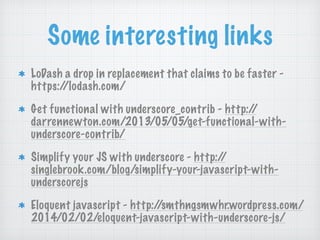

55. Some interesting links
LoDash a drop in replacement that claims to be faster -
https://lodash.com/
Get functional with underscore_contrib - http://
darrennewton.com/2013/05/05/get-functional-with-
underscore-contrib/
Simplify your JS with underscore - http://
singlebrook.com/blog/simplify-your-javascript-with-
underscorejs
Eloquent javascript - http://smthngsmwhr.wordpress.com/
2014/02/02/eloquent-javascript-with-underscore-js/
