1. INTEGRATION DAY
2015
Sam Vanhoutte
Azure Event Hubs, Stream Analytics
& Power BI

2. Nice to meet you
SamVANHOUTTE
CTO
7 year - BizTalkV-TSP
1st year - Integration MVP
sam.vanhoutte@codit.eu
+32 474 849 993
@SamVanhoutte
be.linkedin.com/in/samvanhoutte/
> 60 Active integration customers
International Focus -
HQ in BEFocused on integration solutions
2000 Belgium
2004 France
2013 Portugal
60 employees
> 50 consultants BizTalk certifiede-news + SoMe
2012 & 2013
Partner of the Year
Award Finalist
Application Integration

3. The Internet of Things
3
The Internet of EverythingM2M communicationSpecial purpose devicesSmart things

5. The IoT value chain
Machine Learning

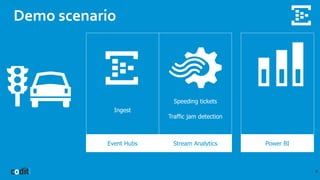

6. Demo scenario
6
Event Hubs Stream Analytics Power BI
Ingest
Speeding tickets
Traffic jam detection

7. Power BI tools
7
• Power BI designer
(when no office license)
• PowerQuery >> Get data
• PowerPivot >> Prepare data
• PowerView >> Present data

8. Event Hubs
an Azure Service Bus service
(collection & ingestion)

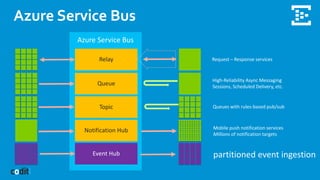

9. Azure Service Bus
Relay
Queue
Topic
Notification Hub
Event Hub

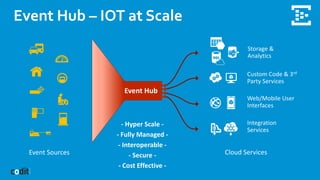

10. Event Hub – IOT at Scale
Event Sources Cloud Services
Storage &
Analytics
Custom Code & 3rd
Party Services
Web/Mobile User
Interfaces
Integration
Services
Event Hub
- Hyper Scale -
- Fully Managed -
- Interoperable -
- Secure -
- Cost Effective -

11. Introducing Azure Event Hubs
Event Producers

12. Event Hubs
an Azure Service Bus service
Producers
(sending data to Event Hubs)

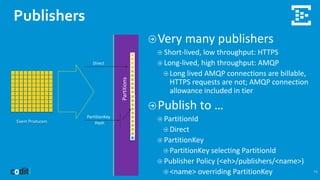

13. Publishers
15
Event Producers
Very many publishers
Short-lived, low throughput: HTTPS
Long-lived, high throughput: AMQP
Long lived AMQP connections are billable,
HTTPS requests are not; AMQP connection
allowance included in tier
Publish to …
PartitionId
Direct
PartitionKey
PartitionKey selecting PartitionId
Publisher Policy (<eh>/publishers/<name>)
<name> overriding PartitionKey

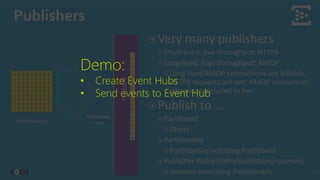

14. Publishers
16
Event Producers
Very many publishers
Short-lived, low throughput: HTTPS
Long-lived, high throughput: AMQP
Long lived AMQP connections are billable,
HTTPS requests are not; AMQP connection
allowance included in tier
Publish to …
PartitionId
Direct
PartitionKey
PartitionKey selecting PartitionId
Publisher Policy (<eh>/publishers/<name>)
<name> overriding PartitionKey
Demo:
• Create Event Hubs
• Send events to Event Hub

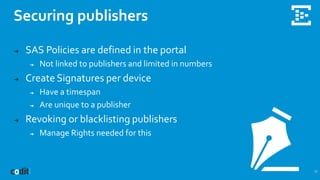

15. Securing publishers
17
➔ SAS Policies are defined in the portal
➔ Not linked to publishers and limited in numbers
➔ Create Signatures per device
➔ Have a timespan
➔ Are unique to a publisher
➔ Revoking or blacklisting publishers
➔ Manage Rights needed for this

16. Securing publishers
18
➔ SAS Policies are defined in the portal
➔ Not linked to publishers and limited in numbers
➔ Create Signatures per device
➔ Have a timespan
➔ Are unique to a publisher
➔ Revoking or blacklisting publishers
➔ Manage Rights needed for this
Demo:
• Generating SAS Signatures
• Using Signatures by publishers
• Revoking publishers
Reminder ! Sam, increase your instances

17. Event Hubs
an Azure Service Bus service
Consumers
(reading data to Event Hubs)

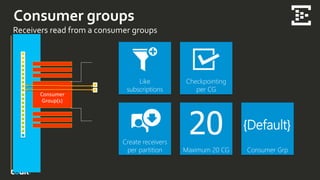

18. Like
subscriptions
Consumer groups
Receivers read from a consumer groups
Checkpointing
per CG
Create receivers
per partition Maximum 20 CG Consumer Grp
{Default}

19. Like
subscriptions
Consumers
Partitioned consumer model (not competing consumers!)
Each at their
own pace
ID, Time, [Data]
ID, Time, [Data]
ID, Time, [Data]
ID, Time, [Data]
ID, Time, [Data]

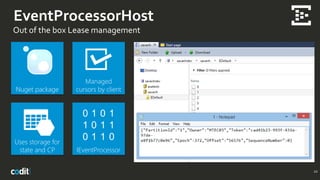

20. EventProcessorHost
Out of the box Lease management
22
Nuget package
Managed
cursors by client
Uses storage for
state and CP IEventProcessor

21. EventProcessorHost
Out of the box Lease management
23
Nuget package
Managed
cursors by client
Uses storage for
state and CP IEventProcessor
Demo:
• Implementing EventProcessorHost
• Dashboarding demo

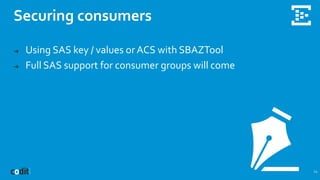

22. Securing consumers
24
➔ Using SAS key / values or ACS with SBAZTool
➔ Full SAS support for consumer groups will come

23. Event Hubs
an Azure Service Bus service
Pricing &
Tips + tricks

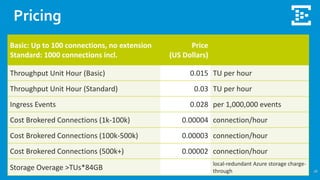

24. Pricing
26
Basic: Up to 100 connections, no extension
Standard: 1000 connections incl.
Price
(US Dollars)
Throughput Unit Hour (Basic) 0.015 TU per hour
Throughput Unit Hour (Standard) 0.03 TU per hour
Ingress Events 0.028 per 1,000,000 events
Cost Brokered Connections (1k-100k) 0.00004 connection/hour
Cost Brokered Connections (100k-500k) 0.00003 connection/hour
Cost Brokered Connections (500k+) 0.00002 connection/hour
Storage Overage >TUs*84GB
local-redundant Azure storage charge-
through

25. Tips & tricks
27
Multiple hubs per
namespace
Reuse senders &
factories
Use consumer
groups

26. Azure Stream Analytics
complex event processing
.
Introduction
(set up a basic ASA job)

27. Scenarios

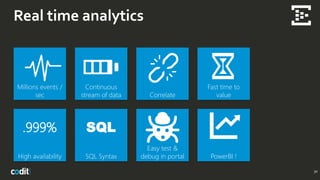

28. Real time analytics
30
Millions events /
sec
Continuous
stream of data Correlate
Fast time to
value
High availability SQL Syntax
Easy test &
debug in portal PowerBI !
.999% SQL

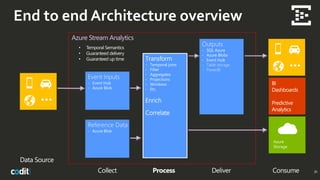

29. End to end Architecture overview
31
Data Source
Collect Process ConsumeDeliver
Event Inputs
- Event Hub
- Azure Blob
Transform
- Temporal joins
- Filter
- Aggregates
- Projections
- Windows
- Etc.
Enrich
Correlate
Outputs
- SQL Azure
- Azure Blobs
- Event Hub
- Table storage
- PowerBI
Azure
Storage
• Temporal Semantics
• Guaranteed delivery
• Guaranteed up time
Azure Stream Analytics
Reference Data
- Azure Blob

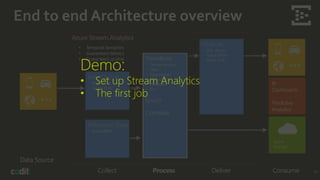

30. End to end Architecture overview
32
Data Source
Collect Process ConsumeDeliver
Event Inputs
- Event Hub
- Azure Blob
Transform
- Temporal joins
- Filter
- Aggregates
- Projections
- Windows
- Etc.
Enrich
Correlate
Outputs
- SQL Azure
- Azure Blobs
- Event Hub
Azure
Storage
• Temporal Semantics
• Guaranteed delivery
• Guaranteed up time
Azure Stream Analytics
Reference Data
- Azure Blob
Demo:
• Set up Stream Analytics
• The first job

31. Azure Stream Analytics
complex event processing
.
Query Syntax
(SQL like a pro)

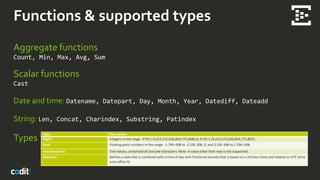

32. Functions & supported types
Aggregate functions
Count, Min, Max, Avg, Sum
Scalar functions
Cast
Date and time: Datename, Datepart, Day, Month, Year, Datediff, Dateadd
String: Len, Concat, Charindex, Substring, Patindex
Types
Type Description
bigint Integers in the range -2^63 (-9,223,372,036,854,775,808) to 2^63-1 (9,223,372,036,854,775,807).
float Floating point numbers in the range - 1.79E+308 to -2.23E-308, 0, and 2.23E-308 to 1.79E+308.
nvarchar(max) Text values, comprised of Unicode characters. Note: A value other than max is not supported.
datetime Defines a date that is combined with a time of day with fractional seconds that is based on a 24-hour clock and relative to UTC (time
zone offset 0).

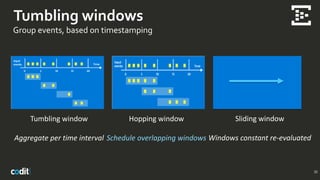

33. Tumbling windows
Group events, based on timestamping
35
Tumbling window
Aggregate per time interval
Hopping window
Schedule overlapping windows
Sliding window
Windows constant re-evaluated

34. End to end Architecture overview
36
Data Source
Collect Process ConsumeDeliver
Event Inputs
- Event Hub
- Azure Blob
Transform
- Temporal joins
- Filter
- Aggregates
- Projections
- Windows
- Etc.
Enrich
Correlate
Outputs
- SQL Azure
- Azure Blobs
- Event Hub
Azure
Storage
• Temporal Semantics
• Guaranteed delivery
• Guaranteed up time
Azure Stream Analytics
Reference Data
- Azure Blob

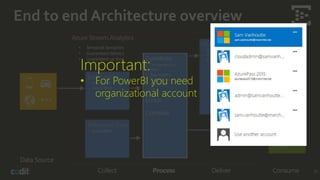

Important:
• For PowerBI you need
organizational account

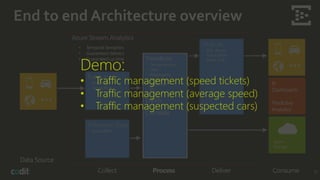

35. End to end Architecture overview
37
Data Source
Collect Process ConsumeDeliver
Event Inputs
- Event Hub
- Azure Blob
Transform
- Temporal joins
- Filter
- Aggregates
- Projections
- Windows
- Etc.
Enrich
Correlate
Outputs
- SQL Azure
- Azure Blobs
- Event Hub
Azure
Storage
• Temporal Semantics
• Guaranteed delivery
• Guaranteed up time
Azure Stream Analytics
Reference Data
- Azure Blob
Demo:
• Traffic management (speed tickets)
• Traffic management (average speed)
• Traffic management (suspected cars)

36. Tips & tricks
38
Use Timestamp by
Chose your
windowing logic Consumer groups
Don’t delete blobs
while job runs
