Amazon Elastic Compute Cloud (EC2) is a web service that provides scalable compute capacity in the cloud, enabling developers to quickly spin up virtual machines. It offers various pricing options (on-demand, reserved, spot, and dedicated), and includes different instance types catering to diverse workloads such as general, compute, memory, GPU, and storage optimization. Additionally, EC2 integrates with Elastic Block Storage (EBS) for data storage and resilience against failures.

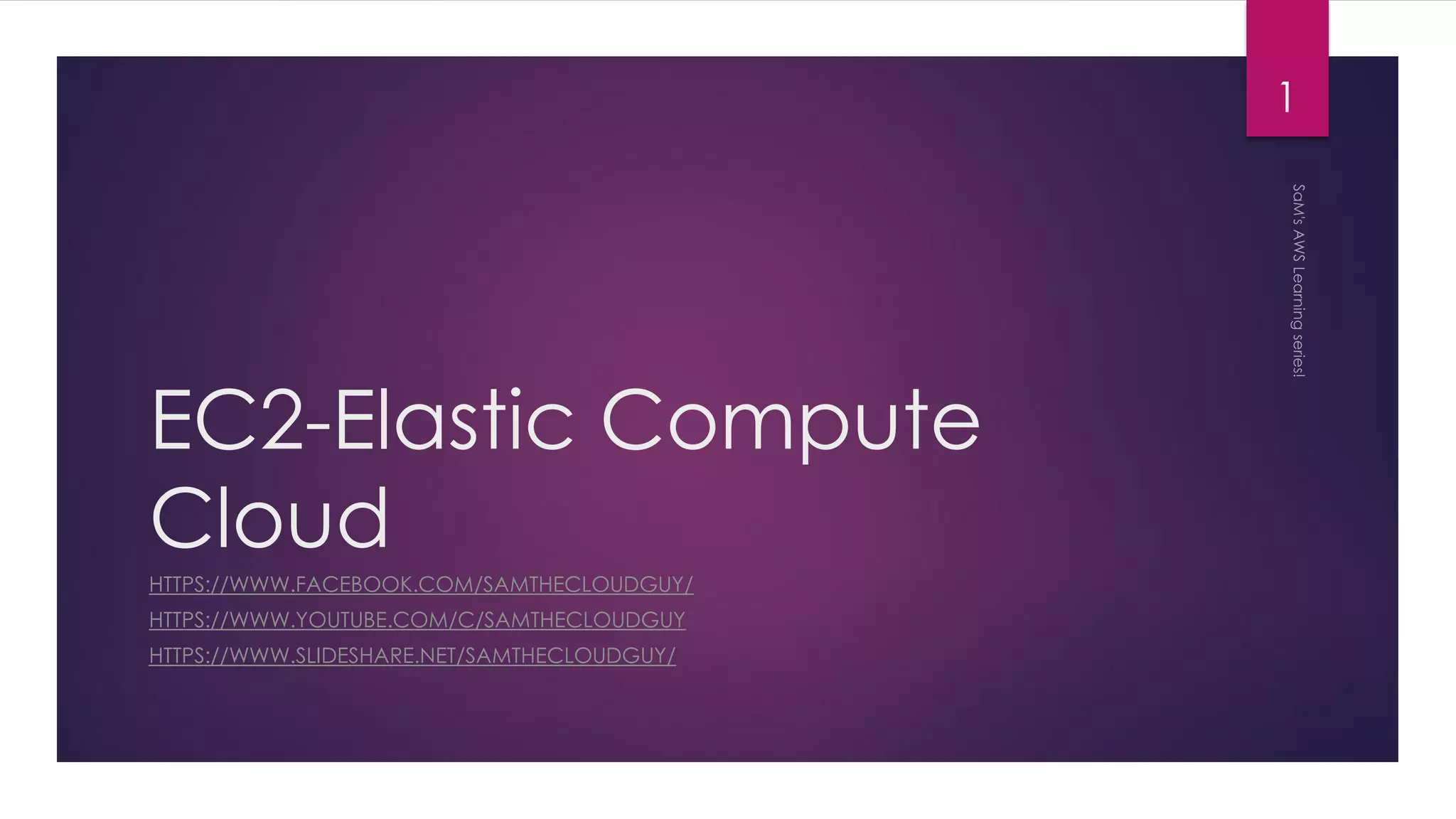

1. EC2-Elastic Compute
Cloud
HTTPS://WWW.FACEBOOK.COM/SAMTHECLOUDGUY/
HTTPS://WWW.YOUTUBE.COM/C/SAMTHECLOUDGUY
HTTPS://WWW.SLIDESHARE.NET/SAMTHECLOUDGUY/
1

2. EC2
 Amazon Elastic Compute Cloud (Amazon EC2) is a web service that
provides resizable compute capacity in the cloud. It is designed to make
web-scale computing easier for developers.
 Can spin up VMs on cloud within mins per your requirement.
 Revolutionary/Game changing paradigm that’s different and innovative
from conventional ways(Machine procurement).
SaM's AWS Learning series!
2

3. Why EC2 is so important?
 Instant provisioning
 Auto scaling
 ELB
 Low cost
 Resizable(up and down)
 AZ
 CloudWatch monitoring, etc
SaM's AWS Learning series!
3

4. EC2 Pricing options
 On demand-Pay/Hour model.
 Reserved- 1/3 yr contract for a fixed capacity of EC2 instances. Low cost
per hour charges than on demand.
 Spot- bid the price for instance-for requirements where start and end date
is not a concern.
 Dedicated-Physical EC2 servers available as pay/hour fashion.(use existing
server bound licenses).
SaM's AWS Learning series!
4

5. Types of EC2 instance
 Amazon EC2 instances are grouped into 5 families: General Purpose, Compute
Optimized, Memory Optimized, GPU, and Storage Optimized instances. General Purpose
Instances have memory to CPU ratios suitable for most general purpose applications and
come with fixed performance (M4 and M3 instances) or burstable performance (T2);
Compute Optimized instances (C4 and C3 instances) have proportionally more CPU
resources than memory (RAM) and are well suited for scale out compute-intensive
applications and High Performance Computing (HPC) workloads; Memory Optimized
Instances (R3 and R4 instances) offer larger memory sizes for memory-intensive
applications, including database and memory caching applications; GPU Compute
instances (P2) take advantage of the parallel processing capabilities of NVIDIA Tesla
GPUs for high performance parallel computing; GPU Graphics instances (G2) offer high-
performance 3D graphics capabilities for applications using OpenGL and DirectX;
Storage Optimized Instances include I2 instances that provide very high, low latency, I/O
capacity using SSD-based local instance storage for I/O-intensive applications and D2,
Dense-storage instances, that provide high storage density and sequential I/O
performance for data warehousing, Hadoop and other data-intensive applications.
When choosing instance types, you should consider the characteristics of your
application with regards to resource utilization (i.e. CPU, Memory, Storage) and select the
optimal instance family and instance size.
SaM's AWS Learning series!
5

6. EBS
 Elastic Block storage lets you to create storage volumes and attach it with
ec2 instance.
 Block based
 Can install software's or used for storage.
 EBS volumes are placed on specific AZ and replicated automatically to
withstand single point of failure.
 Cannot attach 1 EBS volume to multiple EC2 instances-For this EFS can be
used.
SaM's AWS Learning series!
6

7.  EBS Volume types:
 General Purpose SSD(GP2)-Upto 10,000 IOPS
 Provisioned IOPS SSD(IO1)-More than 10,000 IOPS
 Throughput optimized HDD-magnetic volume(ST1)-Frequent access of data
 Cold HDD-Magnetic Volume(SC1)-IA data
 Magnetic(Standard)-Lowest cost,IA bootable storage.
SaM's AWS Learning series!
7

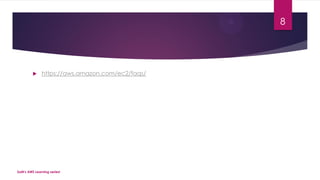

8.  https://aws.amazon.com/ec2/faqs/
SaM's AWS Learning series!
8

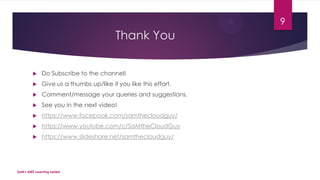

9. Thank You
 Do Subscribe to the channel!
 Give us a thumbs up/like if you like this effort.
 Comment/message your queries and suggestions.
 See you in the next video!
 https://www.facebook.com/samthecloudguy/
 https://www.youtube.com/c/SaMtheCloudGuy
 https://www.slideshare.net/samthecloudguy/
SaM's AWS Learning series!
9
