Getting started with AWS: Networking
O n l i n e W e b i n a r – 2 0 2 0 / 0 4 / 2 5
Cobus Bernard
Sr Developer Advocate
Amazon Web Services
@cobusbernard
cobusbernard
cobusbernard

2. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.

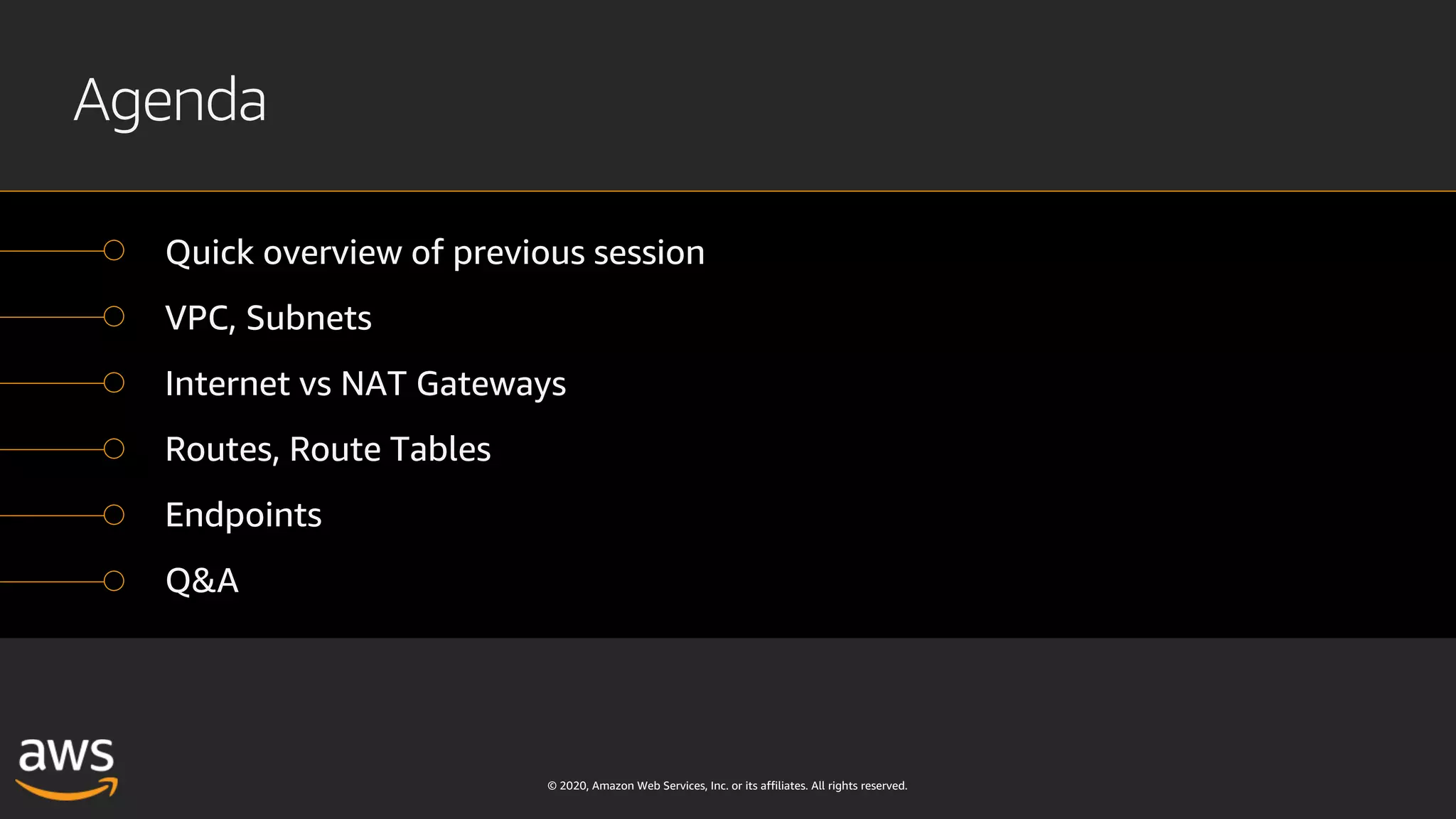

Agenda
Quick overview of previous session
VPC, Subnets
Internet vs NAT Gateways
Routes, Route Tables
Endpoints
Q&A

3. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.

4. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Subnet Subnet
Subnet Subnet
VPC
Availability Zone
US-EAST-1A
Availability Zone
US-EAST-1B
Amazon VPC (Virtual Private Cloud)
172.31. 172.31.
172.31. 172.31.
Subnet
Subnet
Availability Zone
US-EAST-1C
172.31.
172.31.
172.31.0.0/16:
172.31.0.1
to
172.31.255.254
=
65534 host IPs
/24 = 254 hosts
/20 = 4096 hosts

5. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Subnet
Subnet Subnet
VPC
Availability Zone
US-EAST-1A
Availability Zone
US-EAST-1B
Amazon VPC (Virtual Private Cloud)
172.31. 172.31.
172.31. 172.31.
Subnet
Subnet
Availability Zone
US-EAST-1C
172.31.
172.31.

6. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Subnet
Subnet
VPC
Availability Zone
US-EAST-1A
Amazon VPC (Virtual Private Cloud)
172.31.
172.31.
Subnet
Subnet
172.31.
172.31.
Availability Zone
US-EAST-1C

7. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Subnet
Subnet
VPC
Availability Zone
US-EAST-1A
Amazon VPC (Virtual Private Cloud)
172.31.
172.31.
Subnet
Subnet
172.31.
172.31.
Availability Zone
US-EAST-1C

8. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.

9. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Subnet Subnet
Subnet Subnet
VPC
Availability Zone
US-EAST-1A
Availability Zone
US-EAST-1B
Amazon VPC (Virtual Private Cloud)
Subnet
Subnet
Availability Zone
US-EAST-1C

10. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
CDK template
const ec2 = require('@aws-cdk/aws-ec2');
const cdk = require('@aws-cdk/core');
class VpcCdkStack extends cdk.Stack {
constructor(scope, id, props) {
super(scope, id, props);
this.vpc = new ec2.Vpc(this, 'webinar-cdk', {
cidr: '172.33.0.0/16',
maxAzs: 3
});
}
}
module.exports = { VpcCdkStack }

11. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.

12. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Connecting between VPCs
VPC
VPC
VPC
AWS Cloud

13. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
VPC peering: Things to know
Can reference security groups from the peer VPC in the same Region
Can enable DNS hostname resolution to return private IP addresses
Can peer for both IPv4 & IPv6 addresses
Cannot have overlapping IP addresses
Cannot have multiple peers between the same pair of VPCs
Cannot use jumbo frames across inter-Region VPC peering

14. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.

15. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
VPC endpoints
Interface VPC
endpoints
Gateway VPC
endpoints
VPC endpoint
services

16. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Instance BNAT-GW
NAT-GW
0.0.0.0/0
AWS Region
Availability Zone 2Availability Zone 1
Private subnet
The
Internet
Private subnet
Public subnet
Instance A
Public subnet
Amazon S3
VPC CIDR 10.1.0.0/16
10.1.0.11/24
Instance C
10.1.2.11/24
Instance D
10.1.3.11/24
+ Expand+ IPv6
IGWVPCE(s)
10.1.0.0/16 Local
0.0.0.0/0 IGW
S3.prefix.list VPCE-123
Destination Target
10.1.0.0/16 Local
DDB.prefix.list VPCE-123
Destination Target
EIP – 10.1.0.11 : 54.23.12.43
EIP – 10.1.1.11 : 54.19.12.23
Amazon
DynamoDB
VPCE =
VPC endpoint
(Type: Gateway)
Gateway VPC endpoints

17. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Connecting between VPCs
VPC
VPC
VPC
AWS Cloud
VPC
VPC
VPC

18. © 2020, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Scale connectivity across thousands
of Amazon VPCs, AWS accounts,
and on-premises networks
Amazon VPCAmazon VPC
Amazon VPCAmazon VPC
Customer
gateway
VPN
connection
AWS Direct
Connect Gateway
AWS Transit Gateway

19. Thank you!
