Developing ModernApplications in
theCloud
COBUS BERNARD
AWS SENIORTECHNICAL EVANGELIST
@cobusbernard
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Capabilitiesof a modern application
Secure Resilient Elastic
Modular Automated Interoperable
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

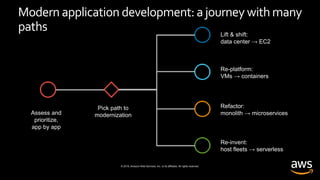

Assess and
prioritize,
app by app
Pick path to
modernization
Lift & shift:
data center → EC2
Re-platform:
VMs → containers
Refactor:
monolith → microservices
Re-invent:
host fleets → serverless
Modern application development: ajourney withmany
paths
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

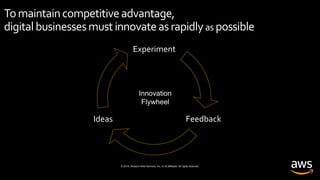

Tomaintaincompetitiveadvantage,
digitalbusinessesmustinnovateasrapidlyas possible
FeedbackIdeas
Experiment
Innovation
Flywheel
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Invention requires two things: the
ability to try a lot of experiments,
and not having to live with
the collateral damage of
failed experiments.“
Andy Jassy
CEO, Amazon Web Services
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

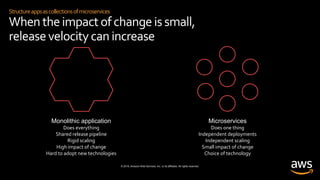

Structureappsascollectionsofmicroservices
When theimpact ofchange issmall,
releasevelocitycan increase
Monolithic application
Does everything
Shared release pipeline
Rigid scaling
High impact of change
Hard to adopt new technologies
Microservices
Does one thing
Independent deployments
Independent scaling
Small impact of change
Choice of technology
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Structureappsascollectionsofmicroservices
Whentheimpact ofchange issmall,
releasevelocitycan increase
Microservices
Do one thing – Well
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Structureappsascollectionsofmicroservices

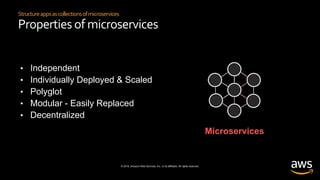

Properties of microservices
Microservices
• Independent
• Individually Deployed & Scaled
• Polyglot
• Modular - Easily Replaced
• Decentralized
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Structureappsascollectionsofmicroservices

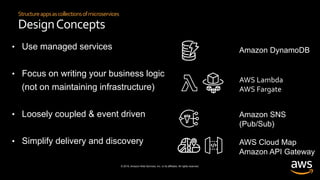

DesignConcepts
• Use managed services
• Focus on writing your business logic
(not on maintaining infrastructure)
• Loosely coupled & event driven
• Simplify delivery and discovery
AWS Lambda
AWS Fargate
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

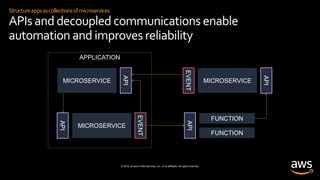

Structureappsascollectionsofmicroservices
APIs and decoupled communications enable
automation and improves reliability
FUNCTION
API
API
MICROSERVICE
FUNCTIONEVENT
API
MICROSERVICE
EVENT
API
MICROSERVICE
APPLICATION
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Rigid Flexible
Abstractions
Easy Hard
1 System N Systems2 Systems
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

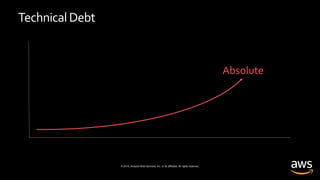

TechnicalDebtCost
Time
Absolute
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

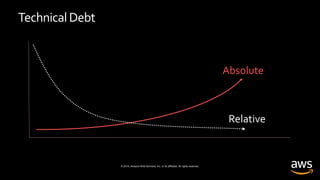

TechnicalDebt
Time
Cost
Relative
Absolute
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Monolith
Does everything
Monoliths are OK
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Commondatacategoriesandusecases
Relational
Referential
integrity, ACID
transactions,
schema-
on-write
Lift and shift, ERP,
CRM, finance
Key-value
High
throughput, low-
latency reads
and writes,
endless scale
Real-time bidding,
shopping cart,
social, product
catalog, customer
preferences
Document
Store
documents and
quickly access
querying on any
attribute
Content
management,
personalization,
mobile
In-memory
Query by key
with
microsecond
latency
Leaderboards,
real-time analytics,
caching
Graph
Quickly and
easily create
and navigate
relationships
between
data
Fraud detection,
social networking,
recommendation
engine
Time-series
Collect, store,
and process
data sequenced
by time
IoT applications,
event tracking
Ledger
Complete,
immutable, and
verifiable history
of all changes to
application data
Systems
of record, supply
chain, health care,
registrations,
financial
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

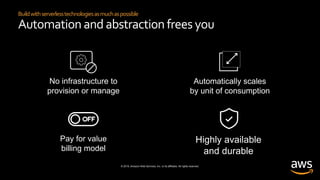

Buildwithserverlesstechnologiesasmuchaspossible
Automation and abstractionfrees you
No infrastructure to
provision or manage
Automatically scales
by unit of consumption
Pay for value
billing model
Highly available
and durable
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

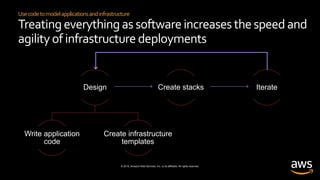

Usecodetomodelapplicationsandinfrastructure
Treatingeverythingas softwareincreases thespeed and
agilityof infrastructuredeployments
Design
Write application
code
Create infrastructure
templates
Create stacks Iterate
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

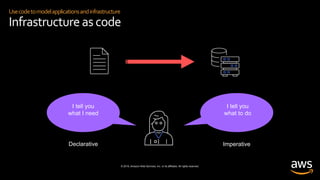

Usecodetomodelapplicationsandinfrastructure
Infrastructure ascode
Declarative
I tell you
what I need
I tell you
what to do
Imperative
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

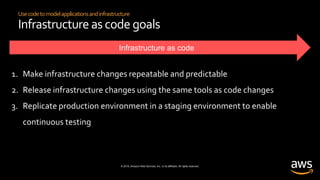

Usecodetomodelapplicationsandinfrastructure
Infrastructure ascode goals
1. Make infrastructure changes repeatable and predictable
2. Release infrastructure changes using the same tools as code changes
3. Replicate production environment in a staging environment to enable
continuous testing
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Usecodetomodelapplicationsandinfrastructure

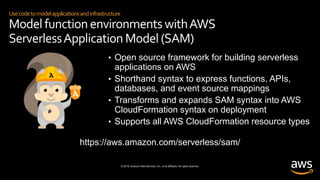

Model function environments withAWS
ServerlessApplication Model (SAM)
• Open source framework for building serverless
applications on AWS
• Shorthand syntax to express functions, APIs,
databases, and event source mappings
• Transforms and expands SAM syntax into AWS
CloudFormation syntax on deployment
• Supports all AWS CloudFormation resource types
https://aws.amazon.com/serverless/sam/
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Rapidlyreleasehigh-qualityfeatureswithCI/CD
TeamsthatpracticeCI/CD
shipmore code faster,and withmore confidence
Source: Puppet 2017 State of DevOps Report
5x
Lower change
failure rate
440x
Faster from
commit to deploy
46x
More frequent
deployments
44%
More time spent on
new features & code
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

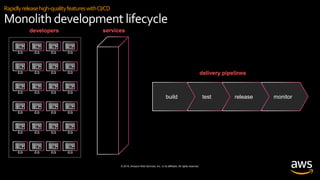

Rapidlyreleasehigh-qualityfeatureswithCI/CD
Monolith development lifecycle
monitorreleasetestbuild
developers
delivery pipelines
services
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

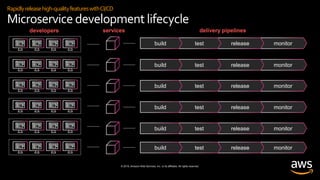

developers services
monitorreleasetestbuild
delivery pipelines
monitorreleasetestbuild
monitorreleasetestbuild
monitorreleasetestbuild
monitorreleasetestbuild
monitorreleasetestbuild
Rapidlyreleasehigh-qualityfeatureswithCI/CD
Microservicedevelopment lifecycle
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Containers have become the standard for how to ship and run your
application in the cloud
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

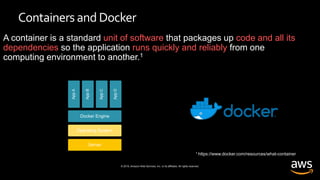

Containers and Docker
A container is a standard unit of software that packages up code and all its
dependencies so the application runs quickly and reliably from one
computing environment to another.1
1 https://www.docker.com/resources/what-container
Server
Operating System
Docker Engine
AppA
AppB
AppC
AppD
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Docker Image
• Used to launch container
• Instructions documented in Dockerfile
• Merge layers into single image
• Read-only template
kernel
Base Image
Image layer
Image layer
Image layer
References
parent image
layer
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Containers and Microservices
• Do one thing, really well
• Any app, any language
• Isolated execution environment
• Test and deploy same artifact
• Faster startup
Container Container
Container Container
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

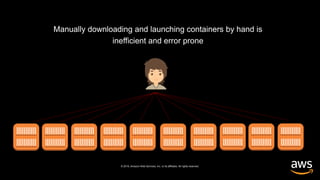

Manually downloading and launching containers by hand is
inefficient and error prone
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

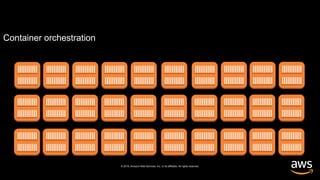

Container orchestration
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

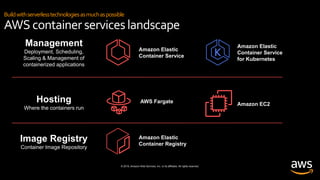

Buildwithserverlesstechnologiesasmuchaspossible
AWS container serviceslandscape
Management
Deployment, Scheduling,
Scaling & Management of
containerized applications
Hosting
Where the containers run
Amazon Elastic
Container Service
Amazon Elastic
Container Service
for Kubernetes
Amazon EC2AWS Fargate
Image Registry
Container Image Repository
Amazon Elastic
Container Registry
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

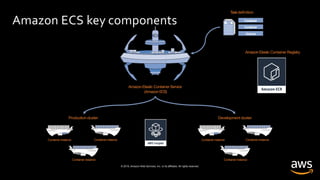

Amazon ECS key components
Development cluster
Container instance Container instance
Container instance
Productioncluster
Container instance Container instance
Container instance
AmazonElastic Container Service
(AmazonECS)
Container
Container
Volume
Taskdefinition
AmazonElastic Container Registry
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Kubectl
EKS Architecture
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

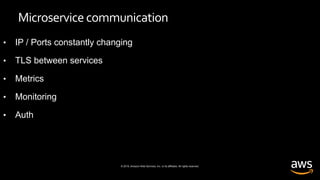

Microservicecommunication
• IP / Ports constantly changing
• TLS between services
• Metrics
• Monitoring
• Auth
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
OSS Hystrix:
code changes required
Service Mesh:
decentral, language agnostic,
dumb endpoints
https://www.infoq.com/articles/microservices-post-kubernetes
Shift in Infrastructure Logic
ESB: clustered monolith
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

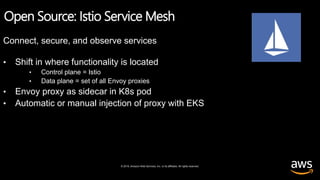

Open Source: Istio Service Mesh
Connect, secure, and observe services
• Shift in where functionality is located
• Control plane = Istio
• Data plane = set of all Envoy proxies
• Envoy proxy as sidecar in K8s pod
• Automatic or manual injection of proxy with EKS
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Data Plane (Proxy)
• Touches every packet / request
• Service discovery
• Health Checking
• Routing
• Load Balancing
• Authentication / Authorization
• Observability
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

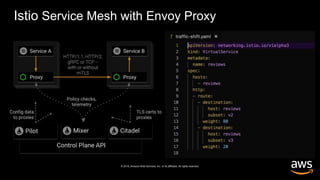

Istio Service Mesh with Envoy Proxy
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

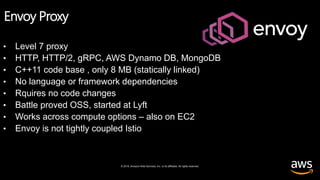

Envoy Proxy
• Level 7 proxy
• HTTP, HTTP/2, gRPC, AWS Dynamo DB, MongoDB
• C++11 code base , only 8 MB (statically linked)
• No language or framework dependencies
• Rquires no code changes
• Battle proved OSS, started at Lyft
• Works across compute options – also on EC2
• Envoy is not tightly coupled Istio
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

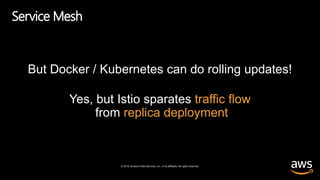

Service Mesh
But Docker / Kubernetes can do rolling updates!
Yes, but Istio sparates traffic flow
from replica deployment
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
A bath tub full of cold water ? K8s roling update
25%
1 pod at a time
… or just wetten your feet? Service Mesh
3%
Traffic routing
🛁 🛁 🛁
💦
🛀🏽🛁
🌊❄️🌊❄️🌊❄️
Fancy a Swim in the Arctic Sea ?
Blue / Green
100%
All services at once
Microservices Update Strategies
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

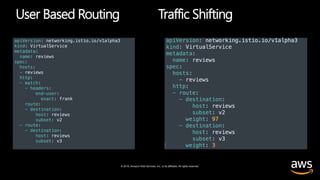

User Based Routing Traffic Shifting
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

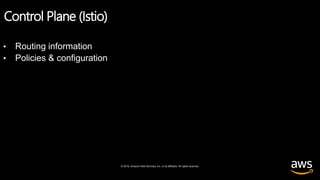

Control Plane (Istio)
• Routing information
• Policies & configuration
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

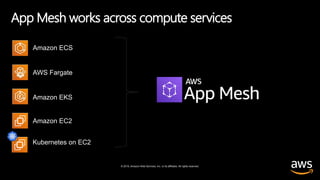

App Mesh works across compute services
Amazon ECS
AWS Fargate
Amazon EKS
Amazon EC2
Kubernetes on EC2
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Based on Envoy proxy
Start App Mesh from the AWS CLI, console or SDK
There is no additional charge for using AWS App Mesh
Supports any third-party tool that works with Envoy
App Mesh
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

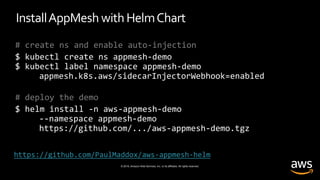

InstallAppMesh withHelmChart
# create ns and enable auto-injection
$ kubectl create ns appmesh-demo
$ kubectl label namespace appmesh-demo
appmesh.k8s.aws/sidecarInjectorWebhook=enabled
# deploy the demo
$ helm install -n aws-appmesh-demo
--namespace appmesh-demo
https://github.com/.../aws-appmesh-demo.tgz
https://github.com/PaulMaddox/aws-appmesh-helm
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

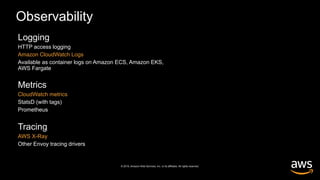

Logging
HTTP access logging
Amazon CloudWatch Logs
Available as container logs on Amazon ECS, Amazon EKS,
AWS Fargate
Metrics
CloudWatch metrics
StatsD (with tags)
Prometheus
Tracing
AWS X-Ray
Other Envoy tracing drivers
Observability
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

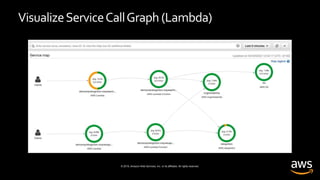

VisualizeServiceCallGraph (Lambda)
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

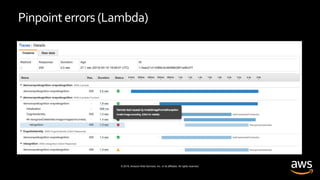

Pinpoint errors (Lambda)
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

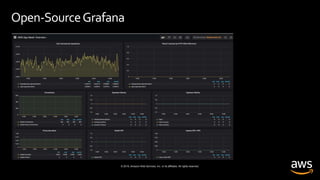

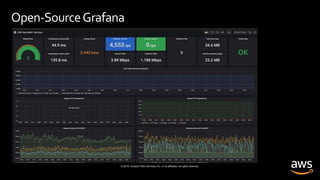

Open-SourceGrafana
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Open-SourceGrafana
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Traffic shaping
Load balancing
Weight targets
Service discovery (DNS + AWS Cloud Map)
Health checks
Retries*
Timeouts*
Circuit breakers*
*Coming soon
Traffic Management
Routing controls
Protocols support (HTTP, TCP, gRPC*)
Path-based
Header-based*
Cookie-based*
Host-based*
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
AWSApp MeshRoadmap is Public
https://github.com/awslabs/aws-app-mesh-examples
Thank you!
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
COBUS BERNARD
AWS SENIORTECHNICAL EVANGELIST
@cobusbernard

More Related Content

What's hot

Building-Modern-Distributed-Applications
Building-Modern-Distributed-ApplicationsBuilding-Modern-Distributed-Applications
Building-Modern-Distributed-Applications
Amazon Web Services

AWS Serverless Webinar- Unleash Innovation & Build Modern Application
AWS Serverless Webinar- Unleash Innovation & Build Modern ApplicationAWS Serverless Webinar- Unleash Innovation & Build Modern Application
AWS Serverless Webinar- Unleash Innovation & Build Modern Application
Amazon Web Services

CICDforModernApplications-Oslo.pdf
CICDforModernApplications-Oslo.pdfCICDforModernApplications-Oslo.pdf
CICDforModernApplications-Oslo.pdf
Amazon Web Services

AWS 如何協助客戶建立 DevOps 流程
AWS 如何協助客戶建立 DevOps 流程AWS 如何協助客戶建立 DevOps 流程
AWS 如何協助客戶建立 DevOps 流程
Amazon Web Services

Essential capabilities behind Microservices
Essential capabilities behind MicroservicesEssential capabilities behind Microservices
Essential capabilities behind Microservices
Amazon Web Services

Dalle macchine virtuali ai container usando AWS Fargate
Dalle macchine virtuali ai container usando AWS FargateDalle macchine virtuali ai container usando AWS Fargate
Dalle macchine virtuali ai container usando AWS Fargate
Amazon Web Services

.NET on AWS
.NET on AWS.NET on AWS
.NET on AWS
Amazon Web Services

From Monolith to Microservices
From Monolith to MicroservicesFrom Monolith to Microservices
From Monolith to Microservices
Amazon Web Services

AWS RoboMaker 智慧機器人應用程式
AWS RoboMaker 智慧機器人應用程式AWS RoboMaker 智慧機器人應用程式
AWS RoboMaker 智慧機器人應用程式
Amazon Web Services

Building a fully serverless application on AWS | AWS Summit Tel Aviv 2019
Building a fully serverless application on AWS | AWS Summit Tel Aviv 2019Building a fully serverless application on AWS | AWS Summit Tel Aviv 2019
Building a fully serverless application on AWS | AWS Summit Tel Aviv 2019
AWS Summits

Modernizing legacy applications with Amazon EKS - MAD301 - Chicago AWS Summit
Modernizing legacy applications with Amazon EKS - MAD301 - Chicago AWS SummitModernizing legacy applications with Amazon EKS - MAD301 - Chicago AWS Summit
Modernizing legacy applications with Amazon EKS - MAD301 - Chicago AWS Summit
Amazon Web Services

Build data-driven, high-performance, internet-scale applications with AWS dat...
Build data-driven, high-performance, internet-scale applications with AWS dat...Build data-driven, high-performance, internet-scale applications with AWS dat...
Build data-driven, high-performance, internet-scale applications with AWS dat...
Amazon Web Services

Accelerating your cloud migration with VMware Cloud on AWS - CMP205 - Chicago...
Accelerating your cloud migration with VMware Cloud on AWS - CMP205 - Chicago...Accelerating your cloud migration with VMware Cloud on AWS - CMP205 - Chicago...
Accelerating your cloud migration with VMware Cloud on AWS - CMP205 - Chicago...
Amazon Web Services

AWS DevDay Vienna - Automating building blocks choices you will face with con...
AWS DevDay Vienna - Automating building blocks choices you will face with con...AWS DevDay Vienna - Automating building blocks choices you will face with con...
AWS DevDay Vienna - Automating building blocks choices you will face with con...
Cobus Bernard

Containers on AWS
Containers on AWSContainers on AWS
Containers on AWS
Reham Maher El-Safarini

AWS Dev Lounge: Taking Control of Your Microservices with AWS App Mesh
AWS Dev Lounge: Taking Control of Your Microservices with AWS App MeshAWS Dev Lounge: Taking Control of Your Microservices with AWS App Mesh
AWS Dev Lounge: Taking Control of Your Microservices with AWS App Mesh
Amazon Web Services

Java Developer on AWS 在AWS上開發Java應用
Java Developer on AWS 在AWS上開發Java應用Java Developer on AWS 在AWS上開發Java應用
Java Developer on AWS 在AWS上開發Java應用
Amazon Web Services

How Millennium Management achieves provable security with AWS Zelkova - FSV30...
How Millennium Management achieves provable security with AWS Zelkova - FSV30...How Millennium Management achieves provable security with AWS Zelkova - FSV30...
How Millennium Management achieves provable security with AWS Zelkova - FSV30...
Amazon Web Services

Modernizing applications with Amazon EKS - MAD304 - Santa Clara AWS Summit.pdf
Modernizing applications with Amazon EKS - MAD304 - Santa Clara AWS Summit.pdfModernizing applications with Amazon EKS - MAD304 - Santa Clara AWS Summit.pdf
Modernizing applications with Amazon EKS - MAD304 - Santa Clara AWS Summit.pdf
Amazon Web Services

利用 AWS Step Functions 建構穩定的資料處理流程.pdf
利用 AWS Step Functions 建構穩定的資料處理流程.pdf利用 AWS Step Functions 建構穩定的資料處理流程.pdf
利用 AWS Step Functions 建構穩定的資料處理流程.pdf
Amazon Web Services


What's hot (20)

Building-Modern-Distributed-Applications
Building-Modern-Distributed-ApplicationsBuilding-Modern-Distributed-Applications
Building-Modern-Distributed-Applications

AWS Serverless Webinar- Unleash Innovation & Build Modern Application
AWS Serverless Webinar- Unleash Innovation & Build Modern ApplicationAWS Serverless Webinar- Unleash Innovation & Build Modern Application
AWS Serverless Webinar- Unleash Innovation & Build Modern Application

CICDforModernApplications-Oslo.pdf
CICDforModernApplications-Oslo.pdfCICDforModernApplications-Oslo.pdf
CICDforModernApplications-Oslo.pdf

AWS 如何協助客戶建立 DevOps 流程
AWS 如何協助客戶建立 DevOps 流程AWS 如何協助客戶建立 DevOps 流程
AWS 如何協助客戶建立 DevOps 流程

Essential capabilities behind Microservices
Essential capabilities behind MicroservicesEssential capabilities behind Microservices
Essential capabilities behind Microservices

Dalle macchine virtuali ai container usando AWS Fargate
Dalle macchine virtuali ai container usando AWS FargateDalle macchine virtuali ai container usando AWS Fargate
Dalle macchine virtuali ai container usando AWS Fargate

.NET on AWS
.NET on AWS.NET on AWS
.NET on AWS

From Monolith to Microservices
From Monolith to MicroservicesFrom Monolith to Microservices
From Monolith to Microservices

AWS RoboMaker 智慧機器人應用程式
AWS RoboMaker 智慧機器人應用程式AWS RoboMaker 智慧機器人應用程式
AWS RoboMaker 智慧機器人應用程式

Building a fully serverless application on AWS | AWS Summit Tel Aviv 2019
Building a fully serverless application on AWS | AWS Summit Tel Aviv 2019Building a fully serverless application on AWS | AWS Summit Tel Aviv 2019
Building a fully serverless application on AWS | AWS Summit Tel Aviv 2019

Modernizing legacy applications with Amazon EKS - MAD301 - Chicago AWS Summit
Modernizing legacy applications with Amazon EKS - MAD301 - Chicago AWS SummitModernizing legacy applications with Amazon EKS - MAD301 - Chicago AWS Summit
Modernizing legacy applications with Amazon EKS - MAD301 - Chicago AWS Summit

Build data-driven, high-performance, internet-scale applications with AWS dat...
Build data-driven, high-performance, internet-scale applications with AWS dat...Build data-driven, high-performance, internet-scale applications with AWS dat...
Build data-driven, high-performance, internet-scale applications with AWS dat...

Accelerating your cloud migration with VMware Cloud on AWS - CMP205 - Chicago...
Accelerating your cloud migration with VMware Cloud on AWS - CMP205 - Chicago...Accelerating your cloud migration with VMware Cloud on AWS - CMP205 - Chicago...
Accelerating your cloud migration with VMware Cloud on AWS - CMP205 - Chicago...

AWS DevDay Vienna - Automating building blocks choices you will face with con...
AWS DevDay Vienna - Automating building blocks choices you will face with con...AWS DevDay Vienna - Automating building blocks choices you will face with con...
AWS DevDay Vienna - Automating building blocks choices you will face with con...

Containers on AWS
Containers on AWSContainers on AWS
Containers on AWS

AWS Dev Lounge: Taking Control of Your Microservices with AWS App Mesh
AWS Dev Lounge: Taking Control of Your Microservices with AWS App MeshAWS Dev Lounge: Taking Control of Your Microservices with AWS App Mesh
AWS Dev Lounge: Taking Control of Your Microservices with AWS App Mesh

Java Developer on AWS 在AWS上開發Java應用
Java Developer on AWS 在AWS上開發Java應用Java Developer on AWS 在AWS上開發Java應用
Java Developer on AWS 在AWS上開發Java應用

How Millennium Management achieves provable security with AWS Zelkova - FSV30...
How Millennium Management achieves provable security with AWS Zelkova - FSV30...How Millennium Management achieves provable security with AWS Zelkova - FSV30...
How Millennium Management achieves provable security with AWS Zelkova - FSV30...

Modernizing applications with Amazon EKS - MAD304 - Santa Clara AWS Summit.pdf
Modernizing applications with Amazon EKS - MAD304 - Santa Clara AWS Summit.pdfModernizing applications with Amazon EKS - MAD304 - Santa Clara AWS Summit.pdf
Modernizing applications with Amazon EKS - MAD304 - Santa Clara AWS Summit.pdf

利用 AWS Step Functions 建構穩定的資料處理流程.pdf
利用 AWS Step Functions 建構穩定的資料處理流程.pdf利用 AWS Step Functions 建構穩定的資料處理流程.pdf
利用 AWS Step Functions 建構穩定的資料處理流程.pdf


Similar to AWS Jozi Meetup Developing Modern Applications in the Cloud

CI/CD for Modern Applications
CI/CD for Modern ApplicationsCI/CD for Modern Applications
CI/CD for Modern Applications
Amazon Web Services

DevOps - Moving to DevOps the Amazon Way
DevOps - Moving to DevOps the Amazon WayDevOps - Moving to DevOps the Amazon Way
DevOps - Moving to DevOps the Amazon Way
Amazon Web Services

Introduction to Serverless Computing - OOP Munich
 Introduction to Serverless Computing - OOP Munich Introduction to Serverless Computing - OOP Munich
Introduction to Serverless Computing - OOP Munich
Boaz Ziniman

AWS DevDay Cologne - CI/CD for modern applications
AWS DevDay Cologne - CI/CD for modern applicationsAWS DevDay Cologne - CI/CD for modern applications
AWS DevDay Cologne - CI/CD for modern applications
Cobus Bernard

CICDforModernApplications_Stockholm.pdf
CICDforModernApplications_Stockholm.pdfCICDforModernApplications_Stockholm.pdf
CICDforModernApplications_Stockholm.pdf
Amazon Web Services

Modern Applications Development on AWS
Modern Applications Development on AWSModern Applications Development on AWS
Modern Applications Development on AWS
Boaz Ziniman

Favorire l'innovazione passando da applicazioni monolitiche ad architetture m...
Favorire l'innovazione passando da applicazioni monolitiche ad architetture m...Favorire l'innovazione passando da applicazioni monolitiche ad architetture m...
Favorire l'innovazione passando da applicazioni monolitiche ad architetture m...
Amazon Web Services

DevOps Spain 2019. Pedro Mendoza-AWS
DevOps Spain 2019. Pedro Mendoza-AWSDevOps Spain 2019. Pedro Mendoza-AWS
DevOps Spain 2019. Pedro Mendoza-AWS
atSistemas

Breaking the Monolith using AWS Container Services
Breaking the Monolith using AWS Container ServicesBreaking the Monolith using AWS Container Services
Breaking the Monolith using AWS Container Services
Amazon Web Services

CI/CD for Containers: A Way Forward for Your DevOps Pipeline
CI/CD for Containers: A Way Forward for Your DevOps PipelineCI/CD for Containers: A Way Forward for Your DevOps Pipeline
CI/CD for Containers: A Way Forward for Your DevOps Pipeline
Amazon Web Services

AWS ECS Workshop A Journey to Modern Applications
AWS ECS Workshop A Journey to Modern ApplicationsAWS ECS Workshop A Journey to Modern Applications
AWS ECS Workshop A Journey to Modern Applications
Amazon Web Services

Continuous Integration and Continuous Delivery for your serverless apps - Seb...
Continuous Integration and Continuous Delivery for your serverless apps - Seb...Continuous Integration and Continuous Delivery for your serverless apps - Seb...
Continuous Integration and Continuous Delivery for your serverless apps - Seb...
Shift Conference

Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
 Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019 Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
AWS Summits

Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
 Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019 Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
Amazon Web Services

Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Amazon Web Services

Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
AWS Summits

Breaking the Monolith road to containers.pdf
Breaking the Monolith road to containers.pdfBreaking the Monolith road to containers.pdf
Breaking the Monolith road to containers.pdf
Amazon Web Services

CI/CD best practices for building modern applications - MAD301 - Santa Clara ...
CI/CD best practices for building modern applications - MAD301 - Santa Clara ...CI/CD best practices for building modern applications - MAD301 - Santa Clara ...
CI/CD best practices for building modern applications - MAD301 - Santa Clara ...
Amazon Web Services

Orchestrating containers on AWS | AWS Summit Tel Aviv 2019
Orchestrating containers on AWS  | AWS Summit Tel Aviv 2019Orchestrating containers on AWS  | AWS Summit Tel Aviv 2019
Orchestrating containers on AWS | AWS Summit Tel Aviv 2019
AWS Summits

Orchestrating containers on AWS | AWS Summit Tel Aviv 2019
Orchestrating containers on AWS  | AWS Summit Tel Aviv 2019Orchestrating containers on AWS  | AWS Summit Tel Aviv 2019
Orchestrating containers on AWS | AWS Summit Tel Aviv 2019
Amazon Web Services


Similar to AWS Jozi Meetup Developing Modern Applications in the Cloud (20)

CI/CD for Modern Applications
CI/CD for Modern ApplicationsCI/CD for Modern Applications
CI/CD for Modern Applications

DevOps - Moving to DevOps the Amazon Way
DevOps - Moving to DevOps the Amazon WayDevOps - Moving to DevOps the Amazon Way
DevOps - Moving to DevOps the Amazon Way

Introduction to Serverless Computing - OOP Munich
 Introduction to Serverless Computing - OOP Munich Introduction to Serverless Computing - OOP Munich
Introduction to Serverless Computing - OOP Munich

AWS DevDay Cologne - CI/CD for modern applications
AWS DevDay Cologne - CI/CD for modern applicationsAWS DevDay Cologne - CI/CD for modern applications
AWS DevDay Cologne - CI/CD for modern applications

CICDforModernApplications_Stockholm.pdf
CICDforModernApplications_Stockholm.pdfCICDforModernApplications_Stockholm.pdf
CICDforModernApplications_Stockholm.pdf

Modern Applications Development on AWS
Modern Applications Development on AWSModern Applications Development on AWS
Modern Applications Development on AWS

Favorire l'innovazione passando da applicazioni monolitiche ad architetture m...
Favorire l'innovazione passando da applicazioni monolitiche ad architetture m...Favorire l'innovazione passando da applicazioni monolitiche ad architetture m...
Favorire l'innovazione passando da applicazioni monolitiche ad architetture m...

DevOps Spain 2019. Pedro Mendoza-AWS
DevOps Spain 2019. Pedro Mendoza-AWSDevOps Spain 2019. Pedro Mendoza-AWS
DevOps Spain 2019. Pedro Mendoza-AWS

Breaking the Monolith using AWS Container Services
Breaking the Monolith using AWS Container ServicesBreaking the Monolith using AWS Container Services
Breaking the Monolith using AWS Container Services

CI/CD for Containers: A Way Forward for Your DevOps Pipeline
CI/CD for Containers: A Way Forward for Your DevOps PipelineCI/CD for Containers: A Way Forward for Your DevOps Pipeline
CI/CD for Containers: A Way Forward for Your DevOps Pipeline

AWS ECS Workshop A Journey to Modern Applications
AWS ECS Workshop A Journey to Modern ApplicationsAWS ECS Workshop A Journey to Modern Applications
AWS ECS Workshop A Journey to Modern Applications

Continuous Integration and Continuous Delivery for your serverless apps - Seb...
Continuous Integration and Continuous Delivery for your serverless apps - Seb...Continuous Integration and Continuous Delivery for your serverless apps - Seb...
Continuous Integration and Continuous Delivery for your serverless apps - Seb...

Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
 Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019 Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019

Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
 Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019 Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019
Let Your Business Logic go Serverless | AWS Summit Tel Aviv 2019

Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...

Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...
Microservices on AWS: Architectural Patterns and Best Practices | AWS Summit ...

Breaking the Monolith road to containers.pdf
Breaking the Monolith road to containers.pdfBreaking the Monolith road to containers.pdf
Breaking the Monolith road to containers.pdf

CI/CD best practices for building modern applications - MAD301 - Santa Clara ...
CI/CD best practices for building modern applications - MAD301 - Santa Clara ...CI/CD best practices for building modern applications - MAD301 - Santa Clara ...
CI/CD best practices for building modern applications - MAD301 - Santa Clara ...

Orchestrating containers on AWS | AWS Summit Tel Aviv 2019
Orchestrating containers on AWS  | AWS Summit Tel Aviv 2019Orchestrating containers on AWS  | AWS Summit Tel Aviv 2019
Orchestrating containers on AWS | AWS Summit Tel Aviv 2019

Orchestrating containers on AWS | AWS Summit Tel Aviv 2019
Orchestrating containers on AWS  | AWS Summit Tel Aviv 2019Orchestrating containers on AWS  | AWS Summit Tel Aviv 2019
Orchestrating containers on AWS | AWS Summit Tel Aviv 2019


More from Cobus Bernard

London Microservices Meetup: Lessons learnt adopting microservices
London Microservices  Meetup: Lessons learnt adopting microservicesLondon Microservices  Meetup: Lessons learnt adopting microservices
London Microservices Meetup: Lessons learnt adopting microservices
Cobus Bernard

AWS SSA Webinar 34 - Getting started with databases on AWS - Managing DBs wit...
AWS SSA Webinar 34 - Getting started with databases on AWS - Managing DBs wit...AWS SSA Webinar 34 - Getting started with databases on AWS - Managing DBs wit...
AWS SSA Webinar 34 - Getting started with databases on AWS - Managing DBs wit...
Cobus Bernard

AWS SSA Webinar 33 - Getting started with databases on AWS Amazon DynamoDB
AWS SSA Webinar 33 - Getting started with databases on AWS Amazon DynamoDBAWS SSA Webinar 33 - Getting started with databases on AWS Amazon DynamoDB
AWS SSA Webinar 33 - Getting started with databases on AWS Amazon DynamoDB
Cobus Bernard

AWS SSA Webinar 32 - Getting Started with databases on AWS: Choosing the righ...
AWS SSA Webinar 32 - Getting Started with databases on AWS: Choosing the righ...AWS SSA Webinar 32 - Getting Started with databases on AWS: Choosing the righ...
AWS SSA Webinar 32 - Getting Started with databases on AWS: Choosing the righ...
Cobus Bernard

AWS SSA Webinar 30 - Getting Started with AWS - Infrastructure as Code - Terr...
AWS SSA Webinar 30 - Getting Started with AWS - Infrastructure as Code - Terr...AWS SSA Webinar 30 - Getting Started with AWS - Infrastructure as Code - Terr...
AWS SSA Webinar 30 - Getting Started with AWS - Infrastructure as Code - Terr...
Cobus Bernard

AWS SSA Webinar 28 - Getting Started with AWS - Infrastructure as Code
AWS SSA Webinar 28 - Getting Started with AWS - Infrastructure as CodeAWS SSA Webinar 28 - Getting Started with AWS - Infrastructure as Code
AWS SSA Webinar 28 - Getting Started with AWS - Infrastructure as Code
Cobus Bernard

AWS Webinar 24 - Getting Started with AWS - Understanding DR
AWS Webinar 24 - Getting Started with AWS - Understanding DRAWS Webinar 24 - Getting Started with AWS - Understanding DR
AWS Webinar 24 - Getting Started with AWS - Understanding DR
Cobus Bernard

AWS Webinar 23 - Getting Started with AWS - Understanding total cost of owner...
AWS Webinar 23 - Getting Started with AWS - Understanding total cost of owner...AWS Webinar 23 - Getting Started with AWS - Understanding total cost of owner...
AWS Webinar 23 - Getting Started with AWS - Understanding total cost of owner...
Cobus Bernard

AWS SSA Webinar 21 - Getting Started with Data lakes on AWS
AWS SSA Webinar 21 - Getting Started with Data lakes on AWSAWS SSA Webinar 21 - Getting Started with Data lakes on AWS
AWS SSA Webinar 21 - Getting Started with Data lakes on AWS
Cobus Bernard

AWS SSA Webinar 20 - Getting Started with Data Warehouses on AWS
AWS SSA Webinar 20 - Getting Started with Data Warehouses on AWSAWS SSA Webinar 20 - Getting Started with Data Warehouses on AWS
AWS SSA Webinar 20 - Getting Started with Data Warehouses on AWS
Cobus Bernard

AWS SSA Webinar 19 - Getting Started with Multi-Region Architecture: Services
AWS SSA Webinar 19 - Getting Started with Multi-Region Architecture: ServicesAWS SSA Webinar 19 - Getting Started with Multi-Region Architecture: Services
AWS SSA Webinar 19 - Getting Started with Multi-Region Architecture: Services
Cobus Bernard

AWS SSA Webinar 18 - Getting Started with Multi-Region Architecture: Data
AWS SSA Webinar 18 - Getting Started with Multi-Region Architecture: DataAWS SSA Webinar 18 - Getting Started with Multi-Region Architecture: Data
AWS SSA Webinar 18 - Getting Started with Multi-Region Architecture: Data
Cobus Bernard

AWS EMEA Online Summit - Live coding with containers
AWS EMEA Online Summit - Live coding with containersAWS EMEA Online Summit - Live coding with containers
AWS EMEA Online Summit - Live coding with containers
Cobus Bernard

AWS EMEA Online Summit - Blending Spot and On-Demand instances to optimizing ...
AWS EMEA Online Summit - Blending Spot and On-Demand instances to optimizing ...AWS EMEA Online Summit - Blending Spot and On-Demand instances to optimizing ...
AWS EMEA Online Summit - Blending Spot and On-Demand instances to optimizing ...
Cobus Bernard

AWS SSA Webinar 17 - Getting Started on AWS with Amazon RDS
AWS SSA Webinar 17 - Getting Started on AWS with Amazon RDSAWS SSA Webinar 17 - Getting Started on AWS with Amazon RDS
AWS SSA Webinar 17 - Getting Started on AWS with Amazon RDS
Cobus Bernard

AWS SSA Webinar 16 - Getting Started on AWS with Amazon EC2
AWS SSA Webinar 16 - Getting Started on AWS with Amazon EC2AWS SSA Webinar 16 - Getting Started on AWS with Amazon EC2
AWS SSA Webinar 16 - Getting Started on AWS with Amazon EC2
Cobus Bernard

AWS SSA Webinar 15 - Getting started on AWS with Containers: Amazon EKS
AWS SSA Webinar 15 - Getting started on AWS with Containers: Amazon EKSAWS SSA Webinar 15 - Getting started on AWS with Containers: Amazon EKS
AWS SSA Webinar 15 - Getting started on AWS with Containers: Amazon EKS
Cobus Bernard

AWS SSA Webinar 13 - Getting started on AWS with Containers: Amazon ECS
AWS SSA Webinar 13 - Getting started on AWS with Containers: Amazon ECSAWS SSA Webinar 13 - Getting started on AWS with Containers: Amazon ECS
AWS SSA Webinar 13 - Getting started on AWS with Containers: Amazon ECS
Cobus Bernard

AWS SSA Webinar 11 - Getting started on AWS: Security
AWS SSA Webinar 11 - Getting started on AWS: SecurityAWS SSA Webinar 11 - Getting started on AWS: Security
AWS SSA Webinar 11 - Getting started on AWS: Security
Cobus Bernard

AWS SSA Webinar 12 - Getting started on AWS with Containers
AWS SSA Webinar 12 - Getting started on AWS with ContainersAWS SSA Webinar 12 - Getting started on AWS with Containers
AWS SSA Webinar 12 - Getting started on AWS with Containers
Cobus Bernard


More from Cobus Bernard (20)

London Microservices Meetup: Lessons learnt adopting microservices
London Microservices  Meetup: Lessons learnt adopting microservicesLondon Microservices  Meetup: Lessons learnt adopting microservices
London Microservices Meetup: Lessons learnt adopting microservices

AWS SSA Webinar 34 - Getting started with databases on AWS - Managing DBs wit...
AWS SSA Webinar 34 - Getting started with databases on AWS - Managing DBs wit...AWS SSA Webinar 34 - Getting started with databases on AWS - Managing DBs wit...
AWS SSA Webinar 34 - Getting started with databases on AWS - Managing DBs wit...

AWS SSA Webinar 33 - Getting started with databases on AWS Amazon DynamoDB
AWS SSA Webinar 33 - Getting started with databases on AWS Amazon DynamoDBAWS SSA Webinar 33 - Getting started with databases on AWS Amazon DynamoDB
AWS SSA Webinar 33 - Getting started with databases on AWS Amazon DynamoDB

AWS SSA Webinar 32 - Getting Started with databases on AWS: Choosing the righ...
AWS SSA Webinar 32 - Getting Started with databases on AWS: Choosing the righ...AWS SSA Webinar 32 - Getting Started with databases on AWS: Choosing the righ...
AWS SSA Webinar 32 - Getting Started with databases on AWS: Choosing the righ...

AWS SSA Webinar 30 - Getting Started with AWS - Infrastructure as Code - Terr...
AWS SSA Webinar 30 - Getting Started with AWS - Infrastructure as Code - Terr...AWS SSA Webinar 30 - Getting Started with AWS - Infrastructure as Code - Terr...
AWS SSA Webinar 30 - Getting Started with AWS - Infrastructure as Code - Terr...

AWS SSA Webinar 28 - Getting Started with AWS - Infrastructure as Code
AWS SSA Webinar 28 - Getting Started with AWS - Infrastructure as CodeAWS SSA Webinar 28 - Getting Started with AWS - Infrastructure as Code
AWS SSA Webinar 28 - Getting Started with AWS - Infrastructure as Code

AWS Webinar 24 - Getting Started with AWS - Understanding DR
AWS Webinar 24 - Getting Started with AWS - Understanding DRAWS Webinar 24 - Getting Started with AWS - Understanding DR
AWS Webinar 24 - Getting Started with AWS - Understanding DR

AWS Webinar 23 - Getting Started with AWS - Understanding total cost of owner...
AWS Webinar 23 - Getting Started with AWS - Understanding total cost of owner...AWS Webinar 23 - Getting Started with AWS - Understanding total cost of owner...
AWS Webinar 23 - Getting Started with AWS - Understanding total cost of owner...

AWS SSA Webinar 21 - Getting Started with Data lakes on AWS
AWS SSA Webinar 21 - Getting Started with Data lakes on AWSAWS SSA Webinar 21 - Getting Started with Data lakes on AWS
AWS SSA Webinar 21 - Getting Started with Data lakes on AWS

AWS SSA Webinar 20 - Getting Started with Data Warehouses on AWS
AWS SSA Webinar 20 - Getting Started with Data Warehouses on AWSAWS SSA Webinar 20 - Getting Started with Data Warehouses on AWS
AWS SSA Webinar 20 - Getting Started with Data Warehouses on AWS

AWS SSA Webinar 19 - Getting Started with Multi-Region Architecture: Services
AWS SSA Webinar 19 - Getting Started with Multi-Region Architecture: ServicesAWS SSA Webinar 19 - Getting Started with Multi-Region Architecture: Services
AWS SSA Webinar 19 - Getting Started with Multi-Region Architecture: Services

AWS SSA Webinar 18 - Getting Started with Multi-Region Architecture: Data
AWS SSA Webinar 18 - Getting Started with Multi-Region Architecture: DataAWS SSA Webinar 18 - Getting Started with Multi-Region Architecture: Data
AWS SSA Webinar 18 - Getting Started with Multi-Region Architecture: Data

AWS EMEA Online Summit - Live coding with containers
AWS EMEA Online Summit - Live coding with containersAWS EMEA Online Summit - Live coding with containers
AWS EMEA Online Summit - Live coding with containers

AWS EMEA Online Summit - Blending Spot and On-Demand instances to optimizing ...
AWS EMEA Online Summit - Blending Spot and On-Demand instances to optimizing ...AWS EMEA Online Summit - Blending Spot and On-Demand instances to optimizing ...
AWS EMEA Online Summit - Blending Spot and On-Demand instances to optimizing ...

AWS SSA Webinar 17 - Getting Started on AWS with Amazon RDS
AWS SSA Webinar 17 - Getting Started on AWS with Amazon RDSAWS SSA Webinar 17 - Getting Started on AWS with Amazon RDS
AWS SSA Webinar 17 - Getting Started on AWS with Amazon RDS

AWS SSA Webinar 16 - Getting Started on AWS with Amazon EC2
AWS SSA Webinar 16 - Getting Started on AWS with Amazon EC2AWS SSA Webinar 16 - Getting Started on AWS with Amazon EC2
AWS SSA Webinar 16 - Getting Started on AWS with Amazon EC2

AWS SSA Webinar 15 - Getting started on AWS with Containers: Amazon EKS
AWS SSA Webinar 15 - Getting started on AWS with Containers: Amazon EKSAWS SSA Webinar 15 - Getting started on AWS with Containers: Amazon EKS
AWS SSA Webinar 15 - Getting started on AWS with Containers: Amazon EKS

AWS SSA Webinar 13 - Getting started on AWS with Containers: Amazon ECS
AWS SSA Webinar 13 - Getting started on AWS with Containers: Amazon ECSAWS SSA Webinar 13 - Getting started on AWS with Containers: Amazon ECS
AWS SSA Webinar 13 - Getting started on AWS with Containers: Amazon ECS

AWS SSA Webinar 11 - Getting started on AWS: Security
AWS SSA Webinar 11 - Getting started on AWS: SecurityAWS SSA Webinar 11 - Getting started on AWS: Security
AWS SSA Webinar 11 - Getting started on AWS: Security

AWS SSA Webinar 12 - Getting started on AWS with Containers
AWS SSA Webinar 12 - Getting started on AWS with ContainersAWS SSA Webinar 12 - Getting started on AWS with Containers
AWS SSA Webinar 12 - Getting started on AWS with Containers


Recently uploaded

学位认证网(DU毕业证)迪肯大学毕业证成绩单一比一原版制作
学位认证网(DU毕业证)迪肯大学毕业证成绩单一比一原版制作学位认证网(DU毕业证)迪肯大学毕业证成绩单一比一原版制作
学位认证网(DU毕业证)迪肯大学毕业证成绩单一比一原版制作
zyfovom

Gen Z and the marketplaces - let's translate their needs
Gen Z and the marketplaces - let's translate their needsGen Z and the marketplaces - let's translate their needs
Gen Z and the marketplaces - let's translate their needs
Laura Szabó

Understanding User Behavior with Google Analytics.pdf
Understanding User Behavior with Google Analytics.pdfUnderstanding User Behavior with Google Analytics.pdf
Understanding User Behavior with Google Analytics.pdf
SEO Article Boost

Azure EA Sponsorship - Customer Guide.pdf
Azure EA Sponsorship - Customer Guide.pdfAzure EA Sponsorship - Customer Guide.pdf
Azure EA Sponsorship - Customer Guide.pdf
AanSulistiyo

留学挂科(UofM毕业证)明尼苏达大学毕业证成绩单复刻办理
留学挂科(UofM毕业证)明尼苏达大学毕业证成绩单复刻办理留学挂科(UofM毕业证)明尼苏达大学毕业证成绩单复刻办理
留学挂科(UofM毕业证)明尼苏达大学毕业证成绩单复刻办理
uehowe

7 Best Cloud Hosting Services to Try Out in 2024
7 Best Cloud Hosting Services to Try Out in 20247 Best Cloud Hosting Services to Try Out in 2024
7 Best Cloud Hosting Services to Try Out in 2024
Danica Gill

Search Result Showing My Post is Now Buried
Search Result Showing My Post is Now BuriedSearch Result Showing My Post is Now Buried
Search Result Showing My Post is Now Buried
Trish Parr

制作毕业证书(ANU毕业证)莫纳什大学毕业证成绩单官方原版办理
制作毕业证书(ANU毕业证)莫纳什大学毕业证成绩单官方原版办理制作毕业证书(ANU毕业证)莫纳什大学毕业证成绩单官方原版办理
制作毕业证书(ANU毕业证)莫纳什大学毕业证成绩单官方原版办理
cuobya

存档可查的(USC毕业证)南加利福尼亚大学毕业证成绩单制做办理
存档可查的(USC毕业证)南加利福尼亚大学毕业证成绩单制做办理存档可查的(USC毕业证)南加利福尼亚大学毕业证成绩单制做办理
存档可查的(USC毕业证)南加利福尼亚大学毕业证成绩单制做办理
fovkoyb

国外证书(Lincoln毕业证)新西兰林肯大学毕业证成绩单不能毕业办理
国外证书(Lincoln毕业证)新西兰林肯大学毕业证成绩单不能毕业办理国外证书(Lincoln毕业证)新西兰林肯大学毕业证成绩单不能毕业办理
国外证书(Lincoln毕业证)新西兰林肯大学毕业证成绩单不能毕业办理
zoowe

Design Thinking NETFLIX using all techniques.pptx
Design Thinking NETFLIX using all techniques.pptxDesign Thinking NETFLIX using all techniques.pptx
Design Thinking NETFLIX using all techniques.pptx
saathvikreddy2003

可查真实(Monash毕业证)西澳大学毕业证成绩单退学买
可查真实(Monash毕业证)西澳大学毕业证成绩单退学买可查真实(Monash毕业证)西澳大学毕业证成绩单退学买
可查真实(Monash毕业证)西澳大学毕业证成绩单退学买
cuobya

办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
xjq03c34

Meet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdf
Meet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdfMeet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdf
Meet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdf
Florence Consulting

办理毕业证(NYU毕业证)纽约大学毕业证成绩单官方原版办理
办理毕业证(NYU毕业证)纽约大学毕业证成绩单官方原版办理办理毕业证(NYU毕业证)纽约大学毕业证成绩单官方原版办理
办理毕业证(NYU毕业证)纽约大学毕业证成绩单官方原版办理
uehowe

办理毕业证(UPenn毕业证)宾夕法尼亚大学毕业证成绩单快速办理
办理毕业证(UPenn毕业证)宾夕法尼亚大学毕业证成绩单快速办理办理毕业证(UPenn毕业证)宾夕法尼亚大学毕业证成绩单快速办理
办理毕业证(UPenn毕业证)宾夕法尼亚大学毕业证成绩单快速办理
uehowe

重新申请毕业证书(RMIT毕业证)皇家墨尔本理工大学毕业证成绩单精仿办理
重新申请毕业证书(RMIT毕业证)皇家墨尔本理工大学毕业证成绩单精仿办理重新申请毕业证书(RMIT毕业证)皇家墨尔本理工大学毕业证成绩单精仿办理
重新申请毕业证书(RMIT毕业证)皇家墨尔本理工大学毕业证成绩单精仿办理
vmemo1

留学学历(UoA毕业证)奥克兰大学毕业证成绩单官方原版办理
留学学历(UoA毕业证)奥克兰大学毕业证成绩单官方原版办理留学学历(UoA毕业证)奥克兰大学毕业证成绩单官方原版办理
留学学历(UoA毕业证)奥克兰大学毕业证成绩单官方原版办理
bseovas

制作原版1:1(Monash毕业证)莫纳什大学毕业证成绩单办理假
制作原版1:1(Monash毕业证)莫纳什大学毕业证成绩单办理假制作原版1:1(Monash毕业证)莫纳什大学毕业证成绩单办理假
制作原版1:1(Monash毕业证)莫纳什大学毕业证成绩单办理假
ukwwuq

Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?
Paul Walk


Recently uploaded (20)

学位认证网(DU毕业证)迪肯大学毕业证成绩单一比一原版制作
学位认证网(DU毕业证)迪肯大学毕业证成绩单一比一原版制作学位认证网(DU毕业证)迪肯大学毕业证成绩单一比一原版制作
学位认证网(DU毕业证)迪肯大学毕业证成绩单一比一原版制作

Gen Z and the marketplaces - let's translate their needs
Gen Z and the marketplaces - let's translate their needsGen Z and the marketplaces - let's translate their needs
Gen Z and the marketplaces - let's translate their needs

Understanding User Behavior with Google Analytics.pdf
Understanding User Behavior with Google Analytics.pdfUnderstanding User Behavior with Google Analytics.pdf
Understanding User Behavior with Google Analytics.pdf

Azure EA Sponsorship - Customer Guide.pdf
Azure EA Sponsorship - Customer Guide.pdfAzure EA Sponsorship - Customer Guide.pdf
Azure EA Sponsorship - Customer Guide.pdf

留学挂科(UofM毕业证)明尼苏达大学毕业证成绩单复刻办理
留学挂科(UofM毕业证)明尼苏达大学毕业证成绩单复刻办理留学挂科(UofM毕业证)明尼苏达大学毕业证成绩单复刻办理
留学挂科(UofM毕业证)明尼苏达大学毕业证成绩单复刻办理

7 Best Cloud Hosting Services to Try Out in 2024
7 Best Cloud Hosting Services to Try Out in 20247 Best Cloud Hosting Services to Try Out in 2024
7 Best Cloud Hosting Services to Try Out in 2024

Search Result Showing My Post is Now Buried
Search Result Showing My Post is Now BuriedSearch Result Showing My Post is Now Buried
Search Result Showing My Post is Now Buried

制作毕业证书(ANU毕业证)莫纳什大学毕业证成绩单官方原版办理
制作毕业证书(ANU毕业证)莫纳什大学毕业证成绩单官方原版办理制作毕业证书(ANU毕业证)莫纳什大学毕业证成绩单官方原版办理
制作毕业证书(ANU毕业证)莫纳什大学毕业证成绩单官方原版办理

存档可查的(USC毕业证)南加利福尼亚大学毕业证成绩单制做办理
存档可查的(USC毕业证)南加利福尼亚大学毕业证成绩单制做办理存档可查的(USC毕业证)南加利福尼亚大学毕业证成绩单制做办理
存档可查的(USC毕业证)南加利福尼亚大学毕业证成绩单制做办理

国外证书(Lincoln毕业证)新西兰林肯大学毕业证成绩单不能毕业办理
国外证书(Lincoln毕业证)新西兰林肯大学毕业证成绩单不能毕业办理国外证书(Lincoln毕业证)新西兰林肯大学毕业证成绩单不能毕业办理
国外证书(Lincoln毕业证)新西兰林肯大学毕业证成绩单不能毕业办理

Design Thinking NETFLIX using all techniques.pptx
Design Thinking NETFLIX using all techniques.pptxDesign Thinking NETFLIX using all techniques.pptx
Design Thinking NETFLIX using all techniques.pptx

可查真实(Monash毕业证)西澳大学毕业证成绩单退学买
可查真实(Monash毕业证)西澳大学毕业证成绩单退学买可查真实(Monash毕业证)西澳大学毕业证成绩单退学买
可查真实(Monash毕业证)西澳大学毕业证成绩单退学买

办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样

Meet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdf
Meet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdfMeet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdf
Meet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdf

办理毕业证(NYU毕业证)纽约大学毕业证成绩单官方原版办理
办理毕业证(NYU毕业证)纽约大学毕业证成绩单官方原版办理办理毕业证(NYU毕业证)纽约大学毕业证成绩单官方原版办理
办理毕业证(NYU毕业证)纽约大学毕业证成绩单官方原版办理

办理毕业证(UPenn毕业证)宾夕法尼亚大学毕业证成绩单快速办理
办理毕业证(UPenn毕业证)宾夕法尼亚大学毕业证成绩单快速办理办理毕业证(UPenn毕业证)宾夕法尼亚大学毕业证成绩单快速办理
办理毕业证(UPenn毕业证)宾夕法尼亚大学毕业证成绩单快速办理

重新申请毕业证书(RMIT毕业证)皇家墨尔本理工大学毕业证成绩单精仿办理
重新申请毕业证书(RMIT毕业证)皇家墨尔本理工大学毕业证成绩单精仿办理重新申请毕业证书(RMIT毕业证)皇家墨尔本理工大学毕业证成绩单精仿办理
重新申请毕业证书(RMIT毕业证)皇家墨尔本理工大学毕业证成绩单精仿办理

留学学历(UoA毕业证)奥克兰大学毕业证成绩单官方原版办理
留学学历(UoA毕业证)奥克兰大学毕业证成绩单官方原版办理留学学历(UoA毕业证)奥克兰大学毕业证成绩单官方原版办理
留学学历(UoA毕业证)奥克兰大学毕业证成绩单官方原版办理

制作原版1:1(Monash毕业证)莫纳什大学毕业证成绩单办理假
制作原版1:1(Monash毕业证)莫纳什大学毕业证成绩单办理假制作原版1:1(Monash毕业证)莫纳什大学毕业证成绩单办理假
制作原版1:1(Monash毕业证)莫纳什大学毕业证成绩单办理假

Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?


AWS Jozi Meetup Developing Modern Applications in the Cloud

  • 1. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Developing ModernApplications in theCloud COBUS BERNARD AWS SENIORTECHNICAL EVANGELIST @cobusbernard
  • 2. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Capabilitiesof a modern application Secure Resilient Elastic Modular Automated Interoperable
  • 3. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Assess and prioritize, app by app Pick path to modernization Lift & shift: data center → EC2 Re-platform: VMs → containers Refactor: monolith → microservices Re-invent: host fleets → serverless Modern application development: ajourney withmany paths
  • 4. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Tomaintaincompetitiveadvantage, digitalbusinessesmustinnovateasrapidlyas possible FeedbackIdeas Experiment Innovation Flywheel
  • 5. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Invention requires two things: the ability to try a lot of experiments, and not having to live with the collateral damage of failed experiments.“ Andy Jassy CEO, Amazon Web Services
  • 6. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
  • 7. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Structureappsascollectionsofmicroservices When theimpact ofchange issmall, releasevelocitycan increase Monolithic application Does everything Shared release pipeline Rigid scaling High impact of change Hard to adopt new technologies Microservices Does one thing Independent deployments Independent scaling Small impact of change Choice of technology
  • 8. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Structureappsascollectionsofmicroservices Whentheimpact ofchange issmall, releasevelocitycan increase Microservices Do one thing – Well
  • 9. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Structureappsascollectionsofmicroservices Properties of microservices Microservices • Independent • Individually Deployed & Scaled • Polyglot • Modular - Easily Replaced • Decentralized
  • 10. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Structureappsascollectionsofmicroservices DesignConcepts • Use managed services • Focus on writing your business logic (not on maintaining infrastructure) • Loosely coupled & event driven • Simplify delivery and discovery AWS Lambda AWS Fargate
  • 11. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Structureappsascollectionsofmicroservices APIs and decoupled communications enable automation and improves reliability FUNCTION API API MICROSERVICE FUNCTIONEVENT API MICROSERVICE EVENT API MICROSERVICE APPLICATION
  • 12. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Rigid Flexible Abstractions Easy Hard 1 System N Systems2 Systems
  • 13. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. TechnicalDebtCost Time Absolute
  • 14. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. TechnicalDebt Time Cost Relative Absolute
  • 15. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Monolith Does everything Monoliths are OK
  • 16. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
  • 17. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Commondatacategoriesandusecases Relational Referential integrity, ACID transactions, schema- on-write Lift and shift, ERP, CRM, finance Key-value High throughput, low- latency reads and writes, endless scale Real-time bidding, shopping cart, social, product catalog, customer preferences Document Store documents and quickly access querying on any attribute Content management, personalization, mobile In-memory Query by key with microsecond latency Leaderboards, real-time analytics, caching Graph Quickly and easily create and navigate relationships between data Fraud detection, social networking, recommendation engine Time-series Collect, store, and process data sequenced by time IoT applications, event tracking Ledger Complete, immutable, and verifiable history of all changes to application data Systems of record, supply chain, health care, registrations, financial
  • 18. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
  • 19. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Buildwithserverlesstechnologiesasmuchaspossible Automation and abstractionfrees you No infrastructure to provision or manage Automatically scales by unit of consumption Pay for value billing model Highly available and durable
  • 20. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
  • 21. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Usecodetomodelapplicationsandinfrastructure Treatingeverythingas softwareincreases thespeed and agilityof infrastructuredeployments Design Write application code Create infrastructure templates Create stacks Iterate
  • 22. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Usecodetomodelapplicationsandinfrastructure Infrastructure ascode Declarative I tell you what I need I tell you what to do Imperative
  • 23. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Usecodetomodelapplicationsandinfrastructure Infrastructure ascode goals 1. Make infrastructure changes repeatable and predictable 2. Release infrastructure changes using the same tools as code changes 3. Replicate production environment in a staging environment to enable continuous testing
  • 24. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Usecodetomodelapplicationsandinfrastructure Model function environments withAWS ServerlessApplication Model (SAM) • Open source framework for building serverless applications on AWS • Shorthand syntax to express functions, APIs, databases, and event source mappings • Transforms and expands SAM syntax into AWS CloudFormation syntax on deployment • Supports all AWS CloudFormation resource types https://aws.amazon.com/serverless/sam/
  • 25. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
  • 26. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Rapidlyreleasehigh-qualityfeatureswithCI/CD TeamsthatpracticeCI/CD shipmore code faster,and withmore confidence Source: Puppet 2017 State of DevOps Report 5x Lower change failure rate 440x Faster from commit to deploy 46x More frequent deployments 44% More time spent on new features & code
  • 27. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Rapidlyreleasehigh-qualityfeatureswithCI/CD Monolith development lifecycle monitorreleasetestbuild developers delivery pipelines services
  • 28. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. developers services monitorreleasetestbuild delivery pipelines monitorreleasetestbuild monitorreleasetestbuild monitorreleasetestbuild monitorreleasetestbuild monitorreleasetestbuild Rapidlyreleasehigh-qualityfeatureswithCI/CD Microservicedevelopment lifecycle
  • 29. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Containers have become the standard for how to ship and run your application in the cloud
  • 30. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Containers and Docker A container is a standard unit of software that packages up code and all its dependencies so the application runs quickly and reliably from one computing environment to another.1 1 https://www.docker.com/resources/what-container Server Operating System Docker Engine AppA AppB AppC AppD
  • 31. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Docker Image • Used to launch container • Instructions documented in Dockerfile • Merge layers into single image • Read-only template kernel Base Image Image layer Image layer Image layer References parent image layer
  • 32. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Containers and Microservices • Do one thing, really well • Any app, any language • Isolated execution environment • Test and deploy same artifact • Faster startup Container Container Container Container
  • 33. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Manually downloading and launching containers by hand is inefficient and error prone
  • 34. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Container orchestration
  • 35. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Buildwithserverlesstechnologiesasmuchaspossible AWS container serviceslandscape Management Deployment, Scheduling, Scaling & Management of containerized applications Hosting Where the containers run Amazon Elastic Container Service Amazon Elastic Container Service for Kubernetes Amazon EC2AWS Fargate Image Registry Container Image Repository Amazon Elastic Container Registry
  • 36. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Amazon ECS key components Development cluster Container instance Container instance Container instance Productioncluster Container instance Container instance Container instance AmazonElastic Container Service (AmazonECS) Container Container Volume Taskdefinition AmazonElastic Container Registry
  • 37. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Kubectl EKS Architecture
  • 38. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Microservicecommunication • IP / Ports constantly changing • TLS between services • Metrics • Monitoring • Auth
  • 39. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
  • 40. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
  • 41. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. OSS Hystrix: code changes required Service Mesh: decentral, language agnostic, dumb endpoints https://www.infoq.com/articles/microservices-post-kubernetes Shift in Infrastructure Logic ESB: clustered monolith
  • 42. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Open Source: Istio Service Mesh Connect, secure, and observe services • Shift in where functionality is located • Control plane = Istio • Data plane = set of all Envoy proxies • Envoy proxy as sidecar in K8s pod • Automatic or manual injection of proxy with EKS
  • 43. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Data Plane (Proxy) • Touches every packet / request • Service discovery • Health Checking • Routing • Load Balancing • Authentication / Authorization • Observability
  • 44. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Istio Service Mesh with Envoy Proxy
  • 45. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Envoy Proxy • Level 7 proxy • HTTP, HTTP/2, gRPC, AWS Dynamo DB, MongoDB • C++11 code base , only 8 MB (statically linked) • No language or framework dependencies • Rquires no code changes • Battle proved OSS, started at Lyft • Works across compute options – also on EC2 • Envoy is not tightly coupled Istio
  • 46. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Service Mesh But Docker / Kubernetes can do rolling updates! Yes, but Istio sparates traffic flow from replica deployment
  • 47. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. A bath tub full of cold water ? K8s roling update 25% 1 pod at a time … or just wetten your feet? Service Mesh 3% Traffic routing 🛁 🛁 🛁 💦 🛀🏽🛁 🌊❄️🌊❄️🌊❄️ Fancy a Swim in the Arctic Sea ? Blue / Green 100% All services at once Microservices Update Strategies
  • 48. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. User Based Routing Traffic Shifting
  • 49. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Control Plane (Istio) • Routing information • Policies & configuration
  • 50. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. App Mesh works across compute services Amazon ECS AWS Fargate Amazon EKS Amazon EC2 Kubernetes on EC2
  • 51. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Based on Envoy proxy Start App Mesh from the AWS CLI, console or SDK There is no additional charge for using AWS App Mesh Supports any third-party tool that works with Envoy App Mesh
  • 52. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. InstallAppMesh withHelmChart # create ns and enable auto-injection $ kubectl create ns appmesh-demo $ kubectl label namespace appmesh-demo appmesh.k8s.aws/sidecarInjectorWebhook=enabled # deploy the demo $ helm install -n aws-appmesh-demo --namespace appmesh-demo https://github.com/.../aws-appmesh-demo.tgz https://github.com/PaulMaddox/aws-appmesh-helm
  • 53. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Logging HTTP access logging Amazon CloudWatch Logs Available as container logs on Amazon ECS, Amazon EKS, AWS Fargate Metrics CloudWatch metrics StatsD (with tags) Prometheus Tracing AWS X-Ray Other Envoy tracing drivers Observability
  • 54. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. VisualizeServiceCallGraph (Lambda)
  • 55. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Pinpoint errors (Lambda)
  • 56. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Open-SourceGrafana
  • 57. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Open-SourceGrafana
  • 58. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. Traffic shaping Load balancing Weight targets Service discovery (DNS + AWS Cloud Map) Health checks Retries* Timeouts* Circuit breakers* *Coming soon Traffic Management Routing controls Protocols support (HTTP, TCP, gRPC*) Path-based Header-based* Cookie-based* Host-based*
  • 59. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. AWSApp MeshRoadmap is Public https://github.com/awslabs/aws-app-mesh-examples
  • 60. Thank you! © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved. COBUS BERNARD AWS SENIORTECHNICAL EVANGELIST @cobusbernard
