Tihar Jail in New Delhi, India has a large security system to monitor its 11,872 inmates across its 400 acre complex of 9 prisons. The system includes 1,280 PTZ cameras, video encoders and decoders, and a central control room running VIDOS video management software on 14 client stations and 2 servers. It also uses additional systems like a visitor management system, prison management system, video conferencing between courts and jails, and mobile phone jammers.

1. TIHAR JAIL
SECURITY SYSTEM
AANCHAL MEHTA
MEENAKSHI DOGRA
STUDIO 4A

2. TIHAR JAIL IS SOUTH ASIA’S
LARGEST PRISON COMPLEX
It is located in Tihar village,
approximately 7 km from Chanakya
Puri, to the west of New Delhi, India.
Originally, Tihar was a maximum
security prison run by the State of
Punjab. In 1966 control was
transferred to the National Capital
Territory of Delhi. Beginning in 1984,
additional facilities were
constructed, and the complex
became Tihar Prison.
Area: 400 acres
Complex: 9 different
prisons
Inmates: 11,872
Jail staff: 1300

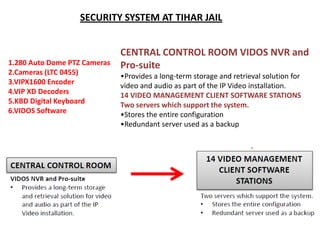

3. SECURITY SYSTEM AT TIHAR JAIL
1.280 Auto Dome PTZ Cameras
2.Cameras (LTC 0455)
3.VIPX1600 Encoder
4.VIP XD Decoders
5.KBD Digital Keyboard
6.VIDOS Software
CENTRAL CONTROL ROOM VIDOS NVR and
Pro-suite
•Provides a long-term storage and retrieval solution for
video and audio as part of the IP Video installation.
14 VIDEO MANAGEMENT CLIENT SOFTWARE STATIONS
Two servers which support the system.
•Stores the entire configuration
•Redundant server used as a backup

4. VIDEO ENCODERS AND DECODERS
Also known as video servers
Enable an existing analog CCTV video surveillance system to be integrated
with a network video system.
Analog Video Cameras and Analog Monitors integrated with A
Network Video System using Video Encoders and Decoders

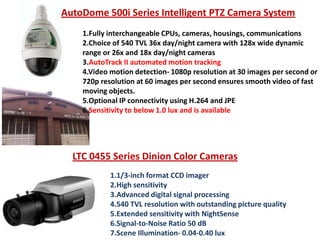

5. AutoDome 500i Series Intelligent PTZ Camera System
1.Fully interchangeable CPUs, cameras, housings, communications
2.Choice of 540 TVL 36x day/night camera with 128x wide dynamic
range or 26x and 18x day/night cameras
3.AutoTrack II automated motion tracking
4.Video motion detection- 1080p resolution at 30 images per second or
720p resolution at 60 images per second ensures smooth video of fast
moving objects.
5.Optional IP connectivity using H.264 and JPE
6.Sensitivity to below 1.0 lux and is available
LTC 0455 Series Dinion Color Cameras
1.1/3-inch format CCD imager
2.High sensitivity
3.Advanced digital signal processing
4.540 TVL resolution with outstanding picture quality
5.Extended sensitivity with NightSense
6.Signal-to-Noise Ratio 50 dB
7.Scene Illumination- 0.04-0.40 lux

6. VIP X1600 XF MODULAR HIGH-PERFORMANCE VIDEO ENCODER
FEATURES
1. Up to 16 video input channels
2. Modular and expandable with hotswappable video modules
3. Direct or network-attached iSCSI RAID
4. Intelligent video motion detection and
camera tampering detection on encoder
modules
5. ONVIF conformant
1.
2.
3.
4.
5.
6.
7.
8.
VIP X1600 XF
2 xVIP X1600 XF with upto 16 cameras
Direct –attached ISCSI RAId
Network –attached ISCSI RAID unit
NVR server
Management Station
VIDEOJET decoders
Monitors

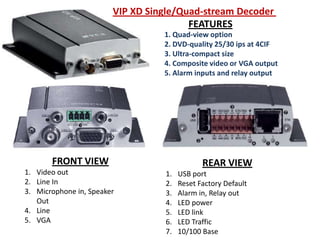

7. VIP XD Single/Quad-stream Decoder
FEATURES
1. Quad-view option
2. DVD-quality 25/30 ips at 4CIF
3. Ultra-compact size
4. Composite video or VGA output
5. Alarm inputs and relay output
FRONT VIEW
1. Video out
2. Line In
3. Microphone in, Speaker
Out
4. Line
5. VGA
REAR VIEW
1.
2.
3.
4.
5.
6.
7.
USB port
Reset Factory Default
Alarm in, Relay out
LED power
LED link
LED Traffic
10/100 Base

8. OTHER AUTOMATION SYSTEMS USED IN TIHAR JAIL
Visitor Management System
Delhi prisons receives around 2000 visitors on daily basis
formeeting with the prisoners. To manage this large
number of visitors, Visitor Management System software
is developed which can register the visits of friends and
relatives of a prisoner 10 days in advance on centralized
telephone numbers 28520202 (Tihar) and 27291501
(Rohini). This system saves the time of
visitors as well as informs the prisoners in
advance about his meeting. Due to introduction of this
system complete transparency has been obtained.
Prison Management System
Delhi Prison in association with NIC has developed a unique
Comprehensive Query-based system software for effective Prison
Management called Prison Management System (PMS). This
system keeps comprehensive information about prisoners, their
court cases and their lodging pattern. It also records, tracks and
monitors the movement of prisoners and the action taken on
their court hearing.

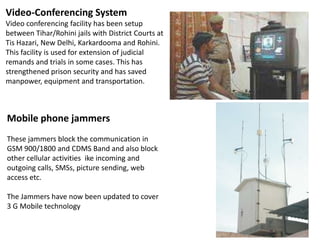

9. Video-Conferencing System
Video conferencing facility has been setup
between Tihar/Rohini jails with District Courts at
Tis Hazari, New Delhi, Karkardooma and Rohini.
This facility is used for extension of judicial
remands and trials in some cases. This has
strengthened prison security and has saved
manpower, equipment and transportation.
Mobile phone jammers
These jammers block the communication in
GSM 900/1800 and CDMS Band and also block
other cellular activities ike incoming and
outgoing calls, SMSs, picture sending, web
access etc.
The Jammers have now been updated to cover
3 G Mobile technology
