Automation framework design and implementation

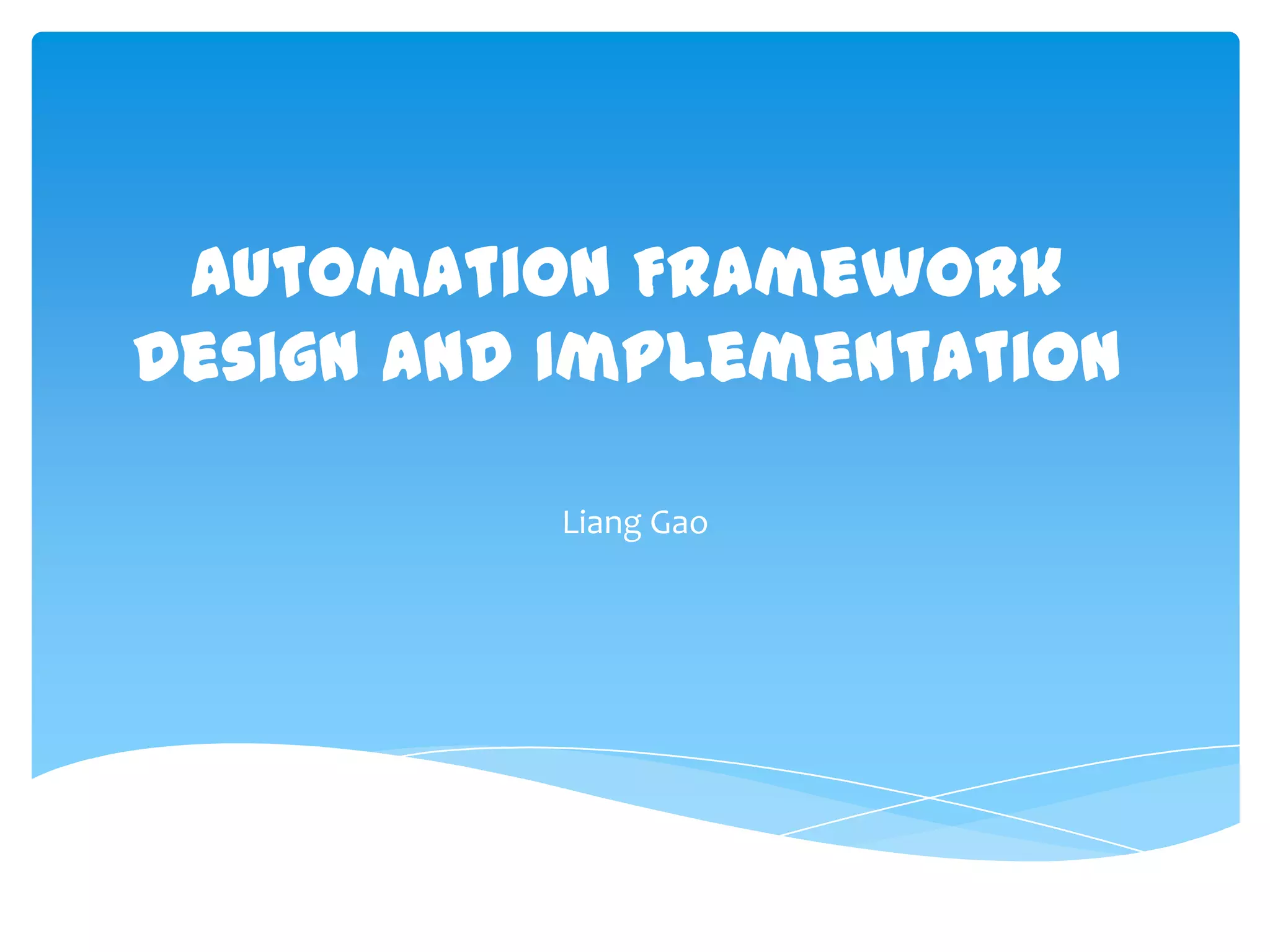

- 1. Automation Framework Design andImplementation Liang Gao

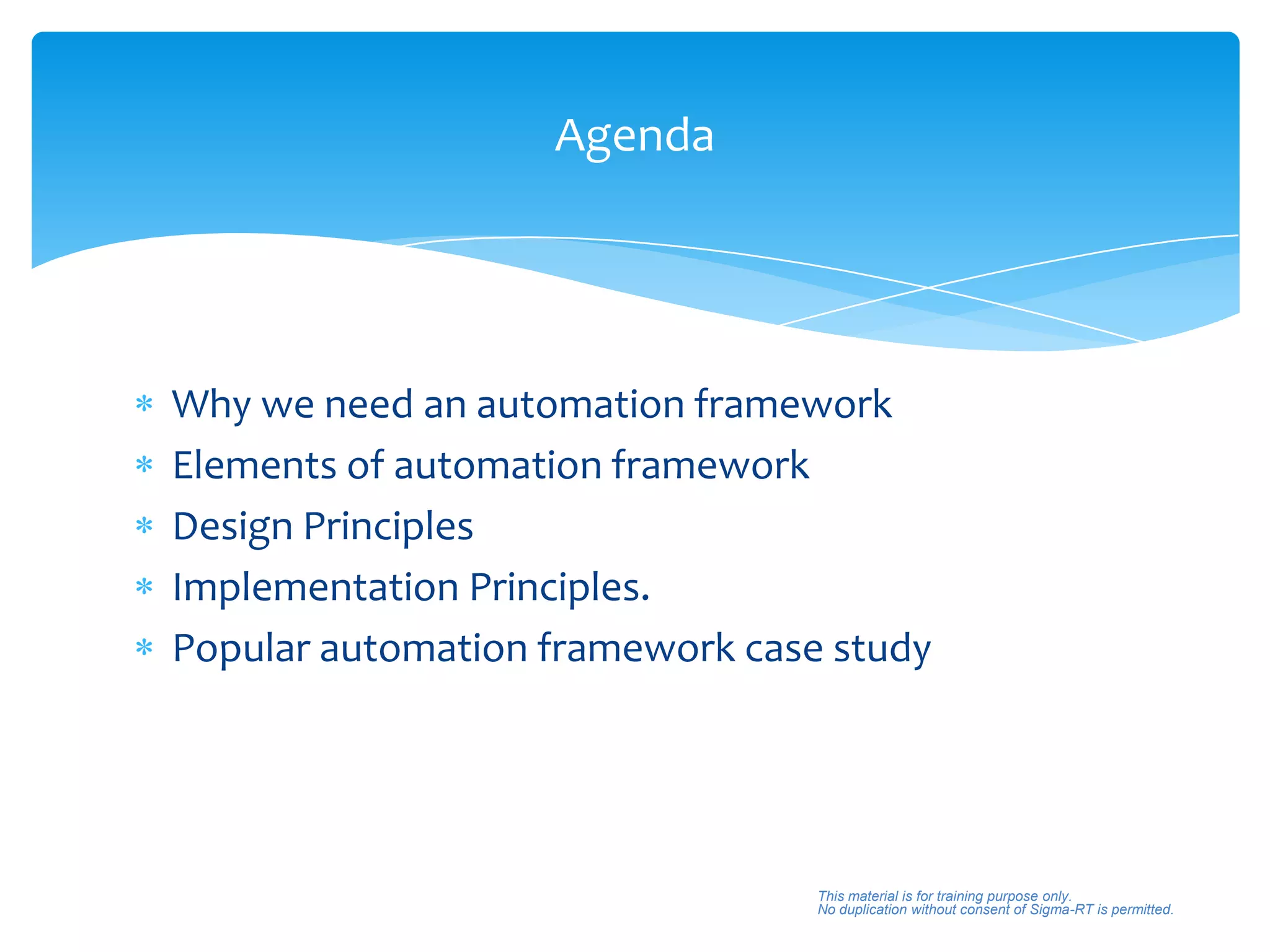

- 2. Agenda Why we needan automation framework Elements of automation framework Design Principles Implementation Principles. Popular automation framework case study This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

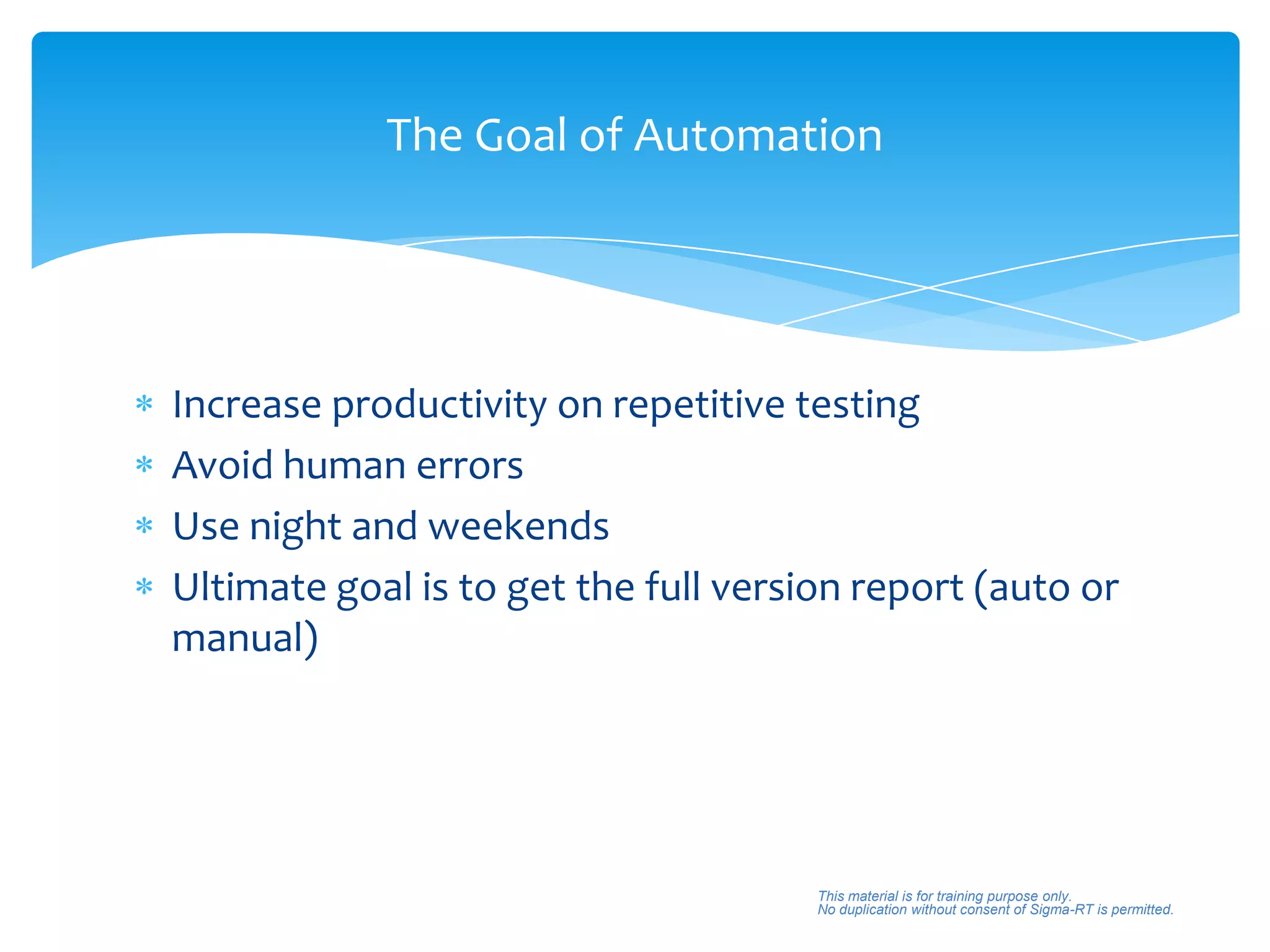

- 3. The Goal ofAutomation Increase productivity on repetitive testing Avoid human errors Use night and weekends Ultimate goal is to get the full version report (auto or manual) This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

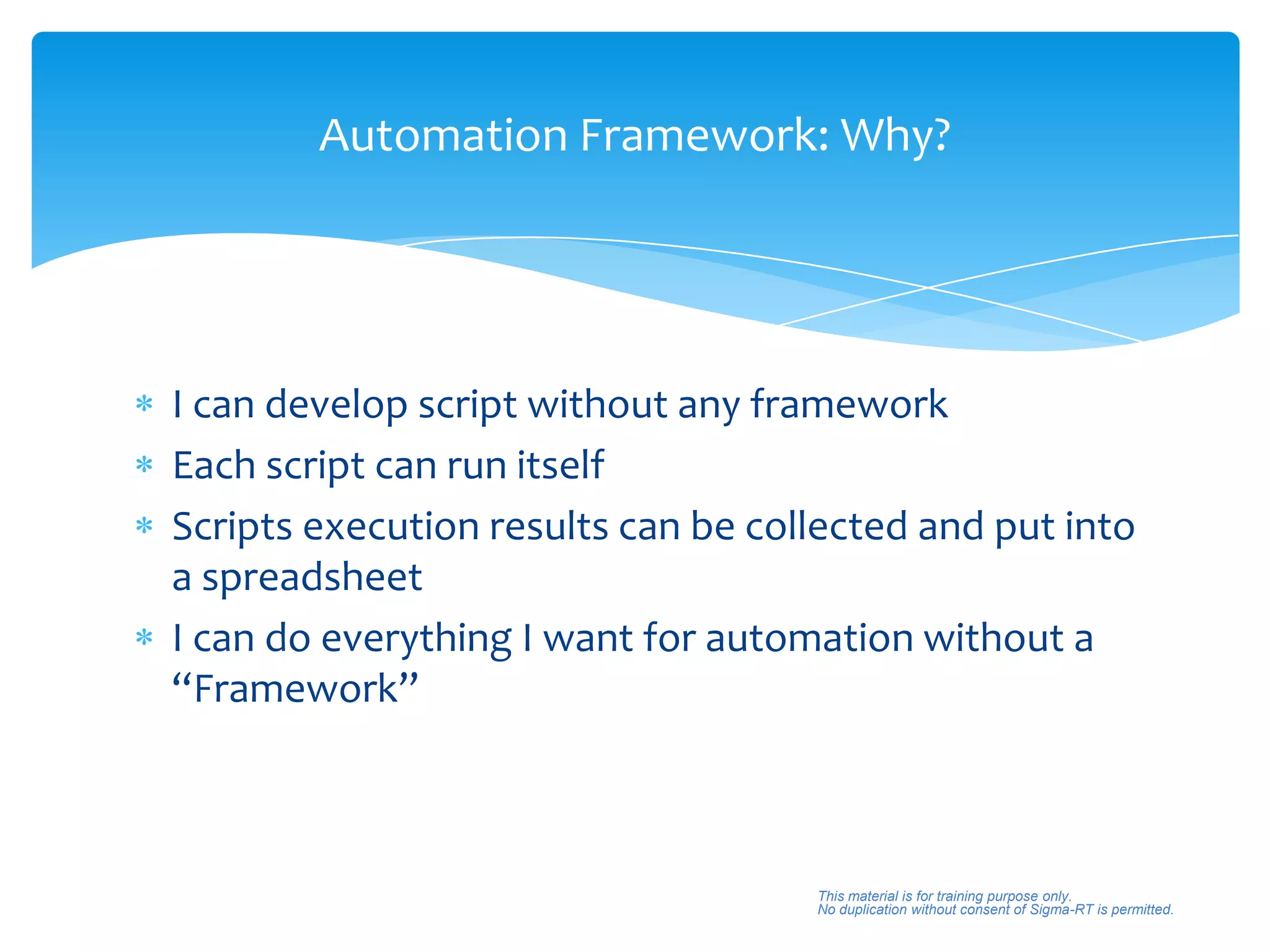

- 4. Automation Framework: Why? Ican develop script without any framework Each script can run itself Scripts execution results can be collected and put into a spreadsheet I can do everything I want for automation without a “Framework” This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

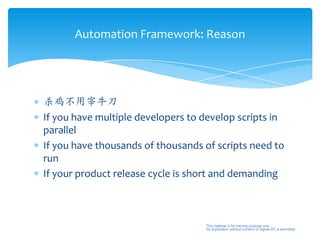

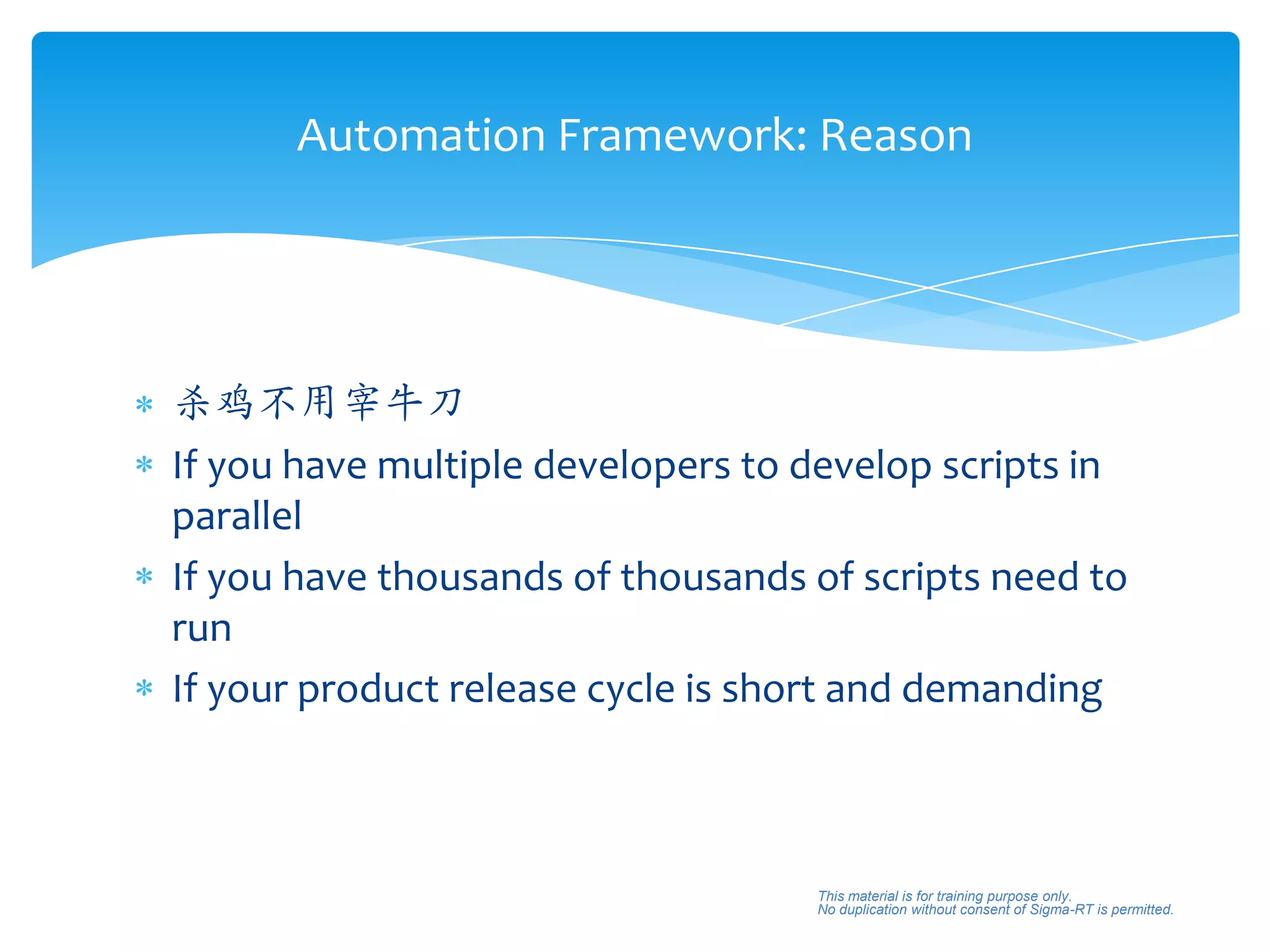

- 5. Automation Framework: Reason 杀鸡不用宰牛刀 Ifyou have multiple developers to develop scripts in parallel If you have thousands of thousands of scripts need to run If your product release cycle is short and demanding This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

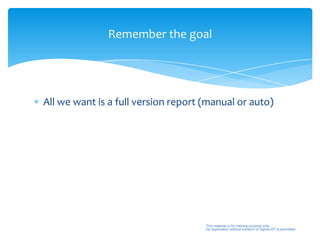

- 6. Remember the goal Allwe want is a full version report (manual or auto) This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

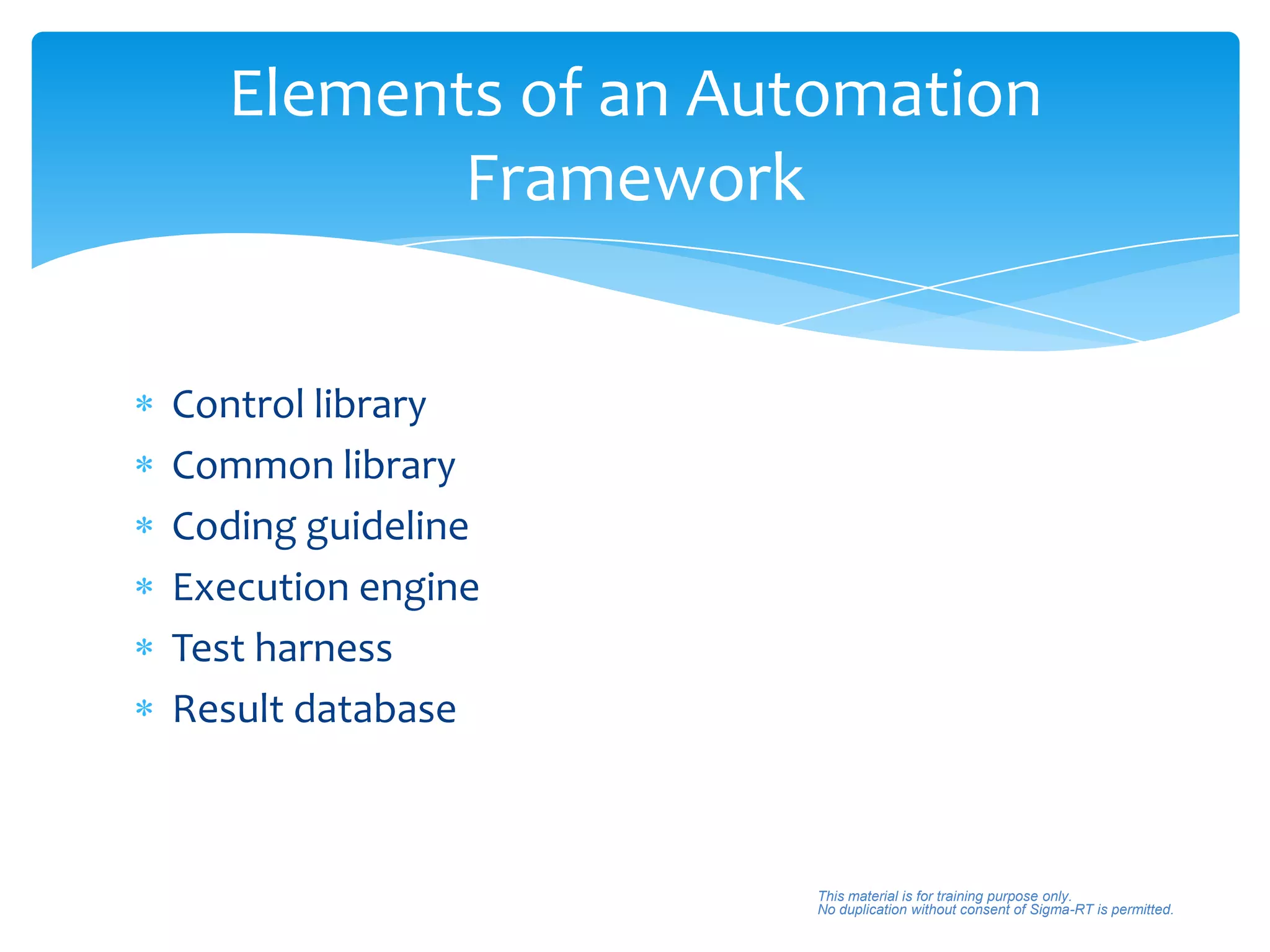

- 7. Elements of anAutomation Framework Control library Common library Coding guideline Execution engine Test harness Result database This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

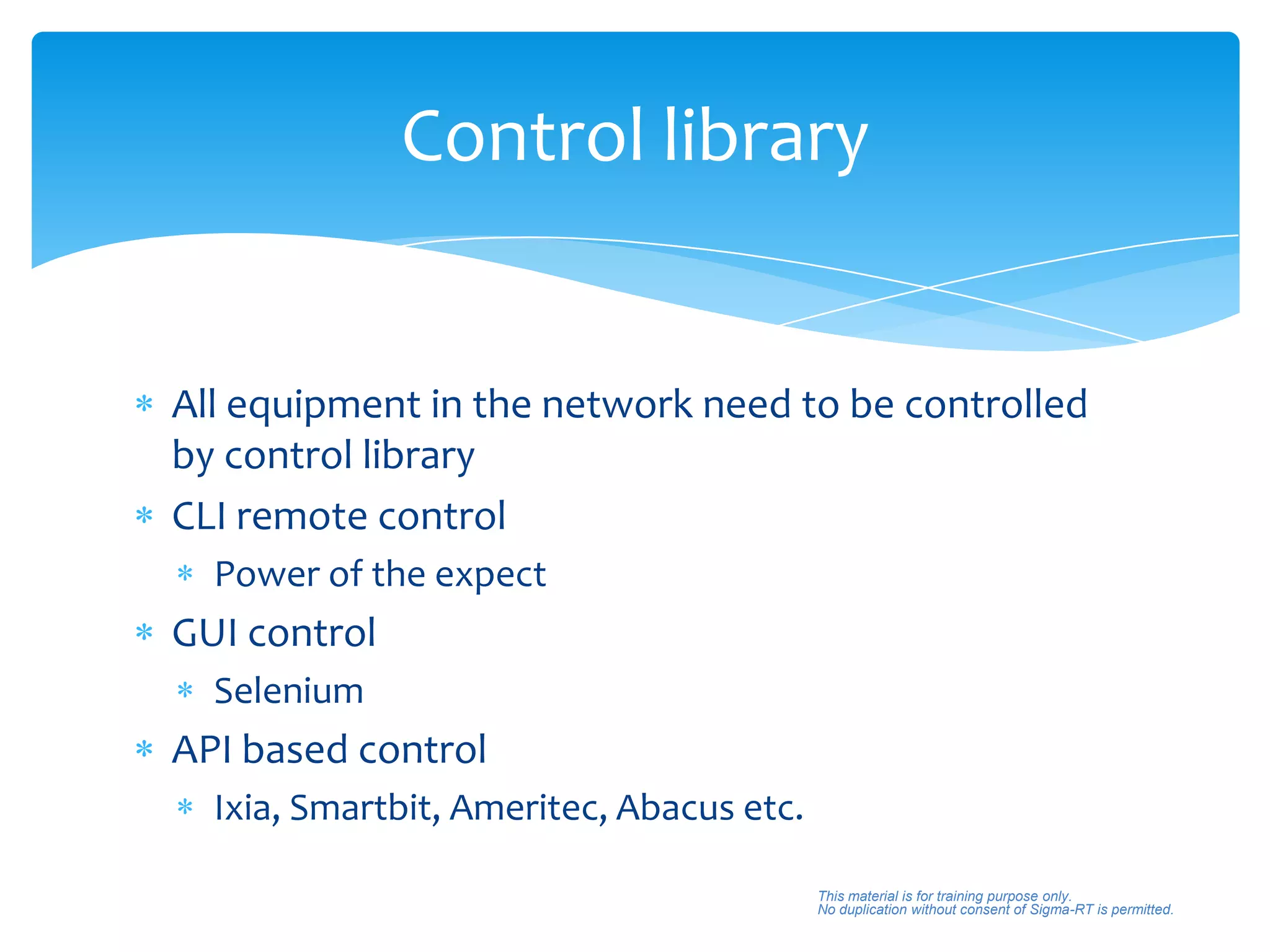

- 8. Control library All equipmentin the network need to be controlled by control library CLI remote control Power of the expect GUI control Selenium API based control Ixia, Smartbit, Ameritec, Abacus etc. This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

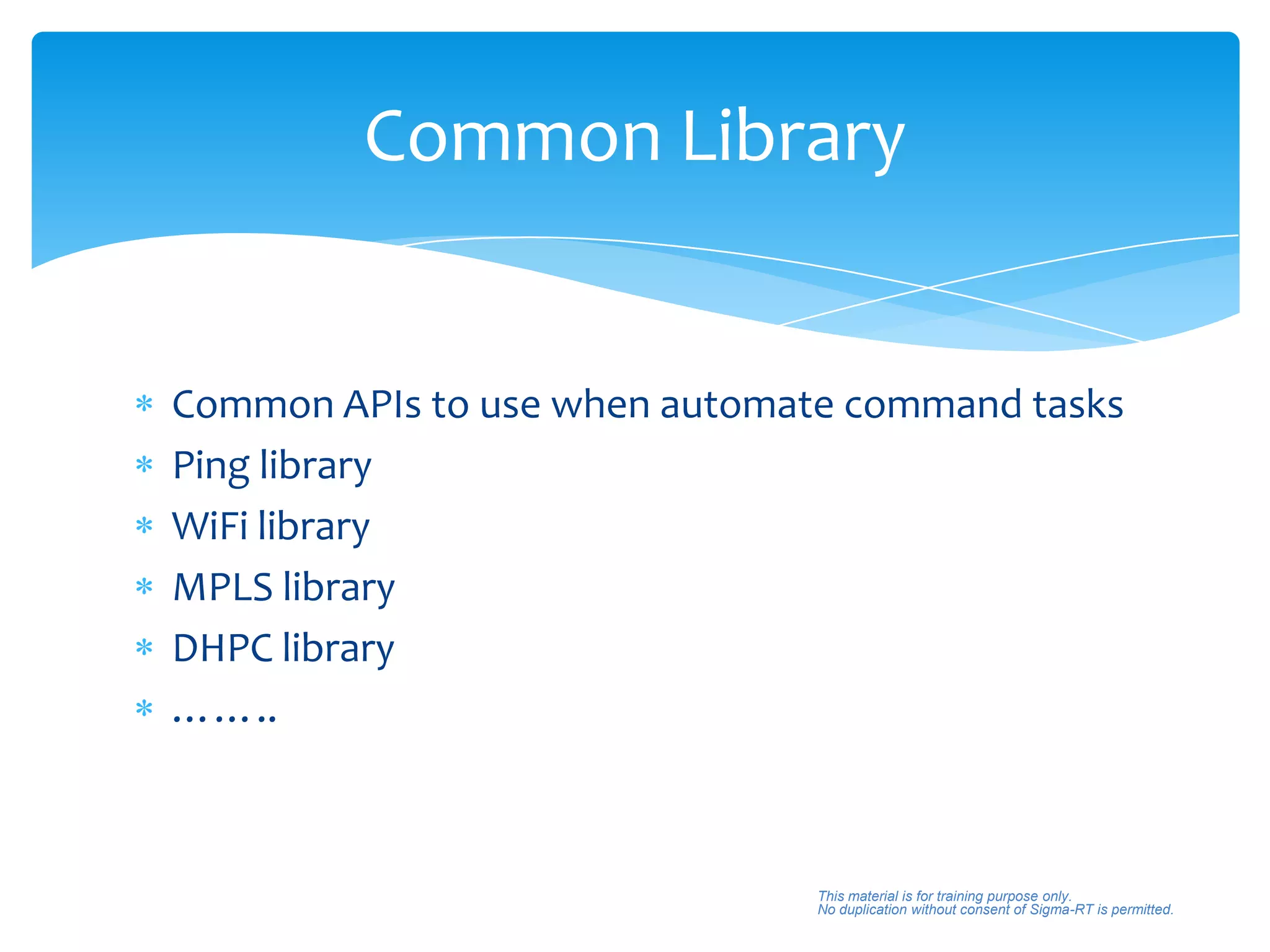

- 9. Common Library Common APIsto use when automate command tasks Ping library WiFi library MPLS library DHPC library …….. This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

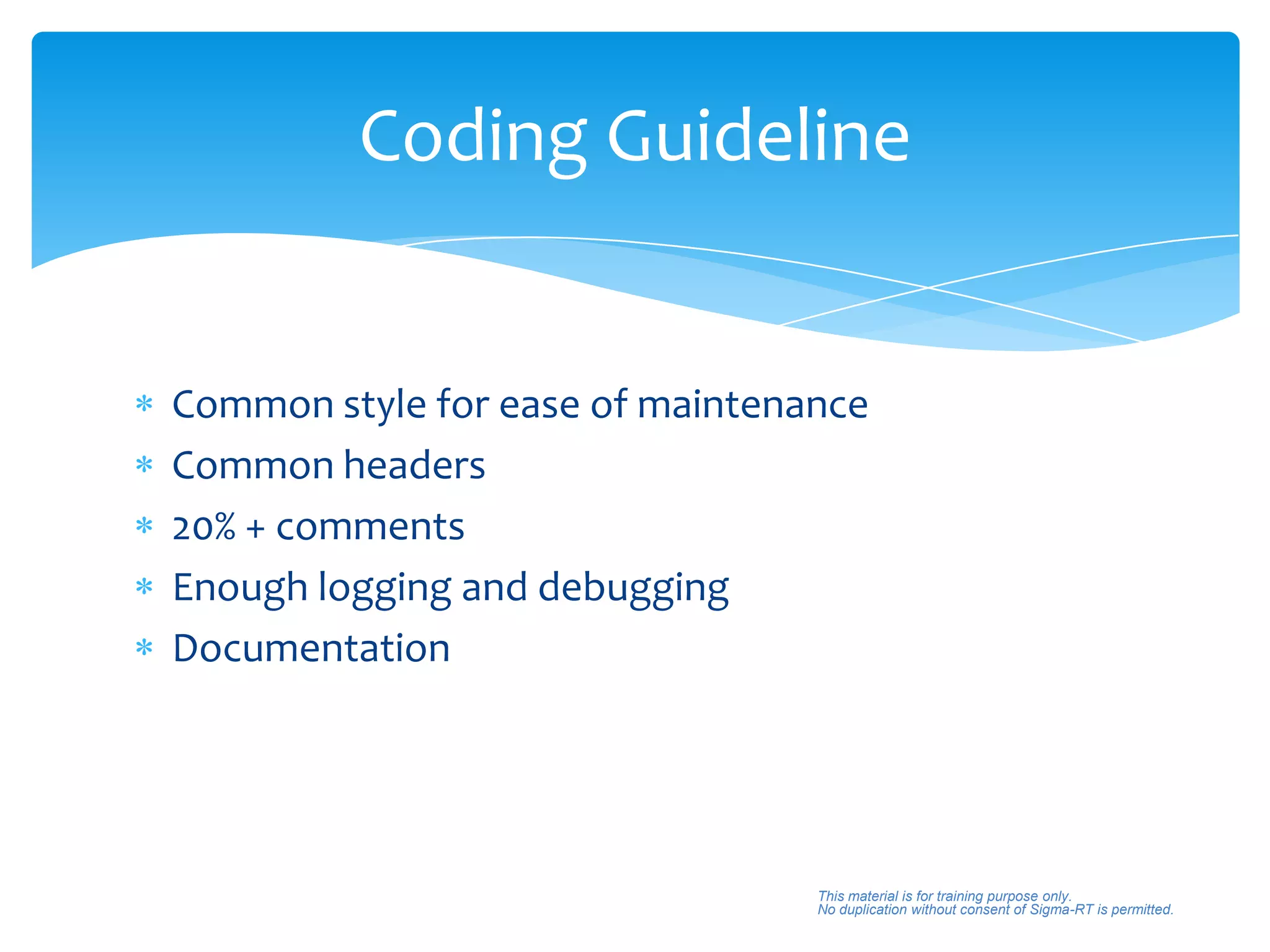

- 10. Coding Guideline Common stylefor ease of maintenance Common headers 20% + comments Enough logging and debugging Documentation This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

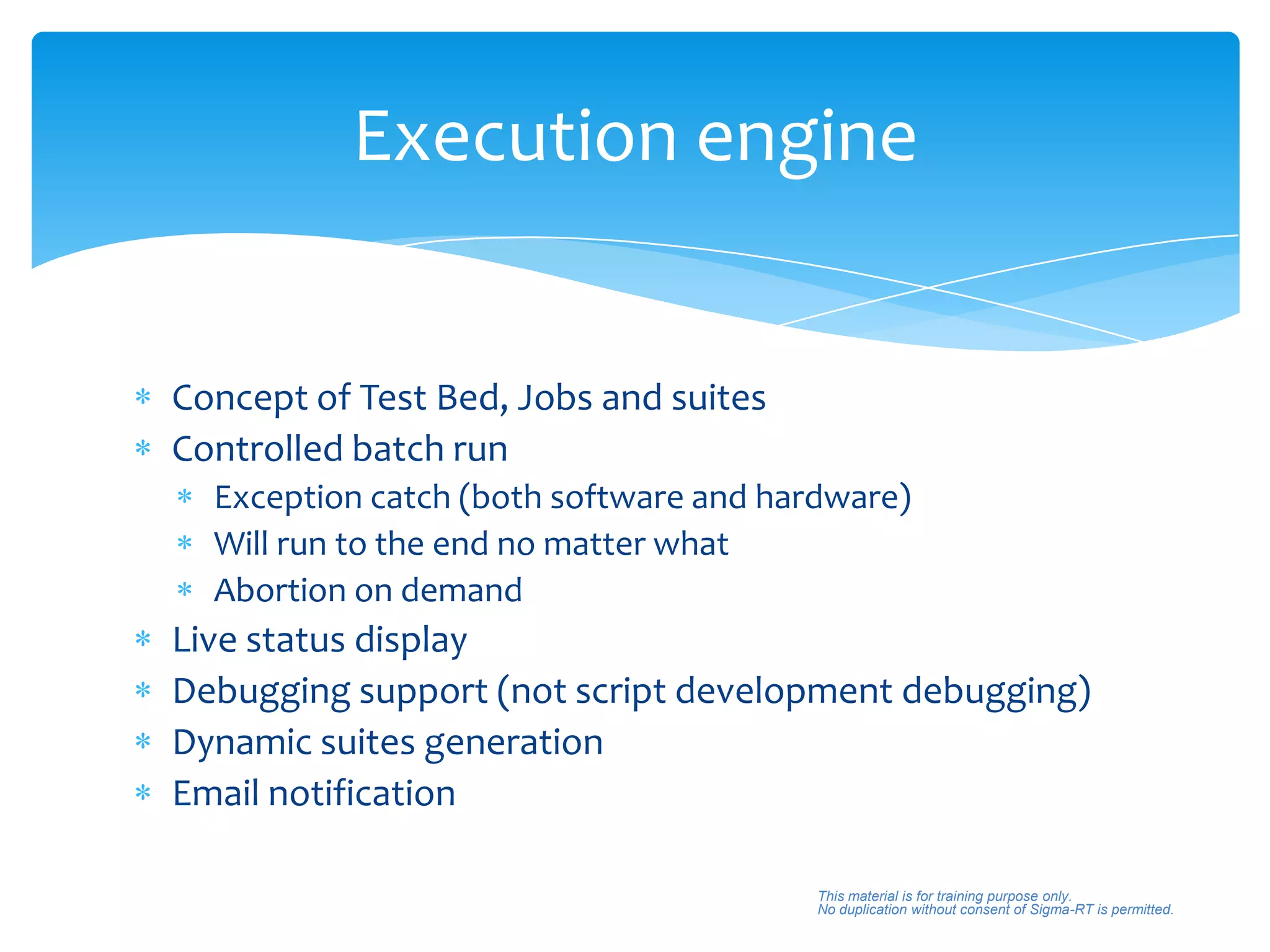

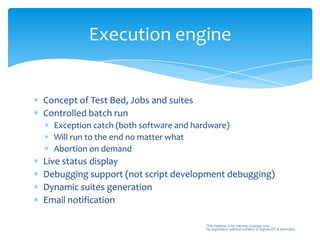

- 11. Execution engine Concept ofTest Bed, Jobs and suites Controlled batch run Exception catch (both software and hardware) Will run to the end no matter what Abortion on demand Live status display Debugging support (not script development debugging) Dynamic suites generation Email notification This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

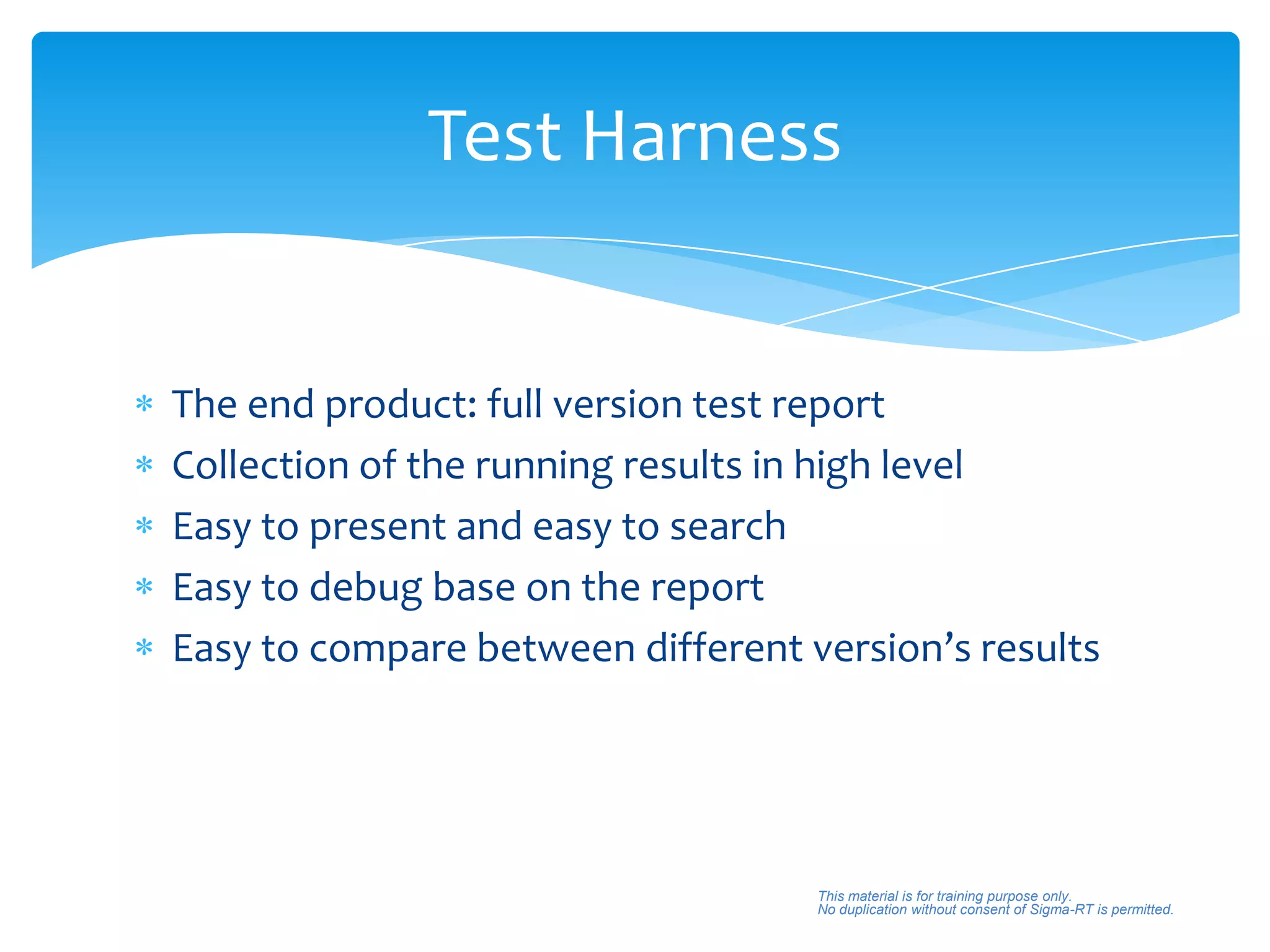

- 12. Test Harness The endproduct: full version test report Collection of the running results in high level Easy to present and easy to search Easy to debug base on the report Easy to compare between different version’s results This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

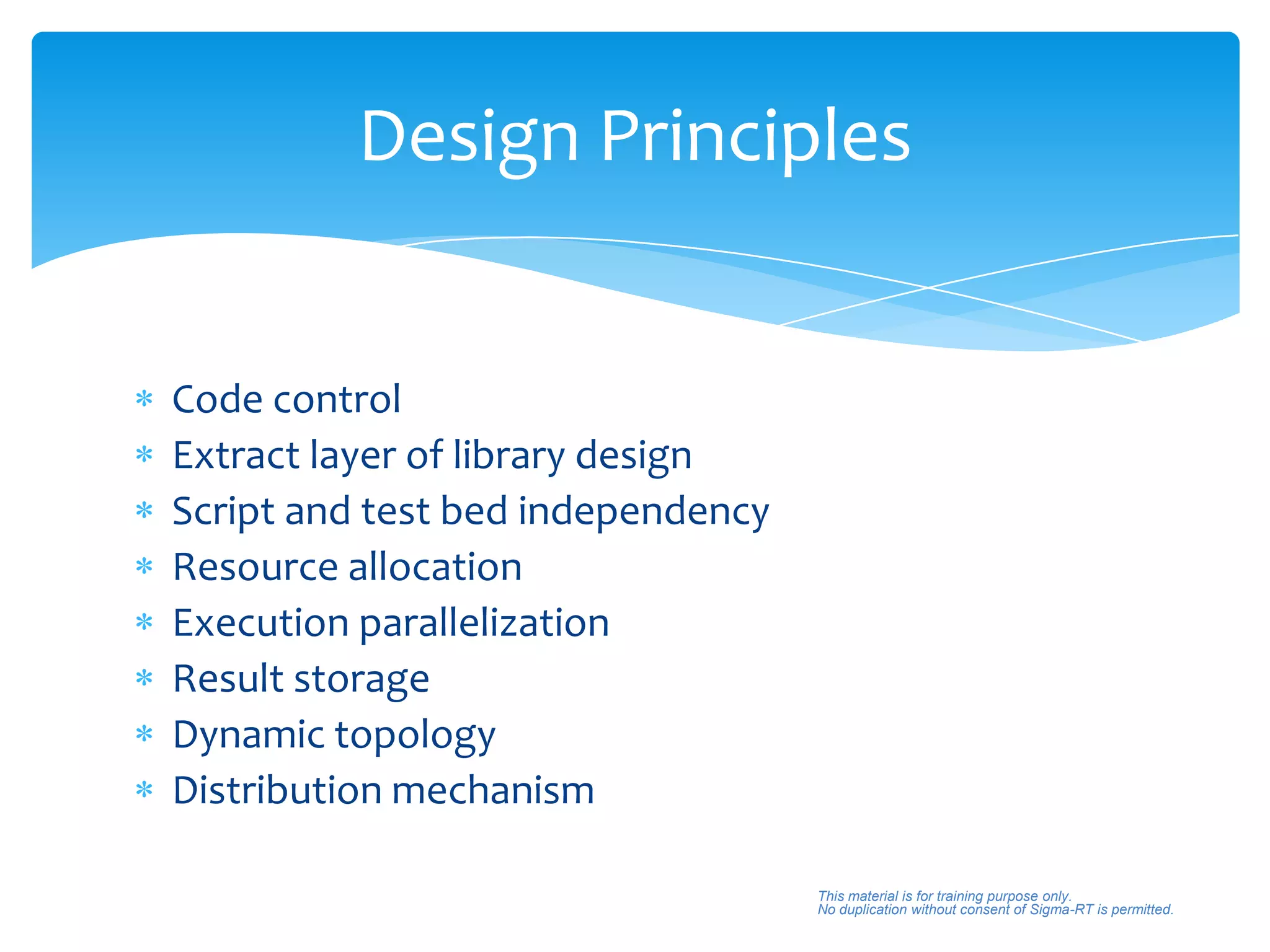

- 13. Design Principles Code control Extractlayer of library design Script and test bed independency Resource allocation Execution parallelization Result storage Dynamic topology Distribution mechanism This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

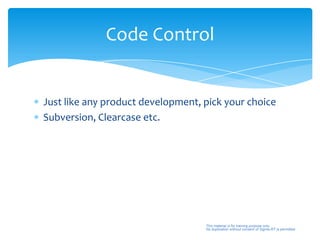

- 14. Code Control Just likeany product development, pick your choice Subversion, Clearcase etc. This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
- 15. Abstract Layer ofLibrary Design Equipment library layer to high the complexity of different equipment A Calls B Scripts: Common APIs with are equipment independent Abstract API Layer Device dependent layer Abacus Ameritec SIPX Others This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

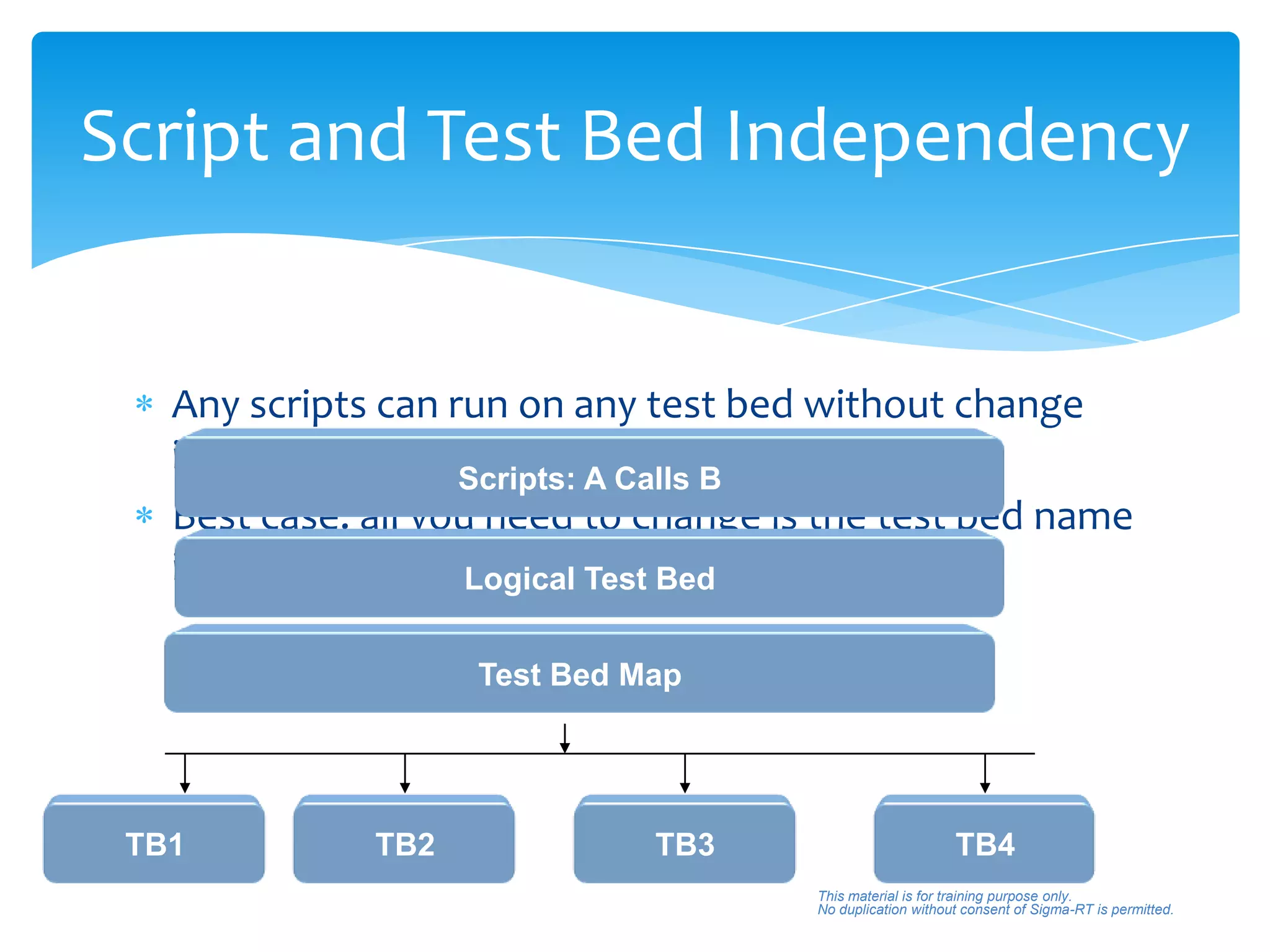

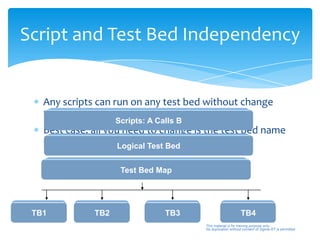

- 16. Script and TestBed Independency Any scripts can run on any test bed without change inside the script Scripts: A Calls B Best case: all you need to change is the test bed name in the framework Logical Test Bed Test Bed Map TB1 TB2 TB3 TB4 This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
- 17. Resource Allocation Each testbed can only run one job? Test bed design Dynamic resource allocation This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

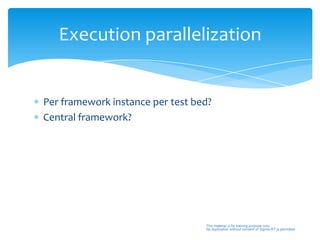

- 18. Execution parallelization Per frameworkinstance per test bed? Central framework? This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

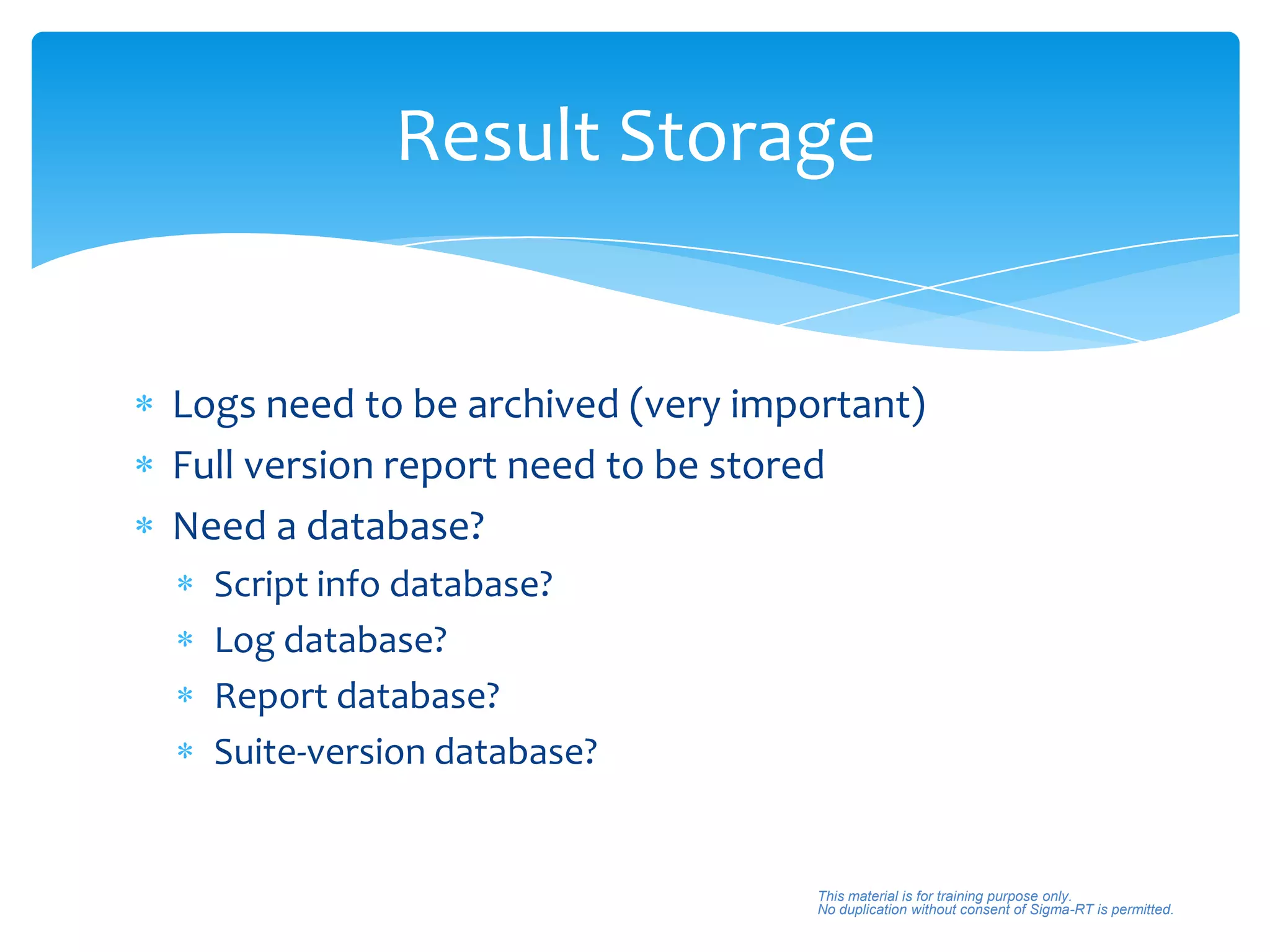

- 19. Result Storage Logs needto be archived (very important) Full version report need to be stored Need a database? Script info database? Log database? Report database? Suite-version database? This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

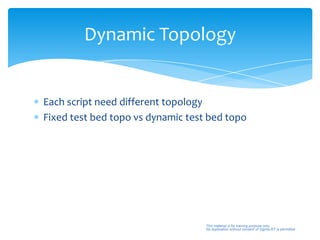

- 20. Dynamic Topology Each scriptneed different topology Fixed test bed topo vs dynamic test bed topo This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

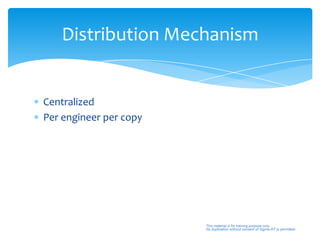

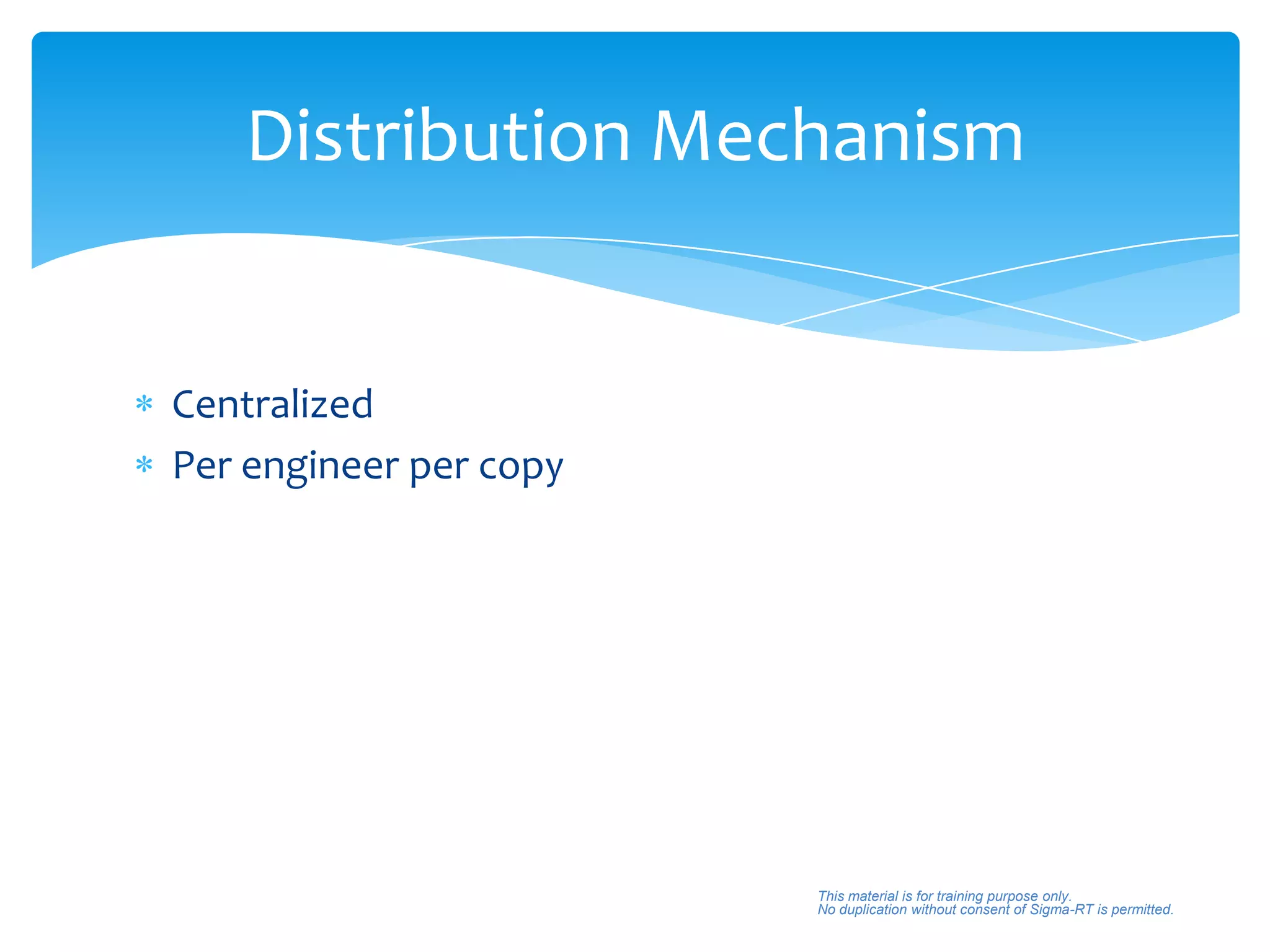

- 21. Distribution Mechanism Centralized Per engineerper copy This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
- 22. Implementation Principles Script languageof choice Performance consideration This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
- 23. Script Language ofChoice TCL Perl Ruby Python EXPECT This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

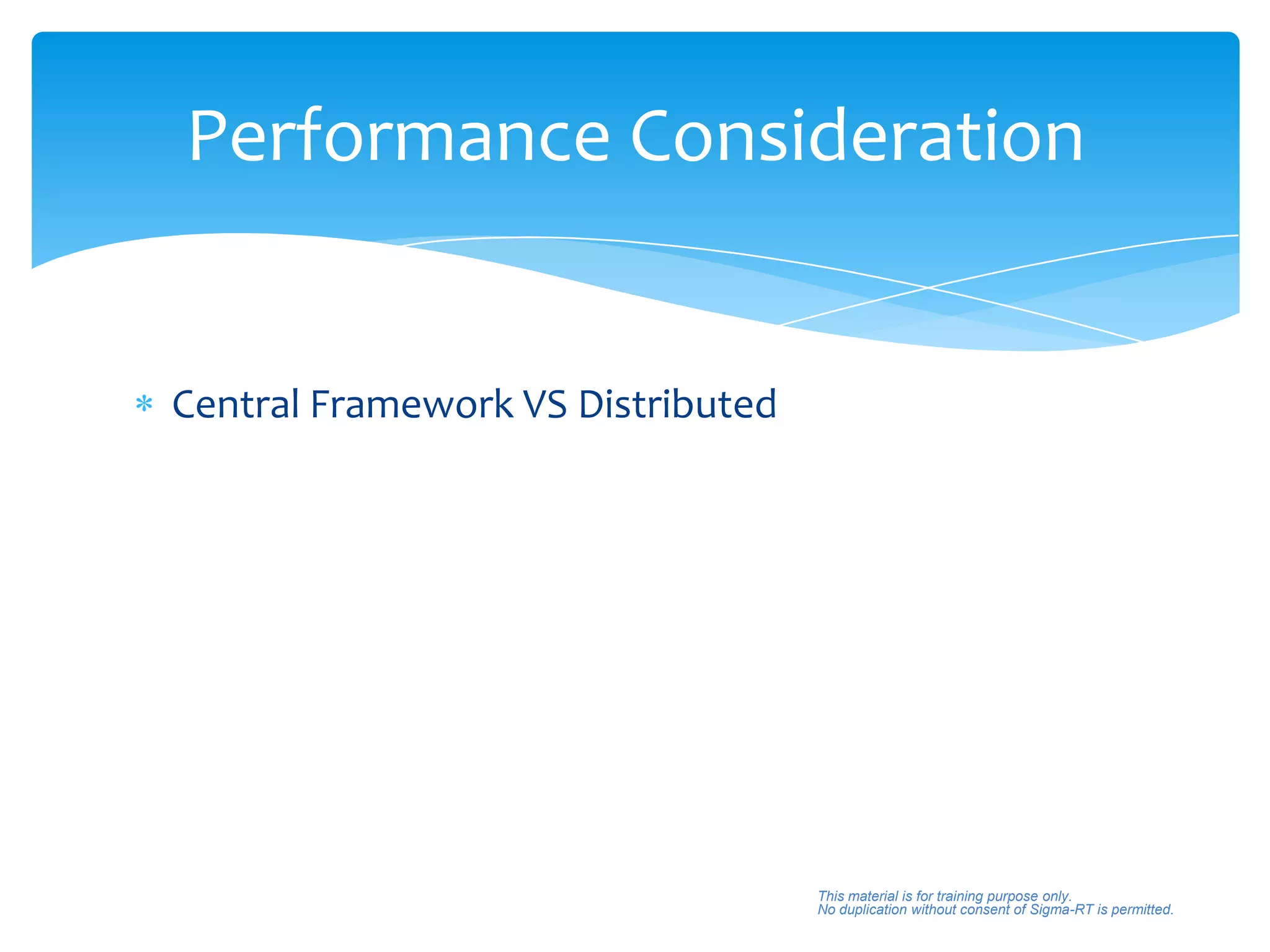

- 24. Performance Consideration Central FrameworkVS Distributed This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

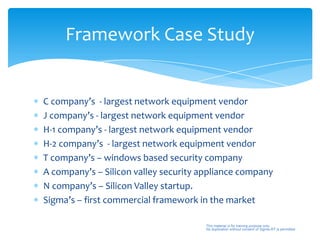

- 25. Framework Case Study Ccompany’s - largest network equipment vendor J company’s - largest network equipment vendor H-1 company’s - largest network equipment vendor H-2 company’s - largest network equipment vendor T company’s – windows based security company A company’s – Silicon valley security appliance company N company’s – Silicon Valley startup. Sigma’s – first commercial framework in the market This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

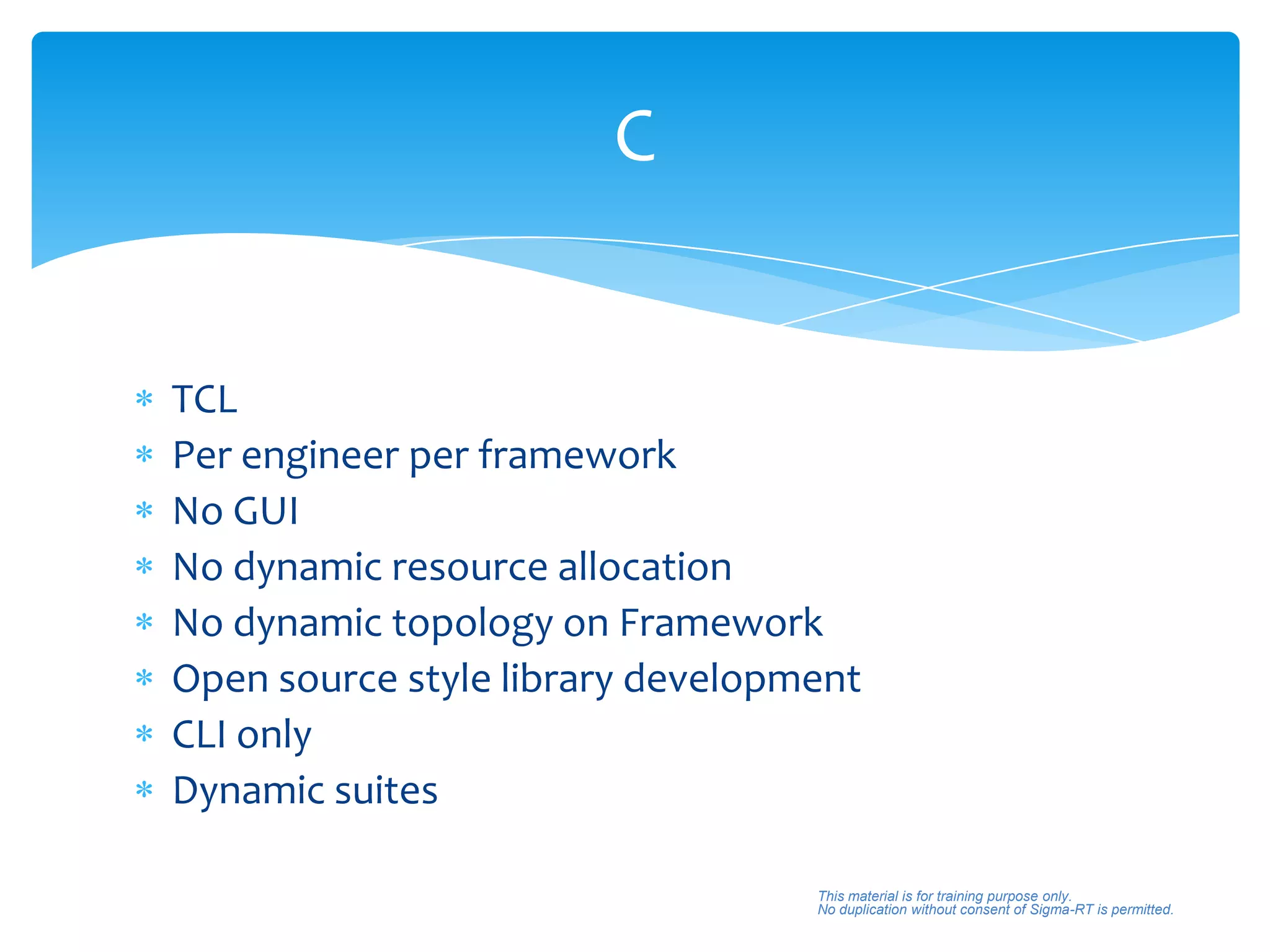

- 26. C TCL Per engineer perframework No GUI No dynamic resource allocation No dynamic topology on Framework Open source style library development CLI only Dynamic suites This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

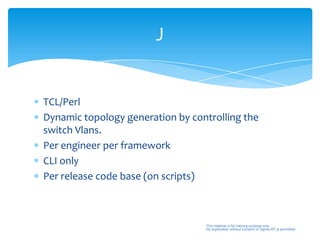

- 27. J TCL/Perl Dynamic topology generationby controlling the switch Vlans. Per engineer per framework CLI only Per release code base (on scripts) This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
- 28. H-1 Key word driven This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
- 29. H-2 Key word driven Scriptand test bed independent IDE Static suites This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
- 30. T Ruby + AutoIT+ Witr Strong support for GUI automation on both MS Windows and Browser C/S structure This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.

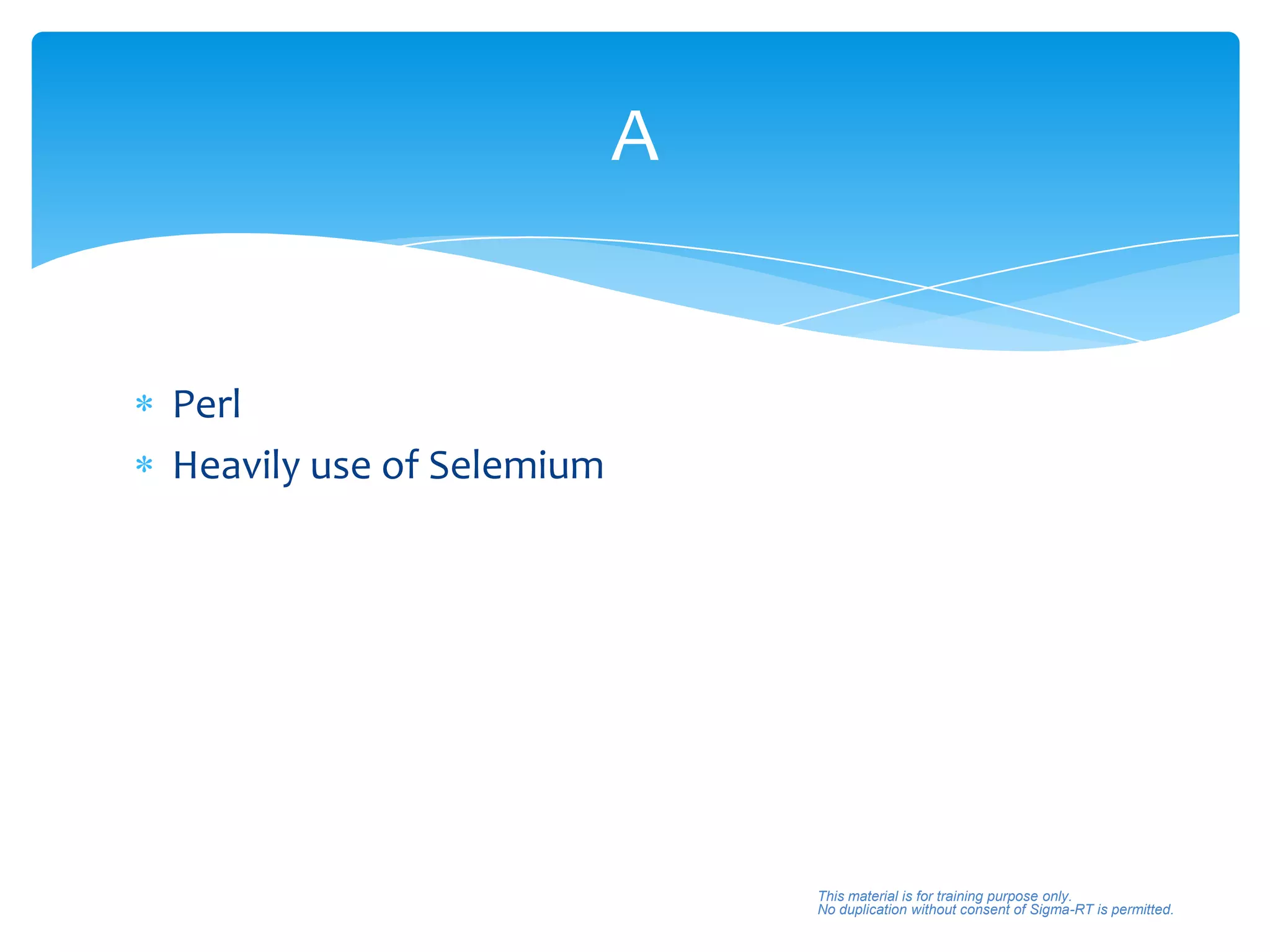

- 31. A Perl Heavily use ofSelemium This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
- 32. N Python All CLI This material is for training purpose only. No duplication without consent of Sigma-RT is permitted.
