JavaOne 2017: Eclipse OpenJ9: Under the hood of the JVM

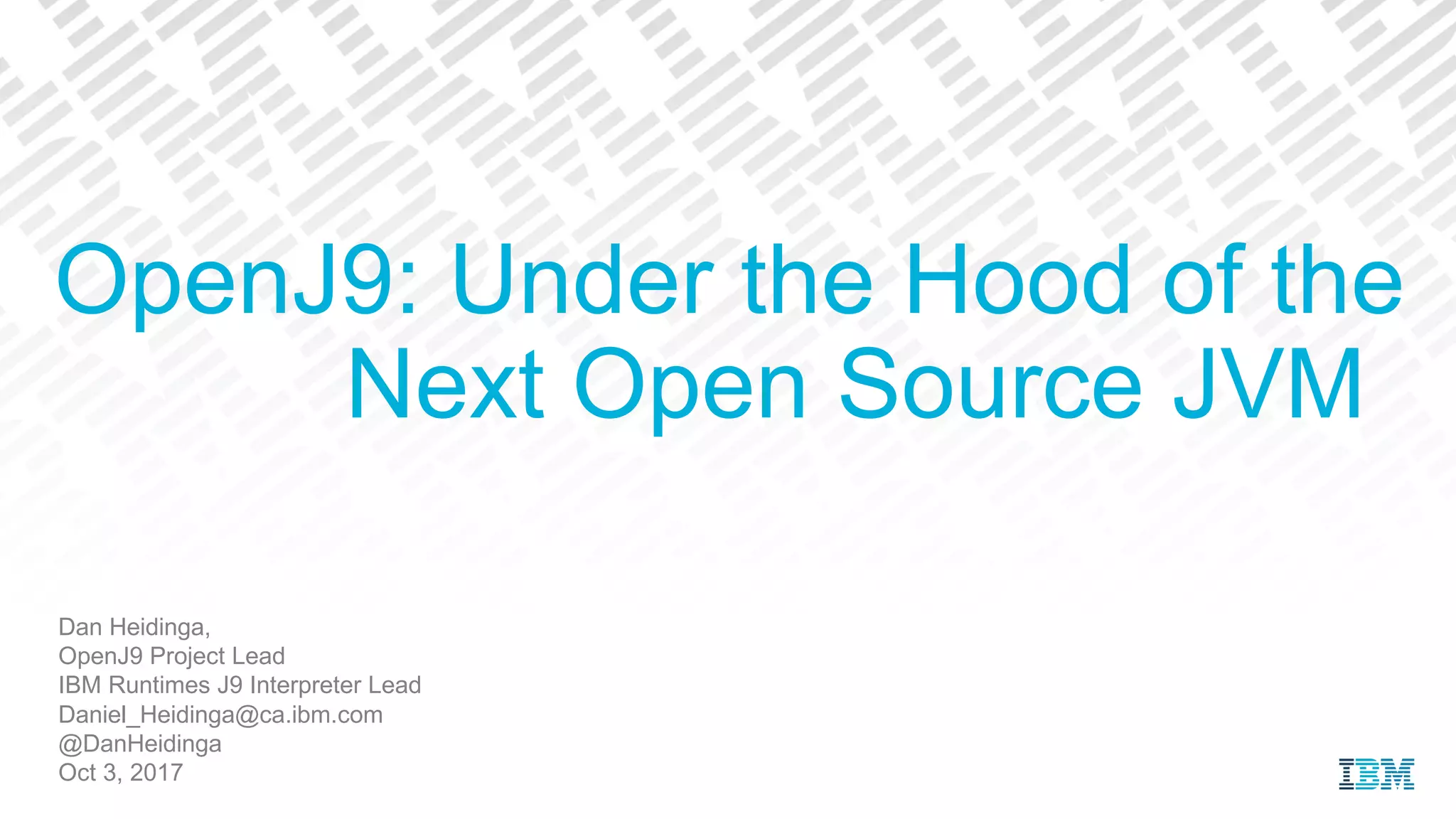

- 1. Dan Heidinga, OpenJ9 Project Lead IBM Runtimes J9 Interpreter Lead Daniel_Heidinga@ca.ibm.com @DanHeidinga Oct 3, 2017 OpenJ9: Under the Hood of the Next Open Source JVM

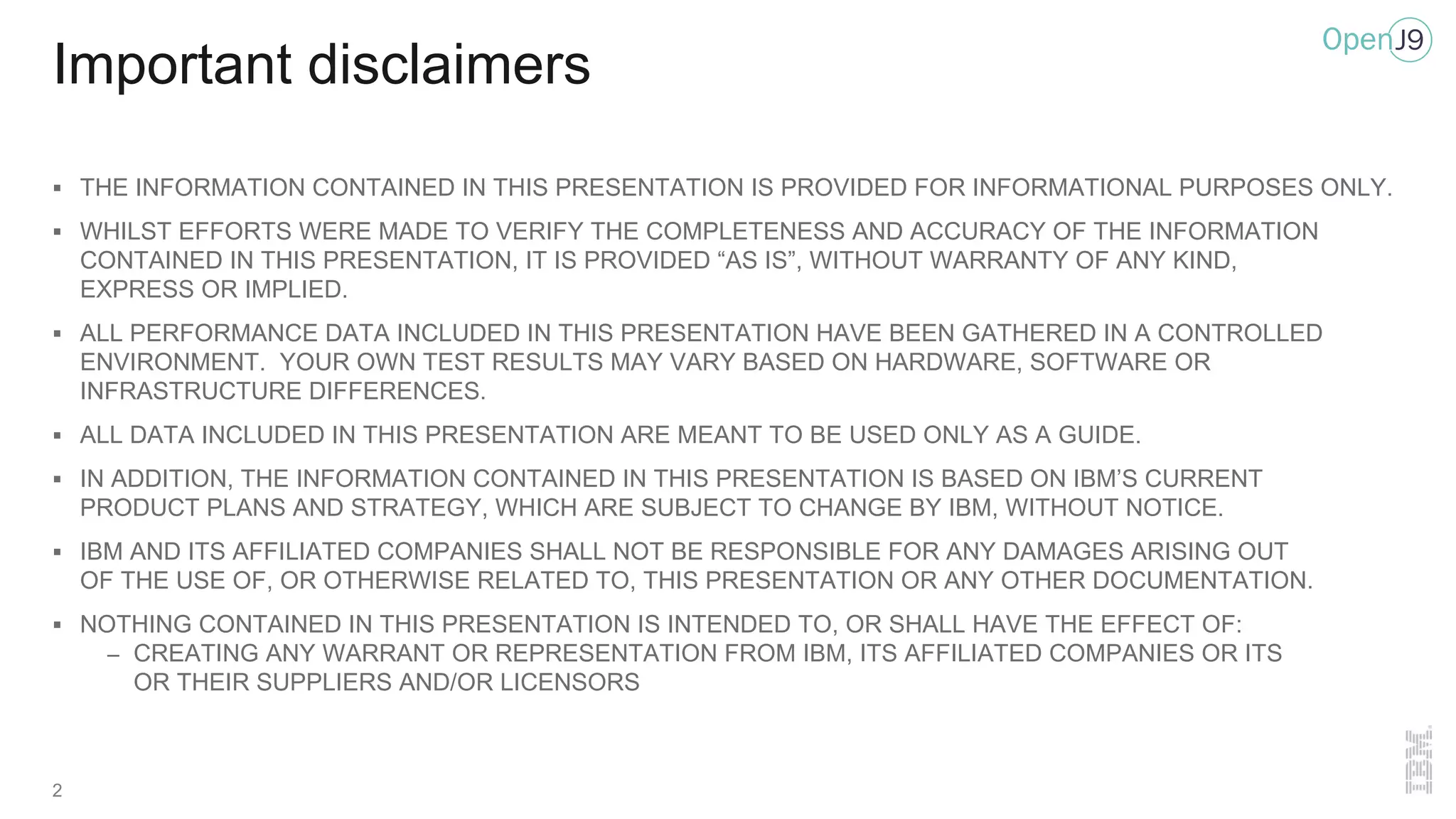

- 2. Important disclaimers § THE INFORMATION CONTAINED IN THIS PRESENTATION IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY. § WHILST EFFORTS WERE MADE TO VERIFY THE COMPLETENESS AND ACCURACY OF THE INFORMATION CONTAINED IN THIS PRESENTATION, IT IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. § ALL PERFORMANCE DATA INCLUDED IN THIS PRESENTATION HAVE BEEN GATHERED IN A CONTROLLED ENVIRONMENT. YOUR OWN TEST RESULTS MAY VARY BASED ON HARDWARE, SOFTWARE OR INFRASTRUCTURE DIFFERENCES. § ALL DATA INCLUDED IN THIS PRESENTATION ARE MEANT TO BE USED ONLY AS A GUIDE. § IN ADDITION, THE INFORMATION CONTAINED IN THIS PRESENTATION IS BASED ON IBM’S CURRENT PRODUCT PLANS AND STRATEGY, WHICH ARE SUBJECT TO CHANGE BY IBM, WITHOUT NOTICE. § IBM AND ITS AFFILIATED COMPANIES SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES ARISING OUT OF THE USE OF, OR OTHERWISE RELATED TO, THIS PRESENTATION OR ANY OTHER DOCUMENTATION. § NOTHING CONTAINED IN THIS PRESENTATION IS INTENDED TO, OR SHALL HAVE THE EFFECT OF: – CREATING ANY WARRANT OR REPRESENTATION FROM IBM, ITS AFFILIATED COMPANIES OR ITS OR THEIR SUPPLIERS AND/OR LICENSORS 2
- 3. Who am I? § I've been involved with virtual machine development at IBM since 2007 and am now the J9 Virtual Machine Team Lead. J9 is IBM's independent implementation of the JVM. § I've represented IBM on both the JSR 292 ('invokedynamic') and JSR 335 ('lambda') expert groups and lead J9's implementation of both JSRs. § I’ve also maintain the bytecode verifier and deal with various other parts of the runtime. § Now one of the Project Leads for the Eclipse OpenJ9 JVM. 3
- 4. Dan Heidinga, OpenJ9 Project Lead IBM Runtimes J9 Interpreter Lead Daniel_Heidinga@ca.ibm.com @DanHeidinga Oct 3, 2017 Eclipse OpenJ9: Under the Hood of the Next Open Source JVM
- 5. http://www.eclipse.org/openj9 https://github.com/eclipse/openj9 Dual License: Eclipse Public License v2.0 Apache 2.0 Users and contributors very welcome https://github.com/eclipse/openj9/blob/master/CONTRIBUTING.md Eclipse OpenJ9 Created Sept 2017
- 7. $ git clone https://github.com/ibmruntimes/openj9-openjdk-jdk9 $ cd openj9-openjdk-jdk9 $ bash ./get_source.sh $ bash ./configure --with-freemarker-jar=freemarker.jar $ make images $ cd build/linux-x86_64-normal-server-release/images/ $ ./jdk/bin/java -version 7 Building OpenJDK with OpenJ9
- 8. Wait… OpenJDK with OpenJ9? 8
- 9. 9
- 11. 11 The VM has connections into the rest of the JDK
- 12. 12 OpenJDK with Eclipse OpenJ9 To build OpenJDK with OpenJ9 requires patches • Build process • Class libraries
- 14. Build an open reusable language runtime foundation for cloud platforms – To accelerate advancement and innovation – In full cooperation with existing language communities – Engaging a diverse community of people interested in language runtimes • Professional developers • Researchers • Students • Hobbyists Eclipse OMR Mission
- 15. http://www.eclipse.org/omr https://github.com/eclipse/omr https://developer.ibm.com/open/omr/ Dual License: Eclipse Public License v2.0 Apache 2.0 Users and contributors very welcome https://github.com/eclipse/omr/blob/master/CONTRIBUTING.md Eclipse OMR Created March 2016
- 17. public class HelloService { public static void main(…) { System.out.println(“Hello”); } } 17
- 18. $ java -jar uber.jar 18
- 19. $ java -jar uber.jar 19 Hello $
- 20. 20 What’s a JVM actually doing here?
- 21. 21
- 22. 22 Classfile
- 25. $ java -jar uber.jar 25 Hello $
- 26. $ java –verbose:class -jar uber.jar 26
- 27. 27 … class load: jdk/internal/org/objectweb/asm/FieldVisitor from: jrt:/java.base class load: jdk/internal/org/objectweb/asm/FieldWriter from: jrt:/java.base class load: java/lang/ClassLoader$$Lambda$3/00000000702E91F0 class load: HelloService from: file:/openj9/uber.jar class load: jdk/internal/reflect/UnsafeFieldAccessorFactory from: jrt:/java.base class load: jdk/internal/reflect/FieldAccessor from: jrt:/java.base class load: jdk/internal/reflect/FieldAccessorImpl from: jrt:/java.base class load: jdk/internal/reflect/UnsafeFieldAccessorImpl from: jrt:/java.base class load: jdk/internal/reflect/UnsafeObjectFieldAccessorImpl from: jrt:/java.base class load: java/lang/Class$ReflectCache from: jrt:/java.base class load: java/lang/annotation/Annotation from: jrt:/java.base class load: jdk/internal/reflect/CallerSensitive from: jrt:/java.base ….
- 28. “Data dominates. If you've chosen the right data structures and organized things well, the algorithms will almost always be self-evident. Data structures, not algorithms, are central to programming.” –Rob Pike (known for Plan 9, UTF-8, Go) 28
- 29. 29
- 30. public class HelloService { public static void main(…) { System.out.println(“Hello”); } } 30 What does the JVM do to find that main method?
- 31. 31
- 32. J9ROMClass: a better classfile § Keep all the symbolic info from a classfile § Remove variability (where possible) § Position independent: map anywhere in the address space § ROM: Read only once written – Learn from the Smalltalk past 32 ROMClass
- 33. Conversion to ROM 33 Classfile Static Verification ROMClassROM Class Builder https://github.com/eclipse/openj9/tree/master/runtime/bcverify https://github.com/eclipse/openj9/tree/master/runtime/bcutil
- 35. Self-relative pointers 35 0x20 0x20 0x28 0x30 0x38 0x40 0x48 0x50 0x58 0x60 0x30 + *(0x30) = 0x30 + 0x20 = 0x50 Address of slot + value = target address
- 36. typedef struct J9ROMClass { U_32 romSize; U_32 singleScalarStaticCount; J9SRP className; J9SRP superclassName; U_32 modifiers; U_32 extraModifiers; U_32 interfaceCount; J9SRP interfaces; U_32 romMethodCount; J9SRP romMethods; U_32 romFieldCount; J9SRP romFields; U_32 objectStaticCount; U_32 doubleScalarStaticCount; U_32 ramConstantPoolCount; U_32 romConstantPoolCount; ... } J9ROMClass; J9ROMClass ROM Constant pool interfaces J9ROMMethods . . .
- 37. 37 public static void main(java.lang.String[]) 0 JBgetstatic 2 System.out LPrintStream; 3 JBldc 3 (java.lang.String) "Hello” 5 JBinvokevirtual 4 PrintStream.println(LString;)V 8 JBreturn Java’s late bound… Isn’t it slow to resolve the fields / methods every time?
- 38. From ROM to RAM 38 RAM class creation Load superclases Load superinterfaces Calculate vtable ROMClass J9RAMClass https://github.com/eclipse/openj9/blob/master/runtime/vm/createramclass.cpp
- 39. typedef struct J9Class { UDATA eyecatcher; struct J9ROMClass* romClass; struct J9Class** superclasses; UDATA classDepthAndFlags; struct J9ClassLoader* classLoader; j9object_t classObject; UDATA volatile initializeStatus; struct J9Method* ramMethods; UDATA* ramStatics; struct J9Class* arrayClass; UDATA totalInstanceSize; UDATA* instanceDescription; UDATA packageID; void** iTable; void** jniIDs; struct J9Class* replacedClass; UDATA* ramConstantPool; . . . } J9Class; J9Class VTable JIT VTable RAM Constant pool J9Methods
- 40. ShareClasses: ROM pays off JVM 1 JVM 2 JVM 3
- 41. ShareClasses: ROM pays off JVM 1 JVM 2 JVM 3
- 42. ShareClasses: ROM pays off JVM 1 JVM 2 JVM 3 Shared Classes Cache Faster startup, Smaller footprint
- 43. 43 ROMClass J9RAMClass Cool native memory! How does this show up for my Java code?
- 44. Classloading: tying it all together 44 ROMClass J9RAMClass J9ClassLoader java.lang.Class java.lang.ClassLoader Heap Native
- 45. 45 public static void main(java.lang.String[]) 0 JBgetstatic 2 System.out LPrintStream; 3 JBldc 3 (java.lang.String) "Hello” 5 JBinvokevirtual 4 PrintStream.println(LString;)V 8 JBreturn That’s all good but what about actually running my code???
- 46. Execution context: the Thread 46 J9VMThreadJ9VMThreadJ9JavaVM omrthread_t omrthread_t omrthread_t Heap Native java.lang.Thread java.lang.Thread java.lang.Thread
- 49. SP A0 PC Method Per-Thread Interpreter State 49 J9VMThread omrthread_t java.lang.Thread Pending Frame Temps Args Java stack J9Method ROMMethod Bytecodes 0
- 50. Interpreter § Written in C++ § Switch statement / computed goto § Executes: – bytecodes – INLs – builds stack frames § Transition to the JIT 50 https://github.com/eclipse/openj9/blob/master/runtime/vm/BytecodeInterpreter.hpp
- 51. JIT Compilation ARM Optimizer Analyses and Optimizations cold warm hot FSDscorching AOT IL Generation x86 POWER Z Code Generators Runtime Environment/ Configuration •Options •Object Model •Memory •Threading •Tracing codeMetadataRuntimeRT Helpers very hot profiling Profile Manager Hardware counters Sampling Thread Interpreter Profile Info JIT Profile Info Profiler
- 52. Adaptive JIT Compilation 52 § Methods start out running bytecode form directly § After many invocations (or via sampling) code get compiled at ‘cold’ or ‘warm’ level § Low overhead sampling thread is used to identify hot methods § Methods may get recompiled at ‘hot’ or ‘scorching’ levels (for more optimizations) § Transition to ‘scorching’ goes through a temporary profiling step cold hot scorching profiling interpreter warm
- 53. 53 + (cold) jdk/internal/reflect/NativeConstructorAccessorImpl.newInstance0(… + (cold) java/lang/Module.defineModule0(… + (cold) java/lang/Module.addReads0(Ljava/lang/Module;Ljava/lang/Module;)V + (cold) java/lang/Module.addExports0(… + (cold) java/lang/Module.addExportsToAll0(Ljava/lang/Module;Ljava/lang/String;)V + (warm) java/util/HashMap.hash(Ljava/lang/Object;)I + (warm) java/util/HashMap.putVal(… + (cold) java/lang/Thread.setNameImpl(JLjava/lang/String;)V + (warm) java/lang/Math.floorMod(II)I + (warm) java/lang/Math.floorDiv(II)I $ java –Xjit:verbose -jar uber.jar
- 54. “Dynamic” AOT through ShareClasses Shared Classes Cache AOTROM Classes $ java –Xshareclasses -jar uber.jar
- 55. 55 Cool! How can I get involved?
- 56. Wrap-up: Want to get involved? § Download OpenJDK with OpenJ9 and try it out! – https://adoptopenjdk.net/releases.html?variant=openjdk9-openj9 – Run on your favourite Java application and let us know how it went! § Interact with our community via Github issues – https://github.com/eclipse/openj9 – Ask questions, report problems, report Amazing Results – Download the code, build it yourself, play around! – Submit pull requests, see them tested on multiple platforms in the open § Whatever you think will make Eclipse OpenJ9 better, we’d love to hear it 56
- 57. Learn more at Java One! § Have even more questions? Dan Heidinga, Mark Stoodley, John Duimovich Ask the OpenJ9 Architects [CON2672] Wednesday, Oct 04, 8:30 a.m. - 9:15 a.m. | Moscone West - Room 2011 § Learn about microservices for open testing with Shelley Lambert Cloud-Based Test Microservices [CON2789] Thursday, Oct 05, 11:45 a.m. - 12:30 p.m. | Marriott Marquis (Yerba Buena Level) - Salon 12 § Debugging runtimes with Dan Heidinga for Bjørn Vårdal Secrets of Building a Debuggable Runime [CON4081] Thursday, Oct 05, 12:45 p.m. - 1:30 p.m. | Marriott Marquis (Yerba Buena Level) - Salon 15 § Visit the Eclipse Foundation booth (6140) Dan Heidinga & Mark Stoodley today from 4:00 - 5:45 Mark Stoodley on Wednesday from 2:30 - 4:30 57
