1. Automated Unit Test Generation
Vassil Popovski, VMware

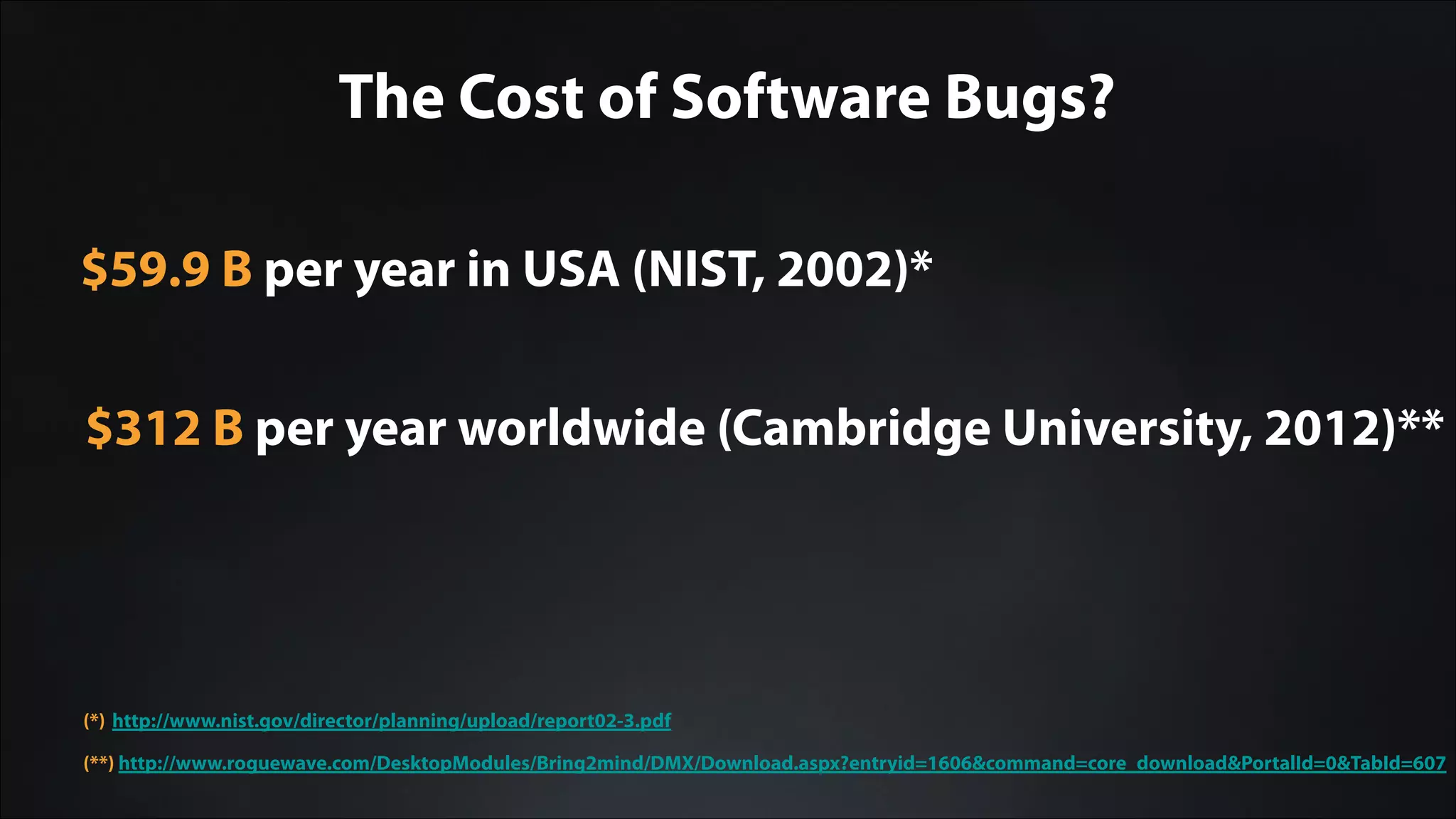

4. The Cost of Software Bugs?
$59.9 B per year in USA (NIST, 2002)*
(*) http://www.nist.gov/director/planning/upload/report02-3.pdf
$312 B per year worldwide (Cambridge University, 2012)**
(**) http://www.roguewave.com/DesktopModules/Bring2mind/DMX/Download.aspx?entryid=1606&command=core_download&PortalId=0&TabId=607

5. $312,000,000,000
The Cost of Software Bugs?

6. The Cost of Software Bugs?

7. Total market capitalization for all 3 companies(*):
!
$177.36 B
(*) Google finance - as of Nov 2nd, 2013

8. The Cost of World Hunger?
$40B per year(*)
(*) According to United Nations

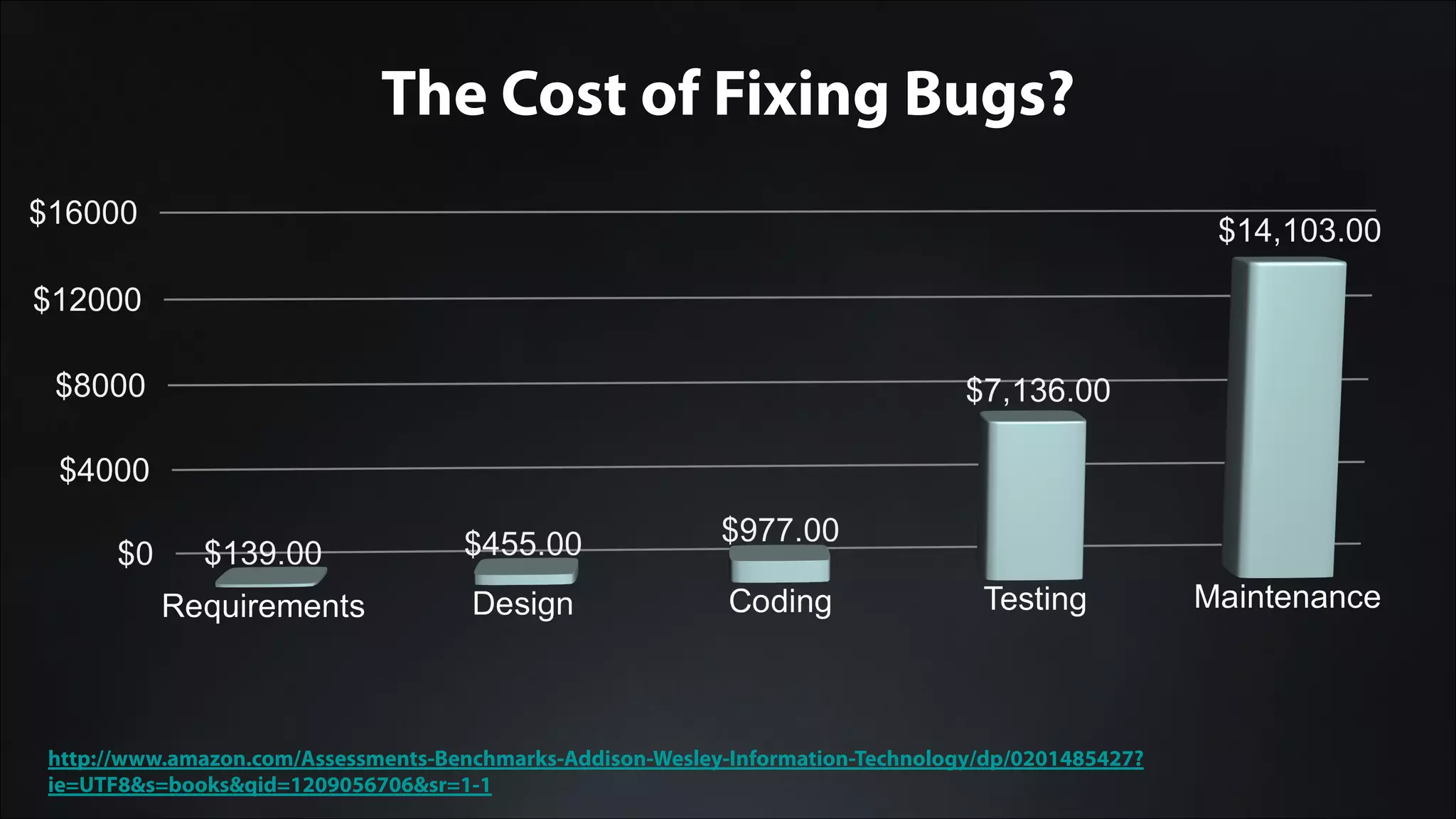

10. The Cost of Fixing Bugs?
http://www.amazon.com/Assessments-Benchmarks-Addison-Wesley-Information-Technology/dp/0201485427?
ie=UTF8&s=books&qid=1209056706&sr=1-1

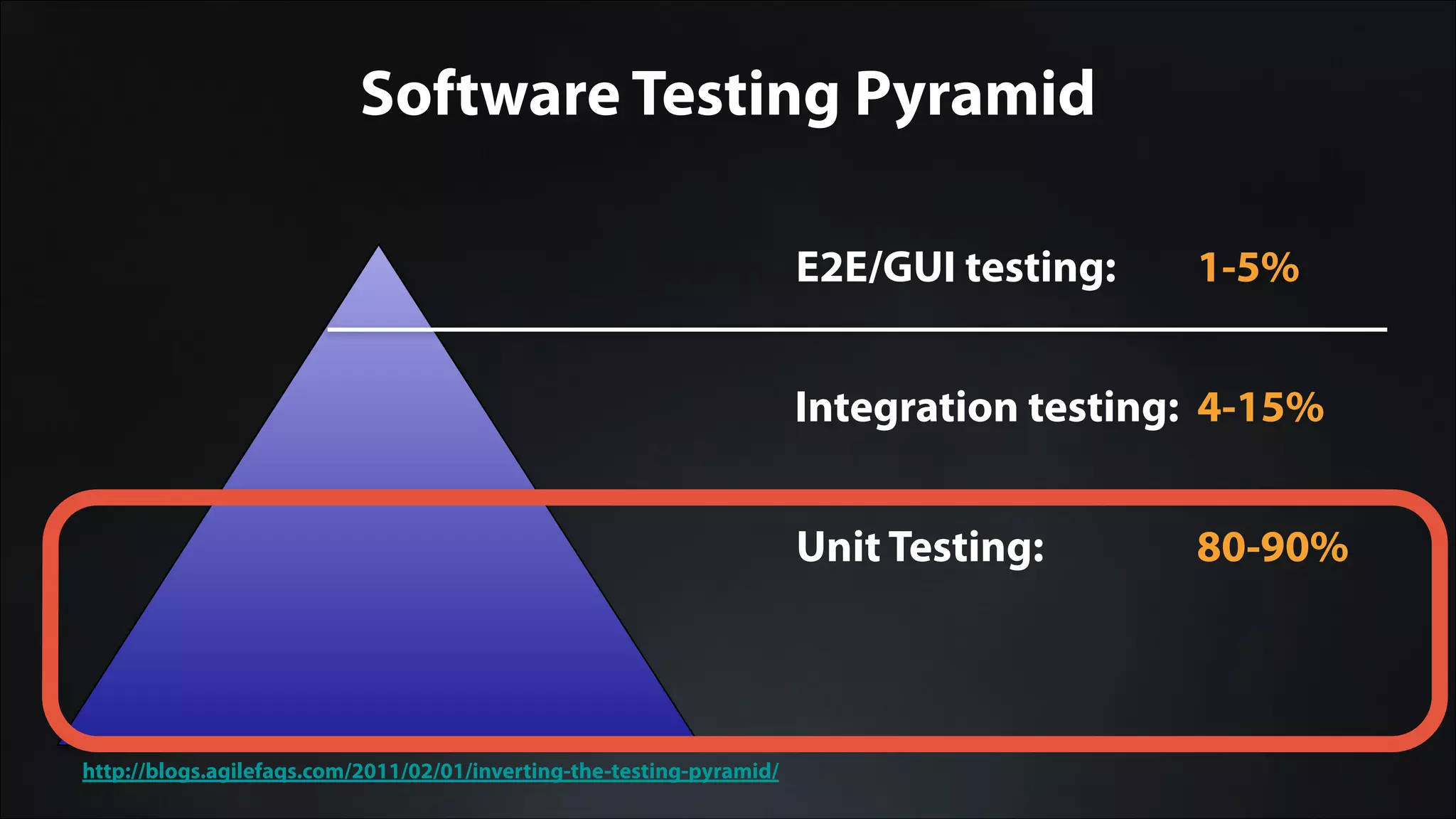

11. Software Testing Pyramid
http://blogs.agilefaqs.com/2011/02/01/inverting-the-testing-pyramid/
Unit Testing: 80-90%
Integration testing: 4-15%
E2E/GUI testing: 1-5%

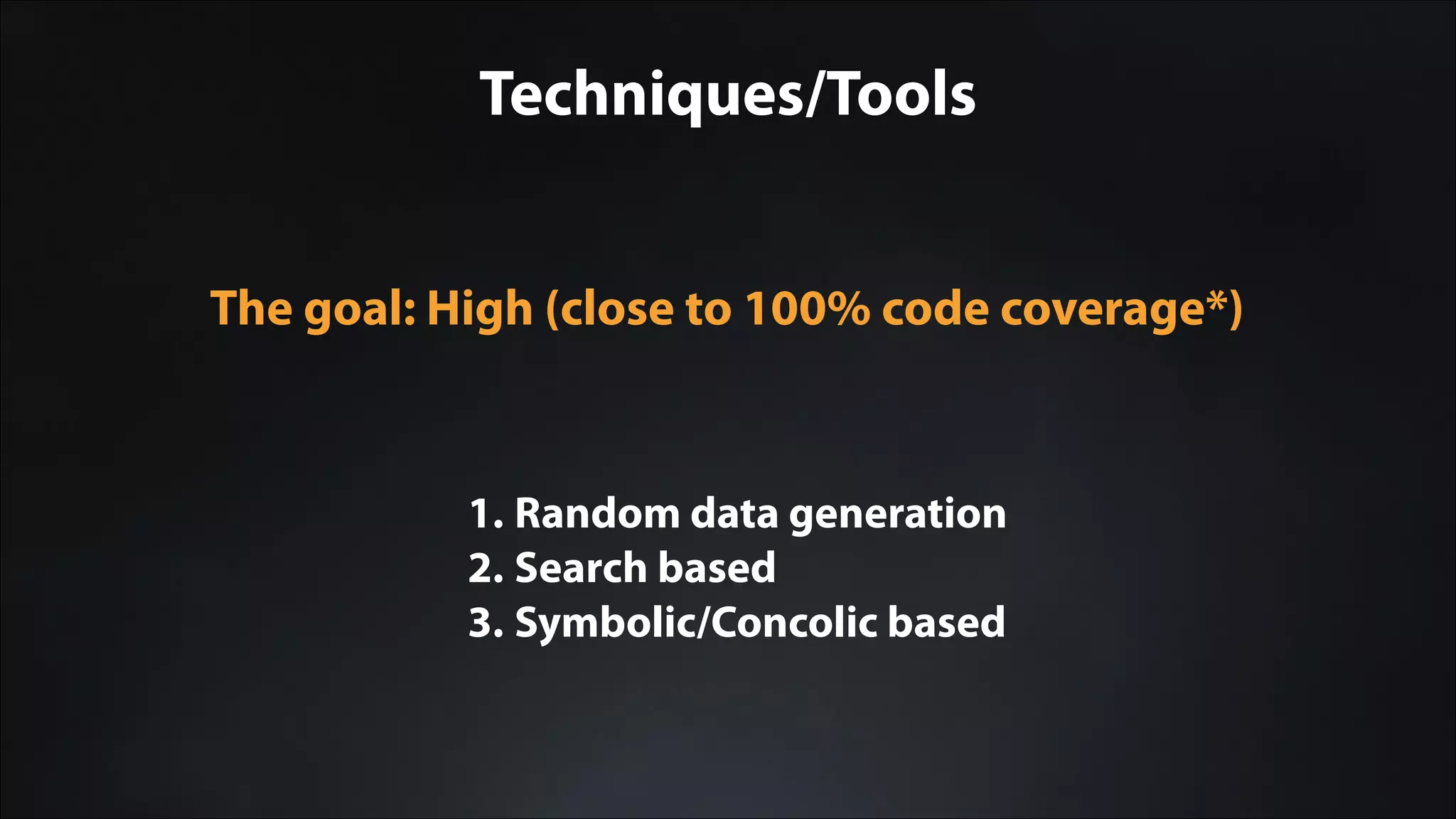

12. Techniques/Tools
1. Random data generation
2. Search based
3. Symbolic/Concolic based
The goal: High (close to 100% code coverage*)

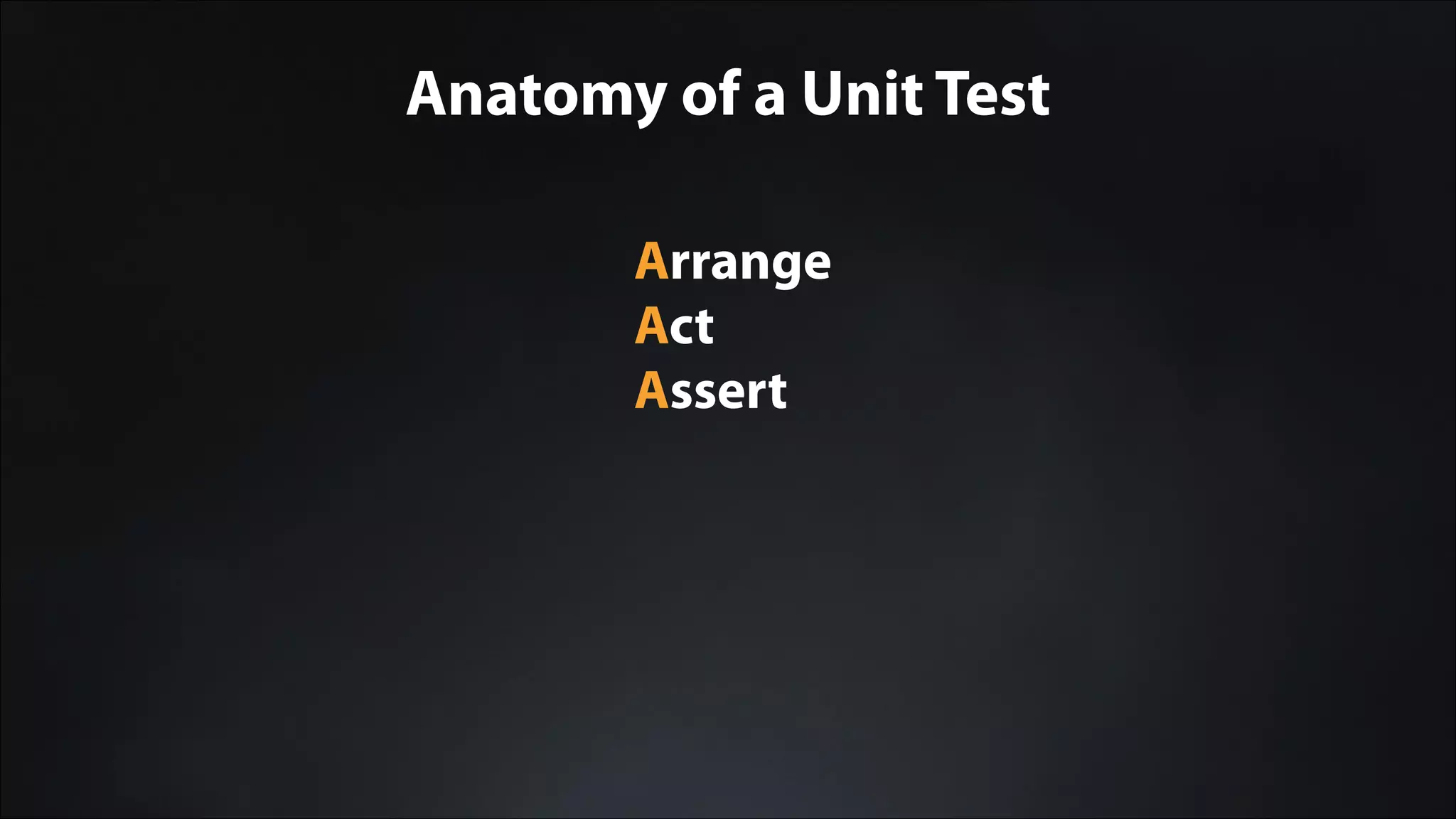

13. Anatomy of a Unit Test
Arrange
Act
Assert

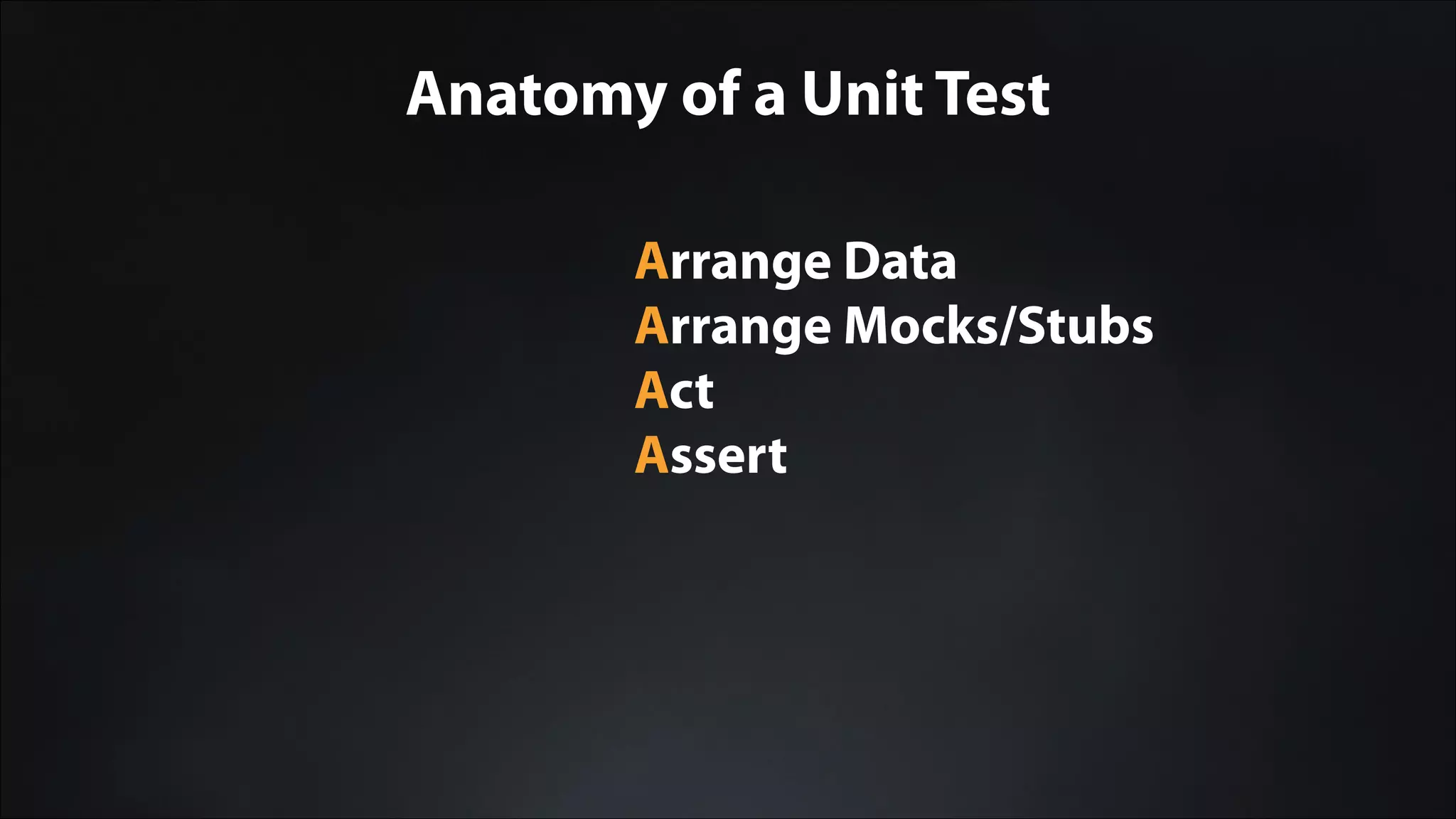

14. Anatomy of a Unit Test
Arrange Data
Arrange Mocks/Stubs
Act
Assert

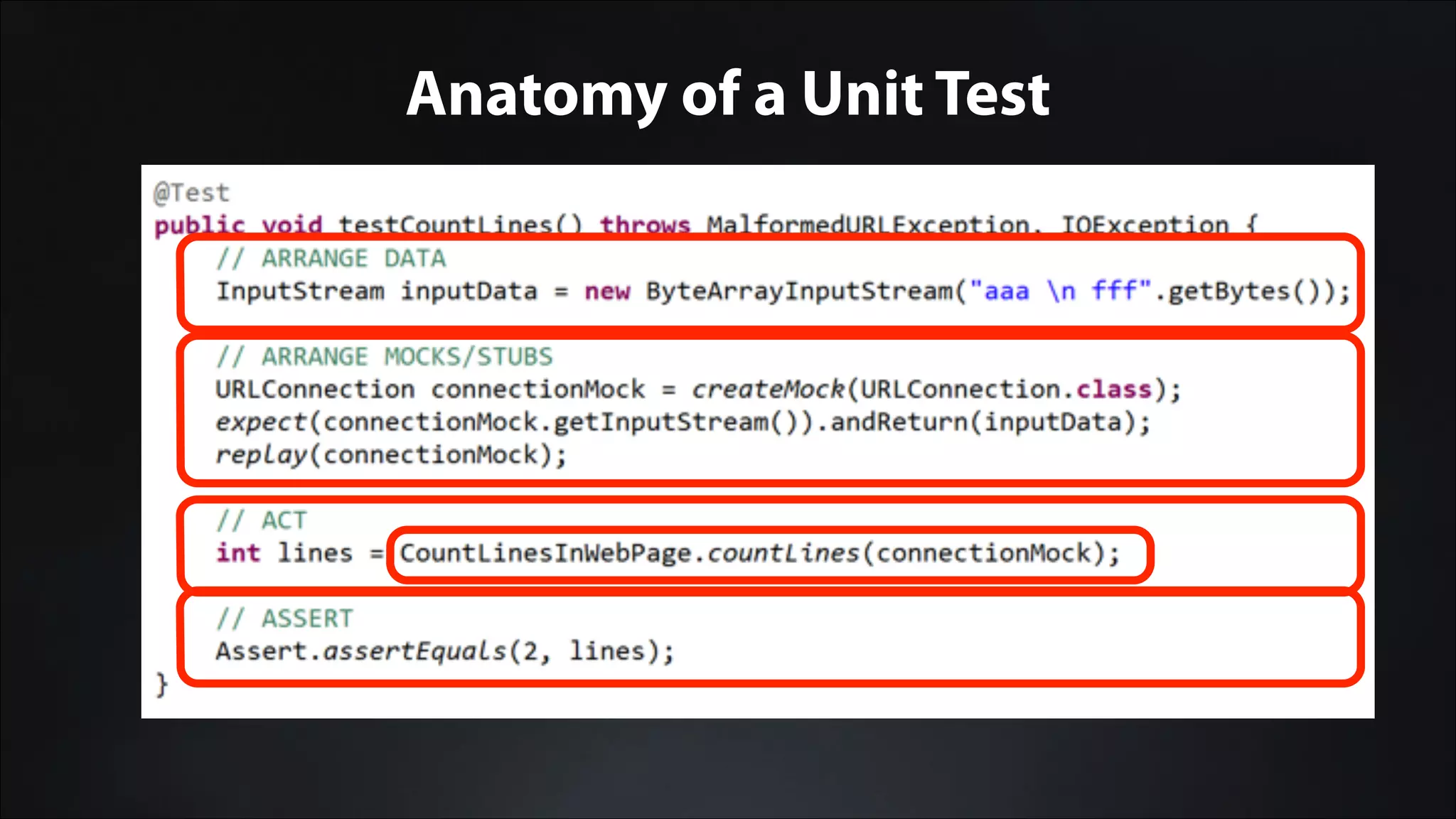

15. Anatomy of a Unit Test

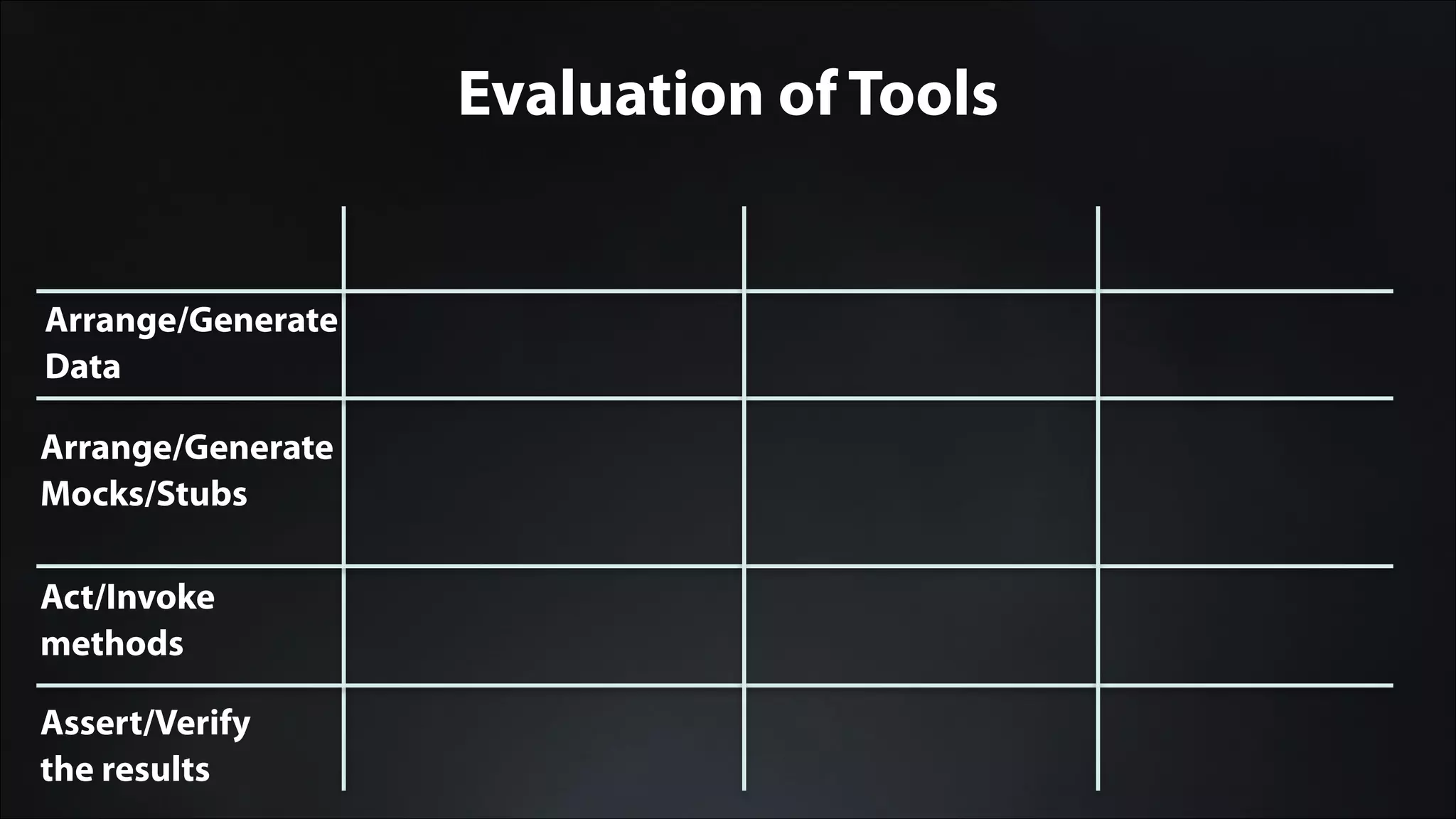

16. Evaluation of Tools
Arrange/Generate
Data
Arrange/Generate
Mocks/Stubs
Act/Invoke
methods
Assert/Verify
the results

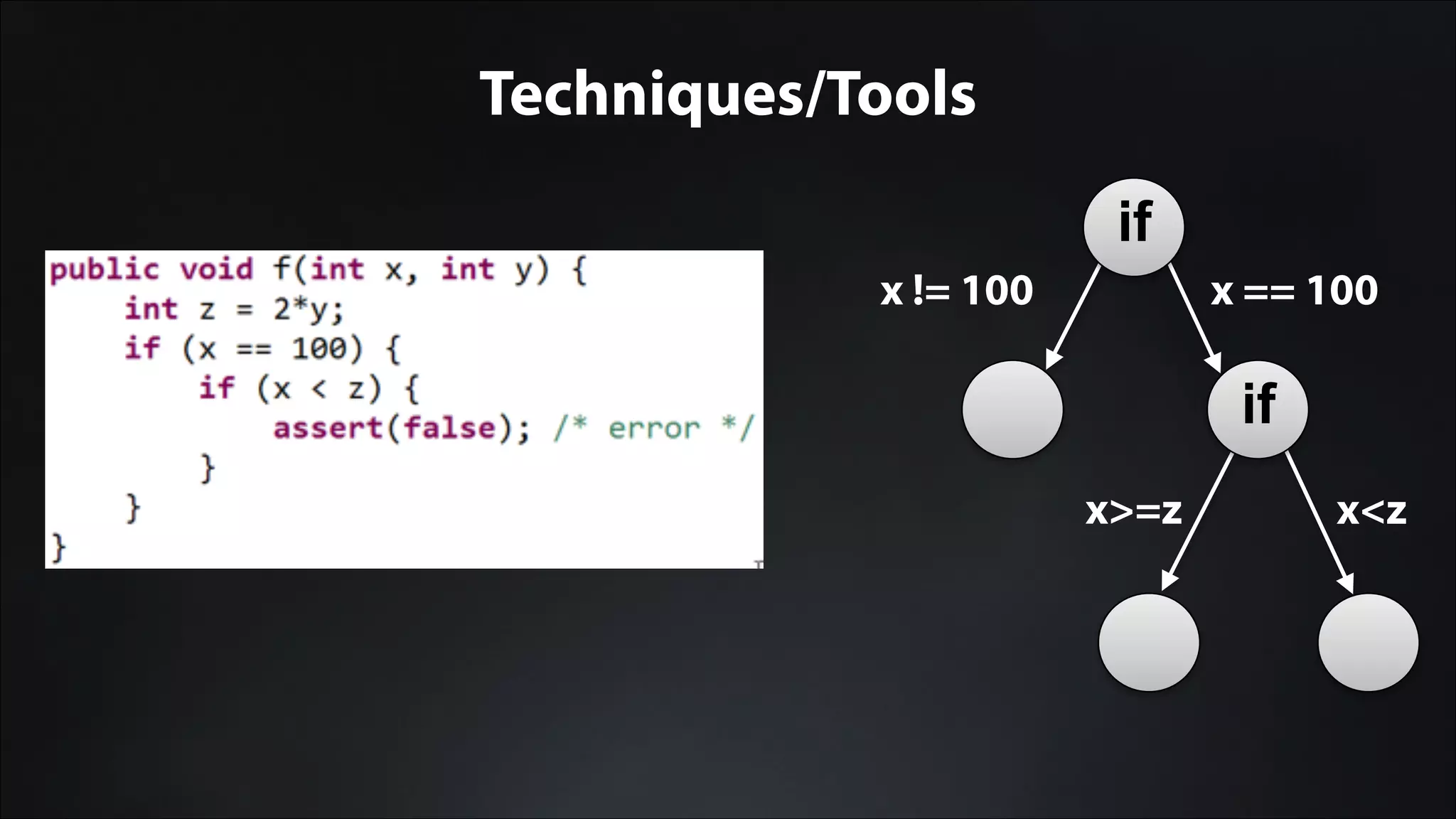

17. Techniques/Tools
x != 100 x == 100
x>=z x<z
if
if

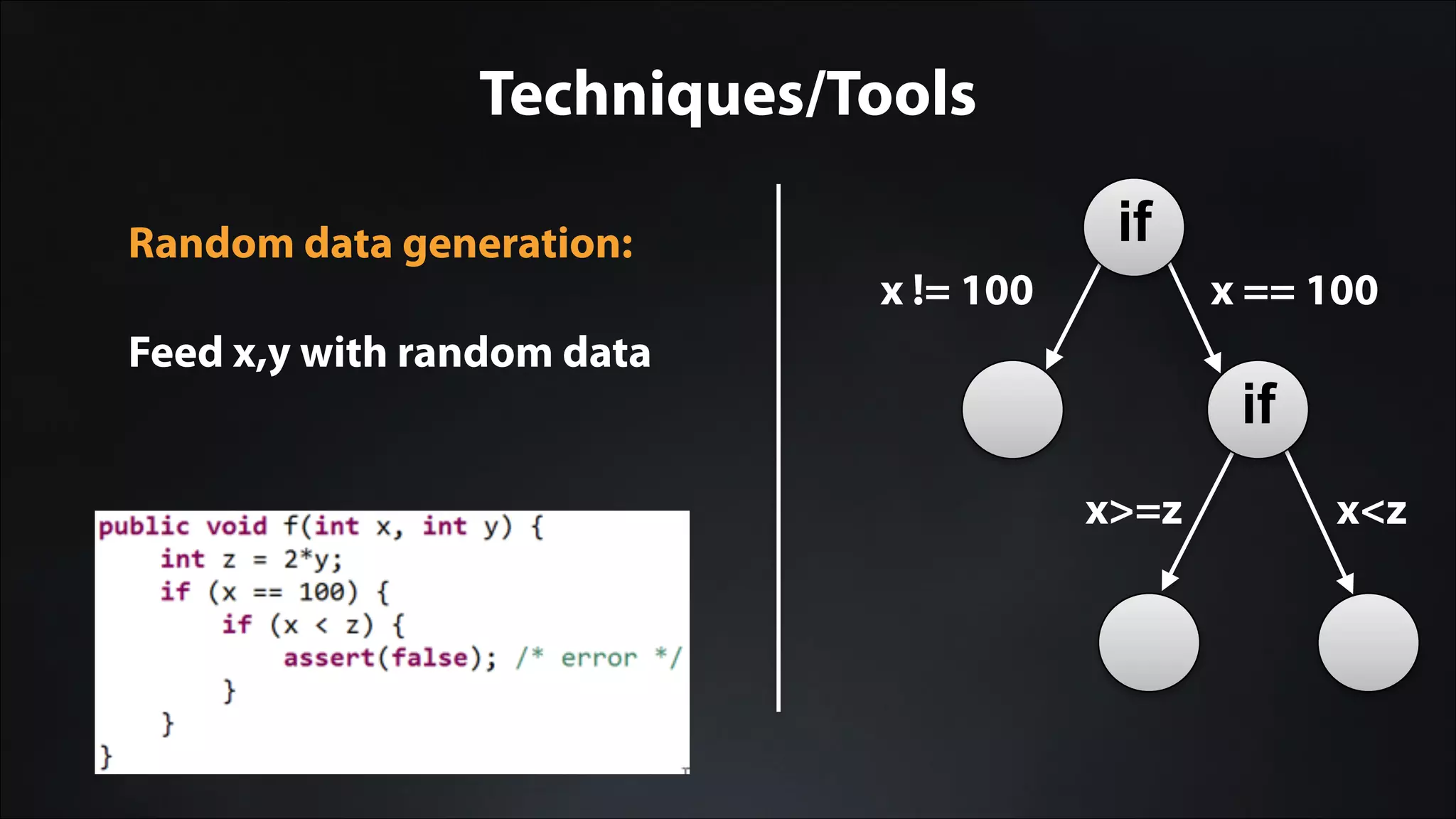

18. Techniques/Tools
x>=z x<z
if
ifRandom data generation:
!
Feed x,y with random data
x != 100 x == 100

19. Demo

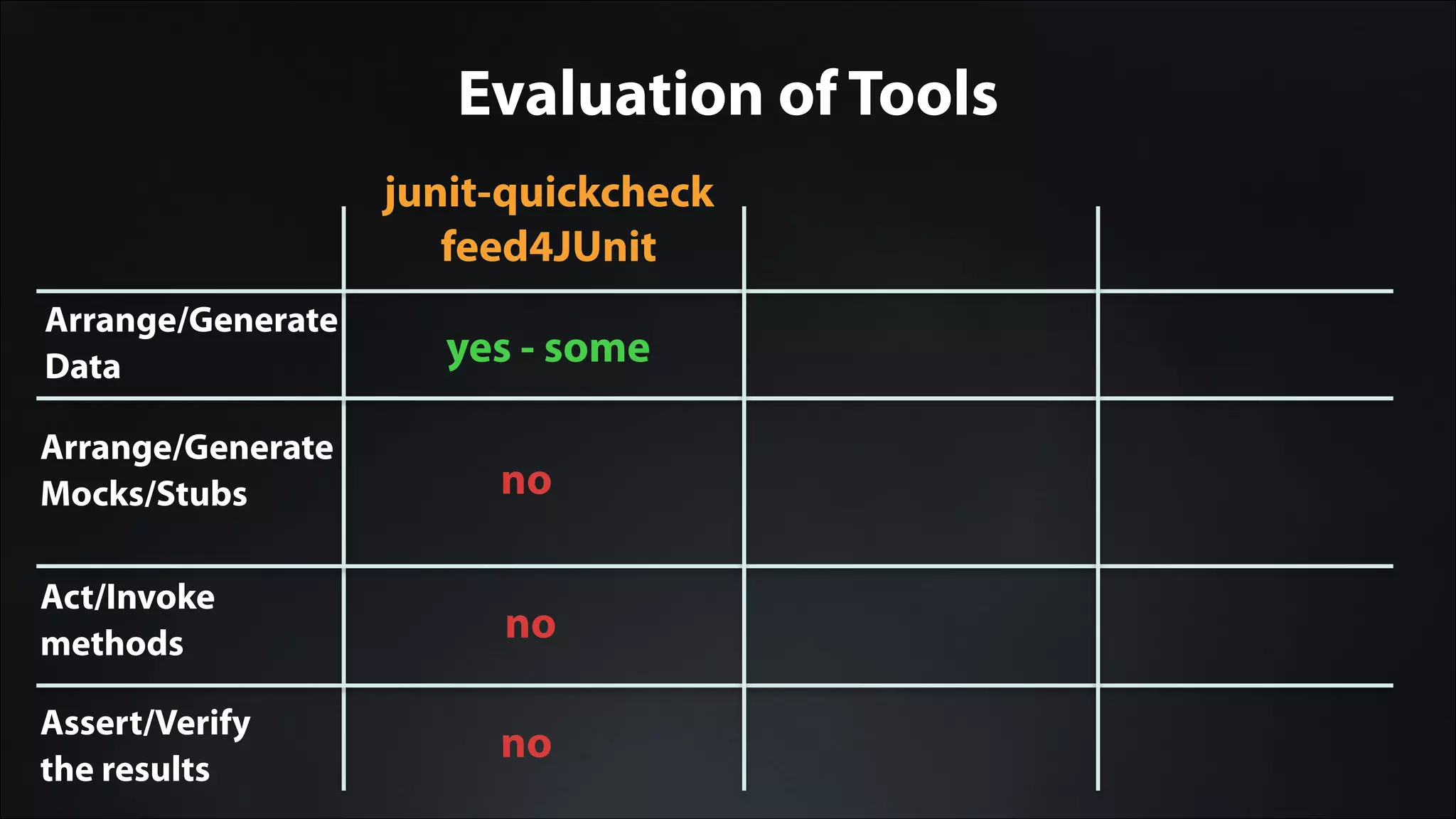

20. Evaluation of Tools
Arrange/Generate
Data
Arrange/Generate
Mocks/Stubs
Act/Invoke
methods
Assert/Verify
the results
junit-quickcheck
feed4JUnit
yes - some
no
no
no

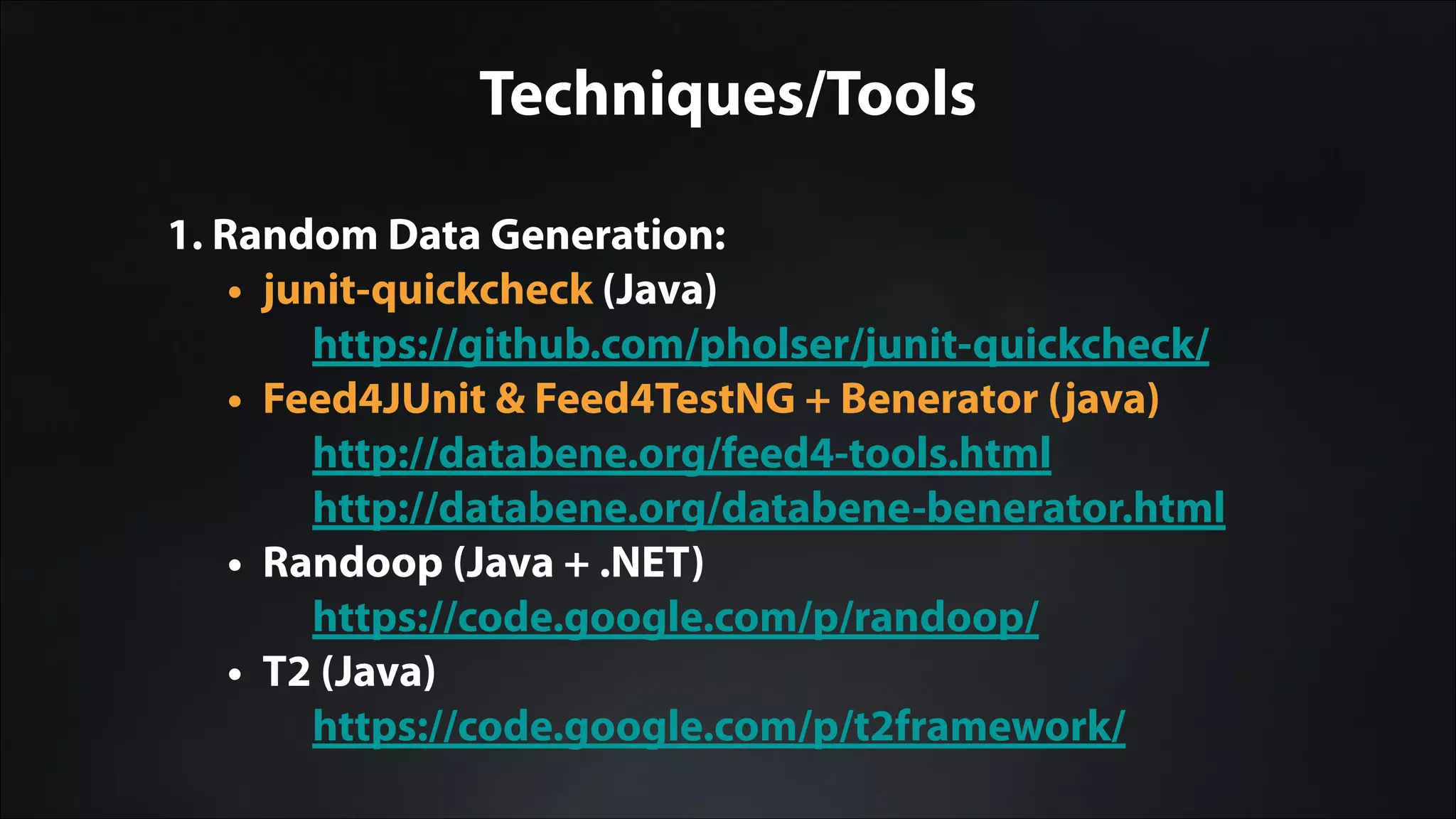

21. Techniques/Tools
1. Random Data Generation:
• junit-quickcheck (Java)
https://github.com/pholser/junit-quickcheck/
• Feed4JUnit & Feed4TestNG + Benerator (java)
http://databene.org/feed4-tools.html
http://databene.org/databene-benerator.html
• Randoop (Java + .NET)
https://code.google.com/p/randoop/
• T2 (Java)
https://code.google.com/p/t2framework/

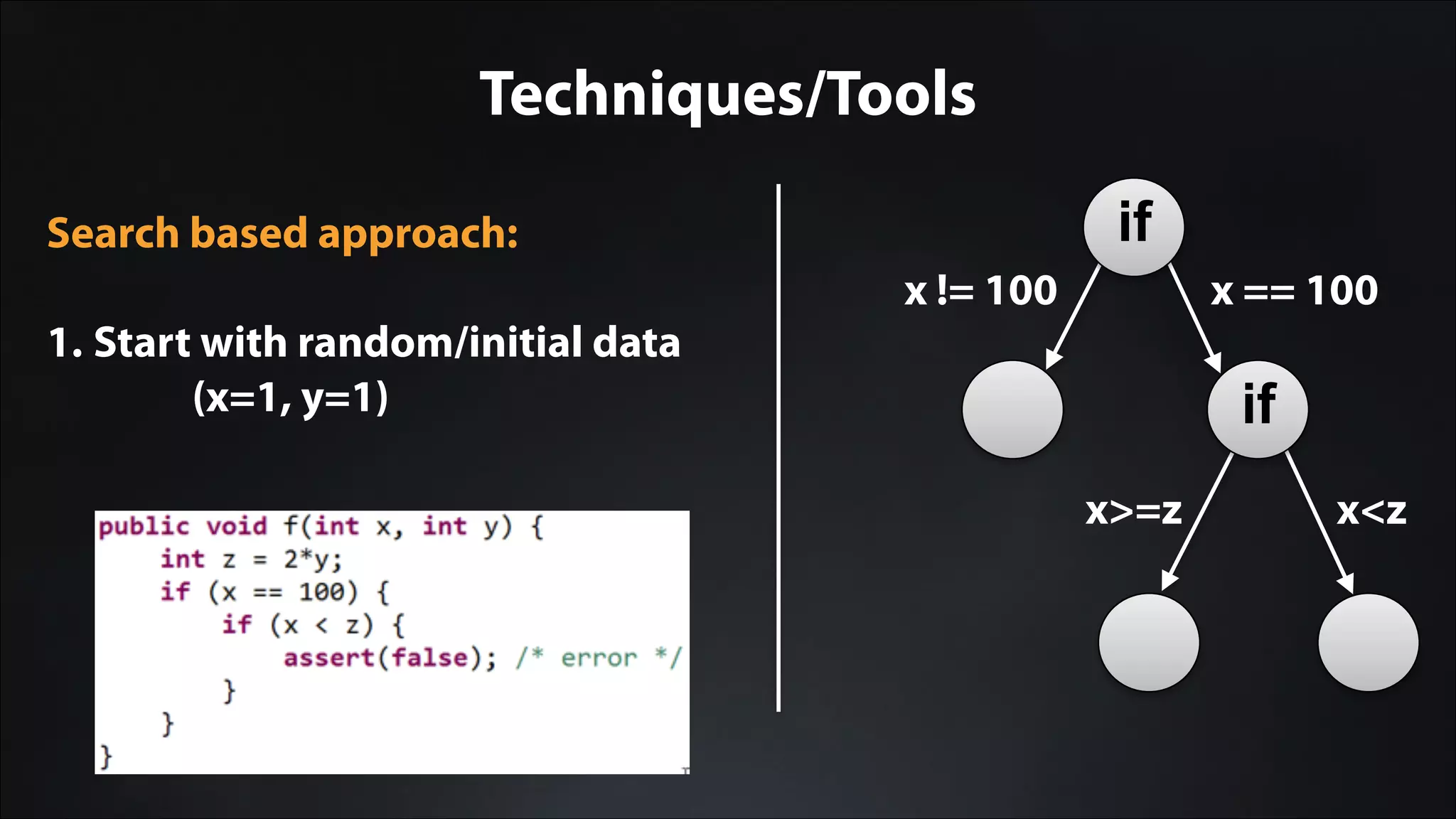

22. Techniques/Tools
x != 100 x == 100
x>=z x<z
if
ifSearch based approach:
!
1. Start with random/initial data
(x=1, y=1)

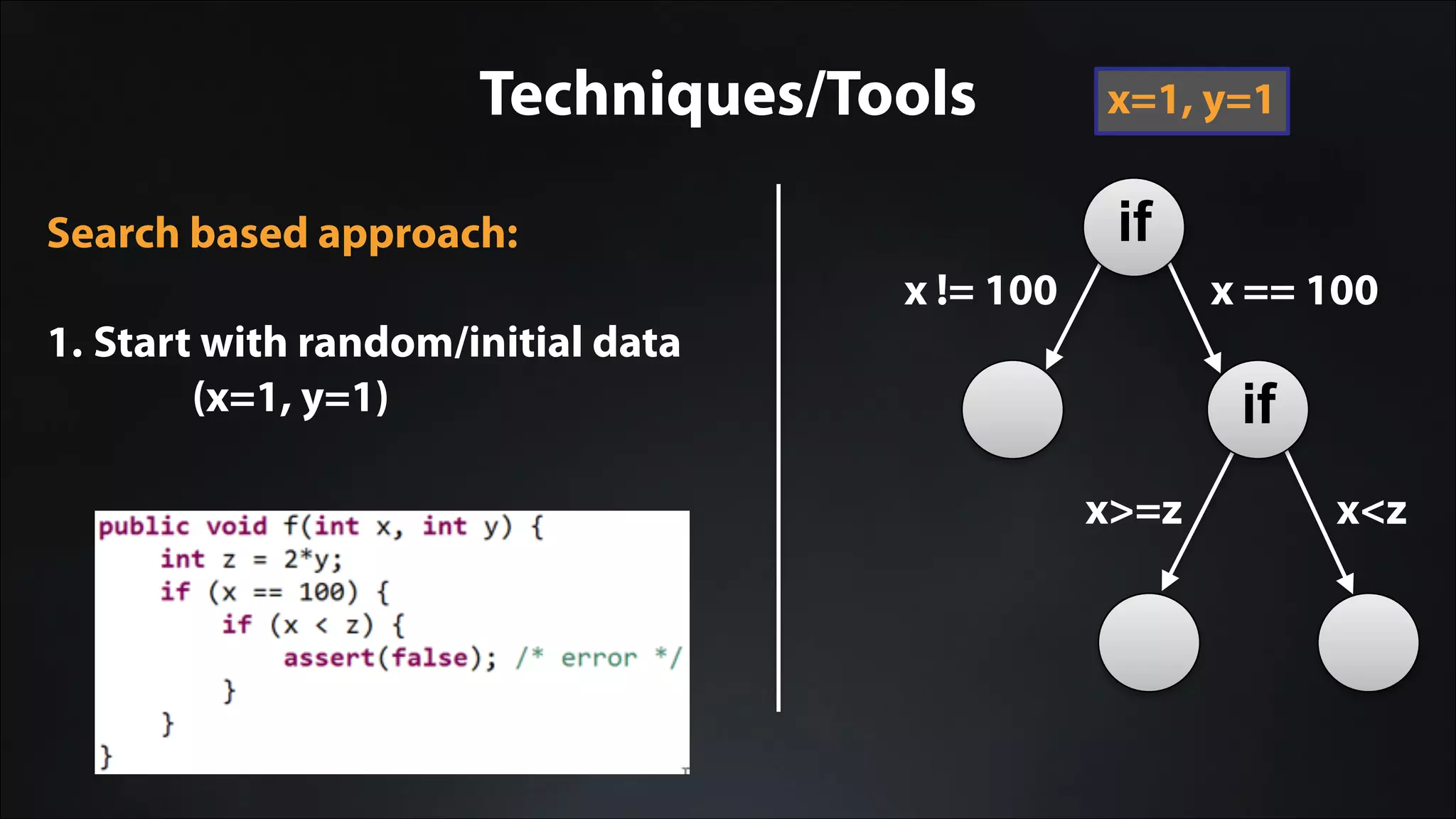

23. Techniques/Tools
x != 100 x == 100
x>=z x<z
if
ifSearch based approach:
!
1. Start with random/initial data
(x=1, y=1)
x=1, y=1

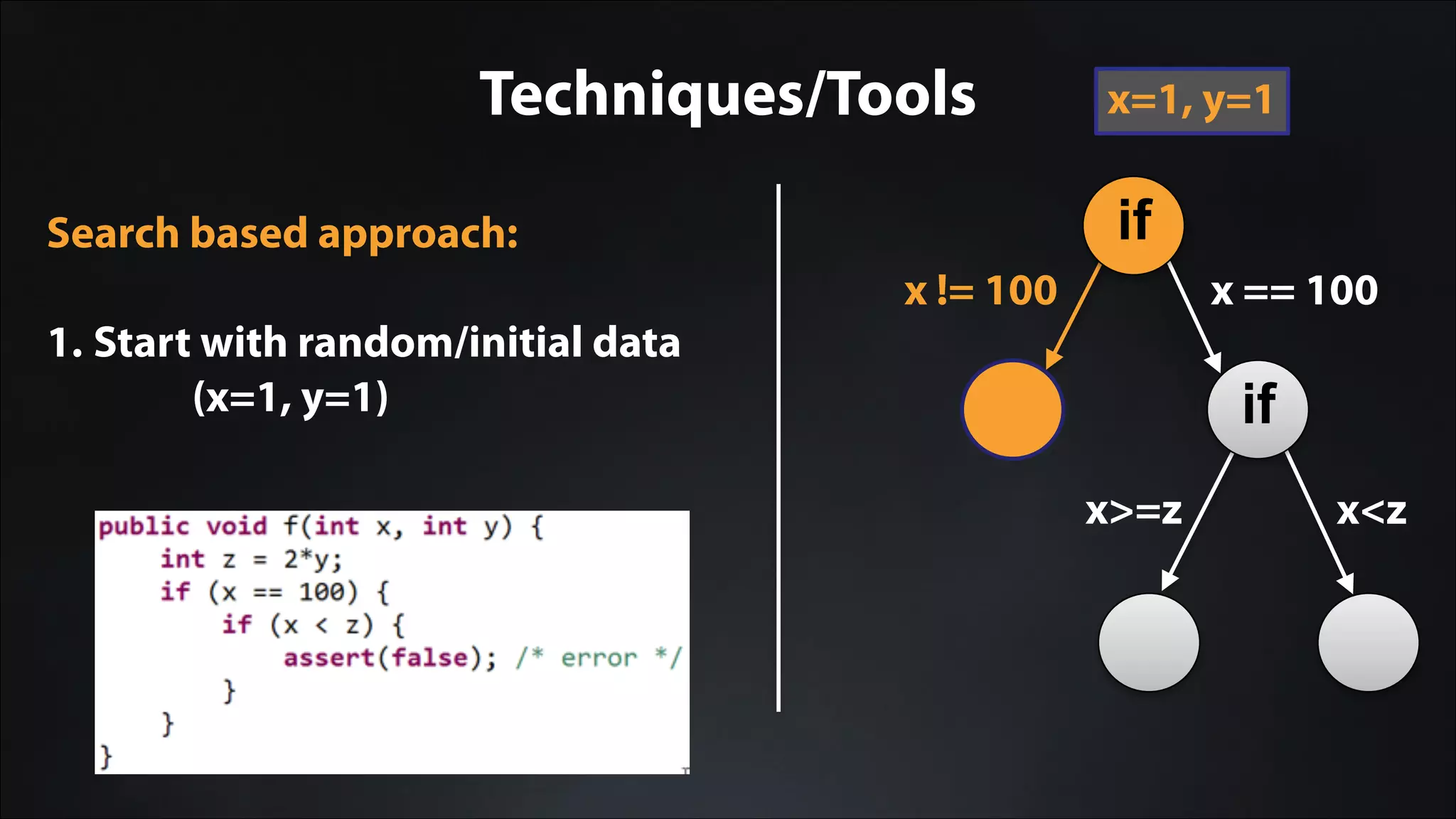

24. Techniques/Tools
x != 100
x>=z x<z
if
ifSearch based approach:
!
1. Start with random/initial data
(x=1, y=1)
x=1, y=1
x == 100

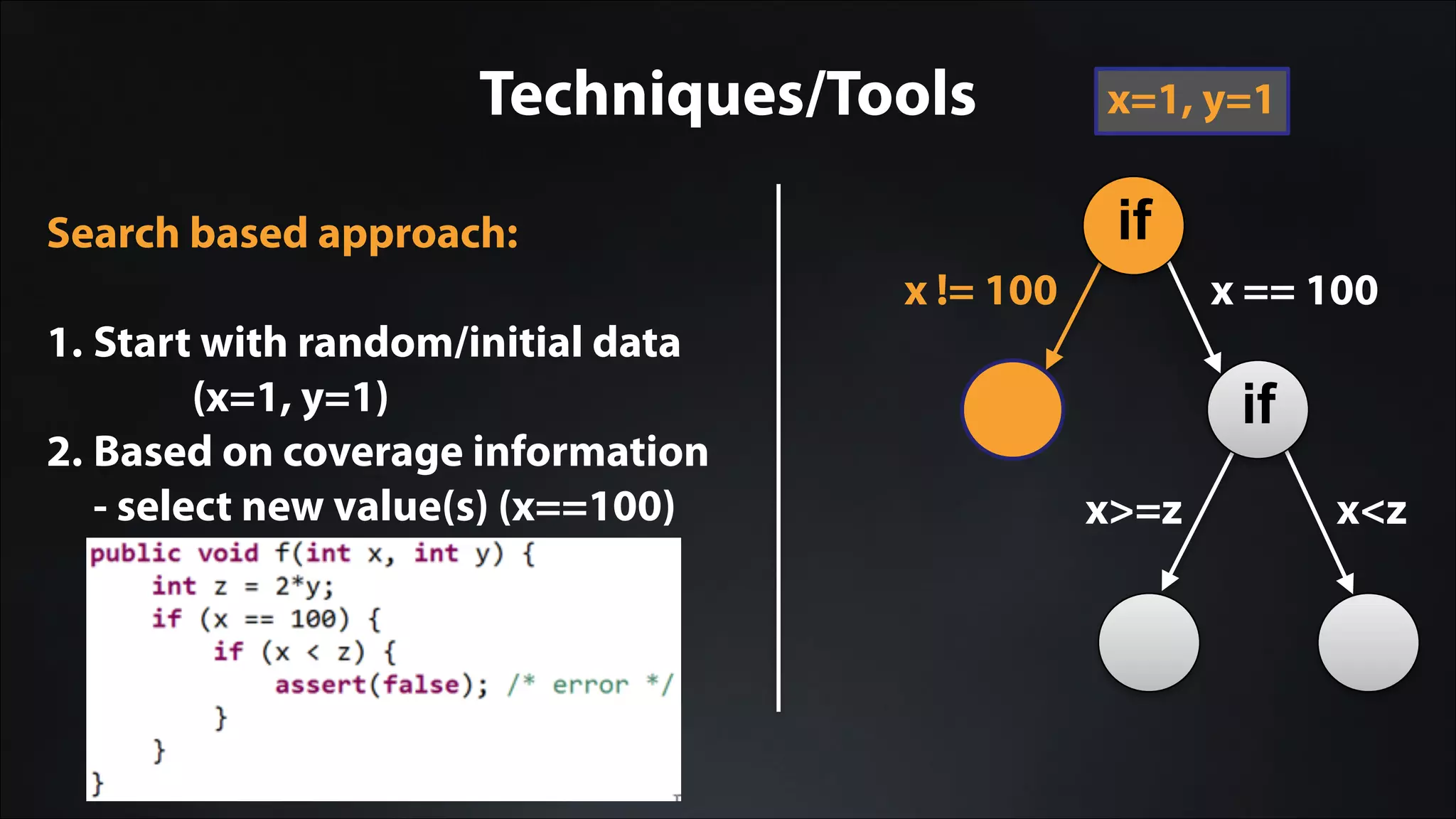

25. Techniques/Tools
x == 100
x>=z x<z
if
ifSearch based approach:
!
1. Start with random/initial data
(x=1, y=1)
2. Based on coverage information
- select new value(s) (x==100)
!
x != 100
x=1, y=1

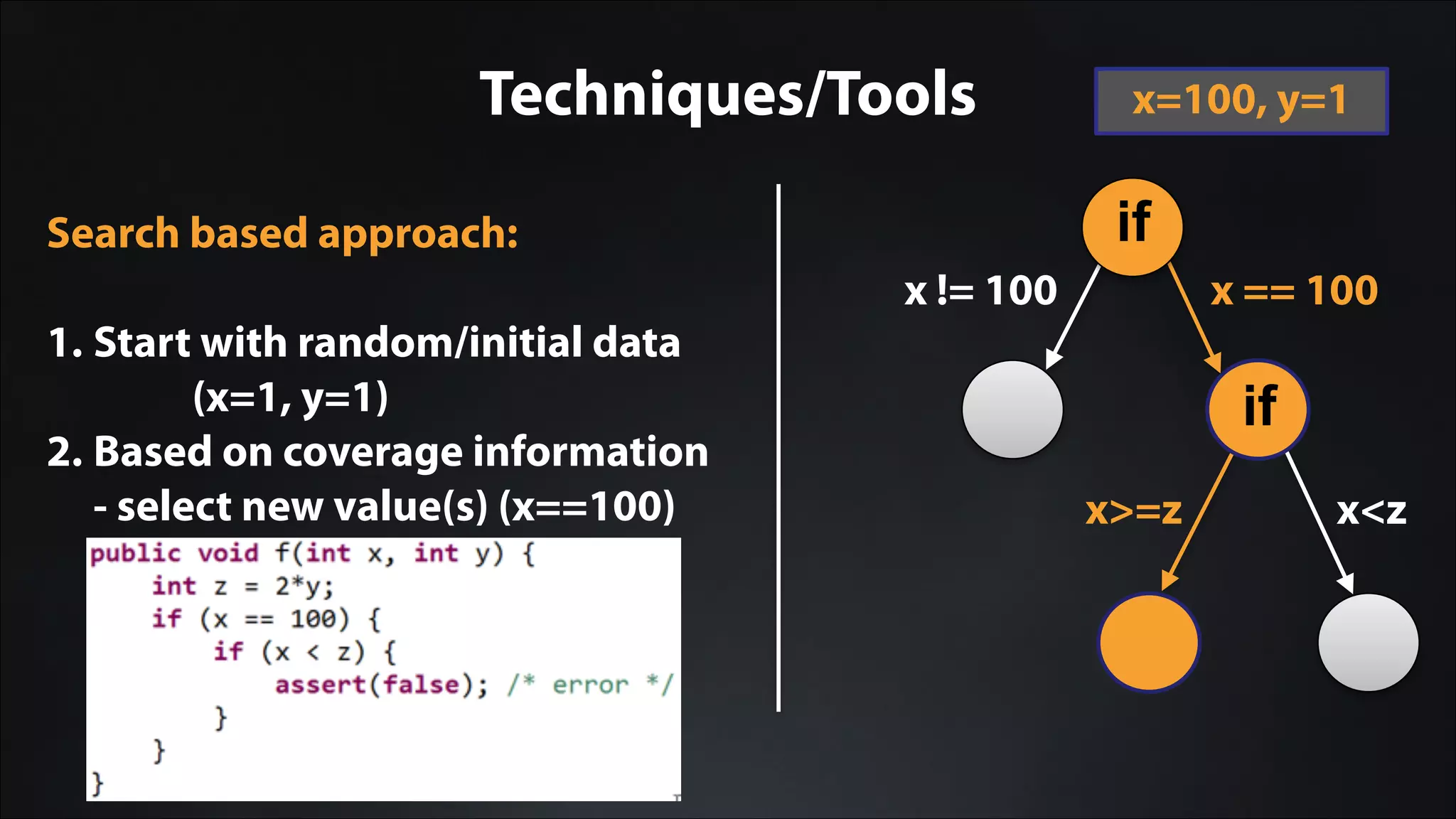

26. Techniques/Tools
x == 100
x>=z x<z
if
ifSearch based approach:
!
1. Start with random/initial data
(x=1, y=1)
2. Based on coverage information
- select new value(s) (x==100)
x=100, y=1
x != 100

27. Demo

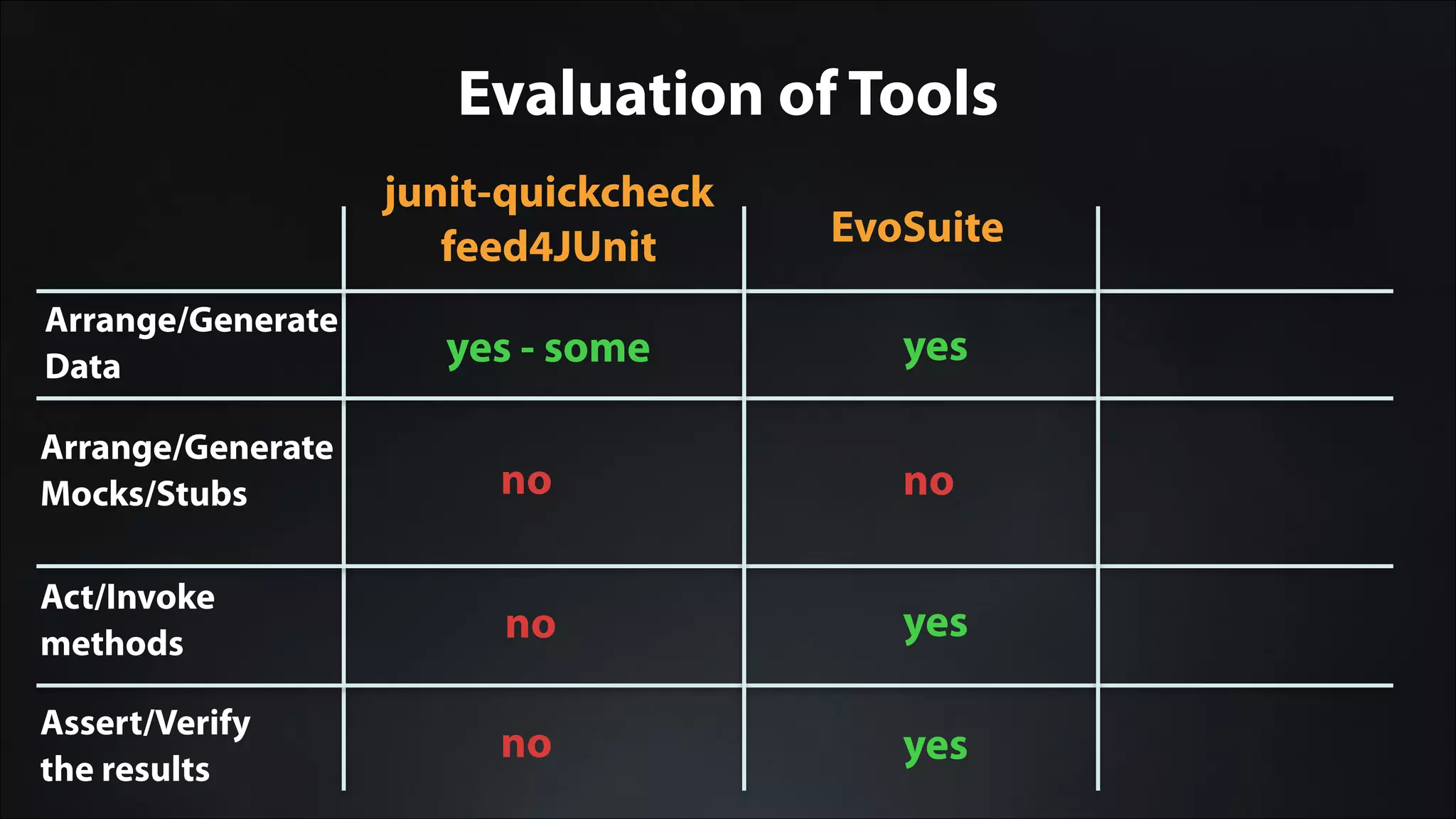

30. Evaluation of Tools
Arrange/Generate
Data
Arrange/Generate
Mocks/Stubs
Act/Invoke
methods
Assert/Verify
the results
yes - some
no
no
no
EvoSuite
yes
no
yes
yes
junit-quickcheck
feed4JUnit

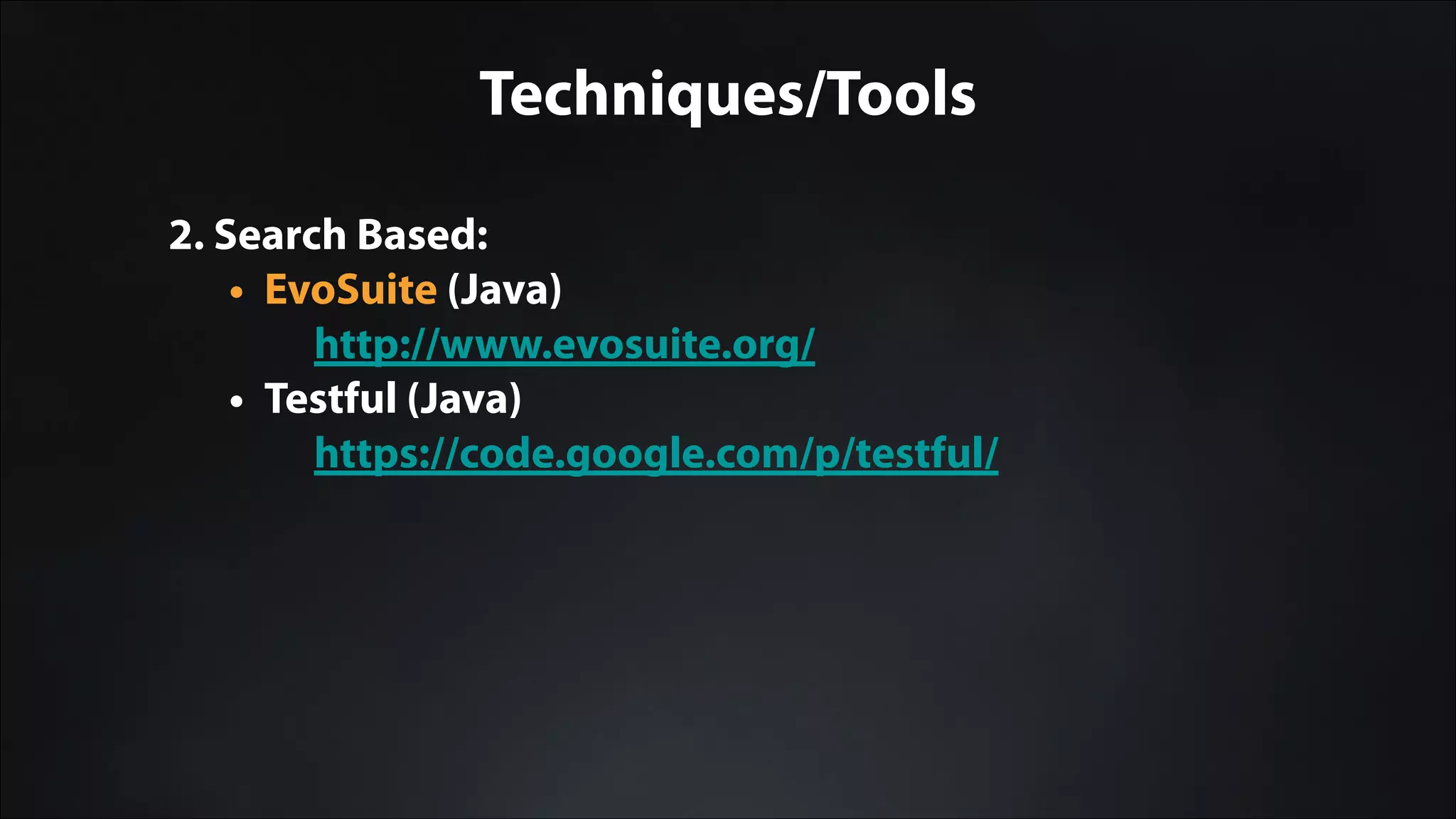

31. Techniques/Tools
2. Search Based:
• EvoSuite (Java)
http://www.evosuite.org/
• Testful (Java)
https://code.google.com/p/testful/

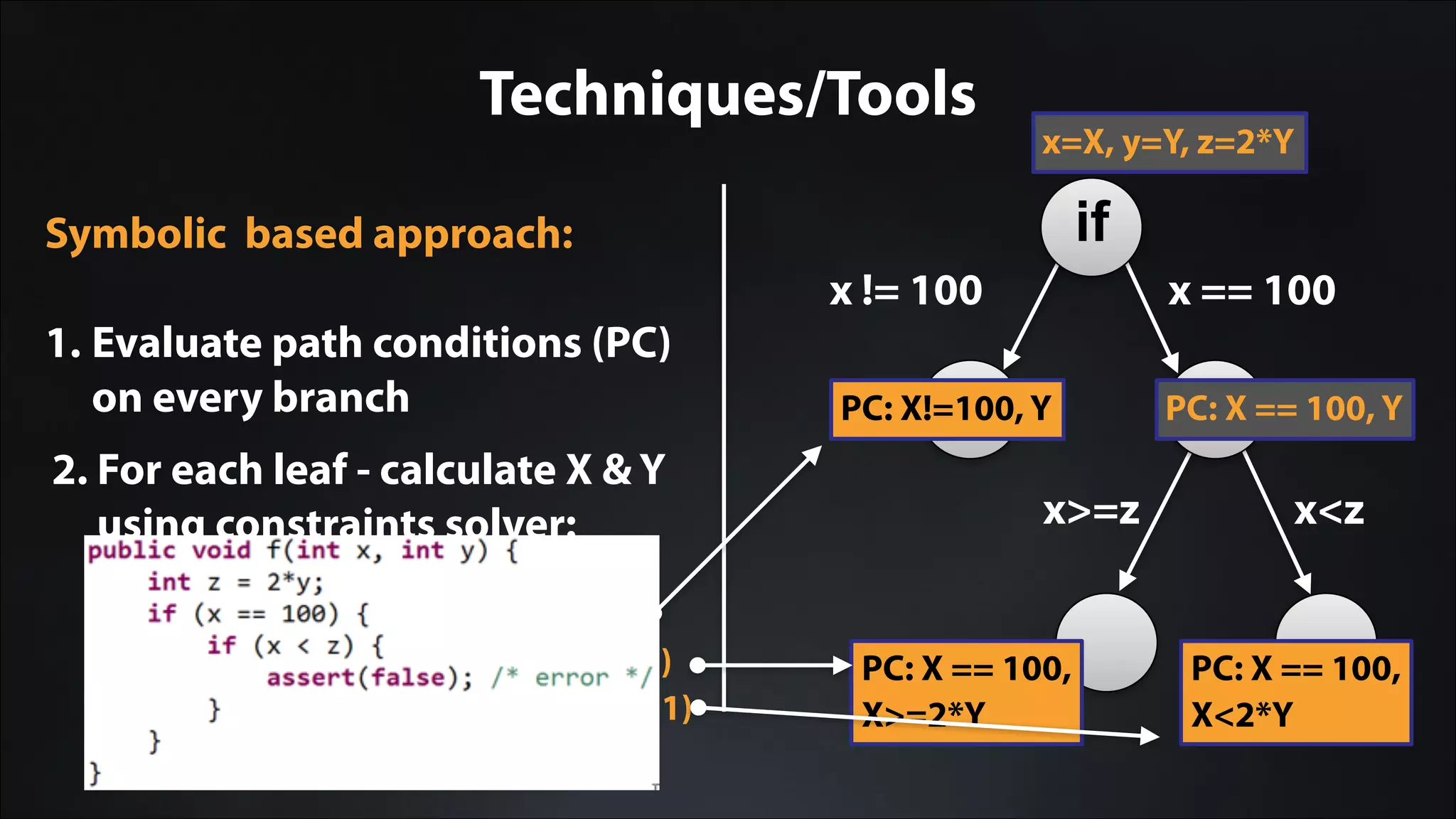

32. Techniques/Tools
x != 100 x == 100
x>=z x<z
if
ifSymbolic based approach:
!
1. Evaluate path conditions (PC)
on every branch PC: X!=100, Y PC: X == 100, Y
x=X, y=Y, z=2*Y
PC: X == 100,
X>=2*Y
PC: X == 100,
X<2*Y
1. X!=100, Y => (x=1, y=1)
2. X=100, X>=2*Y =>(x=100, y=1)
3. X=100, X<2*Y =>(x=100, y=51)
2. For each leaf - calculate X & Y
using constraints solver:

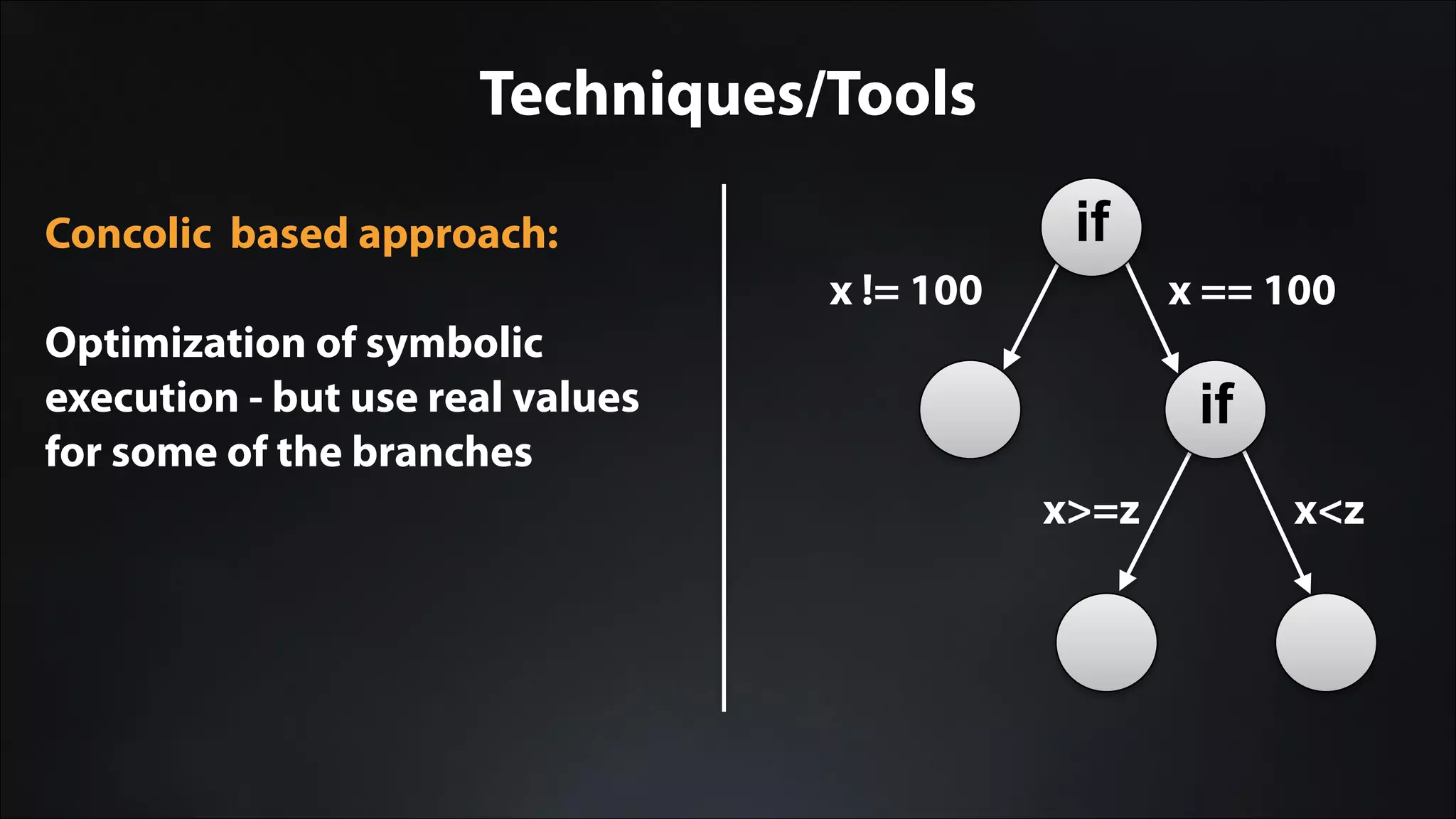

33. Techniques/Tools
x != 100 x == 100
x>=z x<z
if
ifConcolic based approach:
!
Optimization of symbolic
execution - but use real values
for some of the branches

34. Demo

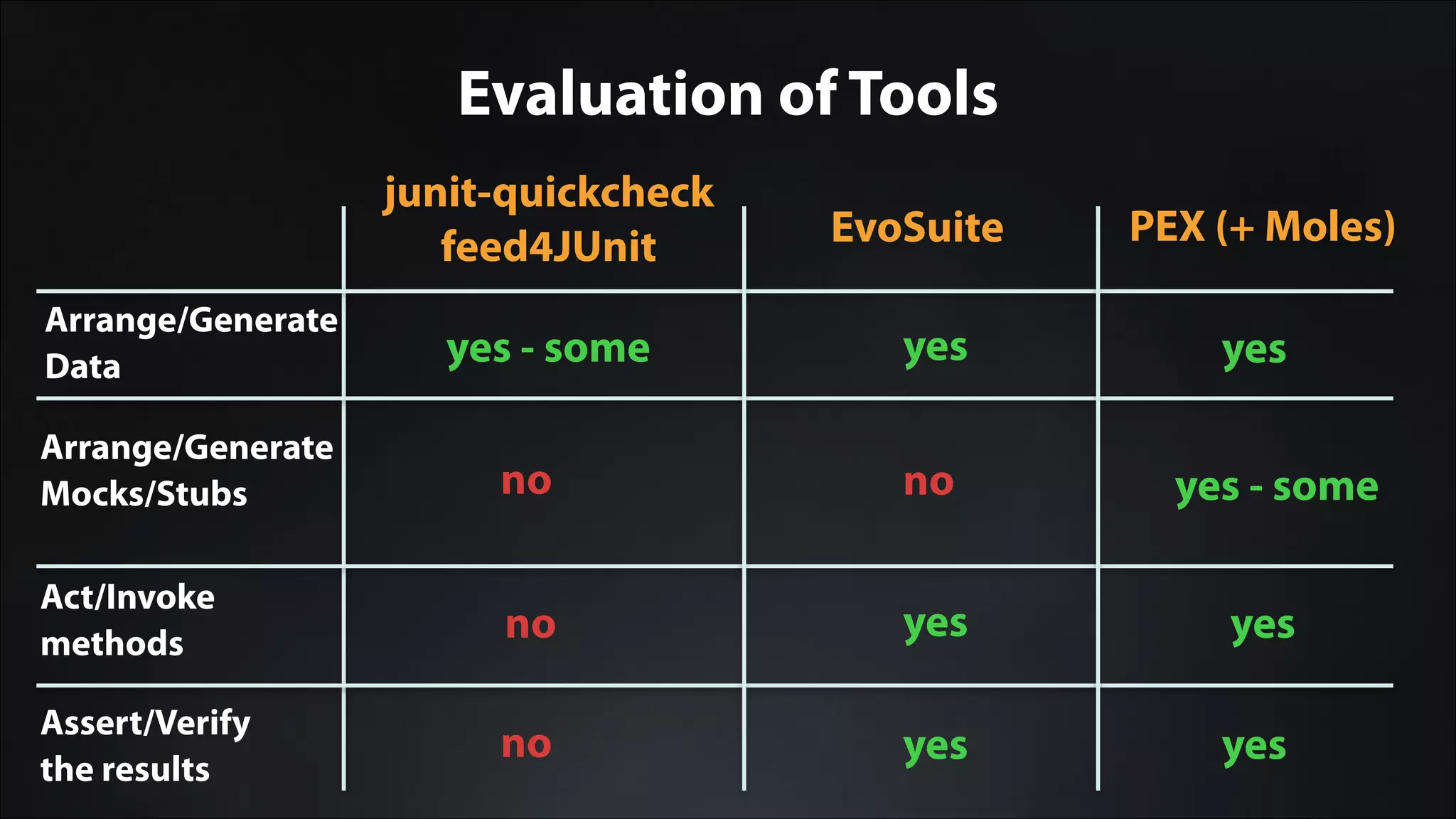

35. Evaluation of Tools
Arrange/Generate
Data
Arrange/Generate
Mocks/Stubs
Act/Invoke
methods
Assert/Verify
the results
yes - some
no
no
no
EvoSuite
yes
no
yes
yes
PEX (+ Moles)
yes
yes - some
yes
yes
junit-quickcheck
feed4JUnit

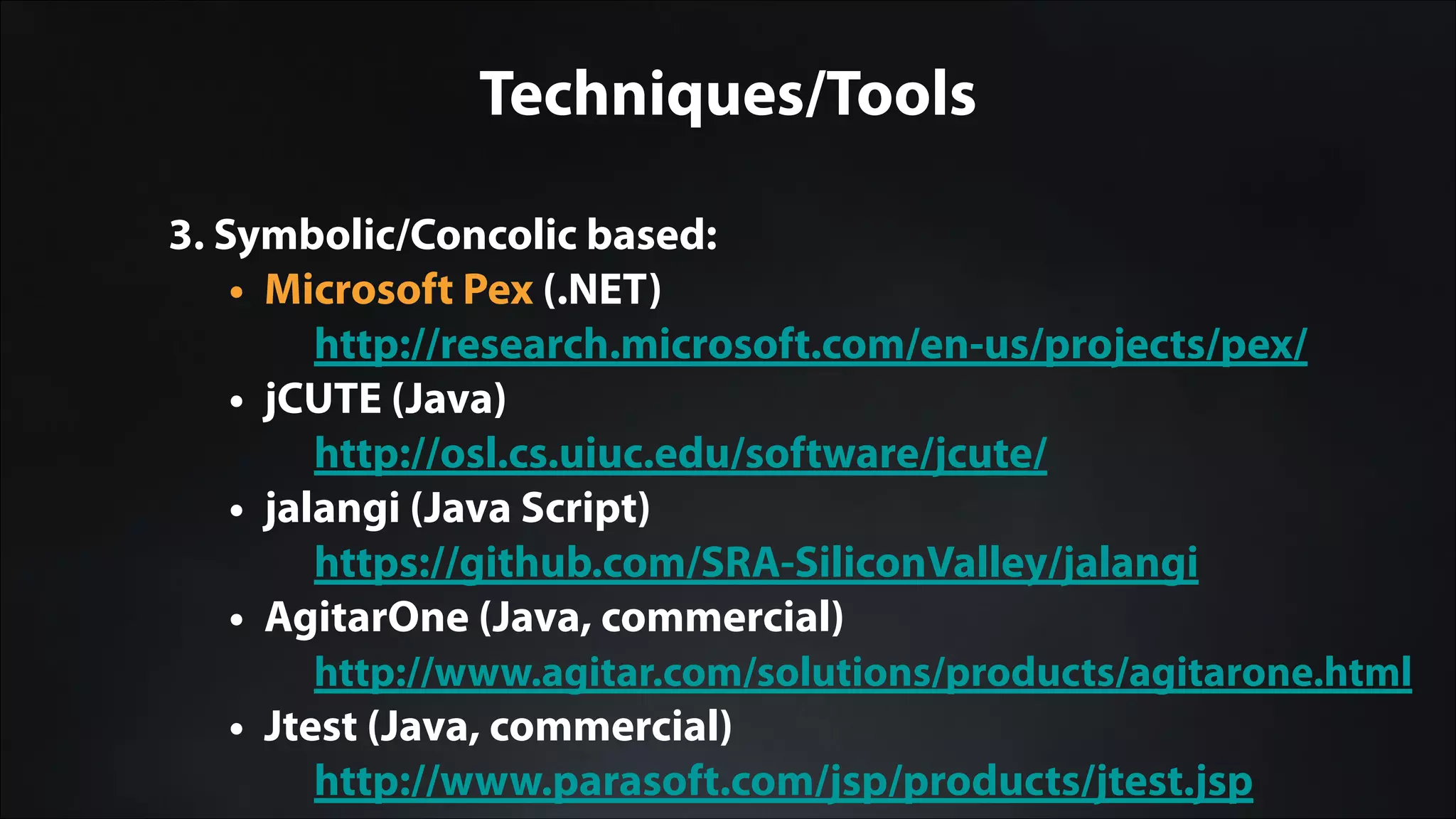

36. Techniques/Tools
3. Symbolic/Concolic based:
• Microsoft Pex (.NET)
http://research.microsoft.com/en-us/projects/pex/
• jCUTE (Java)
http://osl.cs.uiuc.edu/software/jcute/
• jalangi (Java Script)
https://github.com/SRA-SiliconValley/jalangi
• AgitarOne (Java, commercial)
http://www.agitar.com/solutions/products/agitarone.html
• Jtest (Java, commercial)
http://www.parasoft.com/jsp/products/jtest.jsp

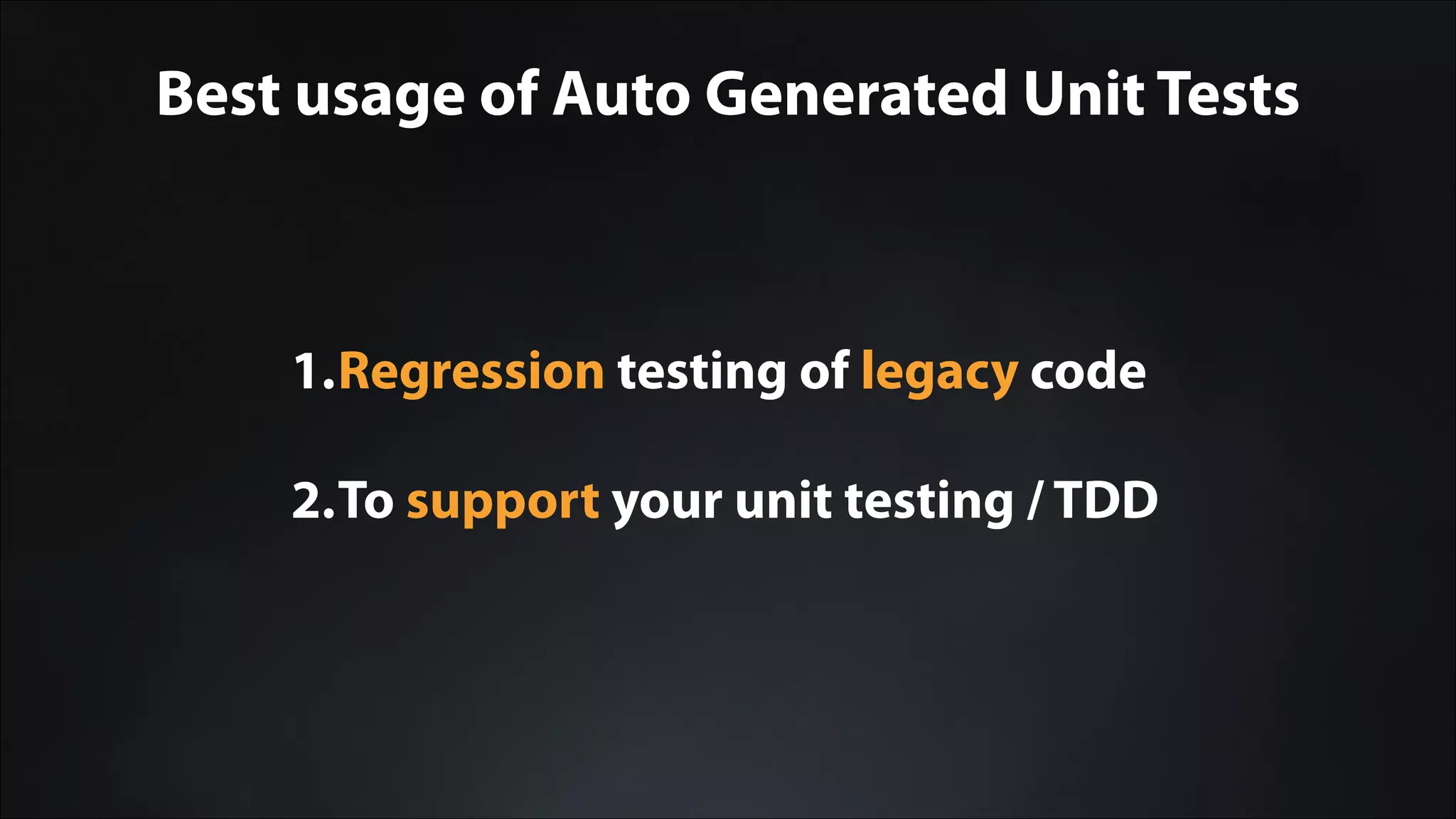

37. Best usage of Auto Generated Unit Tests
1.Regression testing of legacy code
!
2.To support your unit testing / TDD

38. Automatic Generation of GUI/API tests?

39. Q&A

40. Thank you
!
Vassil Popovski
!
Director, R&D, VMware
