Testing Multithreaded Java
Applications for
Synchronization Problems
Vassil Popovski

www.istabg.orgwww.vmware.com

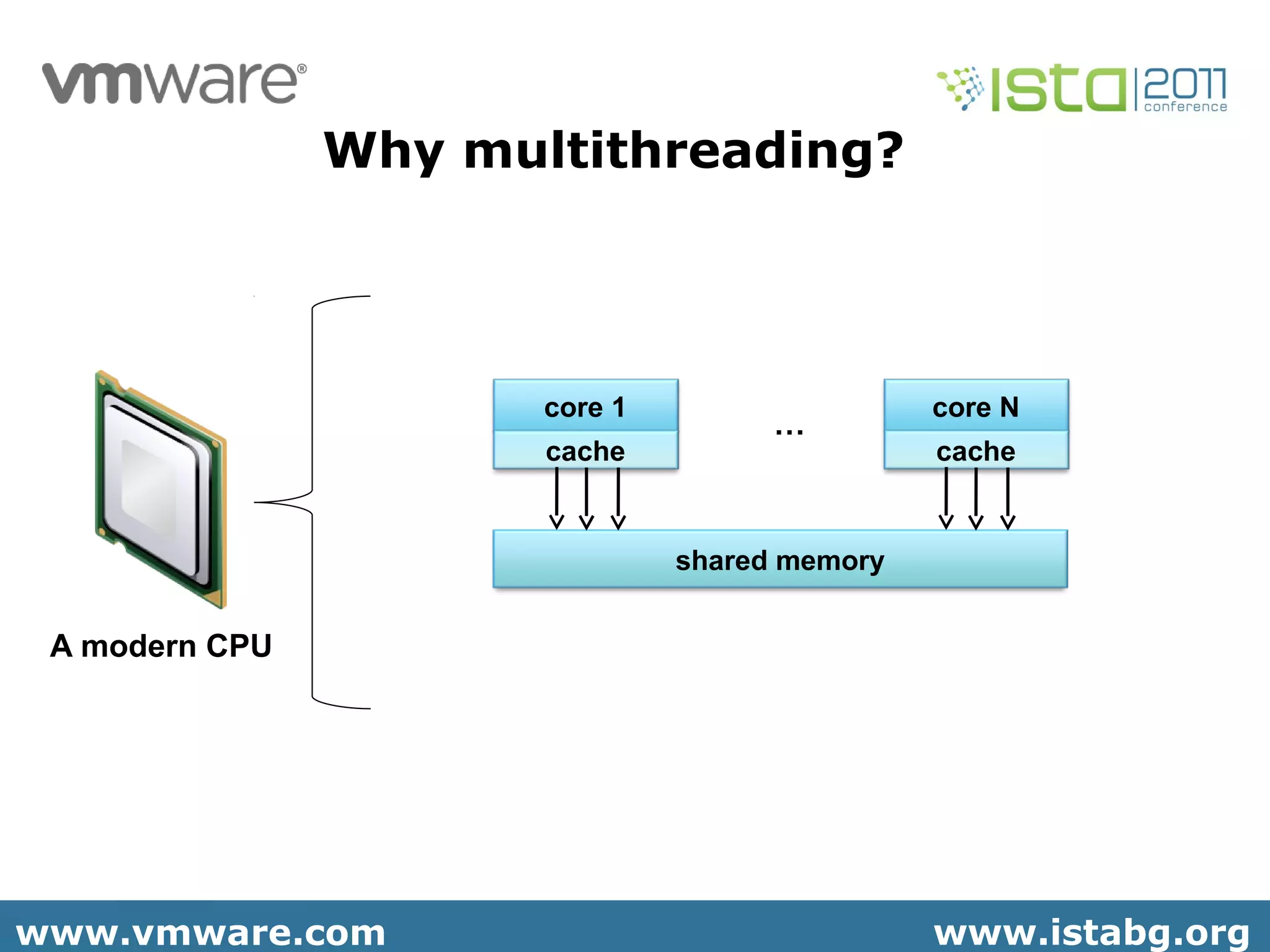

Why multithreading?
A modern CPU
…
core 1
cache
core N
cache
shared memory

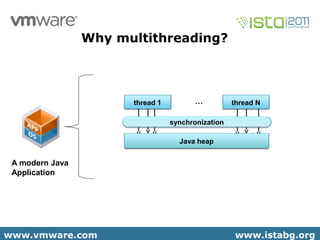

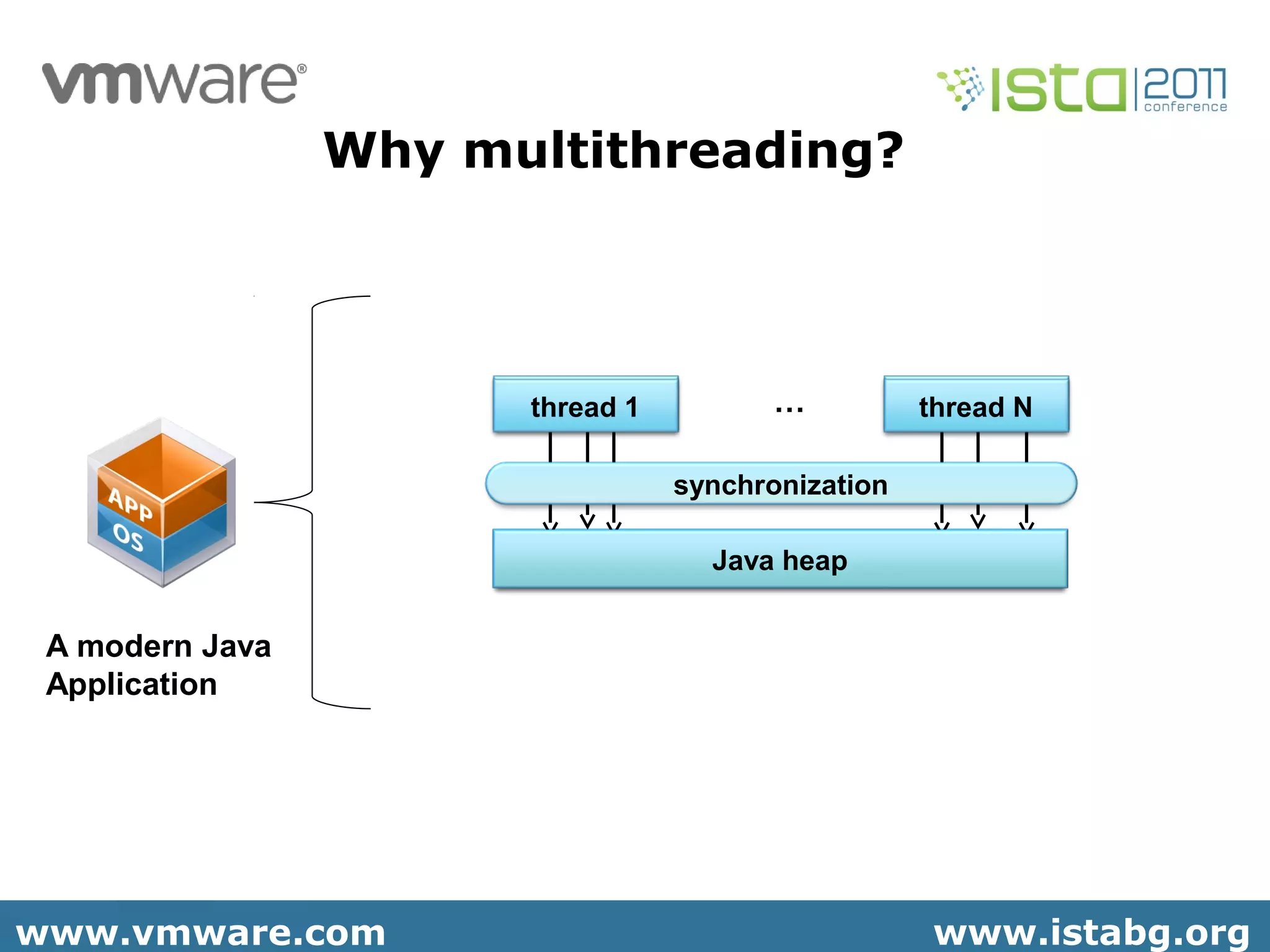

Why multithreading?
…Thread 1 Thread N
Java heap
A modern Java
Application
synchronization
thread 1 thread N
Java heap

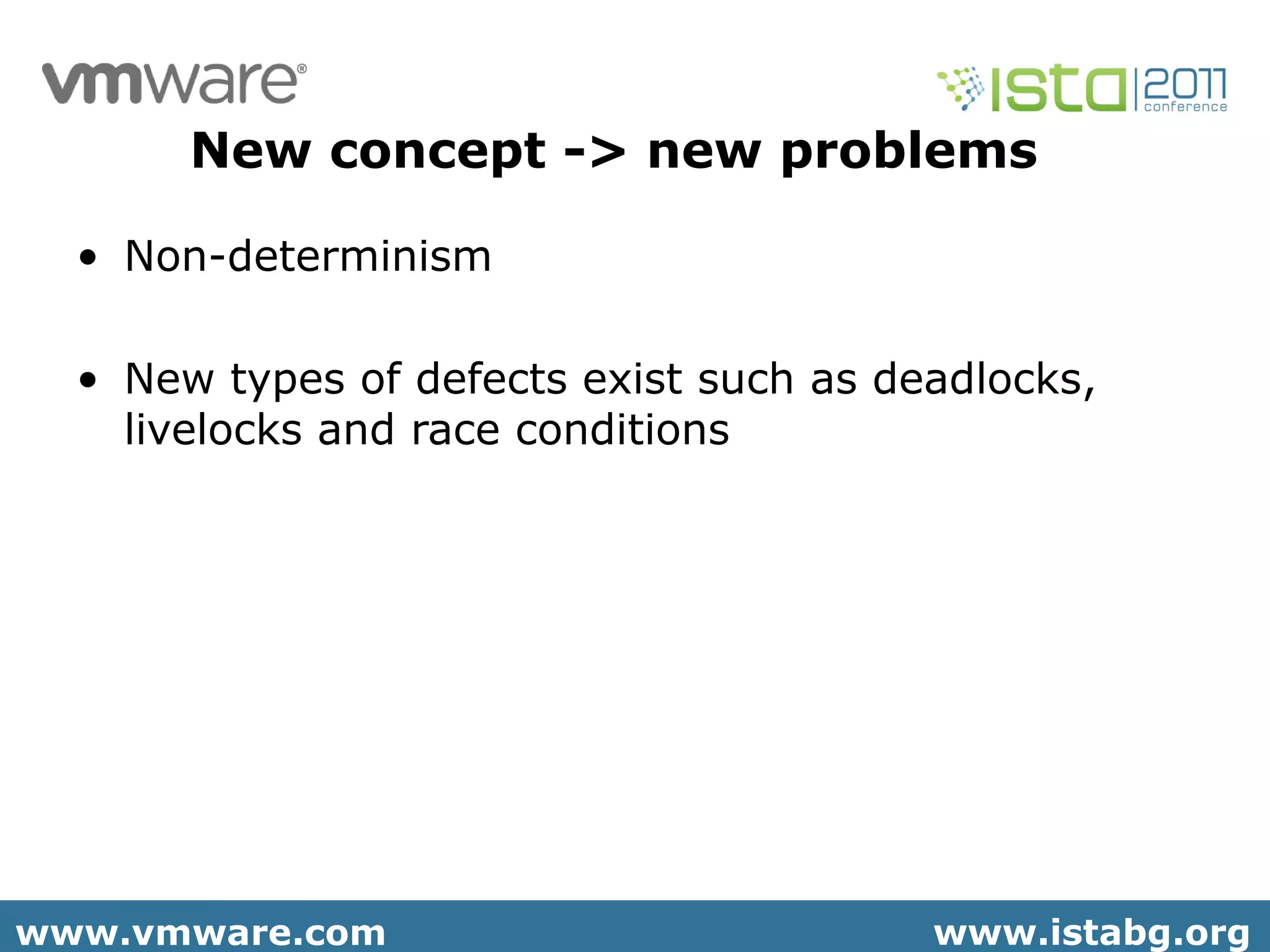

• Non-determinism
• New types of defects exist such as deadlocks,
livelocks and race conditions
New concept -> new problems

Thread 2Thread 1

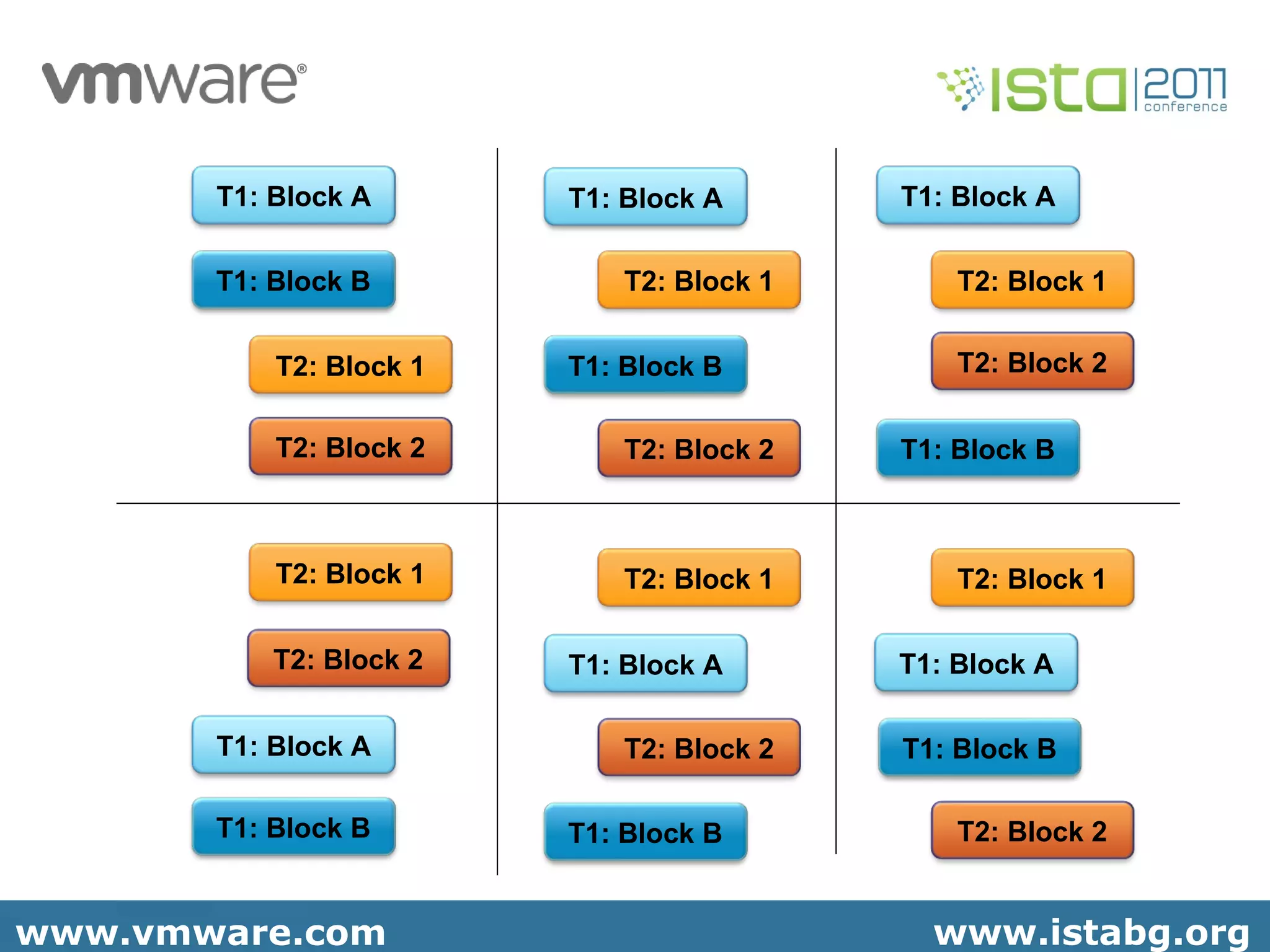

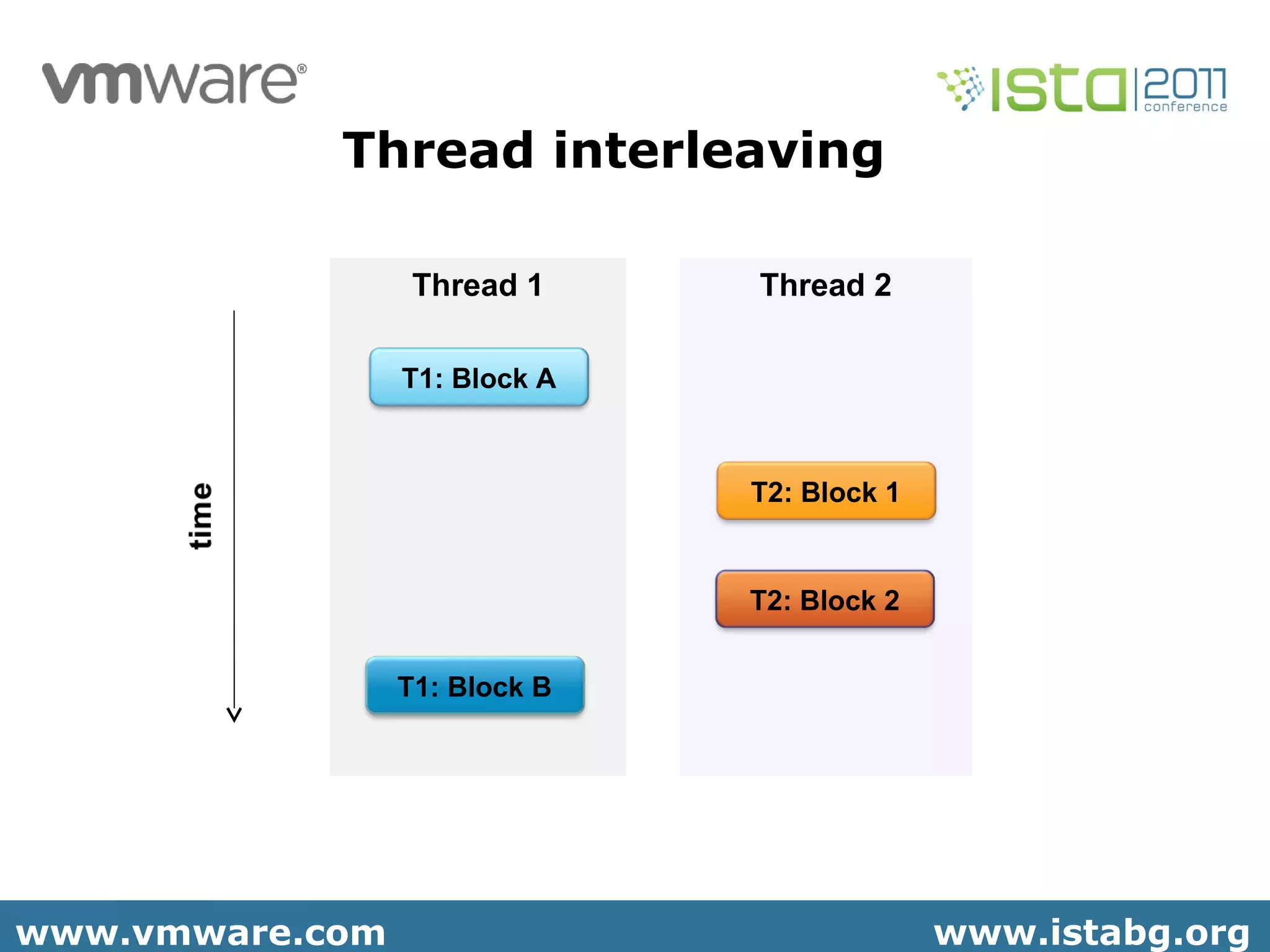

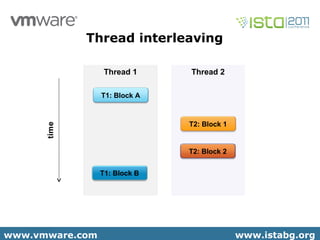

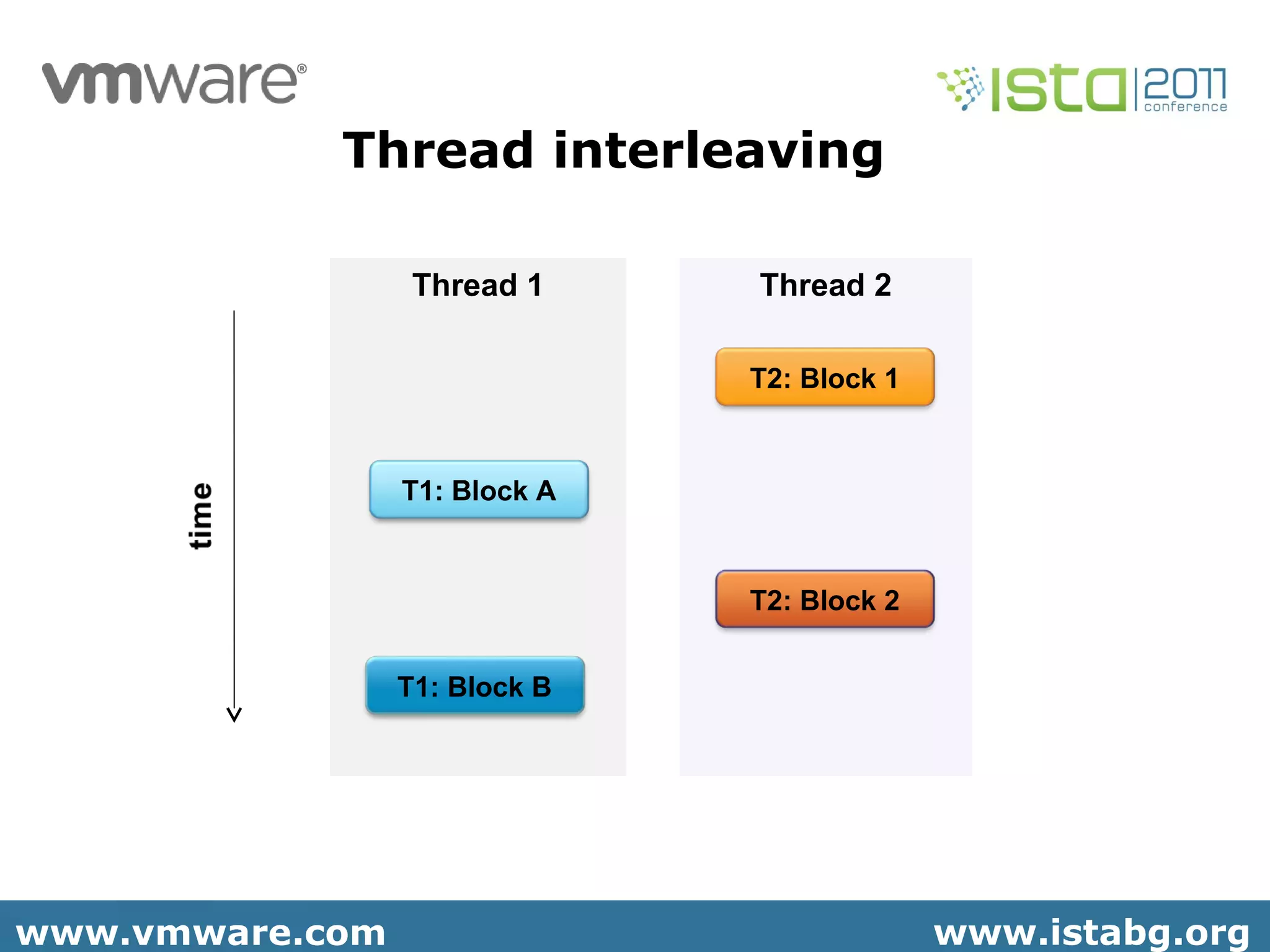

Thread interleaving
T1: Block A
T1: Block B
T2: Block 1
T2: Block 2

T1: Block A
T1: Block B
T2: Block 1
T2: Block 2
T1: Block A
T1: Block B
T2: Block 1
T2: Block 2
T1: Block A
T1: Block B
T2: Block 1
T2: Block 2
T1: Block A
T1: Block B
T2: Block 1
T2: Block 2 T1: Block A
T1: Block B
T2: Block 1
T2: Block 2
T1: Block A
T1: Block B
T2: Block 1
T2: Block 2

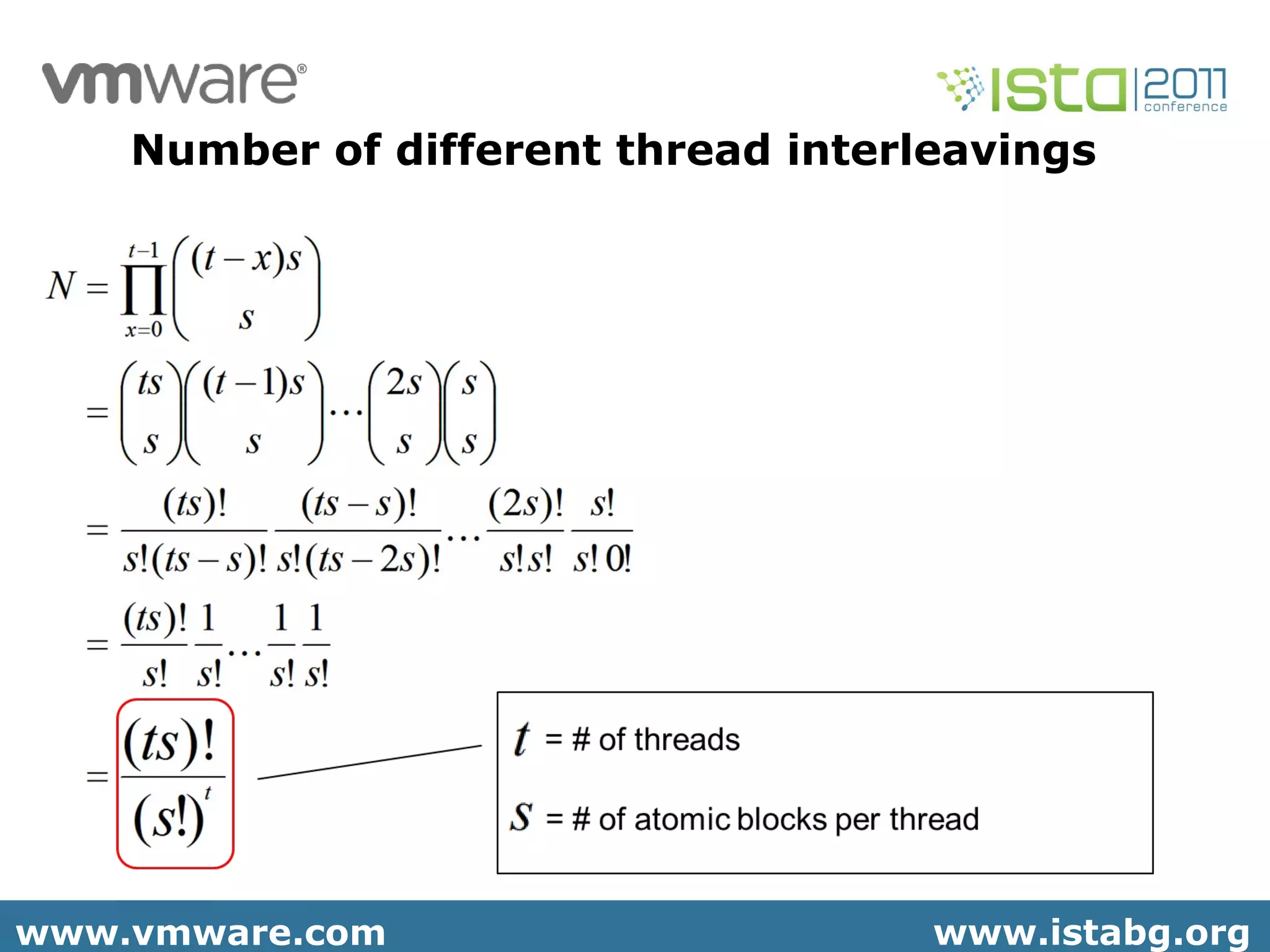

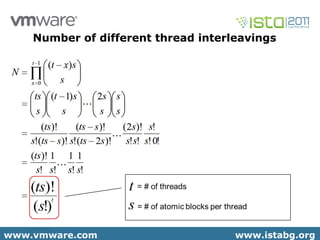

Number of different thread interleavings

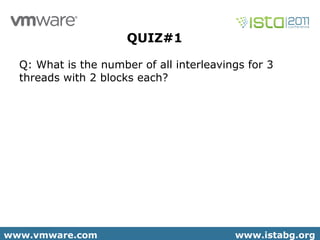

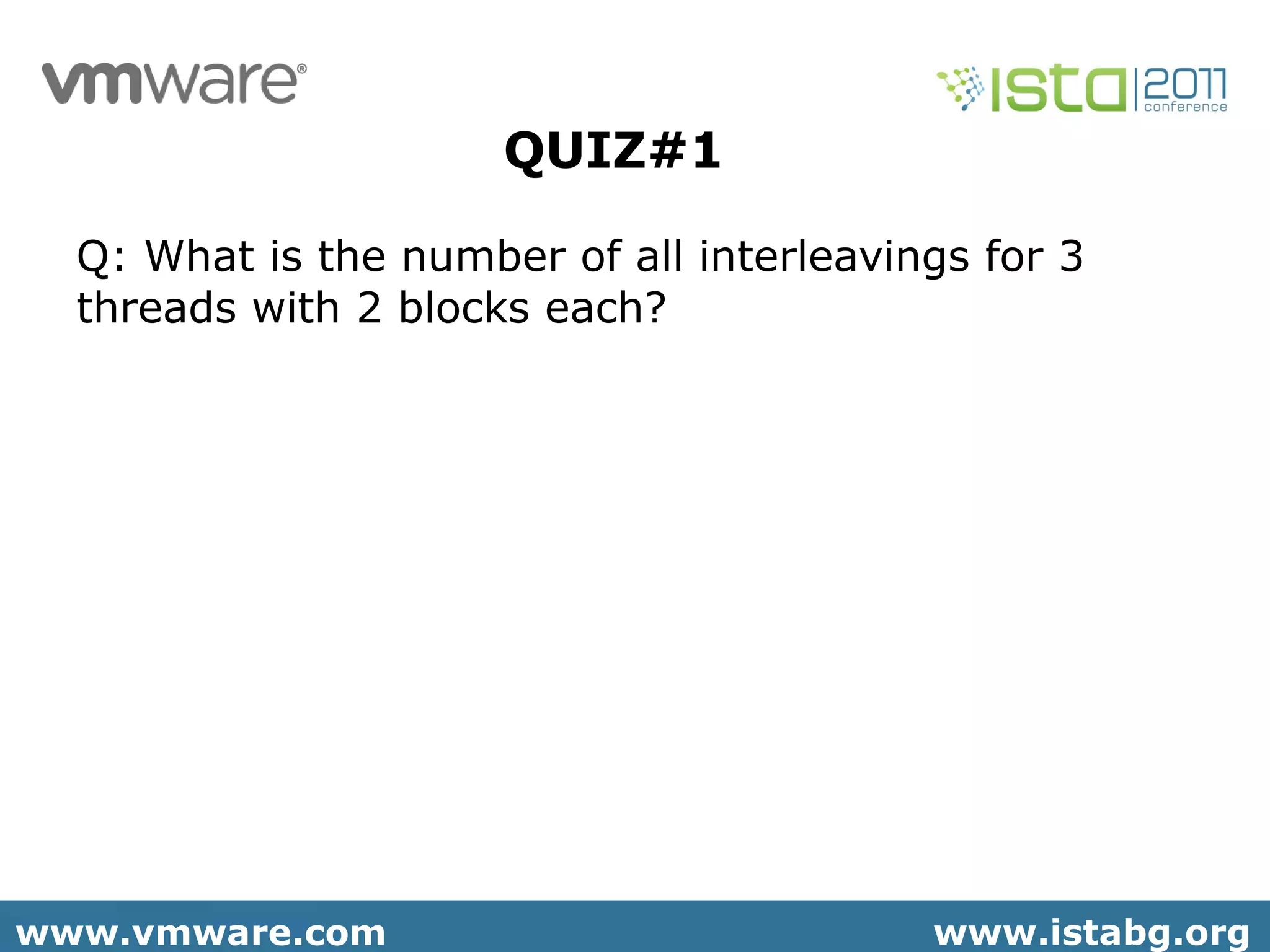

Q: What is the number of all interleavings for 3
threads with 2 blocks each?
QUIZ#1

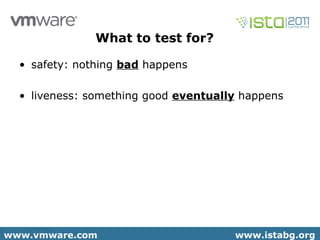

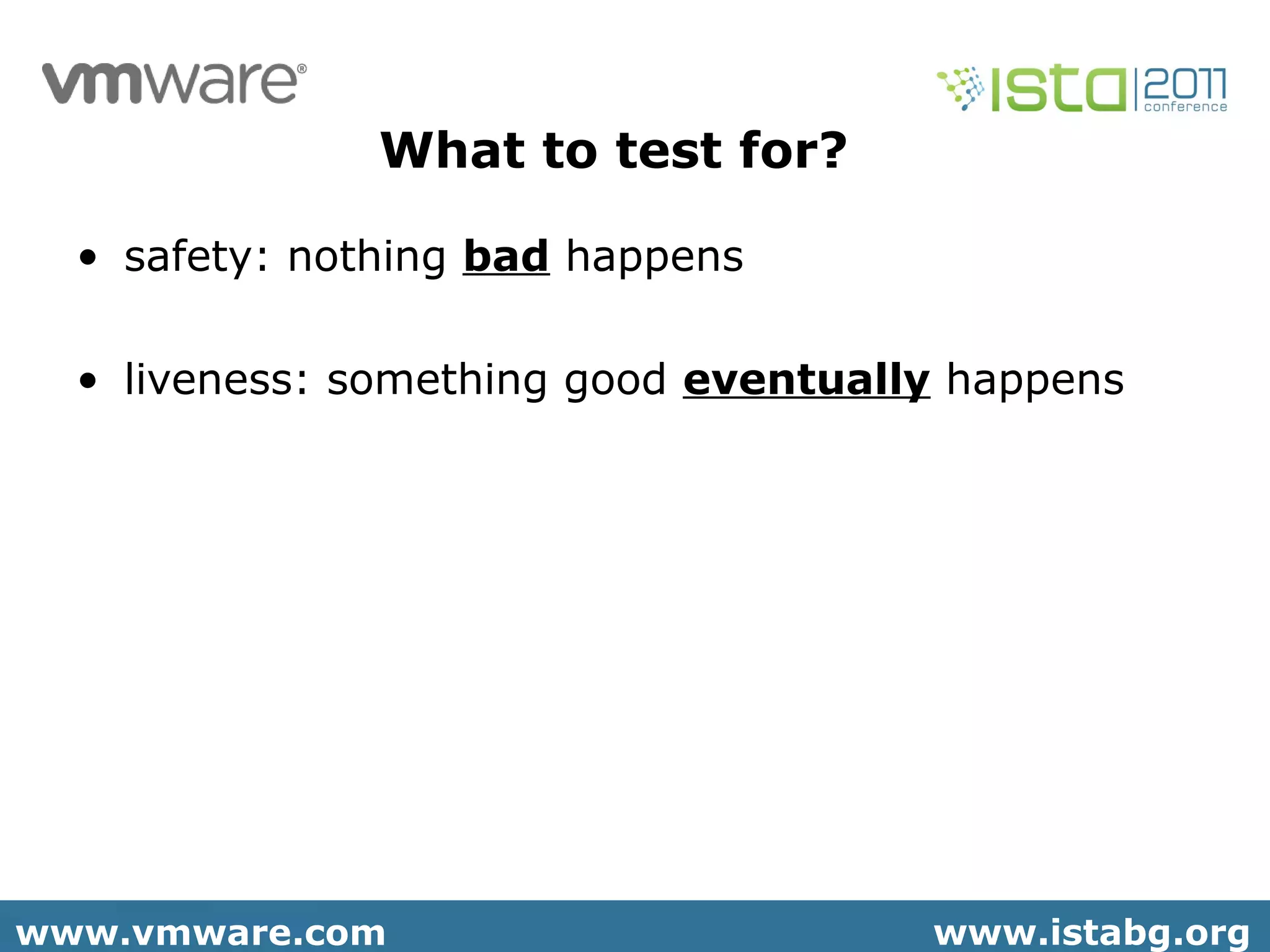

• safety: nothing bad happens
• liveness: something good eventually happens
What to test for?

Image source: http://www.doc.ic.ac.uk/~jnm/book/ppt/ch7.ppt

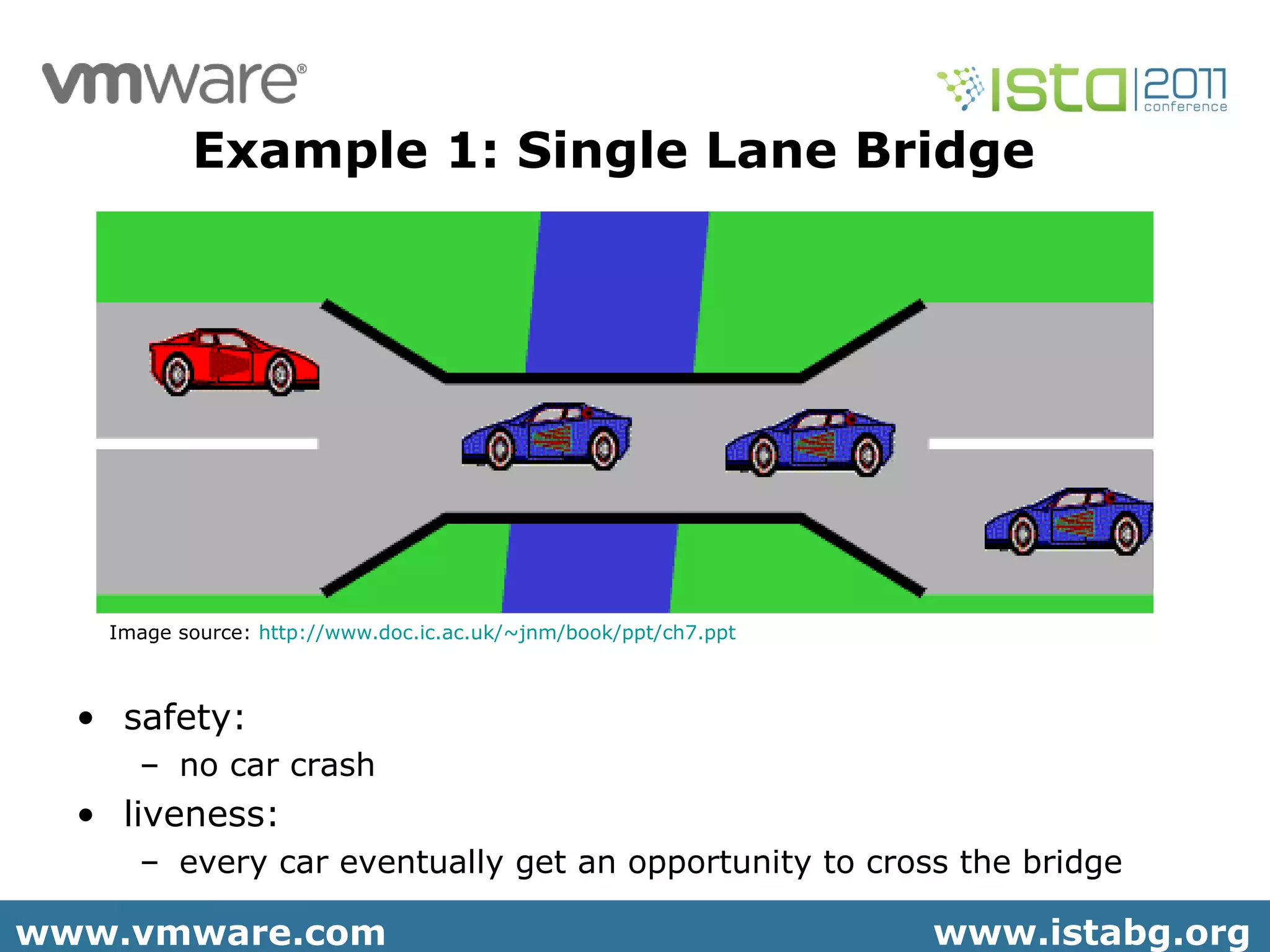

Example 1: Single Lane Bridge
• safety:
– no car crash
• liveness:
– every car eventually get an opportunity to cross the bridge

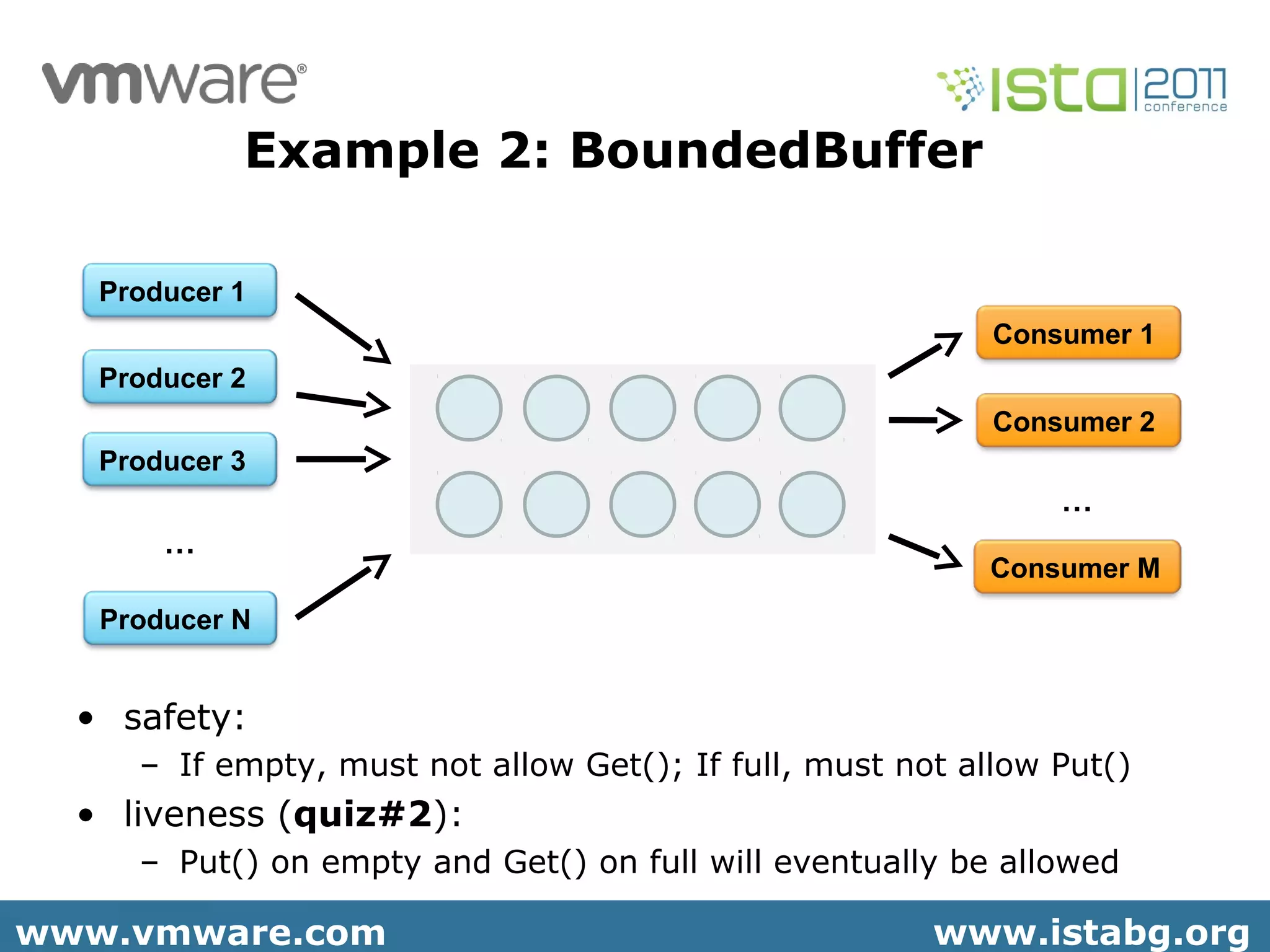

Example 2: BoundedBuffer
Producer 1
Producer 2
Producer 3
Producer N
Consumer 1
Consumer 2
Consumer M
…
…
• safety:
– If empty, must not allow Get(); If full, must not allow Put()
• liveness (quiz#2):
– Put() on empty and Get() on full will eventually be allowed

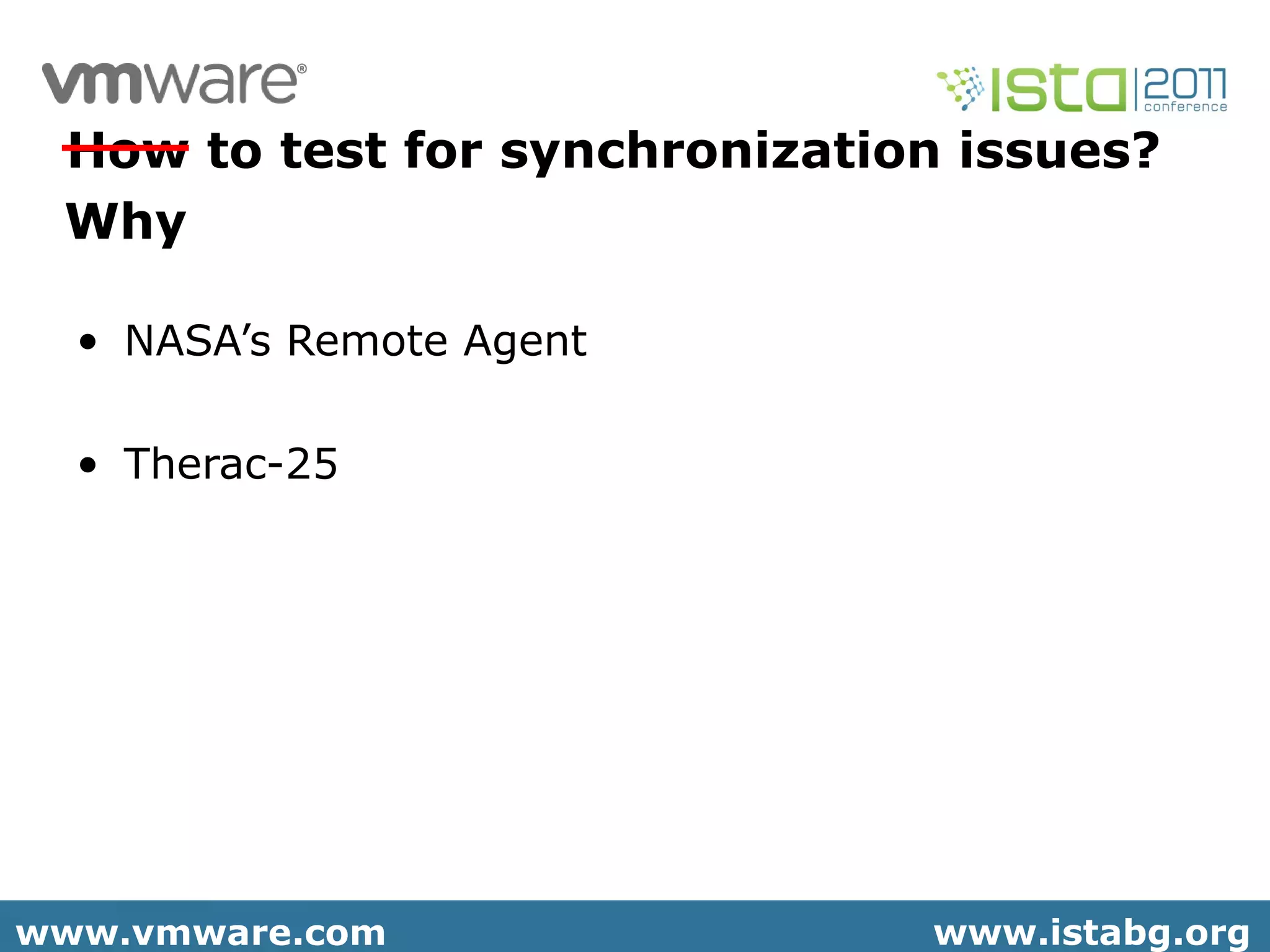

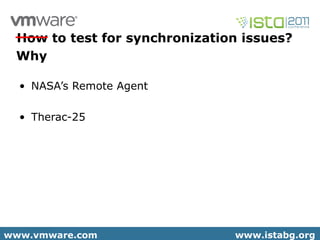

How to test for synchronization issues?
Why
• NASA’s Remote Agent
• Therac-25

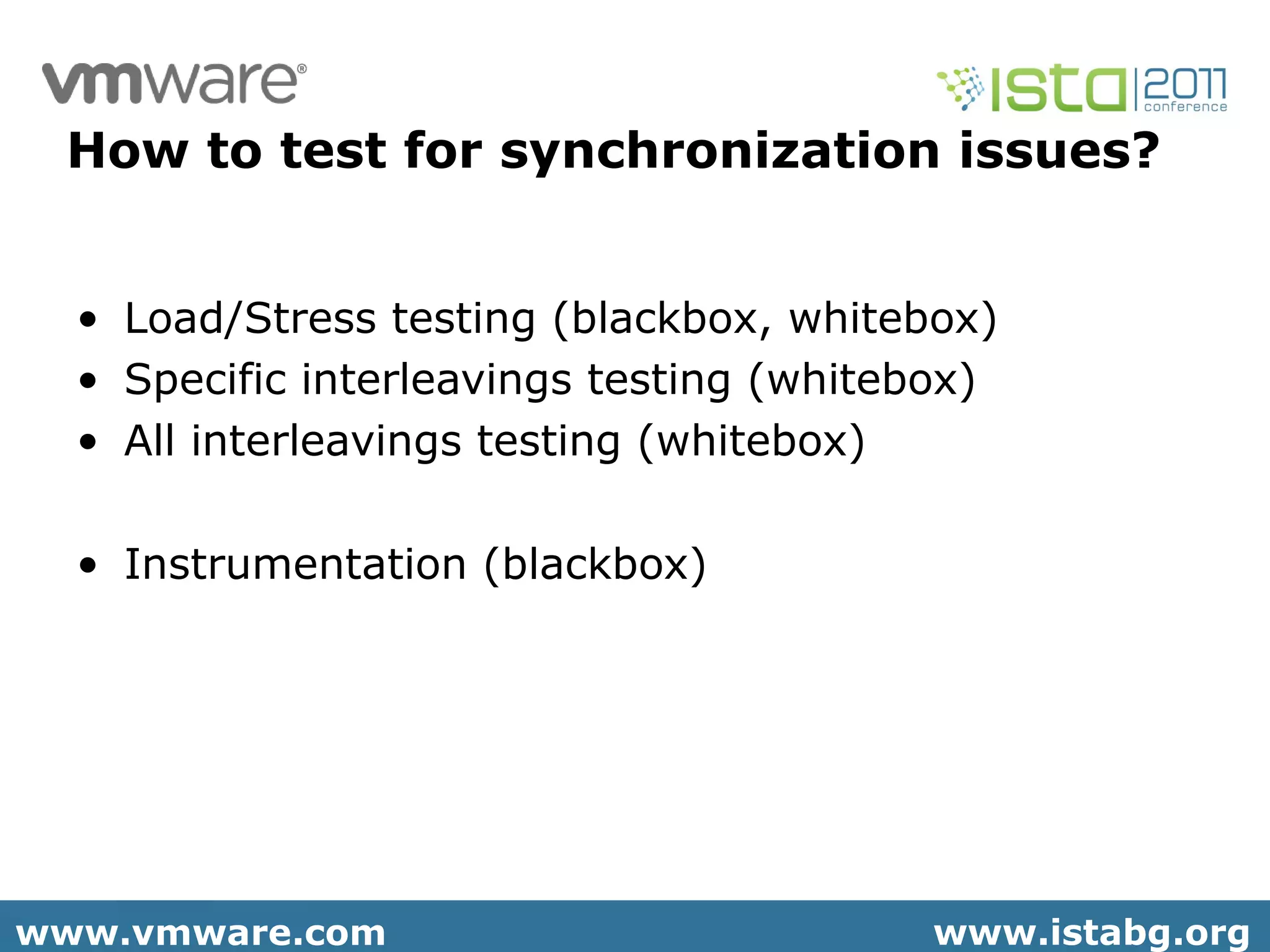

How to test for synchronization issues?
• Load/Stress testing (blackbox, whitebox)
• Specific interleavings testing (whitebox)
• All interleavings testing (whitebox)
• Instrumentation (blackbox)

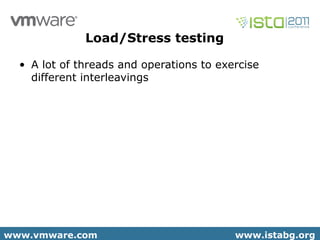

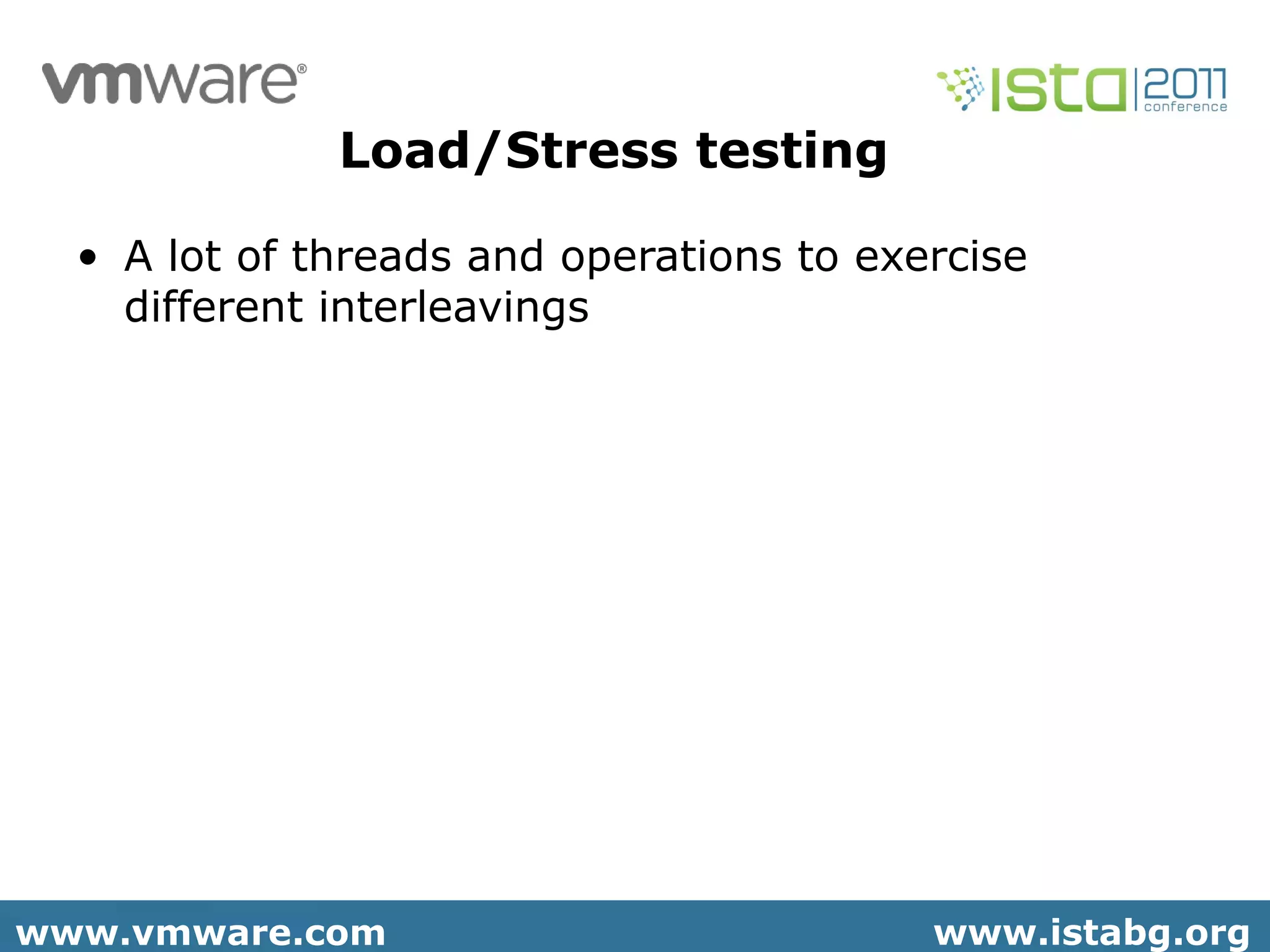

• A lot of threads and operations to exercise
different interleavings
Load/Stress testing

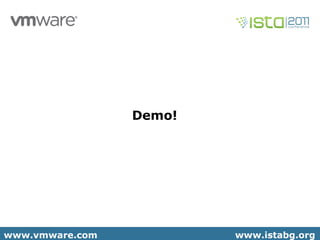

Demo!

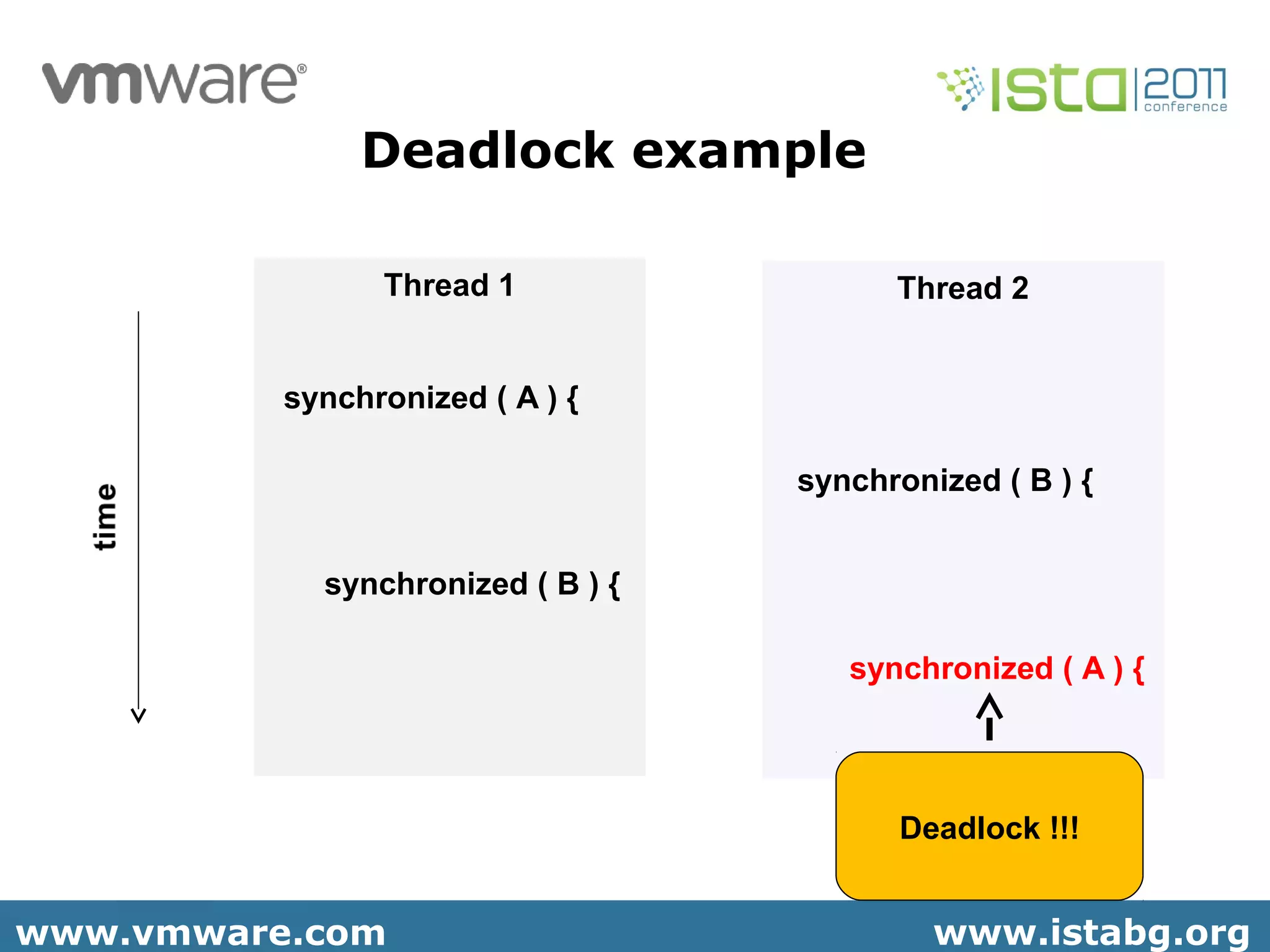

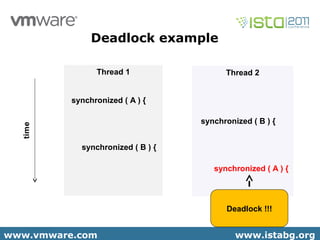

Deadlock example
Thread 2Thread 1
synchronized ( A ) {
synchronized ( B ) {
synchronized ( B ) {
synchronized ( A ) {
Deadlock !!!

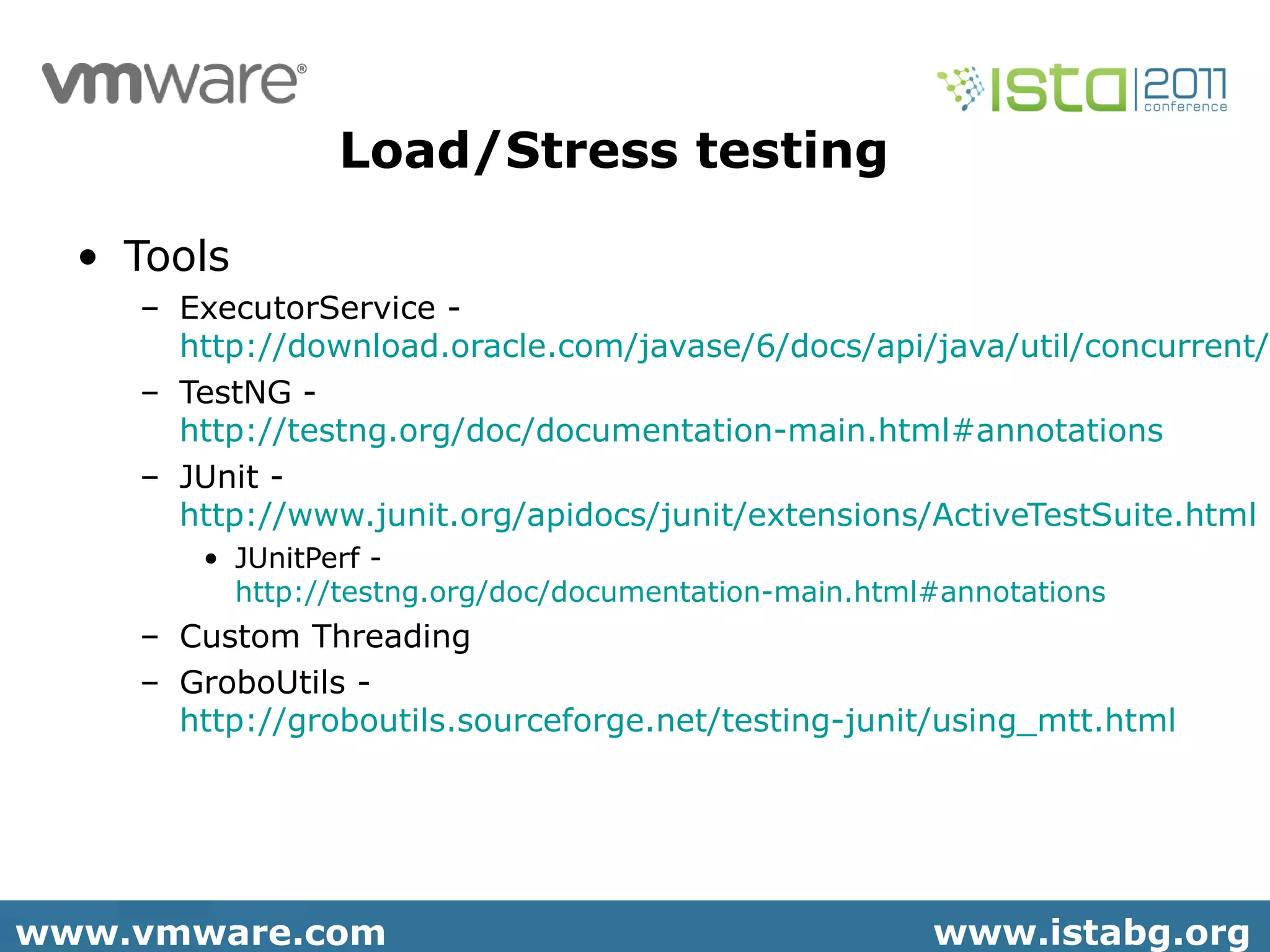

• Tools
– ExecutorService -
http://download.oracle.com/javase/6/docs/api/java/util/concurrent/E
– TestNG -
http://testng.org/doc/documentation-main.html#annotations
– JUnit -
http://www.junit.org/apidocs/junit/extensions/ActiveTestSuite.html
• JUnitPerf -
http://testng.org/doc/documentation-main.html#annotations
– Custom Threading
– GroboUtils -
http://groboutils.sourceforge.net/testing-junit/using_mtt.html
Load/Stress testing

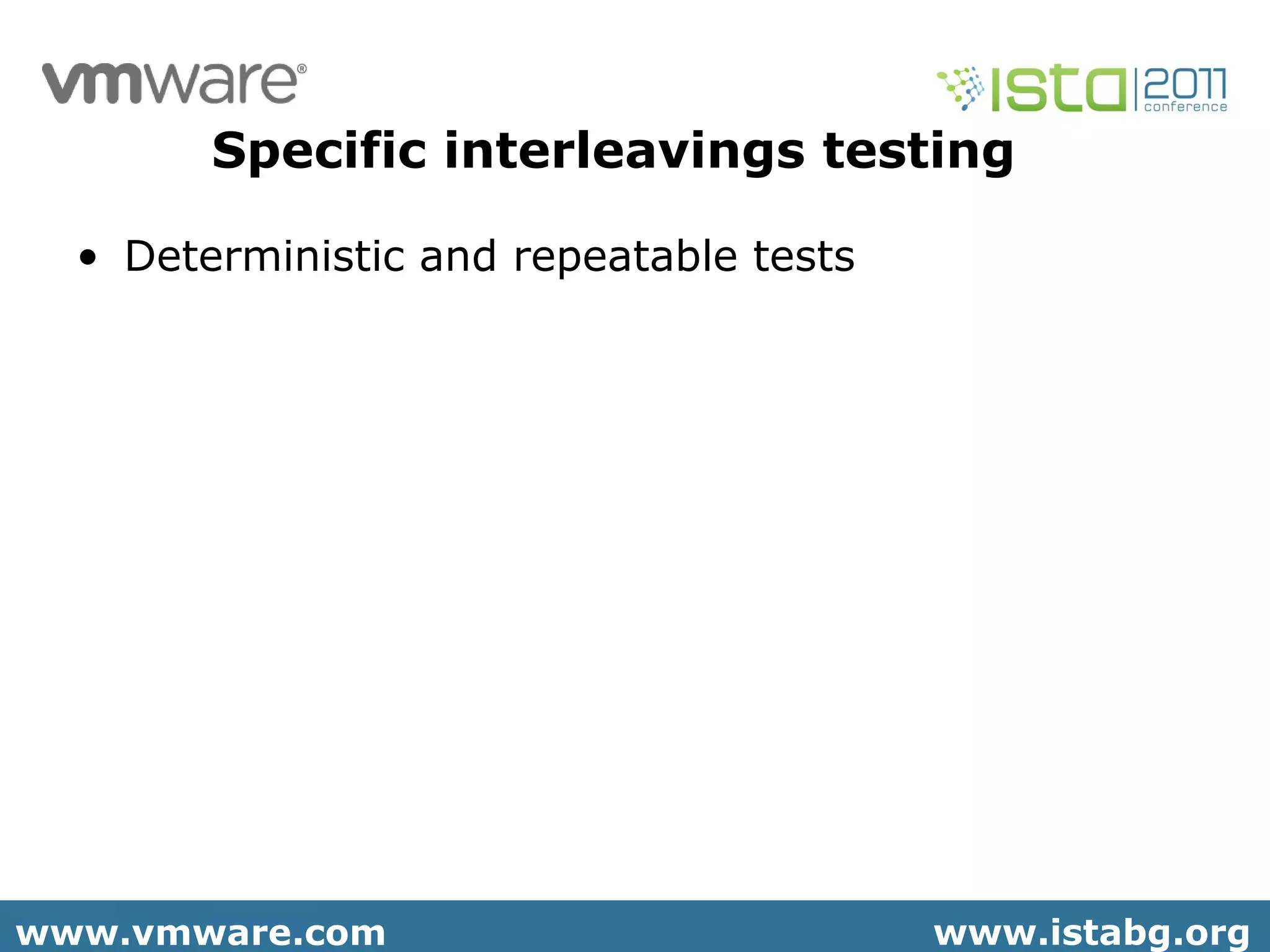

• Deterministic and repeatable tests
Specific interleavings testing

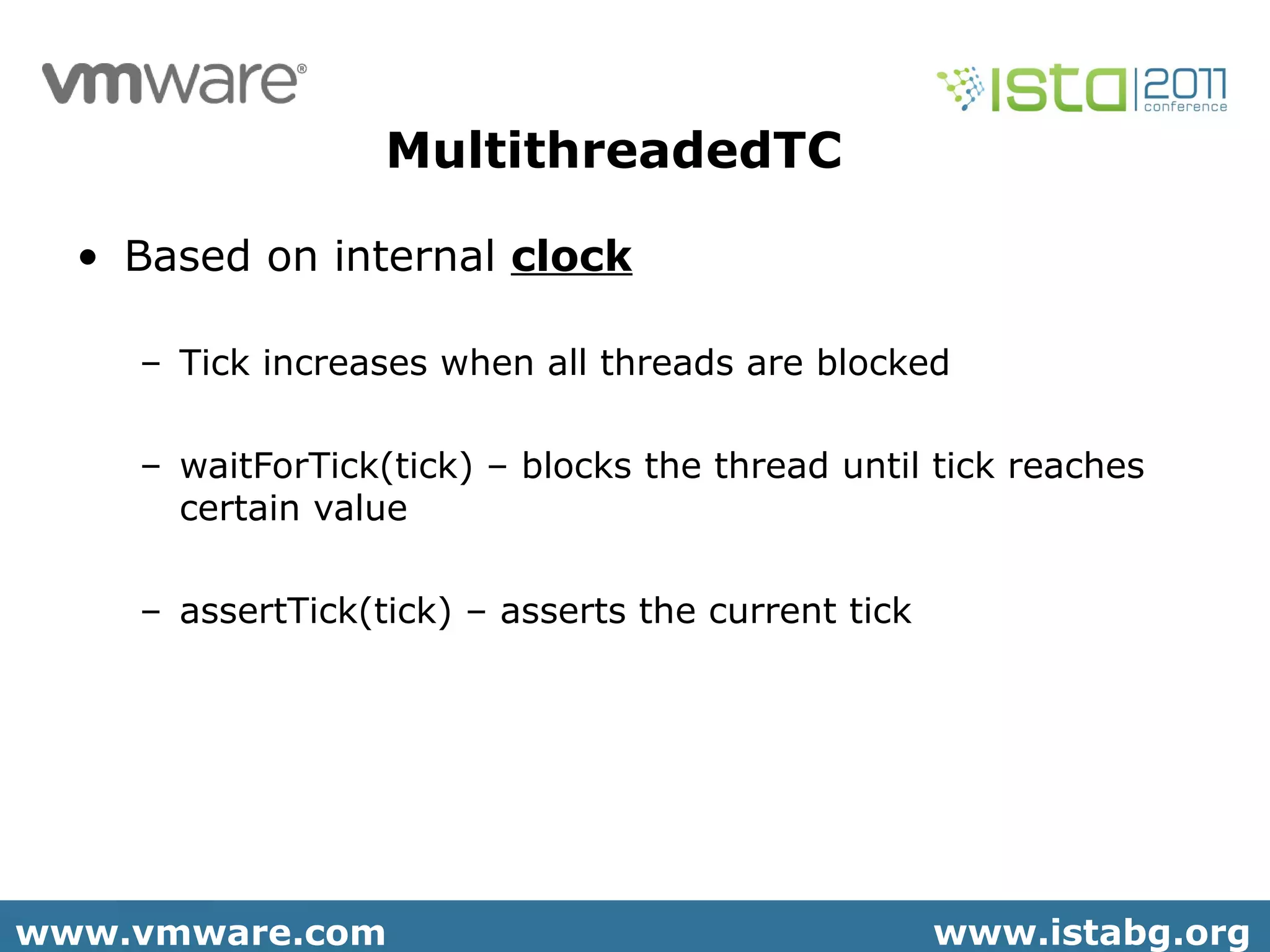

• Based on internal clock
– Tick increases when all threads are blocked
– waitForTick(tick) – blocks the thread until tick reaches
certain value
– assertTick(tick) – asserts the current tick
MultithreadedTC

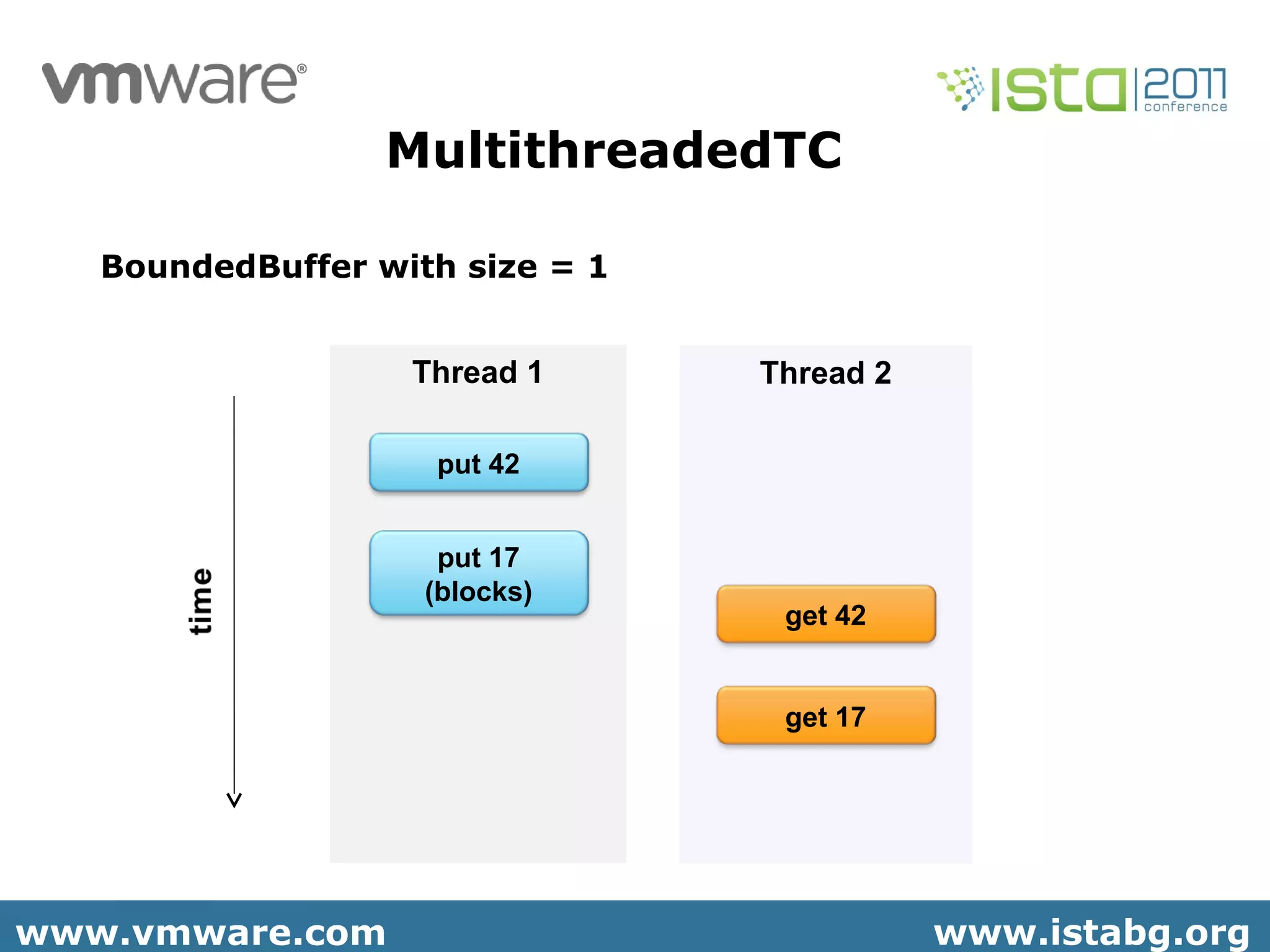

MultithreadedTC
Thread 2Thread 1
put 42
get 42
put 17
(blocks)
BoundedBuffer with size = 1
get 17

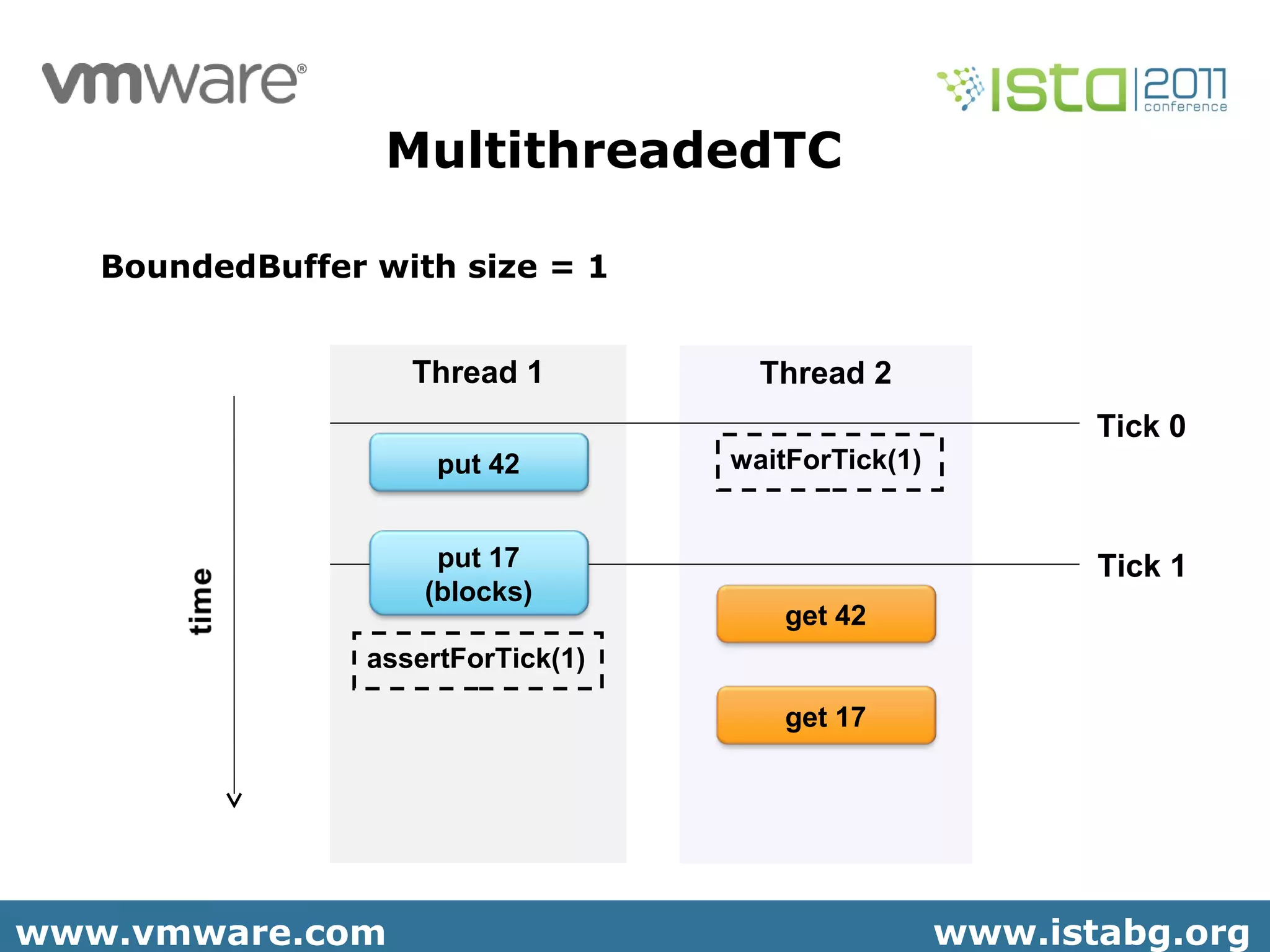

MultithreadedTC
Thread 2Thread 1
put 42
get 42
BoundedBuffer with size = 1
get 17
Tick 0
put 17
(blocks)
Tick 1
waitForTick(1)
assertForTick(1)

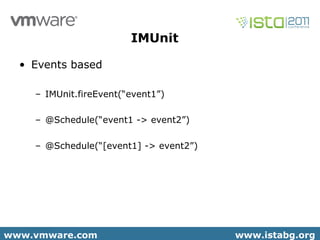

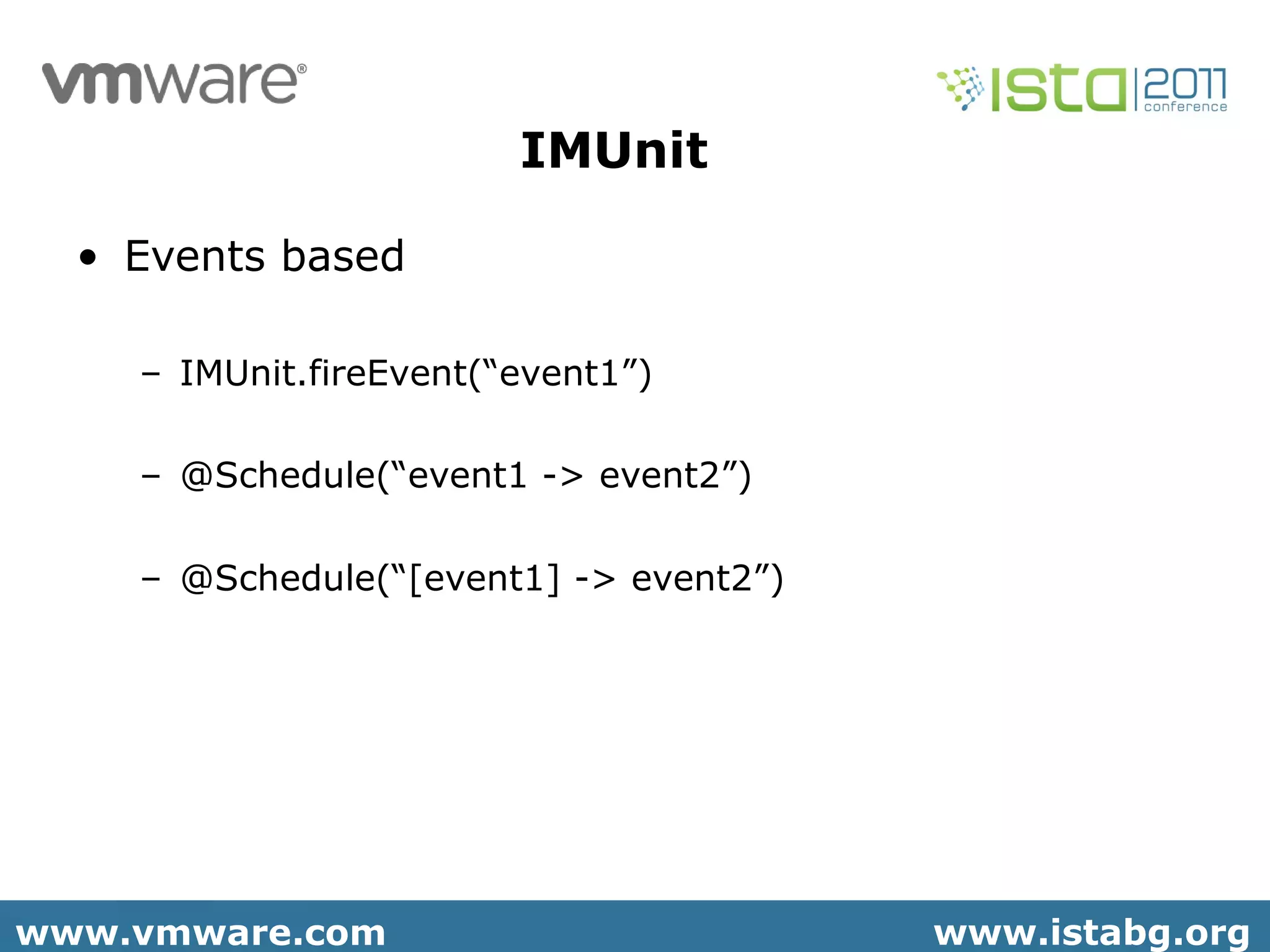

• Events based
– IMUnit.fireEvent(“event1”)
– @Schedule(“event1 -> event2”)
– @Schedule(“[event1] -> event2”)
IMUnit

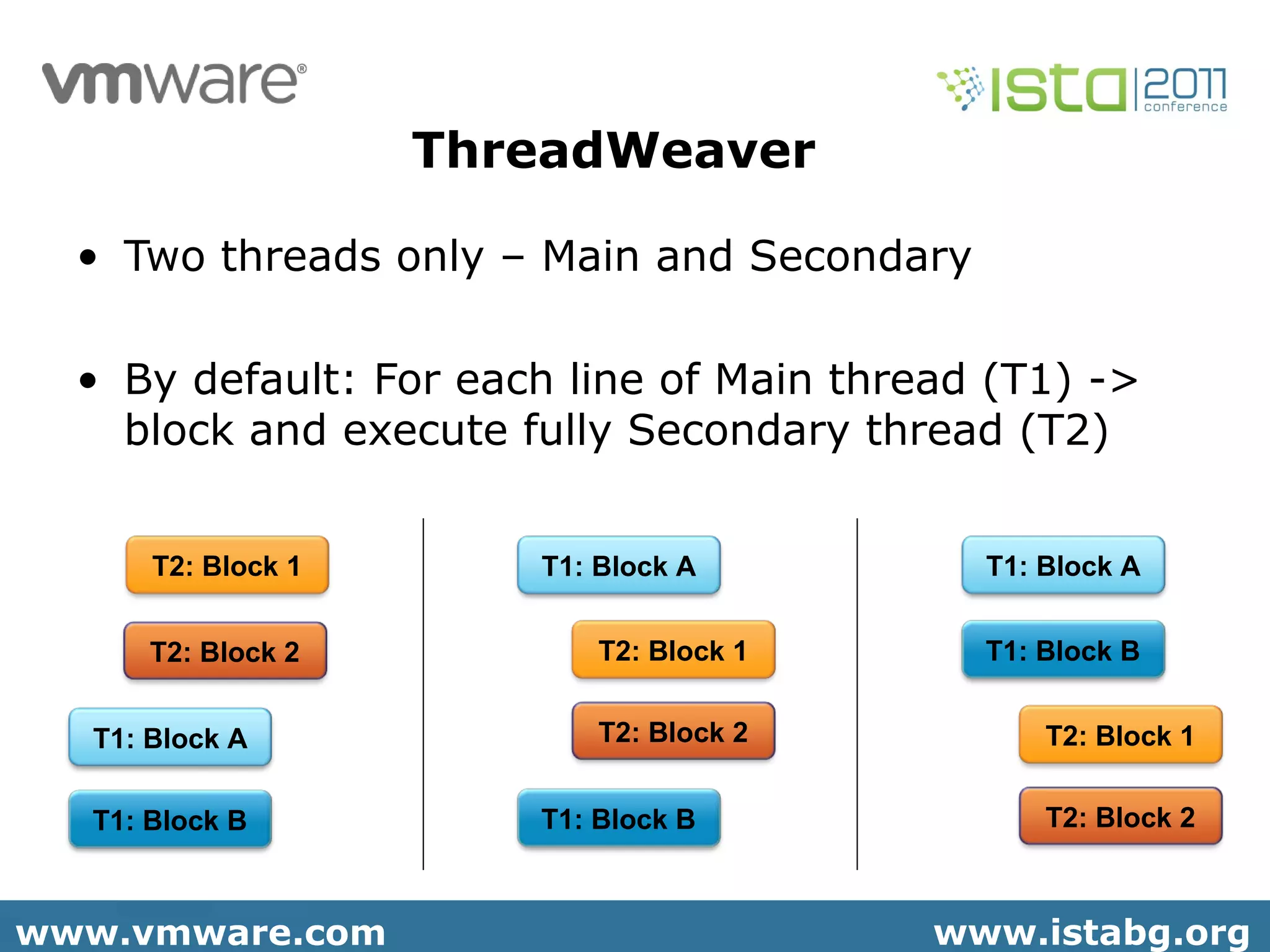

• Two threads only – Main and Secondary
• By default: For each line of Main thread (T1) ->
block and execute fully Secondary thread (T2)
ThreadWeaver
T1: Block A
T1: Block B
T2: Block 1
T2: Block 2
T1: Block A
T1: Block B
T2: Block 1
T2: Block 2
T1: Block A
T1: Block B
T2: Block 1
T2: Block 2

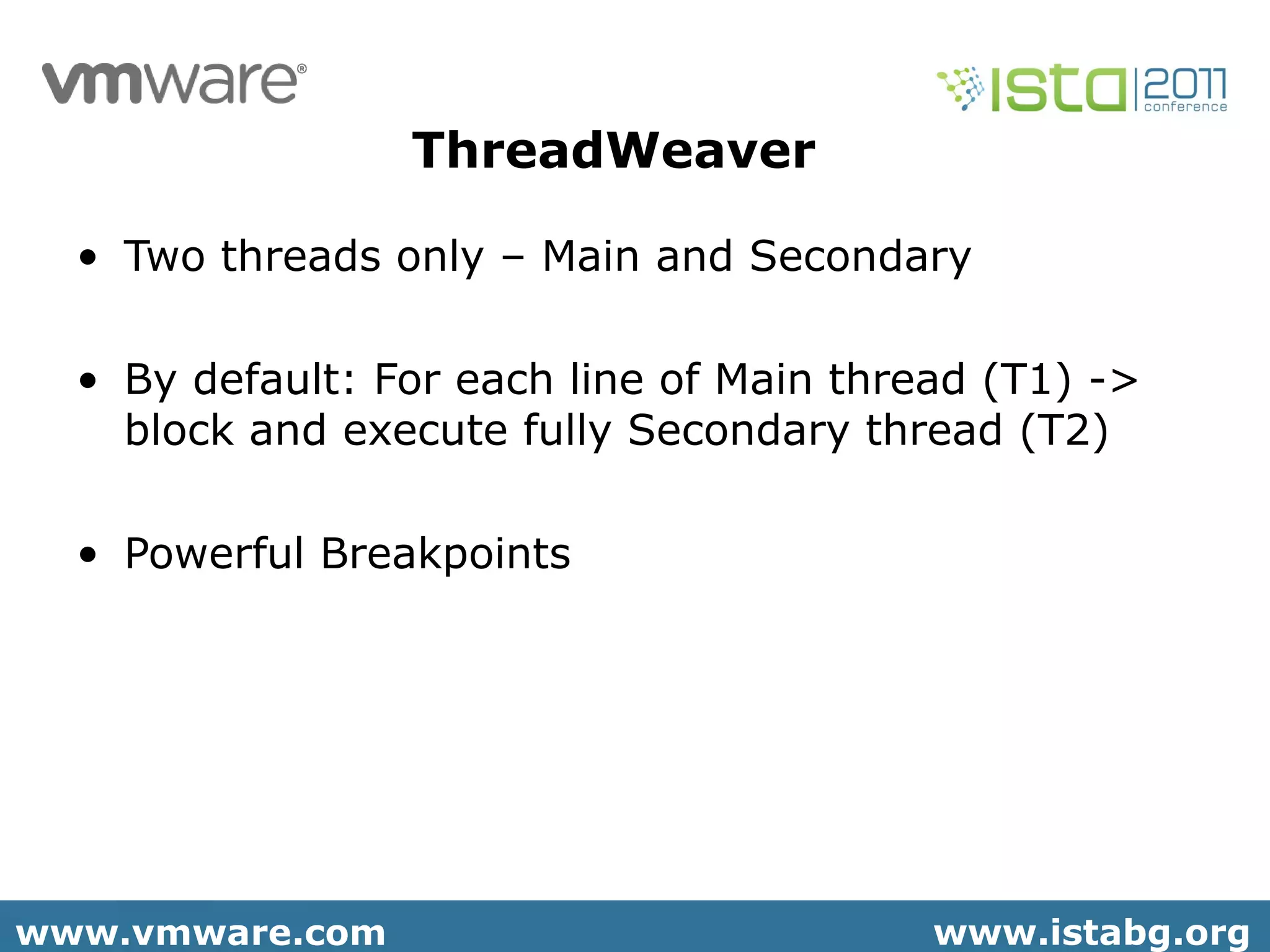

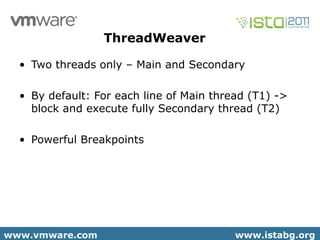

• Two threads only – Main and Secondary
• By default: For each line of Main thread (T1) ->
block and execute fully Secondary thread (T2)
• Powerful Breakpoints
ThreadWeaver

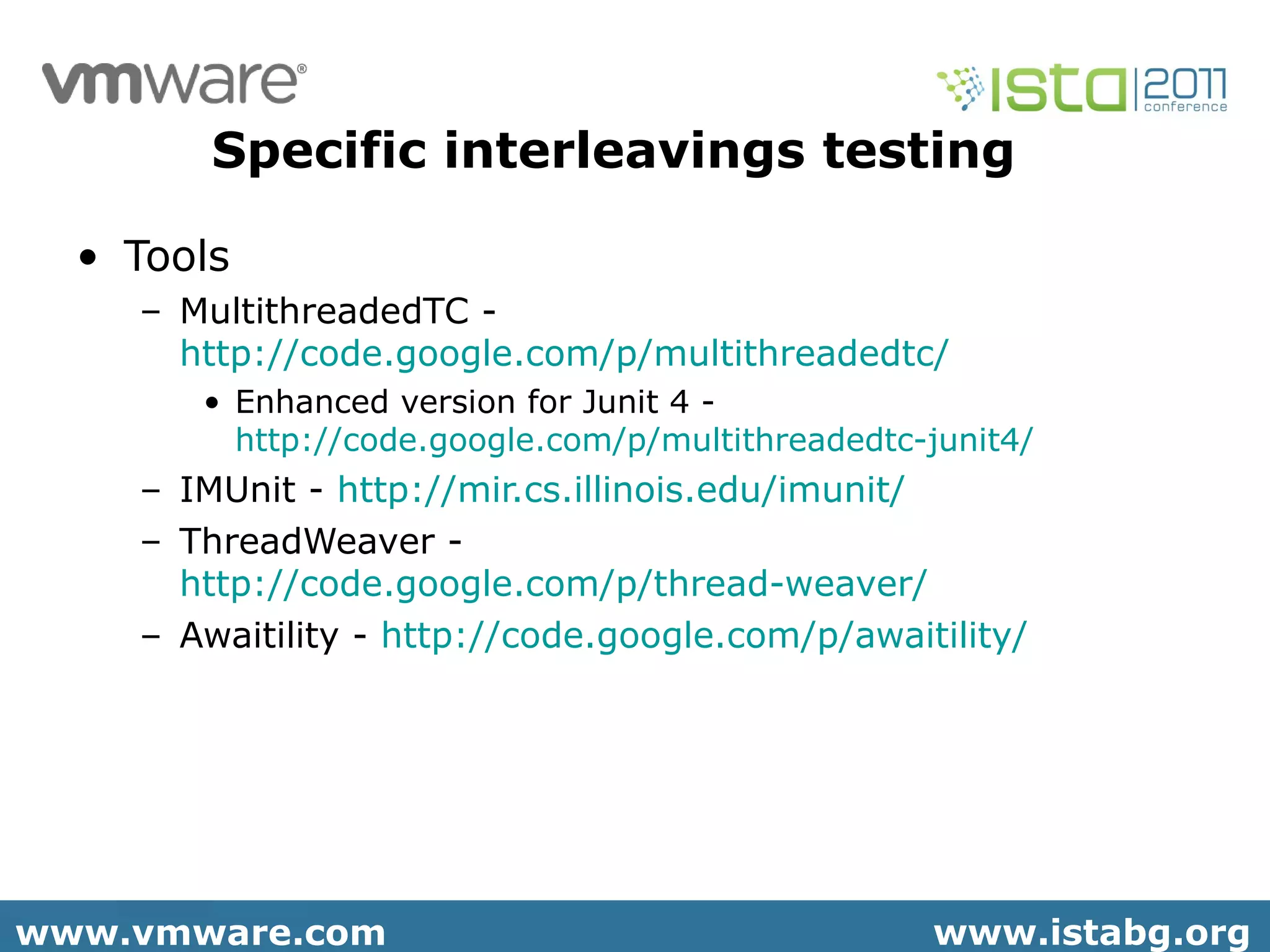

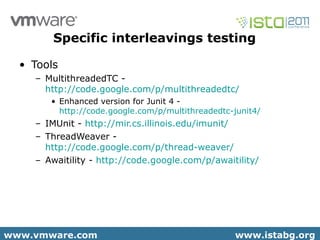

• Tools
– MultithreadedTC -
http://code.google.com/p/multithreadedtc/
• Enhanced version for Junit 4 -
http://code.google.com/p/multithreadedtc-junit4/
– IMUnit - http://mir.cs.illinois.edu/imunit/
– ThreadWeaver -
http://code.google.com/p/thread-weaver/
– Awaitility - http://code.google.com/p/awaitility/
Specific interleavings testing

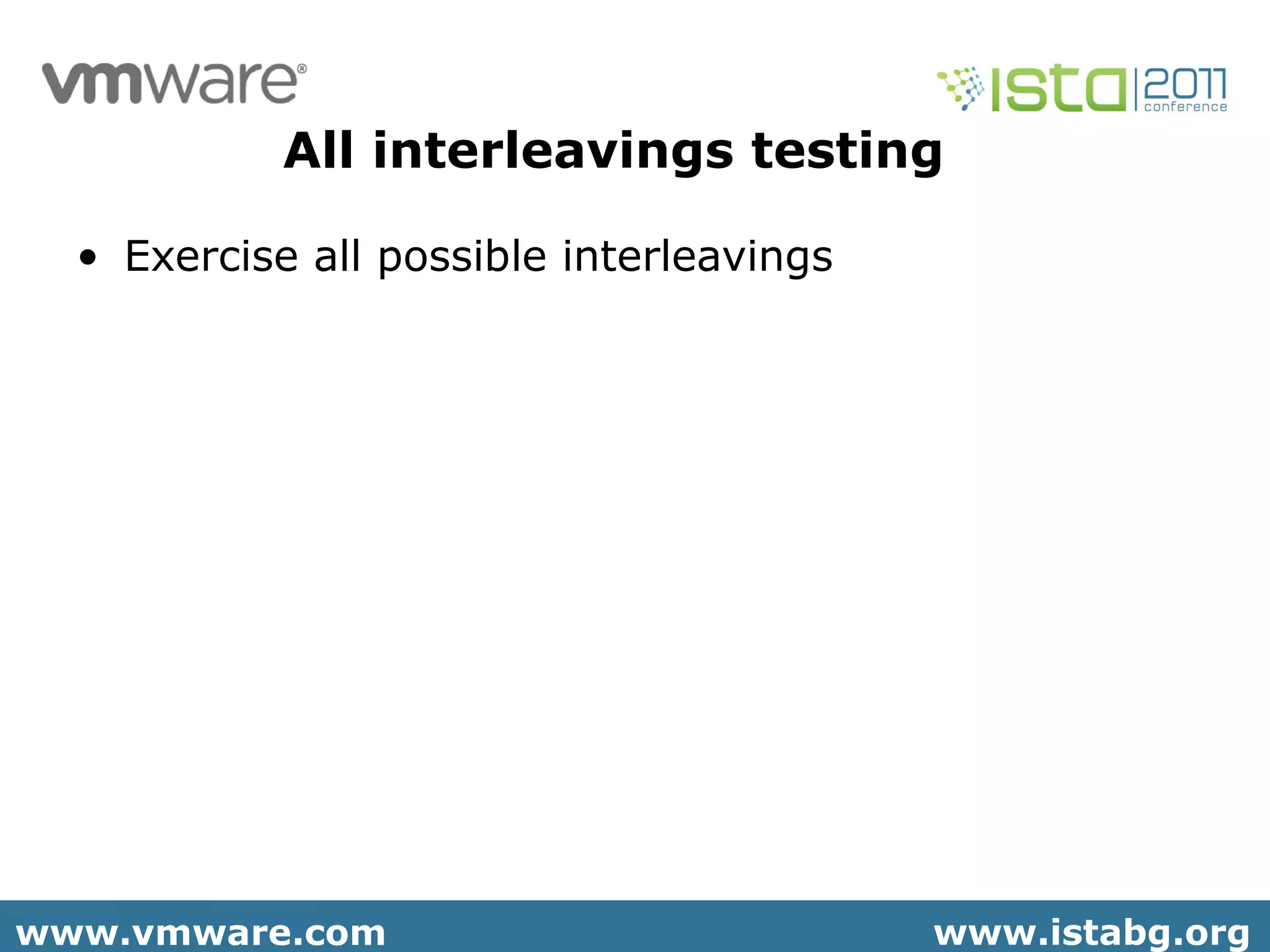

• Exercise all possible interleavings
All interleavings testing

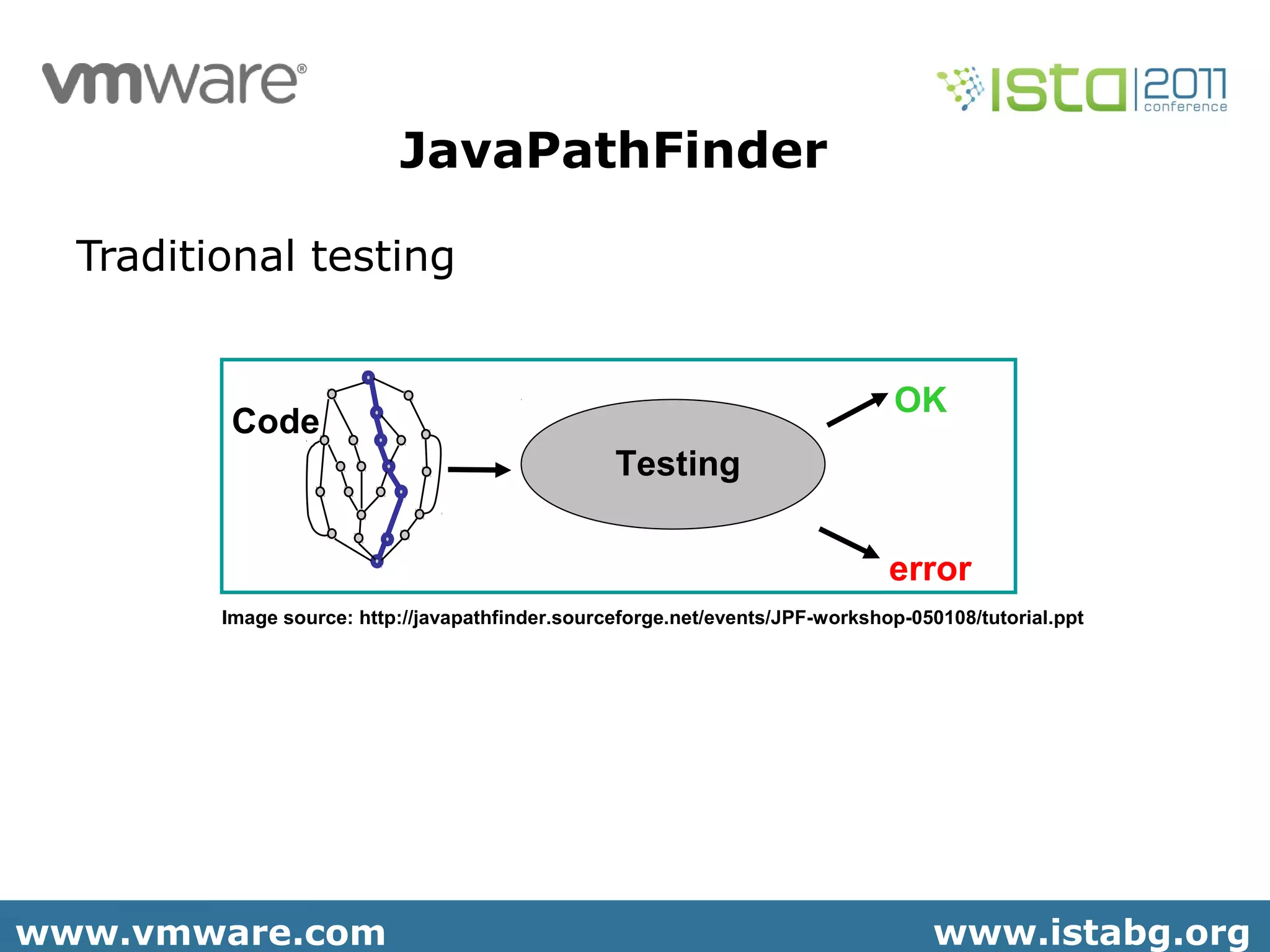

JavaPathFinder
Traditional testing
OK
Code
Testing
error
Image source: http://javapathfinder.sourceforge.net/events/JPF-workshop-050108/tutorial.ppt

JavaPathFinder

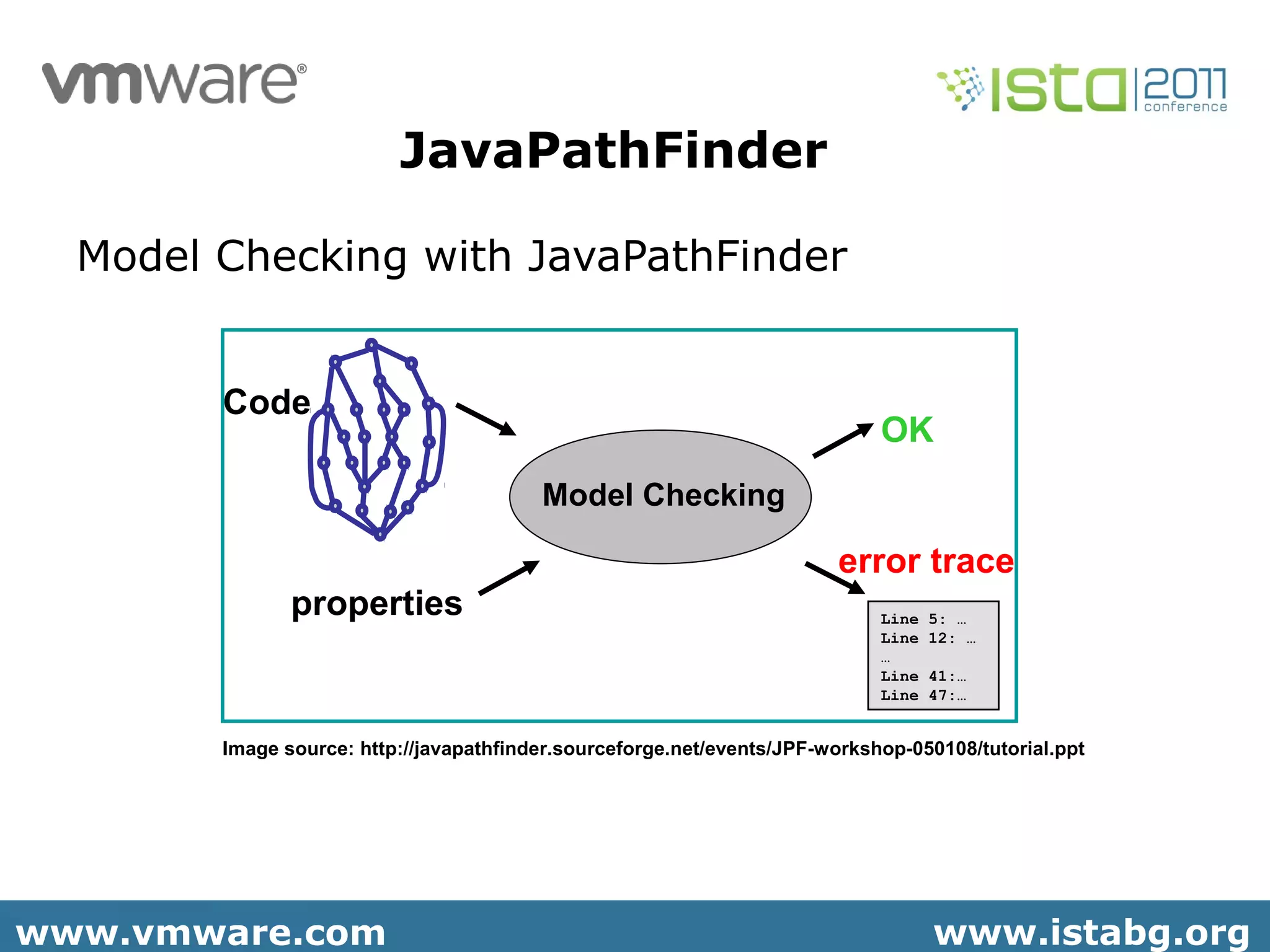

Model Checking with JavaPathFinder
Image source: http://javapathfinder.sourceforge.net/events/JPF-workshop-050108/tutorial.ppt
OK
Code
properties
Model Checking
error trace
Line 5: …
Line 12: …
…
Line 41:…
Line 47:…

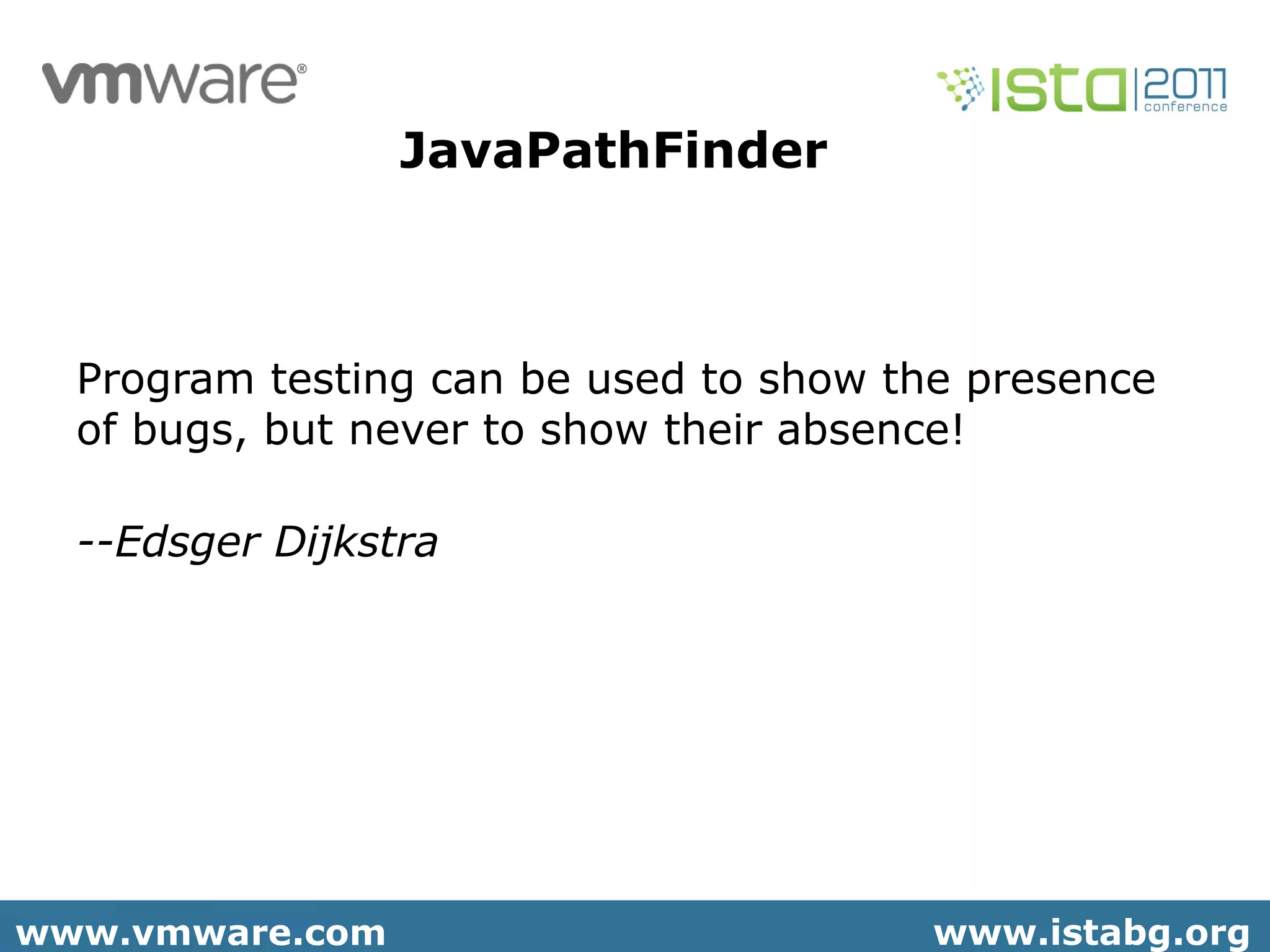

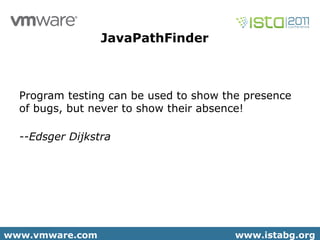

Program testing can be used to show the presence
of bugs, but never to show their absence!
--Edsger Dijkstra
JavaPathFinder

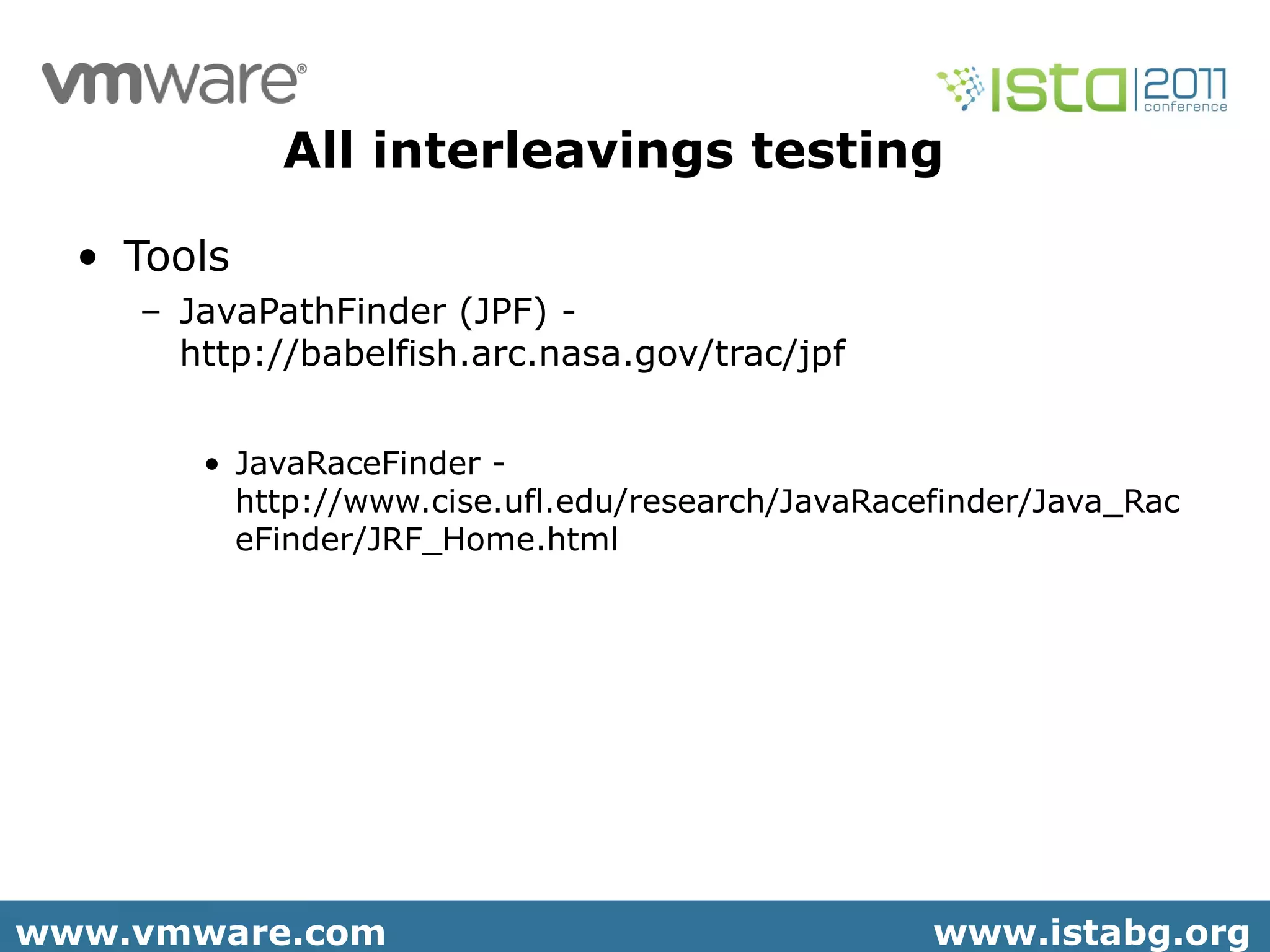

• Tools
– JavaPathFinder (JPF) -
http://babelfish.arc.nasa.gov/trac/jpf
• JavaRaceFinder -
http://www.cise.ufl.edu/research/JavaRacefinder/Java_Rac
eFinder/JRF_Home.html
All interleavings testing

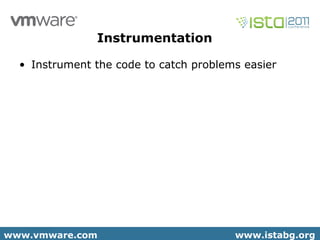

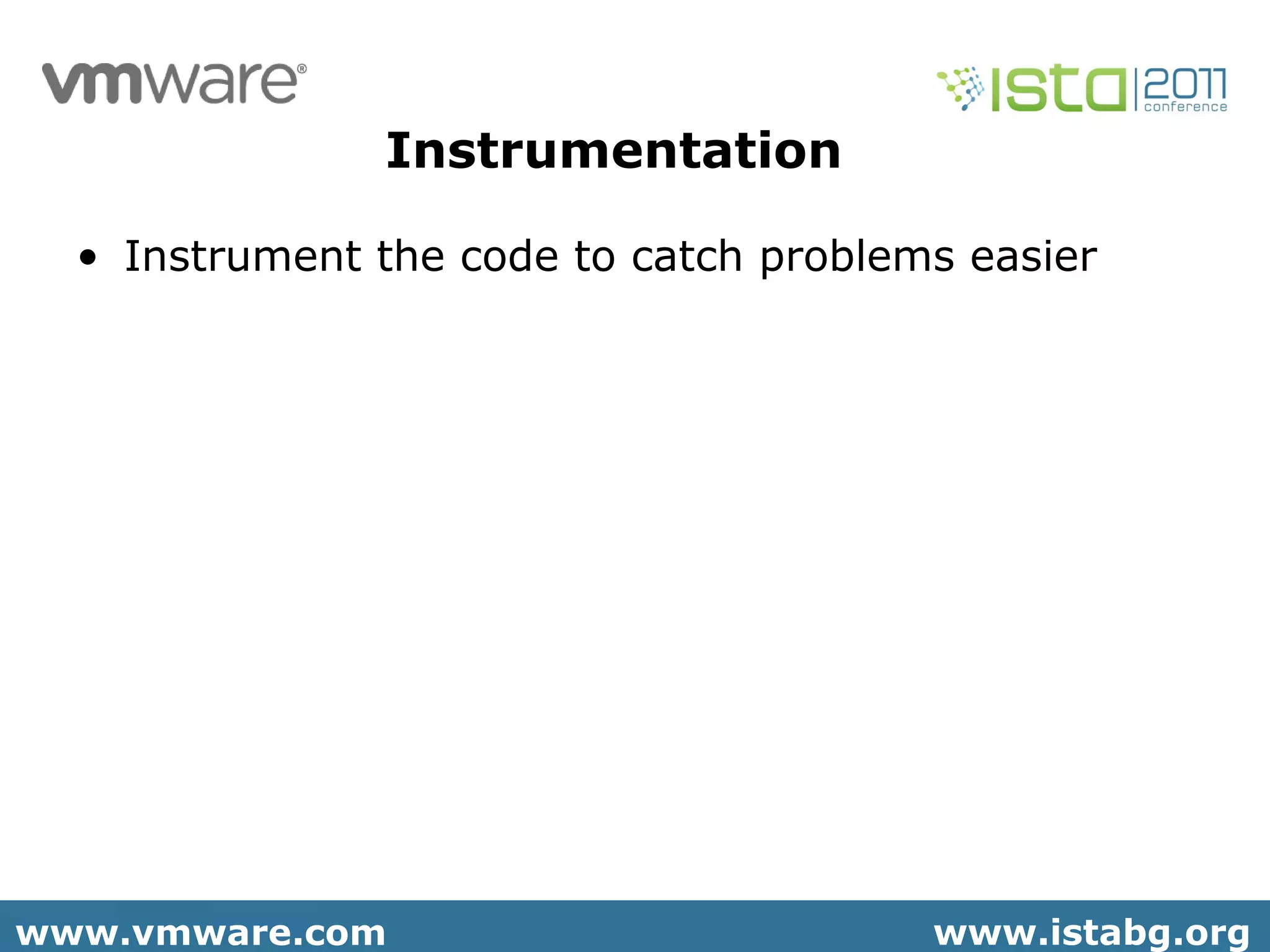

• Instrument the code to catch problems easier
Instrumentation

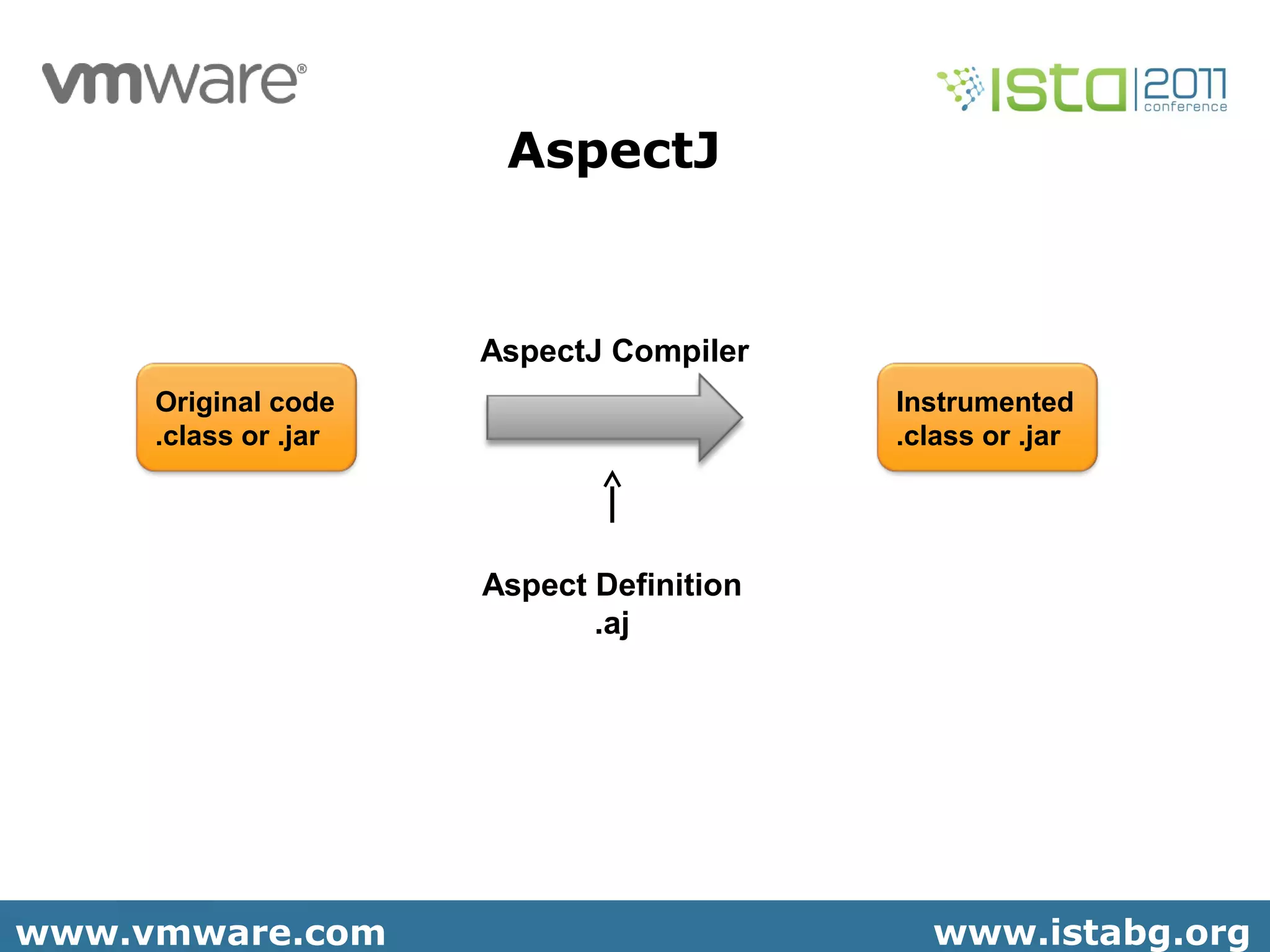

AspectJ
Original code
.class or .jar
AspectJ Compiler
Instrumented
.class or .jar
Aspect Definition
.aj

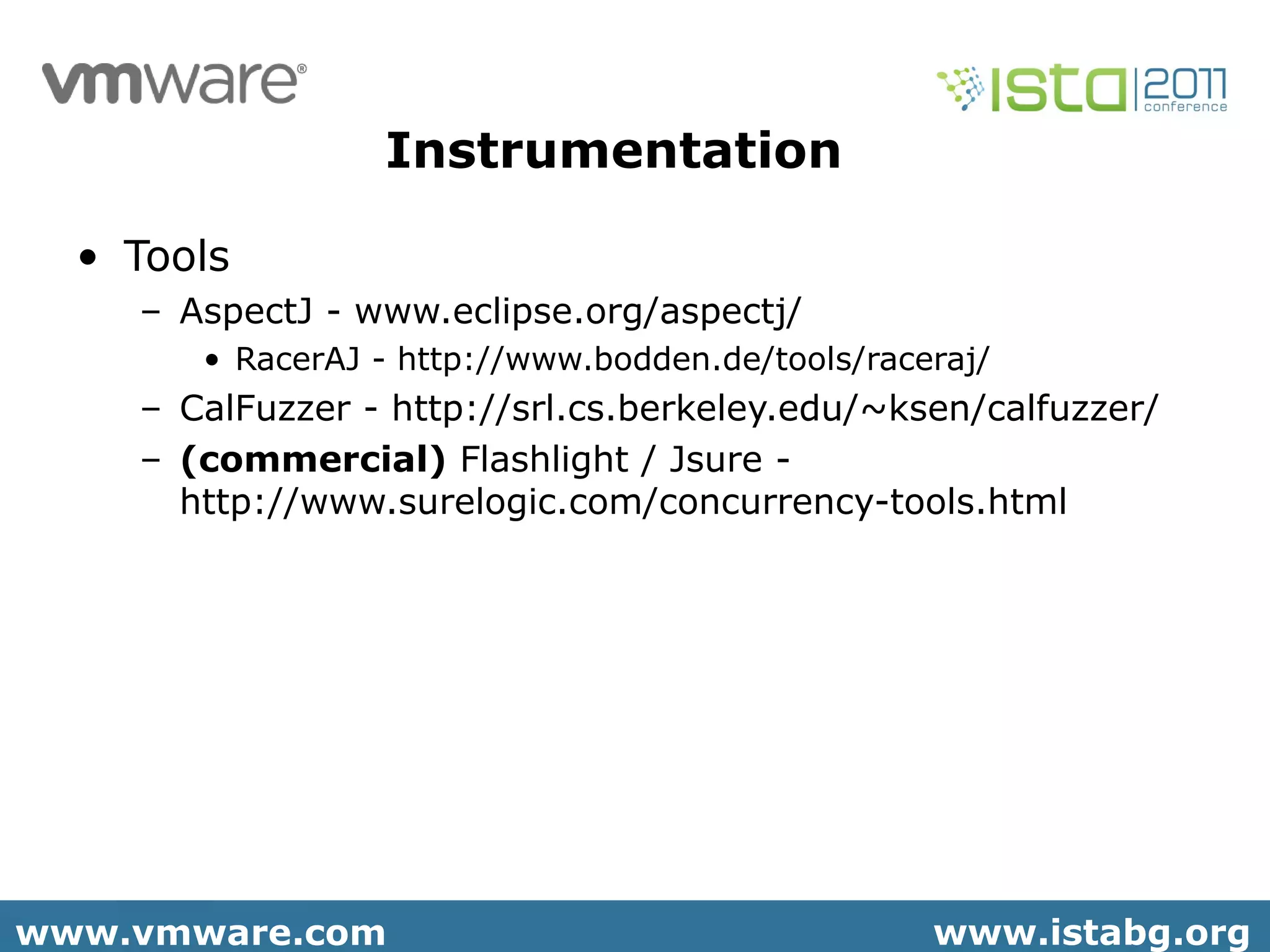

• Tools
– AspectJ - www.eclipse.org/aspectj/
• RacerAJ - http://www.bodden.de/tools/raceraj/
– CalFuzzer - http://srl.cs.berkeley.edu/~ksen/calfuzzer/
– (commercial) Flashlight / Jsure -
http://www.surelogic.com/concurrency-tools.html
Instrumentation

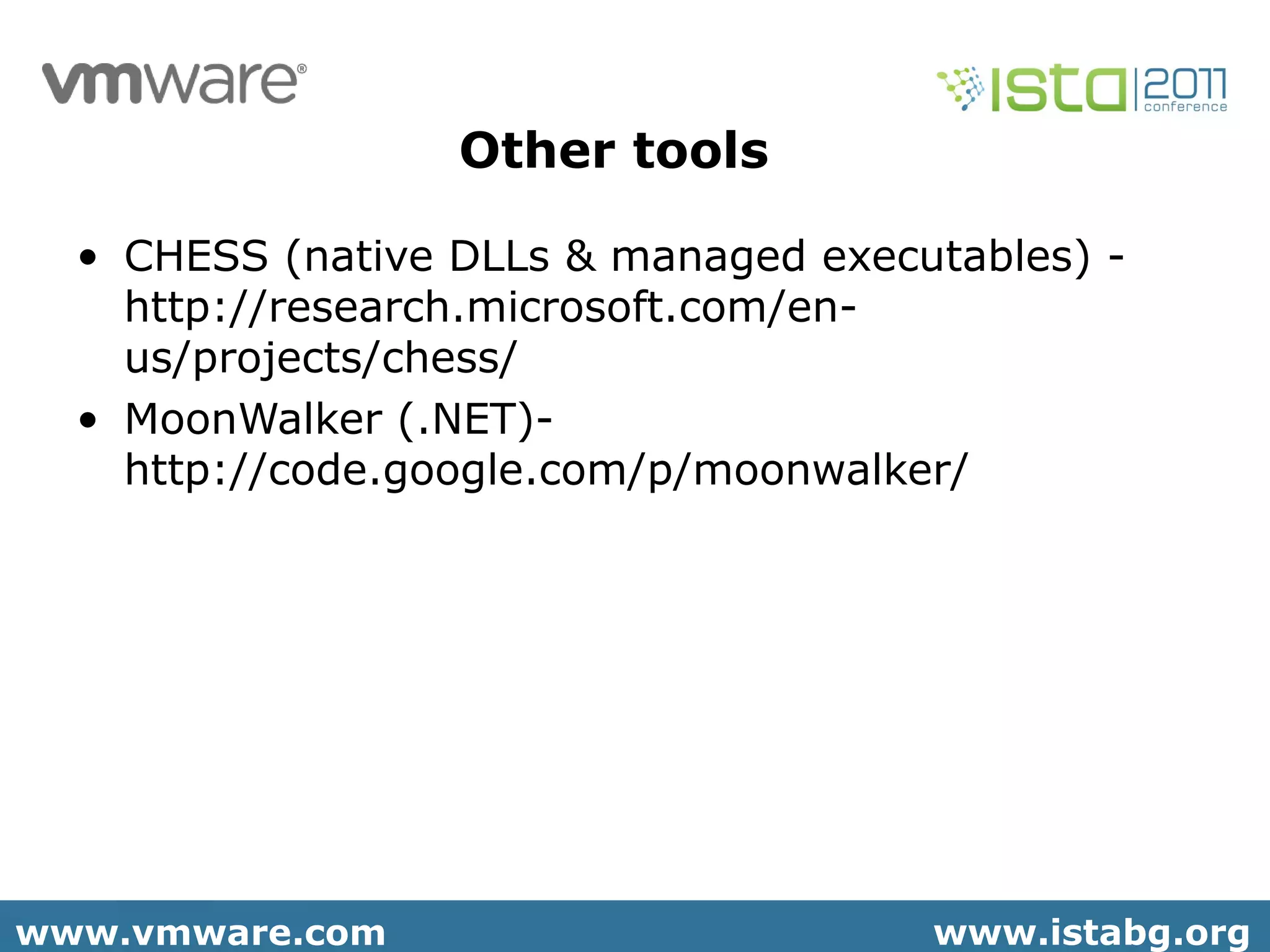

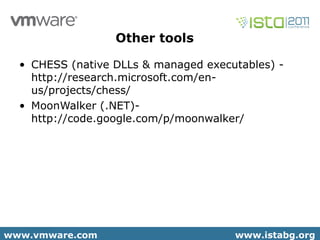

• CHESS (native DLLs & managed executables) -
http://research.microsoft.com/en-
us/projects/chess/
• MoonWalker (.NET)-
http://code.google.com/p/moonwalker/
Other tools

Recommended books

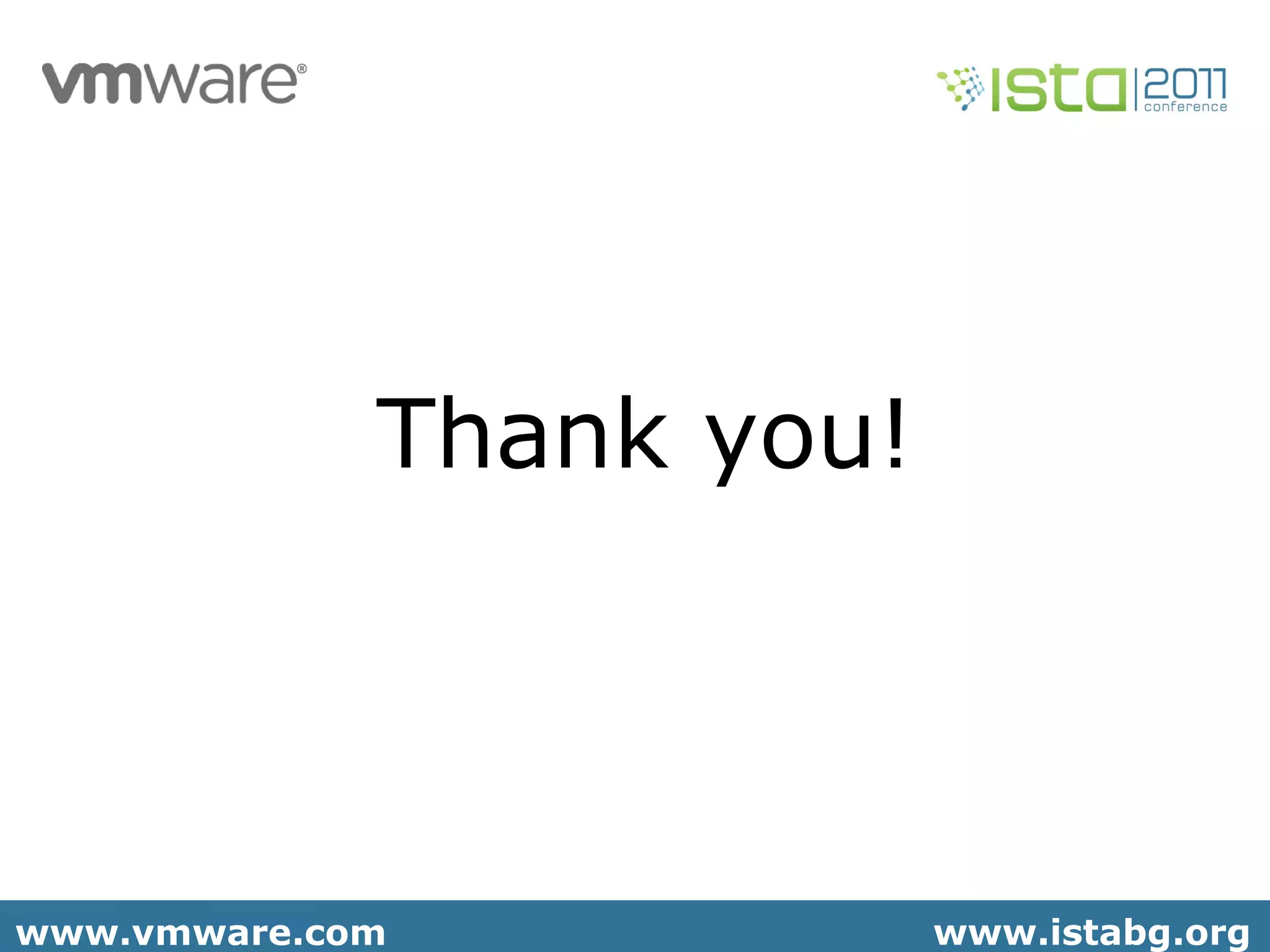

Thank you!

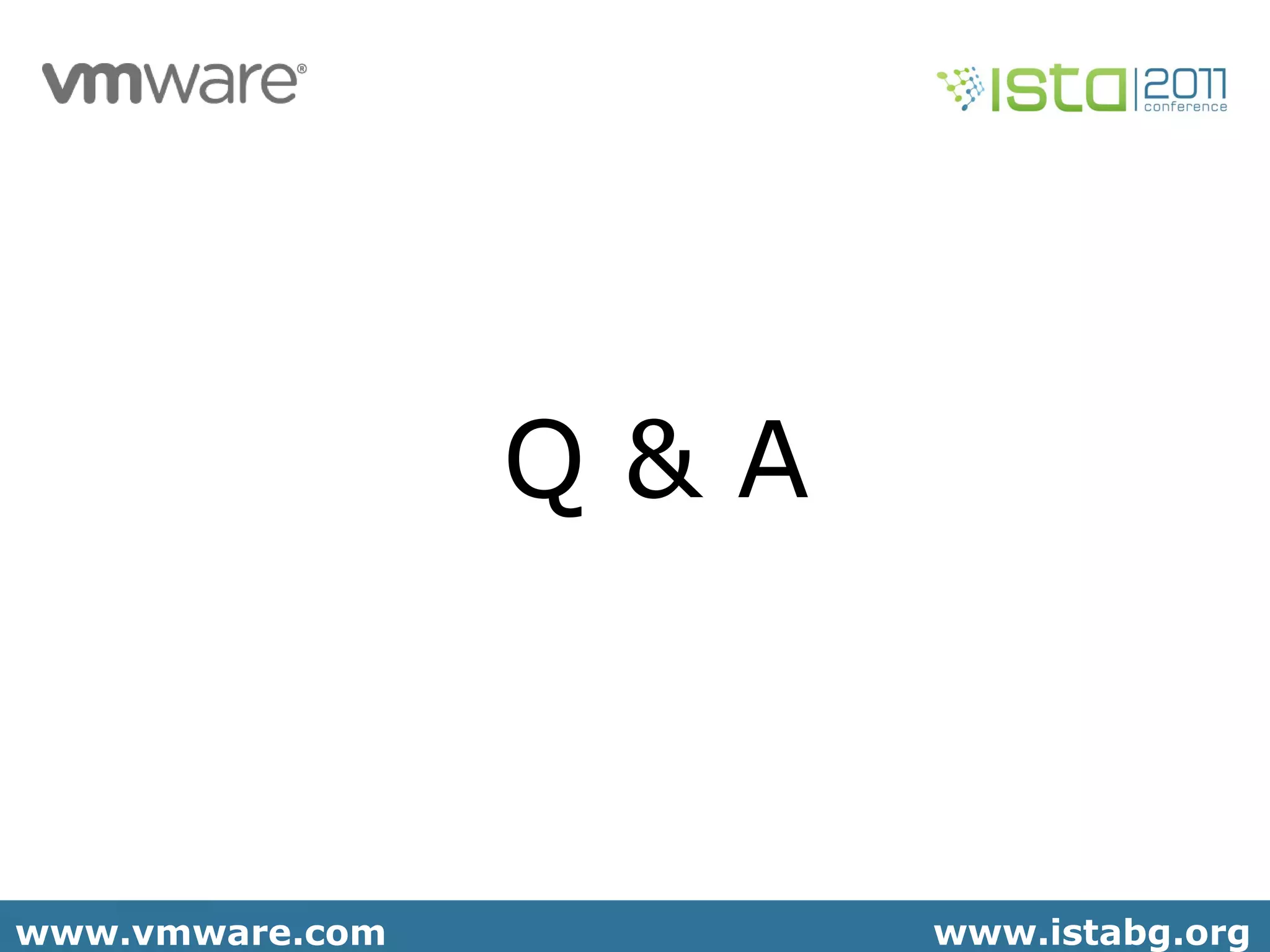

Q & A

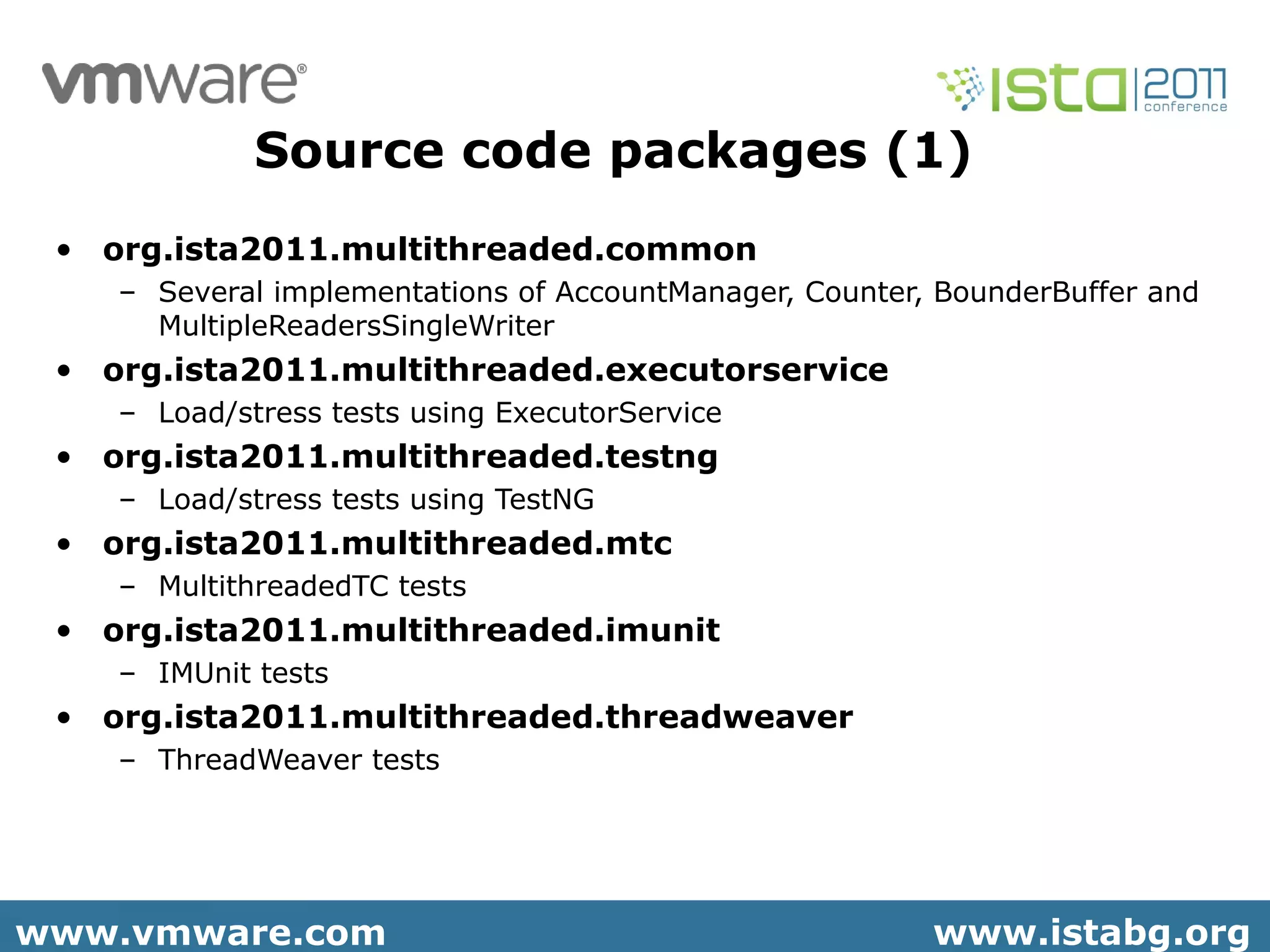

• org.ista2011.multithreaded.common
– Several implementations of AccountManager, Counter, BounderBuffer and
MultipleReadersSingleWriter
• org.ista2011.multithreaded.executorservice
– Load/stress tests using ExecutorService
• org.ista2011.multithreaded.testng
– Load/stress tests using TestNG
• org.ista2011.multithreaded.mtc
– MultithreadedTC tests
• org.ista2011.multithreaded.imunit
– IMUnit tests
• org.ista2011.multithreaded.threadweaver
– ThreadWeaver tests
Source code packages (1)

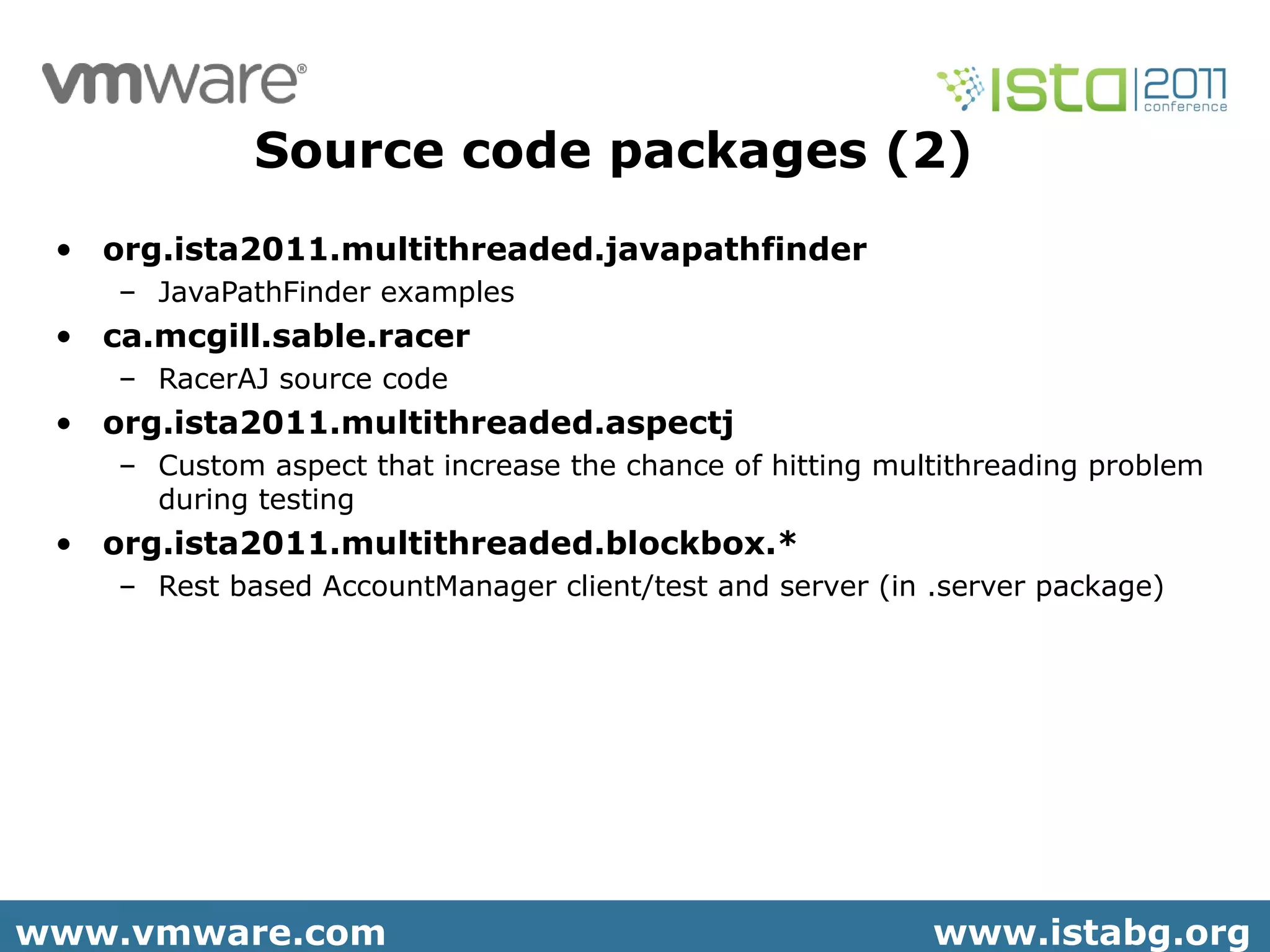

• org.ista2011.multithreaded.javapathfinder
– JavaPathFinder examples
• ca.mcgill.sable.racer
– RacerAJ source code
• org.ista2011.multithreaded.aspectj
– Custom aspect that increase the chance of hitting multithreading problem
during testing
• org.ista2011.multithreaded.blockbox.*
– Rest based AccountManager client/test and server (in .server package)
Source code packages (2)
