Algumas idéias e discussão sobre automação de infraestrutura. Como trazer as idéias e práticas do mundo dos desenvolvedores para o trabalho de sysadmins e vice-versa?

1. Automação e DevOps
tome o controle da sua infraestrutura
fabio.kung@gmail.com
fabio.kung@locaweb.com.br
@fabiokung

2. Administração Remota

3. Gerenciador
...
DHCP Proxy Firewall

4. Gerenciador
WS WS WS WS WS WS WS WS WS
...
DHCP Proxy Firewall

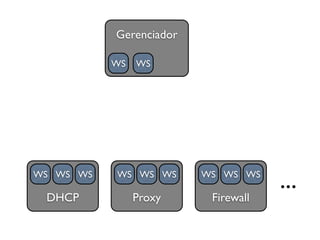

5. Gerenciador
WS WS
WS WS WS WS WS WS WS WS WS
...
DHCP Proxy Firewall

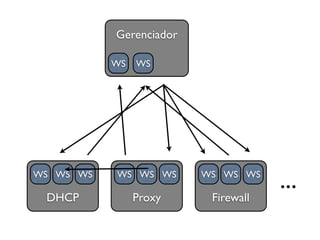

6. Gerenciador
WS WS
WS WS WS WS WS WS WS WS WS
...
DHCP Proxy Firewall

7. Gerenciador
WS WS
Autenticação?
Monitoração?
Criptografia?
...
WS WS WS WS WS WS WS WS WS
...
DHCP Proxy Firewall

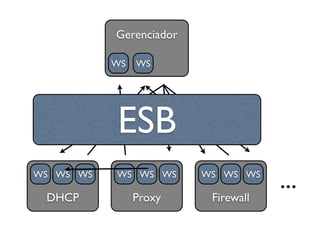

8. Gerenciador
WS WS
ESB
WS WS WS WS WS WS WS WS WS
...
DHCP Proxy Firewall

9. Gerenciador
WS WS
ESB
WS WS WS WS WS WS WS WS WS
...
DHCP Proxy Firewall

10. Gerenciador
WS WS
ESB
WS WS WS WS WS WS WS WS WS
...
DHCP Proxy Firewall

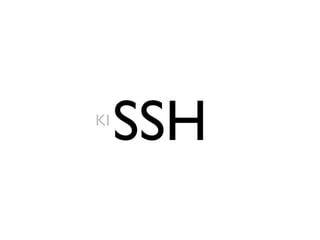

11. KI
SSH

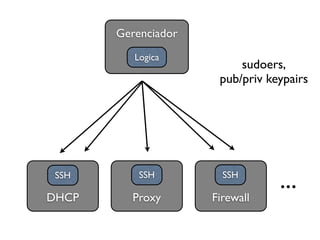

12. Gerenciador
Logica
sudoers,
pub/priv keypairs
SSH SSH SSH
...
DHCP Proxy Firewall

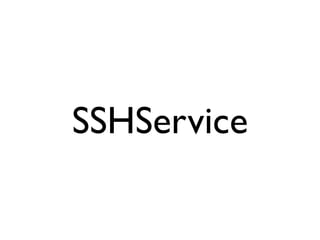

13. SSHService

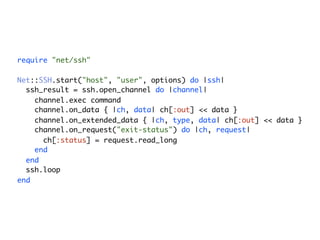

14. require "net/ssh"
Net::SSH.start("host", "user", options) do |ssh|
ssh_result = ssh.open_channel do |channel|
channel.exec command
channel.on_data { |ch, data| ch[:out] << data }
channel.on_extended_data { |ch, type, data| ch[:out] << data }
channel.on_request("exit-status") do |ch, request|
ch[:status] = request.read_long
end
end
ssh.loop
end

15. Controle de tarefas
Mundo Assíncrono
fuja de filas no DB!

16. Resque

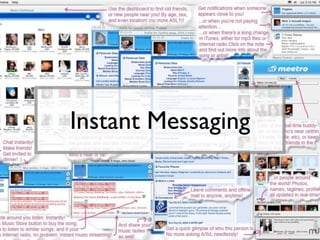

18. Instant Messaging

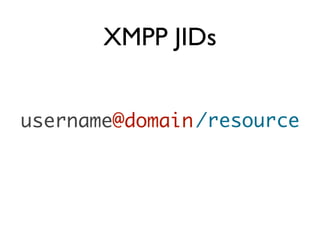

19. XMPP JIDs
username@domain /resource

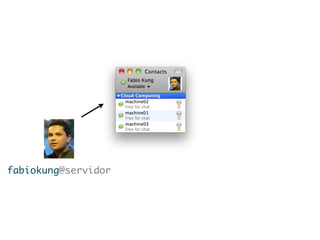

20. fabiokung@servidor

21. machine01@servidor
machine02@servidor
fabiokung@servidor
machine03@servidor

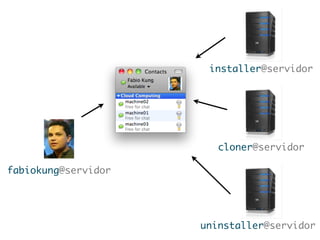

22. installer@servidor
cloner@servidor
fabiokung@servidor
uninstaller@servidor

23. XMPP4R
http://home.gna.org/xmpp4r

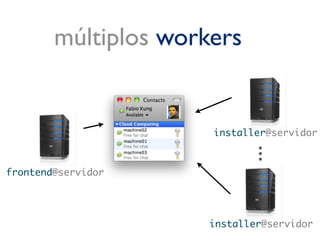

24. múltiplos workers
installer@servidor
...
frontend@servidor
installer@servidor

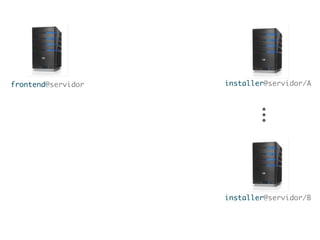

25. frontend@servidor installer@servidor/A
...
installer@servidor/B

26. quem pode?
to: installer@servidor
frontend@servidor installer@servidor/A
...
installer@servidor/B

27. quem pode?
to: installer@servidor
installer@servidor/A
frontend@servidor eu posso!
from: installer@servidor/A
...
eu posso!
from: installer@servidor/B
installer@servidor/B

28. quem pode?
to: installer@servidor
installer@servidor/A
frontend@servidor eu posso!
from: installer@servidor/A
...
eu posso!
from: installer@servidor/B
ok, então instala!
to: installer@servidor/B
installer@servidor/B

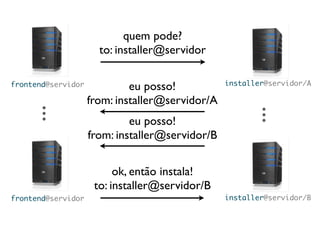

29. quem pode?
to: installer@servidor
installer@servidor/A
frontend@servidor eu posso!
from: installer@servidor/A
...
...
eu posso!
from: installer@servidor/B
ok, então instala!
to: installer@servidor/B
frontend@servidor installer@servidor/B

30. presença,
pubsub...

31. Configuration
Management

32. •Puppet
•Chef
•CFEngine

33. Chef

34. recipes
chef-client
recipes
chef-server recipes chef-client
chef-client

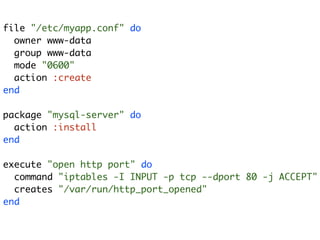

35. file "/etc/myapp.conf" do
owner www-data
group www-data
mode "0600"
action :create
end
package "mysql-server" do
action :install
end
execute "open http port" do
command "iptables -I INPUT -p tcp --dport 80 -j ACCEPT"
creates "/var/run/http_port_opened"
end

36. package "sudo" do
action :upgrade
end
user "sshservice" do
system true
action :create
end
template "/etc/sudoers" do
source "sudoers.erb"
mode 0440
owner "root"
group "root"
variables(:user => "sshservice")
action :create
end

37. bundle common control
{
bundlesequence => { "ssh" };
inputs => { "cfengine_stdlib.cf" }
}
bundle agent ssh
{
packages:
"sudo"
package_policy => "add"
package_method => "deb"
files:
"/etc/sudoers"
edit_defaults => empty,
edit_line => expand_template("sudoers.in"),
perms => mog("0440", root, root),
create => "true";
methods:
"sshservice" usebundle => create_user("sshservice")
}

38. http://cookbooks.opscode.com
http://github.com/37signals/37s_cookbooks
http://github.com/engineyard/ey-cloud-recipes

39. continuous Deployment

40. Capistrano

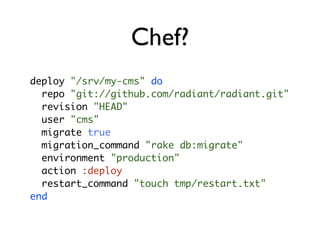

41. Chef?
deploy "/srv/my-cms" do
repo "git://github.com/radiant/radiant.git"
revision "HEAD"
user "cms"
migrate true
migration_command "rake db:migrate"
environment "production"
action :deploy
restart_command "touch tmp/restart.txt"
end

42. Pacotes!
deb, rpm, ...

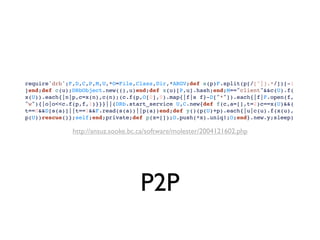

43. require'drb';F,D,C,P,M,U,*O=File,Class,Dir,*ARGV;def s(p)F.split(p[/[^|].*/])[-1
]end;def c(u);DRbObject.new((),u)end;def x(u)[P,u].hash;end;M=="client"&&c(U).f(
x(U)).each{|n|p,c=x(n),c(n);(c.f(p,O[0],0).map{|f|s f}-D["*"]).each{|f|F.open(f,
"w"){|o|o<<c.f(p,f,1)}}}||(DRb.start_service U,C.new{def f(c,a=[],t=2)c==x(U)&&(
t==0&&D[s(a)]||t==1&&F.read(s(a))||p(a))end;def y()(p(U)+p).each{|u|c(u).f(x(u),
p(U))rescue()};self;end;private;def p(x=[]);O.push(*x).uniq!;O;end}.new.y;sleep)
http://ansuz.sooke.bc.ca/software/molester/2004121602.php
P2P

44. Dúvidas?
fabio.kung@gmail.com
fabio.kung@locaweb.com.br Obrigado!
http://twitter.com/fabiokung
