The Airports Authority of India (AAI) is responsible for developing, upgrading, maintaining, and managing civil aviation infrastructure in India. AAI provides air traffic services over Indian airspace and adjoining oceanic areas. It provides air traffic control, flight information services, alerting services, and air navigation services. These services require air-to-ground and ground-to-ground communication systems, as well as surveillance technologies like radar and ADS-B to monitor and guide aircraft traffic.

1. ROLE OF ATS IN
AAI
JAYNAL ABEDIN
AGM (CNS)
KOLKATA

2. AAI
• Airports Authority of India(AAI), under
Ministry of Civil Aviation is responsible for
creating upgrading maintaining and managing
Civil Aviation Infrastructure in India.
• It provides Air Traffic Services (ATS) over
Indian Airspace and adjoining oceanic area.
• Apart from Civil Airports, it provides ATS in
some of the green field Airports, civil enclaves
and PPP Airports.

3. Introduction
• AAI provides Air Traffic Services as per AAI Act
1995. These services are :
1. Air Traffic Control Service
2. Flight Information Service.
3. Alerting Service
4. Air Navigation Service

4. • In order to Provide Air traffic services
following services are required:
– AMS
• Air to Ground
• and Ground to Ground
– AFTN
– Surveillance and Automation

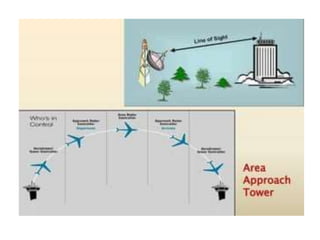

6. Air Traffic Control Services
• Area control service shall be provided by an
area control centre (ACC)
• Approach control service shall be provided by
by an approach control(APC) unit
• Aerodrome control service shall be provided
by an aerodrome control tower.

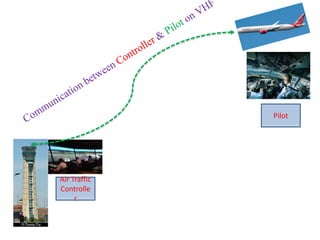

7. Air Traffic
Controlle
r
Pilot

10. Surveillance

11. Surveillance Servers
• Radars
– Primary
– Secondary
• ADS_B
• ADS_C

12. What is Navigation ?
• Navigation is the art of determining position
of an object and guiding to move from one
place to another.
• What is Navigational Aids or Nav-Aids?
– A navigational aid (also known as aid to
navigation, or navaid) is an instrument or
equipment which aids(help) the traveler in
navigation; the term is most commonly used to
refer to nautical or aviation travel.
1/16/2024 12
INTRODUCTION TO CNS

13. Why Nav-Aids is required in Aviation?
1/16/2024 13
INTRODUCTION TO CNS

14. 1/16/2024 14
INTRODUCTION TO CNS

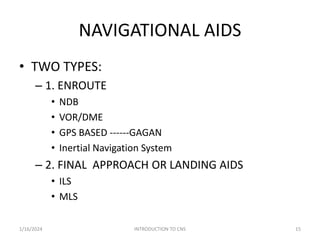

15. NAVIGATIONAL AIDS
• TWO TYPES:
– 1. ENROUTE
• NDB
• VOR/DME
• GPS BASED ------GAGAN
• Inertial Navigation System
– 2. FINAL APPROACH OR LANDING AIDS
• ILS
• MLS
1/16/2024 15
INTRODUCTION TO CNS

16. REVISION
• ROLE OF AAI
• ROLE OF ATS
• DIFFERENT SERVICES IN ATS
• WHAT IS NAVIGATION?
• WHAT IS SURVEILLANCE?
• WHY NAVIGATION IS REQUIRED?
• WHY SURVEILLANCE IS REQUIRED?
• WHAT ARE THE MAIN SENSORS OF
SURVEILLANCE?
