#Devoxx
LinkedList to ArrayList
The Full Story!
José Paumard
#Devoxx #ListJ9 @JosePaumard

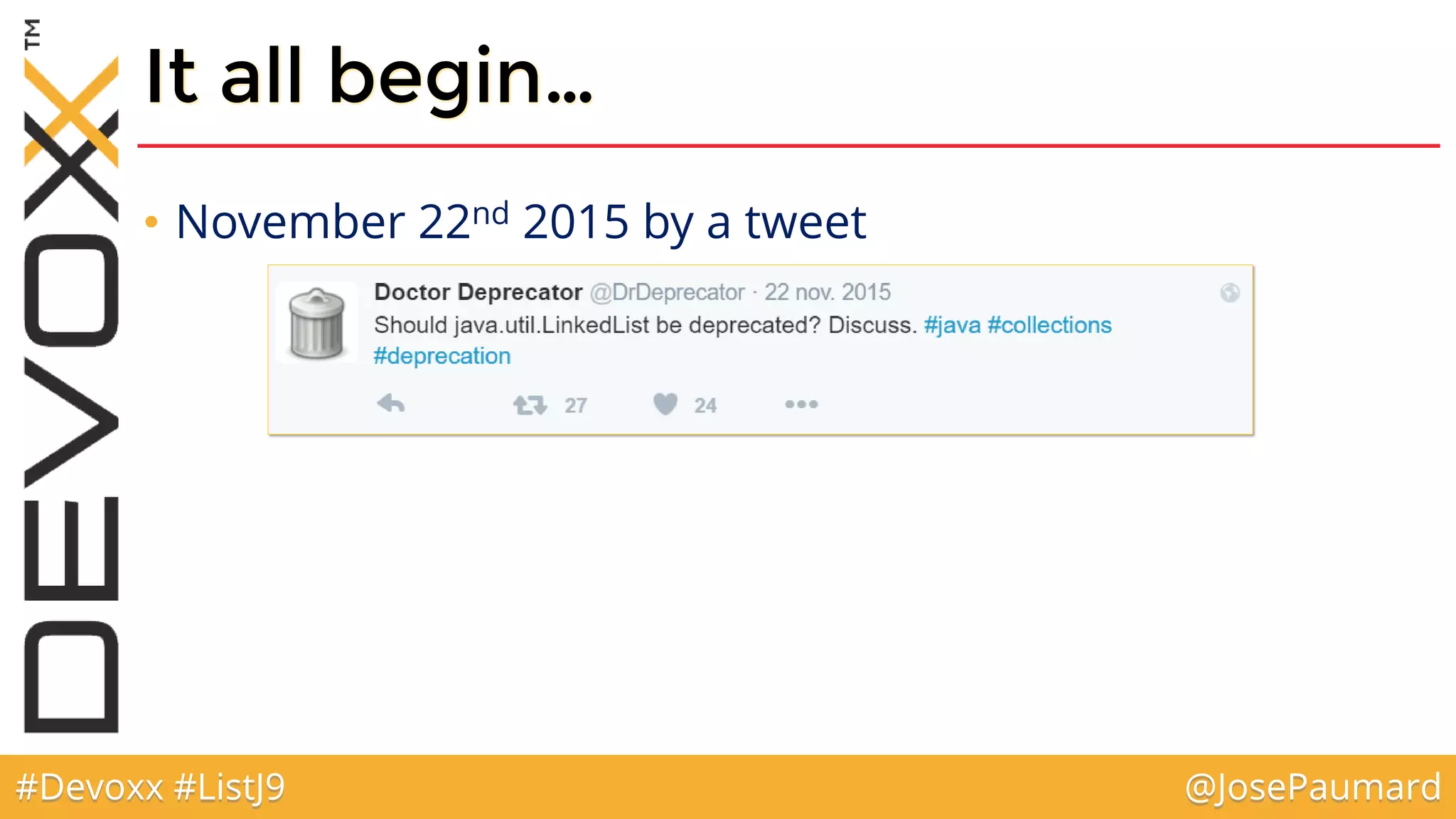

It all begin…
• November 22nd 2015 by a tweet
#Devoxx #ListJ9 @JosePaumard

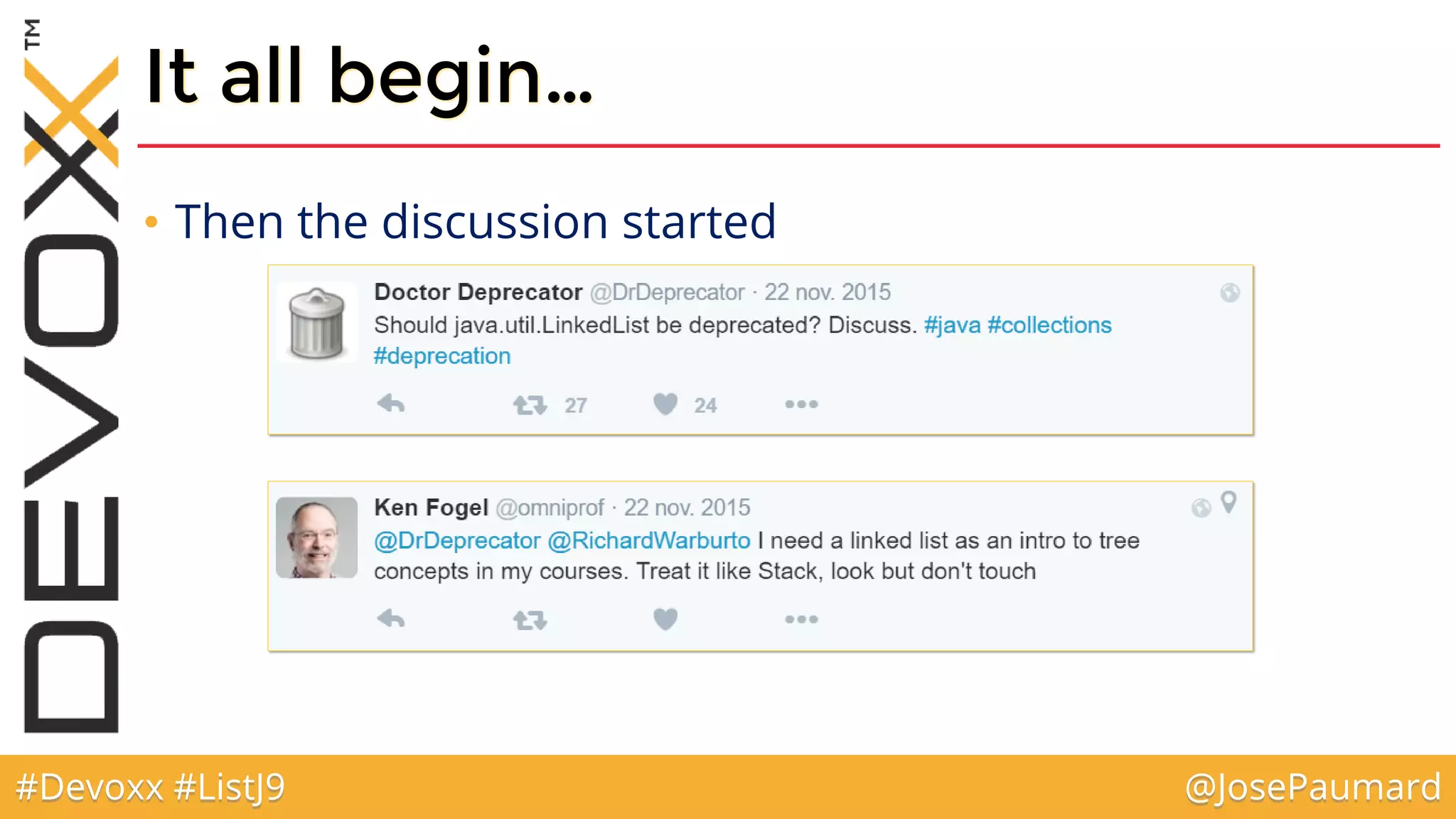

It all begin…
• Then the discussion started
#Devoxx #ListJ9 @JosePaumard

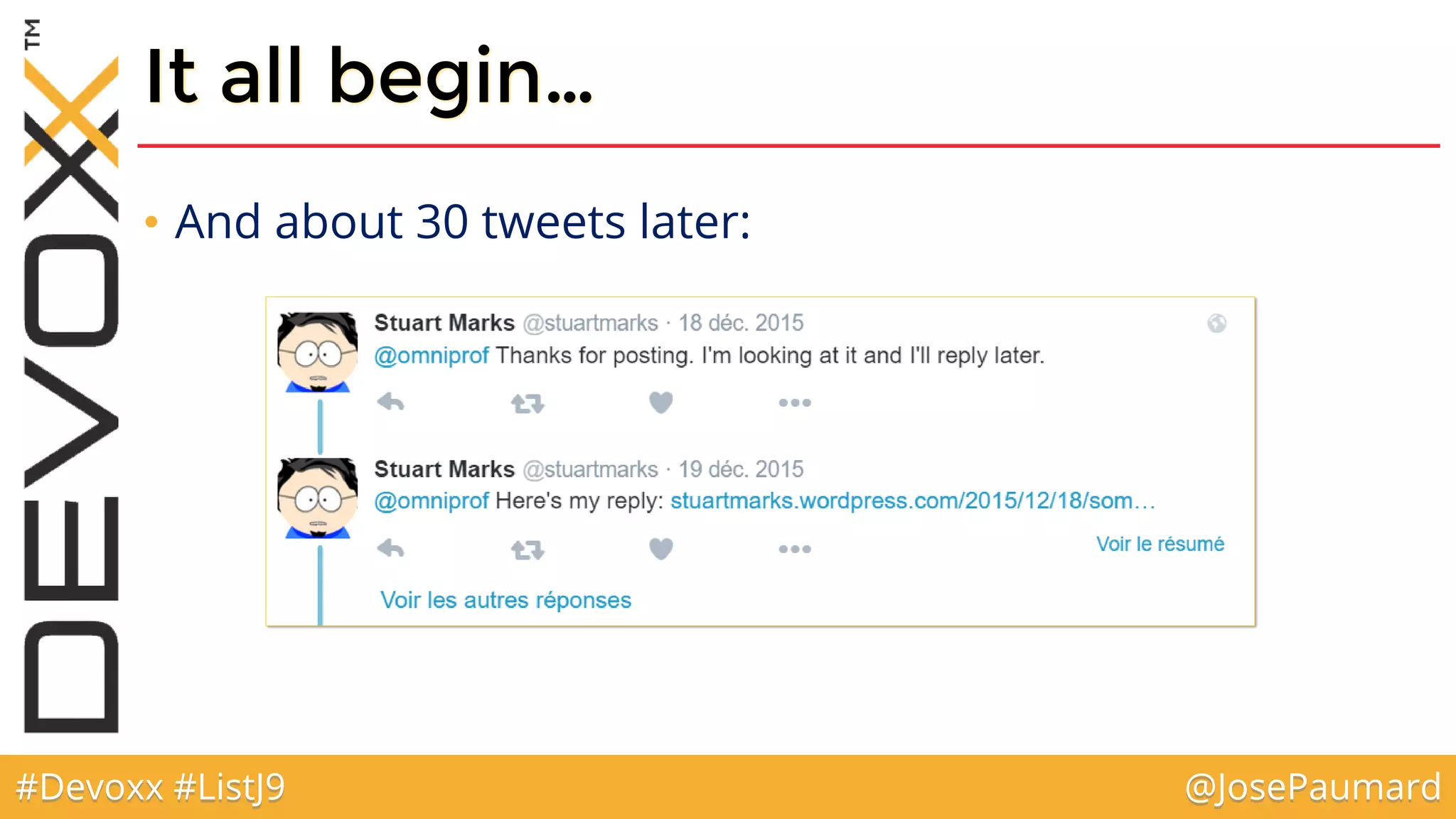

It all begin…
• And about 30 tweets later:
#Devoxx #ListJ9 @JosePaumard

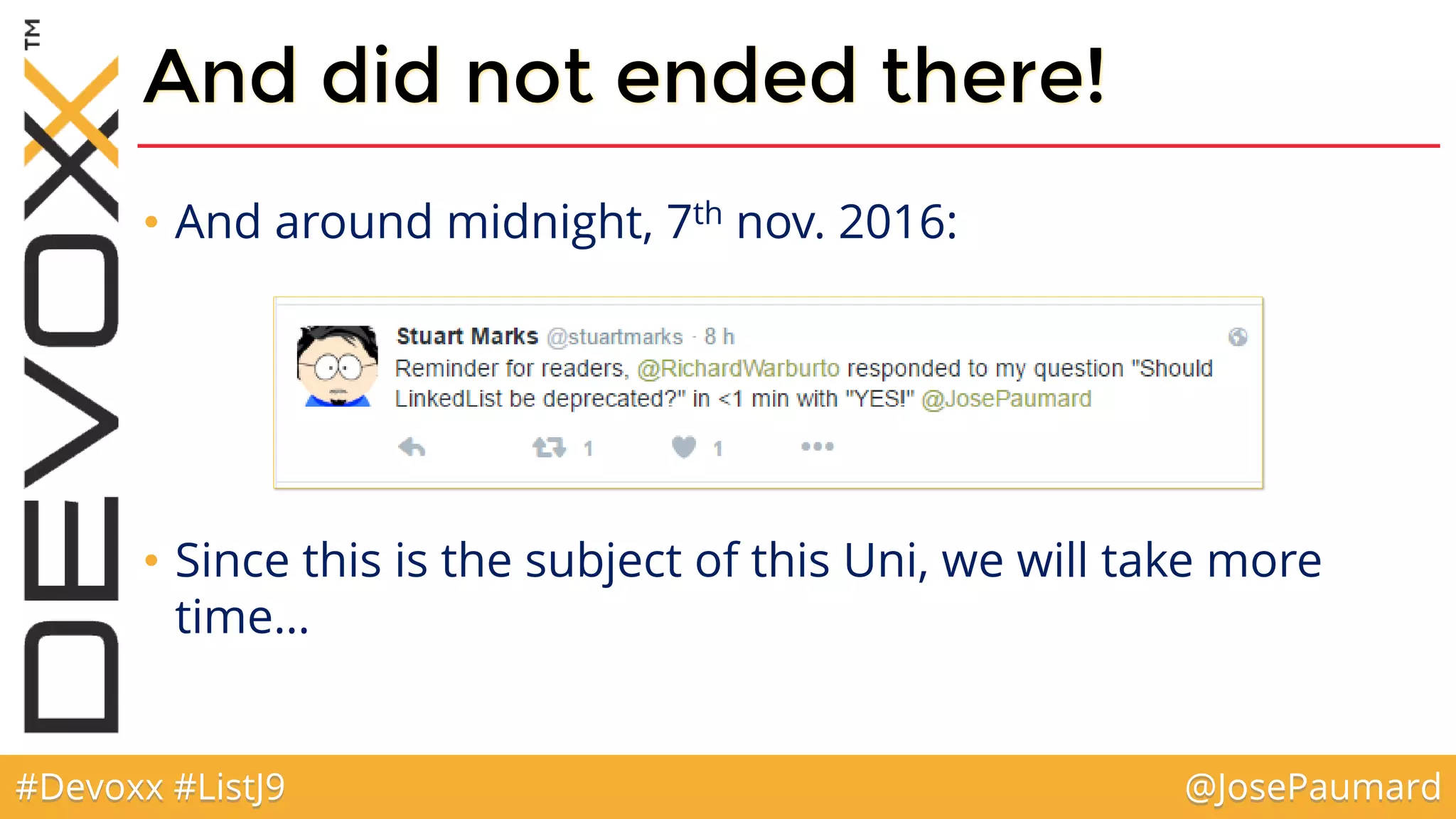

And did not ended there!
• And around midnight, 7th nov. 2016:
• Since this is the subject of this Uni, we will take more
time…
Linked to ArrayList: the full story
#Devoxx #ListJ9 @JosePaumard
Questions ?
#ListJ9
Questions?
#ListJ9
#Devoxx #ListJ9 @JosePaumard
• This discussion ArrayList vs LinkedList is no troll…
 Even if it looks like one!
• The question is :
Is one of these implementations better than the other?
• And there is an answer to this question!
And the conclusion is…
#Devoxx #ListJ9 @JosePaumard

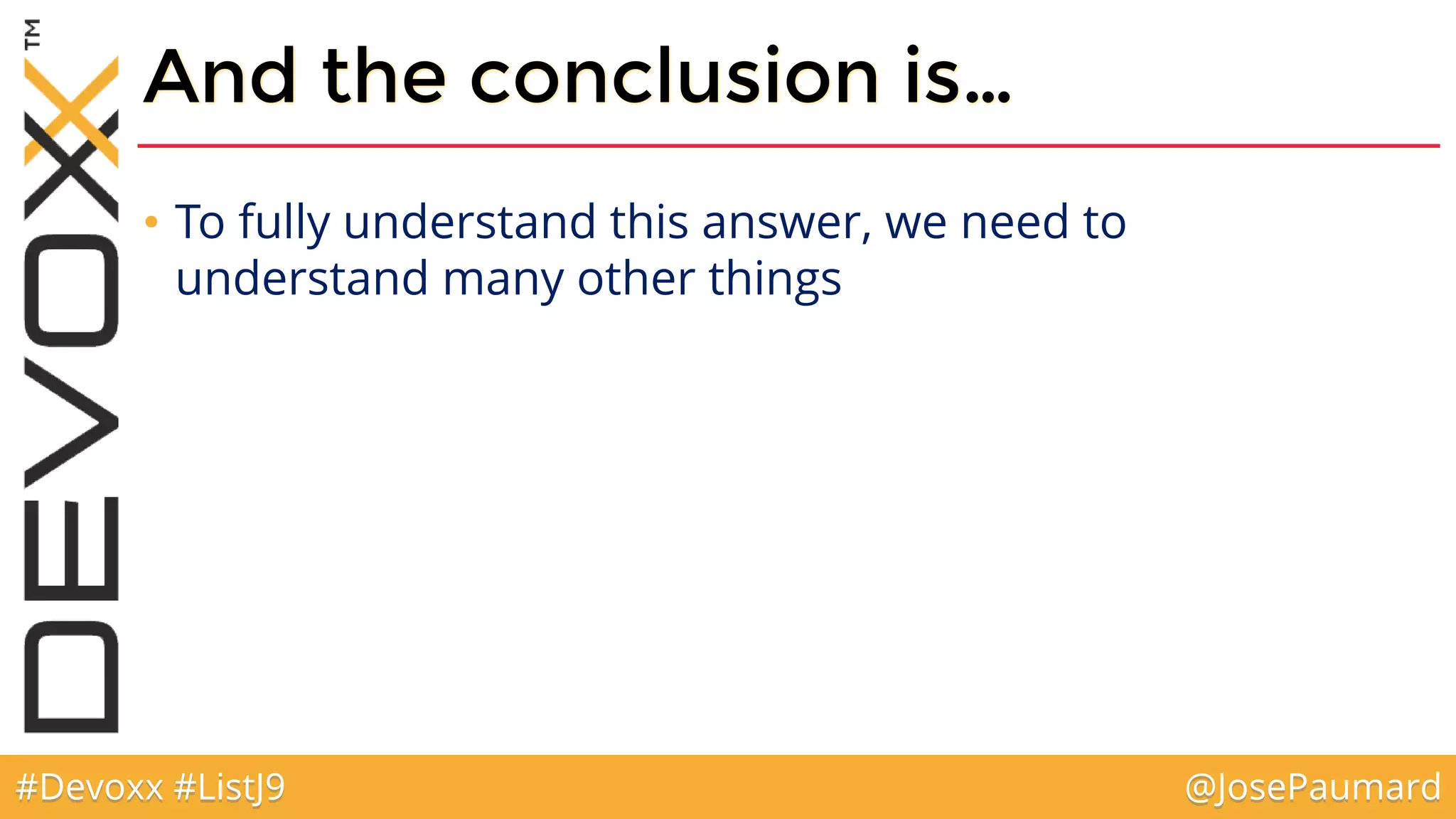

And the conclusion is…
• To fully understand this answer, we need to
understand many other things
#Devoxx #ListJ9 @JosePaumard

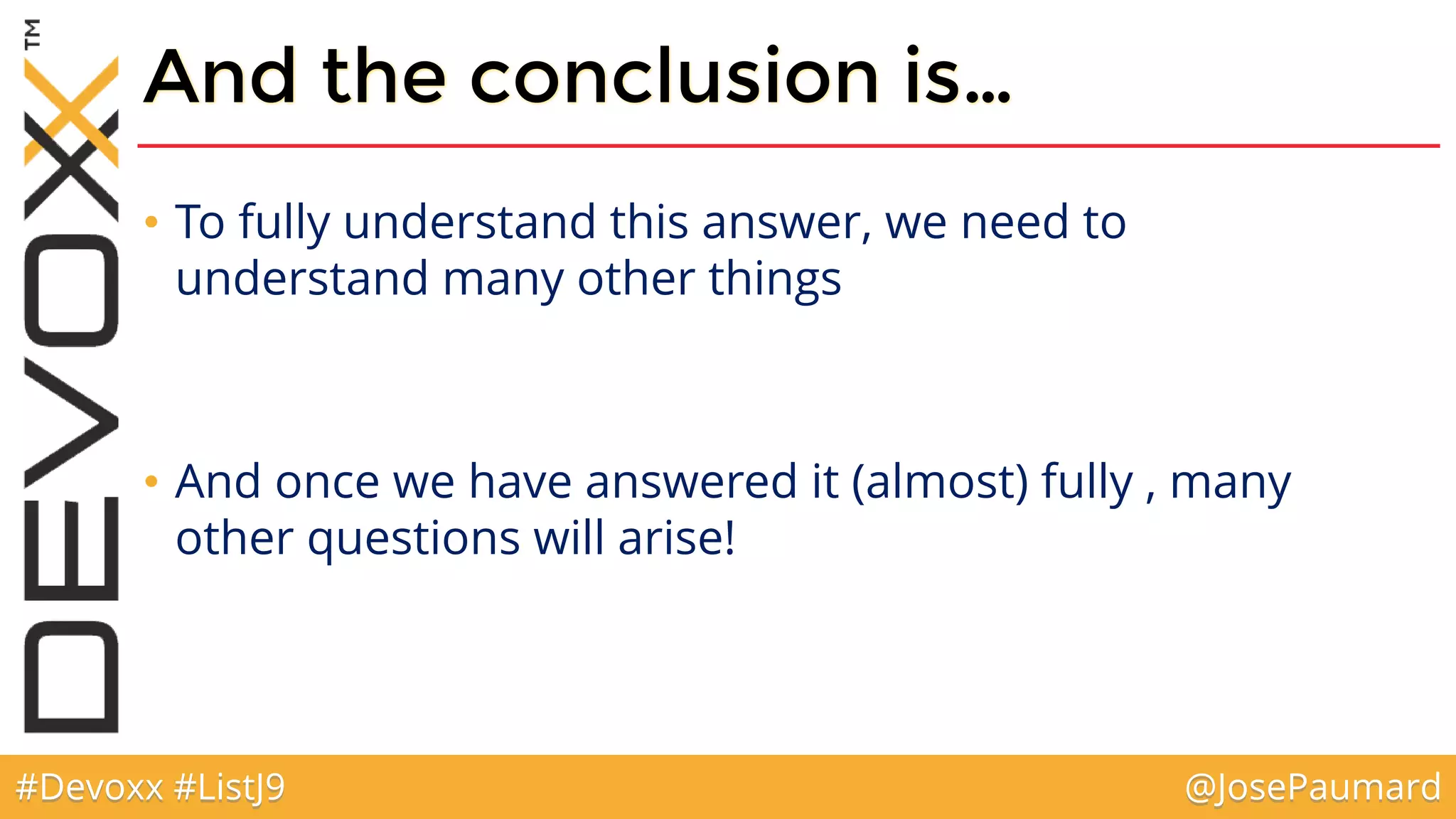

And the conclusion is…
• To fully understand this answer, we need to
understand many other things
• And once we have answered it (almost) fully , many
other questions will arise!
#Devoxx #ListJ9 @JosePaumard

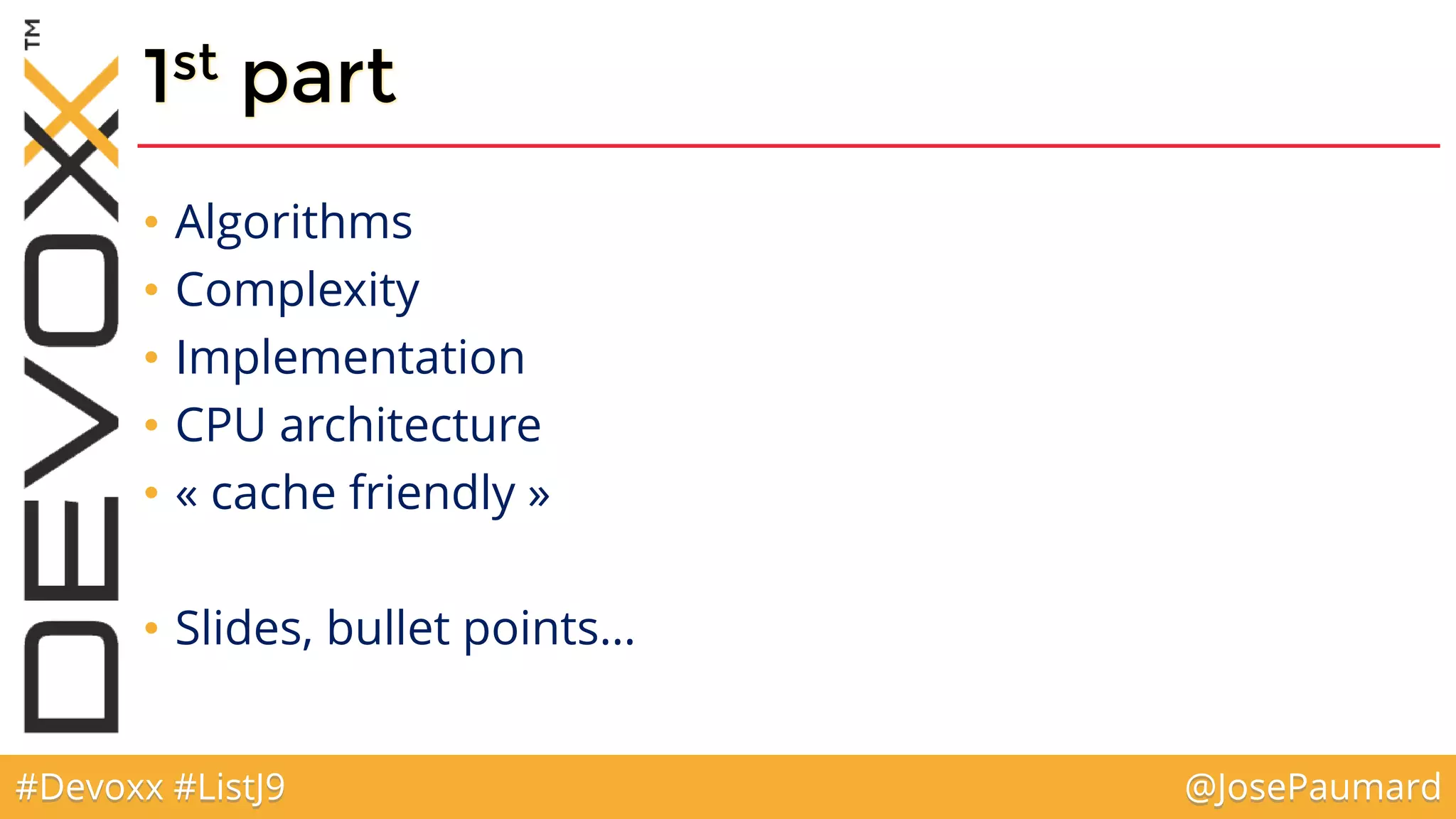

1st part
• Algorithms
• Complexity
• Implementation
• CPU architecture
• « cache friendly »
• Slides, bullet points…
#Devoxx #ListJ9 @JosePaumard

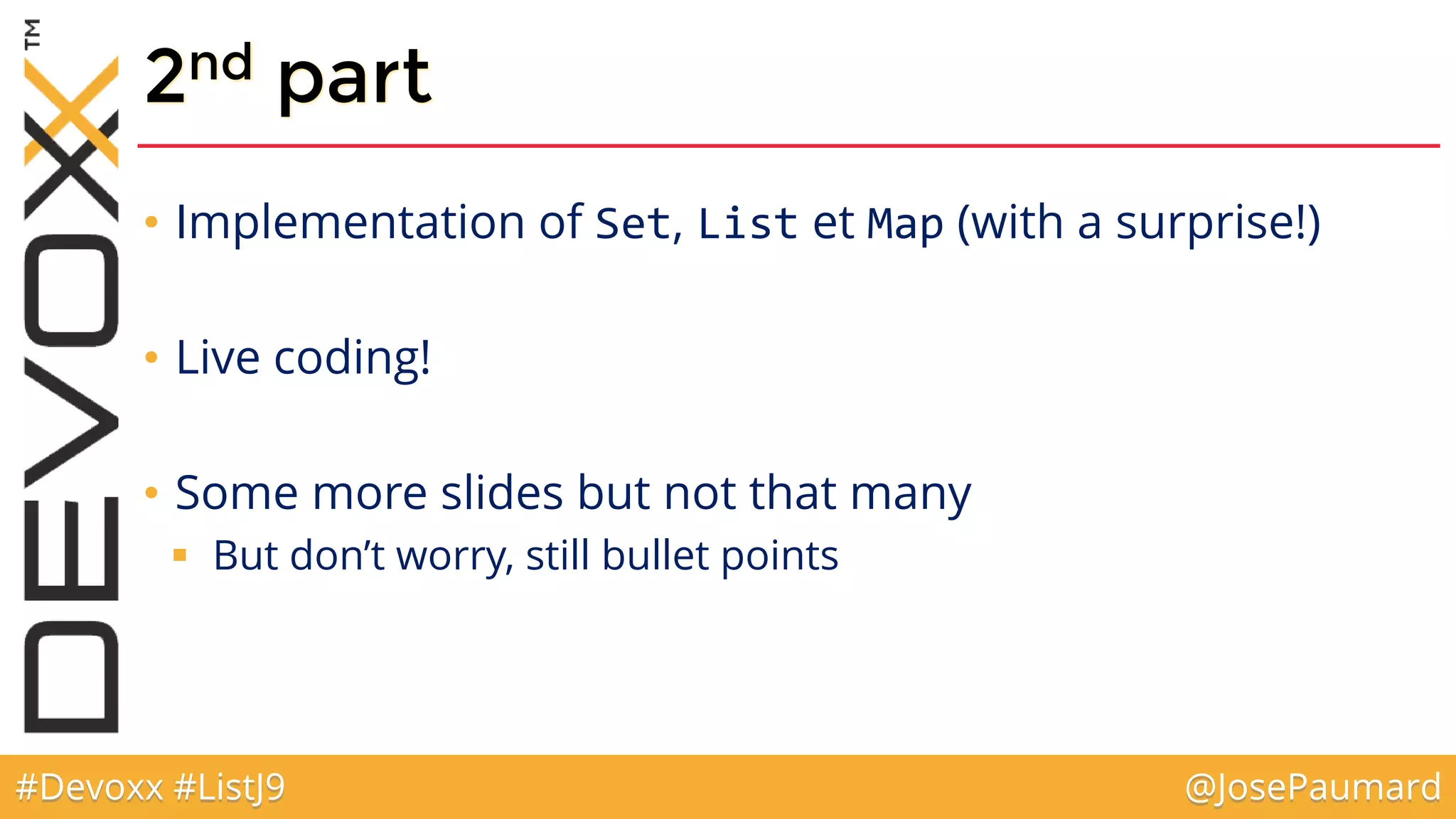

2nd part
• Implementation of Set, List et Map (with a surprise!)
• Live coding!
• Some more slides but not that many
 But don’t worry, still bullet points
#Devoxx #ListJ9 @JosePaumard

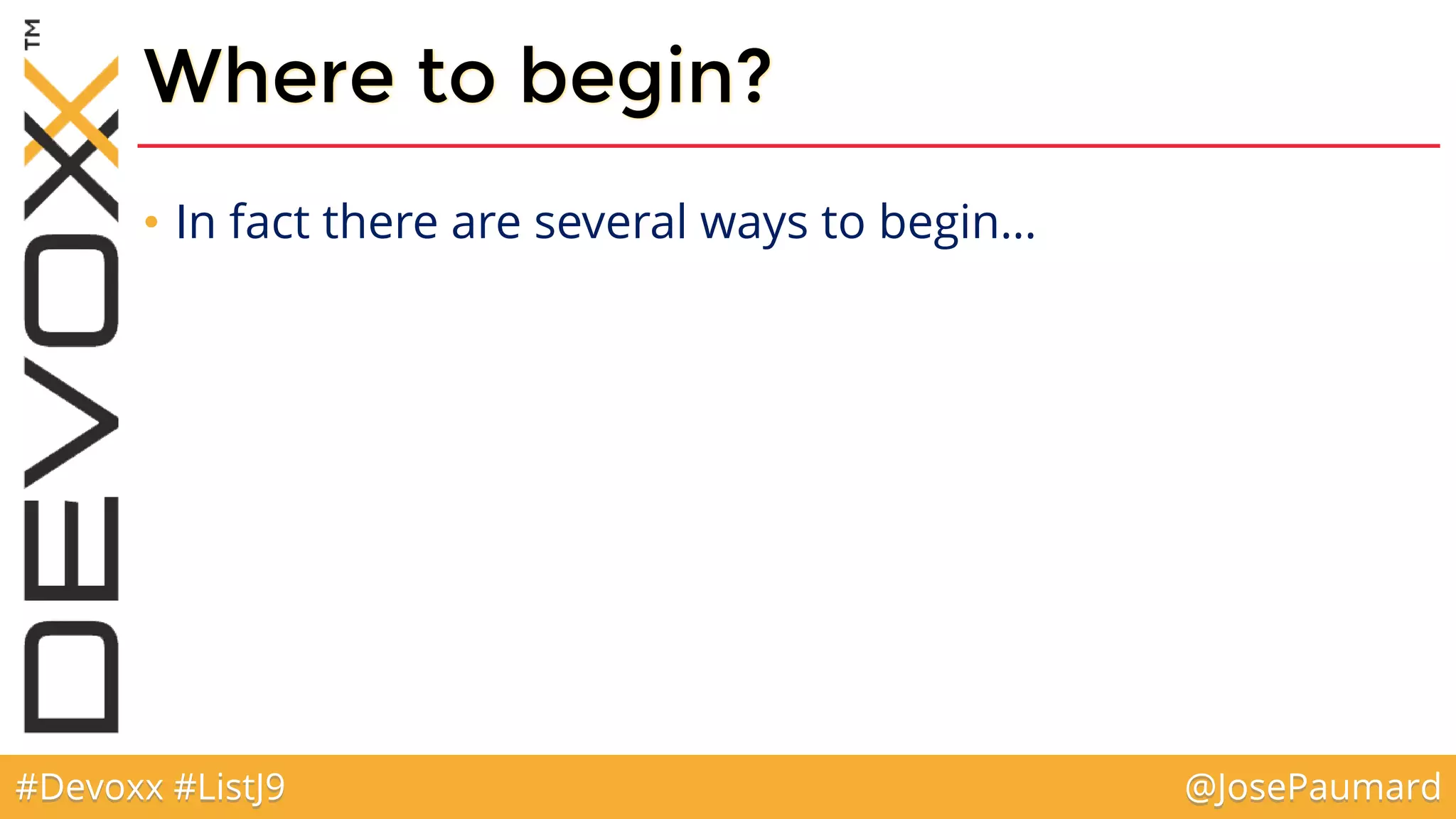

Where to begin?
• In fact there are several ways to begin…
#Devoxx #ListJ9 @JosePaumard

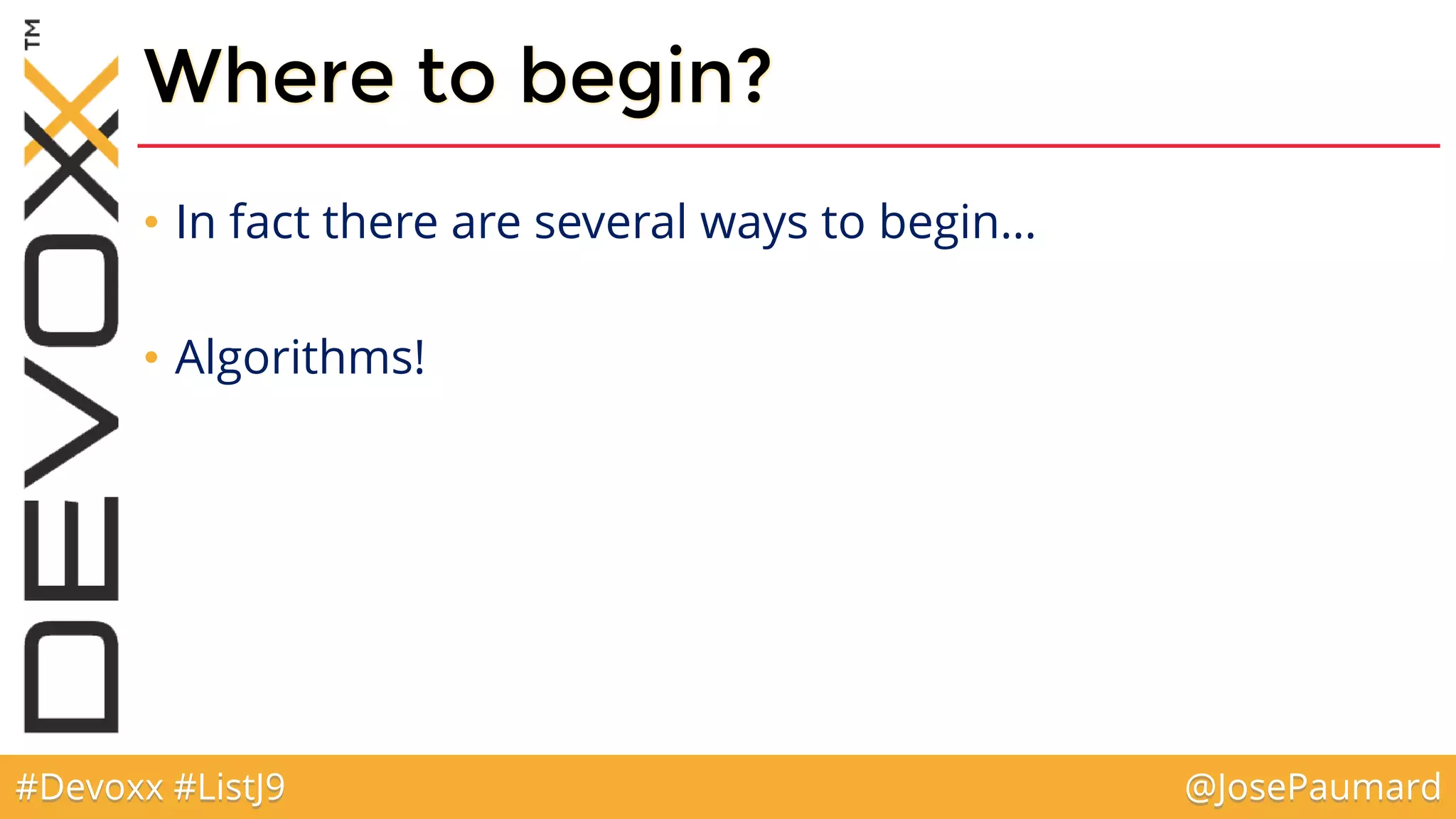

Where to begin?
• In fact there are several ways to begin…
• Algorithms!
#Devoxx #ListJ9 @JosePaumard

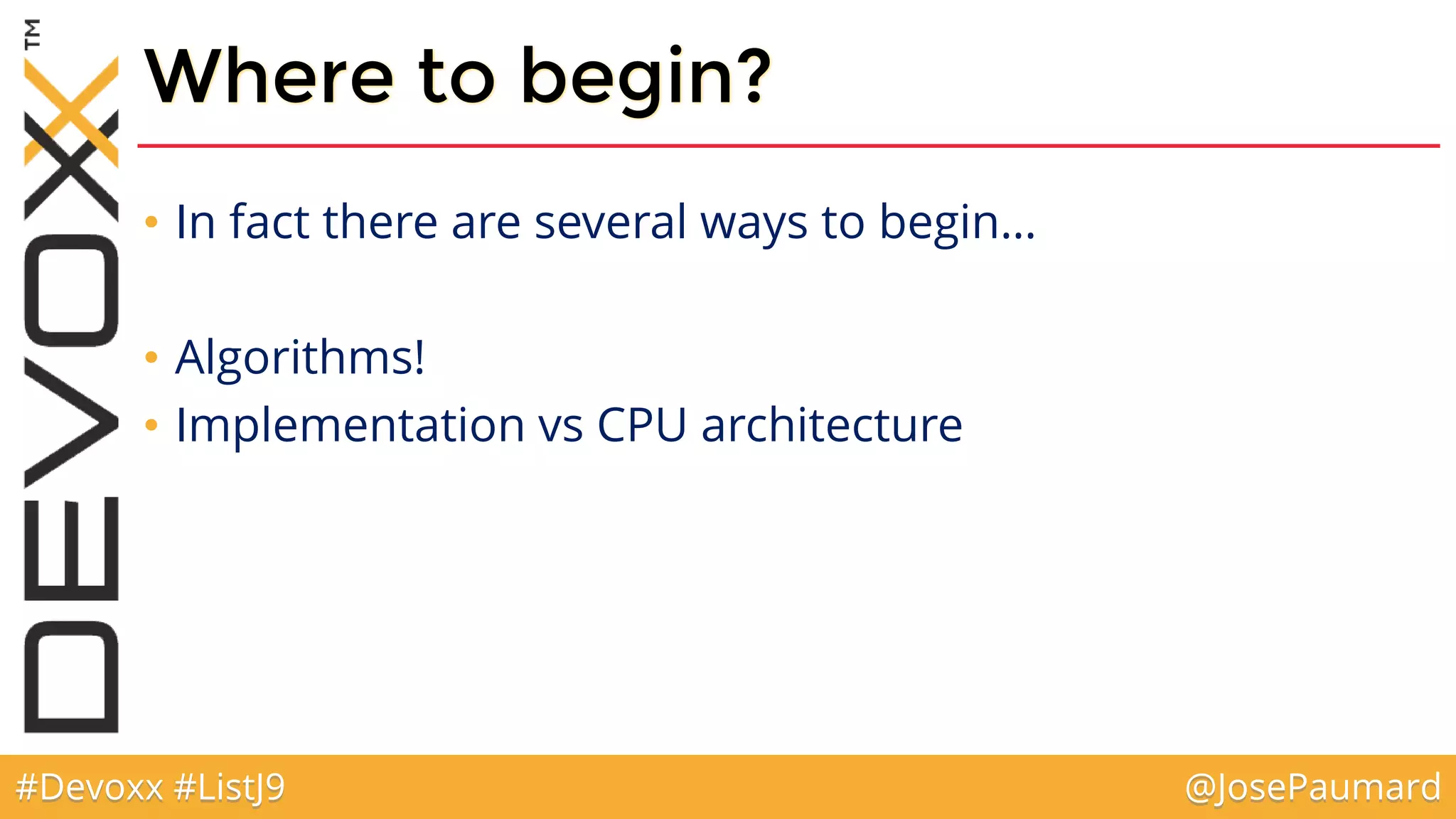

Where to begin?
• In fact there are several ways to begin…
• Algorithms!
• Implementation vs CPU architecture
#Devoxx #ListJ9 @JosePaumard

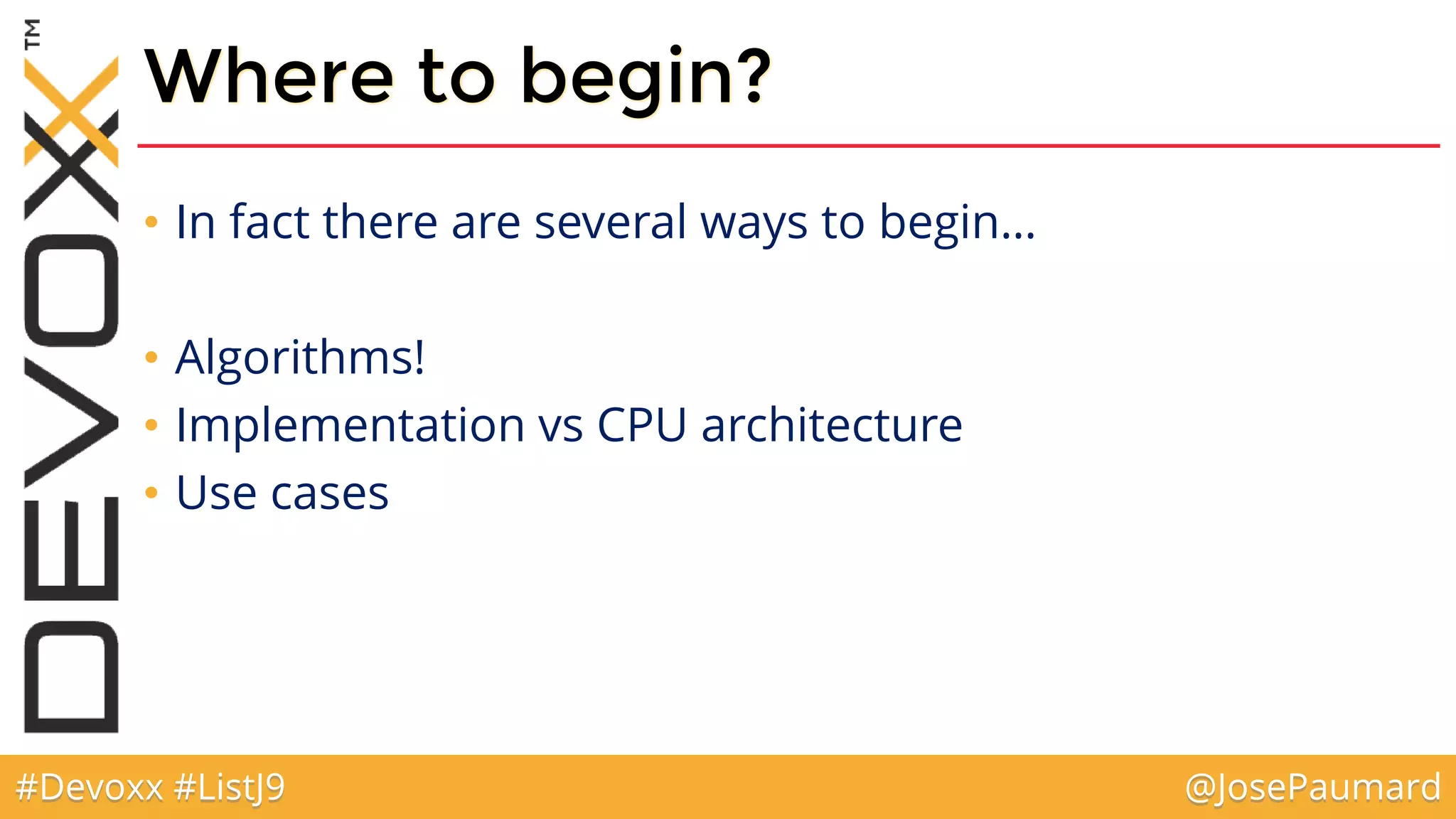

Where to begin?
• In fact there are several ways to begin…
• Algorithms!
• Implementation vs CPU architecture
• Use cases
#Devoxx #ListJ9 @JosePaumard
What do we know?
1) ArrayList is built on an array
2) LinkedList is built on a linked list
And we have results on this
#Devoxx #ListJ9 @JosePaumard

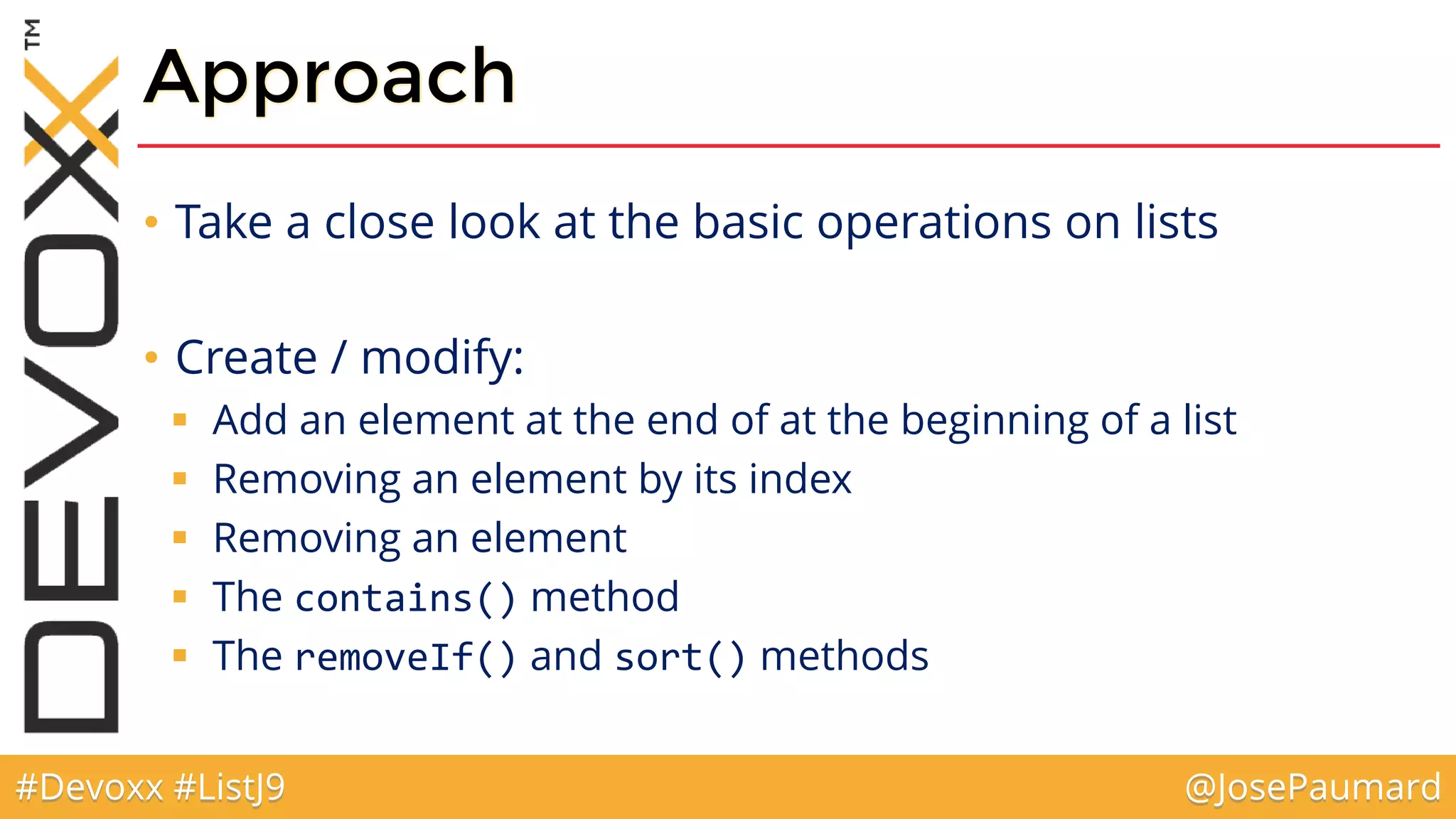

Approach
• Take a close look at the basic operations on lists
• Create / modify:
 Add an element at the end of at the beginning of a list
 Removing an element by its index
 Removing an element
 The contains() method
 The removeIf() and sort() methods
#Devoxx #ListJ9 @JosePaumard

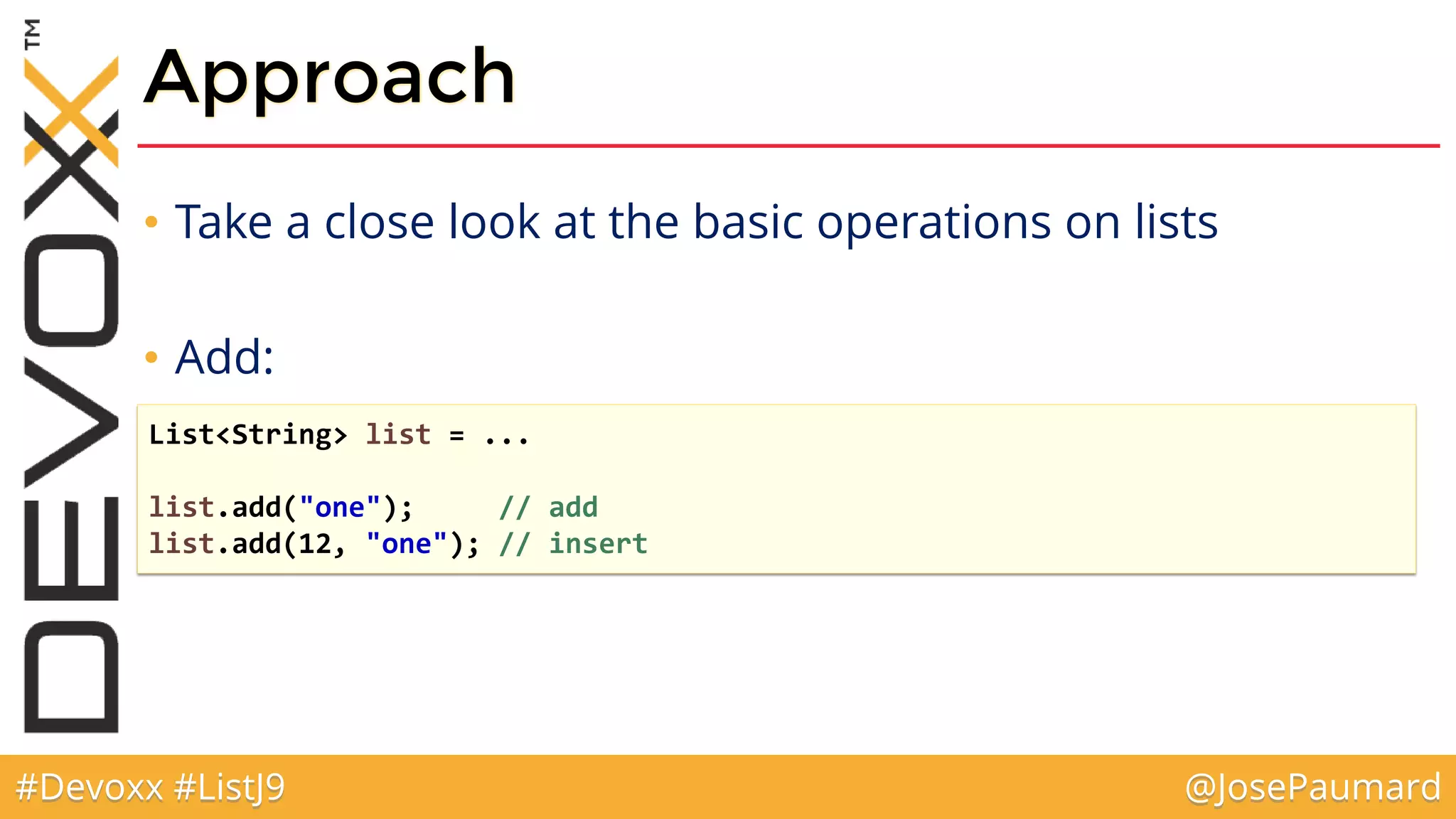

Approach
• Take a close look at the basic operations on lists
• Add:
List<String> list = ...
list.add("one"); // add
list.add(12, "one"); // insert
#Devoxx #ListJ9 @JosePaumard

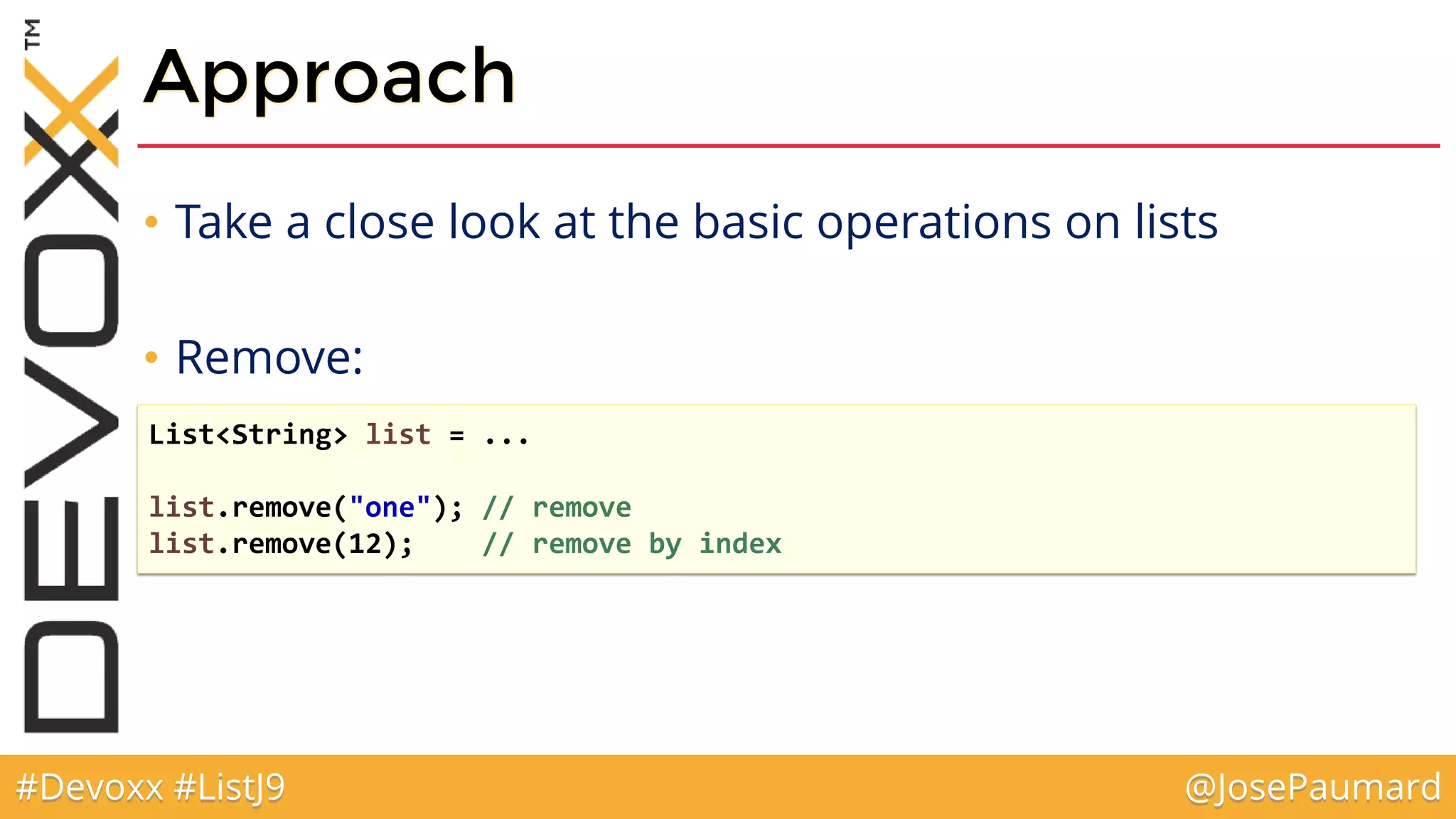

Approach
• Take a close look at the basic operations on lists
• Remove:
List<String> list = ...
list.remove("one"); // remove
list.remove(12); // remove by index
#Devoxx #ListJ9 @JosePaumard

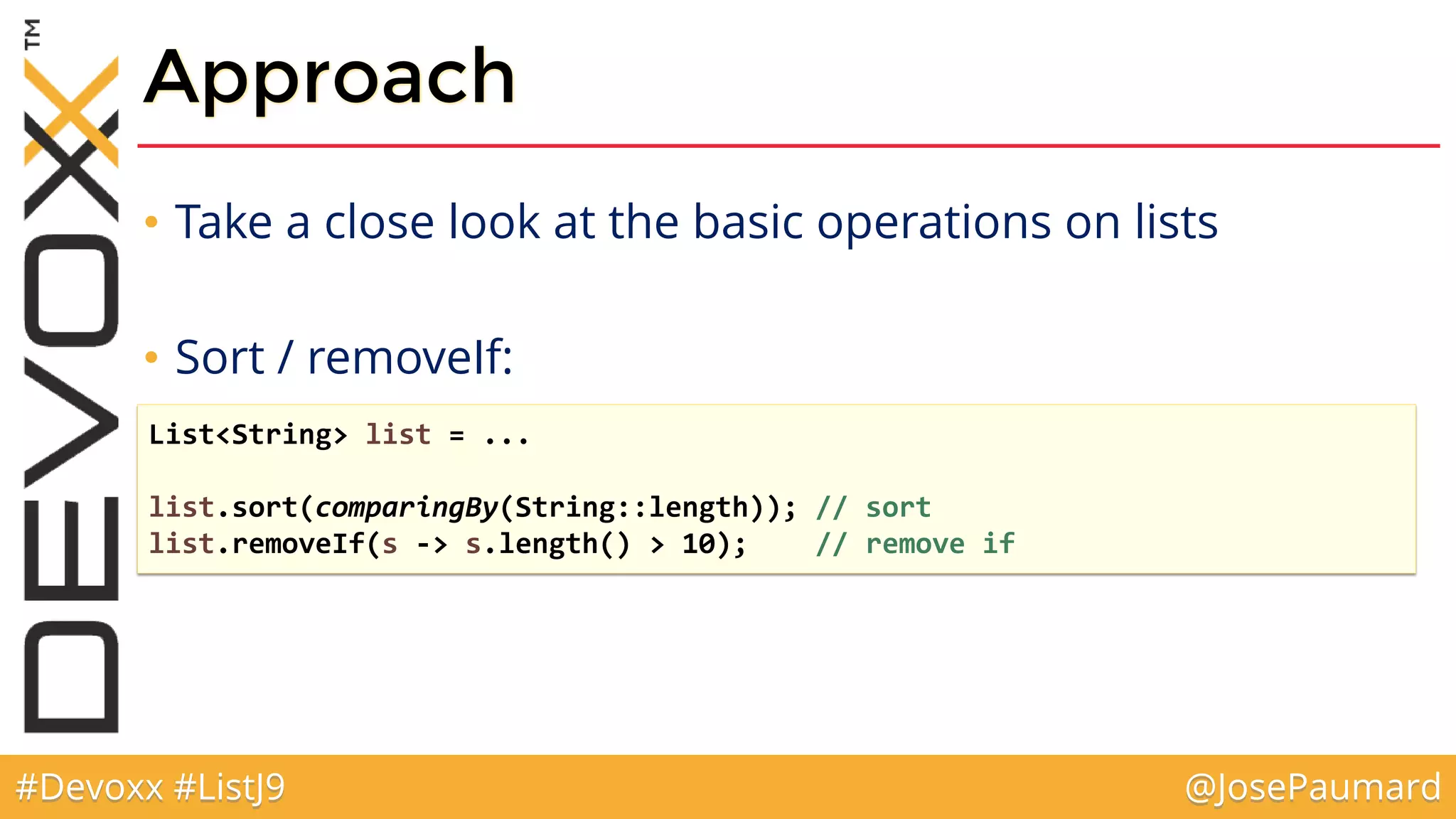

Approach
• Take a close look at the basic operations on lists
• Sort / removeIf:
List<String> list = ...
list.sort(comparingBy(String::length)); // sort
list.removeIf(s -> s.length() > 10); // remove if
#Devoxx #ListJ9 @JosePaumard
Approach
• Take a close look at the basic operations on lists
• Read operations:
 Iterate
 Read an element with its index
 Building a Stream
#Devoxx #ListJ9 @JosePaumard

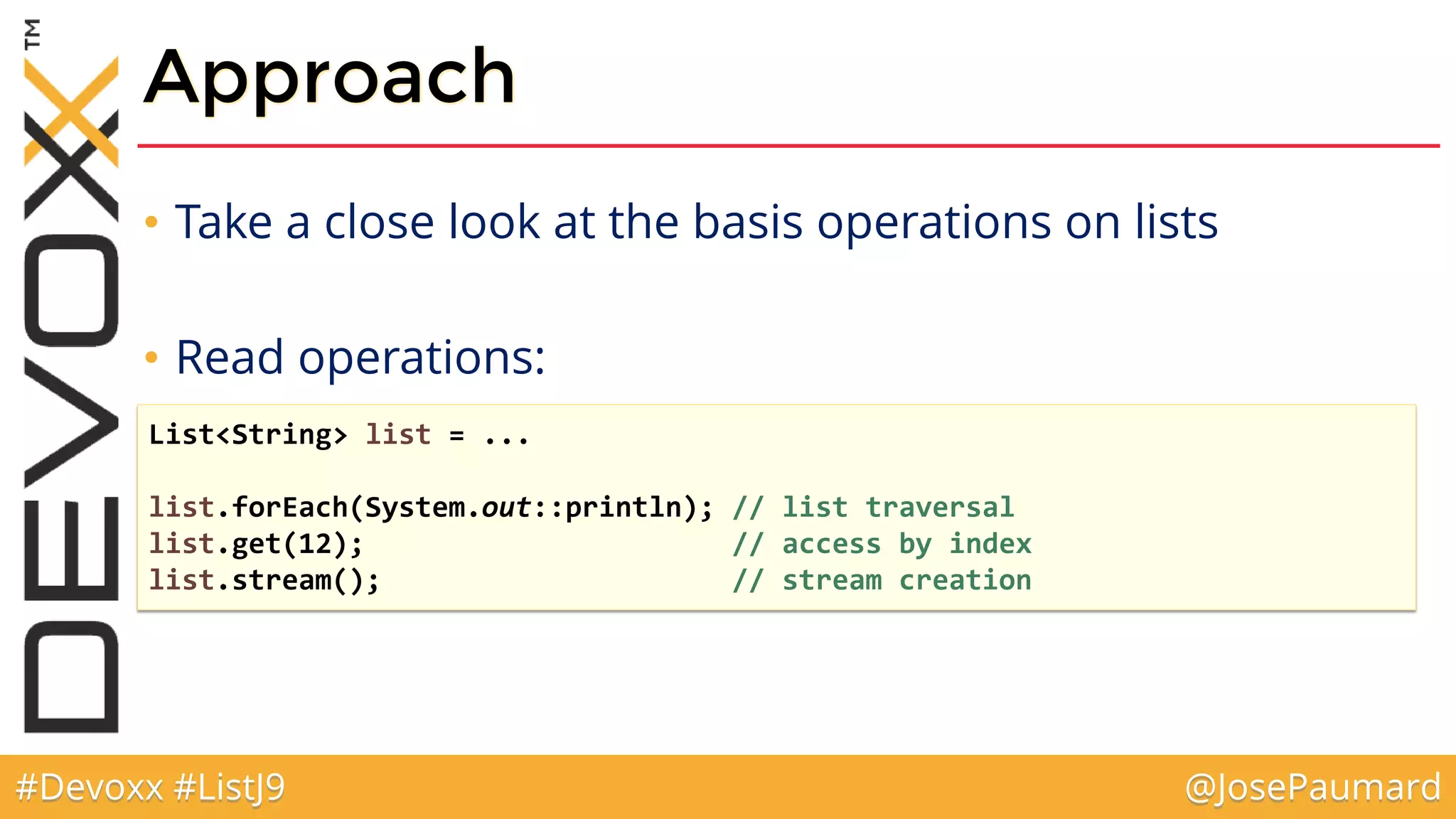

Approach
• Take a close look at the basis operations on lists
• Read operations:
List<String> list = ...
list.forEach(System.out::println); // list traversal
list.get(12); // access by index
list.stream(); // stream creation
#Devoxx #ListJ9 @JosePaumard

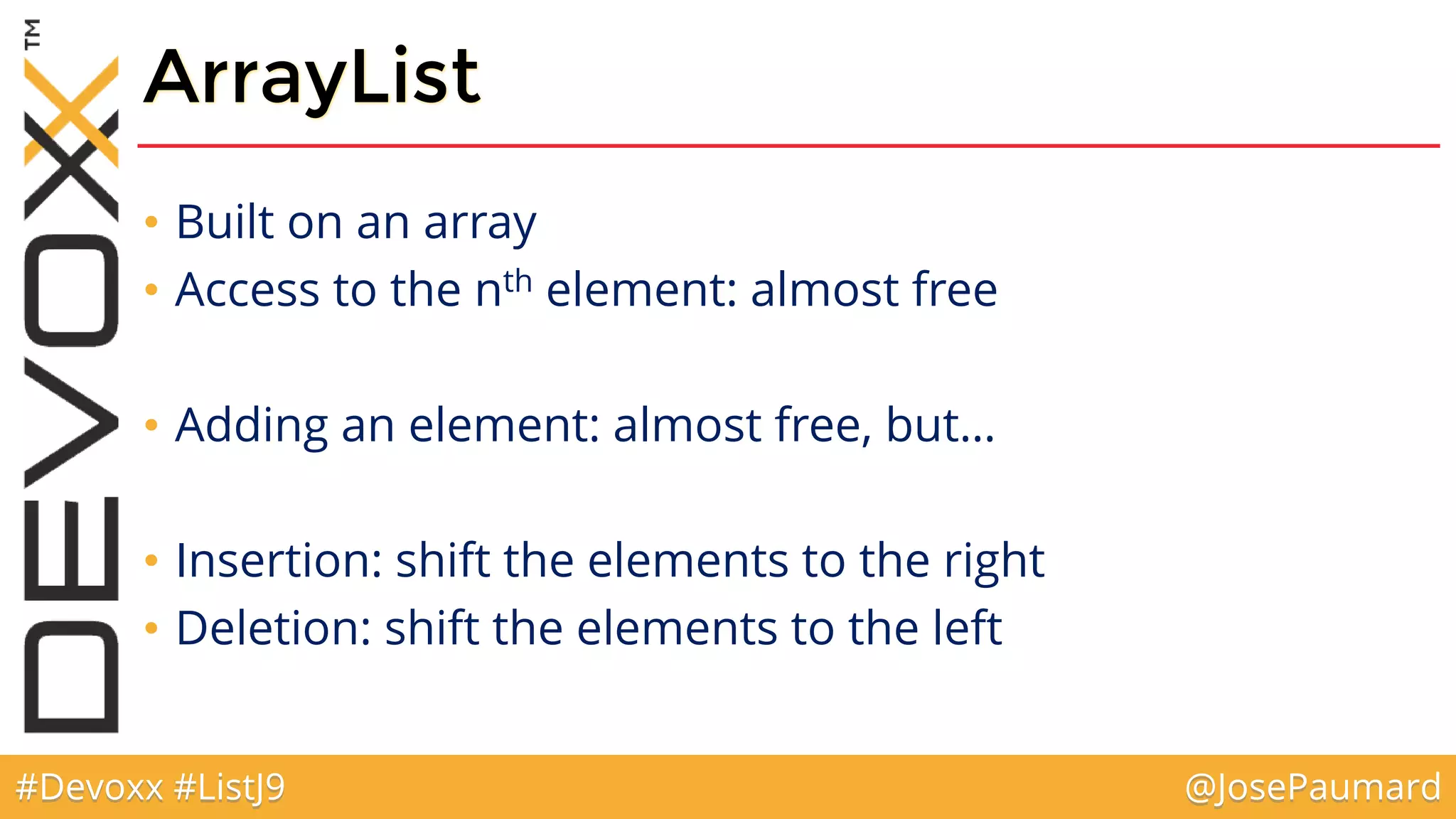

ArrayList
• Built on an array
• Access to the nth element: almost free
• Adding an element: almost free, but…
• Insertion: shift the elements to the right
• Deletion: shift the elements to the left
#Devoxx #ListJ9 @JosePaumard

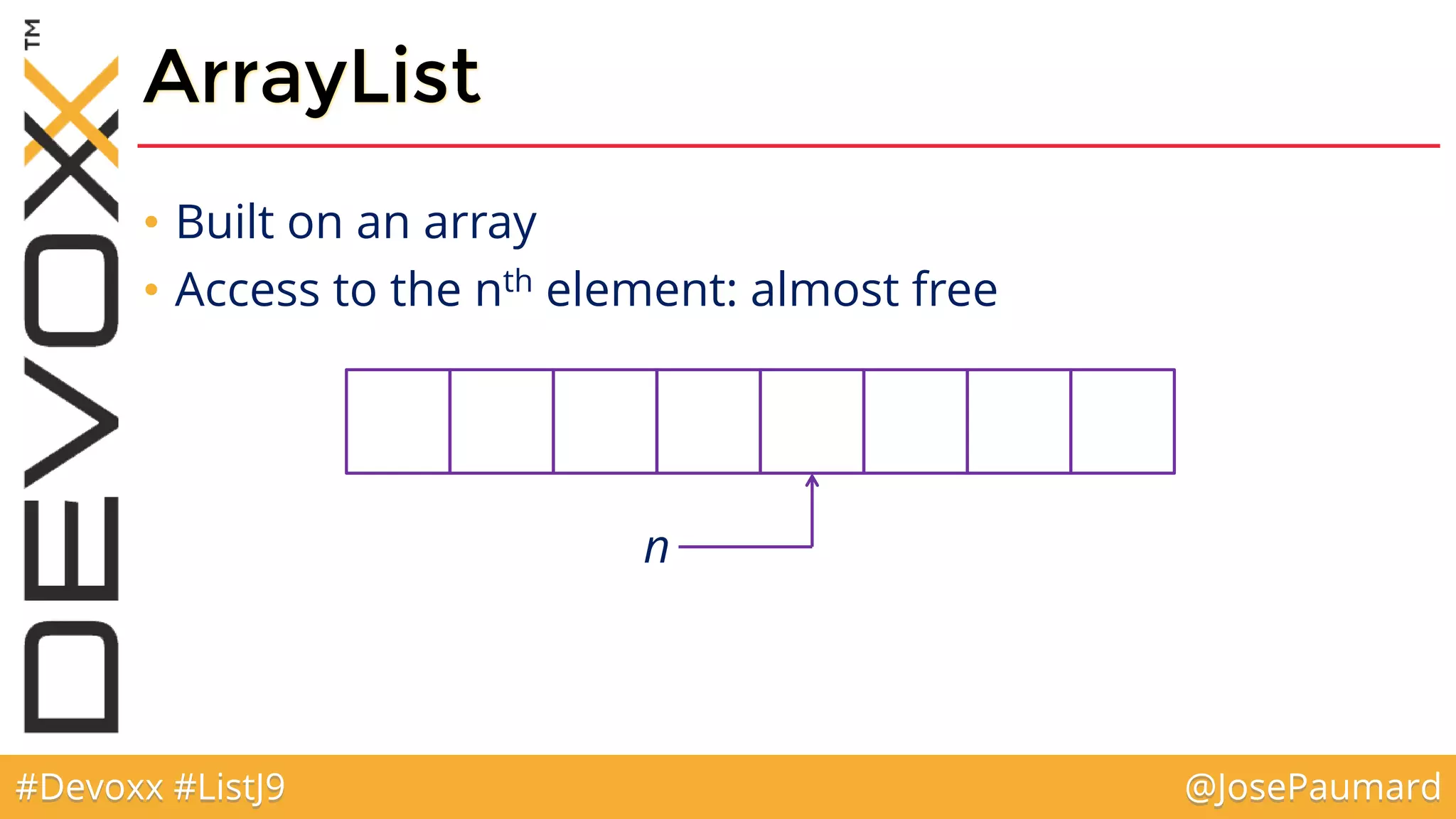

ArrayList
• Built on an array
• Access to the nth element: almost free
n
#Devoxx #ListJ9 @JosePaumard

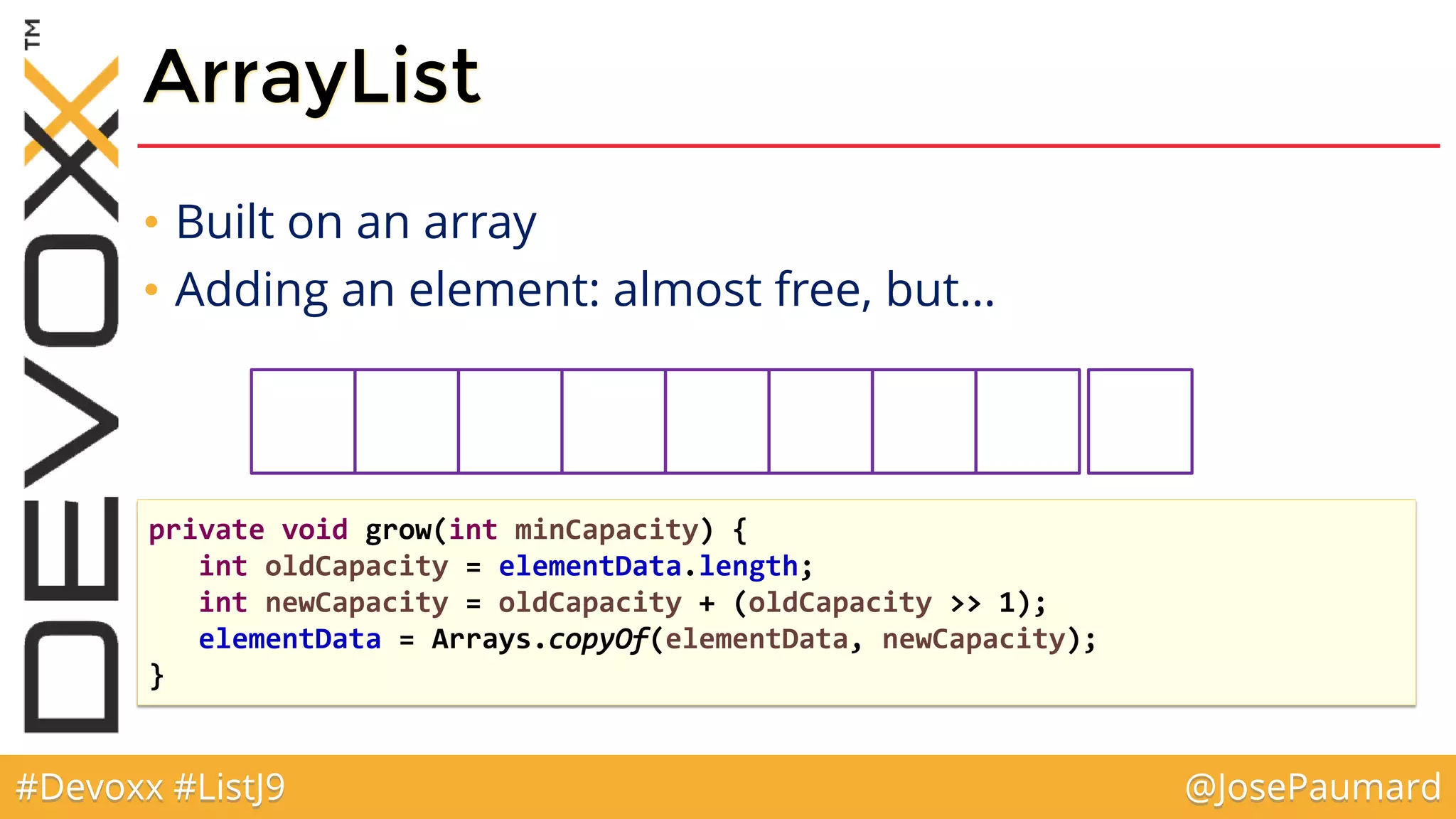

ArrayList
• Built on an array
• Adding an element: almost free, but…
private void grow(int minCapacity) {
int oldCapacity = elementData.length;
int newCapacity = oldCapacity + (oldCapacity >> 1);
elementData = Arrays.copyOf(elementData, newCapacity);
}
#Devoxx #ListJ9 @JosePaumard
ArrayList
• Built on an array
• Adding an element: almost free, but…
• Sometimes the array has to be enlarge
• But we can fix the size of the array when we build it
#Devoxx #ListJ9 @JosePaumard

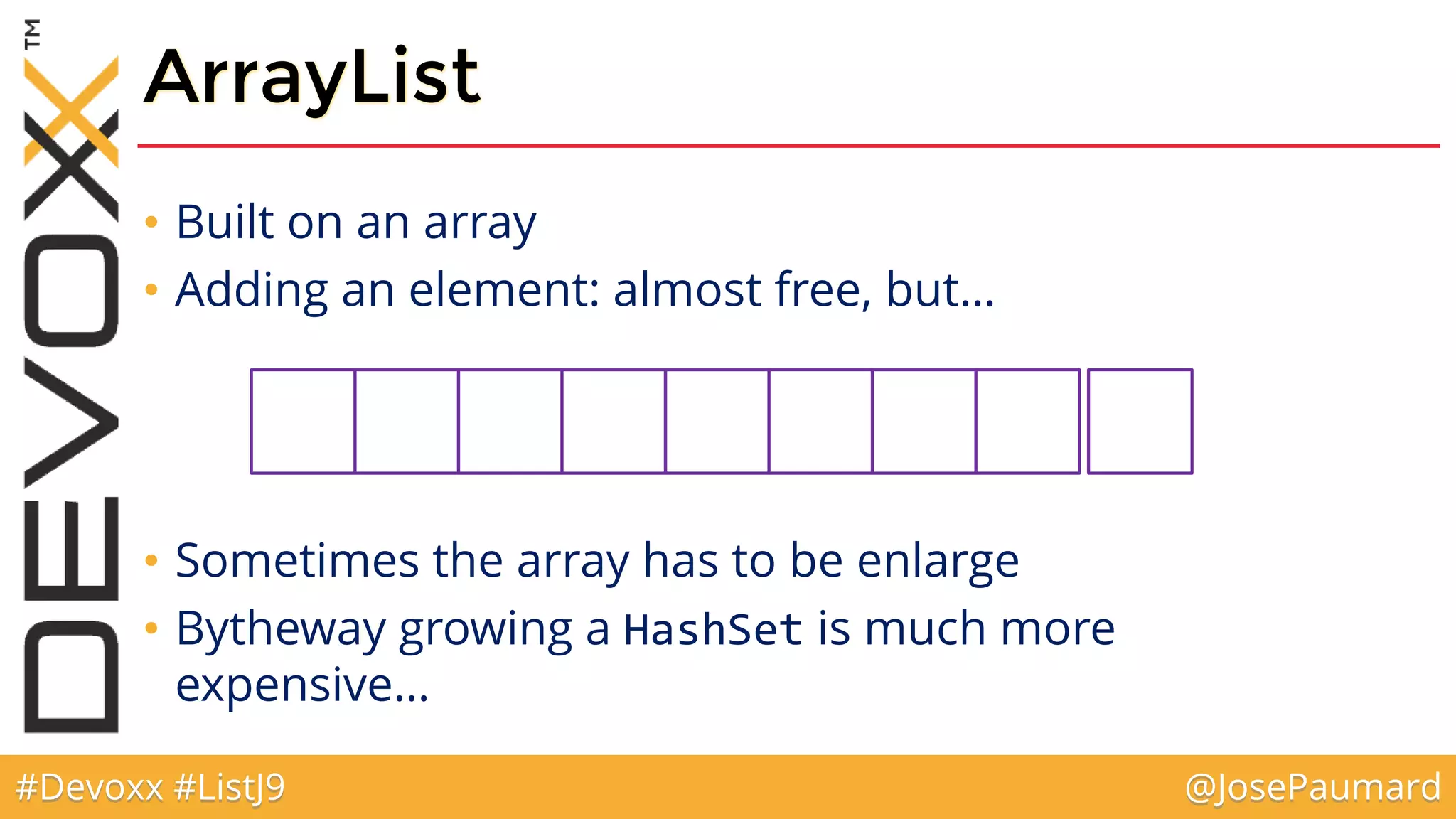

ArrayList
• Built on an array
• Adding an element: almost free, but…
• Sometimes the array has to be enlarge
• Bytheway growing a HashSet is much more
expensive…
#Devoxx #ListJ9 @JosePaumard

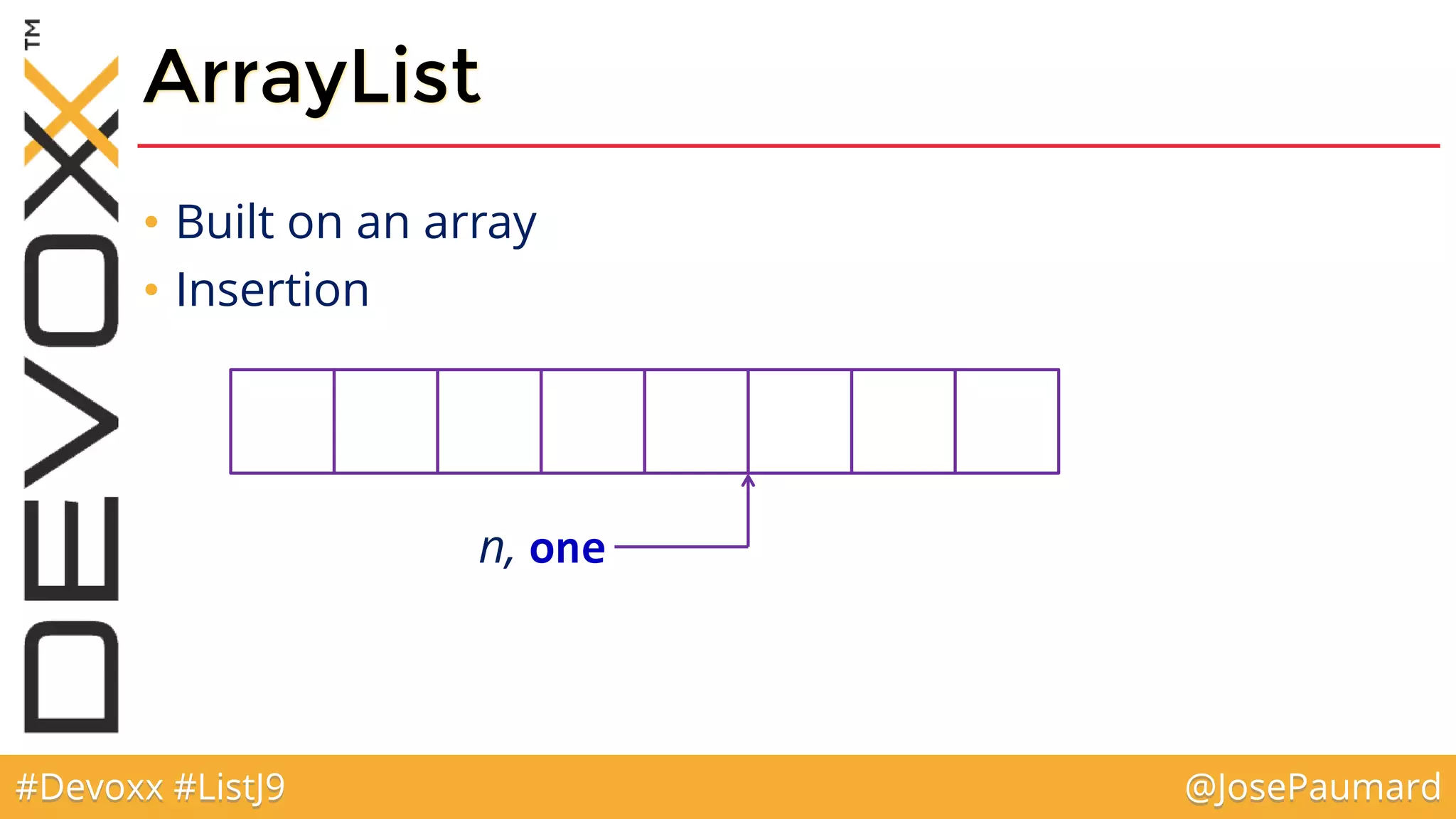

ArrayList
• Built on an array
• Insertion
n, one
#Devoxx #ListJ9 @JosePaumard

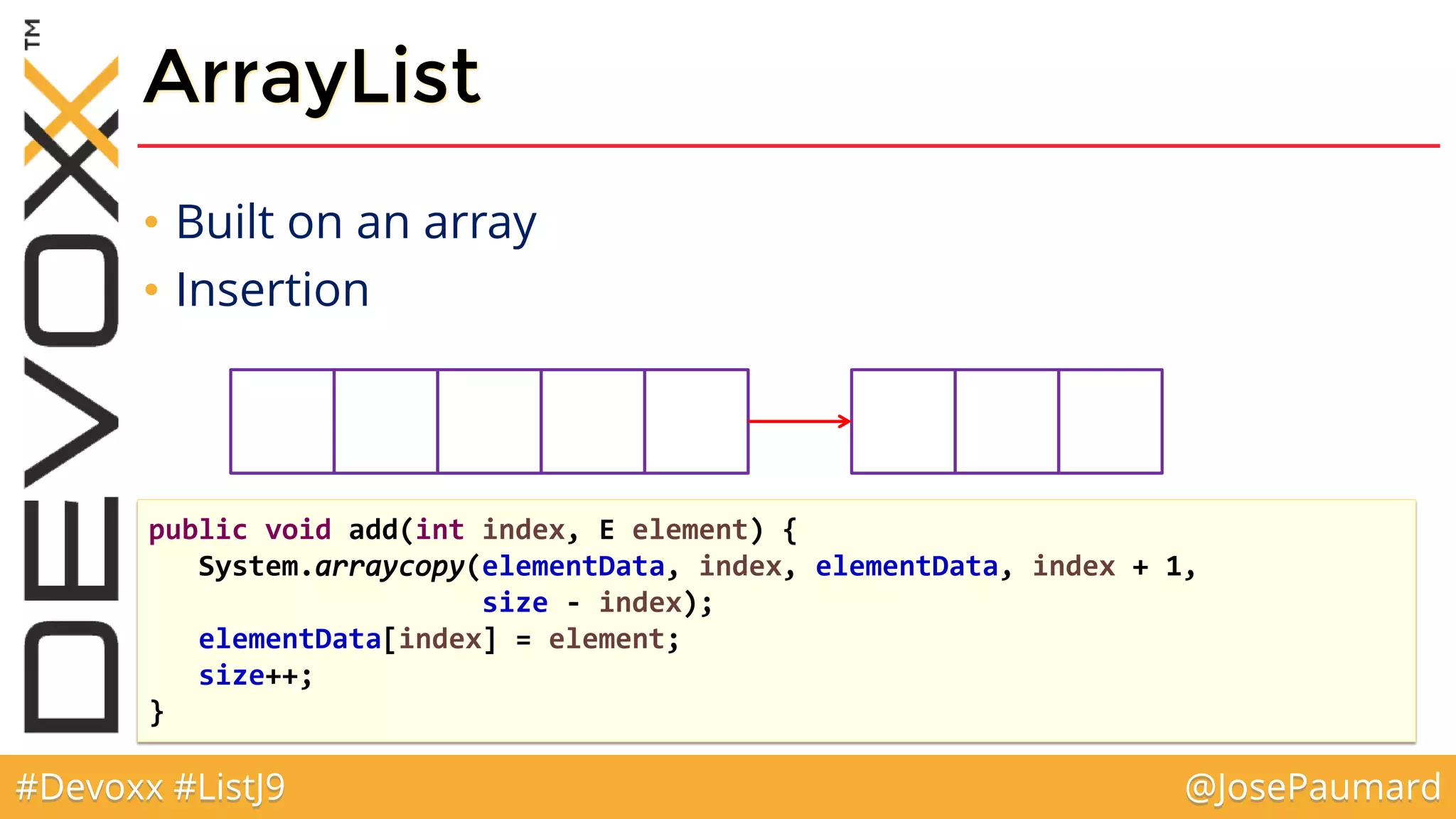

ArrayList
• Built on an array
• Insertion
public void add(int index, E element) {
System.arraycopy(elementData, index, elementData, index + 1,
size - index);
elementData[index] = element;
size++;
}
#Devoxx #ListJ9 @JosePaumard

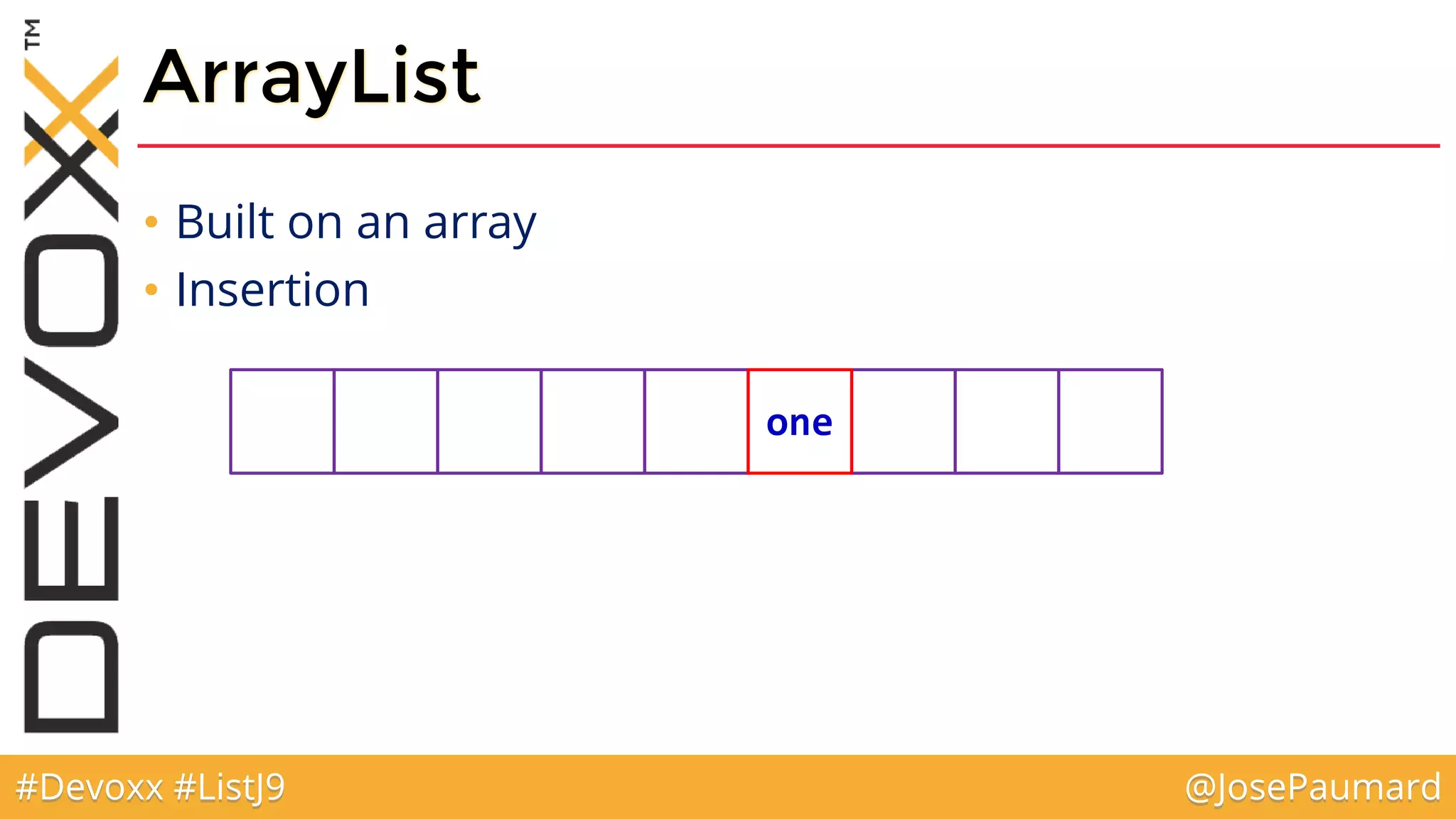

ArrayList
• Built on an array
• Insertion
one
#Devoxx #ListJ9 @JosePaumard
ArrayList
• Built on an array
• Suppression
n
X
#Devoxx #ListJ9 @JosePaumard

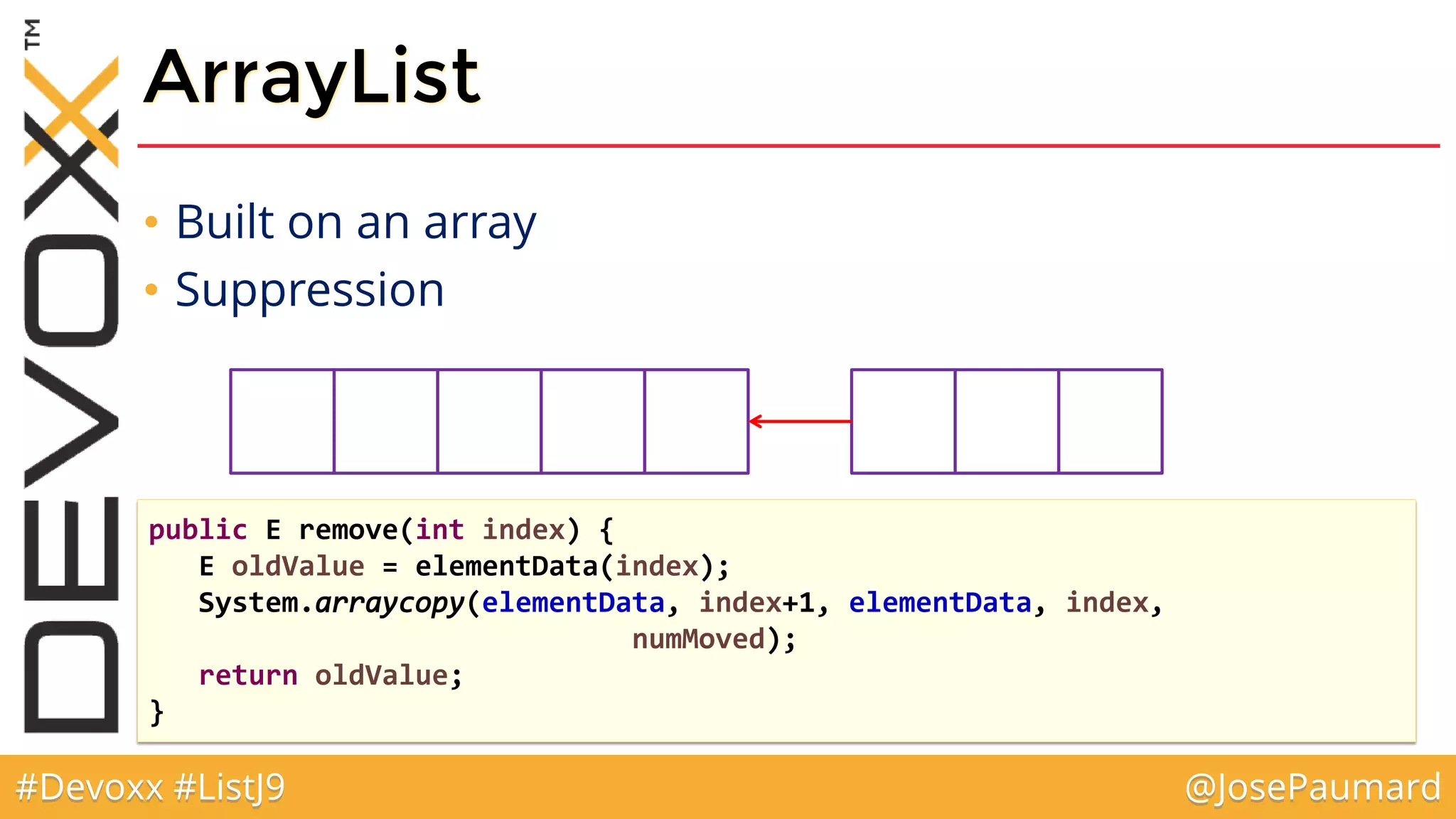

ArrayList
• Built on an array
• Suppression
public E remove(int index) {
E oldValue = elementData(index);
System.arraycopy(elementData, index+1, elementData, index,
numMoved);
return oldValue;
}
#Devoxx #ListJ9 @JosePaumard
ArrayList
• (Very) Early conclusion
• Accessing an element is fast!
• Adding is fast, if there is no overflow
• Random insert / delete: overhead to handle the
« holes »
#Devoxx #ListJ9 @JosePaumard

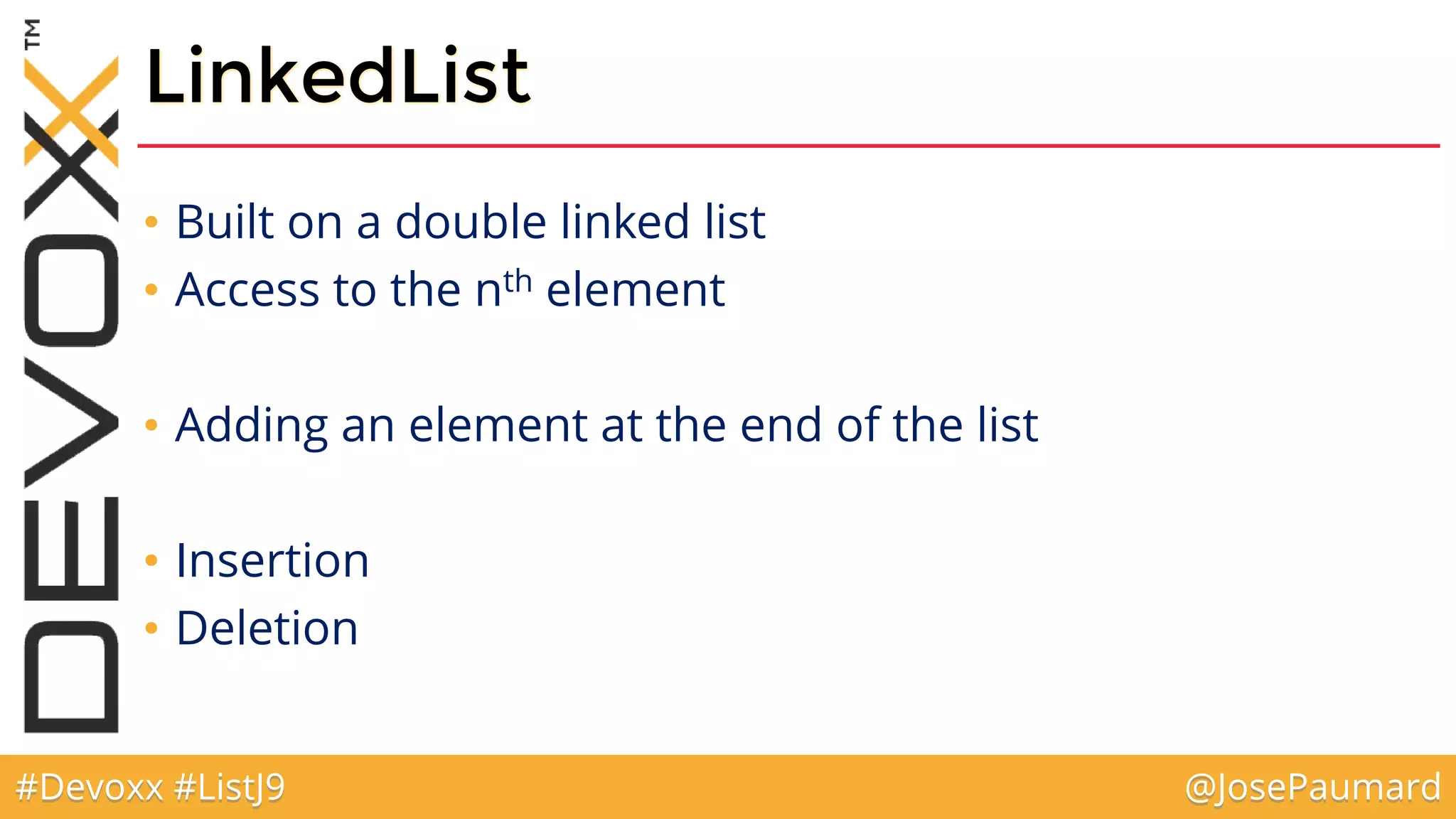

LinkedList
• Built on a double linked list
• Access to the nth element
• Adding an element at the end of the list
• Insertion
• Deletion
#Devoxx #ListJ9 @JosePaumard

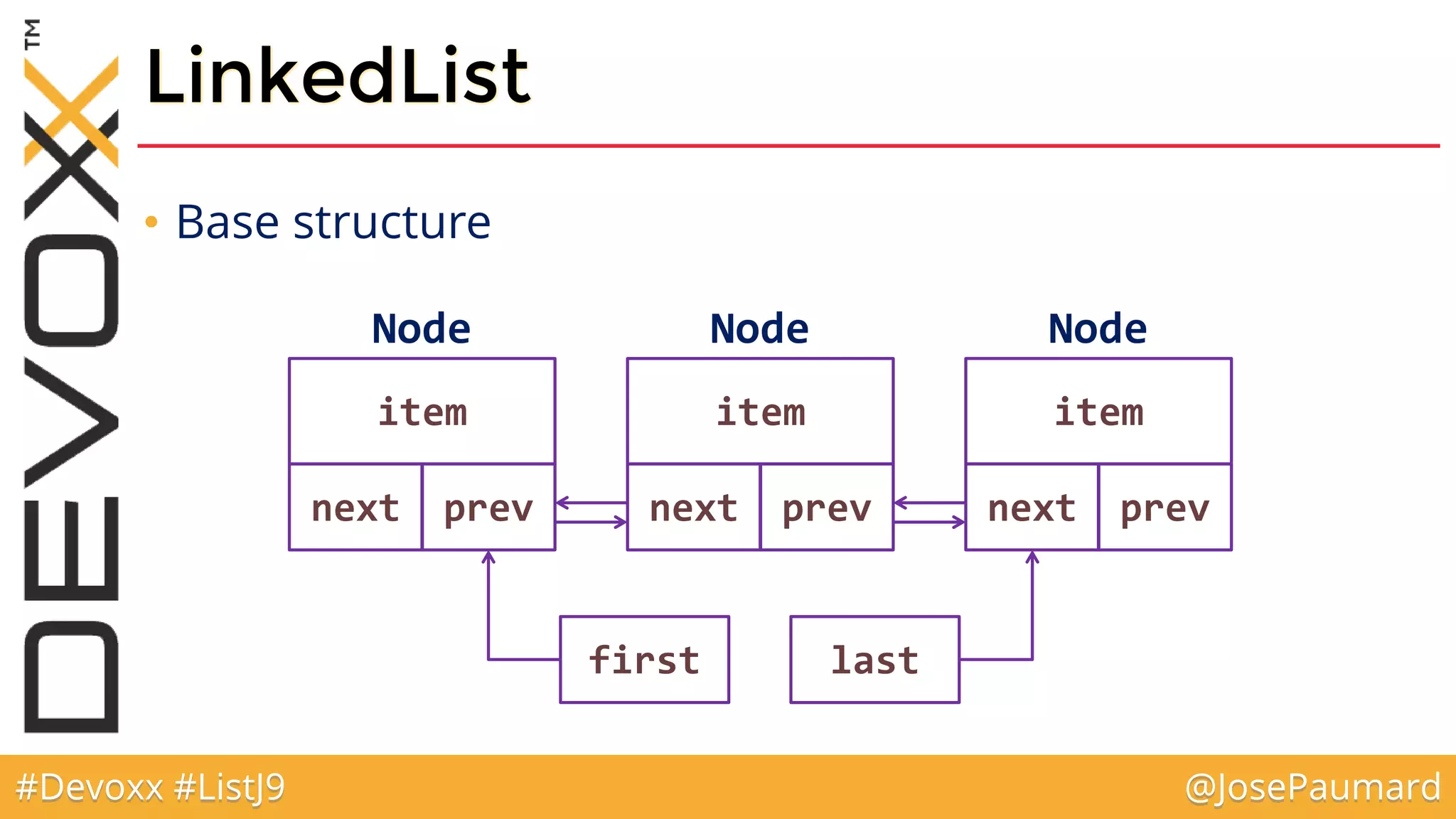

LinkedList
• Base structure
next prev
item
Node
next prev
item
Node
next prev
item
Node
first last
#Devoxx #ListJ9 @JosePaumard

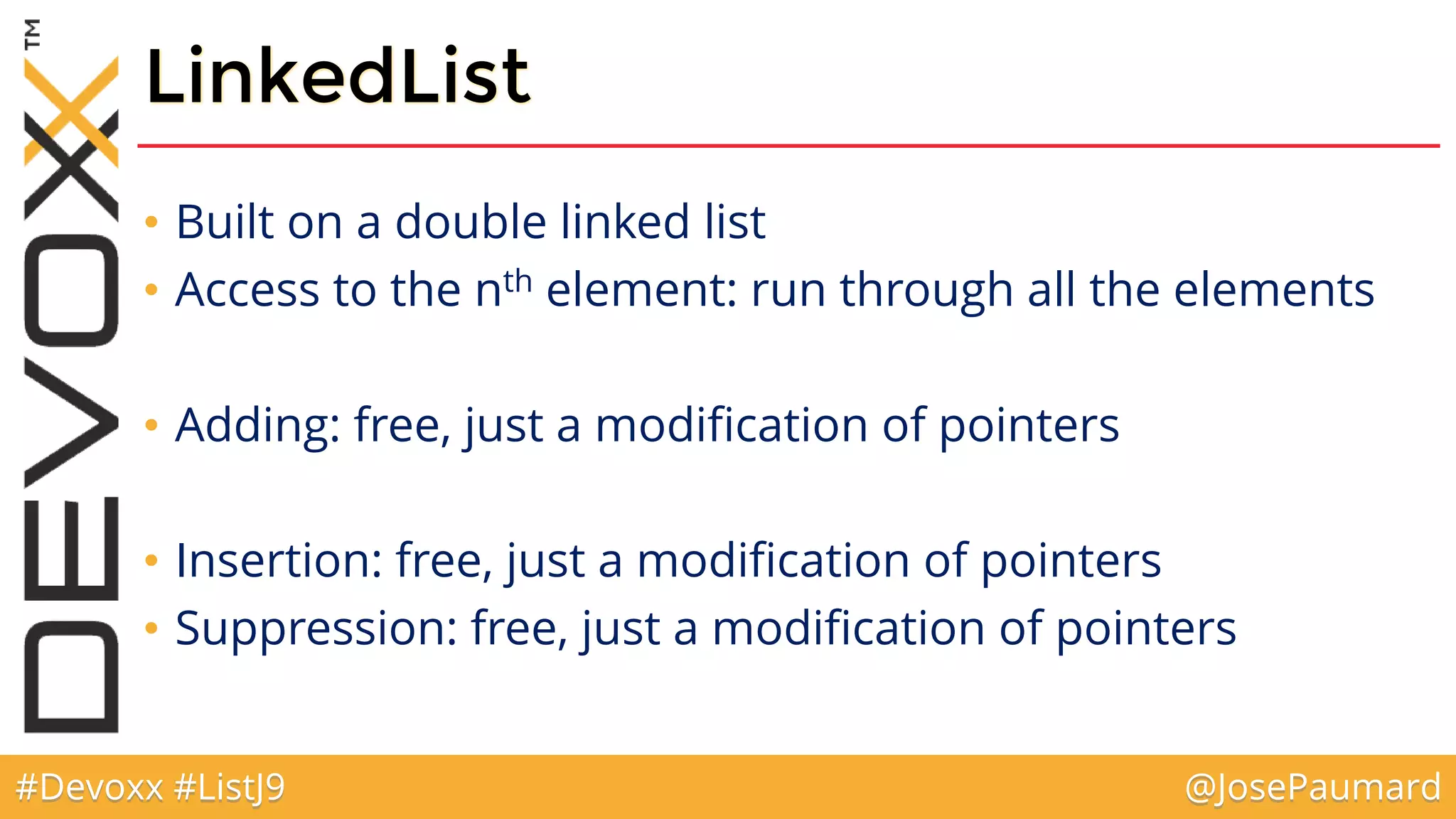

LinkedList
• Built on a double linked list
• Access to the nth element: run through all the elements
• Adding: free, just a modification of pointers
• Insertion: free, just a modification of pointers
• Suppression: free, just a modification of pointers
#Devoxx #ListJ9 @JosePaumard

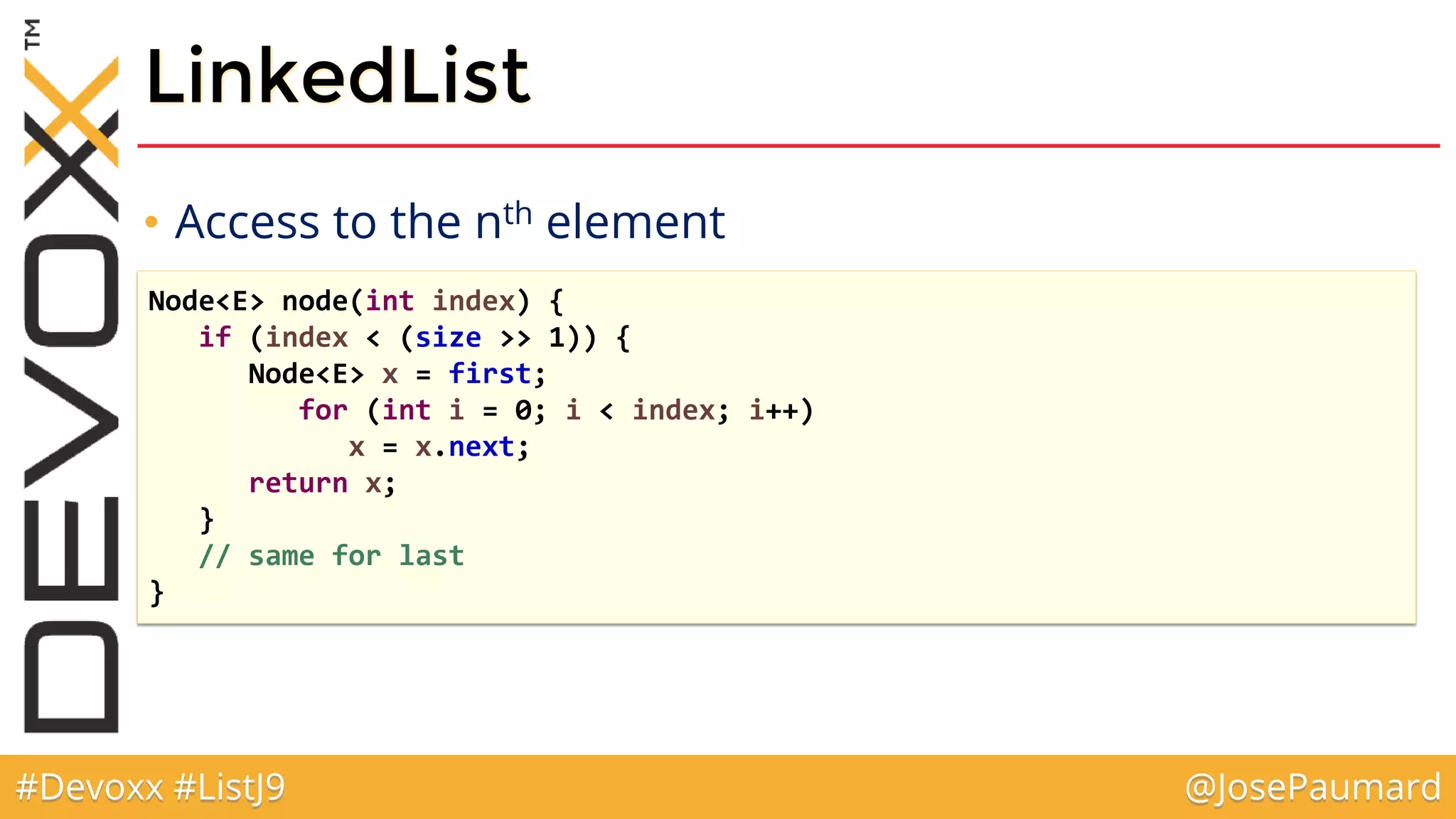

LinkedList
• Access to the nth element
Node<E> node(int index) {
if (index < (size >> 1)) {
Node<E> x = first;
for (int i = 0; i < index; i++)
x = x.next;
return x;
}
// same for last
}
#Devoxx #ListJ9 @JosePaumard
LinkedList
• Access to the nth element: one has to visit all the
elements and count them, until the nth is found
• We say that the complexity of this operation is « N »
• Or is O(n)
#Devoxx #ListJ9 @JosePaumard

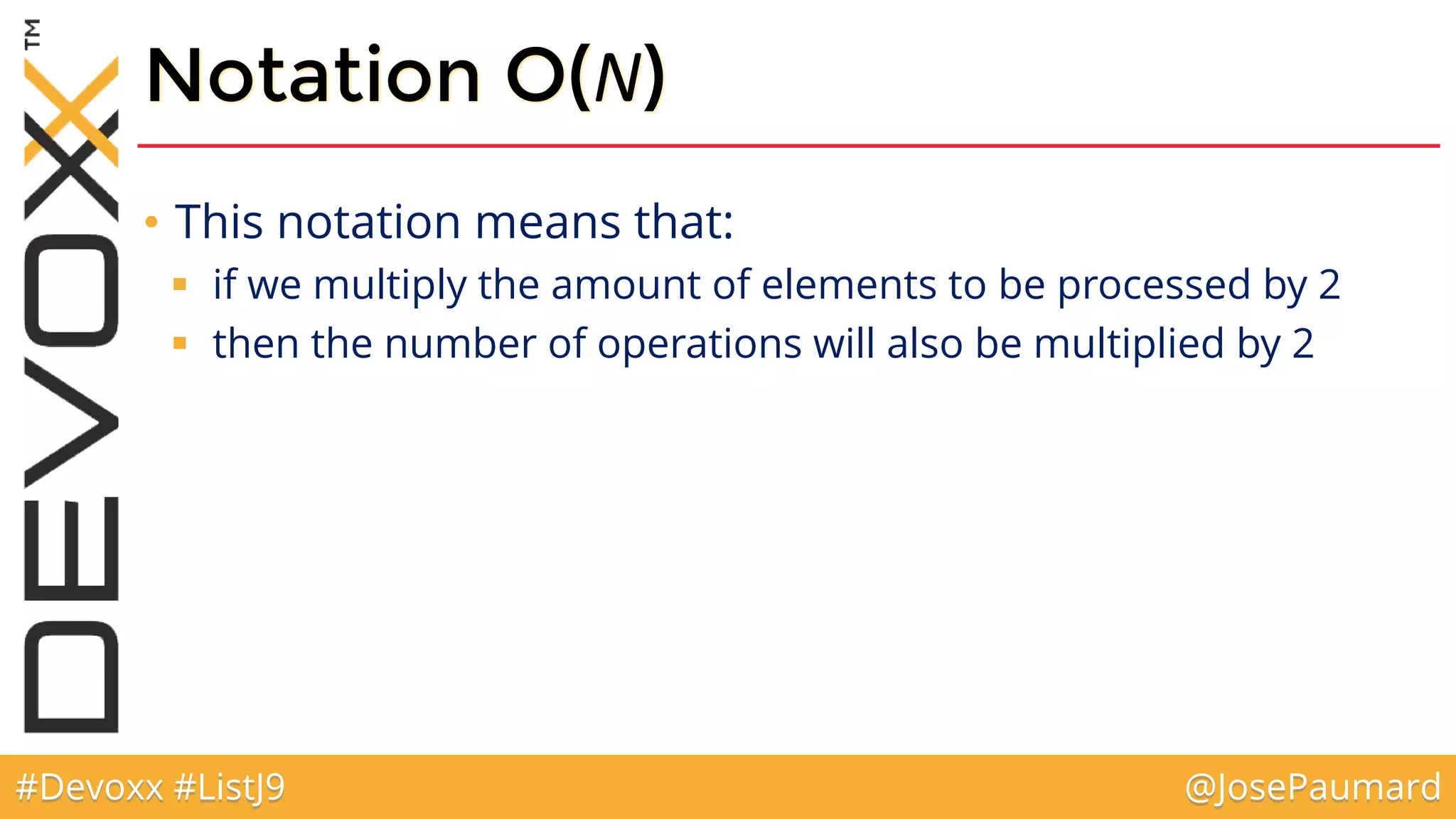

Notation O(N)
• This notation means that:
 if we multiply the amount of elements to be processed by 2
 then the number of operations will also be multiplied by 2
#Devoxx #ListJ9 @JosePaumard

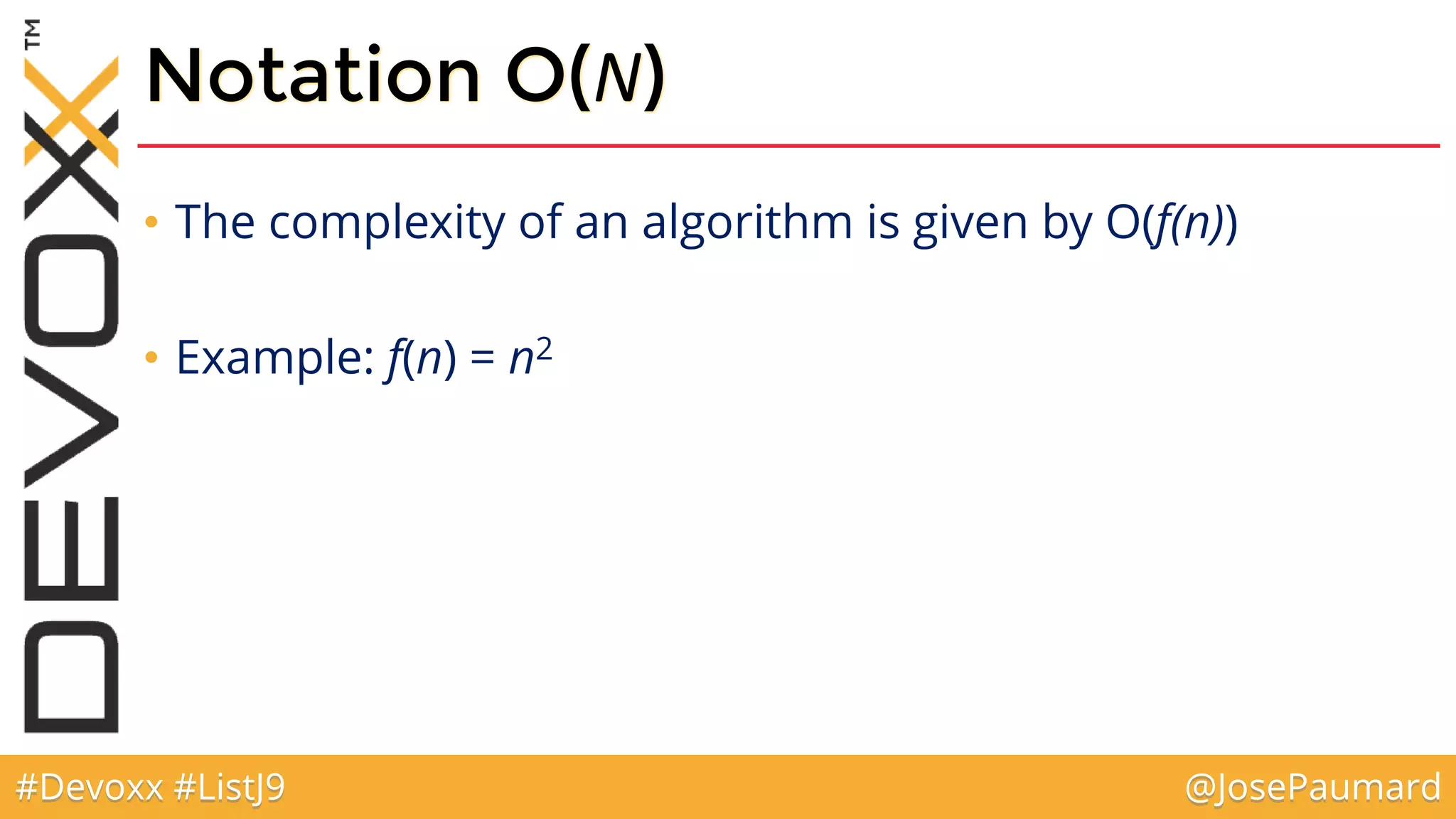

Notation O(N)
• The complexity of an algorithm is given by O(f(n))
• Example: f(n) = n2
#Devoxx #ListJ9 @JosePaumard

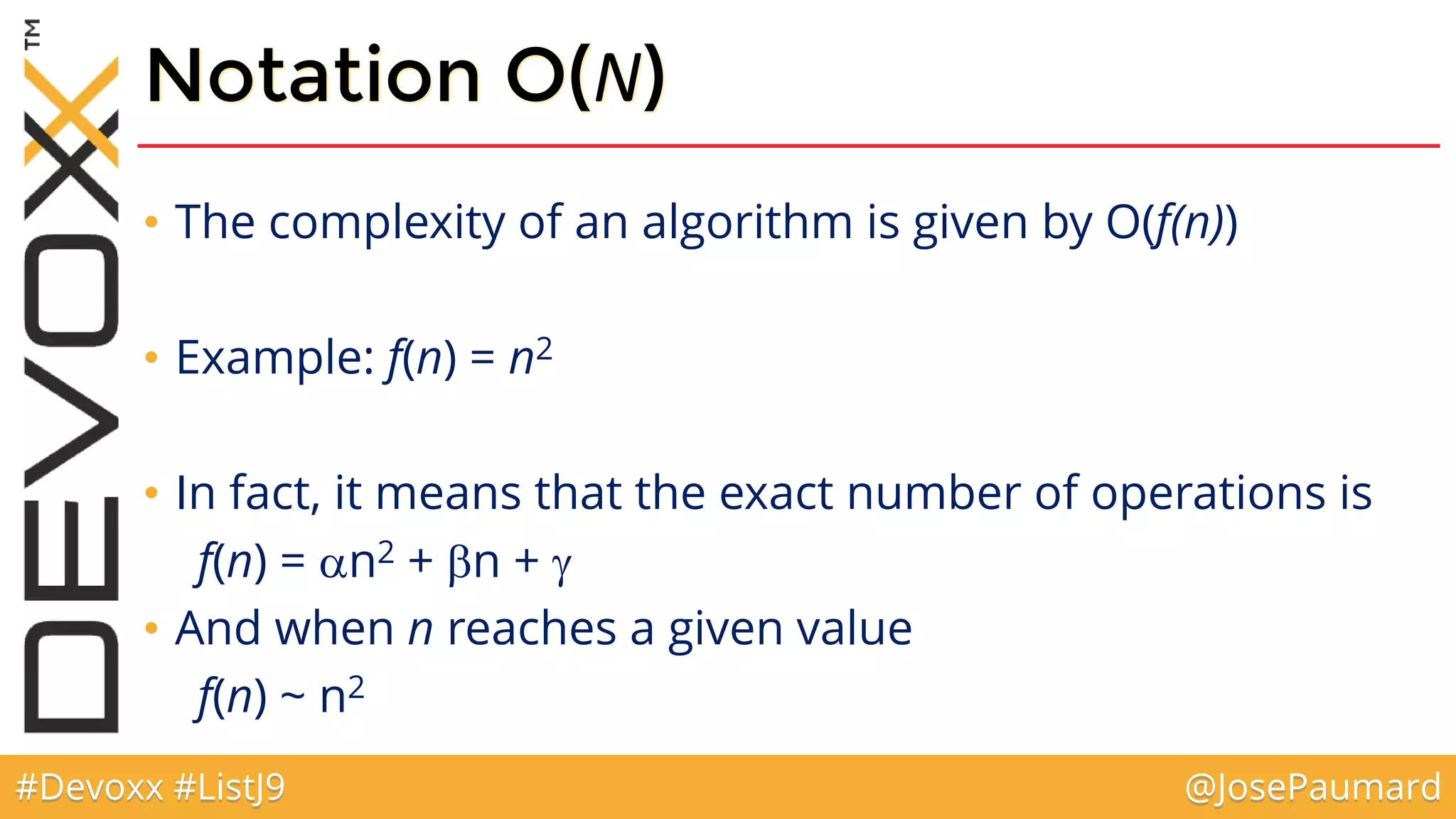

Notation O(N)
• The complexity of an algorithm is given by O(f(n))
• Example: f(n) = n2
• In fact, it means that the exact number of operations is
f(n) = an2 + bn + g
• And when n reaches a given value
f(n) ~ n2
#Devoxx #ListJ9 @JosePaumard

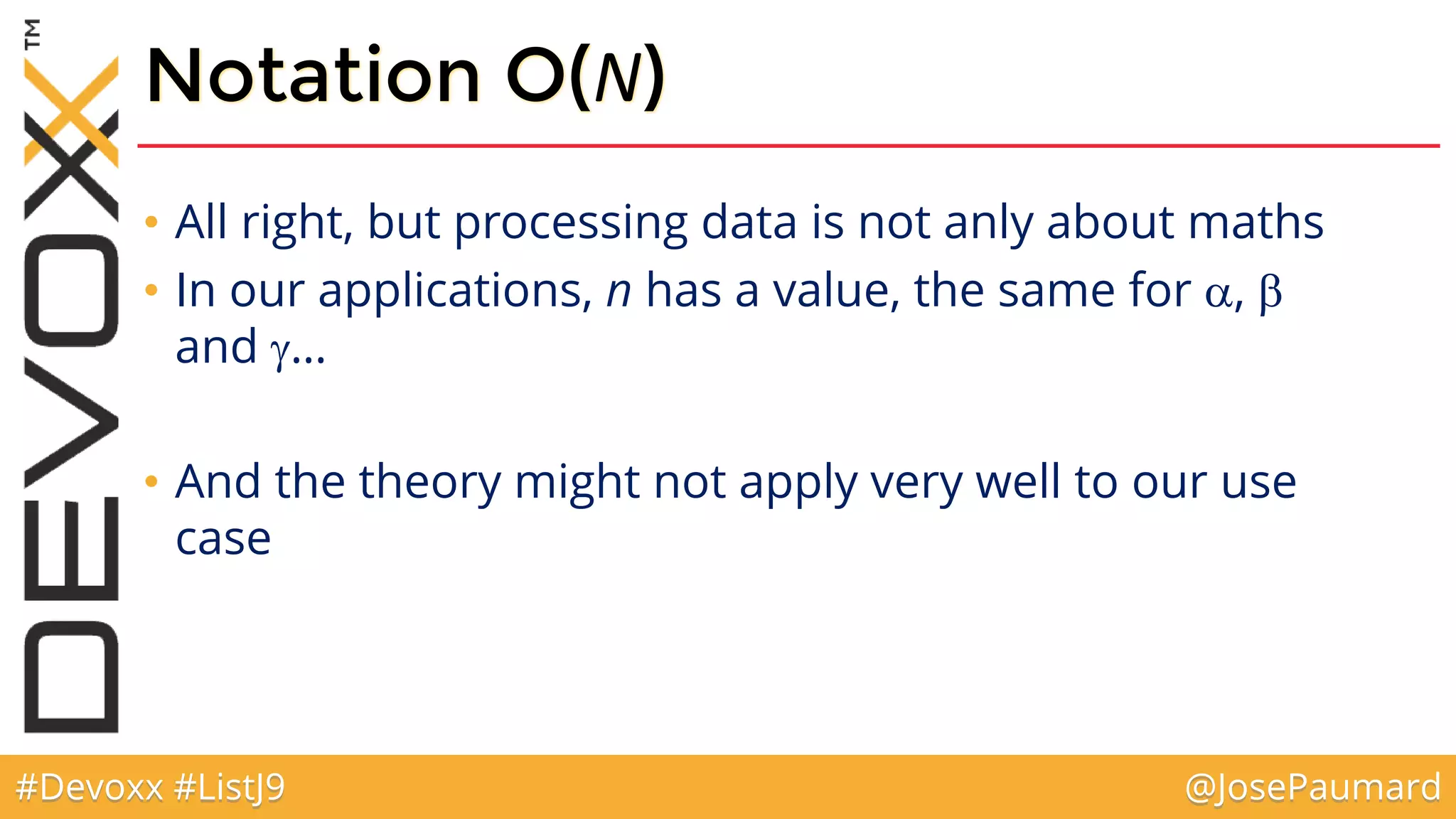

Notation O(N)
• All right, but processing data is not anly about maths
• In our applications, n has a value, the same for a, b
and g…
• And the theory might not apply very well to our use
case
#Devoxx #ListJ9 @JosePaumard

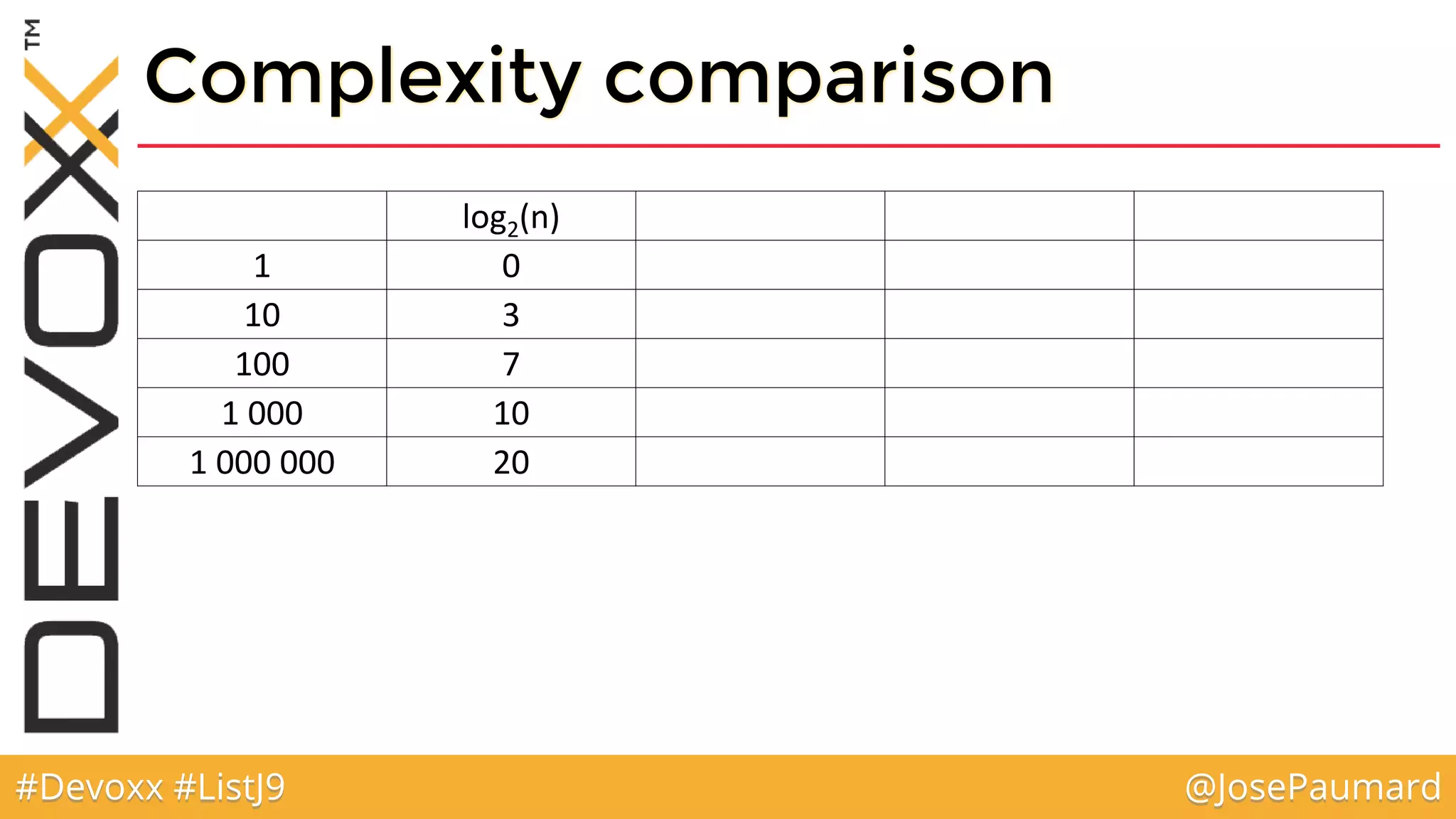

Complexity comparison
log2(n)
1 0
10 3
100 7
1 000 10
1 000 000 20
#Devoxx #ListJ9 @JosePaumard

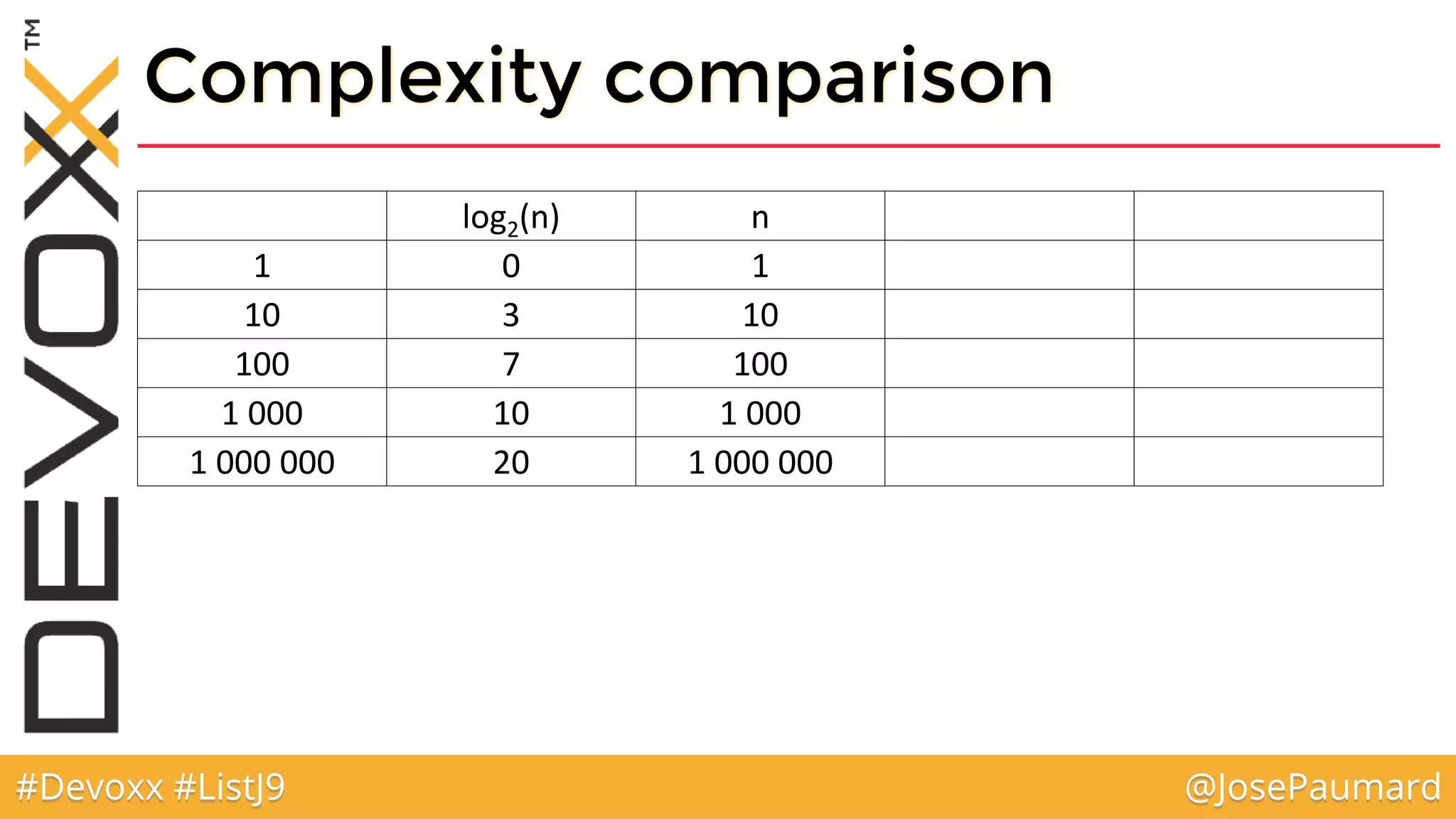

Complexity comparison
log2(n) n
1 0 1
10 3 10
100 7 100
1 000 10 1 000
1 000 000 20 1 000 000
#Devoxx #ListJ9 @JosePaumard

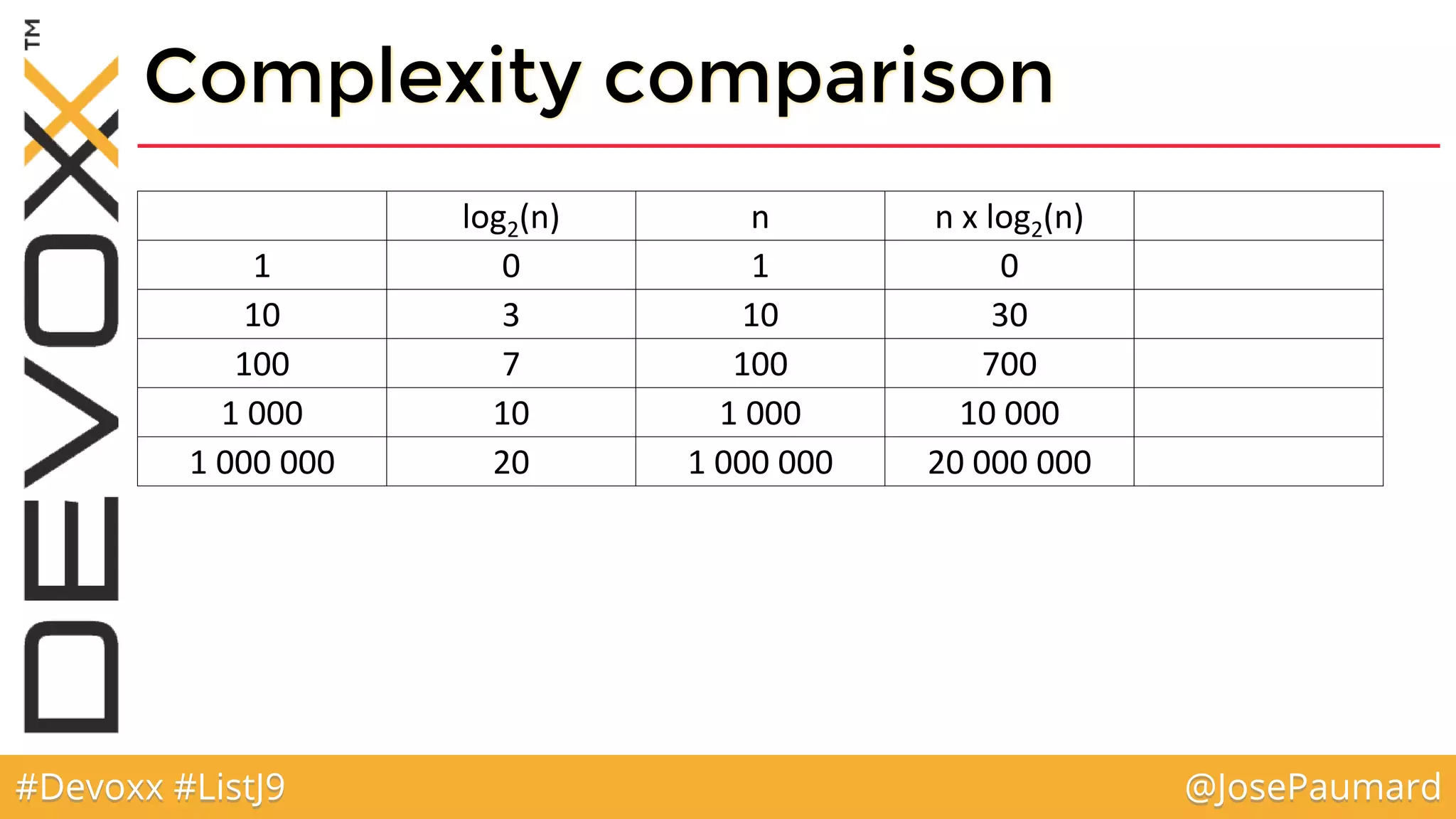

Complexity comparison
log2(n) n n x log2(n)
1 0 1 0
10 3 10 30
100 7 100 700
1 000 10 1 000 10 000
1 000 000 20 1 000 000 20 000 000
#Devoxx #ListJ9 @JosePaumard

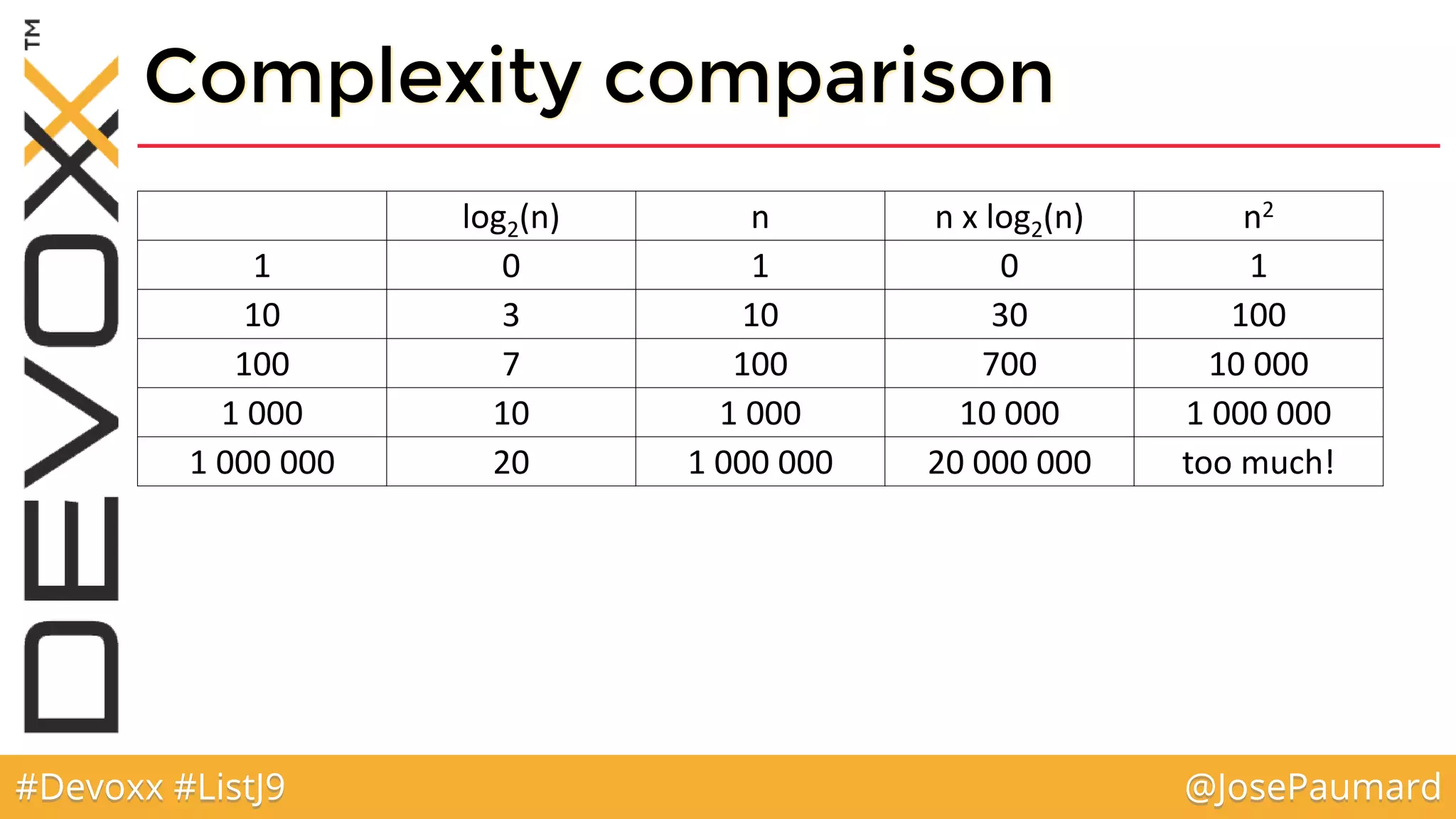

Complexity comparison
log2(n) n n x log2(n) n2
1 0 1 0 1
10 3 10 30 100
100 7 100 700 10 000
1 000 10 1 000 10 000 1 000 000
1 000 000 20 1 000 000 20 000 000 too much!
#Devoxx #ListJ9 @JosePaumard

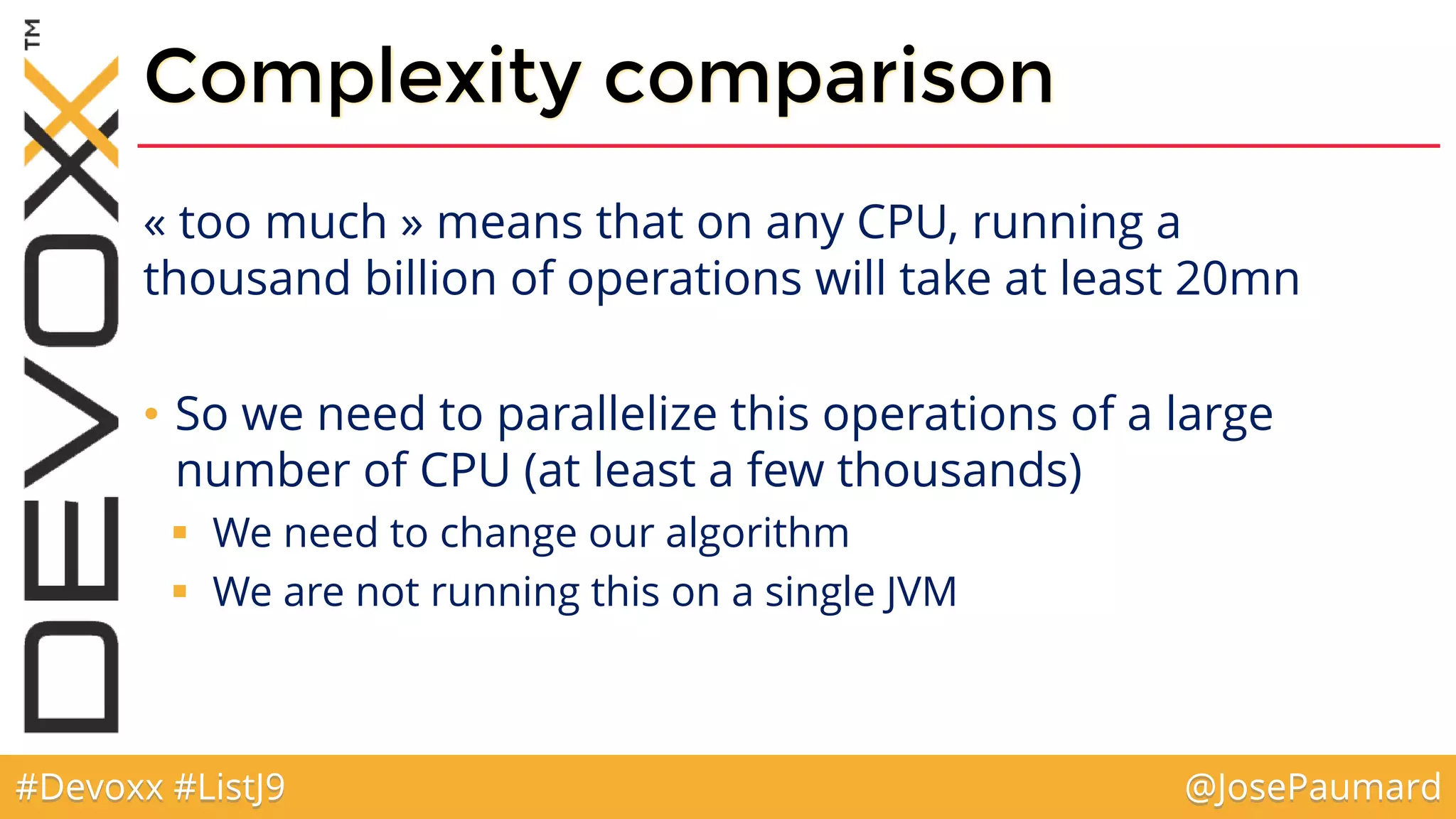

Complexity comparison
« too much » means that on any CPU, running a
thousand billion of operations will take at least 20mn
• So we need to parallelize this operations of a large
number of CPU (at least a few thousands)
 We need to change our algorithm
 We are not running this on a single JVM
#Devoxx #ListJ9 @JosePaumard

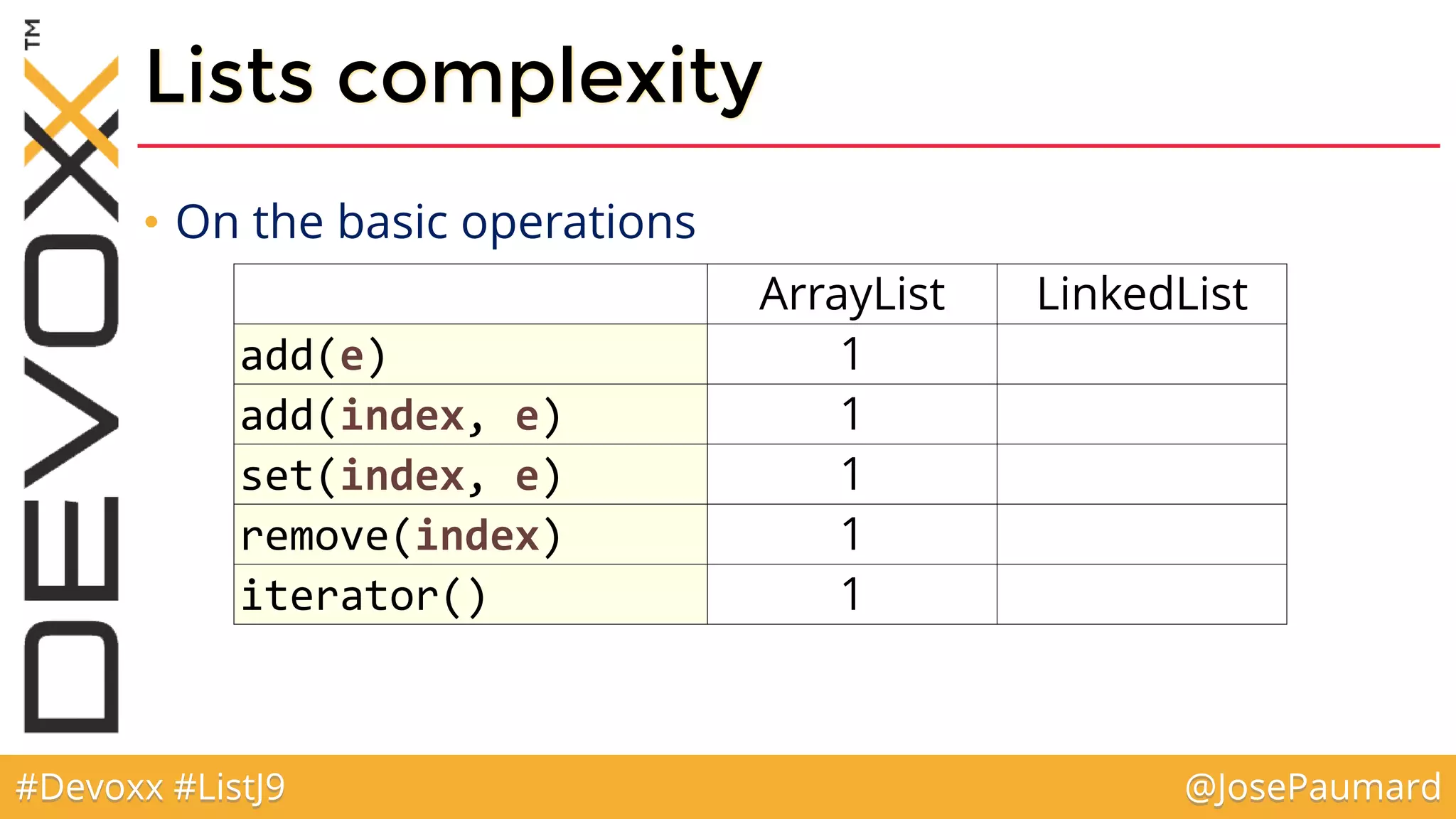

Lists complexity
• On the basic operations
ArrayList LinkedList
add(e) 1
add(index, e) 1
set(index, e) 1
remove(index) 1
iterator() 1
#Devoxx #ListJ9 @JosePaumard

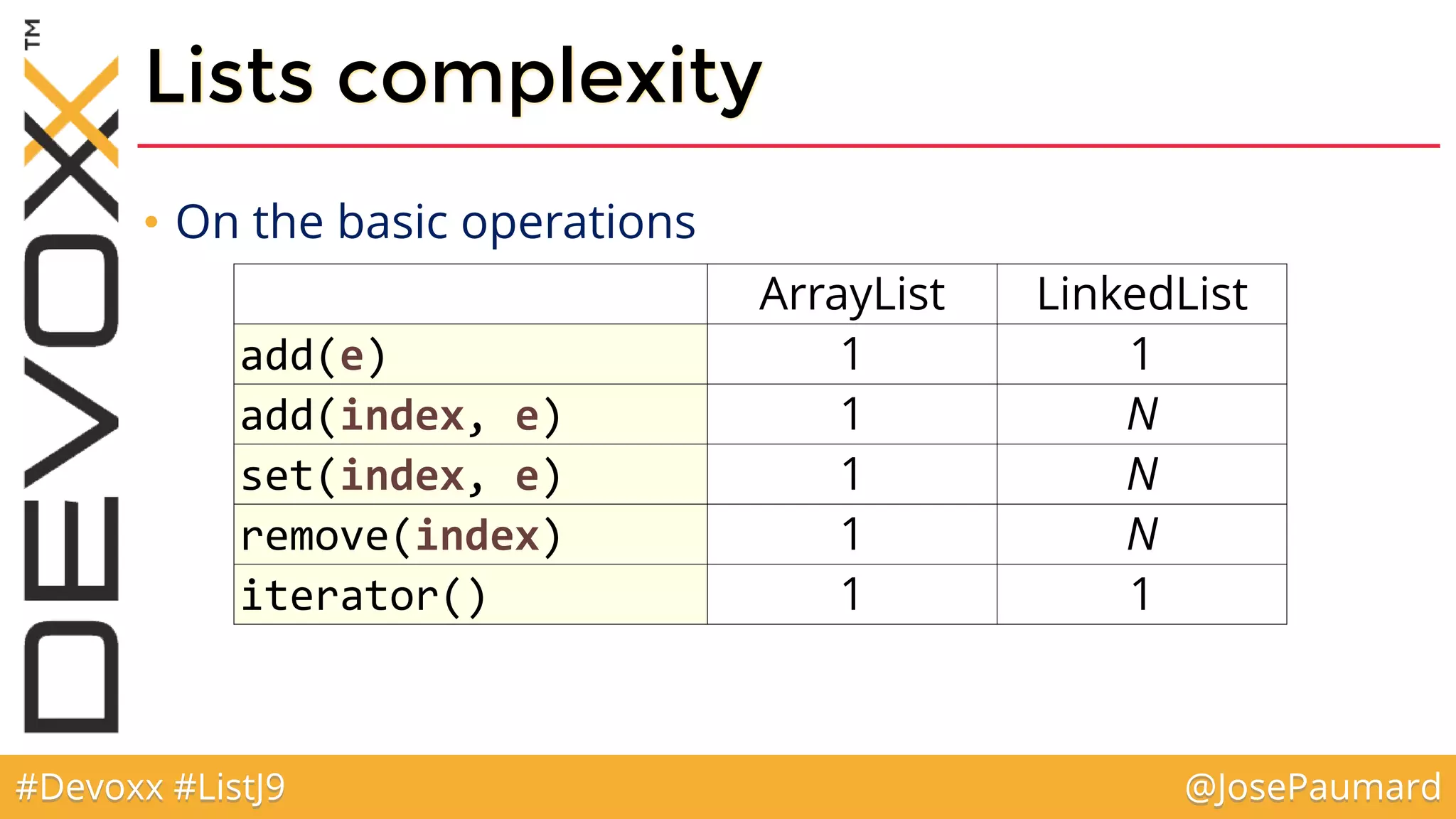

Lists complexity
• On the basic operations
ArrayList LinkedList
add(e) 1 1
add(index, e) 1 N
set(index, e) 1 N
remove(index) 1 N
iterator() 1 1
#Devoxx #ListJ9 @JosePaumard
Lists complexity
• We still must be cautious…
• There are System.arrayCopy() in ArrayList that are
not here in LinkedList
• Is it a g? Or something that grows with n? And how?
#Devoxx #ListJ9 @JosePaumard

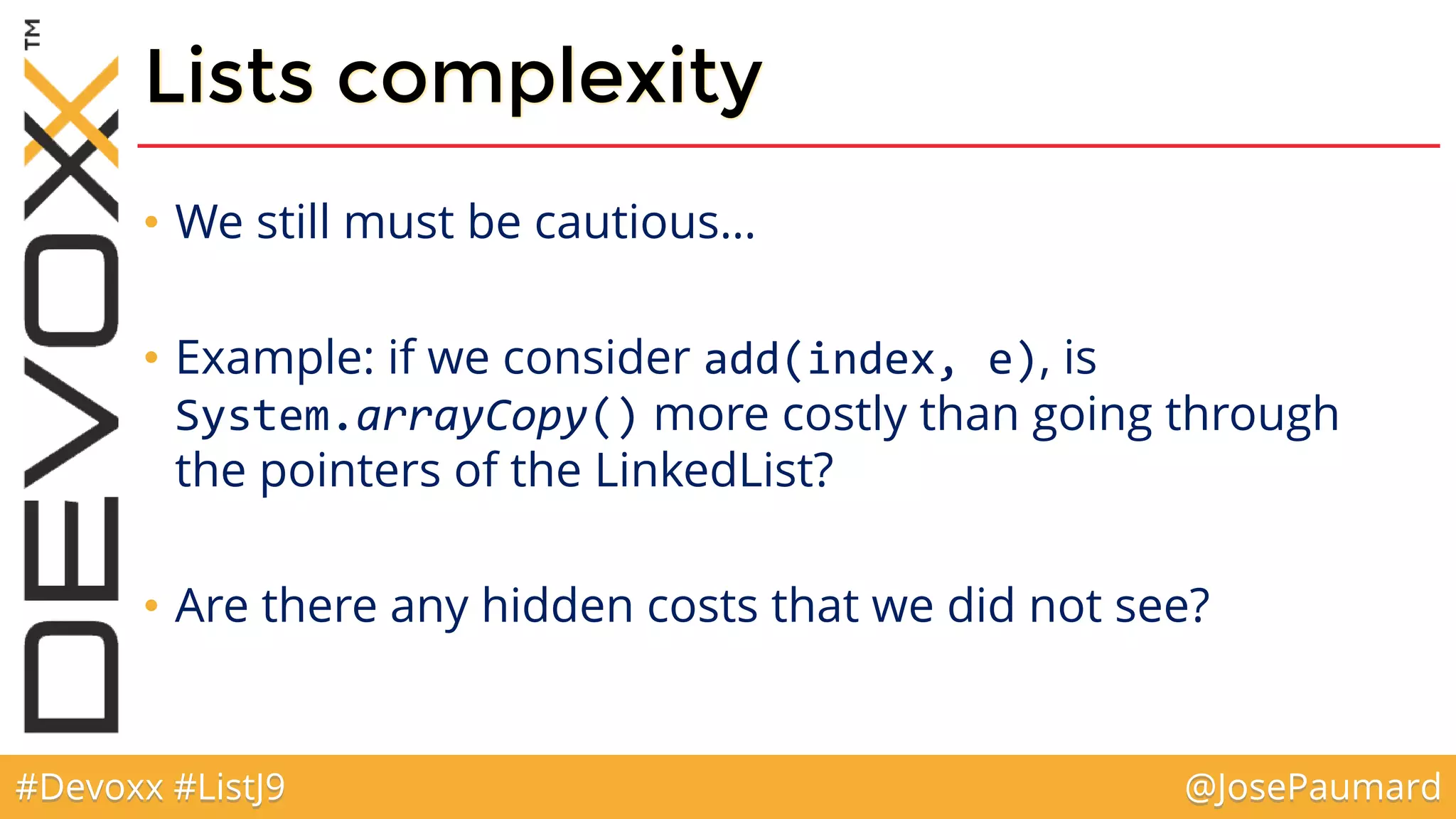

Lists complexity
• We still must be cautious…
• Example: if we consider add(index, e), is
System.arrayCopy() more costly than going through
the pointers of the LinkedList?
• Are there any hidden costs that we did not see?
#Devoxx #ListJ9 @JosePaumard

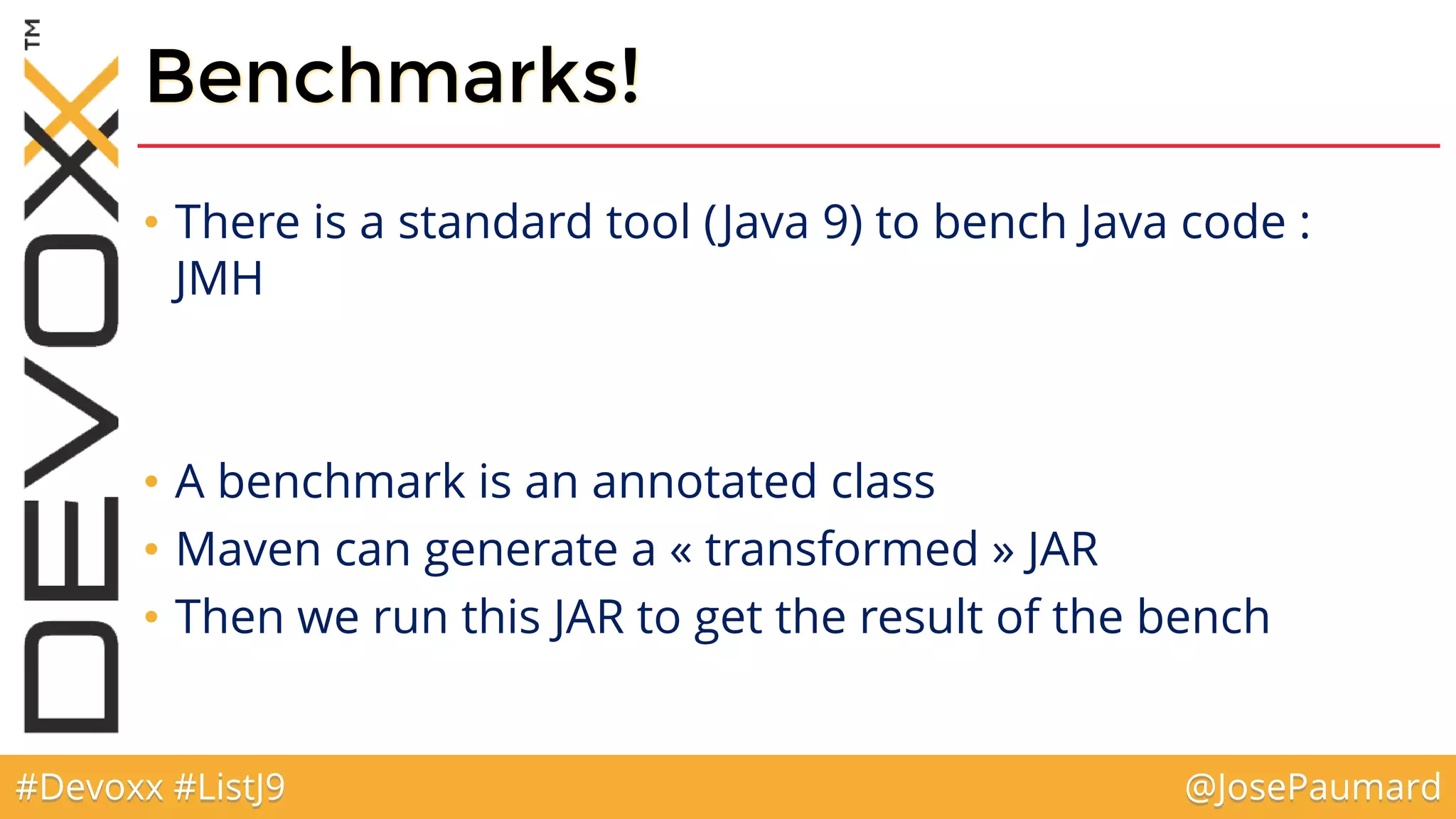

Benchmarks!
• There is a standard tool (Java 9) to bench Java code :
JMH
• A benchmark is an annotated class
• Maven can generate a « transformed » JAR
• Then we run this JAR to get the result of the bench
#Devoxx #ListJ9 @JosePaumard

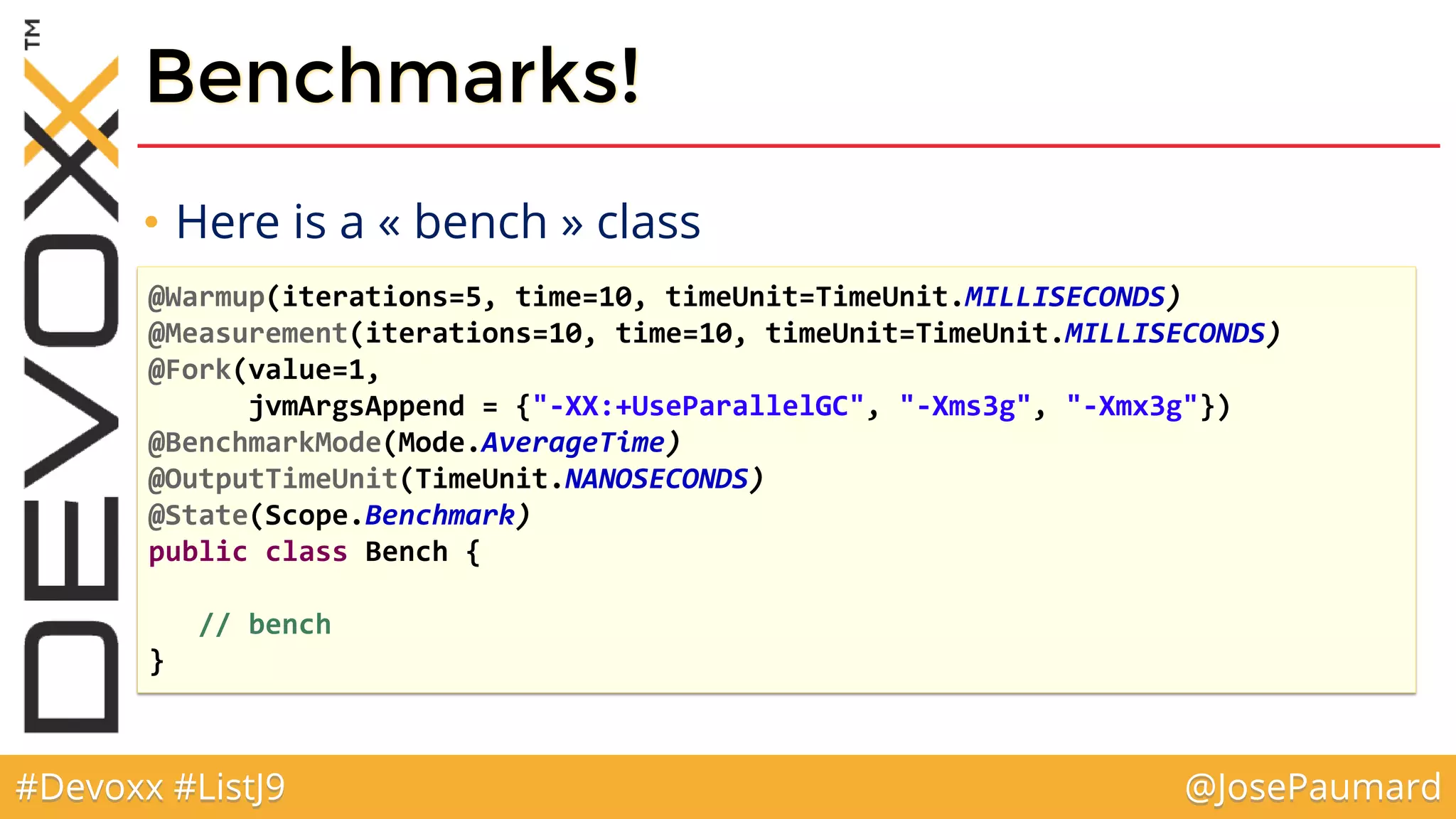

Benchmarks!
• Here is a « bench » class
@Warmup(iterations=5, time=10, timeUnit=TimeUnit.MILLISECONDS)
@Measurement(iterations=10, time=10, timeUnit=TimeUnit.MILLISECONDS)
@Fork(value=1,
jvmArgsAppend = {"-XX:+UseParallelGC", "-Xms3g", "-Xmx3g"})
@BenchmarkMode(Mode.AverageTime)
@OutputTimeUnit(TimeUnit.NANOSECONDS)
@State(Scope.Benchmark)
public class Bench {
// bench
}
#Devoxx #ListJ9 @JosePaumard

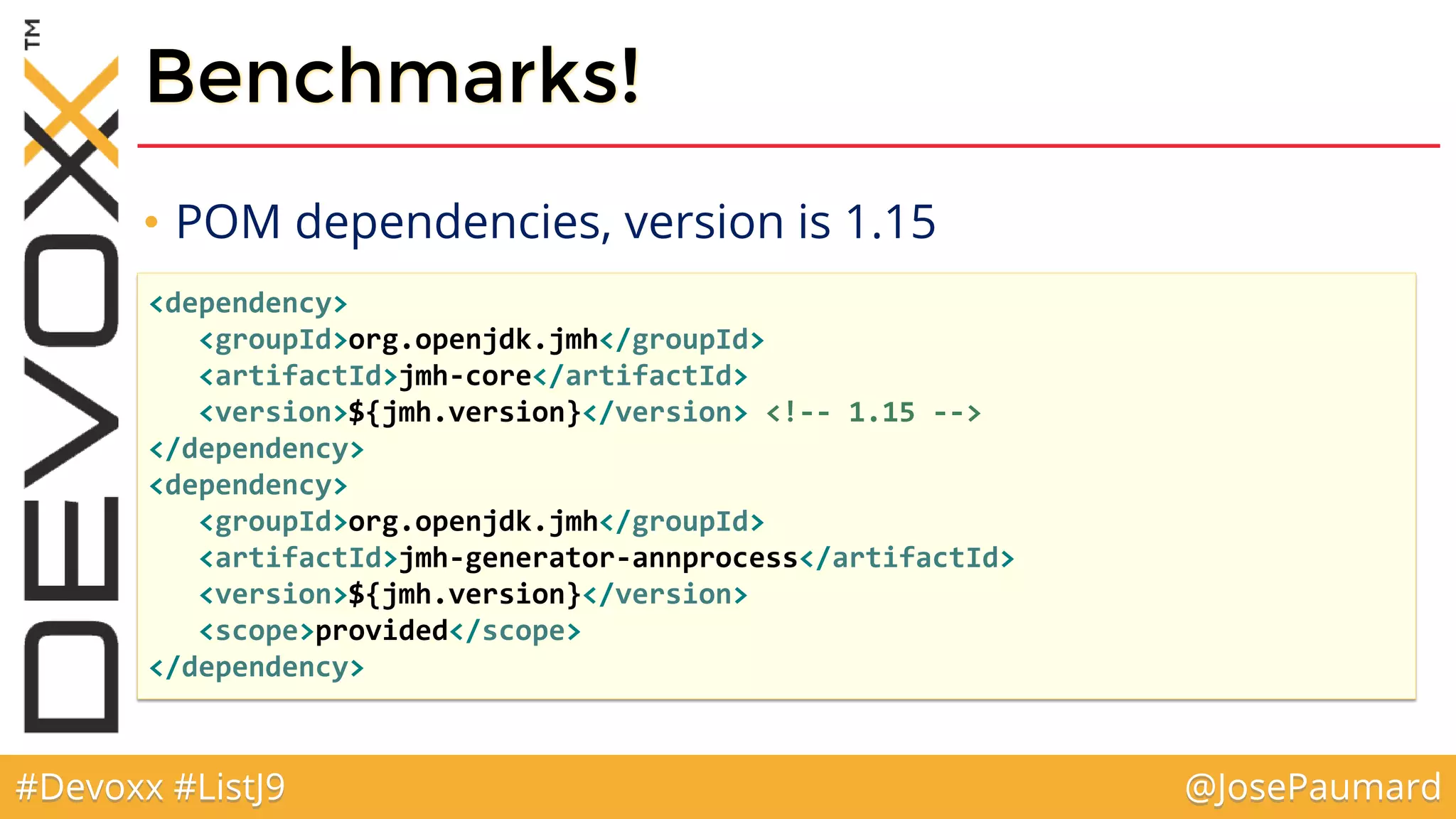

Benchmarks!
• POM dependencies, version is 1.15
<dependency>
<groupId>org.openjdk.jmh</groupId>
<artifactId>jmh-core</artifactId>
<version>${jmh.version}</version> <!-- 1.15 -->
</dependency>
<dependency>
<groupId>org.openjdk.jmh</groupId>
<artifactId>jmh-generator-annprocess</artifactId>
<version>${jmh.version}</version>
<scope>provided</scope>
</dependency>
#Devoxx #ListJ9 @JosePaumard

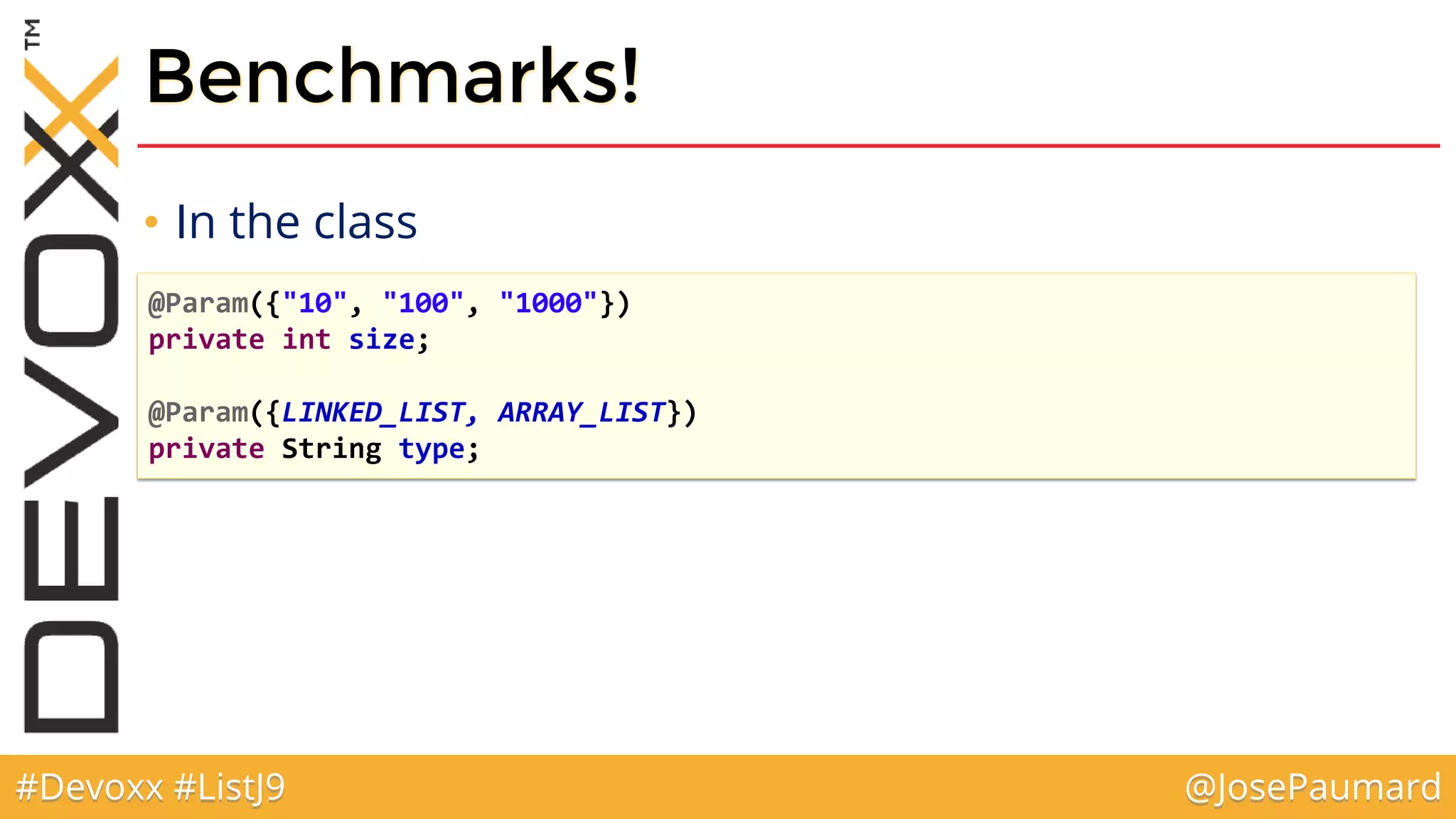

Benchmarks!
• In the class
@Param({"10", "100", "1000"})
private int size;
@Param({LINKED_LIST, ARRAY_LIST})
private String type;
#Devoxx #ListJ9 @JosePaumard

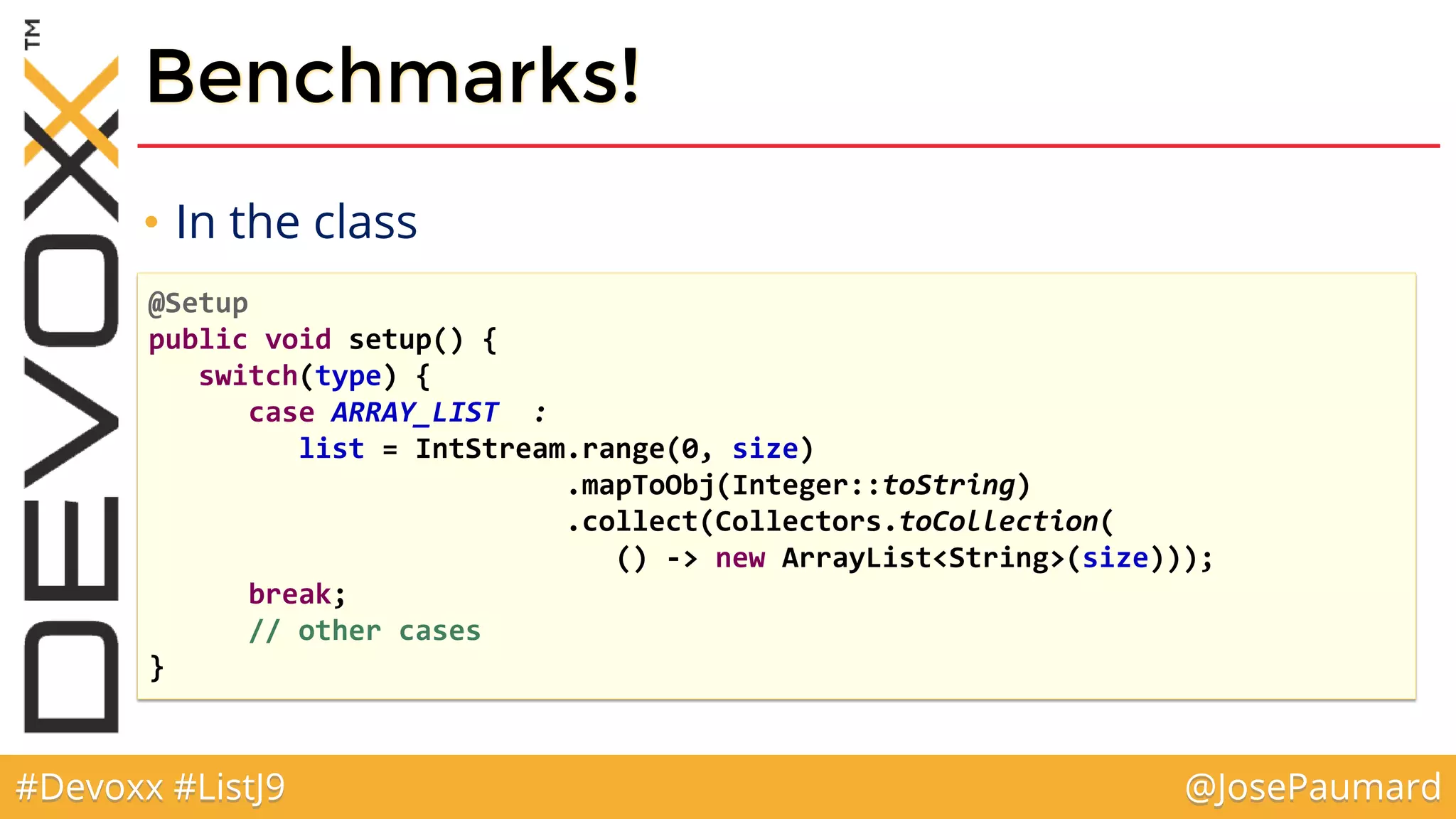

Benchmarks!
• In the class
@Setup
public void setup() {
switch(type) {
case ARRAY_LIST :
list = IntStream.range(0, size)
.mapToObj(Integer::toString)
.collect(Collectors.toCollection(
() -> new ArrayList<String>(size)));
break;
// other cases
}
#Devoxx #ListJ9 @JosePaumard

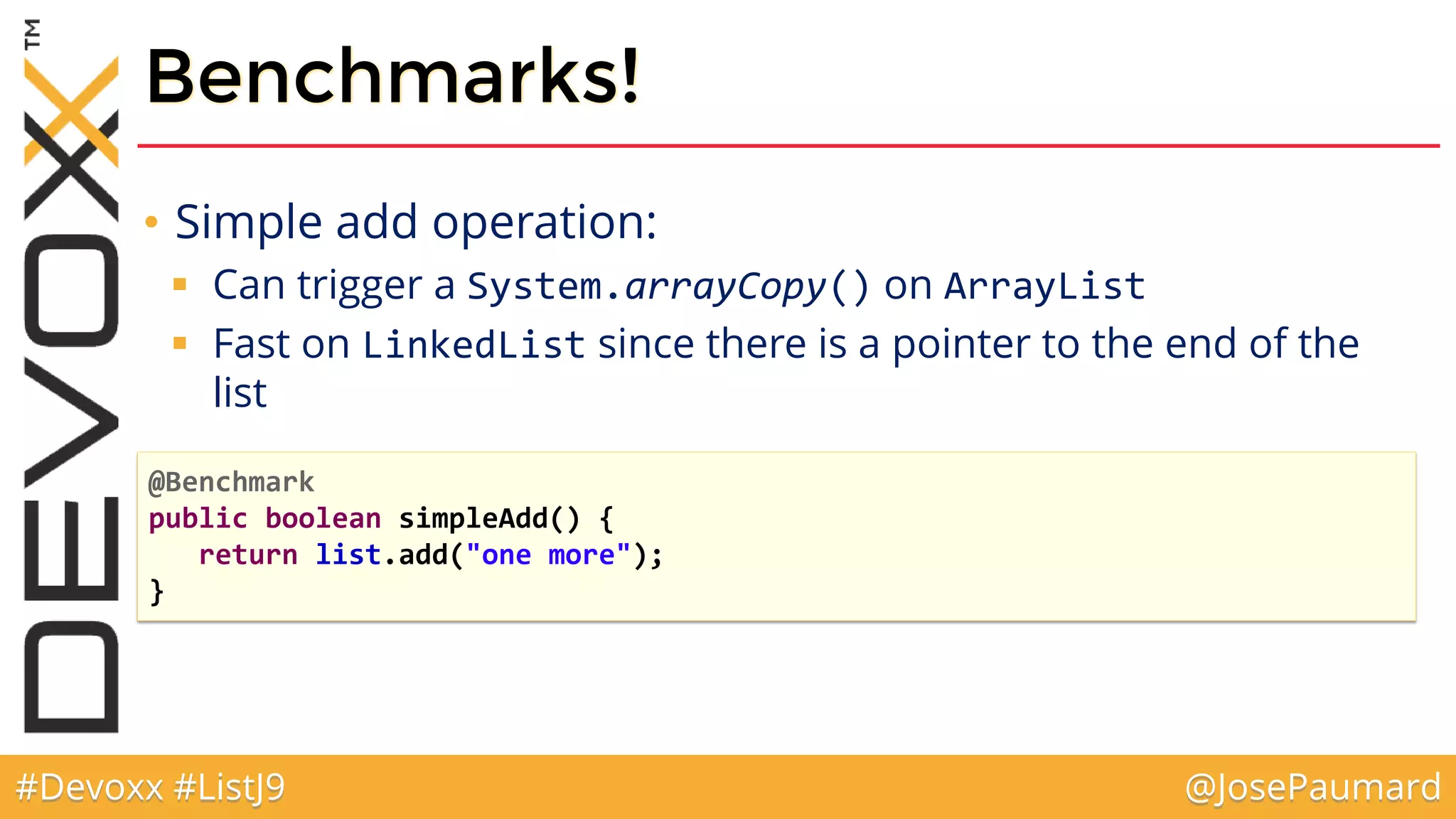

Benchmarks!
• Simple add operation:
 Can trigger a System.arrayCopy() on ArrayList
 Fast on LinkedList since there is a pointer to the end of the
list
@Benchmark
public boolean simpleAdd() {
return list.add("one more");
}
#Devoxx #ListJ9 @JosePaumard
Benchmarks!

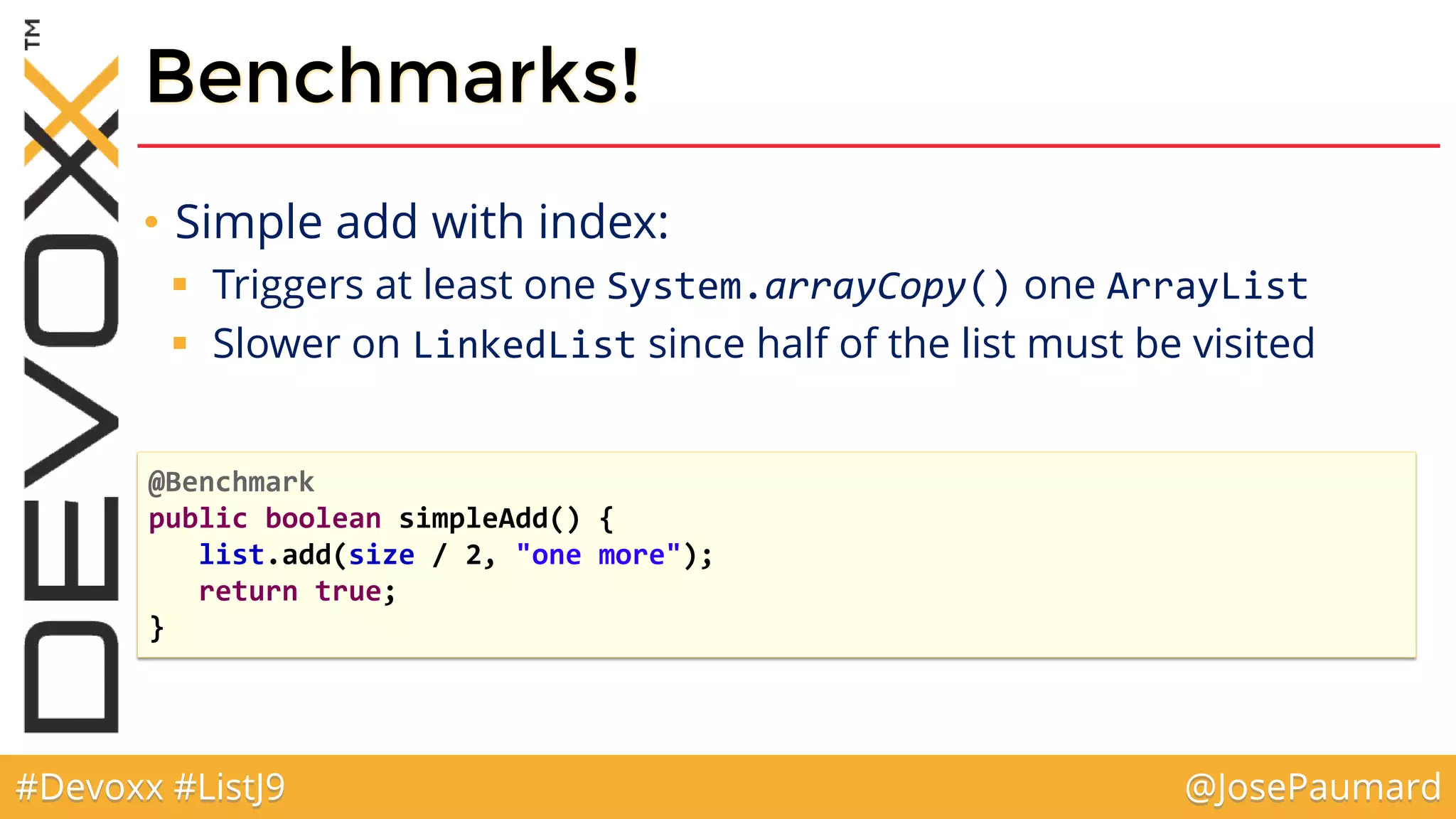

• Simple add with index:
 Triggers at least one System.arrayCopy() one ArrayList
 Slower on LinkedList since half of the list must be visited
@Benchmark
public boolean simpleAdd() {
list.add(size / 2, "one more");
return true;
}
#Devoxx #ListJ9 @JosePaumard
Benchmarks!

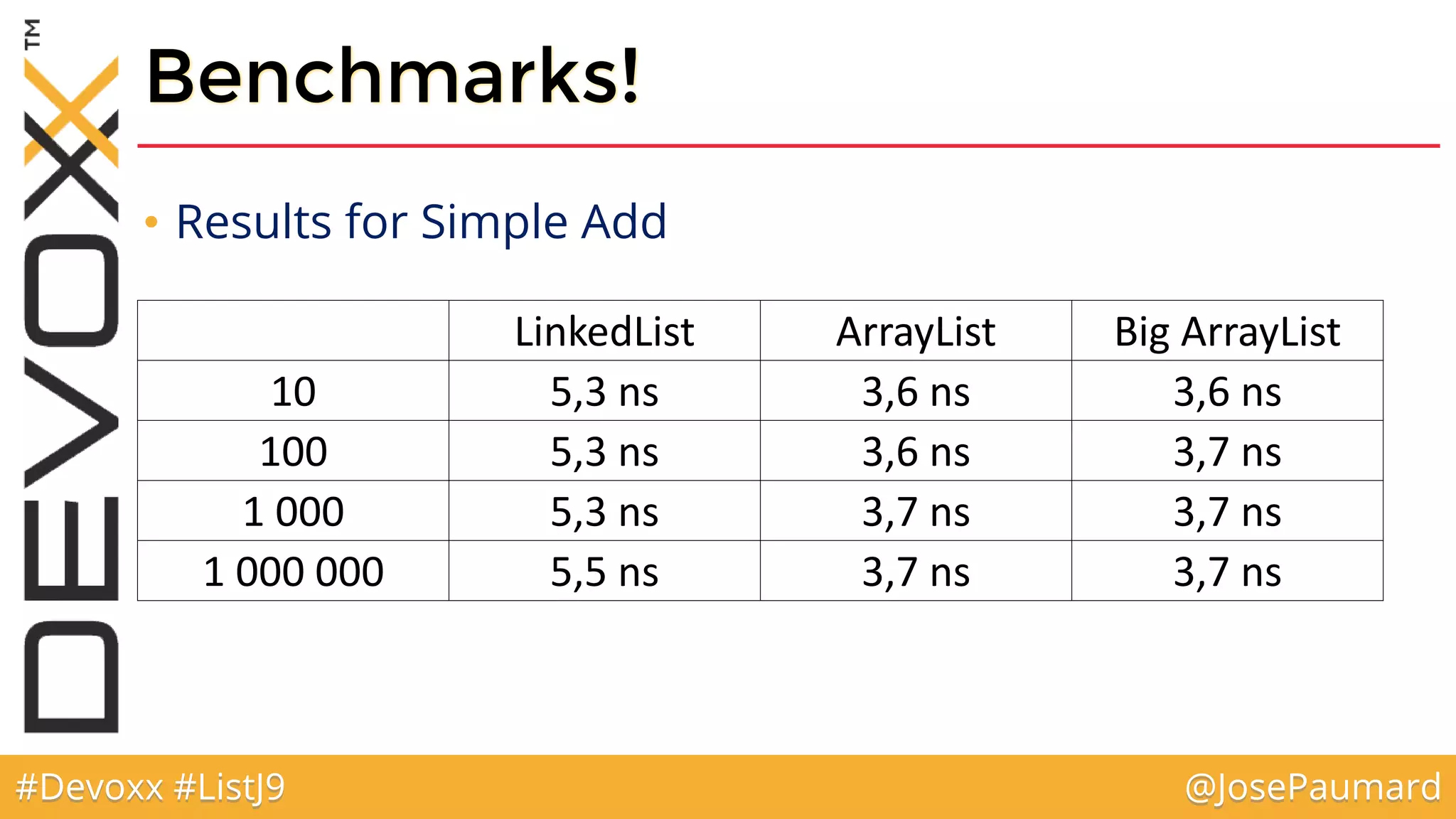

• Results for Simple Add
LinkedList ArrayList Big ArrayList
10 5,3 ns 3,6 ns 3,6 ns
100 5,3 ns 3,6 ns 3,7 ns
1 000 5,3 ns 3,7 ns 3,7 ns
1 000 000 5,5 ns 3,7 ns 3,7 ns
#Devoxx #ListJ9 @JosePaumard
Benchmarks!

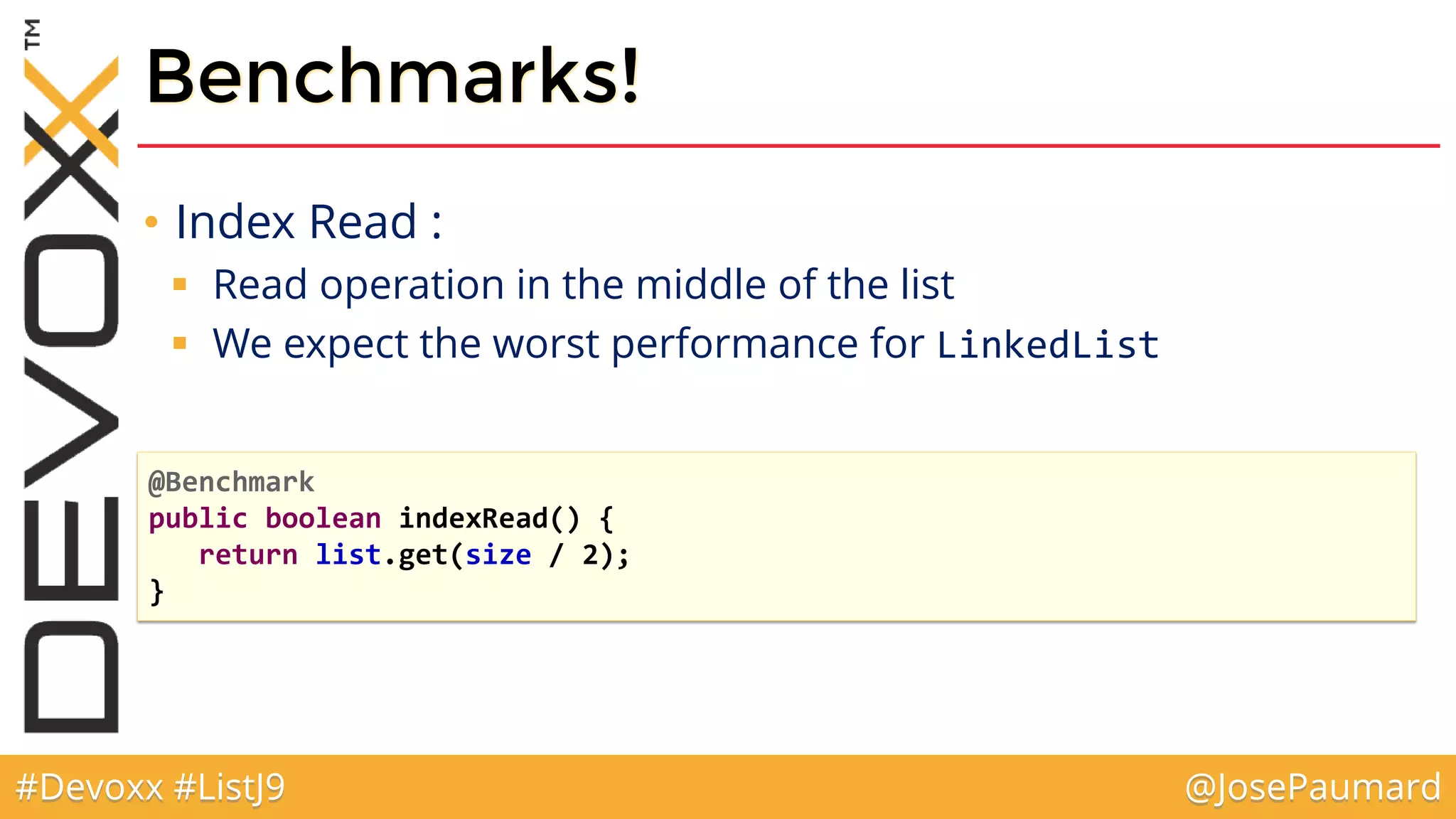

• Index Read :
 Read operation in the middle of the list
 We expect the worst performance for LinkedList
@Benchmark
public boolean indexRead() {
return list.get(size / 2);
}
#Devoxx #ListJ9 @JosePaumard

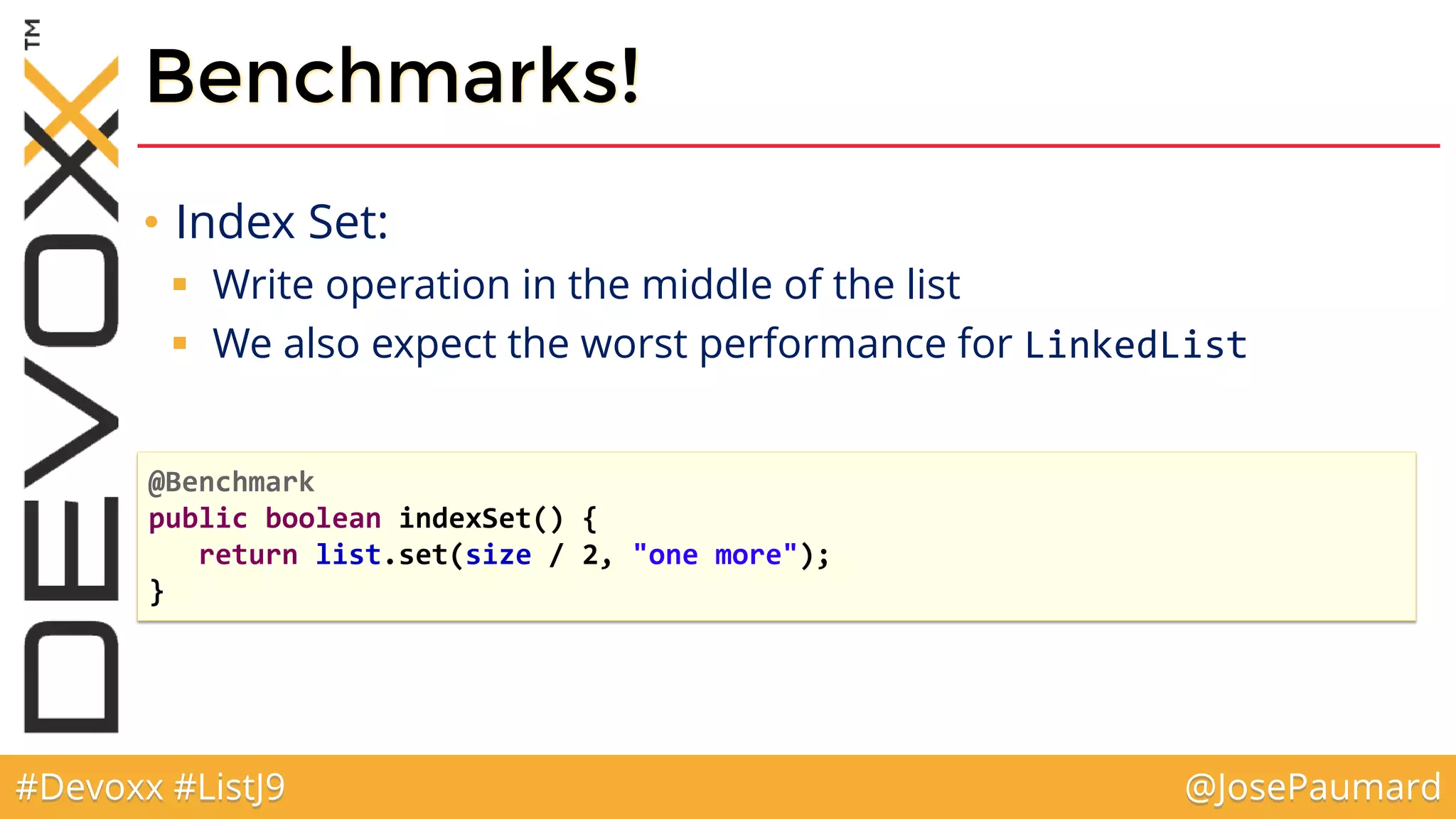

Benchmarks!
• Index Set:
 Write operation in the middle of the list
 We also expect the worst performance for LinkedList
@Benchmark
public boolean indexSet() {
return list.set(size / 2, "one more");
}
#Devoxx #ListJ9 @JosePaumard
Benchmarks!
• Results for Index Read
LinkedList ArrayList
10 5,5 ns 2,8 ns
100 37,9 ns 2,8 ns
1 000 596 ns 2,8 ns
1 000 000 3,4 ms 2,8 ns
#Devoxx #ListJ9 @JosePaumard
Benchmarks!

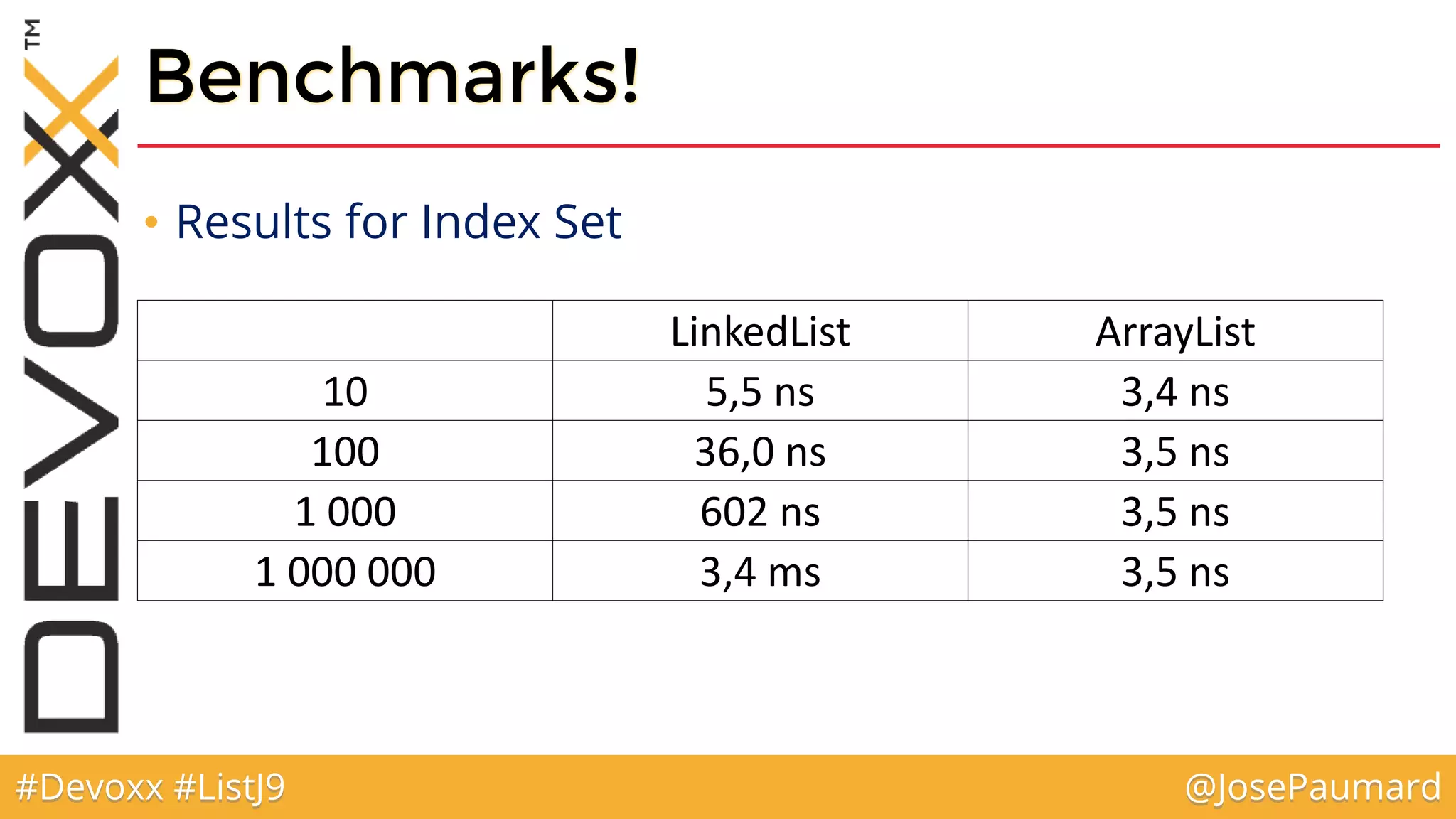

• Results for Index Set
LinkedList ArrayList
10 5,5 ns 3,4 ns
100 36,0 ns 3,5 ns
1 000 602 ns 3,5 ns
1 000 000 3,4 ms 3,5 ns
#Devoxx #ListJ9 @JosePaumard

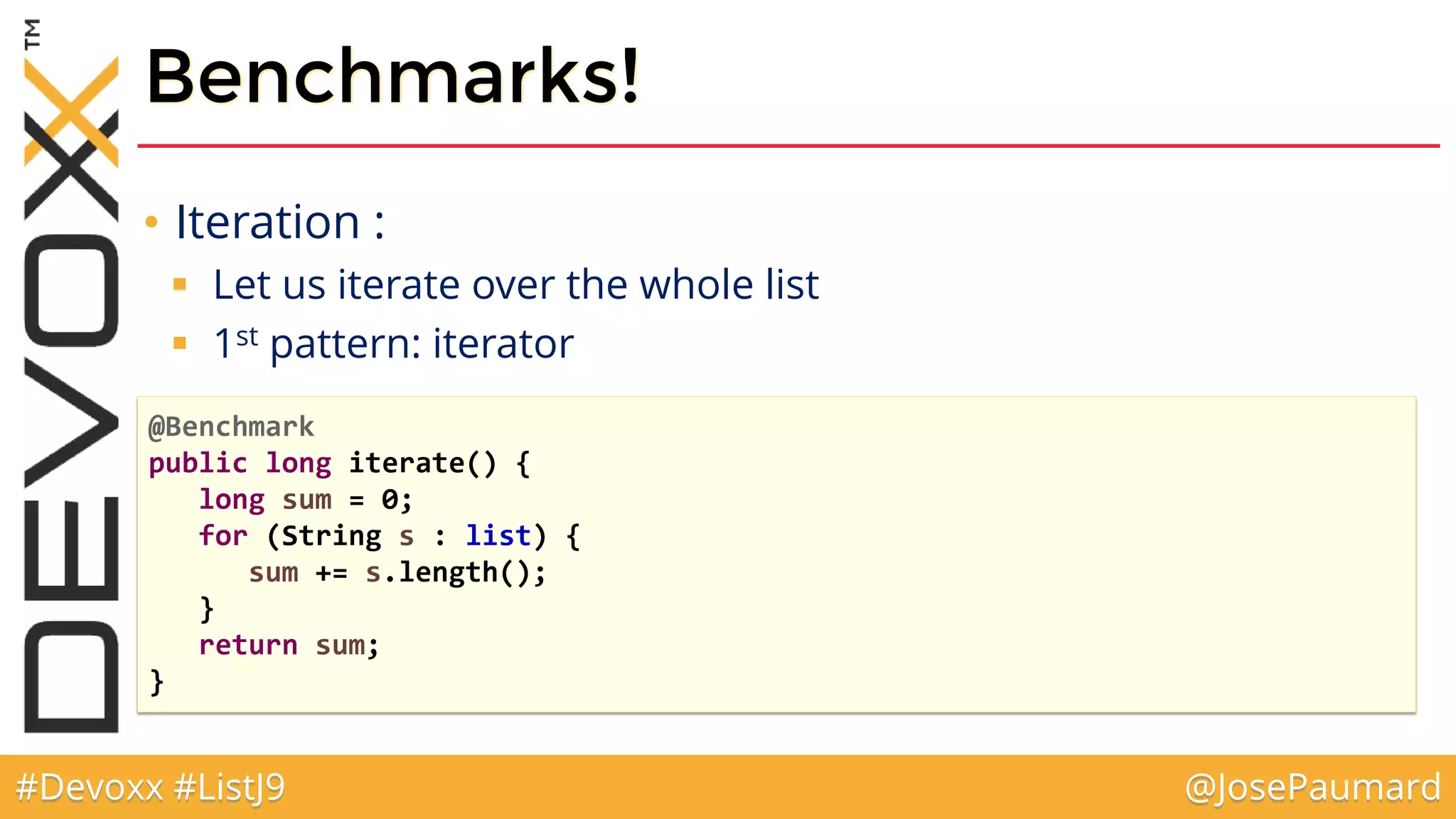

Benchmarks!
• Iteration :
 Let us iterate over the whole list
 1st pattern: iterator
@Benchmark
public long iterate() {
long sum = 0;
for (String s : list) {
sum += s.length();
}
return sum;
}
#Devoxx #ListJ9 @JosePaumard

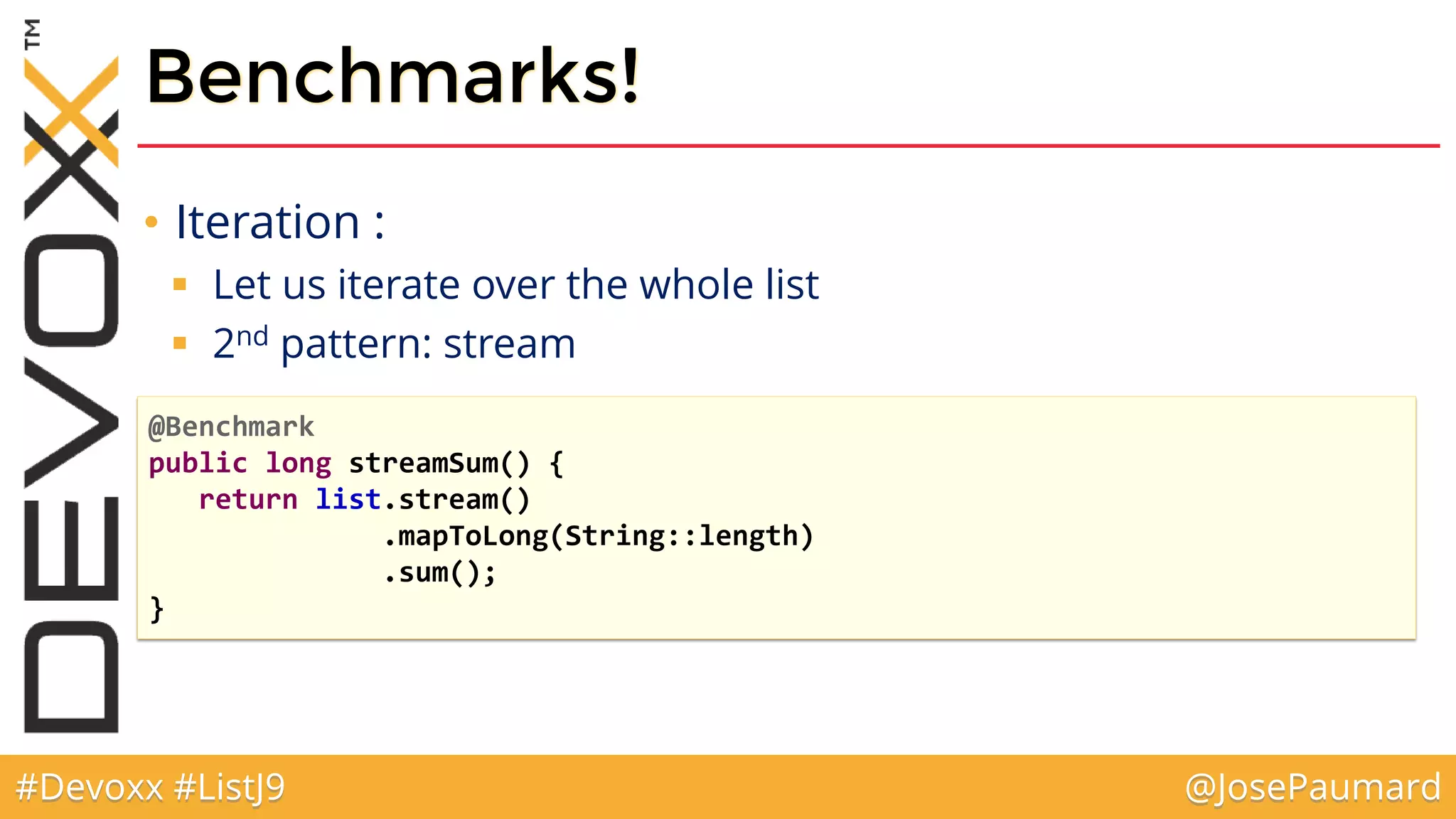

Benchmarks!
• Iteration :
 Let us iterate over the whole list
 2nd pattern: stream
@Benchmark
public long streamSum() {
return list.stream()
.mapToLong(String::length)
.sum();
}
#Devoxx #ListJ9 @JosePaumard

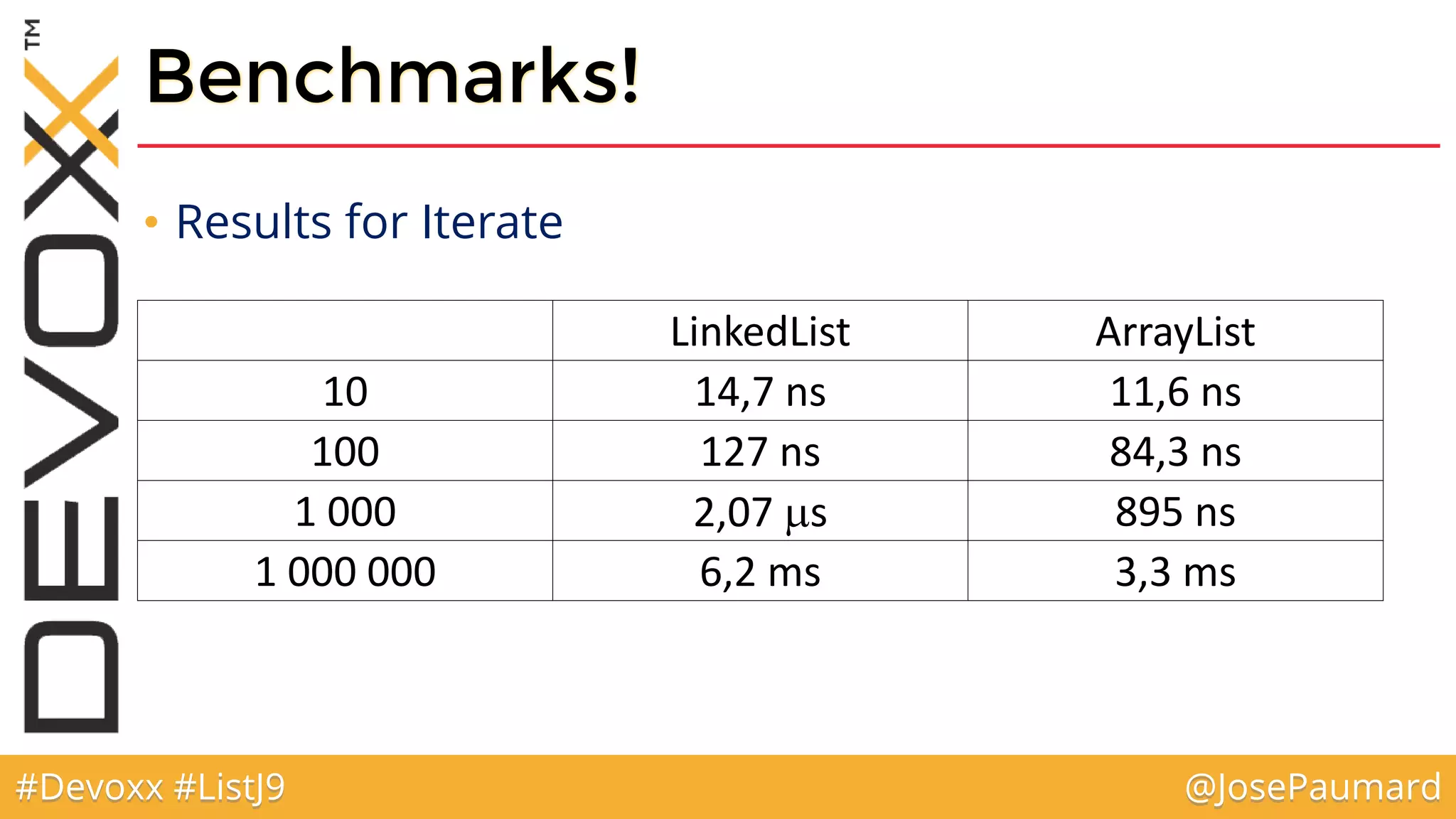

Benchmarks!
• Results for Iterate
LinkedList ArrayList
10 14,7 ns 11,6 ns
100 127 ns 84,3 ns
1 000 2,07 ms 895 ns
1 000 000 6,2 ms 3,3 ms
#Devoxx #ListJ9 @JosePaumard
Benchmarks!
• Results for Stream
LinkedList ArrayList
10 33 ns 64 ns
100 174 ns 440 ns
1 000 1,57 ms 3,6 ms
1 000 000 6,1 ms 4,8 ms
#Devoxx #ListJ9 @JosePaumard
removeIf() and sort()
• Let us check the code
#Devoxx #ListJ9 @JosePaumard
First conclusion
• The overhead of the System.arrayCopy() is not that
bad
 It can be avoided in the case of growing lists
• That been said, there is still an unexpected
performance difference, that we need to explain
#Devoxx #ListJ9 @JosePaumard

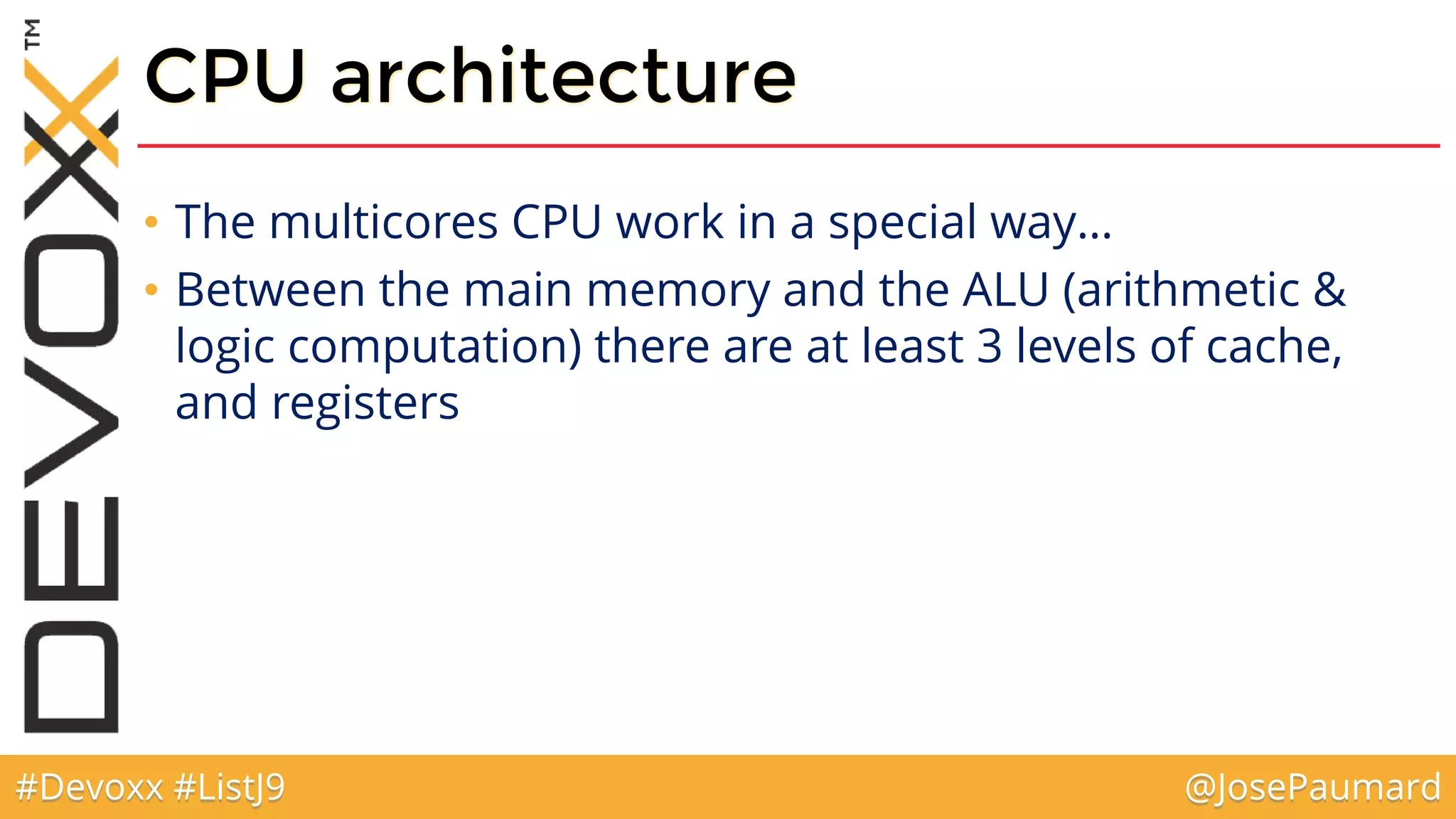

CPU architecture
• The multicores CPU work in a special way…
• Between the main memory and the ALU (arithmetic &
logic computation) there are at least 3 levels of cache,
and registers
#Devoxx #ListJ9 @JosePaumard
CPU architecture
Core 1
Access to the registers
< 1ns
#Devoxx #ListJ9 @JosePaumard

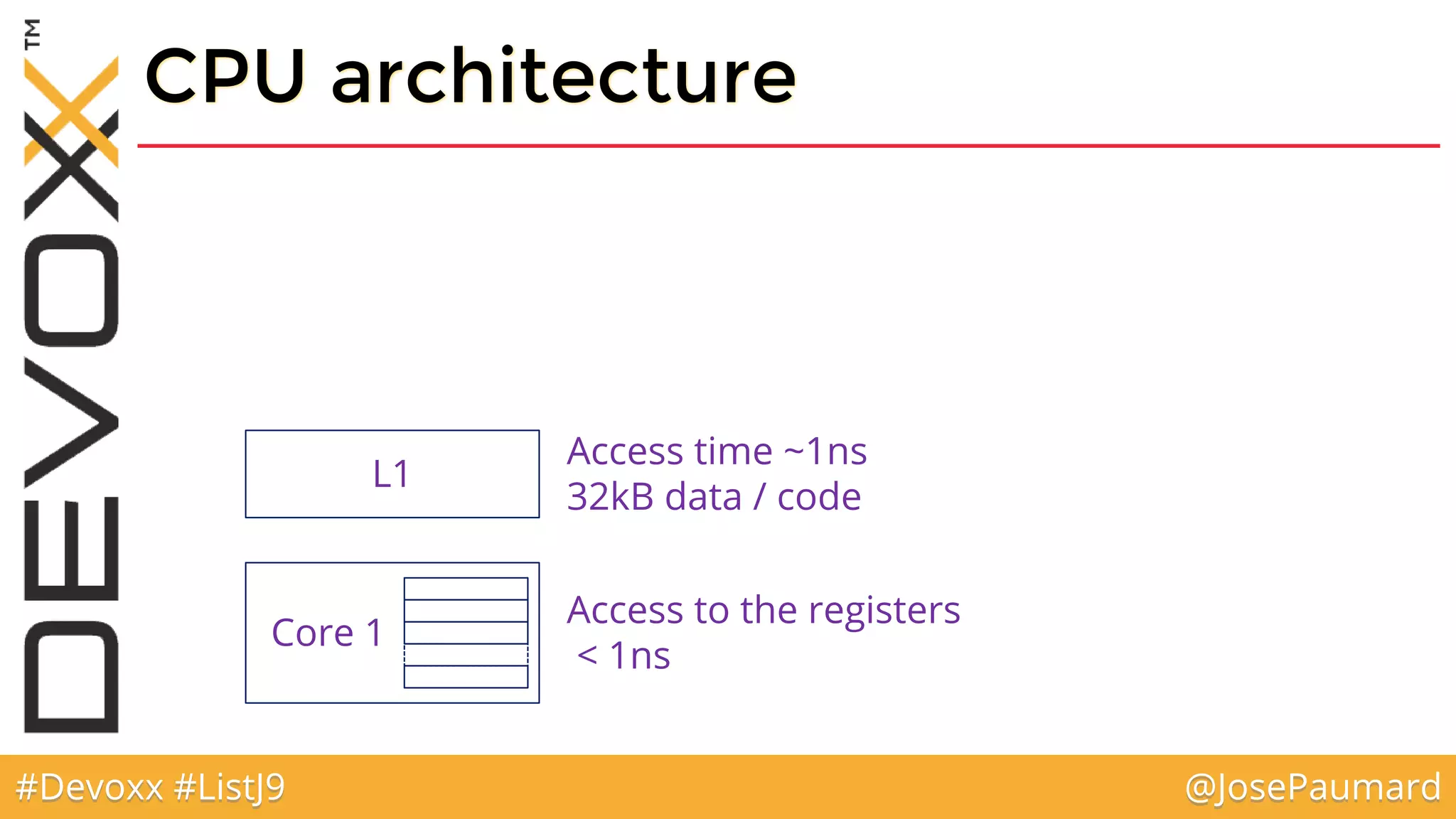

CPU architecture
Core 1
L1
Access to the registers
< 1ns
Access time ~1ns
32kB data / code
#Devoxx #ListJ9 @JosePaumard

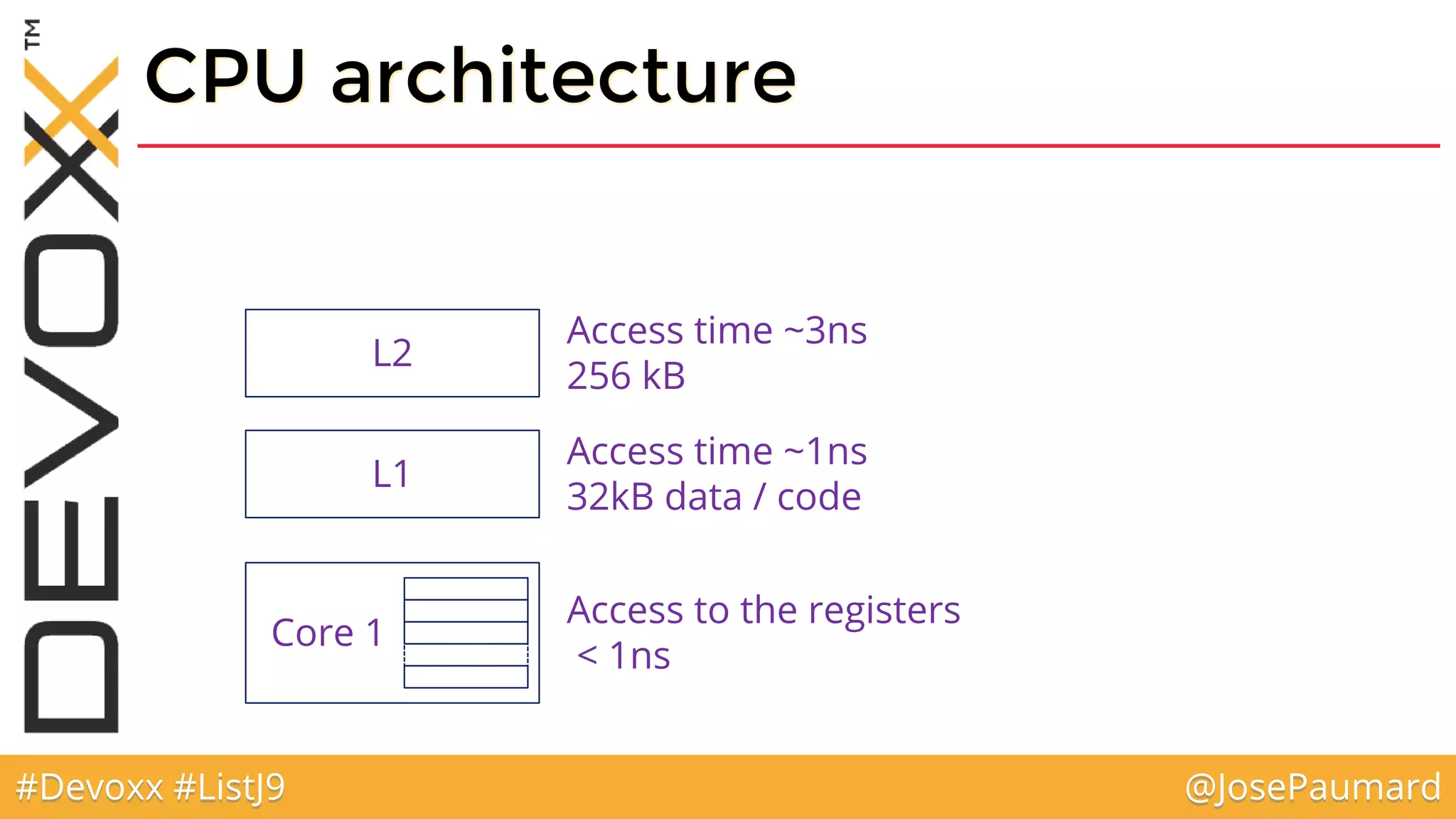

CPU architecture
Core 1
L1
Access to the registers
< 1ns
Access time ~1ns
32kB data / code
L2
Access time ~3ns
256 kB
#Devoxx #ListJ9 @JosePaumard
CPU architecture
Core 1
L1
L2
Core N
L1
L2
#Devoxx #ListJ9 @JosePaumard
CPU architecture
Core 1
L1
L2
L3 (~12ns)
Core N
L1
L2
#Devoxx #ListJ9 @JosePaumard
CPU architecture
C 1
L1
L2
L3
C N
L1
L2
C 1
L1
L2
L3
C N
L1
L2
#Devoxx #ListJ9 @JosePaumard

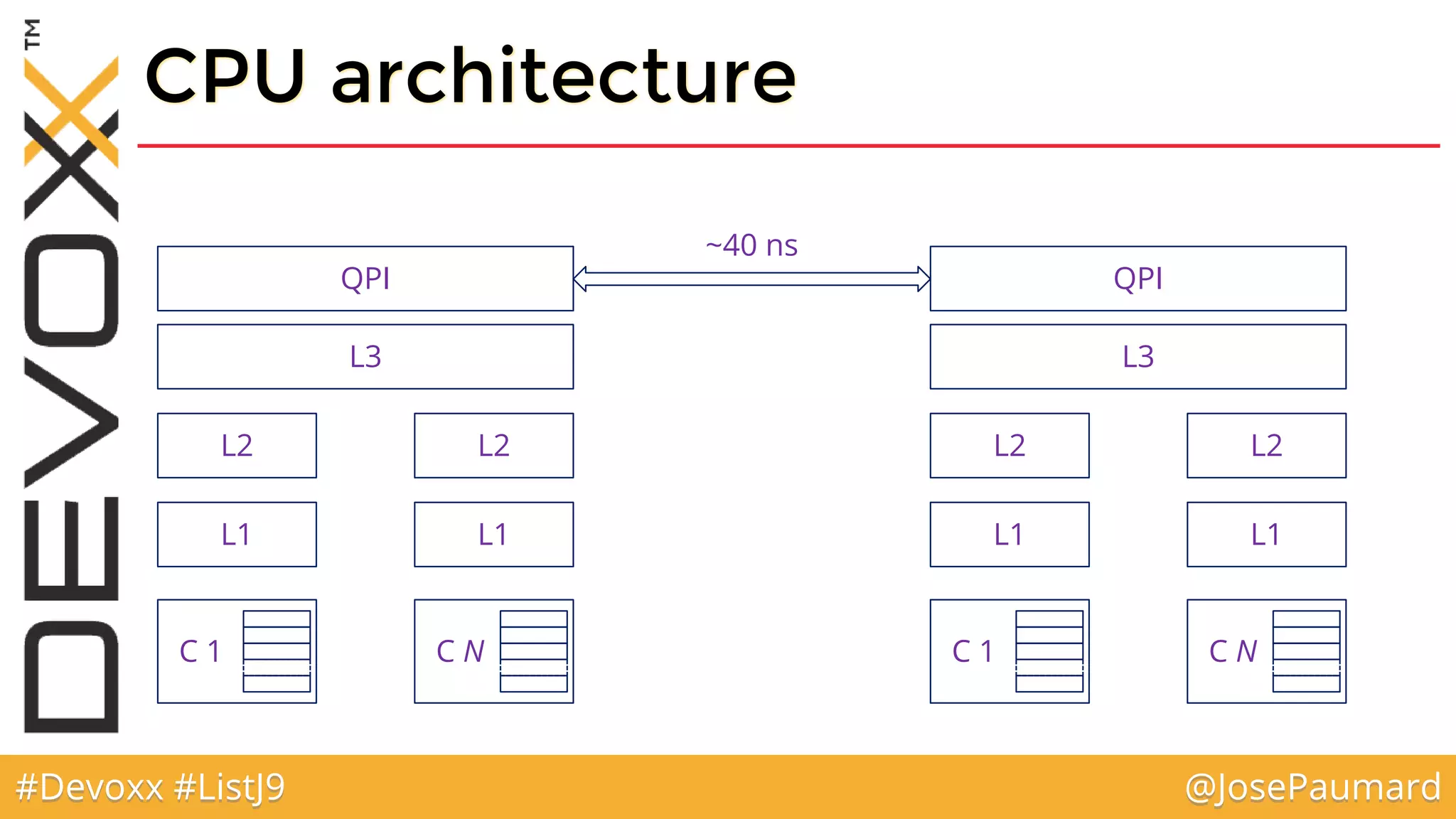

CPU architecture
C 1
L1
L2
L3
QPI
C N
L1
L2
C 1
L1
L2
L3
QPI
C N
L1
L2
~40 ns
#Devoxx #ListJ9 @JosePaumard

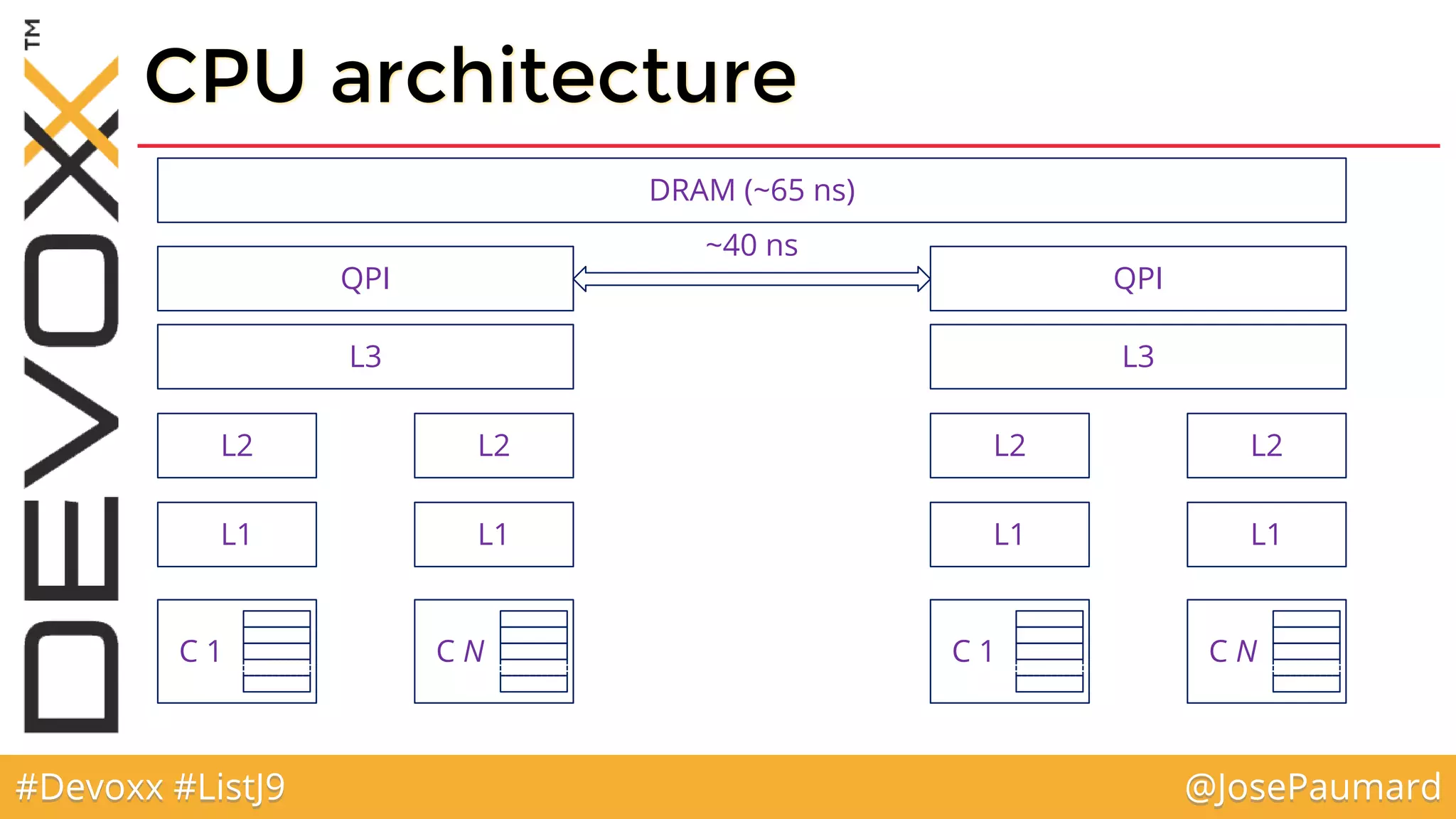

CPU architecture
C 1
L1
L2
L3
QPI
DRAM (~65 ns)
C N
L1
L2
C 1
L1
L2
L3
QPI
C N
L1
L2
~40 ns
#Devoxx #ListJ9 @JosePaumard

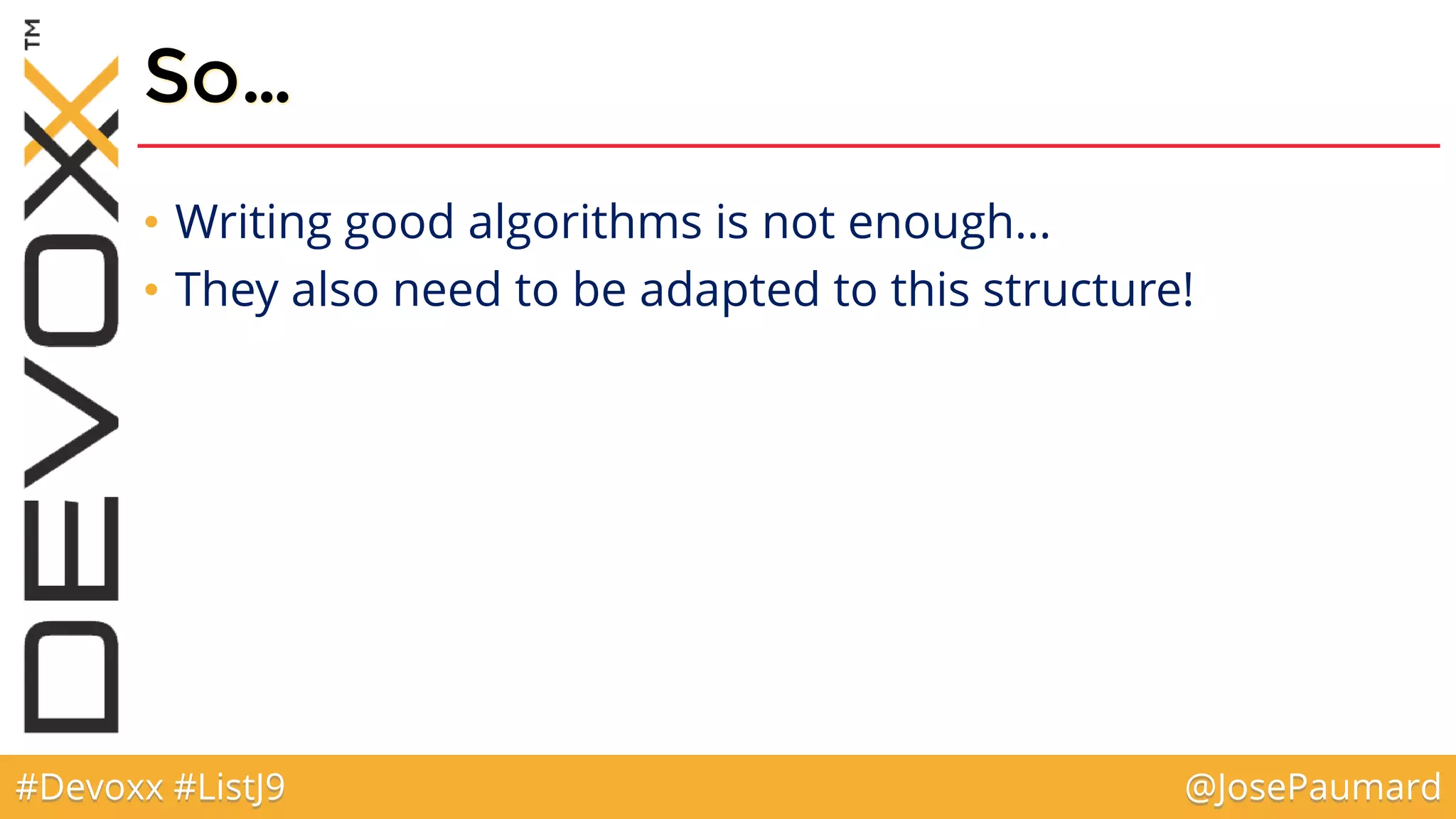

So…
• Writing good algorithms is not enough…
• They also need to be adapted to this structure!
#Devoxx #ListJ9 @JosePaumard
So…
• Writing good algorithms is not enough…
• They also need to be adapted to this structure!
• What makes a processing fast is its capacity to bring
the processed data in the L1 cache as fast as possible
#Devoxx #ListJ9 @JosePaumard

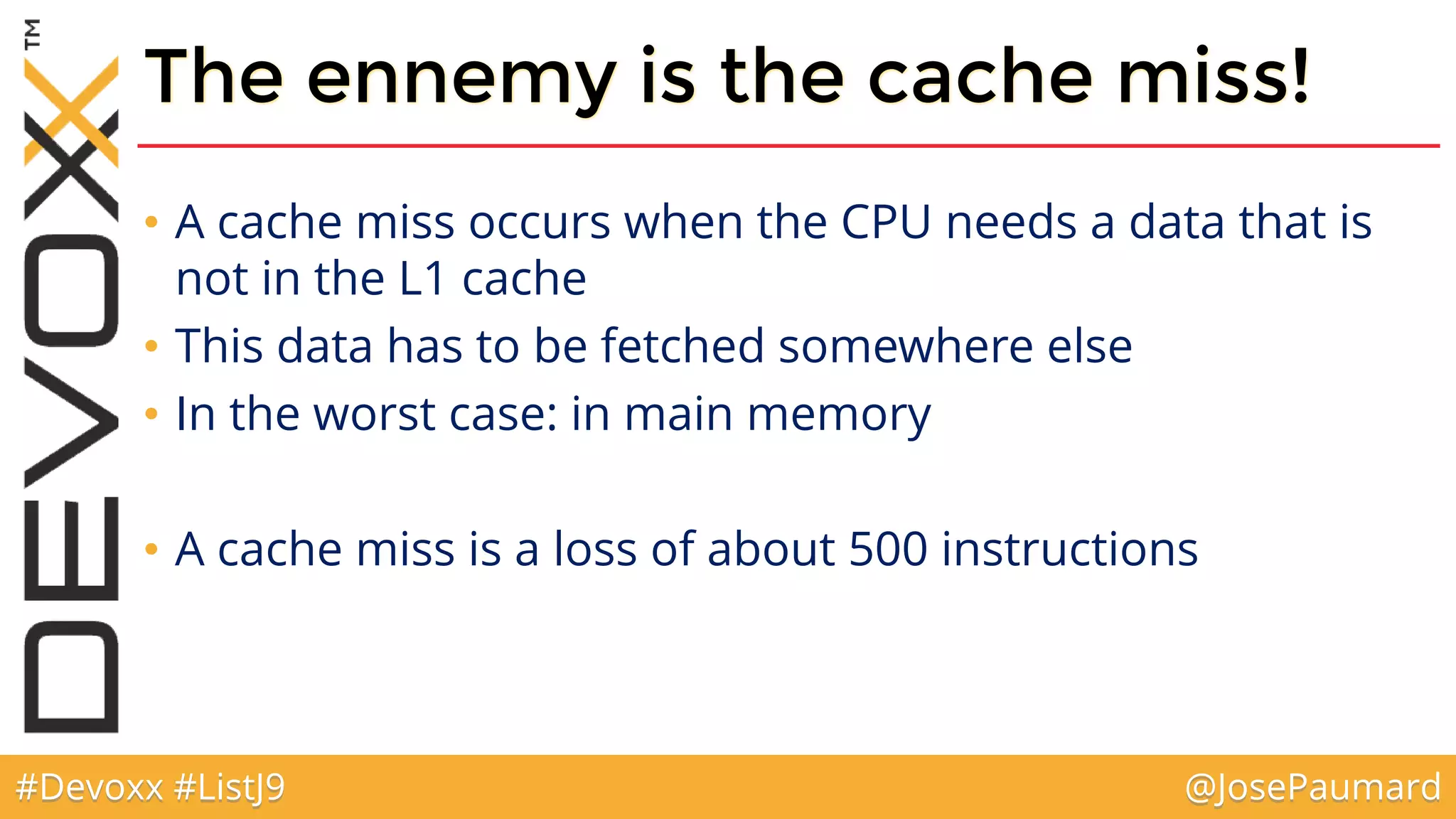

The ennemy is the cache miss!
• A cache miss occurs when the CPU needs a data that is
not in the L1 cache
• This data has to be fetched somewhere else
• In the worst case: in main memory
• A cache miss is a loss of about 500 instructions
#Devoxx #ListJ9 @JosePaumard

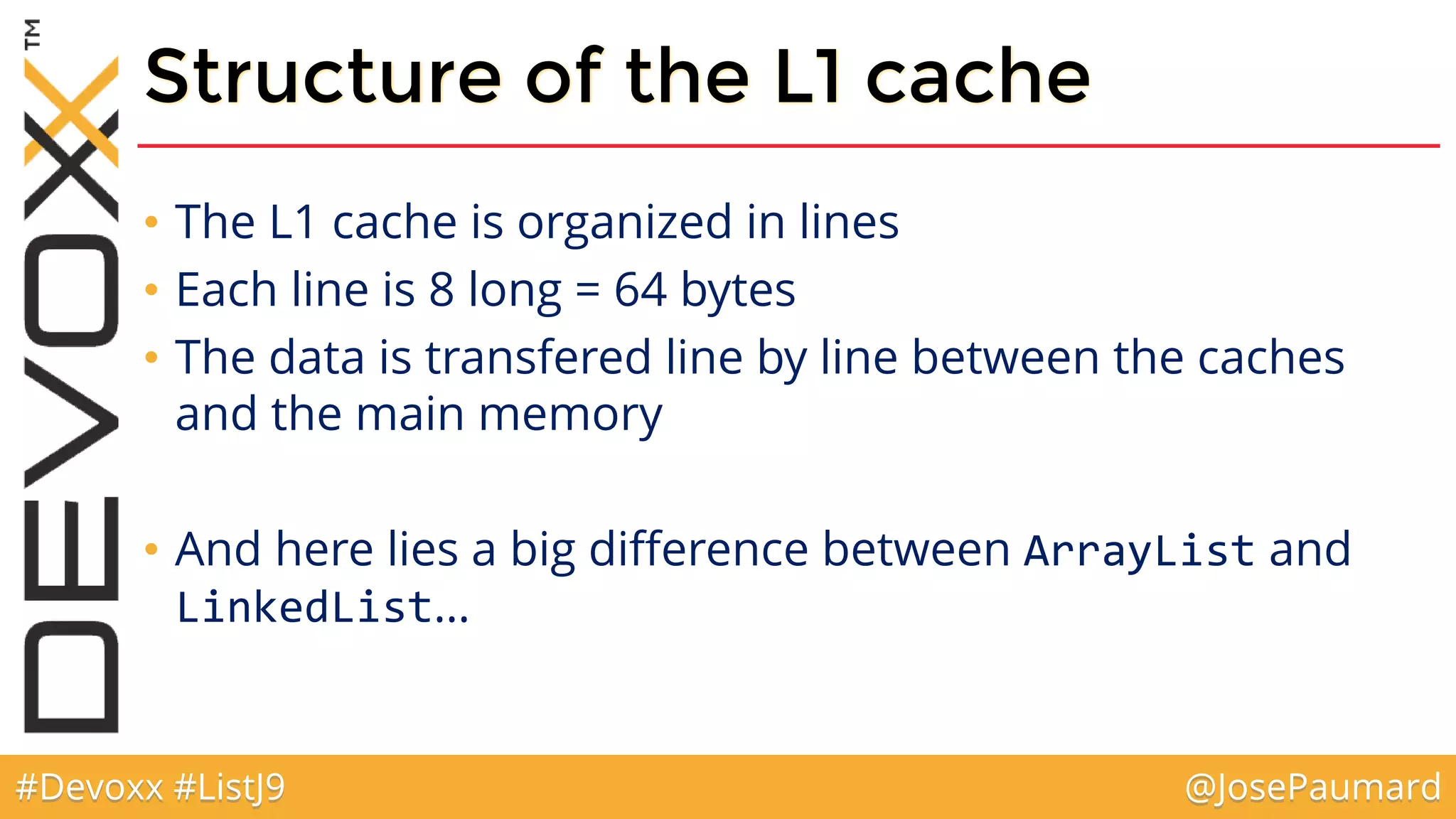

Structure of the L1 cache
• The L1 cache is organized in lines
• Each line is 8 long = 64 bytes
• The data is transfered line by line between the caches
and the main memory
• And here lies a big difference between ArrayList and
LinkedList…
#Devoxx #ListJ9 @JosePaumard

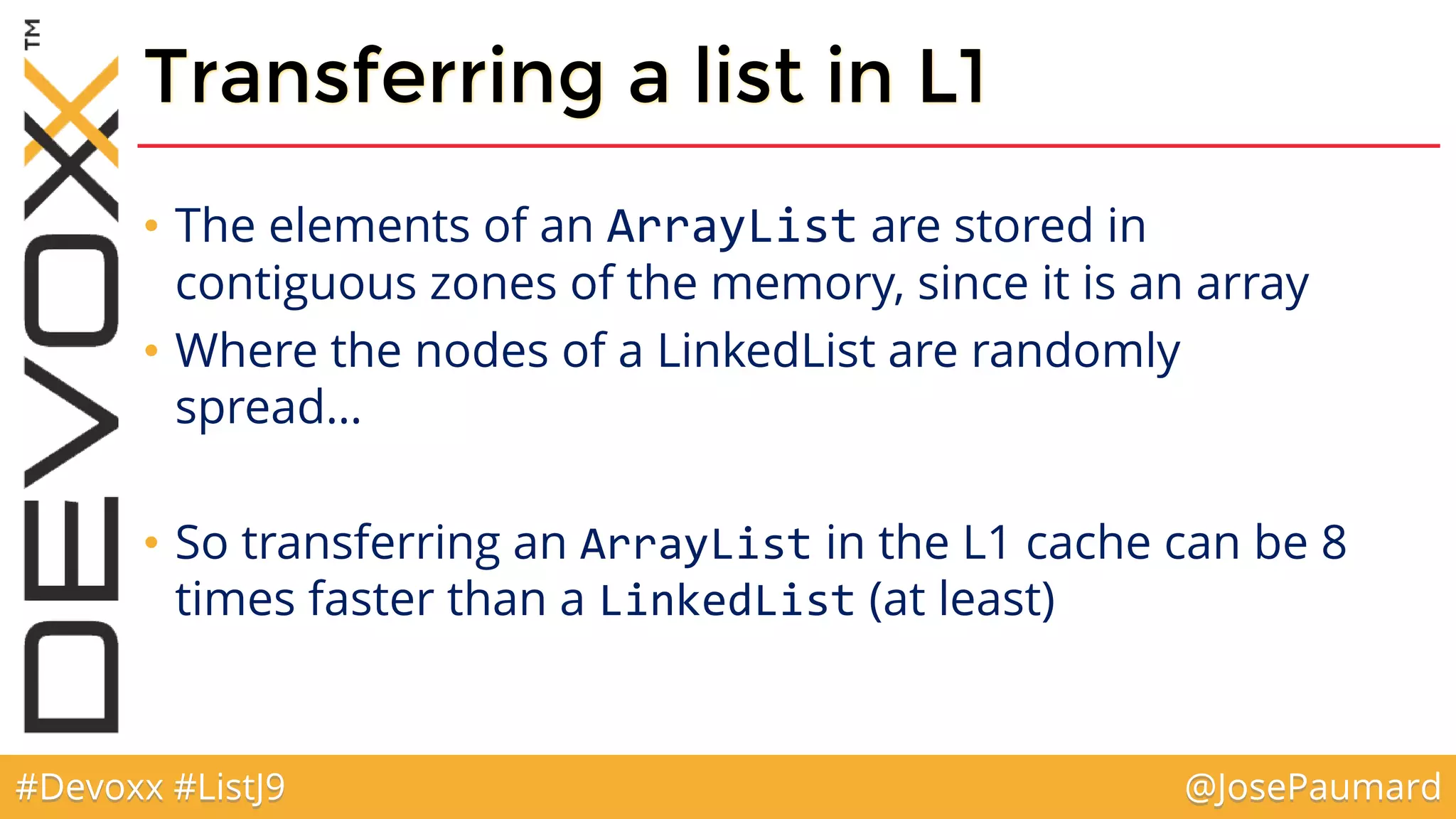

Transferring a list in L1
• The elements of an ArrayList are stored in
contiguous zones of the memory, since it is an array
• Where the nodes of a LinkedList are randomly
spread…
• So transferring an ArrayList in the L1 cache can be 8
times faster than a LinkedList (at least)
#Devoxx #ListJ9 @JosePaumard
Pointer chasing
• This phenomenon is called « pointer chasing », and it
can kill performances!
#Devoxx #ListJ9 @JosePaumard

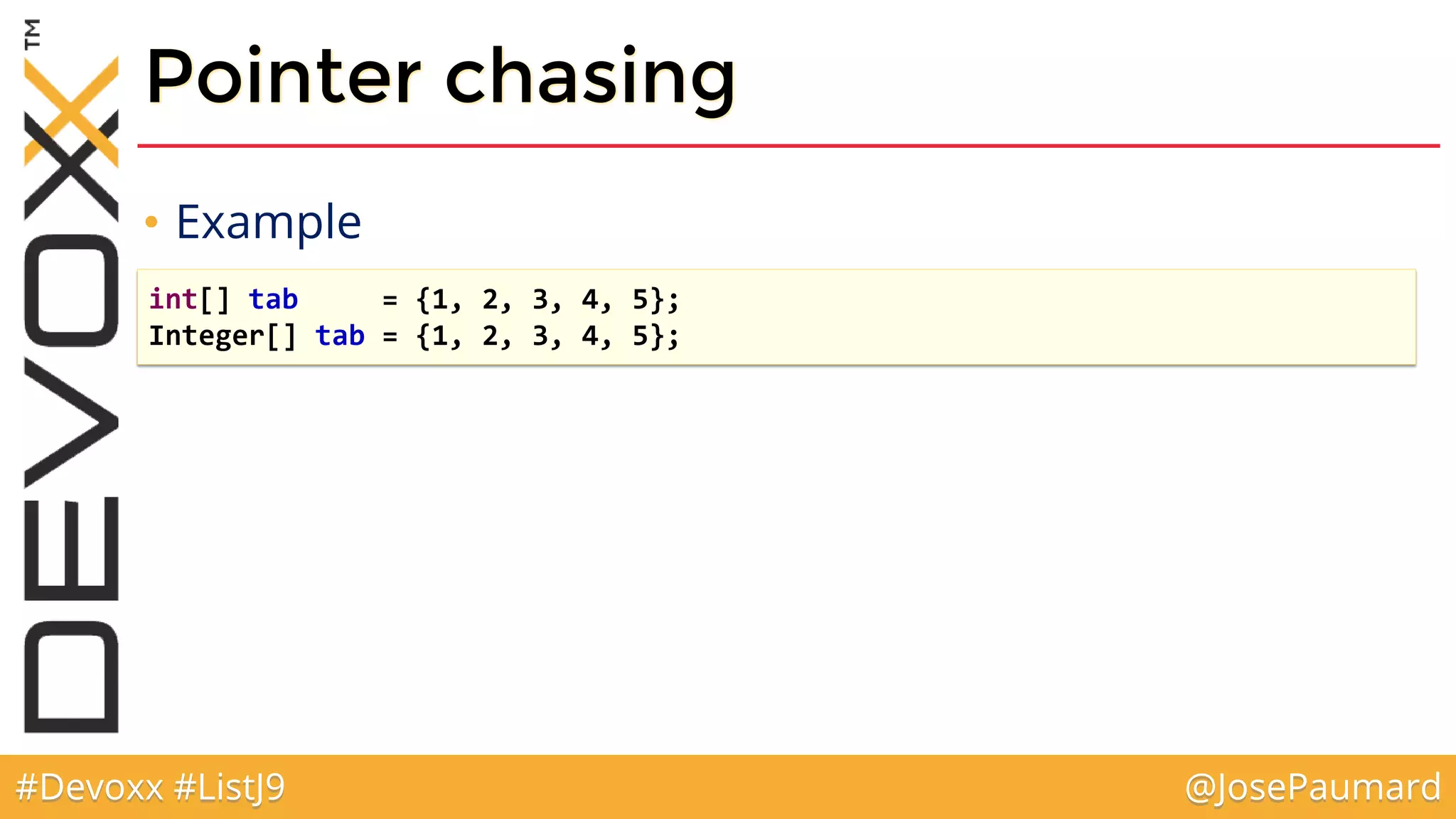

Pointer chasing
• Example
int[] tab = {1, 2, 3, 4, 5};
Integer[] tab = {1, 2, 3, 4, 5};
#Devoxx #ListJ9 @JosePaumard

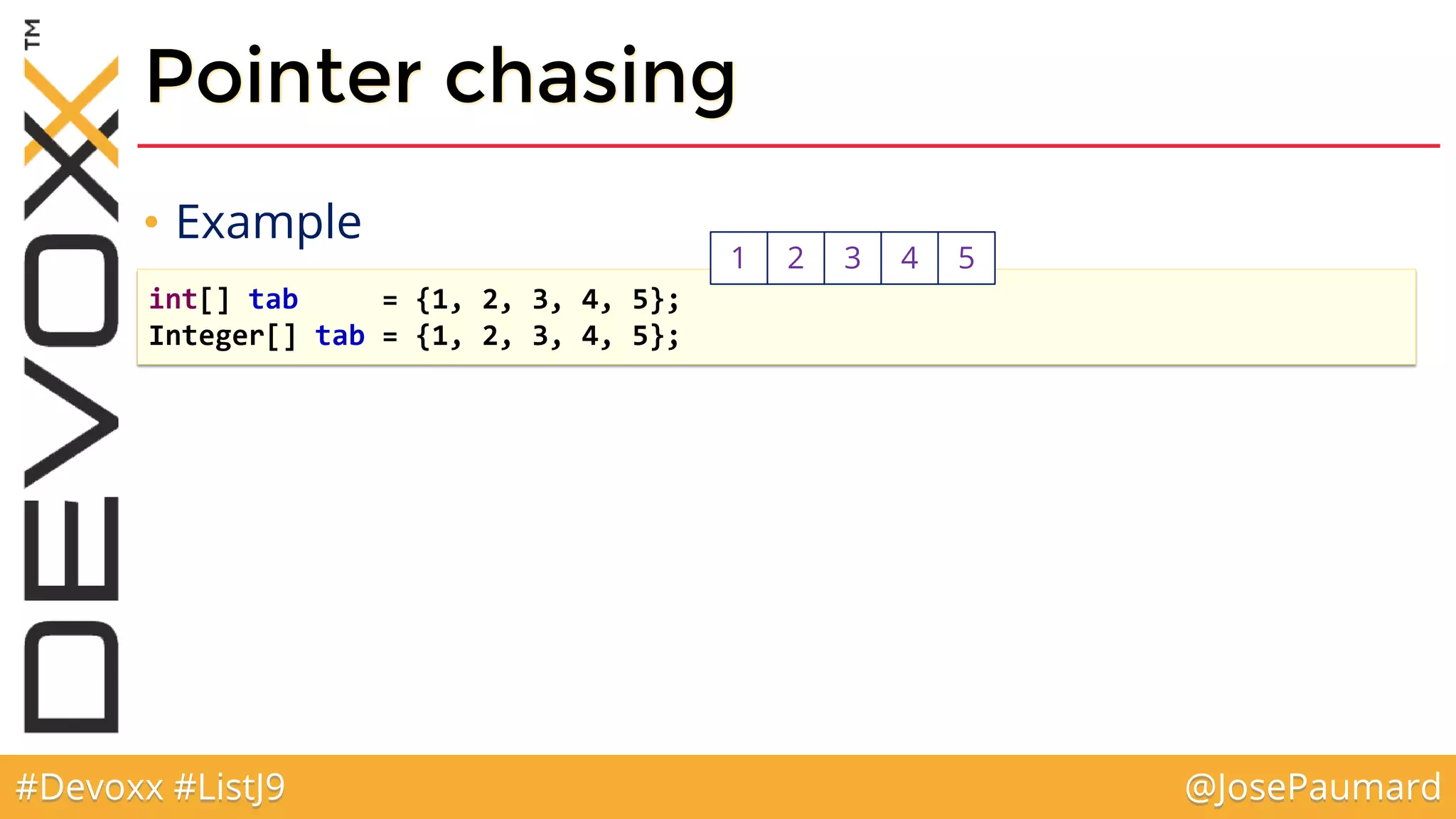

Pointer chasing
• Example
int[] tab = {1, 2, 3, 4, 5};
Integer[] tab = {1, 2, 3, 4, 5};
1 2 3 4 5
#Devoxx #ListJ9 @JosePaumard

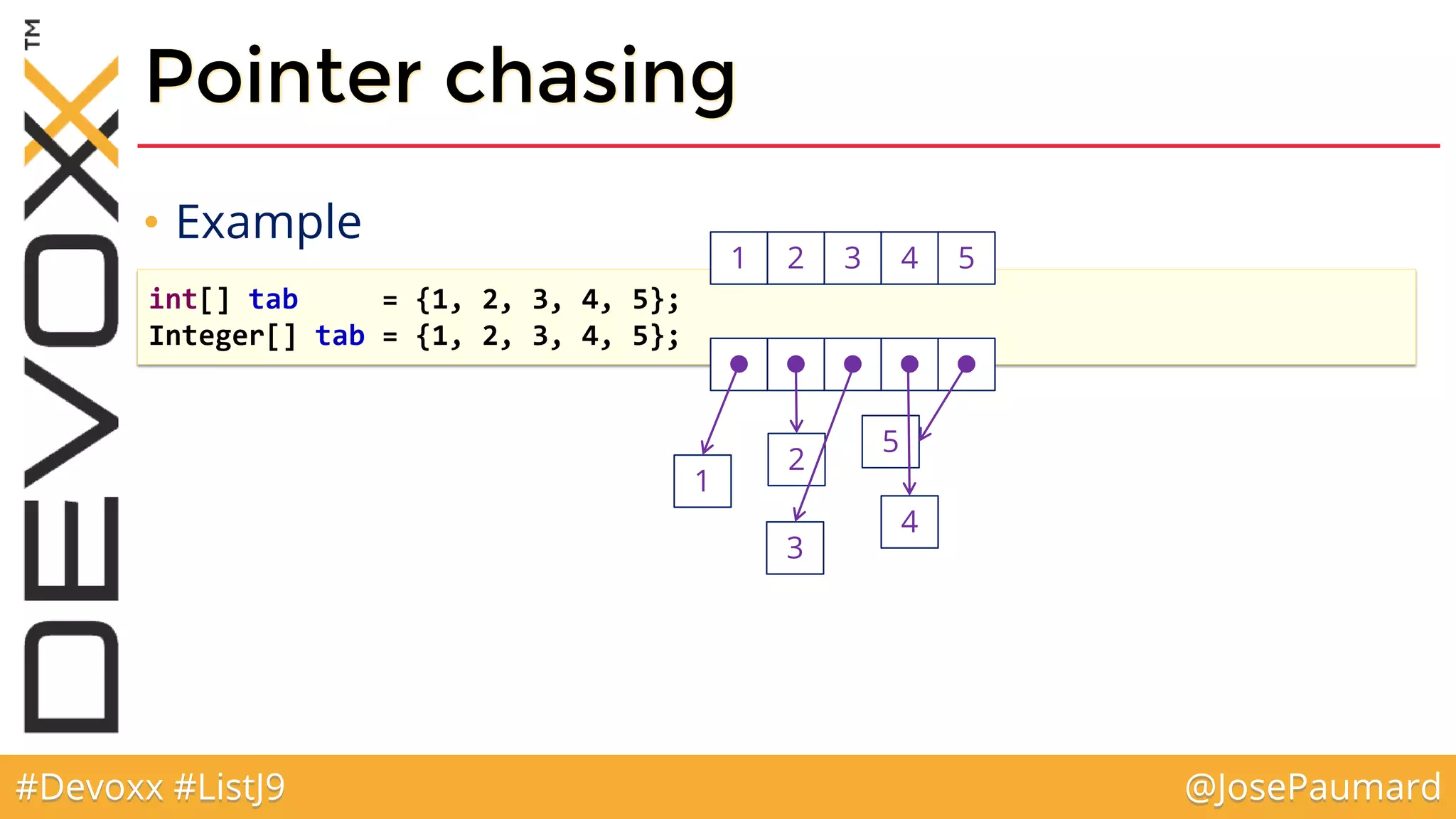

Pointer chasing
• Example
int[] tab = {1, 2, 3, 4, 5};
Integer[] tab = {1, 2, 3, 4, 5};
1 2 3 4 5
    
1
2
4
5
3
#Devoxx #ListJ9 @JosePaumard
Pointer chasing
• Example
public class Point {
Integer x, y;
}
List<Point> points = new ArrayList<>();
#Devoxx #ListJ9 @JosePaumard

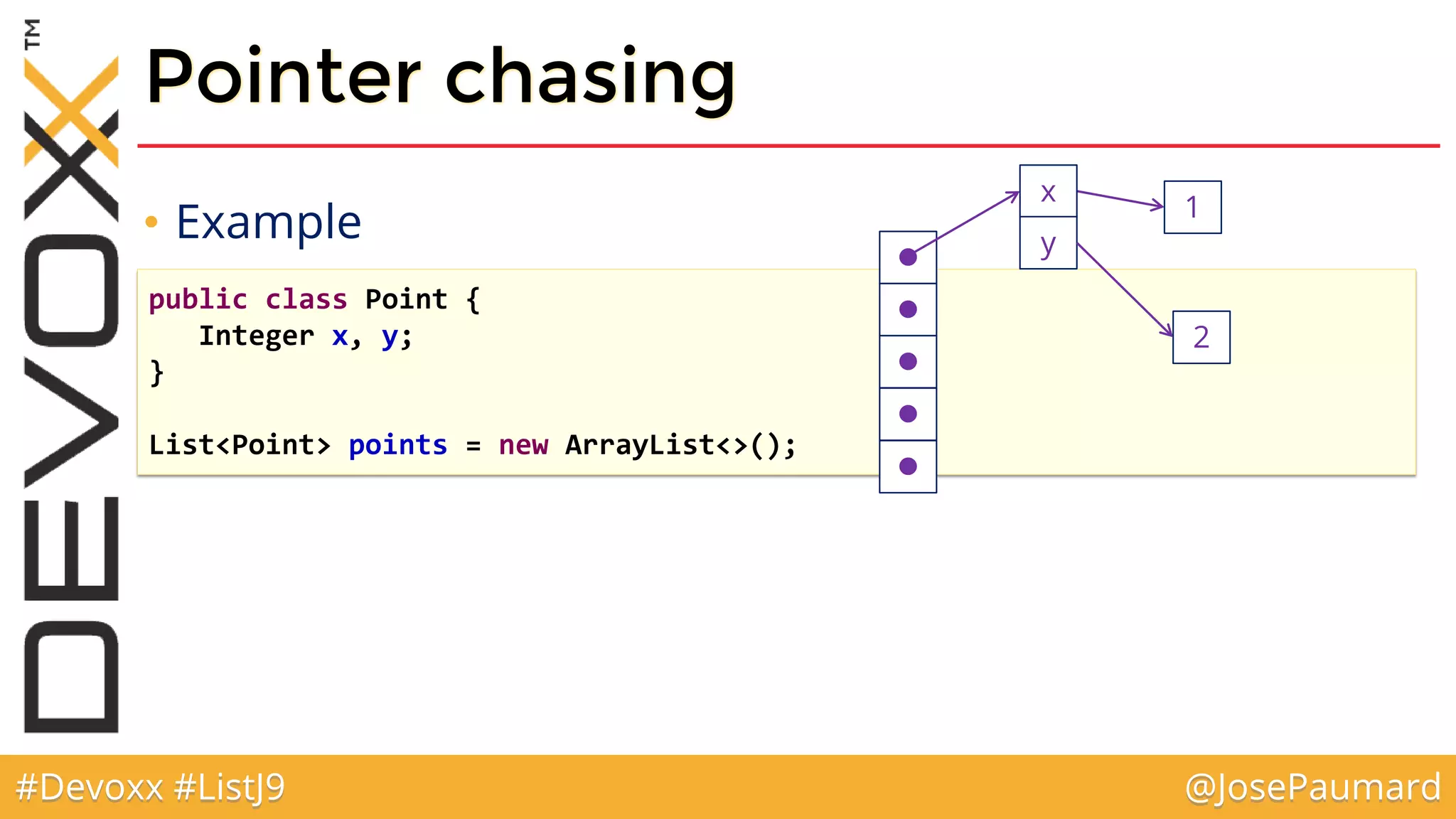

Pointer chasing
• Example
public class Point {
Integer x, y;
}
List<Point> points = new ArrayList<>();





x
y
1
2
#Devoxx #ListJ9 @JosePaumard

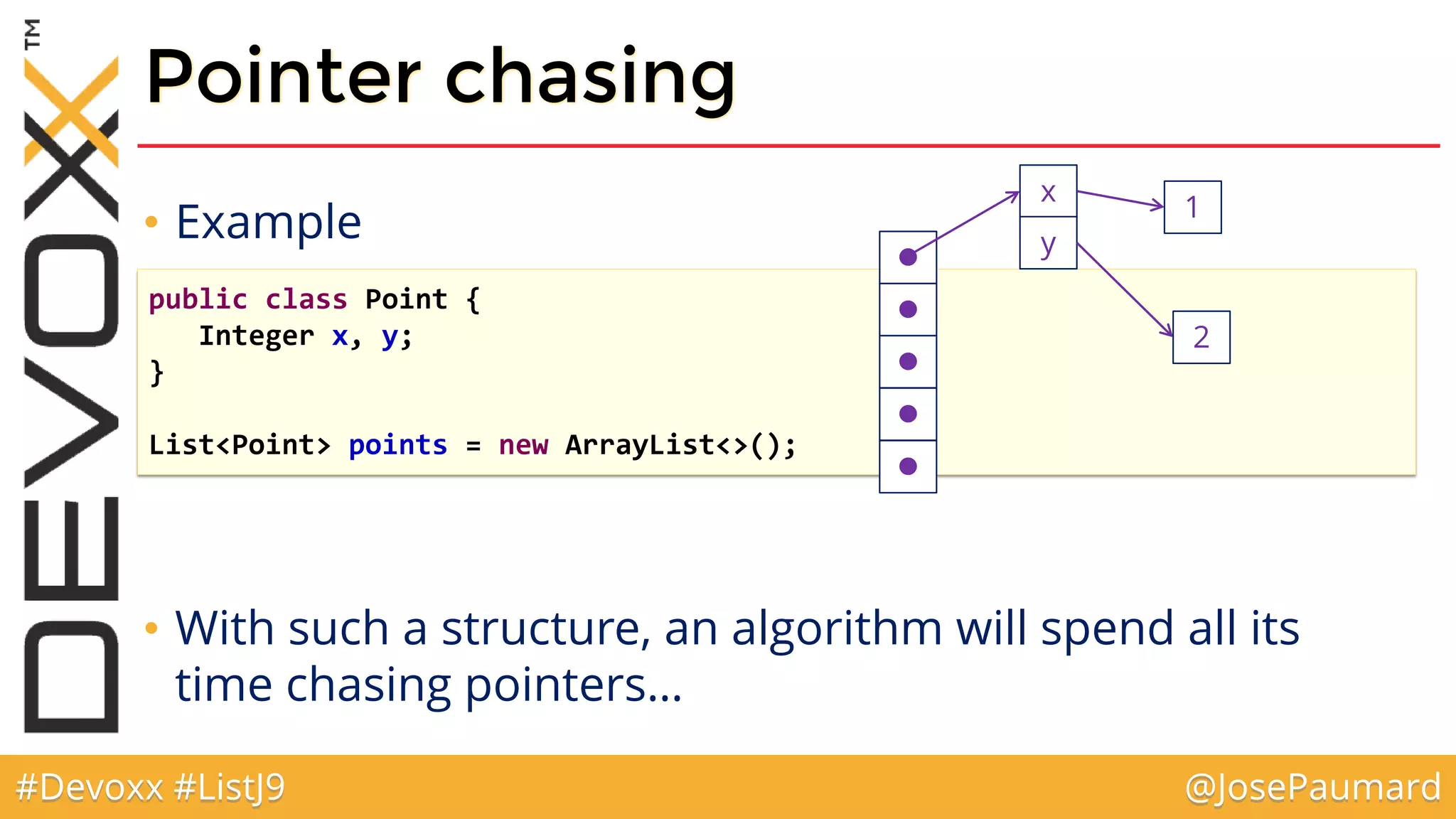

• Example
• With such a structure, an algorithm will spend all its
time chasing pointers…
Pointer chasing
public class Point {
Integer x, y;
}
List<Point> points = new ArrayList<>();





x
y
1
2
#Devoxx #ListJ9 @JosePaumard

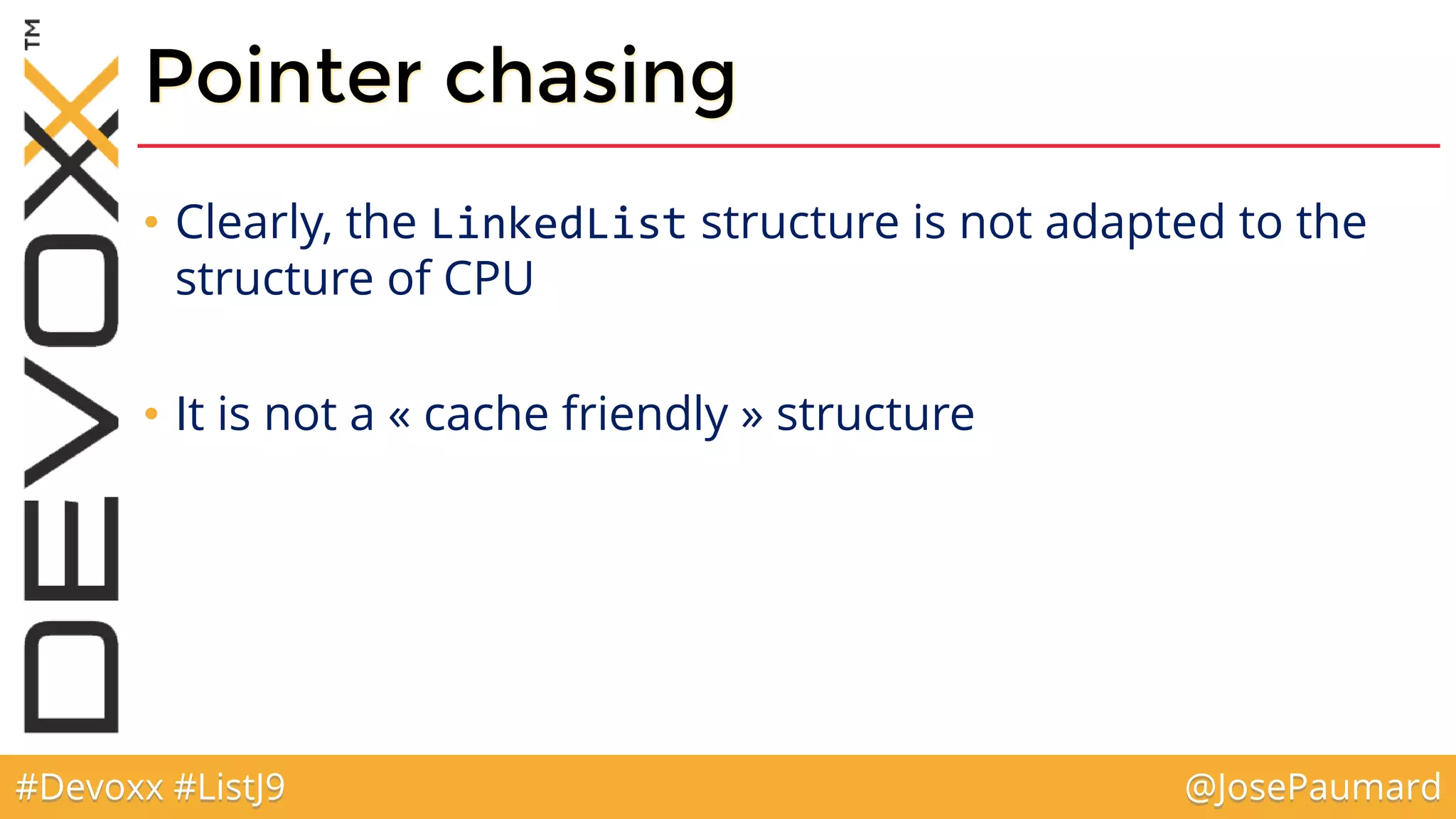

Pointer chasing
• Clearly, the LinkedList structure is not adapted to the
structure of CPU
• It is not a « cache friendly » structure
#Devoxx #ListJ9 @JosePaumard

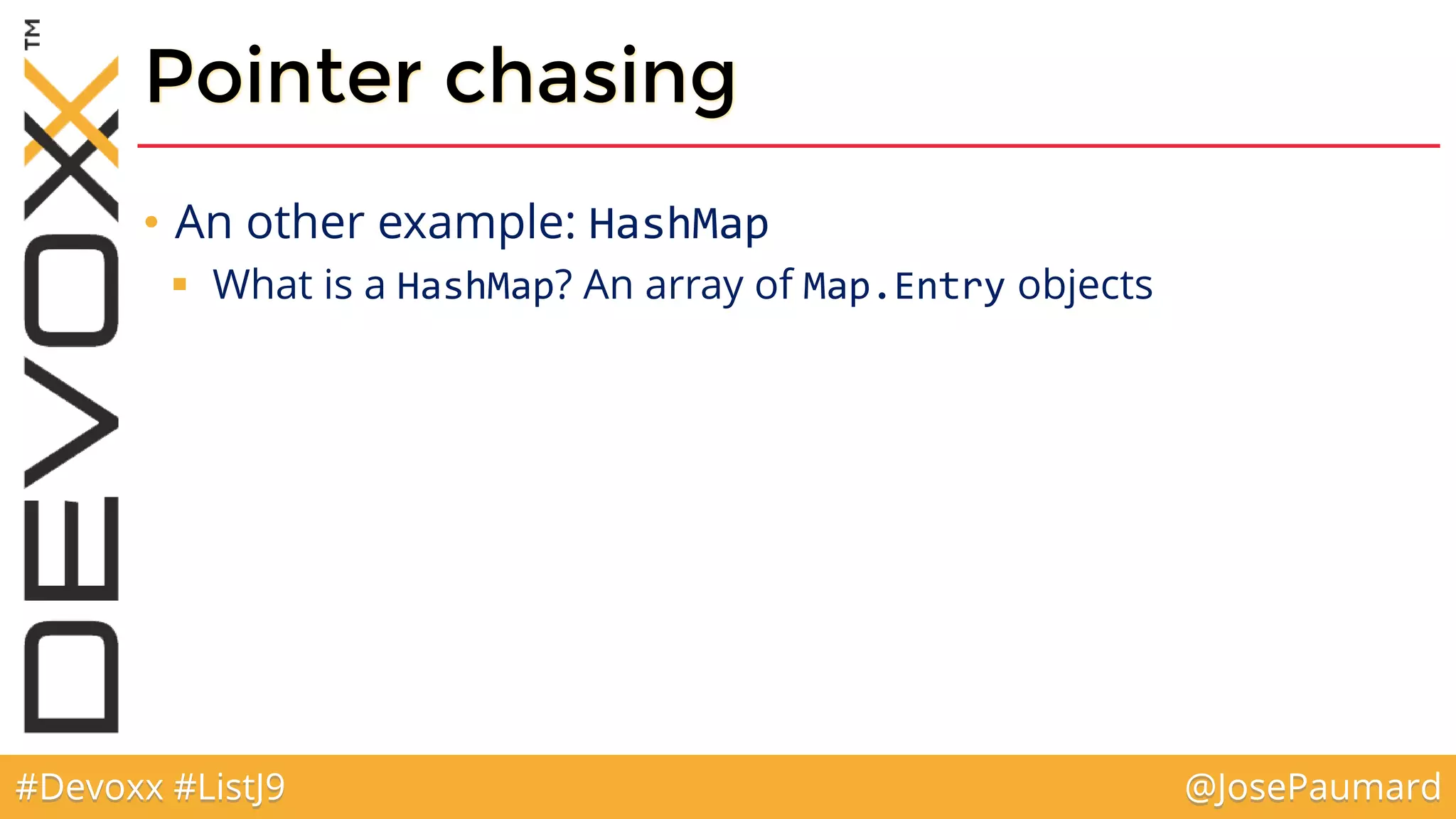

Pointer chasing
• An other example: HashMap
 What is a HashMap? An array of Map.Entry objects
#Devoxx #ListJ9 @JosePaumard

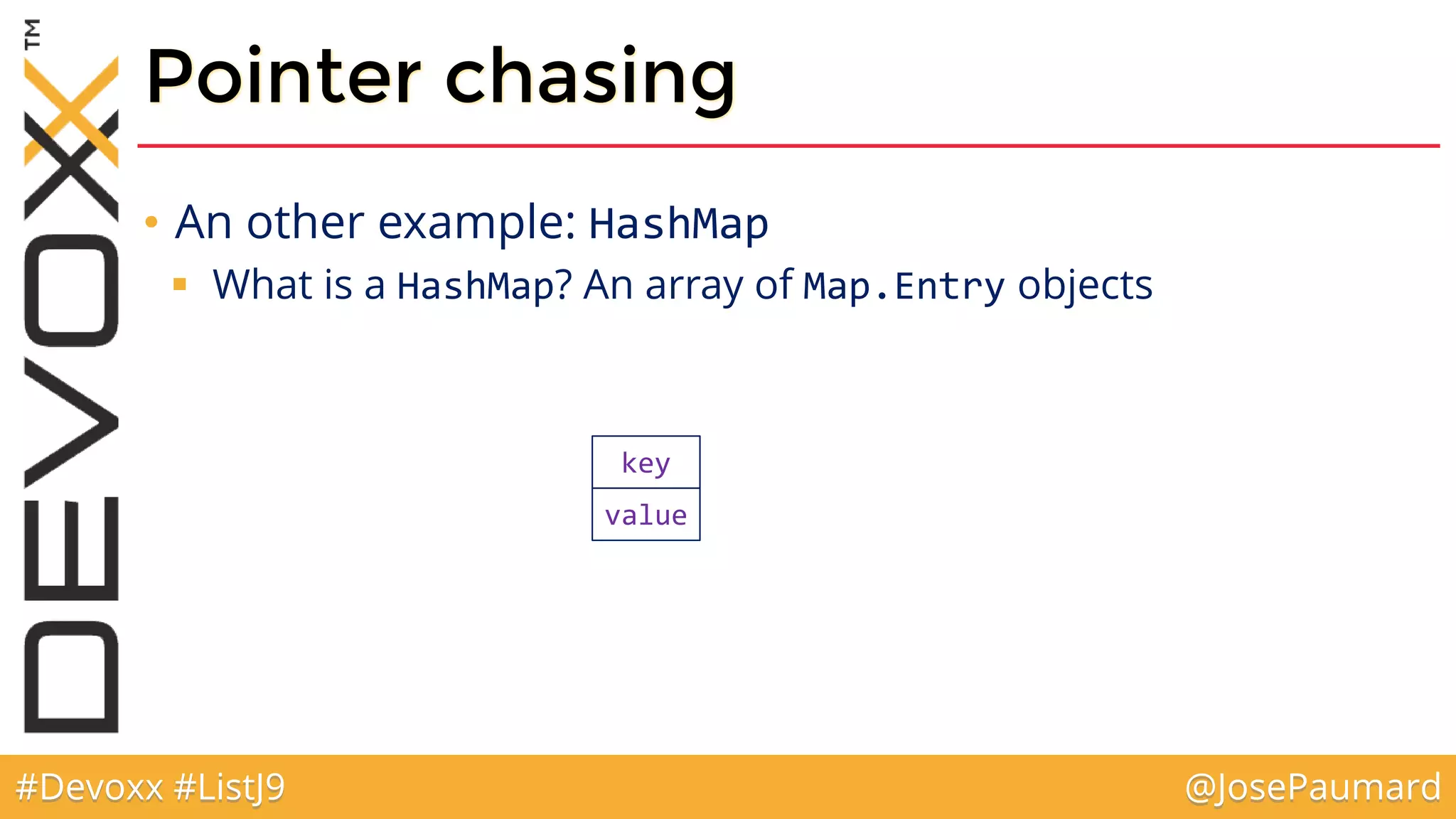

Pointer chasing
• An other example: HashMap
 What is a HashMap? An array of Map.Entry objects
key
value
#Devoxx #ListJ9 @JosePaumard
Pointer chasing
• An other example: HashMap
 What is a HashMap? An array of Map.Entry objects
key
value
12
« twelve »
#Devoxx #ListJ9 @JosePaumard

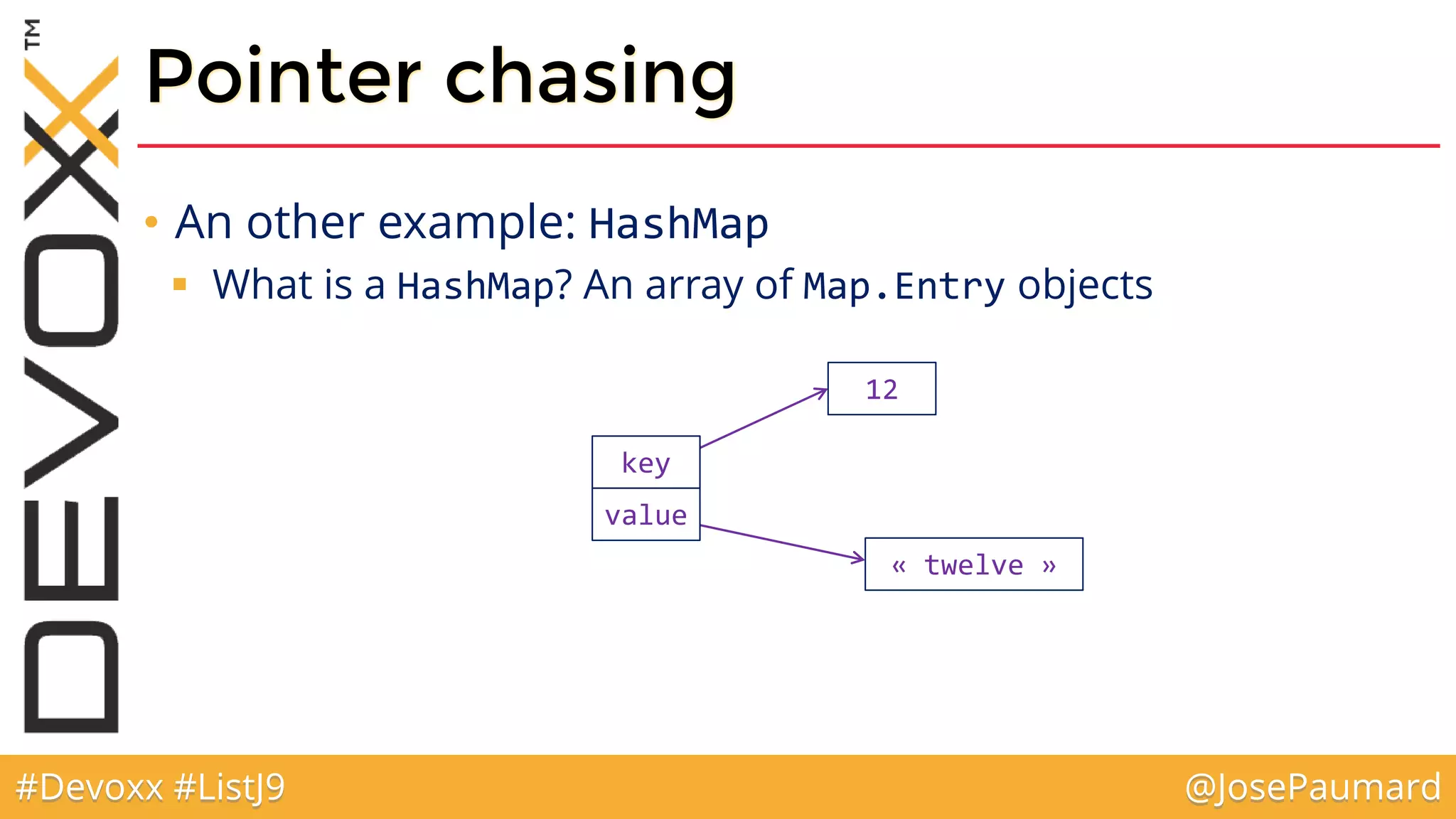

• An other example: HashMap
 What is a HashMap? An array of Map.Entry objects
Pointer chasing
key
value
12
« twelve »



#Devoxx #ListJ9 @JosePaumard

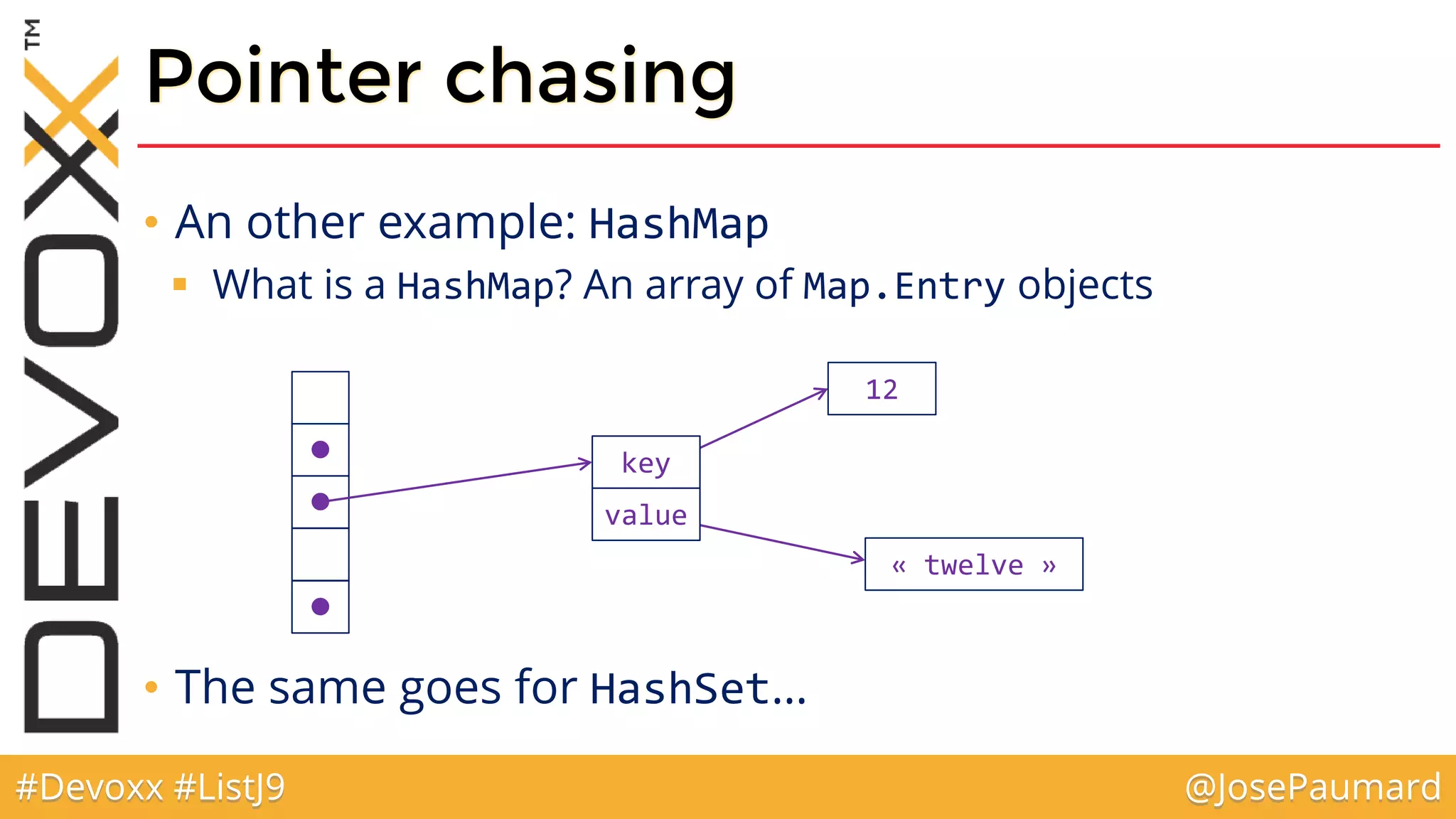

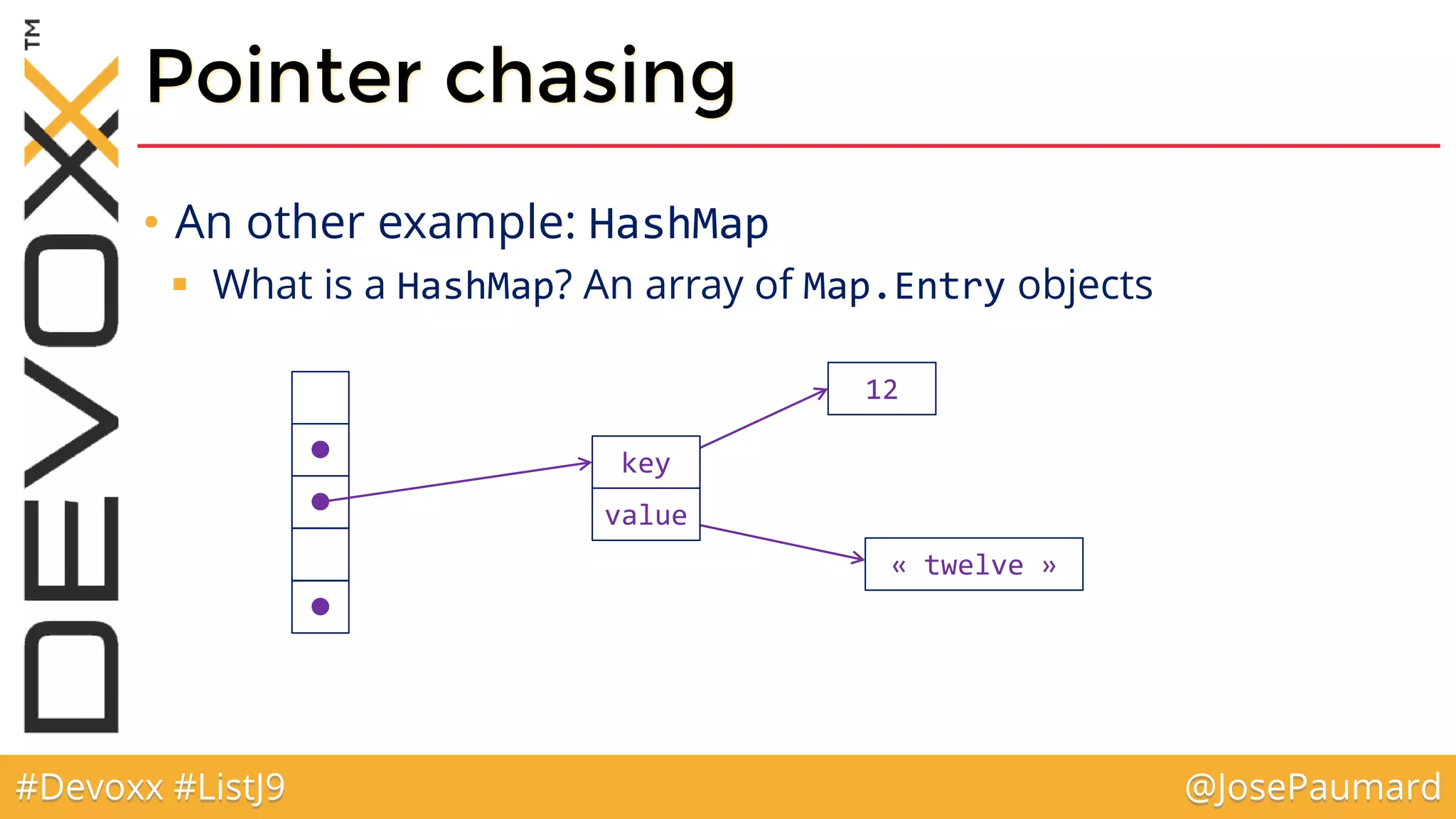

• An other example: HashMap
 What is a HashMap? An array of Map.Entry objects
• The same goes for HashSet…
Pointer chasing
key
value
12
« twelve »



#Devoxx #ListJ9 @JosePaumard

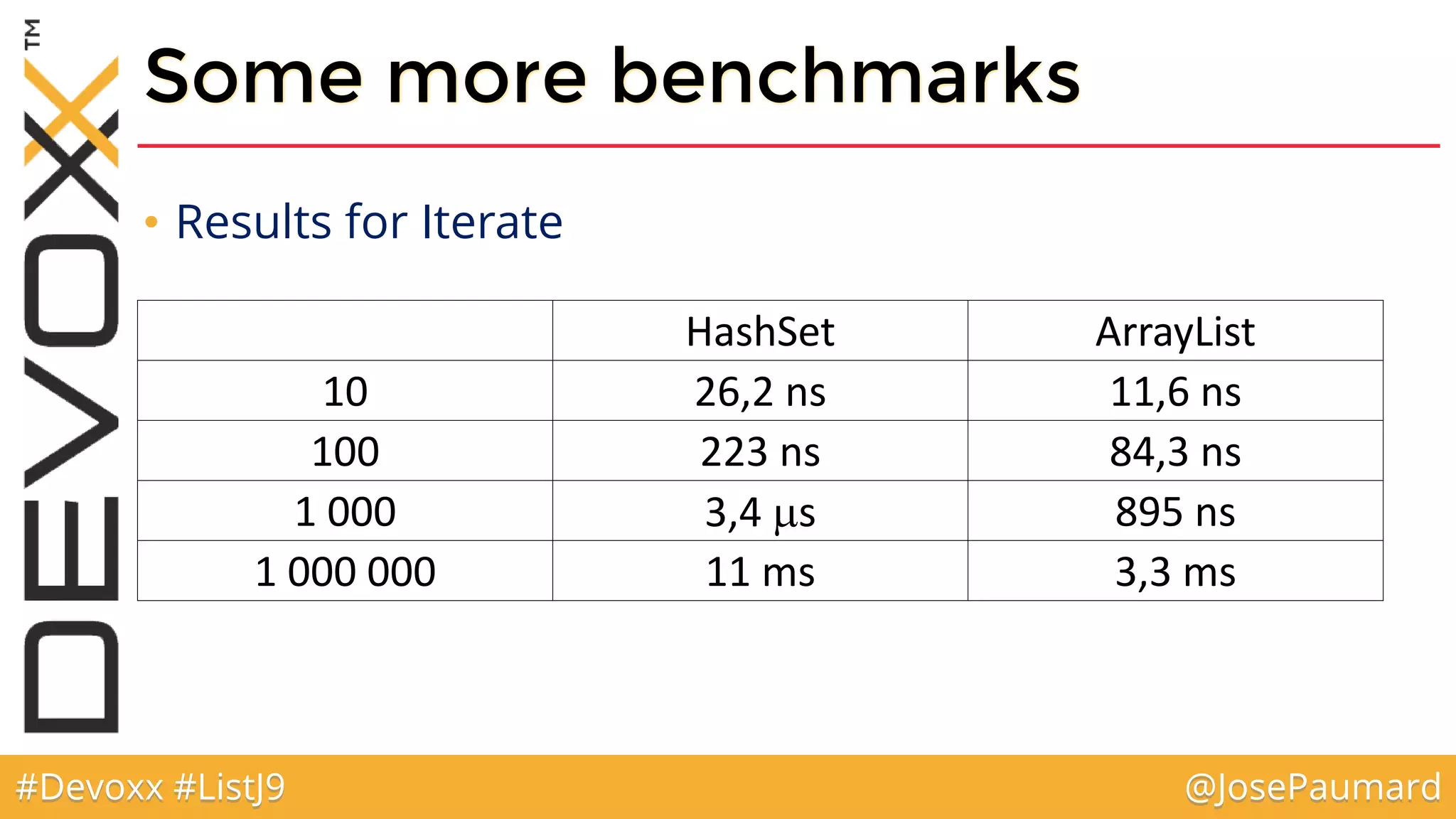

Some more benchmarks
• Results for Iterate
HashSet ArrayList
10 26,2 ns 11,6 ns
100 223 ns 84,3 ns
1 000 3,4 ms 895 ns
1 000 000 11 ms 3,3 ms
#Devoxx #ListJ9 @JosePaumard

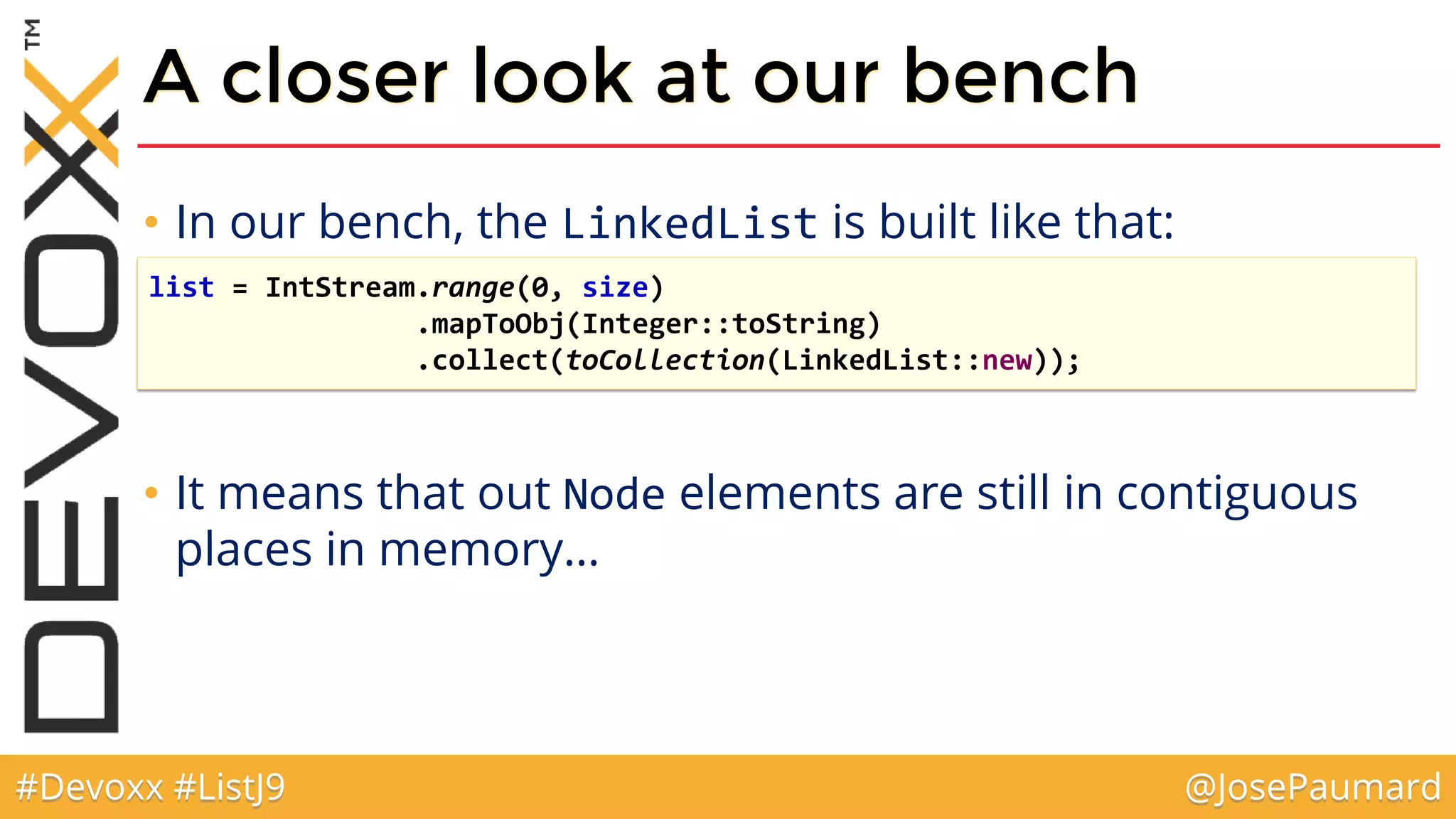

• In our bench, the LinkedList is built like that:
• It means that out Node elements are still in contiguous
places in memory…
A closer look at our bench
list = IntStream.range(0, size)
.mapToObj(Integer::toString)
.collect(toCollection(LinkedList::new));
#Devoxx #ListJ9 @JosePaumard

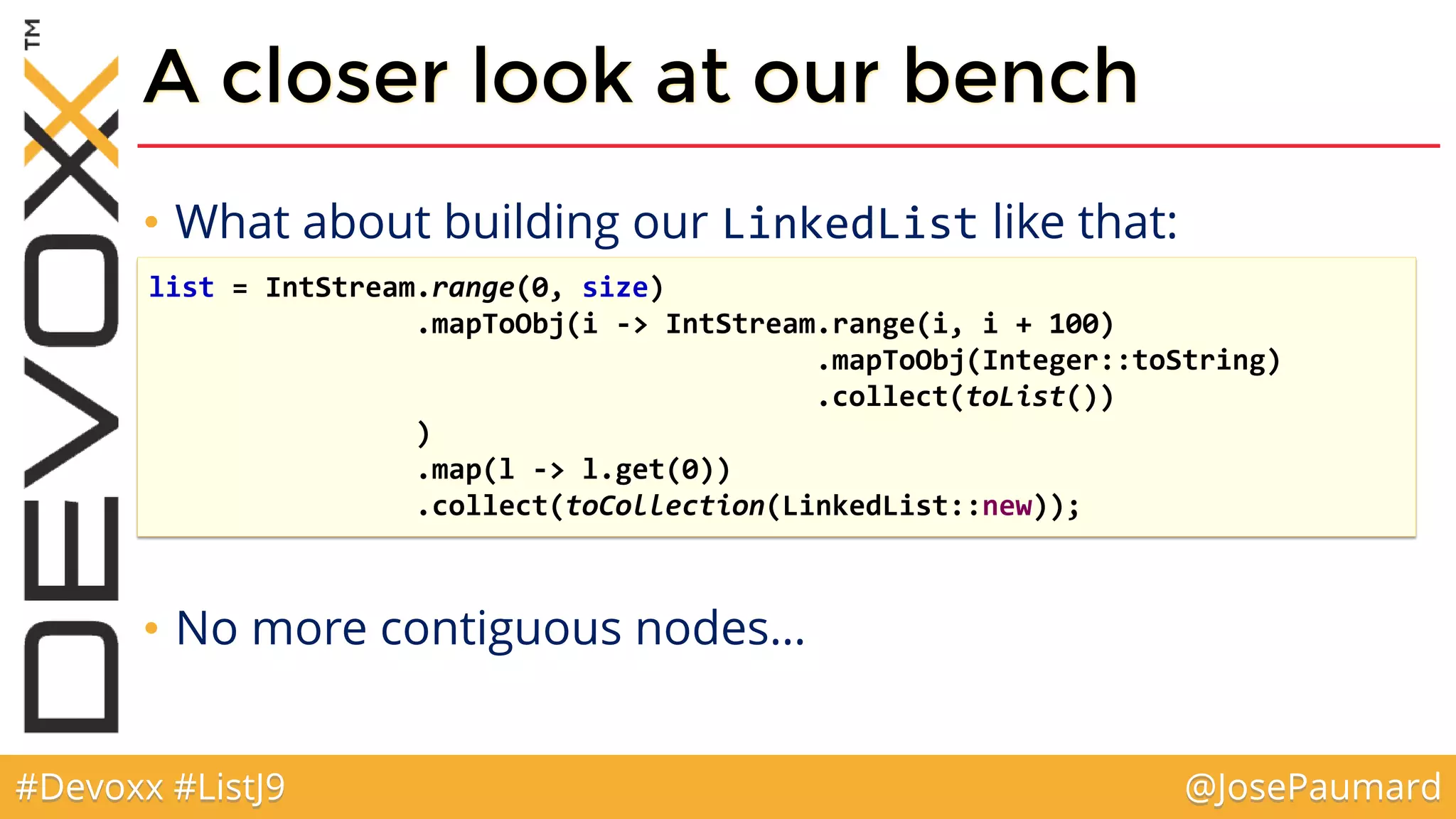

• What about building our LinkedList like that:
• No more contiguous nodes…
A closer look at our bench
list = IntStream.range(0, size)
.mapToObj(i -> IntStream.range(i, i + 100)
.mapToObj(Integer::toString)
.collect(toList())
)
.map(l -> l.get(0))
.collect(toCollection(LinkedList::new));
#Devoxx #ListJ9 @JosePaumard

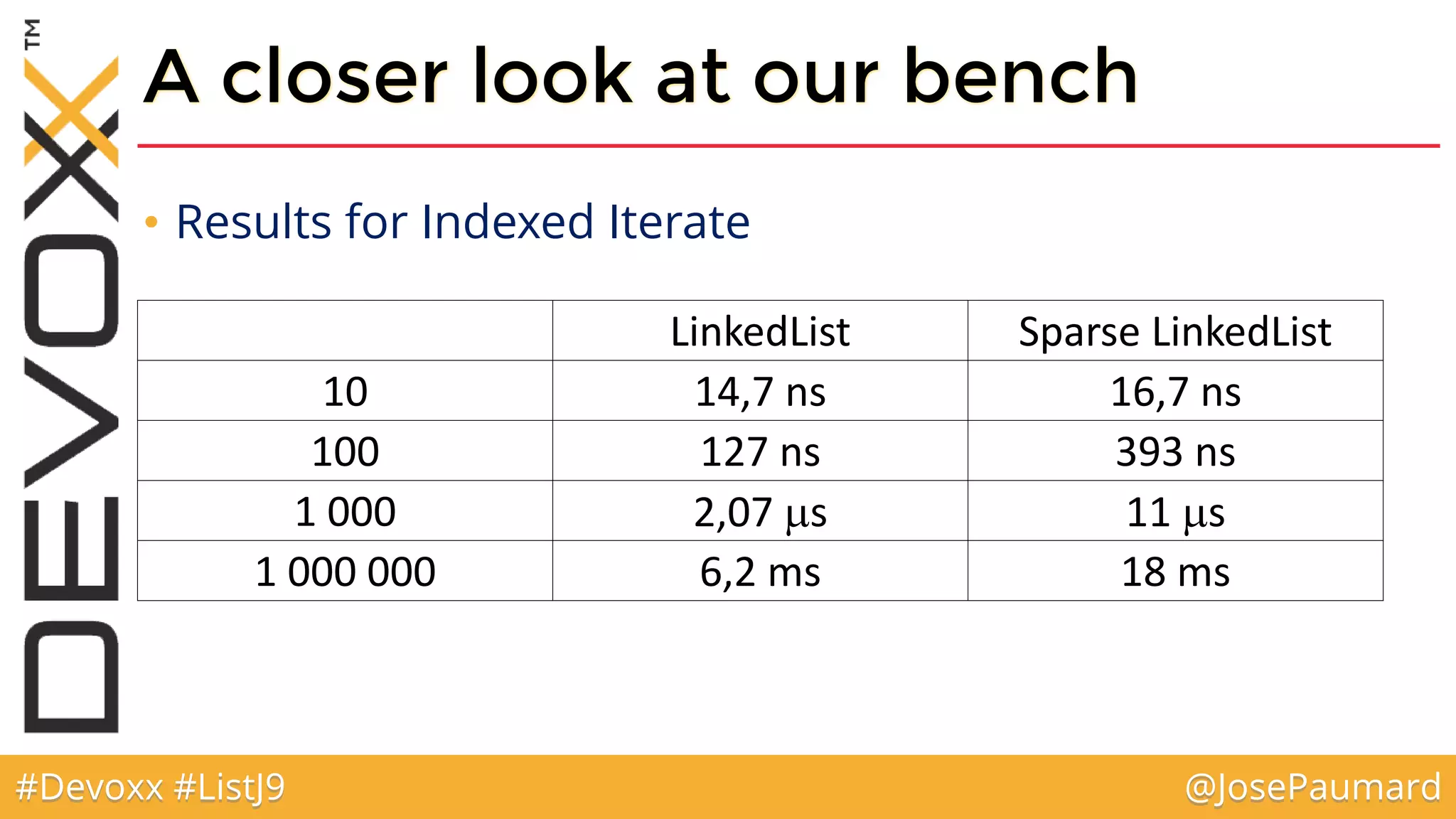

A closer look at our bench
• Results for Indexed Iterate
LinkedList Sparse LinkedList
10 14,7 ns 16,7 ns
100 127 ns 393 ns
1 000 2,07 ms 11 ms
1 000 000 6,2 ms 18 ms
#Devoxx #ListJ9 @JosePaumard

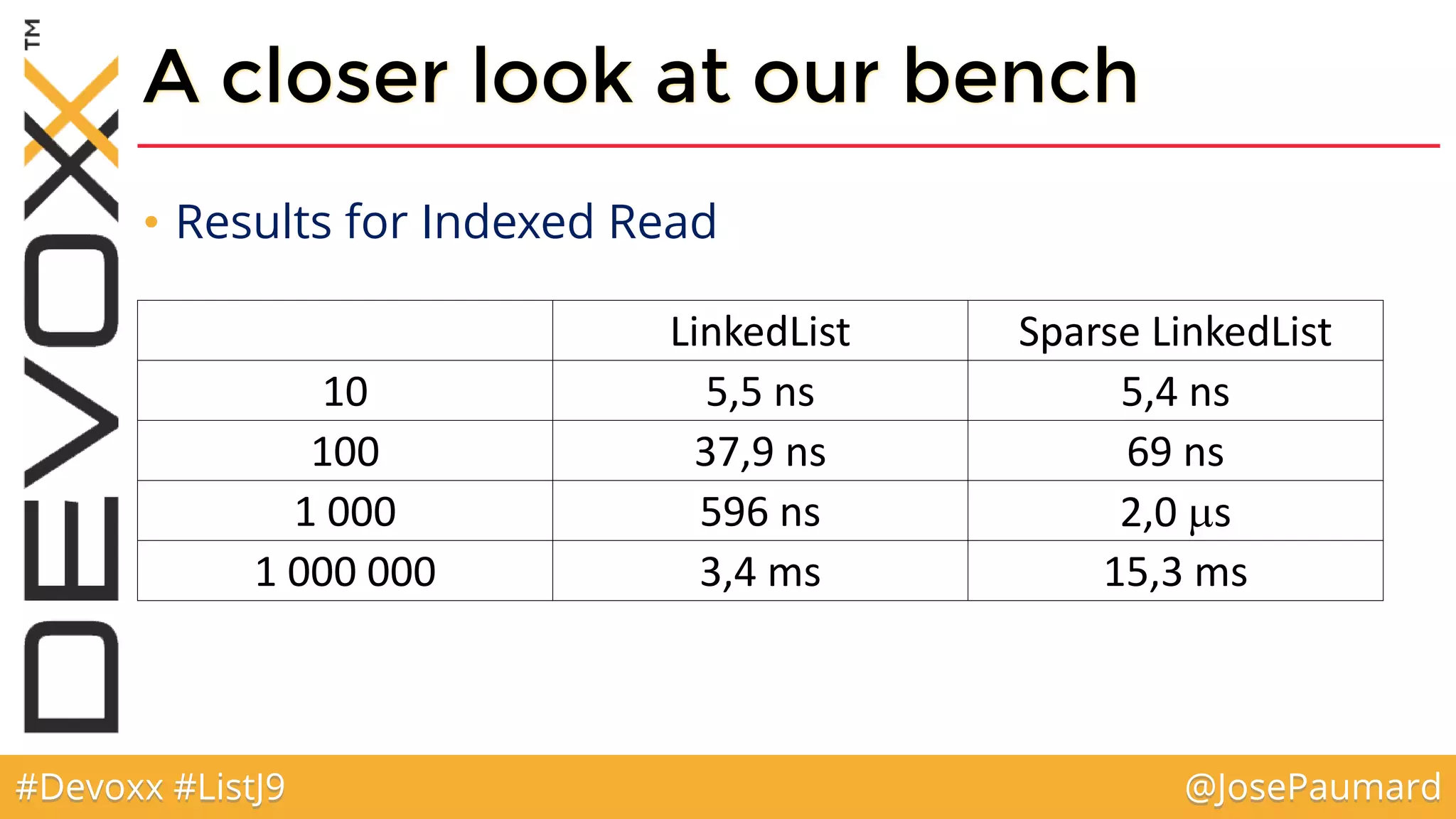

A closer look at our bench
• Results for Indexed Read
LinkedList Sparse LinkedList
10 5,5 ns 5,4 ns
100 37,9 ns 69 ns
1 000 596 ns 2,0 ms
1 000 000 3,4 ms 15,3 ms
#Devoxx #ListJ9 @JosePaumard
A closer look at our bench
• Results for Indexed Set
LinkedList Sparse LinkedList
10 5,5 ns 6,2 ns
100 36,0 ns 83,7 ns
1 000 602 ns 2,0 ms
1 000 000 3,4 ms 14,0 ms
#Devoxx #ListJ9 @JosePaumard

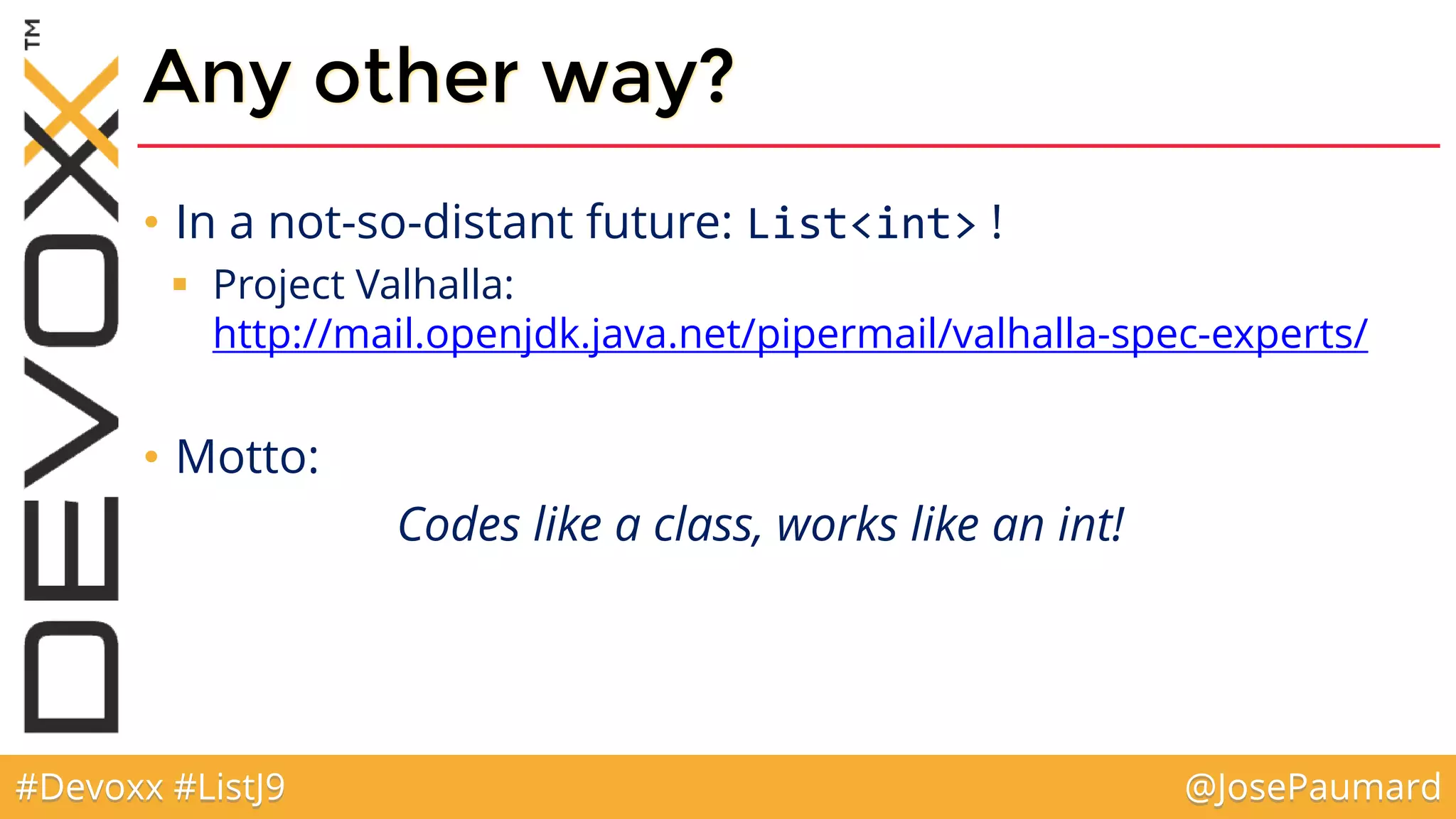

Any other way?
• In a not-so-distant future: List<int> !
 Project Valhalla:
http://mail.openjdk.java.net/pipermail/valhalla-spec-experts/
• Motto:
Codes like a class, works like an int!
#Devoxx #ListJ9 @JosePaumard

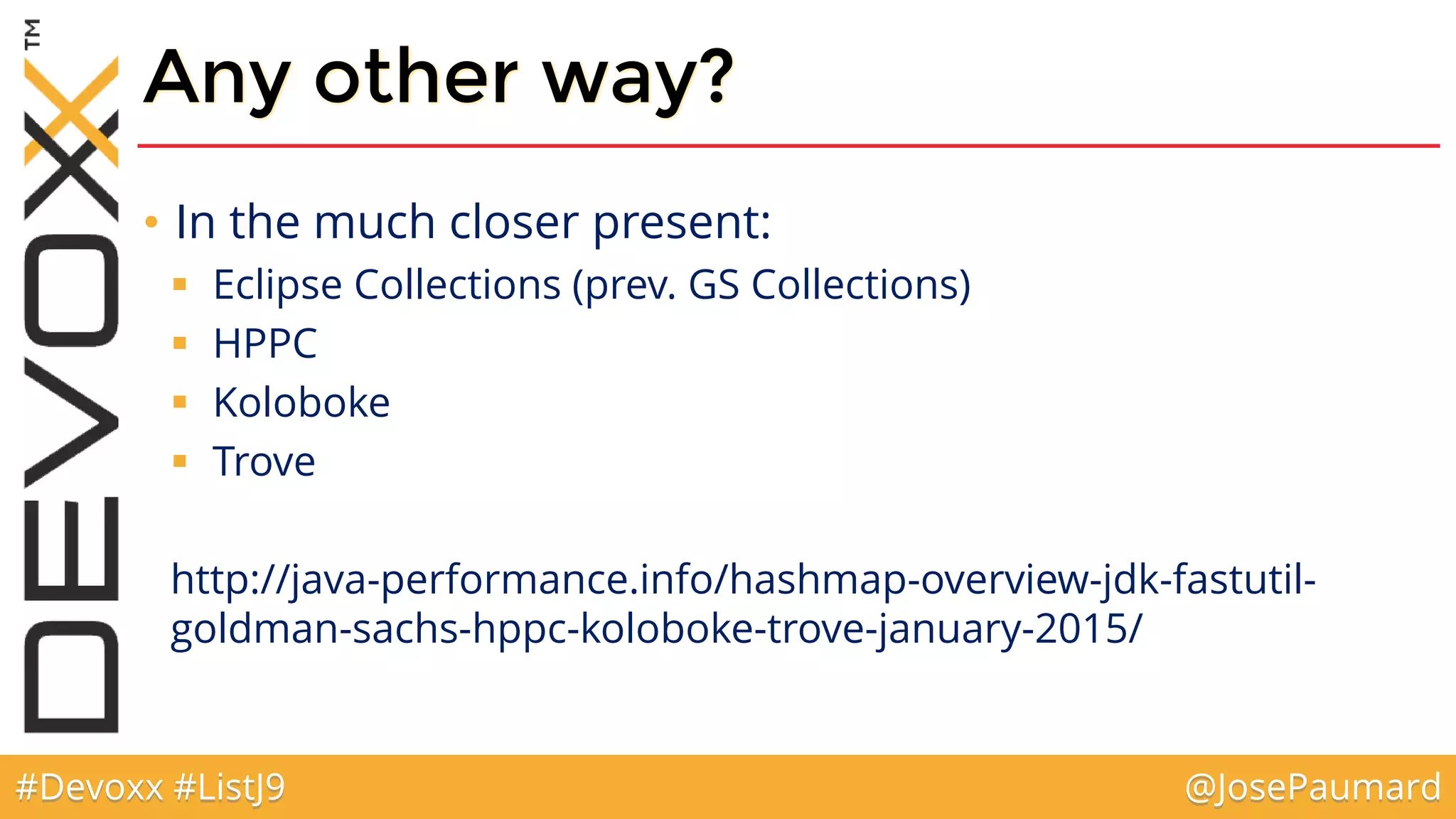

Any other way?
• In the much closer present:
 Eclipse Collections (prev. GS Collections)
 HPPC
 Koloboke
 Trove
http://java-performance.info/hashmap-overview-jdk-fastutil-
goldman-sachs-hppc-koloboke-trove-january-2015/
#Devoxx #ListJ9 @JosePaumard

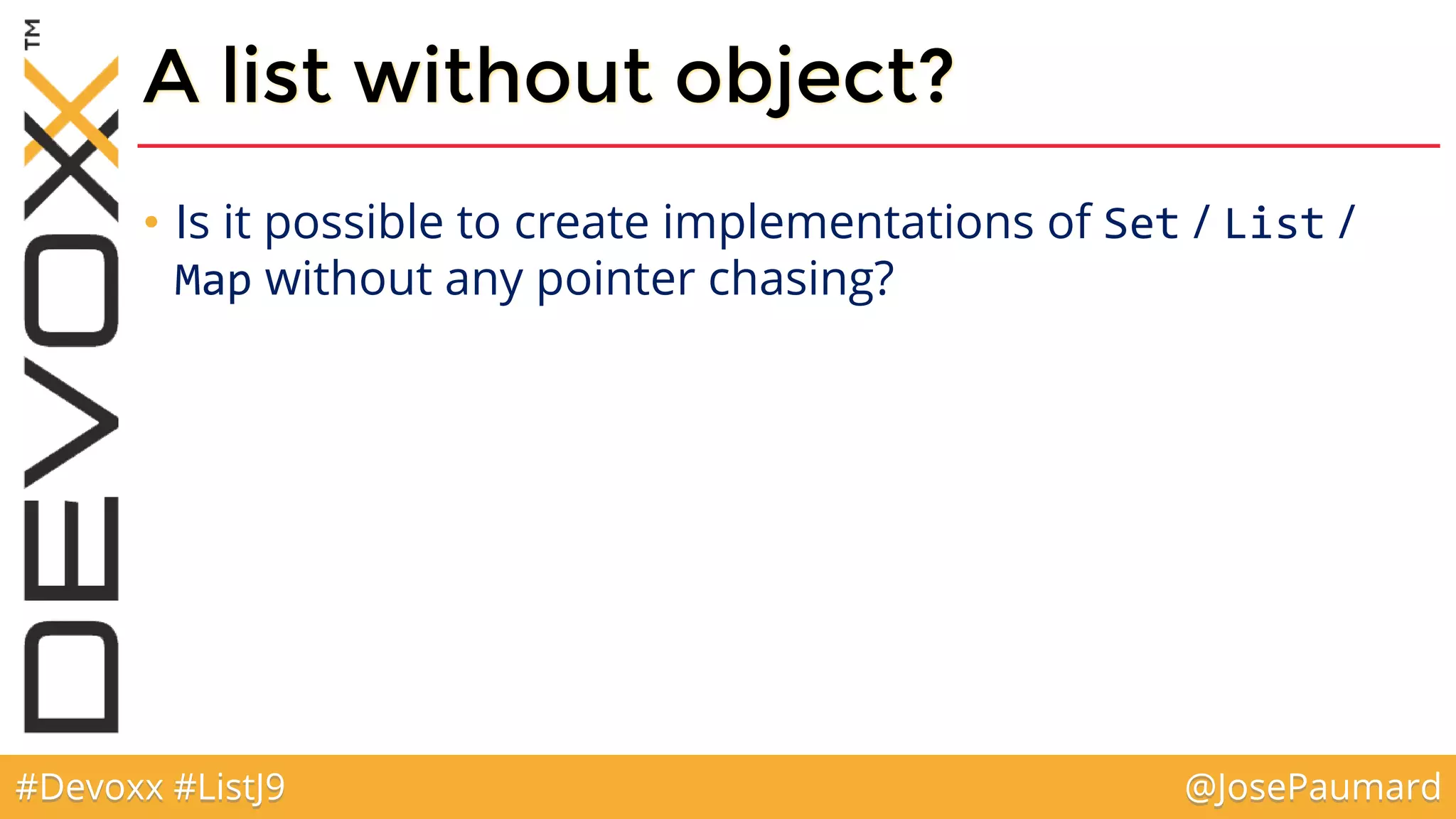

A list without object?
• Is it possible to create implementations of Set / List /
Map without any pointer chasing?
#Devoxx #ListJ9 @JosePaumard

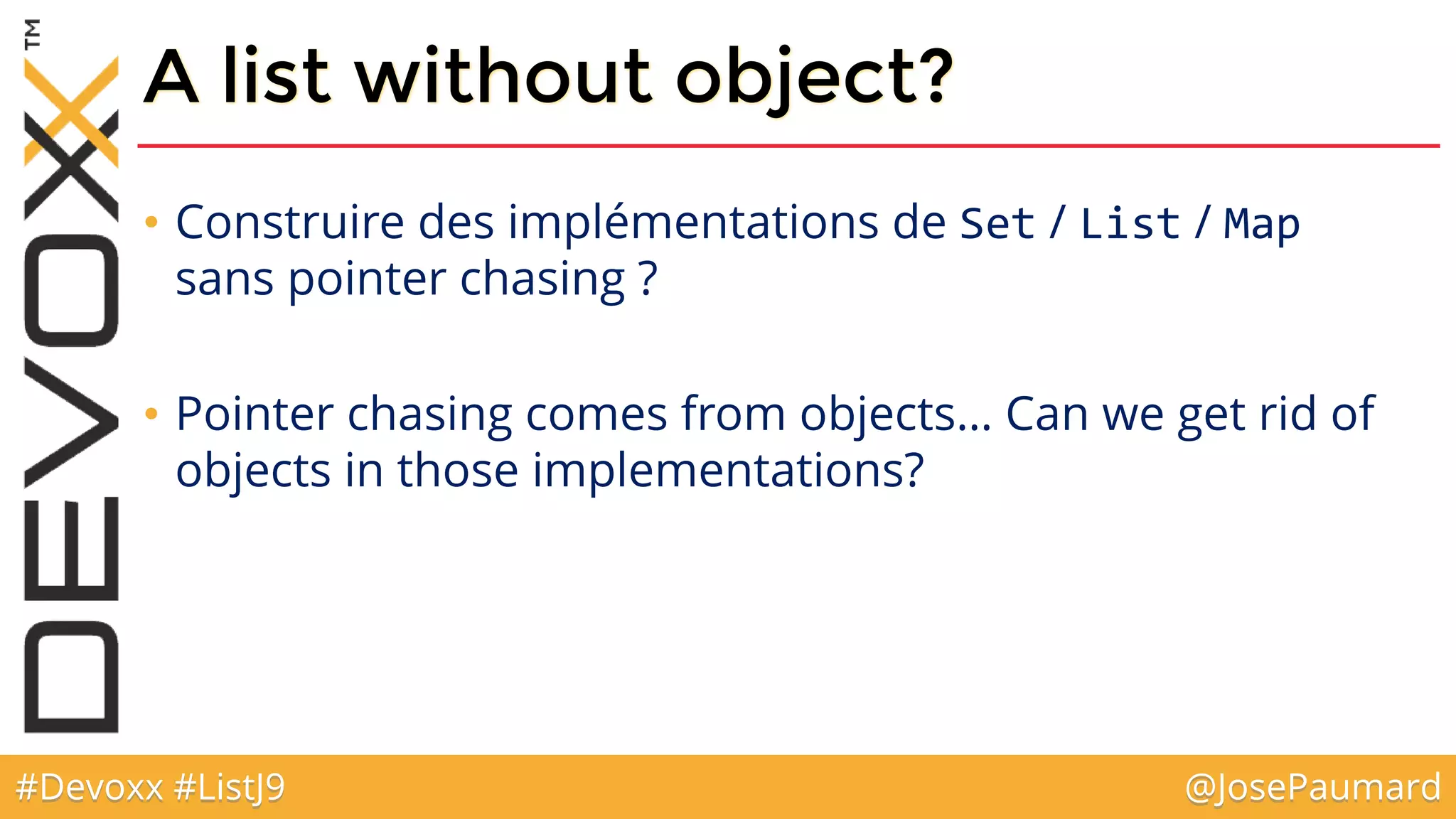

A list without object?
• Construire des implémentations de Set / List / Map
sans pointer chasing ?
• Pointer chasing comes from objects… Can we get rid of
objects in those implementations?
#Devoxx
José Paumard
Factory methods for Collections in Java 9
Live coding: unexpected implementations of
lists, sets, maps
#Devoxx
José Paumard
#Devoxx #ListJ9 @JosePaumard

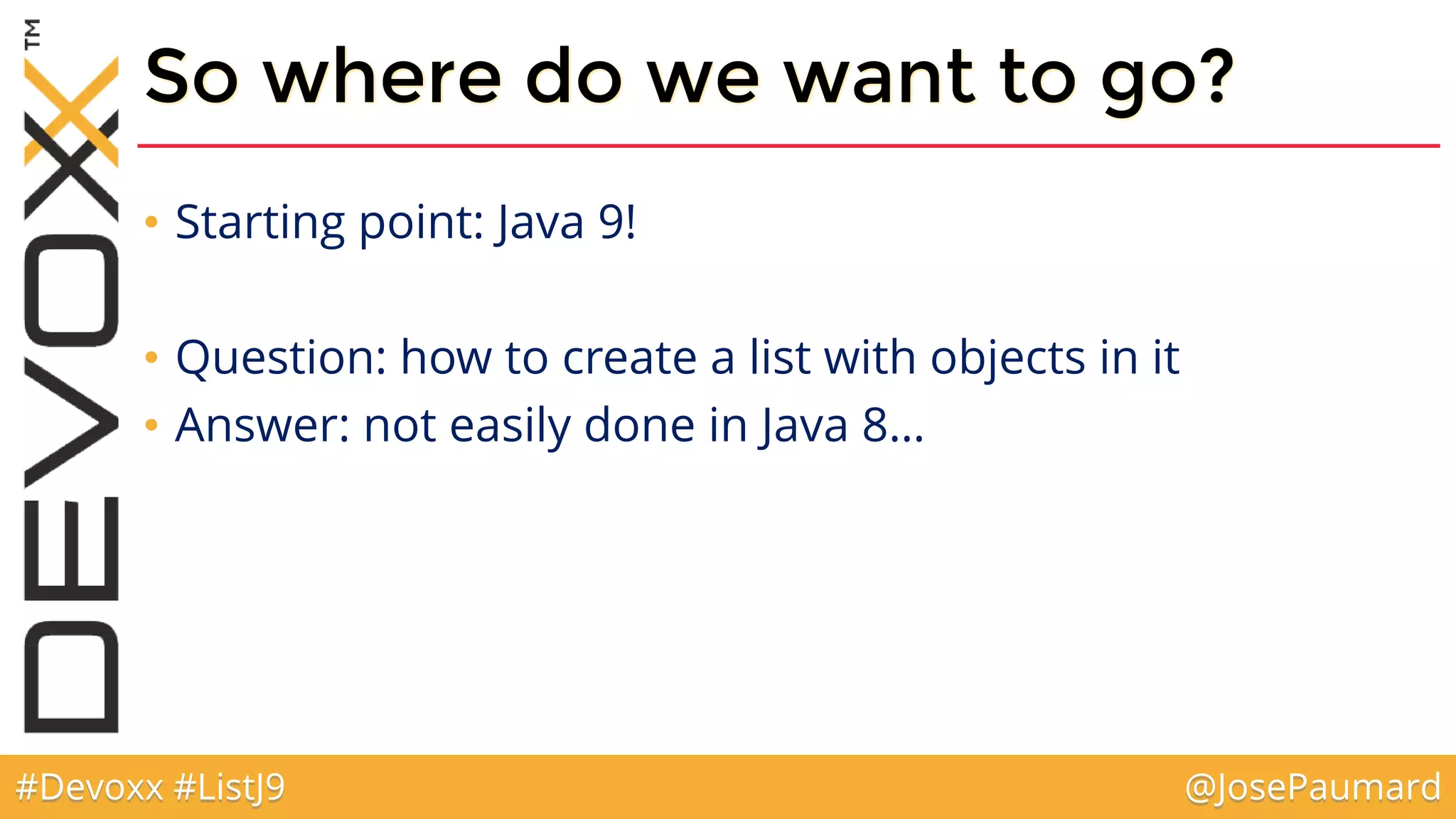

So where do we want to go?
• Starting point: Java 9!
• Question: how to create a list with objects in it
• Answer: not easily done in Java 8…
#Devoxx #ListJ9 @JosePaumard

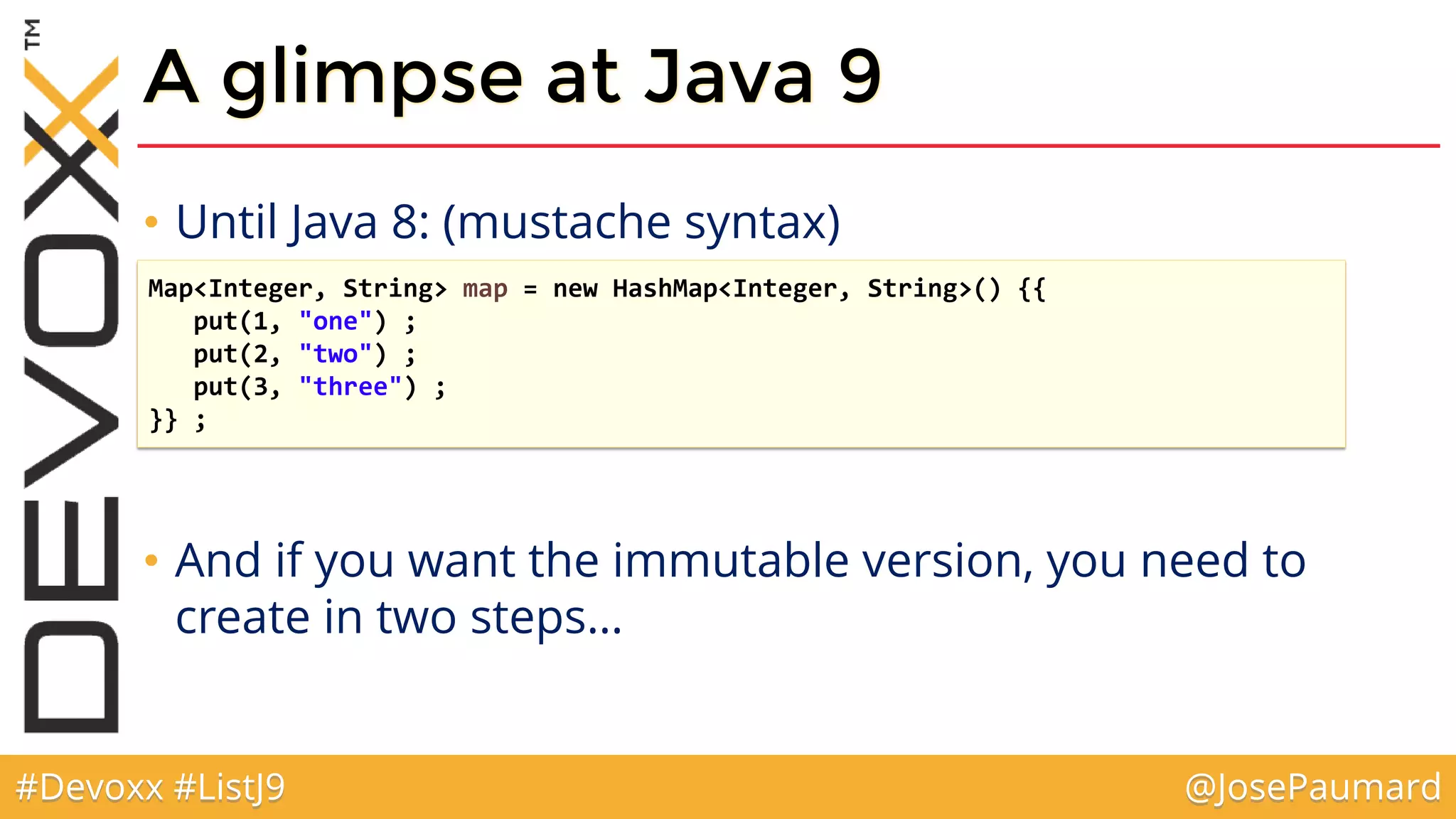

A glimpse at Java 9
• Until Java 8: (mustache syntax)
• And if you want the immutable version, you need to
create in two steps…
Map<Integer, String> map = new HashMap<Integer, String>() {{
put(1, "one") ;
put(2, "two") ;
put(3, "three") ;
}} ;
#Devoxx #ListJ9 @JosePaumard

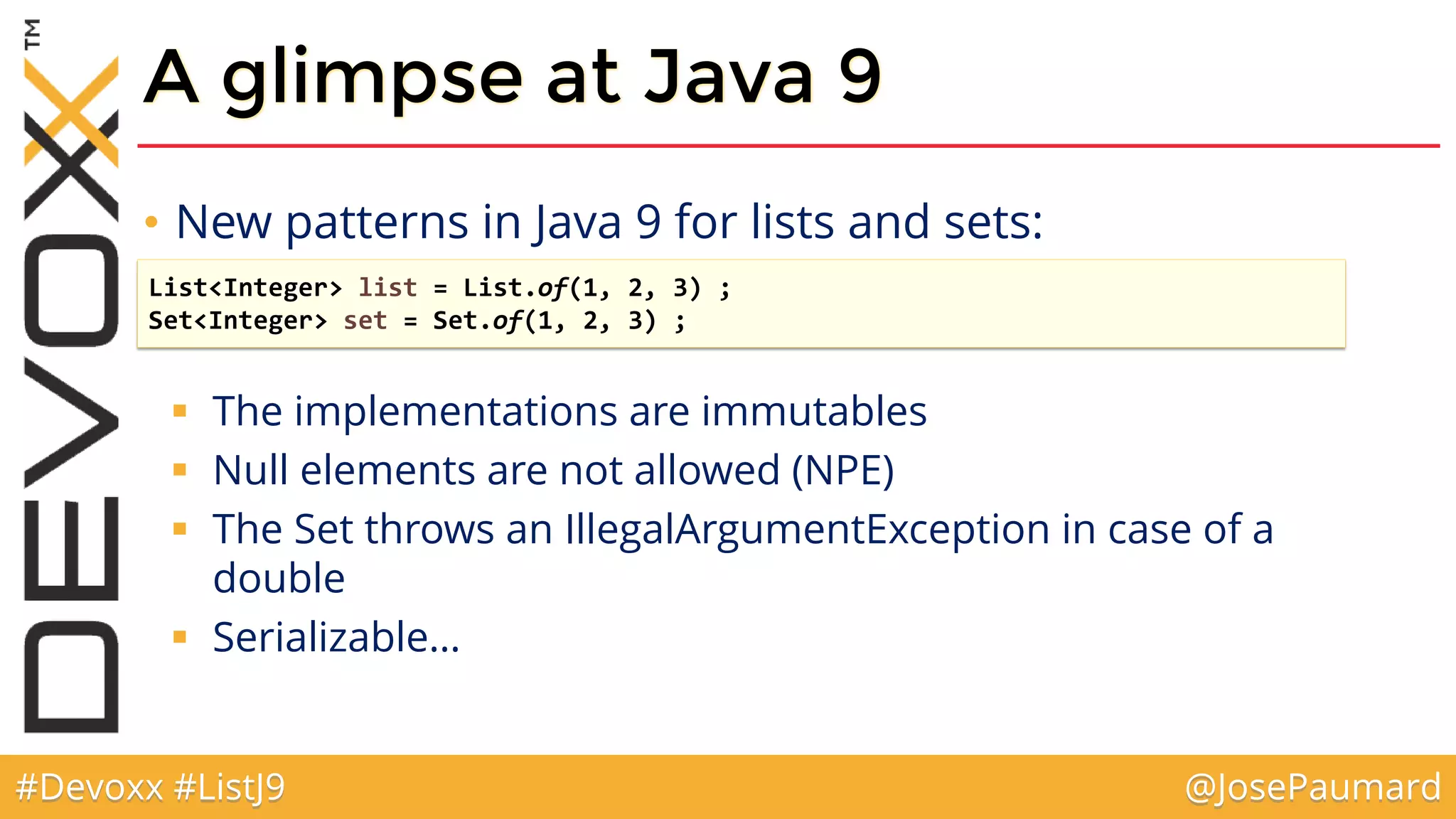

A glimpse at Java 9
• New patterns in Java 9 for lists and sets:
 The implementations are immutables
 Null elements are not allowed (NPE)
 The Set throws an IllegalArgumentException in case of a
double
 Serializable…
List<Integer> list = List.of(1, 2, 3) ;
Set<Integer> set = Set.of(1, 2, 3) ;
#Devoxx #ListJ9 @JosePaumard

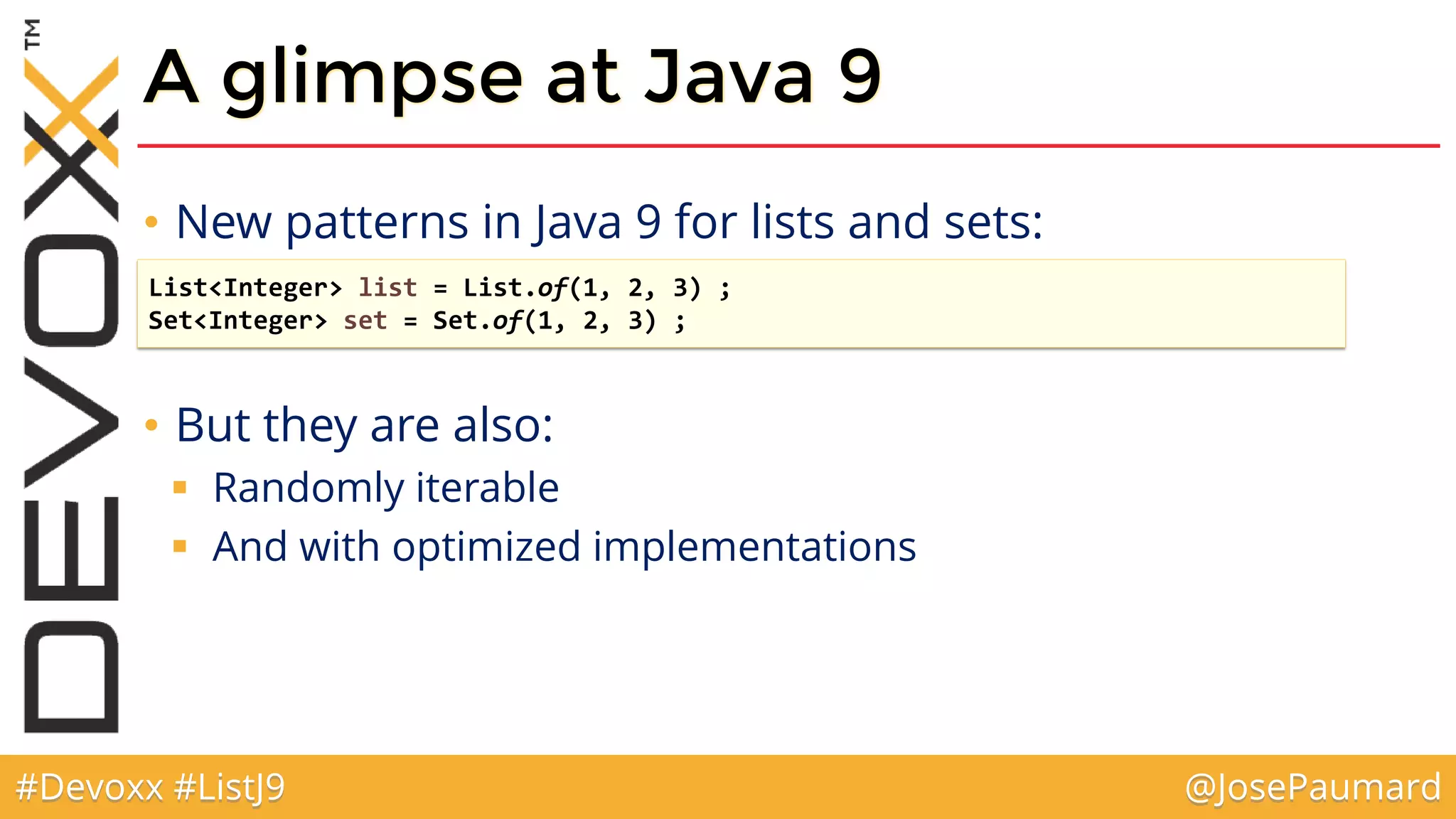

A glimpse at Java 9
• New patterns in Java 9 for lists and sets:
• But they are also:
 Randomly iterable
 And with optimized implementations
List<Integer> list = List.of(1, 2, 3) ;
Set<Integer> set = Set.of(1, 2, 3) ;
#Devoxx #ListJ9 @JosePaumard

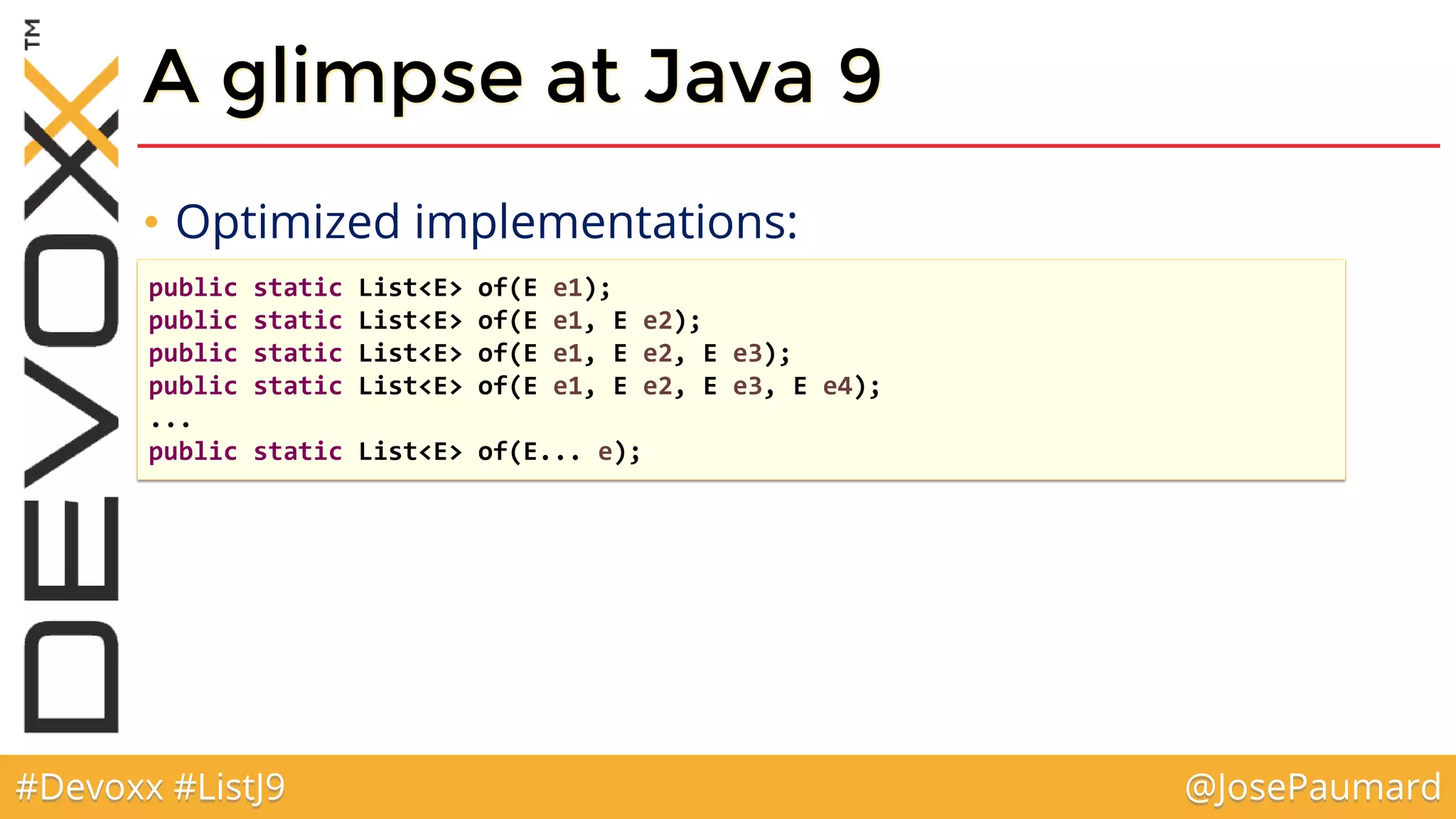

A glimpse at Java 9
• Optimized implementations:
public static List<E> of(E e1);
public static List<E> of(E e1, E e2);
public static List<E> of(E e1, E e2, E e3);
public static List<E> of(E e1, E e2, E e3, E e4);
...
public static List<E> of(E... e);
#Devoxx #ListJ9 @JosePaumard

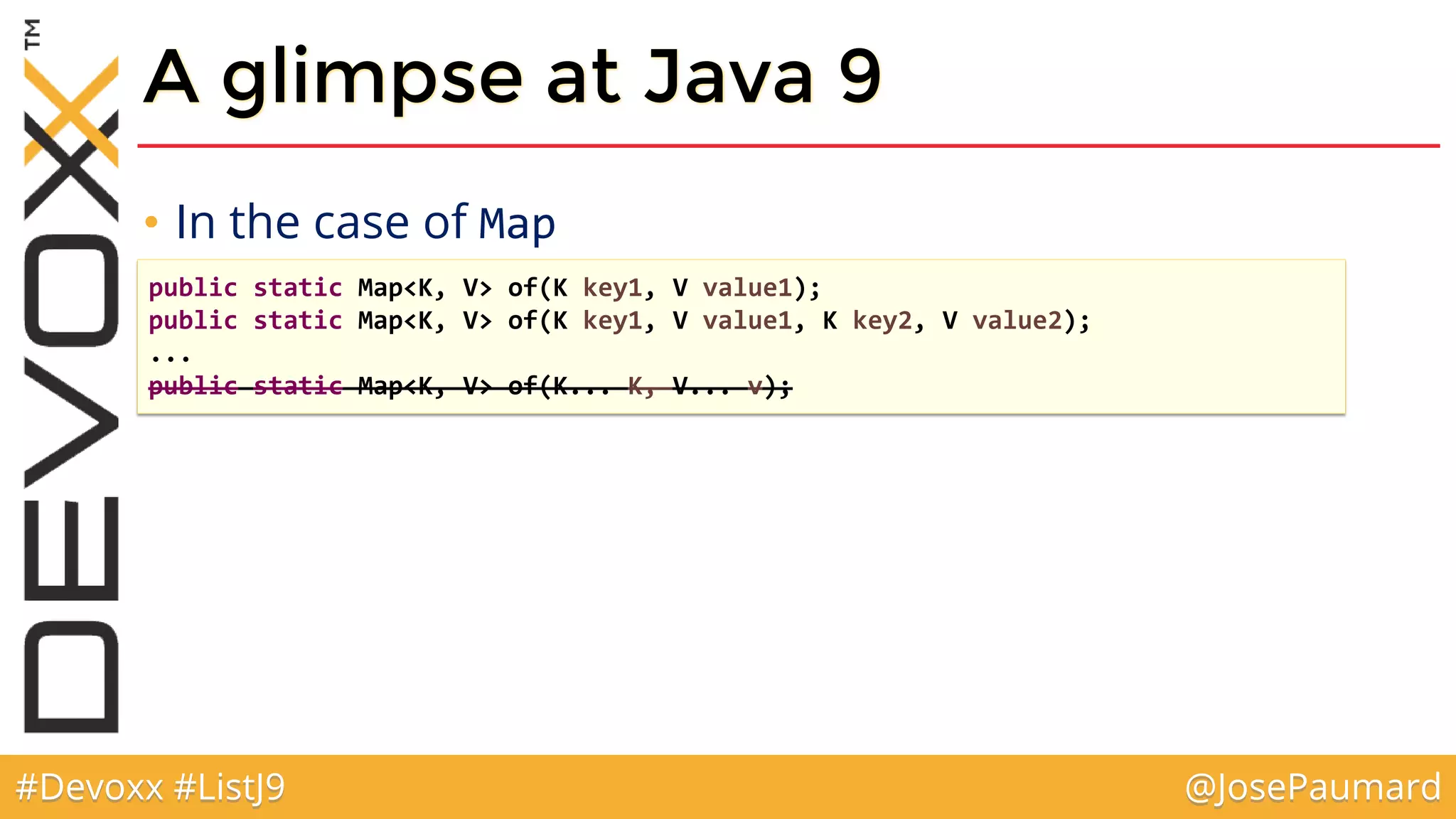

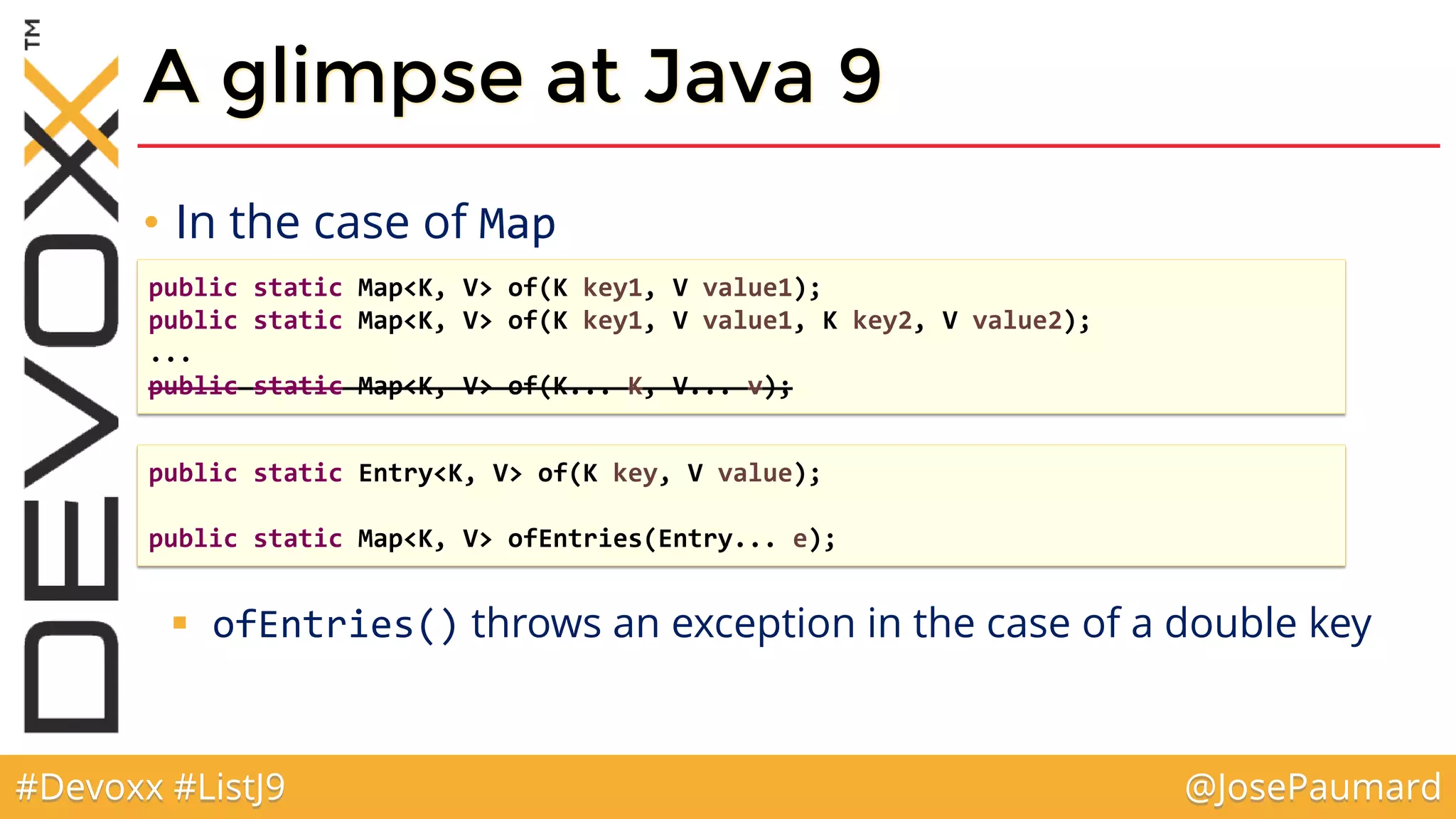

A glimpse at Java 9
• In the case of Map
public static Map<K, V> of(K key1, V value1);
public static Map<K, V> of(K key1, V value1, K key2, V value2);
...
public static Map<K, V> of(K... K, V... v);
#Devoxx #ListJ9 @JosePaumard
A glimpse at Java 9
• In the case of Map
 ofEntries() throws an exception in the case of a double key
public static Map<K, V> of(K key1, V value1);
public static Map<K, V> of(K key1, V value1, K key2, V value2);
...
public static Map<K, V> of(K... K, V... v);
public static Entry<K, V> of(K key, V value);
public static Map<K, V> ofEntries(Entry... e);
#Devoxx #ListJ9 @JosePaumard
A glimpse at Java 9
Map<String, TokenType> tokens =
Map.ofEntries(
entry("for", KEYWORD),
entry("while", KEYWORD),
entry("do", KEYWORD),
entry("break", KEYWORD),
entry(":", COLON),
entry("+", PLUS),
entry("--‐", MINUS),
entry(">", GREATER),
entry("<", LESS),
entry(":", PAAMAYIM_NEKUDOTAYIM),
entry("(", LPAREN),
entry(")", RPAREN)
); © Stuart Mark
#Devoxx #ListJ9 @JosePaumard

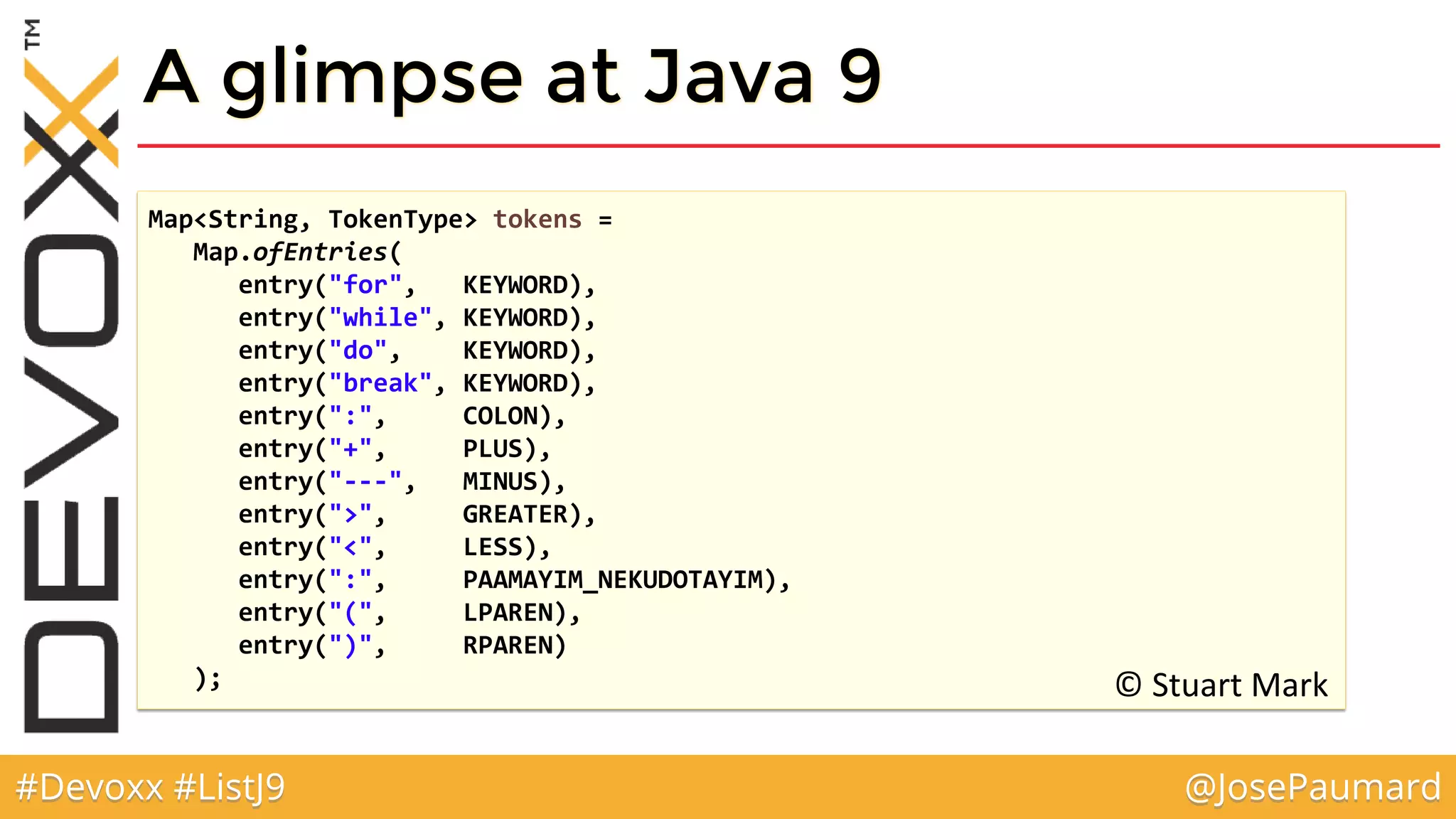

A glimpse at Java 9
Map<String, TokenType> tokens =
Map.ofEntries(
entry("for", KEYWORD),
entry("while", KEYWORD),
entry("do", KEYWORD),
entry("break", KEYWORD),
entry(":", COLON),
entry("+", PLUS),
entry("--‐", MINUS),
entry(">", GREATER),
entry("<", LESS),
entry(":", PAAMAYIM_NEKUDOTAYIM),
entry("(", LPAREN),
entry(")", RPAREN)
); © Stuart Mark
#Devoxx #ListJ9 @JosePaumard
What do we want to do?
• Question: how can we build an optimized
implementation of a list with 1 or 2 elements?
• Set, List and Map (and Map.Entry)
• Of course we want to minimize pointer chasing
#Devoxx
Don’t worry, they’ll be back
And bullet points too
#Devoxx #ListJ9 @JosePaumard

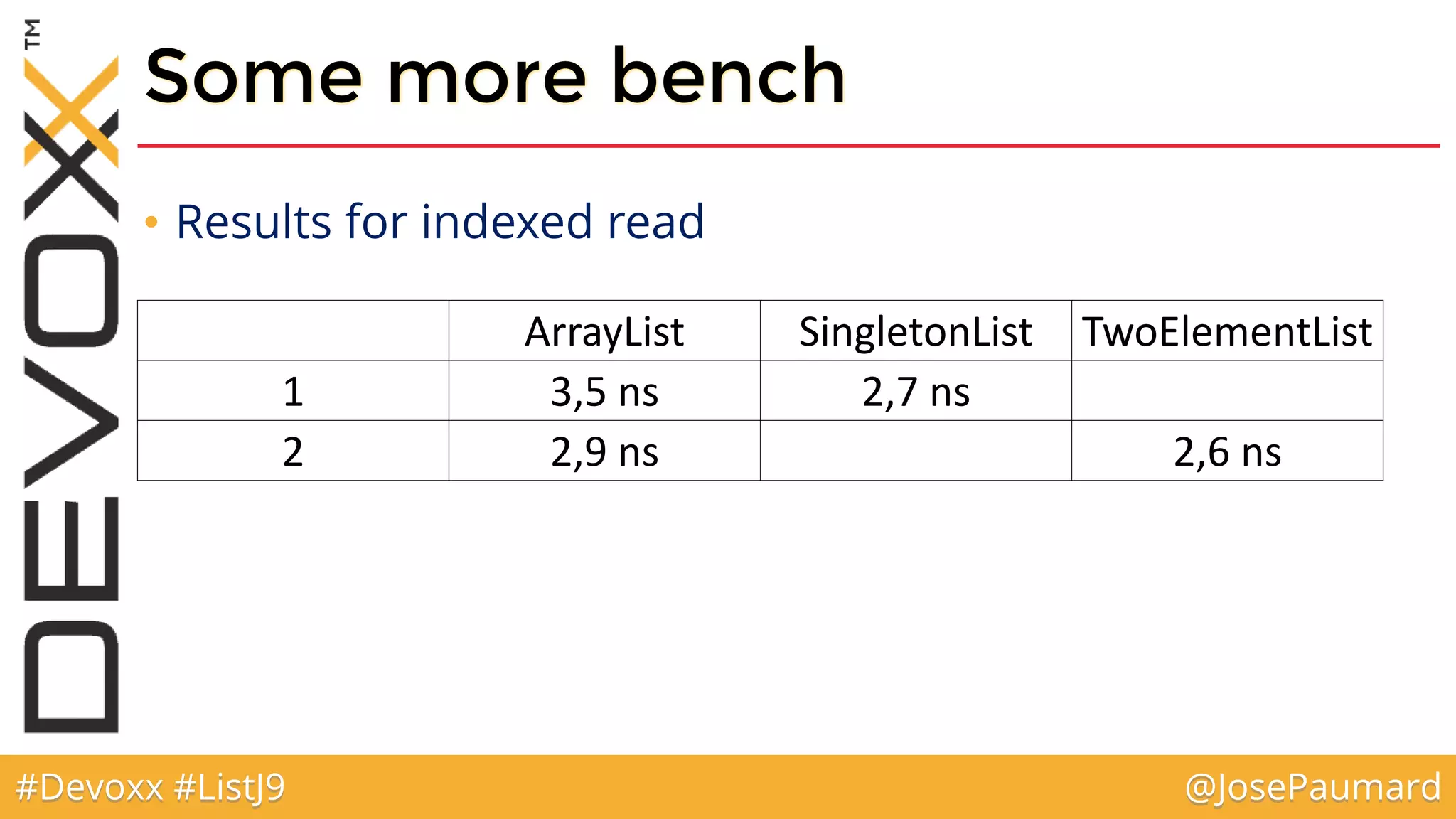

Some more bench
• Results for indexed read
ArrayList SingletonList TwoElementList
1 3,5 ns 2,7 ns
2 2,9 ns 2,6 ns
#Devoxx #ListJ9 @JosePaumard
Some more bench
• Results for Iterate
ArrayList SingletonList TwoElementList
1 4,7 ns 2,3 ns
2 6,5 ns 3,4 ns
#Devoxx #ListJ9 @JosePaumard

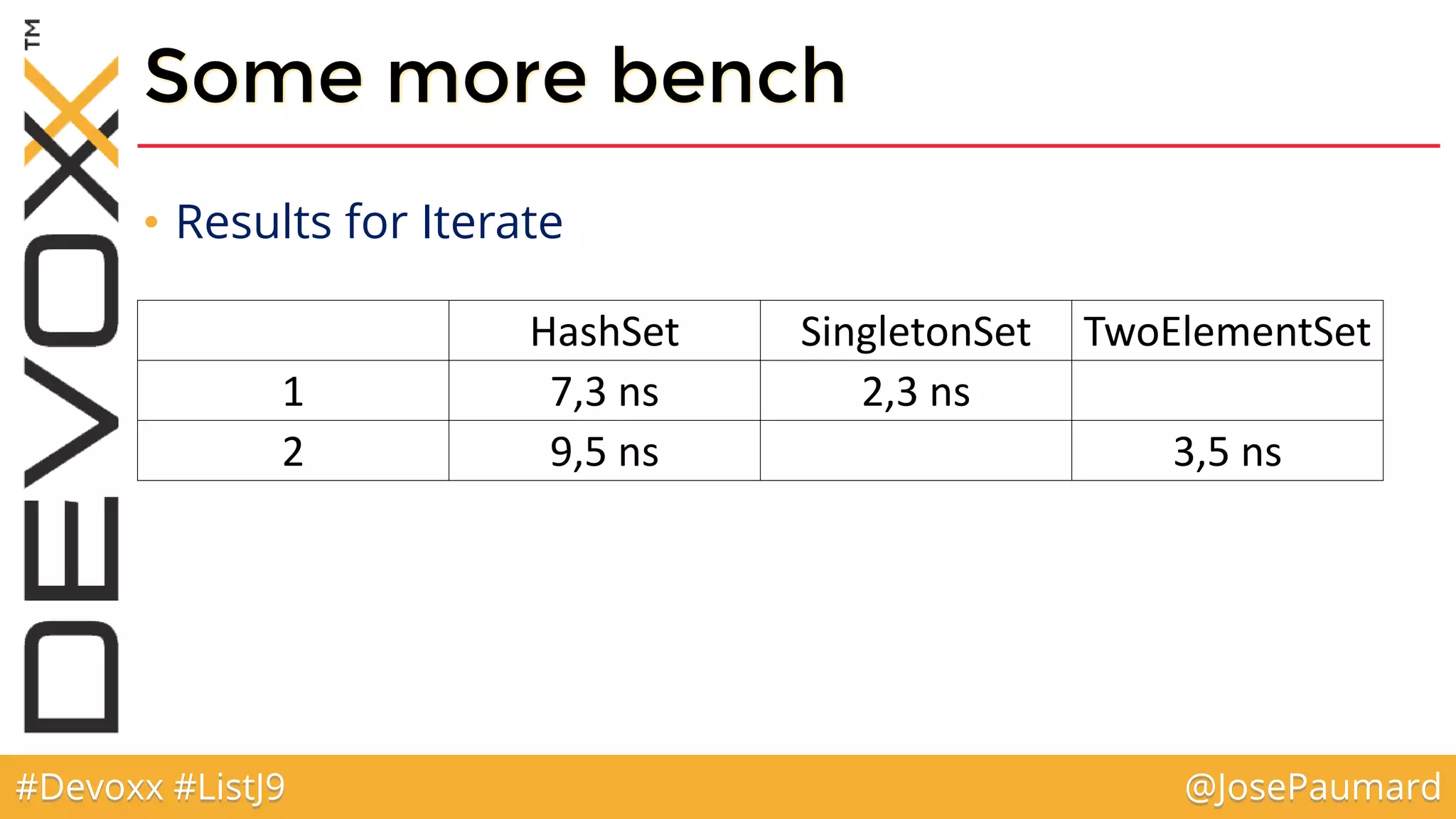

Some more bench
• Results for Iterate
HashSet SingletonSet TwoElementSet
1 7,3 ns 2,3 ns
2 9,5 ns 3,5 ns
#Devoxx #ListJ9 @JosePaumard
Conclusion
• By Stuart Marks:
#Devoxx #ListJ9 @JosePaumard

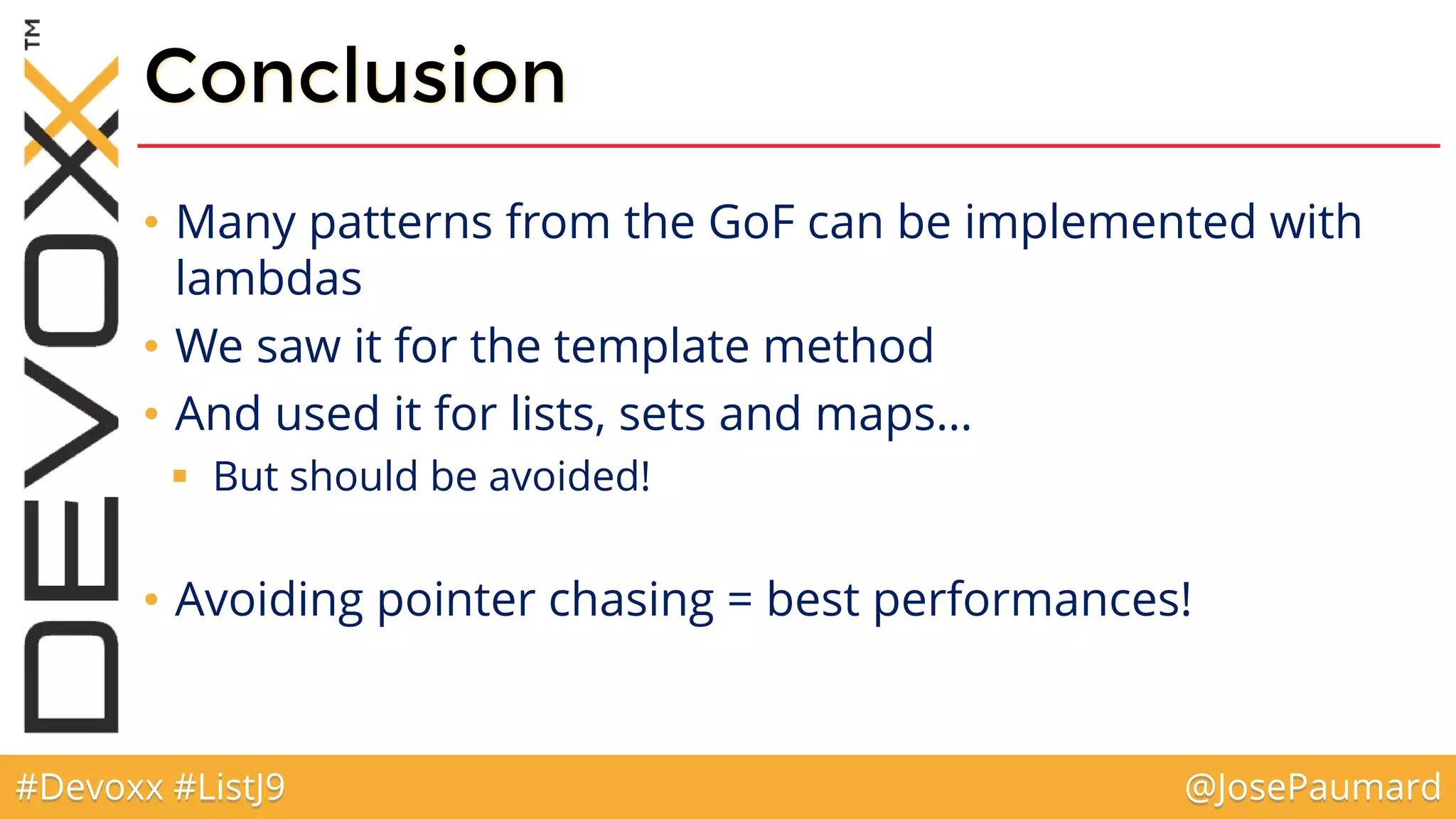

Conclusion
• Many patterns from the GoF can be implemented with
lambdas
• We saw it for the template method
• And used it for lists, sets and maps…
 But should be avoided!
• Avoiding pointer chasing = best performances!
#Devoxx
José Paumard
#Devoxx
Thank you!
José Paumard

More Related Content

What's hot

Java 8, Streams & Collectors, patterns, performances and parallelization
Java 8, Streams & Collectors, patterns, performances and parallelizationJava 8, Streams & Collectors, patterns, performances and parallelization
Java 8, Streams & Collectors, patterns, performances and parallelization
José Paumard

Going reactive in java
Going reactive in javaGoing reactive in java
Going reactive in java
José Paumard

JDK8 : parallel programming made (too ?) easy
JDK8 : parallel programming made (too ?) easyJDK8 : parallel programming made (too ?) easy
JDK8 : parallel programming made (too ?) easy
José Paumard

Java 8 Stream API (Valdas Zigas)
Java 8 Stream API (Valdas Zigas)Java 8 Stream API (Valdas Zigas)
Java 8 Stream API (Valdas Zigas)
Kaunas Java User Group

Collectors in the Wild
Collectors in the WildCollectors in the Wild
Collectors in the Wild
José Paumard

Programming in Computational Biology
Programming in Computational BiologyProgramming in Computational Biology
Programming in Computational Biology
AtreyiB

Java SE 8 for Java EE developers
Java SE 8 for Java EE developersJava SE 8 for Java EE developers
Java SE 8 for Java EE developers
José Paumard

Java 8 Streams & Collectors : the Leuven edition
Java 8 Streams & Collectors : the Leuven editionJava 8 Streams & Collectors : the Leuven edition
Java 8 Streams & Collectors : the Leuven edition
José Paumard

Java SE 8 for Java EE developers
Java SE 8 for Java EE developersJava SE 8 for Java EE developers
Java SE 8 for Java EE developers
José Paumard

Autumn collection JavaOne 2014
Autumn collection JavaOne 2014Autumn collection JavaOne 2014
Autumn collection JavaOne 2014
José Paumard

Introduction to Python - Part Two
Introduction to Python - Part TwoIntroduction to Python - Part Two
Introduction to Python - Part Two
amiable_indian

JFokus 50 new things with java 8
JFokus 50 new things with java 8JFokus 50 new things with java 8
JFokus 50 new things with java 8
José Paumard

Functional Programming In Java
Functional Programming In JavaFunctional Programming In Java
Functional Programming In Java
Andrei Solntsev

Java 8: the good parts!
Java 8: the good parts!Java 8: the good parts!
Java 8: the good parts!
Andrzej Grzesik

Functional programming in java
Functional programming in javaFunctional programming in java
Functional programming in java
John Ferguson Smart Limited

Functional Thinking - Programming with Lambdas in Java 8
Functional Thinking - Programming with Lambdas in Java 8Functional Thinking - Programming with Lambdas in Java 8
Functional Thinking - Programming with Lambdas in Java 8
Ganesh Samarthyam

Productive Programming in Java 8 - with Lambdas and Streams
Productive Programming in Java 8 - with Lambdas and Streams Productive Programming in Java 8 - with Lambdas and Streams
Productive Programming in Java 8 - with Lambdas and Streams
Ganesh Samarthyam

Functional Programming in Java 8 - Lambdas and Streams
Functional Programming in Java 8 - Lambdas and StreamsFunctional Programming in Java 8 - Lambdas and Streams
Functional Programming in Java 8 - Lambdas and Streams
CodeOps Technologies LLP

Halogen: Past, Present, and Future
Halogen: Past, Present, and FutureHalogen: Past, Present, and Future
Halogen: Past, Present, and Future
John De Goes

Java 7, 8 & 9 - Moving the language forward
Java 7, 8 & 9 - Moving the language forwardJava 7, 8 & 9 - Moving the language forward
Java 7, 8 & 9 - Moving the language forward
Mario Fusco


What's hot (20)

Java 8, Streams & Collectors, patterns, performances and parallelization
Java 8, Streams & Collectors, patterns, performances and parallelizationJava 8, Streams & Collectors, patterns, performances and parallelization
Java 8, Streams & Collectors, patterns, performances and parallelization

Going reactive in java
Going reactive in javaGoing reactive in java
Going reactive in java

JDK8 : parallel programming made (too ?) easy
JDK8 : parallel programming made (too ?) easyJDK8 : parallel programming made (too ?) easy
JDK8 : parallel programming made (too ?) easy

Java 8 Stream API (Valdas Zigas)
Java 8 Stream API (Valdas Zigas)Java 8 Stream API (Valdas Zigas)
Java 8 Stream API (Valdas Zigas)

Collectors in the Wild
Collectors in the WildCollectors in the Wild
Collectors in the Wild

Programming in Computational Biology
Programming in Computational BiologyProgramming in Computational Biology
Programming in Computational Biology

Java SE 8 for Java EE developers
Java SE 8 for Java EE developersJava SE 8 for Java EE developers
Java SE 8 for Java EE developers

Java 8 Streams & Collectors : the Leuven edition
Java 8 Streams & Collectors : the Leuven editionJava 8 Streams & Collectors : the Leuven edition
Java 8 Streams & Collectors : the Leuven edition

Java SE 8 for Java EE developers
Java SE 8 for Java EE developersJava SE 8 for Java EE developers
Java SE 8 for Java EE developers

Autumn collection JavaOne 2014
Autumn collection JavaOne 2014Autumn collection JavaOne 2014
Autumn collection JavaOne 2014

Introduction to Python - Part Two
Introduction to Python - Part TwoIntroduction to Python - Part Two
Introduction to Python - Part Two

JFokus 50 new things with java 8
JFokus 50 new things with java 8JFokus 50 new things with java 8
JFokus 50 new things with java 8

Functional Programming In Java
Functional Programming In JavaFunctional Programming In Java
Functional Programming In Java

Java 8: the good parts!
Java 8: the good parts!Java 8: the good parts!
Java 8: the good parts!

Functional programming in java
Functional programming in javaFunctional programming in java
Functional programming in java

Functional Thinking - Programming with Lambdas in Java 8
Functional Thinking - Programming with Lambdas in Java 8Functional Thinking - Programming with Lambdas in Java 8
Functional Thinking - Programming with Lambdas in Java 8

Productive Programming in Java 8 - with Lambdas and Streams
Productive Programming in Java 8 - with Lambdas and Streams Productive Programming in Java 8 - with Lambdas and Streams
Productive Programming in Java 8 - with Lambdas and Streams

Functional Programming in Java 8 - Lambdas and Streams
Functional Programming in Java 8 - Lambdas and StreamsFunctional Programming in Java 8 - Lambdas and Streams
Functional Programming in Java 8 - Lambdas and Streams

Halogen: Past, Present, and Future
Halogen: Past, Present, and FutureHalogen: Past, Present, and Future
Halogen: Past, Present, and Future

Java 7, 8 & 9 - Moving the language forward
Java 7, 8 & 9 - Moving the language forwardJava 7, 8 & 9 - Moving the language forward
Java 7, 8 & 9 - Moving the language forward


Viewers also liked

API Asynchrones en Java 8
API Asynchrones en Java 8API Asynchrones en Java 8
API Asynchrones en Java 8
José Paumard

Les Streams sont parmi nous
Les Streams sont parmi nousLes Streams sont parmi nous
Les Streams sont parmi nous
José Paumard

50 new things we can do with Java 8
50 new things we can do with Java 850 new things we can do with Java 8
50 new things we can do with Java 8
José Paumard

50 nouvelles choses que l'on peut faire avec Java 8
50 nouvelles choses que l'on peut faire avec Java 850 nouvelles choses que l'on peut faire avec Java 8
50 nouvelles choses que l'on peut faire avec Java 8
José Paumard

ArrayList et LinkedList sont dans un bateau
ArrayList et LinkedList sont dans un bateauArrayList et LinkedList sont dans un bateau
ArrayList et LinkedList sont dans un bateau
José Paumard

Java 8-streams-collectors-patterns
Java 8-streams-collectors-patternsJava 8-streams-collectors-patterns
Java 8-streams-collectors-patterns
José Paumard

50 new things you can do with java 8
50 new things you can do with java 850 new things you can do with java 8
50 new things you can do with java 8
José Paumard

Déploiement d'une application Java EE dans Azure
Déploiement d'une application Java EE dans AzureDéploiement d'une application Java EE dans Azure
Déploiement d'une application Java EE dans Azure
José Paumard

JDK 8, lambdas, streams, collectors - Bretagne Tour
JDK 8, lambdas, streams, collectors - Bretagne TourJDK 8, lambdas, streams, collectors - Bretagne Tour
JDK 8, lambdas, streams, collectors - Bretagne Tour
José Paumard

50 nouvelles choses que l'on peut faire en Java 8
50 nouvelles choses que l'on peut faire en Java 850 nouvelles choses que l'on peut faire en Java 8
50 nouvelles choses que l'on peut faire en Java 8
José Paumard

Openmelodie nouvelles fonctionnalités
Openmelodie nouvelles fonctionnalitésOpenmelodie nouvelles fonctionnalités
Openmelodie nouvelles fonctionnalités
José Paumard

Open melodie concepts
Open melodie conceptsOpen melodie concepts
Open melodie concepts
José Paumard

Autumn collections : from iterable to lambdas, streams and collectors
Autumn collections : from iterable to lambdas, streams and collectorsAutumn collections : from iterable to lambdas, streams and collectors
Autumn collections : from iterable to lambdas, streams and collectors
José Paumard

Java Classes methods and inheritance
Java Classes methods and inheritanceJava Classes methods and inheritance
Java Classes methods and inheritance
Srinivas Reddy

LinkedList vs Arraylist- an in depth look at java.util.LinkedList
LinkedList vs Arraylist- an in depth look at java.util.LinkedListLinkedList vs Arraylist- an in depth look at java.util.LinkedList
LinkedList vs Arraylist- an in depth look at java.util.LinkedList
Marcus Biel

No more loops with lambdaj
No more loops with lambdajNo more loops with lambdaj
No more loops with lambdaj
Mario Fusco

Array List
Array ListArray List
Spring framework core
Spring framework coreSpring framework core
Spring framework core
Taemon Piya-Lumyong

Java 8 Workshop
Java 8 WorkshopJava 8 Workshop
Java 8 Workshop
Mario Fusco


Viewers also liked (20)

API Asynchrones en Java 8
API Asynchrones en Java 8API Asynchrones en Java 8
API Asynchrones en Java 8

Les Streams sont parmi nous
Les Streams sont parmi nousLes Streams sont parmi nous
Les Streams sont parmi nous

50 new things we can do with Java 8
50 new things we can do with Java 850 new things we can do with Java 8
50 new things we can do with Java 8

50 nouvelles choses que l'on peut faire avec Java 8
50 nouvelles choses que l'on peut faire avec Java 850 nouvelles choses que l'on peut faire avec Java 8
50 nouvelles choses que l'on peut faire avec Java 8

ArrayList et LinkedList sont dans un bateau
ArrayList et LinkedList sont dans un bateauArrayList et LinkedList sont dans un bateau
ArrayList et LinkedList sont dans un bateau

Java 8-streams-collectors-patterns
Java 8-streams-collectors-patternsJava 8-streams-collectors-patterns
Java 8-streams-collectors-patterns

50 new things you can do with java 8
50 new things you can do with java 850 new things you can do with java 8
50 new things you can do with java 8

Déploiement d'une application Java EE dans Azure
Déploiement d'une application Java EE dans AzureDéploiement d'une application Java EE dans Azure
Déploiement d'une application Java EE dans Azure

JDK 8, lambdas, streams, collectors - Bretagne Tour
JDK 8, lambdas, streams, collectors - Bretagne TourJDK 8, lambdas, streams, collectors - Bretagne Tour
JDK 8, lambdas, streams, collectors - Bretagne Tour

50 nouvelles choses que l'on peut faire en Java 8
50 nouvelles choses que l'on peut faire en Java 850 nouvelles choses que l'on peut faire en Java 8
50 nouvelles choses que l'on peut faire en Java 8

Openmelodie nouvelles fonctionnalités
Openmelodie nouvelles fonctionnalitésOpenmelodie nouvelles fonctionnalités
Openmelodie nouvelles fonctionnalités

Open melodie concepts
Open melodie conceptsOpen melodie concepts
Open melodie concepts

Autumn collections : from iterable to lambdas, streams and collectors
Autumn collections : from iterable to lambdas, streams and collectorsAutumn collections : from iterable to lambdas, streams and collectors
Autumn collections : from iterable to lambdas, streams and collectors

Openmelodie Adonis
Openmelodie AdonisOpenmelodie Adonis
Openmelodie Adonis

Java Classes methods and inheritance
Java Classes methods and inheritanceJava Classes methods and inheritance
Java Classes methods and inheritance

LinkedList vs Arraylist- an in depth look at java.util.LinkedList
LinkedList vs Arraylist- an in depth look at java.util.LinkedListLinkedList vs Arraylist- an in depth look at java.util.LinkedList
LinkedList vs Arraylist- an in depth look at java.util.LinkedList

No more loops with lambdaj
No more loops with lambdajNo more loops with lambdaj
No more loops with lambdaj

Array List
Array ListArray List
Array List

Spring framework core
Spring framework coreSpring framework core
Spring framework core

Java 8 Workshop
Java 8 WorkshopJava 8 Workshop
Java 8 Workshop


Similar to Linked to ArrayList: the full story

Data structures and algorithms
Data structures and algorithmsData structures and algorithms
Data structures and algorithms
Julie Iskander

Stack and queue power point presentation data structure and algorithms Stack-...
Stack and queue power point presentation data structure and algorithms Stack-...Stack and queue power point presentation data structure and algorithms Stack-...
Stack and queue power point presentation data structure and algorithms Stack-...
abhaysingh19149

Collections Framework Beginners Guide 2
Collections Framework Beginners Guide 2Collections Framework Beginners Guide 2
Collections Framework Beginners Guide 2
Kenji HASUNUMA

Collections Framework Begineers guide 2
Collections Framework Begineers guide 2Collections Framework Begineers guide 2
Collections Framework Begineers guide 2
Kenji HASUNUMA

Data structures
Data structuresData structures
Data structures
Sneha Chopra

lecture-k-sorting.ppt
lecture-k-sorting.pptlecture-k-sorting.ppt
lecture-k-sorting.ppt
SushantRaj25

3.ppt
3.ppt3.ppt
Lecture k-sorting
Lecture k-sortingLecture k-sorting
Lecture k-sorting
Vijayaraj Raj

data structures and algorithms Unit 3
data structures and algorithms Unit 3data structures and algorithms Unit 3
data structures and algorithms Unit 3
infanciaj

Chap10
Chap10Chap10
Chap10
Terry Yoast

Python programming
Python programmingPython programming
Python programming
sirikeshava

Complexity
ComplexityComplexity
Complexity
Malainine Zaid

Immutable js reactmeetup_local_ppt
Immutable js reactmeetup_local_pptImmutable js reactmeetup_local_ppt
Immutable js reactmeetup_local_ppt
Christiane (Tina) Heiligers

Arrays and linked lists
Arrays and linked listsArrays and linked lists
Arrays and linked lists
AfriyieCharles

Fundamentalsofdatastructures 110501104205-phpapp02
Fundamentalsofdatastructures 110501104205-phpapp02Fundamentalsofdatastructures 110501104205-phpapp02
Fundamentalsofdatastructures 110501104205-phpapp02
Getachew Ganfur

Ds stack & queue
Ds   stack & queueDs   stack & queue
Ds stack & queue
Sunipa Bera

Data Structure Searching.pptx
Data Structure Searching.pptxData Structure Searching.pptx
Data Structure Searching.pptx
SourabhTaneja4

searching in data structure.pptx
searching in data structure.pptxsearching in data structure.pptx
searching in data structure.pptx
chouguleamruta24

Chapter 14
Chapter 14Chapter 14
Chapter 14
Terry Yoast

day 13.pptx
day 13.pptxday 13.pptx
day 13.pptx
codewavecommunity44


Similar to Linked to ArrayList: the full story (20)

Data structures and algorithms
Data structures and algorithmsData structures and algorithms
Data structures and algorithms

Stack and queue power point presentation data structure and algorithms Stack-...
Stack and queue power point presentation data structure and algorithms Stack-...Stack and queue power point presentation data structure and algorithms Stack-...
Stack and queue power point presentation data structure and algorithms Stack-...

Collections Framework Beginners Guide 2
Collections Framework Beginners Guide 2Collections Framework Beginners Guide 2
Collections Framework Beginners Guide 2

Collections Framework Begineers guide 2
Collections Framework Begineers guide 2Collections Framework Begineers guide 2
Collections Framework Begineers guide 2

Data structures
Data structuresData structures
Data structures

lecture-k-sorting.ppt
lecture-k-sorting.pptlecture-k-sorting.ppt
lecture-k-sorting.ppt

3.ppt
3.ppt3.ppt
3.ppt

Lecture k-sorting
Lecture k-sortingLecture k-sorting
Lecture k-sorting

data structures and algorithms Unit 3
data structures and algorithms Unit 3data structures and algorithms Unit 3
data structures and algorithms Unit 3

Chap10
Chap10Chap10
Chap10

Python programming
Python programmingPython programming
Python programming

Complexity
ComplexityComplexity
Complexity

Immutable js reactmeetup_local_ppt
Immutable js reactmeetup_local_pptImmutable js reactmeetup_local_ppt
Immutable js reactmeetup_local_ppt

Arrays and linked lists
Arrays and linked listsArrays and linked lists
Arrays and linked lists

Fundamentalsofdatastructures 110501104205-phpapp02
Fundamentalsofdatastructures 110501104205-phpapp02Fundamentalsofdatastructures 110501104205-phpapp02
Fundamentalsofdatastructures 110501104205-phpapp02

Ds stack & queue
Ds   stack & queueDs   stack & queue
Ds stack & queue

Data Structure Searching.pptx
Data Structure Searching.pptxData Structure Searching.pptx
Data Structure Searching.pptx

searching in data structure.pptx
searching in data structure.pptxsearching in data structure.pptx
searching in data structure.pptx

Chapter 14
Chapter 14Chapter 14
Chapter 14

day 13.pptx
day 13.pptxday 13.pptx
day 13.pptx


More from José Paumard

Loom Virtual Threads in the JDK 19
Loom Virtual Threads in the JDK 19Loom Virtual Threads in the JDK 19
Loom Virtual Threads in the JDK 19
José Paumard

From Java 11 to 17 and beyond.pdf
From Java 11 to 17 and beyond.pdfFrom Java 11 to 17 and beyond.pdf
From Java 11 to 17 and beyond.pdf
José Paumard

The Future of Java: Records, Sealed Classes and Pattern Matching
The Future of Java: Records, Sealed Classes and Pattern MatchingThe Future of Java: Records, Sealed Classes and Pattern Matching
The Future of Java: Records, Sealed Classes and Pattern Matching
José Paumard

Deep Dive Java 17 Devoxx UK
Deep Dive Java 17 Devoxx UKDeep Dive Java 17 Devoxx UK
Deep Dive Java 17 Devoxx UK
José Paumard

Designing functional and fluent API: application to some GoF patterns
Designing functional and fluent API: application to some GoF patternsDesigning functional and fluent API: application to some GoF patterns
Designing functional and fluent API: application to some GoF patterns
José Paumard

Designing functional and fluent API: example of the Visitor Pattern
Designing functional and fluent API: example of the Visitor PatternDesigning functional and fluent API: example of the Visitor Pattern
Designing functional and fluent API: example of the Visitor Pattern
José Paumard

Construire son JDK en 10 étapes
Construire son JDK en 10 étapesConstruire son JDK en 10 étapes
Construire son JDK en 10 étapes
José Paumard

Java Keeps Throttling Up!
Java Keeps Throttling Up!Java Keeps Throttling Up!
Java Keeps Throttling Up!
José Paumard

Asynchronous Systems with Fn Flow
Asynchronous Systems with Fn FlowAsynchronous Systems with Fn Flow
Asynchronous Systems with Fn Flow
José Paumard

Java Full Throttle
Java Full ThrottleJava Full Throttle
Java Full Throttle
José Paumard

JAX-RS and CDI Bike the (Reactive) Bridge
JAX-RS and CDI Bike the (Reactive) BridgeJAX-RS and CDI Bike the (Reactive) Bridge
JAX-RS and CDI Bike the (Reactive) Bridge
José Paumard

Streams in the wild
Streams in the wildStreams in the wild
Streams in the wild
José Paumard

JAX RS and CDI bike the reactive bridge
JAX RS and CDI bike the reactive bridgeJAX RS and CDI bike the reactive bridge
JAX RS and CDI bike the reactive bridge
José Paumard

L'API Collector dans tous ses états
L'API Collector dans tous ses étatsL'API Collector dans tous ses états
L'API Collector dans tous ses états
José Paumard

Asynchronous API in Java8, how to use CompletableFuture
Asynchronous API in Java8, how to use CompletableFutureAsynchronous API in Java8, how to use CompletableFuture
Asynchronous API in Java8, how to use CompletableFuture
José Paumard


More from José Paumard (15)

Loom Virtual Threads in the JDK 19
Loom Virtual Threads in the JDK 19Loom Virtual Threads in the JDK 19
Loom Virtual Threads in the JDK 19

From Java 11 to 17 and beyond.pdf
From Java 11 to 17 and beyond.pdfFrom Java 11 to 17 and beyond.pdf
From Java 11 to 17 and beyond.pdf

The Future of Java: Records, Sealed Classes and Pattern Matching
The Future of Java: Records, Sealed Classes and Pattern MatchingThe Future of Java: Records, Sealed Classes and Pattern Matching
The Future of Java: Records, Sealed Classes and Pattern Matching

Deep Dive Java 17 Devoxx UK
Deep Dive Java 17 Devoxx UKDeep Dive Java 17 Devoxx UK
Deep Dive Java 17 Devoxx UK

Designing functional and fluent API: application to some GoF patterns
Designing functional and fluent API: application to some GoF patternsDesigning functional and fluent API: application to some GoF patterns
Designing functional and fluent API: application to some GoF patterns

Designing functional and fluent API: example of the Visitor Pattern
Designing functional and fluent API: example of the Visitor PatternDesigning functional and fluent API: example of the Visitor Pattern
Designing functional and fluent API: example of the Visitor Pattern

Construire son JDK en 10 étapes
Construire son JDK en 10 étapesConstruire son JDK en 10 étapes
Construire son JDK en 10 étapes

Java Keeps Throttling Up!
Java Keeps Throttling Up!Java Keeps Throttling Up!
Java Keeps Throttling Up!

Asynchronous Systems with Fn Flow
Asynchronous Systems with Fn FlowAsynchronous Systems with Fn Flow
Asynchronous Systems with Fn Flow

Java Full Throttle
Java Full ThrottleJava Full Throttle
Java Full Throttle

JAX-RS and CDI Bike the (Reactive) Bridge
JAX-RS and CDI Bike the (Reactive) BridgeJAX-RS and CDI Bike the (Reactive) Bridge
JAX-RS and CDI Bike the (Reactive) Bridge

Streams in the wild
Streams in the wildStreams in the wild
Streams in the wild

JAX RS and CDI bike the reactive bridge
JAX RS and CDI bike the reactive bridgeJAX RS and CDI bike the reactive bridge
JAX RS and CDI bike the reactive bridge

L'API Collector dans tous ses états
L'API Collector dans tous ses étatsL'API Collector dans tous ses états
L'API Collector dans tous ses états

Asynchronous API in Java8, how to use CompletableFuture
Asynchronous API in Java8, how to use CompletableFutureAsynchronous API in Java8, how to use CompletableFuture
Asynchronous API in Java8, how to use CompletableFuture


Recently uploaded

Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.
DrRavindrakshirsagar1

Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.docBài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
PhngThLmHnh

AZ-900 Microsoft Azure Fundamentals Summary.pdf
AZ-900 Microsoft Azure Fundamentals Summary.pdfAZ-900 Microsoft Azure Fundamentals Summary.pdf
AZ-900 Microsoft Azure Fundamentals Summary.pdf
OlivierLumeau1

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Murugan Solaiyappan

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
Murugan Solaiyappan

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint
Julie Sarpy

C Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdfC Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdf
Scholarhat

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx
monicaaringo1

1-NLC-MATH7-Consolidation-Lesson1 2024.pptx
1-NLC-MATH7-Consolidation-Lesson1 2024.pptx1-NLC-MATH7-Consolidation-Lesson1 2024.pptx
1-NLC-MATH7-Consolidation-Lesson1 2024.pptx
AnneMarieJacildo

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research
Abhik Roychoudhury

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17
Celine George

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook
Celine George

Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)
Liyana Rozaini

What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 SlidesWhat is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
Celine George

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf
Scholarhat

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17
Celine George

(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening
MJDuyan

BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptxBRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
kambal1234567890


Recently uploaded (20)

Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.

Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.docBài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc

AZ-900 Microsoft Azure Fundamentals Summary.pdf
AZ-900 Microsoft Azure Fundamentals Summary.pdfAZ-900 Microsoft Azure Fundamentals Summary.pdf
AZ-900 Microsoft Azure Fundamentals Summary.pdf

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint

C Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdfC Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdf

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx

1-NLC-MATH7-Consolidation-Lesson1 2024.pptx
1-NLC-MATH7-Consolidation-Lesson1 2024.pptx1-NLC-MATH7-Consolidation-Lesson1 2024.pptx
1-NLC-MATH7-Consolidation-Lesson1 2024.pptx

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook

Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)

What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 SlidesWhat is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 Slides

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17

(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening

BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptxBRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx
BRIGADA ESKWELA OPENING PROGRAM KICK OFF.pptx


Linked to ArrayList: the full story

  • 1. #Devoxx LinkedList to ArrayList The Full Story! José Paumard
  • 2. #Devoxx #ListJ9 @JosePaumard It all begin… • November 22nd 2015 by a tweet
  • 3. #Devoxx #ListJ9 @JosePaumard It all begin… • Then the discussion started
  • 4. #Devoxx #ListJ9 @JosePaumard It all begin… • And about 30 tweets later:
  • 5. #Devoxx #ListJ9 @JosePaumard And did not ended there! • And around midnight, 7th nov. 2016: • Since this is the subject of this Uni, we will take more time…
  • 7. #Devoxx #ListJ9 @JosePaumard Questions ? #ListJ9 Questions? #ListJ9
  • 8. #Devoxx #ListJ9 @JosePaumard • This discussion ArrayList vs LinkedList is no troll…  Even if it looks like one! • The question is : Is one of these implementations better than the other? • And there is an answer to this question! And the conclusion is…
  • 9. #Devoxx #ListJ9 @JosePaumard And the conclusion is… • To fully understand this answer, we need to understand many other things
  • 10. #Devoxx #ListJ9 @JosePaumard And the conclusion is… • To fully understand this answer, we need to understand many other things • And once we have answered it (almost) fully , many other questions will arise!
  • 11. #Devoxx #ListJ9 @JosePaumard 1st part • Algorithms • Complexity • Implementation • CPU architecture • « cache friendly » • Slides, bullet points…
  • 12. #Devoxx #ListJ9 @JosePaumard 2nd part • Implementation of Set, List et Map (with a surprise!) • Live coding! • Some more slides but not that many  But don’t worry, still bullet points
  • 13. #Devoxx #ListJ9 @JosePaumard Where to begin? • In fact there are several ways to begin…
  • 14. #Devoxx #ListJ9 @JosePaumard Where to begin? • In fact there are several ways to begin… • Algorithms!
  • 15. #Devoxx #ListJ9 @JosePaumard Where to begin? • In fact there are several ways to begin… • Algorithms! • Implementation vs CPU architecture
  • 16. #Devoxx #ListJ9 @JosePaumard Where to begin? • In fact there are several ways to begin… • Algorithms! • Implementation vs CPU architecture • Use cases
  • 17. #Devoxx #ListJ9 @JosePaumard What do we know? 1) ArrayList is built on an array 2) LinkedList is built on a linked list And we have results on this
  • 18. #Devoxx #ListJ9 @JosePaumard Approach • Take a close look at the basic operations on lists • Create / modify:  Add an element at the end of at the beginning of a list  Removing an element by its index  Removing an element  The contains() method  The removeIf() and sort() methods
  • 19. #Devoxx #ListJ9 @JosePaumard Approach • Take a close look at the basic operations on lists • Add: List<String> list = ... list.add("one"); // add list.add(12, "one"); // insert
  • 20. #Devoxx #ListJ9 @JosePaumard Approach • Take a close look at the basic operations on lists • Remove: List<String> list = ... list.remove("one"); // remove list.remove(12); // remove by index
  • 21. #Devoxx #ListJ9 @JosePaumard Approach • Take a close look at the basic operations on lists • Sort / removeIf: List<String> list = ... list.sort(comparingBy(String::length)); // sort list.removeIf(s -> s.length() > 10); // remove if
  • 22. #Devoxx #ListJ9 @JosePaumard Approach • Take a close look at the basic operations on lists • Read operations:  Iterate  Read an element with its index  Building a Stream
  • 23. #Devoxx #ListJ9 @JosePaumard Approach • Take a close look at the basis operations on lists • Read operations: List<String> list = ... list.forEach(System.out::println); // list traversal list.get(12); // access by index list.stream(); // stream creation
  • 24. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Access to the nth element: almost free • Adding an element: almost free, but… • Insertion: shift the elements to the right • Deletion: shift the elements to the left
  • 25. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Access to the nth element: almost free n
  • 26. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Adding an element: almost free, but… private void grow(int minCapacity) { int oldCapacity = elementData.length; int newCapacity = oldCapacity + (oldCapacity >> 1); elementData = Arrays.copyOf(elementData, newCapacity); }
  • 27. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Adding an element: almost free, but… • Sometimes the array has to be enlarge • But we can fix the size of the array when we build it
  • 28. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Adding an element: almost free, but… • Sometimes the array has to be enlarge • Bytheway growing a HashSet is much more expensive…
  • 29. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Insertion n, one
  • 30. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Insertion public void add(int index, E element) { System.arraycopy(elementData, index, elementData, index + 1, size - index); elementData[index] = element; size++; }
  • 31. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Insertion one
  • 32. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Suppression n X
  • 33. #Devoxx #ListJ9 @JosePaumard ArrayList • Built on an array • Suppression public E remove(int index) { E oldValue = elementData(index); System.arraycopy(elementData, index+1, elementData, index, numMoved); return oldValue; }
  • 34. #Devoxx #ListJ9 @JosePaumard ArrayList • (Very) Early conclusion • Accessing an element is fast! • Adding is fast, if there is no overflow • Random insert / delete: overhead to handle the « holes »
  • 35. #Devoxx #ListJ9 @JosePaumard LinkedList • Built on a double linked list • Access to the nth element • Adding an element at the end of the list • Insertion • Deletion
  • 36. #Devoxx #ListJ9 @JosePaumard LinkedList • Base structure next prev item Node next prev item Node next prev item Node first last
  • 37. #Devoxx #ListJ9 @JosePaumard LinkedList • Built on a double linked list • Access to the nth element: run through all the elements • Adding: free, just a modification of pointers • Insertion: free, just a modification of pointers • Suppression: free, just a modification of pointers
  • 38. #Devoxx #ListJ9 @JosePaumard LinkedList • Access to the nth element Node<E> node(int index) { if (index < (size >> 1)) { Node<E> x = first; for (int i = 0; i < index; i++) x = x.next; return x; } // same for last }
  • 39. #Devoxx #ListJ9 @JosePaumard LinkedList • Access to the nth element: one has to visit all the elements and count them, until the nth is found • We say that the complexity of this operation is « N » • Or is O(n)
  • 40. #Devoxx #ListJ9 @JosePaumard Notation O(N) • This notation means that:  if we multiply the amount of elements to be processed by 2  then the number of operations will also be multiplied by 2
  • 41. #Devoxx #ListJ9 @JosePaumard Notation O(N) • The complexity of an algorithm is given by O(f(n)) • Example: f(n) = n2
  • 42. #Devoxx #ListJ9 @JosePaumard Notation O(N) • The complexity of an algorithm is given by O(f(n)) • Example: f(n) = n2 • In fact, it means that the exact number of operations is f(n) = an2 + bn + g • And when n reaches a given value f(n) ~ n2
  • 43. #Devoxx #ListJ9 @JosePaumard Notation O(N) • All right, but processing data is not anly about maths • In our applications, n has a value, the same for a, b and g… • And the theory might not apply very well to our use case
  • 44. #Devoxx #ListJ9 @JosePaumard Complexity comparison log2(n) 1 0 10 3 100 7 1 000 10 1 000 000 20
  • 45. #Devoxx #ListJ9 @JosePaumard Complexity comparison log2(n) n 1 0 1 10 3 10 100 7 100 1 000 10 1 000 1 000 000 20 1 000 000
  • 46. #Devoxx #ListJ9 @JosePaumard Complexity comparison log2(n) n n x log2(n) 1 0 1 0 10 3 10 30 100 7 100 700 1 000 10 1 000 10 000 1 000 000 20 1 000 000 20 000 000
  • 47. #Devoxx #ListJ9 @JosePaumard Complexity comparison log2(n) n n x log2(n) n2 1 0 1 0 1 10 3 10 30 100 100 7 100 700 10 000 1 000 10 1 000 10 000 1 000 000 1 000 000 20 1 000 000 20 000 000 too much!
  • 48. #Devoxx #ListJ9 @JosePaumard Complexity comparison « too much » means that on any CPU, running a thousand billion of operations will take at least 20mn • So we need to parallelize this operations of a large number of CPU (at least a few thousands)  We need to change our algorithm  We are not running this on a single JVM
  • 49. #Devoxx #ListJ9 @JosePaumard Lists complexity • On the basic operations ArrayList LinkedList add(e) 1 add(index, e) 1 set(index, e) 1 remove(index) 1 iterator() 1
  • 50. #Devoxx #ListJ9 @JosePaumard Lists complexity • On the basic operations ArrayList LinkedList add(e) 1 1 add(index, e) 1 N set(index, e) 1 N remove(index) 1 N iterator() 1 1
  • 51. #Devoxx #ListJ9 @JosePaumard Lists complexity • We still must be cautious… • There are System.arrayCopy() in ArrayList that are not here in LinkedList • Is it a g? Or something that grows with n? And how?
  • 52. #Devoxx #ListJ9 @JosePaumard Lists complexity • We still must be cautious… • Example: if we consider add(index, e), is System.arrayCopy() more costly than going through the pointers of the LinkedList? • Are there any hidden costs that we did not see?
  • 53. #Devoxx #ListJ9 @JosePaumard Benchmarks! • There is a standard tool (Java 9) to bench Java code : JMH • A benchmark is an annotated class • Maven can generate a « transformed » JAR • Then we run this JAR to get the result of the bench
  • 54. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Here is a « bench » class @Warmup(iterations=5, time=10, timeUnit=TimeUnit.MILLISECONDS) @Measurement(iterations=10, time=10, timeUnit=TimeUnit.MILLISECONDS) @Fork(value=1, jvmArgsAppend = {"-XX:+UseParallelGC", "-Xms3g", "-Xmx3g"}) @BenchmarkMode(Mode.AverageTime) @OutputTimeUnit(TimeUnit.NANOSECONDS) @State(Scope.Benchmark) public class Bench { // bench }
  • 55. #Devoxx #ListJ9 @JosePaumard Benchmarks! • POM dependencies, version is 1.15 <dependency> <groupId>org.openjdk.jmh</groupId> <artifactId>jmh-core</artifactId> <version>${jmh.version}</version> <!-- 1.15 --> </dependency> <dependency> <groupId>org.openjdk.jmh</groupId> <artifactId>jmh-generator-annprocess</artifactId> <version>${jmh.version}</version> <scope>provided</scope> </dependency>
  • 56. #Devoxx #ListJ9 @JosePaumard Benchmarks! • In the class @Param({"10", "100", "1000"}) private int size; @Param({LINKED_LIST, ARRAY_LIST}) private String type;
  • 57. #Devoxx #ListJ9 @JosePaumard Benchmarks! • In the class @Setup public void setup() { switch(type) { case ARRAY_LIST : list = IntStream.range(0, size) .mapToObj(Integer::toString) .collect(Collectors.toCollection( () -> new ArrayList<String>(size))); break; // other cases }
  • 58. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Simple add operation:  Can trigger a System.arrayCopy() on ArrayList  Fast on LinkedList since there is a pointer to the end of the list @Benchmark public boolean simpleAdd() { return list.add("one more"); }
  • 59. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Simple add with index:  Triggers at least one System.arrayCopy() one ArrayList  Slower on LinkedList since half of the list must be visited @Benchmark public boolean simpleAdd() { list.add(size / 2, "one more"); return true; }
  • 60. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Results for Simple Add LinkedList ArrayList Big ArrayList 10 5,3 ns 3,6 ns 3,6 ns 100 5,3 ns 3,6 ns 3,7 ns 1 000 5,3 ns 3,7 ns 3,7 ns 1 000 000 5,5 ns 3,7 ns 3,7 ns
  • 61. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Index Read :  Read operation in the middle of the list  We expect the worst performance for LinkedList @Benchmark public boolean indexRead() { return list.get(size / 2); }
  • 62. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Index Set:  Write operation in the middle of the list  We also expect the worst performance for LinkedList @Benchmark public boolean indexSet() { return list.set(size / 2, "one more"); }
  • 63. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Results for Index Read LinkedList ArrayList 10 5,5 ns 2,8 ns 100 37,9 ns 2,8 ns 1 000 596 ns 2,8 ns 1 000 000 3,4 ms 2,8 ns
  • 64. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Results for Index Set LinkedList ArrayList 10 5,5 ns 3,4 ns 100 36,0 ns 3,5 ns 1 000 602 ns 3,5 ns 1 000 000 3,4 ms 3,5 ns
  • 65. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Iteration :  Let us iterate over the whole list  1st pattern: iterator @Benchmark public long iterate() { long sum = 0; for (String s : list) { sum += s.length(); } return sum; }
  • 66. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Iteration :  Let us iterate over the whole list  2nd pattern: stream @Benchmark public long streamSum() { return list.stream() .mapToLong(String::length) .sum(); }
  • 67. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Results for Iterate LinkedList ArrayList 10 14,7 ns 11,6 ns 100 127 ns 84,3 ns 1 000 2,07 ms 895 ns 1 000 000 6,2 ms 3,3 ms
  • 68. #Devoxx #ListJ9 @JosePaumard Benchmarks! • Results for Stream LinkedList ArrayList 10 33 ns 64 ns 100 174 ns 440 ns 1 000 1,57 ms 3,6 ms 1 000 000 6,1 ms 4,8 ms
  • 69. #Devoxx #ListJ9 @JosePaumard removeIf() and sort() • Let us check the code
  • 70. #Devoxx #ListJ9 @JosePaumard First conclusion • The overhead of the System.arrayCopy() is not that bad  It can be avoided in the case of growing lists • That been said, there is still an unexpected performance difference, that we need to explain
  • 71. #Devoxx #ListJ9 @JosePaumard CPU architecture • The multicores CPU work in a special way… • Between the main memory and the ALU (arithmetic & logic computation) there are at least 3 levels of cache, and registers
  • 72. #Devoxx #ListJ9 @JosePaumard CPU architecture Core 1 Access to the registers < 1ns
  • 73. #Devoxx #ListJ9 @JosePaumard CPU architecture Core 1 L1 Access to the registers < 1ns Access time ~1ns 32kB data / code
  • 74. #Devoxx #ListJ9 @JosePaumard CPU architecture Core 1 L1 Access to the registers < 1ns Access time ~1ns 32kB data / code L2 Access time ~3ns 256 kB
  • 75. #Devoxx #ListJ9 @JosePaumard CPU architecture Core 1 L1 L2 Core N L1 L2
  • 76. #Devoxx #ListJ9 @JosePaumard CPU architecture Core 1 L1 L2 L3 (~12ns) Core N L1 L2
  • 77. #Devoxx #ListJ9 @JosePaumard CPU architecture C 1 L1 L2 L3 C N L1 L2 C 1 L1 L2 L3 C N L1 L2
  • 78. #Devoxx #ListJ9 @JosePaumard CPU architecture C 1 L1 L2 L3 QPI C N L1 L2 C 1 L1 L2 L3 QPI C N L1 L2 ~40 ns
  • 79. #Devoxx #ListJ9 @JosePaumard CPU architecture C 1 L1 L2 L3 QPI DRAM (~65 ns) C N L1 L2 C 1 L1 L2 L3 QPI C N L1 L2 ~40 ns
  • 80. #Devoxx #ListJ9 @JosePaumard So… • Writing good algorithms is not enough… • They also need to be adapted to this structure!
  • 81. #Devoxx #ListJ9 @JosePaumard So… • Writing good algorithms is not enough… • They also need to be adapted to this structure! • What makes a processing fast is its capacity to bring the processed data in the L1 cache as fast as possible
  • 82. #Devoxx #ListJ9 @JosePaumard The ennemy is the cache miss! • A cache miss occurs when the CPU needs a data that is not in the L1 cache • This data has to be fetched somewhere else • In the worst case: in main memory • A cache miss is a loss of about 500 instructions
  • 83. #Devoxx #ListJ9 @JosePaumard Structure of the L1 cache • The L1 cache is organized in lines • Each line is 8 long = 64 bytes • The data is transfered line by line between the caches and the main memory • And here lies a big difference between ArrayList and LinkedList…
  • 84. #Devoxx #ListJ9 @JosePaumard Transferring a list in L1 • The elements of an ArrayList are stored in contiguous zones of the memory, since it is an array • Where the nodes of a LinkedList are randomly spread… • So transferring an ArrayList in the L1 cache can be 8 times faster than a LinkedList (at least)
  • 85. #Devoxx #ListJ9 @JosePaumard Pointer chasing • This phenomenon is called « pointer chasing », and it can kill performances!
  • 86. #Devoxx #ListJ9 @JosePaumard Pointer chasing • Example int[] tab = {1, 2, 3, 4, 5}; Integer[] tab = {1, 2, 3, 4, 5};
  • 87. #Devoxx #ListJ9 @JosePaumard Pointer chasing • Example int[] tab = {1, 2, 3, 4, 5}; Integer[] tab = {1, 2, 3, 4, 5}; 1 2 3 4 5
  • 88. #Devoxx #ListJ9 @JosePaumard Pointer chasing • Example int[] tab = {1, 2, 3, 4, 5}; Integer[] tab = {1, 2, 3, 4, 5}; 1 2 3 4 5      1 2 4 5 3
  • 89. #Devoxx #ListJ9 @JosePaumard Pointer chasing • Example public class Point { Integer x, y; } List<Point> points = new ArrayList<>();
  • 90. #Devoxx #ListJ9 @JosePaumard Pointer chasing • Example public class Point { Integer x, y; } List<Point> points = new ArrayList<>();      x y 1 2
  • 91. #Devoxx #ListJ9 @JosePaumard • Example • With such a structure, an algorithm will spend all its time chasing pointers… Pointer chasing public class Point { Integer x, y; } List<Point> points = new ArrayList<>();      x y 1 2
  • 92. #Devoxx #ListJ9 @JosePaumard Pointer chasing • Clearly, the LinkedList structure is not adapted to the structure of CPU • It is not a « cache friendly » structure
  • 93. #Devoxx #ListJ9 @JosePaumard Pointer chasing • An other example: HashMap  What is a HashMap? An array of Map.Entry objects
  • 94. #Devoxx #ListJ9 @JosePaumard Pointer chasing • An other example: HashMap  What is a HashMap? An array of Map.Entry objects key value
  • 95. #Devoxx #ListJ9 @JosePaumard Pointer chasing • An other example: HashMap  What is a HashMap? An array of Map.Entry objects key value 12 « twelve »
  • 96. #Devoxx #ListJ9 @JosePaumard • An other example: HashMap  What is a HashMap? An array of Map.Entry objects Pointer chasing key value 12 « twelve »   
  • 97. #Devoxx #ListJ9 @JosePaumard • An other example: HashMap  What is a HashMap? An array of Map.Entry objects • The same goes for HashSet… Pointer chasing key value 12 « twelve »   
  • 98. #Devoxx #ListJ9 @JosePaumard Some more benchmarks • Results for Iterate HashSet ArrayList 10 26,2 ns 11,6 ns 100 223 ns 84,3 ns 1 000 3,4 ms 895 ns 1 000 000 11 ms 3,3 ms
  • 99. #Devoxx #ListJ9 @JosePaumard • In our bench, the LinkedList is built like that: • It means that out Node elements are still in contiguous places in memory… A closer look at our bench list = IntStream.range(0, size) .mapToObj(Integer::toString) .collect(toCollection(LinkedList::new));
  • 100. #Devoxx #ListJ9 @JosePaumard • What about building our LinkedList like that: • No more contiguous nodes… A closer look at our bench list = IntStream.range(0, size) .mapToObj(i -> IntStream.range(i, i + 100) .mapToObj(Integer::toString) .collect(toList()) ) .map(l -> l.get(0)) .collect(toCollection(LinkedList::new));
  • 101. #Devoxx #ListJ9 @JosePaumard A closer look at our bench • Results for Indexed Iterate LinkedList Sparse LinkedList 10 14,7 ns 16,7 ns 100 127 ns 393 ns 1 000 2,07 ms 11 ms 1 000 000 6,2 ms 18 ms
  • 102. #Devoxx #ListJ9 @JosePaumard A closer look at our bench • Results for Indexed Read LinkedList Sparse LinkedList 10 5,5 ns 5,4 ns 100 37,9 ns 69 ns 1 000 596 ns 2,0 ms 1 000 000 3,4 ms 15,3 ms
  • 103. #Devoxx #ListJ9 @JosePaumard A closer look at our bench • Results for Indexed Set LinkedList Sparse LinkedList 10 5,5 ns 6,2 ns 100 36,0 ns 83,7 ns 1 000 602 ns 2,0 ms 1 000 000 3,4 ms 14,0 ms
  • 104. #Devoxx #ListJ9 @JosePaumard Any other way? • In a not-so-distant future: List<int> !  Project Valhalla: http://mail.openjdk.java.net/pipermail/valhalla-spec-experts/ • Motto: Codes like a class, works like an int!
  • 105. #Devoxx #ListJ9 @JosePaumard Any other way? • In the much closer present:  Eclipse Collections (prev. GS Collections)  HPPC  Koloboke  Trove http://java-performance.info/hashmap-overview-jdk-fastutil- goldman-sachs-hppc-koloboke-trove-january-2015/
  • 106. #Devoxx #ListJ9 @JosePaumard A list without object? • Is it possible to create implementations of Set / List / Map without any pointer chasing?
  • 107. #Devoxx #ListJ9 @JosePaumard A list without object? • Construire des implémentations de Set / List / Map sans pointer chasing ? • Pointer chasing comes from objects… Can we get rid of objects in those implementations?
  • 108. #Devoxx José Paumard Factory methods for Collections in Java 9 Live coding: unexpected implementations of lists, sets, maps
  • 110. #Devoxx #ListJ9 @JosePaumard So where do we want to go? • Starting point: Java 9! • Question: how to create a list with objects in it • Answer: not easily done in Java 8…
  • 111. #Devoxx #ListJ9 @JosePaumard A glimpse at Java 9 • Until Java 8: (mustache syntax) • And if you want the immutable version, you need to create in two steps… Map<Integer, String> map = new HashMap<Integer, String>() {{ put(1, "one") ; put(2, "two") ; put(3, "three") ; }} ;
  • 112. #Devoxx #ListJ9 @JosePaumard A glimpse at Java 9 • New patterns in Java 9 for lists and sets:  The implementations are immutables  Null elements are not allowed (NPE)  The Set throws an IllegalArgumentException in case of a double  Serializable… List<Integer> list = List.of(1, 2, 3) ; Set<Integer> set = Set.of(1, 2, 3) ;
  • 113. #Devoxx #ListJ9 @JosePaumard A glimpse at Java 9 • New patterns in Java 9 for lists and sets: • But they are also:  Randomly iterable  And with optimized implementations List<Integer> list = List.of(1, 2, 3) ; Set<Integer> set = Set.of(1, 2, 3) ;
  • 114. #Devoxx #ListJ9 @JosePaumard A glimpse at Java 9 • Optimized implementations: public static List<E> of(E e1); public static List<E> of(E e1, E e2); public static List<E> of(E e1, E e2, E e3); public static List<E> of(E e1, E e2, E e3, E e4); ... public static List<E> of(E... e);
  • 115. #Devoxx #ListJ9 @JosePaumard A glimpse at Java 9 • In the case of Map public static Map<K, V> of(K key1, V value1); public static Map<K, V> of(K key1, V value1, K key2, V value2); ... public static Map<K, V> of(K... K, V... v);
  • 116. #Devoxx #ListJ9 @JosePaumard A glimpse at Java 9 • In the case of Map  ofEntries() throws an exception in the case of a double key public static Map<K, V> of(K key1, V value1); public static Map<K, V> of(K key1, V value1, K key2, V value2); ... public static Map<K, V> of(K... K, V... v); public static Entry<K, V> of(K key, V value); public static Map<K, V> ofEntries(Entry... e);
  • 117. #Devoxx #ListJ9 @JosePaumard A glimpse at Java 9 Map<String, TokenType> tokens = Map.ofEntries( entry("for", KEYWORD), entry("while", KEYWORD), entry("do", KEYWORD), entry("break", KEYWORD), entry(":", COLON), entry("+", PLUS), entry("--‐", MINUS), entry(">", GREATER), entry("<", LESS), entry(":", PAAMAYIM_NEKUDOTAYIM), entry("(", LPAREN), entry(")", RPAREN) ); © Stuart Mark
  • 118. #Devoxx #ListJ9 @JosePaumard A glimpse at Java 9 Map<String, TokenType> tokens = Map.ofEntries( entry("for", KEYWORD), entry("while", KEYWORD), entry("do", KEYWORD), entry("break", KEYWORD), entry(":", COLON), entry("+", PLUS), entry("--‐", MINUS), entry(">", GREATER), entry("<", LESS), entry(":", PAAMAYIM_NEKUDOTAYIM), entry("(", LPAREN), entry(")", RPAREN) ); © Stuart Mark
  • 119. #Devoxx #ListJ9 @JosePaumard What do we want to do? • Question: how can we build an optimized implementation of a list with 1 or 2 elements? • Set, List and Map (and Map.Entry) • Of course we want to minimize pointer chasing
  • 120. #Devoxx Don’t worry, they’ll be back And bullet points too
  • 121. #Devoxx #ListJ9 @JosePaumard Some more bench • Results for indexed read ArrayList SingletonList TwoElementList 1 3,5 ns 2,7 ns 2 2,9 ns 2,6 ns
  • 122. #Devoxx #ListJ9 @JosePaumard Some more bench • Results for Iterate ArrayList SingletonList TwoElementList 1 4,7 ns 2,3 ns 2 6,5 ns 3,4 ns
  • 123. #Devoxx #ListJ9 @JosePaumard Some more bench • Results for Iterate HashSet SingletonSet TwoElementSet 1 7,3 ns 2,3 ns 2 9,5 ns 3,5 ns
  • 125. #Devoxx #ListJ9 @JosePaumard Conclusion • Many patterns from the GoF can be implemented with lambdas • We saw it for the template method • And used it for lists, sets and maps…  But should be avoided! • Avoiding pointer chasing = best performances!
