1. Asynchronen
Code testen
@ndrssmn
Andreas Simon

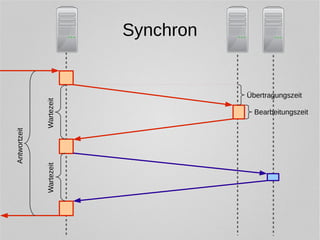

2. Synchron
Übertragungszeit
Wartezeit
Bearbeitungszeit
Wartezeit
Antwortzeit

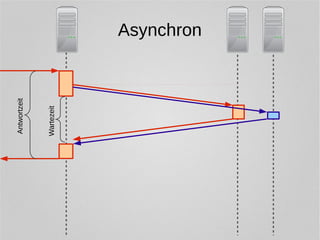

3. Asynchron
Antwortzeit
Wartezeit

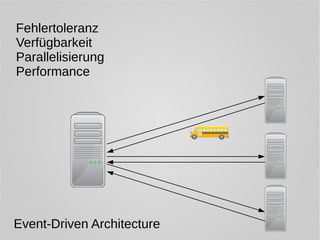

4. Fehlertoleranz
Verfügbarkeit
Parallelisierung
Performance
Event-Driven Architecture

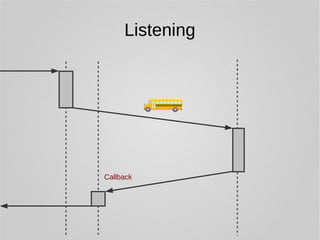

5. Listening
Callback

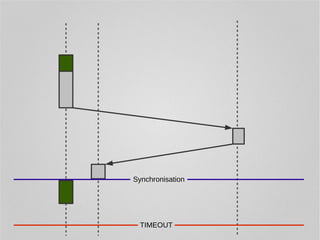

7. Synchronisation
TIMEOUT

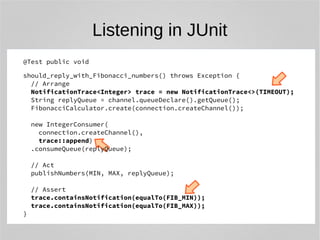

8. Listening in JUnit
@Test public void
should_reply_with_Fibonacci_numbers() throws Exception {
// Arrange
NotificationTrace<Integer> trace = new NotificationTrace<>(TIMEOUT);
String replyQueue = channel.queueDeclare().getQueue();
FibonacciCalculator.create(connection.createChannel());
new IntegerConsumer(
connection.createChannel(),
trace::append)
.consumeQueue(replyQueue);
// Act
publishNumbers(MIN, MAX, replyQueue);
// Assert
trace.containsNotification(equalTo(FIB_MIN));
trace.containsNotification(equalTo(FIB_MAX));
}

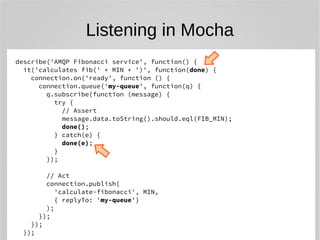

9. Listening in Mocha
describe('AMQP Fibonacci service', function() {
it('calculates fib(' + MIN + ')', function(done) {
connection.on('ready', function () {
connection.queue('my-queue', function(q) {
q.subscribe(function (message) {
try {
// Assert
message.data.toString().should.eql(FIB_MIN);
done();
} catch(e) {
done(e);
}
});
// Act
connection.publish(
'calculate-fibonacci', MIN,
{ replyTo: 'my-queue'}
);
});
});
});

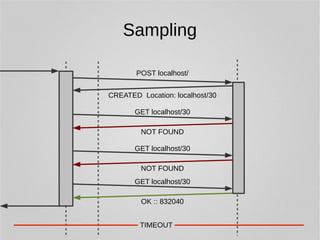

10. Sampling
POST localhost/
CREATED Location: localhost/30
GET localhost/30
NOT FOUND
GET localhost/30
NOT FOUND
GET localhost/30
OK :: 832040
TIMEOUT

11. Sampling in JUnit
@Test public void
calculates_fib_30() throws Exception {
// Act
connection = POST("http://localhost:3000/", "30");
fibLocation = connection.getHeaderField("Location");
// Assert
Probe probe = responseTo(
fibLocation,
equalTo(Integer.toString(FIB_30))
);
new Poller(TIMEOUT, POLL_DELAY).check(probe);
}

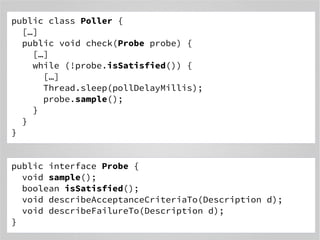

12. public class Poller {
[…]
public void check(Probe probe) {
[…]
while (!probe.isSatisfied()) {
[…]
Thread.sleep(pollDelayMillis);
probe.sample();
}
}
}
public interface Probe {
void sample();
boolean isSatisfied();
void describeAcceptanceCriteriaTo(Description d);
void describeFailureTo(Description d);
}

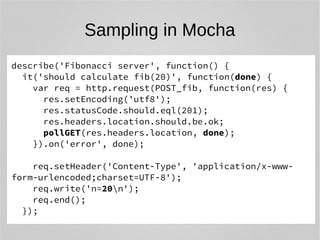

13. Sampling in Mocha
describe('Fibonacci server', function() {
it('should calculate fib(20)', function(done) {
var req = http.request(POST_fib, function(res) {
res.setEncoding('utf8');
res.statusCode.should.eql(201);
res.headers.location.should.be.ok;
pollGET(res.headers.location, done);
}).on('error', done);
req.setHeader('Content-Type', 'application/x-www-form-
urlencoded;charset=UTF-8');
req.write('n=20n');
req.end();
});

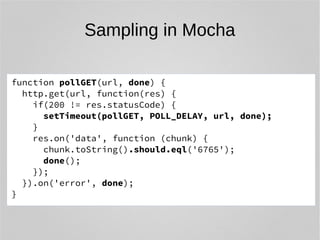

14. Sampling in Mocha
function pollGET(url, done) {
http.get(url, function(res) {
if(200 != res.statusCode) {
setTimeout(pollGET, POLL_DELAY, url, done);
}
res.on('data', function (chunk) {
chunk.toString().should.eql('6765');
done();
});
}).on('error', done);
}

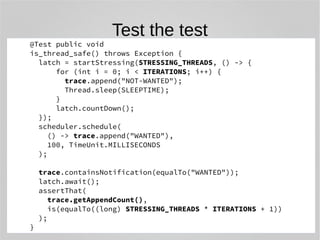

15. Test the test
@Test public void
is_thread_safe() throws Exception {
latch = startStressing(STRESSING_THREADS, () -> {
for (int i = 0; i < ITERATIONS; i++) {
trace.append("NOT-WANTED");
Thread.sleep(SLEEPTIME);
}
latch.countDown();
});
scheduler.schedule(
() -> trace.append("WANTED"),
100, TimeUnit.MILLISECONDS
);
trace.containsNotification(equalTo("WANTED"));
latch.await();
assertThat(
trace.getAppendCount(),
is(equalTo((long) STRESSING_THREADS * ITERATIONS + 1))
);
}

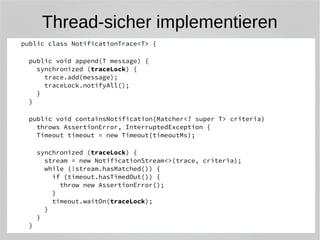

16. Thread-sicher implementieren
public class NotificationTrace<T> {
public void append(T message) {
synchronized (traceLock) {
trace.add(message);
traceLock.notifyAll();
}
}
public void containsNotification(Matcher<? super T> criteria)
throws AssertionError, InterruptedException {
Timeout timeout = new Timeout(timeoutMs);
synchronized (traceLock) {
stream = new NotificationStream<>(trace, criteria);
while (!stream.hasMatched()) {
if (timeout.hasTimedOut()) {
throw new AssertionError();
}
timeout.waitOn(traceLock);
}
}
}

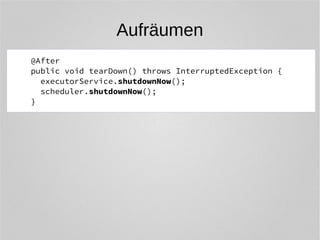

17. Aufräumen
@After
public void tearDown() throws InterruptedException {
executorService.shutdownNow();
scheduler.shutdownNow();
}

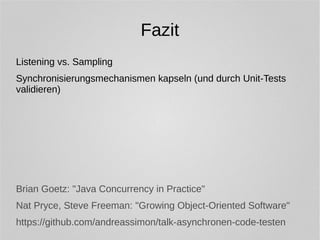

18. Fazit
Listening vs. Sampling
Synchronisierungsmechanismen kapseln (und durch Unit-Tests
validieren)
Brian Goetz: "Java Concurrency in Practice"
Nat Pryce, Steve Freeman: "Growing Object-Oriented Software"
https://github.com/andreassimon/talk-asynchronen-code-testen
