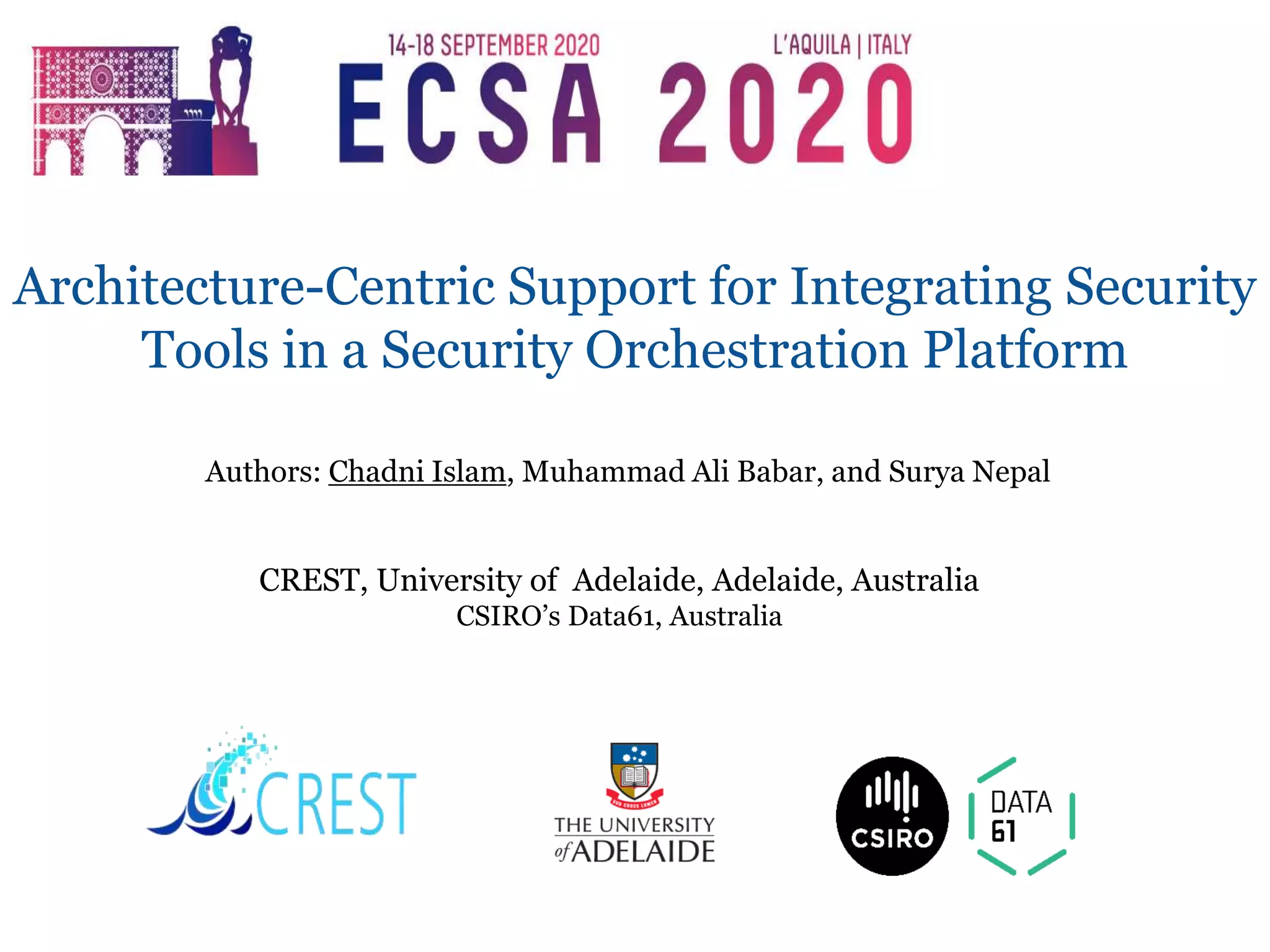

- 1. Architecture-Centric Support forIntegrating Security Tools in a Security Orchestration Platform Authors: Chadni Islam, Muhammad Ali Babar, and Surya Nepal CREST, University of Adelaide, Adelaide, Australia CSIRO’s Data61, Australia
- 2. Outline Introduction Challenges Research Aim Proposed Solution Evaluation Limitations FutureWork CREST | University of Adelaide 2
- 3. Introduction Architecture-Centric Support forIntegrating Security Tools in a Security Orchestration Platform| ECSA 2020 3 Firewall Intrusion Detection System (IDS) Endpoint Detection and Response (EDR) Detect and Prevent Integrate Analyze Validate Plan Monitor and Analyze Security Operation Centre I1 I2 S: Security ToolA: Assets AC: ActivityI: Security Incident Organization Security Operation Centre
- 4. Introduction CREST | Universityof Adelaide 4 Firewall Intrusion Detection System (IDS) Endpoint Detection and Response (EDR) Security Orchestration and Automation Platform Detect and Prevent S: Security ToolA: Assets AC: Activity I1 I2 I: Security Incident Security Orchestration and Automation Platform (SOAR) Search Organization t: Task IRP: Incident response plan
- 5. Challenges in existingSOAR platforms • Lack proper abstraction for designing a platform at architecture level • Designed in ad-hoc manner – Difficult to embed agility in a SOAR platform – Results in complex and monolithic design that is hard to evolve • Lack of conceptual and practical guideline for optimal architecture design decision Architecture-Centric Support for Integrating Security Tools in a Security Orchestration Platform| ECSA 2020 5
- 6. Research Aim How softwarearchitecture can play a role in improving the design practices of a SOAR Platform? CREST | University of Adelaide 6 |
- 7. Proposed Solution (1/3) Architecture-CentricSupport for Integrating Security Tools in a Security Orchestration Platform| ECSA 2020 7 A Concept Map of Security Orchestration and Automation Incident Response Plan Playbook Designer SOAR Developer Detection Analysis Response implements requires provides integrates Activity Security Tool Task executes executes Unification Orchestration Automation Playbook Orchestration Process runs and manages supports Organization SOAR Platform Capability Legend A B A B Composition Generalization A Brelation uses
- 8. Proposed Solution (2/3) CREST| University of Adelaide 8 High-level Architecture for SOAR platform Semantic Layer Integration Layer Orchestration Layer Data Processing Layer Tool Registry Interpreter Data Extractor PlannerOrchestratorTask Manager Query Engine Plugin Repositories UI Layer Abstraction Layer API GatewayWrapper Security Tool Layer Knowledge Base Data Analyzer Security Tool Security Tool Security Tool Security Tool Users Integration Manager Data Curator

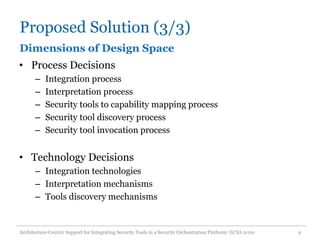

- 9. Proposed Solution (3/3) •Process Decisions – Integration process – Interpretation process – Security tools to capability mapping process – Security tool discovery process – Security tool invocation process • Technology Decisions – Integration technologies – Interpretation mechanisms – Tools discovery mechanisms Architecture-Centric Support for Integrating Security Tools in a Security Orchestration Platform| ECSA 2020 9 Dimensions of Design Space
- 10. Prototype Implementation (1/5) •Two scenarios – Automating the process for integration of security tools – Automating the interpretation of the activities to execute IRP • Security Tools – Snort, Splunk, Limacharlie, Wireshark, Windows defender, MISP • 24 different capabilities 10CREST | University of Adelaide
- 11. Capabilities of SecurityTools • δSplunk = {F2, F3, F4, F9, F10, F11} • δSnort = {F1, F5, F6} • δLimacharlie = {F2, F7, F8, F12} Activity Functional capability 𝑎𝑐1 Detect incident Intrusion detection F1 𝑎𝑐2 Collect alert log Log collection F2 𝑎𝑐3 Identify affected system Alert analysis F3 𝑎𝑐4 Generate incident report Report generation F4 𝑎𝑐5 Sniff network packet Packet sniffing F5 𝑎𝑐6 Log network packet Packet logging F6 𝑎𝑐7 Isolate affected node Node isolation F7 𝑎𝑐8 Kill malicious process Process killing F8 𝑎𝑐9 Generate report Report generation F9 𝑎𝑐10 Monitor event Event monitoring F10 𝑎𝑐11 Manage log Log management F11 𝑎𝑐12 Investigate alert Alert analysis F3 𝑎𝑐13 Generate alerts Intrusion detection F1 𝑎𝑐14 Scan endpoint Intrusion detection F1 𝑎𝑐15 Remove malware Process killing F8 Prototype Implementation (2/5) Architecture-Centric Support for Integrating Security Tools in a Security Orchestration Platform| ECSA 2020 11 Incident type Incident response plan (IRP) 𝐼1 DDoS attack 𝑎𝑐2, 𝑎𝑐12, 𝑎𝑐5, 𝑎𝑐3, 𝑎𝑐13, 𝑎𝑐10, 𝑎𝑐7, 𝑎𝑐9 𝐼2 Malicious process 𝑎𝑐10, 𝑎𝑐11, 𝑎𝑐3, 𝑎𝑐9, 𝑎𝑐8 𝐼3 Malware 𝑎𝑐14, 𝑎𝑐12, 𝑎𝑐15, 𝑎𝑐9
- 12. Prototype Implementation (3/5) 12 Implementationarchitecture for security tool integration CREST | University of Adelaide MISP API LimaCharlie API Splunk API MISP API LimaCharlie API Splunk API InputOutput Wrapper Wrapper Wrapper Wrapper Ontology Collector Process Orchestration Collected data Integration Security Tools Send data (alert, log, report, packet) Interpreted data invoke process Invoke tools MISPSplunk LimaCharlie Snort Wireshark WinPcap WinDefender command Data Analyzer SPARQL query engine IRP Orchestrator Interpreter Output Handler Input Constructor
- 13. Prototype Implementation (4/5) Architecture-CentricSupport for Integrating Security Tools in a Security Orchestration Platform| ECSA 2020 13 Security tool Security Tool class has Capability Capability class executeActivity snort_s IDS intrusion_detection_s IntrusionDetection detectIncident limaCharlie_l EDR intrusion_detection_l process_killing_l IntrusionDetection ProcessKilling detectIncident killProcess splunk_s SIEM log_collection_s alert_analysis_a LogCollection AlertAnalysis collectAlertLog investigateAlert Illustration of selected set of object properties of security tool class of an ontology

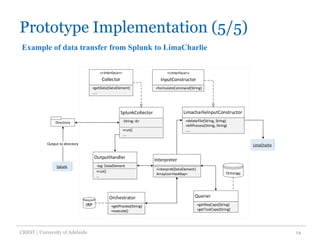

- 14. Prototype Implementation (5/5) CREST| University of Adelaide 14 Interpreter SplunkCollector -String: dir +run() .... OutputHandler -log: DataElement +run() ... Directory Splunk <<Interface>> InputConstructor +formulateCommand(String) Output to directory LimacharlieInputConstructor +deleteFile(String, String) +killProcess(String, String) ..... +interpret(DataElement) ArrayList<HasMap> Querier +getToolCaps(String) +getReqCaps(String) Ontology <<Interface>> Collector +getData(DataElement) ..... LimaCharlie Orchestrator +execute() +getProcess(String)IRP Example of data transfer from Splunk to LimaCharlie
- 15. Results (1/2) • Automatingthe Integration of Security Tools - Integration of new security tool - MISP - Integration approaches - Static APIs - Plugins based integration - Semantic based integration Architecture-Centric Support for Integrating Security Tools in a Security Orchestration Platform| ECSA 2020 15 With semantic based integration approach the number of components and connections remains constant with the integration of new security tools
- 16. Results (2/2) • Automatingthe interpretation of the activities to execute an IRP - Integration of new IRPs or activities - Identify and isolate suspicious endpoints - Implementation of SOAR platform - Non modular and Monolithic - Modularized – separation of concerns CREST | University of Adelaide 16 Incorporation of changes with the proposed architectural implementation is easier and requires less overhead in comparison to other approaches
- 17. Limitations • The PoCis developed based on freely available and open source security tool’s capabilities and activities • Feasibility of the proposed architecture is performed for two scenarios based on three quality attributes Future Work • Design space and deployment automation of SOAR platforms • Large scale mapping of existing SOAR platforms and IRPS onto the architecture design decisions Architecture-Centric Support for Integrating Security Tools in a Security Orchestration Platform| ECSA 2020 17
- 18. Key Takeaways • Considerationof architecture design decisions to describe and evaluate existing and new SOAR platform • A conceptual map of SOAR platform to support architect’s understanding the design space of a SOAR platform • Identification of the requirements of a SOAR in terms of unification, orchestration and automation and propose a layered architecture help to modularize the functions and separate the concepts of the components of a SOAR platform • Consideration of the principle dimension of architecture design space improves SOAR design practices CREST | University of Adelaide 18
- 19. References • Chadni Islam,Muhammad Ali Babar and Surya Nepal. Architecture- centric Support for Integrating Security Tools in a Security Orchestration Platform. 14th European Conference on Software Architecture (ECSA’2020), September 14-18, 2020, L’Aquila, Italy. • Chadni Islam, Muhammad Ali Babar, and Surya Nepal, Automated Interpretation and Integration of Security Tools Using Semantic Knowledge. 31st International Conference on Advanced Information Systems Engineering, CAiSE, 2019, Rome, Italy, 3-7 June 2019. • Chadni Islam, Muhammad Ali Babar, and Surya Nepal, An Ontology- Driven Approach to Automate the Process of Integration Security Software Systems. International Conference of Software and Systems Process, ICSSP, 2019, Montreal, Canada, 2019. • Chadni Islam, Muhammad Ali Babar, and Surya Nepal. 2019. A Multi- Vocal Review of Security Orchestration. ACM Computing Survey. Vol 52, Issue 2, Article 37 (April 2019), 45 pages. DOI: https://doi.org/10.1145/3305268. Architecture-Centric Support for Integrating Security Tools in a Security Orchestration Platform| ECSA 2020 19
- 20. Acknowledgement • CREST teammembers (https://crest-centre.net/) • School of Computer Science, University of Adelaide, Australia • CSIRO’s Data61, Australia CREST | University of Adelaide 20
- 21. Q&A Architecture-Centric Support forIntegrating Security Tools in a Security Orchestration Platform| ECSA 2020 21 Chadni Islam CREST (https://crest-centre.net/) School of Computer Science, University of Adelaide, Australia Email: chadni.islam@adelaide.edu.au
