Architecting Modern Data Platforms
The document discusses the principles and architecture of modern data platforms, emphasizing concepts such as accessibility, decoupling, and cost-effectiveness. It covers various elements including data lakes, data characteristics, cloud adaptability, and the importance of selecting appropriate tools for reliability and scalability. Furthermore, it outlines high-level architecture and processing strategies, providing references for further exploration of data architecture solutions.
More Related Content
Similar to Architecting Modern Data Platforms
![제 23회 보아즈(BOAZ) 빅데이터 컨퍼런스 - [MBOAX] : ABSA를 활용한 소비자 반응 분석 기반 운영 효율화 대시보드 설계](https://cdn.slidesharecdn.com/ss_thumbnails/3-1boaz23rdconferencemboax-260203102709-9d519923-thumbnail.jpg?width=640&height=640&fit=bounds)
Architecting Modern Data Platforms
- 1. Navigate Architecting Modern Data Platforms byankitrathi.com
- 2. Content • Data ArchitecturePrinciples • Data Lake Basics • High Level Architecture • Data Characteristics • Putting It All Together • Product-Driven Data Architecture • Reference Architecture
- 3. Data Architecture Principals •Adhere to ADDA (Accessibility, Definition, Decoupling, Agility) • Design for RSM (Reliability, Scalability, Maintainability) • Use Right Tools • Cloud Native/Agnostic • Be Cost Conscious

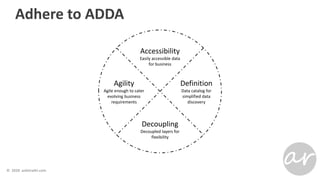

- 4. Adhere to ADDA Accessibility Easilyaccessible data for business Definition Data catalog for simplified data discovery Decoupling Decoupled layers for flexibility Agility Agile enough to cater evolving business requirements
- 5. Design for RSM Reliability workscorrectly, fault-tolerant Scalability adapts to growth Maintainability remains easy to maintain
- 6. Use Right Tools DataStructure Structured, Semi- structured, Unstructured Latency Low, Medium, High Throughput High, Medium, Low Access Pattern Key-value, Search, Transactions
- 7. Cloud Native/Agnostic Cloud NativeCloud Agnostic Pros: • Better performance • Better efficiency • Lower costs (generic services) Pros: • Flexibility • Minimal vendor lock-in • Standard performance Cons: • Vendor lock-in • Higher costs (specific services) Cons: • Underutilization of vendor capabilities • Solution can become complex • Performance, logging and monitoring can take a hit
- 8. Be Cost Conscious •Efficient consumption of services • Select cost-conscious options • Enforce policies and controls
- 9. Data Lake • DataLake Definition • An architectural approach • Massive heterogenous data stored centrally • Available to diverse group of users • To be categorized, processed, analyzed & consumed • Data Lake Characteristics • Structured, semi-structured & unstructured data • Scaled out as required • Diverse set of storage, analytics and ML/AI tools • Designed for low-cost storage and analytics
- 10. High-Level Architecture Process/ Analyse Ingest StoreServe Latency, Throughput, Cost Data Actionable Insights
- 11. Ingest Source Data TypeData Web/Mobile Apps Records Transactions Databases Records Transactions Logging Search documents Files Logging Log files Files Messaging Messages Events IoT Data Streams Events

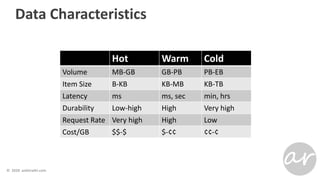

- 12. Data Characteristics Hot WarmCold Volume MB-GB GB-PB PB-EB Item Size B-KB KB-MB KB-TB Latency ms ms, sec min, hrs Durability Low-high High Very high Request Rate Very high High Low Cost/GB $$-$ $-¢¢ ¢¢-¢
- 13. Data Characteristics • Typeof Data Structures • Fixed Schema • Schema Free • Key-Value • Type of Access Patterns • Key-Value • Simple relations (1:N, M:N) • Multi-table joins, transactions • Faceting, Search
- 14. Storage In-memory File Storage NoSQL SQL Hot dataWarm data Cold data Structure HighLow Request rate, Cost per GBHigh Low Latency, Data VolumeLow High

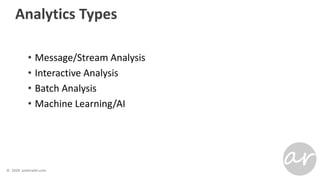

- 15. Analytics Types • Message/StreamAnalysis • Interactive Analysis • Batch Analysis • Machine Learning/AI

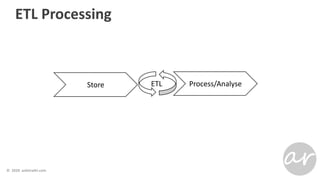

- 16.
- 17. Serve • Applications &APIs • Analysis & Visualization • Notebooks • IDEs
- 18. Putting It AllTogether Process/AnalyseStore ETL Ingest Serve Web Apps Mobile Apps Data Centers Logging Messaging Devices Sensors Cache NoSQL SQL ElasticSearch Object Storage SQS Streams ML/AI Interactive Batch Message Streams APIs Analysis Visualization Notebooks IDE Records Documents Files Messages Streams Security & Governance, Data Catalog
- 19. Product-Driven Data Architecture Reference:https://martinfowler.com/articles/data-monolith-to-mesh.html
- 20. Reference Architecture -Azure Reference: https://docs.microsoft.com/en-us/azure/architecture/example-scenario/dataplate2e/data-platform-end-to-end
- 21. Reference Architecture -AWS Reference: https://docs.aws.amazon.com/solutions/latest/data-lake-solution/architecture.html
- 22. Reference Architecture -GCP Reference: https://cloud.google.com/solutions/big-data
- 23.
- 24.
