Angel Springs produces high-end filtered water systems including the Aquatap dispenser and various heating and cooling units. The Aquatap is a compact, stylish device that provides boiling, chilled, and ambient water and acts as the perfect companion to a water cooler. It features LED indicators, a chrome finish tap, and BWT filtration. Angel Springs also offers additional optional accessories and units that can provide functions like super chilling water down to 3 degrees Celsius or heating water for teas and coffee. All products are designed for commercial use and come with a two year warranty.

1. ANGEL SPRINGS. MAKING A DIFFERENCE THROUGH INNOVATION
FILTERED WATER SYSTEMS

2. Hot Cold Ambient
Variation Key
Stylishly crafted and compact in design,
The Aquatap is a high end premium
product designed to be the perfect
companion to a watercooler within the
executive office as it completes an
all-round hydration solution.
FILTERED WATER SYSTEMS
AQUATAP
HEATING UNIT SUPER CHILL UNIT
Features:
• Boiling water safety switch
• LED temperature indicators
• Chrome finish tap
• BWT Bestmax filtration
• Two year warranty
• Super Chill Unit (optional)
• Extension piece (optional)
• Drip tray (optional)
Features:
• Intelliboil plus technology
• Integral electronic water conditioner
• Overboil protection system
• LED indicators
• 20 mugs immediate draw-off
• Undercounter design
• Two year warranty
Features:
• Thermostatically controlled from 3°C to 10°C.
• Ice bank cooling system.
• In-line water filter kit (optional).
• Factory fitted 13 amp plug.
• WRAS listed and CE marked.
• 150 cups Immediate draw-off
• Undercounter design
• Two year warranty
CHILLER UNITHEATER UNIT
AQUATAP DISPENSER
MAINS
WATER SUPPLY
DISPENSING
CABLE
FLEXIBLE
HOSE
CHILLED WATER
SUPPLY
HOT TAP
OUTLET HOSE
A B
TAP VENT HOSE
13 amp
Socket
13 amp
Socket
Drip Tray (optional) Boiling water
safety switch
Extension piece
Dimensions:
(H)235mm x (W)60mm x (D)118mm
Technical Specification: page 55
Dimensions:
(H)480mm x (W)350mm x (D)296mm
Technical Specification: page 56
Dimensions:
(H)405mm x (W)255mm x (D)400mm
Technical Specification: page 56
Filtered
Un-filtered

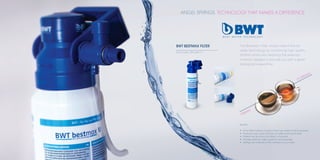

3. BWT BESTMAX FILTER
Stock Code : GEN_BWT_F1
Benefits:
• Smart filter trusted by Europe’s finest high street hot drink providers
• Produces clear, clean mineral rich water to enhance taste
• Protects the life of your Eco Boiler or Aquatap
• Provides optimum water quality for any beverage
• Settings are matched to the hardness of your water
ANGEL SPRINGS. TECHNOLOGY THAT MAKES A DIFFERENCE
The Bestmax V filter utilises state-of-the-art
water technology by combining high quality
filtration whilst also retaining the essential
minerals needed to provide you with a great
tasting drink everytime.
Filtered
Un-filtered

4. PRODUCT AQUATAP AQUATAP AQUATAP
MACHINE TYPE MAINS FED MAINS FED MAINS FED
STOCK CODE WB_AQT_0A WB_AQT_2A WB_AQT_1A
FORMAT COUNTERTOP COUNTERTOP COUNTERTOP
VARIATION
TANK CAPACITY
HOT (EXTERNAL) 5L 5L 5L
EXTRACTION RATE
HOT 5L 5L 5L
REFRIGERANT TYPE - - R134A
REFRIGERANT CHARGE - - 140G
HOT TEMPERATURE RANGE 90-100c 90-100c 90-100c
COLD TEMPERATURE RANGE - - 3-10c
POWER CONSUMPTION
HOT 2.5KW 2.5KW 2.5KW
COLD - - 180KW
WEIGHT 2KG 2KG 2KG
DIMENSIONS
HEIGHT 235mm 235mm 235mm
WIDTH 60mm 60mm 60mm
DEPTH 118mm 118mm 118mm
AQUATAP
FILTERED WATER SYSTEMS
A
CB
A
(mm)
405
B
(mm)
255
C
(mm)
400
Weight (kg)
empty full
25 27
CHILLER UNITHEATER UNIT
AQUATAP DISPENSER
MAINS
WATER SUPPLY
DISPENSING
CABLE
FLEXIBLE
HOSE
CHILLED WATER
SUPPLY
HOT TAP
OUTLET HOSE
A B
TAP VENT HOSE
13 amp
Socket
13 amp
Socket
HEATING UNIT SUPER CHILL UNIT
Hot Cold Ambient
Variation Key
