This document discusses the application of panoramic radiography (OPG) in orthodontics. It provides examples of what can be seen on panoramic x-rays including tooth eruption patterns, missing or extra teeth, tooth fractures, and root resorption. Normal anatomy of the jaws is also displayed with labels pointing out various bony landmarks visible on panoramic radiographs. A variety of dental anomalies and orthodontic problems that can be identified and monitored with OPG images are presented.

2. APPLICATION OF
OPG IN
ORTHODONTICS
PRESENTED BY:
SEYED MOHAMMAD REZA MASOUMI
STUDENT RESEARCH COMMITTEE, SHAHID SADOUGHI
UNIVERSITY OF MEDICAL SCIENCES, YAZD, IRAN

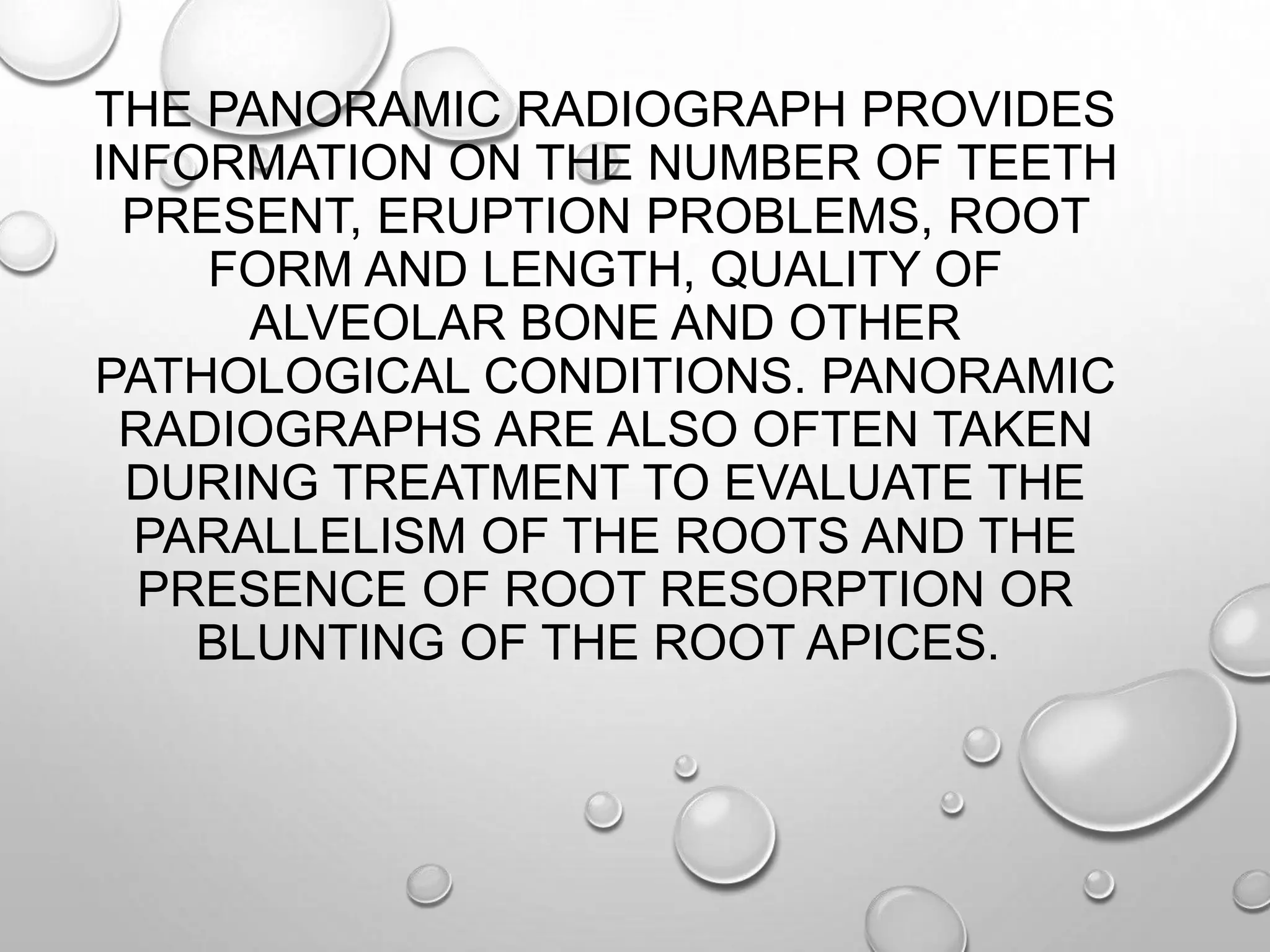

3. THE PANORAMIC RADIOGRAPH PROVIDES
INFORMATION ON THE NUMBER OF TEETH
PRESENT, ERUPTION PROBLEMS, ROOT
FORM AND LENGTH, QUALITY OF
ALVEOLAR BONE AND OTHER
PATHOLOGICAL CONDITIONS. PANORAMIC
RADIOGRAPHS ARE ALSO OFTEN TAKEN
DURING TREATMENT TO EVALUATE THE
PARALLELISM OF THE ROOTS AND THE
PRESENCE OF ROOT RESORPTION OR
BLUNTING OF THE ROOT APICES.

4. NORMAL ANATOMY

6. BONY LANDMARKS IN MAXILLA
6
15
15. Glenoid fossa
19. Floor of Max.Sinus
17. Zygomatic Arch16. Articular eminence 18.Post. wall max. sinus
20. Zygomatic process of max. forming innominate line
21. Hard palate 22. Floor of the orbit 23. Nasal septum 24. Incisive foramen
25. Inferior choncha 26. Meatus 27. Frontal process of Z.bone
16
17
18
19
20
21
22
23
29
25
24
26
28.Pterygo max. fissure
30. Maxillary tuberosity29.Spine of the sphenoid bone 31. Lateral pterygoid plate
31
30
28
27

9. DENTAL ERUPTION : NORMAL AND
PROBLEMS

10. Panoramic radiograph showing a normal eruption pattern in a 9-
year-old young boy. Adequate yearly follow-up will ensure optimal
tooth eruption.

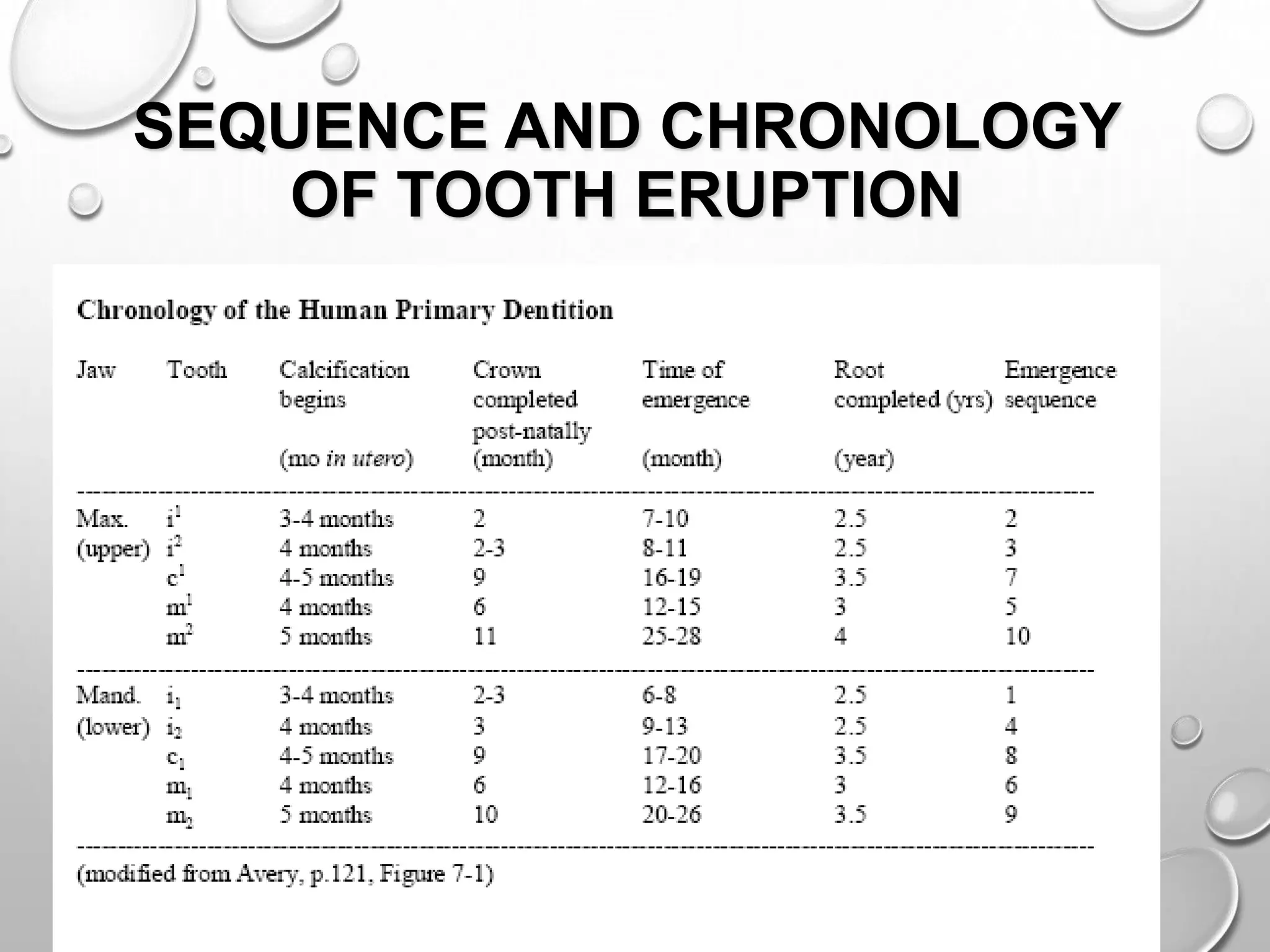

11. SEQUENCE AND CHRONOLOGY
OF TOOTH ERUPTION

12. CHRONOLOGY OF HUMAN
PERMANENT DENTITION

13. LOSS OF SPACE PREVENTING THE LOWER PREMOLARS
FROM ERUPTING

14. MIGRATION OF UPPER MOLARS AND LOSS OF
SPACE (ERUPTION PROBLEM).

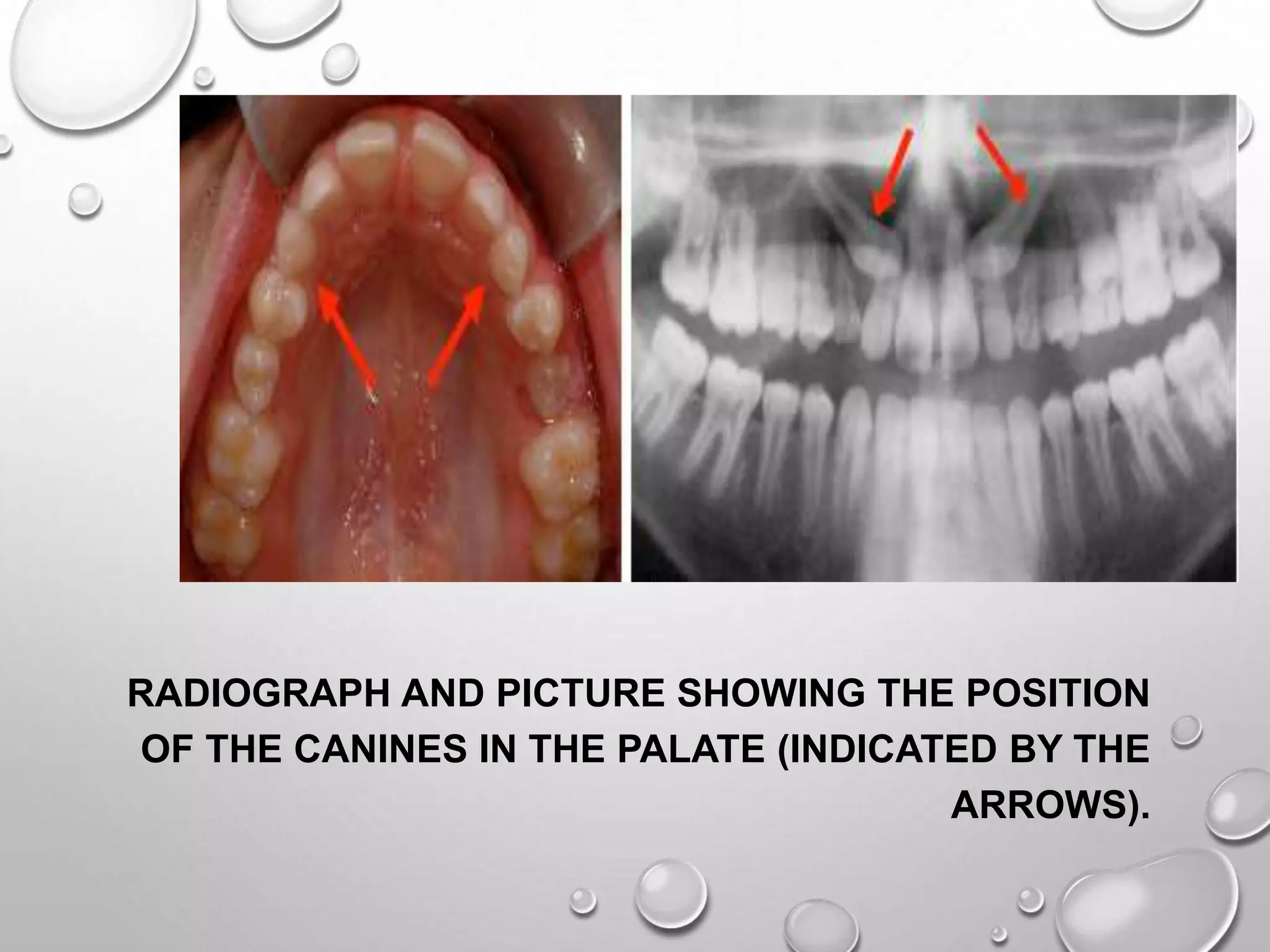

15. RADIOGRAPH AND PICTURE SHOWING THE POSITION
OF THE CANINES IN THE PALATE (INDICATED BY THE
ARROWS).

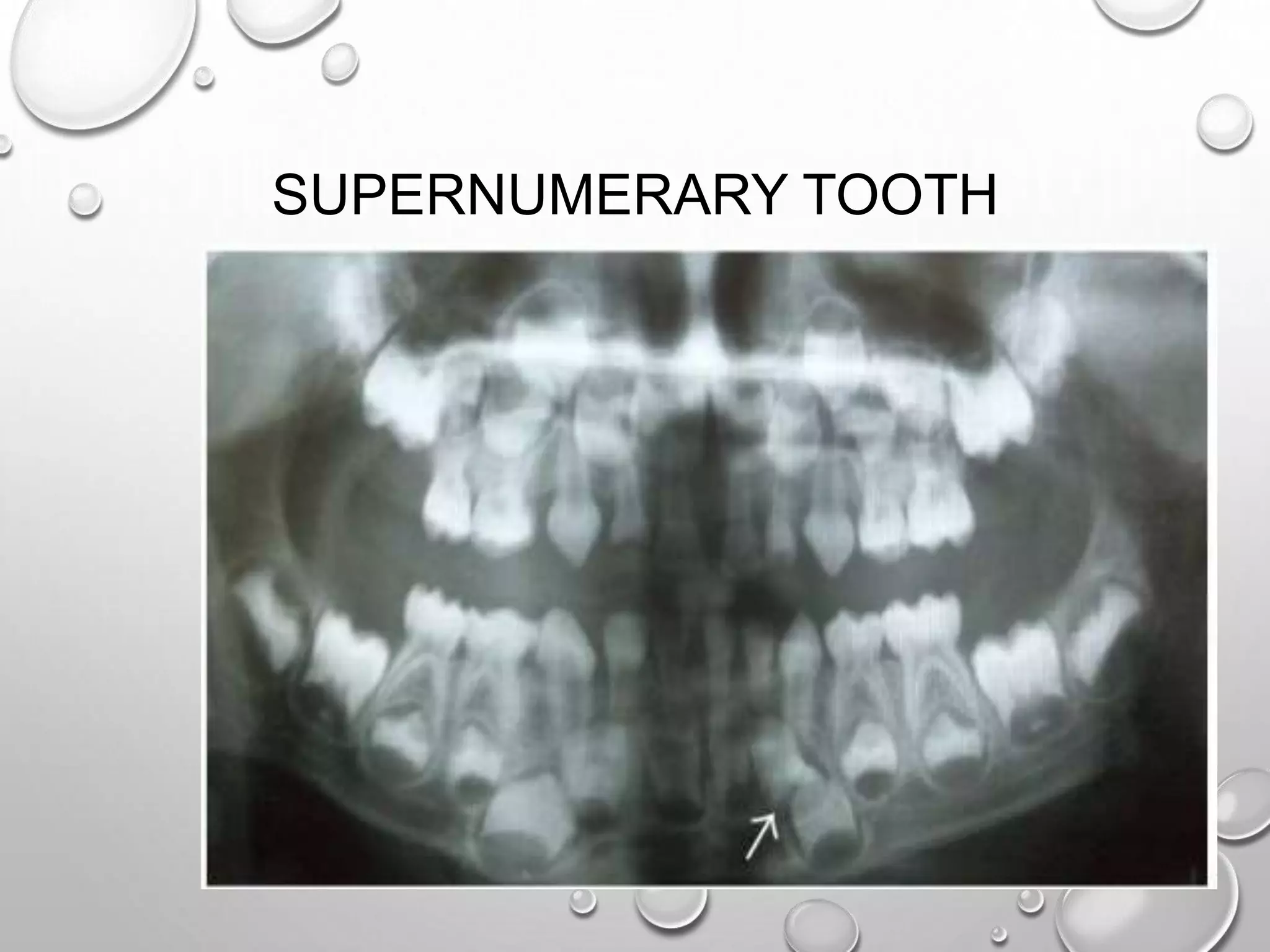

16. SUPERNUMERARY TOOTH

17. MESIODENS

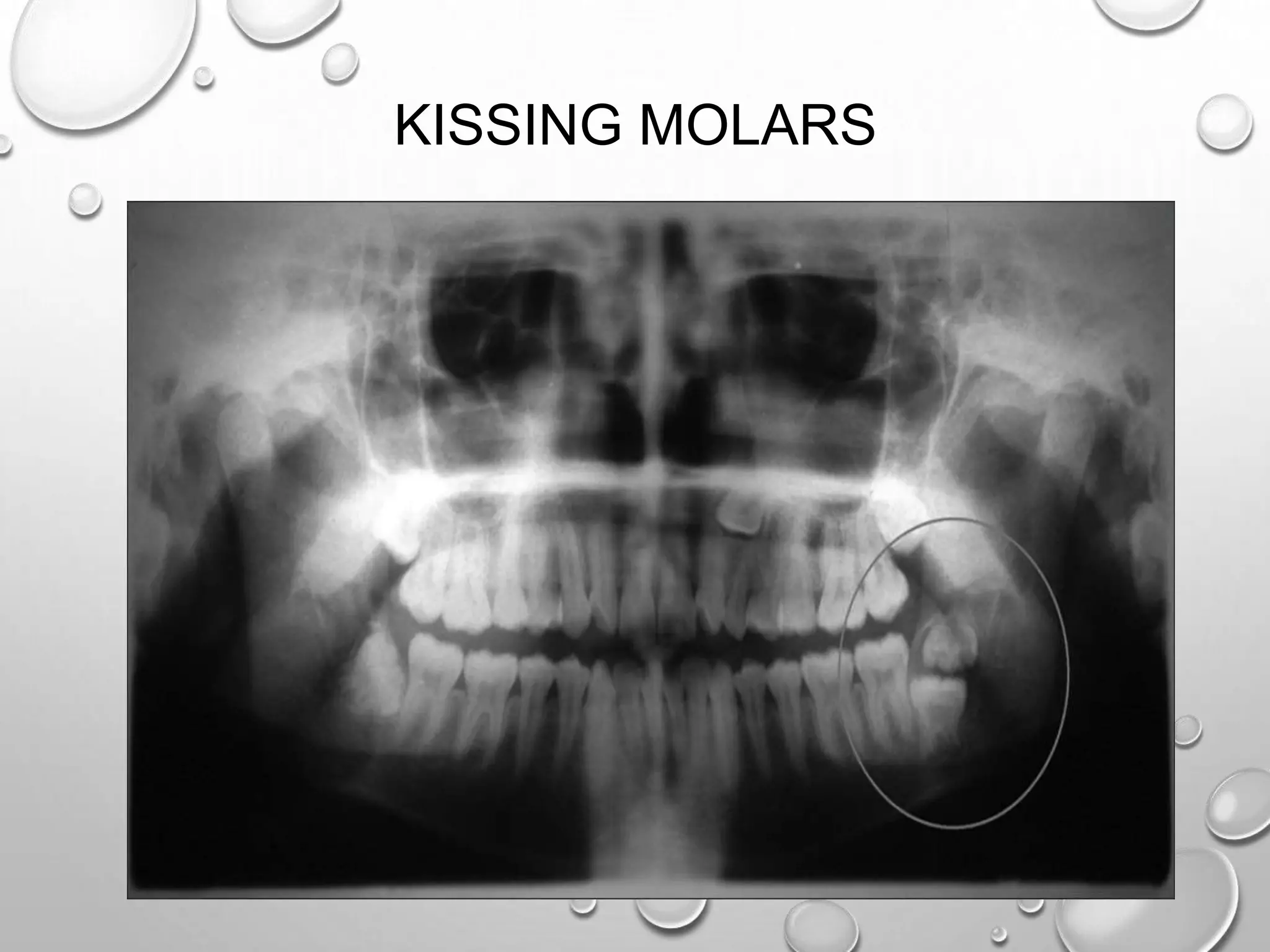

19. KISSING MOLARS

20. OPG SHOWING MANDIBULAR THIRD
MOLAR FUSED WITH SUPERNUMERARY
TOOTH

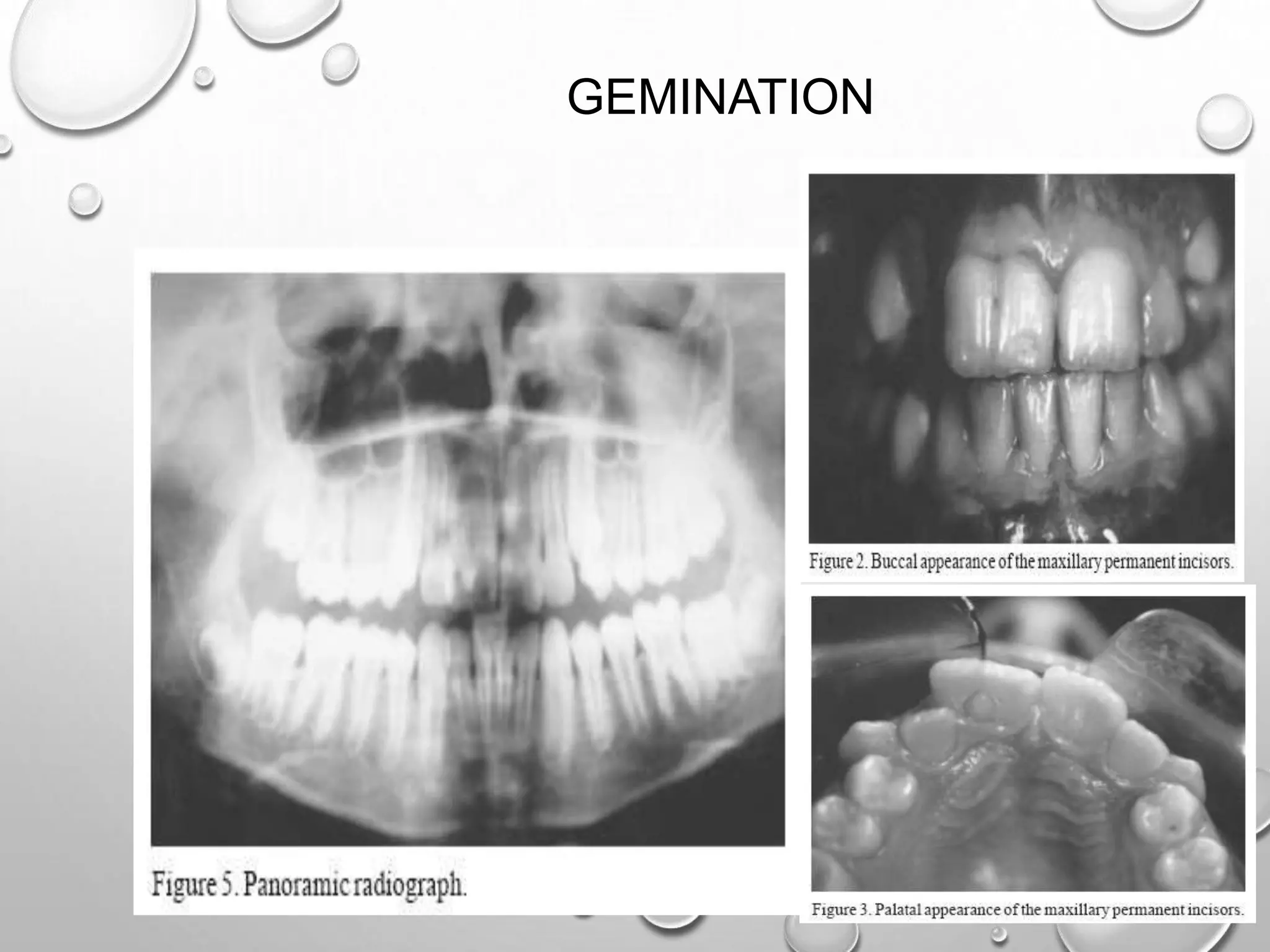

21. GEMINATION

22. BILATERAL TRANSPOSITION OF THE
MAXILLARY CANINES AND FIRST
PREMOLARS

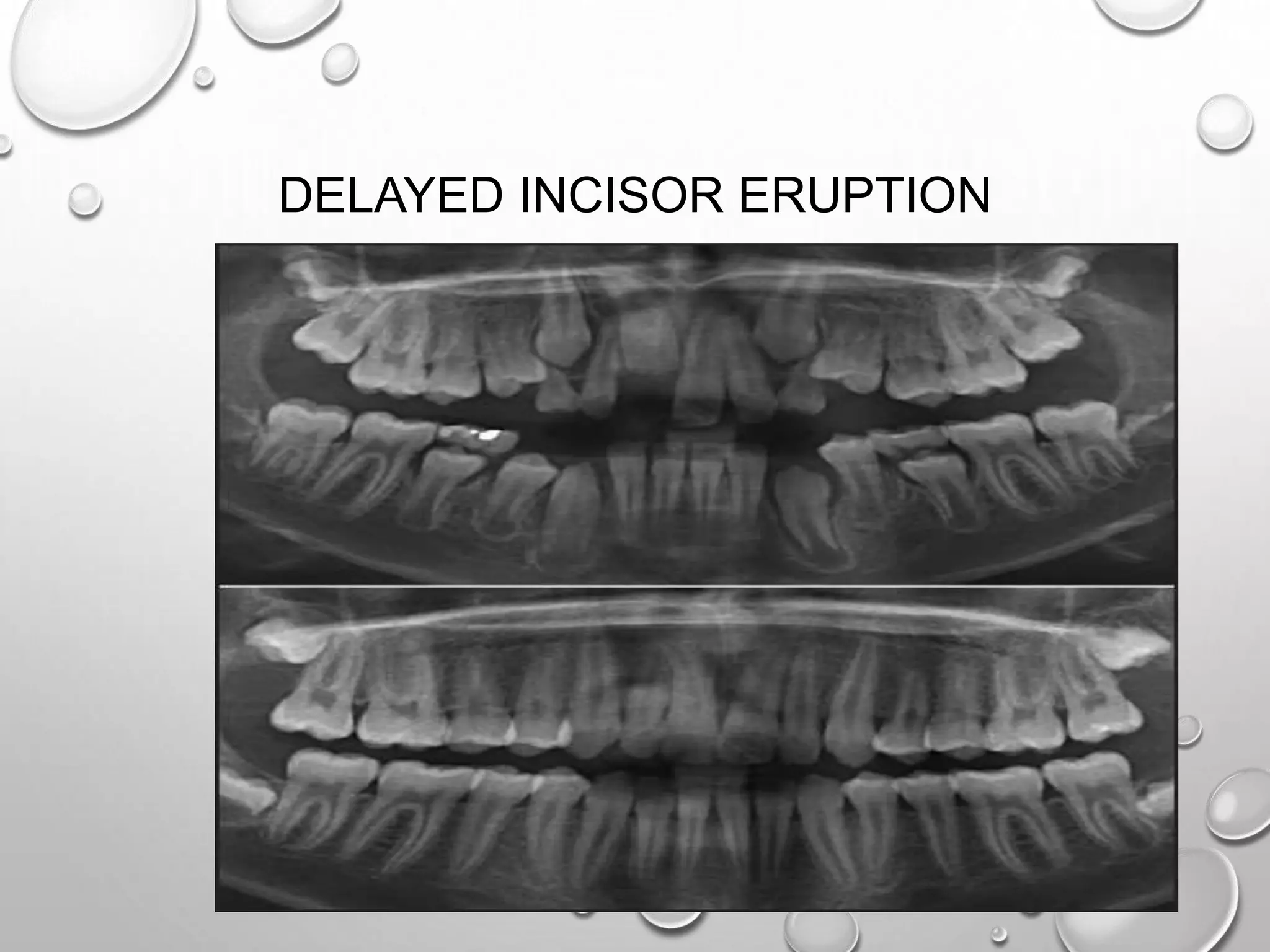

23. DELAYED INCISOR ERUPTION

24. PANORAMIC X-RAY ON THIS NINE YEAR OLD
REVEALS CONGENITALLY MISSING ADULT PRE-
MOLAR. YOU CAN SEE ON THE LEFT OF THE
SCREEN THERE IS NO TOOTH BUD FORMING AS
COMPARED TO THE SAME AREA ON THE RIGHT SIDE

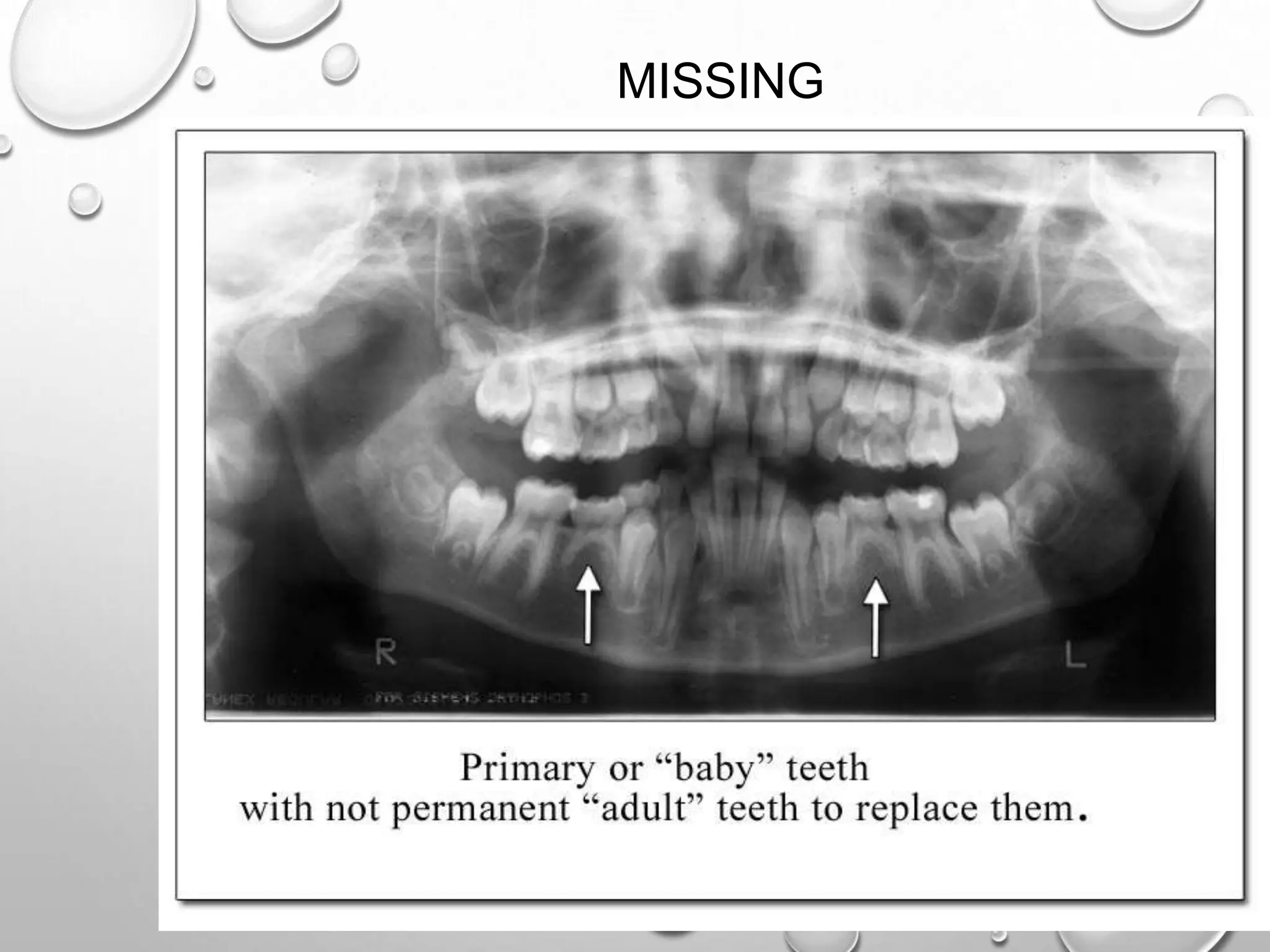

25. MISSING

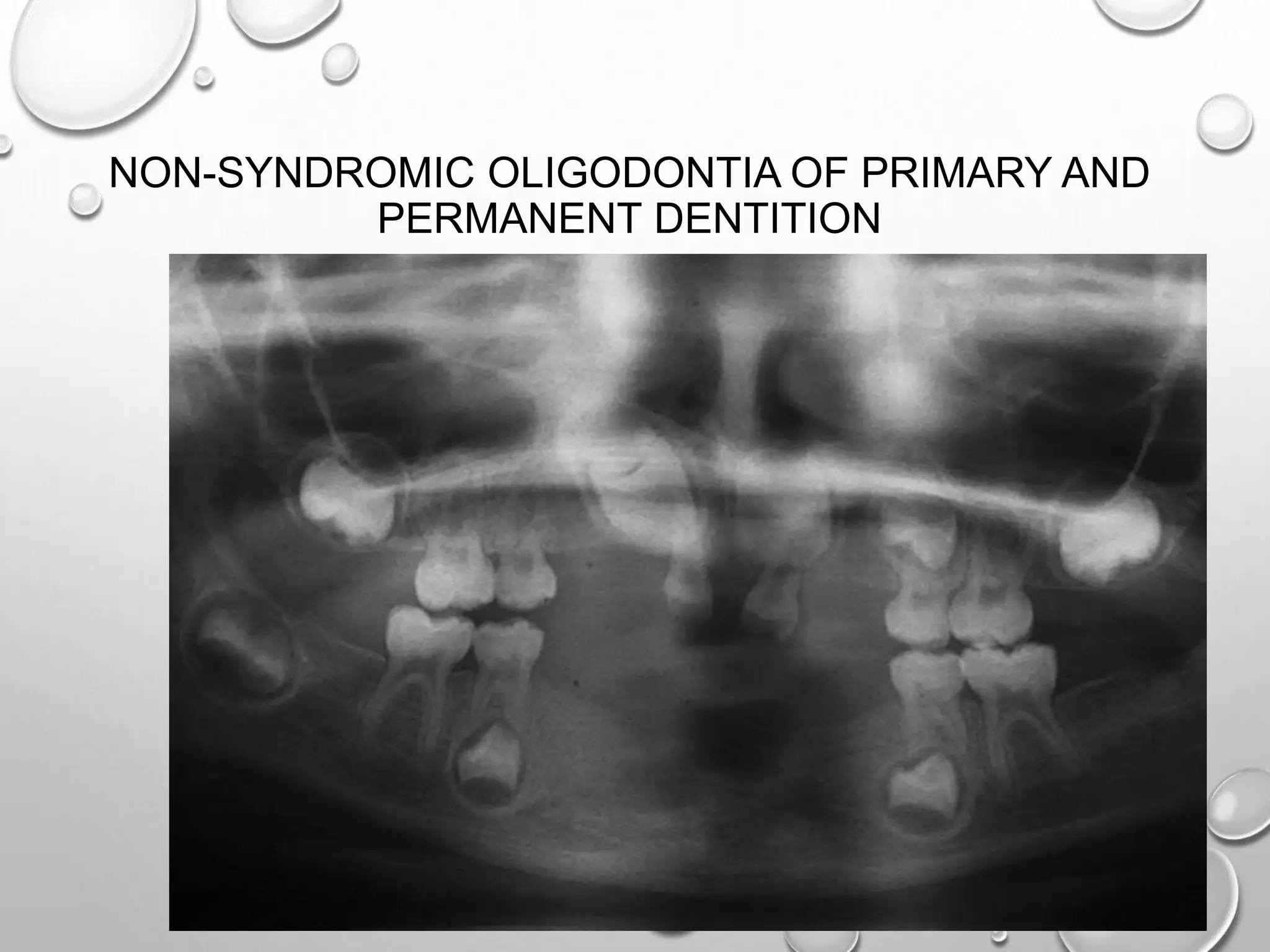

26. NON-SYNDROMIC OLIGODONTIA OF PRIMARY AND
PERMANENT DENTITION

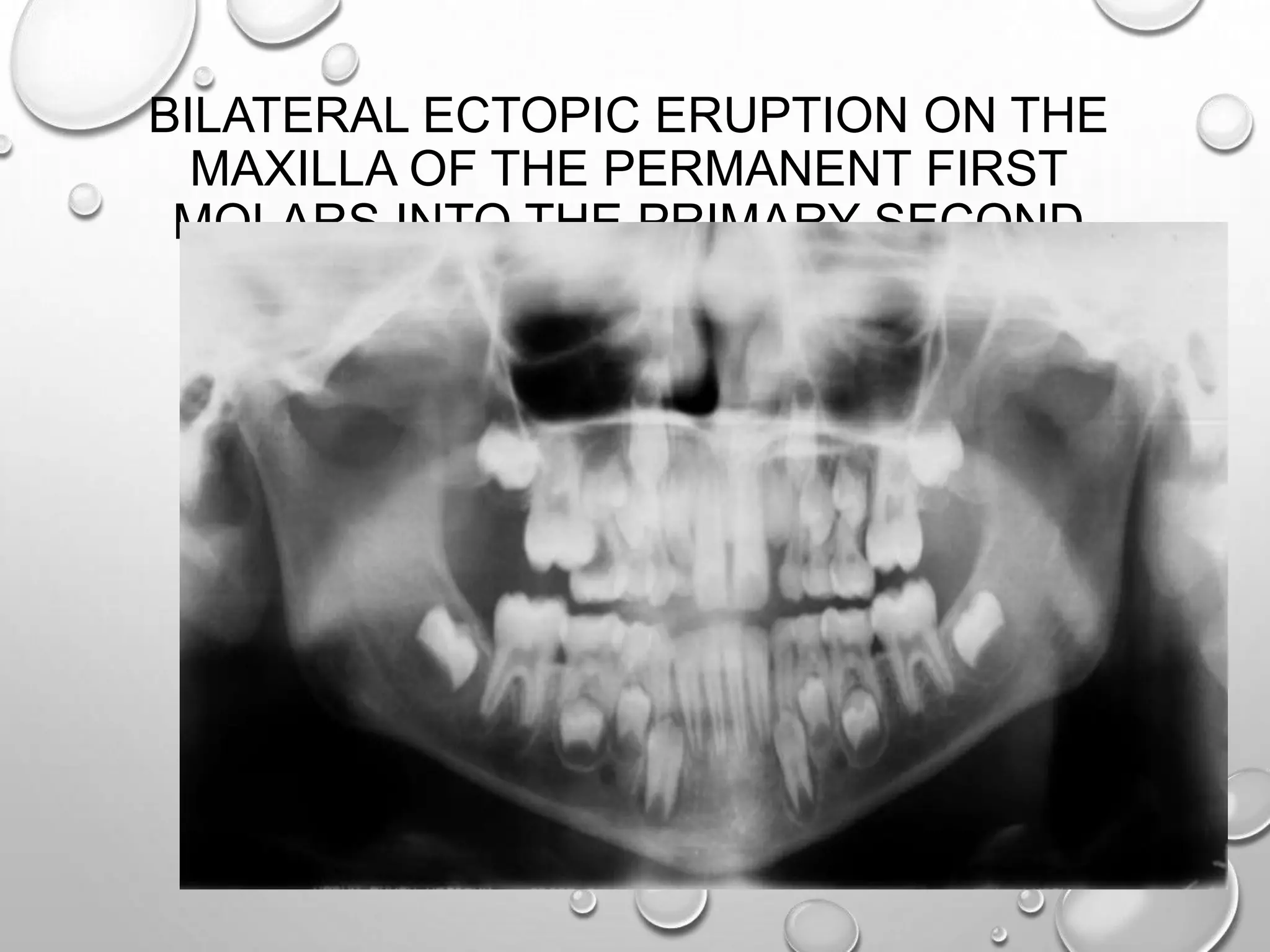

27. BILATERAL ECTOPIC ERUPTION ON THE
MAXILLA OF THE PERMANENT FIRST
MOLARS INTO THE PRIMARY SECOND
MOLARS

28. ANKYLOSIS

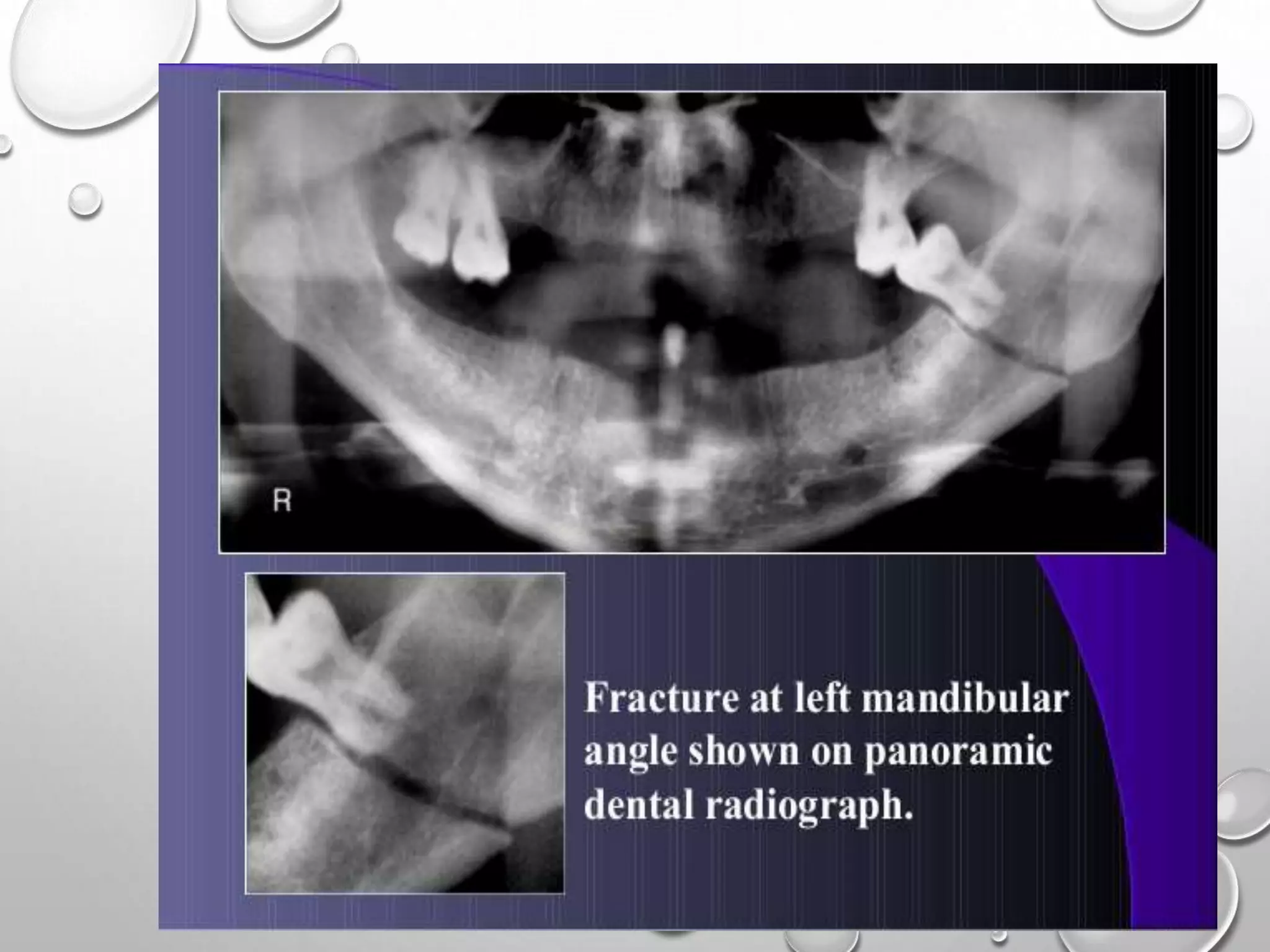

30. FRACTURES

31. MANDIBULAR FRACTURE

32. PANORAMIC IMAGE SHOWS SOFT PALATE (THICK WHITE ARROW),
SUBCONDYLAR FRACTURE (THICK BLACK ARROW), SPINE OF
SPHENOID BONE (THIN BLACK ARROW), AND PHARYNGEAL WALL
(THIN WHITE ARROW).

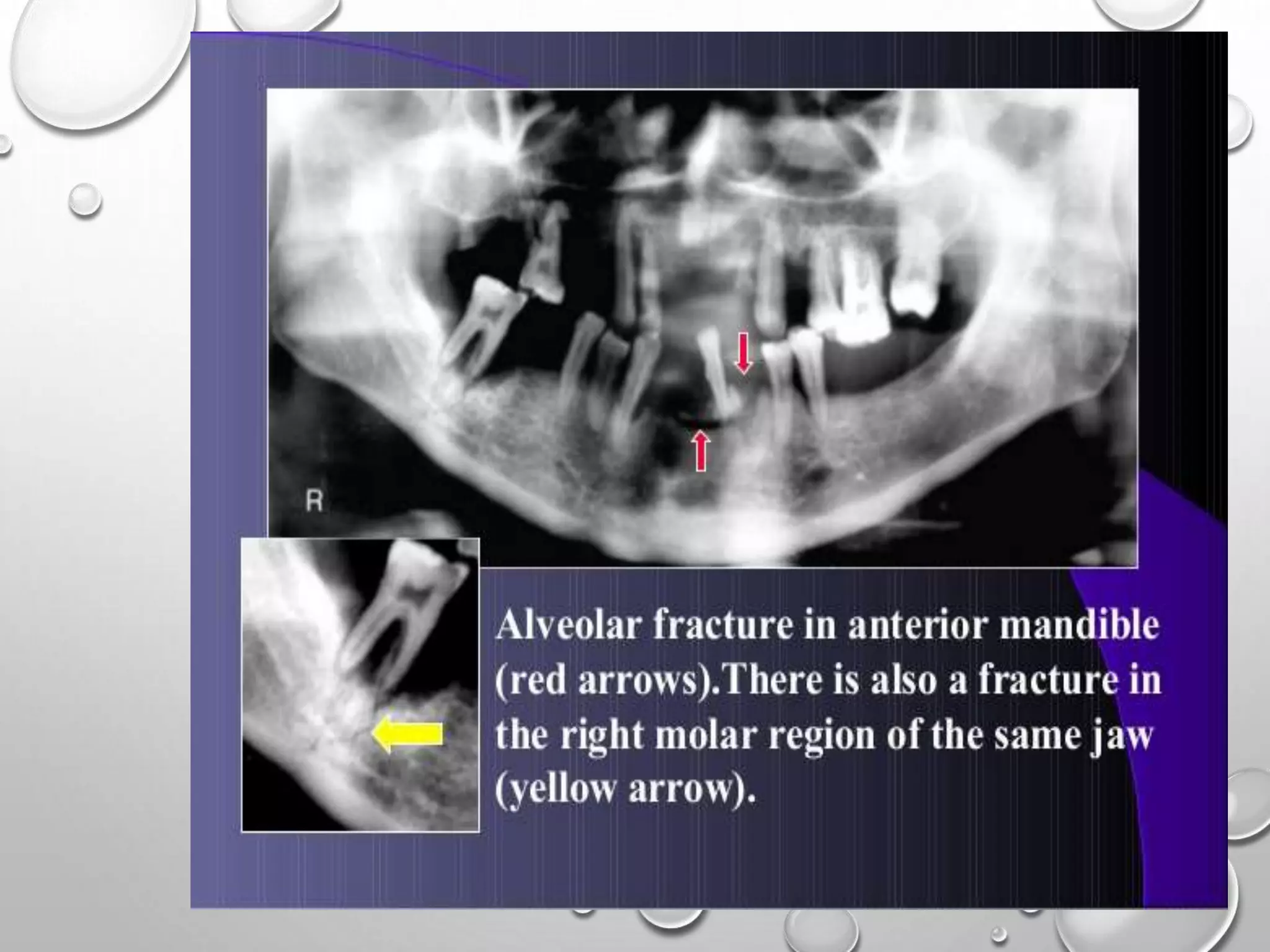

33. ALVEOLAR FRACTURE INANTERIOR
MAXILLA

34. PANORAMIC TOMOGRAM OF FIXATION OF
SUBCONDYLAR FRACTURE

41. ROOT RESORPTION

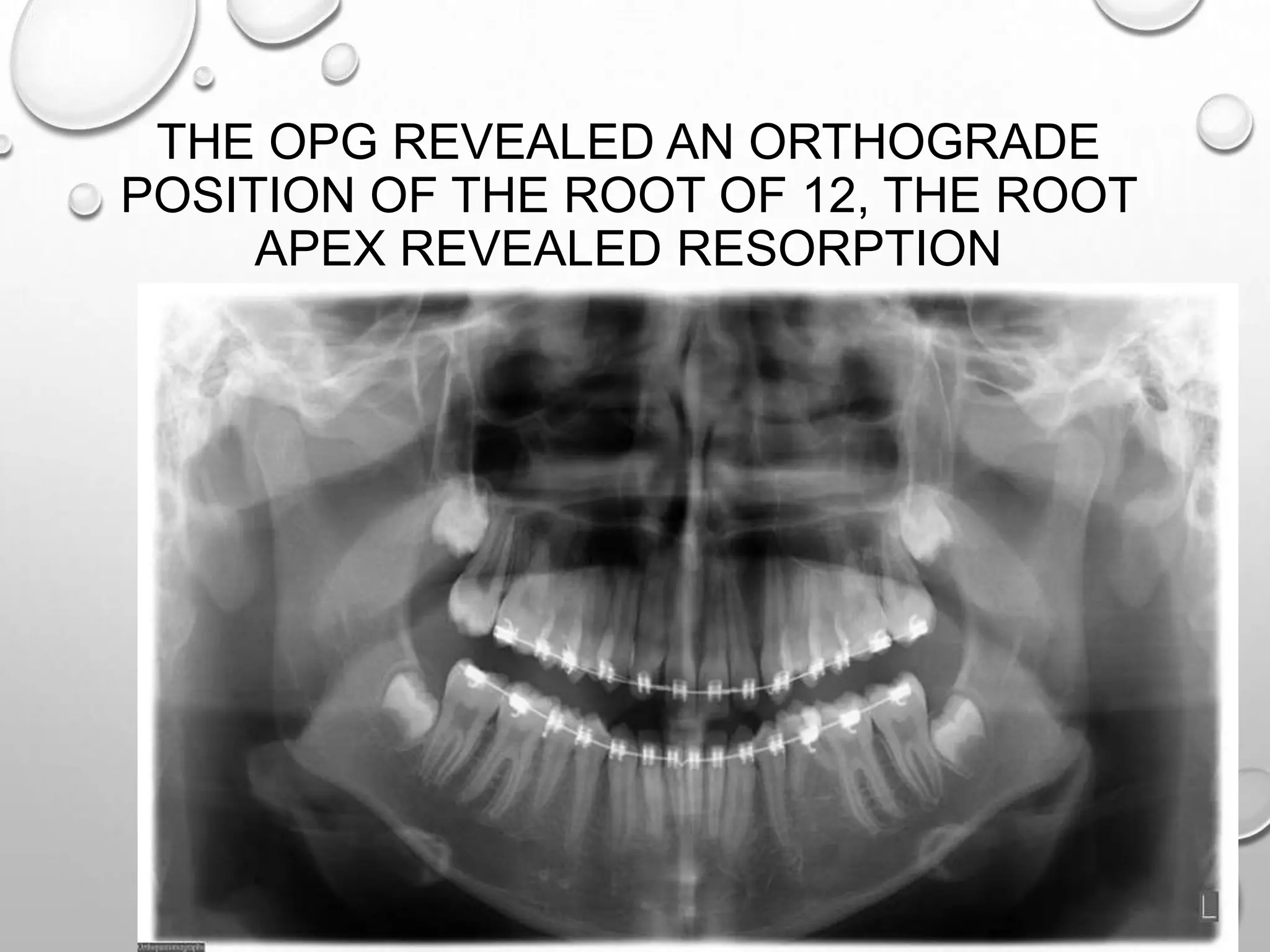

42. THE OPG REVEALED AN ORTHOGRADE
POSITION OF THE ROOT OF 12, THE ROOT
APEX REVEALED RESORPTION

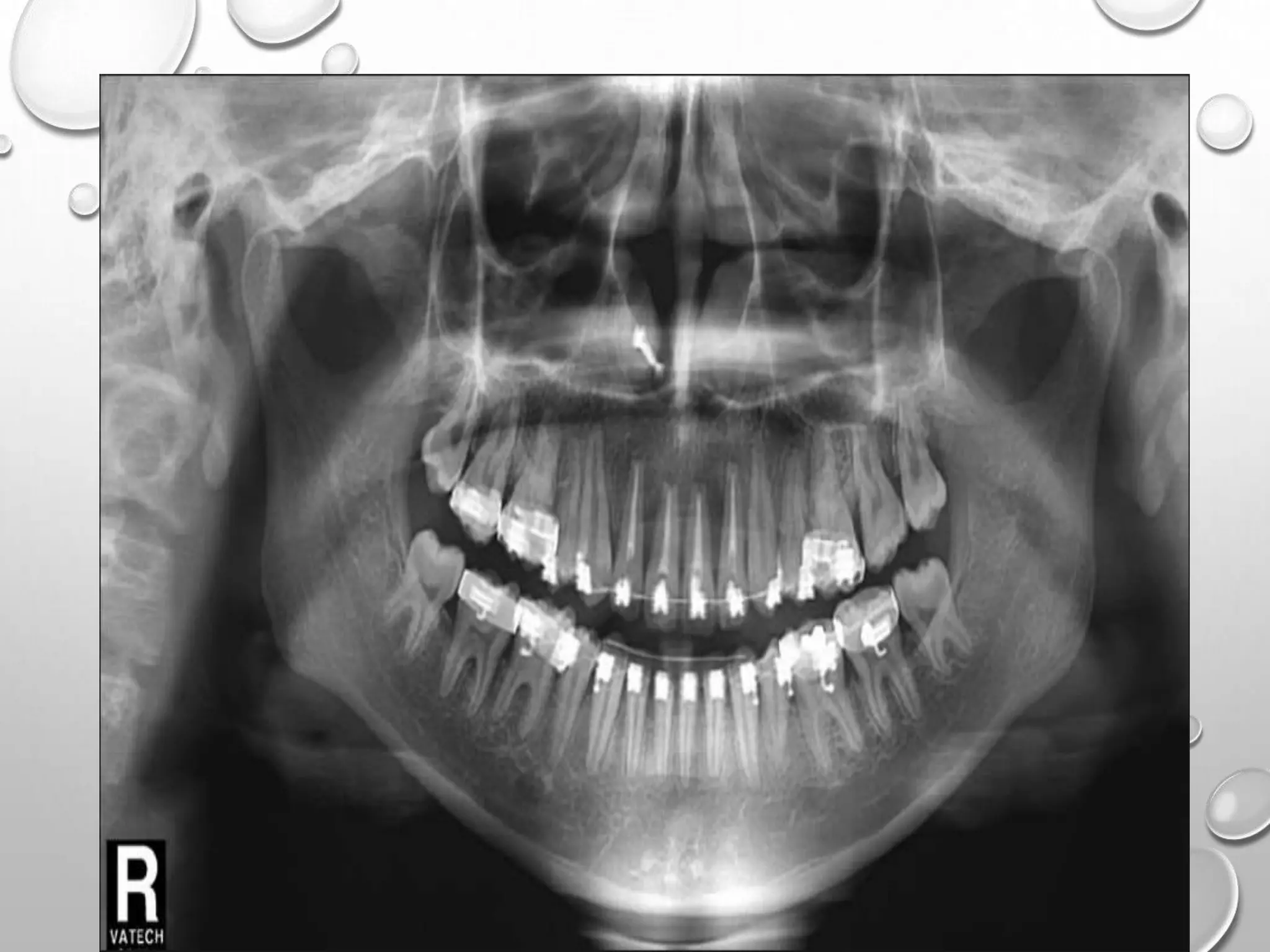

44. OTHERS

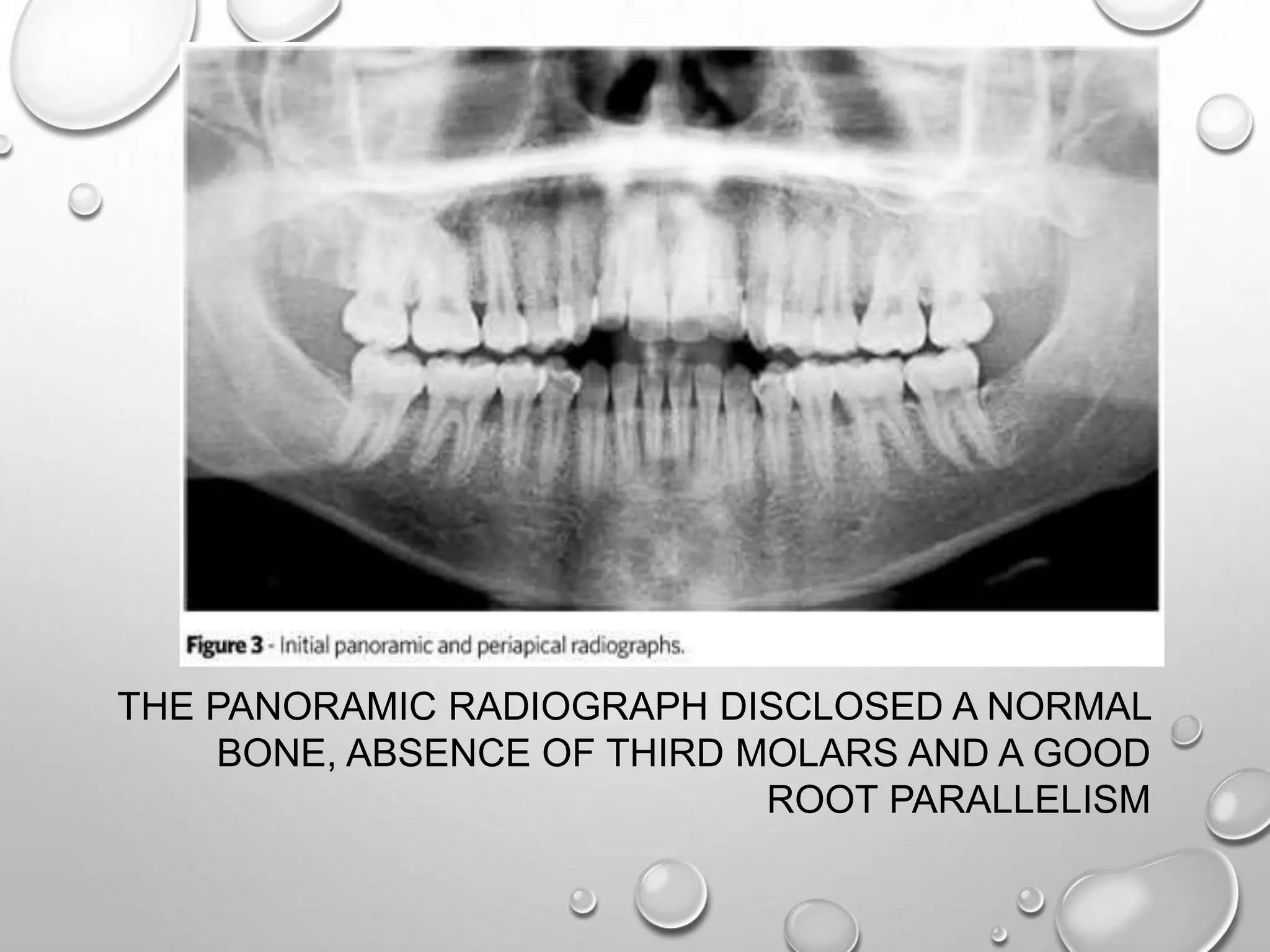

45. THE PANORAMIC RADIOGRAPH DISCLOSED A NORMAL
BONE, ABSENCE OF THIRD MOLARS AND A GOOD
ROOT PARALLELISM

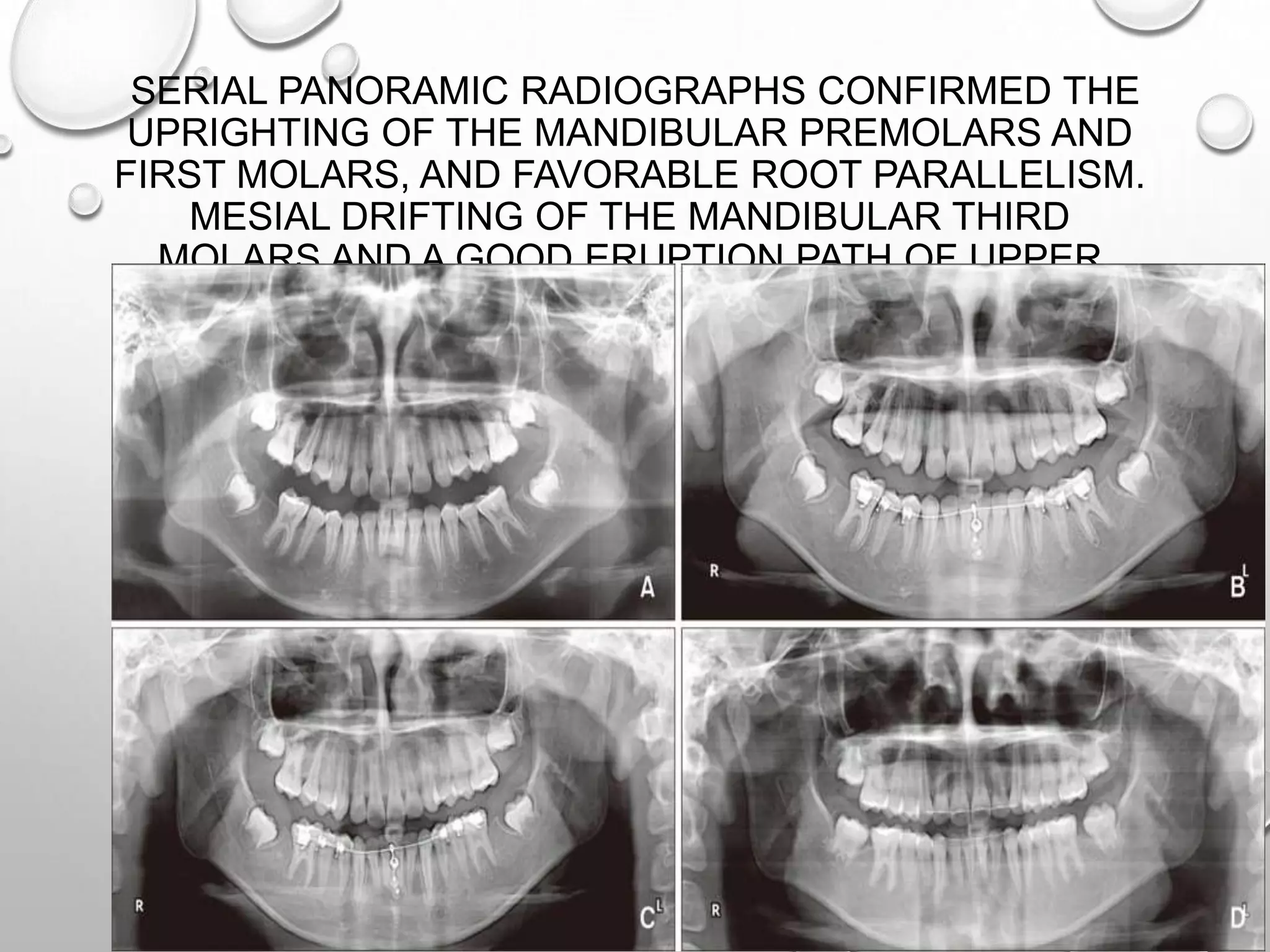

46. SERIAL PANORAMIC RADIOGRAPHS CONFIRMED THE
UPRIGHTING OF THE MANDIBULAR PREMOLARS AND
FIRST MOLARS, AND FAVORABLE ROOT PARALLELISM.
MESIAL DRIFTING OF THE MANDIBULAR THIRD
MOLARS AND A GOOD ERUPTION PATH OF UPPER
THIRD MOLARS

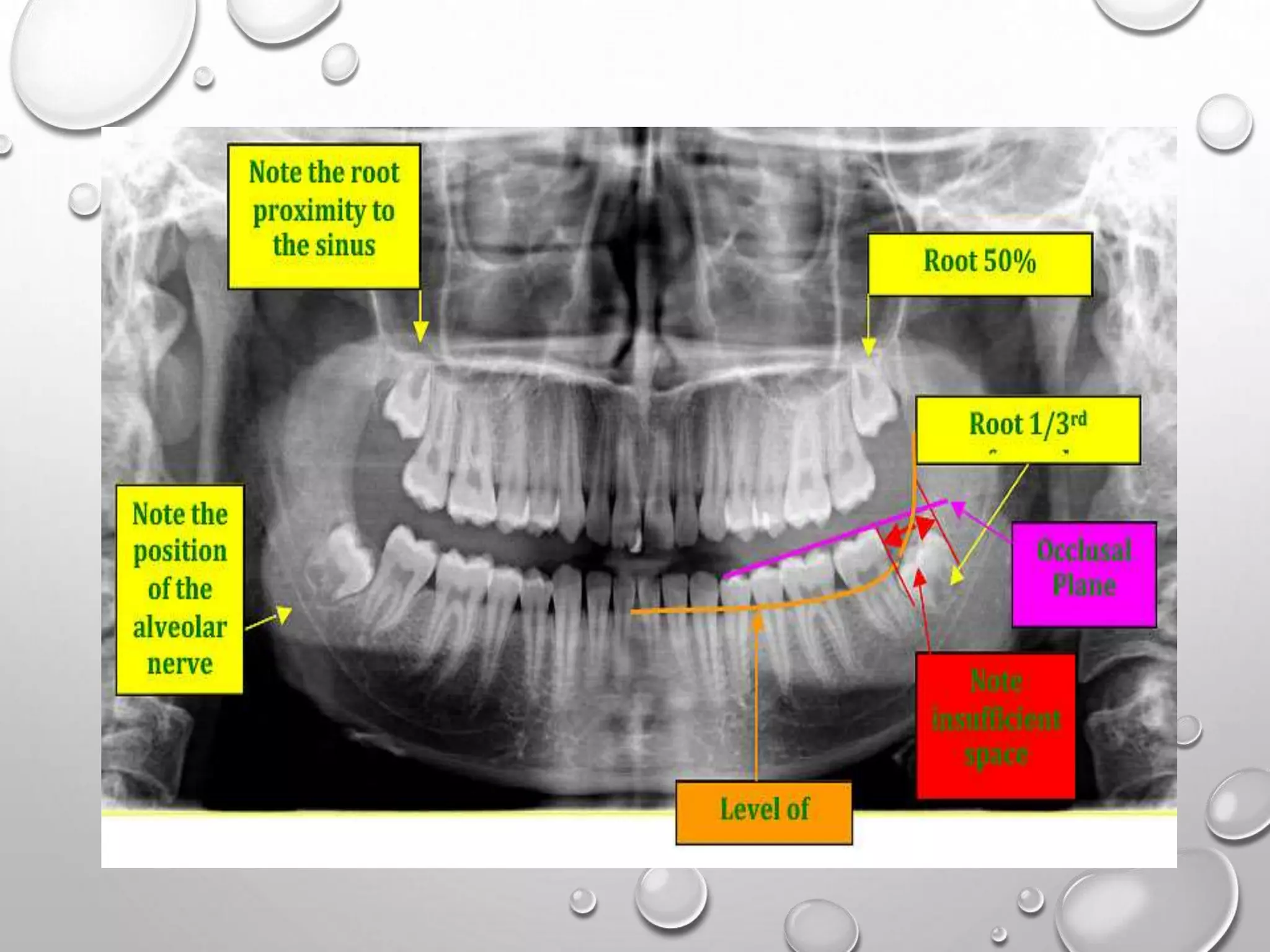

48. MICRODONTIA IN RELATION TO RIGHT
LATERAL INCISOR TOOTH
