1. APIs: The Gateway to Digital
Transformation
Nuwan Dias
Director - WSO2
February 22, 2018

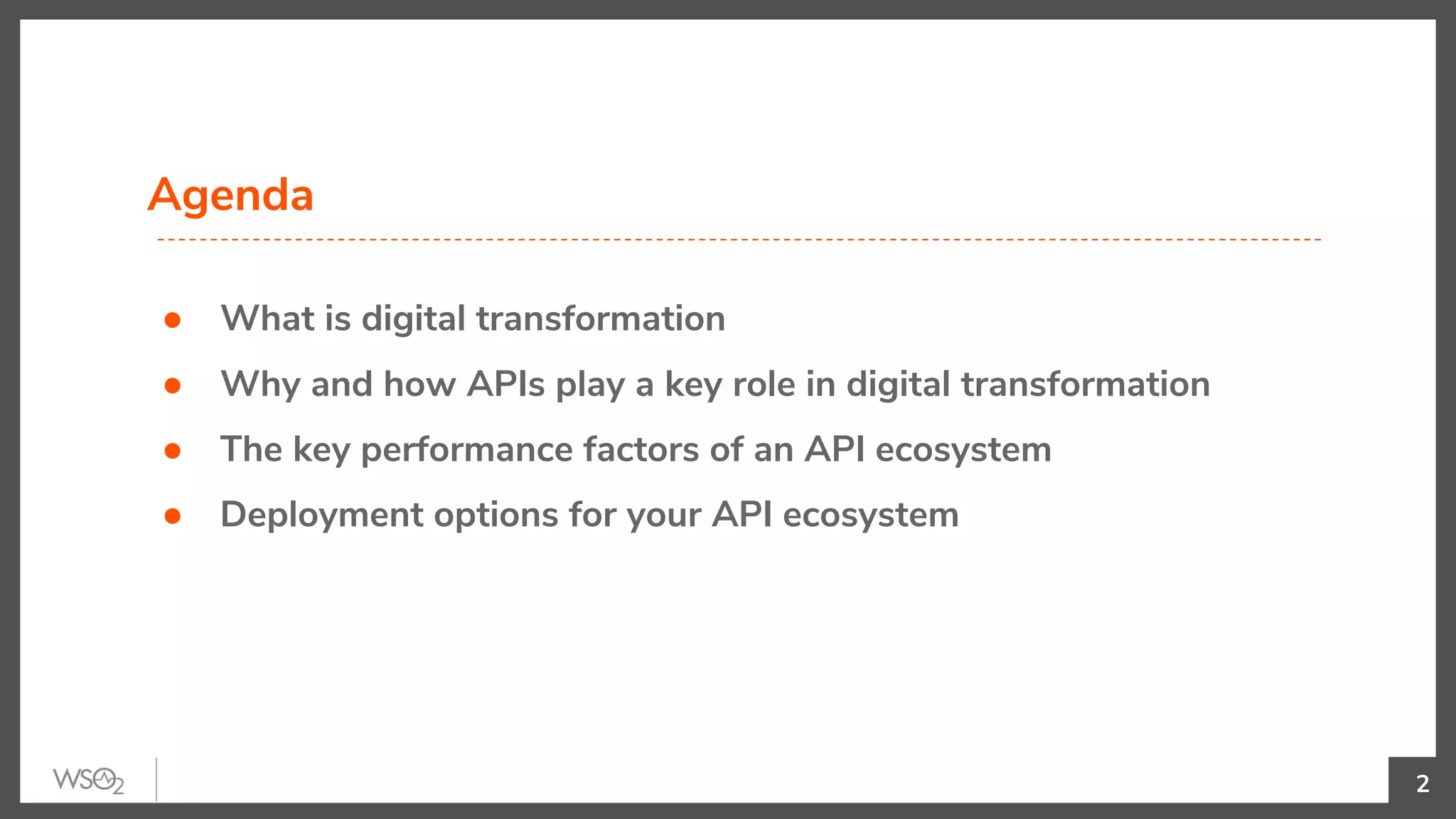

2. Agenda
● What is digital transformation
● Why and how APIs play a key role in digital transformation
● The key performance factors of an API ecosystem
● Deployment options for your API ecosystem
2

3. Digital
transformation is all
about creating a
“Digital Experience”
for your customers

4. It’s not just about
becoming “Paperless”

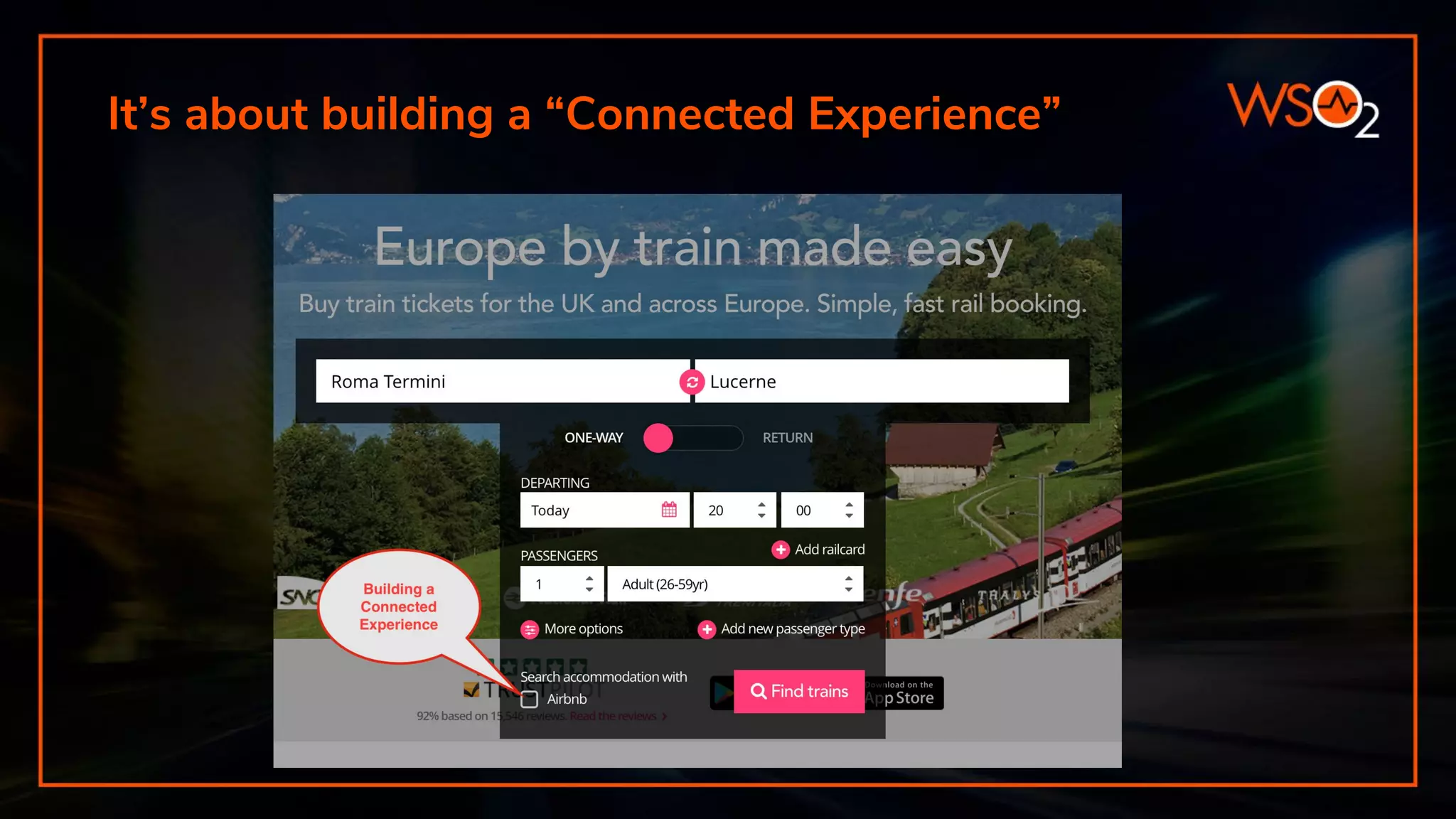

5. It’s about building a “Connected Experience”

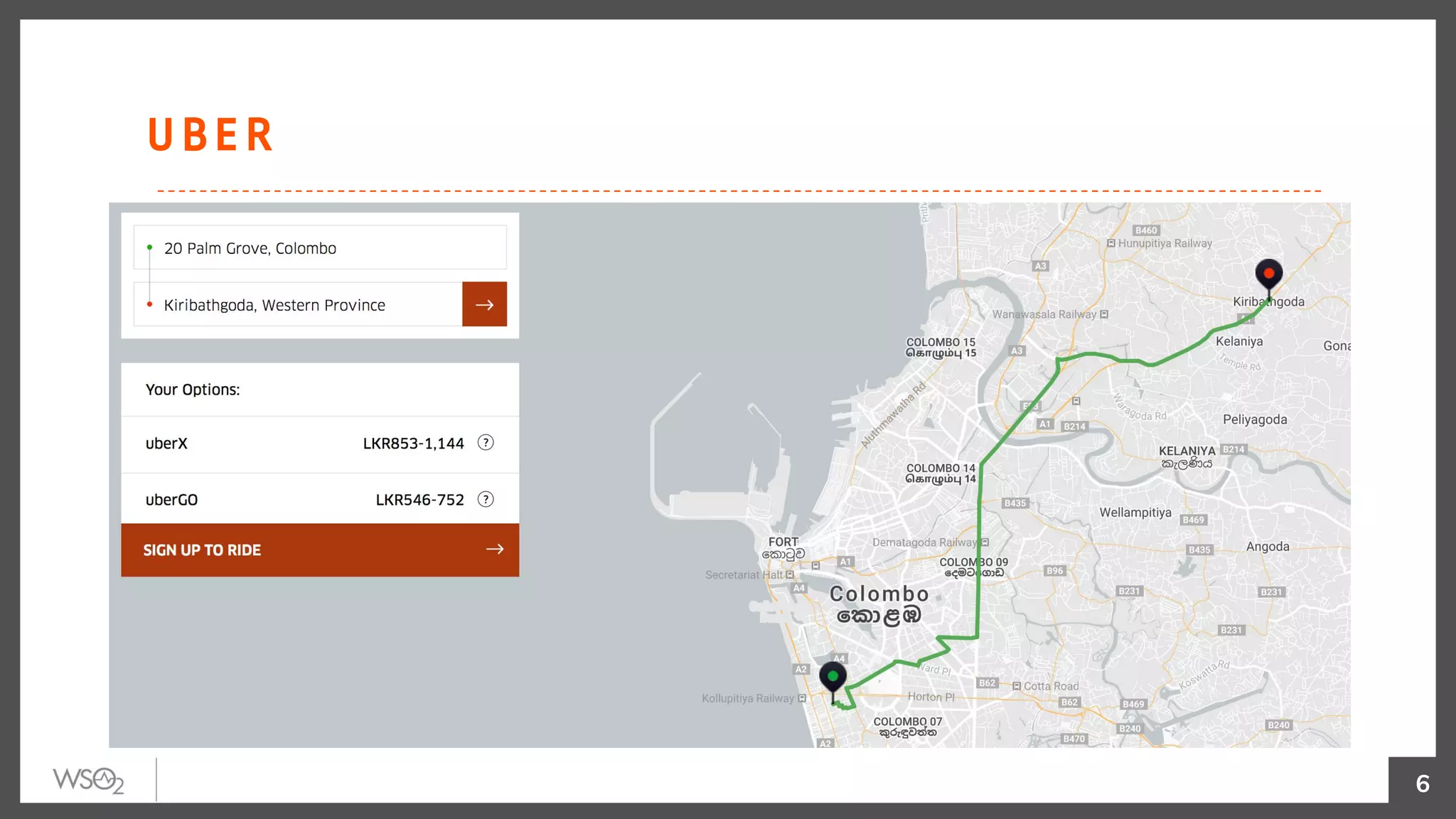

6. U B E R
6
Add Diagram

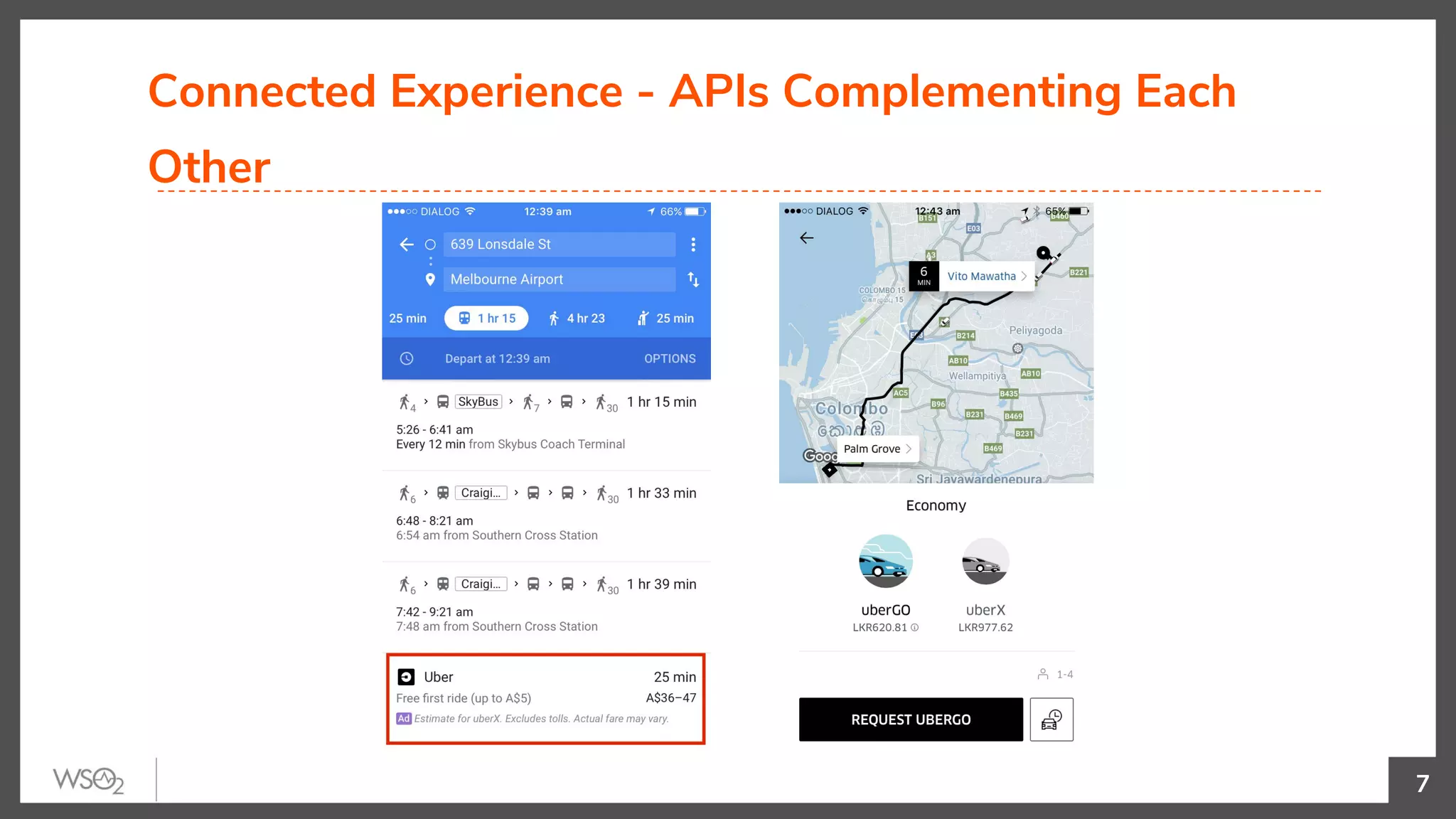

7. Connected Experience - APIs Complementing Each
Other
7

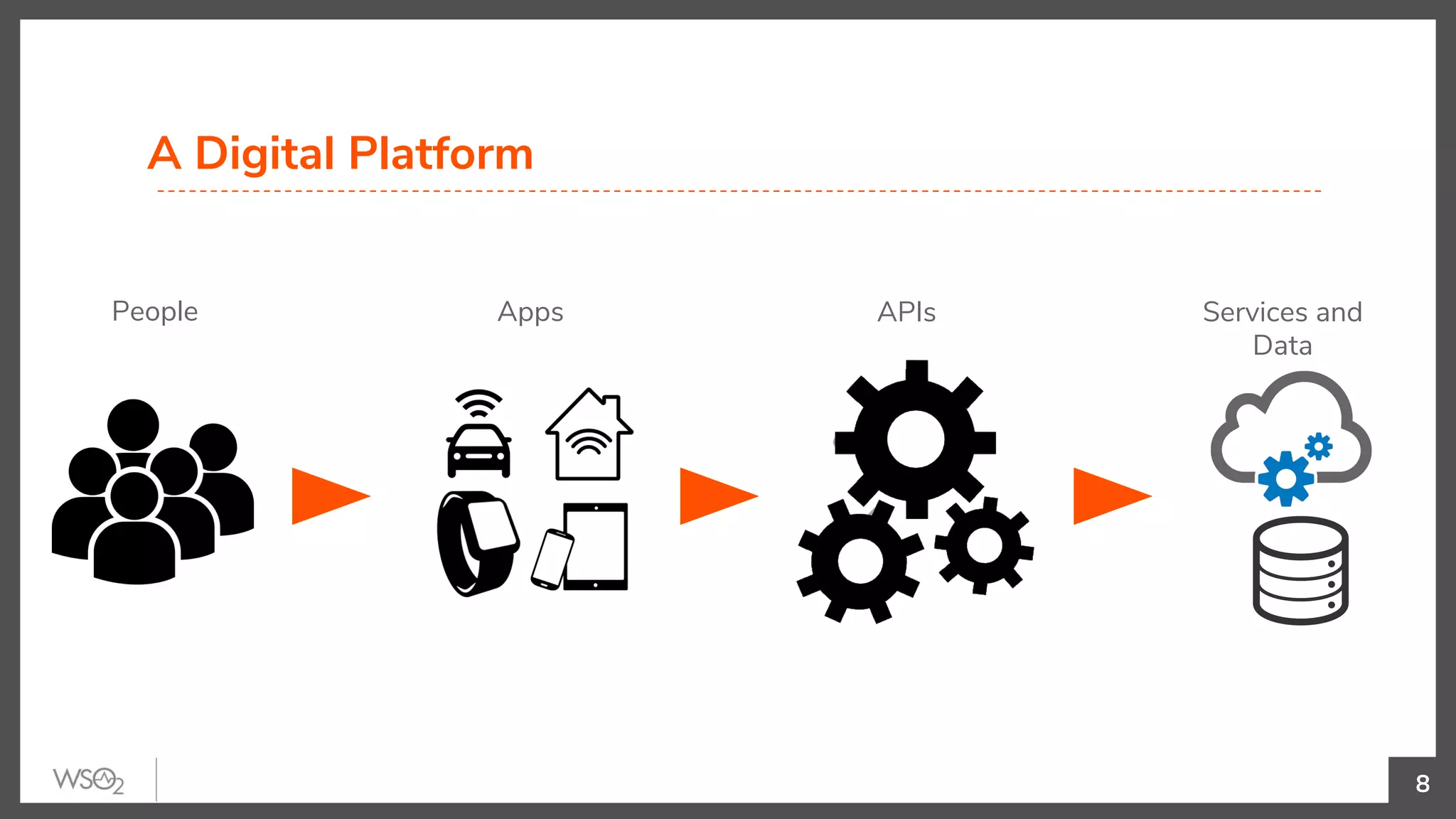

8. A Digital Platform
8
People Apps APIs Services and
Data

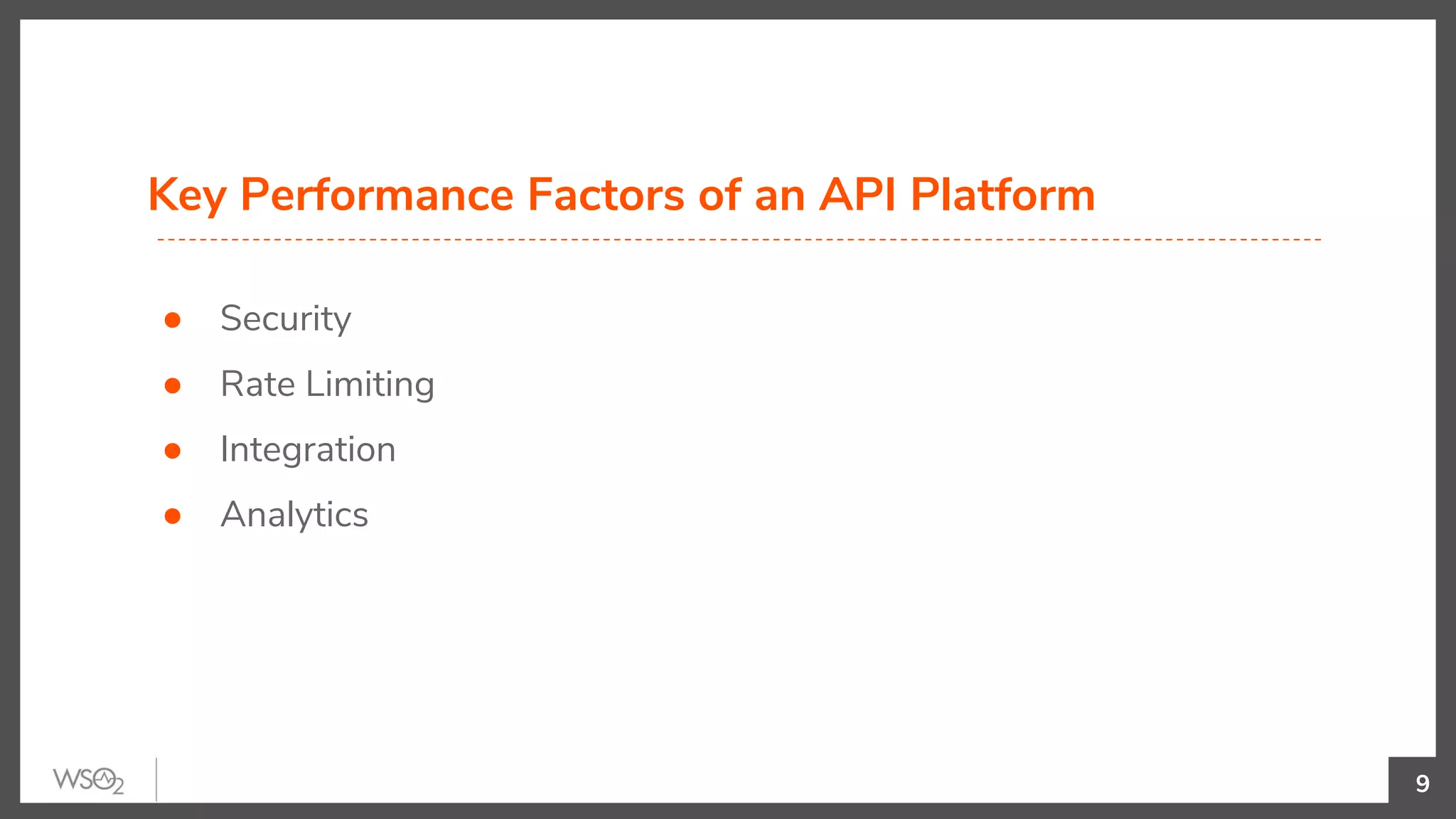

9. Key Performance Factors of an API Platform
● Security
● Rate Limiting
● Integration
● Analytics
9

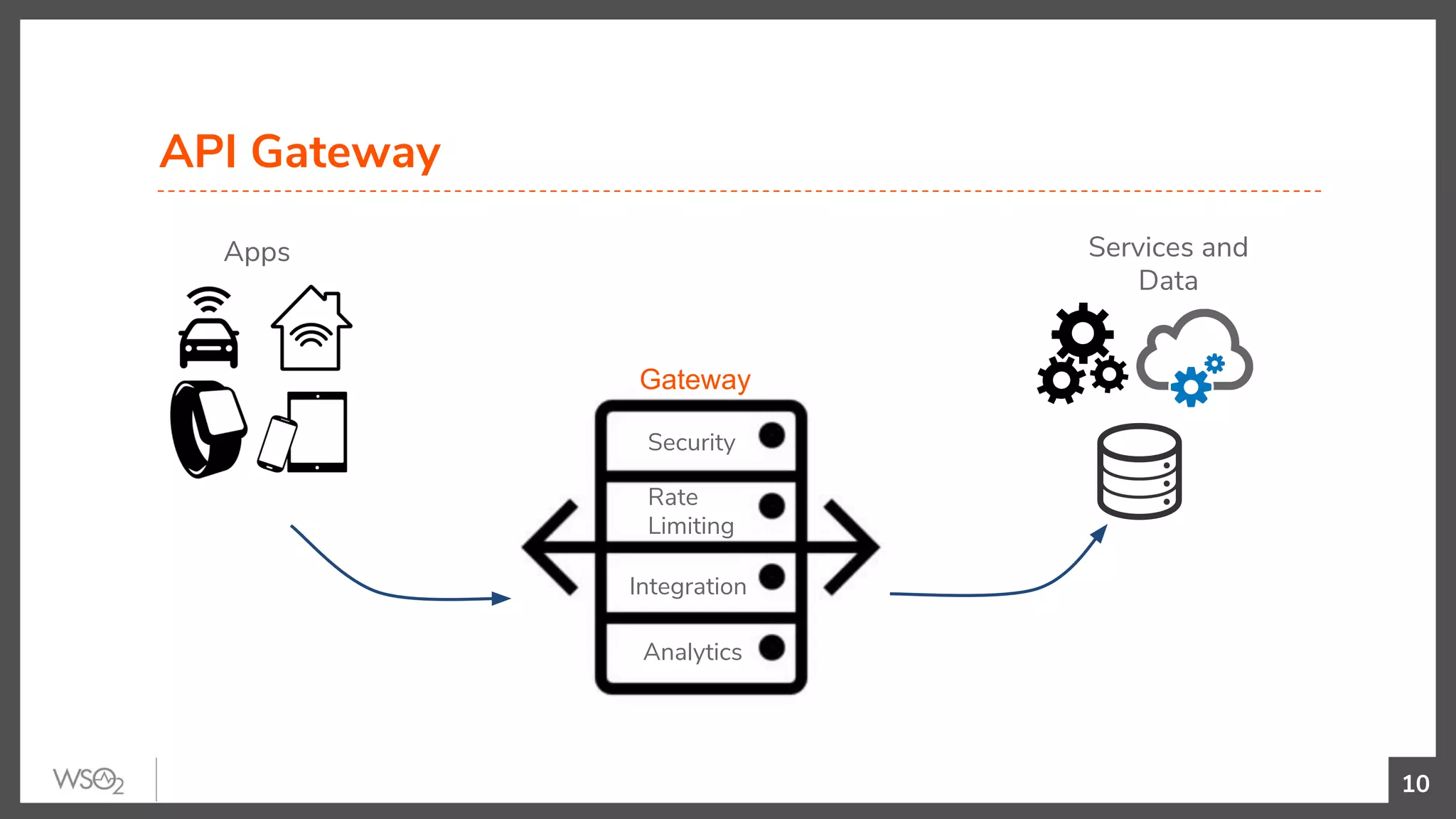

10. 10
10
Security
Rate
Limiting
Integration
Analytics
Gateway
Apps Services and
Data
API Gateway

11. 11

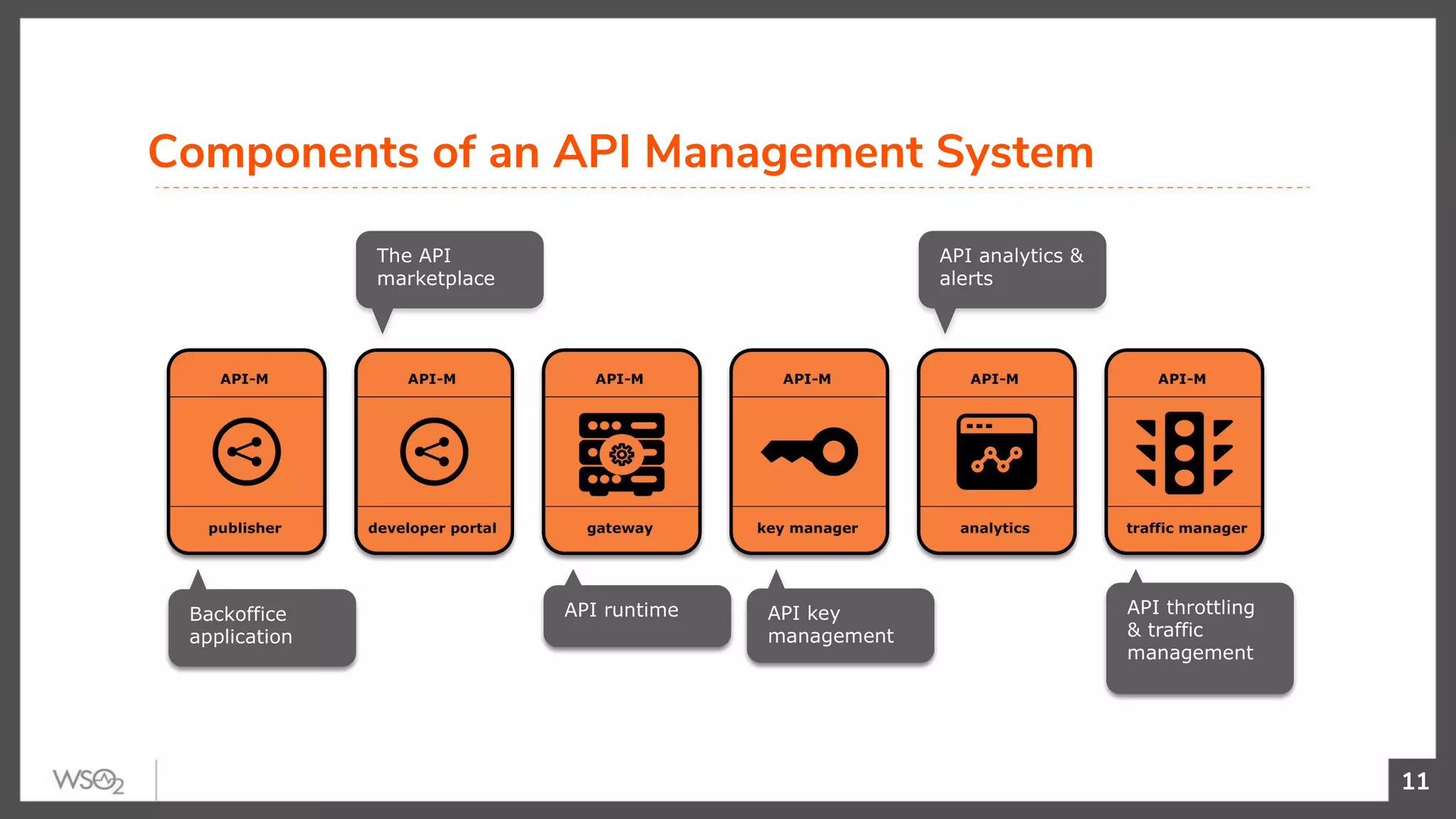

Components of an API Management System

12. 12

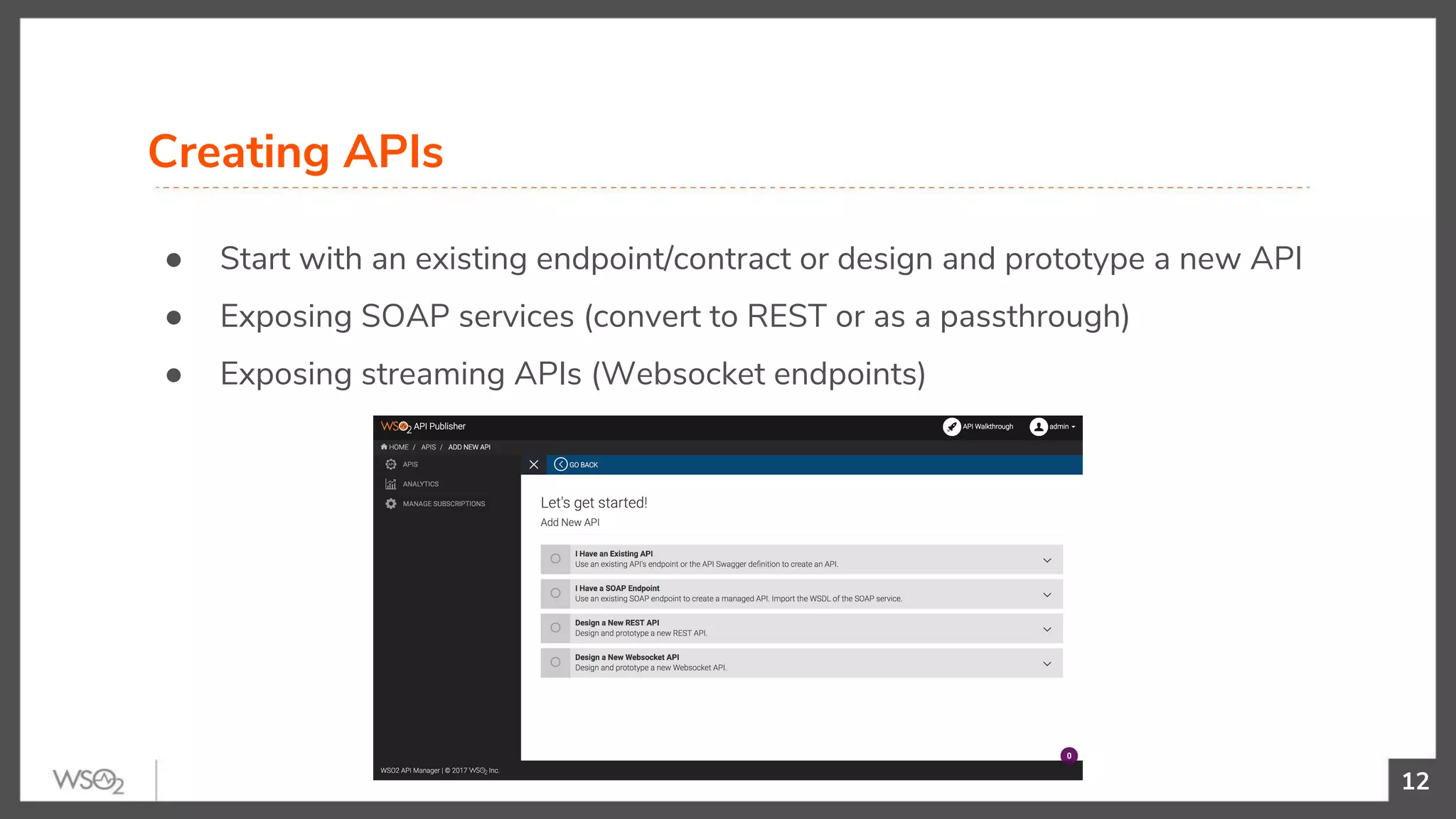

● Start with an existing endpoint/contract or design and prototype a new API
● Exposing SOAP services (convert to REST or as a passthrough)
● Exposing streaming APIs (Websocket endpoints)
Creating APIs

13. 13

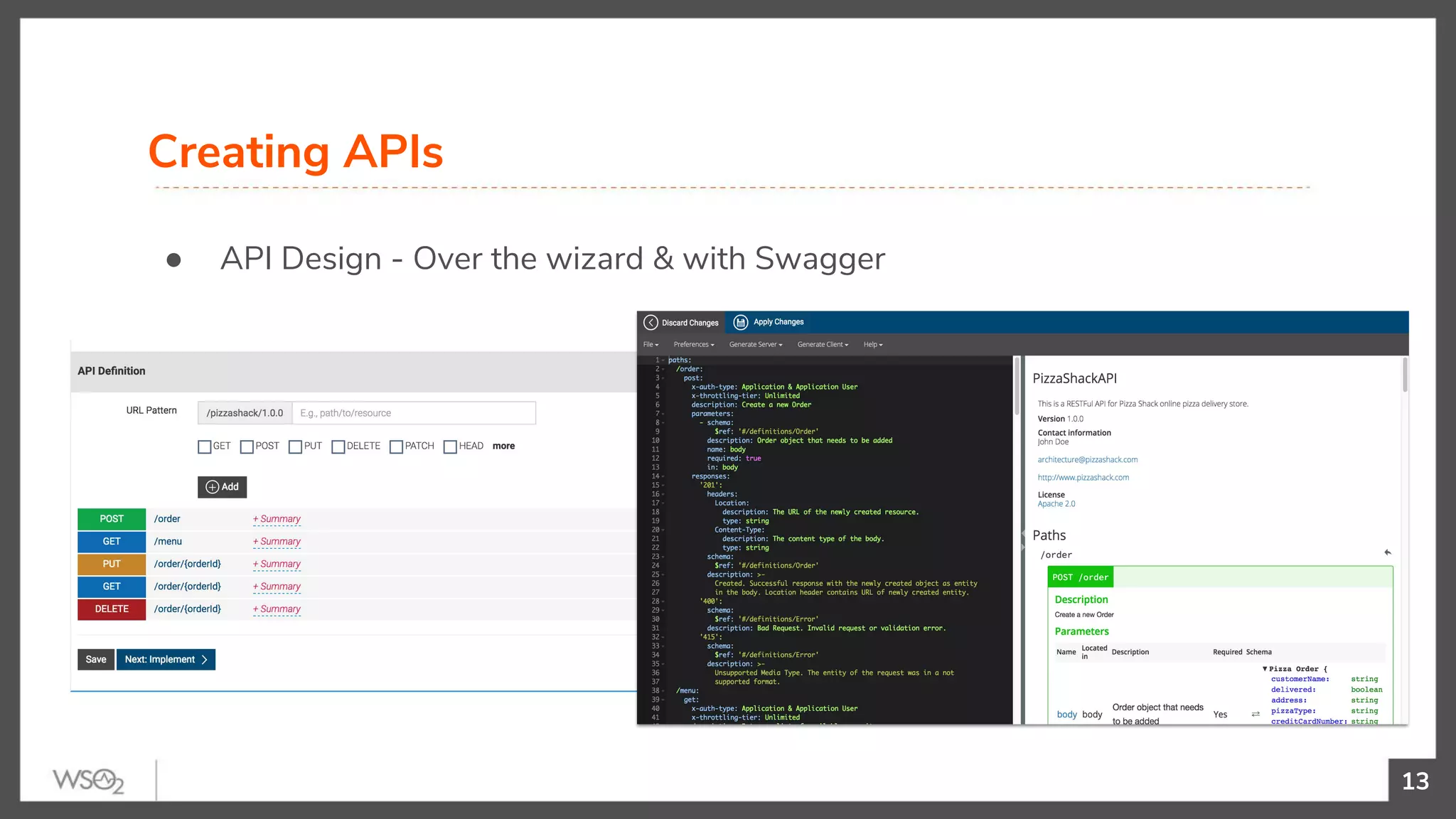

● API Design - Over the wizard & with Swagger
Creating APIs

14. 14

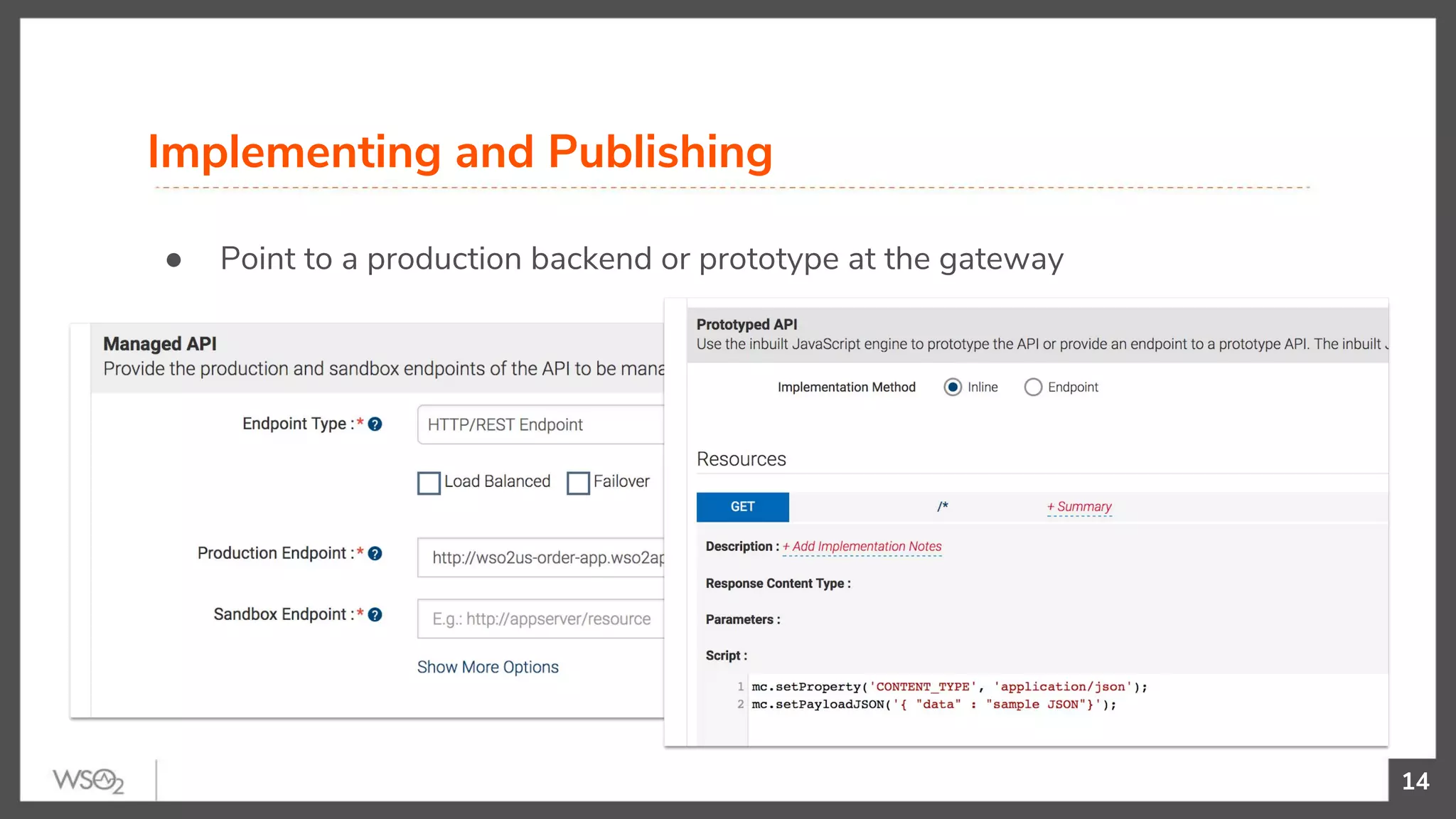

● Point to a production backend or prototype at the gateway
Implementing and Publishing

15. 15

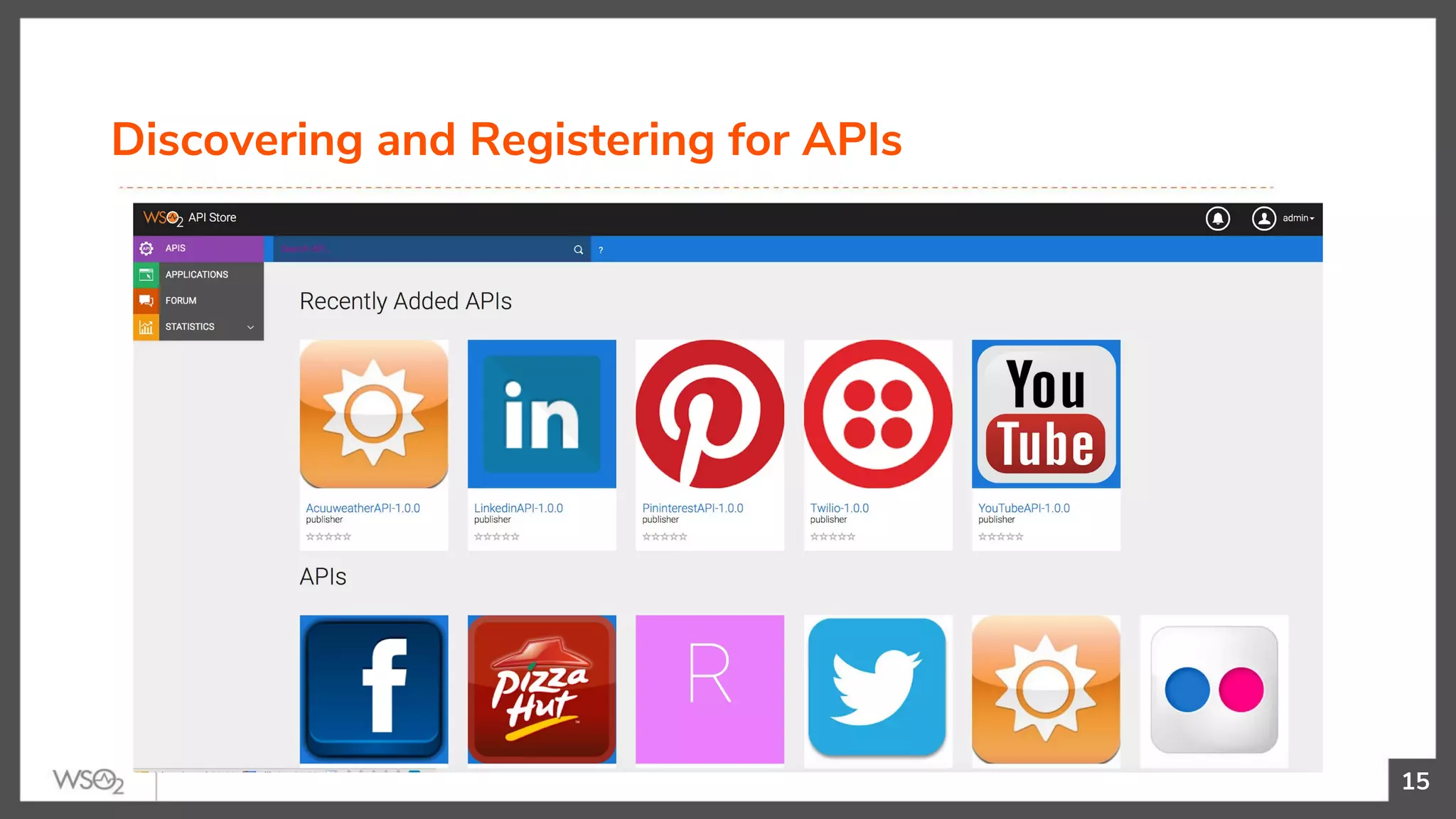

Discovering and Registering for APIs

16. 16

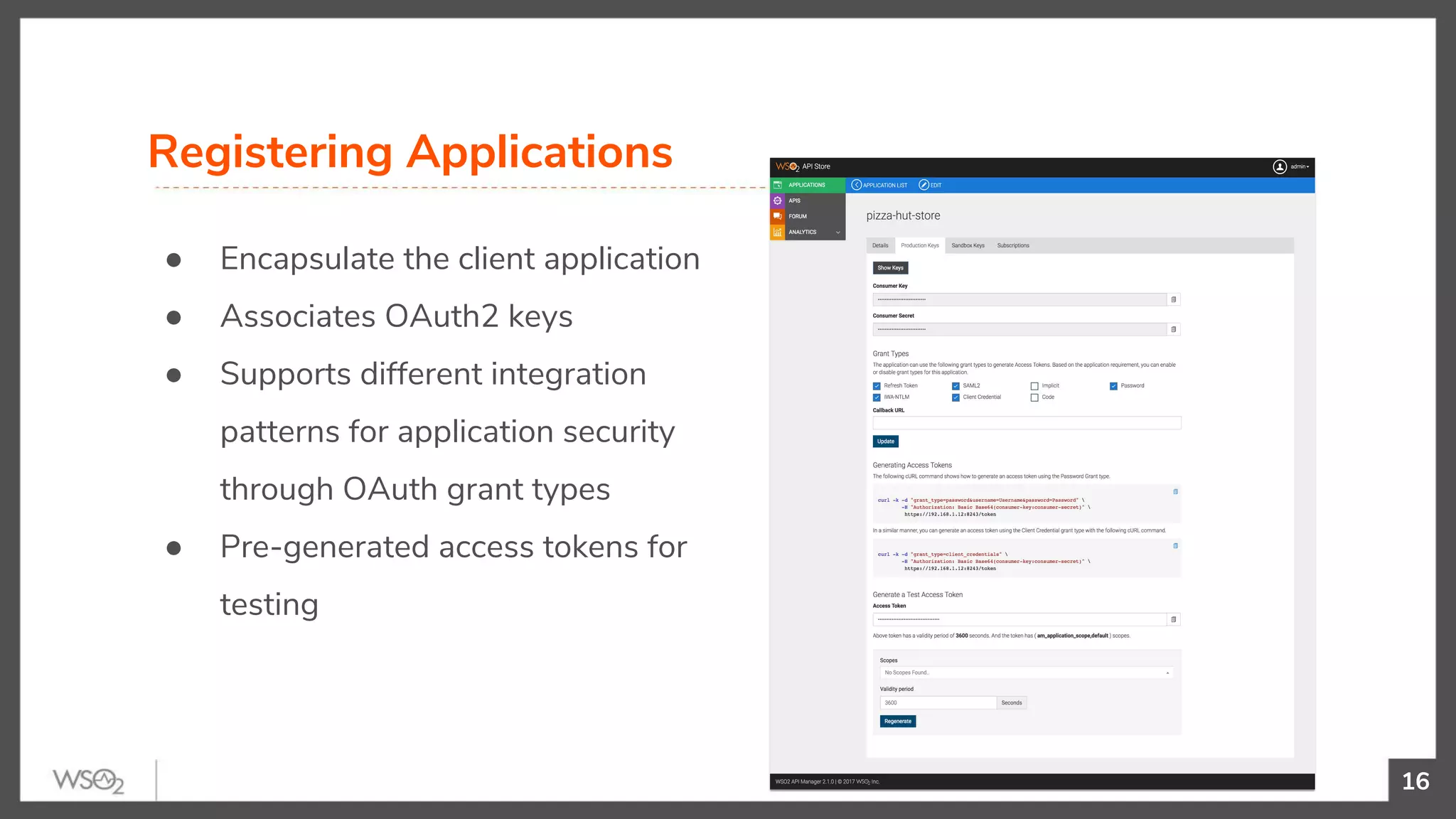

● Encapsulate the client application
● Associates OAuth2 keys
● Supports different integration
patterns for application security
through OAuth grant types
● Pre-generated access tokens for
testing
Registering Applications

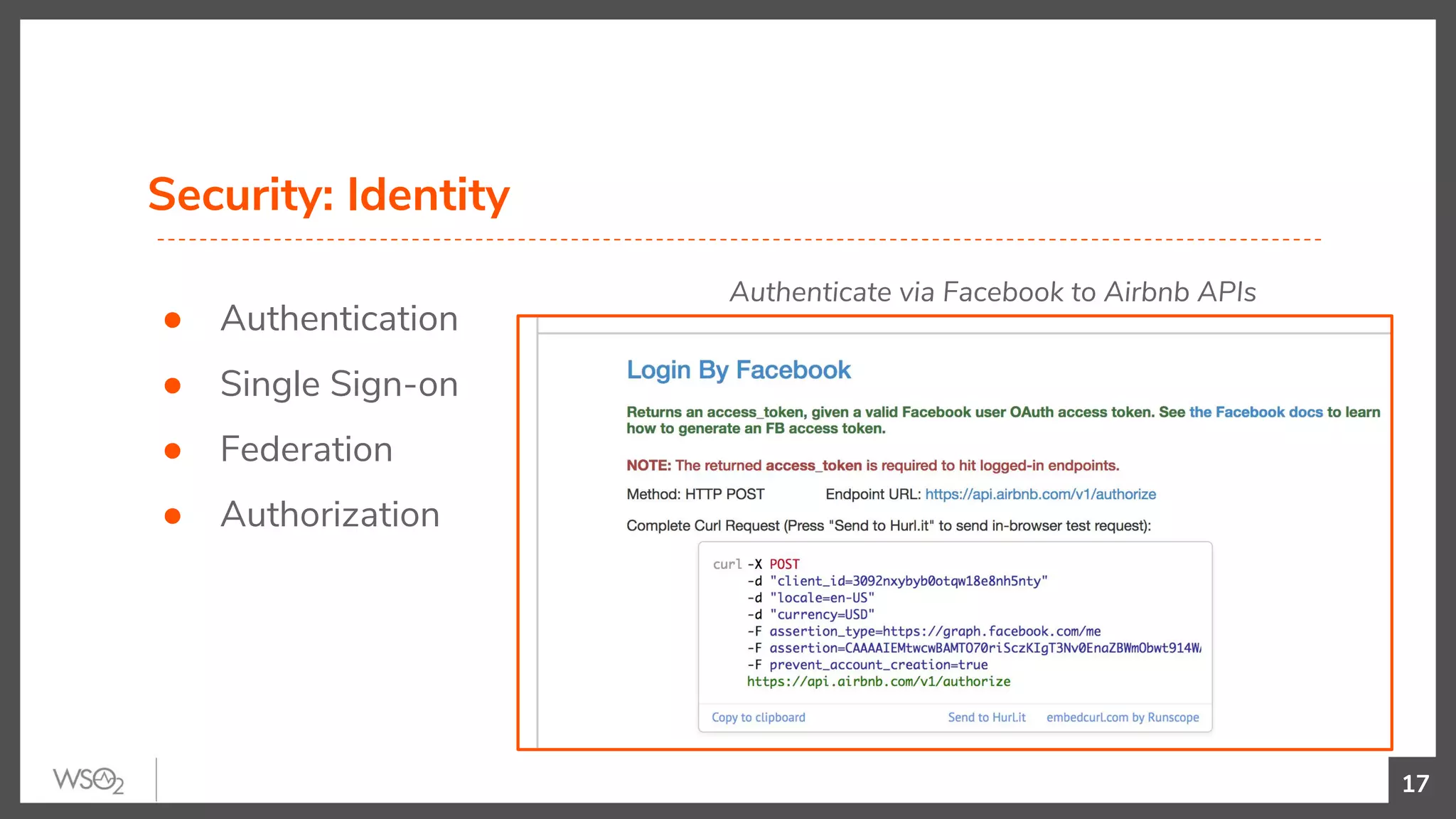

17. Security: Identity
● Authentication
● Single Sign-on
● Federation
● Authorization
17
Authenticate via Facebook to Airbnb APIs

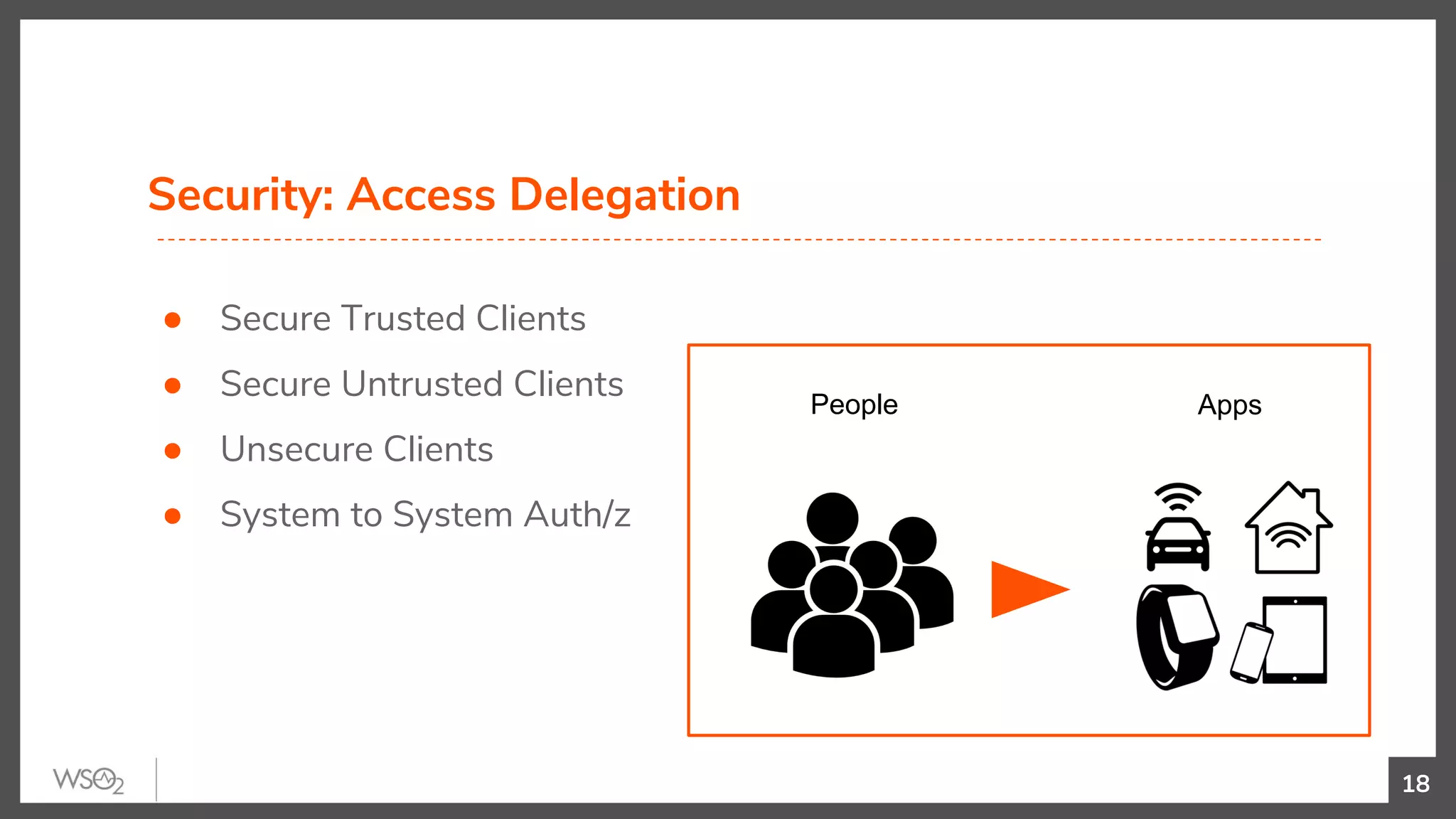

18. Security: Access Delegation
● Secure Trusted Clients
● Secure Untrusted Clients
● Unsecure Clients
● System to System Auth/z
18
People Apps

19. 19

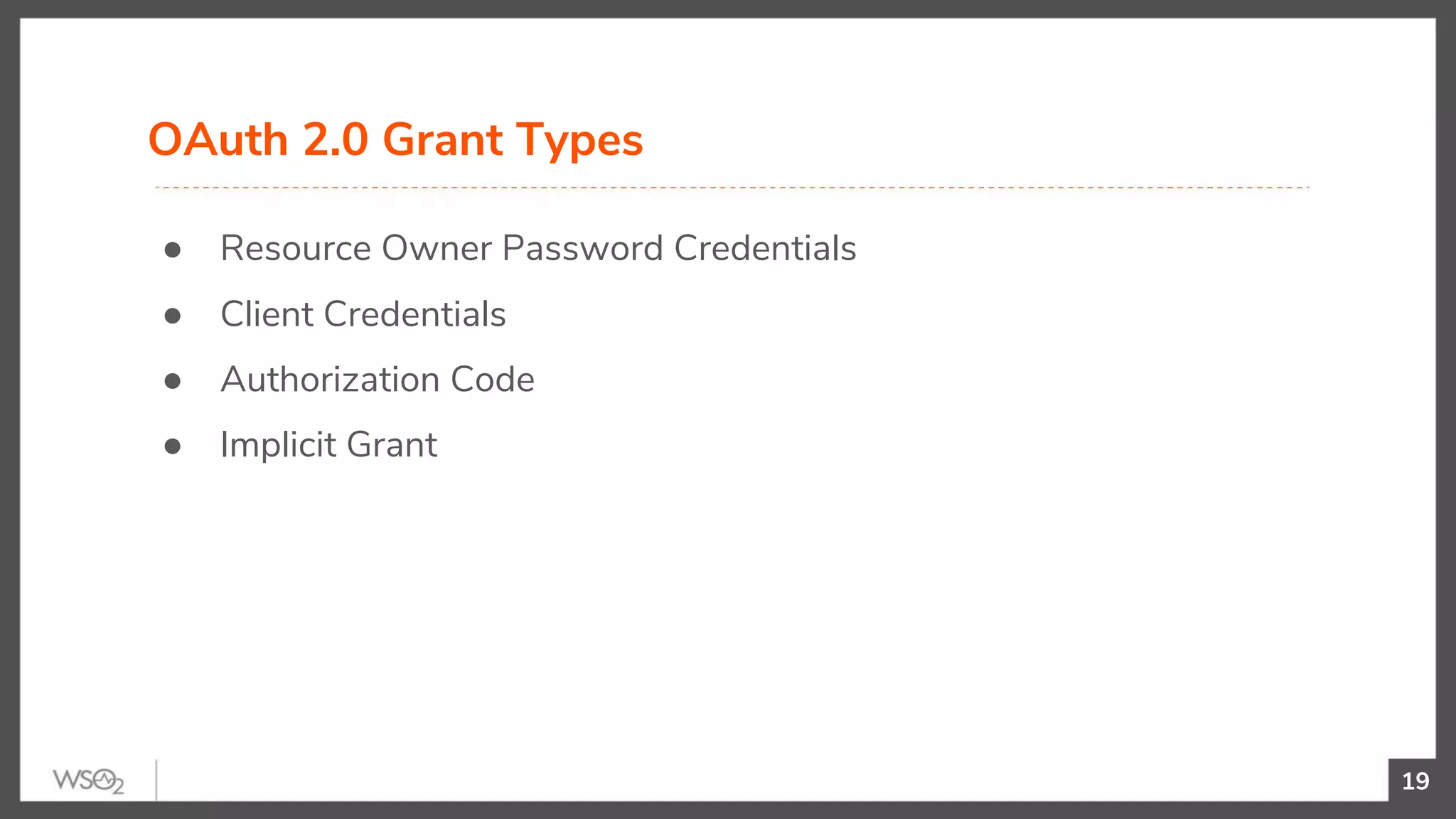

● Resource Owner Password Credentials
● Client Credentials
● Authorization Code
● Implicit Grant
OAuth 2.0 Grant Types

20. 20

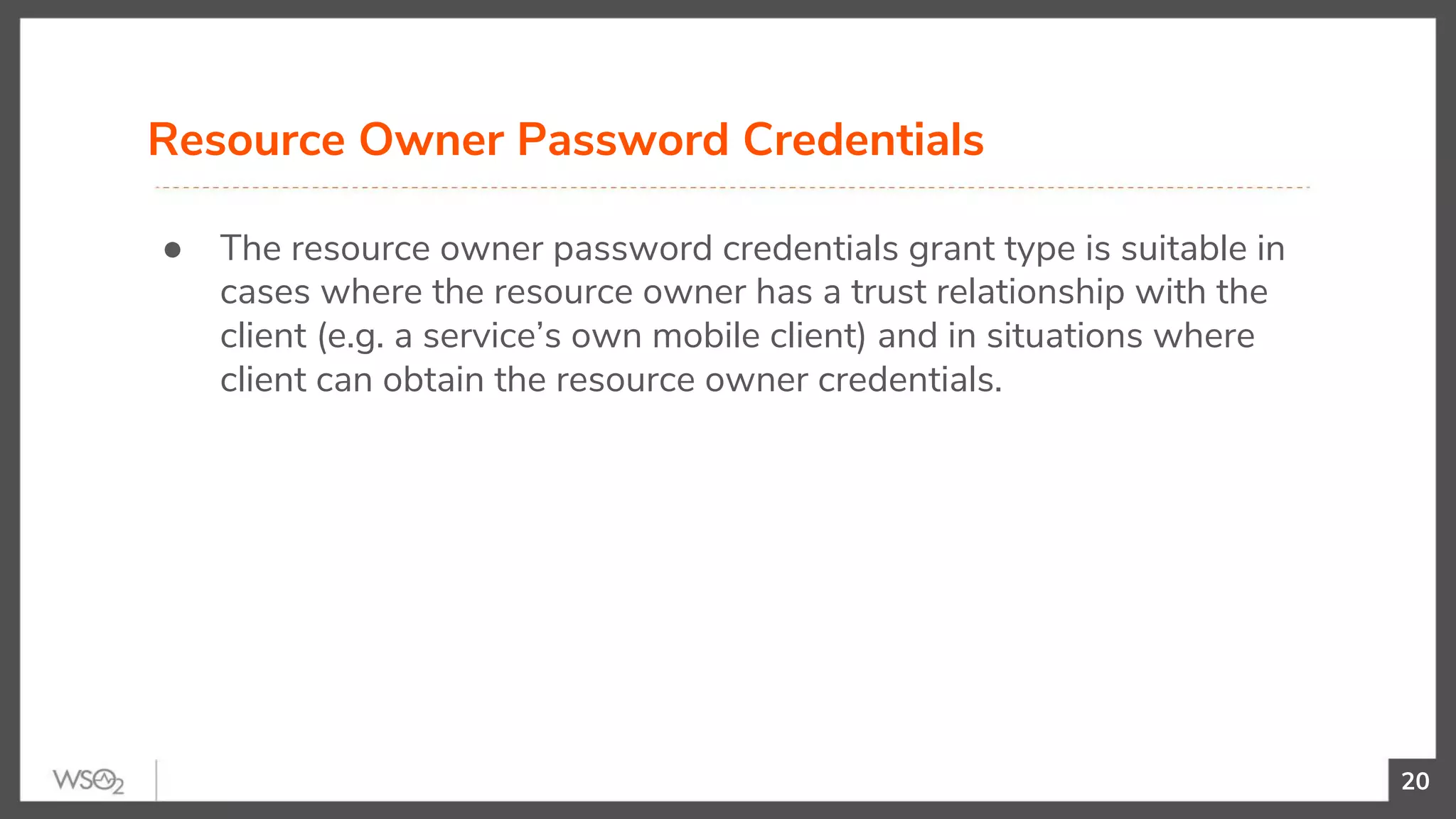

● The resource owner password credentials grant type is suitable in
cases where the resource owner has a trust relationship with the
client (e.g. a service’s own mobile client) and in situations where
client can obtain the resource owner credentials.
Resource Owner Password Credentials

21. 21

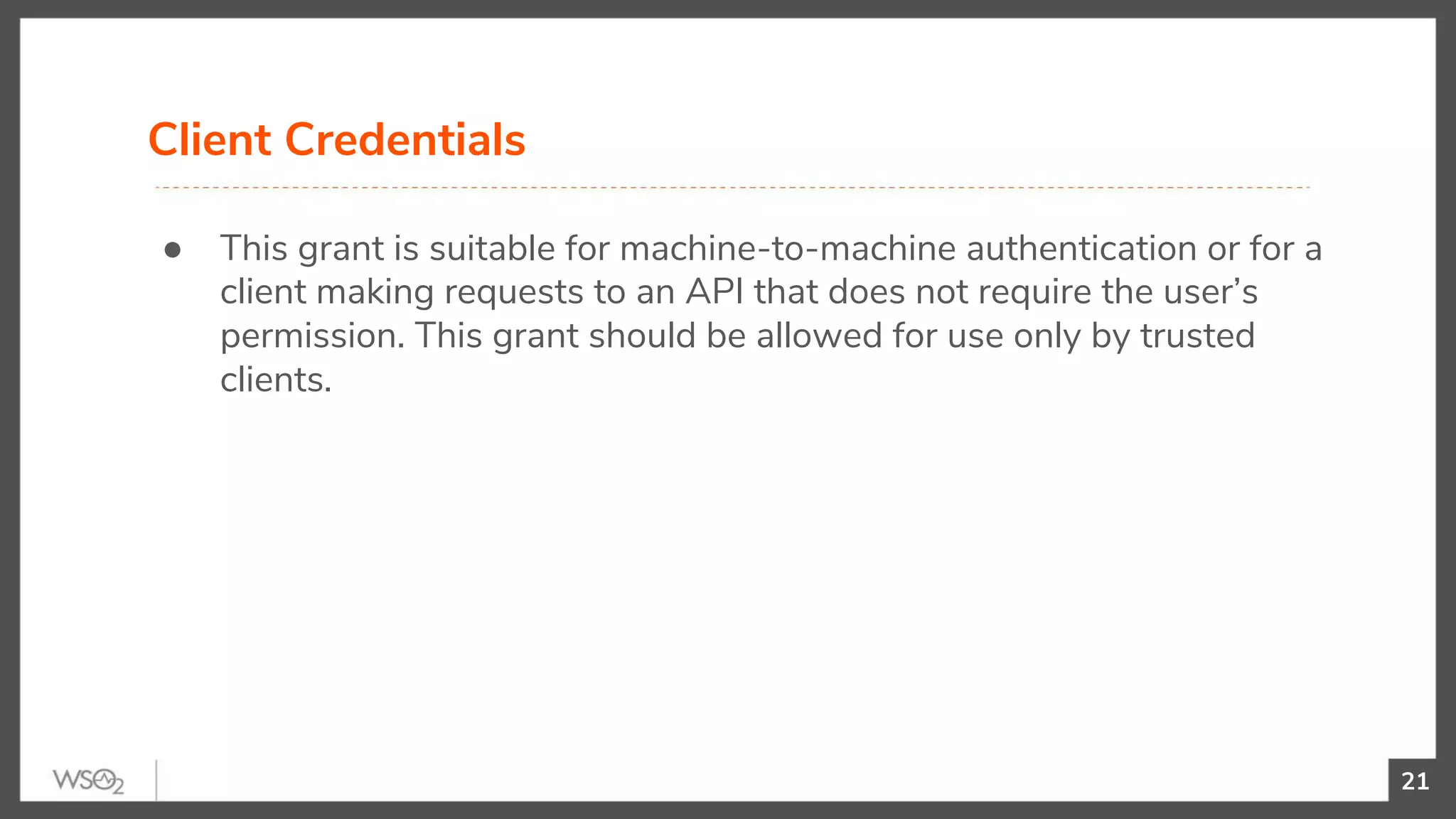

● This grant is suitable for machine-to-machine authentication or for a
client making requests to an API that does not require the user’s
permission. This grant should be allowed for use only by trusted
clients.
Client Credentials

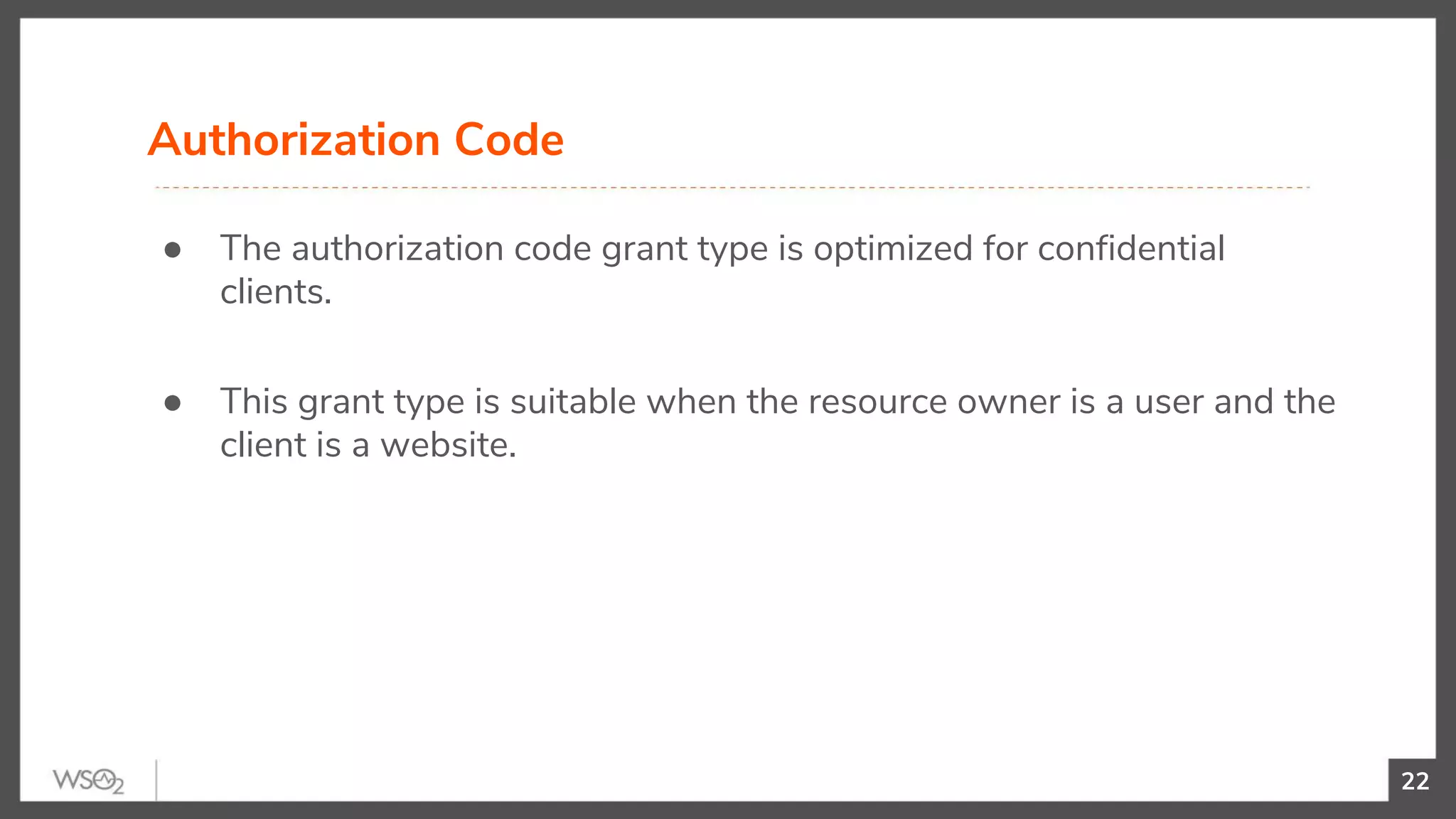

22. 22
● The authorization code grant type is optimized for confidential
clients.
● This grant type is suitable when the resource owner is a user and the
client is a website.
Authorization Code

23. 23

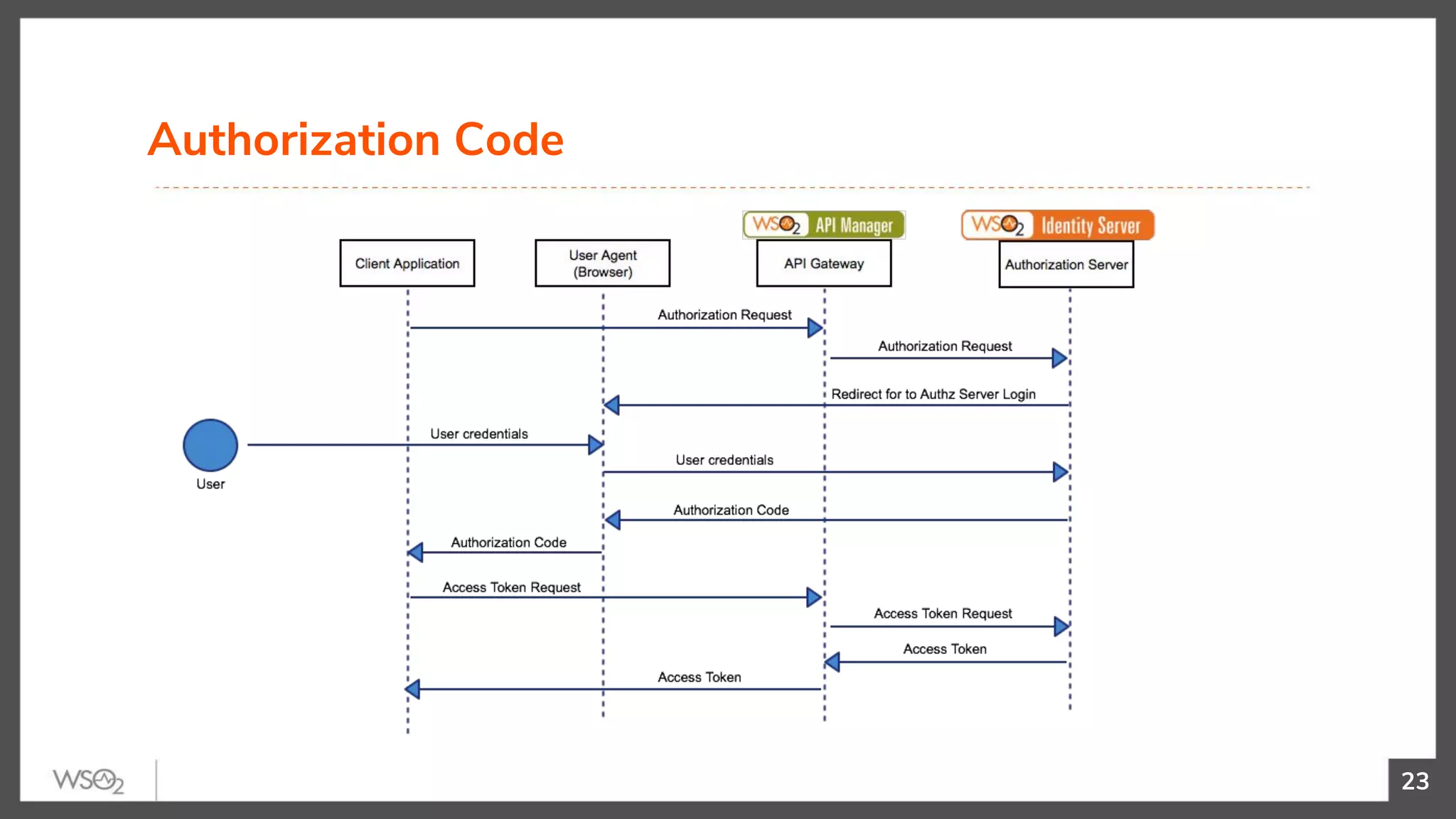

Authorization Code

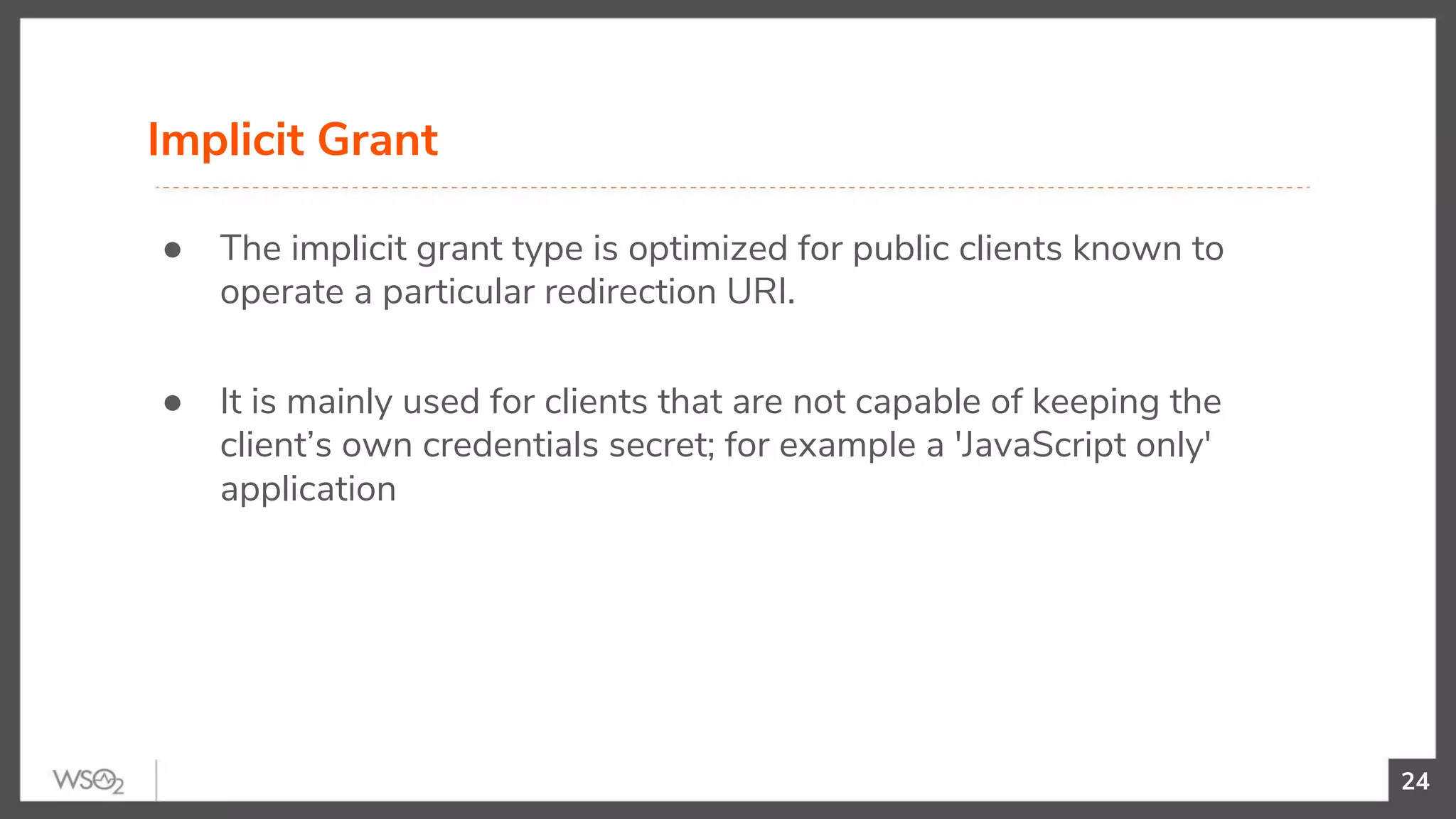

24. 24
● The implicit grant type is optimized for public clients known to
operate a particular redirection URI.
● It is mainly used for clients that are not capable of keeping the
client’s own credentials secret; for example a 'JavaScript only'
application
Implicit Grant

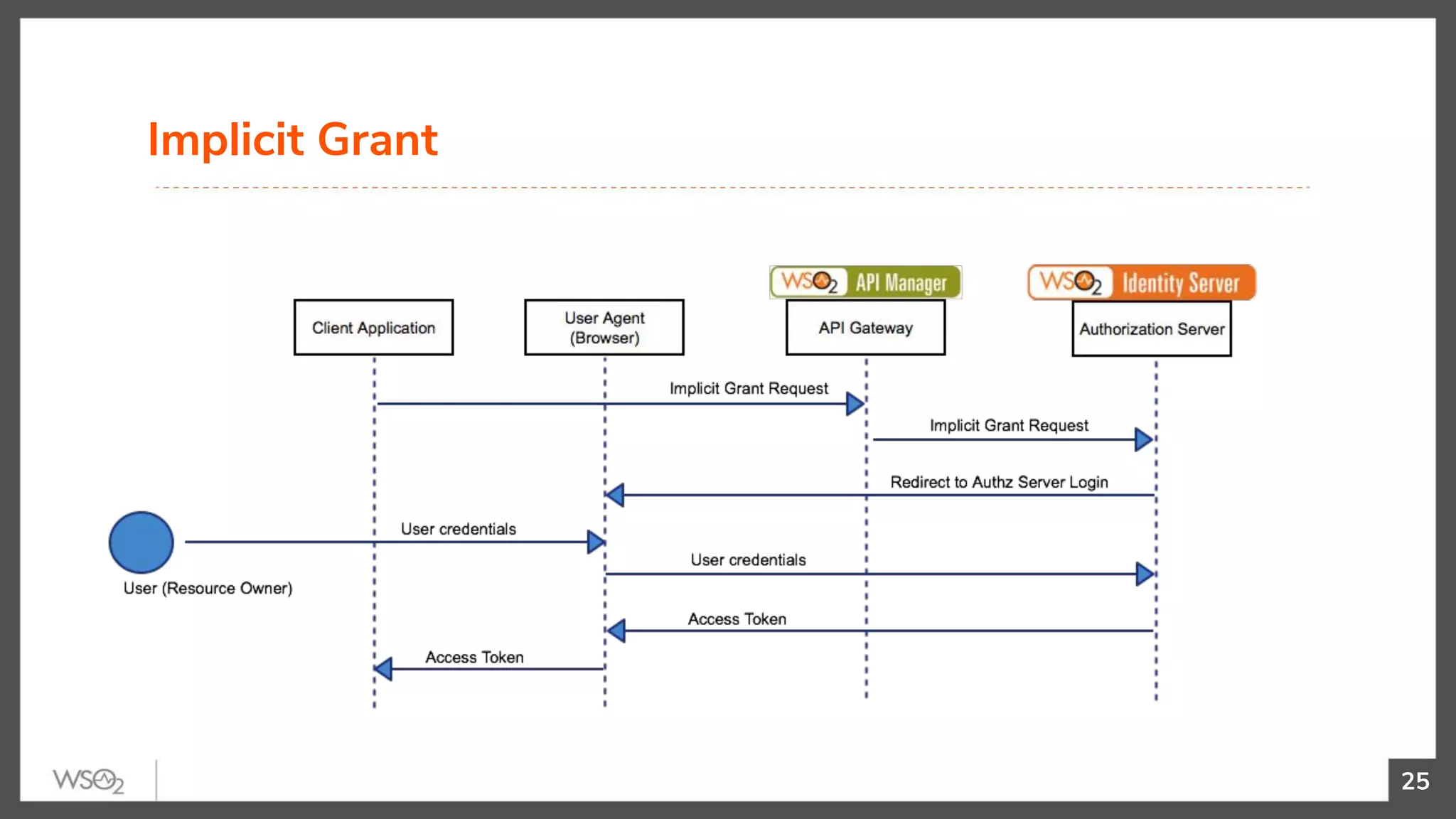

25. 25
Implicit Grant

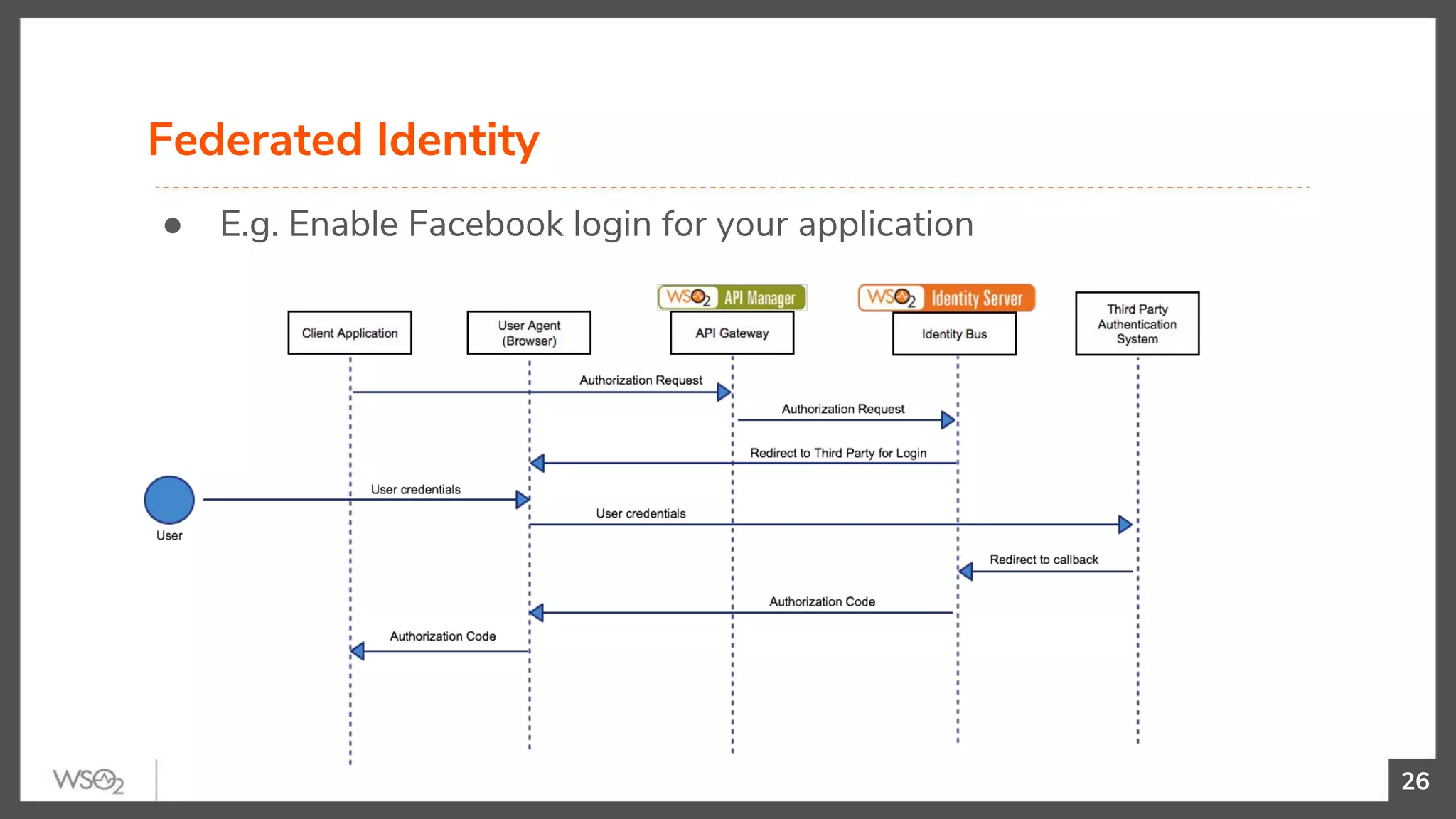

26. 26
Federated Identity
● E.g. Enable Facebook login for your application

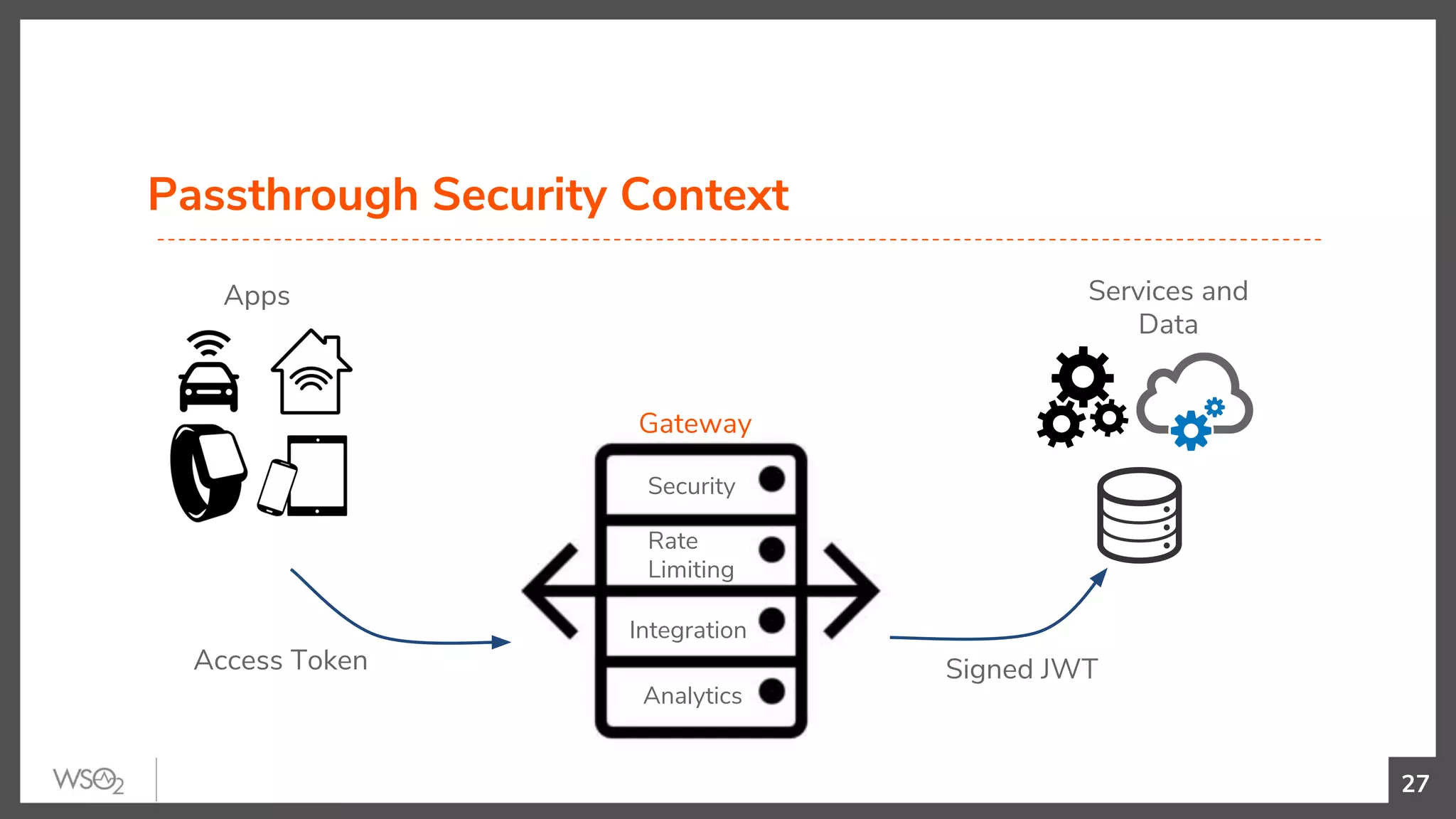

27. Passthrough Security Context
27
Security
Rate
Limiting
Integration
Analytics
Gateway
Apps Services and
Data
Access Token Signed JWT

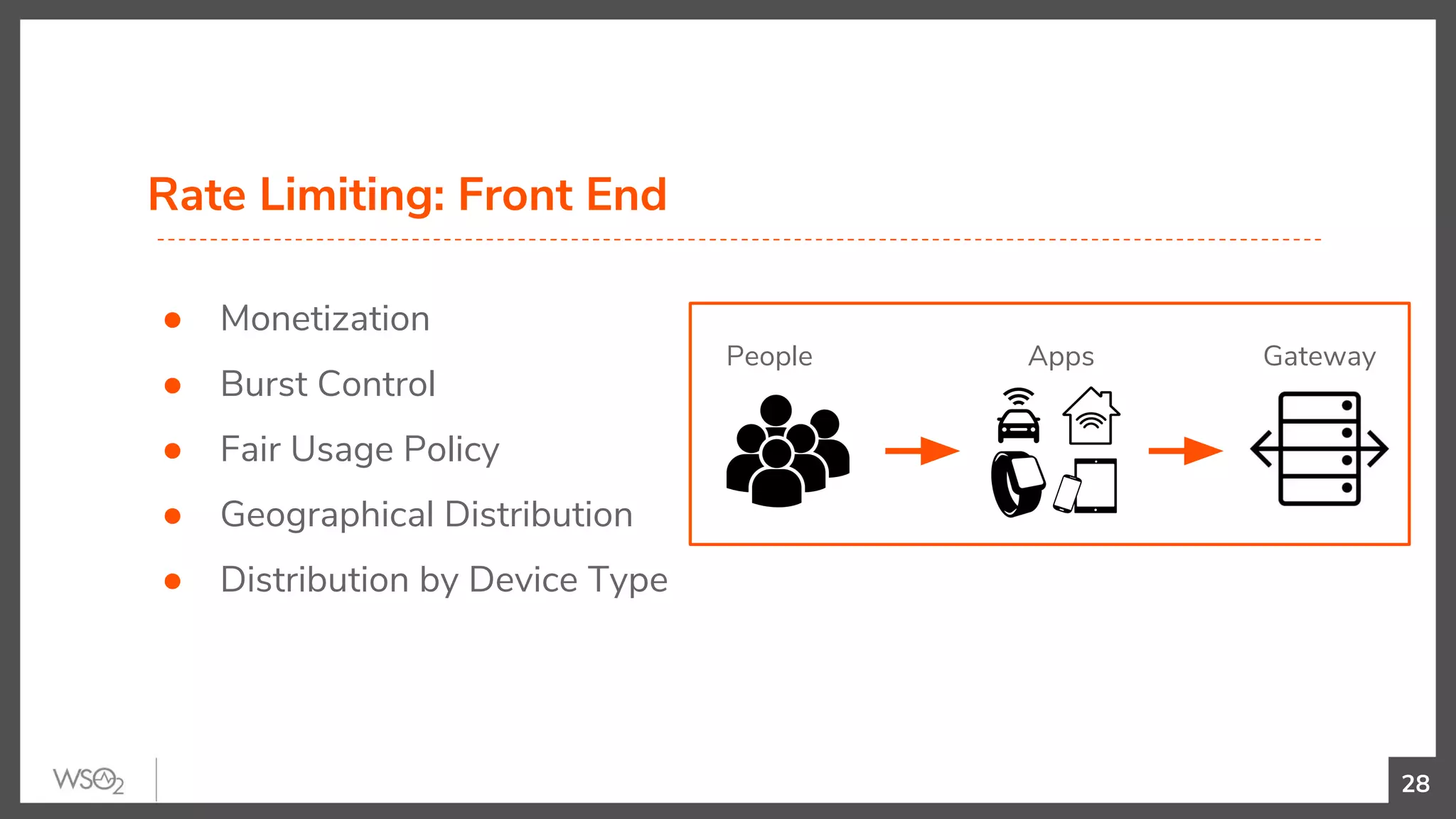

28. Rate Limiting: Front End
● Monetization
● Burst Control
● Fair Usage Policy
● Geographical Distribution
● Distribution by Device Type
28
People Apps Gateway

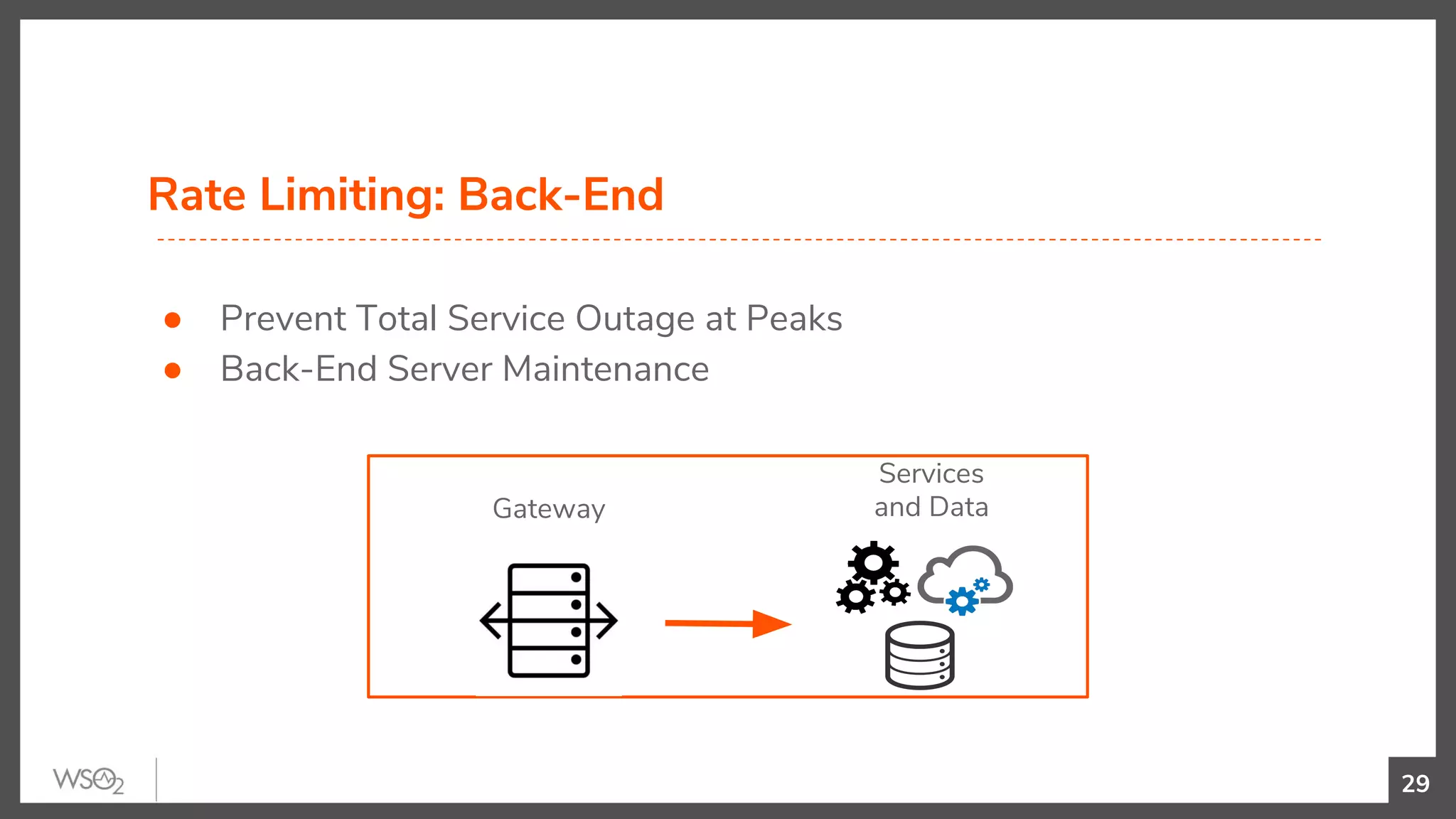

29. Rate Limiting: Back-End
● Prevent Total Service Outage at Peaks
● Back-End Server Maintenance
29
Gateway
Services
and Data

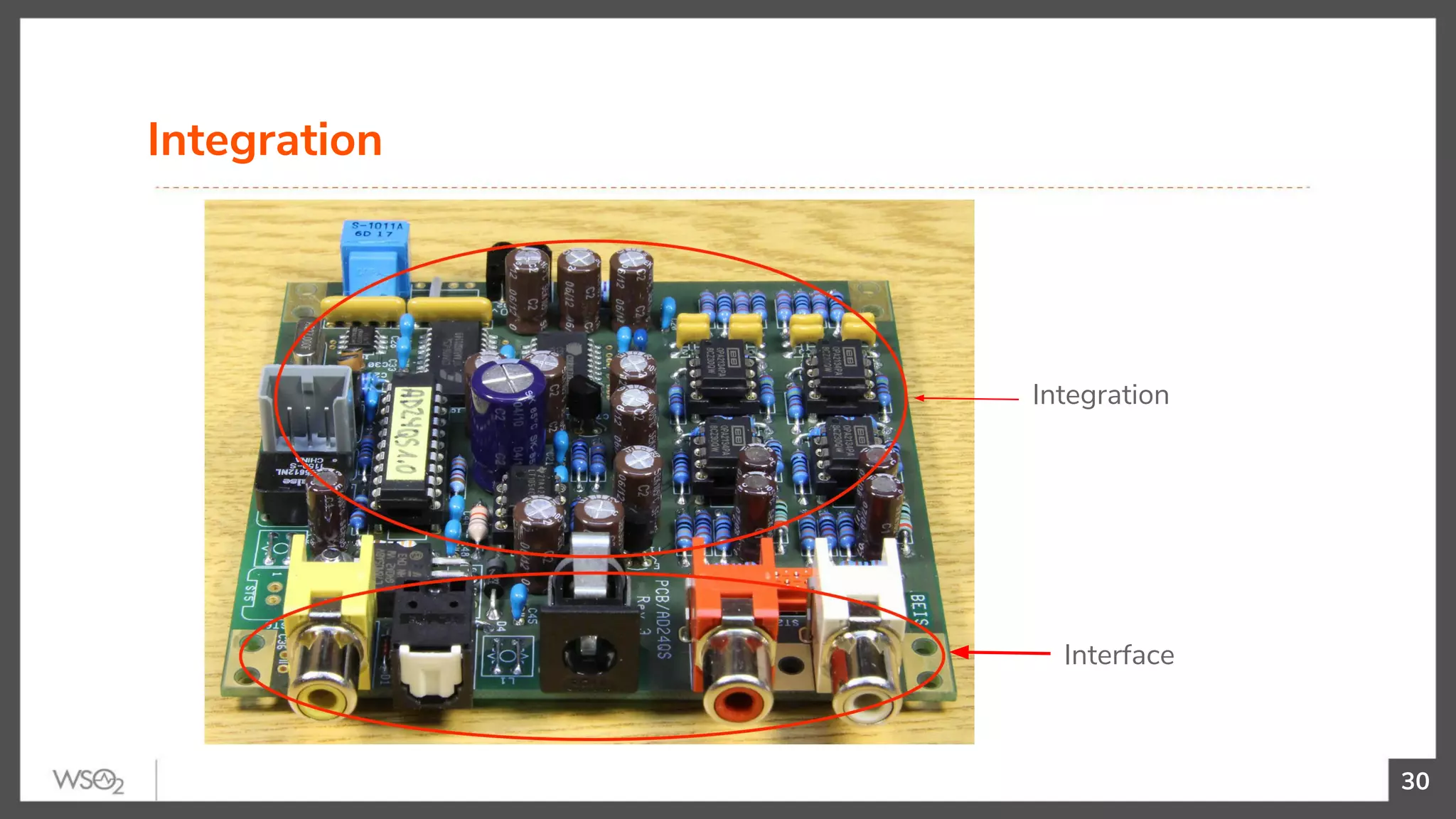

30. 30
Integration
30
Interface
Integration

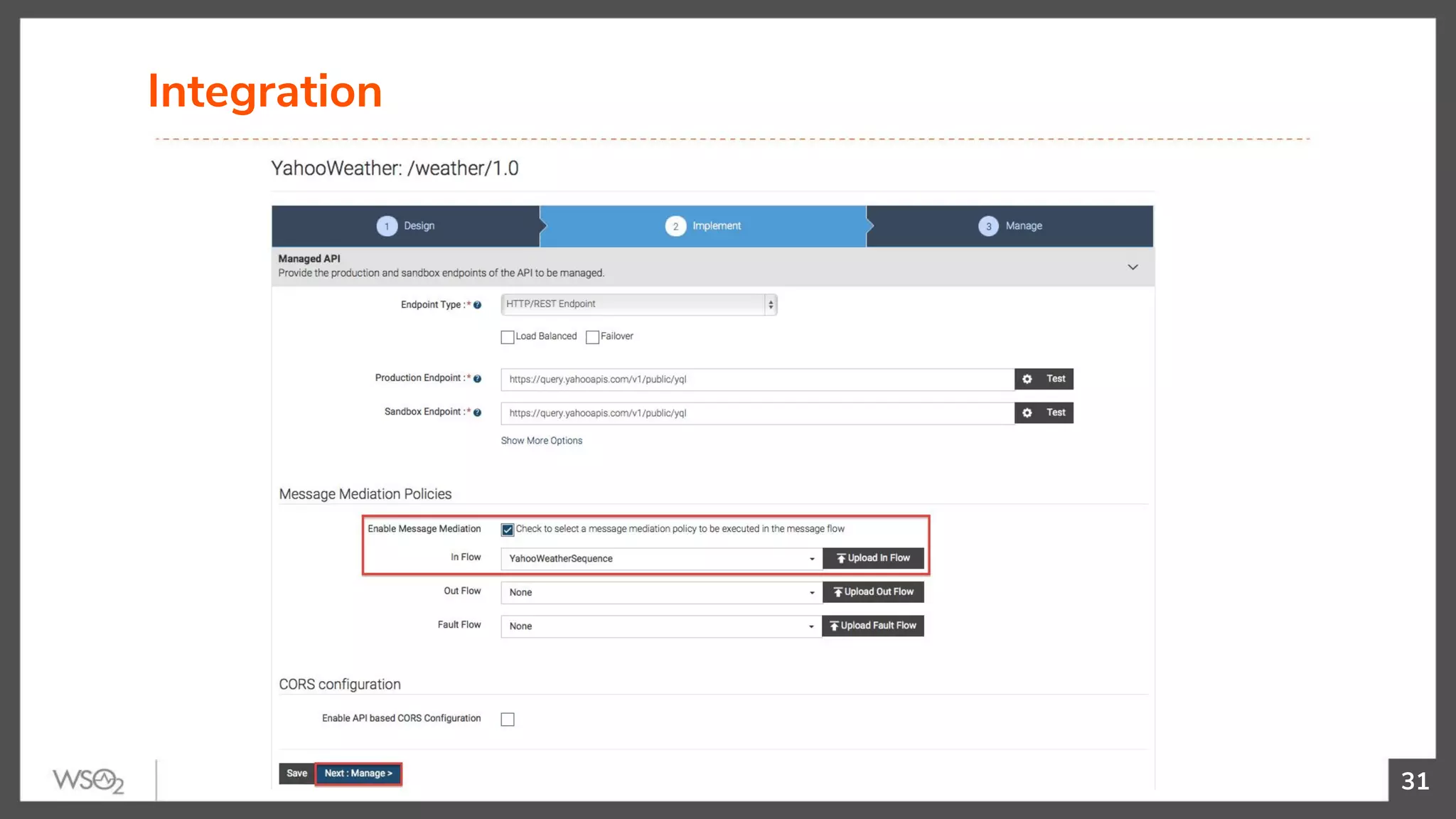

31. 31
Integration

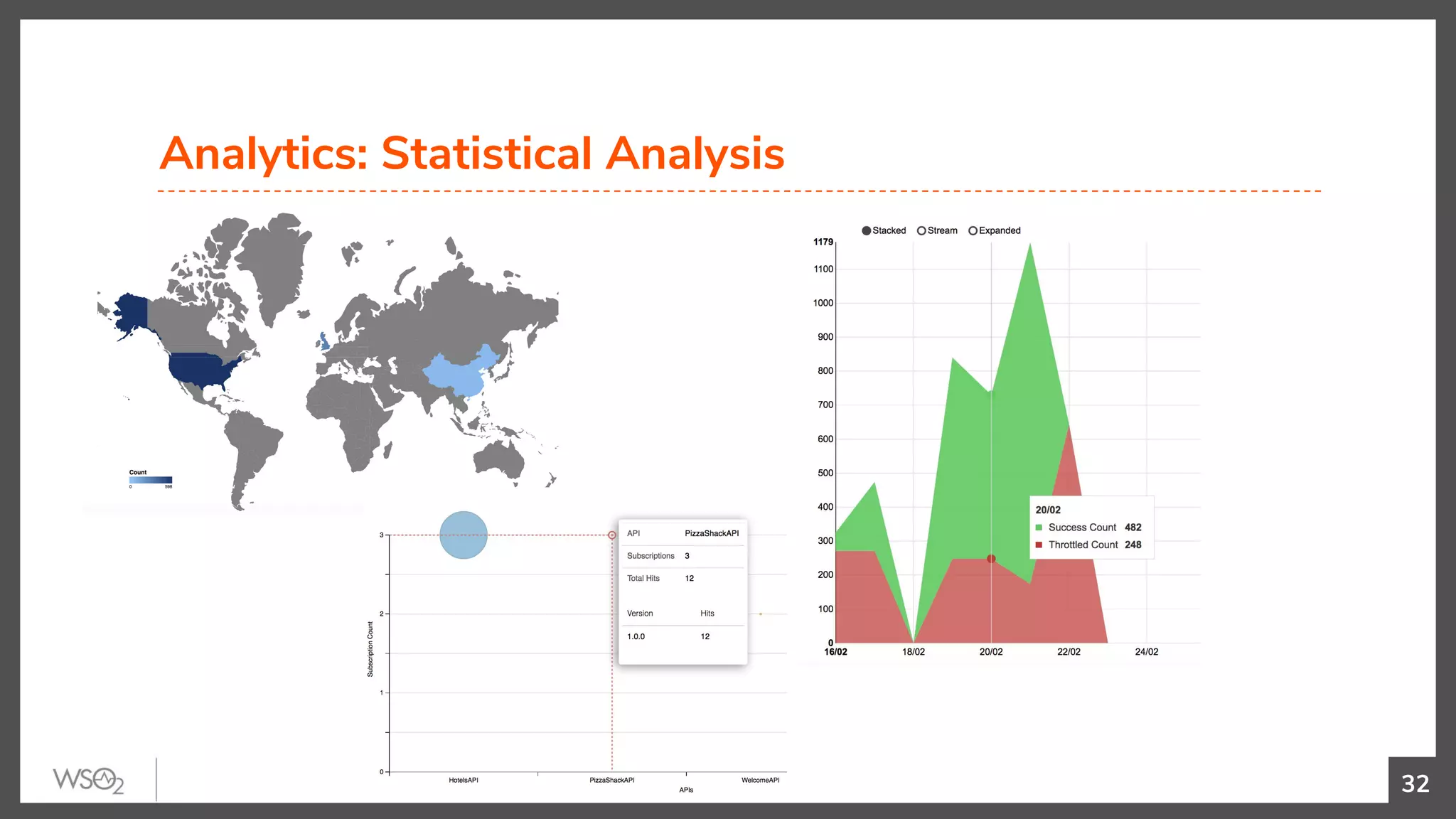

32. Analytics: Statistical Analysis
32

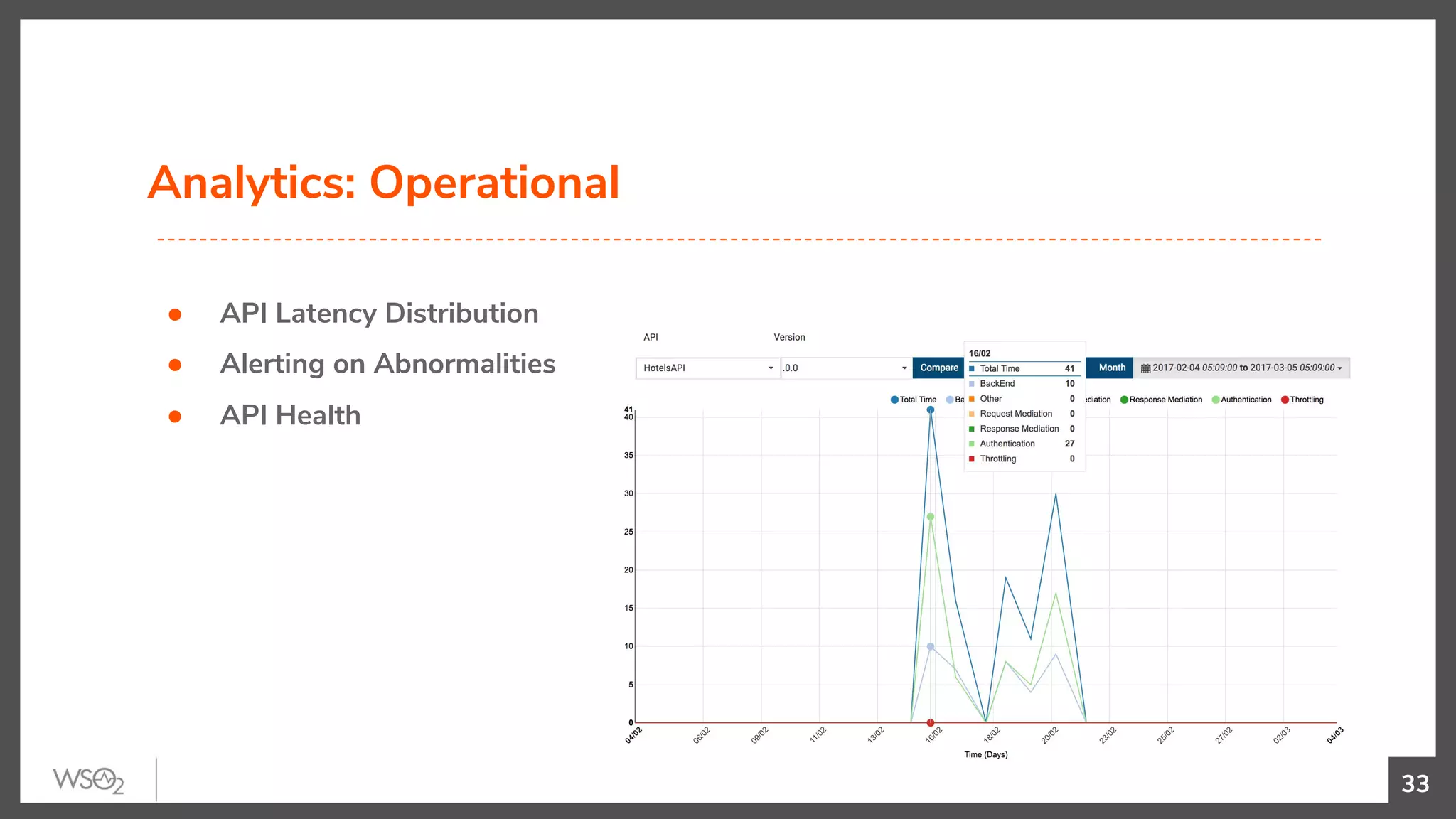

33. Analytics: Operational
● API Latency Distribution
● Alerting on Abnormalities
● API Health
33

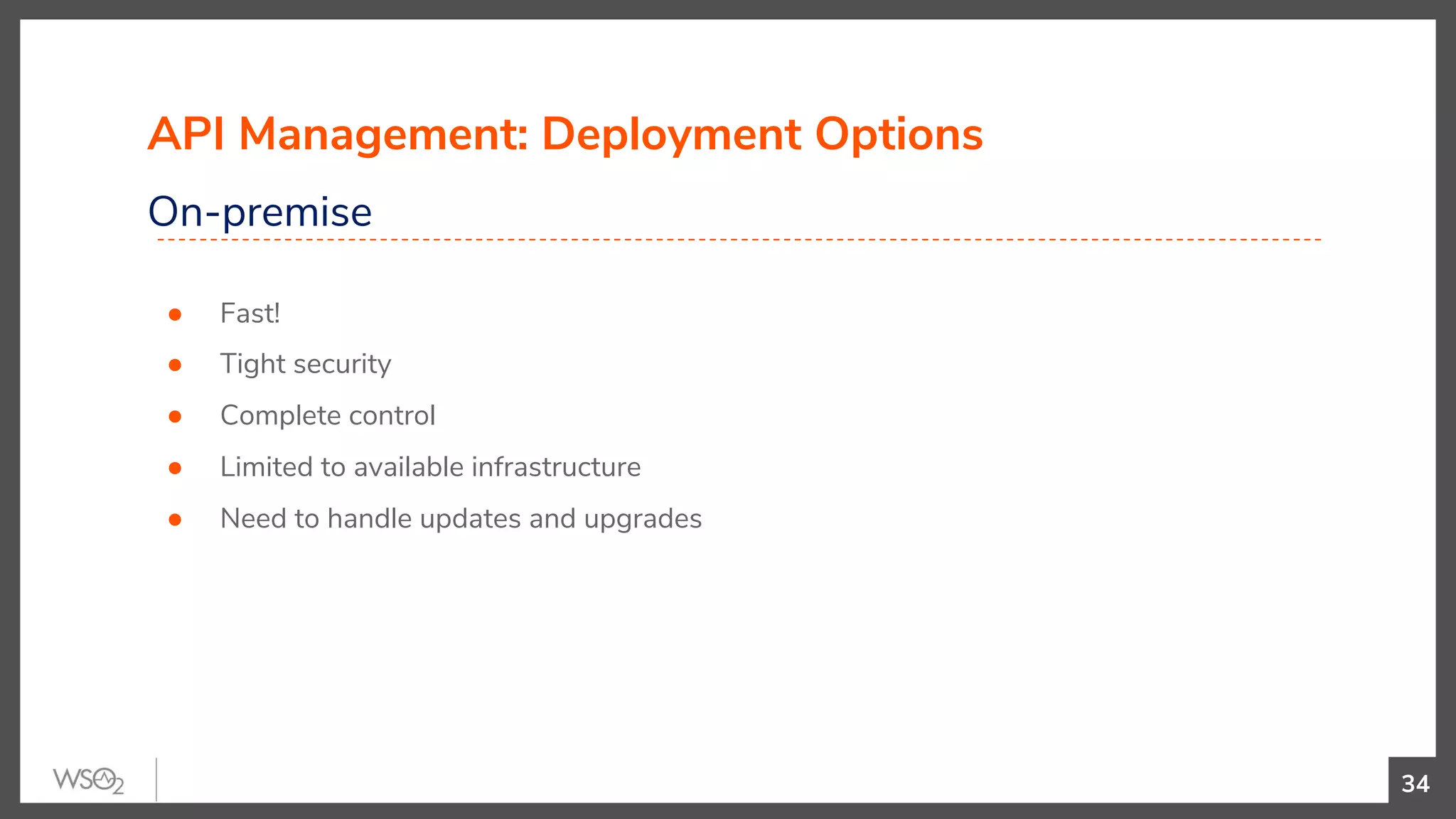

34. API Management: Deployment Options
On-premise
● Fast!
● Tight security
● Complete control
● Limited to available infrastructure
● Need to handle updates and upgrades
34

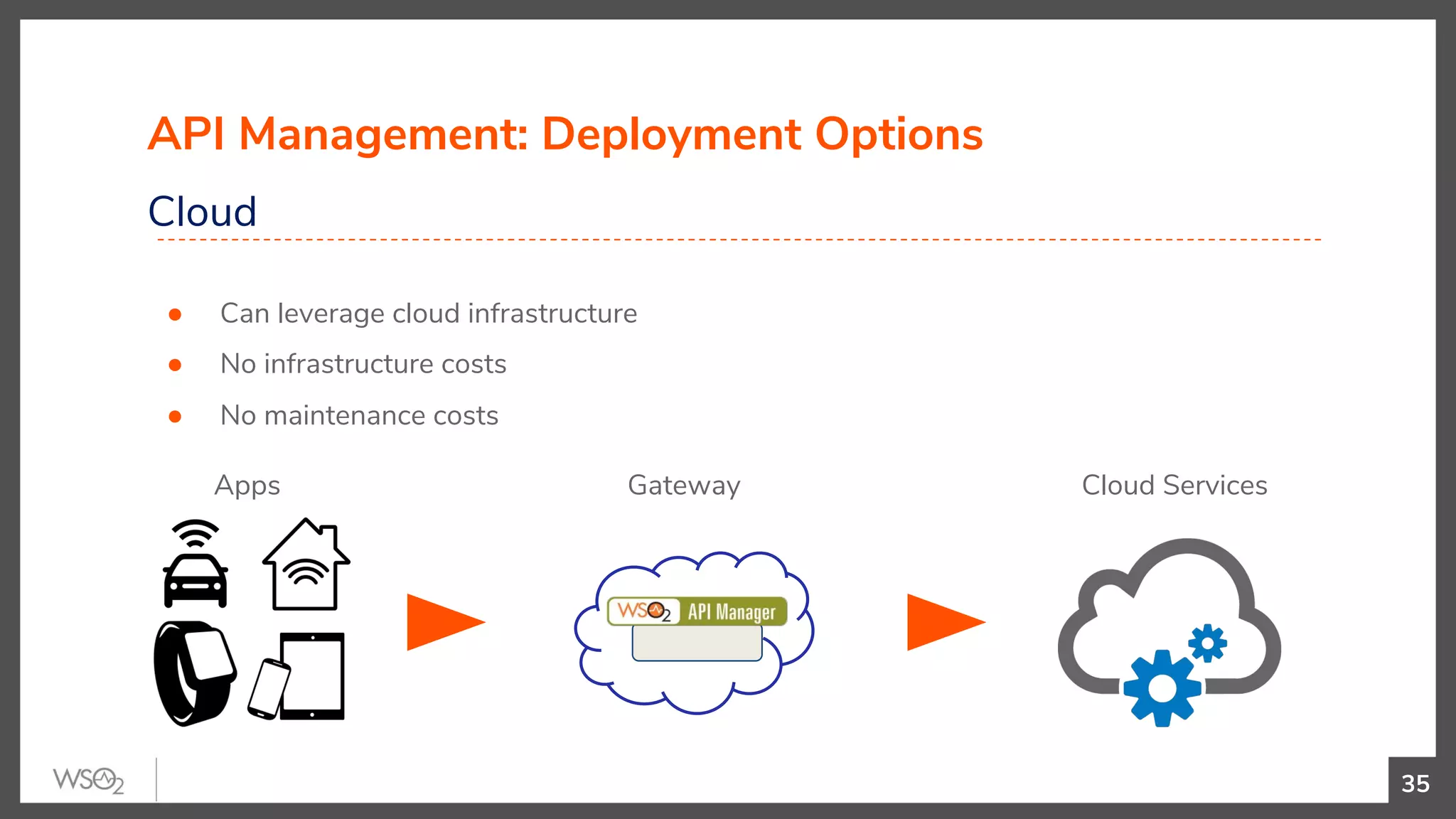

35. API Management: Deployment Options
Cloud
● Can leverage cloud infrastructure
● No infrastructure costs
● No maintenance costs
35
Apps Gateway Cloud Services

36. API Management: Deployment Options
Hybrid Cloud
36
Apps Management Cloud Services
Local
Gateway
Internal Services
Cloud
Gateway

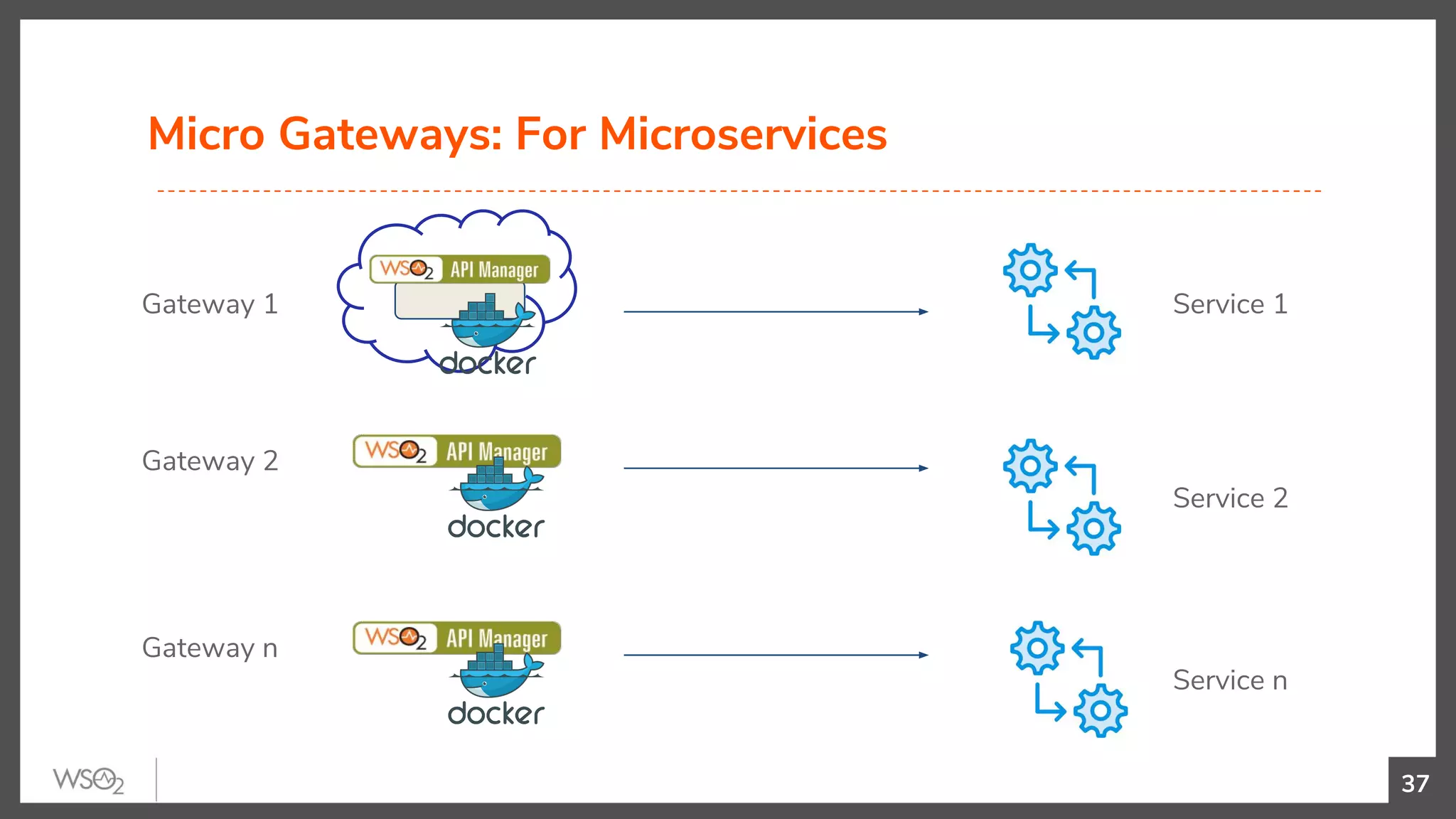

37. Micro Gateways: For Microservices
37
Gateway 1
Gateway 2
Gateway n
Service 1
Service 2
Service n

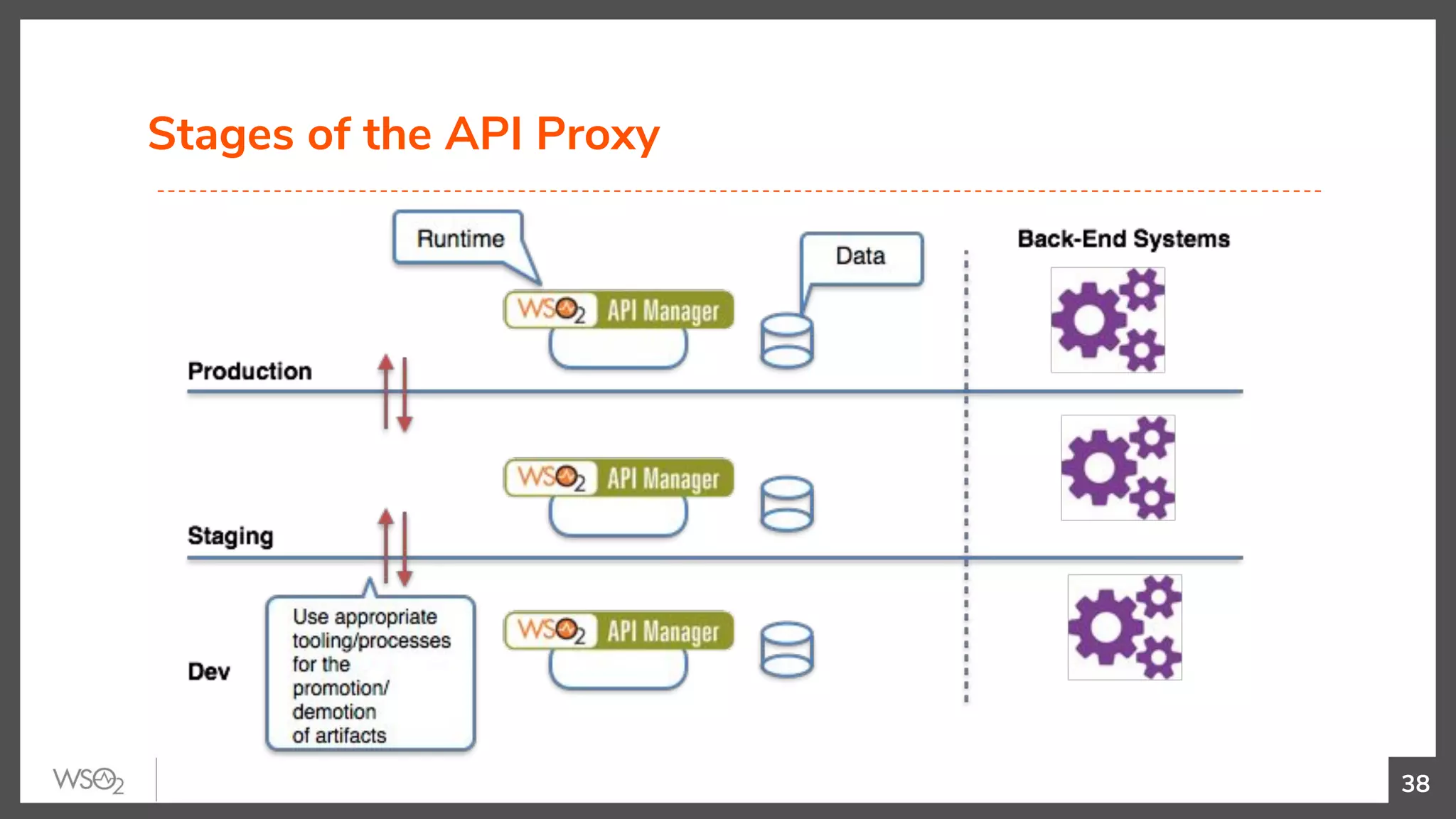

38. Stages of the API Proxy
38

39. 39

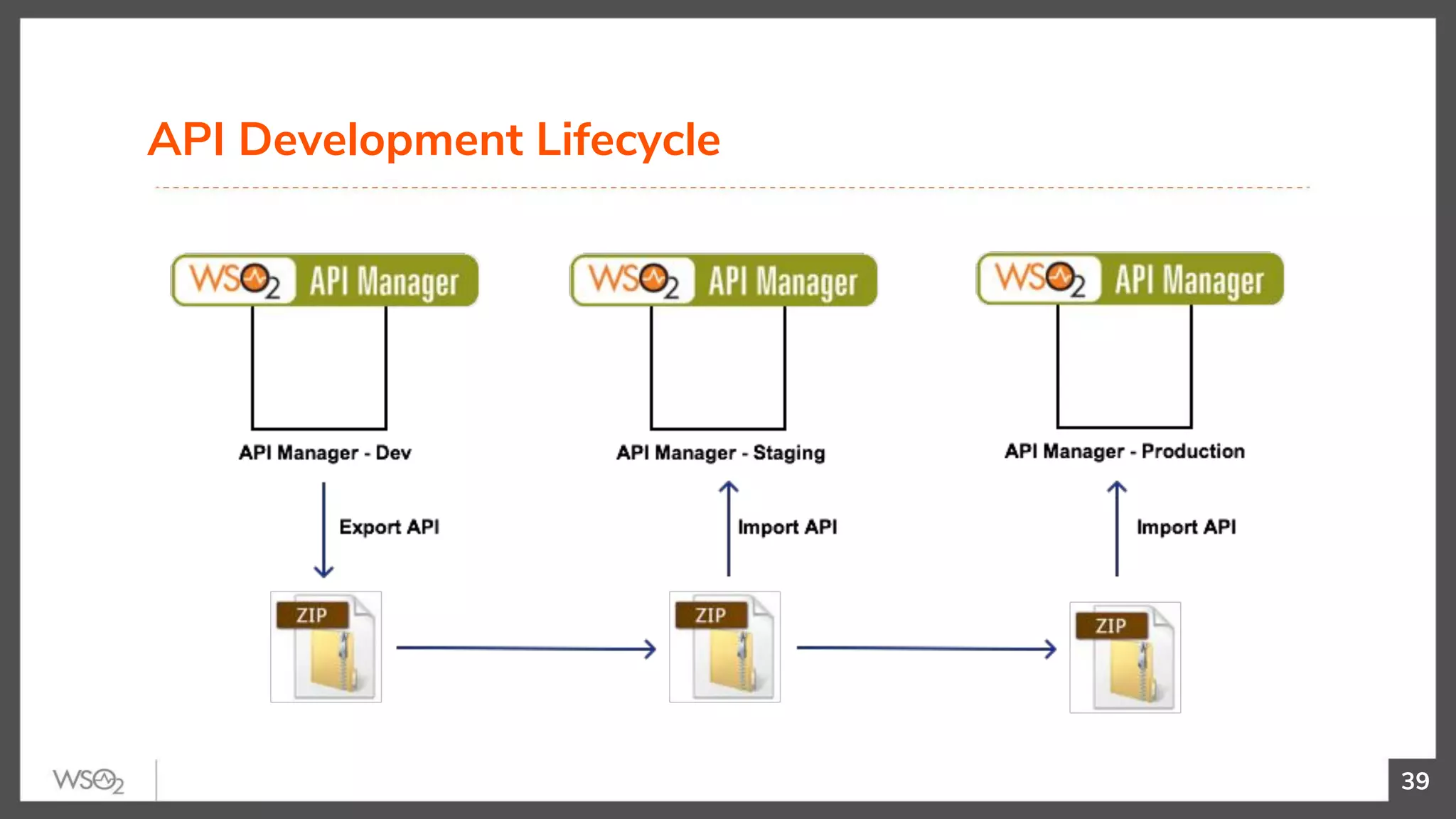

API Development Lifecycle

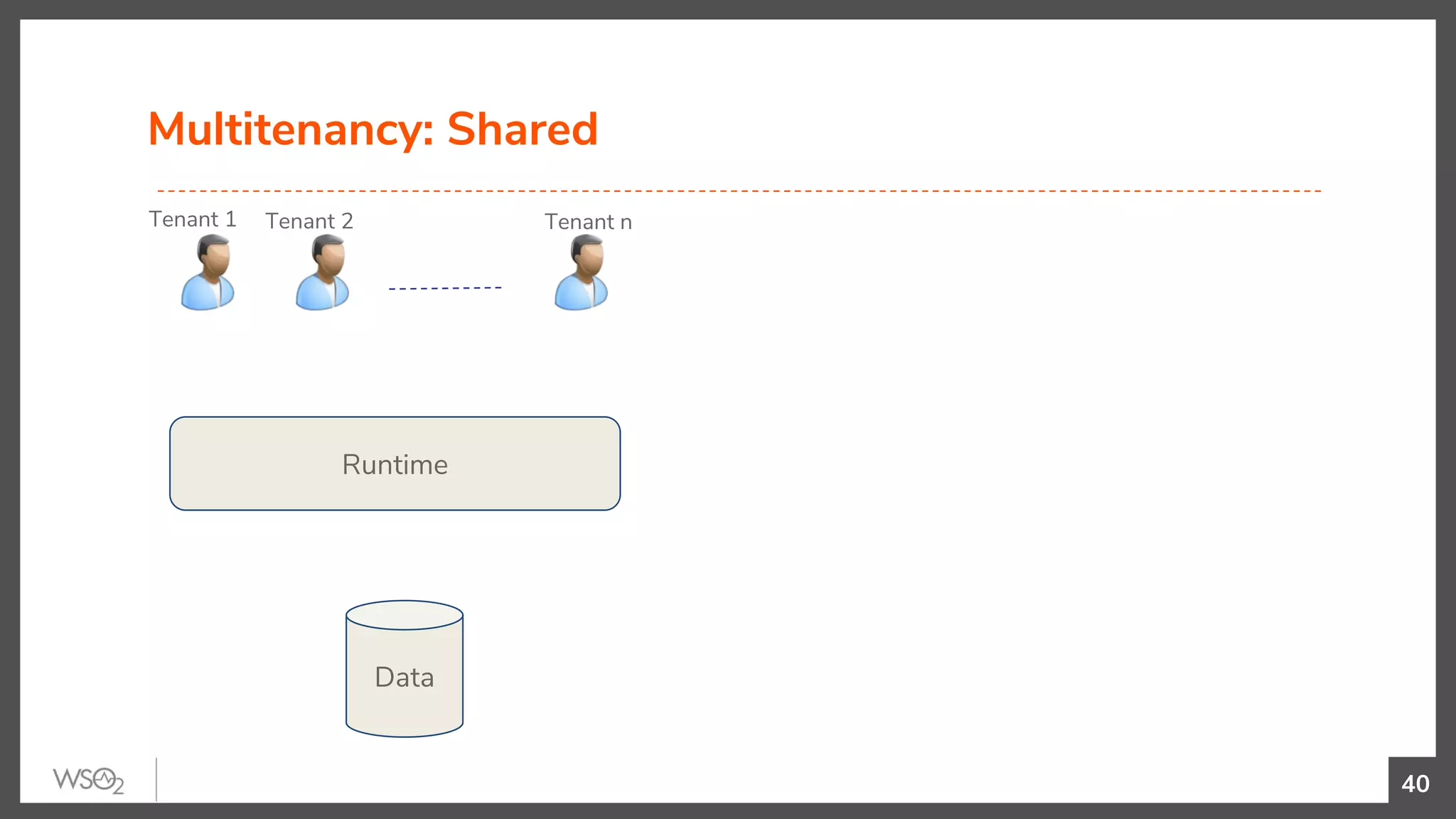

40. Multitenancy: Shared
40
Runtime
Data
Tenant 1 Tenant 2 Tenant n

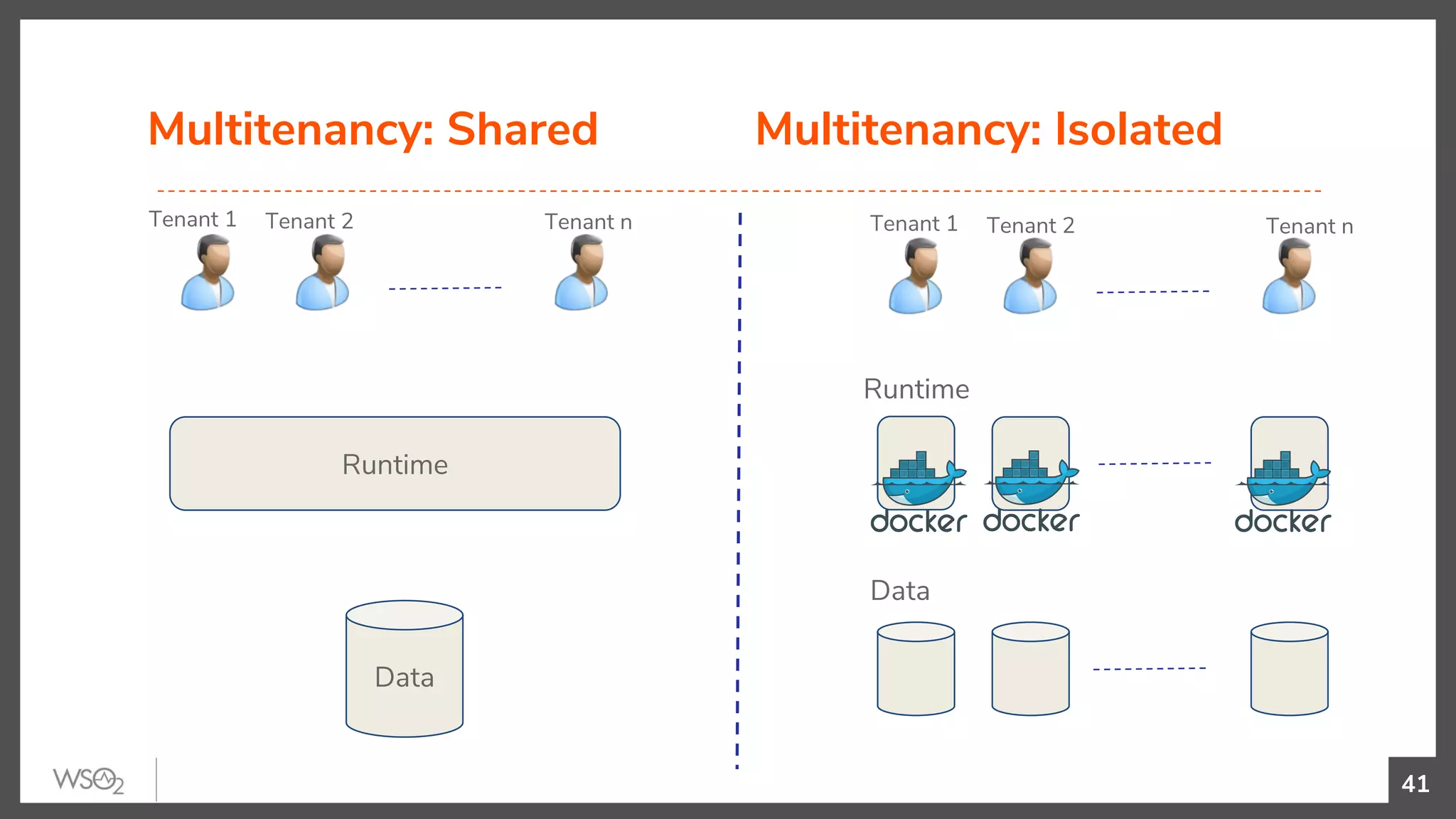

41. Multitenancy: Shared Multitenancy: Isolated
41
Runtime
Data
Tenant 1 Tenant 2 Tenant n
Runtime
Data
Tenant 1 Tenant 2 Tenant n

42. THANK YOU
wso2.com
