API Strategy Evolution at Netflix
The presentation details the evolution of API strategy at Netflix, emphasizing resilience, scalability, simplicity, and agility as key goals for future architecture. It outlines the need for a robust API that can handle extensive requests, while managing dependencies and fostering integration across various platforms. Furthermore, it discusses the potential shift away from traditional versioning methods in favor of a more flexible approach to API management.
More Related Content
Similar to API Strategy Evolution at Netflix
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
API Strategy Evolution at Netflix
- 1. API Strategy Evolutionat Michael Hart (@michaelhart) Director of Engineering, Social Systems (Former Director of Engineering, API) Daniel Jacobson (@daniel_jacobson) Director of Engineering, API
- 2. Presentation is designedfor presenting vs. reading. Please review speaker notes if reading online.
- 3.
- 4.
- 6.

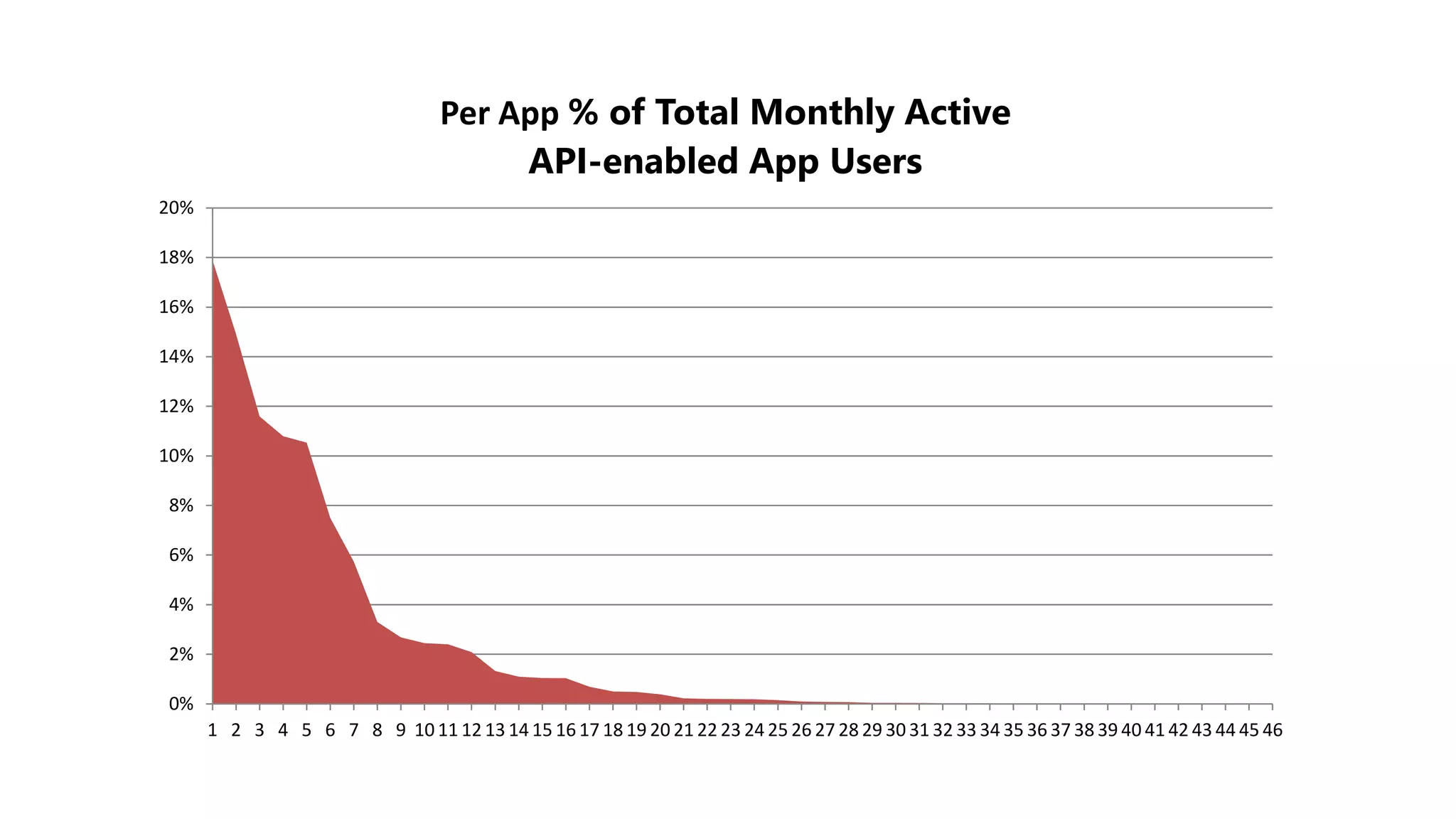

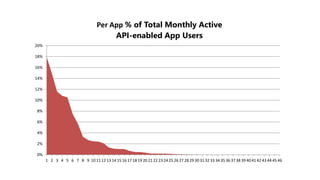

- 7. 0% 2% 4% 6% 8% 10% 12% 14% 16% 18% 20% 1 2 34 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 Per App % of Total Monthly Active API-enabled App Users
- 9.
- 10.
- 14.
- 15.

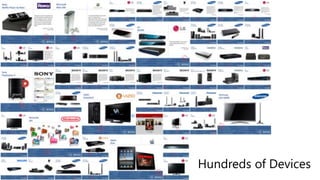

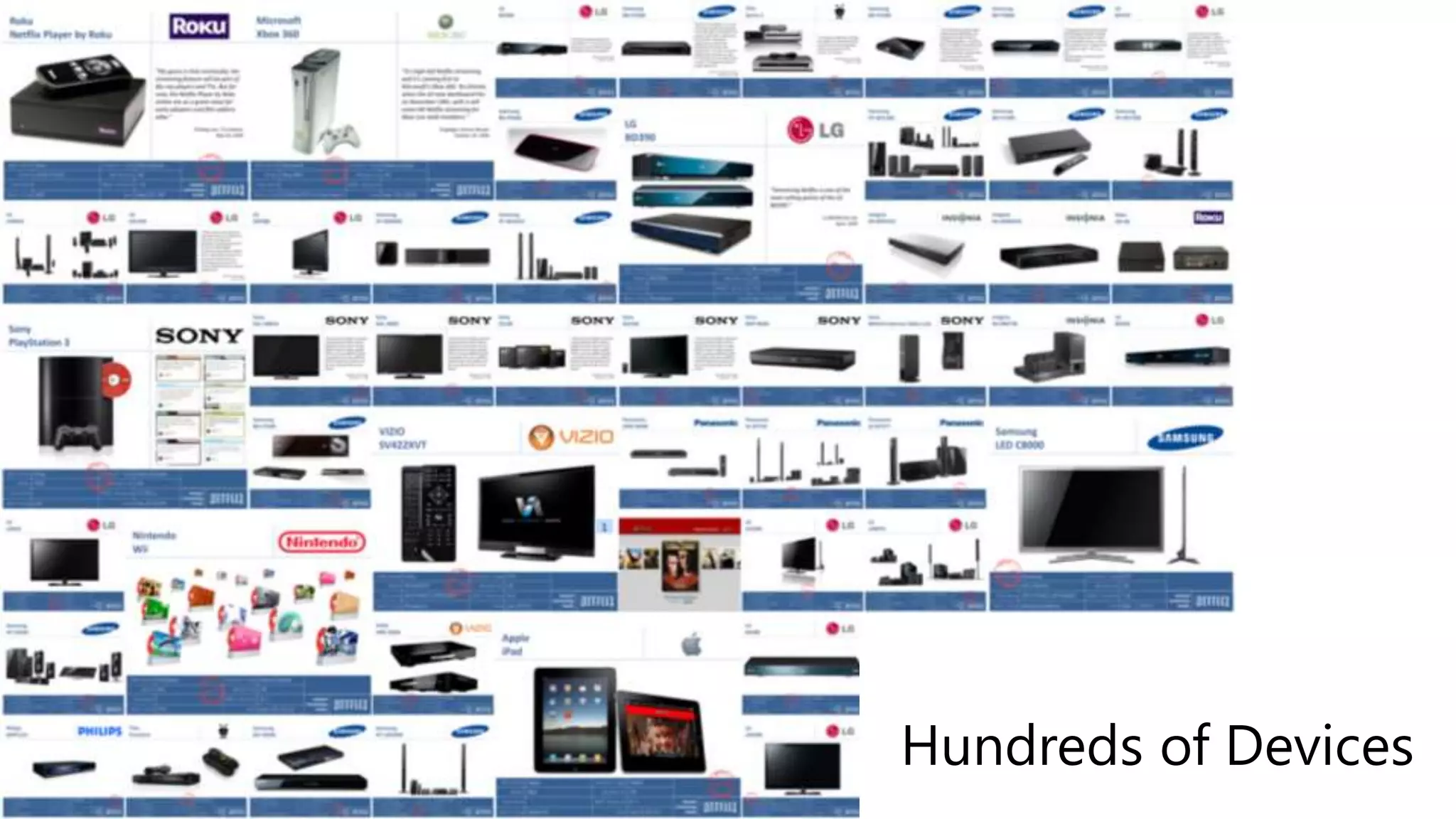

- 16. Recap: A Thousand Flowers Hundredsof Devices Tons of Tests More to come… ?
- 17. Be prepared toevolve Developing an effective API strategy is a journey- not just a single project
- 18. The Future ofthe Netflix API To Infinity and Beyond…
- 19. Growth of theNetflix API Over 10 BILLION requests in November (Peaks at about 10,000 requests per second)
- 23. It is timeto get back to thinking about the future…
- 24. First Step: Backto the Drawing Board…
- 25. Some of ourKey Goals • Resiliency, Reliability and Stability – Maximize uptime • Scalability – System can grow without needing frequent refactoring • Simplicity – Easier integration for API consumers • Agility – Architecture will support rapid development without compromising the core of the system
- 27.

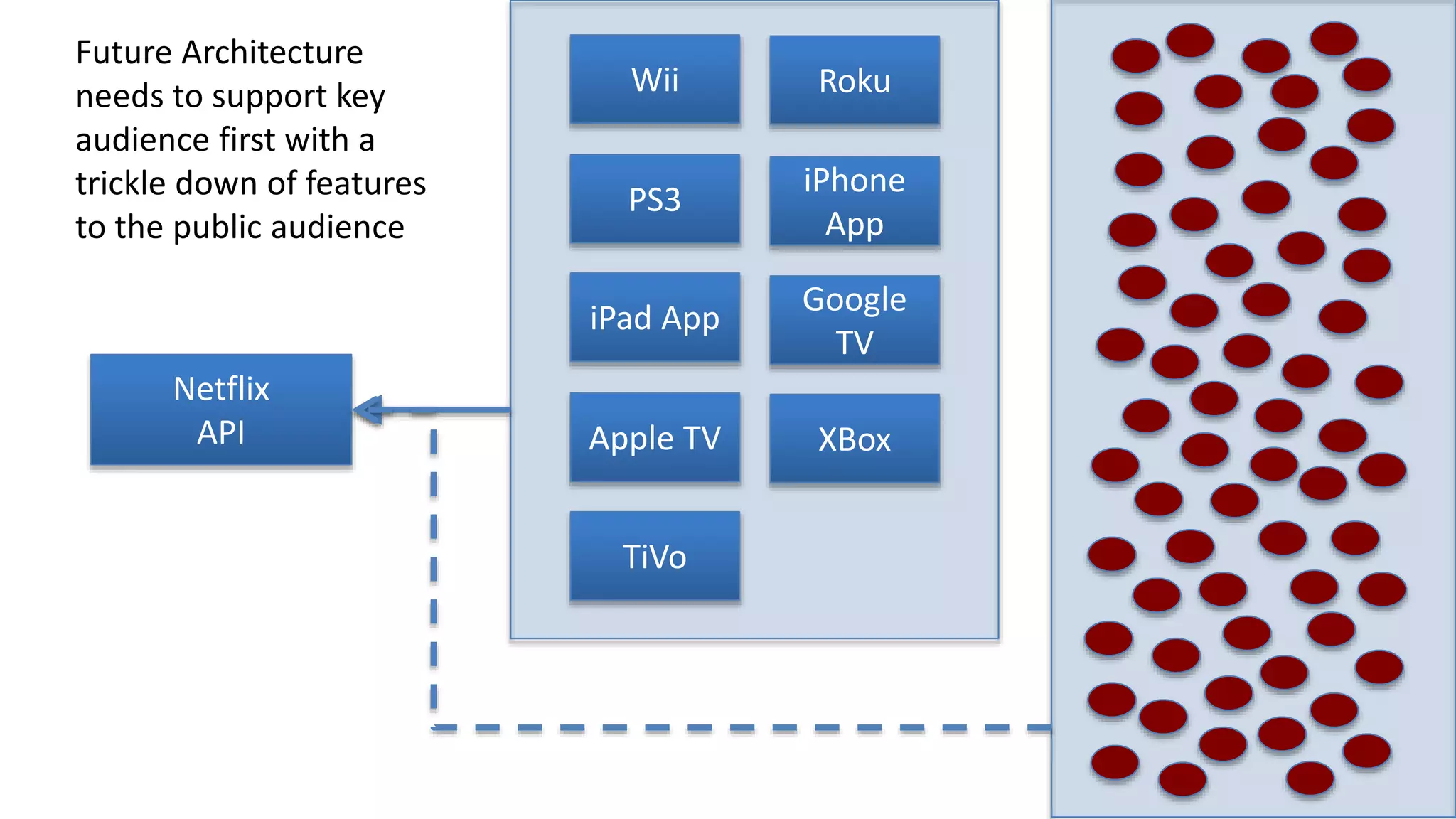

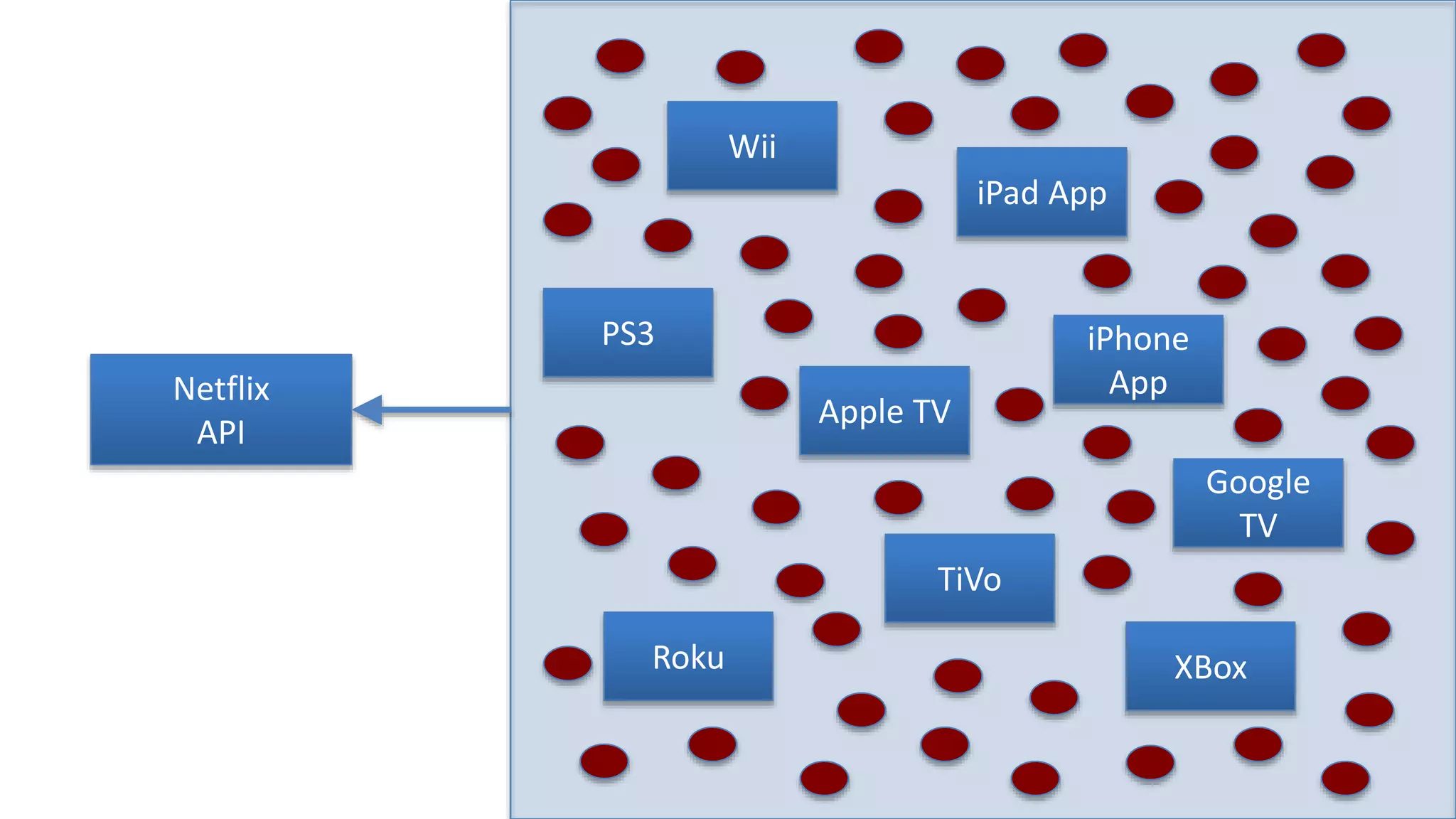

- 28. Netflix API XBox PS3 Wii Google TV Apple TV iPadApp iPhone App Roku TiVo Future Architecture needs to support key audience first with a trickle down of features to the public audience
- 29. Hide Our InternalBusiness Dependencies from API Consumers

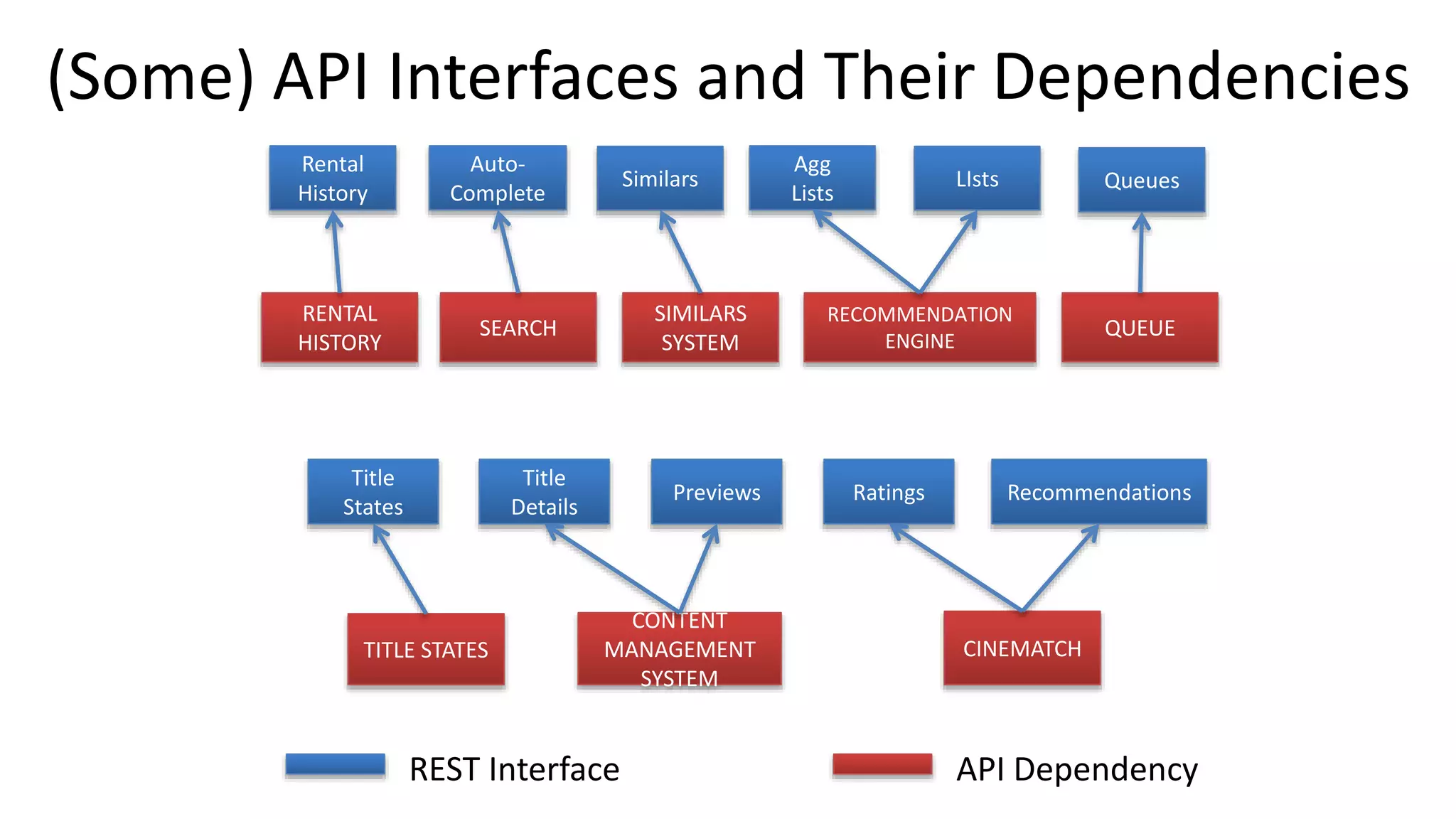

- 30. (Some) API Interfacesand Their Dependencies Auto- Complete Similars QueuesLIsts Rental History Agg Lists SEARCH SIMILARS SYSTEM RECOMMENDATION ENGINE QUEUE RENTAL HISTORY REST Interface API Dependency Title Details Previews Ratings Recommendations Title States CONTENT MANAGEMENT SYSTEM TITLE STATES CINEMATCH

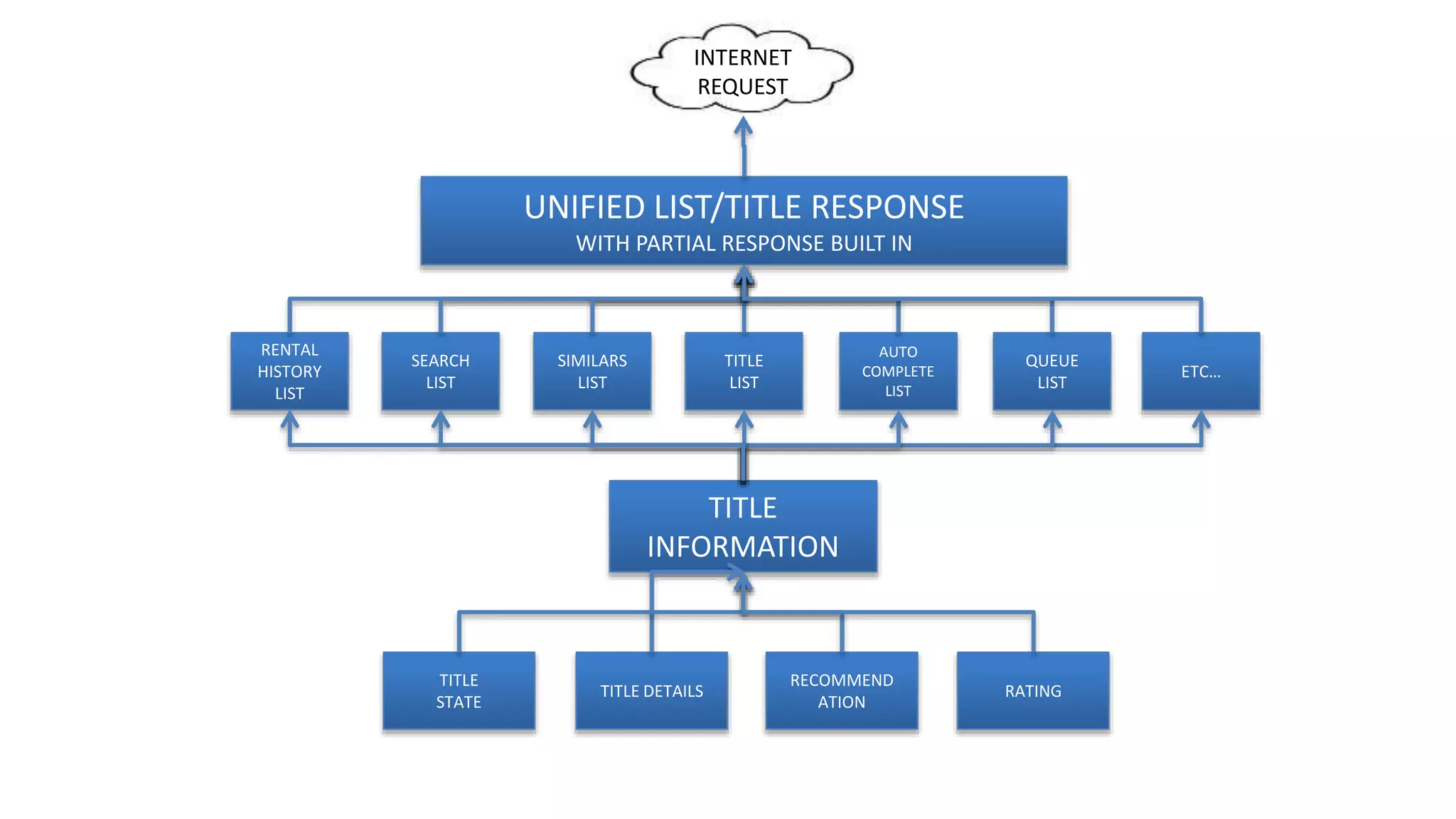

- 31. TITLE STATE SIMILARS LIST SEARCH LIST RENTAL HISTORY LIST RATING RECOMMEND ATION TITLE DETAILS TITLE LIST QUEUE LIST AUTO COMPLETE LIST ETC… TITLE INFORMATION UNIFIED LIST/TITLERESPONSE WITH PARTIAL RESPONSE BUILT IN INTERNET REQUEST

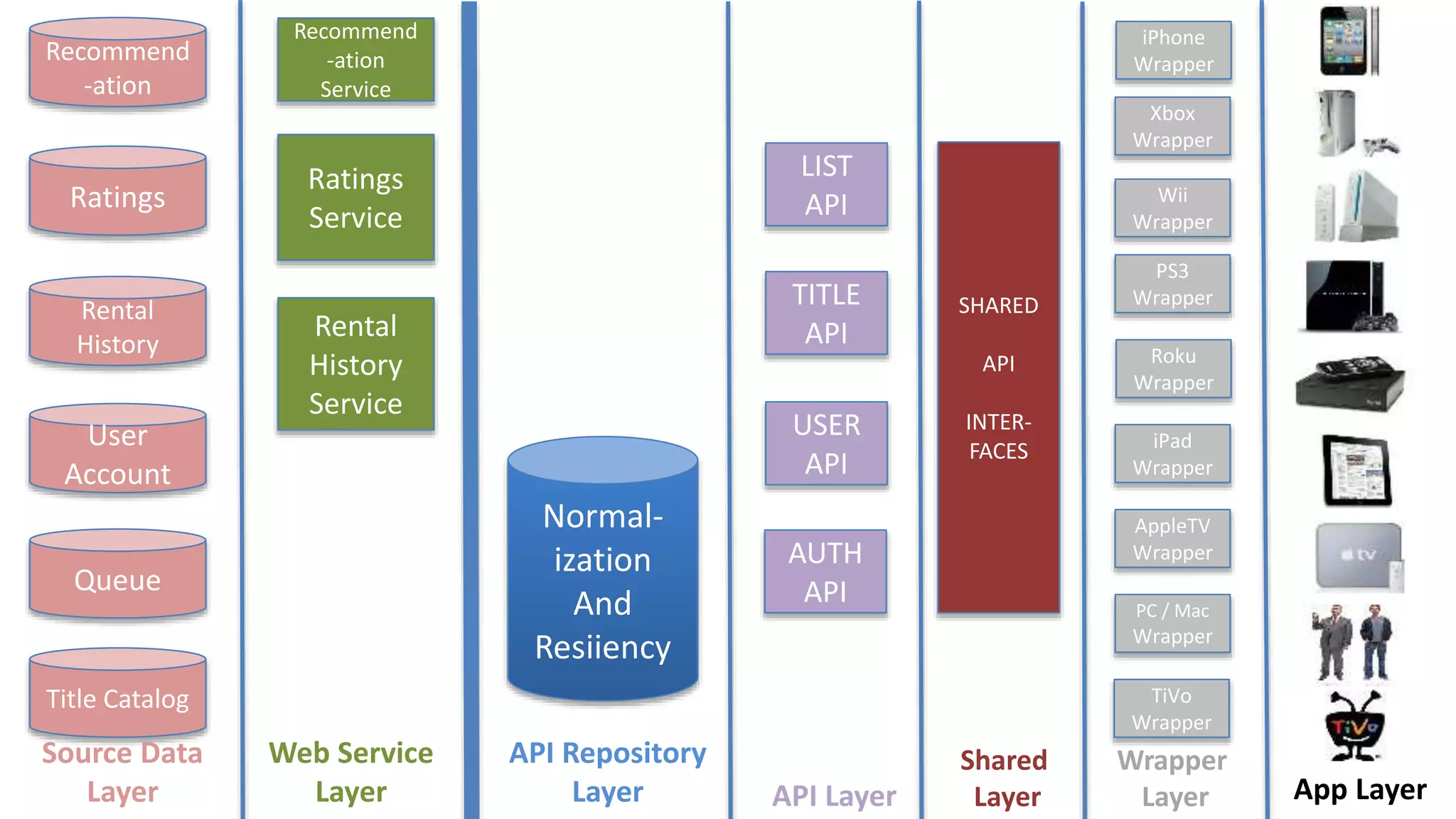

- 32. Recommend -ation Ratings Rental History User Account Title Catalog Queue Normal- ization And Resiiency Ratings Service Recommend -ation Service Rental History Service LIST API USER API TITLE API AUTH API iPhone Wrapper Wii Wrapper Xbox Wrapper PS3 Wrapper Roku Wrapper AppleTV Wrapper iPad Wrapper PC /Mac Wrapper TiVo Wrapper Source Data Layer API Repository Layer API Layer Wrapper Layer App Layer Web Service Layer SHARED API INTER- FACES Shared Layer

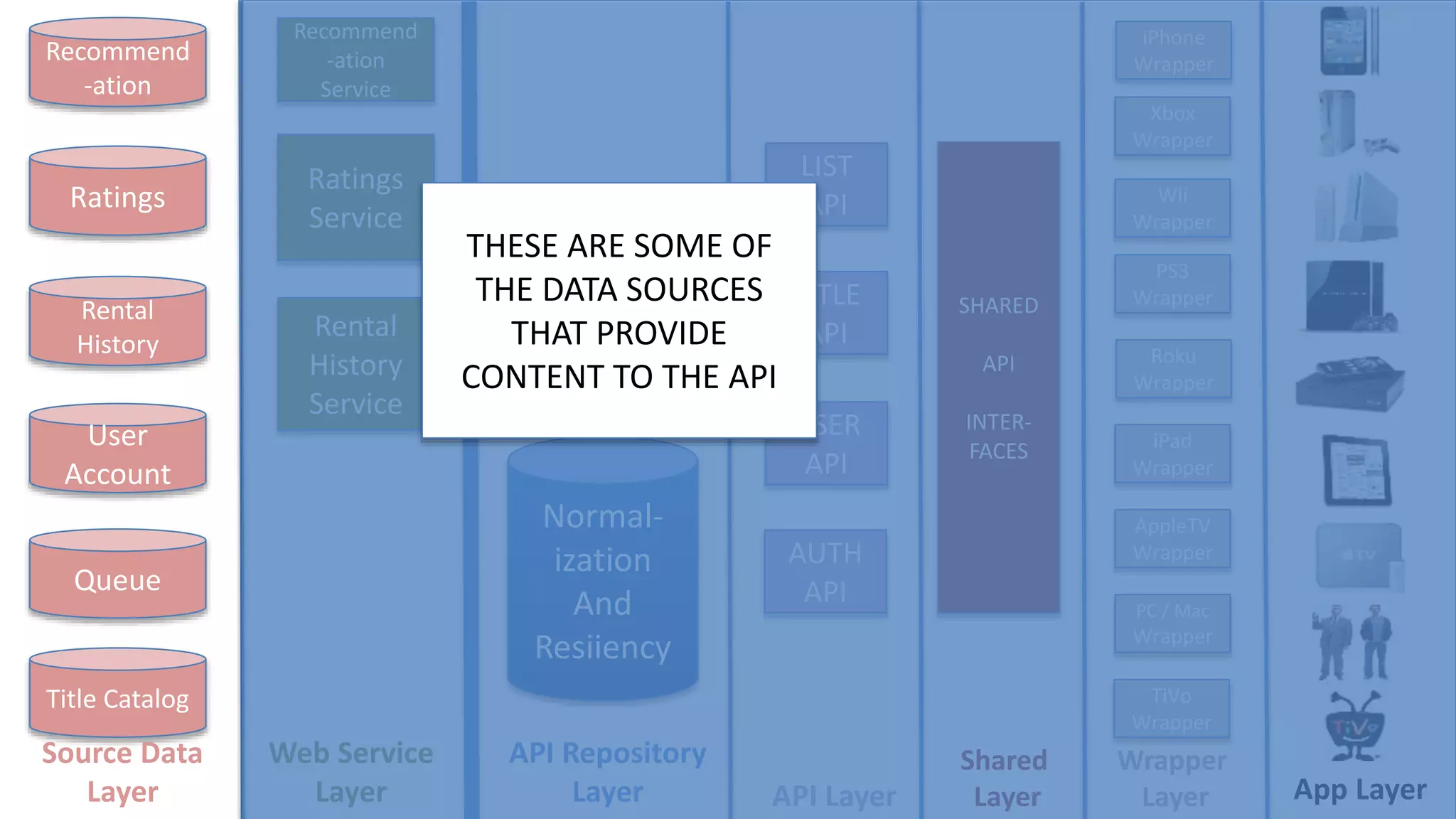

- 33. Recommend -ation Ratings Rental History User Account Title Catalog Queue Normal- ization And Resiiency Ratings Service Recommend -ation Service Rental History Service LIST API USER API TITLE API AUTH API iPhone Wrapper Wii Wrapper Xbox Wrapper PS3 Wrapper Roku Wrapper AppleTV Wrapper iPad Wrapper PC /Mac Wrapper TiVo Wrapper Source Data Layer API Repository Layer API Layer Wrapper Layer App Layer Web Service Layer SHARED API INTER- FACES Shared Layer THESE ARE SOME OF THE DATA SOURCES THAT PROVIDE CONTENT TO THE API

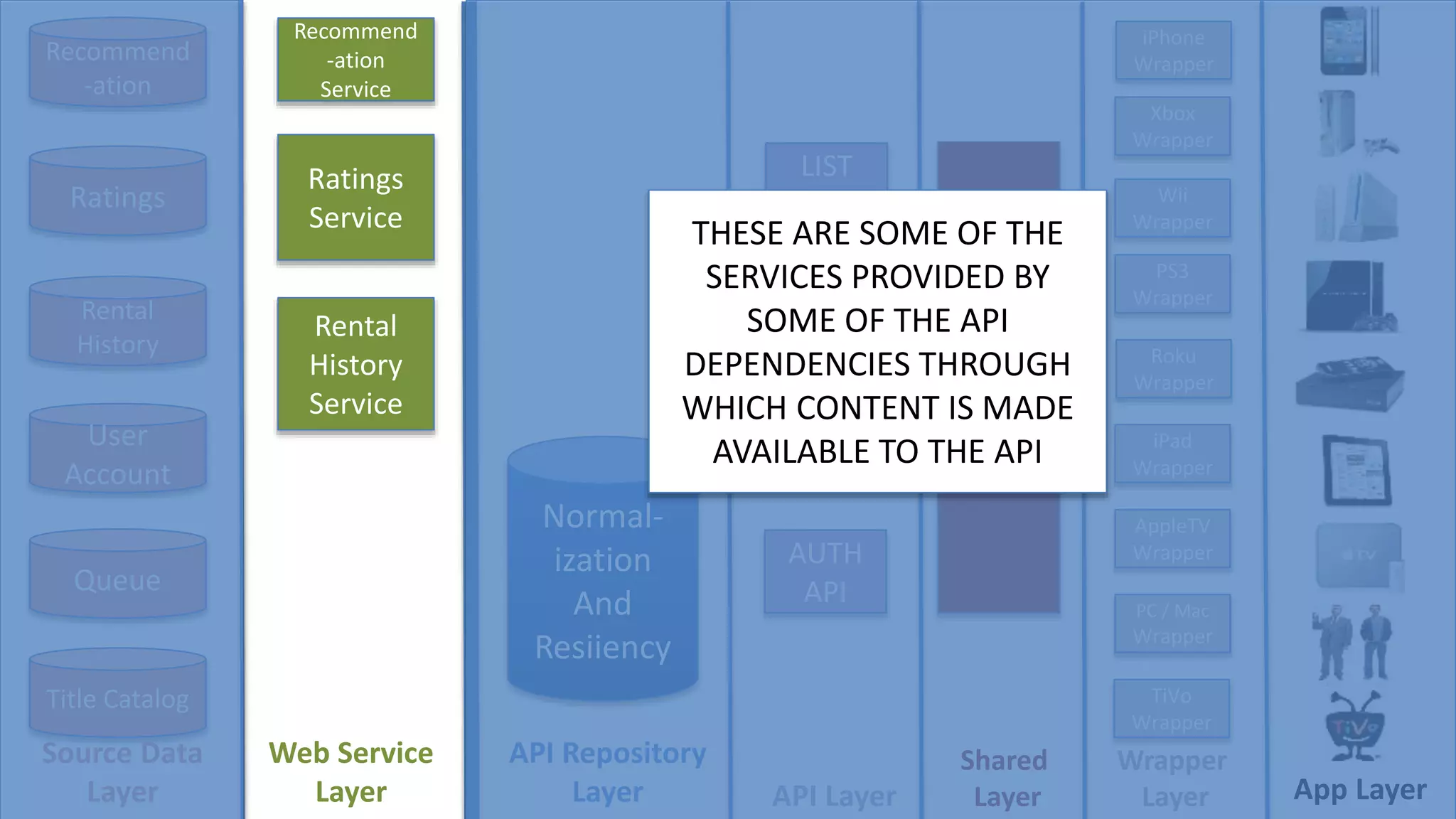

- 34. Recommend -ation Ratings Rental History User Account Title Catalog Queue Normal- ization And Resiiency Ratings Service Recommend -ation Service Rental History Service LIST API USER API TITLE API AUTH API iPhone Wrapper Wii Wrapper Xbox Wrapper PS3 Wrapper Roku Wrapper AppleTV Wrapper iPad Wrapper PC /Mac Wrapper TiVo Wrapper Source Data Layer API Repository Layer API Layer Wrapper Layer App Layer Web Service Layer SHARED API INTER- FACES Shared Layer THESE ARE SOME OF THE SERVICES PROVIDED BY SOME OF THE API DEPENDENCIES THROUGH WHICH CONTENT IS MADE AVAILABLE TO THE API

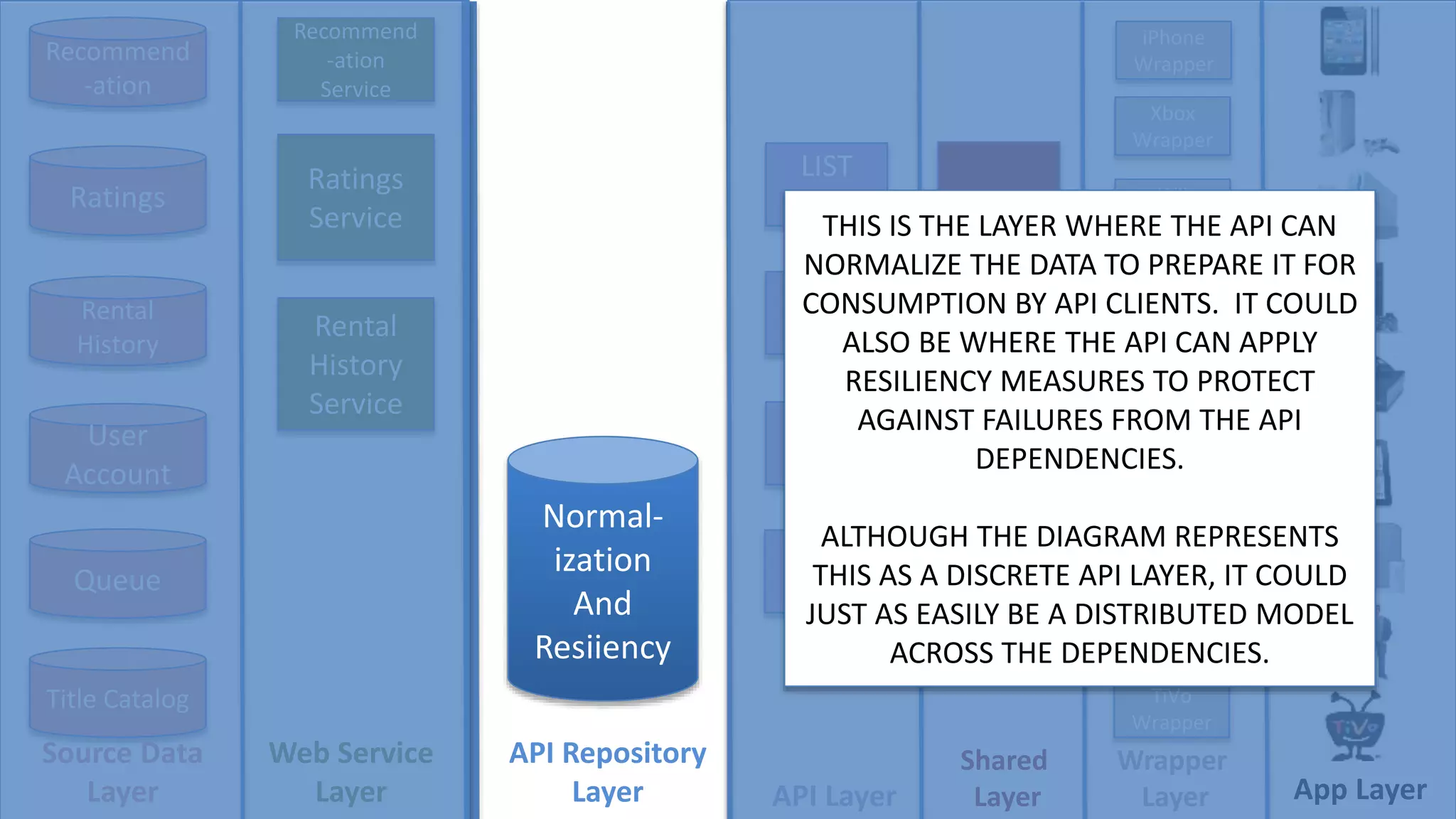

- 35. Recommend -ation Ratings Rental History User Account Title Catalog Queue Normal- ization And Resiiency Ratings Service Recommend -ation Service Rental History Service LIST API USER API TITLE API AUTH API iPhone Wrapper Wii Wrapper Xbox Wrapper PS3 Wrapper Roku Wrapper AppleTV Wrapper iPad Wrapper PC /Mac Wrapper TiVo Wrapper Source Data Layer API Repository Layer API Layer Wrapper Layer App Layer Web Service Layer SHARED API INTER- FACES Shared Layer THIS IS THE LAYER WHERE THE API CAN NORMALIZE THE DATA TO PREPARE IT FOR CONSUMPTION BY API CLIENTS. IT COULD ALSO BE WHERE THE API CAN APPLY RESILIENCY MEASURES TO PROTECT AGAINST FAILURES FROM THE API DEPENDENCIES. ALTHOUGH THE DIAGRAM REPRESENTS THIS AS A DISCRETE API LAYER, IT COULD JUST AS EASILY BE A DISTRIBUTED MODEL ACROSS THE DEPENDENCIES.

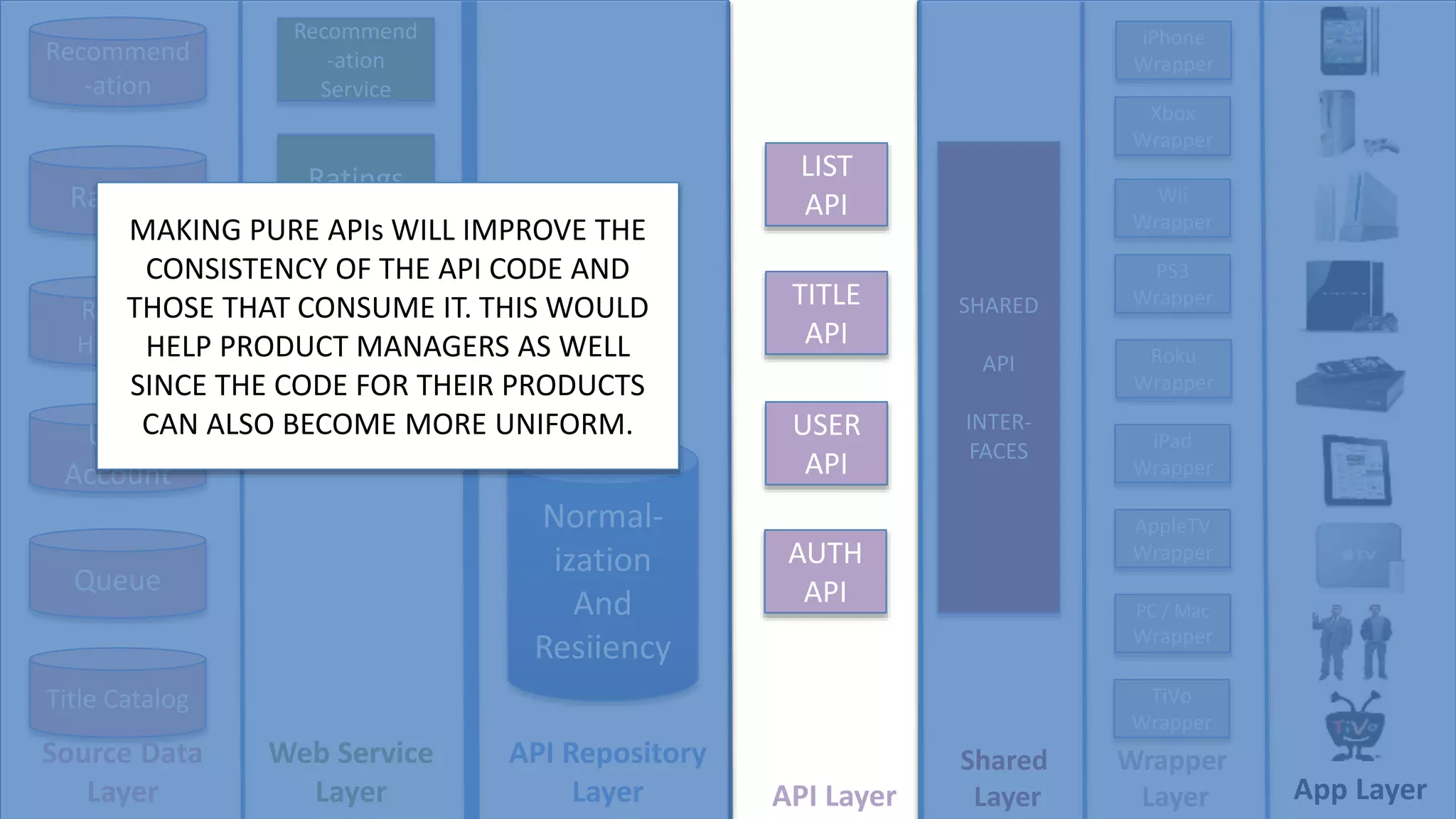

- 36. Recommend -ation Ratings Rental History User Account Title Catalog Queue Normal- ization And Resiiency Ratings Service Recommend -ation Service Rental History Service LIST API USER API TITLE API AUTH API iPhone Wrapper Wii Wrapper Xbox Wrapper PS3 Wrapper Roku Wrapper AppleTV Wrapper iPad Wrapper PC /Mac Wrapper TiVo Wrapper Source Data Layer API Repository Layer API Layer Wrapper Layer App Layer Web Service Layer SHARED API INTER- FACES Shared Layer MAKING PURE APIs WILL IMPROVE THE CONSISTENCY OF THE API CODE AND THOSE THAT CONSUME IT. THIS WOULD HELP PRODUCT MANAGERS AS WELL SINCE THE CODE FOR THEIR PRODUCTS CAN ALSO BECOME MORE UNIFORM.

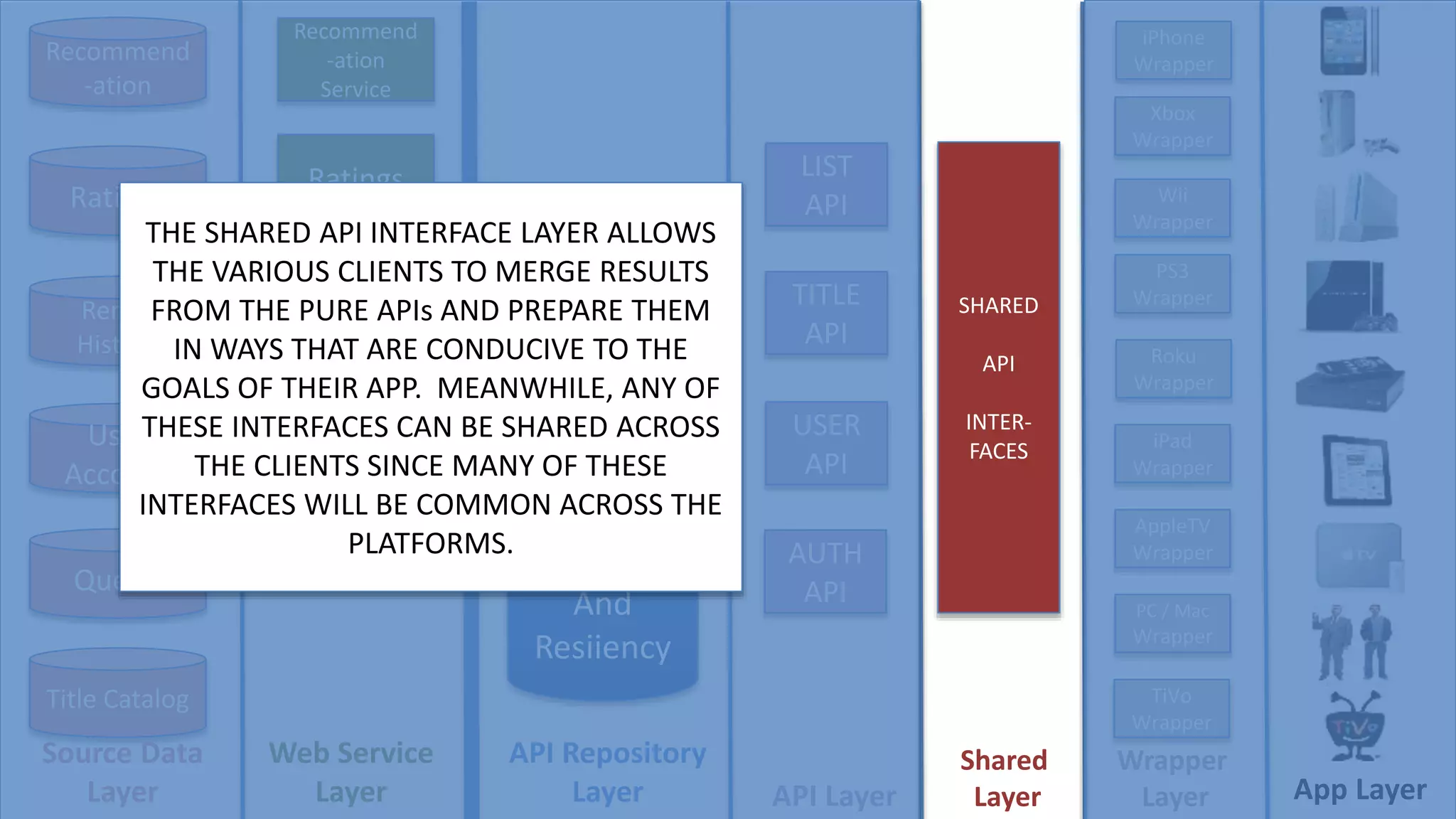

- 37. Recommend -ation Ratings Rental History User Account Title Catalog Queue Normal- ization And Resiiency Ratings Service Recommend -ation Service Rental History Service LIST API USER API TITLE API AUTH API iPhone Wrapper Wii Wrapper Xbox Wrapper PS3 Wrapper Roku Wrapper AppleTV Wrapper iPad Wrapper PC /Mac Wrapper TiVo Wrapper Source Data Layer API Repository Layer API Layer Wrapper Layer App Layer Web Service Layer SHARED API INTER- FACES Shared Layer THE SHARED API INTERFACE LAYER ALLOWS THE VARIOUS CLIENTS TO MERGE RESULTS FROM THE PURE APIs AND PREPARE THEM IN WAYS THAT ARE CONDUCIVE TO THE GOALS OF THEIR APP. MEANWHILE, ANY OF THESE INTERFACES CAN BE SHARED ACROSS THE CLIENTS SINCE MANY OF THESE INTERFACES WILL BE COMMON ACROSS THE PLATFORMS.

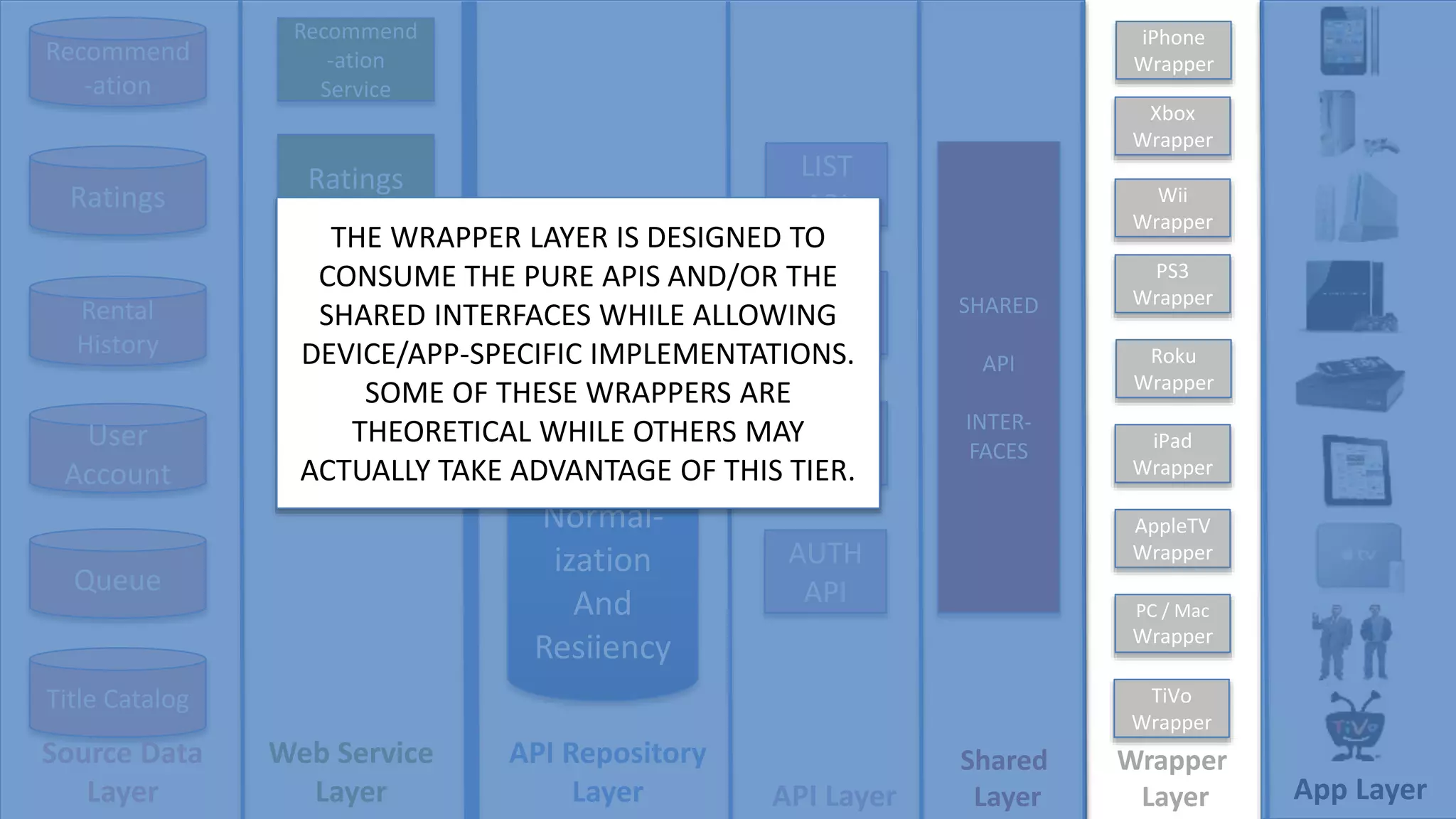

- 38. Recommend -ation Ratings Rental History User Account Title Catalog Queue Normal- ization And Resiiency Ratings Service Recommend -ation Service Rental History Service LIST API USER API TITLE API AUTH API iPhone Wrapper Wii Wrapper Xbox Wrapper PS3 Wrapper Roku Wrapper AppleTV Wrapper iPad Wrapper PC /Mac Wrapper TiVo Wrapper Source Data Layer API Repository Layer API Layer Wrapper Layer App Layer Web Service Layer SHARED API INTER- FACES Shared Layer THE WRAPPER LAYER IS DESIGNED TO CONSUME THE PURE APIS AND/OR THE SHARED INTERFACES WHILE ALLOWING DEVICE/APP-SPECIFIC IMPLEMENTATIONS. SOME OF THESE WRAPPERS ARE THEORETICAL WHILE OTHERS MAY ACTUALLY TAKE ADVANTAGE OF THIS TIER.

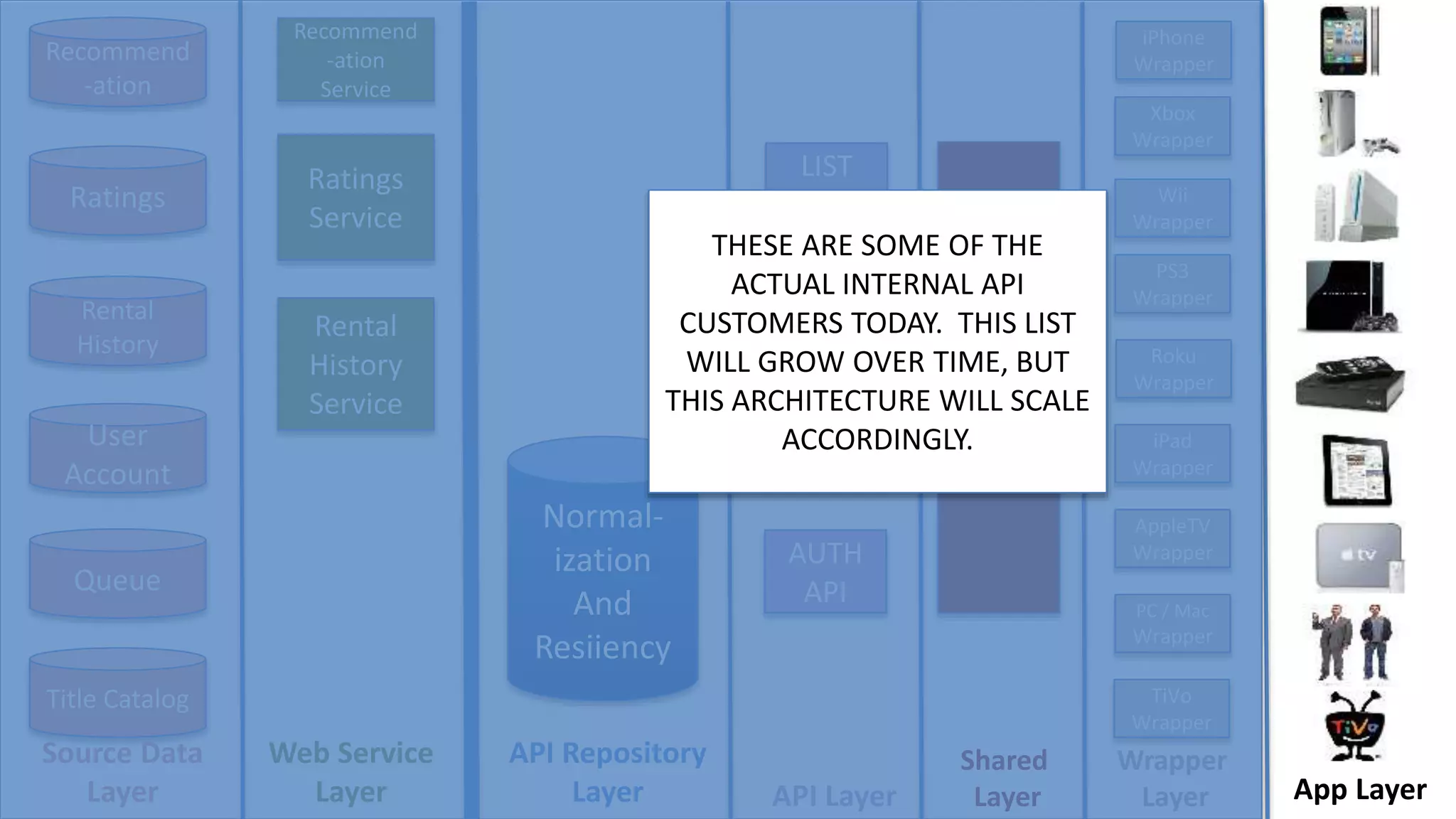

- 39. Recommend -ation Ratings Rental History User Account Title Catalog Queue Normal- ization And Resiiency Ratings Service Recommend -ation Service Rental History Service LIST API USER API TITLE API AUTH API iPhone Wrapper Wii Wrapper Xbox Wrapper PS3 Wrapper Roku Wrapper AppleTV Wrapper iPad Wrapper PC /Mac Wrapper TiVo Wrapper Source Data Layer API Repository Layer API Layer Wrapper Layer App Layer Web Service Layer SHARED API INTER- FACES Shared Layer THESE ARE SOME OF THE ACTUAL INTERNAL API CUSTOMERS TODAY. THIS LIST WILL GROW OVER TIME, BUT THIS ARCHITECTURE WILL SCALE ACCORDINGLY.

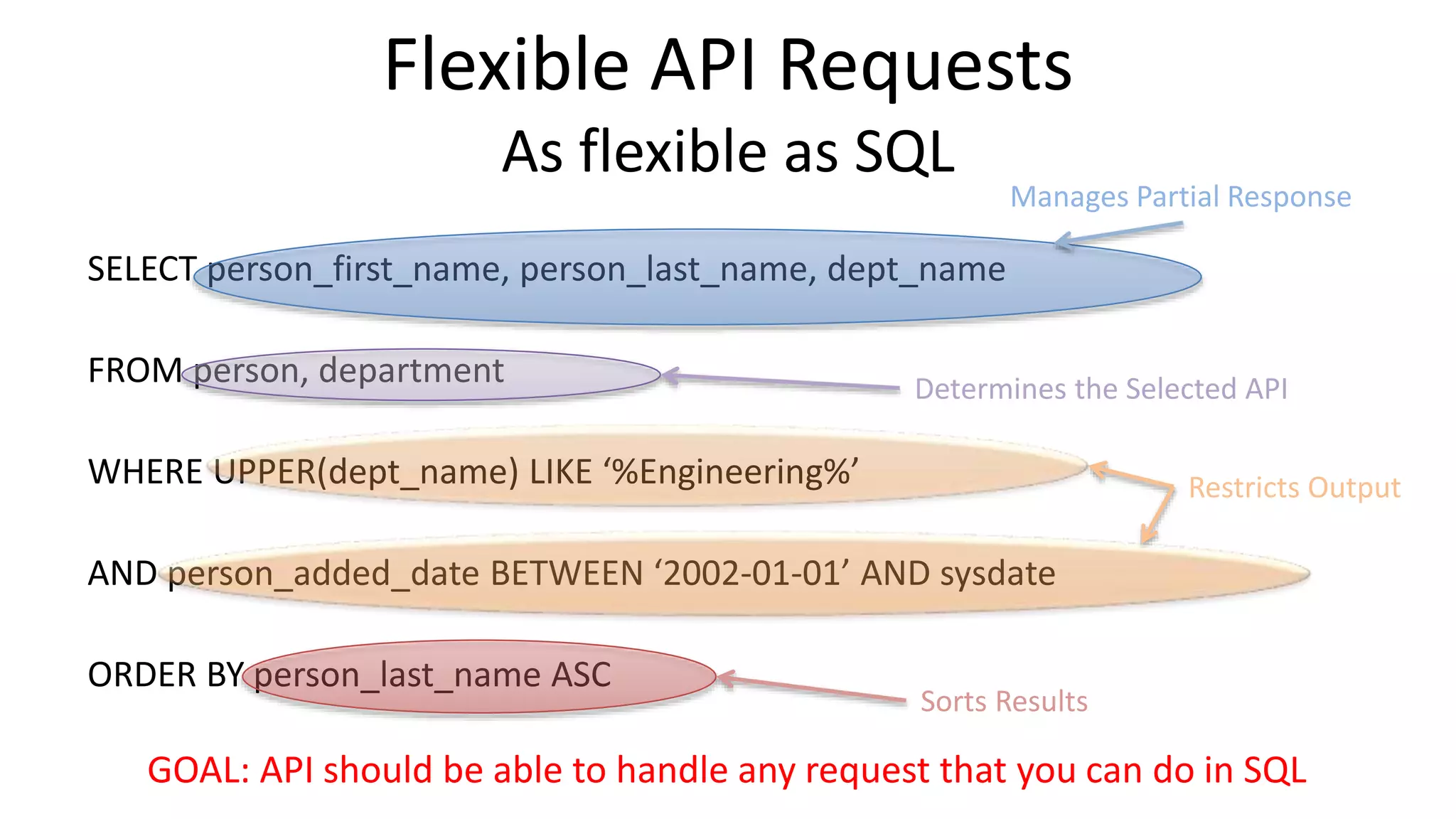

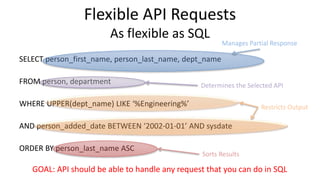

- 40. Flexible API Requests Asflexible as SQL SELECT person_first_name, person_last_name, dept_name FROM person, department WHERE UPPER(dept_name) LIKE ‘%Engineering%’ AND person_added_date BETWEEN ‘2002-01-01’ AND sysdate ORDER BY person_last_name ASC Manages Partial Response Determines the Selected API Restricts Output Sorts Results GOAL: API should be able to handle any request that you can do in SQL

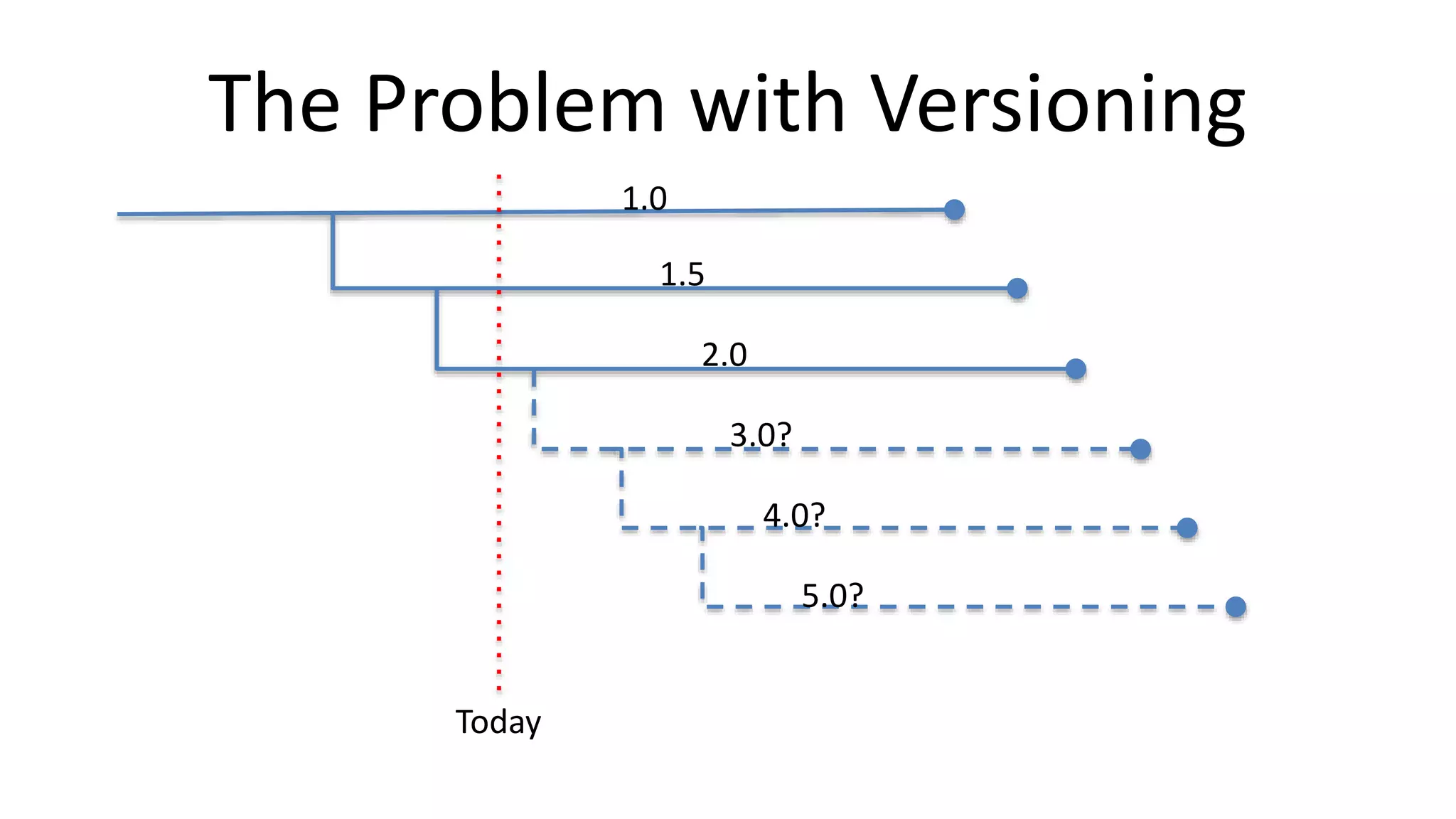

- 41. The Problem withVersioning 1.0 1.5 2.0 Today 3.0? 4.0? 5.0?

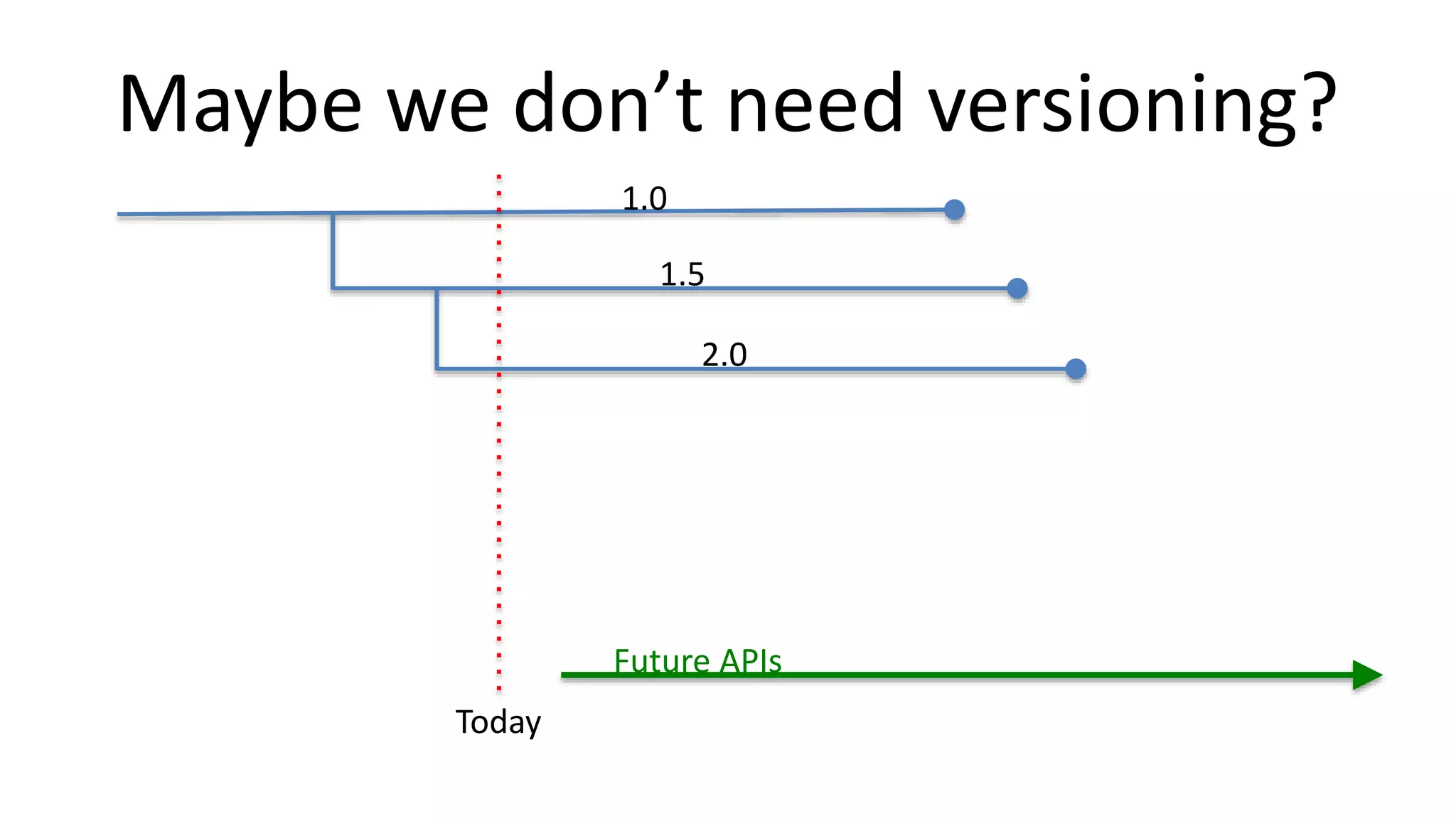

- 42. Maybe we don’tneed versioning? 1.0 1.5 2.0 Future APIs Today

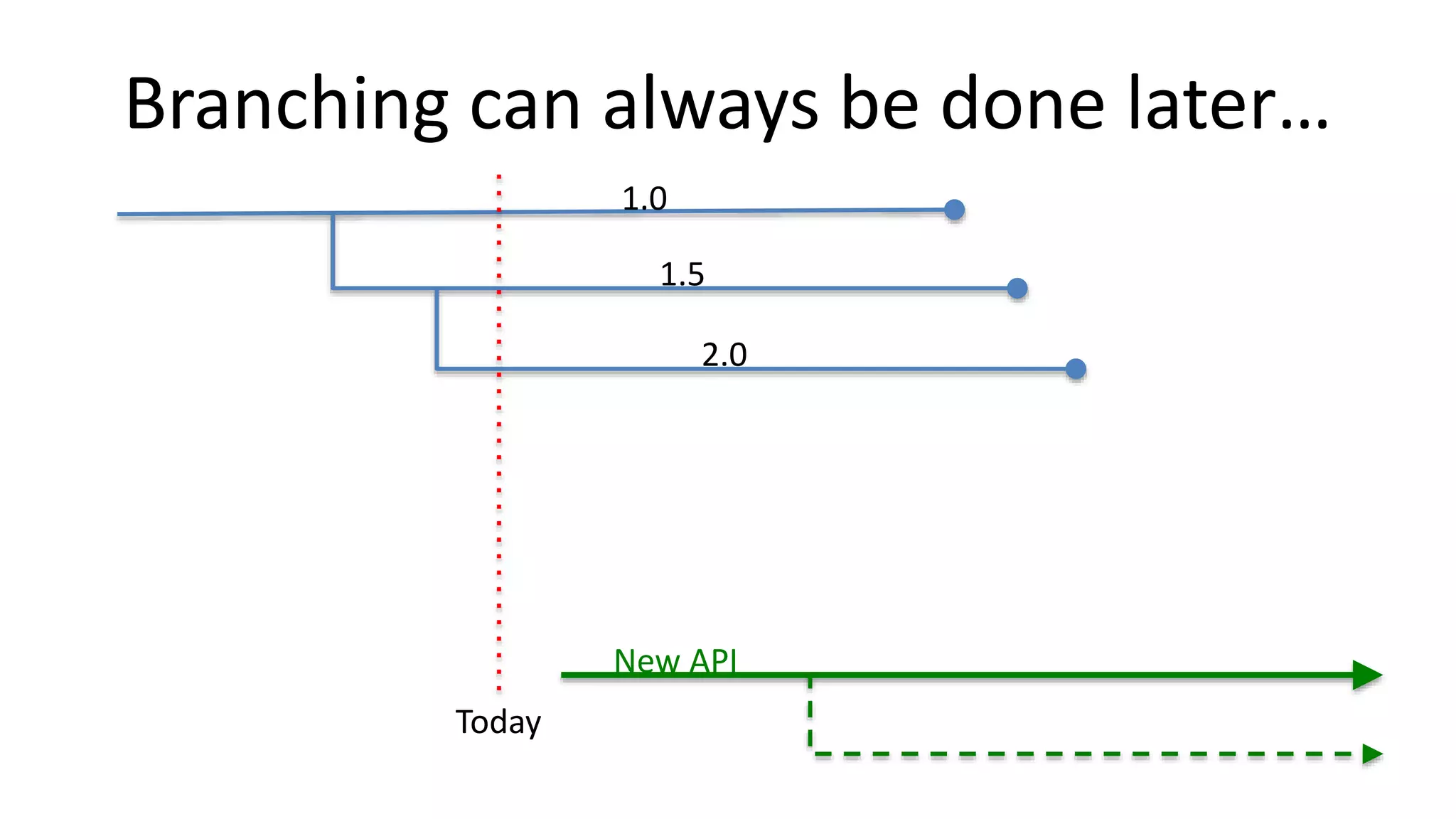

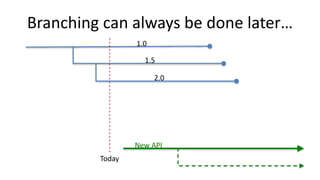

- 43. Branching can alwaysbe done later… 1.0 1.5 2.0 New API Today

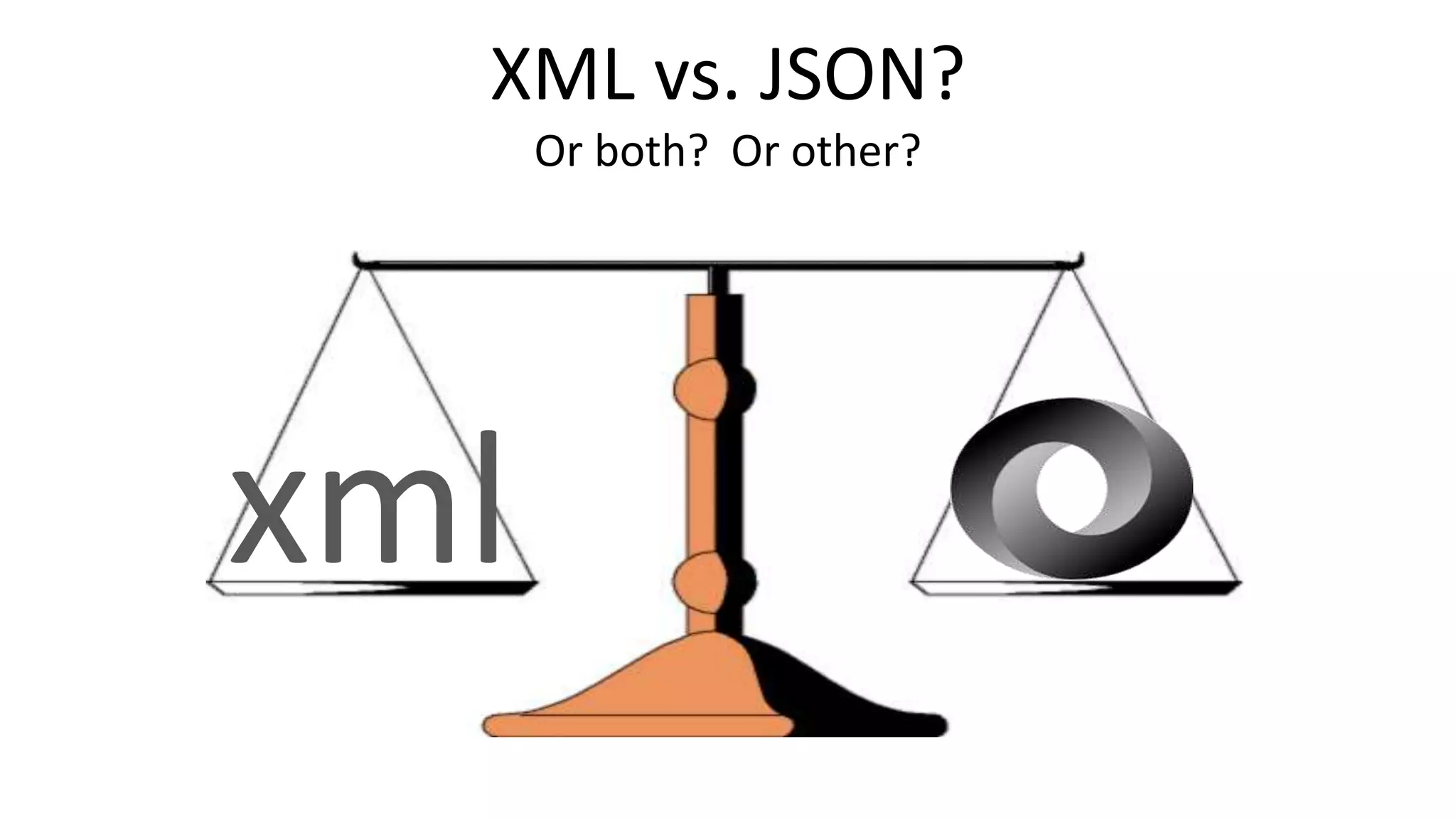

- 44. XML vs. JSON? Orboth? Or other? xml
- 45. REST… as long asit makes sense for the business

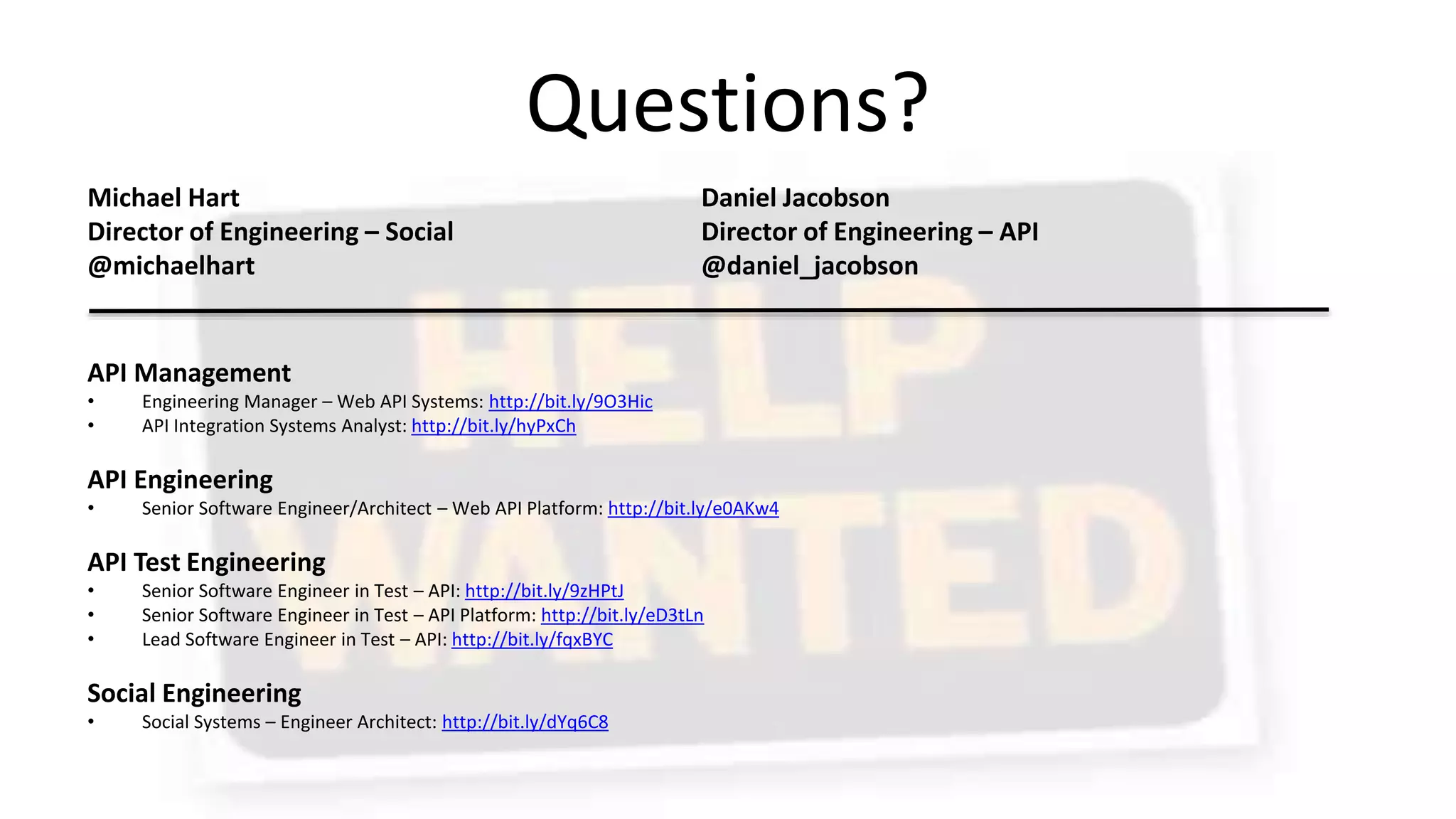

- 46. Questions? API Management • EngineeringManager – Web API Systems: http://bit.ly/9O3Hic • API Integration Systems Analyst: http://bit.ly/hyPxCh API Engineering • Senior Software Engineer/Architect – Web API Platform: http://bit.ly/e0AKw4 API Test Engineering • Senior Software Engineer in Test – API: http://bit.ly/9zHPtJ • Senior Software Engineer in Test – API Platform: http://bit.ly/eD3tLn • Lead Software Engineer in Test – API: http://bit.ly/fqxBYC Social Engineering • Social Systems – Engineer Architect: http://bit.ly/dYq6C8 Michael Hart Director of Engineering – Social @michaelhart Daniel Jacobson Director of Engineering – API @daniel_jacobson
Editor's Notes
- #4 The first point I’d like to make is that API strategy, like any strategy, is only valid in a particular context, the opportunities and constraints within which each business operates Your mileage may vary.
- #5 The initial API strategy could be called A Thousand Flowers, as in “let a thousand flowers bloom”

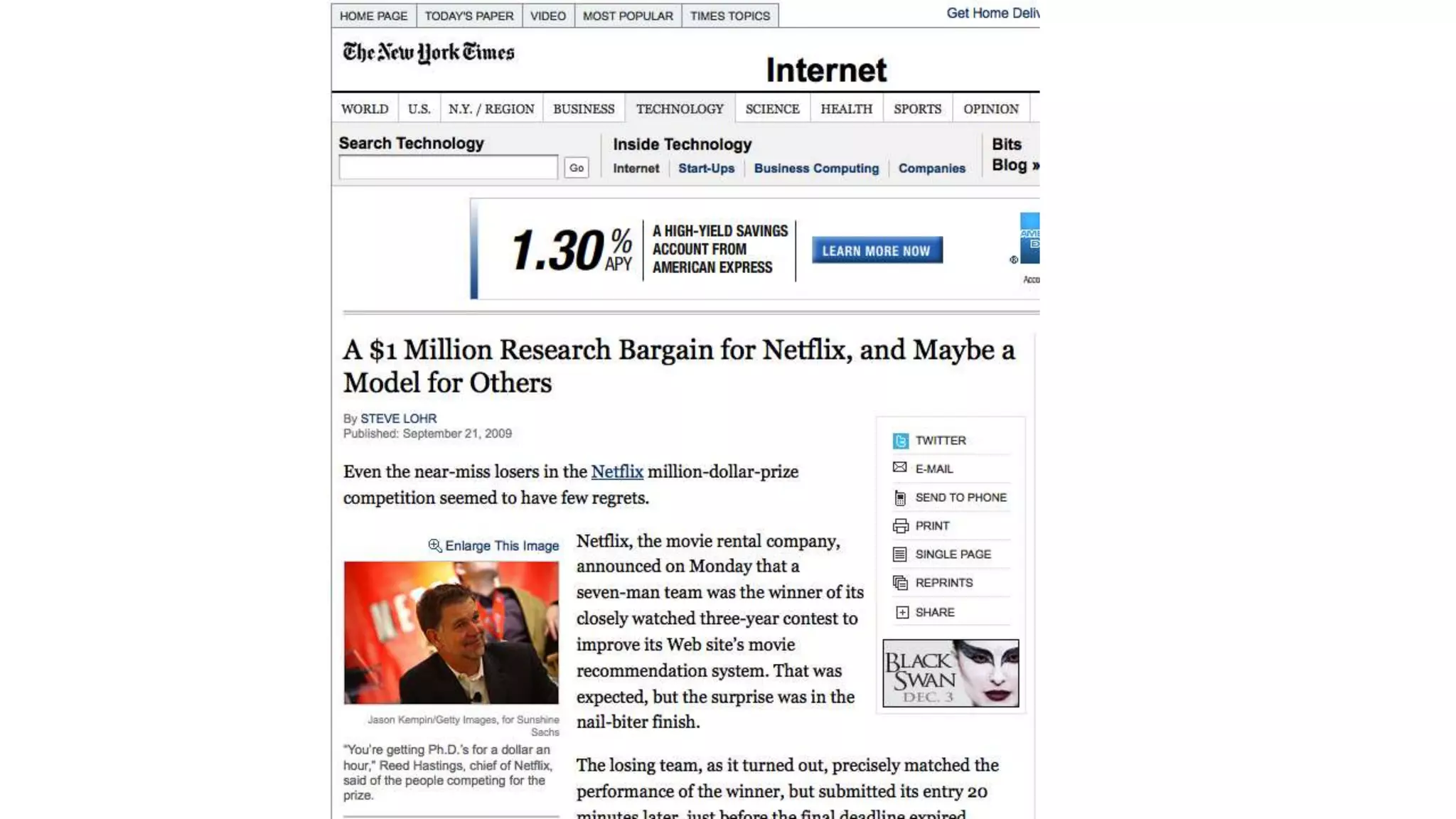

- #6 The inspiration for the API program came from the same inspiration as the Netflix prize- an attempt to outsource some aspects of innovation. The Netflix Prize: thousands of teams spent almost3 years trying to come up with a recommendations engine that could beat our own by 10% and win $1M. A testament to not only our ability outsource some aspects of innovation, but also to our own ability to innovate: it took three years for thousands of teams to beat the recommendations engine we developed by just 10%. Outsourcing some innovation is just one of the ways Netflix tries to stay small, a “big startup”.

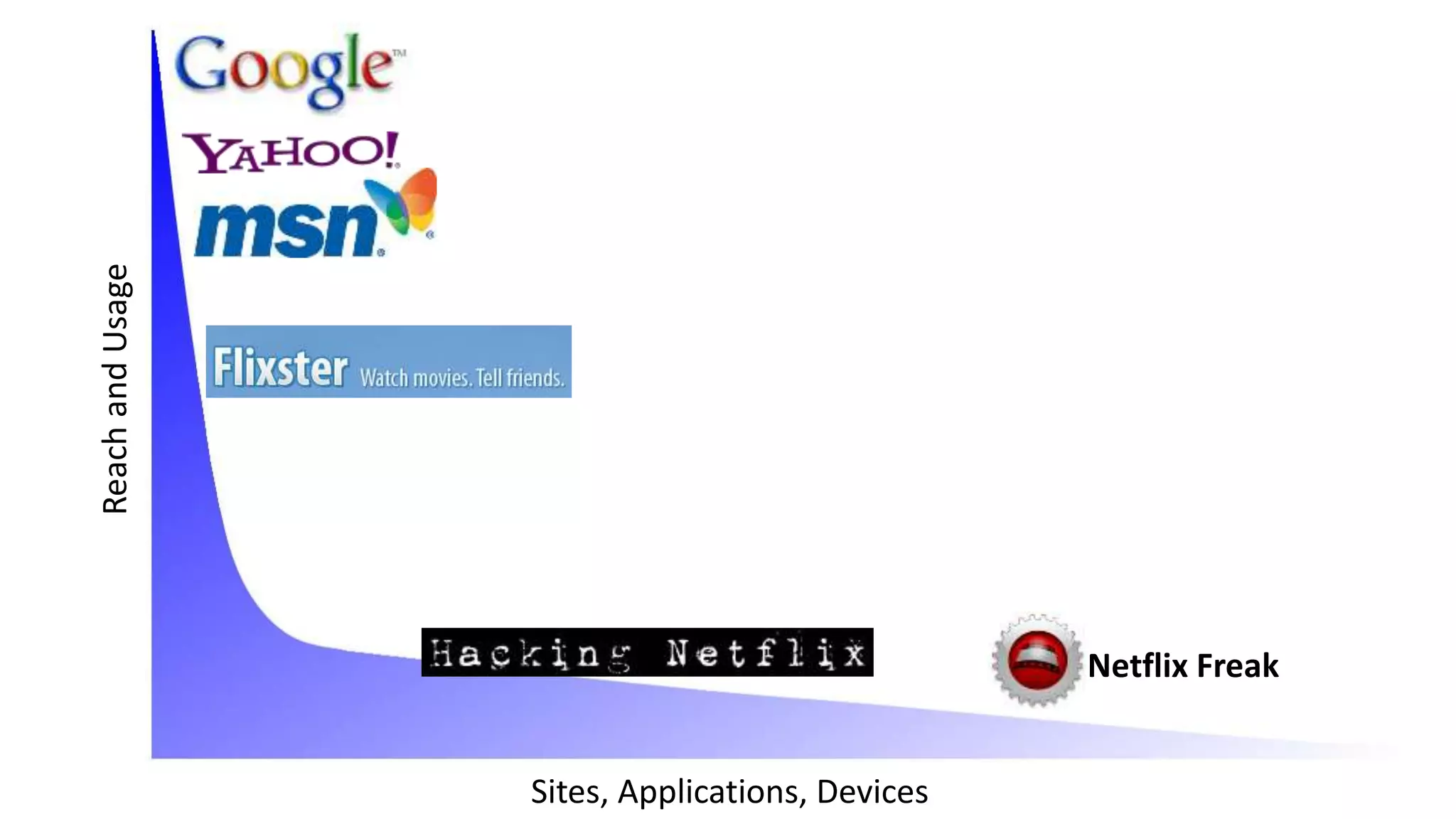

- #7 This is a slide I showed at the Business of APIs conference two years ago showing a range of potential partners from large to small. Could we recreate the same innovation dynamic around an API as we did with the Netflix Prize, enabling external innovation around our API to create user experiences that would improve movie discovery, especially by enabling the smaller developers down the tail to have an equal shot of innovating with our service as larger potential partners? We win if one developer comes up with a very big idea or a bunch of developers develop apps that addressed specific niches that, in total, would be significant. @Netflix: the simplest measure of “significant” for any initiative means delivering some tangible value to at least 20% of our subs in any given month. That criteria helps us maintain focus and stay small and nimble by not chasing small opportunities. What is a small opportunity for Netflix might be a relatively larger opportunity for others business. Again, YMMV.
- #8 As you can see in this distribution of API-enabled application usage, the long tail didn’t really materialize. Furthermore, the total value delivered didn’t come close to our 20% bar. Most popular apps weren’t all that innovative in terms of scenarios, they just delivered our existing scenarios to form factors it wasn’t efficient for us to reach. Mobile apps were the most successful, but they were just delivering existing Netflix website scenarios like search and recommendations. Why? With varied implementation technologies (C, C#, Objective C), and unclear sub reach, it would have been costly in both real and opportunity costs for Netflix to experiment with developing apps for these platforms, and external developers filled that void. Even with that bright spot, overall sub usage wasn’t high enough to justify the API program alone.

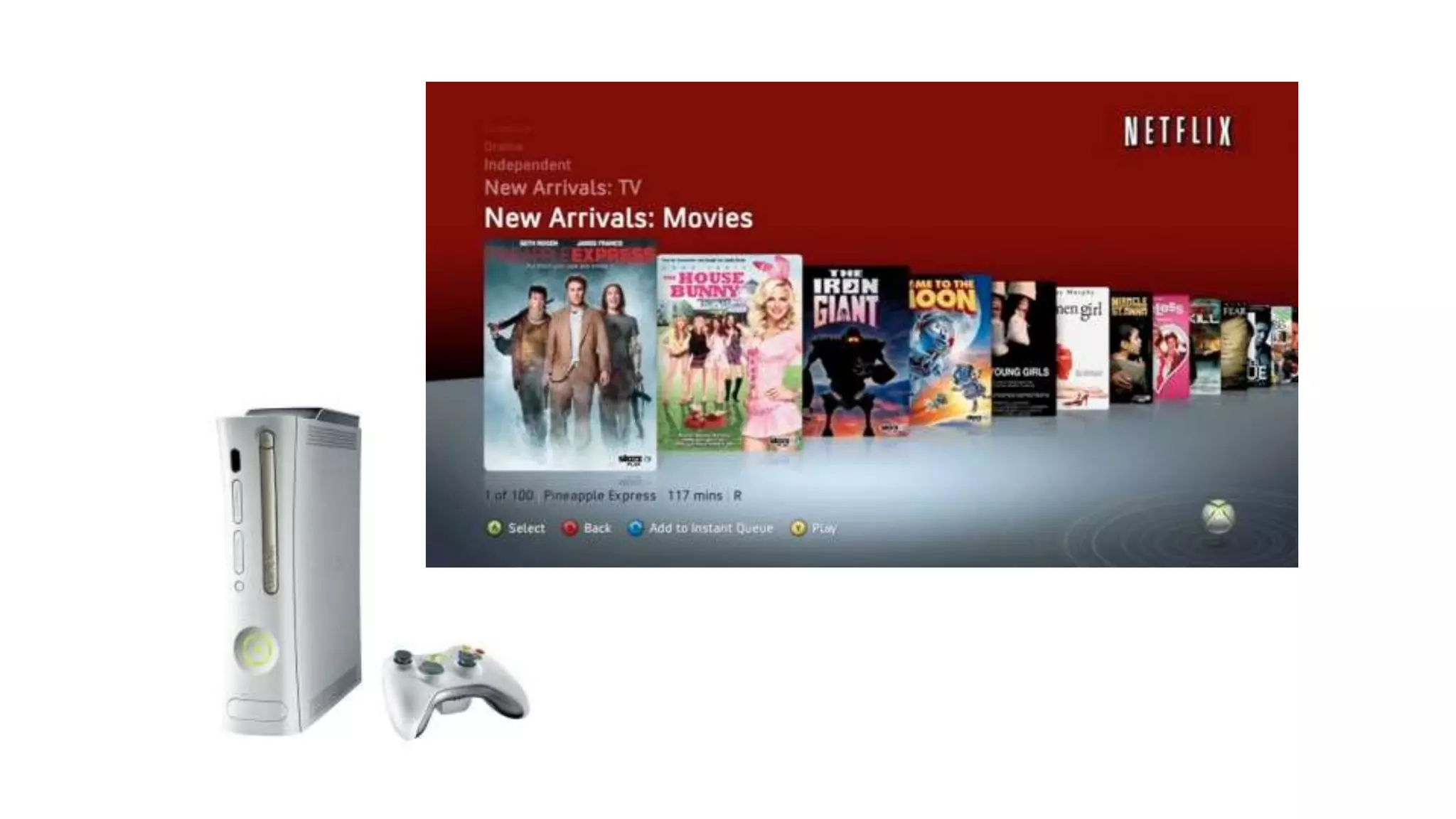

- #9 The something interesting happened: Xbox approached us for ideas for the v2 version of the Netflix application We were already seeing signs that streaming device reach was big driver for the business. Up until this point, our streaming device apps didn’t support discovery of titles (we weren’t sure we could do this well). We also delivered our streaming app to partners via a C-based Linux application supported by a client SDK in turn supported by private APIs separate from our public API. A partner app couldn’t be built directly against this API and minor extensions to the API required a whole new API version. Porting the app and SDK to a non-Linux platform like Xbox also took extra time. It took at least a quarter to roll out new scenarios through this implementation stack. Our private API plus client SDK didn’t have anything new to offer over the v1 application. Did we just learn something from the 1000 flowers experiment? The REST-based open API could be revved more quickly and was easier to work with cross-platform given it was designed without any client requirement It happened to have a new recommendation API, internally called LOLOMO for “Lists of Lists of Movies”, which was our first foray into enabling subscribers to discover movies and tv shows on a device. LOLOMO was integrated into Xbox using the open API and streaming usage went up noticeably after launch. It was now clear that we could deliver new, Netflix-originated scenarios quickly to devices via the open API.
- #10 Exciting, but that put a big “?” on the 1000 flowers strategy. Rights restrictions on streaming titles demanded that they be delivered only within Netflix-branded applications Netflix branded applications demanded an application certification process to ensure a quality experience for our subscribers. Unlike third-party applications, our name was on the app which meant we couldn’t simply disable it if it was a disappointing experience for our subscribers, used the API inefficiently, etc. However IW device reach had proven to be a major driver for our business, and the user attach rate per Netflix app was much higher than for third-party apps Couple that with the possibility of increased viewing per device, and it became possible to move metrics beyond sub usage to subscriber acquisition, retention and lower distribution costs due to streams substituting for disc shipments
- #11 Achieved fantastic success accelerating the rollout of proven app scenarios quickly across branded Netflix applications API gave us flexibility to deliver to quickly to C/Linux apps, Flash apps, and more Also variety of development approaches, Netflix, vendor or partner. Equal access to our service functionality for all. That flexibility in both client platforms and development approaches helped us deliver these new scenarios quickly to all three major game consoles and the top 10 brands in TVs and Blu-ray players This picture is from May, we’re now on over 200 devices at retail At this point, our investment in the API had clearly paid off. Over 60% of subs streamed last quarter and we’re also realizing significant per sub streaming increases, albeit some percentage are PC and pre API devices. But having achieved this kind of TV device reach, what would we do next?

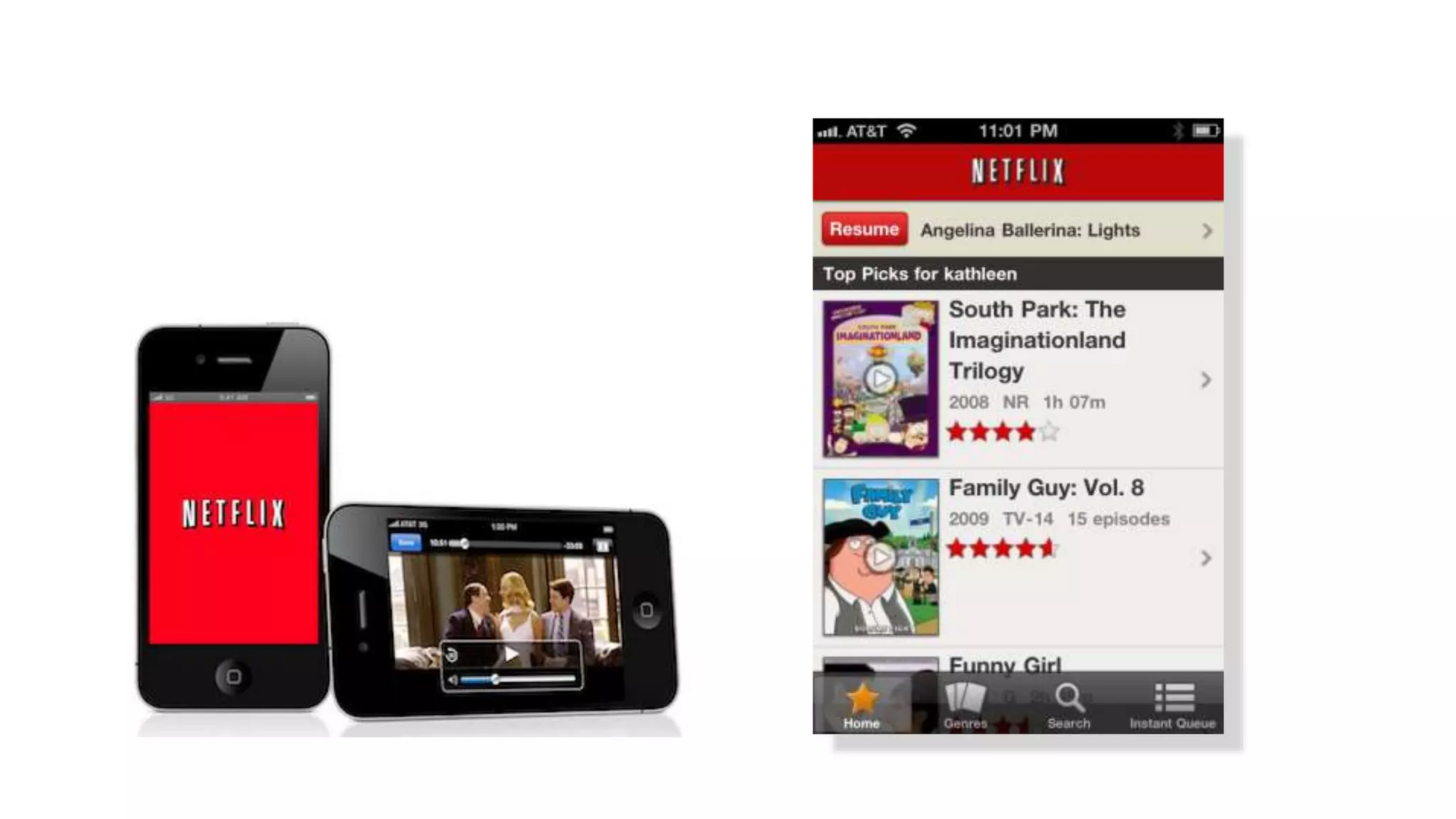

- #12 Mobile was next frontier for us, having reached this critical mass of TV connected devices. At this time, we were also investigating the promise of using HTML 5 and Javascript stack for our device applications. HTML 5 offered a number of potential benefits. Deliver compelling device experiences with visual effects that didn’t make you feel like you were on a PC website. User expectations on TV devices: EPG, performance you get with native apps and local data. Game consoles bar is higher. On mobile, most native apps trump web apps with similar functionality. Despite the outsourcing of some innovation through programs like the API and the Netflix Prize, we do also do a fairly good job of innovating at Netflix. Innovation through iteration on www through two week site updates. Web delivered UI gave us the power to completely control our experience on partner devices. We don’t have to incur the release delays associated with iPhone app store or other device partner application approval or certification processes, since updates to HTML content are very low risk compared to native code updates. Our iPhone app shown here is basically a browser shell for an HTML UI with extensions for DRM’d video playback. If you play this out to a logical conclusion, it could mean the end of the API usage for delivering Netflix device experiences at some point in the future. Server-generated HTML web pages wouldn’t necessarily need a publicly accessible API. Server-generated web pages couldn’t achieve performance goals without leveraging AJAX heavily. Consider a two-dimensional grid of movie recommendations. Only part of the grid is visible at any time, and offscreen titles can be loaded incrementally. API responses are also smaller network payloads than downloaded HTML. The API gave us exactly what we needed to build great AJAX-powered experiences. And, guess what? Most compelling mobile platforms like iPhone and Android lead in HTML 5 browser penetration. In fact, unlike on a PC, it’s only HTML 5 browsers on those platforms. No cross-browser compatibility concerns on a device. We now could leverage the API effectively for the aforementioned device applications plus a Netflix-delivered, web-based user on HTML-5-enabled mobile devices. But, we didn’t stop at mobile.
- #13 What if instead of implementing our UI natively on a TV device, we brought WebKit to the party instead?

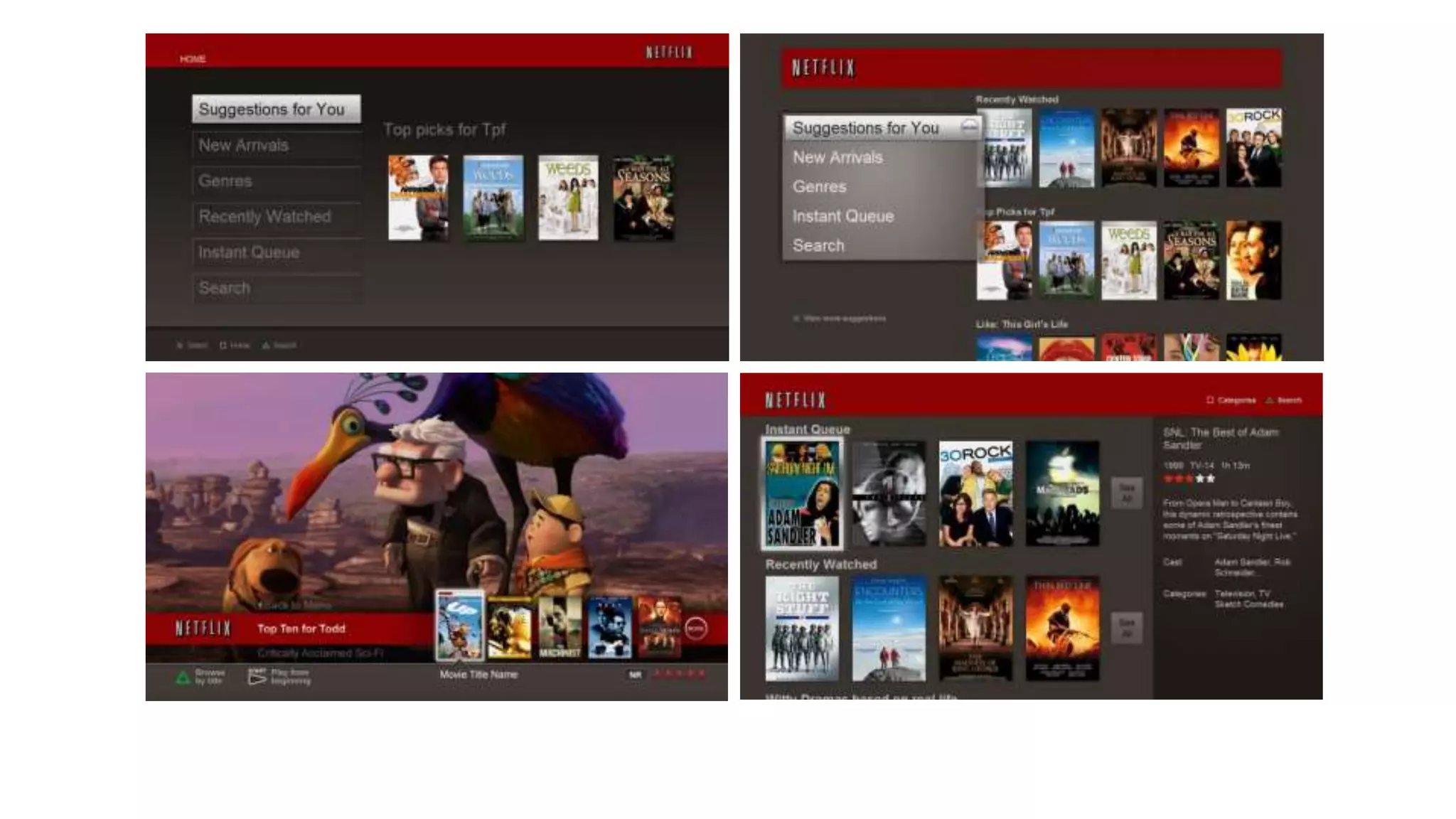

- #14 Not only do we update service features rapidly on two week release cycles, all new features or even incremental enhancements to existing features also undergo rigorous A/B testing, involving different user experiences being tested in parallel with distinct groups of users. This is the only practical way to ensure that new experiences are indeed better than their predecessors, and not simply outperforming them due to other external factors like seasonality, new content license deals, etc. We’ve been employing these techniques to improve our website experience for years. When we re-launched our PS3 app a few weeks back we began testing of 4 different app experiences concurrently. Once an API-supported scenario has been rapidly developed and tested on one or more HTML 5 applications, it can be finalized and then be leveraged in other less updateable application.
- #15 Once your API starts supporting rapid product innovation, you have to ensure that rapidly developed APIs supporting test experiences for thousands of users don’t affect the stability of APIs supporting millions of users. How do you balance these competing goals? You actually don’t have to choose between the two. Provisional APIs are one tactic for addressing this tension. Since new features are tested on platforms with easily updated client code, provisional APIs can be developed for a test scenario and then deprecated or modified before creating stable APIs that can be used by a wider range of clients as well as external developers. The test client can be updated to manage these changes as necessary. These provisional APIs can also be deployed and operated on different server clusters than the stable APis, minimizing the chance of less tested, more rapidly developed code being tested with thousands of users from potentially destabilizing services being used by millions of other users. Apigee’s Gateway allow you to easily route incoming API traffic to enable this partitioning.

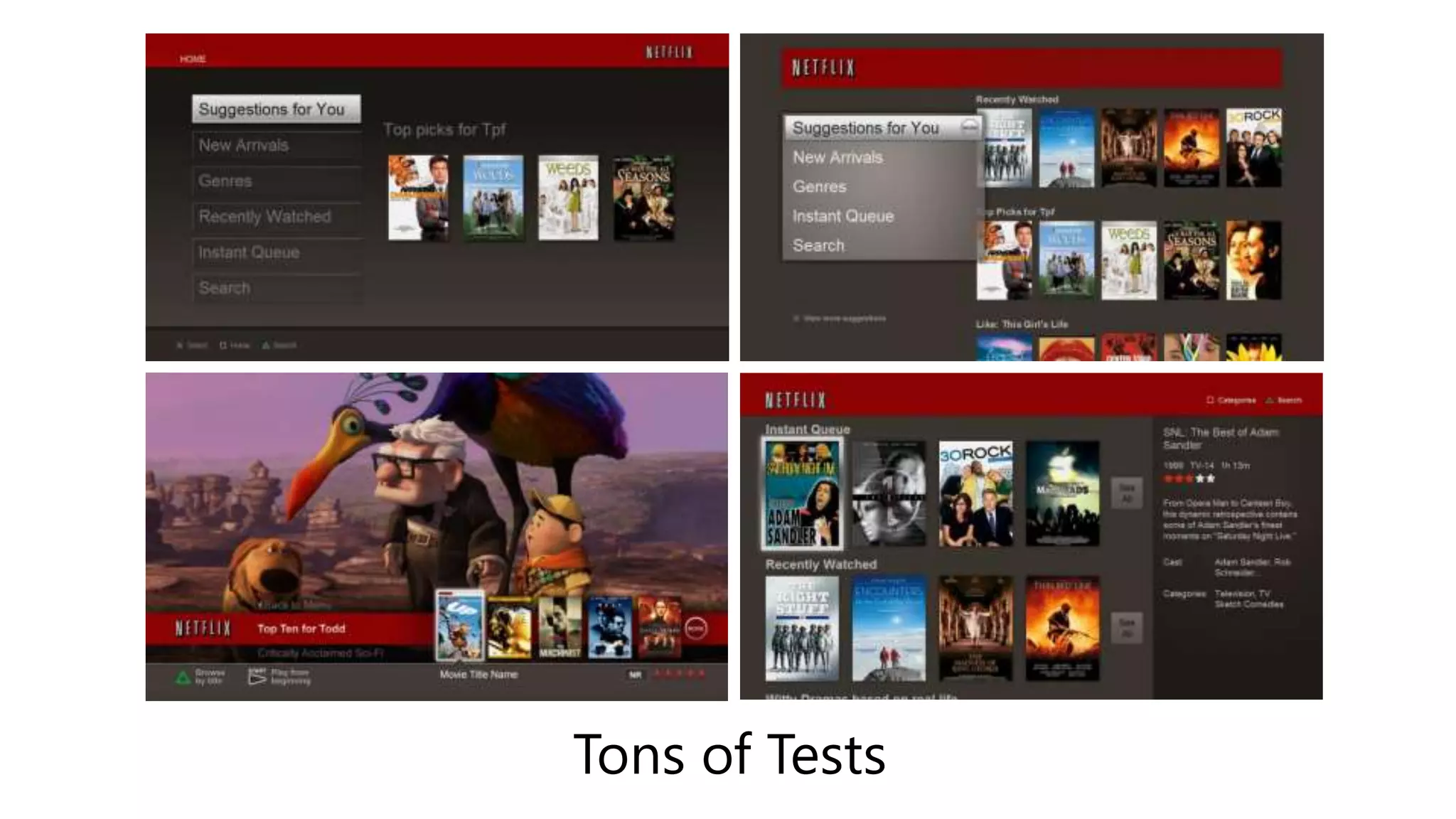

- #16 Call this the third evolution of Netflix API Strategy: Tons of Tests. While any potential competitor will have to work hard to get our device reach, we’ll be accelerating our user experience innovation on top of our API.
- #20 Despite these major changes, the API has still been able to achieve the goals of the company to the point that it is now serving roughly ? billion requests per month.
- #21 Over the last two years, the API has seen a ton of changes. Some tactical, some fundamental.
- #22 All under great time constraints and pressure to propel the business forward.
