Managing your camels in the cloud with CI/CD
The document discusses managing microservices and integrations in cloud environments, highlighting challenges and effective strategies, such as domain-driven design and decomposition into smaller models. It emphasizes the use of Apache Camel for dynamic routing, testing, and handling complex integrations across various systems. The presentation also covers practical aspects like deployment in containerized environments using tools like Docker and OpenShift, aimed at streamlining development workflows for integration services.
More Related Content
Similar to Managing your camels in the cloud with CI/CD
![[jvmmeetup] next-gen integration with apache camel and quarkus.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/jvmmeetupnext-genintegrationwithapachecamelandquarkus-250822032223-c05a088e-thumbnail.jpg?width=640&height=640&fit=bounds)
Managing your camels in the cloud with CI/CD
- 1. Managing Your Camelsin the Cloud @christianposta Principal Architect at Red Hat 6/29/16
- 2. Christian Posta Principal MiddlewareArchitect @ Red Hat Twitter: @christianposta Blog: http://blog.christianposta.com Email: christian@redhat.com • “Microservices for Java developers” (6/2016) • Committer Apache Camel, ActiveMQ, Fabric8, others • Worked with large Microservices, web-scale, unicorn company • Blogger, speaker about DevOps, integration, and microservices
- 3. Do we need“integration?” What kind of challenges are we going to run into? How do we manage our integrations and microservices? We’re off to do Microservices!

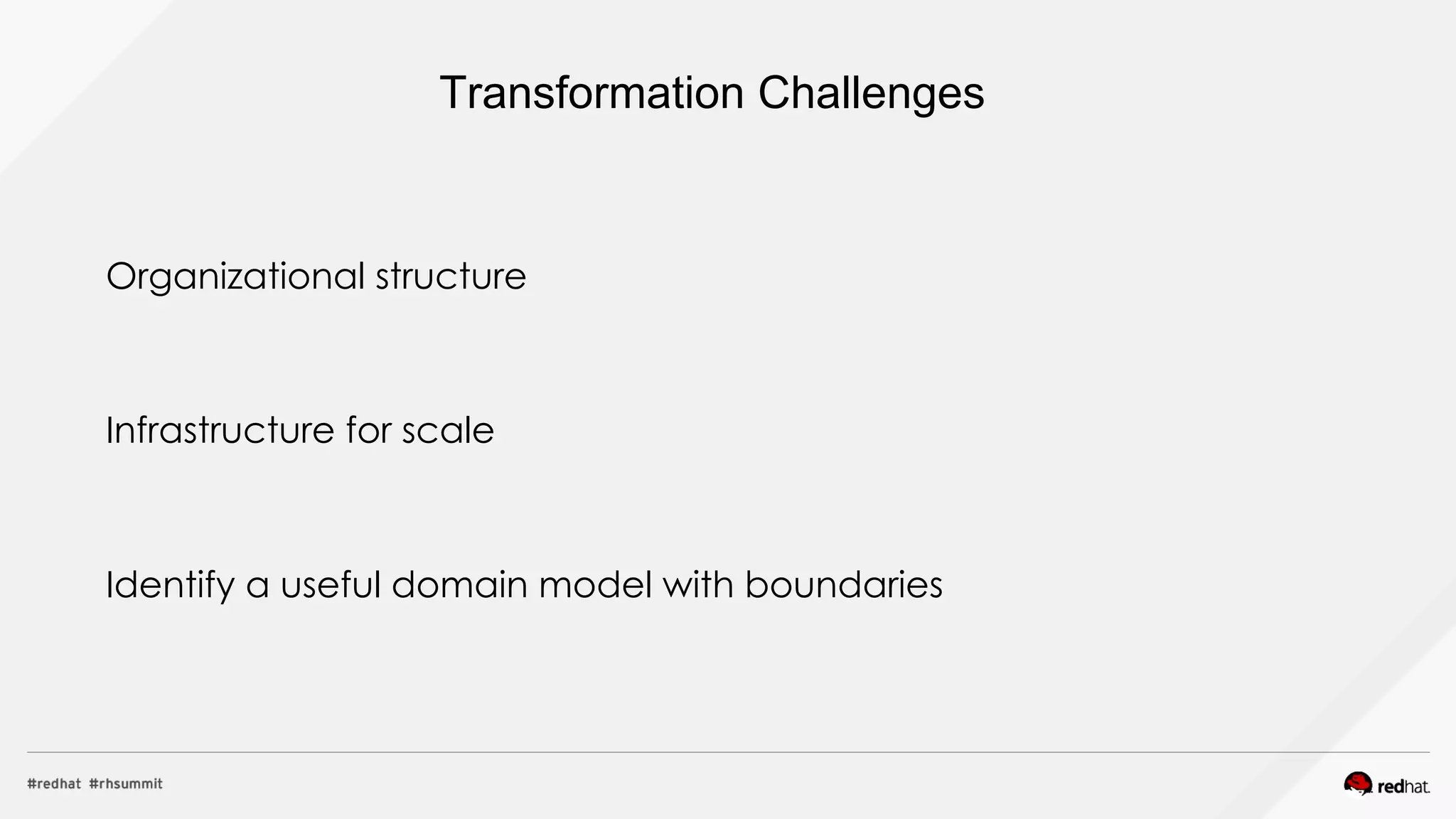

- 4. Infrastructure for scale Organizationalstructure Identify a useful domain model with boundaries Transformation Challenges
- 5. Domain Complexity • Breakthings into smaller, understandable models • Surround a model and its “context” with a boundary • Implement the model in code or get a new model • Explicitly map between different contexts • Model transactional boundaries as aggregates

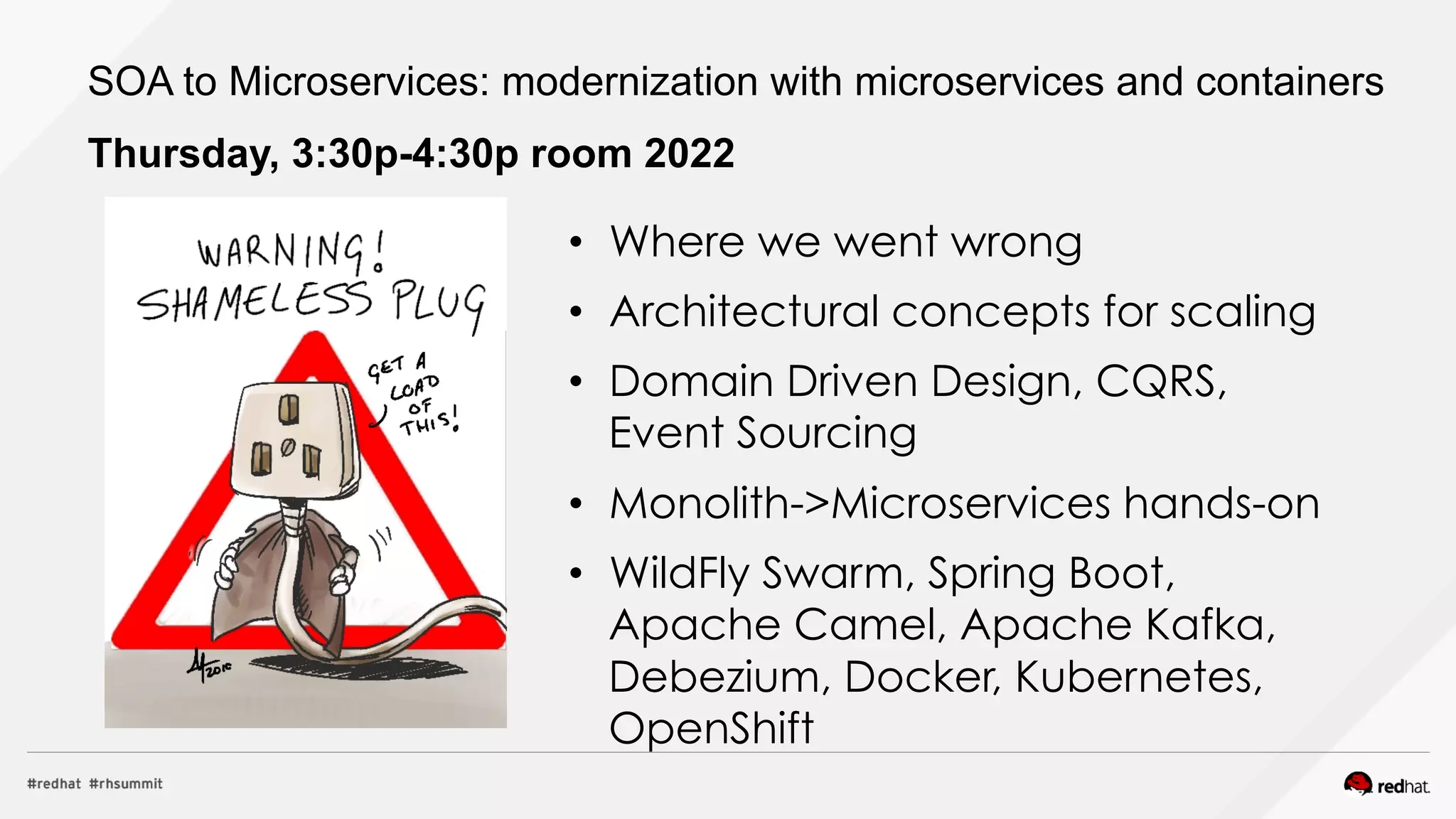

- 7. • Where wewent wrong • Architectural concepts for scaling • Domain Driven Design, CQRS, Event Sourcing • Monolith->Microservices hands-on • WildFly Swarm, Spring Boot, Apache Camel, Apache Kafka, Debezium, Docker, Kubernetes, OpenShift SOA to Microservices: modernization with microservices and containers Thursday, 3:30p-4:30p room 2022

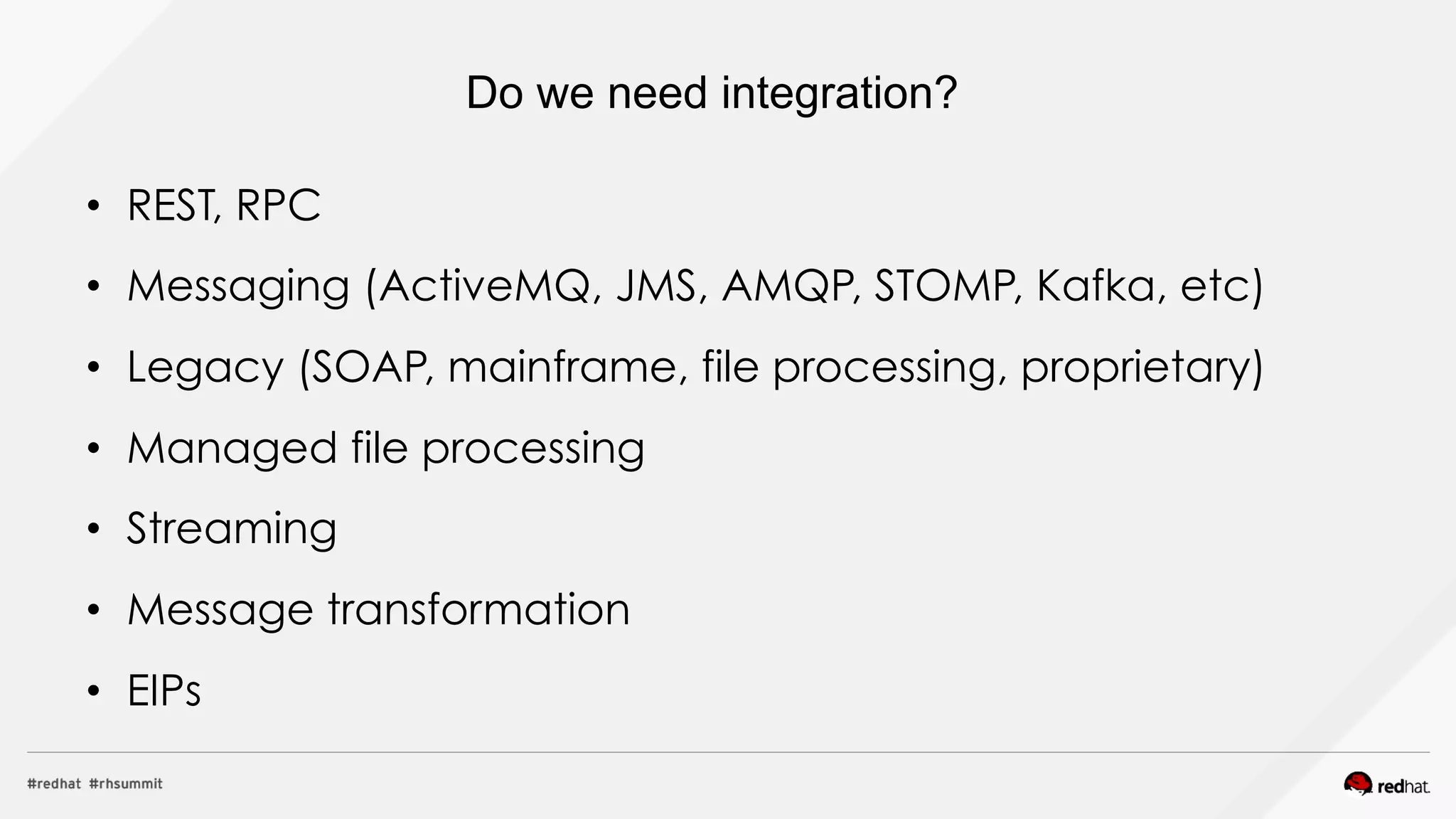

- 8. Do we needintegration? • REST, RPC • Messaging (ActiveMQ, JMS, AMQP, STOMP, Kafka, etc) • Legacy (SOAP, mainframe, file processing, proprietary) • Managed file processing • Streaming • Message transformation • EIPs
- 9. Do we needintegraton?

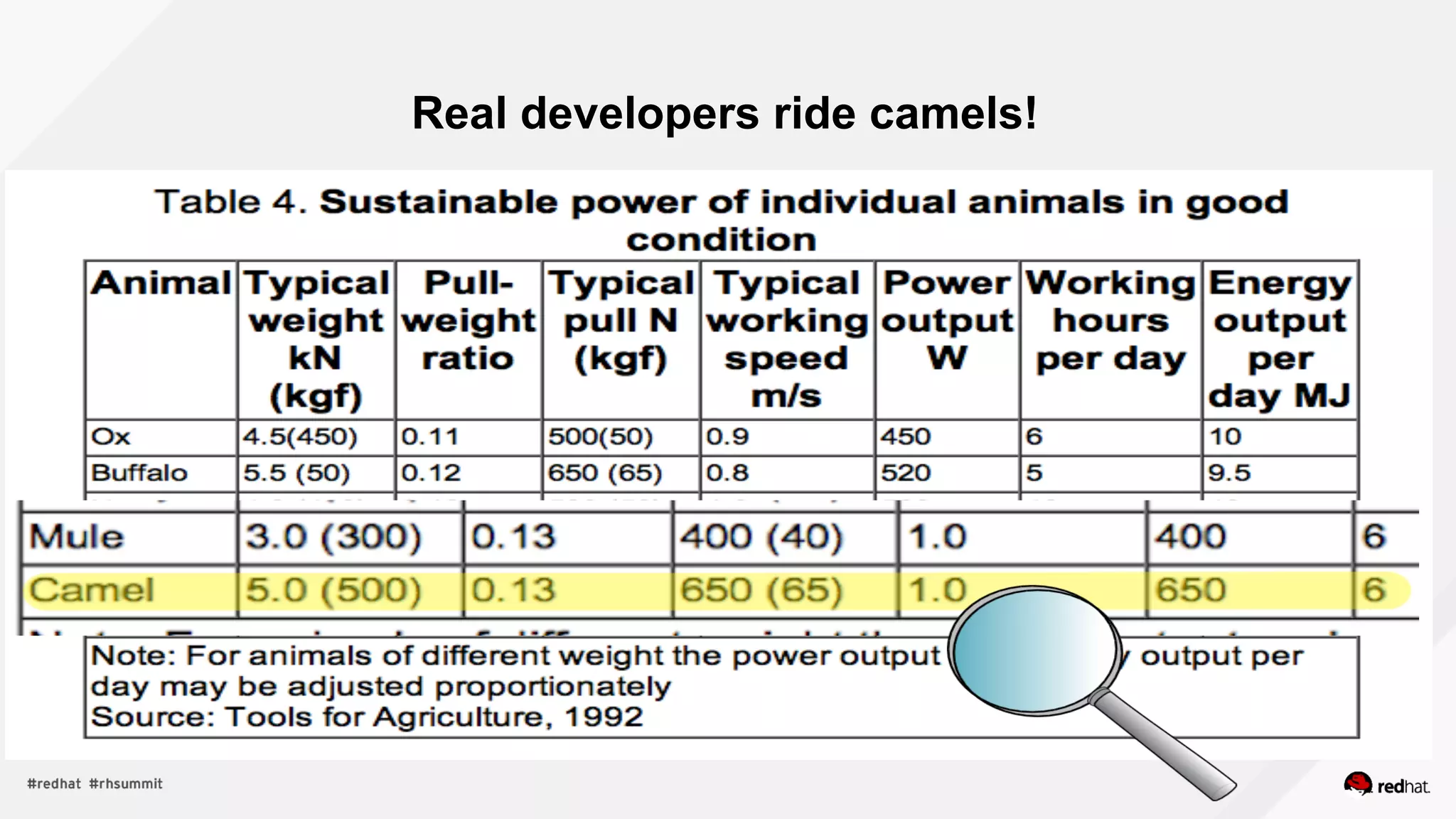

- 10. Real developers ridecamels!
- 11. • Small Javalibrary • Very popular (200+ components for “dumb pipes”) • Powerful EIPs (routing, transformation, error handling) • Distributed-systems swiss-army knife! • Declarative DSL • Embeddable into any JVM (EAP, Karaf, Tomcat, Spring Boot, Dropwizard, Wildfly Swarm, no container, etc) Apache Camel

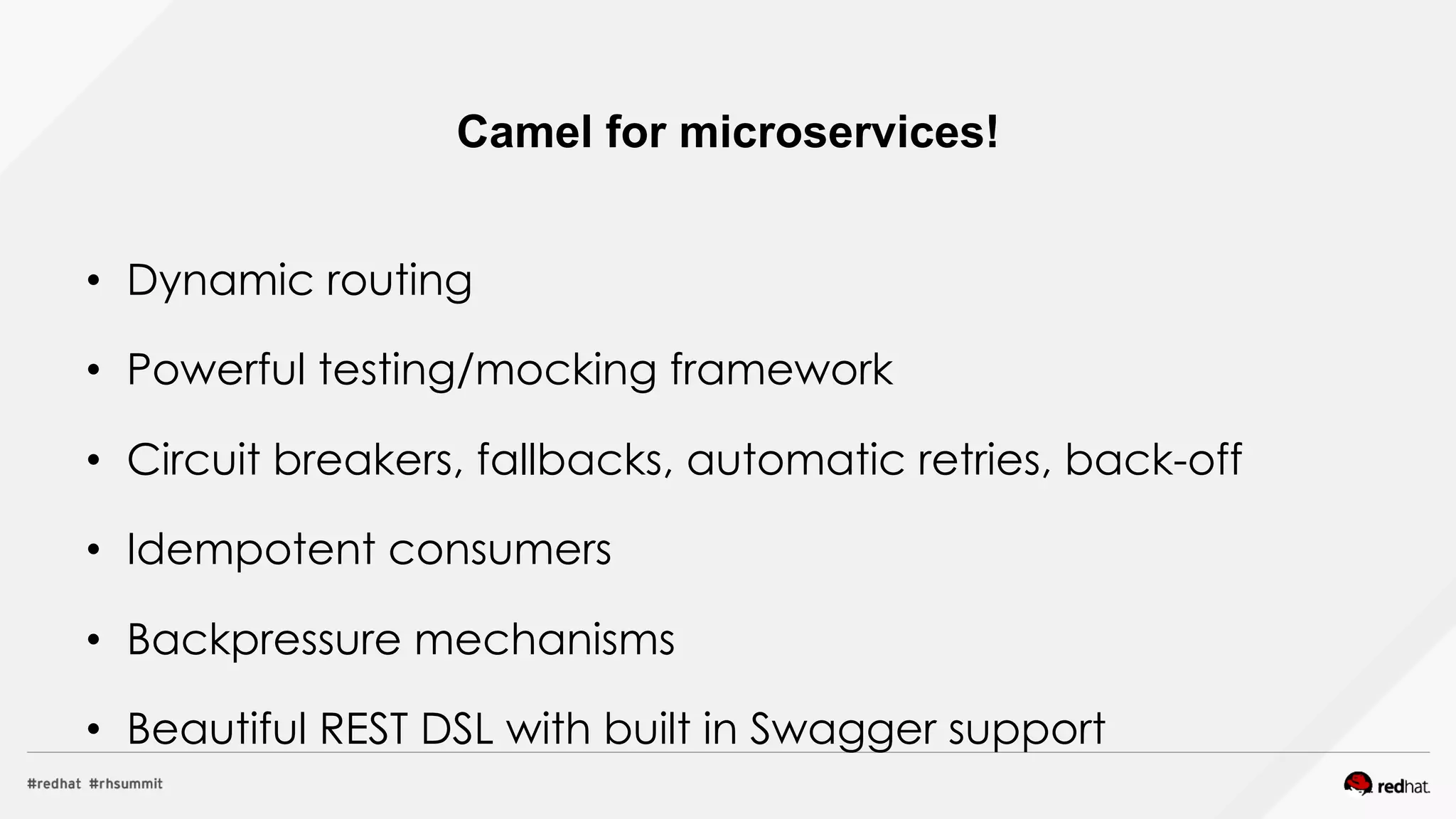

- 12. • Dynamic routing • Powerful testing/mocking framework • Circuit breakers, fallbacks, automatic retries, back-off • Idempotent consumers • Backpressure mechanisms • Beautiful REST DSL with built in Swagger support Camel for microservices!

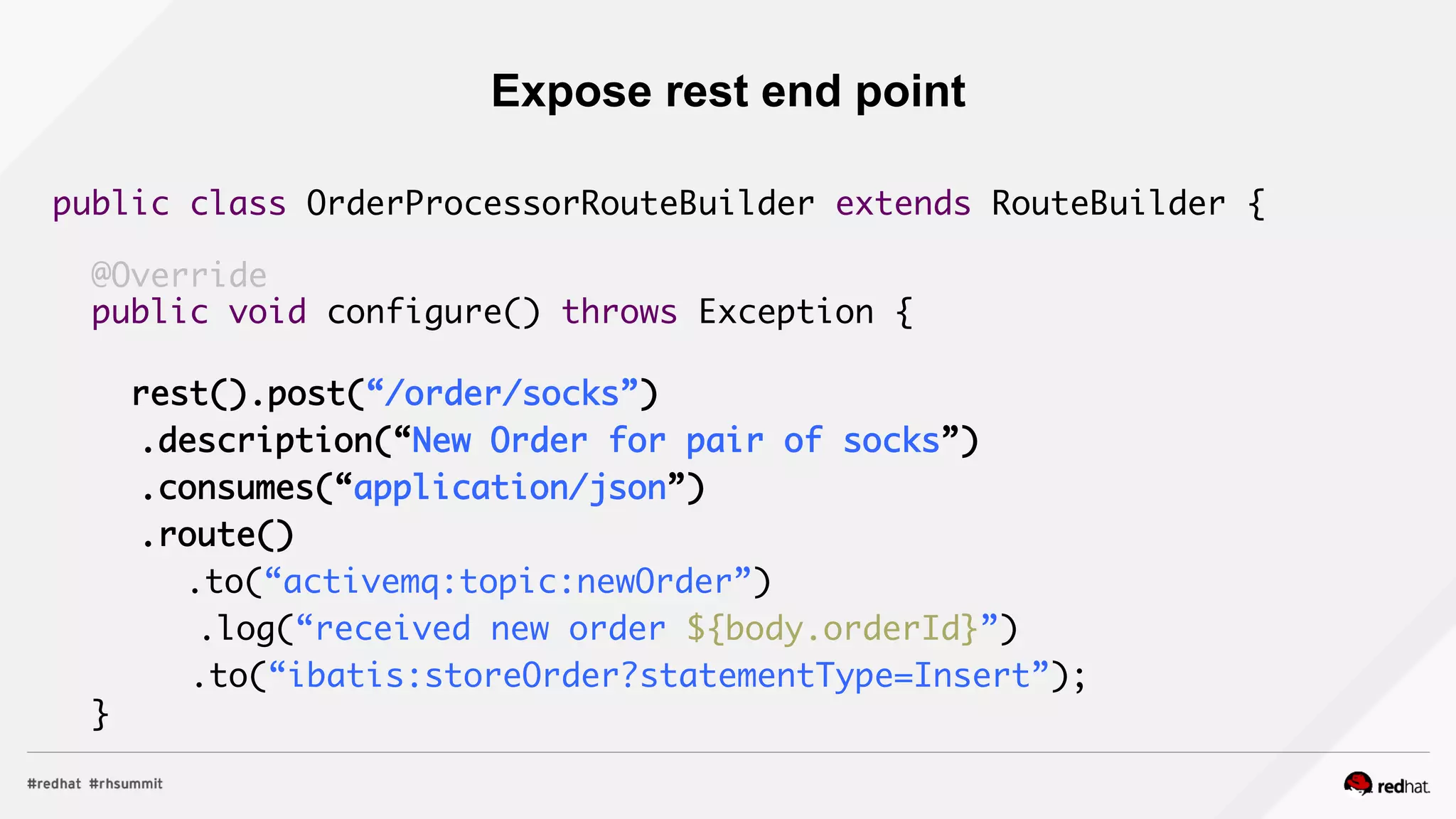

- 14. public class OrderProcessorRouteBuilderextends RouteBuilder { @Override public void configure() throws Exception { rest().post(“/order/socks”) .description(“New Order for pair of socks”) .consumes(“application/json”) .route() .to(“activemq:topic:newOrder”) .log(“received new order ${body.orderId}”) .to(“ibatis:storeOrder?statementType=Insert”); } Expose rest end point

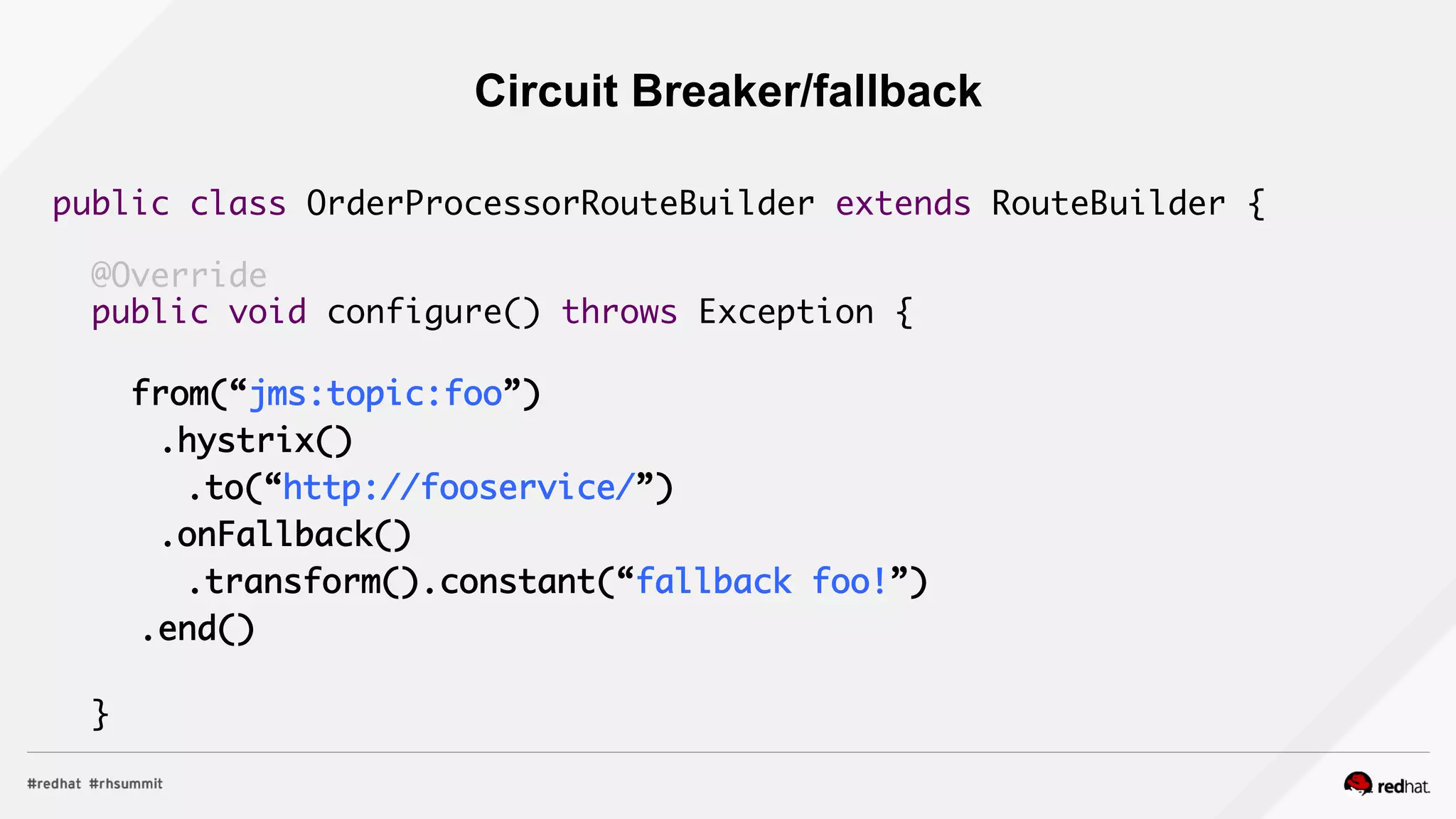

- 15. public class OrderProcessorRouteBuilderextends RouteBuilder { @Override public void configure() throws Exception { from(“jms:topic:foo”) .hystrix() .to(“http://fooservice/”) .onFallback() .transform().constant(“fallback foo!”) .end() } Circuit Breaker/fallback

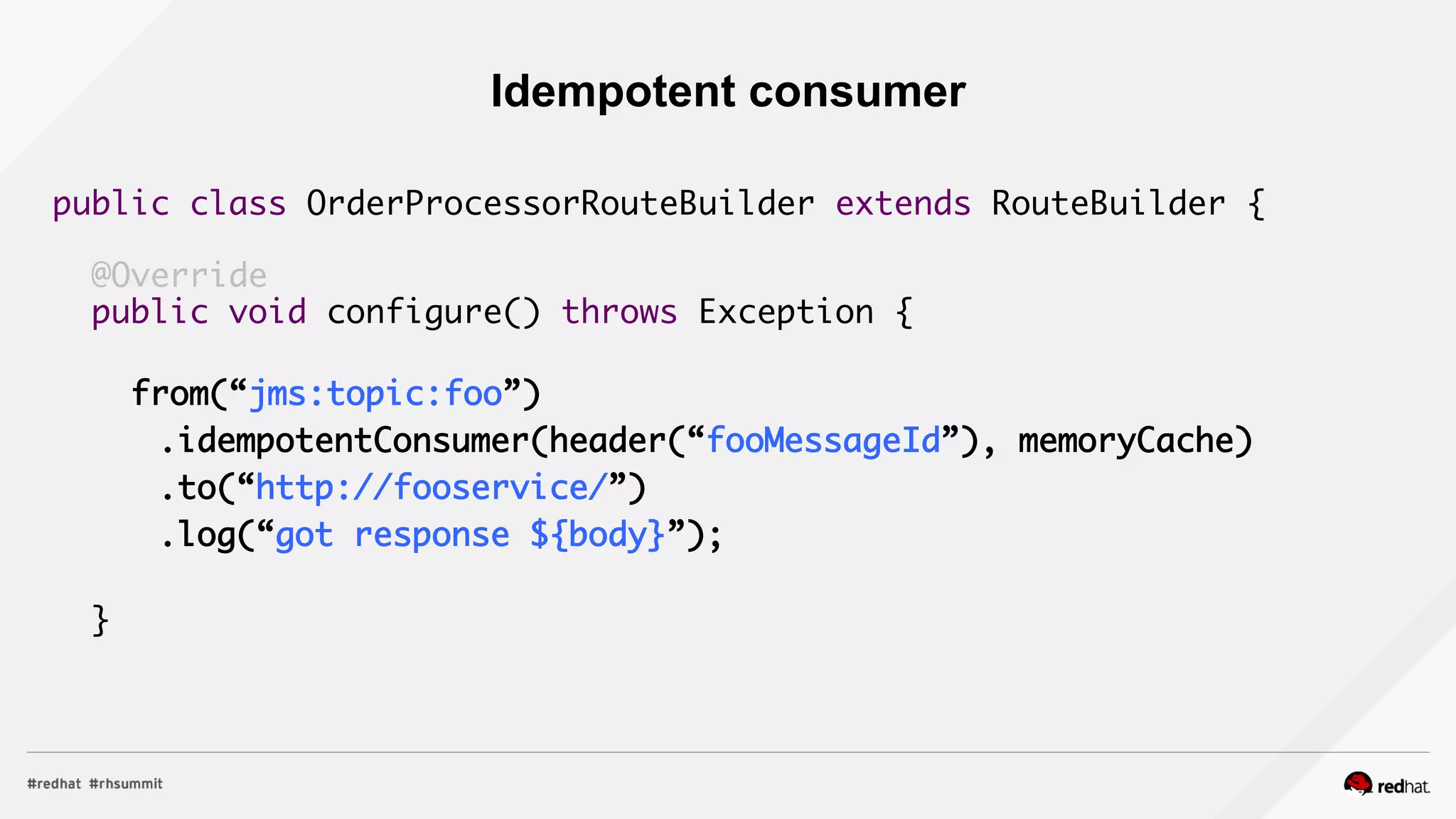

- 16. public class OrderProcessorRouteBuilderextends RouteBuilder { @Override public void configure() throws Exception { from(“jms:topic:foo”) .idempotentConsumer(header(“fooMessageId”), memoryCache) .to(“http://fooservice/”) .log(“got response ${body}”); } Idempotent consumer

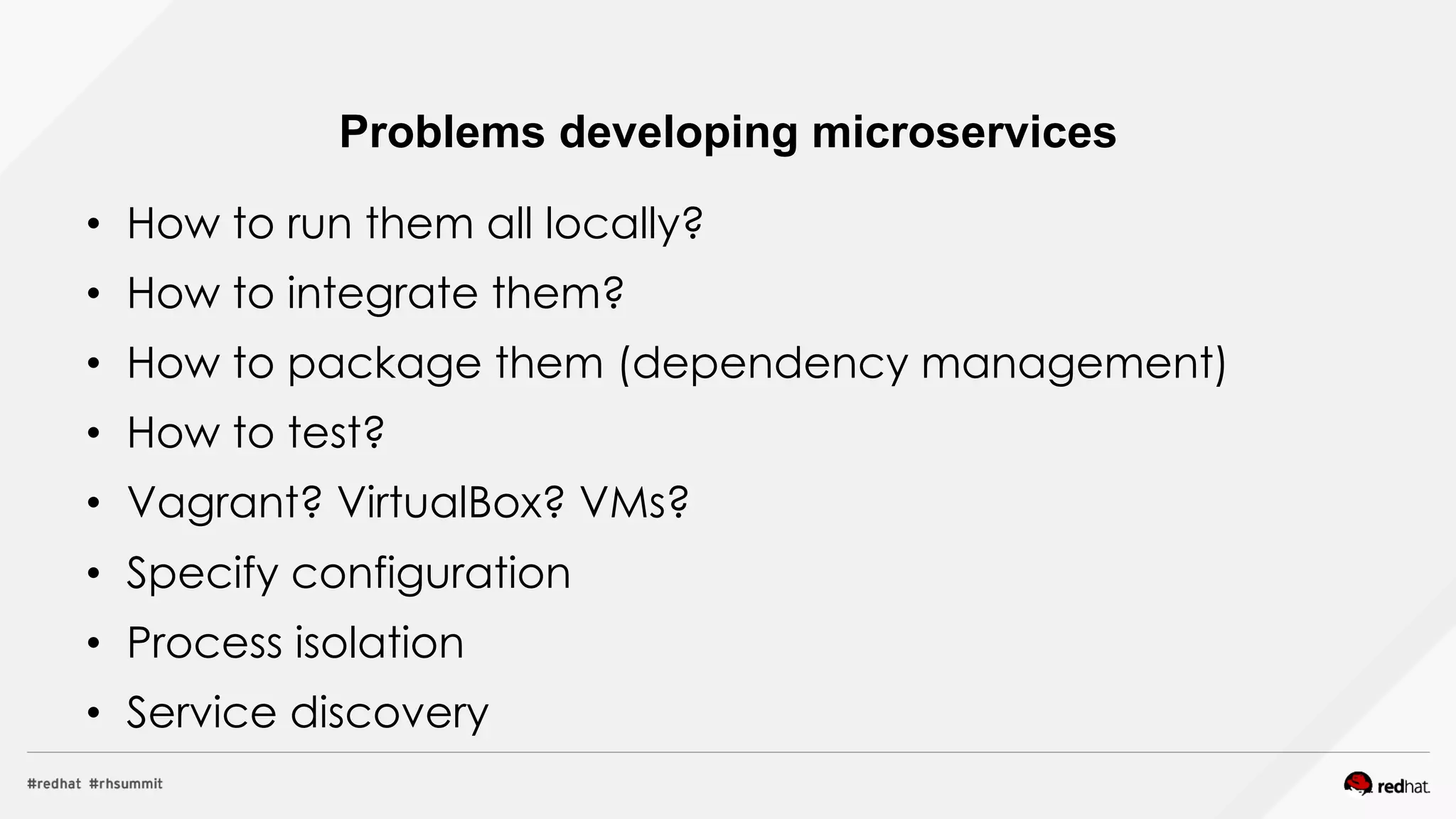

- 17. • How torun them all locally? • How to integrate them? • How to package them (dependency management) • How to test? • Vagrant? VirtualBox? VMs? • Specify configuration • Process isolation • Service discovery Problems developing microservices
- 19.
- 20. Red hat OpenShift • Developer focused workflow • Enterprise ready, supported • Higher level abstraction above containers for delivering technology and business value • Build/deployment triggers • Software Defined Networking (SDN) • Docker native format/packaging • CLI/Web based tooling

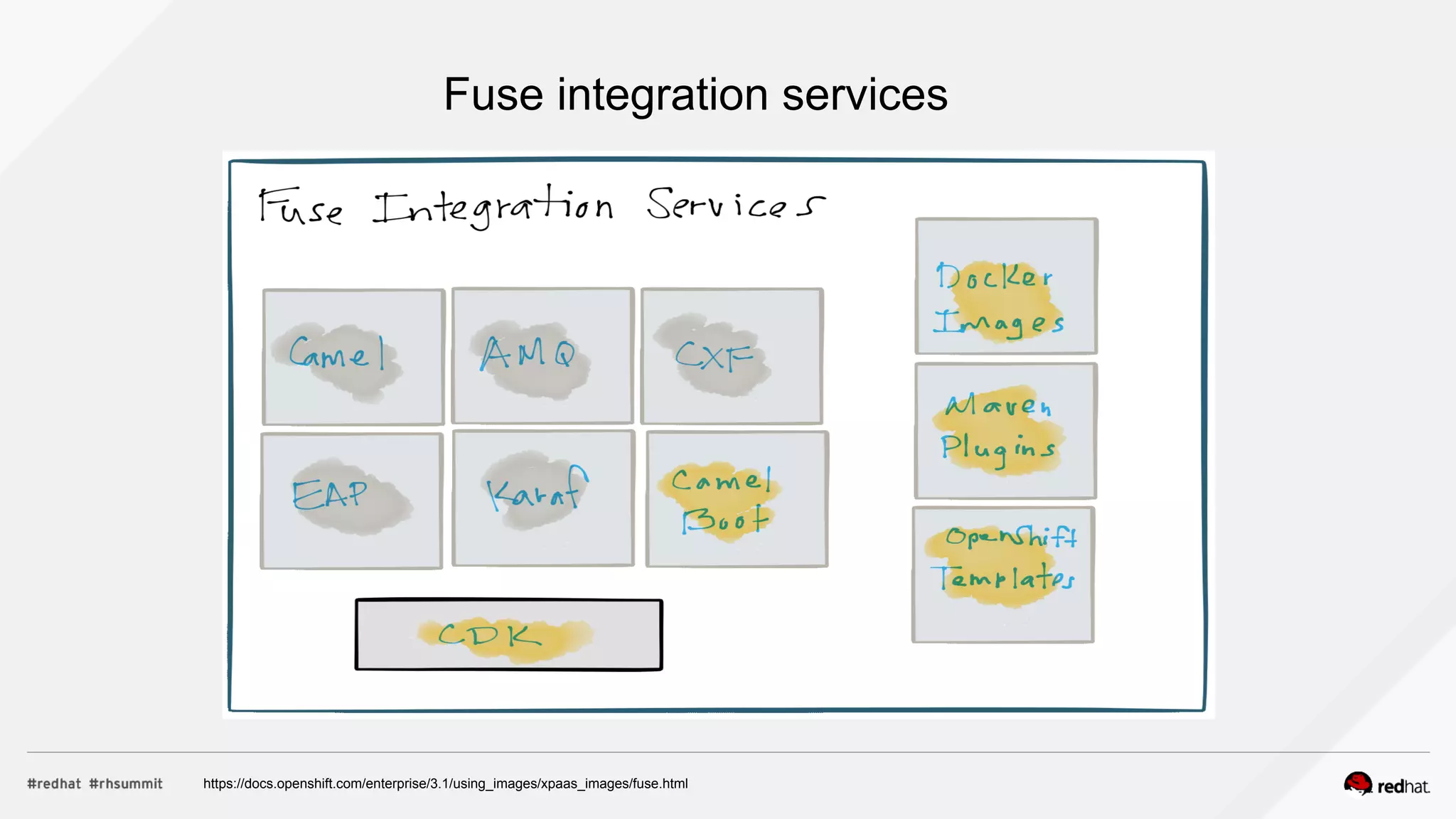

- 21.

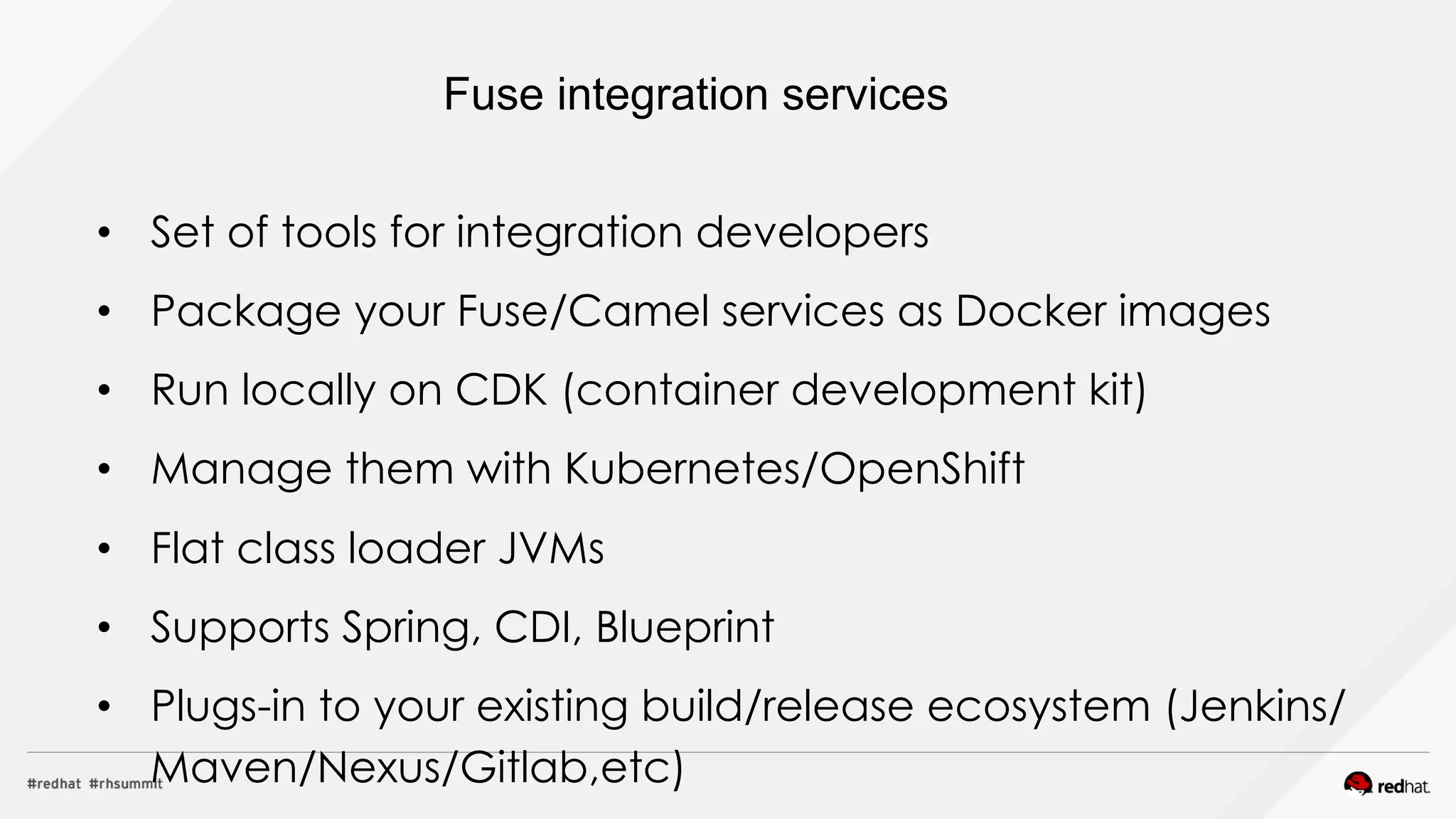

- 22. • Set oftools for integration developers • Package your Fuse/Camel services as Docker images • Run locally on CDK (container development kit) • Manage them with Kubernetes/OpenShift • Flat class loader JVMs • Supports Spring, CDI, Blueprint • Plugs-in to your existing build/release ecosystem (Jenkins/ Maven/Nexus/Gitlab,etc) Fuse integration services

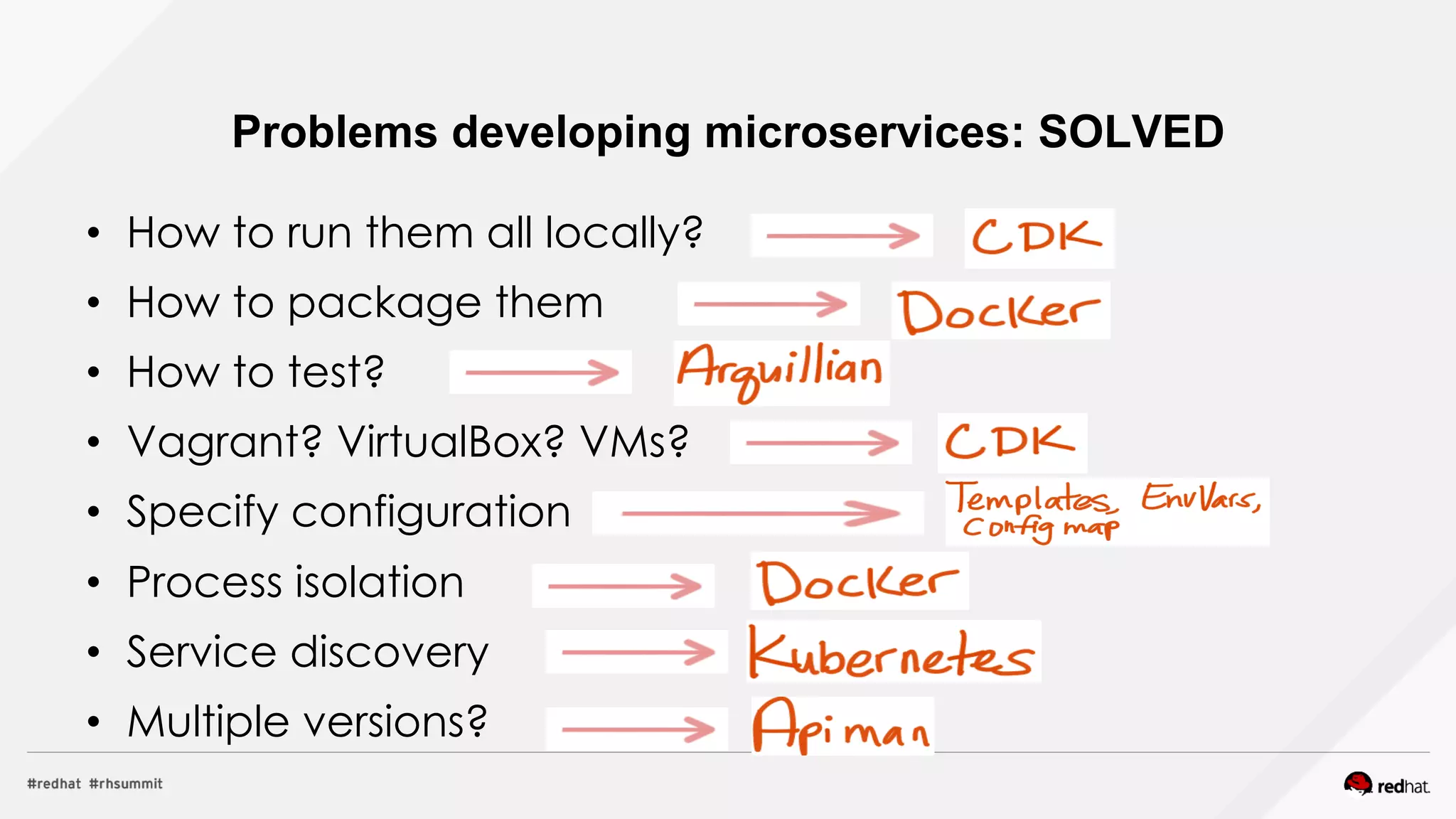

- 23. • How torun them all locally? • How to package them • How to test? • Vagrant? VirtualBox? VMs? • Specify configuration • Process isolation • Service discovery • Multiple versions? Problems developing microservices: SOLVED

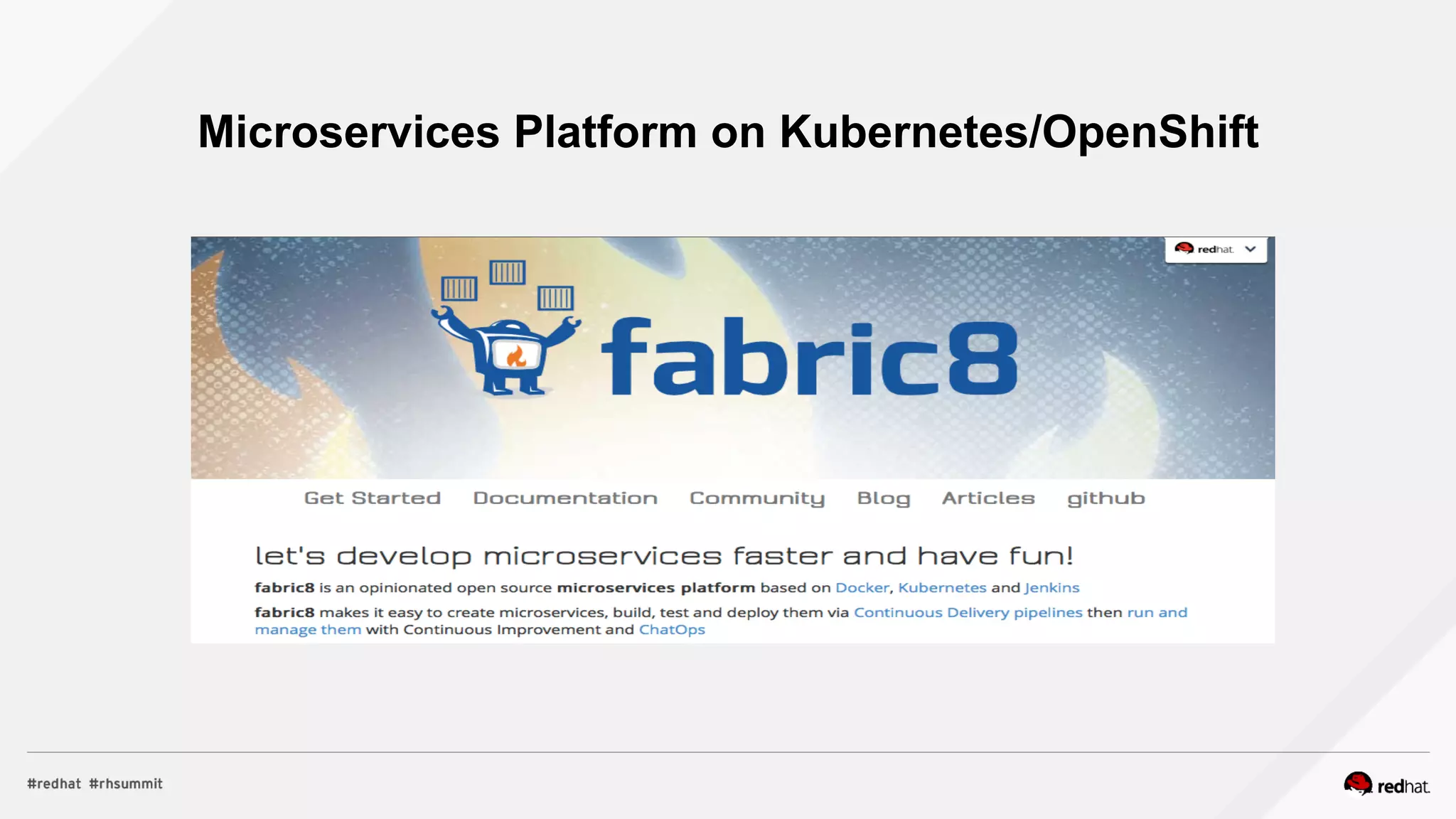

- 27. Microservices Platform onKubernetes/OpenShift
- 30. Christian Posta Principal MiddlewareSpecialist/Architect Twitter: @christianposta Blog: http://blog.christianposta.com Email: christian@redhat.com Questions, Discussion, Demo!
