This document provides an overview of Apache Maven, including what it is, its project lifecycle, how to get and configure Maven, the project object model (POM), dependencies, properties, exclusions, profiles, and useful Maven plugins. Maven is a build automation tool primarily used for Java projects that describes how software is built and its dependencies. It uses a POM and XML files to manage a project's build configuration, dependencies, and documentation. Common plugins allow running tests, building artifacts, and deploying applications.

1. Apache Maven
Volodymyr Ostapiv
Aug 2014

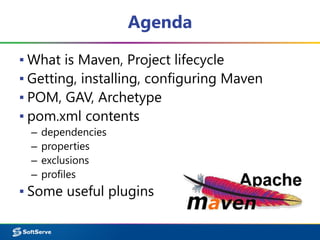

2. Agenda
▪ What is Maven, Project lifecycle
▪ Getting, installing, configuring Maven
▪ POM, GAV, Archetype
▪ pom.xml contents
– dependencies
– properties
– exclusions
– profiles
▪ Some useful plugins

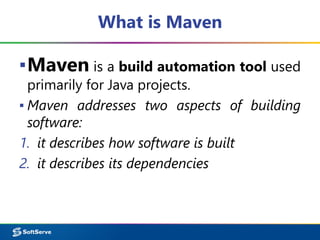

3. What is Maven
▪Maven is a build automation tool used
primarily for Java projects.
▪ Maven addresses two aspects of building
software:
1. it describes how software is built
2. it describes its dependencies

4. Maven LifeCycle
•Default lifecycle
–generate-sources/generate-resources
–compile
–test
–package
–integration-test (pre and post)
–install
–Deploy
•Separate “clean” lifecycle

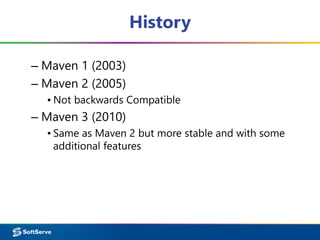

5. History
– Maven 1 (2003)
– Maven 2 (2005)
▪ Not backwards Compatible
– Maven 3 (2010)
▪ Same as Maven 2 but more stable and with some
additional features

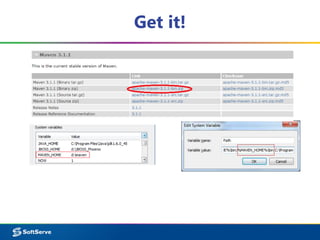

6. Get it!

7. Configure
Windows
Settings: %MAVEN_HOME%confsettings.xml
Repository Location: UserProfile.m2
Linux
Settings: /usr/local/maven/conf/settings.xml
Repository Location: ~/.m2/
Use your own temporary settings for maven:
mvn --settings=[PATH_TO_SETTINGS_FILE]
Adding a Local repository location:
mvn -Dmaven.repo.local=/path/to/local/repo

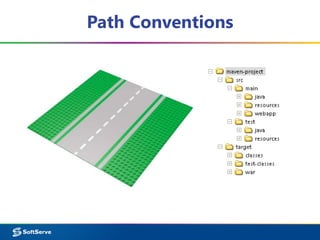

8. Path Conventions

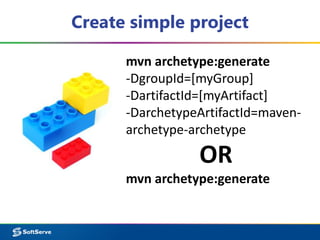

9. Create simple project
mvn archetype:generate
-DgroupId=[myGroup]
-DartifactId=[myArtifact]
-DarchetypeArtifactId=maven-
archetype-archetype
OR
mvn archetype:generate

10. Arche-who? O_o
An archetype is defined as an original pattern or model
from which all other things of the same kind are made.
Archetype is a Maven project templating toolkit.

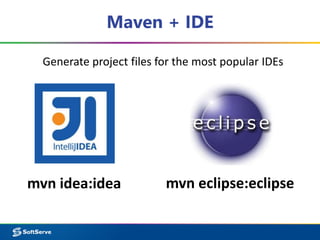

11. Maven + IDE
mvn idea:idea mvn eclipse:eclipse
Generate project files for the most popular IDEs

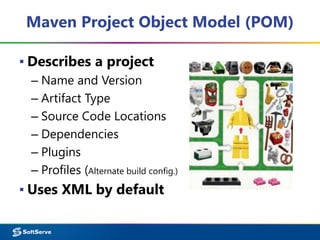

12. Maven Project Object Model (POM)
▪ Describes a project
– Name and Version
– Artifact Type
– Source Code Locations
– Dependencies
– Plugins
– Profiles (Alternate build config.)
▪ Uses XML by default

13. Project Name (GAV)
▪ Maven uniquely identifies a project using:
– groupID: project grouping identifier (no spaces
or colons)
▪ Usually loosely based on Java package
– artfiactId: name of project (no spaces or
colons)
– version: Version of project
▪ Format {Major}.{Minor}.{Maintanence}
▪ Add ‘-SNAPSHOT ‘ to identify in development

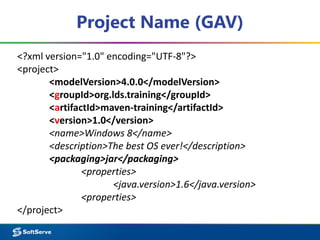

14. Project Name (GAV)
<?xml version="1.0" encoding="UTF-8"?>
<project>
<modelVersion>4.0.0</modelVersion>
<groupId>org.lds.training</groupId>
<artifactId>maven-training</artifactId>
<version>1.0</version>
<name>Windows 8</name>
<description>The best OS ever!</description>
<packaging>jar</packaging>
<properties>
<java.version>1.6</java.version>
<properties>
</project>

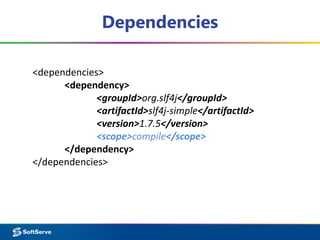

15. Dependencies
<dependencies>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-simple</artifactId>
<version>1.7.5</version>
<scope>compile</scope>
</dependency>
</dependencies>

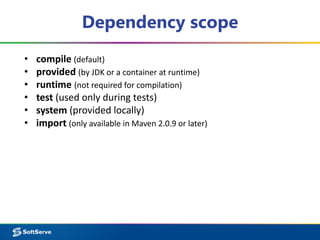

16. Dependency scope
• compile (default)
• provided (by JDK or a container at runtime)
• runtime (not required for compilation)
• test (used only during tests)
• system (provided locally)
• import (only available in Maven 2.0.9 or later)

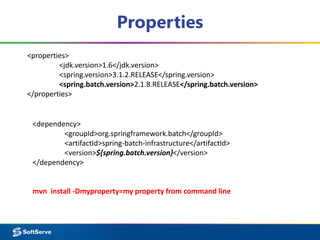

17. Properties
<properties>
<jdk.version>1.6</jdk.version>
<spring.version>3.1.2.RELEASE</spring.version>
<spring.batch.version>2.1.8.RELEASE</spring.batch.version>
</properties>
<dependency>
<groupId>org.springframework.batch</groupId>
<artifactId>spring-batch-infrastructure</artifactId>
<version>${spring.batch.version}</version>
</dependency>
mvn install -Dmyproperty=my property from command line

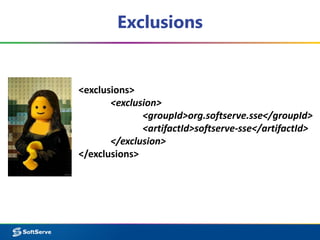

18. Exclusions
<exclusions>
<exclusion>
<groupId>org.softserve.sse</groupId>
<artifactId>softserve-sse</artifactId>
</exclusion>
</exclusions>

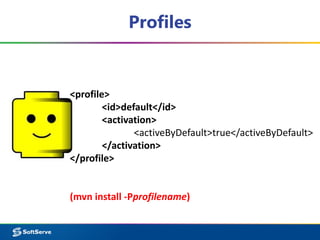

19. Profiles
<profile>
<id>default</id>
<activation>
<activeByDefault>true</activeByDefault>
</activation>
</profile>
(mvn install -Pprofilename)

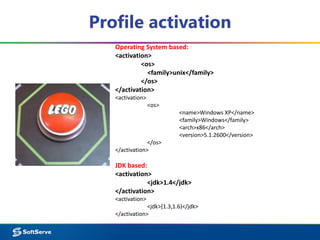

20. Profile activation
Operating System based:
<activation>
<os>
<family>unix</family>
</os>
</activation>
<activation>
<os>
<name>Windows XP</name>
<family>Windows</family>
<arch>x86</arch>
<version>5.1.2600</version>
</os>
</activation>
JDK based:
<activation>
<jdk>1.4</jdk>
</activation>
<activation>
<jdk>[1.3,1.6)</jdk>
</activation>

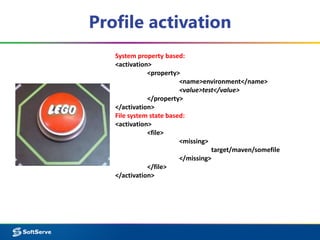

21. Profile activation
System property based:
<activation>
<property>
<name>environment</name>
<value>test</value>
</property>
</activation>
File system state based:
<activation>
<file>
<missing>
target/maven/somefile
</missing>
</file>
</activation>

22. Plugins
Here real magic starts

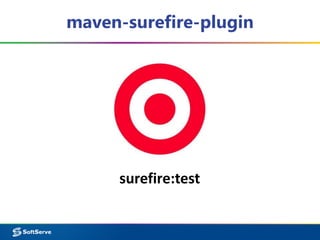

23. maven-surefire-plugin
surefire:test

24. Surefire: configuration
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.16</version>
<configuration>
All stuff goes here
</configuration>
</plugin>

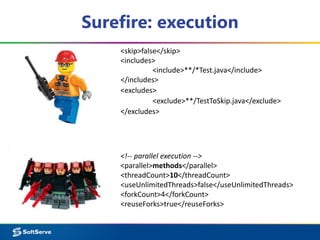

25. Surefire: execution
<skip>false</skip>
<includes>
<include>**/*Test.java</include>
</includes>
<excludes>
<exclude>**/TestToSkip.java</exclude>
</excludes>
<!-- parallel execution -->
<parallel>methods</parallel>
<threadCount>10</threadCount>
<useUnlimitedThreads>false</useUnlimitedThreads>
<forkCount>4</forkCount>
<reuseForks>true</reuseForks>

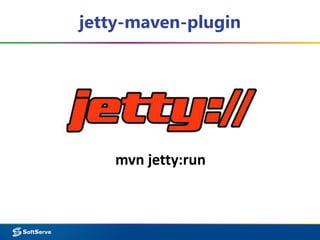

26. jetty-maven-plugin
mvn jetty:run

27. tomcat-maven-plugin
mvn tomcat:run

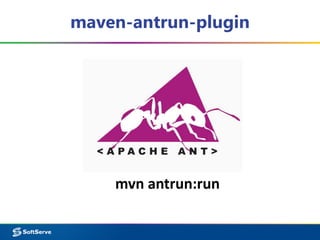

28. maven-antrun-plugin
mvn antrun:run

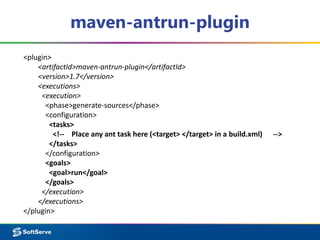

29. maven-antrun-plugin
<plugin>
<artifactId>maven-antrun-plugin</artifactId>
<version>1.7</version>
<executions>
<execution>
<phase>generate-sources</phase>
<configuration>
<tasks>
<!-- Place any ant task here (<target> </target> in a build.xml) -->
</tasks>
</configuration>
<goals>
<goal>run</goal>
</goals>
</execution>
</executions>
</plugin>

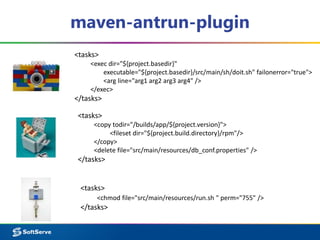

30. maven-antrun-plugin
<tasks>
<exec dir="${project.basedir}"
executable="${project.basedir}/src/main/sh/doit.sh" failonerror="true">
<arg line="arg1 arg2 arg3 arg4" />
</exec>
</tasks>
<tasks>
<copy todir="/builds/app/${project.version}">
<fileset dir="${project.build.directory}/rpm"/>
</copy>
<delete file="src/main/resources/db_conf.properties" />
</tasks>
<tasks>
<chmod file="src/main/resources/run.sh " perm="755" />
</tasks>

31. maven-compiler-plugin
mvn compiler:compile
mvn compiler:testCompile

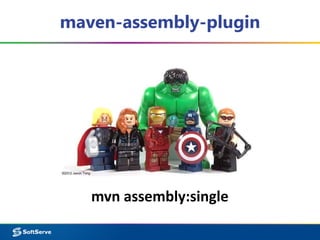

32. maven-assembly-plugin
mvn assembly:single

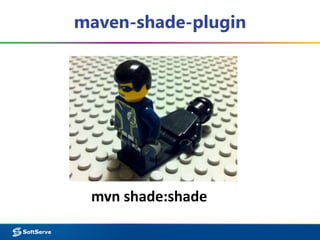

33. maven-shade-plugin
mvn shade:shade

34. maven-dependency-plugin
mvn dependency:analyze
mvn dependency:tree

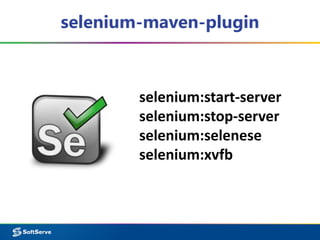

35. selenium-maven-plugin
selenium:start-server
selenium:stop-server
selenium:selenese
selenium:xvfb

36. That’s all
