1. N(G)-Apps, One Core
Alan Hietala
@alanhietala
Sr Software Developer @ecobee
Core
ng-app
ng-app
ng-app
ng-app
ng-app

2. web apps
mobile apps
remote teams
!
on
!
1 API
A Puzzle of Paint - Brent Danley

3. Core Architecture

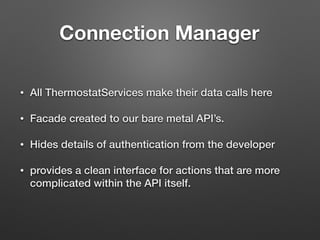

4. Connection Manager
• All ThermostatServices make their data calls here
• Facade created to our bare metal API’s.
• Hides details of authentication from the developer
• provides a clean interface for actions that are more
complicated within the API itself.

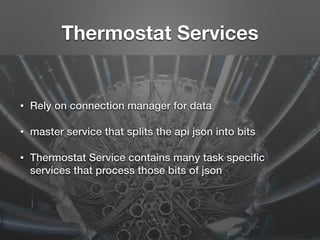

5. Thermostat Services
• Rely on connection manager for data
• master service that splits the api json into bits
• Thermostat Service contains many task specific
services that process those bits of json

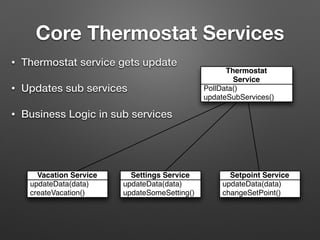

6. Core Thermostat Services
• Thermostat service gets update
• Updates sub services
• Business Logic in sub services
PollData()
updateSubServices()
Thermostat
Service
updateData(data)
createVacation()
Vacation Service
updateData(data)
updateSomeSetting()
Settings Service
updateData(data)
changeSetPoint()
Setpoint Service

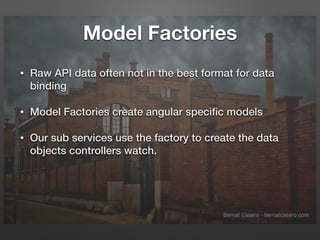

7. Model Factories
• Raw API data often not in the best format for data
binding
• Model Factories create angular specific models
• Our sub services use the factory to create the data
objects controllers watch.

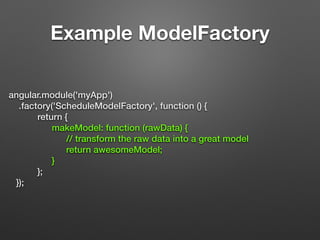

8. Example ModelFactory
angular.module('myApp')
.factory('ScheduleModelFactory', function () {
return {
makeModel: function (rawData) {
// transform the raw data into a great model
return awesomeModel;
}
};
});

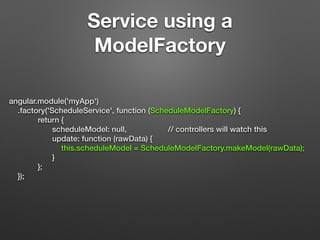

9. Service using a
ModelFactory
angular.module('myApp')
.factory('ScheduleService', function (ScheduleModelFactory) {
return {
scheduleModel: null, // controllers will watch this
update: function (rawData) {
this.scheduleModel = ScheduleModelFactory.makeModel(rawData);
}
};
});

10. Controllers Example
angular.module('myApp')
.controller('SetTemperatureCtrl', function ($scope, SetPointService) {
$scope.viewSetPoint = 23;
$scope.setPointService = SetPointService;
$scope.$watch(‘setPointService.setPoint’, function (newValue) {
$scope.viewSetPoint = newValue;
};
$scope.changeSetPoint = function (newSetPoint) {
$scope.setPointService.changeSetPoint(newSetPoint);
}
});
Inject sub service you need

11. Business logic? Ram it Down
Untitled - Etno Deos

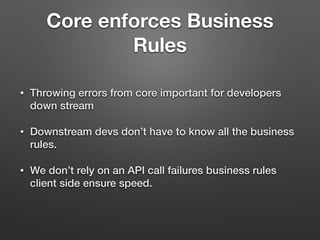

12. Core enforces Business
Rules
• Throwing errors from core important for developers
down stream
• Downstream devs don’t have to know all the business
rules.
• We don’t rely on an API call failures business rules
client side ensure speed.

13. Overriding core
• What if core doesn’t quite meet an apps needs?
• Create override module
• Use a decorator

14. Override Module
!
!
angular.module(“myApp”, [“overrideModule”]);
!
!
!
!
!
!
Angular takes the last loaded version if two
modules have the same service defined.

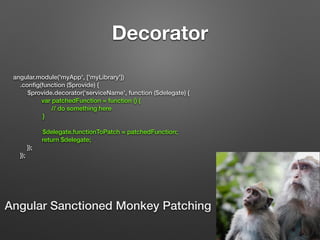

15. Decorator
angular.module('myApp', ['myLibrary'])
.config(function ($provide) {
$provide.decorator(‘serviceName’, function ($delegate) {
var patchedFunction = function () {
// do something here
}
$delegate.functionToPatch = patchedFunction;
return $delegate;
});
});
Angular Sanctioned Monkey Patching

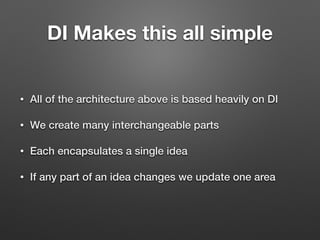

16. DI Makes this all simple
• All of the architecture above is based heavily on DI
• We create many interchangeable parts
• Each encapsulates a single idea
• If any part of an idea changes we update one area

17. Core is Sacred
Protected - Hartwig HKD
How do we Protect it?

18. Broken Window Theory
• if you don’t fix broken
windows people will break
more
• Applies to code bases too
• Refactoring when you find
problems becomes central

19. Unit tests
Make things better, not
worse
you won’t change
things you’re scared of
breaking

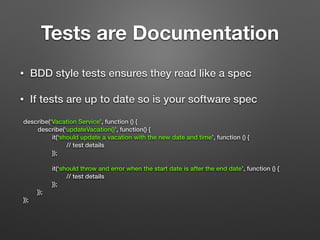

20. Tests are Documentation
• BDD style tests ensures they read like a spec
• If tests are up to date so is your software spec
describe(‘Vacation Service’, function () {
describe(‘updateVacation()’, function() {
it(‘should update a vacation with the new date and time’, function () {
// test details
});
!
it(‘should throw and error when the start date is after the end date’, function () {
// test details
});
});
});

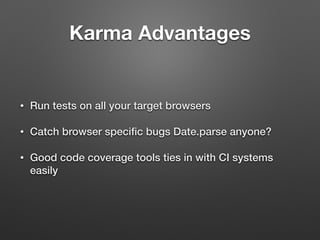

21. Karma Advantages
• Run tests on all your target browsers
• Catch browser specific bugs Date.parse anyone?
• Good code coverage tools ties in with CI systems
easily

22. Code Review
gerrit
Review Board

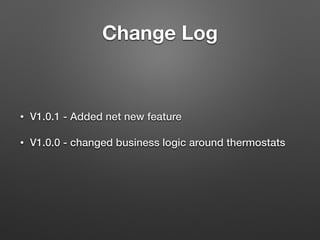

23. Change Log
• V1.0.1 - Added net new feature
• V1.0.0 - changed business logic around thermostats

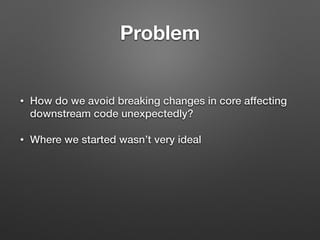

24. Problem
• How do we avoid breaking changes in core affecting
downstream code unexpectedly?
• Where we started wasn’t very ideal

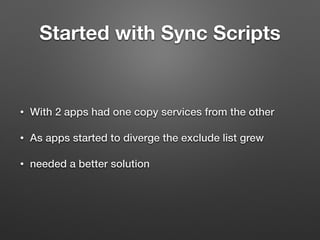

25. Started with Sync Scripts
• With 2 apps had one copy services from the other
• As apps started to diverge the exclude list grew
• needed a better solution

26. Dependency Management
Bower

27. Bower to the rescue
• Bit the bullet and moved common services to it’s own
repo
• Set up bower in our applications to pull our new
tagged core repo.

28. How do we do it?
{
"name": "myApp",
"version": "1.0.0",
"dependencies": {
….
"mylibrary": “git@github.com:mycompany/mylibrary.git#v1.2.11",
….
}
}
In project bower.json
In core bower.json
{
"name": "mylibrary",
"private": "true",
"version": "1.2.11",
"main": “dist/mylibrary.min.js”
…
}
Tag in git
git tag -a v1.2.11 -m “mylibrary version message”

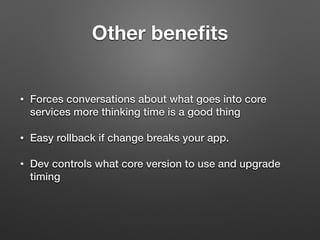

29. Other benefits
• Forces conversations about what goes into core
services more thinking time is a good thing
• Easy rollback if change breaks your app.
• Dev controls what core version to use and upgrade
timing

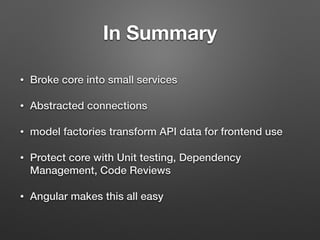

30. In Summary
• Broke core into small services
• Abstracted connections
• model factories transform API data for frontend use
• Protect core with Unit testing, Dependency
Management, Code Reviews
• Angular makes this all easy

31. Thanks!
!
!
Questions?

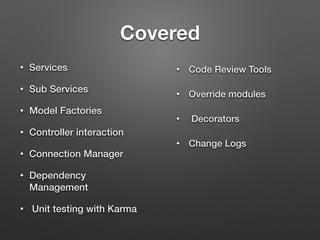

32. Covered
• Services
• Sub Services
• Model Factories
• Controller interaction
• Connection Manager
• Dependency
Management
• Unit testing with Karma
• Code Review Tools
• Override modules
• Decorators
• Change Logs
