Android workshop
This document is a lecture by Nikola Kapraljević on Android development, covering topics such as the Android operating system architecture, application framework, and common development practices. It includes examples of building user interfaces, managing application components, and utilizing intents for communication between activities. Additionally, it touches on application distribution and market considerations for developers.
![[PBO] Pertemuan 12 - Pemrograman Android](https://cdn.slidesharecdn.com/ss_thumbnails/pbopertemuan12-pemrogramanandroid-181217234438-thumbnail.jpg?width=640&height=640&fit=bounds)
Android workshop
- 1. Android predavanje Nikola Kapraljević,Infinum Java tečaj 22.06.2012, FER
- 2.
- 3.

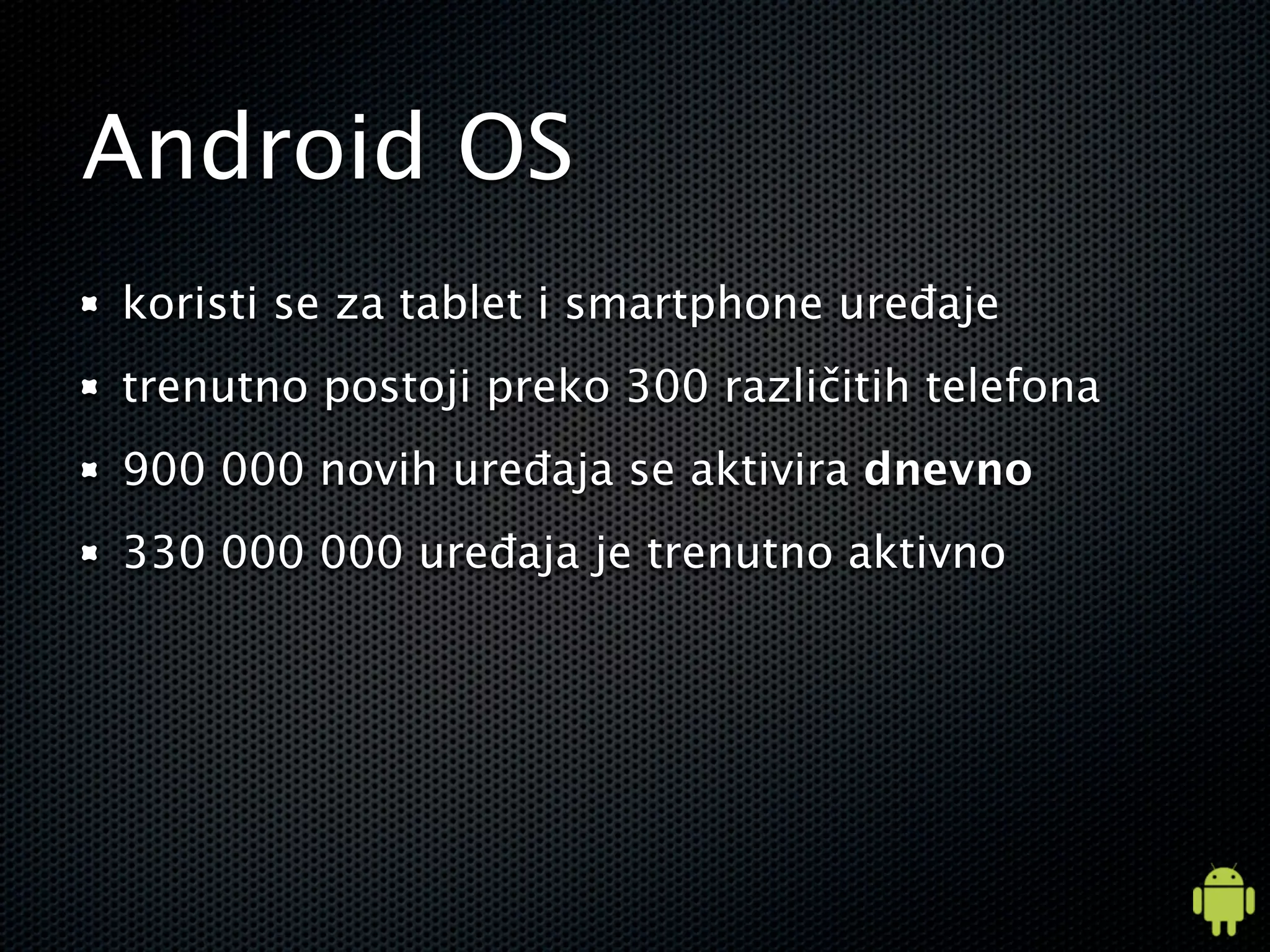

- 4. Android OS koristi seza tablet i smartphone uređaje trenutno postoji preko 300 različitih telefona 900 000 novih uređaja se aktivira dnevno 330 000 000 uređaja je trenutno aktivno

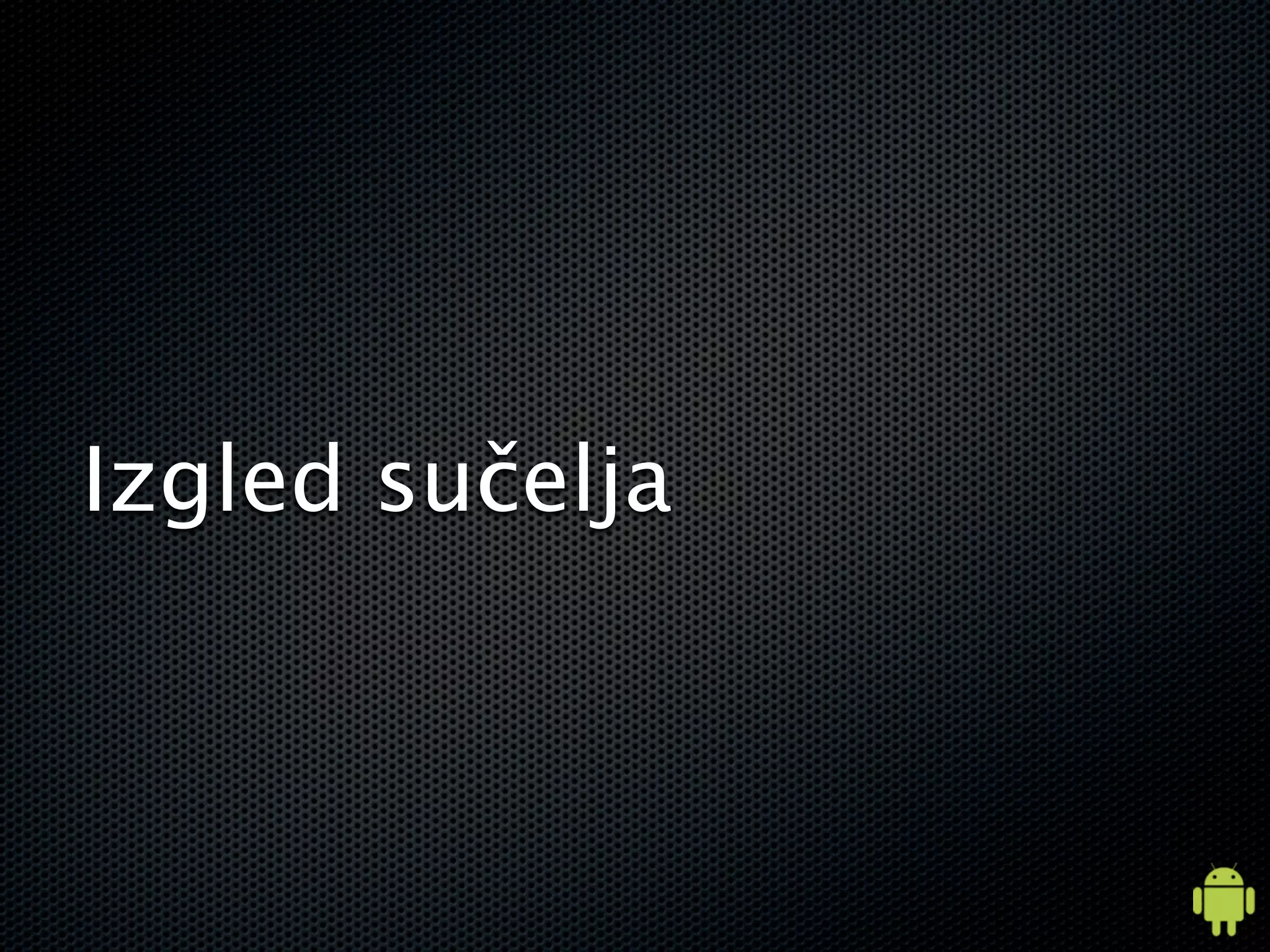

- 5.
- 6.
- 7.
- 8.

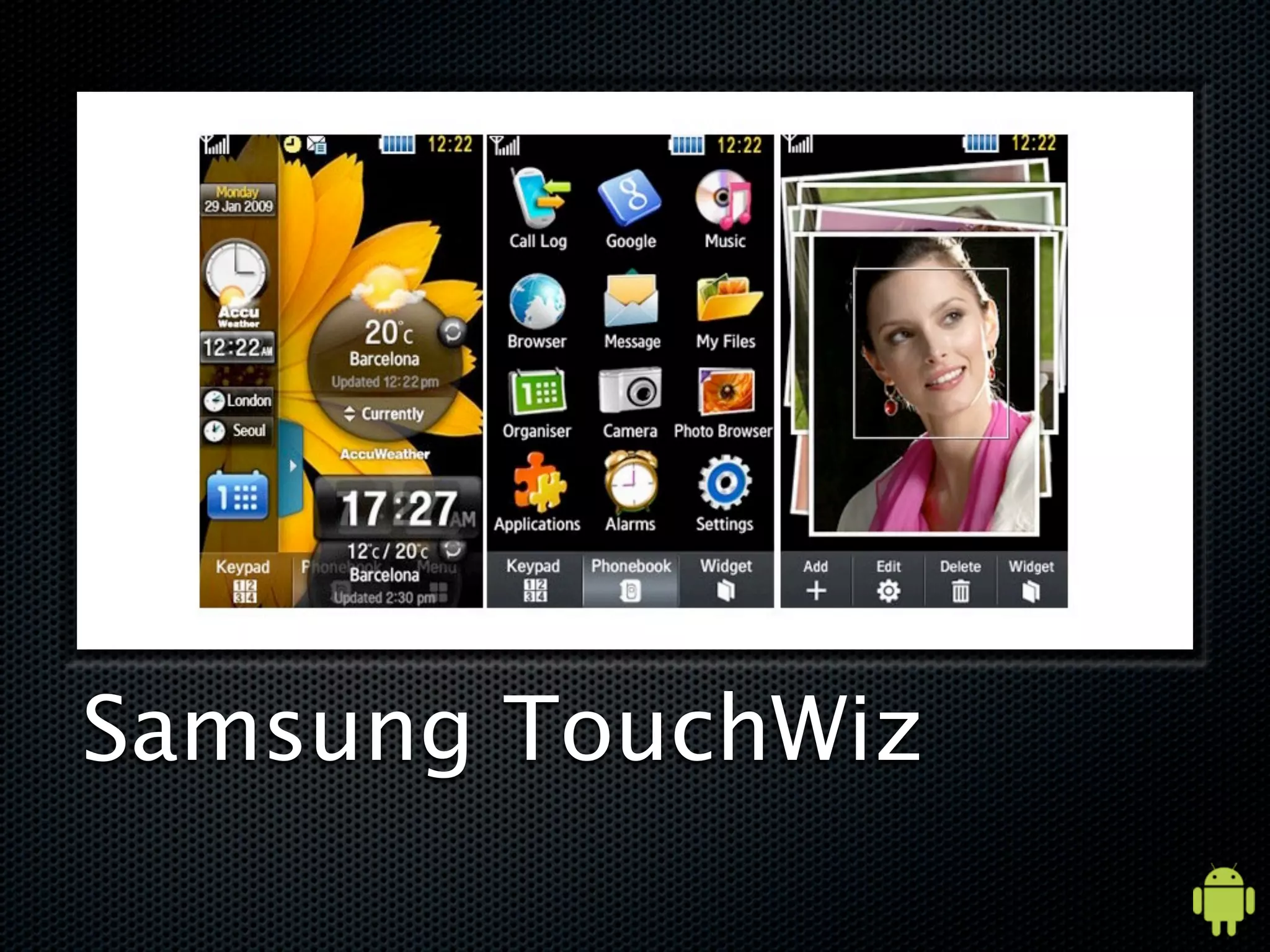

- 9.
- 10.
- 11.

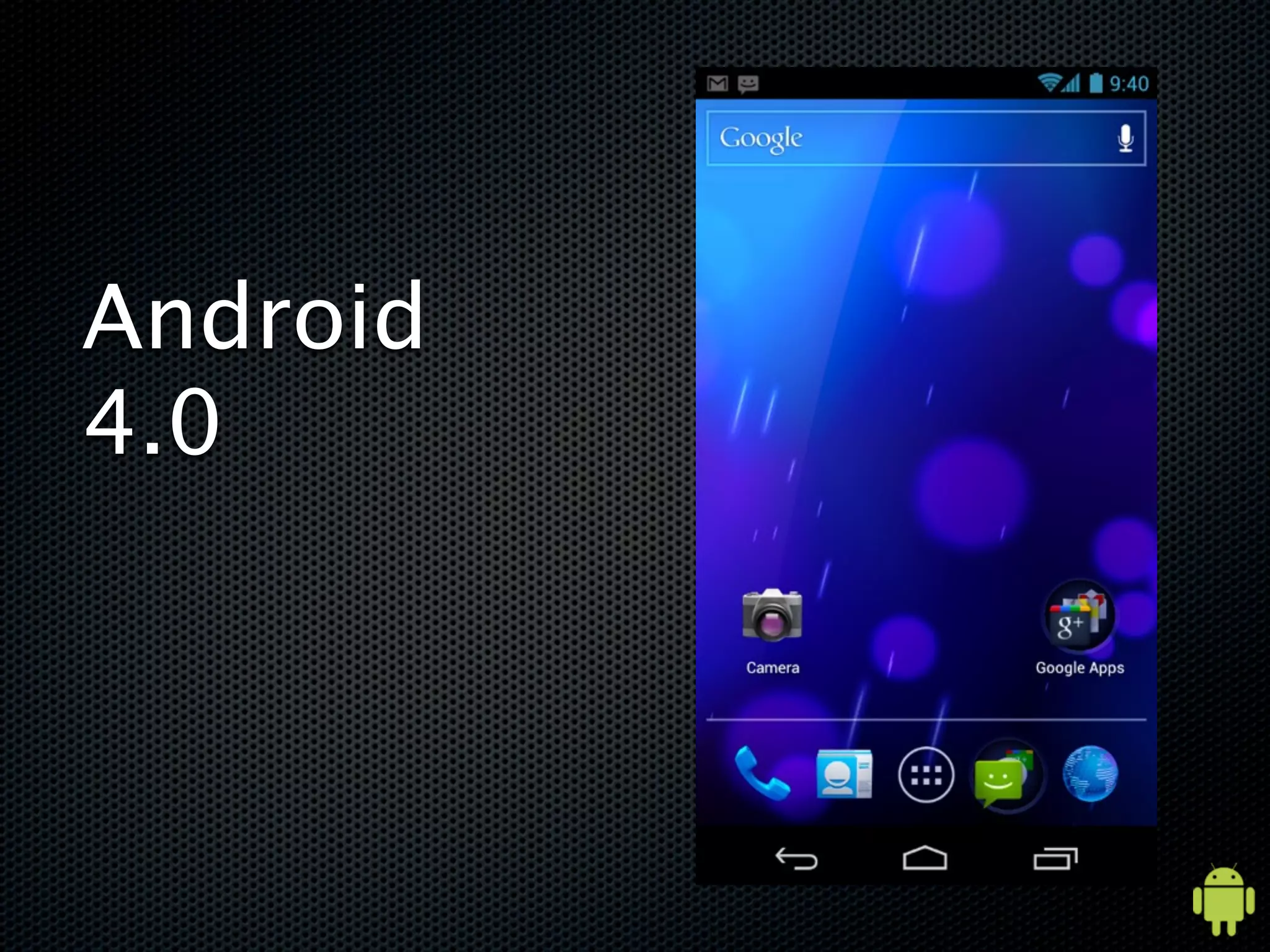

- 12.
- 13.

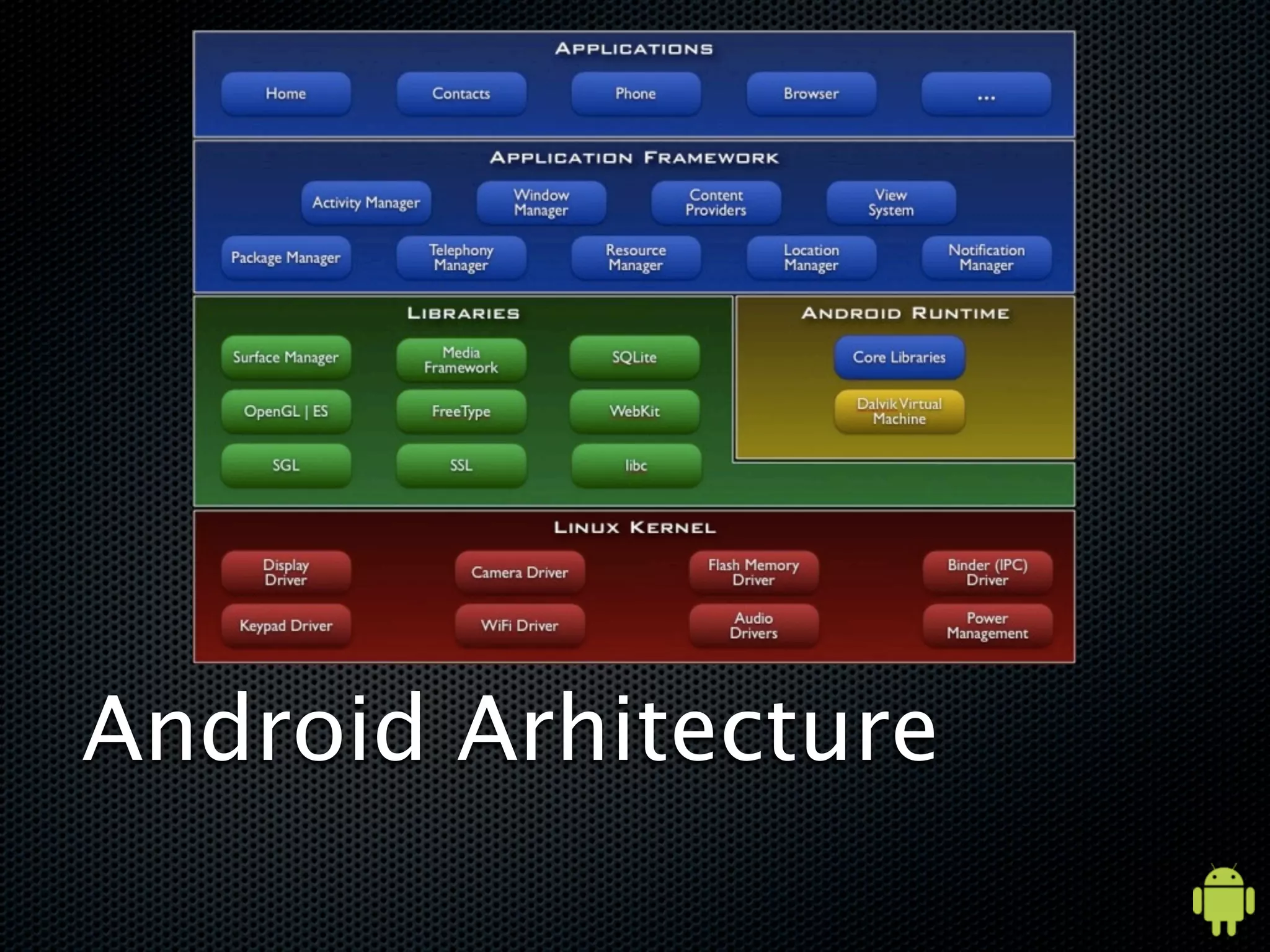

- 14.

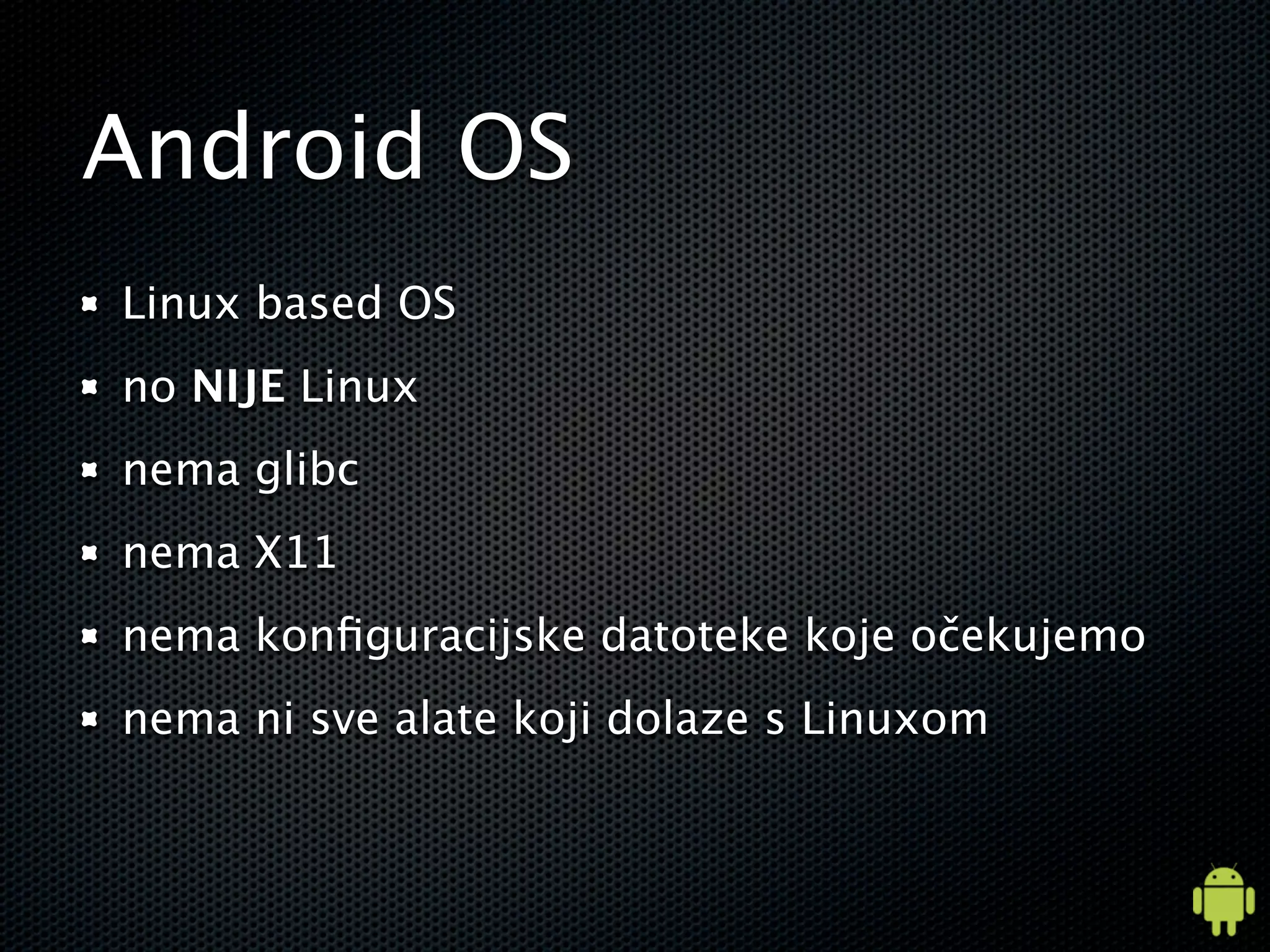

- 15. Android OS Linux basedOS no NIJE Linux nema glibc nema X11 nema konfiguracijske datoteke koje očekujemo nema ni sve alate koji dolaze s Linuxom

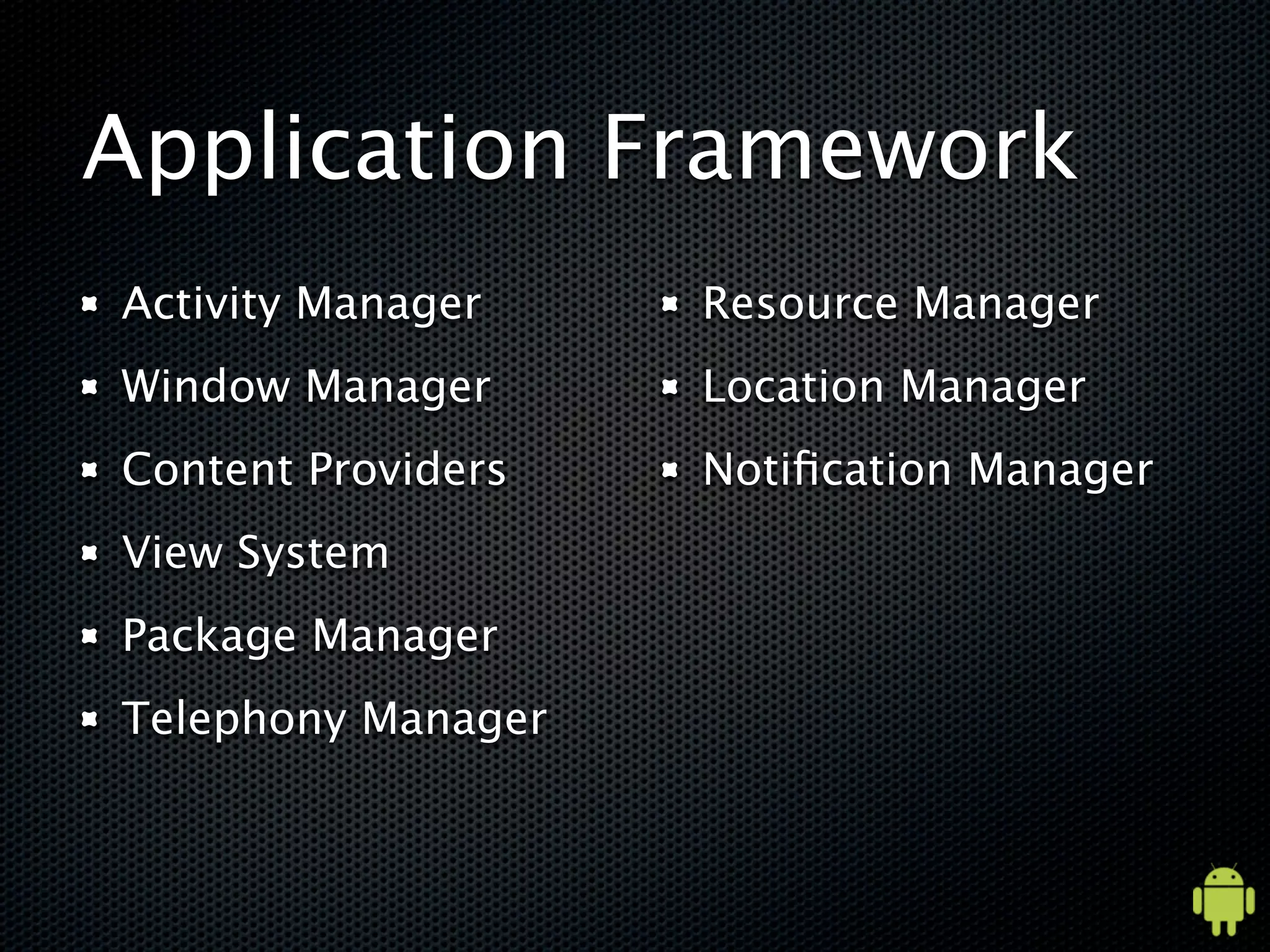

- 16. Application Framework Activity Manager Resource Manager Window Manager Location Manager Content Providers Notification Manager View System Package Manager Telephony Manager

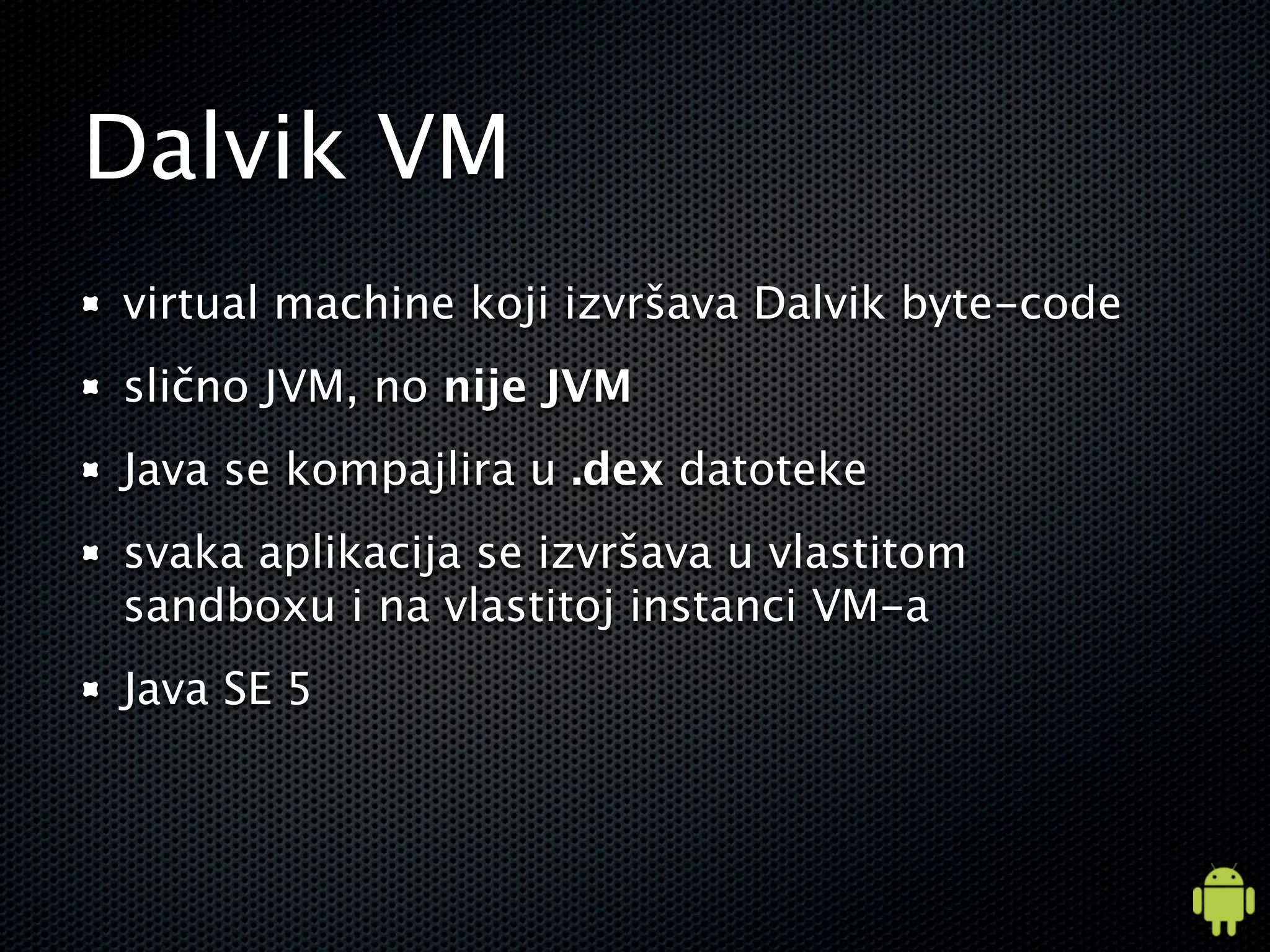

- 17. Dalvik VM virtual machinekoji izvršava Dalvik byte-code slično JVM, no nije JVM Java se kompajlira u .dex datoteke svaka aplikacija se izvršava u vlastitom sandboxu i na vlastitoj instanci VM-a Java SE 5

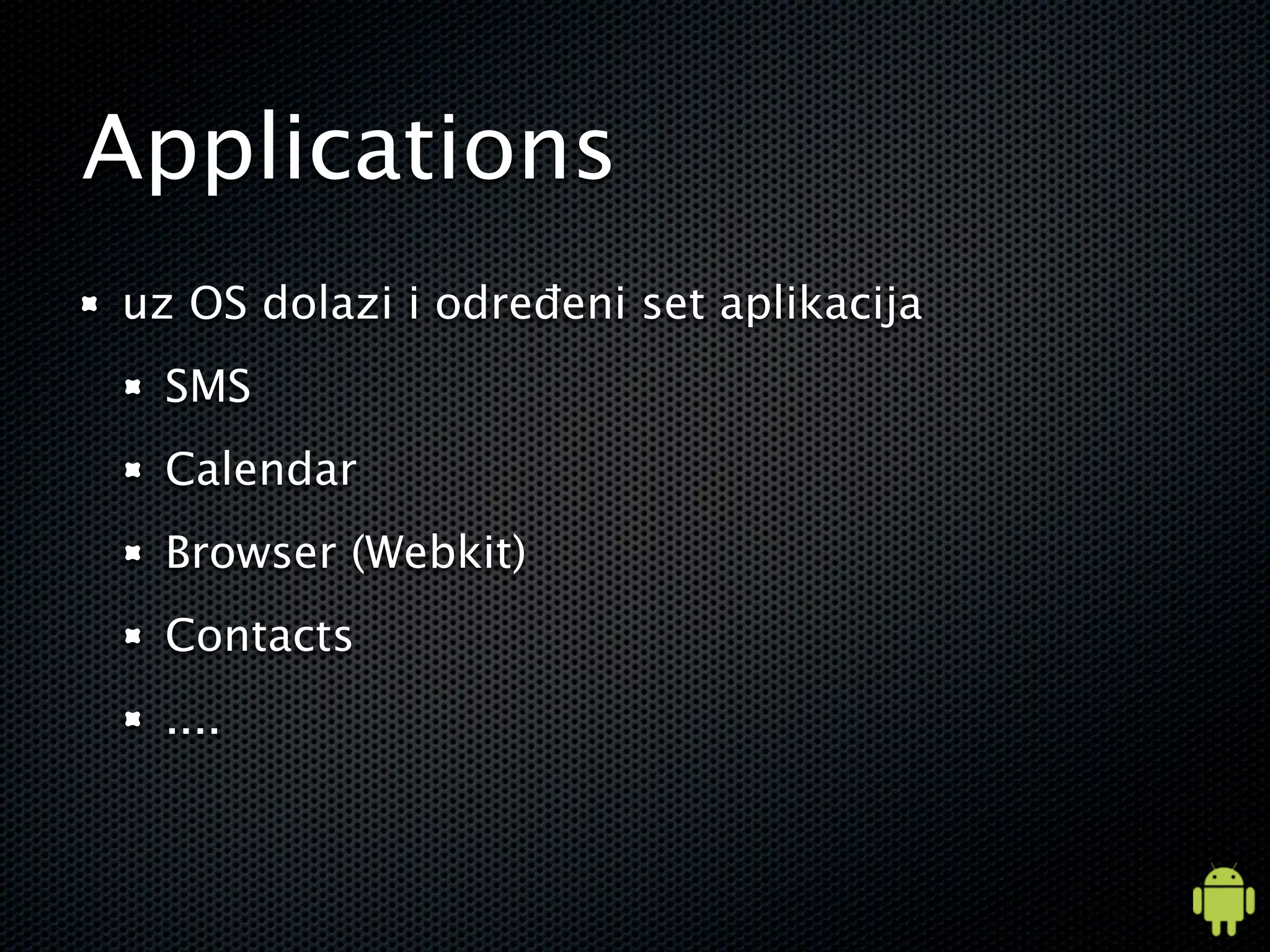

- 18. Applications uz OS dolazii određeni set aplikacija SMS Calendar Browser (Webkit) Contacts ....
- 19.

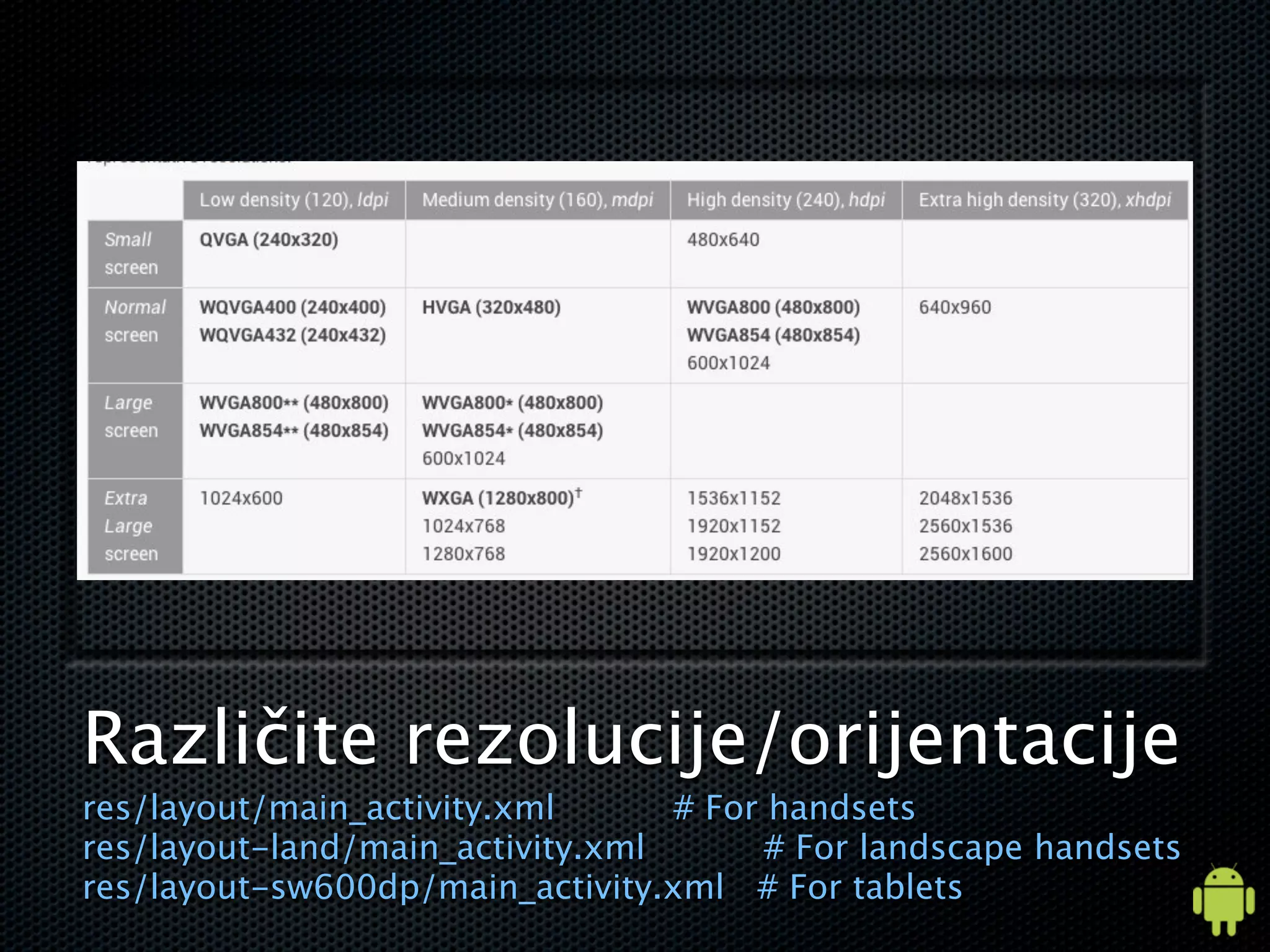

- 20. Različite rezolucije/orijentacije res/layout/main_activity.xml # For handsets res/layout-land/main_activity.xml # For landscape handsets res/layout-sw600dp/main_activity.xml # For tablets
- 21.
- 22.
- 23.
- 24.

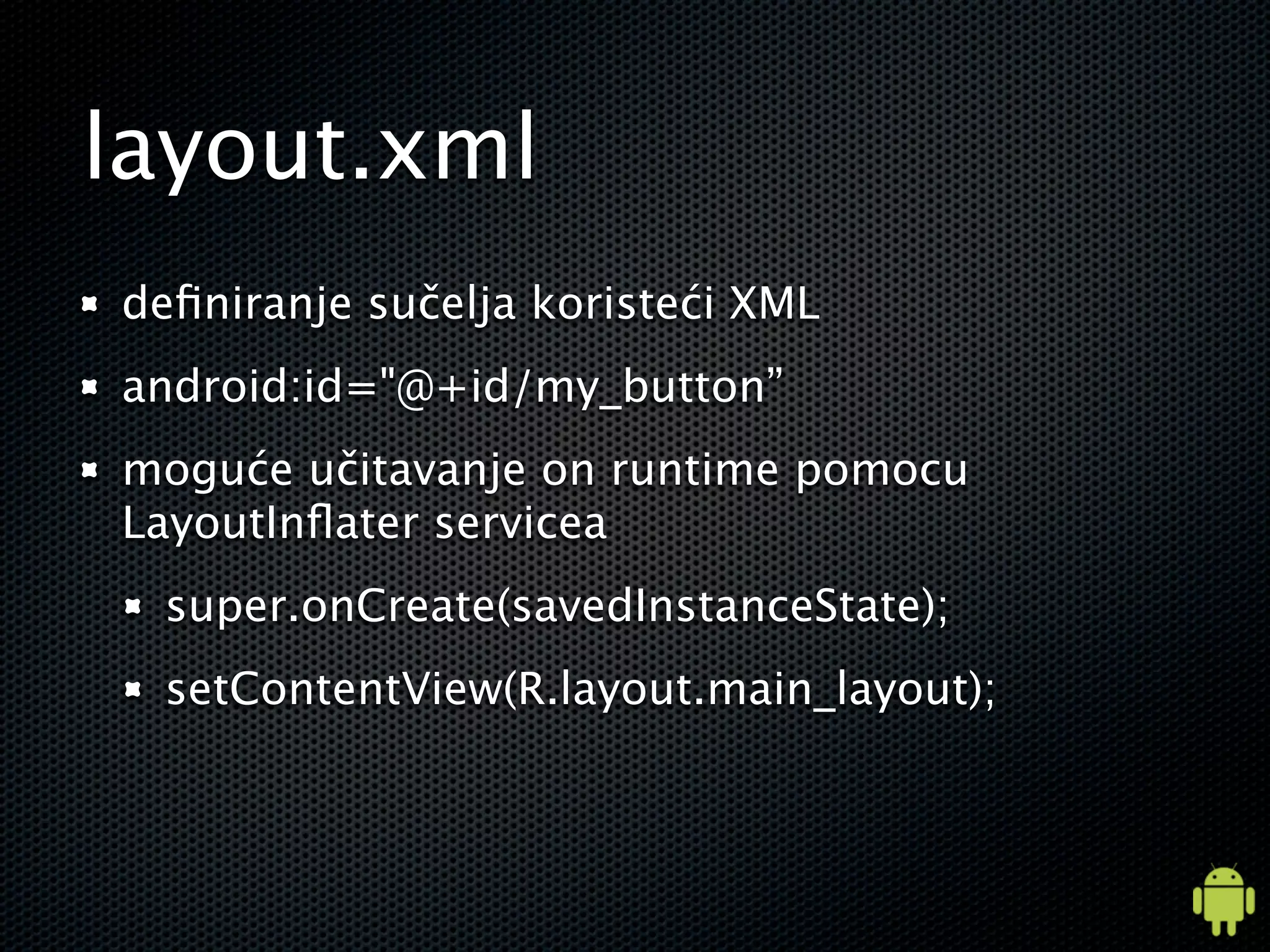

- 25. layout.xml definiranje sučelja koristećiXML android:id="@+id/my_button” moguće učitavanje on runtime pomocu LayoutInflater servicea super.onCreate(savedInstanceState); setContentView(R.layout.main_layout);

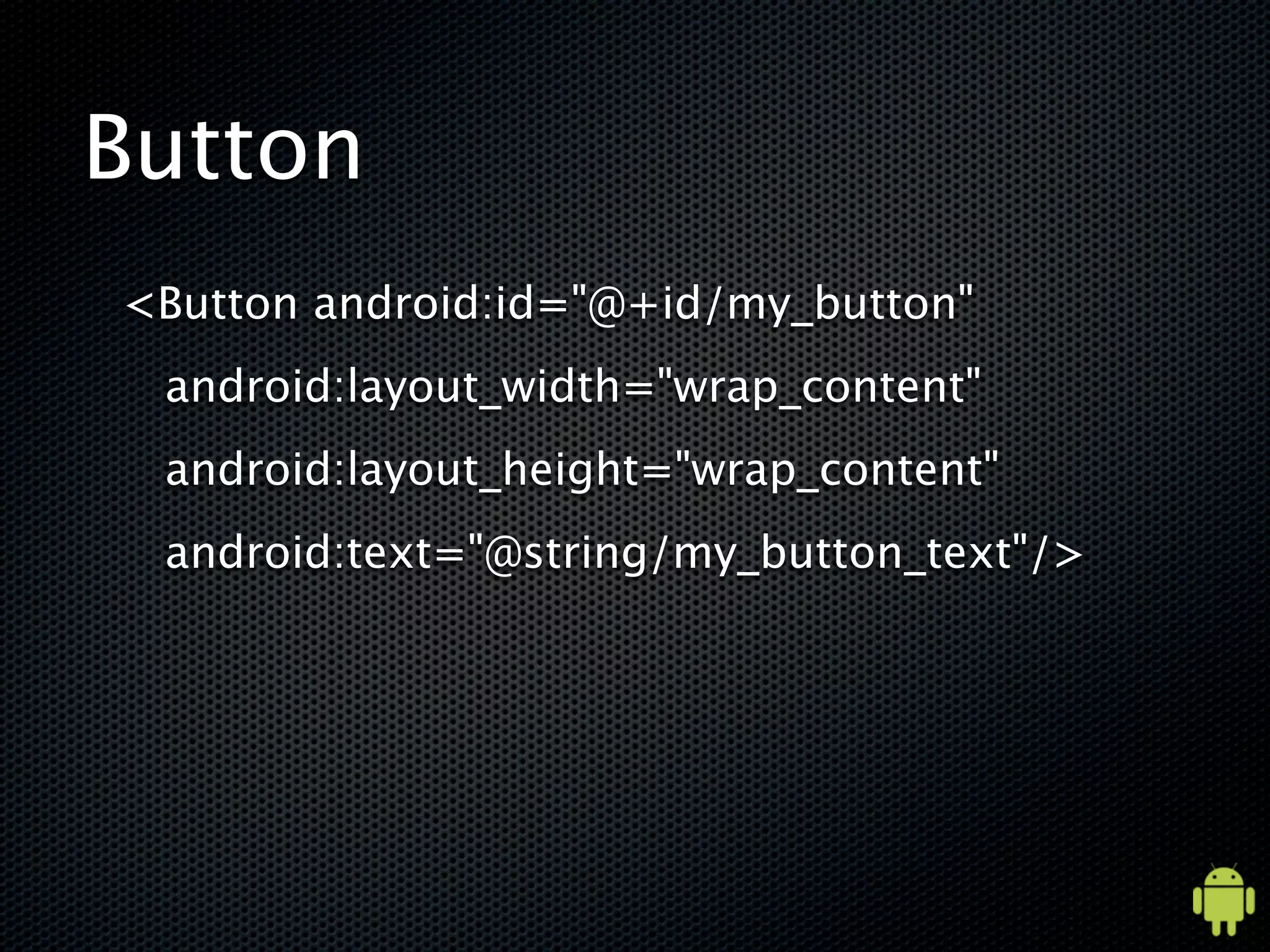

- 26. Button <Button android:id="@+id/my_button" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/my_button_text"/>
- 27.

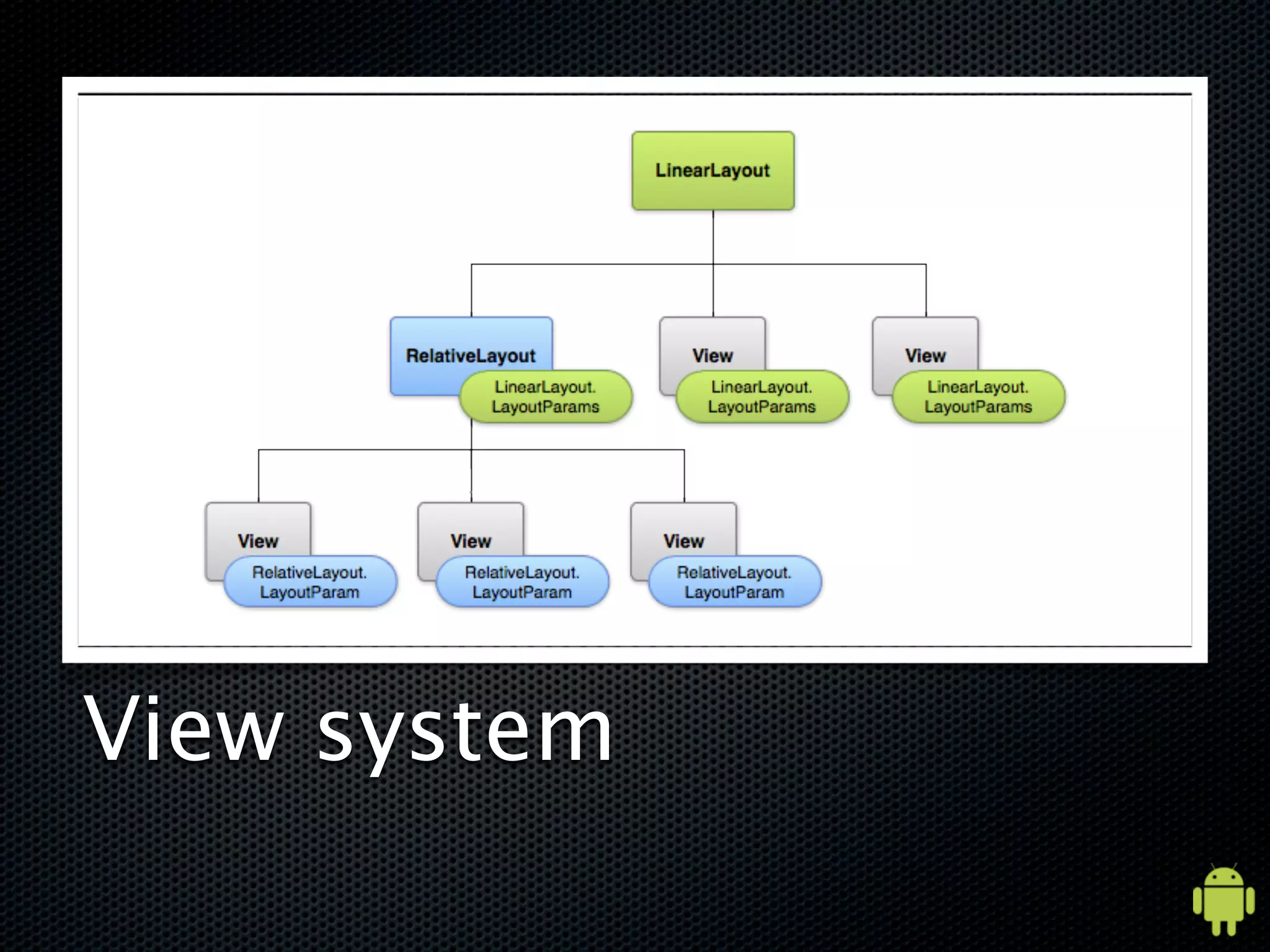

- 28.

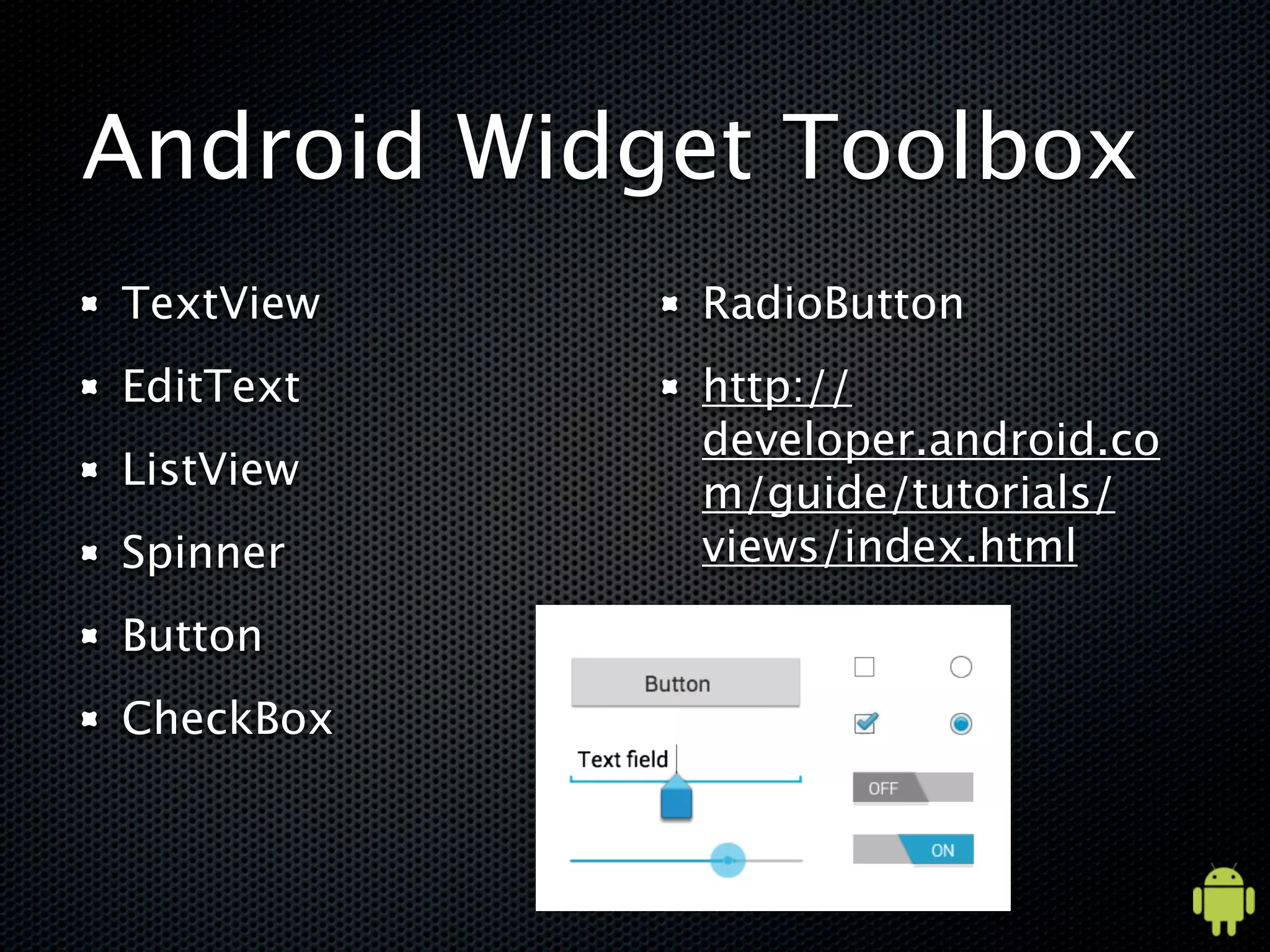

- 29. Android Widget Toolbox TextView RadioButton EditText http:// developer.android.co ListView m/guide/tutorials/ Spinner views/index.html Button CheckBox
- 30.
- 31.

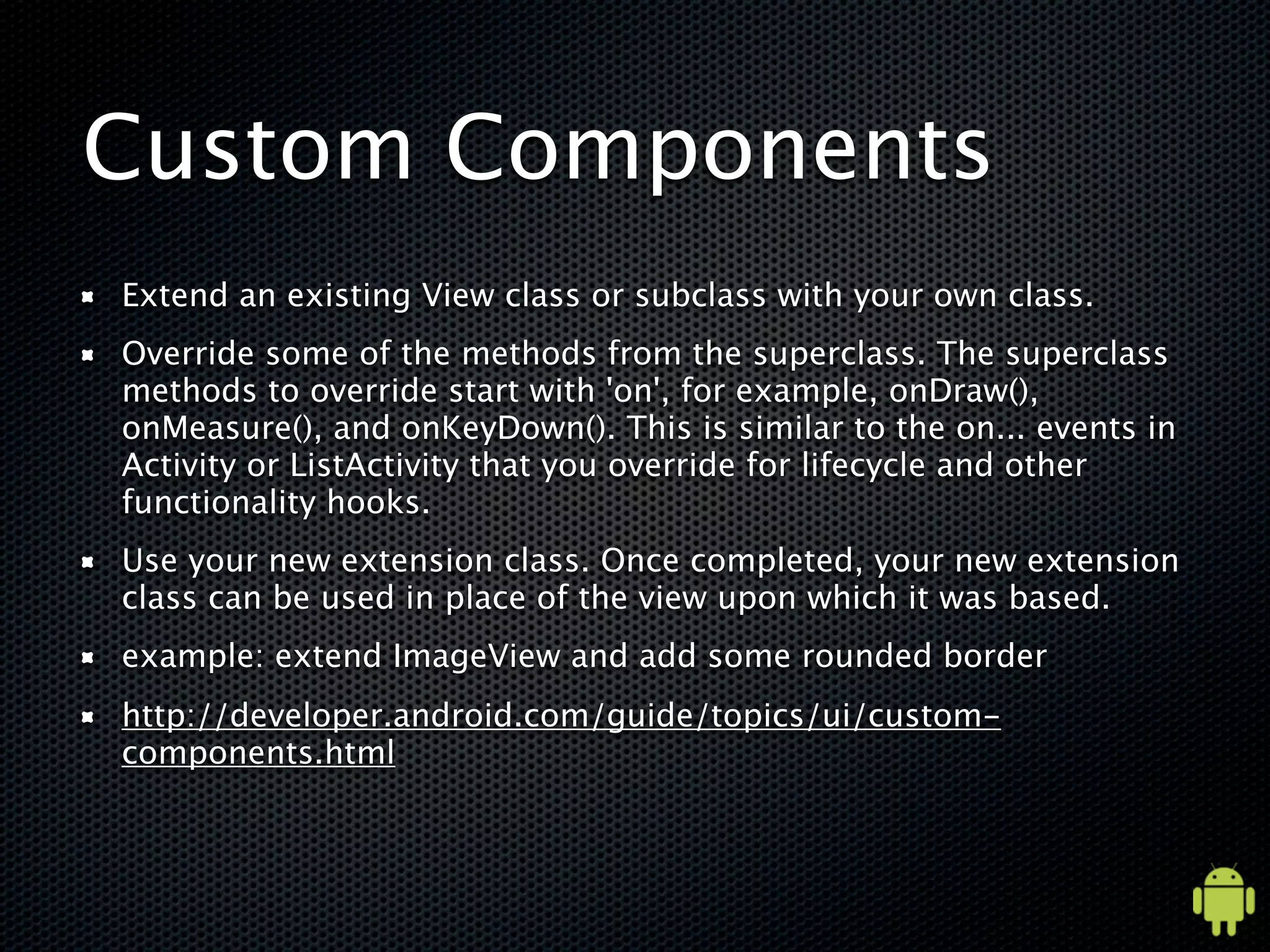

- 32. Custom Components Extend anexisting View class or subclass with your own class. Override some of the methods from the superclass. The superclass methods to override start with 'on', for example, onDraw(), onMeasure(), and onKeyDown(). This is similar to the on... events in Activity or ListActivity that you override for lifecycle and other functionality hooks. Use your new extension class. Once completed, your new extension class can be used in place of the view upon which it was based. example: extend ImageView and add some rounded border http://developer.android.com/guide/topics/ui/custom- components.html
- 33.
- 34.
- 35.
- 36.
- 37.

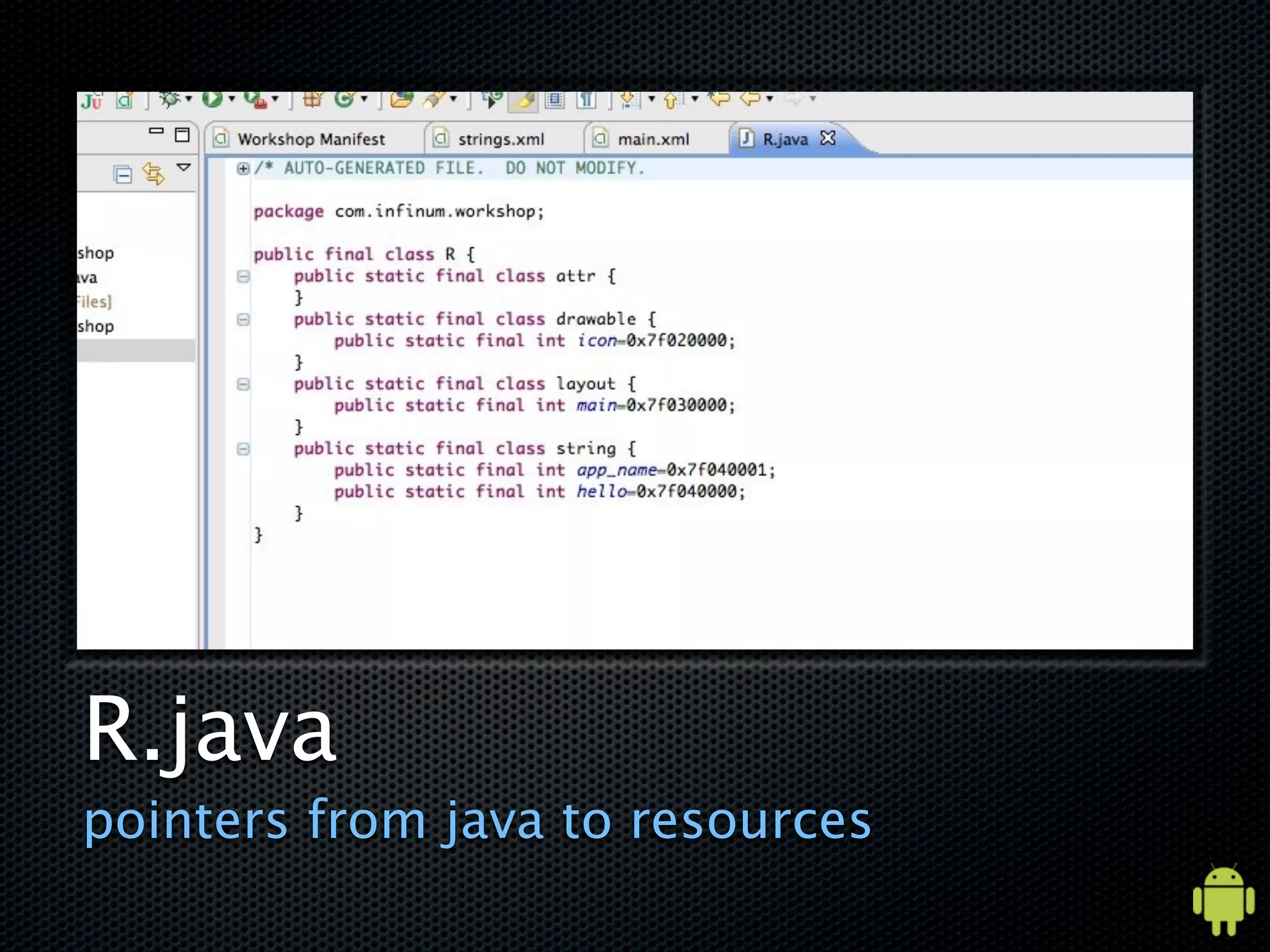

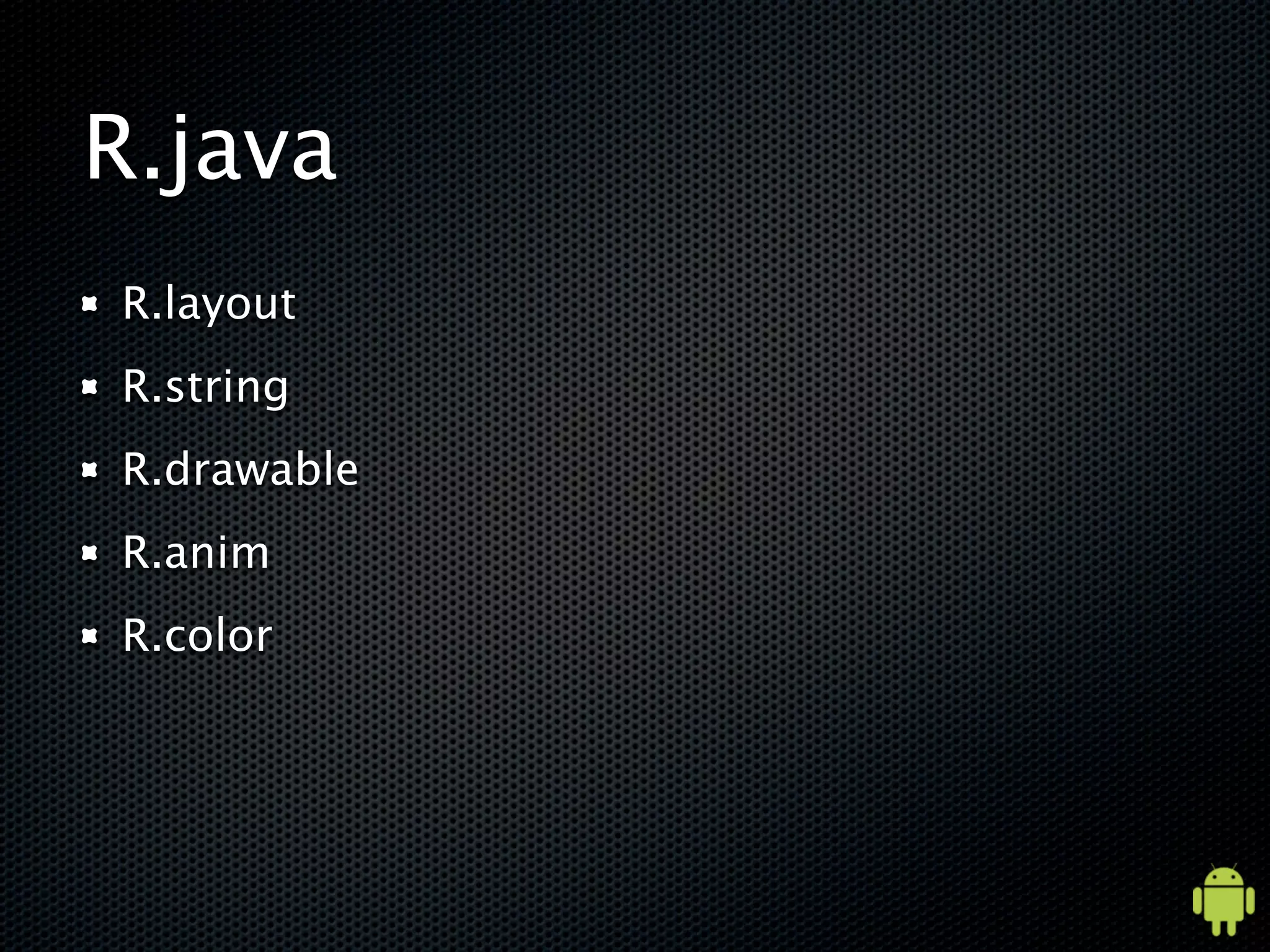

- 38. R.java pointers from javato resources
- 39.
- 40.

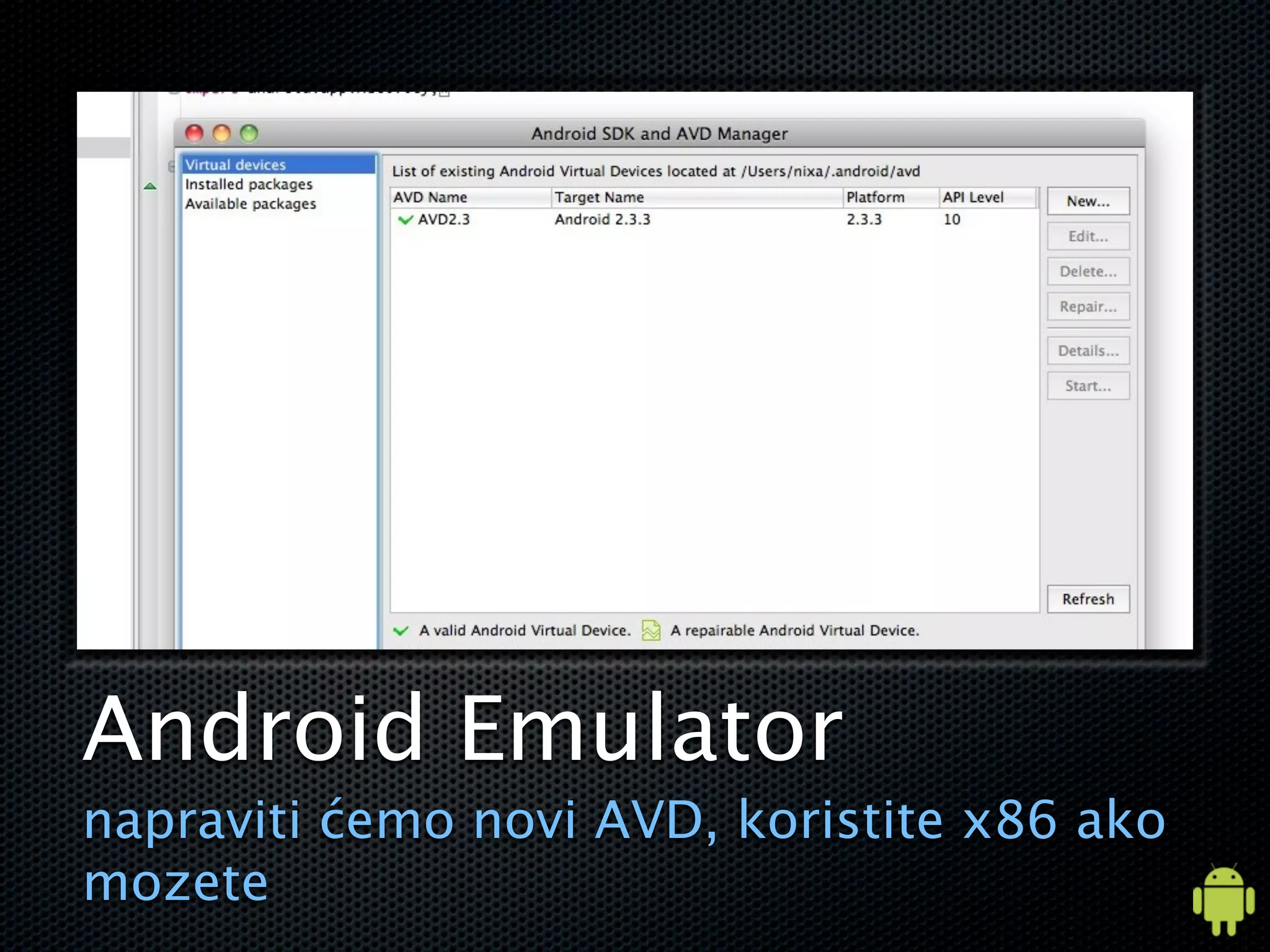

- 41. Android Emulator napraviti ćemonovi AVD, koristite x86 ako mozete
- 42.
- 43.

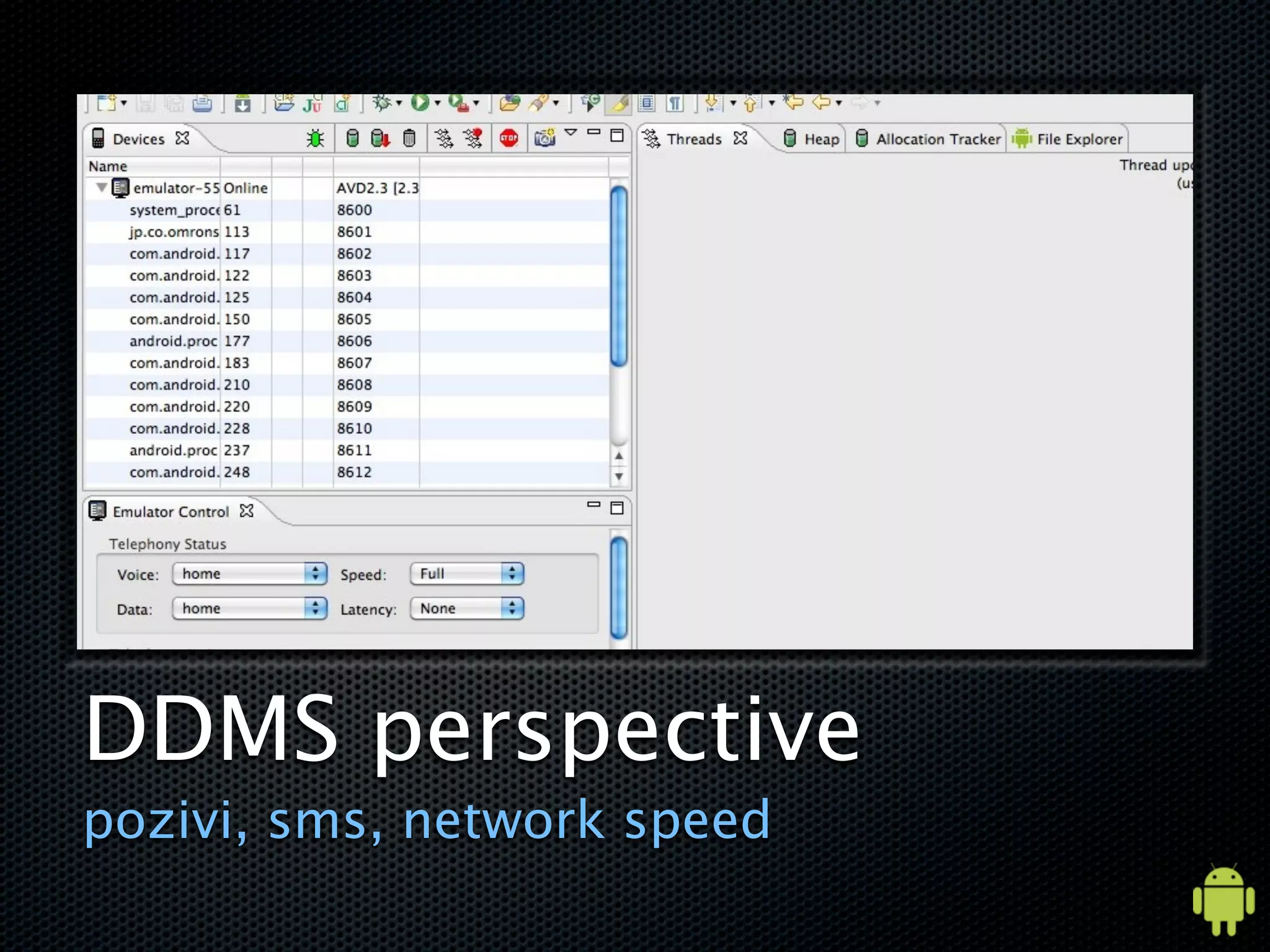

- 44. DDMS perspective pozivi, sms,network speed

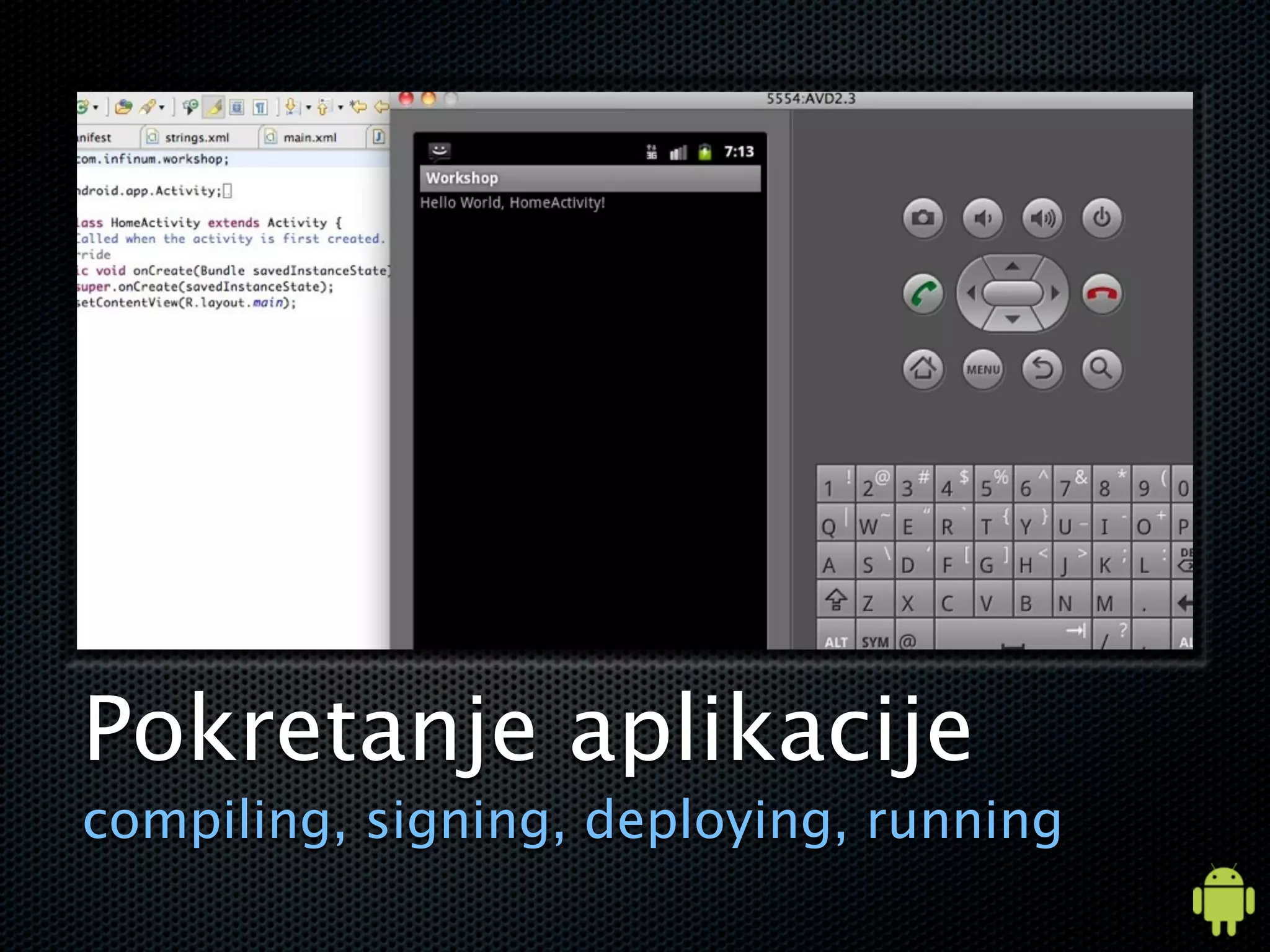

- 45. Pokretanje aplikacije compiling, signing,deploying, running

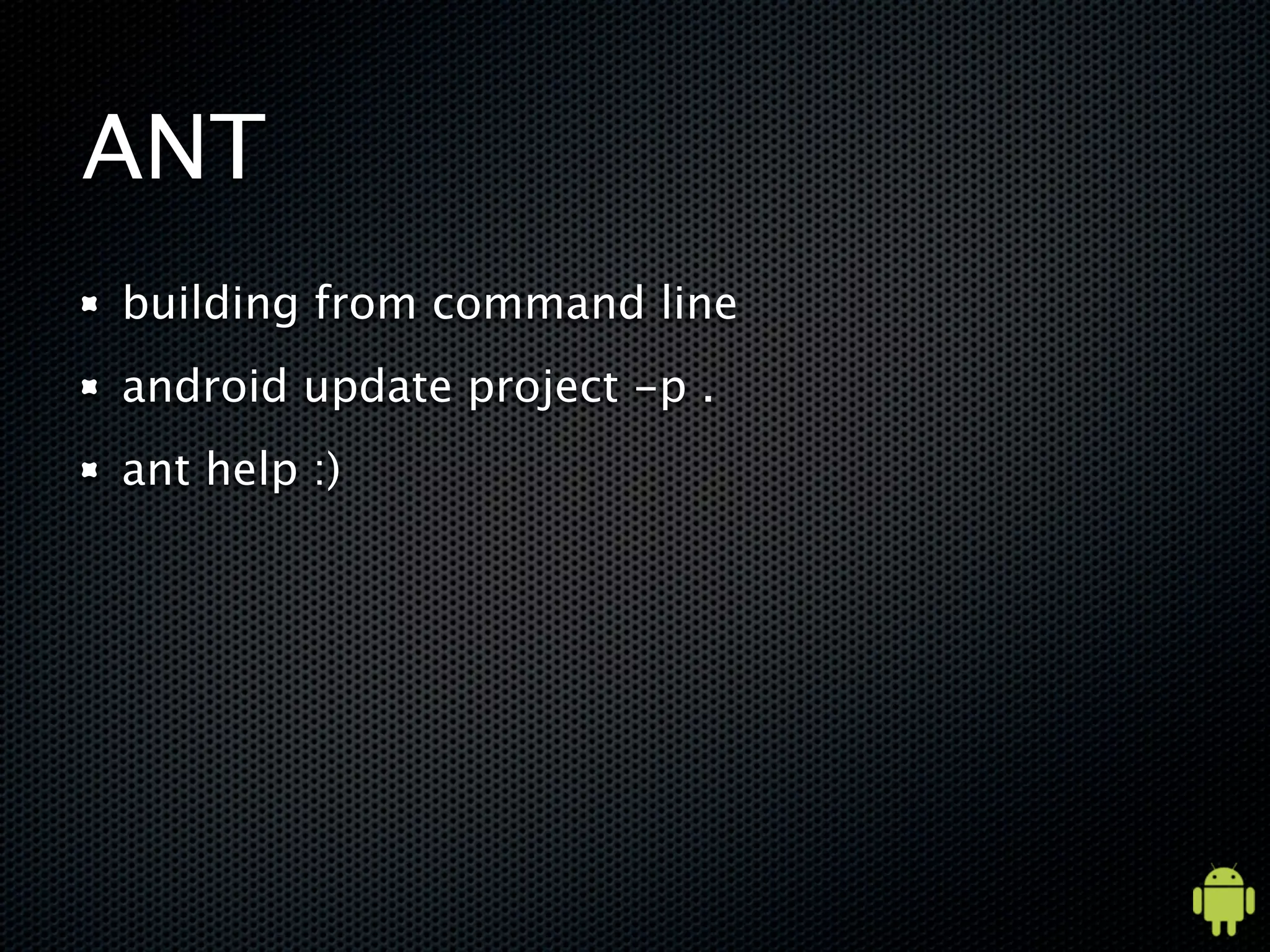

- 46. ANT building from commandline android update project -p . ant help :)
- 47.

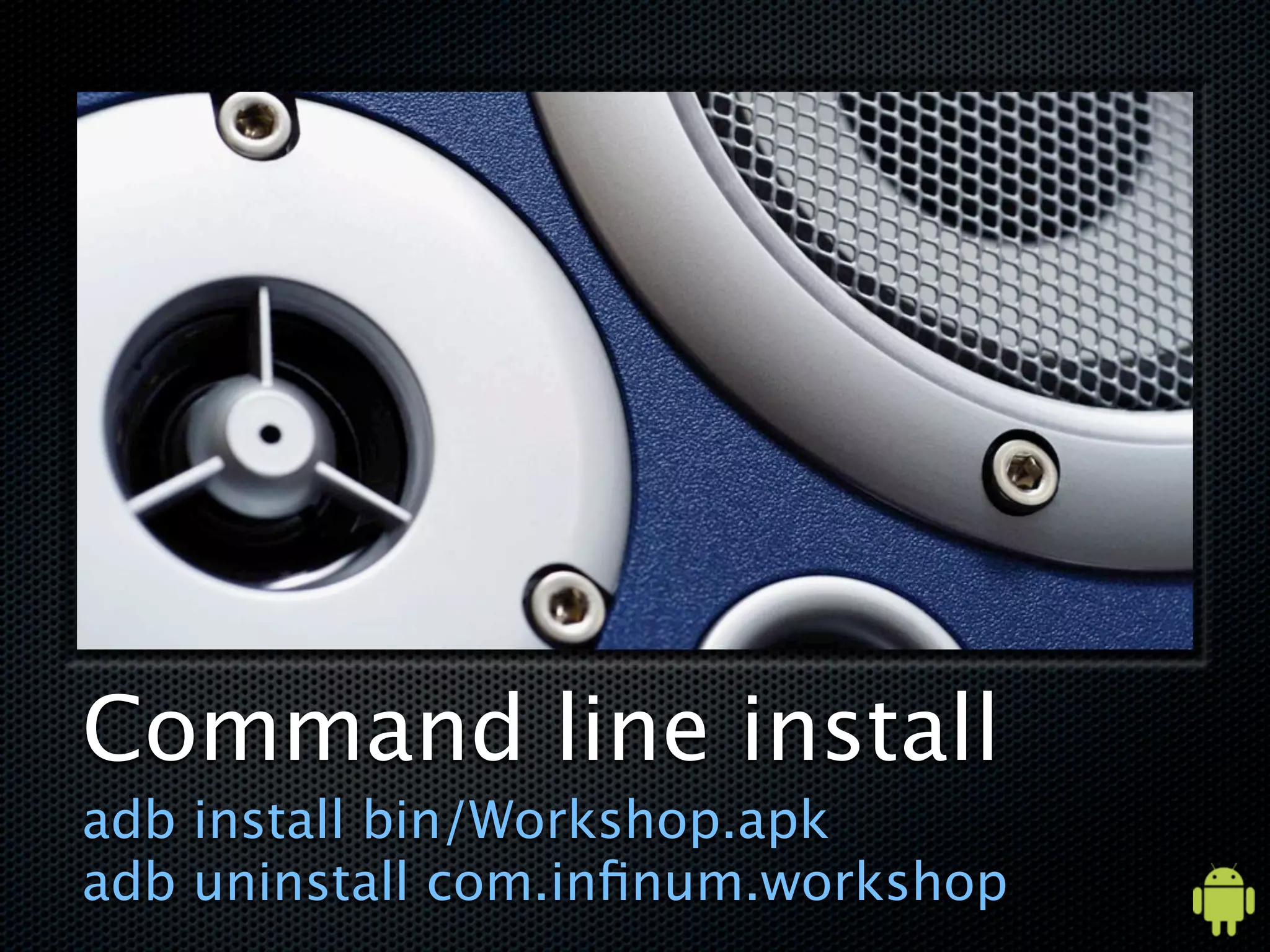

- 48. Command line install adbinstall bin/Workshop.apk adb uninstall com.infinum.workshop
- 49.
- 50.

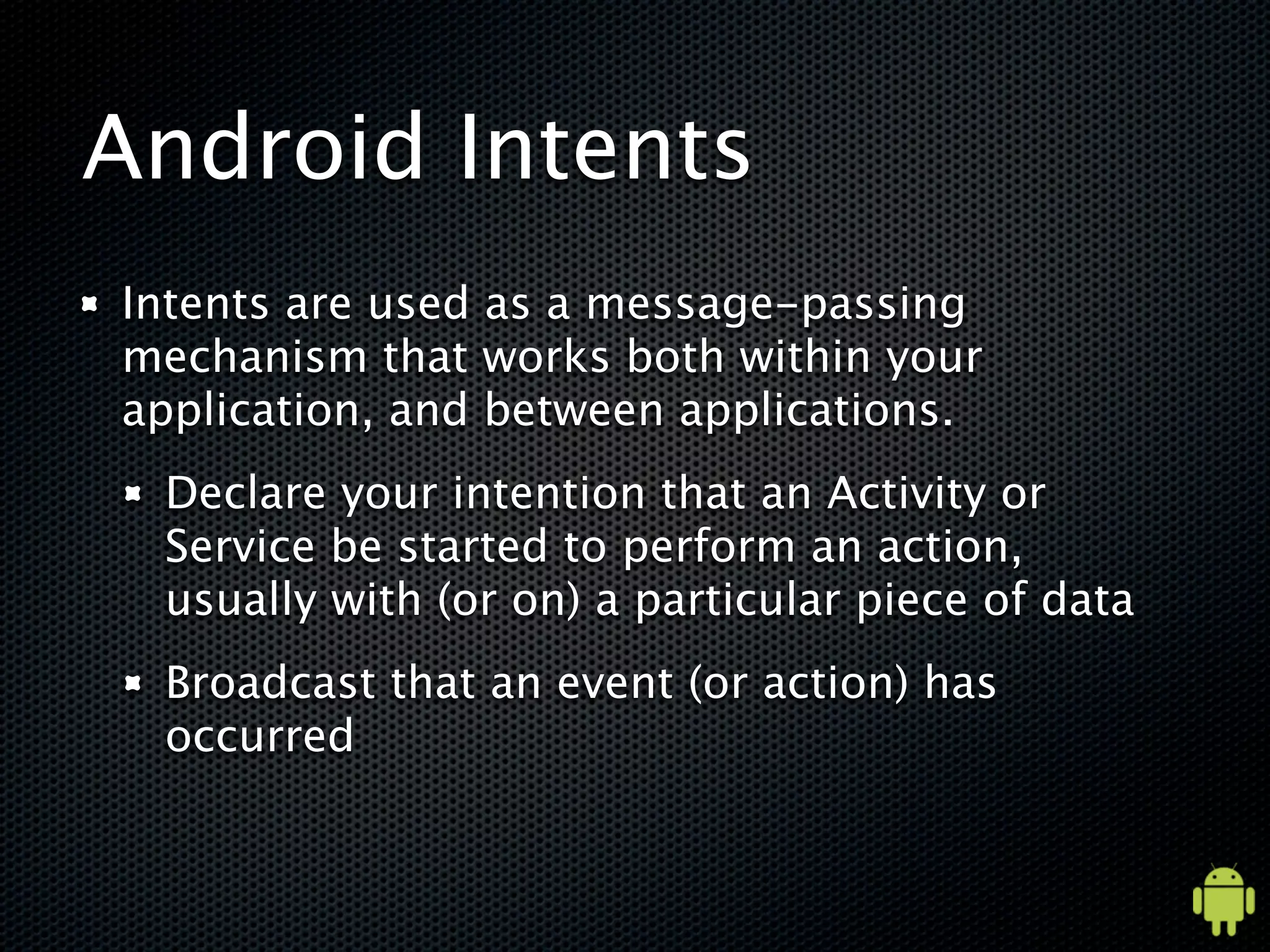

- 51. Android Intents Intents areused as a message-passing mechanism that works both within your application, and between applications. Declare your intention that an Activity or Service be started to perform an action, usually with (or on) a particular piece of data Broadcast that an event (or action) has occurred

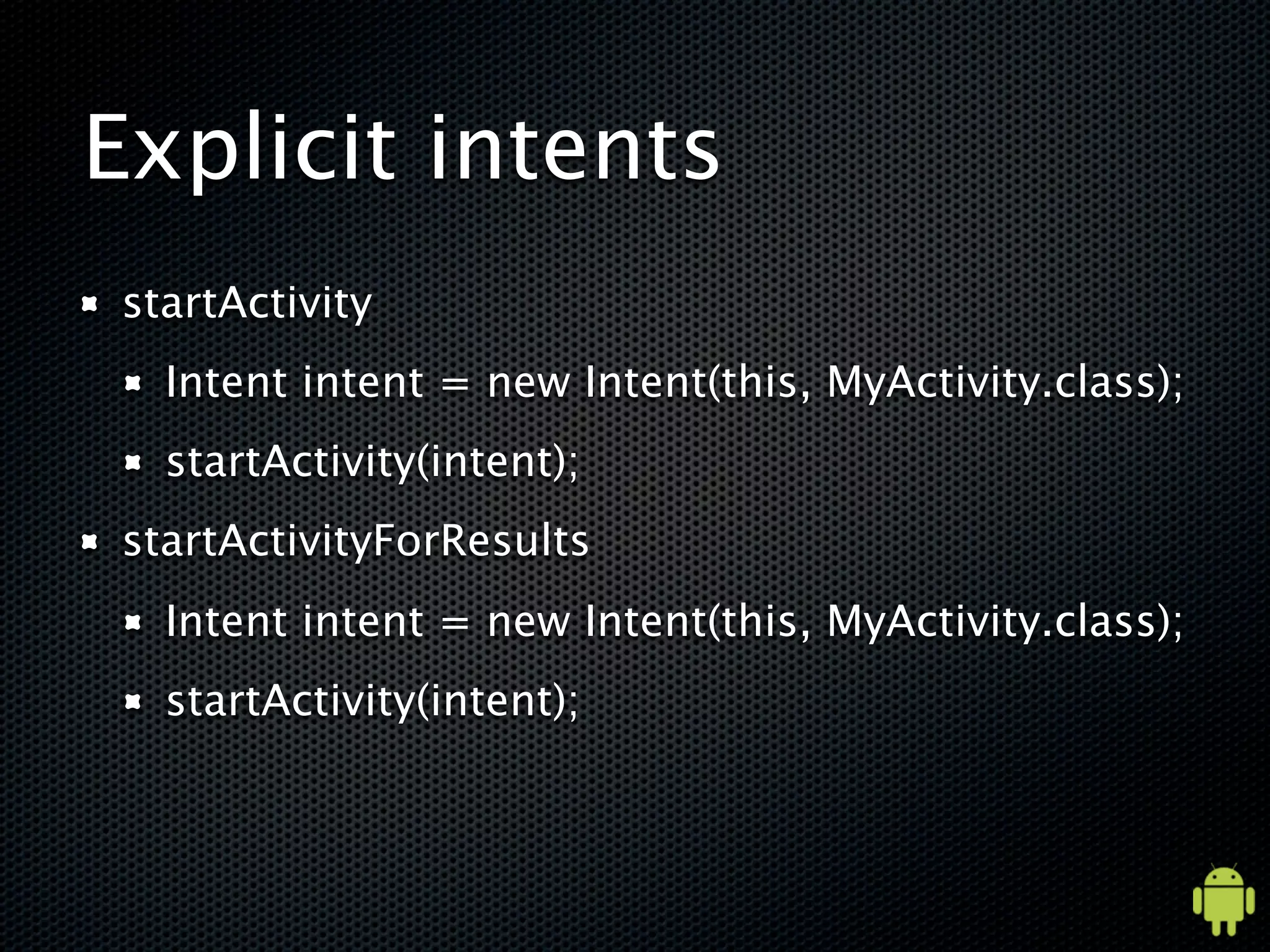

- 52. Explicit intents startActivity Intent intent = new Intent(this, MyActivity.class); startActivity(intent); startActivityForResults Intent intent = new Intent(this, MyActivity.class); startActivity(intent);

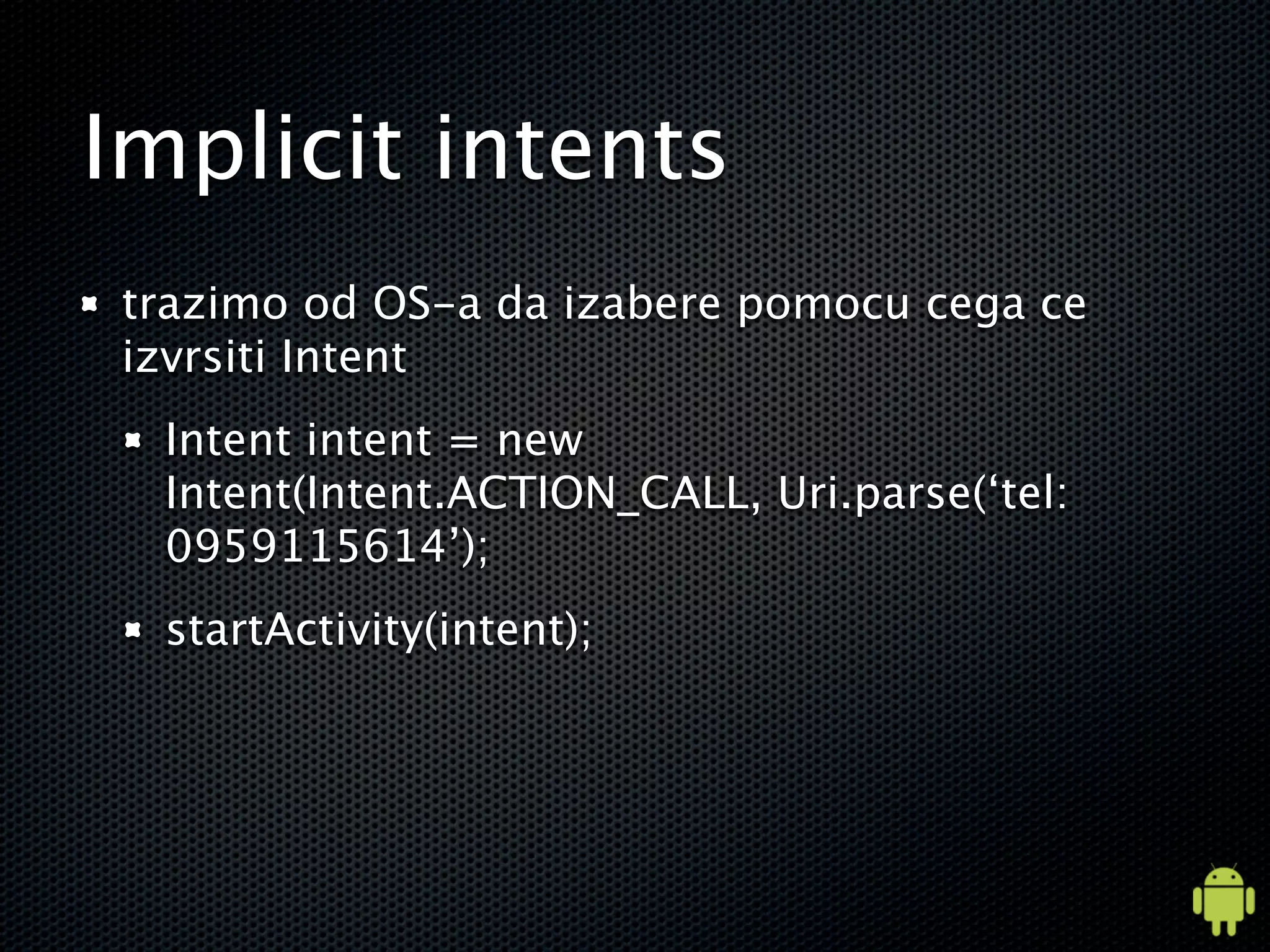

- 53. Implicit intents trazimo odOS-a da izabere pomocu cega ce izvrsiti Intent Intent intent = new Intent(Intent.ACTION_CALL, Uri.parse(‘tel: 0959115614’); startActivity(intent);

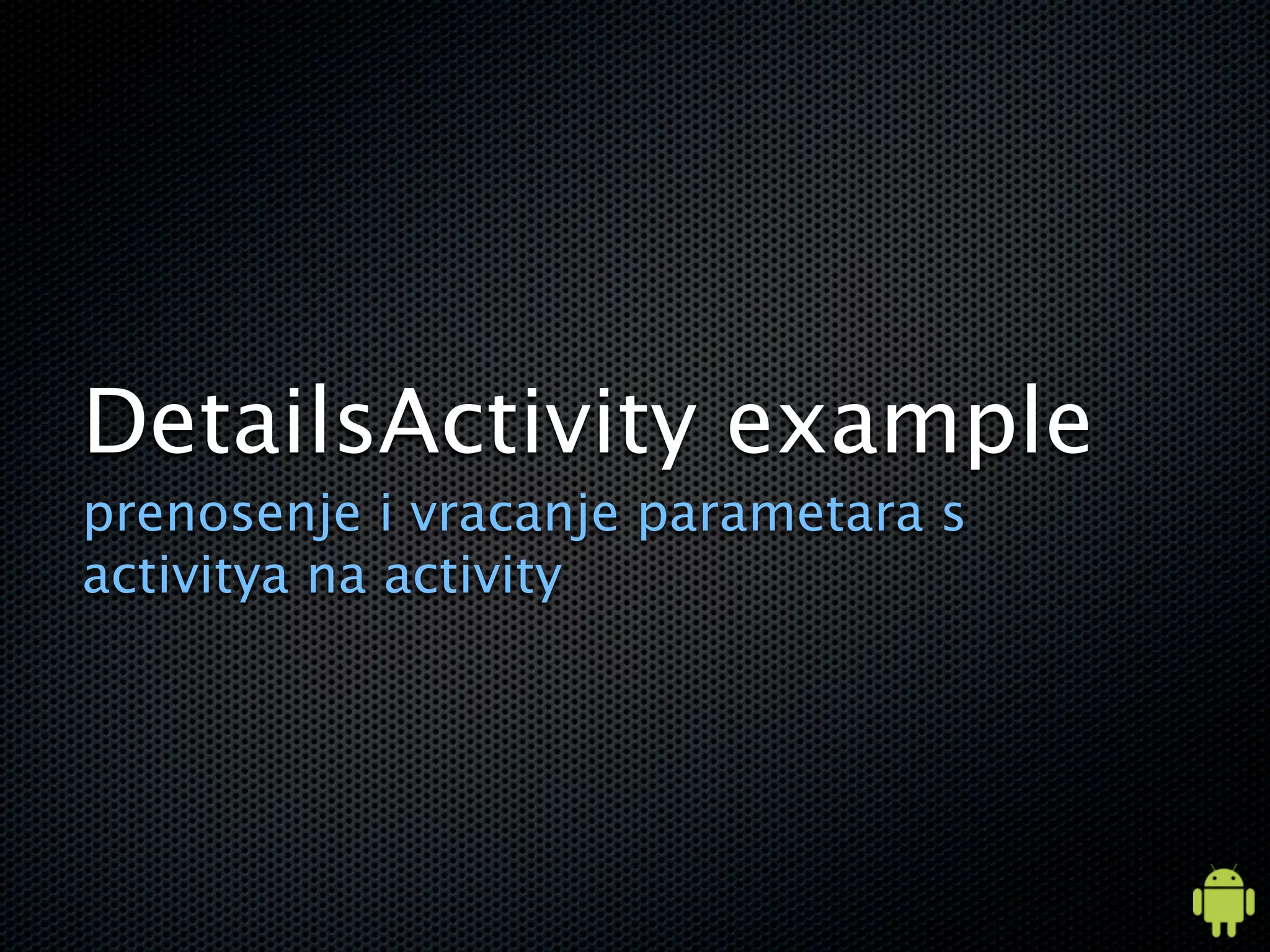

- 54. DetailsActivity example prenosenje ivracanje parametara s activitya na activity

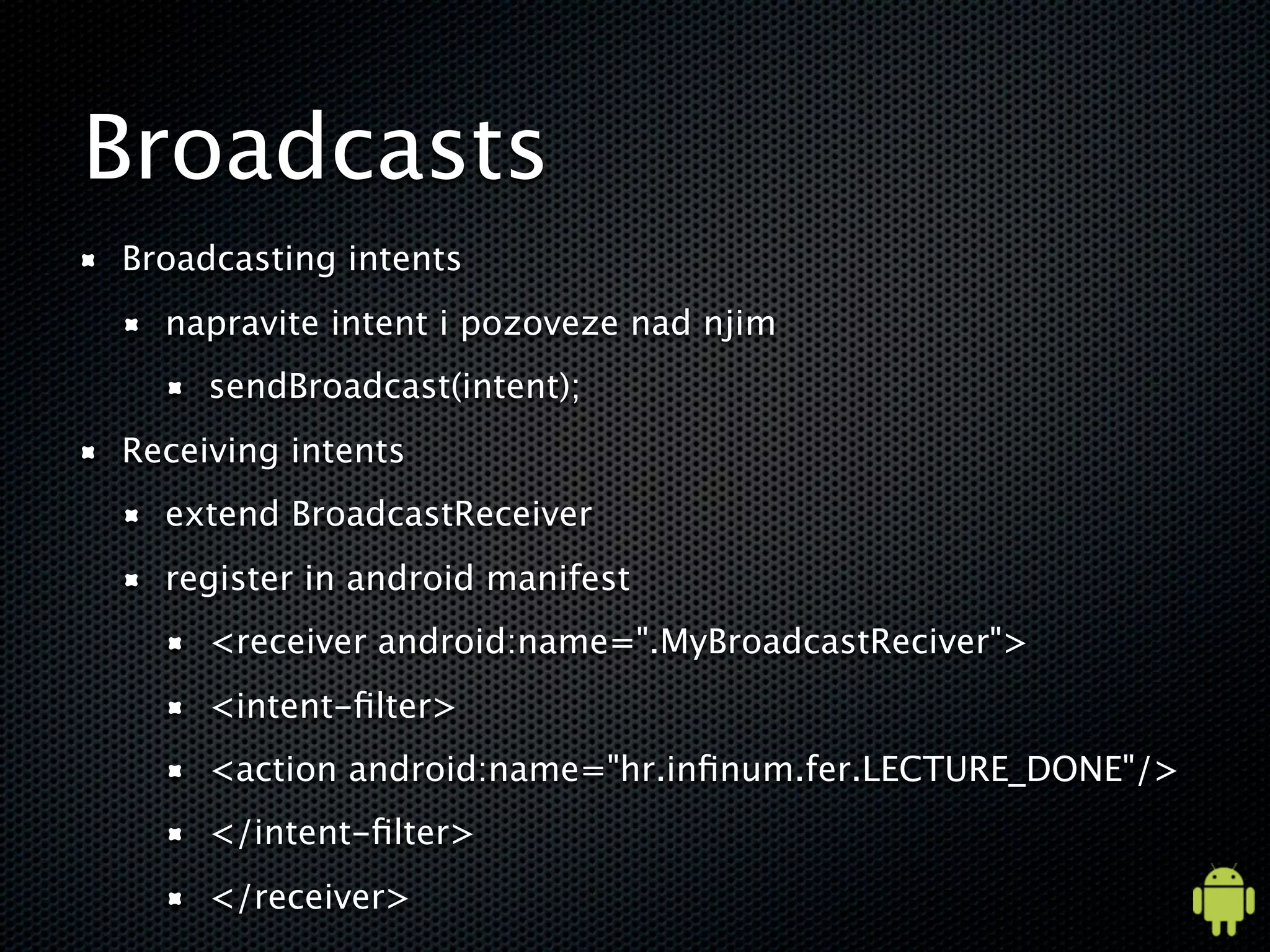

- 55. Broadcasts Broadcasting intents napravite intent i pozoveze nad njim sendBroadcast(intent); Receiving intents extend BroadcastReceiver register in android manifest <receiver android:name=".MyBroadcastReciver"> <intent-filter> <action android:name="hr.infinum.fer.LECTURE_DONE"/> </intent-filter> </receiver>
- 56.
- 57. String url ="tel:0959115614"; Intent intent = new Intent(Intent.ACTION_CALL, Uri.parse(url));
- 58.

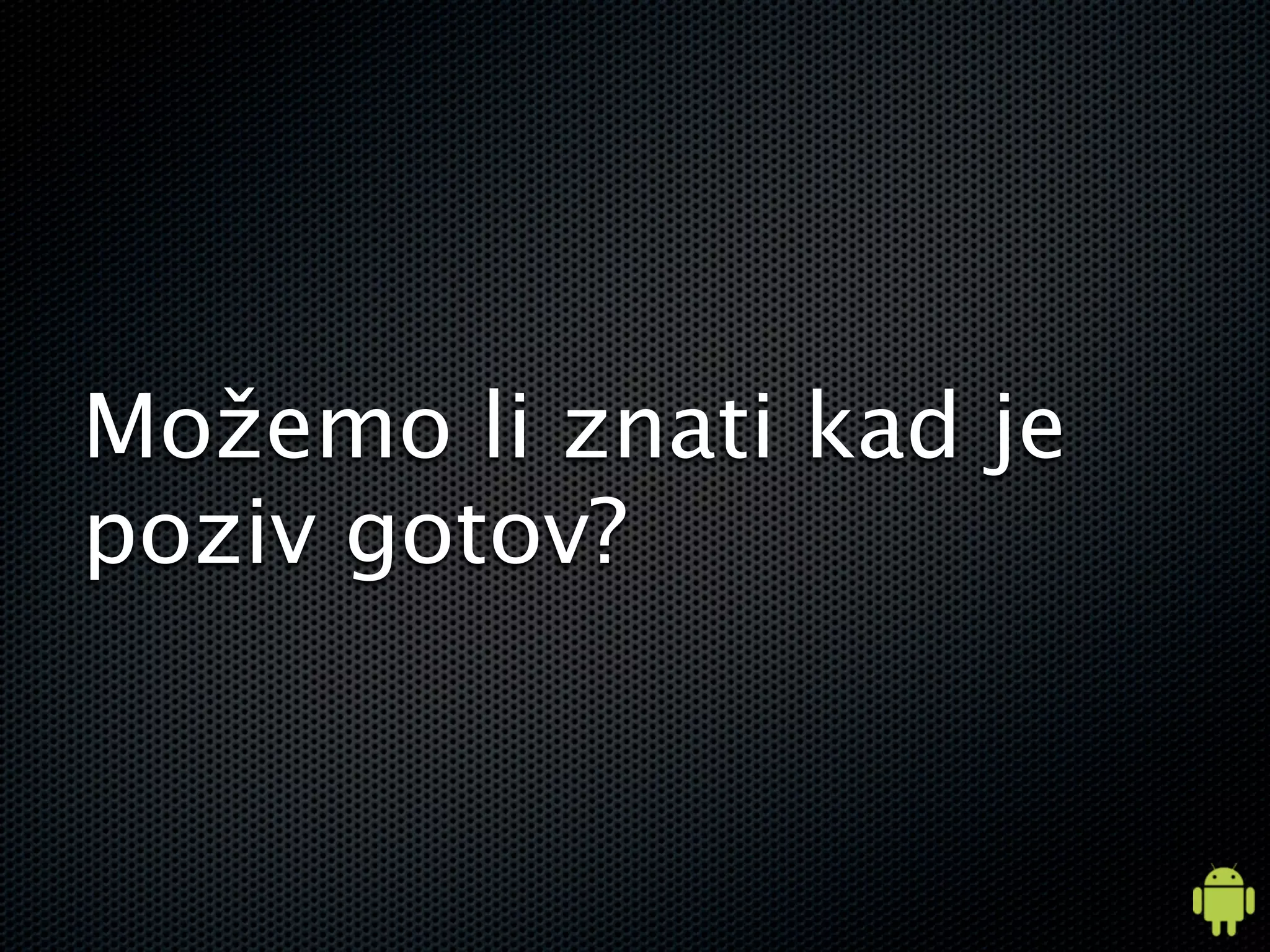

- 59. Možemo li znatikad je poziv gotov?
- 60. public void onCreate(BundlesavedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); Button btnCall = (Button) findViewById(R.id.btnCall); btnCall.setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { Intent intent = new Intent(Intent.ACTION_CALL, Uri.parse("tel:0917700")); startActivity(intent); } }); TelephonyManager tm = (TelephonyManager) getSystemService(TELEPHONY_SERVICE); tm.listen(new EndCallListener(), PhoneStateListener.LISTEN_CALL_STATE); } private class EndCallListener extends PhoneStateListener { @Override public void onCallStateChanged(int state, String incomingNumber) { Log.d("NIXA", "Phone state is " + state + " " + incomingNumber); } }
- 61.
- 62.
- 63.
- 64.
- 65. Storage Shared Preferences Internal Storage ExternalStorage SQLite Databases Network Connection

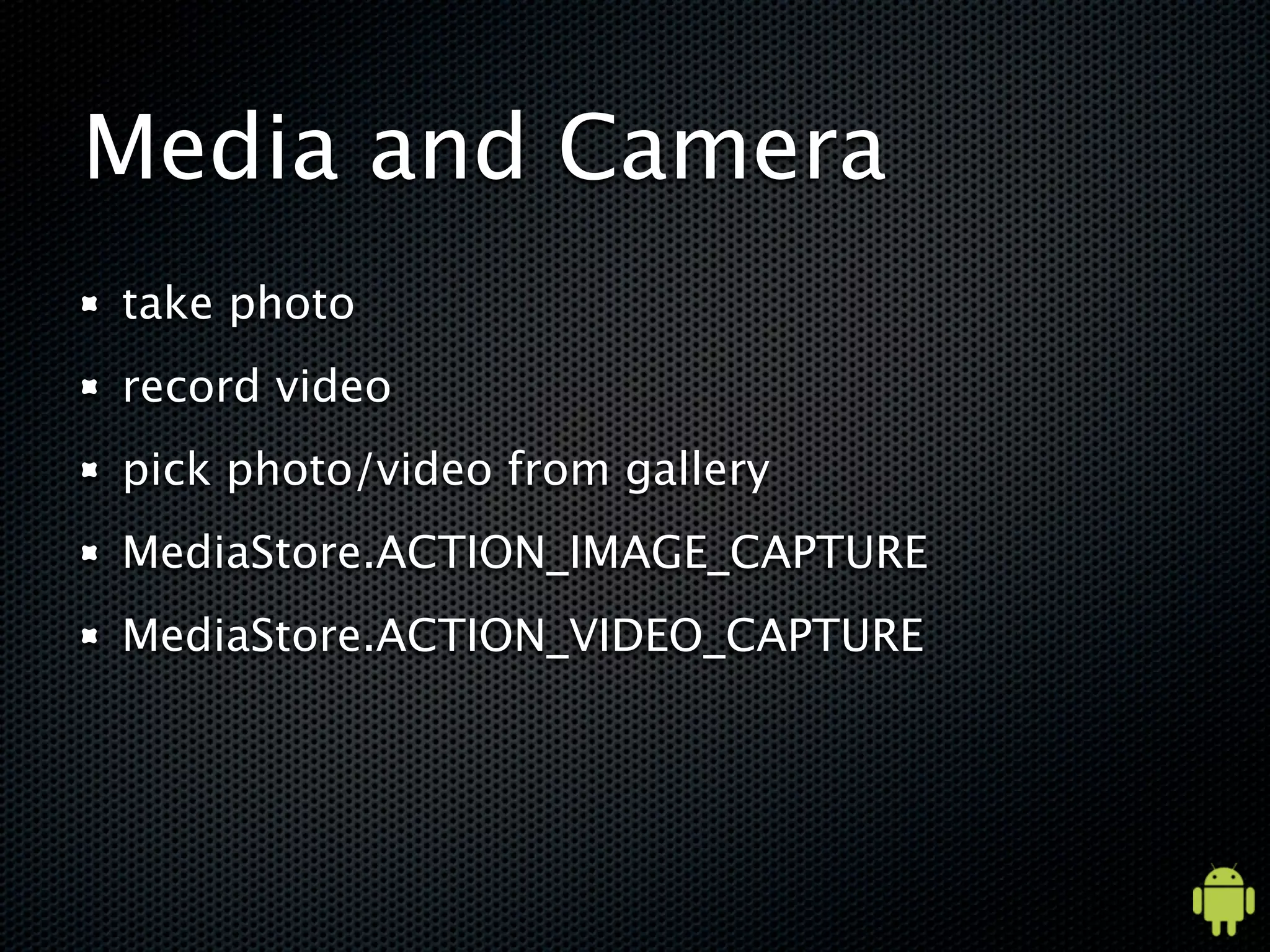

- 66. Media and Camera takephoto record video pick photo/video from gallery MediaStore.ACTION_IMAGE_CAPTURE MediaStore.ACTION_VIDEO_CAPTURE
- 67.

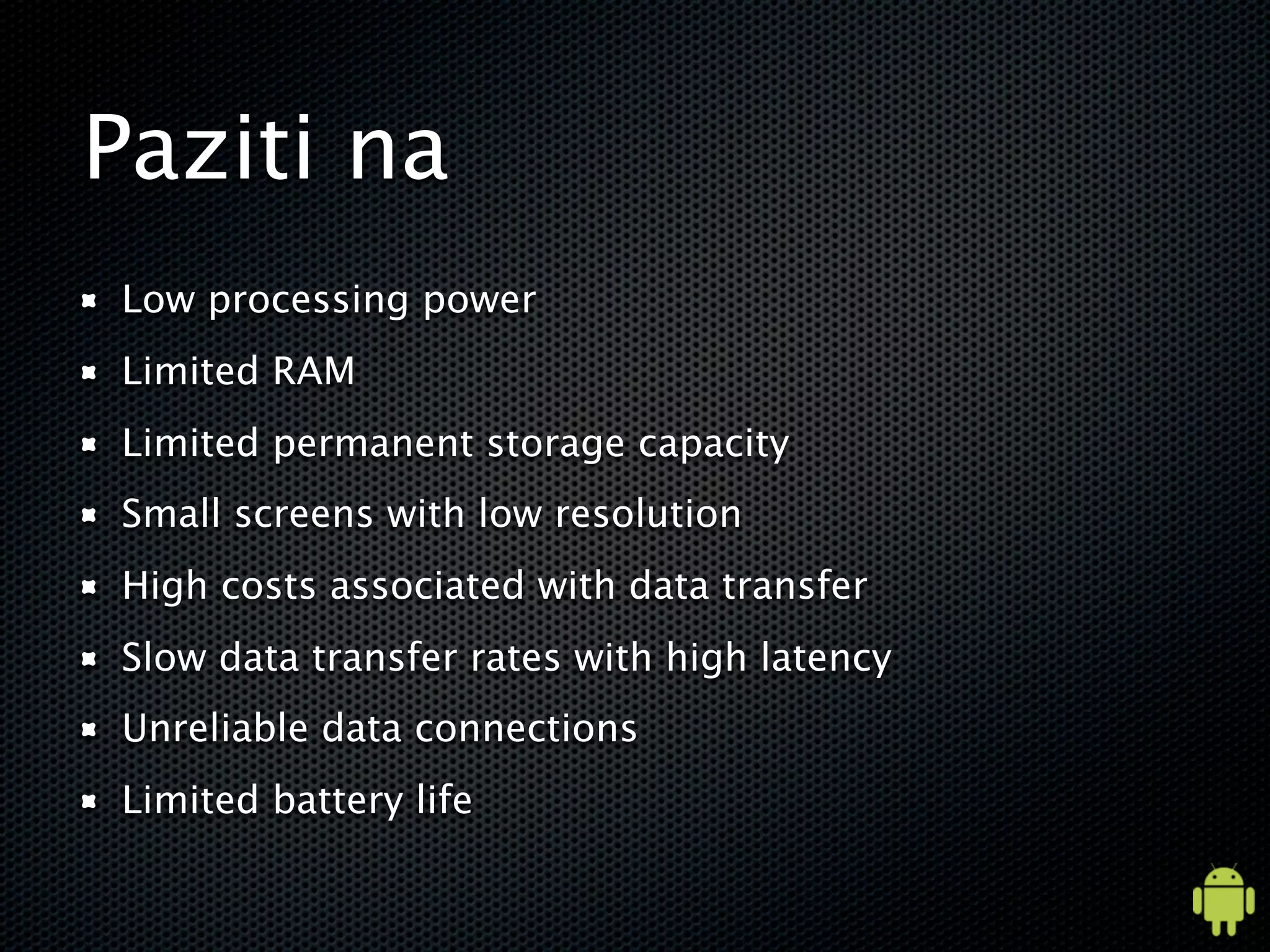

- 68. Paziti na Low processingpower Limited RAM Limited permanent storage capacity Small screens with low resolution High costs associated with data transfer Slow data transfer rates with high latency Unreliable data connections Limited battery life

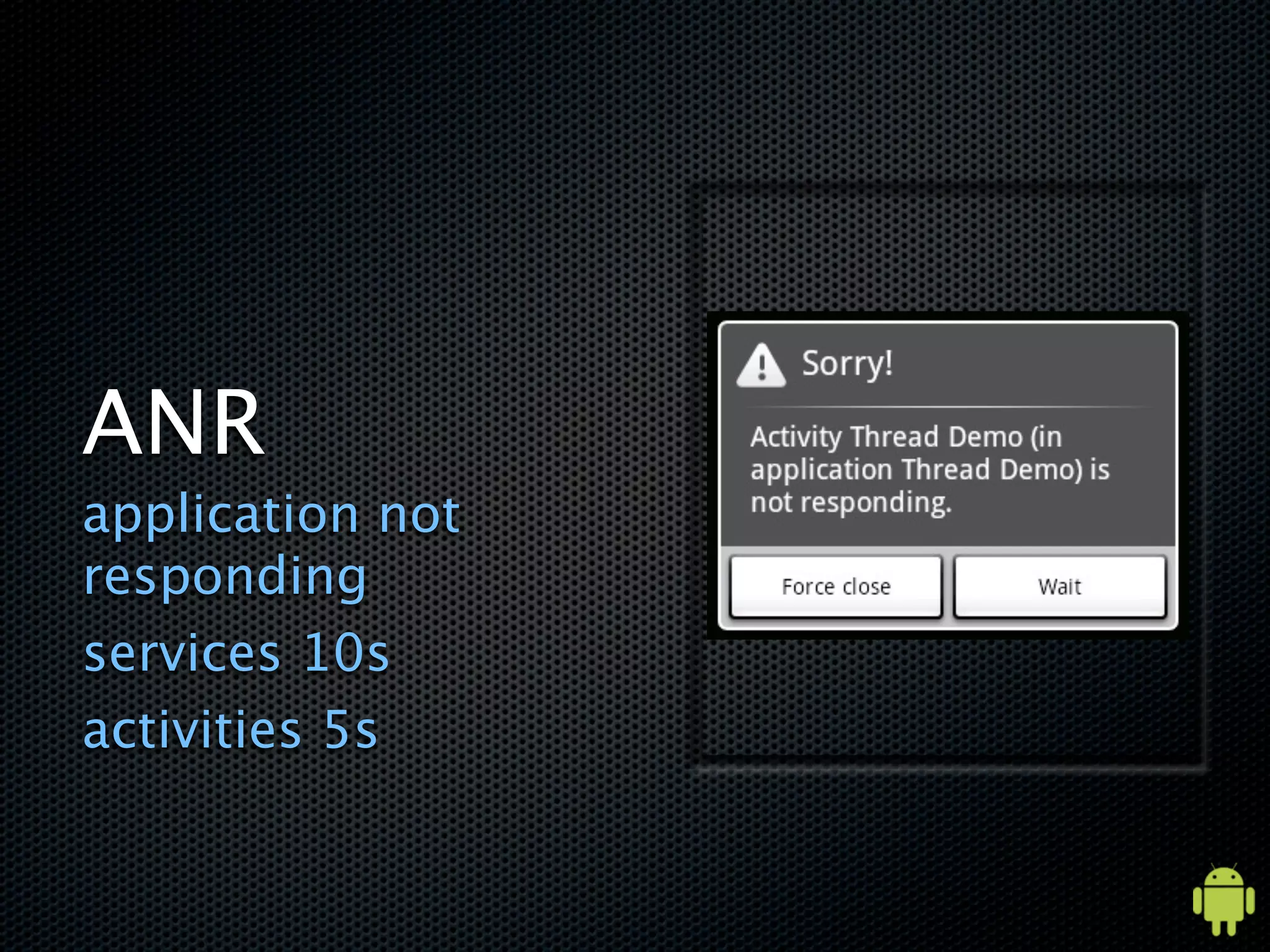

- 69.
- 70.
- 71.

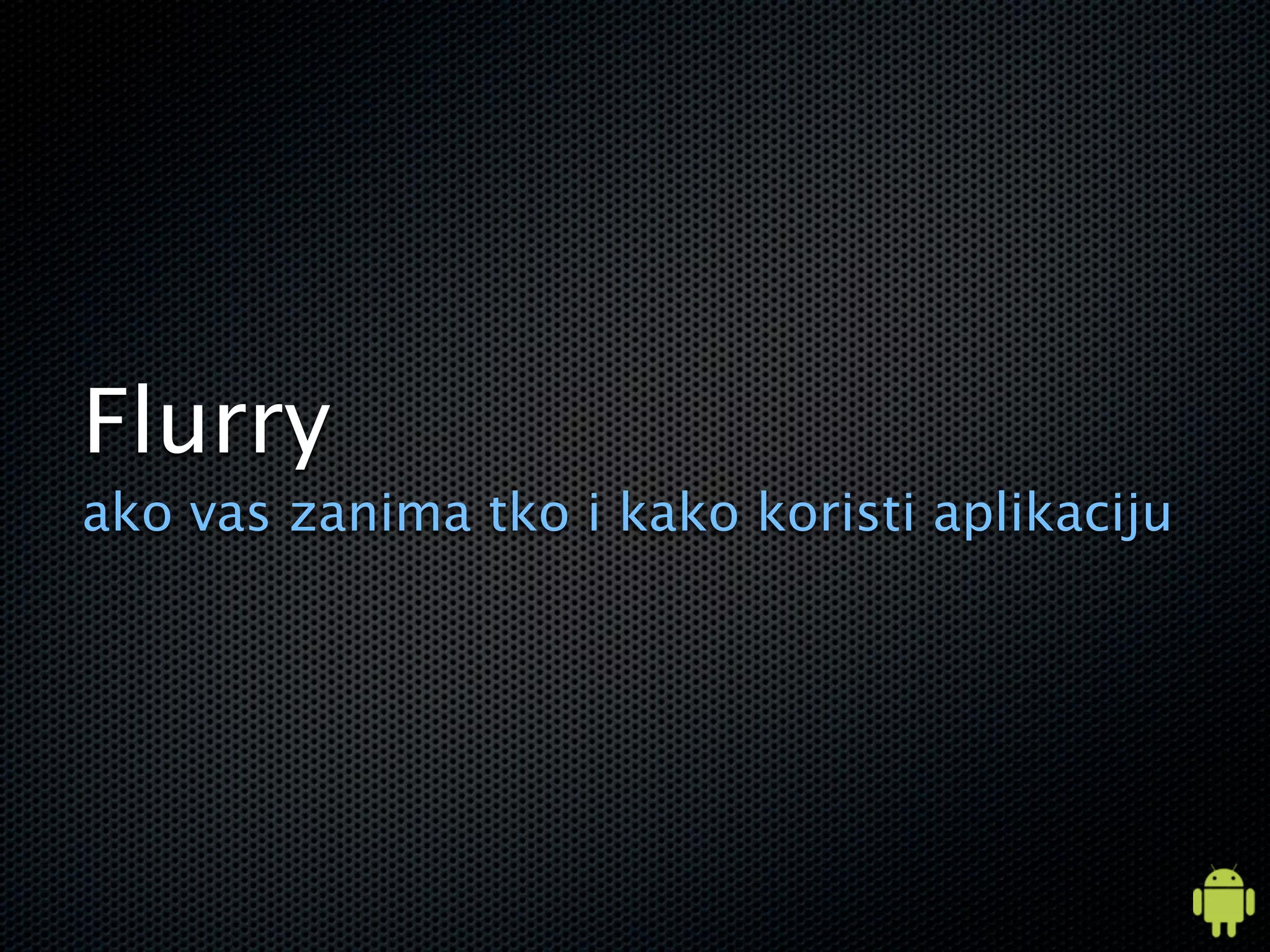

- 72. Flurry ako vas zanimatko i kako koristi aplikaciju

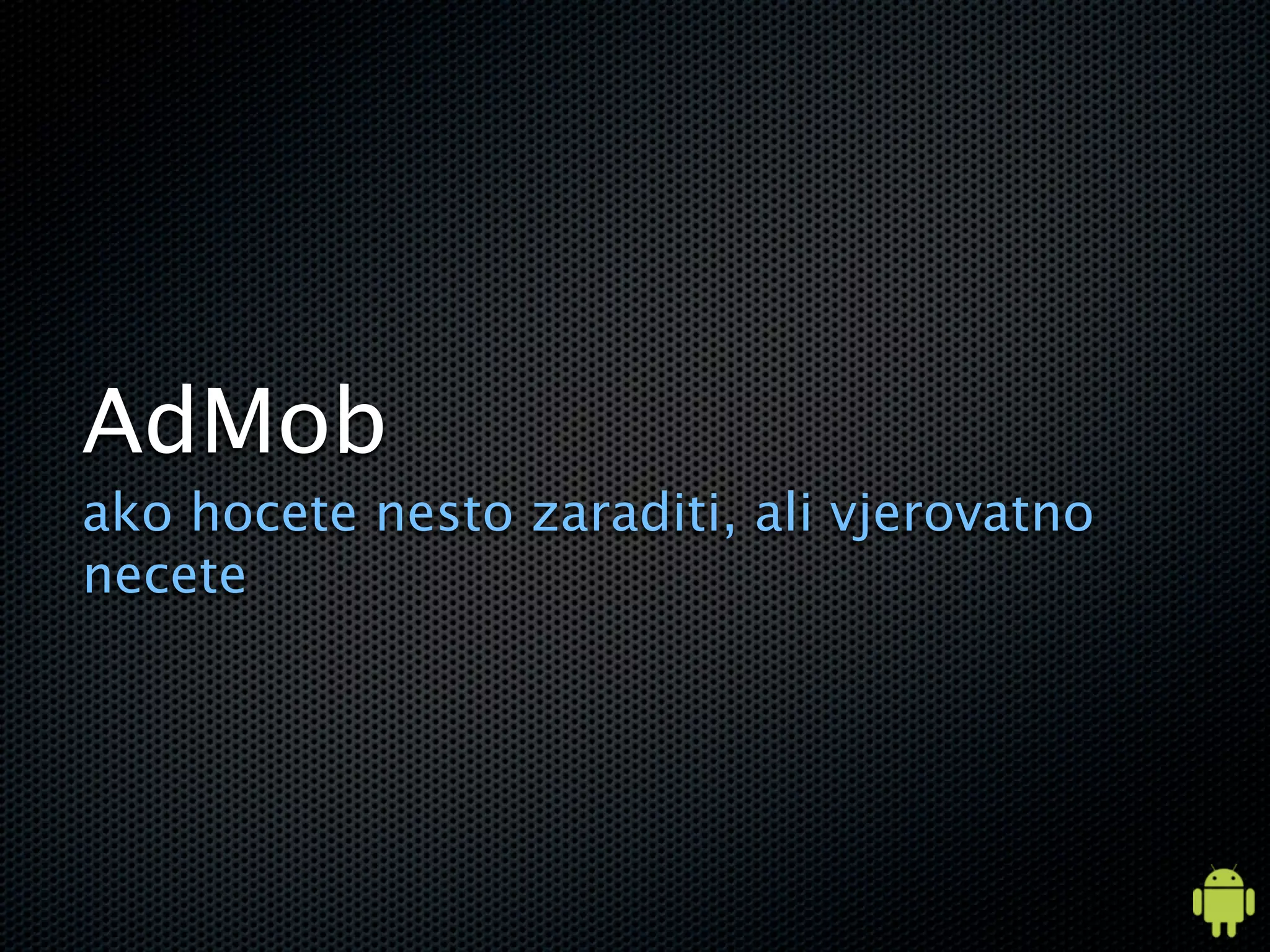

- 73. AdMob ako hocete nestozaraditi, ali vjerovatno necete
- 74.

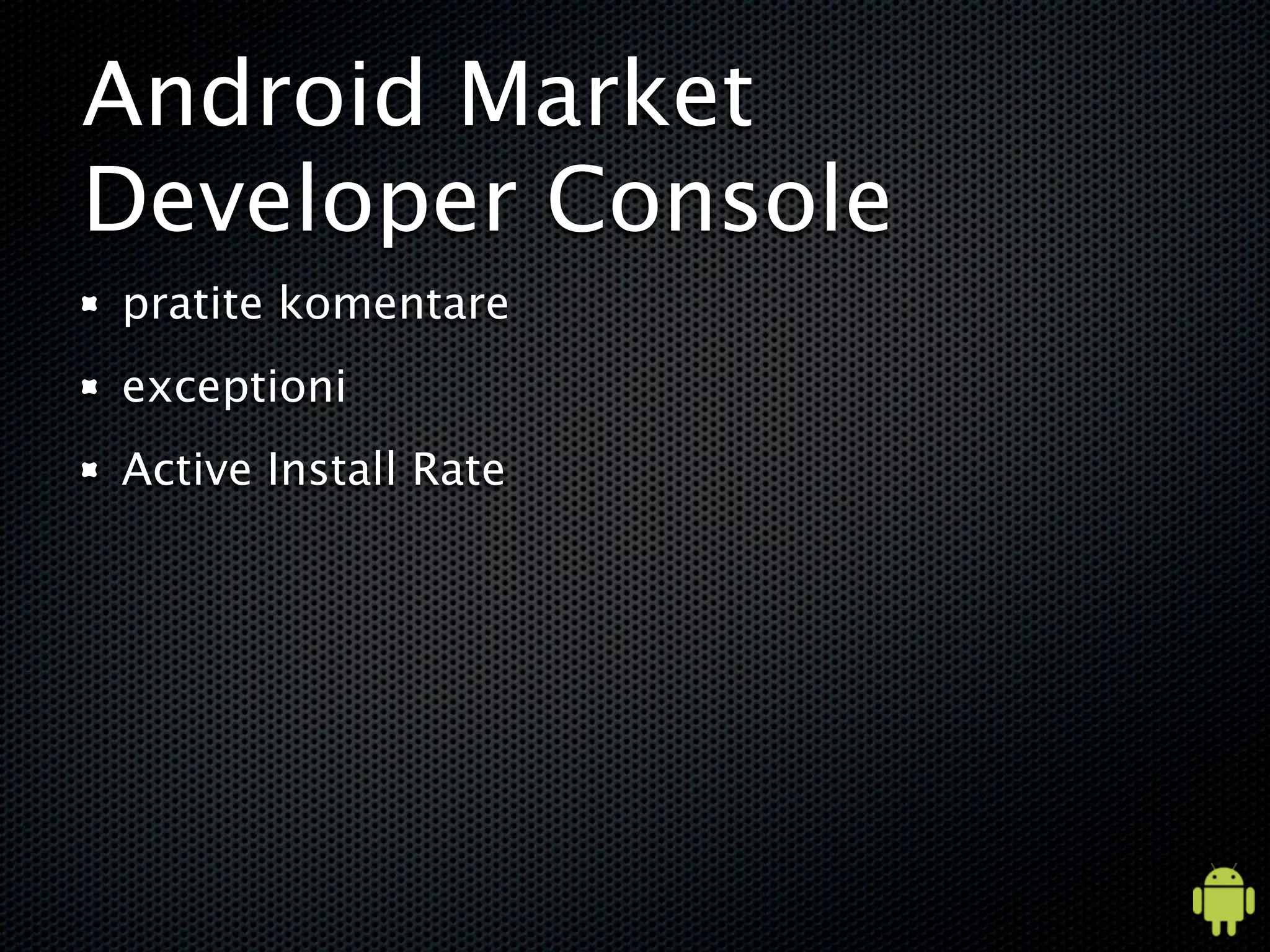

- 75. Android Market Developer Console pratitekomentare exceptioni Active Install Rate

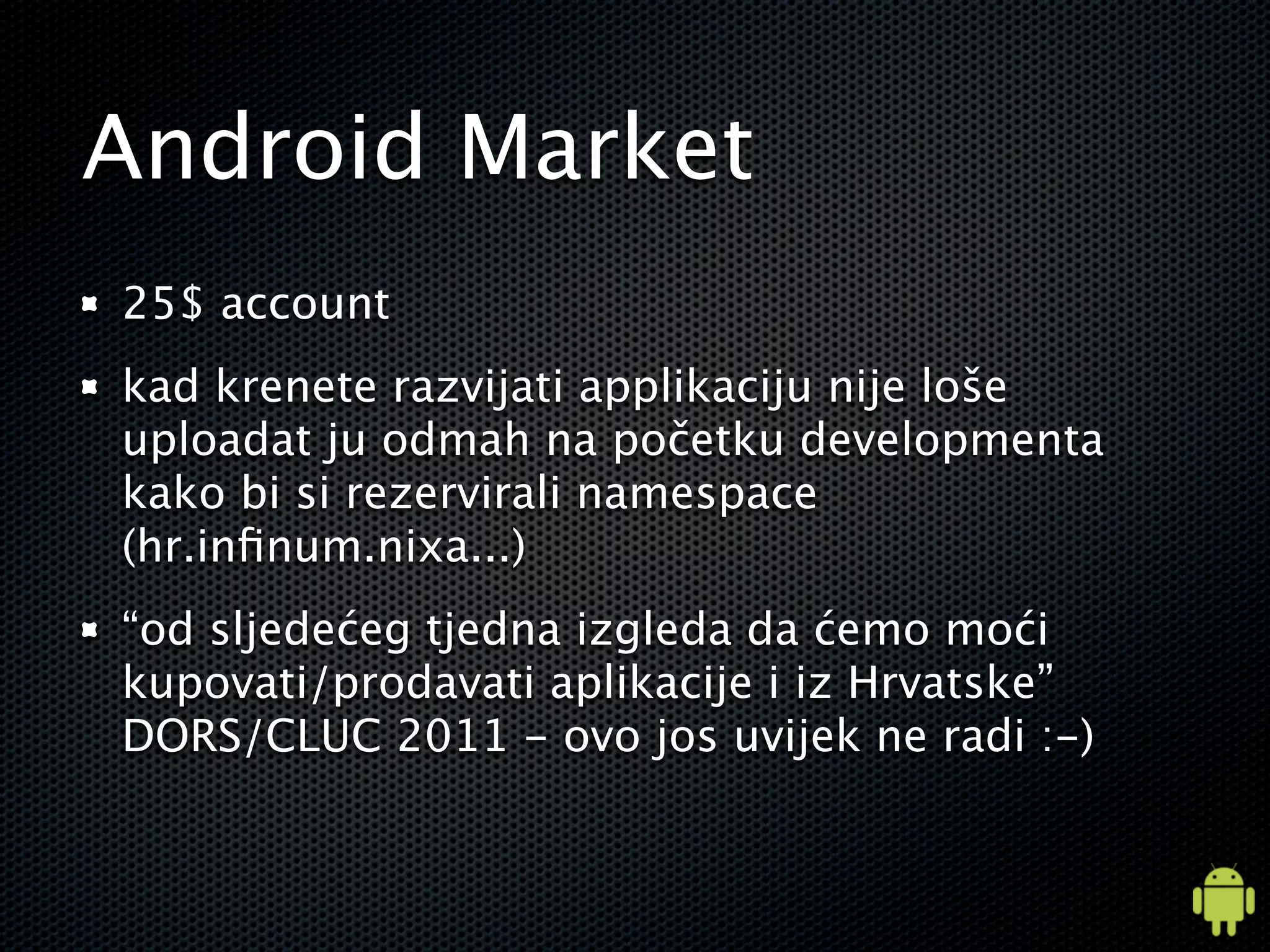

- 76. Android Market 25$ account kadkrenete razvijati applikaciju nije loše uploadat ju odmah na početku developmenta kako bi si rezervirali namespace (hr.infinum.nixa...) “od sljedećeg tjedna izgleda da ćemo moći kupovati/prodavati aplikacije i iz Hrvatske” DORS/CLUC 2011 - ovo jos uvijek ne radi :-)
- 77. Lamborgini Aventador 700hp V12,2.9s do 100km/h
- 78.
- 79.
Editor's Notes
- #2 \n
- #3 \n
- #4 \n
- #5 \n
- #6 \n
- #7 \n
- #8 \n
- #9 \n
- #10 \n
- #11 \n
- #12 \n
- #13 \n
- #14 \n
- #15 \n
- #16 \n
- #17 \n
- #18 \n
- #19 \n
- #20 \n
- #21 \n
- #22 \n
- #23 \n
- #24 \n
- #25 \n
- #26 \n
- #27 \n
- #28 \n
- #29 \n
- #30 \n
- #31 \n
- #32 \n
- #33 \n
- #34 \n
- #35 \n
- #36 \n
- #37 \n
- #38 \n
- #39 \n
- #40 \n
- #41 \n
- #42 - neke stvari se mogu emulirati no ne sve\n- recimo emuliranje kamere, telefonskih poziva i slicno radi\n- ne moze se emulirati sensore, slobodno pokusajte tresti laptop, ali ne moj!\n- network bandwidth se moze mijenjati\n
- #43 \n

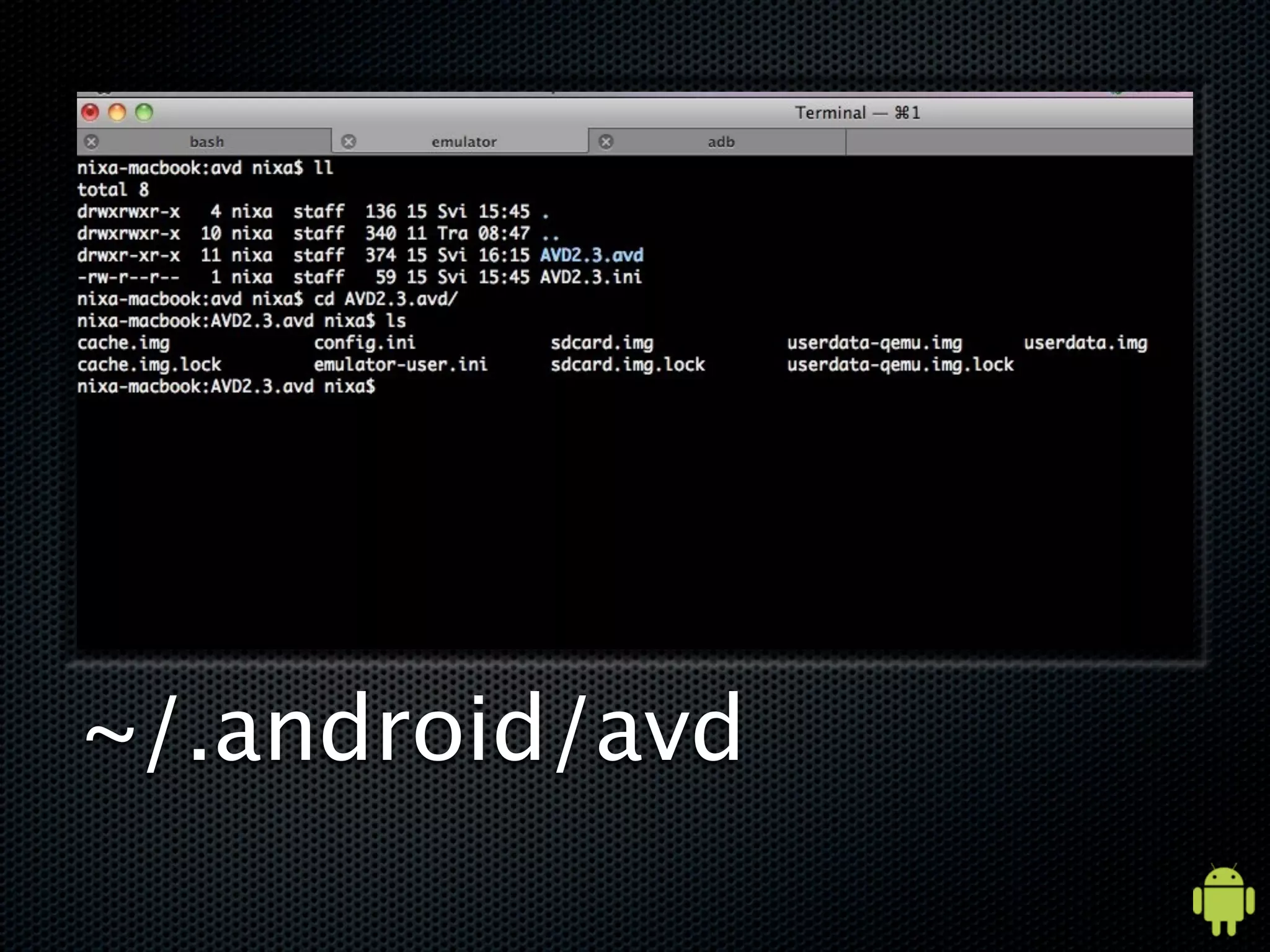

- #44 pokazati ini file\ngdje se nalazi SD kartica i slicno\nmksdcard za napraviti karticu rucno\nprilikom stvaranja AVD-a mozemo izabrati ili velicinu ili datoteku\n
