The document provides information about the Andrew ATSBT-BOTTOM-FM Teletilt® Bottom Smart Bias Tee, including how to purchase it, specifications, certifications, warranty, and related services from Launch 3 Telecom. The bias tee injects AISG power and control signals onto a coaxial cable to reduce cable and site costs by eliminating separate AISG cables. It has an operating frequency band of 698-2180 MHz and supports AISG 1.1 and 2.0 protocols. Launch 3 Telecom offers same-day shipping for orders received by 3PM as well as repair services for the bias tee and other telecom equipment.

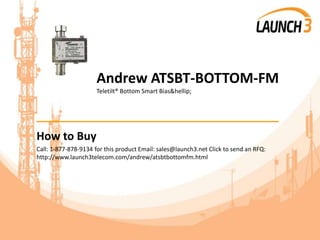

2. Andrew ATSBT-BOTTOM-FM
Teletilt® Bottom Smart Bias…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/atsbtbottomfm.html

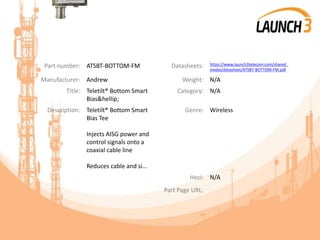

3. Part number: ATSBT-BOTTOM-FM Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/ATSBT-BOTTOM-FM.pdf
Manufacturer: Andrew Weight: N/A
Title: Teletilt® Bottom Smart
Bias…
Category: N/A
Description: Teletilt® Bottom Smart
Bias Tee
Injects AISG power and
control signals onto a
coaxial cable line
Reduces cable and si...
Genre: Wireless
Heci: N/A
Part Page URL:

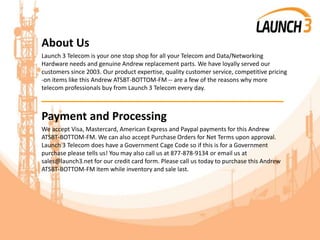

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew ATSBT-BOTTOM-FM -- are a few of the reasons why more
telecom professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
ATSBT-BOTTOM-FM. We can also accept Purchase Orders for Net Terms upon approval.
Launch 3 Telecom does have a Government Cage Code so if this is for a Government
purchase please tells us! You may also call us at 877-878-9134 or email us at
sales@launch3.net for our credit card form. Please call us today to purchase this Andrew
ATSBT-BOTTOM-FM item while inventory and sale last.

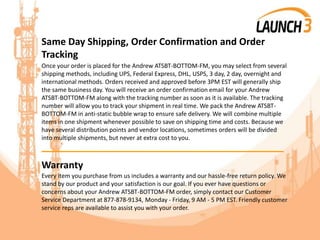

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew ATSBT-BOTTOM-FM, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
ATSBT-BOTTOM-FM along with the tracking number as soon as it is available. The tracking
number will allow you to track your shipment in real time. We pack the Andrew ATSBT-
BOTTOM-FM in anti-static bubble wrap to ensure safe delivery. We will combine multiple
items in one shipment whenever possible to save on shipping time and costs. Because we
have several distribution points and vendor locations, sometimes orders will be divided
into multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew ATSBT-BOTTOM-FM order, simply contact our Customer
Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer
service reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
ATSBT-BOTTOM-FM, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

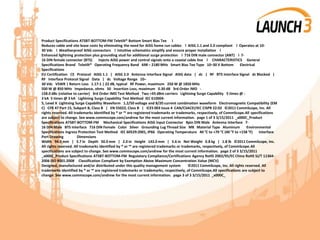

7. Product Specifications ATSBT-BOTTOM-FM Teletilt® Bottom Smart Bias Tee l
Reduces cable and site lease costs by eliminating the need for AISG home run cables l AISG 1.1 and 2.0 compliant l Operates at 10-
30 Vdc l Weatherproof AISG connectors l Intuitive schematics simplify and ensure proper installation l
Enhanced lightning protection plus grounding stud for additional surge protection l 716 DIN male connector (ANT) l 7-
16 DIN female connector (BTS) Injects AISG power and control signals onto a coaxial cable line l CHARACTERISTICS General
Specifications Brand Teletilt® Operating Frequency Band 698 – 2180 MHz Smart Bias Tee Type 10–30 V Bottom Electrical
Specifications
EU Certification CE Protocol AISG 1.1 | AISG 2.0 Antenna Interface Signal AISG data | dc | RF BTS Interface Signal dc Blocked |
RF Interface Protocol Signal Data | dc Voltage Range 10–
30 Vdc VSWR | Return Loss 1.17:1 | 22 dB, typical RF Power, maximum 250 W @ 1850 MHz
500 W @ 850 MHz Impedance, ohms 50 Insertion Loss, maximum 0.30 dB 3rd Order IMD -
158.0 dBc (relative to carrier) 3rd Order IMD Test Method Two +43 dBm carriers Lightning Surge Capability 5 times @ -
3 kA 5 times @ 3 kA Lightning Surge Capability Test Method IEC 610004-
5, Level X Lightning Surge Capability Waveform 1.2/50 voltage and 8/20 current combination waveform Electromagnetic Compatibility (EM
C) CFR 47 Part 15, Subpart B, Class B | EN 55022, Class B | ICES 003 Issue 4 CAN/CSACEI/IEC CISPR 22:02 ©2011 CommScope, Inc. All
rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications
are subject to change. See www.commscope.com/andrew for the most current information. page 1 of 3 3/15/2011 _x000C_Product
Specifications ATSBT-BOTTOM-FM Mechanical Specifications AISG Input Connector 8pin DIN Male Antenna Interface 7-
16 DIN Male BTS Interface 716 DIN Female Color Silver Grounding Lug Thread Size M8 Material Type Aluminum Environmental
Specifications Ingress Protection Test Method IEC 60529:2001, IP66 Operating Temperature 40 °C to +70 °C (40 °F to +158 °F) Interface
Port Drawing Dimensions
Width 94.0 mm | 3.7 in Depth 50.0 mm | 2.0 in Height 143.0 mm | 5.6 in Net Weight 0.8 kg | 1.8 lb ©2011 CommScope, Inc.
All rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All
specifications are subject to change. See www.commscope.com/andrew for the most current information. page 2 of 3 3/15/2011
_x000C_Product Specifications ATSBT-BOTTOM-FM Regulatory Compliance/Certifications Agency RoHS 2002/95/EC China RoHS SJ/T 11364-
2006 ISO 9001:2008 Classification Compliant by Exemption Above Maximum Concentration Value (MCV)
Designed, manufactured and/or distributed under this quality management system ©2011 CommScope, Inc. All rights reserved. All
trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to
change. See www.commscope.com/andrew for the most current information. page 3 of 3 3/15/2011 _x000C_
