2. Andrew SFX-ADMR
7-16 DIN Male Right Angle for…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/sfxadmr.html

3. Part number: SFX-ADMR Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/SFX-ADMR.pdf
Manufacturer: Andrew Weight: 2.0 grams
Title: 7-16 DIN Male Right
Angle for…
Category: N/A
Description: 7-16 DIN Male Right
Angle for 3/8 in SFX-500
cable. 50 OHM, 0 6000
MHz
Genre: Wireless
Heci: N/A
Part Page URL:

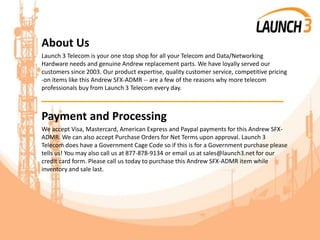

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew SFX-ADMR -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew SFX-
ADMR. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew SFX-ADMR item while
inventory and sale last.

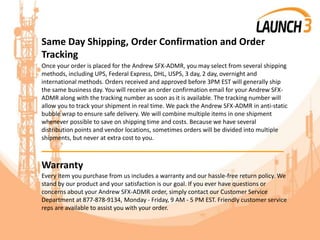

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew SFX-ADMR, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew SFX-
ADMR along with the tracking number as soon as it is available. The tracking number will
allow you to track your shipment in real time. We pack the Andrew SFX-ADMR in anti-static
bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew SFX-ADMR order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
SFX-ADMR, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

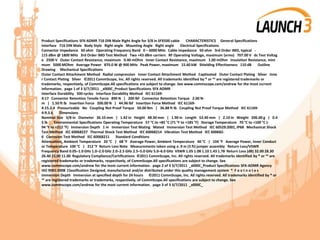

7. Product Specifications SFX-ADMR 716 DIN Male Right Angle for 3/8 in SFX500 cable CHARACTERISTICS General Specifications
Interface 716 DIN Male Body Style Right angle Mounting Angle Right angle Electrical Specifications
Connector Impedance 50 ohm Operating Frequency Band 0 – 6000 MHz Cable Impedance 50 ohm 3rd Order IMD, typical -
115 dBm @ 1800 MHz 3rd Order IMD Test Method Two +43 dBm carriers RF Operating Voltage, maximum (vrms) 707.00 V dc Test Voltag
e 2500 V Outer Contact Resistance, maximum 0.40 mOhm Inner Contact Resistance, maximum 1.00 mOhm Insulation Resistance, mini
mum 5000 MOhm Average Power 870.0 W @ 900 MHz Peak Power, maximum 15.60 kW Shielding Effectiveness 110 dB Outline
Drawing Mechanical Specifications
Outer Contact Attachment Method Radial compression Inner Contact Attachment Method Captivated Outer Contact Plating Silver Inne
r Contact Plating Silver ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or
trademarks, respectively, of CommScope.All specifications are subject to change. See www.commscope.com/andrew for the most current
information. page 1 of 3 3/7/2011 _x000C_Product Specifications SFX-ADMR
Interface Durability 500 cycles Interface Durability Method IEC 61169-
4:17 Connector Retention Tensile Force 890 N | 200 lbf Connector Retention Torque 2.00 N-
m | 1.50 ft lb Insertion Force 200.00 N | 44.96 lbf Insertion Force Method IEC 61169-
4:15.2.4 Pressurizable No Coupling Nut Proof Torque 50.00 Nm | 36.88 ft lb Coupling Nut Proof Torque Method IEC 61169-
4:9.3.6 Dimensions
Nominal Size 3/8 in Diameter 36.10 mm | 1.42 in Height 48.30 mm | 1.90 in Length 53.40 mm | 2.10 in Weight 206.00 g | 0.4
5 lb Environmental Specifications Operating Temperature 57 °C to +85 °C (71 °F to +185 °F) Storage Temperature 70 °C to +100 °C (-
94 °F to +212 °F) Immersion Depth 1 m Immersion Test Mating Mated Immersion Test Method IEC 60529:2001, IP68 Mechanical Shock
Test Method IEC 60068227 Thermal Shock Test Method IEC 60068214 Vibration Test Method IEC 600682-
6 Corrosion Test Method IEC 60068211 Standard Conditions
Attenuation, Ambient Temperature 20 °C | 68 °F Average Power, Ambient Temperature 40 °C | 104 °F Average Power, Inner Conduct
or Temperature 100 °C | 212 °F Return Loss Note Measurements taken using a .9 m (3 ft) jumper assembly Return Loss/VSWR
Frequency Band 0.05–1.0 GHz 1.0–2.0 GHz 2.0–2.5 GHz 2.5–5.0 GHz 5.0–6.0 GHz VSWR 1.05 1.08 1.10 1.43 1.78 Return Loss (dB) 32.00 28.30
26.40 15.00 11.00 Regulatory Compliance/Certifications ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are
registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See
www.commscope.com/andrew for the most current information. page 2 of 3 3/7/2011 _x000C_Product Specifications SFX-ADMR Agency
ISO 9001:2008 Classification Designed, manufactured and/or distributed under this quality management system * F o o t n o t e s
Immersion Depth Immersion at specified depth for 24 hours ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or
™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See
www.commscope.com/andrew for the most current information. page 3 of 3 3/7/2011 _x000C_
