This document provides product details and specifications for an Andrew E15Z01P17 TMA, 850/1900 MHz OneBase tower mounted amplifier. It includes information on how to purchase the product, payment options, same-day shipping, warranty, available services, and detailed technical specifications for the amplifier's electrical performance, mechanical properties, environmental specifications, and regulatory compliance.

2. Andrew E15Z01P17
TMA, 850/1900 MHz OneBase…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/e15z01p17.html

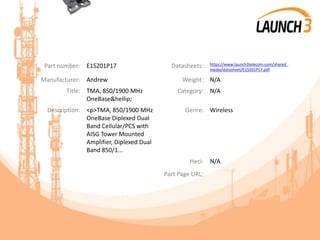

3. Part number: E15Z01P17 Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/E15Z01P17.pdf
Manufacturer: Andrew Weight: N/A
Title: TMA, 850/1900 MHz
OneBase…
Category: N/A
Description: <p>TMA, 850/1900 MHz
OneBase Diplexed Dual
Band Cellular/PCS with
AISG Tower Mounted
Amplifier, Diplexed Dual
Band 850/1...
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew E15Z01P17 -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
E15Z01P17. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew E15Z01P17 item while
inventory and sale last.

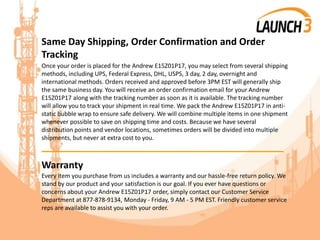

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew E15Z01P17, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
E15Z01P17 along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Andrew E15Z01P17 in anti-
static bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew E15Z01P17 order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
E15Z01P17, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

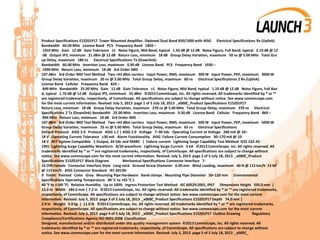

7. Product Specifications E15Z01P17 Tower Mounted Amplifier, Diplexed Dual Band 850/1900 with AISG Electrical Specifications Rx (Uplink)
Bandwidth 60.00 MHz License Band PCS Frequency Band 1850 –
1910 MHz Gain 12 dB Gain Tolerance ±1 Noise Figure, Mid Band, typical 1.50 dB @ 12 dB Noise Figure, Full Band, typical 2.10 dB @ 12
dB Output IP3, minimum 21 dBm @ 12 dB Return Loss, minimum 18 dB Group Delay Variation, maximum 50 ns @ 5.00 MHz Total Gro
up Delay, maximum 180 ns Electrical Specifications Tx (Downlink)
Bandwidth 60.00 MHz Insertion Loss, maximum 0.90 dB License Band PCS Frequency Band 1930 –
1990 MHz Return Loss, minimum 18 dB 3rd Order IMD -
107 dBm 3rd Order IMD Test Method Two +43 dBm carriers Input Power, RMS, maximum 300 W Input Power, PEP, maximum 3000 W
Group Delay Variation, maximum 20 ns @ 5.00 MHz Total Group Delay, maximum 60 ns Electrical Specifications 2 Rx (Uplink)
License Band Cellular Frequency Band 824 –
849 MHz Bandwidth 25.00 MHz Gain 12 dB Gain Tolerance ±1 Noise Figure, Mid Band, typical 1.10 dB @ 12 dB Noise Figure, Full Ban
d, typical 1.70 dB @ 12 dB Output IP3, mimimum 25 dBm ©2013 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™
are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com
for the most current information. Revised: July 5, 2013 page 1 of 5 July 18, 2013 _x000C_Product Specifications E15Z01P17
Return Loss, minimum 18 dB Group Delay Variation, maximum 270 ns @ 5.00 MHz Total Group Delay, maximum 370 ns Electrical
Specifications 2 Tx (Downlink) Bandwidth 25.00 MHz Insertion Loss, maximum 0.50 dB License Band Cellular Frequency Band 869 –
894 MHz Return Loss, minimum 18 dB 3rd Order IMD -
107 dBm 3rd Order IMD Test Method Two +43 dBm carriers Input Power, RMS, maximum 500 W Input Power, PEP, maximum 5000 W
Group Delay Variation, maximum 25 ns @ 5.00 MHz Total Group Delay, maximum 65 ns Electrical Specifications
Default Protocol AISG 2.0 Protocol AISG 1.1 | AISG 2.0 Voltage 7–30 Vdc Operating Current at Voltage 240 mA @ 10–
18 V Operating Current Tolerance ±30 mA Alarm Functionality AISG Failure Current Consumption 30–170 mA @ 10-
18 V RET System Compatible 1 Output, 24 Vdc and RS485 | Failure current Lightning Surge Capability Test Method IEEE C62.42-
1991 Lightning Surge Capability Waveform 8/20 waveform Lightning Surge Current 5 kA ©2013 CommScope, Inc. All rights reserved. All
trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without
notice. See www.commscope.com for the most current information. Revised: July 5, 2013 page 2 of 5 July 18, 2013 _x000C_Product
Specifications E15Z01P17 Block Diagram Mechanical Specifications Connector Interface 7-
16 DIN Female Connector Interface Style Long neck Ground Screw Diameter 6.00 mm Wind Loading, maximum 60 N @ 115 km/h 13 lbf
@ 115 km/h AISG Connector Standard IEC 60130-
9 Finish Painted Color Gray Mounting Pipe Hardware Band clamps Mounting Pipe Diameter 50–120 mm Environmental
Specifications Operating Temperature 40 °C to +65 °C (-
40 °F to +149 °F) Relative Humidity Up to 100% Ingress Protection Test Method IEC 60529:2001, IP67 Dimensions Height 330.0 mm |
13.0 in Width 184.0 mm | 7.2 in ©2013 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current
information. Revised: July 5, 2013 page 3 of 5 July 18, 2013 _x000C_Product Specifications E15Z01P17 Depth 74.0 mm |
2.9 in Weight 5.0 kg | 11.0 lb ©2013 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current
information. Revised: July 5, 2013 page 4 of 5 July 18, 2013 _x000C_Product Specifications E15Z01P17 Outline Drawing Regulatory
Compliance/Certifications Agency ISO 9001:2008 Classification
Designed, manufactured and/or distributed under this quality management system ©2013 CommScope, Inc. All rights reserved. All
trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without
notice. See www.commscope.com for the most current information. Revised: July 5, 2013 page 5 of 5 July 18, 2013 _x000C_
